A Review of Advanced Cooling Strategies for Battery Thermal Management Systems in Electric Vehicles

1
Department of Mechanical Engineering, Dong-A University, 37 Nakdong-Daero 550, Saha-gu, Busan 49315, Republic of Korea
2
Faculty of Mechanical Engineering, Nha Trang University, 02 Nguyen Dinh Chieu Street, Nha Trang City 650000, Vietnam
*
Author to whom correspondence should be addressed.
Symmetry 2023, 15(7), 1322; https://doi.org/10.3390/sym15071322
Submission received: 9 June 2023 / Revised: 23 June 2023 / Accepted: 26 June 2023 / Published: 28 June 2023
(This article belongs to the Section Computer)

Abstract

:
Electric vehicles (EVs) offer a potential solution to face the global energy crisis and climate change issues in the transportation sector. Currently, lithium-ion (Li-ion) batteries have gained popularity as a source of energy in EVs, owing to several benefits including higher power density. To compete with internal combustion (IC) engine vehicles, the capacity of Li-ion batteries is continuously increasing to improve the efficiency and reliability of EVs. The performance characteristics and safe operations of Li-ion batteries depend on their operating temperature which demands the effective thermal management of Li-ion batteries. The commercially employed cooling strategies have several obstructions to enable the desired thermal management of high-power density batteries with allowable maximum temperature and symmetrical temperature distribution. The efforts are striving in the direction of searching for advanced cooling strategies which could eliminate the limitations of current cooling strategies and be employed in next-generation battery thermal management systems. The present review summarizes numerous research studies that explore advanced cooling strategies for battery thermal management in EVs. Research studies on phase change material cooling and direct liquid cooling for battery thermal management are comprehensively reviewed over the time period of 2018–2023. This review discusses the various experimental and numerical works executed to date on battery thermal management based on the aforementioned cooling strategies. Considering the practical feasibility and drawbacks of phase change material cooling, the focus of the present review is tilted toward the explanation of current research works on direct liquid cooling as an emerging battery thermal management technique. Direct liquid cooling has the potential to achieve the desired battery performance under normal as well as extreme operating conditions. However, extensive research still needs to be executed to commercialize direct liquid cooling as an advanced battery thermal management technique in EVs. The present review would be referred to as one that gives concrete direction in the search for a suitable advanced cooling strategy for battery thermal management in the next generation of EVs.

1. Introduction

In addition to rapidly increasing environmental pollution and global warming being major concerns worldwide, increasing energy demands have raised the issue of the depletion of fossil fuels. From 2013 to 2019, the predicted increase in worldwide CO2 emissions is 43.2 gigatons (Gt) per year, of which 14% is contributed by the transportation sector [1]. The transportation sector is dominated by IC engine vehicles which are the main reason for the excessive consumption of fuel resources and environmental degradation. EVs with outstanding advantages of zero emissions and energy saving have the most potential as a solution to the problems of environmental protection and replacement of IC engine vehicles in the future [2]. Therefore, in recent years the global transportation market is growing with the increasing demand for EVs.
Currently, Li-ion batteries are the best and most widely used source of power in EVs with their outstanding advantages of high energy density, high power factor, low self-discharge rate, good stability, and long lifecycles [3,4,5,6,7]. In order to achieve comparable performance with IC engine vehicles, EVs are incorporated with high energy density batteries. The issues of high heat generation occur in such high power-density batteries under fast and higher charging/discharging conditions [8,9]. The heat generation changes the battery operating temperature which affects the charging/discharging performance, internal electrochemical reactions, reliability, service life, and safety of the battery [10,11]. The maximum temperature and temperature uniformity of the battery should be restricted to 20–45 °C and 5 °C, respectively, to achieve the efficient and safe operations of the battery in EVs [12]. When operating outside the above range, the performance of the Li-ion battery rapidly degrades [13], the battery life shortens [14], and, in particular, it faces a thermal runaway [15], which leads to a fire and an explosion when operating at too high temperature. Battery operations at different charging/discharging rates lead to local degradation [16]. Furthermore, the battery degradation rate and aging phenomenon are accelerated when the maximum temperature of the battery module exceeds 50 °C [17]. Therefore, the research and development of a battery thermal management system is essential to bring safety, reliability, and high performance to Li-ion battery applications in EVs [18,19].
Extensive research has been conducted to develop an efficient thermal management system using conventional and advanced cooling strategies to achieve the optimal operating temperature, symmetrical temperature distribution, and prevention of a thermal runaway. The recent reviews reported on battery thermal management are listed in Table 1 to highlight the key issues covered for battery cooling using various thermal management strategies.
Currently, direct liquid cooling is a competitive advanced cooling strategy to phase change material cooling and is emerging as a new-generation cooling strategy for battery thermal management. One of the reasons for its gaining popularity as an emerging technology for direct liquid cooling is its minimal thermal resistance between coolant and battery as well as its compact and low-weight structure due to the absence of cooling plate/mini channels, unlike widely-used indirect liquid cooling for battery thermal management. Furthermore, the heat dissipation performance of direct liquid cooling is superior compared to phase change material cooling as a competitive emerging cooling strategy. Even in extreme operating conditions such as a thermal runaway, direct liquid cooling has the capability to enable safe battery operation due to the high fire point and phase transition characteristics of coolants.
Numerous reviews have been reported in recent years on battery thermal management based on various cooling strategies, primarily focusing on air cooling and indirect liquid cooling. Owing to the limitations of these conventional cooling strategies the research has been diverted to advanced cooling strategies for battery thermal management. Considerable research has been reported on phase change material cooling and direct liquid cooling as a replacement for conventional air and indirect liquid cooling for battery thermal management. There are review articles reported recently that solely focus on phase change material cooling as an advanced battery thermal management technique. However, the open literature is lacking to present a comprehensive review that solely focuses on direct liquid cooling for next-generation battery thermal management. It should be noted that there are reviews that explain the research studies on direct liquid cooling for battery thermal management but only as a subpart of the entire review. The focus of these review articles is not direct liquid cooling. Based on the conducted literature review and the authors’ knowledge, there has been no concrete review that explains the recent advancements in direct liquid cooling for battery thermal management. The present review summarizes the key research works reported in the past five years on advanced cooling strategies namely, phase change material cooling and direct liquid cooling for battery thermal management in EVs. The focus of the current review is diverted to direct liquid cooling research work, after discussing the key advancements and limitations of phase change material cooling. The outline has been drawn through the present review to further carry forward the research tasks with an aim to adopt direct liquid cooling as a commercialized advanced cooling strategy for high power density battery thermal management in next-generation EVs. The review is organized as follows: Section 2 offers an explanation of the thermal characteristics of the Li-ion battery. This is followed by a summary of various research studies on battery thermal management with conventional cooling strategies and advanced cooling strategies in Section 3 and Section 4, respectively. Finally, Section 5 highlights the key points of the review with recommendations.

2. Thermal Characteristics of Li-Ion Battery

The thermal characteristics of the Li-ion battery affect its performance and thus the autonomy of EVs. Increasing energy density causes high heat generation in Li-ion batteries under extreme operating conditions [32]. The heat generation of Li-ion batteries is directly related to their thermal behavior. The heat generation in Li-ion batteries and the thermal issues of Li-ion batteries are elaborated in Section 2.1 and Section 2.2, respectively.

2.1. Heat Generation in Li-Ion Battery

The total heat generation of a Li-ion battery is dominated by two components: namely, reversible heat and irreversible heat. The change in entropy results in reversible heat generation whereas polarization results in irreversible heat. The heat generation could be estimated using Bernardi’s equation as presented [33],
Q t o t a l = Q i r r e v e r s i b l e + Q r e v e r s i b l e
Q t o t a l = I U V I × T d U d t
In Equation (2), the irreversible heat comprises ohmic heat within battery cells and an over-potential charge transfer at the interface. In this term, the open circuit voltage and operating voltage of battery cells are presented by U and V , respectively. The reversible heat comprises entropy generation in which d U d t indicates the entropy coefficient as a function of battery cell temperature and density. The value of d U d t is either negative or positive depending on the charging/discharging modes of the battery cell and its value approaches zero when the current flow in the battery cell is terminated [25]. The battery cell is exposed to irreversible heat at high C-rates and reversible heat at low C-rates [34,35]. The accelerated rate or isothermal heat conduction calorimeter model is used to determine the irreversible heat through experiments. From the several implementation methods, the potentiometric method is commonly adopted to determine the entropy coefficient [36,37]. However, this method is complex and time-consuming hence, recently, numerous studies have been performed to accurately evaluate the entropy change. Murashko et al. proposed the heat flux measurement model to evaluate the profiles of thermal diffusivity and entropy change simultaneously [38]. Damay et al. estimated entropy variation curves using the thermal inversion model based on the calorimeter method [39]. Panchal et al. developed Bayesian Regularization based on the neural network model to predict the thermal characteristics of the battery under various discharge conditions [40]. Furthermore, Panchal et al. predicted and verified battery temperature distribution through thermos-graphic measurements based on infrared radiation [41,42]. Xie et al. proposed the electro-thermal model which predicts the thermal dynamics of the battery with an error of 0.72 °C [43].

2.2. Thermal Issues in Li-Ion Battery

A higher amount of heat is generated in the battery during fast charging and discharging operations; the heat generation at the positive tab is particularly high. The higher temperature owing to the higher heat generation affects the specific power, efficiency, and life cycle of the battery. In addition, the higher battery temperature can cause a reaction within the cathode and electrolyte, decomposition of the electrolyte and anode, and film formation at the interface of the electrolyte [44].
One of the major consequences of high battery temperature is capacity/power loss. The capacity or power loss of the battery causes a self-discharge, short life cycle, and autonomy losses. It is very complex to evaluate the capacity or power loss in batteries because of the various electrode materials and chemistries associated with them. Ineffective thermal management in the case of battery discharge operation at high temperatures is not able to dissipate the heat from the battery which results in the overheating of the battery. The carbon-based anode dissolution, cathode material with the formation of solid electrolyte formation, and crystal structure volatility pump up the internal resistance and thus it causes the capacity to fade, power reduction, and at last the energy loss of battery [45,46].
The high temperature of the battery creates the issue of an electrical imbalance which is defined as a cell-capacity difference in the battery pack because the battery capacity depends on the battery’s temperature. Under an electrical imbalance state, the energy produced by the battery pack reduces. The cell charging under an electrical imbalance condition causes the overcharging of a weak cell and thus issues of power loss and temperature rise are observed in the battery pack.
The increase in battery temperature under extreme conditions can cause thermal runaway propagation within battery cells. The thermal runaway propagation in Li-ion batteries is presented in Figure 1 [47]. The main source of thermal runaway is a larger amount of heat generation with gases as a result of exothermic reactions which starts the chain of chemical reactions during improper charging/discharging modes. The battery temperature can reach up to 500 °C when additional heat is released during thermal runaway as a result of the thermal shrink [48]. When the temperature approaches 90 °C, the metastable part within solid electrolytes decomposes exothermally. The graphite electrode, approaching 200 °C, can exothermally react with solvent at 100 °C under the condition that it is partially exposed to a solid electrolyte interface. However, this reaction could be slowed down due to the presence of LiPF6 salt. The interface of solid electrolyte decomposes on the graphite electrode during the exothermal reaction when the battery’s temperature approaches 85 °C. With a further increase in the battery’s temperature to up to 110 °C, the decomposition of the secondary layer occurs which causes electrolyte evaporation and the temperature reaches 140 °C. At this temperature, the separator can melt which creates a short circuit in the battery pack. Furthermore, the state of charge of the battery varies with the temperature of the thermal runaway [45].
The thermal issues, which occurred as consequences of the failure to maintain the operating temperature of the battery within the desired permissible limit, have been discussed. The temperature of the Li-ion battery should be maintained within the stated permissible limit to achieve the desired performance and avoid a thermal runaway. The thermal management of the battery could be addressed by implementing a suitable cooling strategy with excellent heat dissipation characteristics.

3. Battery Thermal Management with Conventional Cooling Strategies

A battery thermal management system enables control of the temperature characteristics of a battery in normal and extreme operating conditions and thus assures its safety and performance [49]. An efficient battery thermal management system can prevent electrolyte freezing, lithium plating, and thermal runaways, helping to provide favorable operating conditions for Li-ion batteries [50]. The commercially employed battery thermal management system includes air cooling and indirect liquid cooling as conventional cooling strategies. This section summarizes recent improvements implemented on air and indirect liquid cooling systems for efficient battery thermal management.

3.1. Air Cooling

Numerous research studies have been conducted with several design improvements to enhance the efficiency of air-cooling-based battery thermal management systems as listed in Table 2.
The battery thermal management system with air cooling is widely used in EVs owing to its advantages such as low cost, simple structure, easy installation, and maintenance, as well as the lower weight of the overall system and lack of leakage when compared with other cooling techniques [55]. However, the air has poor thermophysical properties, so the air-cooled battery thermal management system is only suitable for applications with low heat dissipation requirements. When operating in extreme conditions, it cannot control the temperature rise and maintain a uniform temperature of the battery pack [59].
As an alternative to air cooling, indirect liquid cooling has gained popularity as a widely adopted commercial battery thermal management technique owing to the superior thermophysical properties of liquid compared to air [30]. Indirect liquid cooling enables better control over temperature rise and assures great improvement in temperature uniformity for the battery when compared to air cooling [20].

3.2. Indirect Liquid Cooling

In the indirect liquid cooling-based battery thermal management system, the cooling liquid has no direct contact with the battery cell surface, but heat exchange between the battery and the cooling liquid occurs through a cold plate, tube, or jacket [25]. Some of the liquids used in indirect cooling systems are water, nanofluids, liquid metals, or glycol/water mixtures [31]. The summary of recent advancements in indirect liquid cooling-based battery thermal management systems is explained in Table 3.
However, indirect liquid cooling systems have the limitation of high thermal resistance due to the use of a cold plate, tube, or jacket cooling for heat exchange, resulting in reduced heat transfer efficiency [30]. In addition, the structure of the cooling system is more complicated, the cost is higher, and the weight is heavier. In particular, coolant leakage is also a concern [75]. Therefore, optimizing the design and structure of indirect liquid cooling is very important to improve the overall cooling performance. Despite the superior heat transfer coefficient in comparison to air cooling and several structure modifications, the key limitations associated with indirect liquid cooling unfavored its effectiveness for the next generation of EV battery packs with higher power densities. This issue demands the search for advanced cooling strategies which can serve as next-generation battery thermal management techniques. In this search, two advanced cooling strategies, namely phase change material cooling and direct liquid cooling, have been widely researched during the last five years.

4. Battery Thermal Management System with Advanced Cooling Strategies

Phase change material cooling and direct liquid cooling are elaborated as advanced cooling strategies for battery thermal management systems in the present review. In phase change material cooling, the battery is surrounded by materials that absorb the heat generated by the battery during charging/discharging operations. This material changes its phase owing to the heat absorbed from the battery and thus maintains the optimum temperature of the battery. Phase change material cooling is considered a passive battery thermal management technique. In direct liquid cooling, the coolant with high electrical resistance makes direct contact with the battery surface and absorbs the heat during battery operations. Thus, the battery’s optimal temperature is maintained due to direct heat dissipation from the battery to the coolant. Direct liquid cooling could be considered an active as well as passive battery thermal management technique. The recent advancements in battery thermal management considering phase change material cooling and direct liquid cooling between the years 2018–2023 are summarized in Section 4.1 and Section 4.2, respectively.

4.1. Phase Change Material Cooling

Huang et al. conducted an experimental study to evaluate the cooling efficiency of thermal management systems for cylindrical Li-ion batteries by comparing pure phase change material, combined heat pipe with air-assisted phase change material (PCM/HP-Air), heat pipe combined with liquid-assisted phase change material (PCM/HP-Liquid) cooling. The battery thermal management system with three cooling configurations is shown in Figure 2. Compared to pure phase change material cooling and PCM/HP-Air cooling, PCM/HP-Liquid cooling shows a longer working time to achieve a temperature of 44 °C and exhibits better temperature control with the highest possible temperature being maintained at 50 °C at a discharge rate of 3C. The battery temperature comparison for the three cooling configurations under various discharge conditions is depicted in Figure 3. Furthermore, the temperature non-uniformity of the battery module for PCM/HP-Liquid cooling is about 3 °C lower than the other two cooling methods. During the cycle test at a 3C discharge rate, PCM/HP-Liquid cooling achieves the same temperature profile stability as the first cycle, with the average temperature being maintained at about 45 °C. In contrast, the other two cooling methods show a continuously rising temperature profile, especially for pure phase change material cooling [76].
Koyama et al. employed trimethylolethane (TME) hydrate-based phase change material cooling for the thermal management of Li-ion batteries in EVs. The maximum battery temperature was maintained at 29.6 °C with the largest heat dissipation of 190.1 kJ kg−1 for the proposed phase change material cooling at the mass fraction of 0.60 [77]. Gou et al. investigated the maximum temperature and the temperature uniformity of batteries in EVs by comparing phase change material cooling, and heat-pipe-assisted phase change material cooling. The maximum battery temperature is maintained within 35.5 °C and 31.5 °C for phase change material cooling and heat-pipe-assisted phase change material cooling, respectively. The heat-pipe-assisted phase change material cooling demonstrates the best thermal performance for the battery with a maximum temperature and temperature uniformity of 33.8 °C and 0.9 °C, respectively, at a 3C discharge rate [78]. Zhao et al. showed improved maximum temperature and temperature uniformity for copper/paraffin foam composite phase change material cooling. The maximum temperature of the battery is 39 °C in the case of pure phase change material cooling whereas, the copper/paraffin foam composite phase change material cooling depicts a 14 °C lower maximum temperature of battery compared to pure phase change material cooling. The battery temperature distribution contours for pure phase change material and composite phase change material cooling are shown in Figure 4 [79]. Kshetrimayum et al. researched a cooling method that integrates the phase change material and microchannel cooling plate to manage the temperature of the battery module, prevent heat propagation, and thermal runaways due to nail penetration. The pure phase change material cooling could not prevent the thermal abuse of battery cells under nail penetration however, the phase change material integrated with microchannel cooling maintains the operating temperature of battery module within 317 K. This indicates that the phase change material design approach with an integrated microchannel cooling plate has a higher thermal efficiency than the design without a microchannel cooling plate [80]. Jiang et al. investigated a method for battery thermal management in EVs using phase change material incorporating a heat pipe. The melting point temperature of phase change material should be at least 3 °C higher than the ambient temperature to maintain the latent heat stability of phase transition materials. Hence, considering the melting point temperature of phase change material, the heat transfer coefficient at the condenser side of the heat pipe is effective for the proposed combined cooling to achieve battery safety when operating for longer amounts of time, and for the energy saving and energy density of the battery module [81]. Zhang et al. conducted an experimental study to evaluate the cooling efficiency of a large-sized power battery module for phase change material based on liquid cooling. Combining phase change material with liquid cooling provides excellent efficiency in controlling the maximum temperature and temperature uniformity of the battery module. Compared to liquid cooling, the phase change material with liquid cooling reduces the maximum temperature and temperature uniformity of battery module by 10.6 °C and 1.7 °C, respectively. In addition, the phase change material with liquid cooling restricts the maximum temperature and temperature uniformity of battery module at 50 °C and 3.4 °C, respectively, under continuous test cycles [82].
Putra et al. compared the performance of battery thermal management for EVs considering that heat pipe cooling was integrated with the two types of phase change materials. The heat pipe cooling with beeswax and Rubitherm RT 44 HC type phase change materials show a reduction of the battery’s surface temperature by 31.9 °C and 33.2 °C, respectively, compared with passive cooling. The RT 44 HC has been suggested as an optimal phase change material for battery thermal management, since its melting point is within the battery temperature range and uses latent heat to store thermal energy. In contrast, beeswax phase change material can only use its sensible heat within the battery′s operating temperature range [83]. Nofal et al. developed phase change material composites consisting of expanded graphite and paraffin wax (PW/EG) using a 3D printing technique to improve the temperature uniformity, operating safety, and service life of Li-ion battery. The developed 3D-printing-based phase change materials achieve comparable efficiency of battery thermal management as a phase change material developed by conventional techniques with issues of complex and lenghty manufacturing processes and wastage of material [84].
Sun et al. proposed a new method to improve the low thermal conductivity of phase change material as well as improve the efficiency of battery thermal management for EVs by combining phase change material and fin in straight and arc shapes. The heat exchange area has been significantly improved with the additional design of the fin structure, which contributes to improving the efficiency of the heat dissipation process generated in the battery during operation. The combined method of phase change material and fin structure has greatly improved the safe operation time of battery from 54% to 90% compared to the standalone phase change material cooling system. The results also demonstrated that the battery thermal management system with the combination of phase change material and fin achieves increment in working time by 157%, 189%, and 238% at ambient temperatures of 20 °C, 30 °C, and 40 °C, respectively, compared with standalone phase change material cooling systems [85]. Chen et al. studied the method of phase change material cooling combined with a heat pipe to evaluate the performance of battery thermal management system for EVs. The combined heat pipe with phase change material cooling significantly reduces the temperature of the battery when compared to standalone heat pipe cooling. The maximum temperature of the battery reduces as the equivalent thermal conductivity of the phase change material improves for the proposed combined cooling. However, to enhance the temperature uniformity of the battery, the melting point temperature of the phase change material should be lower than the heat pipe’s initial temperature for the combined cooling. An improvement of 30% is observed in the temperature uniformity of the battery pack after the optimization of the phase change material’s thickness distribution [86]. Yang et al. proposed a new honeycomb-like thermal management system that integrates a hexagonal cooling plate with a bionic liquid mini-channel and a phase change material to improve the cooling performance of cylindrical Li-ion batteries. The proposed hexagonal cooling-plate-based thermal management system reduces the maximum temperature, temperature difference, and pressure drop for the battery module by 0.36 K, 2.3 K, and 4.37 Pa, respectively, compared to the rectangular cooling-plate-based thermal management system. The suggested hybrid cooling maintains the maximum temperature, temperature difference, and pressure drop for the battery module at 309.15 K, 3.8 K, and 11.95 Pa, respectively, under a discharge current of 32.2 A. The back propagation neural network is developed to predict the inlet flow rate in the case of proposed hybrid cooling according to the driving cycle and ambient conditions for which the maximum temperature and temperature difference of the battery module is maintained at 312.0 K and 3.5 K, respectively [87].
Youssef et al. proposed a phase change material with jute fiber cooling to improve thermal performance, energy saving, weight reduction, and environmental sustainability of battery thermal management systems in EVs. The maximum temperatures of the battery for no-cooling, phase change material cooling, and phase change material with jute fiber cooling are 47.27 °C, 41.06 °C, and 36.29 °C, respectively [88].
Fan et al. proposed a new method of battery thermal management by combining phase change material and multistage Tesla valve liquid cooling. The proposed combined cooling system can maintain the peak temperature, temperature uniformity, and pressure drop for the battery at 33.12 °C, 1.5 °C, and 647.8 Pa, respectively. Furthermore, the peak temperature and temperature uniformity are constrained within 39.53 °C and 2.6 °C, respectively, under high discharge conditions using phase change material with multistage Tesla valve liquid cooling. The energy consumption reduces by 79.9% for the proposed combined cooling compared to the phase change material-based linear channel cooling plate [13]. Wang et al. presented a new design for the thermal management system of a cylindrical battery using a combination of phase change material and a wavy microchannel cold plate as shown in Figure 5. The heat storage capacity of the proposed combined cooling system could be improved by increasing the thickness and height of the phase change material. The temperature distributions for combined phase change material with wavy microchannel cold plate cooling and wavy microchannel cold plate cooling are shown in Figure 6. The combined phase change material with wavy microchannel cold plate cooling shows that the maximum temperature and temperature uniformity of the battery is lower by 2.3 K and 0.5 K, respectively when compared to wavy microchannel cold plate cooling. In addition, the weight of phase change material with the wavy microchannel cold plate cooling system is 45% lower than the wavy microchannel cold plate cooling system [14]. Yang et al. proposed combined cooling strategy comprising phase change material/aluminum foam composite with parallel Z-style liquid cooling channels for battery thermal management system in EVs. Compared with the baseline cold plate design, the hybrid cold plate design can reduce the total weight of the system by up to 53% because the phase change material density is much lighter than that of the aluminum metal. Compared to the baseline design, the phase change material with D1 cold plate design can reduce the total power consumption by more than 90% and 50% at battery discharge rates of 1C and 2C, respectively. However, at a discharge rate of 3C, the cooling performance of phase change material with D1 cold plate design degrades. Hybrid phase change material with D1 cold plate design is beneficial only in case the heat generation rate of the battery pack is low. In contrast, hybrid phase change material with a D8 cooling plate design provides an excellent cooling performance improvement even when operating at high discharge rates. Compared to the baseline design, the hybrid phase change material with D8 cold plate design can reduce the total energy consumption by more than 50% and 85% at battery discharge rates of 2C and 3C, respectively. It is concluded that hybrid phase change material with a D8 cold plate design improves the cooling efficiency of Li-ion batteries when operating at high discharge rates [89].
The performance of phase change material cooling is superior until the point at which the battery temperature reaches the melting temperature, beyond this point the performance of phase change material cooling degrades. The thermal conductivity of phase change materials is very low, hence the heat transfer characteristics of corresponding cooling is poor. To improve the heat transfer efficiency of phase change material cooling, it needs to be added with additives or combined with other cooling techniques which make it complex and expensive. Therefore, despite significant research being conducted on phase change material cooling, the question arises as to its practical feasibility for commercial battery thermal management systems. To find a solution to this question, increasing research has been reported on direct liquid cooling for battery thermal management.

4.2. Direct Liquid Cooling

Zhoujian et al. studied a battery thermal management system with direct liquid cooling using NOVEC 7000 coolant. The proposed cooling system provides outstanding thermal management efficiency for battery, with further maximum temperature of the battery’s surface, reducing as the flow rate of coolant increases. During cyclic charging/discharging, the maximum battery surface temperature is controlled between 34 °C and 36 °C due to boiling of the NOVEC 7000 coolant [90].
Jilte et al. compared a liquid-filled battery cooling system and a liquid-circulated battery cooling system to propose an effective battery management system. The liquid-filled battery cooling system is suitable for low ambient temperature conditions and when the battery operates at a moderate discharge rate (2C). Whereas, the battery can operate at higher discharge rates with the maximum temperature maintained within safe limits using a liquid-circulated battery cooling system. The liquid-filled battery cooling system is more cost-effective than the liquid-circulated battery cooling system because it does not have components such as heat exchangers and liquid circulation pumps. However, battery temperature uniformity is better in the liquid-circulated battery cooling system [91].
Zhou et al. proposed heat-pipe-based phase change liquid cooling to improve performance of the battery’s thermal management system and control its thermal runaway. The maximum temperature and temperature difference of battery are maintained at 47 ± 1 °C and 2.1 °C, respectively, for the proposed hybrid cooling under high discharge rates and high-power cycles. Under thermal runaway conditions, the hybrid cooling effectively prevents heat propagation with a maximum cell temperature below 185 °C and stable above 14 °C for 14 s. The effectiveness of phase change liquid cooling for battery cells with overcharging conditions is shown in Figure 7 [92]. Sundin et al. evaluated the thermal management performance of batteries with single-phase liquid immersion cooling as shown in Figure 8. Immersion cooling with AmpCool AC-100 dielectric coolant maintains the average temperature of the cell at 22.5 °C, 6.2 °C lower than the temperature of the cell cooled by forced air convection [93]. Bhattacharjee et al. optimized immersion cooling-based thermal management system for Li-ion battery stack. The maximum temperature of the battery stack is 49.76 °C in case of air cooling which drops to 27.43 °C with a reduction of 44.87% in case of immersion cooling under a 2C discharge rate [94]. Hong et al. conducted a study to compare the cooling efficiency of direct two-phase refrigerant cooling with conventional liquid cooling for batteries in EVs. Direct two-phase refrigerant cooling controlled the maximum cell temperature below 45 °C even under extreme environmental conditions, whereas liquid cooling exceeded the limit under normal environmental conditions. During battery aging, compared with liquid cooling, direct two-phase refrigerant cooling provided 16.1% higher battery capacity and 15.0% lower internal resistance under harsh environmental conditions. Compared with liquid cooling, direct two-phase refrigerant cooling reduced the weight of the cooling module by up to 56% due to its compact structure with mini channels [95]. Pulugundla et al. enabled the submerged cooling of 21,700 cylindrical cell which allows direct heat transfer to a flowing dielectric coolant. The submerged-cell cooling method has a lower overall thermal resistance, resulting in a high heat transfer efficiency and a positive impact on the temperature profile of the battery cell. Furthermore, the direct contact of the flowing dielectric coolant with 90% of the outer cell surface leads to a decrease in the thermal gradient in vertical direction of the cell [96]. Wang et al. employed HFE 7000 dielectric fluid for direct liquid cooling of battery in EVs. The maximum temperature of battery module is maintained at 35.10 °C under 5C discharge rate by a forced convection heat transfer of dielectric fluid through a single phase mode. The temperature uniformity of the battery module with direct liquid cooling is improved by a heat transfer of dielectric fluid through nucleate boiling [97].
Patil et al. developed dielectric fluid immersion with tab air cooling as shown in Figure 9 for thermal management of Li-ion battery which reduces the maximum temperature of positive tab by 46.8% compared to natural convection cooling at 3C discharge rate. The proposed cooling maintains the maximum temperature of the battery pack within 40 °C at 3C and 5C discharge rates with corresponding pumping powers of 6.52 W and 81.5 W. Dielectric fluid immersion with tab air cooling improves the battery thermal performance by 9.3% superior to water/ethylene glycol cooling. Under thermal abuse conditions, the dielectric fluid immersion with tab air cooling restricts the peak cell temperature to 341.7 °C, as shown in Figure 10 [98]. Tan et al. investigated direct liquid cooling based on a hydrofluoroether (HFE-6120) coolant for the thermal management of fast-charging battery packs. The maximum temperature rise, maximum temperature difference, and temperature standard deviation of direct liquid cooling are lower than air-cooling by 96.5%, 98.7%, and 97.0%, respectively. The cooling parameters improve with a rise in energy consumption as the flow rate and height of the flow channel increase [99]. Dubey et al. compared the thermal management performance of a cylindrical Li-ion battery module with immersion cooling and cold plate cooling. Immersion cooling has 2.5–3 times higher thermal conductance than cold-plate cooling. In addition, with different coolant flow rates, immersion cooling displays a 15–25 times lower pressure drop than cold plate cooling. At a lower discharge rate of 0.5C, the difference in the peak temperature of the battery for both cooling strategies was only 2 °C. However, immersion cooling showed a greater improvement in the thermal performance of the battery than the cold plate cooling at higher discharge rates [100].
Solai et al. proposed a numerical model to simulate heat transfer and electric performances of Li-ion battery packs with immersion cooling. The temperature, voltage, current, and state of health are evaluated as performance parameters for battery packs with immersion cooling. The sensitivity analysis shows that the SOH is the most influential parameter for the voltage of the battery pack and internal resistance has a considerable impact on the maximum temperature of a battery pack [101]. Li et al. conducted an experimental study to cool 18,650 Li-ion batteries by immersion with SF33 liquid under high discharge rate conditions. Under the 4C discharge rate, the temperature rises of 4.97 °C and 14.06 °C are observed for immersion cooling with SF33 liquid and forced air cooling, respectively. The maximum temperature of the battery is maintained at 34.5 °C at a 7C discharge rate for immersion cooling due to a significant increase in heat transfer coefficient as the SF33 liquid transits from single phase to two phase [102]. Wu et al. immersed Li-ion batteries in silicone oil, which is flowing, to improve safety and performance. Direct liquid cooling has the mass and volume integration ratio of the battery pack as high as 91% and 72%, respectively; 1.1 and 1.5 times that of indirect liquid cooling with the same envelope space. The maximum temperature rise and maximum temperature difference of the battery with direct liquid cooling are only 20–30% compared to that with indirect liquid cooling. The operating temperature range of the cells in the battery pack is maintained between 17.5–32.8 °C, and the temperature difference is less than 8.8 °C at 1C discharge for direct liquid cooling [103]. Liu et al. conducted a study on the battery thermal management system using static and circulating immersion cooling with transformer oil as coolant. The maximum temperature of battery is maintained within 37.35 °C for static immersion cooling which is 33% lower than air cooling. In addition, the circulating immersion cooling maintains the maximum temperature of battery within 35 °C. The temperature differences in case of static and circulating immersion cooling are observed as 3 °C and 1.5 °C, respectively. The cooling performance of the battery with circulating immersion cooling improves with the increase in flow rate of coolant. However, the flow rate of 15 mL/min is the optimum point [104]. Ezeiza et al. demonstrated a direct contact liquid cooling strategy to evaluate the maximum temperature and temperature difference of large-scale Li-ion pouch cells. The developed direct contact liquid cooling configuration with flow pattern for battery cell and module is shown in Figure 11. The maximum temperature of the battery cell is maintained at a stable 30 °C for direct liquid cooling despite the decrease in power consumption from 58.9 mW to 2.4 mW. The direct liquid cooling reduces the maximum temperature from 41.68 °C to 32.58 °C and the temperature difference from 5.71 °C to 0.36 °C, in comparison to indirect liquid cooling. The maximum temperature and temperature difference of the cell were stabilized below 38 °C and 1.3 °C, respectively, under 2C and 3C discharge rates using direct liquid cooling [105]. Wang et al. concluded that the maximum temperature of the battery module reduced from 59 °C to 40 °C (32.2%) and the highest temperature uniformity of the battery module decreased from 5 °C to 2 °C (75.3%) using liquid immersion cooling [106]. Li et al. conducted three-dimensional thermal simulations to investigate the cooling performance of a 54 V Li-ion battery pack with indirect liquid cooling and direct liquid cooling under rapid discharge conditions. The indirect liquid cooling results in a maximum temperature over 100 °C and a temperature difference of 28 °C under a 10C discharge rate. However, direct liquid cooling using HFE-7000 coolant can maintain the maximum temperature of the battery pack at 65 °C and below 35 °C in the case of single-phase and two-phase modes, respectively, under a 10C discharge rate [107]. Jithin et al. compared the cooling efficiency of single-phase liquid immersion cooling for Li-ion batteries considering different dielectric fluids. Mineral oil and engineered fluid exhibit a temperature rise of 6.1 °C and 5.2 °C, respectively, at a discharge rate of 2C, however, engineered fluid consumes 76.43% less power. Therefore, engineered fluid may be preferred over mineral oils due to their lower viscosity values. In addition, deionized water is more effective at maintaining a temperature rise below 2.2 °C at a discharge rate of 3C with a low energy consumption of 0.52 mW [108].
Le et al. proposed the manifold immersion cooling structure for the thermal management of the battery. The maximum temperature, bulk temperature non-uniformity and surface temperature non-uniformity of battery pack are achieved as 35.06 °C, 6.66 °C, and 3.52 °C, respectively for the optimized manifold immersion cooling structure at a 5C discharge rate [109]. Liu et al. researched an immersion cooling system subjected to static and flowing mineral oil to investigate the thermal behavior of a battery. The battery maximum temperature is controlled within 35 °C and 30 °C for the immersion cooling system with an oil flow rate of 5 mL/min and 15 mL/min, respectively, under a 4C discharge rate [110]. Ezeiza et al. conducted a numerical study to optimize the parameters of direct liquid cooling for a large-scale Li-ion pouch cell. The input parameters of the fluid height, number of cooling channels, number of distributors, and flow rate are optimized to determine the optimal thermal performance of the battery. The battery cell temperature comparison for direct liquid cooling with various structures of distributors is shown in Figure 12. The optimal values of maximum temperature, temperature uniformity, volumetric energy density, and power consumption are evaluated as 27.72 °C, 0.65 °C, 279.7 Wh/L, and 0.11 W, respectively, based on the conducted optimization [111]. Giammichele et al. conducted an experimental study to evaluate the cooling efficiency of a 18,650 battery with low-boiling dielectric immersion. When coolant is at boiling point, it experiences a change of phase near the battery surface and, thus, this results in a higher convective heat transfer coefficient. The greater amounts of heat absorbed during the change of phase of the coolant in the case of immersion cooling shows an almost constant battery surface temperature [112]. Williams et al. conducted an experimental study to evaluate the thermal management performance of cylindrical Li-ion battery cells with single-phase and two-phase dielectric fluid immersion cooling. The battery temperature rise is 1.64 °C in the case of two-phase immersion cooling, which increased to 6.84 °C in the case of single-phase immersion cooling under a 4C discharge rate. With different discharge rates, the two-phase immersion cooling demonstrates an outstanding cooling performance for the battery [113]. Han et al. conducted an experimental study to investigate the discharge and heat-transfer characteristics of a Li-ion battery that is directly cooled by dielectric fluid. At the discharge rate of 4C, the heat transfer coefficient is significantly improved from 1109.02 W/m2K to 2884.25 W/m2K as the coolant volume flow rate increases from 400 mL/min to 1000 mL/min. Under the same discharge rate, the battery average temperature rises from 38.94 °C to 58.06 °C owing to a decrease in the heat-transfer coefficient from 2290.19 W/m2K to 1639.79 W/m2K with an increase in coolant inlet temperature from 15 °C to 35 °C [114]. Zhou et al. proposed a battery thermal management system by immersing Li-ion cells in non-conductive dimethyl silicone oil. At a 3C discharge, flowing immersion cooling can significantly reduce the maximum temperature of the cell and the temperature of the tabs even at a flow rate of 1 mm/s when compared to natural cooling and stationary immersion cooling. However, both stationary immersion cooling and flowing immersion cooling at 1 mm/s show an increased maximum temperature difference of the cell. The maximum temperature and temperature difference of the cell can be significantly improved by increasing the flow rate and specific heat capacity of the coolant within a certain range. Increased coolant thermal conductivity can reduce the maximum temperature of the cell but has a negligible effect on the maximum temperature difference. The viscosity of the coolant has no influence on the temperature of the cell. The pressure drop of the coolant varies with the flow rate and viscosity of the coolant. The pressure drop is unaffected by the specific heat capacity and thermal conductivity of the coolant [115]. Xin et al. conducted a numerical analysis to compare the cooling performance of the battery with single-phase immersion cooling considering different flow types and directions. Compared with static-flow immersion cooling, forced-flow immersion cooling significantly reduces the maximum temperature on the battery surface and improves temperature uniformity. The inlet and outlet fluid flow in the YZ plane for immersion cooling has a low-temperature rise and the best temperature uniformity of the battery compared to other designs. The best fluid flow structure in the YZ plane with baffles for immersion reduces the maximum temperature and temperature difference of the battery by 8 °C and 15 °C, respectively, compared to other designs under a 5C discharge rate [116]. Luo et al. conducted an experimental study to evaluate the cooling performance of immersion cooling using water for the battery. A special sealing structure is designed to prevent contact between water and the battery′s electrodes. The proposed water-based immersion cooling maintains the battery’s temperature at below 50 °C with a small flow rate of 200 mL/min at a discharge rate of 3C. At a discharge rate of 2C, the maximum temperature difference of the battery pack drops below 5 °C when the cooling water flow rate increases to 500 mL/min. It is also suggested that adding a buffer structure at the inlet/outlet could reduce the negative effect of turbulent flow and improve the temperature uniformity of the battery pack. In addition, the temperature difference of the battery pack can be improved by designing multiple inlets and outlets and crossflow [117]. Guo et al. proposed a direct contact liquid-cooling system with multichannel for the thermal management of Li-ion battery modules. At a discharge rate of 3C, the maximum temperature of the battery can be maintained below 36 °C and the temperature difference of the battery is controlled at 0.65 °C through the proposed cooling system. In addition, the accessory weight ratio of the battery module is also reduced to 10.25% [118]. Ho et al. conducted an experimental study on batteries with immersion cooling using a mixture of mineral oil and graphene. At discharge rates of 1C, 2C, 3C, and 4C, the 0.025 wt% graphene-based mineral oil immersion cooling shows the battery’s temperature is 0.2–0.6 °C lower than mineral oil immersion cooling [119].
Sun et al. developed an optimized simulation model to improve the thermal performance of a cylindrical Li-ion 21,700 battery with mineral oil immersion cooling. The flow rate of mineral oil should be increased as the resistance of the battery cell increases in order to maintain the base temperature. The flow velocity of mineral oil was adjusted to 0.05 m/s and 0.12 m/s for battery cell internal resistances of 50 mΩ and 75 mΩ, respectively, at a discharge rate of 2C [120]. Wang et al. experimentally studied the Li-ion batteries with immersion phase change cooling using mixed refrigerant R1233ZD(E)/Ethanol to improve the temperature uniformity of the battery module and the cooling performance of battery thermal management systems in EVs. The proposed cooling improves the temperature uniformity of the battery up to 57% and reduces the temperature rise of the battery to 14.8% with a rise in coolant flow rate from 652 mL/min to 1086 mL/min [121]. Satyanarayana et al. experimentally investigated the battery cooling performance for direct liquid cooling with mineral oil and therminol oil as coolants under different discharge rates. The maximum temperature of the battery for forced air cooling, immersion cooling with thermal oil, and immersion cooling with mineral oil are lower by 43.83%, 49.17%, and 51.54%, respectively, compared to natural convection cooling at a 3C discharge rate. The comparison of the maximum temperature and temperature difference of the battery for immersion cooling with different cooling oils is depicted in Figure 13 [122]. Li et al. proposed FS49 liquid immersion cooling to improve the thermal performance of a cylindrical Li-ion battery module under fast charging conditions. The liquid immersion cooling shows the maximum temperature of the battery lower by 7.7 °C and 19.6 °C, and energy consumption lower by 85.6% and 59.6% when compared to forced-air cooling at discharge rates of 2C and 3C, respectively [123]. Wang et al. investigated the thermal management of a battery immersed in stationary fluid in combination with direct cooling tubes. The proposed cooling enables an extended operation time with a temperature limit of 35 °C which is 150.3% and 45.7% higher compared to the natural convection and immersion cooling, respectively. The thermal resistance between immersion fluid and ambient is 6.7 K/W, which is reduced to 0.3 K/W for heat transfer between immersion fluid and direct cooling tubes [124]. Li et al. experimentally evaluated the cooling performance of a cylindrical Li-ion battery with reciprocating liquid immersion cooling. The reciprocating immersion cooling restricts the battery maximum temperature at 50 °C during fast-charging [125]. Koster et al. compared cooling performance of a 18,650 battery pack with air cooling and immersion cooling. The immersion cooling shows temperature uniformity of the battery pack as 1.5 °C, which is 10 times higher in case of air cooling. In addition, the capacity of the battery pack is enhanced by 3.3% with immersion cooling after 600 cycles [126]. Goodarzi et al. conducted an experimental study to evaluate battery-cooling performance using a liquid-vapor phase change based on direct cooling. Under a 4C discharge rate, the maximum temperature and temperature uniformity of the battery pack are reduced from 71.2 °C to 40.5 °C and 11.6 °C to 2 °C, respectively, with immersion cooling compared to the no-cooling case [127]. Han et al. investigated the effect of various fin structures on the heat-transfer characteristics of a Li-ion battery module with dielectric fluid immersion cooling. Figure 14 shows various fin structures considered for dielectric fluid immersion cooling. The dielectric fluid immersion cooling system with triangular fin structure shows the lowest maximum temperature of the battery and superior value of performance evaluation criteria (combination of Nusselt number and pressure drop) compared to that with other fin structures. The battery module temperatures for dielectric fluid immersion cooling with various fin structures are shown in Figure 15. Furthermore, the triangular fin structure with the base length to height ratio (A/B) of 4.304 is suggested as the best configuration for dielectric fluid immersion cooling system which achieves the lowest maximum temperature and temperature difference of the battery as 35.07 °C and 7.95 °C, respectively [128]. Anisha et al. analyzed liquid cooling methods, namely direct/immersive liquid cooling and indirect liquid cooling, to improve the efficiency of battery thermal management systems in EVs. The liquid cooling method can improve the cooling efficiency up to 3500 times and save energy for the system up to 40% compared to the air-cooling method. Direct liquid cooling gives better cooling effect for battery and effectively prevents the risk of thermal runaway than indirect liquid cooling [129]. Celen conducted an experimental study to evaluate the thermal management efficiency of 20 Ah LiFePO4 pouch battery with single-phase immersion cooling using distilled water. At a discharge rate of 4C, the maximum temperature of the battery with 100% distilled water based immersion cooling is 33 °C, much lower than the air cooling method which shows the maximum temperature of the battery as 45 °C. The temperature non-uniformity of the battery for 100% immersion cooling is reduced by 4 °C, whereas the temperature non-uniformity of the battery is recorded as 11 °C and 12 °C for 50% immersion cooling and air cooling, respectively [130]. Choi et al. proposed a hybrid immersion-cooling structure with a pass partition and graphite fin to improve the thermal management performance of a battery module under fast charging and extreme conditions. Hydrofluoroether fluid exhibits the best battery cooling performance among dielectric fluids owing to its lowest viscosity. The bottom-to-top dielectric-fluid configuration provides better cooling for battery cells than the top-to-bottom fluid configuration. At a 3C charging rate, the proposed hybrid cooling structure reduces the pressure drop and energy consumption by 45.4% and 61.0%, respectively, and enables a better battery temperature profile than the baseline structure. In addition, the hybrid cooling structure maintains the maximum temperature and temperature difference of the battery lower by 6.7 °C and 3 °C than that of a conventional structure of the same weight [131]. Gu et al. conducted an experimental study to evaluate the battery cooling performance for immersion cooling with a mixture of nanocapsules and insulation oil. The battery temperature was reduced by up to 3.95 °C for immersion cooling with a mixture of nanocapsules and insulation oil compared to that with only insulation oil [132].

5. Summary and Recommendations

The current review summarizes recent research works over the span of 2018–2023 on advanced cooling strategies for battery thermal management systems in EVs. Research studies on air cooling and indirect liquid cooling, used as conventional techniques for battery thermal management, are briefly elaborated. After discussing the limitations of conventional cooling techniques, the advancements in phase change material cooling and direct liquid cooling used as advanced techniques for battery thermal management are comprehensively explained. Research studies about experiment and simulation works that evaluate the battery cooling performance based on phase change material cooling and direct liquid cooling are presented. The main findings and recommendations from the present review are highlighted as follows.
(a)
In the early stages, air cooling with the advantages of simple structure, low cost, easy installation and maintenance, and no leakage issue was widely used for battery thermal management. However, the low thermal conductivity of the air makes it suitable only for battery thermal management with low heat dissipation requirements.
(b)
Compared to air, liquids have a better thermal conductivity and higher specific heat capacity. Therefore, indirect liquid cooling demonstrated superior ability to control the maximum temperature and temperature distribution of the battery compared to air cooling. For large-scale battery thermal management, indirect liquid cooling is a more effective cooling strategy than air cooling. However, some concerns in particular for indirect liquid cooling such as complex structure, larger energy consumption, heavier overall weight, liquid leakage, and an increased thermal resistance between the battery cell and the coolant are obstacles to consider for future higher-capacity electric vehicle applications.
(c)
From the extensive research conducted on air cooling and indirect liquid cooling for battery thermal management in EVs, it is observed that these commercial cooling techniques could not promise improved thermal management for future, high-capacity battery systems despite several modifications in design/structure and coolant type. There is a need to propose a suitable cooling strategy considering the target energy density of the EV battery which is expected to be attained in the future. Therefore, phase change material cooling and direct liquid cooling were recently investigated as an alternative to conventional, commercial cooling strategies with a vision to employ them in future generations of battery cooling systems.
(d)
The heat dissipation efficiency of phase change material cooling is excellent as it uses a larger latent heat when the phase change occurs. The phase change material cooling provides an enhanced temperature uniformity for the battery when the battery’s temperature approaches the melting point temperature of the phase change material. The addition of carbon materials or metal foam can greatly improve the thermal conductivity of phase change materials, which has a positive effect on the temperature uniformity of the battery pack. However, it is necessary to consider the balance between latent heat and conduction heat, filling density, pore size, and mass fraction to avoid affecting the natural convection of liquid phase change material.
(e)
The performance of phase change material cooling decreases when the temperature of the battery is higher than its melting point temperature. The thermal conductivity of phase change material is low, which forces additives to improve heat dissipation performance. The control of temperature rise and temperature difference of the battery could be excellent for phase change material cooling when it is combined with a heat pipe, cold plate, microchannel cooling plate, fin structure, and liquid cooling. This hybrid battery thermal management system is bulky and impractical for long-term commercial applications.
(f)
Direct liquid cooling eliminates the thermal resistance between the battery and the coolant and thus significantly enhances the heat dissipation efficiency. Furthermore, direct liquid cooling when employed with low boiling temperature coolant enables the benefit of two-phase cooling which has a superior heat transfer coefficient compared to single-phase direct liquid cooling and indirect liquid cooling. Therefore, irect liquid cooling can maintain the battery’s maximum temperature and temperature uniformity under a permissible operating range under fast and high charging/discharging conditions and even in extreme conditions, it could prevent thermal runaway propagation effectively.
(g)
There are several factors such as coolant type, coolant flow direction, flow rate, coolant immersion height, ambient temperature, and packing compartment pressure which have a strong impact on battery thermal characteristics with direct liquid cooling. The recommended coolants for immersion cooling are dielectric fluid, hydrofluoroethers, hydrocarbons, esters, mineral oils, silicone oils, and water-glycol mixtures, based on relevant properties such as viscosity, density, thermal conductivity, electrical conductivity, specific heat, boiling point/flash point and GWP.
(h)
Based on this review of recent research studies and the points discussed above, it is expected that direct liquid cooling has the potential to be considered as an advanced cooling strategy for battery thermal management in next-generation EVs. However, to commercialize direct liquid cooling at a larger scale, some key issues such as complexity in evaporation and condensation modes of coolant, coolant flow distribution, higher pump loss with high viscosity coolants, high cost of coolants, increased fluid weight, and material compatibility need to be addressed. Therefore, comprehensive research is still needed to propose optimal solutions for Li-ion batteries with direct liquid cooling systems in future EVs.

Author Contributions

Conceptualization, K.S.G. and M.-Y.L.; methodology, K.S.G. and M.-Y.L.; investigation, K.S.G., L.D.T., S.-G.H., N.-H.N. and M.-Y.L.; resources, K.S.G., L.D.T., S.-G.H. and M.-Y.L.; writing—original draft preparation, K.S.G. and L.D.T.; writing—review and editing, K.S.G. and M.-Y.L.; supervision, M.-Y.L.; project administration, M.-Y.L.; funding acquisition, M.-Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Dong-A University research fund.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study will be available on request to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature & Abbreviation

Ioperating current (A)
Qirreversiblereversible heat generation (W)
Qreversiblereversible heat generation (W)
Qtotaltotal heat generation (W)
Tbattery temperature (°C)
Uopen circuit voltage (V)
Voperating voltage (V)
CO2carbon dioxide
C-ratecharging/discharging rate
EVelectric vehicle
HPheat pipe
ICinternal combustion
Li-ionlithium-ion
SOHstate of health

References

  1. Shahzad, M.W.; Burhan, M.; Ang, L.; Ng, K.C. Energy-water-environment nexus underpinning future desalination sustainability. Desalination 2017, 413, 52–64. [Google Scholar] [CrossRef]
  2. Wang, J.; Li, Y.; Zhang, Y. Research on carbon emissions of road traffic in Chengdu city based on a LEAP model. Sustainability 2022, 14, 5625. [Google Scholar] [CrossRef]
  3. Li, X.; Wang, Z.; Zhang, L. Co-estimation of capacity and state-of-charge for lithium-ion batteries in electric vehicles. Energy 2019, 174, 33–44. [Google Scholar] [CrossRef]
  4. Akhtar, M.S.; Bui, P.T.; Li, Z.-Y.; Yang, O.-B.; Paul, B.J.; Kim, S.; Kim, J.; Rai, A.K. Impact of porous Mn3O4 nanostructures on the performance of rechargeable lithium ion battery: Excellent capacity and cyclability. Solid State Ion. 2019, 336, 31–38. [Google Scholar] [CrossRef]
  5. Natkunarajah, N.; Scharf, M.; Scharf, P. Scenarios for the return of lithium-ion batteries out of electric cars for recycling. Procedia Cirp 2015, 29, 740–745. [Google Scholar] [CrossRef]
  6. Pesaran, A.A. Battery thermal models for hybrid vehicle simulations. J. Power Sources 2002, 110, 377–382. [Google Scholar] [CrossRef]
  7. Zhu, W.H.; Zhu, Y.; Tatarchuk, B.J. Self-discharge characteristics and performance degradation of Ni-MH batteries for storage applications. Int. J. Hydrog. Energy 2014, 39, 19789–19798. [Google Scholar] [CrossRef]
  8. Olivetti, E.A.; Ceder, G.; Gaustad, G.G.; Fu, X. Lithium-ion battery supply chain considerations: Analysis of potential bottlenecks in critical metals. Joule 2017, 1, 229–243. [Google Scholar] [CrossRef] [Green Version]
  9. Li, W.; Garg, A.; Xiao, M.; Peng, X.; Le Phung, M.L.; Tran, V.M.; Gao, L. Intelligent optimization methodology of battery pack for electric vehicles: A multidisciplinary perspective. Int. J. Energy Res. 2020, 44, 9686–9706. [Google Scholar] [CrossRef]
  10. Xu, J.; Lan, C.; Qiao, Y.; Ma, Y. Prevent thermal runaway of lithium-ion batteries with minichannel cooling. Appl. Therm. Eng. 2017, 110, 883–890. [Google Scholar] [CrossRef] [Green Version]
  11. Zhao, G.; Wang, X.; Negnevitsky, M. Connecting battery technologies for electric vehicles from battery materials to management. Iscience 2022, 25, 103744. [Google Scholar] [CrossRef] [PubMed]
  12. Zhang, Z.; Wei, K. Experimental and numerical study of a passive thermal management system using flat heat pipes for lithium-ion batteries. Appl. Therm. Eng. 2020, 166, 114660. [Google Scholar] [CrossRef]
  13. Fan, Y.; Wang, Z.; Xiong, X.; Zhu, J.; Gao, Q.; Wang, H.; Wu, H. Novel concept design of low energy hybrid battery thermal management system using PCM and multistage Tesla valve liquid cooling. Appl. Therm. Eng. 2023, 220, 119680. [Google Scholar] [CrossRef]
  14. Wang, Y.; Gao, T.; Zhou, L.; Gong, J.; Li, J. A parametric study of a hybrid battery thermal management system that couples PCM with wavy microchannel cold plate. Appl. Therm. Eng. 2023, 219, 119625. [Google Scholar] [CrossRef]
  15. Liang, Y.; Emadi, A.; Gross, O.; Vidal, C.; Canova, M.; Panchal, S.; Kollmeyer, P.; Naguib, M.; Khanum, F. A comparative study between physics, electrical and data driven lithium-ion battery voltage modeling approaches. SAE Tech. Pap. 2022, 1, 0700. [Google Scholar]
  16. Wu, B.; Yufit, V.; Marinescu, M.; Offer, G.J.; Martinez-Botas, R.F.; Brandon, N.P. Coupled thermal–electrochemical modelling of uneven heat generation in lithium-ion battery packs. J. Power Sources 2013, 243, 544–554. [Google Scholar] [CrossRef]
  17. Bandhauer, T.M.; Garimella, S.; Fuller, T.F. A critical review of thermal issues in lithium-ion batteries. J. Electrochem. Soc. 2011, 158, R1. [Google Scholar] [CrossRef]
  18. Yang, S.; Zhang, Z.; Cao, R.; Wang, M.; Cheng, H.; Zhang, L.; Jiang, Y.; Li, Y.; Chen, B.; Ling, H.; et al. Implementation for a cloud battery management system based on the CHAIN framework. Energy AI 2021, 5, 100088. [Google Scholar] [CrossRef]
  19. Yang, S.; He, R.; Zhang, Z.; Cao, Y.; Gao, X.; Liu, X. CHAIN: Cyber hierarchy and interactional network enabling digital solution for battery full-lifespan management. Matter 2020, 3, 27–41. [Google Scholar] [CrossRef]
  20. Deng, Y.; Feng, C.; Jiaqiang, E.; Zhu, H.; Chen, J.; Wen, M.; Yin, H. Effects of different coolants and cooling strategies on the cooling performance of the power lithium ion battery system: A review. Appl. Therm. Eng. 2018, 142, 10–29. [Google Scholar] [CrossRef]
  21. Chen, J.; Kang, S.; Jiaqiang, E.; Huang, Z.; Wei, K.; Zhang, B.; Zhu, H.; Deng, Y.; Zhang, F.; Liao, G. Effects of different phase change material thermal management strategies on the cooling performance of the power lithium ion batteries: A review. J. Power Sources 2019, 442, 227228. [Google Scholar] [CrossRef]
  22. Wu, W.; Wang, S.; Wu, W.; Chen, K.; Hong, S.; Lai, Y. A critical review of battery thermal performance and liquid based battery thermal management. Energy Convers. Manag. 2019, 182, 262–281. [Google Scholar] [CrossRef]
  23. Akinlabi, A.H.; Solyali, D. Configuration, design, and optimization of air-cooled battery thermal management system for electric vehicles: A review. Renew. Sustain. Energy Rev. 2020, 125, 109815. [Google Scholar] [CrossRef]
  24. Aswin Karthik, C.; Kalita, P.; Cui, X.; Peng, X. Thermal management for prevention of failures of lithium ion battery packs in electric vehicles: A review and critical future aspects. Energy Storage 2020, 2, e137. [Google Scholar] [CrossRef] [Green Version]
  25. Thakur, A.K.; Prabakaran, R.; Elkadeem, M.; Sharshir, S.W.; Arıcı, M.; Wang, C.; Zhao, W.; Hwang, J.-Y.; Saidur, R. A state of art review and future viewpoint on advance cooling techniques for Lithium–ion battery system of electric vehicles. J. Energy Storage 2020, 32, 101771. [Google Scholar] [CrossRef]
  26. Tete, P.R.; Gupta, M.M.; Joshi, S.S. Developments in battery thermal management systems for electric vehicles: A technical review. J. Energy Storage 2021, 35, 102255. [Google Scholar] [CrossRef]
  27. Murali, G.; Sravya, G.S.N.; Jaya, J.; Vamsi, V.N. A review on hybrid thermal management of battery packs and it’s cooling performance by enhanced PCM. Renew. Sustain. Energy Rev. 2021, 150, 111513. [Google Scholar] [CrossRef]
  28. Jiang, Z.Y.; Li, H.B.; Qu, Z.G.; Zhang, J.F. Recent progress in lithium-ion battery thermal management for a wide range of temperature and abuse conditions. Int. J. Hydrog. Energy 2022, 47, 9428–9459. [Google Scholar] [CrossRef]
  29. Hamed, M.M.; El-Tayeb, A.; Moukhtar, I.; El Dein, A.Z.; Abdelhameed, E.H. A review on recent key technologies of lithium-ion battery thermal management: External cooling systems. Results Eng. 2022, 16, 100703. [Google Scholar] [CrossRef]
  30. Roe, C.; Feng, X.; White, G.; Li, R.; Wang, H.; Rui, X.; Li, C.; Zhang, F.; Null, V.; Parkes, M.; et al. Immersion cooling for lithium-ion batteries—A review. J. Power Sources 2022, 525, 231094. [Google Scholar] [CrossRef]
  31. Zhao, G.; Wang, X.; Negnevitsky, M.; Li, C. An up-to-date review on the design improvement and optimization of the liquid-cooling battery thermal management system for electric vehicles. Appl. Therm. Eng. 2022, 219, 119626. [Google Scholar] [CrossRef]
  32. Eddahech, A. Modélisation du Vieillissement et Détermination de L’état de Santé de Batteries Lithium-Ion Pour Application Véhicule Électrique et Hybride. Ph.D. Thesis, University of Bordeaux, Bordeaux, France, 2013. [Google Scholar]
  33. Bernardi, D.; Pawlikowski, E.; Newman, J. A general energy balance for battery systems. J. Electrochem. Soc. 1985, 132, 5. [Google Scholar] [CrossRef] [Green Version]
  34. Heubner, C.; Schneider, M.; Lämmel, C.; Michaelis, A. Local heat generation in a single stack lithium ion battery cell. Electrochim. Acta 2015, 186, 404–412. [Google Scholar] [CrossRef]
  35. Nazari, A.; Farhad, S. Heat generation in lithium-ion batteries with different nominal capacities and chemistries. Appl. Therm. Eng. 2017, 125, 1501–1517. [Google Scholar] [CrossRef]
  36. De Vita, A.; Maheshwari, A.; Destro, M.; Santarelli, M.; Carello, M. Transient thermal analysis of a lithium-ion battery pack comparing different cooling solutions for automotive applications. Appl. Energy 2017, 206, 101–112. [Google Scholar] [CrossRef]
  37. Jalkanen, K.; Aho, T.; Vuorilehto, K. Entropy change effects on the thermal behavior of a LiFePO4/graphite lithium-ion cell at different states of charge. J. Power Sources 2013, 243, 354–360. [Google Scholar] [CrossRef]
  38. Murashko, K.A.; Mityakov, A.V.; Mityakov, V.Y.; Sapozhnikov, S.Z.; Jokiniemi, J.; Pyrhönen, J. Determination of the entropy change profile of a cylindrical lithium-ion battery by heat flux measurements. J. Power Sources 2016, 330, 61–69. [Google Scholar] [CrossRef]
  39. Damay, N.; Forgez, C.; Bichat, M.P.; Friedrich, G. A method for the fast estimation of a battery entropy-variation high-resolution curve–Application on a commercial LiFePO4/graphite cell. J. Power Sources 2016, 332, 149–153. [Google Scholar] [CrossRef]
  40. Panchal, S.; Dincer, I.; Agelin-Chaab, M.; Fraser, R.; Fowler, M. Experimental investigation and simulation of temperature distributions in a 16Ah-LiMnNiCoO 2 battery during rapid discharge rates. Heat Mass Transf. 2017, 53, 937–946. [Google Scholar] [CrossRef]
  41. Panchal, S. Experimental Investigation and Modeling of Lithium-Ion Battery Cells and Packs for Electric Vehicles. Ph.D. Thesis, Ontario Tech University, Oshawa, ON, Canada, 2016. [Google Scholar]
  42. Panchal, S. Impact of Vehicle Charge and Discharge Cycles on the Thermal Characteristics of Lithium-Ion Batteries. Master’s Thesis, University of Waterloo, Waterloo, ON, Canada, 2014. [Google Scholar]
  43. Xie, Y.; Li, W.; Hu, X.; Zou, C.; Feng, F.; Tang, X. Novel mesoscale electrothermal modeling for lithium-ion batteries. IEEE Trans. Power Electron. 2019, 35, 2595–2614. [Google Scholar] [CrossRef]
  44. Zhang, Z.; Fouchard, D.; Rea, J.R. Differential scanning calorimetry material studies: Implications for the safety of lithium-ion cells. J. Power Sources 1998, 70, 16–20. [Google Scholar] [CrossRef]
  45. Ianniciello, L.; Biwolé, P.H.; Achard, P. Electric vehicles batteries thermal management systems employing phase change materials. J. Power Sources 2018, 378, 383–403. [Google Scholar] [CrossRef]
  46. Lu, M.; Zhang, X.; Ji, J.; Xu, X.; Zhang, Y. Research progress on power battery cooling technology for electric vehicles. J. Energy Storage 2020, 27, 101155. [Google Scholar] [CrossRef]
  47. Feng, X.; Ren, D.; He, X.; Ouyang, M. Mitigating thermal runaway of lithium-ion batteries. Joule 2020, 4, 743–770. [Google Scholar] [CrossRef]
  48. Doughty, D.H.; Roth, E.P. A general discussion of Li ion battery safety. Electrochem. Soc. Interface 2012, 21, 37. [Google Scholar]
  49. Singirikonda, S.; Obulesu, Y.P. Adaptive secondary loop liquid cooling with refrigerant cabin active thermal management system for electric vehicle. J. Energy Storage 2022, 50, 104624. [Google Scholar] [CrossRef]
  50. Cheng, L.; Garg, A.; Jishnu, A.K.; Gao, L. Surrogate based multi-objective design optimization of lithium-ion battery air-cooled system in electric vehicles. J. Energy Storage 2020, 31, 101645. [Google Scholar] [CrossRef]
  51. Shahid, S.; Agelin-Chaab, M. Experimental and numerical studies on air cooling and temperature uniformity in a battery pack. Int. J. Energy Res. 2018, 42, 2246–2262. [Google Scholar] [CrossRef]
  52. Na, X.; Kang, H.; Wang, T.; Wang, Y. Reverse layered air flow for Li-ion battery thermal management. Appl. Therm. Eng. 2018, 143, 257–262. [Google Scholar] [CrossRef]
  53. Fan, Y.; Bao, Y.; Ling, C.; Chu, Y.; Tan, X.; Yang, S. Experimental study on the thermal management performance of air cooling for high energy density cylindrical lithium-ion batteries. Appl. Therm. Eng. 2019, 155, 96–109. [Google Scholar] [CrossRef]
  54. Liu, Y.; Zhang, J. Design a J-type air-based battery thermal management system through surrogate-based optimization. Appl. Energy 2019, 252, 113426. [Google Scholar] [CrossRef]
  55. Chen, K.; Chen, Y.; She, Y.; Song, M.; Wang, S.; Chen, L. Construction of effective symmetrical air-cooled system for battery thermal management. Appl. Therm. Eng. 2020, 166, 114679. [Google Scholar] [CrossRef]
  56. Hou, J.; Wu, X.; Chen, K.; Dong, Y. A direct optimization strategy based on field synergy equation for efficient design of battery thermal management system. Int. J. Heat Mass Transf. 2022, 184, 122304. [Google Scholar] [CrossRef]
  57. Zhang, F.; Wang, P.; Yi, M. Design optimization of forced air-cooled lithium-ion battery module based on multi-vents. J. Energy Storage 2021, 40, 102781. [Google Scholar] [CrossRef]
  58. Saechan, P.; Dhuchakallaya, I. Numerical study on the air-cooled thermal management of Lithium-ion battery pack for electrical vehicles. Energy Rep. 2022, 8, 1264–1270. [Google Scholar] [CrossRef]
  59. Meyer, J.; Agathocleous, N.; Youmans, H.; Williams, H.; Vespa, T.; Rugh, J.; Lustbader, J.; Titov, E. Advanced Climate System for EV Extended Range. 2017. Available online: https://www.osti.gov/biblio/1413671 (accessed on 17 May 2023).
  60. Du, X.; Qian, Z.; Chen, Z.; Rao, Z. Experimental investigation on mini-channel cooling–based thermal management for L i-ion battery module under different cooling schemes. Int. J. Energy Res. 2018, 42, 2781–2788. [Google Scholar] [CrossRef]
  61. Lv, Y.; Zhou, D.; Yang, X.; Liu, X.; Li, X.; Zhang, G. Experimental investigation on a novel liquid-cooling strategy by coupling with graphene-modified silica gel for the thermal management of cylindrical battery. Appl. Therm. Eng. 2019, 159, 113885. [Google Scholar] [CrossRef]
  62. Zhou, H.; Zhou, F.; Zhang, Q.; Wang, Q.; Song, Z. Thermal management of cylindrical lithium-ion battery based on a liquid cooling method with half-helical duct. Appl. Therm. Eng. 2019, 162, 114257. [Google Scholar] [CrossRef]
  63. Shang, Z.; Qi, H.; Liu, X.; Ouyang, C.; Wang, Y. Structural optimization of lithium-ion battery for improving thermal performance based on a liquid cooling system. Int. J. Heat Mass Transf. 2019, 130, 33–41. [Google Scholar] [CrossRef]
  64. Deng, T.; Zhang, G.; Ran, Y.; Liu, P. Thermal performance of lithium ion battery pack by using cold plate. Appl. Therm. Eng. 2019, 160, 114088. [Google Scholar] [CrossRef]
  65. Xu, X.; Li, W.; Xu, B.; Qin, J. Numerical study on a water cooling system for prismatic LiFePO4 batteries at abused operating conditions. Appl. Energy 2019, 250, 404–412. [Google Scholar] [CrossRef]
  66. Li, Y.; Zhou, Z.; Wu, W.T. Three-dimensional thermal modeling of Li-ion battery cell and 50 V Li-ion battery pack cooled by mini-channel cold plate. Appl. Therm. Eng. 2019, 147, 829–840. [Google Scholar] [CrossRef]
  67. Chen, S.; Peng, X.; Bao, N.; Garg, A. A comprehensive analysis and optimization process for an integrated liquid cooling plate for a prismatic lithium-ion battery module. Appl. Therm. Eng. 2019, 156, 324–339. [Google Scholar] [CrossRef]
  68. Wiriyasart, S.; Hommalee, C.; Sirikasemsuk, S.; Prurapark, R.; Naphon, P. Thermal management system with nanofluids for electric vehicle battery cooling modules. Case Stud. Therm. Eng. 2020, 18, 100583. [Google Scholar] [CrossRef]
  69. Du, J.; Sun, Y.; Huang, Y.; Wu, X. Analysis of influencing factors of thermal management system for LiFePO4 lithium battery under high power charging. World Electr. Veh. J. 2020, 11, 44. [Google Scholar] [CrossRef]
  70. Patil, M.S.; Seo, J.H.; Panchal, S.; Jee, S.W.; Lee, M.Y. Investigation on thermal performance of water-cooled Li-ion pouch cell and pack at high discharge rate with U-turn type microchannel cold plate. Int. J. Heat Mass Transf. 2020, 155, 119728. [Google Scholar] [CrossRef]
  71. Liu, Z.; Wang, H.; Yang, C.; Zhao, J. Simulation study of lithium-ion battery thermal management system based on a variable flow velocity method with liquid metal. Appl. Therm. Eng. 2020, 179, 115578. [Google Scholar] [CrossRef]
  72. Monika, K.; Chakraborty, C.; Roy, S.; Dinda, S.; Singh, S.A.; Datta, S.P. An improved mini-channel based liquid cooling strategy of prismatic LiFePO4 batteries for electric or hybrid vehicles. J. Energy Storage 2021, 35, 102301. [Google Scholar] [CrossRef]
  73. Yates, M.; Akrami, M.; Javadi, A.A. Analysing the performance of liquid cooling designs in cylindrical lithium-ion batteries. J. Energy Storage 2021, 33, 100913. [Google Scholar] [CrossRef]
  74. Huang, Y.; Wei, C.; Fang, Y. Numerical investigation on optimal design of battery cooling plate for uneven heat generation conditions in electric vehicles. Appl. Therm. Eng. 2022, 211, 118476. [Google Scholar] [CrossRef]
  75. Zhang, X.; Li, Z.; Luo, L.; Fan, Y.; Du, Z. A review on thermal management of lithium-ion batteries for electric vehicles. Energy 2022, 238, 121652. [Google Scholar] [CrossRef]
  76. Huang, Q.; Li, X.; Zhang, G.; Zhang, J.; He, F.; Li, Y. Experimental investigation of the thermal performance of heat pipe assisted phase change material for battery thermal management system. Appl. Therm. Eng. 2018, 141, 1092–1100. [Google Scholar] [CrossRef]
  77. Koyama, R.; Arai, Y.; Yamauchi, Y.; Takeya, S.; Endo, F.; Hotta, A.; Ohmura, R. Thermophysical properties of trimethylolethane (TME) hydrate as phase change material for cooling lithium-ion battery in electric vehicle. J. Power Sources 2019, 427, 70–76. [Google Scholar] [CrossRef]
  78. Gou, J.; Liu, W.; Luo, Y. The thermal performance of a novel internal cooling method for the electric vehicle battery: An experimental study. Appl. Therm. Eng. 2019, 161, 114102. [Google Scholar] [CrossRef]
  79. Zhao, Y.; Zou, B.; Li, C.; Ding, Y. Active cooling based battery thermal management using composite phase change materials. Energy Procedia 2019, 158, 4933–4940. [Google Scholar] [CrossRef]
  80. Kshetrimayum, K.S.; Yoon, Y.G.; Gye, H.R.; Lee, C.J. Preventing heat propagation and thermal runaway in electric vehicle battery modules using integrated PCM and micro-channel plate cooling system. Appl. Therm. Eng. 2019, 159, 113797. [Google Scholar] [CrossRef]
  81. Jiang, Z.Y.; Qu, Z.G. Lithium–ion battery thermal management using heat pipe and phase change material during discharge–charge cycle: A comprehensive numerical study. Appl. Energy 2019, 242, 378–392. [Google Scholar] [CrossRef]
  82. Zhang, H.; Wu, X.; Wu, Q.; Xu, S. Experimental investigation of thermal performance of large-sized battery module using hybrid PCM and bottom liquid cooling configuration. Appl. Therm. Eng. 2019, 159, 113968. [Google Scholar] [CrossRef]
  83. Putra, N.; Sandi, A.F.; Ariantara, B.; Abdullah, N.; Mahlia, T.M.I. Performance of beeswax phase change material (PCM) and heat pipe as passive battery cooling system for electric vehicles. Case Stud. Therm. Eng. 2020, 21, 100655. [Google Scholar] [CrossRef]
  84. Nofal, M.; Al-Hallaj, S.; Pan, Y. Thermal management of lithium-ion battery cells using 3D printed phase change composites. Appl. Therm. Eng. 2020, 171, 115126. [Google Scholar] [CrossRef]
  85. Sun, Z.; Fan, R.; Zheng, N. Thermal management of a simulated battery with the compound use of phase change material and fins: Experimental and numerical investigations. Int. J. Therm. Sci. 2021, 165, 106945. [Google Scholar] [CrossRef]
  86. Chen, K.; Hou, J.; Song, M.; Wang, S.; Wu, W.; Zhang, Y. Design of battery thermal management system based on phase change material and heat pipe. Appl. Therm. Eng. 2021, 188, 116665. [Google Scholar] [CrossRef]
  87. Yang, W.; Zhou, F.; Liu, Y.; Xu, S.; Chen, X. Thermal performance of honeycomb-like battery thermal management system with bionic liquid mini-channel and phase change materials for cylindrical lithium-ion battery. Appl. Therm. Eng. 2021, 188, 116649. [Google Scholar] [CrossRef]
  88. Youssef, R.; Hosen, M.S.; He, J.; Mohammed, A.S.; Van Mierlo, J.; Berecibar, M. Novel design optimization for passive cooling PCM assisted battery thermal management system in electric vehicles. Case Stud. Therm. Eng. 2022, 32, 101896. [Google Scholar] [CrossRef]
  89. Yang, H.; Li, M.; Wang, Z.; Ma, B. A compact and lightweight hybrid liquid cooling system coupling with Z-type cold plates and PCM composite for battery thermal management. Energy 2023, 263, 126026. [Google Scholar] [CrossRef]
  90. Zhoujian, A.N.; Li, J.I.A.; Chengliang, Y.A.N.G.; Chao, D.A.N.G.; Mingchen, X.U. Experimental investigation of lithium-ion power battery liquid cooling. J. Univ. Chin. Acad. Sci. 2018, 35, 254. [Google Scholar]
  91. Jilte, R.D.; Kumar, R.; Ahmadi, M.H. Cooling performance of nanofluid submerged vs. nanofluid circulated battery thermal management systems. J. Clean. Prod. 2019, 240, 118131. [Google Scholar] [CrossRef]
  92. Zhou, H.; Dai, C.; Liu, Y.; Fu, X.; Du, Y. Experimental investigation of battery thermal management and safety with heat pipe and immersion phase change liquid. J. Power Sources 2020, 473, 228545. [Google Scholar] [CrossRef]
  93. Sundin, D.W.; Sponholtz, S. Thermal management of Li-ion batteries with single-phase liquid immersion cooling. IEEE Open J. Veh. Technol. 2020, 1, 82–92. [Google Scholar] [CrossRef]
  94. Bhattacharjee, A.; Mohanty, R.K.; Ghosh, A. Design of an optimized thermal management system for Li-ion batteries under different discharging conditions. Energies 2020, 13, 5695. [Google Scholar] [CrossRef]
  95. Hong, S.H.; Jang, D.S.; Park, S.; Yun, S.; Kim, Y. Thermal performance of direct two-phase refrigerant cooling for lithium-ion batteries in electric vehicles. Appl. Therm. Eng. 2020, 173, 115213. [Google Scholar] [CrossRef]
  96. Pulugundla, G.; Dubey, P.; Wu, Z.; Wang, Q.; Srouji, A.K. Thermal management of lithium ion cells at high discharge rate using submerged-cell cooling. In Proceedings of the 2020 IEEE Transportation Electrification Conference & Expo (ITEC), IEEE, Chicago, IL, USA, 23–26 June 2020; pp. 1–5. [Google Scholar]
  97. Wang, Y.F.; Wu, J.T. Thermal performance predictions for an HFE-7000 direct flow boiling cooled battery thermal management system for electric vehicles. Energy Convers. Manag. 2020, 207, 112569. [Google Scholar] [CrossRef]
  98. Patil, M.S.; Seo, J.H.; Lee, M.Y. A novel dielectric fluid immersion cooling technology for Li-ion battery thermal management. Energy Convers. Manag. 2021, 229, 113715. [Google Scholar] [CrossRef]
  99. Tan, X.; Lyu, P.; Fan, Y.; Rao, J.; Ouyang, K. Numerical investigation of the direct liquid cooling of a fast-charging lithium-ion battery pack in hydrofluoroether. Appl. Therm. Eng. 2021, 196, 117279. [Google Scholar] [CrossRef]
  100. Dubey, P.; Pulugundla, G.; Srouji, A.K. Direct comparison of immersion and cold-plate based cooling for automotive Li-ion battery modules. Energies 2021, 14, 1259. [Google Scholar] [CrossRef]
  101. Solai, E.; Guadagnini, M.; Beaugendre, H.; Daccord, R.; Congedo, P. Validation of a data-driven fast numerical model to simulate the immersion cooling of a lithium-ion battery pack. Energy 2022, 249, 123633. [Google Scholar] [CrossRef]
  102. Li, Y.; Zhou, Z.; Hu, L.; Bai, M.; Gao, L.; Li, Y.; Liu, X.; Li, Y.; Song, Y. Experimental studies of liquid immersion cooling for 18650 lithium-ion battery under different discharging conditions. Case Stud. Therm. Eng. 2022, 34, 102034. [Google Scholar] [CrossRef]
  103. Wu, S.; Lao, L.; Wu, L.; Liu, L.; Lin, C.; Zhang, Q. Effect analysis on integration efficiency and safety performance of a battery thermal management system based on direct contact liquid cooling. Appl. Therm. Eng. 2022, 201, 117788. [Google Scholar] [CrossRef]
  104. Liu, J.; Fan, Y.; Xie, Q. Feasibility study of a novel oil-immersed battery cooling system: Experiments and theoretical analysis. Appl. Therm. Eng. 2022, 208, 118251. [Google Scholar] [CrossRef]
  105. Larrañaga-Ezeiza, M.; Vertiz, G.; Arroiabe, P.F.; Martinez-Agirre, M.; Berasategi, J. A novel direct liquid cooling strategy for electric vehicles focused on pouch type battery cells. Appl. Therm. Eng. 2022, 216, 118869. [Google Scholar] [CrossRef]
  106. Wang, H.; Tao, T.; Xu, J.; Shi, H.; Mei, X.; Gou, P. Thermal performance of a liquid-immersed battery thermal management system for lithium-ion pouch batteries. J. Energy Storage 2022, 46, 103835. [Google Scholar] [CrossRef]
  107. Li, Y.; Zhou, Z.; Su, L.; Bai, M.; Gao, L.; Li, Y.; Liu, X.; Li, Y.; Song, Y. Numerical Simulations for Indirect and Direct Cooling of 54 V LiFePO4 Battery Pack. Energies 2022, 15, 4581. [Google Scholar] [CrossRef]
  108. Jithin, K.V.; Rajesh, P.K. Numerical analysis of single-phase liquid immersion cooling for lithium-ion battery thermal management using different dielectric fluids. Int. J. Heat Mass Transf. 2022, 188, 122608. [Google Scholar] [CrossRef]
  109. Le, Q.; Shi, Q.; Liu, Q.; Yao, X.; Ju, X.; Xu, C. Numerical investigation on manifold immersion cooling scheme for lithium ion battery thermal management application. Int. J. Heat Mass Transf. 2022, 190, 122750. [Google Scholar] [CrossRef]
  110. Liu, J.; Fan, Y.; Wang, J.; Tao, C.; Chen, M. A model-scale experimental and theoretical study on a mineral oil-immersed battery cooling system. Renew. Energy 2022, 201, 712–723. [Google Scholar] [CrossRef]
  111. Larrañaga-Ezeiza, M.; Vertiz Navarro, G.; Galarza Garmendia, I.; Fernandez Arroiabe, P.; Martinez-Aguirre, M.; Berasategi Arostegui, J. Parametric Optimisation of a Direct Liquid Cooling–Based Prototype for Electric Vehicles Focused on Pouch-Type Battery Cells. World Electr. Veh. J. 2022, 13, 149. [Google Scholar] [CrossRef]
  112. Giammichele, L.; D’Alessandro, V.; Falone, M.; Ricci, R. Experimental study of a direct immersion liquid cooling of a Li-ion battery for electric vehicles applications. Int. J. Heat Technol. 2022, 40, 1–8. [Google Scholar] [CrossRef]
  113. Williams, N.P.; O’Shaughnessy, S.M. Immersion Cooling of Lithium-ion Batteries for Electric Vehicles. In Proceedings of the 2022 28th International Workshop on Thermal Investigations of ICs and Systems (THERMINIC), Dublin, Ireland, 28–30 September 2022; pp. 1–4. [Google Scholar]
  114. Han, J.W.; Garud, K.S.; Hwang, S.G.; Lee, M.Y. Experimental Study on Dielectric Fluid Immersion Cooling for Thermal Management of Lithium-Ion Battery. Symmetry 2022, 14, 2126. [Google Scholar] [CrossRef]
  115. Zhou, Y.; Wang, Z.; Xie, Z.; Wang, Y. Parametric Investigation on the Performance of a Battery Thermal Management System with Immersion Cooling. Energies 2022, 15, 2554. [Google Scholar] [CrossRef]
  116. Xin, Z.; Tang, W.; Li, W.; Sheng, K.; Wu, Z. Numerical Analysis of Flow Type and Direction on Single Phase Immersion Cooling for Li-ion Battery Thermal Management. In Proceedings of the 2022 IEEE Transportation Electrification Conference and Expo, Asia-Pacific (ITEC Asia-Pacific), Haining, China, 28–31 October 2022; pp. 1–5. [Google Scholar]
  117. Luo, M.; Cao, J.; Liu, N.; Zhang, Z.; Fang, X. Experimental and Simulative Investigations on a Water Immersion Cooling System for Cylindrical Battery Cells. Front. Energy Res. 2022, 10, 803882. [Google Scholar] [CrossRef]
  118. Guo, Z.; Xu, J.; Xu, Z.; Mubashir, M.; Wang, H.; Mei, X. A Lightweight Multichannel Direct Contact Liquid-Cooling System and Its Optimization for Lithium-Ion Batteries. IEEE Trans. Transp. Electrif. 2021, 8, 2334–2345. [Google Scholar] [CrossRef]
  119. Ho, Y.C.; Chen, P.C.; Cheng, Y.J.; Hsu, C.T. Visualization of Graphene Mineral Oil Immersion Cooling for Electric Vehicle Battery Temperature Analysis. In Proceedings of the 9th International Conference of Asian Society for Precision Engineering and Nanotechnology (ASPEN 2022), Singapore, 15–18 November 2022. [Google Scholar]
  120. Sun, Z.; Guo, Y.; Zhang, C.; Zhou, Q.; Xu, H.; Wang, C. Algorithm-driven optimization of lithium-ion battery thermal modeling. J. Energy Storage 2023, 65, 107388. [Google Scholar] [CrossRef]
  121. Wang, Y.F.; Li, B.; Hu, Y.; Mao, Z.; Song, B.; Tian, W.; Sunden, B. Experimental study on immersion phase change cooling of lithium-ion batteries based on R1233ZD (E)/ethanol mixed refrigerant. Appl. Therm. Eng. 2023, 220, 119649. [Google Scholar] [CrossRef]
  122. Satyanarayana, G.; Sudhakar, D.R.; Goud, V.M.; Ramesh, J.; Pathanjali, G.A. Experimental investigation and comparative analysis of immersion cooling of lithium-ion batteries using mineral and therminol oil. Appl. Therm. Eng. 2023, 225, 120187. [Google Scholar] [CrossRef]
  123. Li, Y.; Bai, M.; Zhou, Z.; Wu, W.-T.; Lv, J.; Gao, L.; Huang, H.; Li, Y.; Li, Y.; Song, Y. Experimental investigations of liquid immersion cooling for 18650 lithium-ion battery pack under fast charging conditions. Appl. Therm. Eng. 2023, 227, 120287. [Google Scholar] [CrossRef]
  124. Wang, Z.; Zhao, R.; Wang, S.; Huang, D. Heat transfer characteristics and influencing factors of immersion coupled direct cooling for battery thermal management. J. Energy Storage 2023, 62, 106821. [Google Scholar] [CrossRef]
  125. Li, Y.; Bai, M.; Zhou, Z.; Wu, W.-T.; Lv, J.; Gao, L.; Huang, H.; Li, Y.; Song, Y. Experimental studies of reciprocating liquid immersion cooling for 18650 lithium-ion battery under fast charging conditions. J. Energy Storage 2023, 64, 107177. [Google Scholar] [CrossRef]
  126. Koster, D.; Marongiu, A.; Chahardahcherik, D.; Braun, C.F.; Schulte, D.; Figgemeier, E. Degradation analysis of 18650 cylindrical cell battery pack with immersion liquid cooling system. Part 1: Aging assessment at pack level. J. Energy Storage 2023, 62, 106839. [Google Scholar] [CrossRef]
  127. Goodarzi, M.; Jannesari, H.; Ameri, M. Experimental study of Li-ion battery thermal management based on the liquid-vapor phase change in direct contact with the cells. J. Energy Storage 2023, 62, 106834. [Google Scholar] [CrossRef]
  128. Han, J.W.; Garud, K.S.; Kang, E.H.; Lee, M.Y. Numerical Study on Heat Transfer Characteristics of Dielectric Fluid Immersion Cooling with Fin Structures for Lithium-Ion Batteries. Symmetry 2022, 15, 92. [Google Scholar] [CrossRef]
  129. Anisha; Kumar, A. Identification and Mitigation of Shortcomings in Direct and Indirect Liquid Cooling-Based Battery Thermal Management System. Energies 2023, 16, 3857. [Google Scholar] [CrossRef]
  130. Celen, A. Experimental Investigation on Single-Phase Immersion Cooling of a Lithium-Ion Pouch-Type Battery under Various Operating Conditions. Appl. Sci. 2023, 13, 2775. [Google Scholar] [CrossRef]
  131. Choi, H.; Lee, H.; Kim, J.; Lee, H. Hybrid single-phase immersion cooling structure for battery thermal management under fast-charging conditions. Energy Convers. Manag. 2023, 287, 117053. [Google Scholar] [CrossRef]
  132. Gu, J.; Du, J.; Li, Y.; Li, J.; Chen, L.; Chai, Y.; Li, Y. Preparation and Characterization of n-Octadecane@ SiO2/GO and n-Octadecane@ SiO2/Ag Nanoencapsulated Phase Change Material for Immersion Cooling of Li-Ion Battery. Energies 2023, 16, 1498. [Google Scholar] [CrossRef]

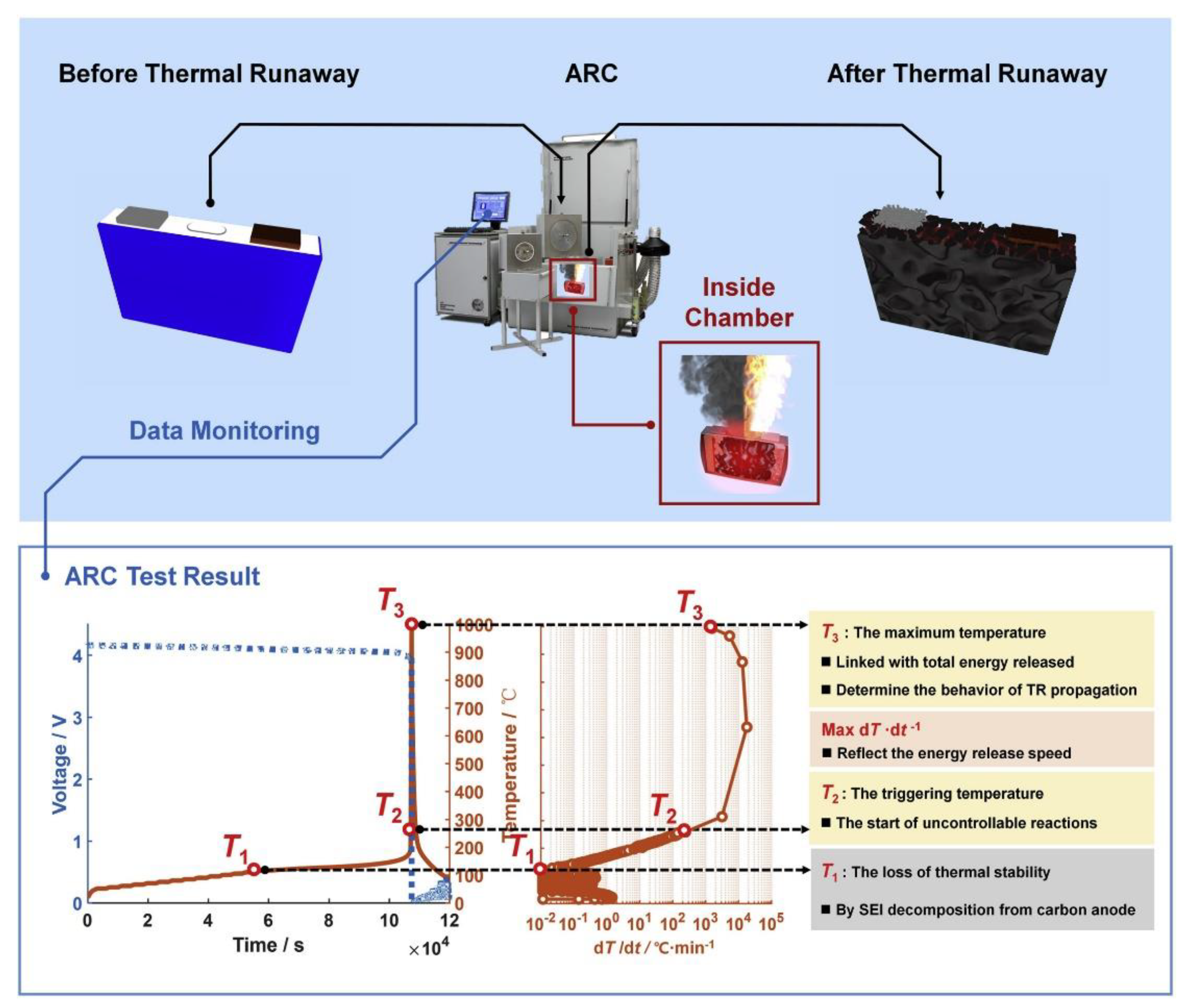

Figure 1. Thermal runaway propagation in lithium-ion battery [47].
Figure 1. Thermal runaway propagation in lithium-ion battery [47].
Symmetry 15 01322 g001

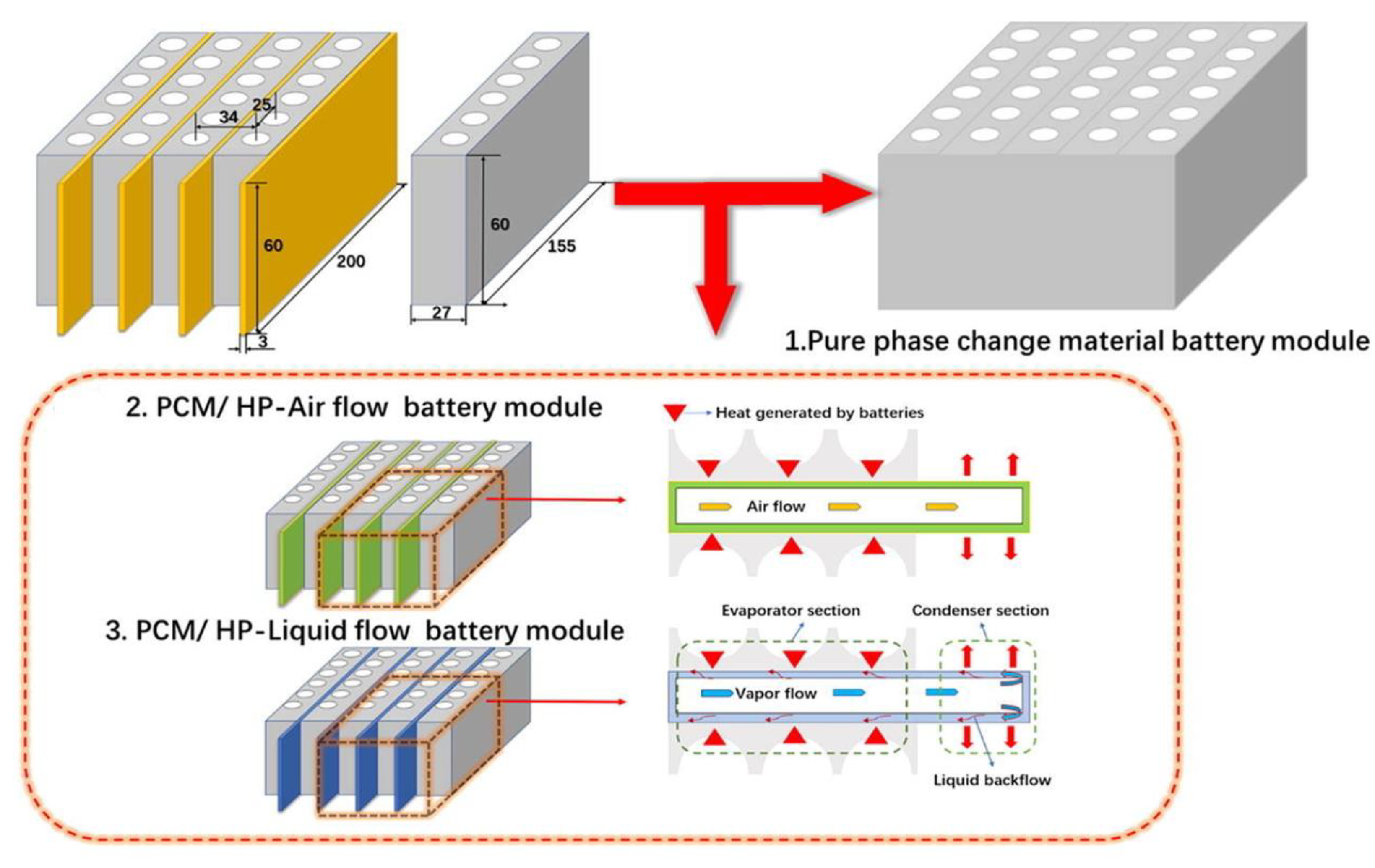

Figure 2. Battery thermal management system with three cooling configurations [76].
Figure 2. Battery thermal management system with three cooling configurations [76].
Symmetry 15 01322 g002

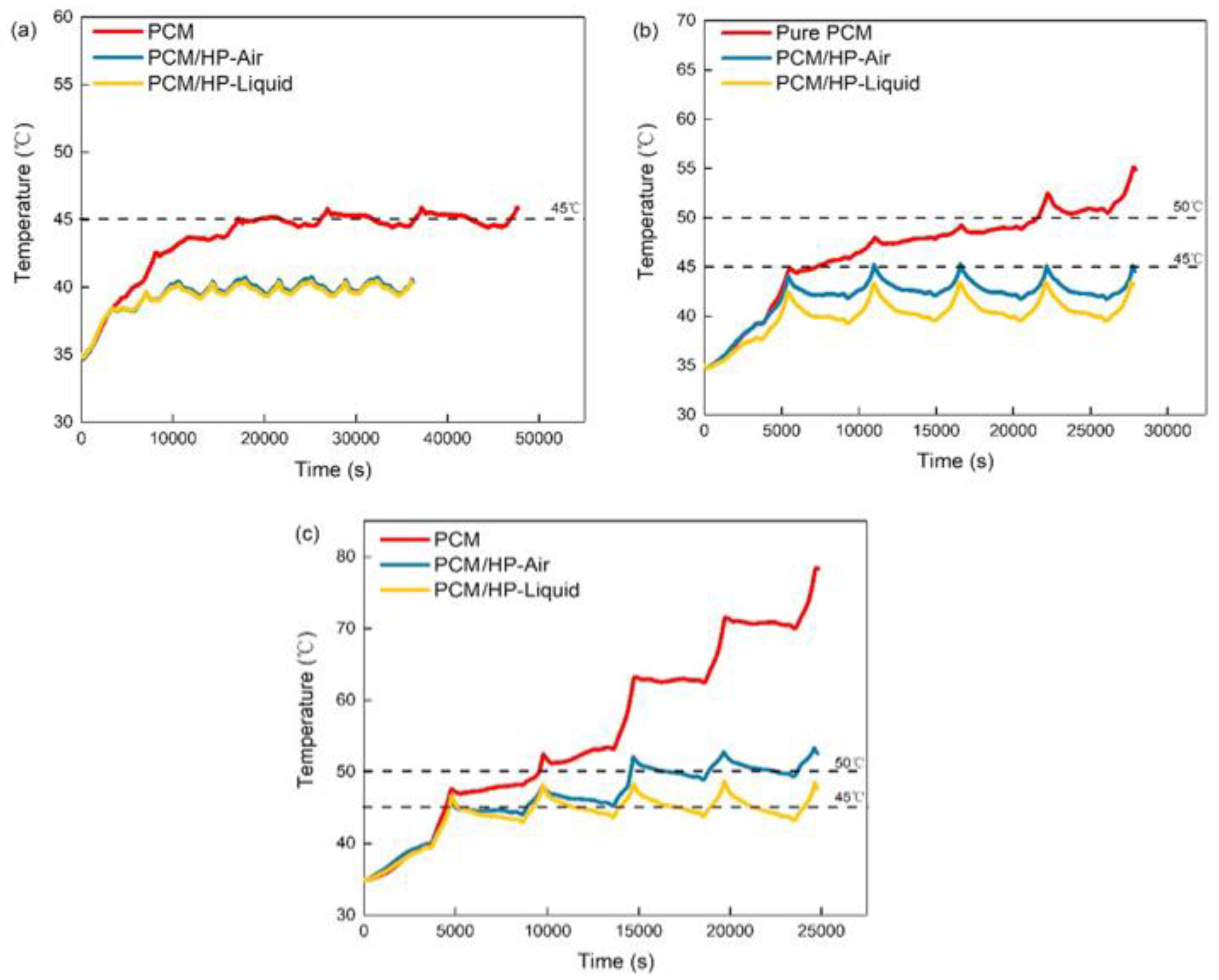

Figure 3. Battery temperature comparison for three cooling configurations under (a) 1C (b) 2C and (c) 3C discharge conditions [76].
Figure 3. Battery temperature comparison for three cooling configurations under (a) 1C (b) 2C and (c) 3C discharge conditions [76].
Symmetry 15 01322 g003

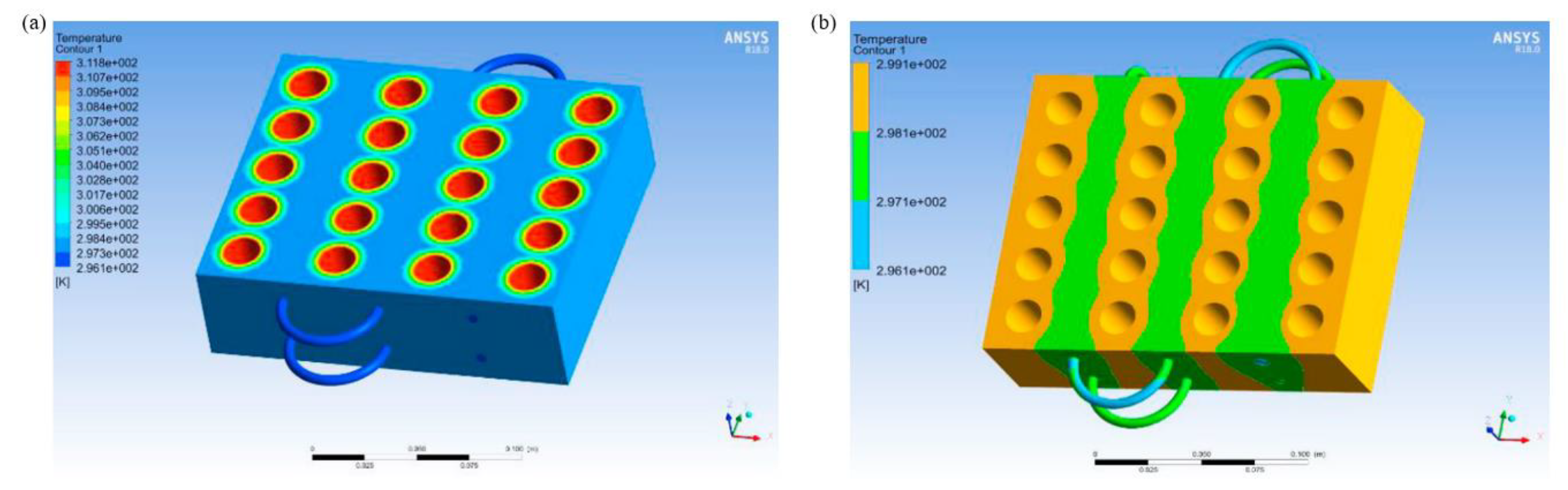

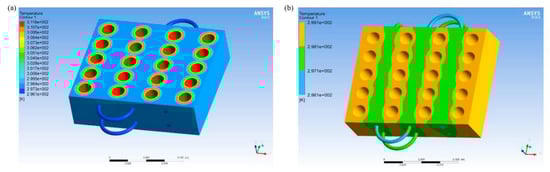

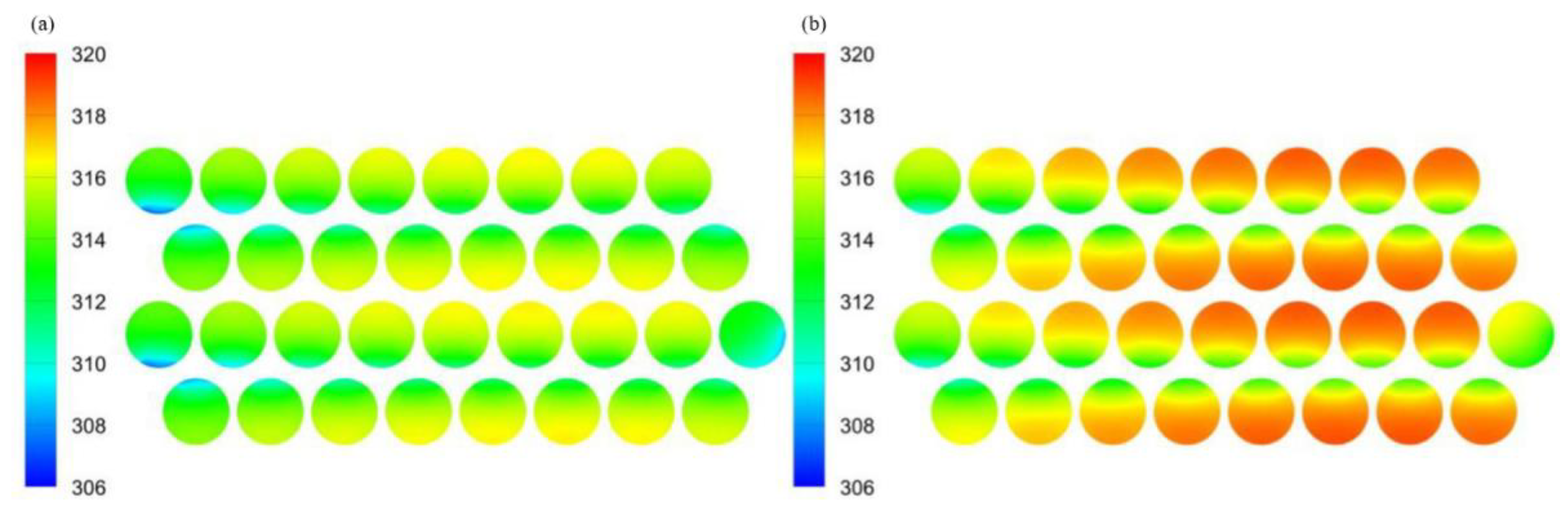

Figure 4. Battery temperature distribution contours for (a) pure phase change material cooling and (b) composite phase change material cooling [79].
Figure 4. Battery temperature distribution contours for (a) pure phase change material cooling and (b) composite phase change material cooling [79].
Symmetry 15 01322 g004

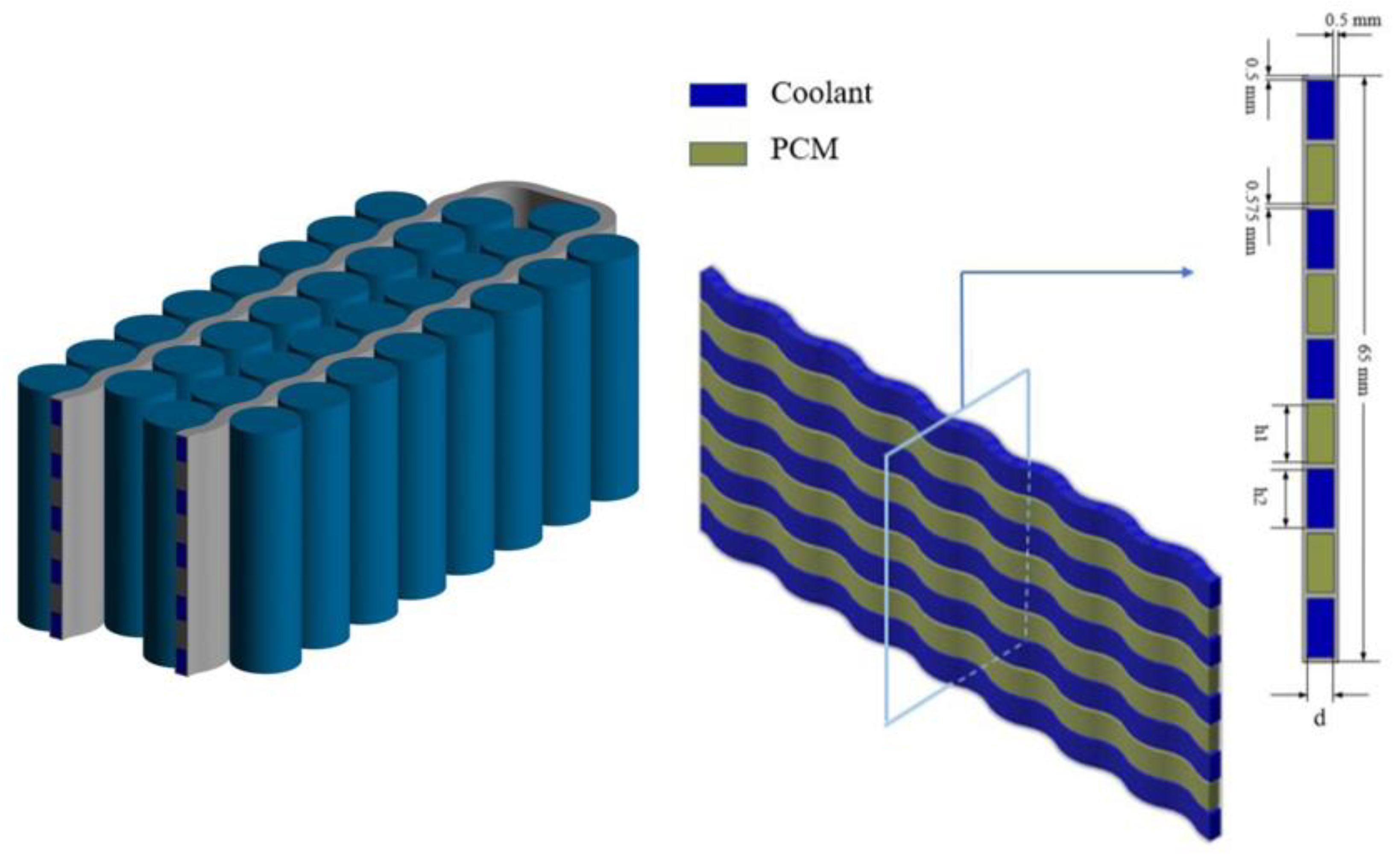

Figure 5. Configuration of battery thermal management with combination of phase change material and wavy microchannel cold plate cooling [14].
Figure 5. Configuration of battery thermal management with combination of phase change material and wavy microchannel cold plate cooling [14].
Symmetry 15 01322 g005
Figure 6. Temperature distributions for (a) combined phase change material with wavy microchannel cold plate cooling and (b) wavy microchannel cold plate cooling [14].
Figure 6. Temperature distributions for (a) combined phase change material with wavy microchannel cold plate cooling and (b) wavy microchannel cold plate cooling [14].
Symmetry 15 01322 g006
Figure 7. Effectiveness of phase change liquid cooling for battery cells with overcharging condition [92].
Figure 7. Effectiveness of phase change liquid cooling for battery cells with overcharging condition [92].
Symmetry 15 01322 g007

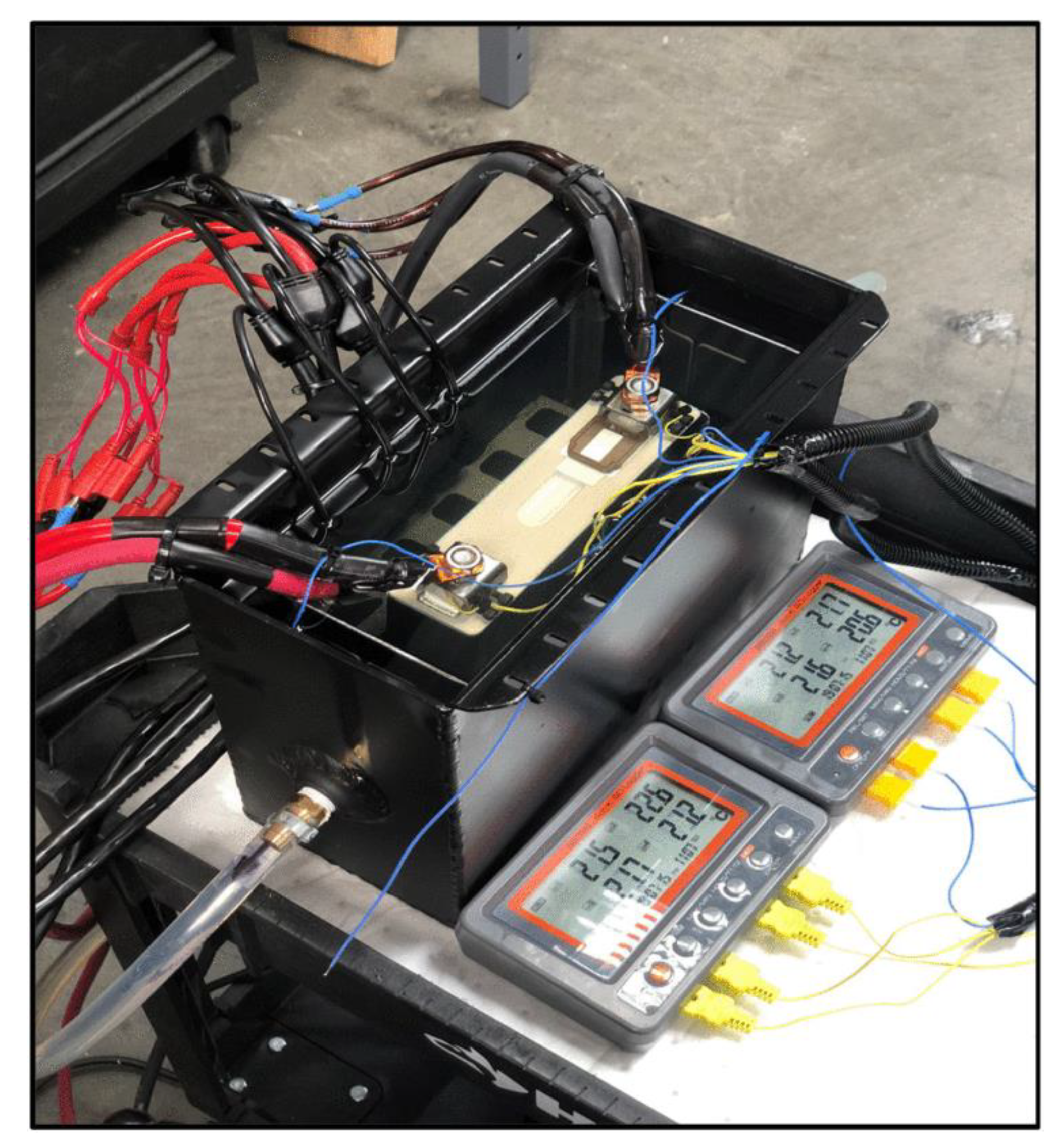

Figure 8. Test set-up for battery immersion cooling [93].
Figure 8. Test set-up for battery immersion cooling [93].
Symmetry 15 01322 g008

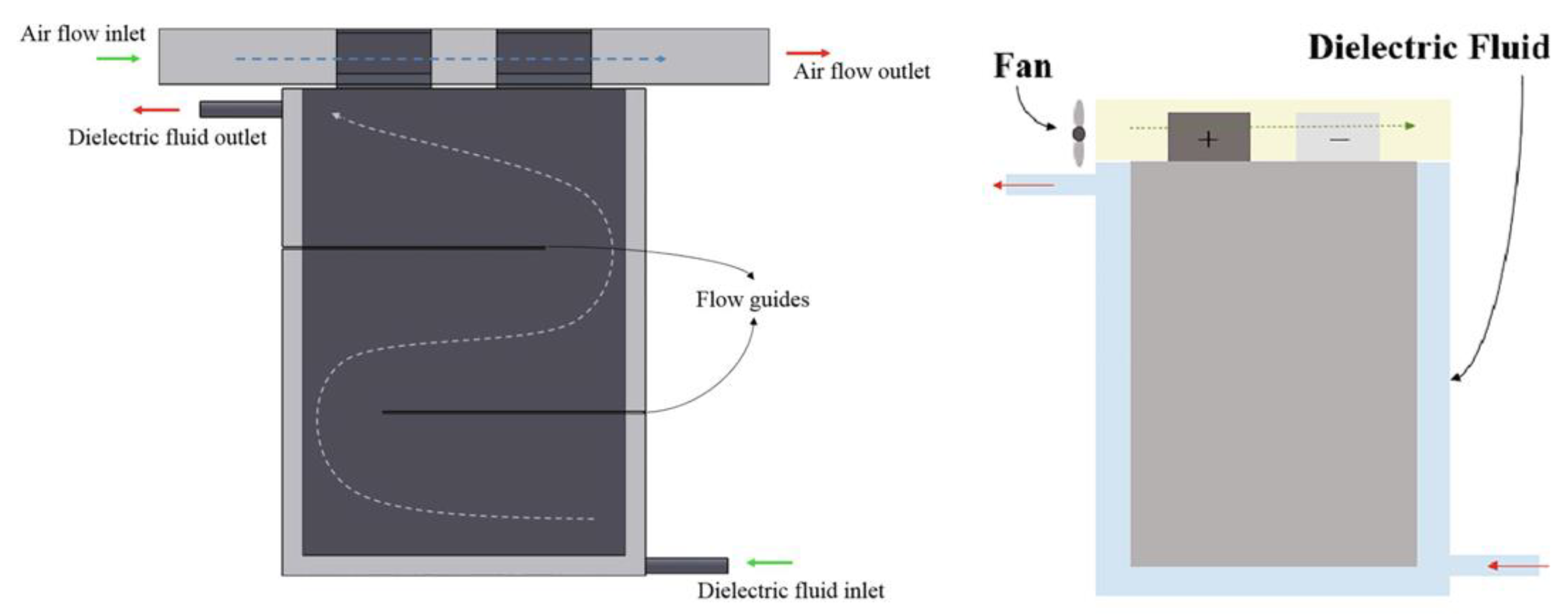

Figure 9. Proposed dielectric fluid immersion with tab cooling for battery cell and module [98].
Figure 9. Proposed dielectric fluid immersion with tab cooling for battery cell and module [98].
Symmetry 15 01322 g009

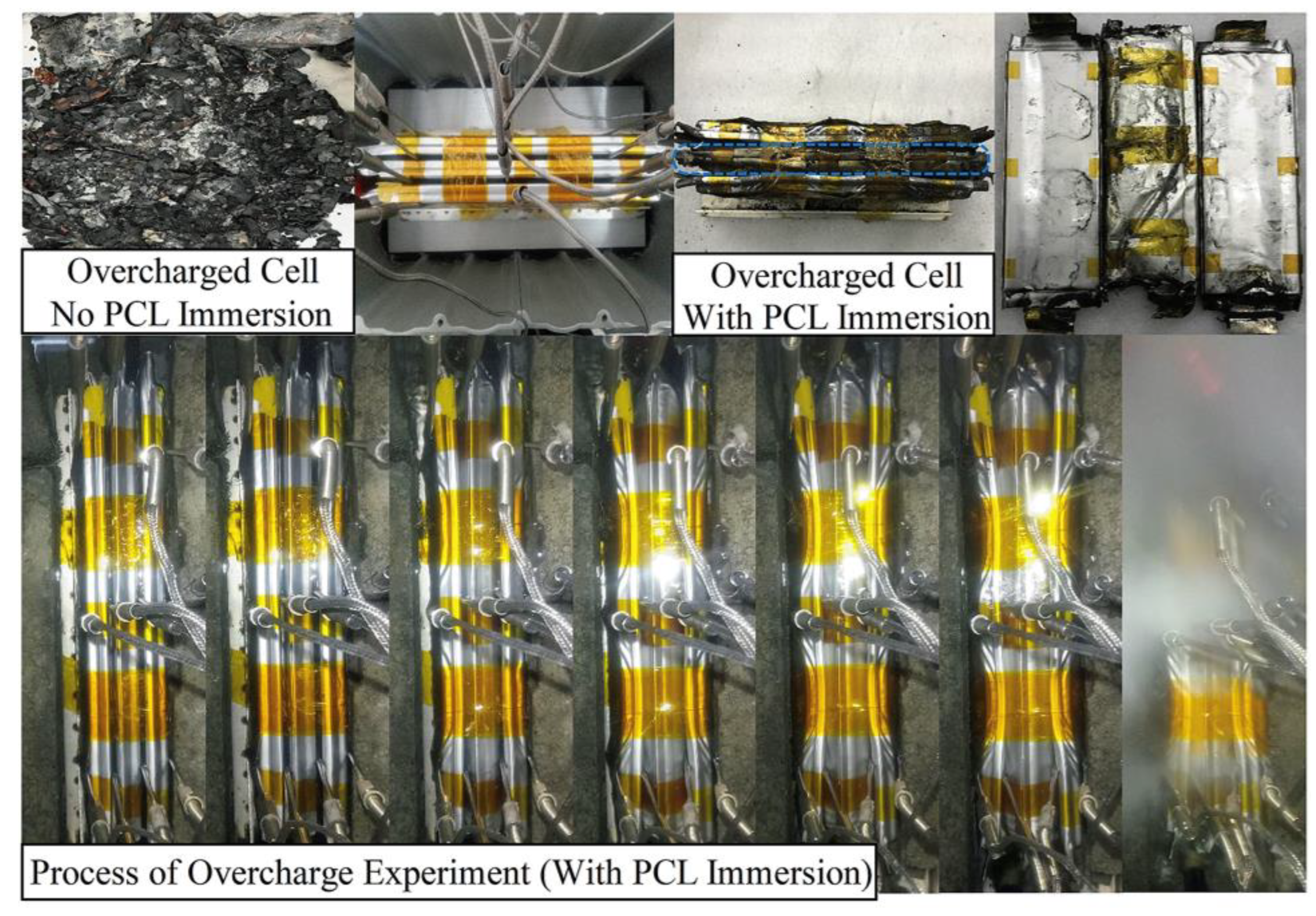

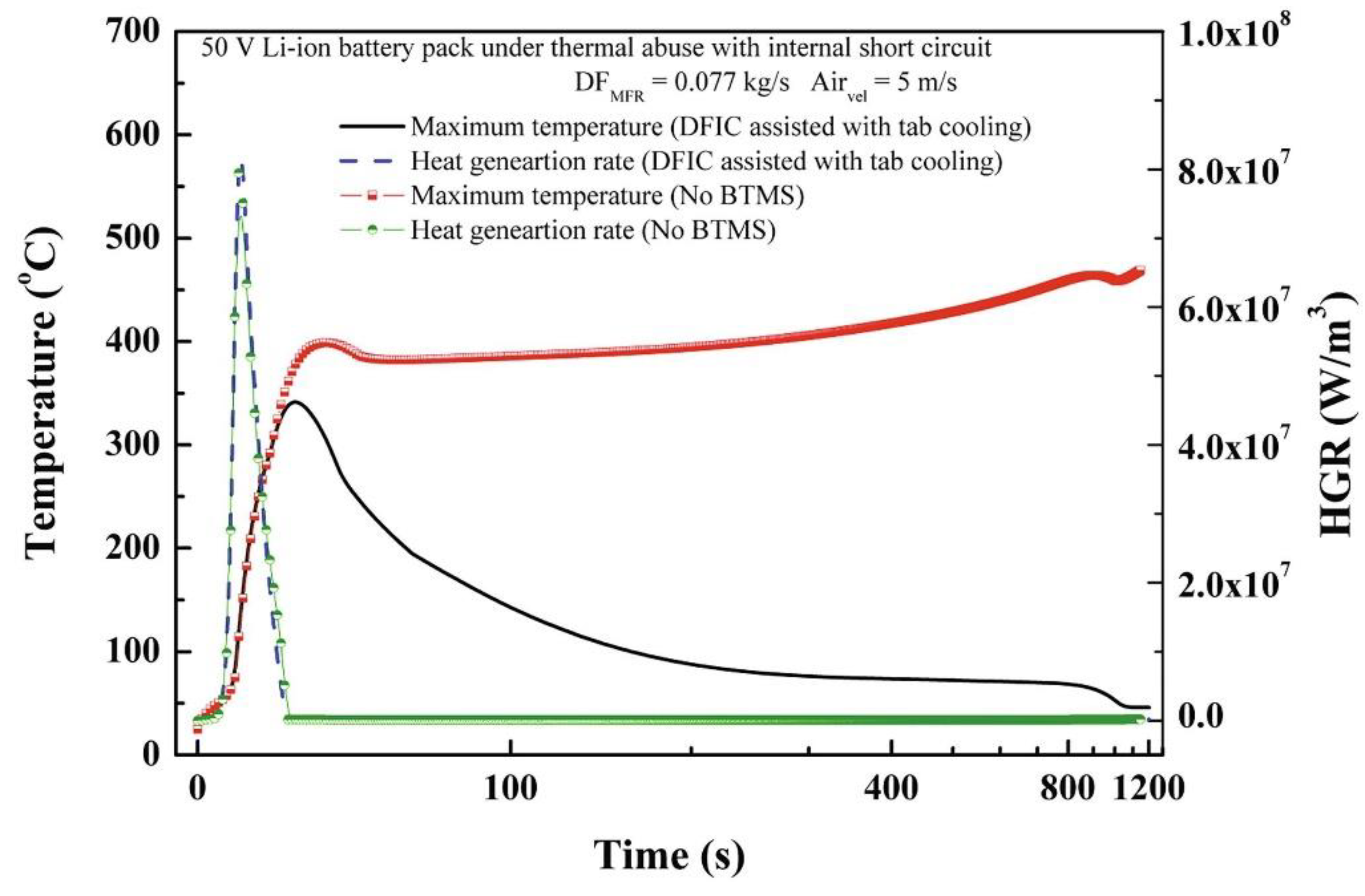

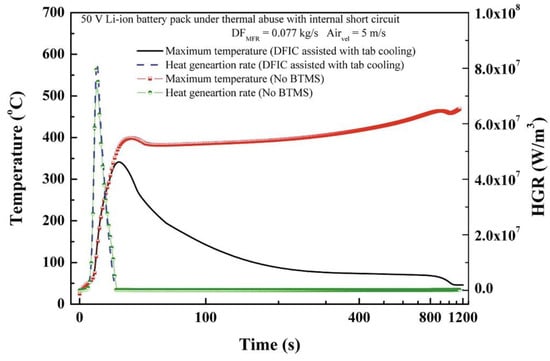

Figure 10. Elimination of thermal runaway propagation using proposed cooling [98].
Figure 10. Elimination of thermal runaway propagation using proposed cooling [98].
Symmetry 15 01322 g010

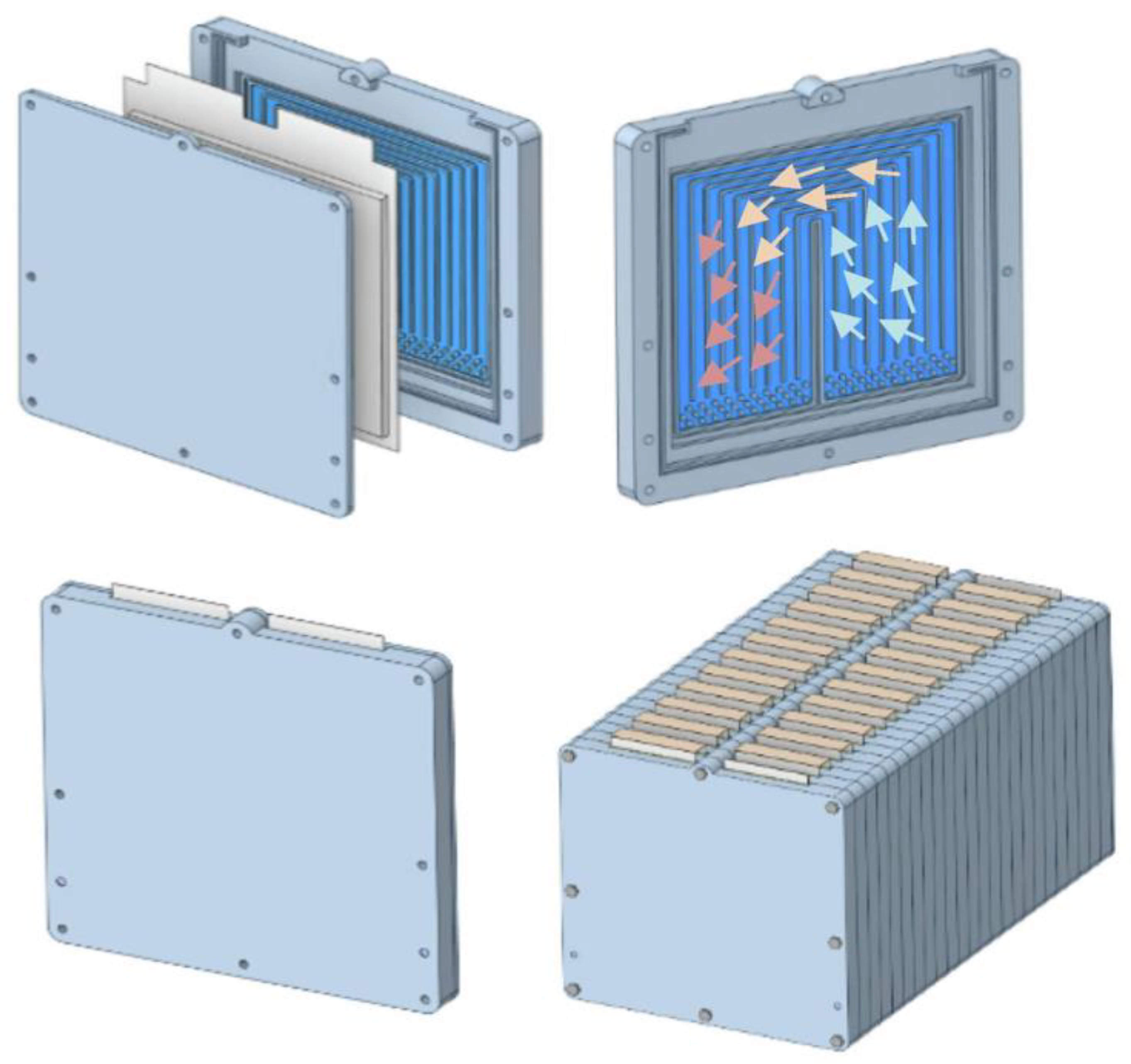

Figure 11. Developed direct contact liquid cooling configuration with flow pattern for battery cell and module [105].
Figure 11. Developed direct contact liquid cooling configuration with flow pattern for battery cell and module [105].
Symmetry 15 01322 g011

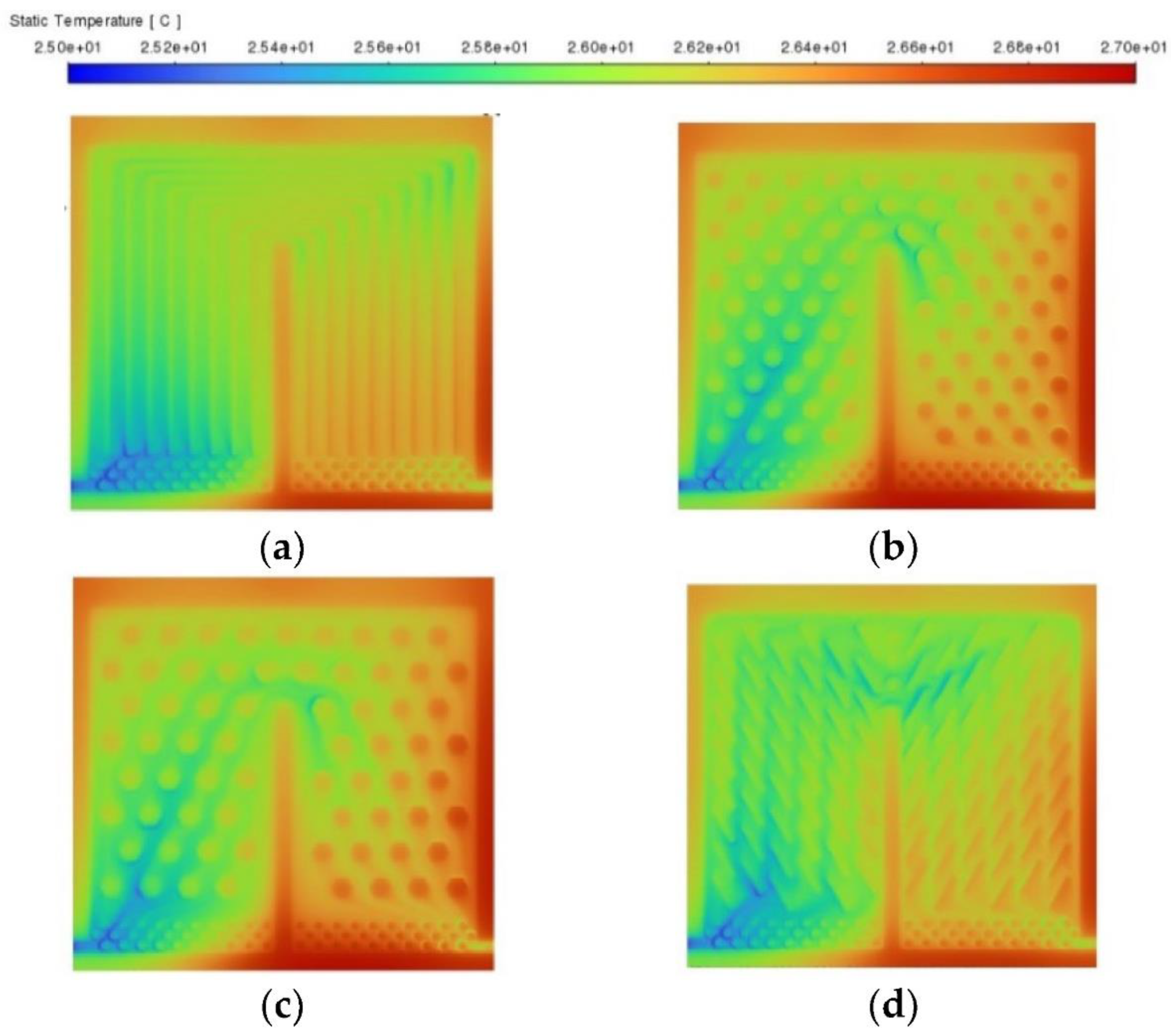

Figure 12. Battery cell temperature comparison for direct liquid cooling with (a) U-shape distributors (b) convex distributors (c) honeycomb distributors and (d) airfoil distributors [111].
Figure 12. Battery cell temperature comparison for direct liquid cooling with (a) U-shape distributors (b) convex distributors (c) honeycomb distributors and (d) airfoil distributors [111].
Symmetry 15 01322 g012

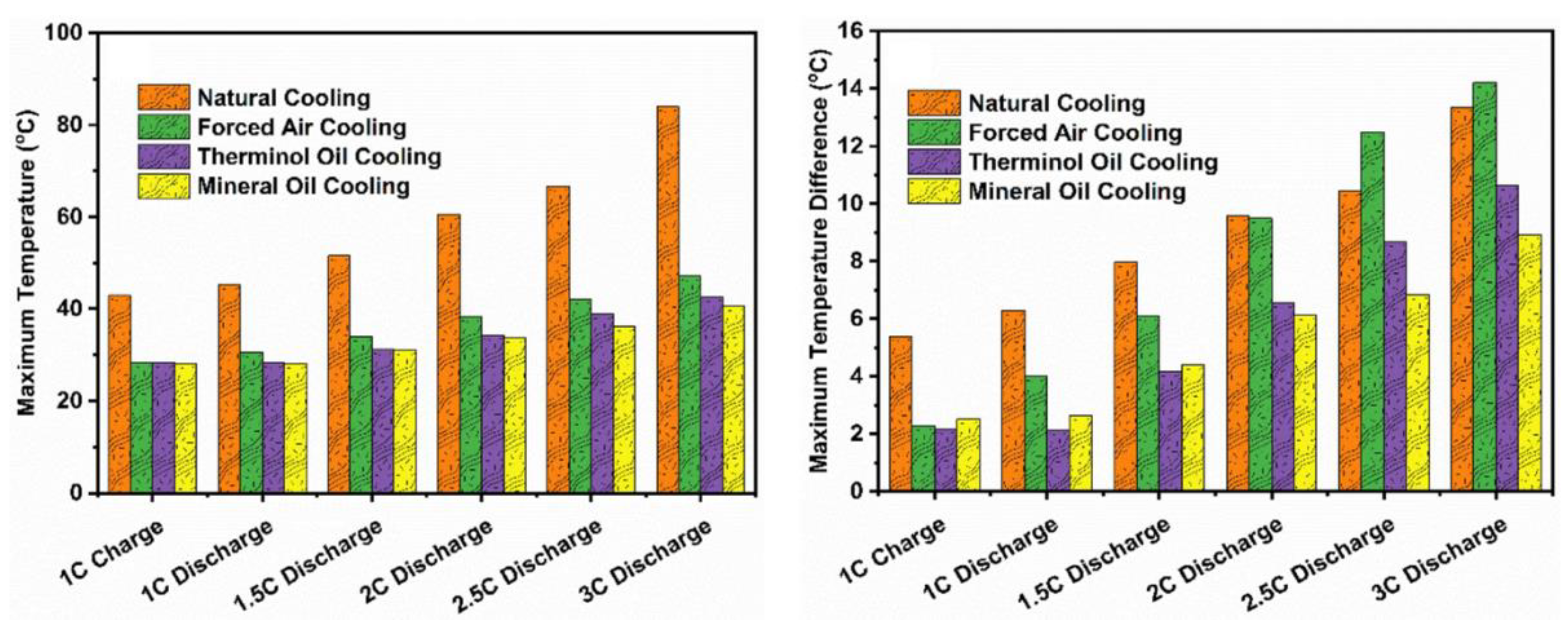

Figure 13. Comparison of maximum temperature and temperature difference of battery for immersion cooling with different cooling oils [122].
Figure 13. Comparison of maximum temperature and temperature difference of battery for immersion cooling with different cooling oils [122].
Symmetry 15 01322 g013

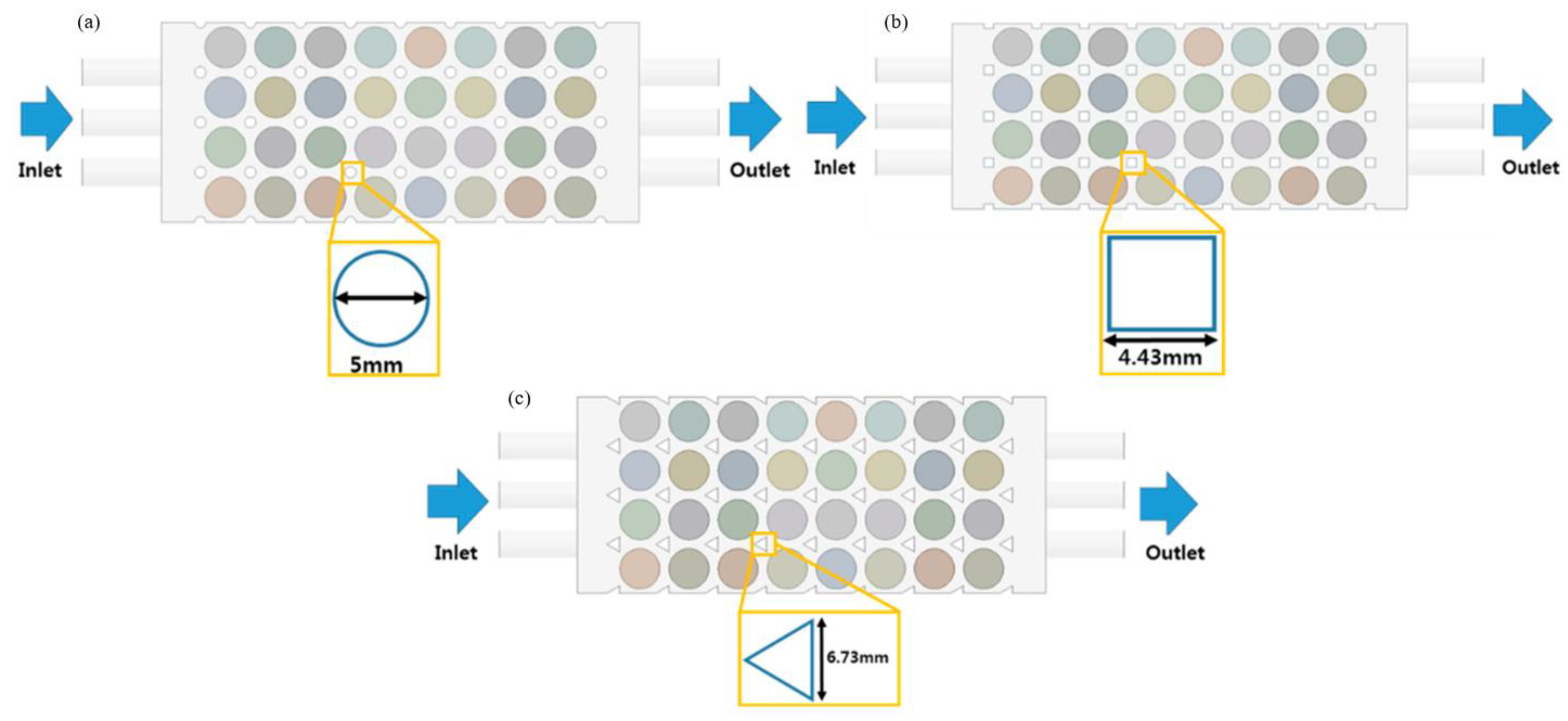

Figure 14. (a) Circular (b) rectangular and (c) triangular fin structures considered for dielectric fluid immersion cooling [128].
Figure 14. (a) Circular (b) rectangular and (c) triangular fin structures considered for dielectric fluid immersion cooling [128].
Symmetry 15 01322 g014

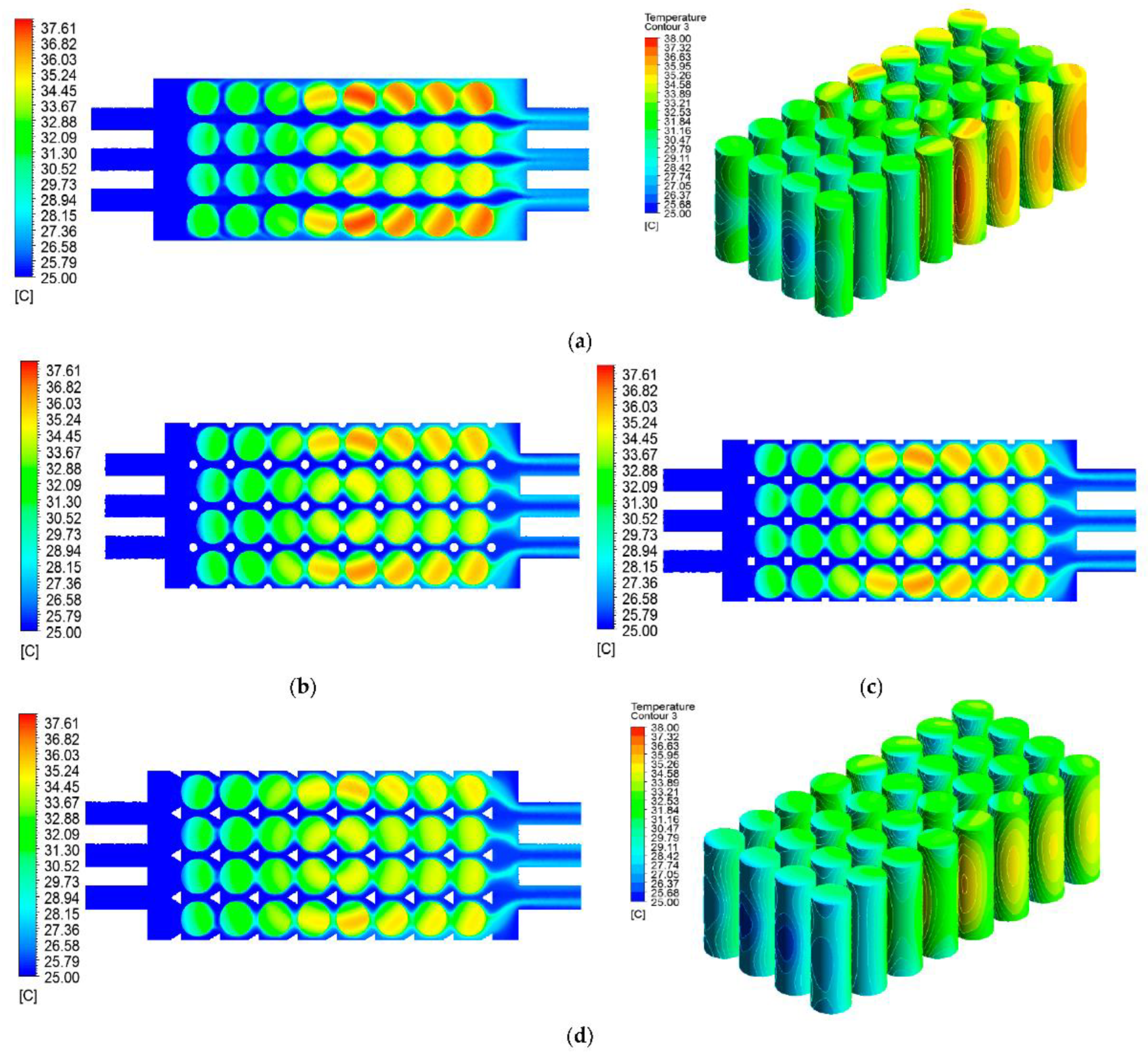

Figure 15. Battery module temperatures for dielectric fluid immersion cooling with (a) base (b) circular (c) rectangular and (d) triangular fin structures [128].
Figure 15. Battery module temperatures for dielectric fluid immersion cooling with (a) base (b) circular (c) rectangular and (d) triangular fin structures [128].
Symmetry 15 01322 g015
Table 1. Recent reviews on battery thermal management systems with key highlights.
Table 1. Recent reviews on battery thermal management systems with key highlights.
ReviewFocus of ReviewHighlights
Deng et al. (2018) [20]Battery thermal management based on liquid coolingSummary of types of liquid cooling structures, the performance of various coolants, and battery pack design
Chen et al. (2019) [21]Battery thermal management based on phase change material coolingSummary of battery cooling research works on pure, composite, and hybrid phase change materials
Wu et al. (2019) [22]Battery thermal management based on liquid and heat pipe coolingSummary of research works on direct liquid cooling, indirect liquid cooling, and heat pipe cooling
Akinlabi and Solyali (2020) [23]Battery thermal management based on air coolingSummary of research works on active and passive air cooling of the battery
Karthik et al. (2020) [24]Battery thermal management based on air cooling, liquid cooling, and phase change material coolingSummary of articles on various cooling strategies to mitigate the thermal runaway propagation in battery
Thakur et al. (2020) [25]Battery thermal management based on air, liquid, and heat pipe coolingSummary of research works on natural and forced air cooling, direct and indirect liquid cooling, and heat pipe cooling for battery
Tete et al. (2021) [26]Battery thermal management based on air, liquid, heat pipe, phase change material, and refrigeration coolingSummary of experimental and numerical research works on battery thermal management systems for hybrid EVs and full EVs
Murali et al. (2021) [27]Battery thermal management based on passive phase change material coolingSummary of research on various battery cooling strategies combined with phase change material. In addition, the research on composite phase material cooling for the battery is also summarized
Jiang et al. (2022) [28]Battery thermal management based on air, liquid, heat pipe, phase change material, and combined coolingSummary of research on battery thermal management with various cooling strategies under normal and abusive conditions
Hamed et al. (2022) [29]Battery thermal management based on air, liquid, and phase change material coolingSummary of research studies on external cooling strategies for the battery
Roe et al. (2022) [30]Battery thermal management system based on immersion coolingSummary of various dielectric fluids for immersion cooling of battery and related research works
Zhao et al. (2023) [31]Battery thermal management based on liquid coolingResearch studies focus on optimization and design improvement of liquid cooling systems for batteries are summarized
Table 2. Recent research studies on the air-cooling-based battery thermal management system.
Table 2. Recent research studies on the air-cooling-based battery thermal management system.
ReferenceDesign ImprovementsKey Findings
Shahid et al. (2018) [51]Wedge-shaped inlet plenum with an optimized separating plate for air cooling systemMaximum temperature was reduced by 18.3% and the temperature uniformity was maintained at less than 5 °C
Na et al. (2018) [52]Unidirectional airflow and reverse layered airflow configurations for a cylindrical battery module.Reverse layered airflow configuration significantly reduces the maximum temperature and increases the temperature uniformity of the battery pack compared to unidirectional airflow configuration
Fan et al. (2019) [53]Air-cooling of the battery pack with cells arranged in aligned, cross, and staggered arrangementsBattery pack with aligned cells provides the best temperature uniformity and the lowest energy consumption compared to other arrangements
Yuanzhi Liu et al. (2019) [54]Air cooling system with J-type, U-type, and Z-type structuresAir cooling system with a J-type structure shows the best thermal management performance compared to the other two structures, with a temperature rise of the battery reduced to 31.18%
Kai et al. (2020) [55]A symmetrical air-cooling system with asymmetrical distribution of cell spacingThe maximum cell temperature difference was reduced by 43% and the energy consumption was reduced by 33% compared with the asymmetrical air-cooling system
Hou et al. (2022) [56]Optimize the parallel channel width distribution and plenum angle for the air-cooled battery thermal management systemThe temperature difference of the battery pack reduces by 49% after optimizing the parallel channel width and 56% after optimizing the plenum angle
Zhang et al. (2021) [57]Forced-air cooling system with multiple vents, different position and size of vents and various cell spacingsThe maximum temperature and temperature difference of battery were reduced by 16.4% and 48.7%, respectively, for optimized model compared to original model
Saechan et al. (2022) [58]Optimize the cell arrangement structure for air coolingSuperior cooling performance for an optimal arrangement distance between cells as 1.5 mm
Table 3. Recent advancements in indirect liquid cooling-based battery thermal management systems.
Table 3. Recent advancements in indirect liquid cooling-based battery thermal management systems.
ReferenceSystem SpecificationsKey Findings
Du et al. (2018) [60]Water cooling tubes for cylindrical batteryAchieves maximum temperature of 31.8 °C and temperature uniformity of 4.2 °C under 1C discharge rate
Lv et al. (2019) [61]Water cooling tubes for cylindrical batteryMaximum temperature and temperature uniformity of battery as 42 °C and 4–5 °C, respectively at 3C discharge rate
Zhou et al. (2019) [62]Water cooling with a half helical duct for cylindrical batteryProposed cooling shows battery maximum temperature and temperature uniformity as 30.9 °C and 4.3 °C, respectively under a 5C discharge rate
Shang et al. (2019) [63]Water and glycol mixture-based cooling plate for prismatic batteryCooling configuration attends the maximum temperature and temperature uniformity of battery as 38.89 °C and 5.31 °C, respectively at a 1.2C discharge rate
Deng et al. (2019) [64]Cold plate cooling with water for rectangular batteryMaintains the maximum temperature and temperature difference at 31.18 °C and 1.15 °C under 5C discharge rate
Xu et al. (2019) [65]Water jacket cooling for prismatic batteryThe achievable maximum temperature and temperature uniformity are 32.5 °C and 1.5 °C under a 1C discharge rate
Li et al. (2019) [66]Cold plate cooling using water for prismatic batteryThe battery maximum temperature and temperature uniformity are maintained within 41.92 °C and 1.78 °C for a 5C discharge rate
Chen et al. (2019) [67]Mini channels-based jacket cooling using water for soft-pack batteryThe proposed cooling restricts the maximum temperature and temperature uniformity of the battery within 32.8 °C and 2 °C under 1C discharge rate
Wiriyasart et al. (2020) [68]Nanofluid flow in corrugated mini channels for battery module coolingThe proposed cooling module shows a maximum temperature lower by 28.65% compared to the conventional cooling module
Du et al. (2020) [69]Water cooling plate for pouch batteryUnder 2C discharge rate, maintains maximum temperature and temperature difference at 32 °C and 6.2 °C
Patil et al. (2020) [70]U-shaped mini channels cooling for pouch cell batteryThe maximum temperature and temperature uniformity is maintained below 40 °C and 4 °C for a 50 V battery pack
Liu et al. (2020) [71]Water and liquid metal-based cooling tubes for pouch cell batteryProposed cooling achieves maximum temperature and temperature difference of battery below 40 °C and 5 °C, respectively at a 5C discharge rate
Monika et al. (2021) [72]Rectangular mini-channel cold plate sandwiched between the battery cells and providing a constant flow of coolant in the mini-channels across the cold plate.A cold plate consisting of 4 mm width, parallel flow design with water inlet near the charging port, and coolant flow rate and temperature of 0.003 kg·s −1 and 25 °C, respectively show superior battery cooling performance
Yates et al. (2021) [73]Water cooling channels for cylindrical batteryMaximum temperature and temperature difference of battery are restricted within 39.85 °C and 3.15 °C, respectively under a 5C discharge rate
Huang et al. (2022) [74]Optimize the cooling plate structureThe optimized structure improves the cooling efficiency by 10.82% compared with the original design
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Garud, K.S.; Tai, L.D.; Hwang, S.-G.; Nguyen, N.-H.; Lee, M.-Y. A Review of Advanced Cooling Strategies for Battery Thermal Management Systems in Electric Vehicles. Symmetry 2023, 15, 1322. https://doi.org/10.3390/sym15071322

AMA Style

Garud KS, Tai LD, Hwang S-G, Nguyen N-H, Lee M-Y. A Review of Advanced Cooling Strategies for Battery Thermal Management Systems in Electric Vehicles. Symmetry. 2023; 15(7):1322. https://doi.org/10.3390/sym15071322

Chicago/Turabian Style

Garud, Kunal Sandip, Le Duc Tai, Seong-Guk Hwang, Nghia-Huu Nguyen, and Moo-Yeon Lee. 2023. "A Review of Advanced Cooling Strategies for Battery Thermal Management Systems in Electric Vehicles" Symmetry 15, no. 7: 1322. https://doi.org/10.3390/sym15071322

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
