# PSO, a Swarm Intelligence-Based Evolutionary Algorithm as a Decision-Making Strategy: A Review

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology of the Literature Review

#### 2.1. Scientific Articles

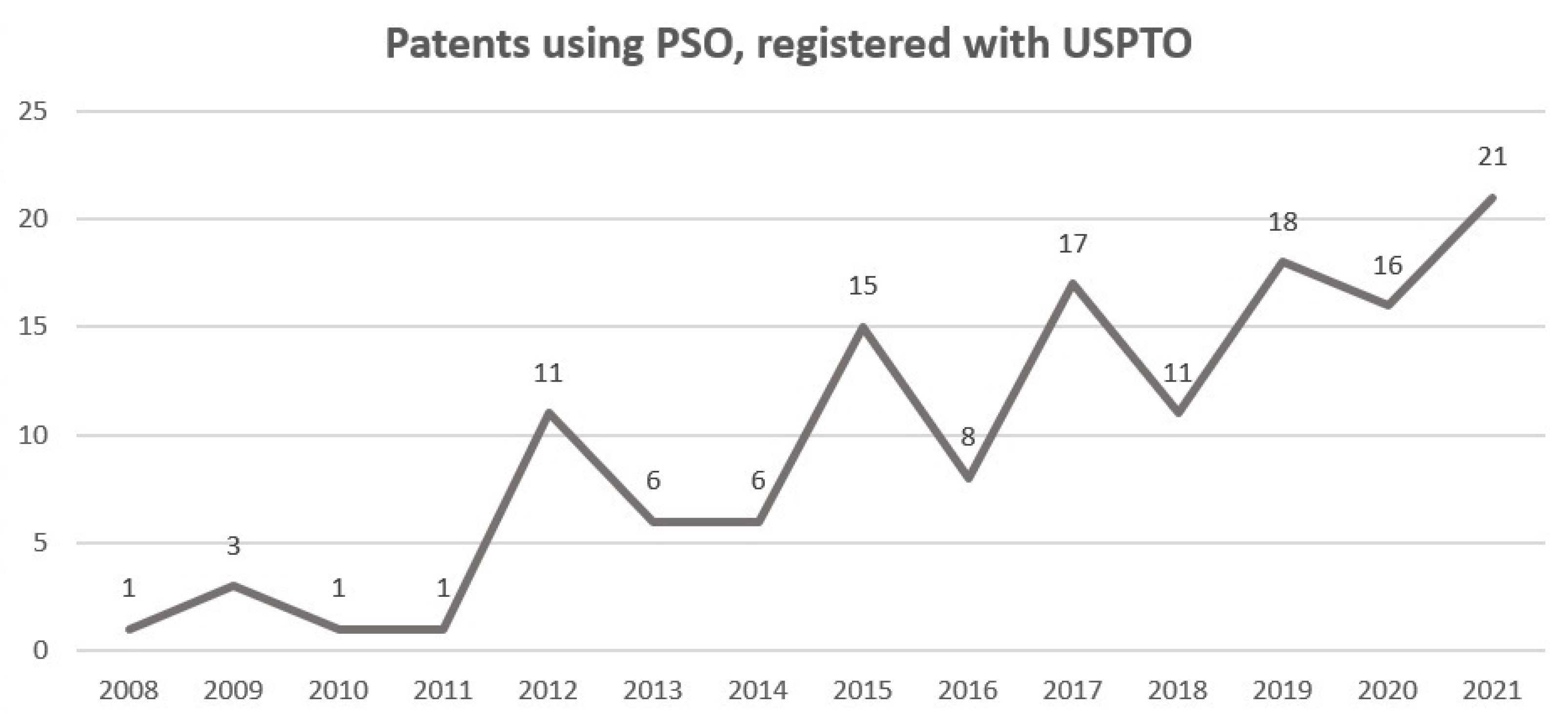

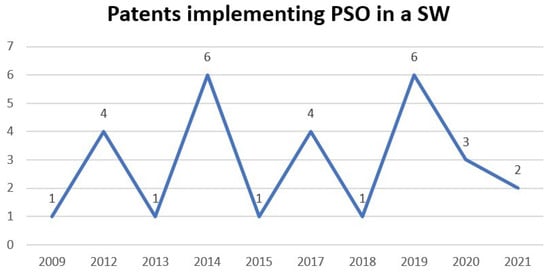

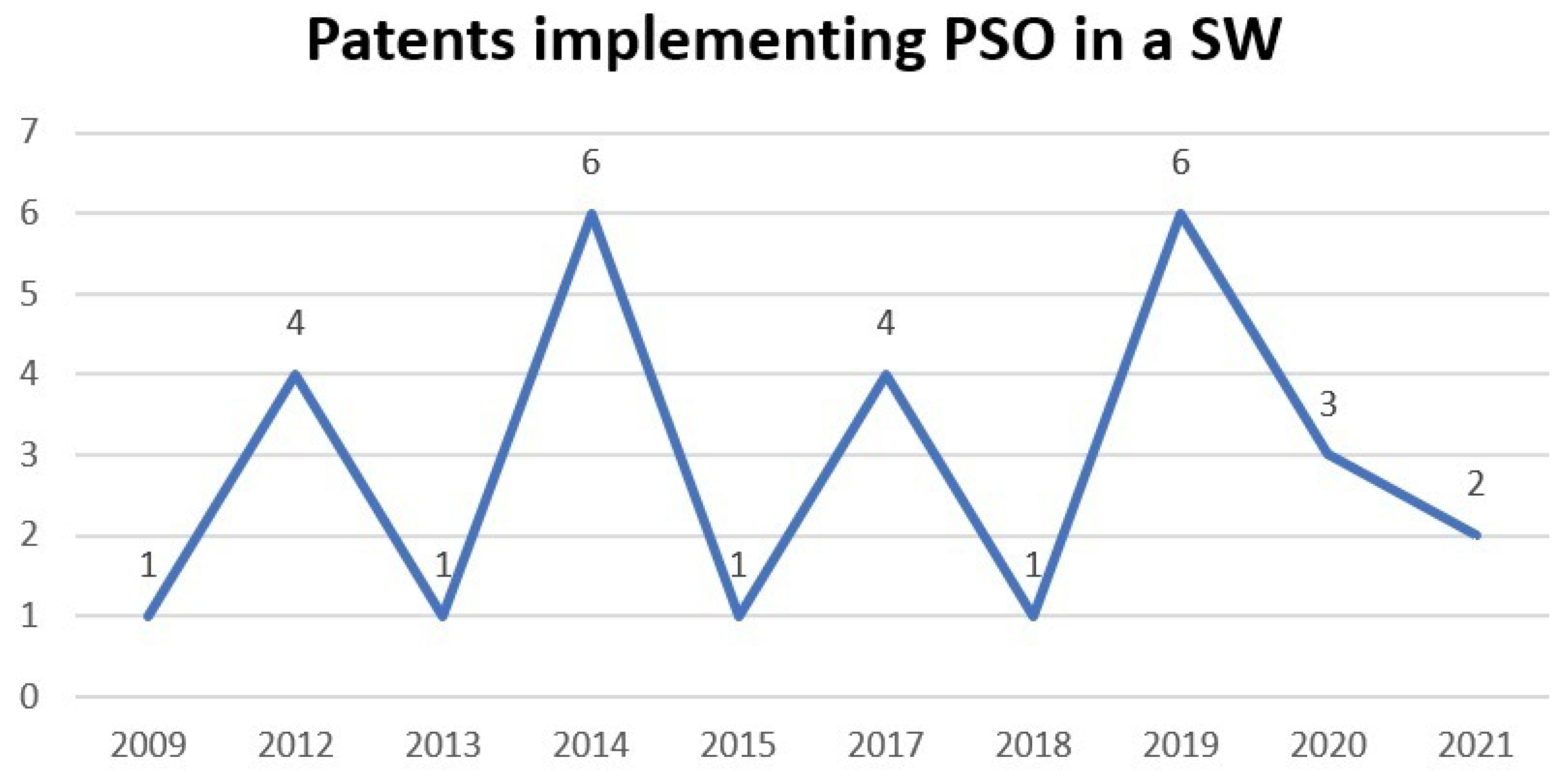

#### 2.2. Patents Employing the PSO Algorithm

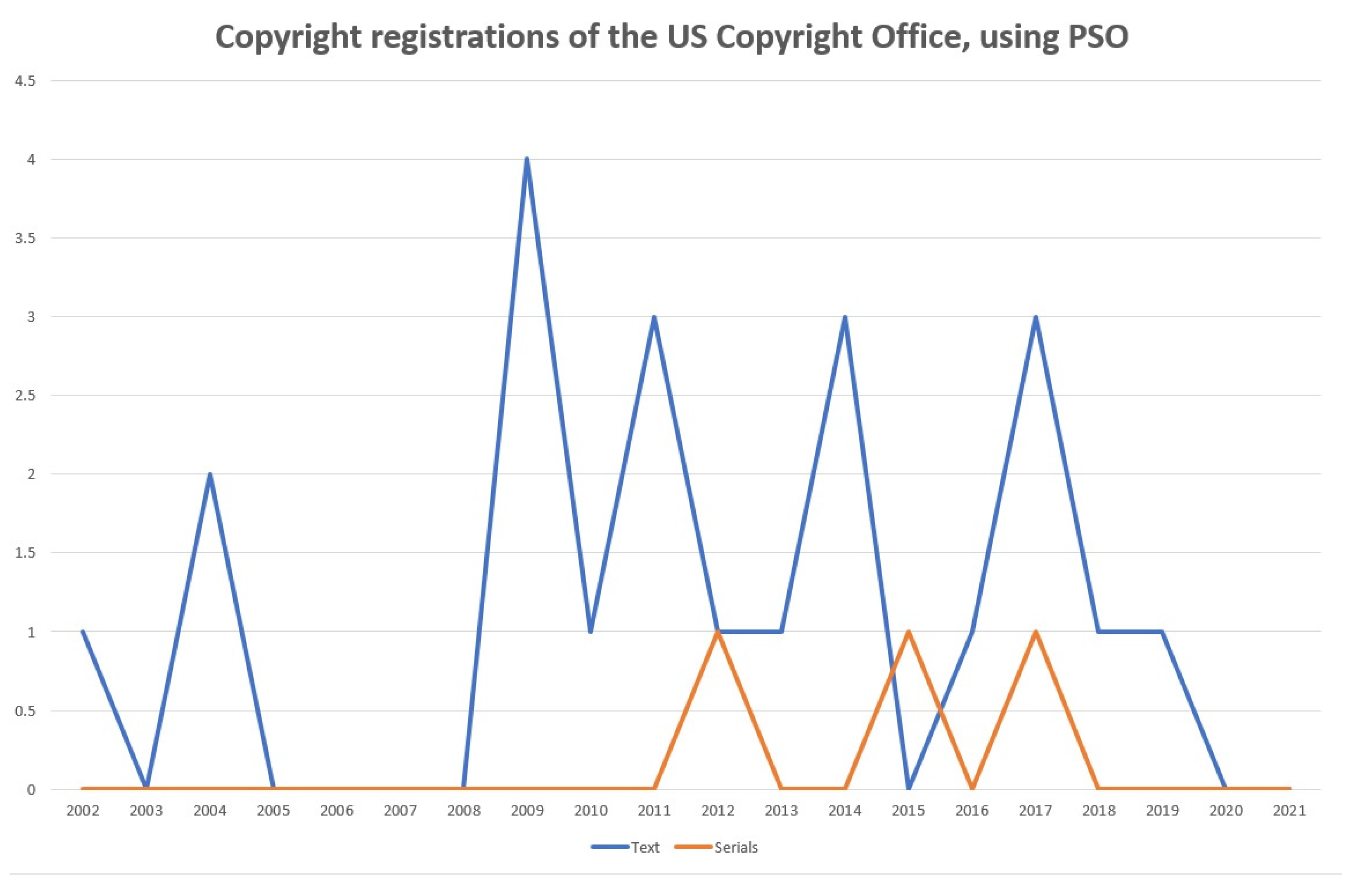

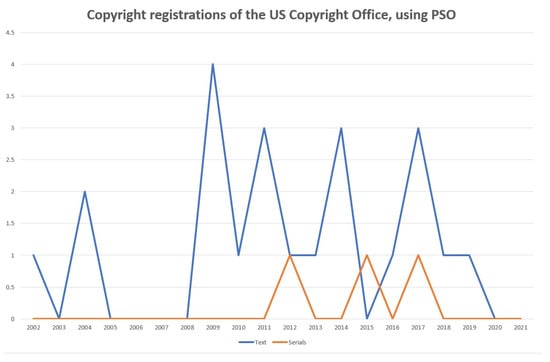

#### 2.3. Copyright with the PSO Algorithm

## 3. Results of the Literature Review

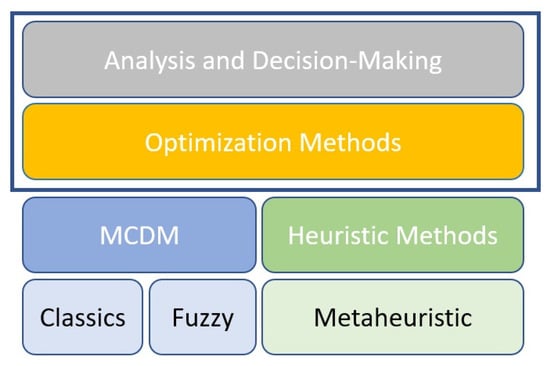

#### 3.1. Analysis and Decision-Making

#### 3.2. Multi-Criteria Methods

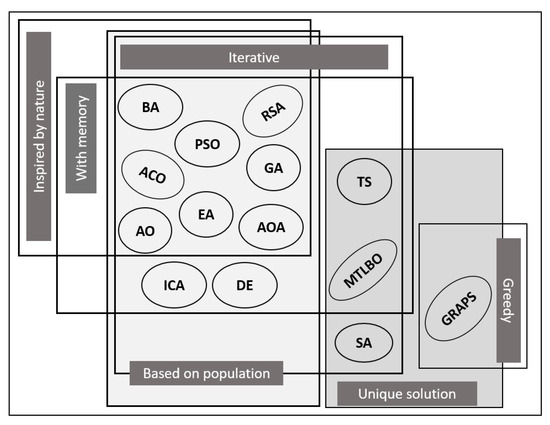

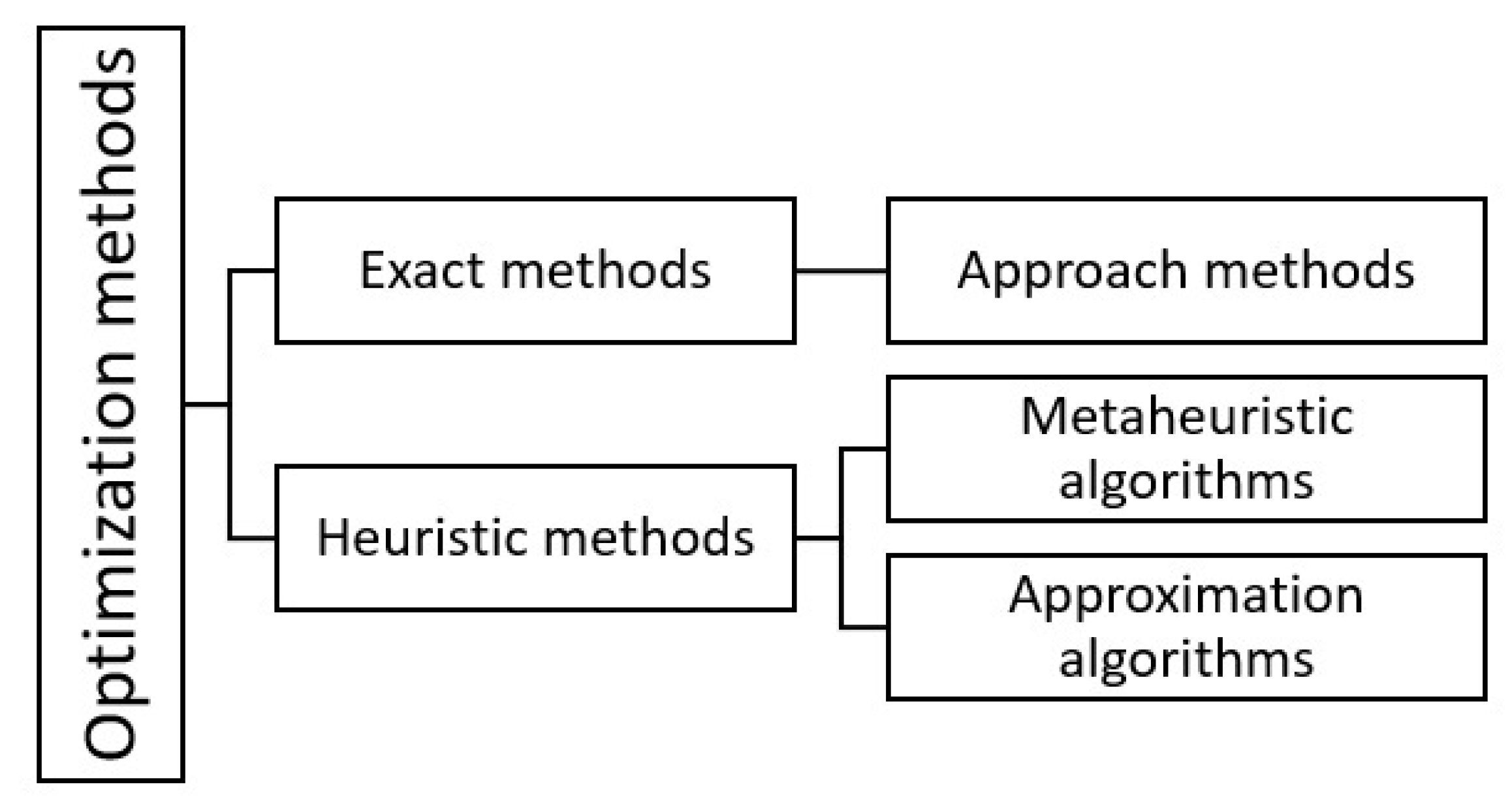

#### 3.3. Metaheuristics

#### 3.4. Particle Swarm Algorithm (PSO)

#### 3.4.1. PSO Applications

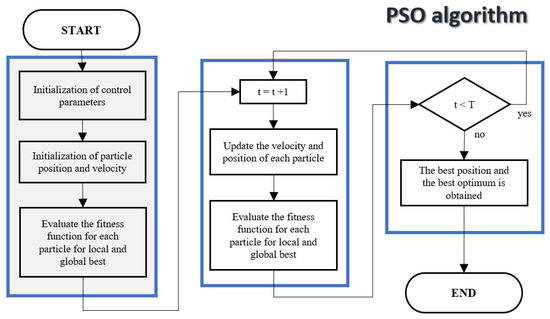

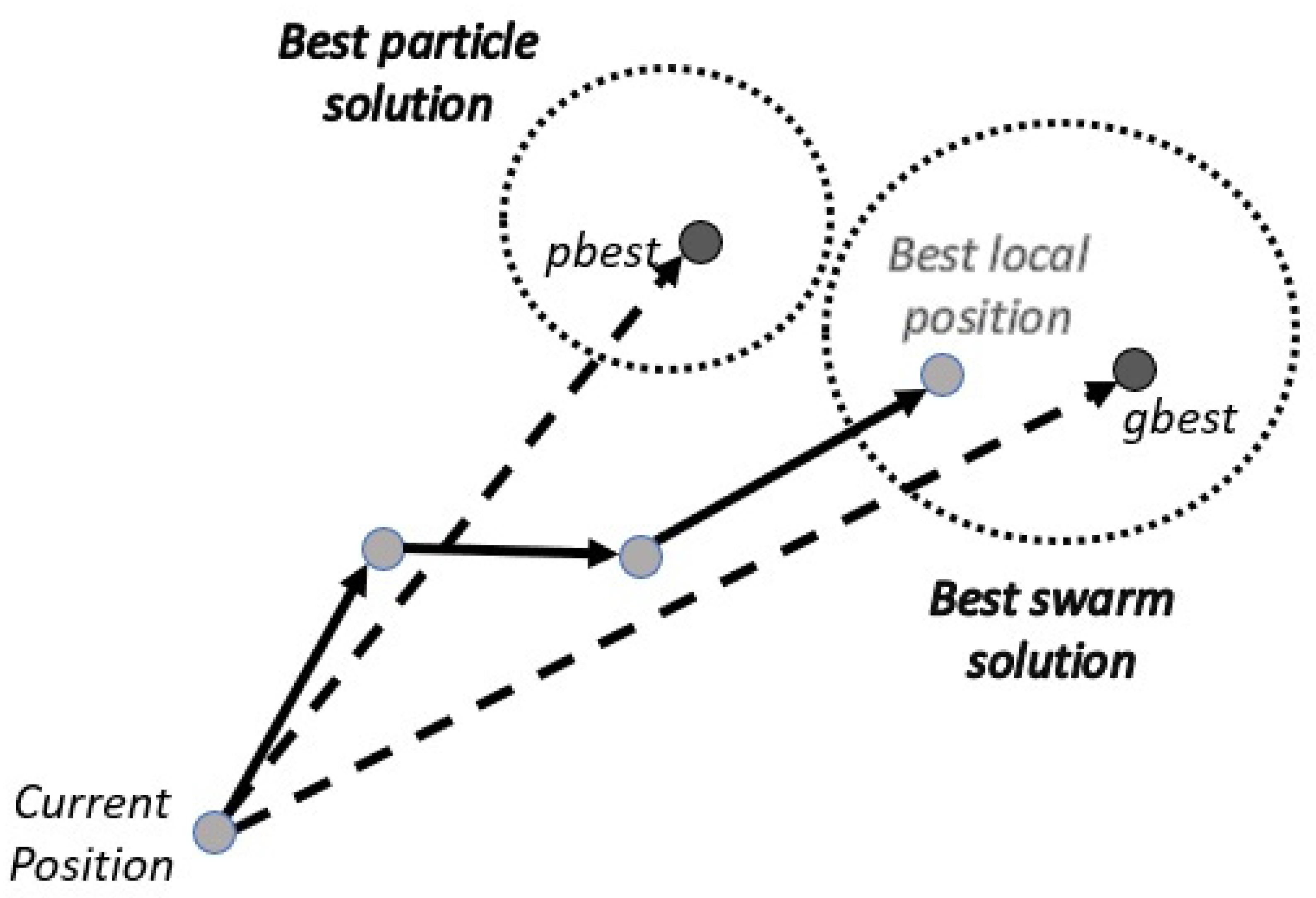

#### 3.4.2. Structure of the Classic PSO Algorithm

**Steps****1.**- Initialization

- 1.
- Set the control parameters: N, ω, ${c}_{1}$, ${c}_{2}$, ${r}_{1}$, ${r}_{2}$, and T (definition in Table 9), the number current number of iterations with a value of 1 ($t=1$) because it is the first iteration, and the fitness function to initialize the swarm.The variable ω makes convergence happen in fewer iterations and maintains the balance between local and global searches. A smaller value of ω leads to a local search and a larger value than a global search. If ω has a large value, the algorithm starts the search globally and ends with a local search [108,109].
- 2.
- Determine the first local position of the particles randomly, considering $i=\{1,2,\cdots ,N\}$:$$C{P}_{N}^{i}\left(t\right)=(C{P}_{1}^{i}\left(t\right),C{P}_{2}^{i}\left(t\right),\cdots ,C{P}_{N}^{i}\left(t\right))$$
- 3.
- Randomly set the first local velocity of the particles (from 1 to N):$${V}_{N}^{i}\left(t\right)=({V}_{1}^{i}\left(t\right),{V}_{2}^{i}\left(t\right),\cdots ,{V}_{N}^{i}\left(t\right))$$
- 4.
- Evaluate the fitness function with the first position (Equation (1)), to obtain the best current optimum:$$C{F}_{N}^{i}\left(t\right)=f\left(x\right)=f\left(C{P}_{N}^{i}\left(t\right)\right)$$
- 5.
- To establish the best local position (LBP), we use the first local position (Equation (1)). While, for the first best local optimum (LBF), we use the current best optimum (Equation (3)):$$LB{P}_{N}^{i}\left(t\right)=C{P}_{N}^{i}\left(t\right)$$$$LB{F}_{N}^{i}\left(t\right)=C{F}_{N}^{i}\left(t\right)$$
- 6.
- To obtain the best global optimum with the maximum value of the best local optimum (Equation (5)); that is, the maximum value of the dataset of the best local optimum (LBF):$$GBF\left(t\right)=max\left(LB{F}_{N}^{i}\left(t\right)\right)$$
- 7.
- To obtain the best global position, we extract the particle position in i from the best global optimum (Equation (6)). Position (z) provides the value of the best local position and becomes the best global position:z = particle position in i of GBF(t)$$GBP\left(t\right)=LBF\left(z\right)$$To continue with step 2, we increment the current number of iterations ($t=t+1$).

**Steps****2.**- Position updating and local optimal

- 1.
- Update speed and position of the particle.From this step, ($t-1$) indicates the value of the previous iteration, while (t) is the current iteration.To update the velocity, we use the inertial weight coefficient (ω), the learning factors (${c}_{1}$ and ${c}_{2}$), and the particle circulation values (${r}_{1}$ and ${r}_{2}$), as well as the values of the previous iteration of the speed, local position, and best local and global positions.Meanwhile, for the current position, we add the previous current position and the new speed:$${V}_{N}^{i}\left(t\right)=\omega ({V}_{N}^{i}(t-1)+{c}_{1}{r}_{1}(LB{P}_{N}^{i}(t-1)-C{P}_{N}^{i}(t-1))+{c}_{2}{r}_{2}(GBP(t-1)-C{P}_{N}^{i}(t-1))$$$$C{P}_{N}^{i}\left(t\right)=C{P}_{N}^{i}(t-1)+{V}_{N}^{i}\left(t\right)$$
- 2.
- To obtain the best current optimum, evaluating the fitness function with the current position (Equation (9)):$$C{F}_{N}^{i}\left(t\right)=f\left(x\right)=f\left(C{P}_{N}^{i}\left(t\right)\right)$$
- 3.
- Update best local position with current position (Equation (9)):$$LB{P}_{N}^{i}\left(t\right)=CP\left(t\right)$$
- 4.
- 5.
- Obtain the best global optimum with the maximum value of the best local optimum (Equation (12)). That is, the maximum value of the dataset of the best local optimum (LBF):$$GBF\left(t\right)=max\left(LB{F}_{N}^{i}\left(t\right)\right)$$
- 6.
- To obtain the best global position, we extract the particle position in i from the best global optimum (Equation (11)). That position (z) provides the value of the best local position and becomes the best global position:z = particle position in i of GBF(t)$$GBP\left(t\right)=LBP\left(z\right)$$

**Steps****3.**- Obtaining the best global-optimal position

- 1.
- If the current iteration is less than the total iterations, it is convergent; therefore, we increment the iteration and continue from step 2:$$t<T\to (t=t+1)$$
- 2.
- The process ends when the total iteration is equal to or greater than the current iteration. We obtain the best position and the best optimum from the last values of the best global position and the best global optimum:$$t\ge T=\left\{\begin{array}{c}pbest\left(T\right)=GBP\left(t\right)\hfill \\ gbest\left(T\right)=GBF\left(t\right)\hfill \end{array}\right.$$

## 4. Conclusions and Future Work

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

PSO | Particle Swarm Optimization |

EA | Evolutionary Algorithms |

GA | Genetic Algorithms |

SA | Simulated Annealed Algorithm |

TS | Taboo |

ACO | Colony of Ants Algorithm |

BA | Bat Algorithm |

ABC | Artificial Bee Colony Algorithm |

USPTO | United States Patent and Trademark Office |

SW | Programs, Systems, or Software |

MCDM | Multi-Criteria Decision Making |

## References

- Nakagawa, E.Y.; Antonino, P.O.; Schnicke, F.; Capilla, R.; Kuhn, T.; Liggesmeyer, P. Industry 4.0 reference architectures: State of the art and future trends. Comput. Ind. Eng.
**2021**, 156, 107241. [Google Scholar] [CrossRef] - Hoßfeld, S. Optimization on decision-making driven by digitalization. Econ. World
**2017**, 5, 120–128. [Google Scholar] [CrossRef][Green Version] - Akmaludin; Sulistianto, S.W.; Sudradjat, A.; Setiawan, S.; Supendar, H.; Handrianto, Y.; Rusdiansyah; Tuslaela. Comparison of Job Position Based Promotion Using: VIKOR, ELECTRE And Promethee Method. In Proceedings of the 2018 Third International Conference on Informatics and Computing (ICIC), Palembang, Indonesia, 17–18 October 2018; pp. 1–7. [Google Scholar] [CrossRef]
- Lee, C.C.; Tseng, H.C. Integrating fuzzy membership function, entropy method and VIKOR to select qualified and stable employee. In Proceedings of the 2018 International Conference on Information Management and Processing (ICIMP), London, UK, 12–14 January 2018; pp. 26–31. [Google Scholar] [CrossRef]
- Stančin, I.; Jović, A. An overview and comparison of free Python libraries for data mining and big data analysis. In Proceedings of the 2019 42nd International Convention on Information and Communication Technology, Electronics and Microelectronics (MIPRO), Opatija, Croatia, 20–24 May 2019; pp. 977–982. [Google Scholar] [CrossRef]
- Abualigah, L.; Diabat, A.; Mirjalili, S.; Abd Elaziz, M.; Gandomi, A.H. The arithmetic optimization algorithm. Comput. Methods Appl. Mech. Eng.
**2021**, 376, 113609. [Google Scholar] [CrossRef] - Kizielewicz, B.; Sałabun, W. A new approach to identifying a multi-criteria decision model based on stochastic optimization techniques. Symmetry
**2020**, 12, 1551. [Google Scholar] [CrossRef] - Rousseau, D.M. Making Evidence-Based Organizational Decisions in an Uncertain World. Organ. Dyn.
**2020**, 49, 100756. [Google Scholar] [CrossRef] - Omri, N.; Al Masry, Z.; Mairot, N.; Giampiccolo, S.; Zerhouni, N. Industrial data management strategy towards an SME-oriented PHM. J. Manuf. Syst.
**2020**, 56, 23–36. [Google Scholar] [CrossRef] - Wood, D.A. Net ecosystem carbon exchange prediction and insightful data mining with an optimized data-matching algorithm. Ecol. Indic.
**2021**, 124, 107426. [Google Scholar] [CrossRef] - Yifei, T.; Meng, Z.; Jingwei, L.; Dongbo, L.; Yulin, W. Research on intelligent welding robot path optimization based on GA and PSO algorithms. IEEE Access
**2018**, 6, 65397–65404. [Google Scholar] [CrossRef] - Wu, Z.; Yu, J.; Yan, S.; Wand, J.; Tan, M. Motion Control Method and System for Biomimetic Robotic Fish Based on Adversarial Structured Control. U.S. Patent 10962976B1, 30 March 2021. [Google Scholar]
- Zhang, H.; Peng, Q. PSO and K-means-based semantic segmentation toward agricultural products. Future Gener. Comput. Syst.
**2022**, 126, 82–87. [Google Scholar] [CrossRef] - Miguelanez, E.; Scott, M.J.; Labonte, G. Methods and Apparatus for Data Analysis. U.S. Patent 20,080,091,977, 17 April 2008. [Google Scholar]
- Geng, N.; Meng, Q.; Gong, D.; Chung, P.W. How good are distributed allocation algorithms for solving urban search and rescue problems? A comparative study with centralized algorithms. IEEE Trans. Autom. Sci. Eng.
**2018**, 16, 478–485. [Google Scholar] [CrossRef] - Minglun, R.; Xiaodi, H.; Chenze, W.; Bayi, C. Path Planning Method and System for Self-Driving of Autonomous System. U.S. Patent 11,067,992, 20 July 2021. [Google Scholar]
- Yutian, L.; Runjia, S. Method and System for onliNe Decision-Making of Generator Start-Up. U.S. Patent 11,159,018, 26 October 2021. [Google Scholar]
- Bin, H.; Yi, W. Method, Apparatus, and System for Positioning Terminal Device. U.S. Patent 20130281114A1, 24 October 2021. [Google Scholar]
- Sinde, G.W. Neural Networks for Ingress Monitoring. U.S. Patent 7,620,611, 17 November 2009. [Google Scholar]
- Yang, C.; Yuri, O.; Swarup, M. Method for Particle Swarm Optimization with Random Walk. U.S. Patent 8,793,200, 29 July 2014. [Google Scholar]
- Yuri, O.; Swarup, M.; Payam, S. Multi-View Cognitive Swarm for Object Recognition and 3D Tracking. U.S. Patent 7,558,762, 7 July 2009. [Google Scholar]
- Yuri, O.; Swarup, M. Object Recognition Using a Cognitive Swarm Vision Framework with Attention Mechanisms. U.S. Patent 7,599,894, 6 October 2009. [Google Scholar]
- Yuri, O.; Swarup, M. Object Recognition System Incorporating Swarming Domain Classifiers. U.S. Patent 7,636,700, 22 December 2009. [Google Scholar]
- Yuri, O.; Swarup, M. Graph-Based Cognitive Swarms for Object Group Recognition in a 3N or Greater-Dimensional Solution Space. U.S. Patent 7,672,911, 2 March 2010. [Google Scholar]
- Yuri, O.; Yang, C.; Swarup, M. Method for Image Registration Utilizing Particle Swarm Optimization. U.S. Patent 8,645,294, 4 February 2014. [Google Scholar]
- Medasani, S.; Owechko, Y.; Lu, T.C.; Khosla, D.; Allen, D.L. Method and System for Directed Area Search Using Cognitive Swarm Vision and Cognitive Bayesian Reasoning. U.S. Patent No. 8,213,709, 3 July 2012. [Google Scholar]
- Payam, S. Method and Apparatus for Optimal Placement of Actuators for Shaping Deformable Materials into Desired Target Shapes. U.S. Patent 8,370,114, 5 February 2013. [Google Scholar]
- Swarup, M.; Yuri, O. Behavior Recognition Using Cognitive Swarms and Fuzzy Graphs. U.S. Patent 8,589,315, 19 November 2013. [Google Scholar]
- Swarup, M.; Yuri, O. Vision-Based Method for Rapid Directed Area Search. U.S. Patent 8,437,558, 7 May 2013. [Google Scholar]
- Al-kazemi, B.S.N. Multiphase Particle Swarm Optimization. Dissertation Thesis, Syracuse University, Syracuse, NY, USA, 2002. [Google Scholar]
- Bertram, A.M. Machine Learning Assisted Optimization with Applications to Diesel Engine Optimization with the Particle Swarm Optimization Algorithm. Dissertation Thesis, Iowa State University, Ames, IA, USA, 2019. [Google Scholar]
- Pranjić, G.; Rekettye, G. Interaction of the social media and big data in reaching marketing success in the era of the fourth industrial revolution. Int. J. Bus. Perform. Manag.
**2019**, 20, 247–260. [Google Scholar] [CrossRef] - Kim, G.S. The effect of quality management and Big Data management on customer satisfaction in Korea’s public sector. Sustainability
**2020**, 12, 5474. [Google Scholar] [CrossRef] - AlSuwaidan, L. Data management model for Internet of Everything. In Proceedings of the International Conference on Mobile Web and Intelligent Information Systems, Istanbul, Turkey, 26–28 August 2019; Springer: Berlin/Heidelberg, Germany, 2019; pp. 331–341. [Google Scholar] [CrossRef]
- Biswas, S.; Pamucar, D.; Kar, S.; Sana, S.S. A New Integrated FUCOM–CODAS Framework with Fermatean Fuzzy Information for Multi-Criteria Group Decision-Making. Symmetry
**2021**, 13, 2430. [Google Scholar] [CrossRef] - Stützle, T.; López-Ibáñez, M. Automated design of metaheuristic algorithms. In Handbook of Metaheuristics; Springer: Berlin/Heidelberg, Germany, 2019; pp. 541–579. [Google Scholar] [CrossRef]
- Dorigo, M.; Stützle, T. Ant colony optimization: Overview and recent advances. In Handbook of Metaheuristics; Springer: Berlin/Heidelberg, Germany, 2019; pp. 311–351. [Google Scholar] [CrossRef][Green Version]
- AlFarraj, O.; AlZubi, A.; Tolba, A. Optimized feature selection algorithm based on fireflies with gravitational ant colony algorithm for big data predictive analytics. Neural Comput. Appl.
**2019**, 31, 1391–1403. [Google Scholar] [CrossRef] - Grillone, B.; Danov, S.; Sumper, A.; Cipriano, J.; Mor, G. A review of deterministic and data-driven methods to quantify energy efficiency savings and to predict retrofitting scenarios in buildings. Renew. Sustain. Energy Rev.
**2020**, 131, 110027. [Google Scholar] [CrossRef] - Kaveh, A.; Bakhshpoori, T. Metaheuristics: Outlines, MATLAB Codes and Examples; Springer: Berlin/Heidelberg, Germany, 2019. [Google Scholar] [CrossRef]
- Zhou, F.; Chen, T.Y. An Integrated Multicriteria Group Decision-Making Approach for Green Supplier Selection Under Pythagorean Fuzzy Scenarios. IEEE Access
**2020**, 8, 165216–165231. [Google Scholar] [CrossRef] - Gustina, A.; Ridwan, A.Y.; Akbar, M.D. Multi-Criteria Decision-Making for Green Supplier Selection and Evaluation of Textile Industry Using Fuzzy Axiomatic Design (FAD) Method. In Proceedings of the 2019 5th International Conference on Science and Technology (ICST), Yogyakarta, Indonesia, 30–31 July 2019; Volume 1, pp. 1–6. [Google Scholar] [CrossRef]
- Riaz, M.; Razzaq, A.; Kalsoom, H.; Pamučar, D.; Athar Farid, H.M.; Chu, Y.M. q-Rung Orthopair Fuzzy Geometric Aggregation Operators Based on Generalized and Group-Generalized Parameters with Application to Water Loss Management. Symmetry
**2020**, 12, 1236. [Google Scholar] [CrossRef] - Tan, T.; Mills, G.; Papadonikolaki, E.; Liu, Z. Combining multi-criteria decision making (MCDM) methods with building information modelling (BIM): A review. Autom. Constr.
**2021**, 121, 103451. [Google Scholar] [CrossRef] - Akram, M.; Zahid, K.; Alcantud, J.C.R. A new outranking method for multicriteria decision making with complex Pythagorean fuzzy information. Neural Comput. Appl.
**2022**, 1–34. [Google Scholar] [CrossRef] - Wang, P.; Li, Y.; Wang, Y.H.; Zhu, Z.Q. A new method based on TOPSIS and response surface method for MCDM problems with interval numbers. Math. Probl. Eng.
**2015**, 2015, 938535. [Google Scholar] [CrossRef][Green Version] - Zhou, J.; Xiahou, T.; Liu, Y. Multi-objective optimization-based TOPSIS method for sustainable product design under epistemic uncertainty. Appl. Soft Comput.
**2021**, 98, 106850. [Google Scholar] [CrossRef] - Dincer, H.; Hacioglu, U. A comparative performance evaluation on bipolar risks in emerging capital markets using fuzzy AHP-TOPSIS and VIKOR approaches. Eng. Econ./Inžinerinė Ekonomika
**2015**, 26, 118–129. [Google Scholar] [CrossRef][Green Version] - Fausto, F.; Reyna-Orta, A.; Cuevas, E.; Andrade, Á.G.; Perez-Cisneros, M. From ants to whales: Metaheuristics for all tastes. Artif. Intell. Rev.
**2020**, 53, 753–810. [Google Scholar] [CrossRef] - Bausys, R.; Zavadskas, E.K.; Semenas, R. Path Selection for the Inspection Robot by m-Generalized q-Neutrosophic PROMETHEE Approach. Energies
**2022**, 15, 223. [Google Scholar] [CrossRef] - Liao, H.; Zhang, H.; Zhang, C.; Wu, X.; Mardani, A.; Al-Barakati, A. A q-rung orthopair fuzzy GLDS method for investment evaluation of BE angel capital in China. Technol. Econ. Dev. Econ.
**2020**, 26, 103–134. [Google Scholar] [CrossRef] - Lubis, A.I.; Sihombing, P.; Nababan, E.B. Comparison SAW and MOORA Methods with Attribute Weighting Using Rank Order Centroid in Decision-Making. In Proceedings of the 2020 3rd International Conference on Mechanical, Electronics, Computer, and Industrial Technology (MECnIT), Medan, Indonesia, 25–27 June 2020; pp. 127–131. [Google Scholar] [CrossRef]
- Manurung, S.V.B.; Larosa, F.G.N.; Simamora, I.M.S.; Gea, A.; Simarmata, E.R.; Situmorang, A. Decision Support System of Best Teacher Selection using Method MOORA and SAW. In Proceedings of the 2019 International Conference of Computer Science and Information Technology (ICoSNIKOM), Medan, Indonesia, 28–29 November 2019; pp. 1–6. [Google Scholar] [CrossRef]
- Chen, L.; Gou, X. The application of probabilistic linguistic CODAS method based on new score function in multi-criteria decision-making. Comput. Appl. Math.
**2022**, 41, 1–25. [Google Scholar] [CrossRef] - Sivalingam, V.; Ganesh Kumar, P.; Prabakaran, R.; Sun, J.; Velraj, R.; Kim, S.C. An automotive radiator with multi-walled carbon-based nanofluids: A study on heat transfer optimization using MCDM techniques. Case Stud. Therm. Eng.
**2022**, 29, 101724. [Google Scholar] [CrossRef] - Banaeian, N.; Mobli, H.; Fahimnia, B.; Nielsen, I.E.; Omid, M. Green supplier selection using fuzzy group decision-making methods: A case study from the agri-food industry. Comput. Oper. Res.
**2018**, 89, 337–347. [Google Scholar] [CrossRef] - Lee, J.G.; Hur, K. Bipolar fuzzy relations. Mathematics
**2019**, 7, 1044. [Google Scholar] [CrossRef][Green Version] - Kumar, R. Fuzzy particle swarm optimization control algorithm implementation in photovoltaic integrated shunt active power filter for power quality improvement using hardware-in-the-loop. Sustain. Energy Technol. Assess.
**2022**, 50, 101820. [Google Scholar] [CrossRef] - Wang, T. A Novel Approach of Integrating Natural Language Processing Techniques with Fuzzy TOPSIS for Product Evaluation. Symmetry
**2022**, 14, 120. [Google Scholar] [CrossRef] - Bryniarska, A. The n-Pythagorean fuzzy sets. Symmetry
**2020**, 12, 1772. [Google Scholar] [CrossRef] - Ullah, K.; Hassan, N.; Mahmood, T.; Jan, N.; Hassan, M. Evaluation of investment policy based on multi-attribute decision-making using interval valued T-spherical fuzzy aggregation operators. Symmetry
**2019**, 11, 357. [Google Scholar] [CrossRef][Green Version] - Ullah, K.; Mahmood, T.; Garg, H. Evaluation of the performance of search and rescue robots using T-spherical fuzzy hamacher aggregation operators. Int. J. Fuzzy Syst.
**2020**, 22, 570–582. [Google Scholar] [CrossRef] - Shadravan, S.; Naji, H.; Khatibi, V. A Distributed Sailfish Optimizer Based on Multi-Agent Systems for Solving Non-Convex and Scalable Optimization Problems Implemented on GPU. J. AI Data Min.
**2021**, 9, 59–71. [Google Scholar] [CrossRef] - Silberholz, J.; Golden, B.; Gupta, S.; Wang, X. Computational Comparison of Metaheuristics. In Handbook of Metaheuristics; Springer: Berlin/Heidelberg, Germany, 2019; pp. 581–604. [Google Scholar] [CrossRef]
- Ren, J. Sustainability prioritization of energy storage technologies for promoting the development of renewable energy: A novel intuitionistic fuzzy combinative distance-based assessment approach. Renew. Energy
**2018**, 121, 666–676. [Google Scholar] [CrossRef] - Maier, H.R.; Razavi, S.; Kapelan, Z.; Matott, L.S.; Kasprzyk, J.; Tolson, B.A. Introductory overview: Optimization using evolutionary algorithms and other metaheuristics. Environ. Model. Softw.
**2019**, 114, 195–213. [Google Scholar] [CrossRef] - Hussain, K.; Salleh, M.N.M.; Cheng, S.; Shi, Y. Metaheuristic research: A comprehensive survey. Artif. Intell. Rev.
**2019**, 52, 2191–2233. [Google Scholar] [CrossRef][Green Version] - Shi, Y.; Eberhart, R. A modified particle swarm optimizer. In Proceedings of the 1998 IEEE International Conference on Evolutionary Computation Proceedings—IEEE World Congress on Computational Intelligence (Cat. No.98TH8360), Anchorage, AK, USA, 4–9 May 1998; pp. 69–73. [Google Scholar] [CrossRef]
- Pintér, J.D. Global optimization: Software, test problems, and applications. In Handbook of Global Optimization; Springer: Berlin/Heidelberg, Germany, 2002; pp. 515–569. [Google Scholar] [CrossRef]
- Tzanetos, A.; Dounias, G. Nature inspired optimization algorithms or simply variations of metaheuristics? Artif. Intell. Rev.
**2021**, 54, 1841–1862. [Google Scholar] [CrossRef] - Cheng, C.B.; Shih, H.S.; Lee, E.S. Metaheuristics for multi-level optimization. In Fuzzy and Multi-Level Decision-Making: Soft Computing Approaches; Springer: Berlin/Heidelberg, Germany, 2019; pp. 171–188. [Google Scholar] [CrossRef]
- Abualigah, L.; Yousri, D.; Abd Elaziz, M.; Ewees, A.A.; Al-qaness, M.A.; Gandomi, A.H. Aquila Optimizer: A novel meta-heuristic optimization Algorithm. Comput. Ind. Eng.
**2021**, 157, 107250. [Google Scholar] [CrossRef] - Aljarah, I.; Faris, H.; Heidari, A.A.; Mafarja, M.M.; Al-Zoubi, A.M.; Castillo, P.A.; Merelo, J.J. A Robust Multi-Objective Feature Selection Model Based on Local Neighborhood Multi-Verse Optimization. IEEE Access
**2021**, 9, 100009–100028. [Google Scholar] [CrossRef] - Deb, K.; Chaudhuri, S. I-MODE: An interactive multi-objective optimization and decision-making using evolutionary methods. In Proceedings of the International Conference on Evolutionary Multi-Criterion Optimization, Matsushima, Japan, 5–8 March 2007; Springer: Berlin/Heidelberg, Germany, 2007; pp. 788–802. [Google Scholar] [CrossRef][Green Version]
- Ahmed, W.A.E.M.; Mageed, H.M.A.; Mohamed, S.A.; Saleh, A.A. Fractional order Darwinian particle swarm optimization for parameters identification of solar PV cells and modules. Alex. Eng. J.
**2022**, 61, 1249–1263. [Google Scholar] [CrossRef] - Abdoun, O.; Moumen, Y.; Daanoun, A. A parallel approach to optimize the supply chain management. In Proceedings of the International Conference on Advanced Intelligent Systems for Sustainable Development, Tangier, Morocco, 12–14 July 2018; Springer: Berlin/Heidelberg, Germany, 2018; pp. 129–146. [Google Scholar] [CrossRef]
- Abualigah, L.; Abd Elaziz, M.; Sumari, P.; Geem, Z.W.; Gandomi, A.H. Reptile Search Algorithm (RSA): A nature-inspired meta-heuristic optimizer. Expert Syst. Appl.
**2022**, 191, 116158. [Google Scholar] [CrossRef] - Shinawi, A.E.; Ibrahim, R.A.; Abualigah, L.; Zelenakova, M.; Elaziz, M.A. Enhanced Adaptive Neuro-Fuzzy Inference System Using Reptile Search Algorithm for Relating Swelling Potentiality Using Index Geotechnical Properties: A Case Study at El Sherouk City, Egypt. Mathematics
**2021**, 9, 3295. [Google Scholar] [CrossRef] - Sulaiman, M.H.; Mustaffa, Z.; Saari, M.M.; Daniyal, H.; Daud, M.R.; Razali, S.; Mohamed, A.I. Barnacles mating optimizer: A bio-inspired algorithm for solving optimization problems. In Proceedings of the 2018 19th IEEE/ACIS International Conference on Software Engineering, Artificial Intelligence, Networking, and Parallel/Distributed Computing (SNPD), Busan, Korea, 27–29 June 2018; pp. 265–270. [Google Scholar] [CrossRef]
- de Souza, R.C.T.; de Macedo, C.A.; Dos Santos Coelho, L.; Pierezan, J.; Mariani, V.C. Binary coyote optimization algorithm for feature selection. Pattern Recognit.
**2020**, 107, 107470. [Google Scholar] [CrossRef] - Qiao, W.; Yang, Z. Solving large-scale function optimization problem by using a new metaheuristic algorithm based on quantum dolphin swarm algorithm. IEEE Access
**2019**, 7, 138972–138989. [Google Scholar] [CrossRef] - Dehghani, M.; Mashayekhi, M.; Sharifi, M. An efficient imperialist competitive algorithm with likelihood assimilation for topology, shape and sizing optimization of truss structures. Appl. Math. Model.
**2021**, 93, 1–27. [Google Scholar] [CrossRef] - Dhiman, G.; Kumar, V. Emperor penguin optimizer: A bio-inspired algorithm for engineering problems. Knowl.-Based Syst.
**2018**, 159, 20–50. [Google Scholar] [CrossRef] - Thebiga, M.; Pramila, S.R. Adaptable and energy efficacious routing using modified emperor penguin colony optimization multi-faceted metaheuristics algorithm for MANETS. Wirel. Pers. Commun.
**2021**, 118, 1245–1270. [Google Scholar] [CrossRef] - Mirjalili, S. Moth-flame optimization algorithm: A novel nature-inspired heuristic paradigm. Knowl.-Based Syst.
**2015**, 89, 228–249. [Google Scholar] [CrossRef] - Shehab, M.; Abualigah, L.; Al Hamad, H.; Alabool, H.; Alshinwan, M.; Khasawneh, A.M. Moth–flame optimization algorithm: Variants and applications. Neural Comput. Appl.
**2020**, 32, 9859–9884. [Google Scholar] [CrossRef] - Delahaye, D.; Chaimatanan, S.; Mongeau, M. Simulated annealing: From basics to applications. In Handbook of Metaheuristics; Springer: Berlin/Heidelberg, Germany, 2019; pp. 1–35. [Google Scholar] [CrossRef][Green Version]
- Barkhoda, W.; Sheikhi, H. Immigrant imperialist competitive algorithm to solve the multi-constraint node placement problem in target-based wireless sensor networks. Ad Hoc Netw.
**2020**, 106, 102183. [Google Scholar] [CrossRef] - Kashikolaei, S.M.G.; Hosseinabadi, A.A.R.; Saemi, B.; Shareh, M.B.; Sangaiah, A.K.; Bian, G.B. An enhancement of task scheduling in cloud computing based on imperialist competitive algorithm and firefly algorithm. J. Supercomput.
**2020**, 76, 6302–6329. [Google Scholar] [CrossRef] - Abdel-Basset, M.; Mohamed, R.; Chakrabortty, R.K.; Sallam, K.; Ryan, M.J. An efficient teaching-learning-based optimization algorithm for parameters identification of photovoltaic models: Analysis and validations. Energy Convers. Manag.
**2021**, 227, 113614. [Google Scholar] [CrossRef] - Srivastava, V.; Srivastava, S. Optimization Algorithm-Based Artificial Neural Network Control of Nonlinear Systems. In Proceedings of the International Conference on Innovative Computing and Communications, Delhi, India, 20–21 February 2021; Springer: Berlin/Heidelberg, Germany, 2021; pp. 1007–1015. [Google Scholar] [CrossRef]
- Xue, H.; Bai, Y.; Hu, H.; Xu, T.; Liang, H. A novel hybrid model based on TVIW-PSO-GSA algorithm and support vector machine for classification problems. IEEE Access
**2019**, 7, 27789–27801. [Google Scholar] [CrossRef] - Han, Z.; Li, Y.; Liang, J. Numerical improvement for the mechanical performance of bikes based on an intelligent PSO-ABC algorithm and WSN technology. IEEE Access
**2018**, 6, 32890–32898. [Google Scholar] [CrossRef] - Pahnehkolaei, S.M.A.; Alfi, A.; Machado, J.T. Analytical stability analysis of the fractional-order particle swarm optimization algorithm. Chaos Solitons Fractals
**2022**, 155, 111658. [Google Scholar] [CrossRef] - Rahman, H.F.; Janardhanan, M.N.; Nielsen, I.E. Real-time order acceptance and scheduling problems in a flow shop environment using hybrid GA-PSO algorithm. IEEE Access
**2019**, 7, 112742–112755. [Google Scholar] [CrossRef] - Lü, X.; Meng, L.; Long, L.; Wang, P. Comprehensive improvement of camera calibration based on mutation particle swarm optimization. Measurement
**2022**, 187, 110303. [Google Scholar] [CrossRef] - He, Y.; Chen, W.; Lei, K.; Zhao, Y.; Lv, P. Semi-Airborne electromagnetic 2.5D inversion based on a PSO–LCI strategy. J. Appl. Geophys.
**2022**, 197, 104541. [Google Scholar] [CrossRef] - Wang, Y.; Qian, Q.; Feng, Y.; Fu, Y. Improved Adaptive Particle Swarm Optimization Algorithm with a Two-Way Learning Method. In Smart Communications, Intelligent Algorithms and Interactive Methods; Springer: Berlin/Heidelberg, Germany, 2022; pp. 171–179. [Google Scholar] [CrossRef]
- Huang, K.W.; Wu, Z.X.; Peng, H.W.; Tsai, M.C.; Hung, Y.C.; Lu, Y.C. Memetic particle gravitation optimization algorithm for solving clustering problems. IEEE Access
**2019**, 7, 80950–80968. [Google Scholar] [CrossRef] - Zhen, L.; Liu, Y.; Dongsheng, W.; Wei, Z. Parameter estimation of software reliability model and prediction based on hybrid wolf pack algorithm and particle swarm optimization. IEEE Access
**2020**, 8, 29354–29369. [Google Scholar] [CrossRef] - Moghaddam, S.H.A.; Mokhtarzade, M.; Moghaddam, S.A.A. Optimization of RFM’s structure based on PSO algorithm and figure condition analysis. IEEE Geosci. Remote Sens. Lett.
**2018**, 15, 1179–1183. [Google Scholar] [CrossRef] - Yan, S.; Liu, Q.; Li, J.; Han, L. Heterogeneous acceleration of hybrid PSO-QN algorithm for neural network training. IEEE Access
**2019**, 7, 161499–161509. [Google Scholar] [CrossRef] - Yousaf, S.; Mughees, A.; Khan, M.G.; Amin, A.A.; Adnan, M. A Comparative Analysis of Various Controller Techniques for Optimal Control of Smart Nano-Grid Using GA and PSO Algorithms. IEEE Access
**2020**, 8, 205696–205711. [Google Scholar] [CrossRef] - Gao, H.; Li, Y.; Kabalyants, P.; Xu, H.; Martinez-Bejar, R. A novel hybrid PSO-K-means clustering algorithm using Gaussian estimation of distribution method and lévy flight. IEEE Access
**2020**, 8, 122848–122863. [Google Scholar] [CrossRef] - Dziwiński, P.; Bartczuk, Ł. A new hybrid particle swarm optimization and genetic algorithm method controlled by fuzzy logic. IEEE Trans. Fuzzy Syst.
**2019**, 28, 1140–1154. [Google Scholar] [CrossRef] - Guo, L. Research on Anomaly Detection in Massive Multimedia Data Transmission Network Based on Improved PSO Algorithm. IEEE Access
**2020**, 8, 95368–95377. [Google Scholar] [CrossRef] - Dos Santos Coelho, L.; Sierakowski, C.A. A software tool for teaching of particle swarm optimization fundamentals. Adv. Eng. Softw.
**2008**, 39, 877–887. [Google Scholar] [CrossRef] - Yiyang, L.; Xi, J.; Hongfei, B.; Zhining, W.; Liangliang, S. A General Robot Inverse Kinematics Solution Method Based on Improved PSO Algorithm. IEEE Access
**2021**, 9, 32341–32350. [Google Scholar] [CrossRef] - Hernandez, G.R.; Navarro, M.A.; Ortega-Sanchez, N.; Oliva, D.; Perez-Cisneros, M. Failure detection on electronic systems using thermal images and metaheuristic algorithms. IEEE Lat. Am. Trans.
**2020**, 18, 1371–1380. [Google Scholar] [CrossRef]

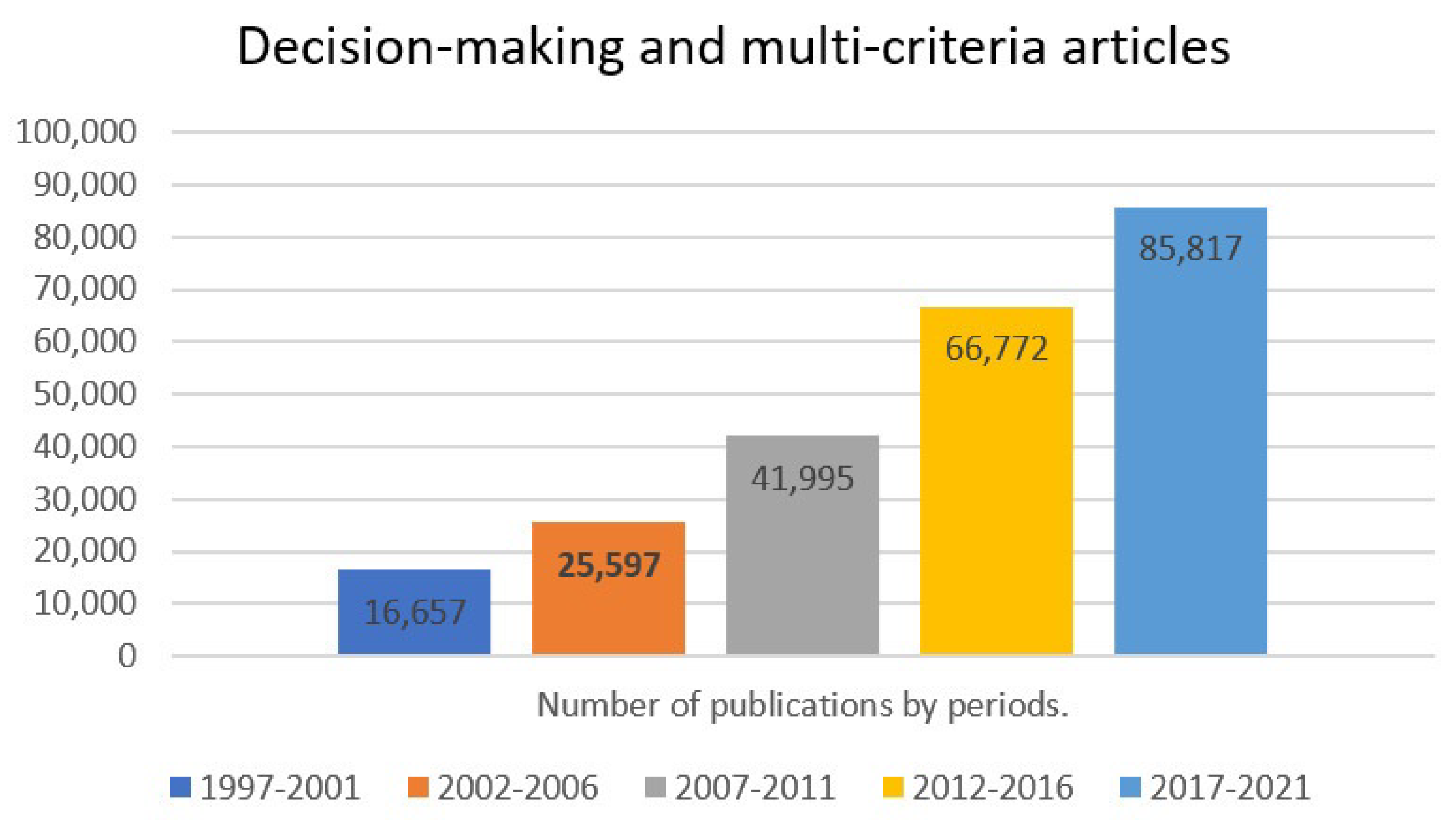

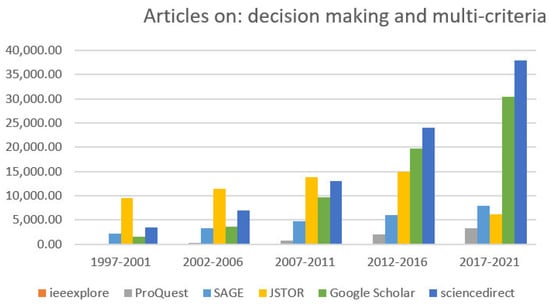

Period | IEEExplore | ProQuest | SAGE | JSTOR | ScienceDirect | Google Scholar |
---|---|---|---|---|---|---|

1997–2001 | 1 | 88 | 2240 | 9446 | 3427 | 1455 |

2002–2006 | 2 | 235 | 3324 | 11,499 | 6962 | 3575 |

2007–2011 | 57 | 665 | 4645 | 13,831 | 13,077 | 9720 |

2012–2016 | 43 | 2066 | 5955 | 14,946 | 24,062 | 19,700 |

2017–2021 | 53 | 3366 | 7935 | 6126 | 37,977 | 30,360 |

Period | ScienceDirect | IEEExplore | ProQuest | JSTOR | SAGE | Google Scholar |
---|---|---|---|---|---|---|

2001–1997 | 177 | 14 | 0 | 244 | 55 | 7 |

2006–2002 | 533 | 64 | 0 | 891 | 165 | 15 |

2011–2007 | 1689 | 333 | 0 | 2283 | 269 | 78 |

2016–2012 | 4548 | 614 | 6 | 4768 | 251 | 181 |

2021–2017 | 9212 | 889 | 0 | 6361 | 46 | 322 |

Database/Period | 1995–2001 | 2002–2011 | 2012–2021 |
---|---|---|---|

ScienceDirect | 130 | 3617 | 33,520 |

IEEE | 64 | 9296 | 18,232 |

SAGE | 1 | 510 | 3701 |

ProQuest | 0 | 12 | 117 |

JSTOR | 0 | 3 | 5 |

TOTALS | 195 | 13,438 | 55,578 |

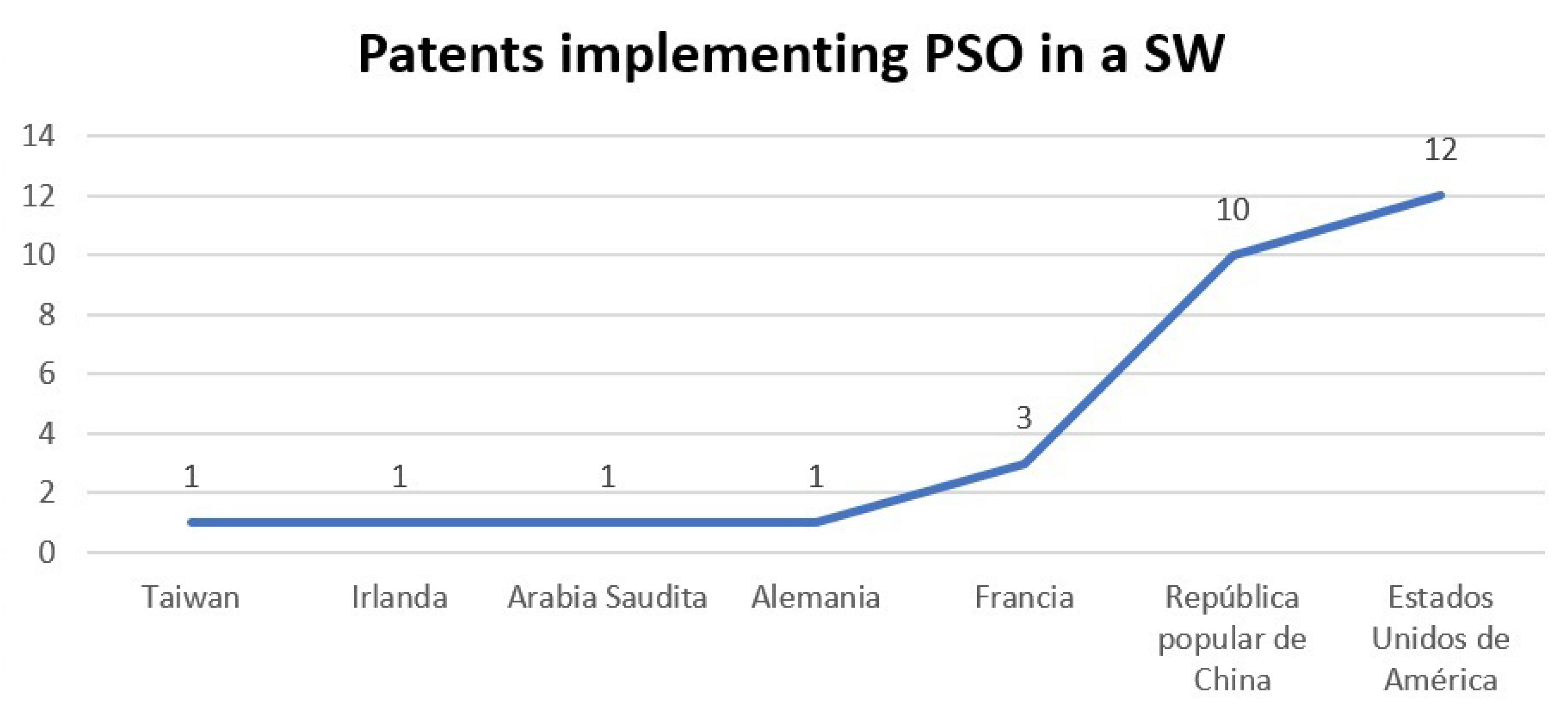

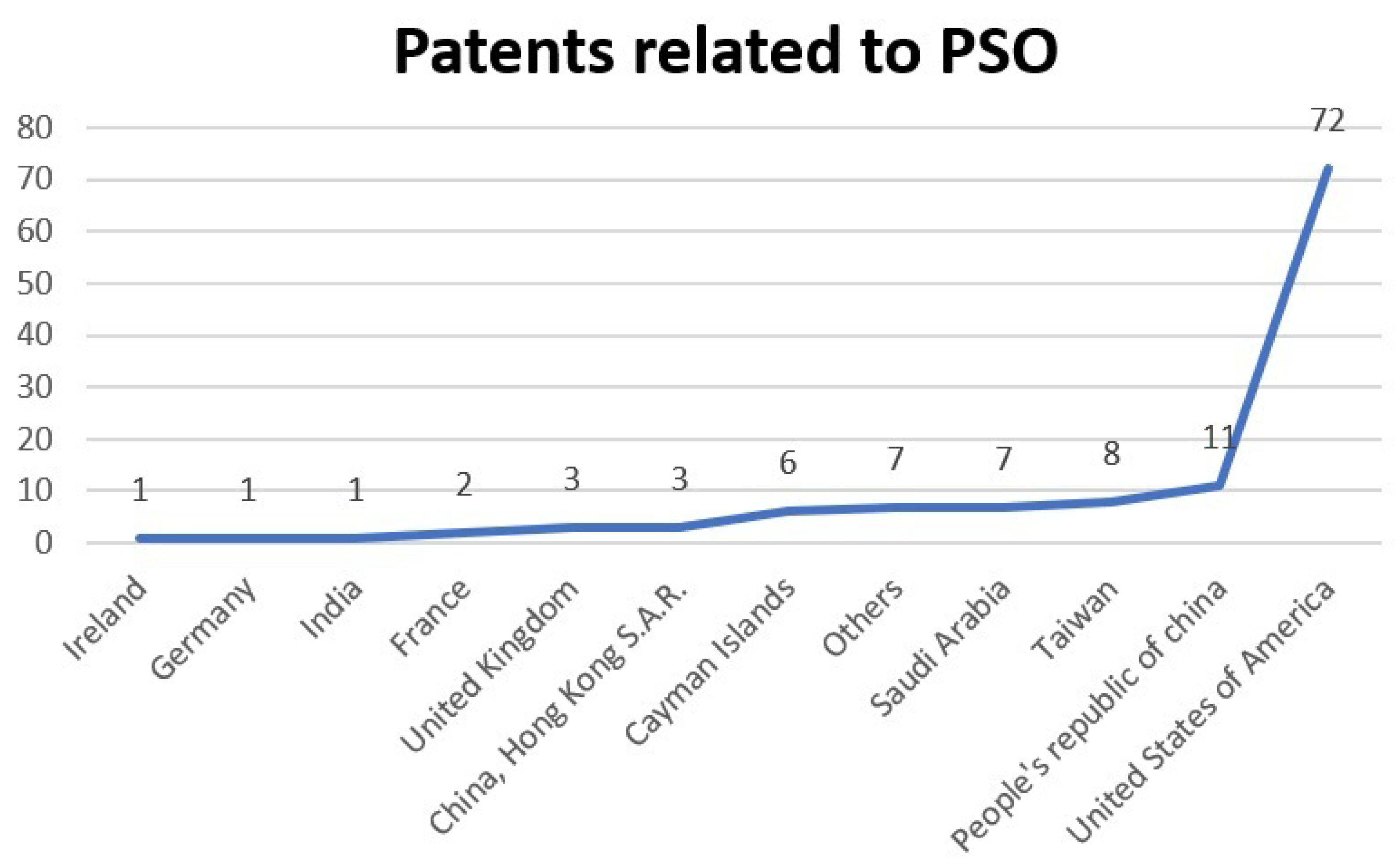

Country | 2009–2012 | 2013–2017 | 2019–2021 |
---|---|---|---|

Saudi Arabia | 1 | 0 | 0 |

Germany | 0 | 1 | 0 |

France | 0 | 3 | 0 |

United States of America | 4 | 8 | 0 |

Taiwan | 0 | 0 | 1 |

Ireland | 0 | 0 | 1 |

People’s Republic of China | 0 | 0 | 10 |

Patent | Inventors | Year of Assignment | Reference |
---|---|---|---|

8793200 | Chen Yang et al. | 2014 | [20] |

7558762 | Owechko Yuri et al. | 2009 | [21] |

7599894 | Owechko Yuri, Medasani Swarup | 2009 | [22] |

7636700 | Owechko Yuri, Medasani Swarup | 2009 | [23] |

7672911 | Owechko Yuri, Medasani Swarup | 2010 | [24] |

8645294 | Owechko Yuri et al. | 2014 | [25] |

8213709 | Medasani Swarup et al. | 2012 | [26] |

8370114 | Saisan Payam | 2013 | [27] |

8589315 | Medasani Swarup, Owechko Yuri | 2013 | [28] |

8437558 | Medasani Swarup, Owechko Yuri | 2013 | [29] |

Year | Text | Serials | Computer Files |
---|---|---|---|

2002 | 1 | 0 | 0 |

2004 | 2 | 0 | 0 |

2009 | 4 | 0 | 0 |

2010 | 1 | 0 | 0 |

2011 | 3 | 0 | 0 |

2012 | 1 | 1 | 0 |

2013 | 1 | 0 | 0 |

2014 | 3 | 0 | 0 |

2015 | 0 | 1 | 0 |

2016 | 1 | 0 | 0 |

2017 | 3 | 1 | 0 |

2018 | 1 | 0 | 0 |

2019 | 1 | 0 | 0 |

MCDM | Proposed by: | Year | References |
---|---|---|---|

ELECTRE | Bernard Roy | 1968 | [45] |

TOPSIS | Hwang Yoon | 1981 | [46,47] |

AHP | Saaty | 1981 | [36,48] |

VIKOR | Opricovic | 1988 | [48,49] |

PROMETHEE | Brans and Mareschar | 2005 | [50,51] |

MOORA | Brauers and Zavadskas | 2006 | [52,53] |

CODAS | Ghorabee | 2016 | [54,55] |

MCDM-Fuzzy | Proposed by: | Year | References |
---|---|---|---|

FS | Lotfi A. Zaden and Dieter Klaua | 1965 | [45,53] |

IFS | Krassimir Atanassov | 1986 | [56] |

BFS | Zhang Wen-Ran | 1994 | [56,57] |

Fuzzy PSO | Bo Wang, GuoQiang Liang and ChaLin, Wang | 2006 | [58] |

Fuzzy TOPSIS | Chen and Tsao | 2008 | [59] |

PFS | Zadeh and Yanger | 2013 | [41,60] |

q-ROF | Yager | 2017 | [51,52] |

TSFS | Smarandache, Florentin | 2019 | [61,62] |

Notation | Definition |
---|---|

i | Independent unit, called a particle. |

N | Number of particles in the swarm, also called search space dimension or population $N=\{{i}_{1},{i}_{2},\cdots ,{i}_{N}\}.$ |

$\omega $ | Coefficient of the weight of inertia, increases or decreases the speed, keeping the current speed and moment of the particle. |

$t,T$ | Current number of iterations (t) and the total number of iterations expected to be performed (T). |

${c}_{1},{c}_{2}$ | Non-negative acceleration factors, known as learning factors. Driving each particle towards the pbest and gbest positions. |

${r}_{1},{r}_{2}$ | Numbers between [0, 1], for the circulation of each particle. That is, they simulate the influence of nature on the particle. |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Ramírez-Ochoa, D.-D.; Pérez-Domínguez, L.A.; Martínez-Gómez, E.-A.; Luviano-Cruz, D. PSO, a Swarm Intelligence-Based Evolutionary Algorithm as a Decision-Making Strategy: A Review. *Symmetry* **2022**, *14*, 455.
https://doi.org/10.3390/sym14030455

**AMA Style**

Ramírez-Ochoa D-D, Pérez-Domínguez LA, Martínez-Gómez E-A, Luviano-Cruz D. PSO, a Swarm Intelligence-Based Evolutionary Algorithm as a Decision-Making Strategy: A Review. *Symmetry*. 2022; 14(3):455.
https://doi.org/10.3390/sym14030455

**Chicago/Turabian Style**

Ramírez-Ochoa, Dynhora-Danheyda, Luis Asunción Pérez-Domínguez, Erwin-Adán Martínez-Gómez, and David Luviano-Cruz. 2022. "PSO, a Swarm Intelligence-Based Evolutionary Algorithm as a Decision-Making Strategy: A Review" *Symmetry* 14, no. 3: 455.
https://doi.org/10.3390/sym14030455
