# Chiral Soliton Models and Nucleon Structure Functions

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Framework of Deep Inelastic Scattering

## 3. The Chiral Quark Model

## 4. Self-Consistent Soliton

## 5. Hadron Tensor for the Nucleon as Soliton

## 6. Numerical Results

#### 6.1. Unpolarized Structure Functions

#### 6.2. Polarized Structure Functions

#### 6.3. Boosting to the Infinite Momentum Frame

#### 6.4. DGLAP Evolution

## 7. Related Approaches

## 8. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Witten, E. Baryons in the 1/n Expansion. Nucl. Phys. B
**1979**, 160, 57. [Google Scholar] [CrossRef] - Collins, J.C.; Soper, D.E.; Sterman, G.F. Factorization of Hard Processes in QCD. Adv. Ser. Direct. High Energy Phys.
**1989**, 5, 1. [Google Scholar] - ZEUS Collaboration. Combination of Measurements of Inclusive Deep Inelastic e
^{±}p Scattering Cross Sections and QCD Analysis of HERA Data. Eur. Phys. J. C**2015**, 75, 580. [Google Scholar] [CrossRef] [Green Version] - Gribov, V.N.; Lipatov, L.N. Deep Inelastic e p Scattering in Perturbation Theory. Sov. J. Nucl. Phys.
**1972**, 15, 438. [Google Scholar] - Altarelli, G.; Parisi, G. Asymptotic Freedom in Parton Language. Nucl. Phys. B
**1977**, 126, 298. [Google Scholar] [CrossRef] - Dokshitzer, Y.L. Calculation of the Structure Functions for Deep Inelastic Scattering and e+ e- Annihilation by Perturbation Theory in Quantum Chromodynamics. Sov. Phys. JETP
**1977**, 46, 641. [Google Scholar] - Lin, H.W.; Nocera, E.R.; Olness, F.; Orginos, K.; Rojo, J.; Accardi, A.; Alexandrou, C.; Bacchetta, A.; Bozzi, G.; Chen, J.W.; et al. Parton Distributions and Lattice QCD Calculations: A Community White Paper. Prog. Part. Nucl. Phys.
**2018**, 100, 107. [Google Scholar] [CrossRef] [Green Version] - Lin, H.W.; Nocera, E.R.; Constantinou, M.; Engelhardt, M.; Olness, F.; Courtoy, A.; Ebert, M.A.; Giani, T.; Hobbs, T.; Hou, T.J.; et al. Parton Distributions and Lattice QCD Calculations: Toward 3D Structure. arXiv
**2020**, arXiv:2006.08636. [Google Scholar] - Gluck, M.; Reya, E.; Vogt, A. Dynamical Parton Distributions of the Proton and Small x Physics. Z. Phys. C
**1995**, 67, 433. [Google Scholar] [CrossRef] [Green Version] - Skyrme, T.H.R. A Nonlinear Field Theory. Proc. R. Soc. Lond. A
**1961**, 260, 127. [Google Scholar] - Adkins, G.S.; Nappi, C.R.; Witten, E. Static Properties of Nucleons in the Skyrme Model. Nucl. Phys. B
**1983**, 228, 552. [Google Scholar] [CrossRef] - Holzwarth, G.; Schwesinger, B. Baryons in the Skyrme Model. Rept. Prog. Phys.
**1986**, 49, 825. [Google Scholar] [CrossRef] - Zahed, I.; Brown, G.E. The Skyrme Model. Phys. Rept.
**1986**, 142, 1. [Google Scholar] [CrossRef] - Meissner, U.G. Low-Energy Hadron Physics from Effective Chiral Lagrangians with Vector Mesons. Phys. Rept.
**1988**, 161, 213. [Google Scholar] [CrossRef] - Schwesinger, B.; Weigel, H.; Holzwarth, G.; Hayashi, A. The Skyrme Soliton in Pion, Vector and Scalar Meson Fields: πN Scattering and Photoproduction. Phys. Rept.
**1989**, 173, 173. [Google Scholar] [CrossRef] - Weigel, H. Chiral Soliton Models for Baryons. Lect. Notes Phys.
**2008**, 743, 1. [Google Scholar] - Liu, Y.; Nowak, M.A.; Zahed, I. Heavy Holographic Exotics: Tetraquarks as Efimov States. Phys. Rev. D
**2019**, 100, 126023. [Google Scholar] [CrossRef] [Green Version] - Chemtob, M. Two Current Nucleon Observables in Skyrme Model. Nucl. Phys. A
**1987**, 473, 613. [Google Scholar] [CrossRef] - Ebert, D.; Reinhardt, H. Effective Chiral Hadron Lagrangian with Anomalies and Skyrme Terms from Quark Flavor Dynamics. Nucl. Phys. B
**1986**, 271, 188. [Google Scholar] [CrossRef] - Nambu, Y.; Jona-Lasinio, G. Dynamical Model of Elementary Particles Based on an Analogy with Superconductivity. 1. Phys. Rev.
**1961**, 122, 345. [Google Scholar] [CrossRef] [Green Version] - Wakamatsu, M.; Yoshiki, H. A Chiral Quark Model of the Nucleon. Nucl. Phys. A
**1991**, 524, 561. [Google Scholar] [CrossRef] - Alkofer, R.; Reinhardt, H.; Weigel, H. Baryons as Chiral Solitons in the Nambu-Jona-Lasinio Model. Phys. Rept.
**1996**, 265, 139. [Google Scholar] [CrossRef] [Green Version] - Christov, C.V.; Blotz, A.; Kim, H.C.; Pobylitsa, P.; Watabe, T.; Meissner, T.; Arriola, E.R.; Goeke, K. Baryons as Nontopological Chiral Solitons. Prog. Part. Nucl. Phys.
**1996**, 37, 91. [Google Scholar] [CrossRef] [Green Version] - Weigel, H.; Arriola, E.R.; Gamberg, L.P. Hadron Structure Functions in a Chiral Quark Model: Regularization, Scaling and Sum Rules. Nucl. Phys. B
**1999**, 560, 383. [Google Scholar] [CrossRef] [Green Version] - Takyi, I.; Weigel, H. Nucleon Structure Functions from the NJL-Model Chiral Soliton. Eur. J. Phys. A
**2019**, 55, 128. [Google Scholar] [CrossRef] [Green Version] - Takyi, I. Structure Functions of the Nucleon in a Soliton Model. Ph.D. Thesis, Stellenbosch University, Stellenbosch, South Africa, 2019. [Google Scholar]
- Diakonov, D.; Petrov, V.Y.; Pobylitsa, P.; Polyakov, M.V.; Weiss, C. Nucleon Parton Distributions at Low Normalization Point in the Large-N
_{c}Limit. Nucl. Phys. B**1996**, 480, 341. [Google Scholar] [CrossRef] [Green Version] - Diakonov, D.; Petrov, V.Y.; Pobylitsa, P.; Polyakov, M.V.; Weiss, C. Unpolarized and Polarized Quark Distributions in the Large-N
_{c}Limit. Phys. Rev. D**1997**, 56, 4069. [Google Scholar] [CrossRef] [Green Version] - Pobylitsa, P.V.; Polyakov, M.V.; Goeke, K.; Watabe, T.; Weiss, C. Isovector Unpolarized Quark Distribution in the Nucleon in the Large-N
_{c}Limit. Phys. Rev. D**1999**, 59, 034024. [Google Scholar] [CrossRef] [Green Version] - Wakamatsu, M.; Kubota, T. Chiral Symmetry and the Nucleon Structure Functions. Phys. Rev. D
**1998**, 57, 5755. [Google Scholar] [CrossRef] [Green Version] - Wakamatsu, M.; Kubota, T. Chiral Symmetry and the Nucleon Spin Structure Functions. Phys. Rev. D
**1999**, 60, 034020. [Google Scholar] [CrossRef] [Green Version] - Pobylitsa, P.V.; Polyakov, M.V. Transverse Spin Distribution Function of Nucleon in Chiral Theory. Phys. Lett. B
**1996**, 389, 350. [Google Scholar] [CrossRef] [Green Version] - Gamberg, L.P.; Reinhardt, H.; Weigel, H. Chiral Odd Structure Functions from a Chiral Soliton. Phys. Rev. D
**1998**, 58, 054014. [Google Scholar] [CrossRef] [Green Version] - Schweitzer, P.; Urbano, D.; Polyakov, M.V.; Weiss, C.; Pobylitsa, P.V.; Goeke, K. Transversity Distributions in the Nucleon in the Large-N
_{c}Limit. Phys. Rev. D**2001**, 64, 034013. [Google Scholar] [CrossRef] [Green Version] - Ohnishi, Y.; Wakamatsu, M. π N σ Term and Chiral Odd Twist Three Distribution Function e(x) of the Nucleon in the Chiral Quark Soliton Model. Phys. Rev. D
**2004**, 69, 114002. [Google Scholar] [CrossRef] [Green Version] - Schweitzer, P. The Chirally Odd Twist Three Distribution Function e(x) in the Chiral Quark Soliton Model. Phys. Rev. D
**2003**, 67, 114010. [Google Scholar] [CrossRef] [Green Version] - Wakamatsu, M. Light Flavor Sea Quark Distributions in the Nucleon in the SU(3) Chiral Quark Soliton Model. I. Phenomenological Predictions. Phys. Rev. D
**2003**, 67, 034005. [Google Scholar] [CrossRef] [Green Version] - Wakamatsu, M. Light Flavor Sea Quark Distributions in the Nucleon in the SU(3) Chiral Quark Soliton Model. II. Theoretical Formalism. Phys. Rev. D
**2003**, 67, 034006. [Google Scholar] [CrossRef] [Green Version] - Wakamatsu, M. Flavor Structure of the Unpolarized and Longitudinally Polarized Sea-Quark Distributions in the Nucleon. Phys. Rev. D
**2014**, 90, 034005. [Google Scholar] [CrossRef] [Green Version] - Ashman, J.; Badelek, B.; Baum, G.; Beaufays, J.; Bee, C.P.; Benchouk, C.; Bird, I.G.; Brown, S.C.; Caputo, M.C.; Cheung, H.W.; et al. A Measurement of the Spin Asymmetry and Determination of the Structure Function g(1) in Deep Inelastic Muon-Proton Scattering. Phys. Lett. B
**1988**, 206, 364. [Google Scholar] [CrossRef] [Green Version] - Brodsky, S.J.; Ellis, J.R.; Karliner, M. Chiral Symmetry and the Spin of the Proton. Phys. Lett. B
**1988**, 206, 309. [Google Scholar] [CrossRef] [Green Version] - Johnson, R.; Park, N.W.; Schechter, J.; Soni, V.; Weigel, H. Singlet Axial Current and the ‘Proton Spin’ Question. Phys. Rev. D
**1990**, 42, 2998. [Google Scholar] [CrossRef] [PubMed] - Deur, A.; Brodsky, S.J.; Téramond, G.F.D. The Spin Structure of the Nucleon. Rept. Prog. Phys.
**2019**, 82, 076201. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Jaffe, R.L. Spin, Twist and Hadron Structure in Deep Inelastic Processes. arXiv
**1996**, arXiv:hep-ph/9602236. [Google Scholar] - Reinhardt, H. The Chiral Soliton in the Proper Time Regularization Scheme. Nucl. Phys. A
**1989**, 503, 825. [Google Scholar] [CrossRef] - Jaminon, M.; Stassart, P.; Ripka, G. The Current Quark Mass and the Regularization of the Nambu-Jona-Lasinio Action. Phys. Lett. B
**1989**, 227, 191. [Google Scholar] [CrossRef] - Klevansky, S.P. The Nambu-Jona-Lasinio Model of Quantum Chromodynamics. Rev. Mod. Phys.
**1992**, 64, 649. [Google Scholar] [CrossRef] - Vogl, U.; Weise, W. The Nambu and Jona Lasinio Model: Its Implications for Hadrons and Nuclei. Prog. Part. Nucl. Phys.
**1991**, 27, 195. [Google Scholar] [CrossRef] - Davidson, R.M.; Arriola, E.R. Structure Functions of Pseudoscalar Mesons in the SU(3) NJL Model. Phys. Lett. B
**1995**, 348, 163. [Google Scholar] [CrossRef] [Green Version] - Arriola, E.R.; Salcedo, L.L. Chiral Anomaly and Nucleon Properties in the Nambu-Jona-Lasinio Model with Vector Mesons. Nucl. Phys. A
**1995**, 590, 703. [Google Scholar] [CrossRef] [Green Version] - Frederico, T.; Miller, G.A. Deep Inelastic Structure function of the Pion in the Null Plane Phenomenology. Phys. Rev. D
**1994**, 50, 210. [Google Scholar] [CrossRef] - Arriola, E.R.; Broniowski, W. Pion Light Cone Wave function and Pion Distribution Amplitude in the Nambu-Jona-Lasinio Model. Phys. Rev. D
**2002**, 66, 09401. [Google Scholar] [CrossRef] [Green Version] - Pauli, W. Meson Theory of Nuclear Forces; Interscience Publishes Inc.: New York, NY, USA, 1946. [Google Scholar]
- Kahana, S.; Ripka, G. Baryon Density of Quarks Coupled to a Chiral Field. Nucl. Phys. A
**1984**, 429, 462. [Google Scholar] [CrossRef] - Alkofer, R.; Reinhardt, H.; Schlienz, J.; Weigel, H. Topologically Nontrivial Chiral Transformations: The Chiral Invariant Elimination of the Axial Vector Meson. Z. Phys. A
**1996**, 354, 181. [Google Scholar] - Reinhardt, H.; Wunsch, R. The Soliton of the Effective Chiral Action. Phys. Lett. B
**1988**, 215, 577. [Google Scholar] [CrossRef] - Meissner, T.; Grummer, F.; Goeke, K. Solitons in the {Nambu-Jona-Lasinio} Model. Phys. Lett. B
**1989**, 227, 296. [Google Scholar] [CrossRef] - Alkofer, R. The Soliton of the {Nambu-Jona-Lasinio} Model. Phys. Lett. B
**1990**, 236, 310. [Google Scholar] [CrossRef] - Meier, F.; Walliser, H. Quantum Corrections to Baryon Properties in chiral Soliton Models. Phys. Rept.
**1997**, 289, 383. [Google Scholar] [CrossRef] [Green Version] - Weigel, H.; Alkofer, R.; Reinhardt, H. Estimate of Quantum Corrections to the Mass of the Chiral Soliton in the Nambu-Jona-Lasinio Model. Nucl. Phys. A
**1995**, 582, 484. [Google Scholar] [CrossRef] [Green Version] - Alkofer, R.; Reinhardt, H.; Weigel, H.; Zückert, U. Supporting the Skyrmion from the Nambu-Jona-Lasinio Model with Vector and Axial Vector Mesons. Phys. Rev. Lett.
**1992**, 69, 1874. [Google Scholar] [CrossRef] - Barnett, R.M.; Carone, C.D.; Groom, D.E.; Trippe, T.G.; Wohl, C.G.; Armstrong, B.; Gee, P.S.; Wagman, G.S.; James, F.; Mangano, M. Review of Particle Physics. Phys. Rev. D
**1996**, 54, 1. [Google Scholar] - Alkofer, R.; Weigel, H. 1/N
_{C}Corrections to g_{A}in the Light of PCAC. Phys. Lett. B**1993**, 319, 1. [Google Scholar] [CrossRef] [Green Version] - Wakamatsu, M.; Watabe, T. The g
_{A}Problem in Hedgehog Soliton Models Revisited. Phys. Lett. B**1993**, 312, 184. [Google Scholar] [CrossRef] - Bjorken, J.D. Applications of the Chiral U(6) x (6) Algebra of Current Densities. Phys. Rev.
**1966**, 148, 1467. [Google Scholar] [CrossRef] - Bjorken, J.D. Inelastic Scattering of Polarized Leptons from Polarized Nucleons. Phys. Rev. D
**1970**, 1, 1376. [Google Scholar] [CrossRef] [Green Version] - Weigel, H.; Gamberg, L.P.; Reinhardt, H. Nucleon Structure Functions from a Chiral Soliton. Phys. Lett. B
**1997**, 399, 287. [Google Scholar] [CrossRef] [Green Version] - Weigel, H.; Gamberg, L.P.; Reinhardt, H. Polarized Nucleon Structure Functions within a Chiral Soliton Model. Phys. Rev. D
**1997**, 55, 6910. [Google Scholar] [CrossRef] [Green Version] - Chodos, A.; Jaffe, R.L.; Johnson, K.; Thorn, C.B.; Weisskopf, V.F. A New Extended Model of Hadrons. Phys. Rev. D
**1974**, 9, 3471. [Google Scholar] [CrossRef] [Green Version] - Chodos, A.; Jaffe, R.L.; Johnson, K.; Thorn, C.B. Baryon Structure in the Bag Theory. Phys. Rev. D
**1974**, 10, 2599. [Google Scholar] [CrossRef] - Thomas, A.W. Chiral Symmetry and the Bag Model: A New Starting Point for Nuclear Physics. Adv. Nucl. Phys.
**1984**, 13, 1. [Google Scholar] - Jaffe, R.L. Deep Inelastic Structure Functions in an Approximation to the Bag Theory. Phys. Rev. D
**1975**, 11, 1953. [Google Scholar] [CrossRef] - Signal, A.I.; Thomas, A.W. The Structure Function of the Nucleon. Phys. Lett. B
**1988**, 211, 481. [Google Scholar] [CrossRef] - Sanjose, V.; Vento, V. Proton Structure Functions in the Chiral Bag Model. Phys. Lett. B
**1989**, 225, 15. [Google Scholar] [CrossRef] - Schreiber, A.W.; Signal, A.I.; Thomas, A.W. Structure Functions in the Bag Model. Phys. Rev. D
**1991**, 44, 2653. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Gervais, J.L.; Jevicki, A.; Sakita, B. Collective Coordinate Method for Quantization of Extended Systems. Phys. Rept.
**1976**, 23, 281. [Google Scholar] [CrossRef] - Braaten, E.; Tse, S.M.; Willcox, C. Electroweak Form-factors of the Skyrmion. Phys. Rev. D
**1986**, 34, 1482. [Google Scholar] [CrossRef] - Gamberg, L.P.; Reinhardt, H.; Weigel, H. Nucleon Structure Functions from a Chiral Soliton in the Infinite Momentum Frame. Int. J. Mod. Phys. A
**1998**, 13, 5519. [Google Scholar] [CrossRef] [Green Version] - Jaffe, R.L. Operators in a Translation Invariant Two-dimensional Bag Model. Ann. Phys.
**1981**, 132, 32. [Google Scholar] [CrossRef] - Arneodo, M.; Arvidson, A.; Badelek, B.; Ballintijn, M.; Baum, G.; Beaufays, J.; Bird, I.G.; Björkholm, P.; Botje, M.; Broggini, C.; et al. A Reevaluation of the Gottfried sum. Phys. Rev. D
**1994**, 50, 1. [Google Scholar] [CrossRef] [Green Version] - Alexakhin, V.Y.; Alexandrov, Y.; Alexeev, G.D.; Alexeev, M.; Amoroso, A.; Badełek, B.; Balestra, F.; Ball, J.; Barth, J.; Baum, G.; et al. The Deuteron Spin-dependent Structure Function g1(d) and its First Moment. Phys. Lett. B
**2007**, 647, 8. [Google Scholar] [CrossRef] [Green Version] - Jaffe, R.L. Relativistic Dynamics and Quark Nuclear Physics; John Wiley and Sons: Hoboken, NJ, USA, 1986. [Google Scholar]
- Abe, K.; Akagi, T.; Anthony, P.L.; Antonov, R.; Arnold, R.G.; Averett, T.; Band, H.R.; Bauer, J.M.; Borel, H.; Bosted, P.E.; et al. Precision Measurement of the Proton Spin Structure Function ${g}_{1}^{p}$. Phys. Rev. Lett.
**1995**, 74, 346. [Google Scholar] [CrossRef] [Green Version] - Abe, K.; Akagi, T.; Anthony, P.L.; Antonov, R.; Arnold, R.G.; Averett, T.; Band, H.R.; Bauer, J.M.; Borel, H.; Bosted, P.E.; et al. Measurements of the Proton and Deuteron Spin Structure Functions g
_{1}and g_{2}. Phys. Rev. D**1998**, 58, 112003. [Google Scholar] [CrossRef] [Green Version] - Flay, D.; Posik, M.; Parno, D.S.; Allada, K.; Armstrong, W.R.; Averett, T.; Benmokhtar, F.; Bertozzi, W.; Camsonne, A.; Canan, M.; et al. Measurements of ${d}_{2}^{n}$ and ${A}_{1}^{n}$: Probing the Neutron Spin Structure. Phys. Rev. D
**2016**, 94, 052003. [Google Scholar] [CrossRef] [Green Version] - Wandzura, S.; Wilczek, F. Sum Rules for Spin-Dependent Electroproduction-Test of Relativistic Constituent Quarks. Phys. Lett.
**1977**, 72, 195. [Google Scholar] [CrossRef] - Jaffe, R.L. g
_{2}-The Nucleon’s Other Spin-Dependent Structure Function. Comments Nucl. Part. Phys.**1990**, 19, 239. [Google Scholar] - Ji, X.D.; Chou, C.H. QCD Radiative Corrections to the Transverse Spin Structure Function g
_{2}(x,Q^{2}): 1. Nonsinglet Operators. Phys. Rev. D**1990**, 42, 3637. [Google Scholar] [CrossRef] [PubMed] - Jaffe, R.L.; Ji, X.-D. Studies of the Transverse Spin Dependent Structure Function g
_{2}(x,Q^{2}). Phys. Rev. D**1991**, 43, 724. [Google Scholar] [CrossRef] [PubMed] - Abe, K.; Akagi, T.; Anthony, P.L.; Antonov, R.; Arnold, R.G.; Averett, T.; Band, H.R.; Bauer, J.M.; Borel, H.; Bosted, P.E.; et al. Measurements of the Proton and Deuteron Spin Structure Function g
_{2}and asymmetry A_{2}. Phys. Rev. Lett.**1996**, 76, 587. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Schroeder, O.; Reinhardt, H.; Weigel, H. Nucleon Structure Functions in the Three Flavor NJL Soliton Model. Nucl. Phys. A
**1999**, 651, 174. [Google Scholar] [CrossRef] [Green Version] - Bazarko, A.O.; Arroyo, C.G.; Bachmann, K.T.; Bolton, T.; Foudas, C.; King, B.J.; Lefmann, W.C.; Leung, W.C.; Mishra, S.R.; Oltman, E.; et al. Determination of the Strange Quark Content of the Nucleon from a Next-to-Leading Order QCD Analysis of Neutrino Charm Production. Z. Phys. C
**1995**, 65, 189. [Google Scholar] - Barone, V.; Pascaud, C.; Zomer, F. A New Global Analysis of Deep Inelastic Scattering Data. Eur. Phys. J. C
**2000**, 12, 243. [Google Scholar] [CrossRef] [Green Version] - Ralston, J.P.; Soper, D.E. Production of Dimuons from High-Energy Polarized Proton Proton Collisions. Nucl. Phys. B
**1979**, 152, 109. [Google Scholar] [CrossRef] - Jaffe, R.L.; Jin, X.M.; Tang, J. Interference Fragmentation Functions and the Nucleon’s Transversity. Phys. Rev. Lett.
**1998**, 80, 1166. [Google Scholar] [CrossRef] [Green Version] - Jaffe, R.L.; Ji, X.D. Chiral Odd Parton Distributions and Drell-Yan Processes. Nucl. Phys. B
**1992**, 375, 527. [Google Scholar] [CrossRef] - Avakian, H.; Burkert, V.D.; Elouadrhiri, L.; Bianchi, N.; Adams, G.; Afanasev, A.; Ambrozewicz, P.; Anciant, E.; Anghinolfi, M.; Armstrong, D.S.; et al. Measurement of Beam-Spin Asymmetries for π
^{+}Electroproduction above the Baryon Resonance Region. Phys. Rev. D**2004**, 69, 11200. [Google Scholar] [CrossRef] [Green Version] - Airapetian, A.; Akopov, N.; Akopov, Z.; Amarian, M.; Aschenauer, E.C.; Avakian, H.; Avakian, R.; Avetissian, A.; Avetissian, E.; Bailey, P.; et al. Observation of a Single Spin Azimuthal Asymmetry in Semiinclusive Pion Electro Production. Phys. Rev. Lett.
**2000**, 84, 4047. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Airapetian, A.; Akopov, N.; Akopov, Z.; Amarian, M.; Aschenauer, E.C.; Avakian, H.; Avakian, R.; Avetissian, A.; Avetissian, E.; Bailey, P.; et al. Single-Apin Azimuthal Asymmetries in Alectroproduction of Aeutral Pions in Semi-inclusive Deep-inelastic Scattering. Phys. Rev. D
**2001**, 64, 097101. [Google Scholar] [CrossRef] [Green Version] - Burkardt, M.; Koike, Y. Violation of Sum Sules for Twist-three Parton Distributions in QCD. Nucl. Phys. B
**2002**, 632, 311. [Google Scholar] [CrossRef] [Green Version] - Diakonov, D. From Instantons to Nucleon Structure. In Proceedings of the International Symposium, Nuclear Physics Frontiers with Electro-weak Probes, Osaka, Japan, 7–9 March 1996. [Google Scholar]
- Reinhardt, H.; Weigel, H. Vacuum Nature of the QCD Condensates. Phys. Rev. D
**2012**, 85, 074029. [Google Scholar] [CrossRef] [Green Version]

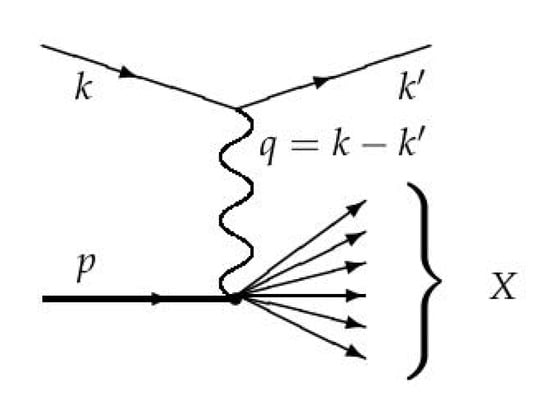

**Figure 1.**Feynman diagram describing the kinematical set-up, where k and ${k}^{\prime}$ are the momenta of the initial and final electrons, respectively, while p is the momentum of the incoming proton, typically taken in the rest frame. The set of final hadrons, X is not detected and summed over, cf. Equation (3).

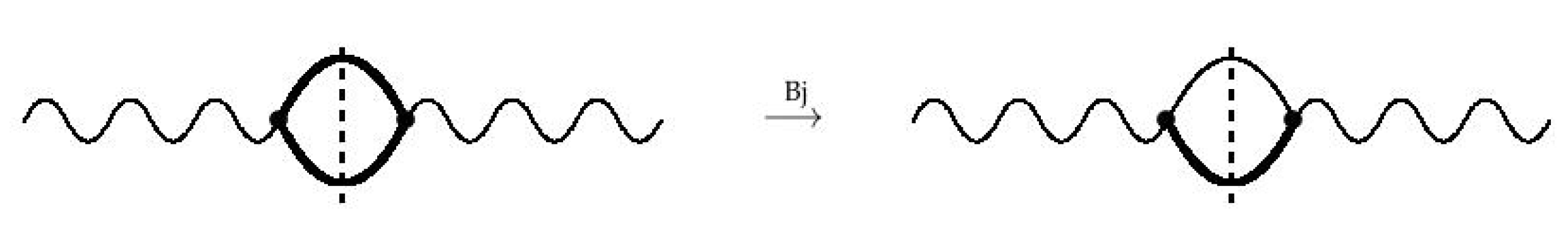

**Figure 2.**Two photon coupling to fermion loop. Thick lines are the full fermion propagators ${{\mathbf{D}}^{\left(\pi \right)}}^{-1}$ (or ${{\mathbf{D}}^{\left(\pi \right)}}_{5}^{-1}$) without any perturbation expansion. The thin line in the loop represents a free (massless) fermion propagator, $\partial \phantom{\rule{-6.00006pt}{0ex}}{/}^{-1}$. Dashed lines denote Cutkosky cuts as discussed after Equation (58).

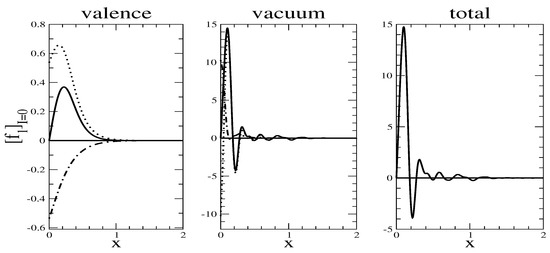

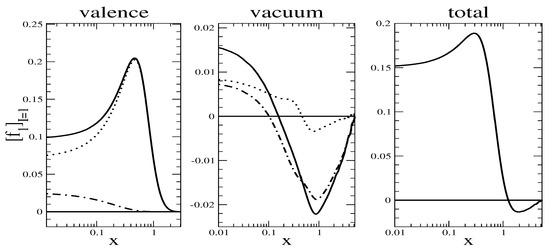

**Figure 3.**Model prediction (with $m=400\phantom{\rule{3.33333pt}{0ex}}\mathrm{MeV}$) for the isoscalar unpolarized structure function in the nucleon rest frame. Dotted and dotted-dashed lines refer to the positive and negative frequency contributions, respectively.

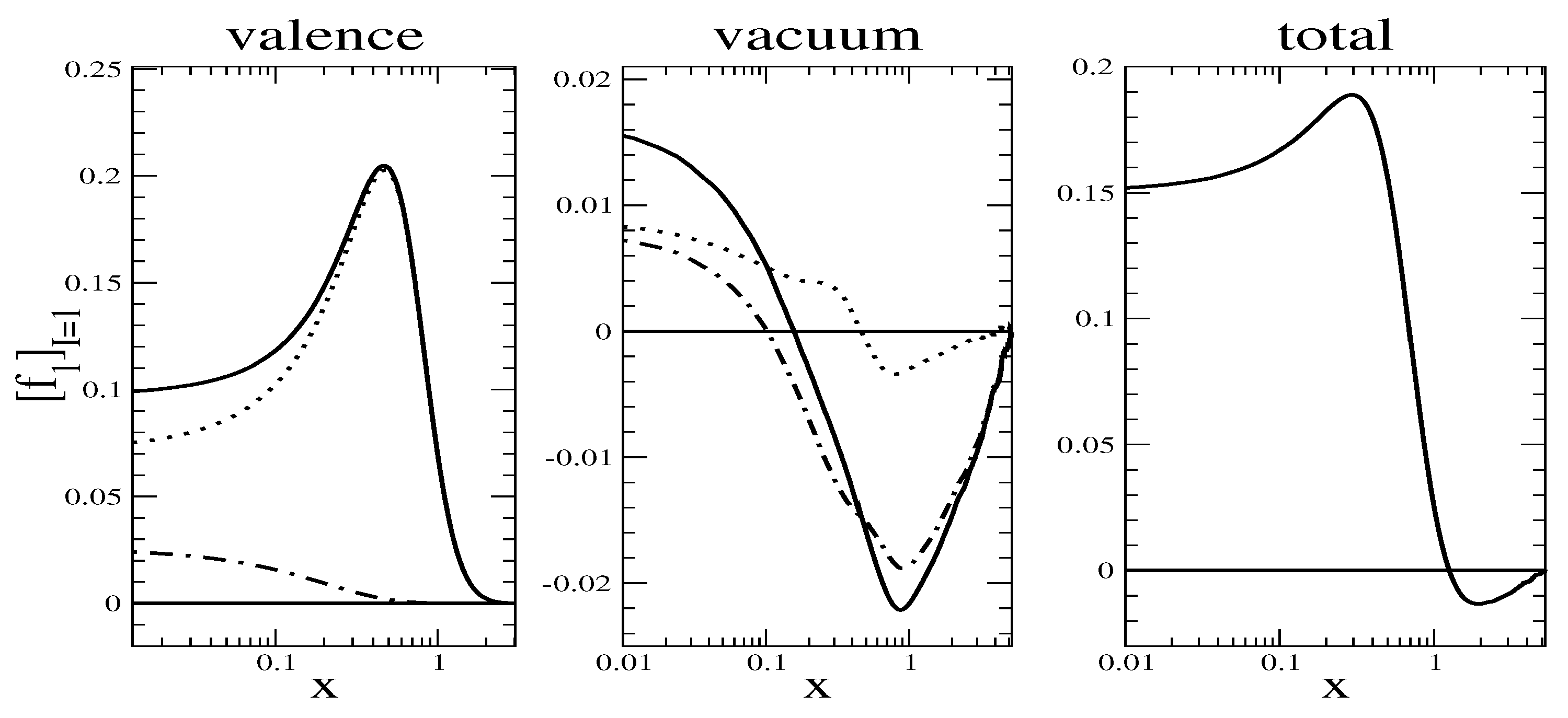

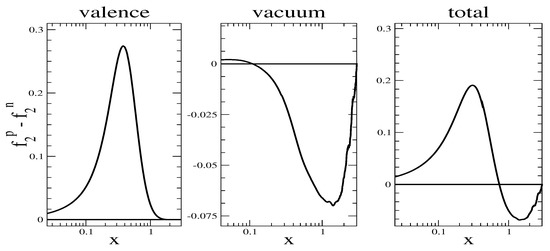

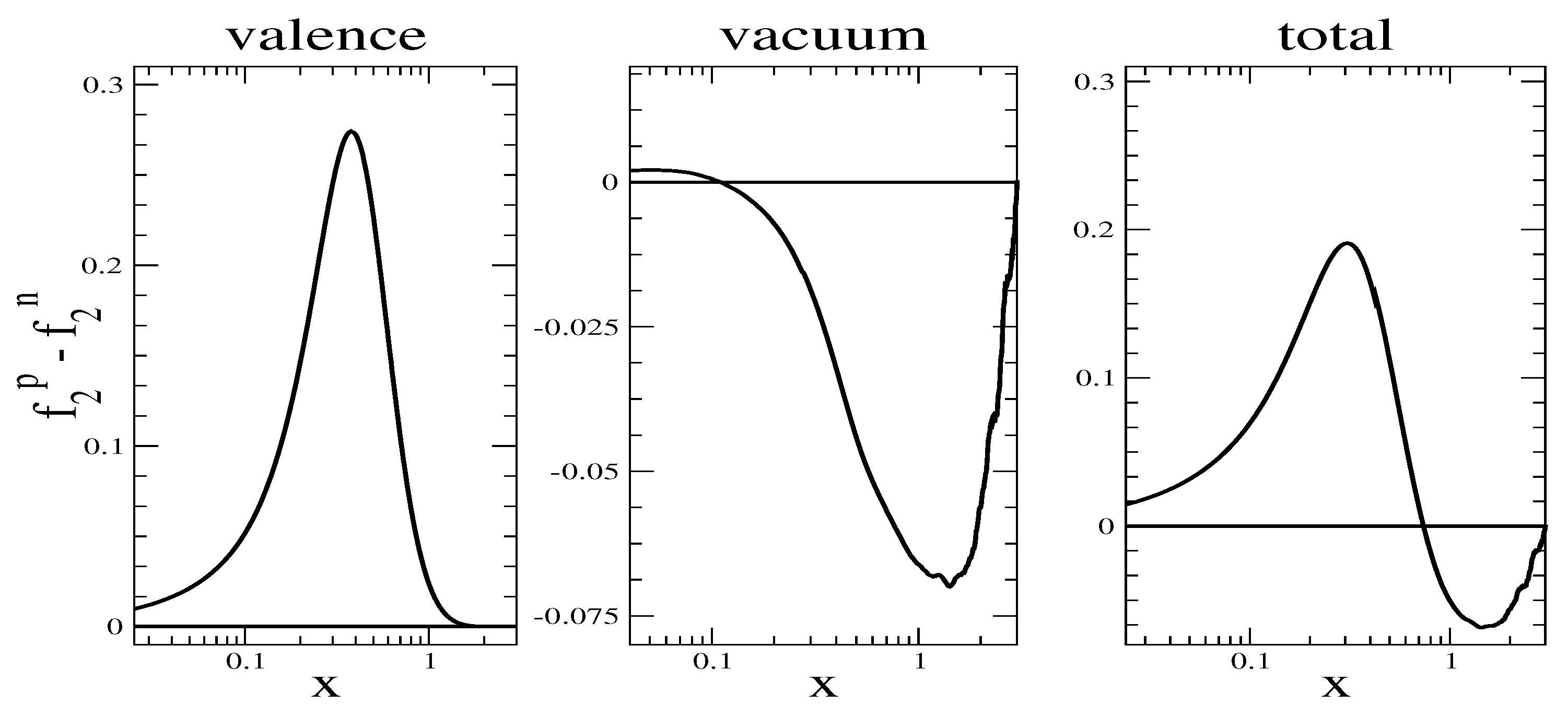

**Figure 4.**Same as Figure 3 for the isovector unpolarized structure function. Observe the logarithmic scale for the Bjorken variable x.

**Figure 5.**Model prediction of the unpolarized structure function ${f}_{2}^{p}\left(x\right)-{f}_{2}^{n}\left(x\right)$ for the constituent quark mass of $m=400\phantom{\rule{3.33333pt}{0ex}}\mathrm{MeV}$.

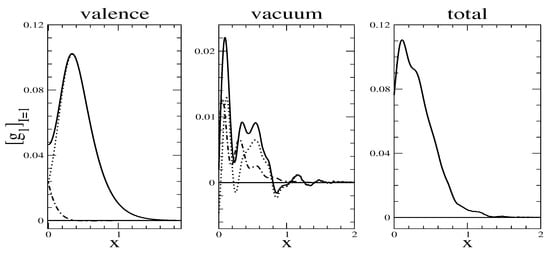

**Figure 6.**Model prediction ($m=400\phantom{\rule{3.33333pt}{0ex}}\mathrm{MeV}$) for the isovector longitudinal polarized structure functions. For the valence and vacuum contributions we separately display the positive (dotted) and negative (dotted-dashed) frequency contributions.

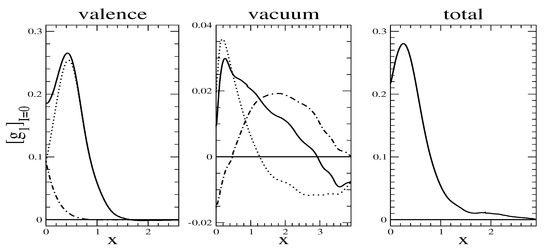

**Figure 7.**Same as Figure 6 for the isoscalar longitudinal polarized structure functions.

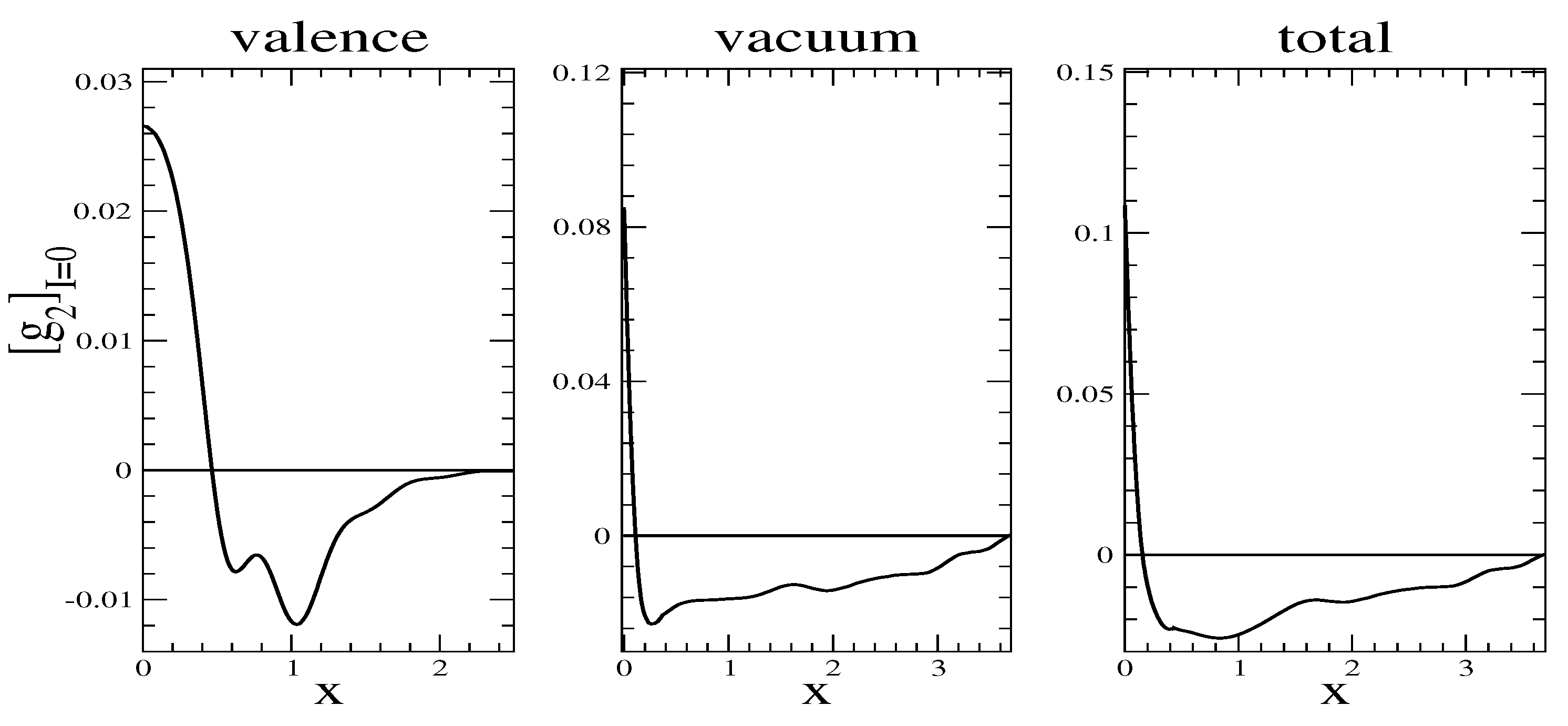

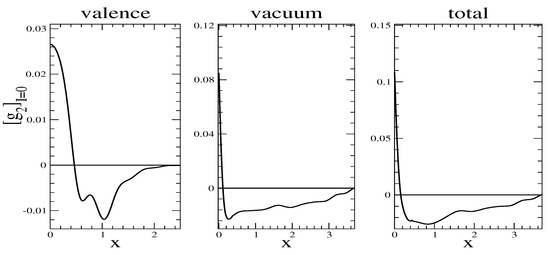

**Figure 8.**Model prediction of the isoscalar structure function, ${g}_{2}$, for the constituent quark mass of $m=400\phantom{\rule{3.33333pt}{0ex}}\mathrm{MeV}$.

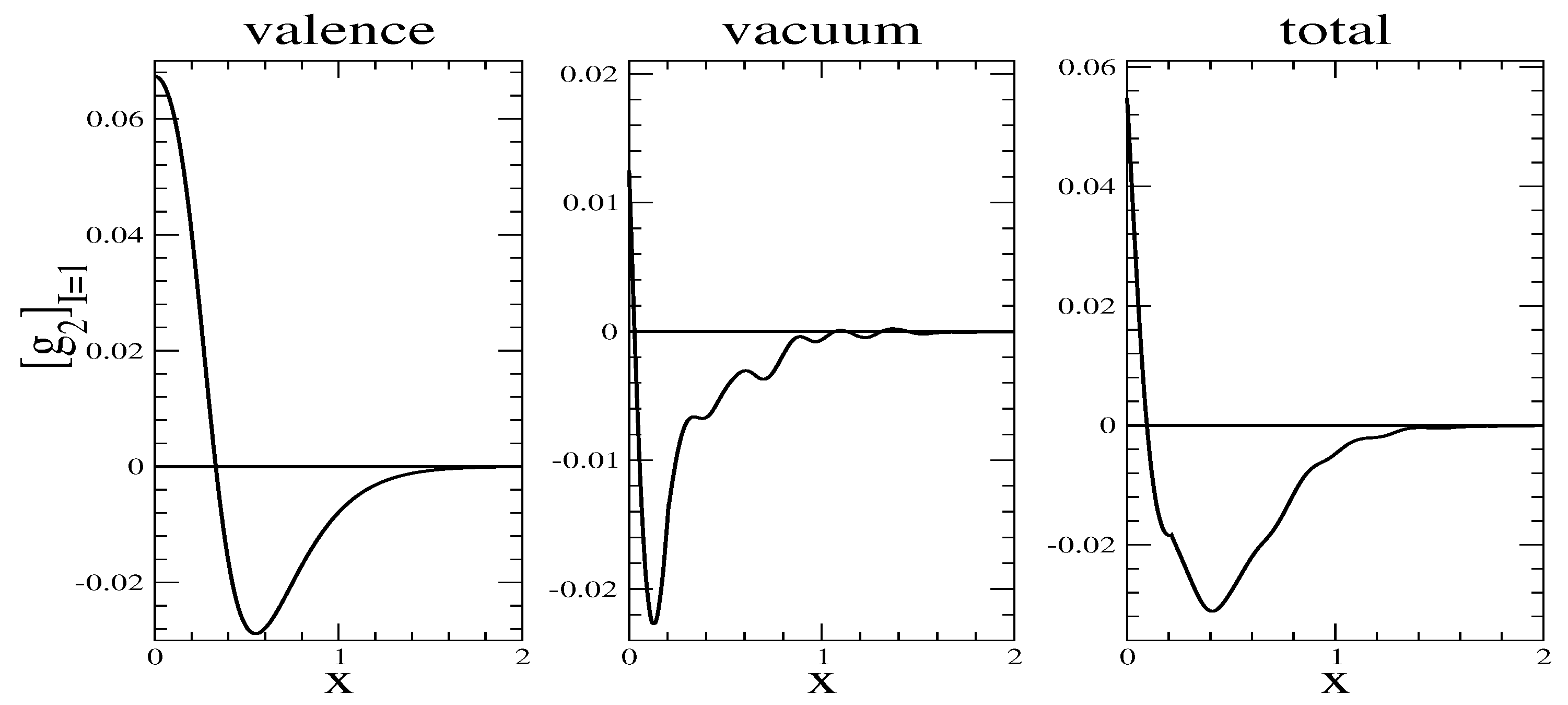

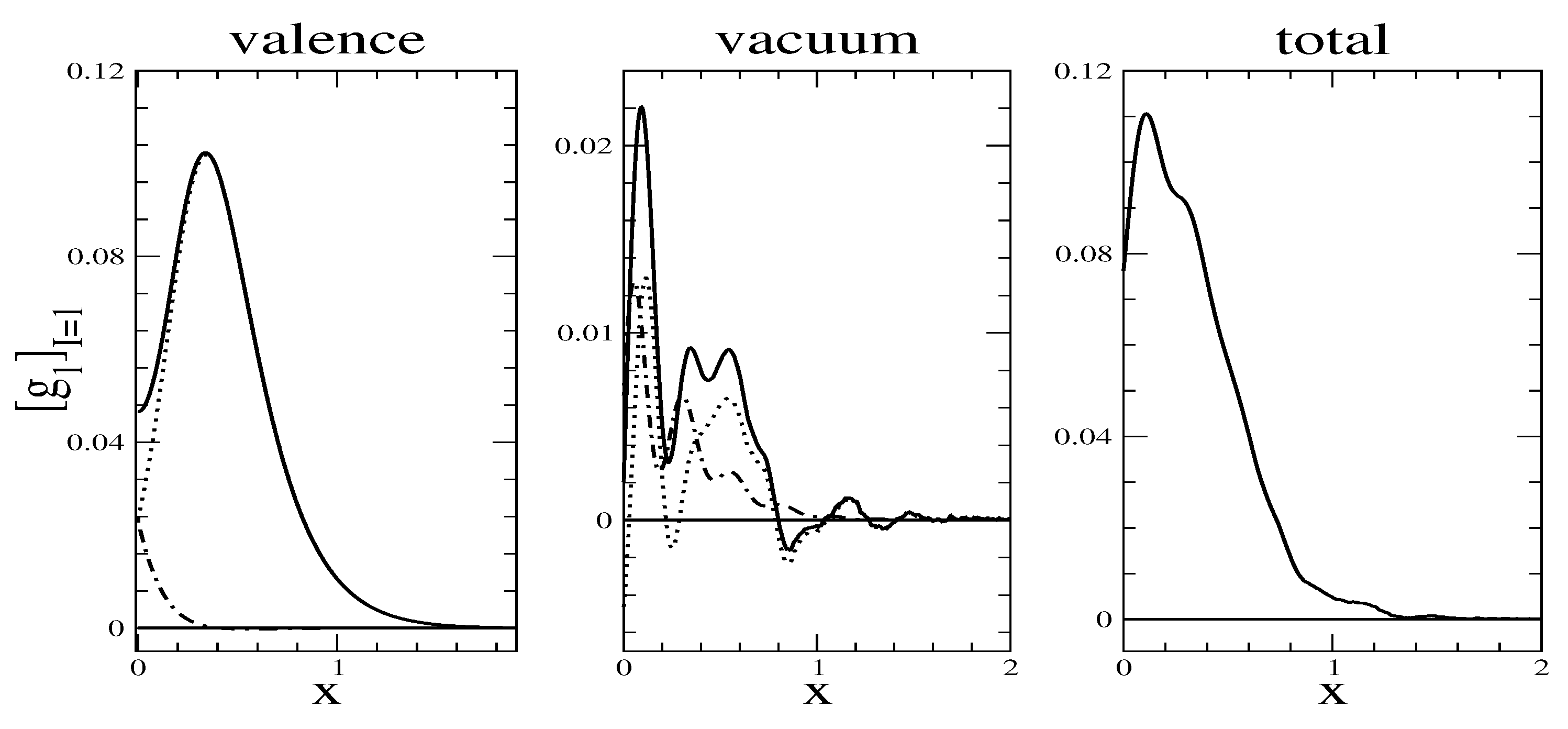

**Figure 9.**Model prediction of the isovector polarized structure functions, ${g}_{2}$, frame for the constituent quark mass of $m=400\phantom{\rule{3.33333pt}{0ex}}\mathrm{MeV}$.

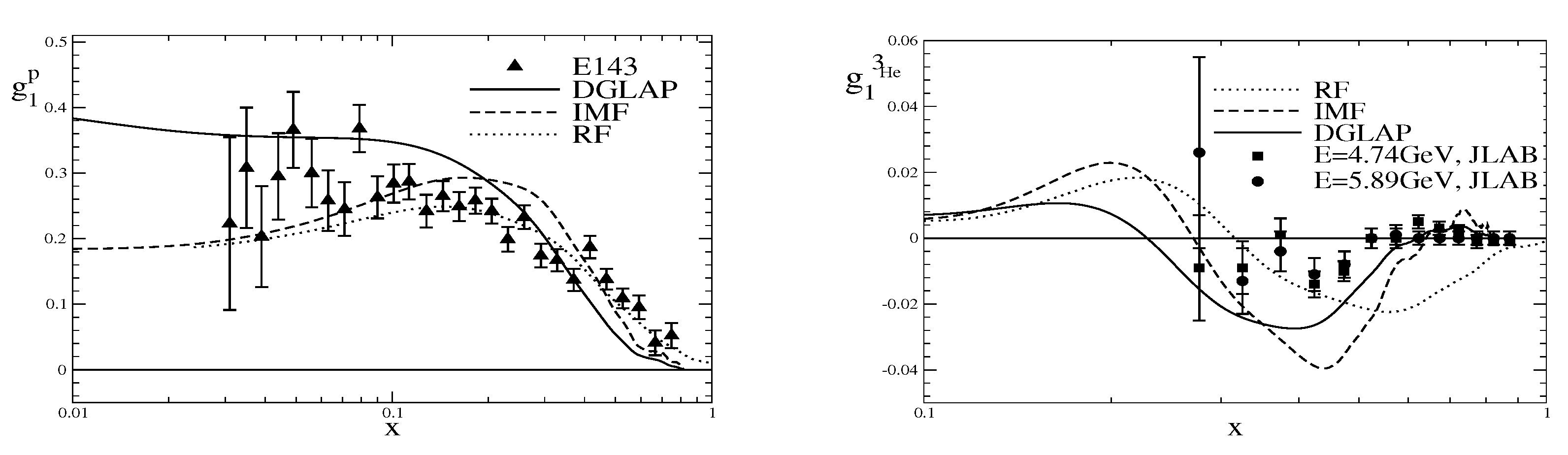

**Figure 10.**Model prediction for the longitudinal polarized proton structure functions. Left panel: ${g}_{1}^{p}\left(x\right)$; right panel: ${g}_{1}^{{}^{3}\mathrm{He}}\left(x\right)$. These functions are “DGLAP” evolved from ${\mu}^{2}=0.4\phantom{\rule{0.166667em}{0ex}}{\mathrm{GeV}}^{2}$ to ${Q}^{2}=3\phantom{\rule{0.166667em}{0ex}}{\mathrm{GeV}}^{2}$ after being projected to the IMF. Data are from Refs. [83,84] for the proton and from Ref. [85] for helium. In the latter case E refers to the electron energy.

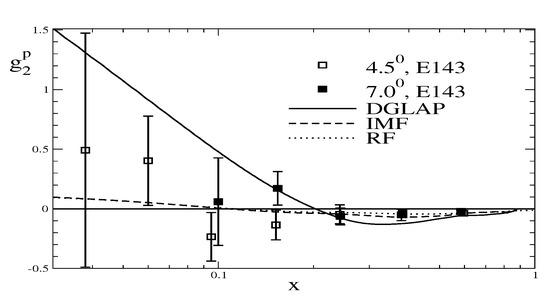

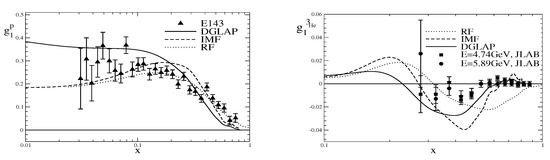

**Figure 11.**Model prediction for the polarized proton structure functions ${g}_{2}^{p}\left(x\right)$. This function is “DGLAP” evolved from ${\mu}^{2}=0.4\phantom{\rule{0.166667em}{0ex}}{\mathrm{GeV}}^{2}$ to ${Q}^{2}=5\phantom{\rule{0.166667em}{0ex}}{\mathrm{GeV}}^{2}$ after being projected to the IMF. Data are from Ref [90].

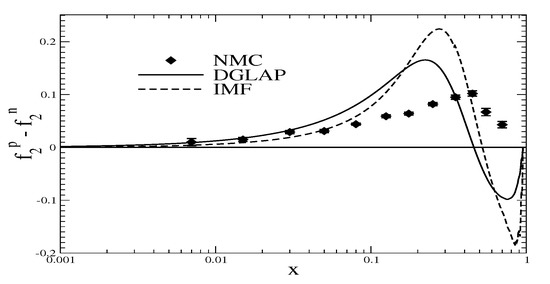

**Figure 12.**Model prediction ($m=400\phantom{\rule{0.166667em}{0ex}}\mathrm{MeV}$) for the unpolarized structure function that enters the Gottfried sum rule, Equation (86). This function is “DGLAP” evolved from ${\mu}^{2}=0.4\phantom{\rule{3.33333pt}{0ex}}{\mathrm{GeV}}^{2}$ to ${Q}^{2}=4\phantom{\rule{3.33333pt}{0ex}}{\mathrm{GeV}}^{2}$ after transformation to the IMF. Data are from Ref. [80].
