# Linear and Non-Linear Middle Infrared Spectra of Penicillin G in the CO Stretching Mode Region

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Section

#### 2.1. Materials

#### 2.2. Instrumental Setup

#### 2.3. Signal Acquisition, Data Treatment and Calculations

## 3. Results and Discussion

#### 3.1. FT-IR Spectra

#### 3.2. Broadband Pump/Probe Experiments

#### 3.3. Vibrational Relaxation

#### 3.4. Evaluation of the Coupling Constants

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Le Sueur, A.L.; Horness, R.E.; Thielges, M.C. Applications of two-dimensional infrared spectroscopy. Analyst
**2015**, 140, 4336–4349. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Fritzsch, R.; Hume, S.; Minnes, L.; Baker, M.J.; Burley, G.A.; Hunt, N.T. Two-dimensional infrared spectroscopy: An emerging analytical tool? Analyst
**2020**, 145, 2014–2024. [Google Scholar] [CrossRef] [PubMed] - Petti, M.K.; Lomont, J.P.; Maj, M.; Zanni, M.T. Two-Dimensional Spectroscopy Is Being Used to Address Core Scientific Questions in Biology and Materials Science. J. Phys. Chem. B
**2018**, 122, 1771–1780. [Google Scholar] [CrossRef] [PubMed] - Kuhs, C.T.; Luther, B.M.; Krummel, A.T. Biomolecular and bioanalytical applications of infrared spectroscopy—A review. IEEE J. Sel. Top. Quantum Electron.
**2019**, 25, 3100313. [Google Scholar] - Hamm, P.; Zanni, M.T. Concepts and Methods of 2D Infrared Spectroscopy; Cambridge University Press: New York, NY, USA, 2011. [Google Scholar]
- Lima, M.; Candelaresi, M.; Foggi, P. 2D-IR spectroscopy: An additional dimension to investigate ultrafast structural dynamics. J. Raman. Spectr.
**2013**, 44, 1470–1477. [Google Scholar] [CrossRef] - Hamm, P.; Lim, M.; DeGrado, W.F.; Hochstrasser, R.M. The two-dimensional IR nonlinear spectroscopy of a cyclic penta-peptide in relation to its three-dimensional structure. Proc. Natl. Acad. Sci. USA
**1999**, 96, 2036–2041. [Google Scholar] [CrossRef] [Green Version] - Chelli, R.; Volkov, V.V.; Righini, R. Retrieval of spectral and dynamic properties from two-dimensional infrared pump-probe experiments. J. Comput. Chem.
**2008**, 29, 1507–1516. [Google Scholar] [CrossRef] - Ragnoni, E.; Palombo, F.; Green, E.; Winlove, C.P.; Di Donato, M.; Lapini, A. Coacervation of α-elastin studied by ultrafast nonlinear infrared spectroscopy. Phys. Chem. Chem. Phys.
**2016**, 18, 27981–27990. [Google Scholar] [CrossRef] - Volkof, V.; Hamm, P. A Two-Dimensional Infrared Study of Localization, Structure, and Dynamics of a Dipeptide in Membrane Environment. Biophys. J.
**2004**, 87, 4213–4225. [Google Scholar] [CrossRef] [Green Version] - Gironi, B.; Lapini, A.; Ragnoni, E.; Calvagna, C.; Paolantoni, M.; Morresi, A.; Sassi, P. Free volume and dynamics in a lipid bilayer. Phys. Chem. Chem. Phys.
**2019**, 21, 23169–23178. [Google Scholar] [CrossRef] - Candelaresi, M.; Ragnoni, E.; Cappelli, C.; Corozzi, A.; Lima, M.; Monti, S.; Mennucci, B.; Nuti, F.; Papini, A.M.; Foggi, P. Conformational Analysis of Gly–Ala–NHMe in D
_{2}O and DMSO Solutions: A Two-Dimensional Infrared Spectroscopy Study. J. Phys. Chem. B**2013**, 117, 14226–14237. [Google Scholar] [CrossRef] [PubMed] - Moran, S.D.; Zanni, M.T. How to Get Insight into Amyloid Structure and Formation from Infrared Spectroscopy. J. Phys. Chem. Lett.
**2014**, 5, 1984–1993. [Google Scholar] [CrossRef] [PubMed] - Woutersen, S.; Hamm, P. Structure Determination of Trialanine in Water Using Polarization Sensitive Two-Dimensional Vibrational Spectroscopy. J. Phys. Chem. B
**2000**, 104, 11316–11320. [Google Scholar] [CrossRef] - Woutersen, S.; Hamm, P. Time-resolved two-dimensional vibrational spectroscopy of a short α-helix in water. J. Chem. Phys.
**2001**, 115, 7737–7743. [Google Scholar] [CrossRef] - Woutersen, S.; Pfister, R.; Hamm, P.; Kosov, D.S.; Stock, G. Peptide conformational heterogeneity revealed from nonlinear vibrational spectroscopy and molecular-dynamics simulations. J. Chem. Phys.
**2002**, 117, 6833–6840. [Google Scholar] [CrossRef] [Green Version] - Bredenbeck, J.; Helbing, J.; Sieg, A.; Schrader, T.; Zinth, W.; Renner, C.; Behrendt, R.; Moroder, L.; Wachtveitl, J.; Hamm, P. Picosecond conformational transition and equilibration of a cyclic peptide. Proc. Natl. Acad. Sci. USA
**2003**, 10, 6452–6457. [Google Scholar] [CrossRef] [Green Version] - Backus, E.H.G.; Bloem, R.; Pfister, R.; Moretto, A.; Crisma, M.; Toniolo, C.; Hamm, P. Dynamical Transition in a Small Helical Peptide and Its Implication for Vibrational Energy Transport. J. Phys. Chem. B
**2009**, 113, 13405–13409. [Google Scholar] [CrossRef] - Backus, E.H.G.; Bloem, R.; Donaldson, P.M.; Ihalainen, J.A.; Pfister, R.; Paoli, B.; Caflisch, A.; Hamm, P. 2D-IR Study of a Photoswitchable Isotope-Labeled α-Helix. J. Phys. Chem. B
**2010**, 114, 3735–3740. [Google Scholar] [CrossRef] [Green Version] - Roy, S.; Lessing, J.; Meisl, G.; Ganim, Z.; Tokmakoff, A.; Knoester, J.; Jansen, T.L. Solvent and conformation dependence of amide I vibrations in peptides and proteins containing proline. J. Chem. Phys.
**2011**, 135, 234507. [Google Scholar] [CrossRef] [Green Version] - Newton, D.W.; Kluza, R.B. pK
_{a}Values of Medical Compounds in Pharmacy Practice. Ann. Pharmacother.**1978**, 12, 546–554. [Google Scholar] - Lapini, A.; Pagliai, M.; Fanetti, S.; Citroni, M.; Scandolo, S.; Bini, R.; Righini, R. Pressure Dependence of Hydrogen-Bond Dynamics in Liquid Water Probed by Ultrafast Infrared Spectroscopy. J. Phys. Chem. Lett.
**2016**, 7, 3579–3584. [Google Scholar] [CrossRef] [PubMed] - Fanetti, S.; Lapini, A.; Pagliai, M.; Citroni, M.; Di Donato, M.; Scandolo, S.; Righini, R.; Bini, R. Structure and Dynamics of Low-Density and High-Density Liquid Water at High Pressure. J. Phys. Chem. Lett.
**2014**, 5, 235–240. [Google Scholar] [CrossRef] [PubMed] - Di Donato, M.; Segado Centellas, M.; Lapini, A.; Lima, M.; Avila, F.; Santoro, F.; Cappelli, C.; Righini, R. Combination of transient 2D-IR experiments and ab-initio calculations sheds light on the formation of the charge transfer state in photoexcited carbonyl carotenoids. J. Phys. Chem. B
**2014**, 118, 9613–9630. [Google Scholar] [CrossRef] [PubMed] - Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Montgomery, J.A., Jr.; Vreven, T.; Kudin, K.N.; Burant, J.C.; et al. Gaussian 03, R Evision C.02; Gaussian, Inc.: Wallingford, CT, USA, 2004; Available online: https://gaussian.com/g03citation/ (accessed on 11 October 2020).
- Barnes, R.B.; Gore, R.C.; Williams, E.F.; Linsley, S.G.; Petersen, E.M. Infrared Analysis of Crystalline Penicillins. Anal. Chem.
**1947**, 19, 620–627. [Google Scholar] [CrossRef] - Volkov, V.V.; Nuti, F.; Takaoka, Y.; Chelli, R.; Papini, A.M.; Righini, R. Hydration and Hydrogen Bonding of Carbonyls in Dimyristoyl-Phosphatidylcholine Bilayer. J. Am. Chem. Soc.
**2006**, 128, 9466–9471. [Google Scholar] [CrossRef] [PubMed] - Wang, J.; Hochstrasser, R.M. Anharmonicity of Amide Modes. J. Phys. Chem. B
**2006**, 110, 3798–3807. [Google Scholar] [CrossRef] - Lapini, A.; Vázquez, S.M.; Touceda, P.T.; Lima, M. Cross-phase modulation in visible-pump/mid-infrared-probe spectroscopy. J. Mol. Struct.
**2011**, 993, 470–473. [Google Scholar] [CrossRef]

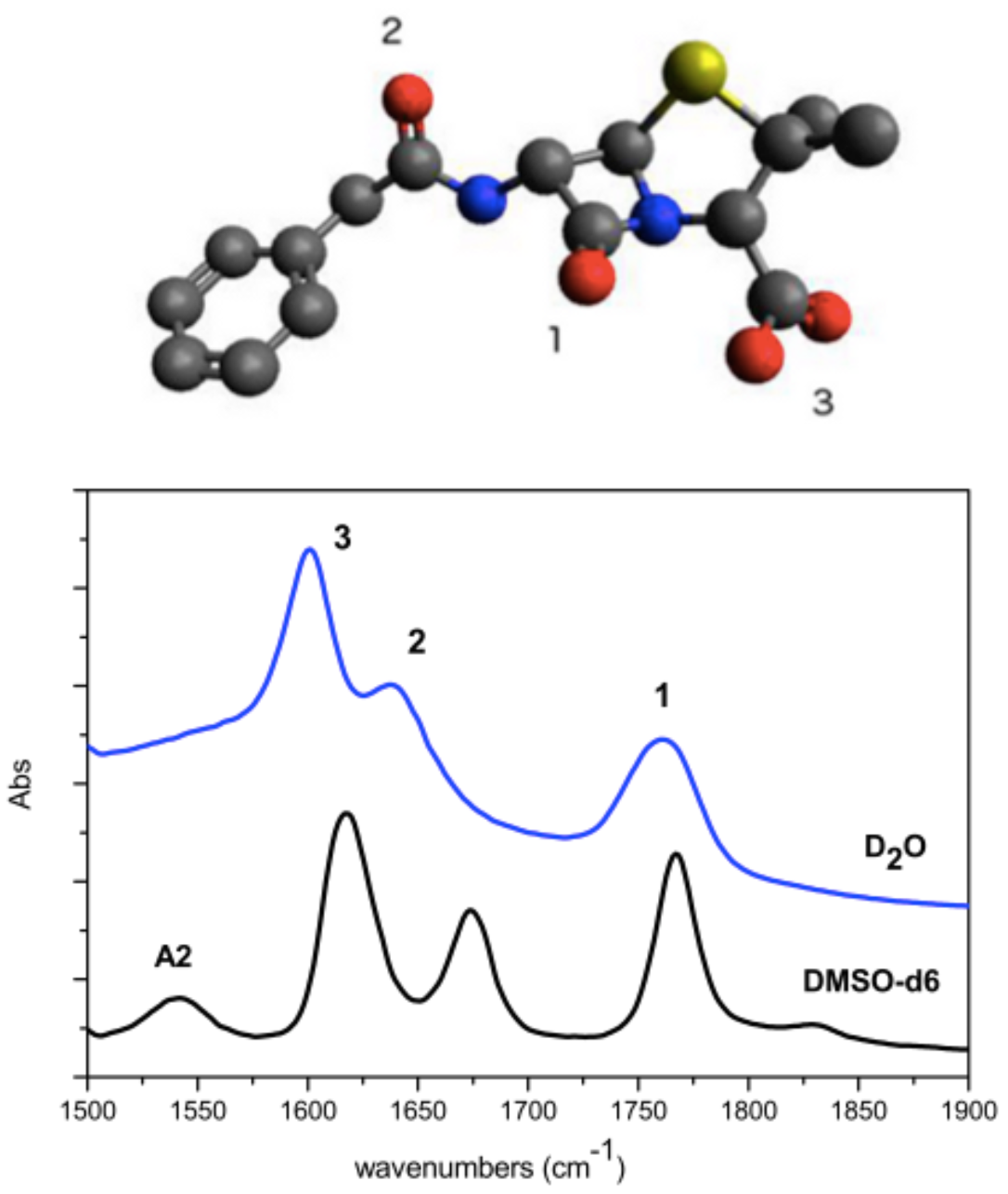

**Figure 1.**Penicillin G molecule (A) and its IR spectra (B) in ${D}_{2}O$ (blue line) and in $DMSO-d6$ (black line). Assignments are given: (1) $\beta -lactam$$CO$ stretching; (2) $AmideI$; (3) asymmetric stretching of carboxylate group. A large red shift of $AmideII$ (A2), out of the frequency window, is observed upon proton exchange in ${D}_{2}O$.

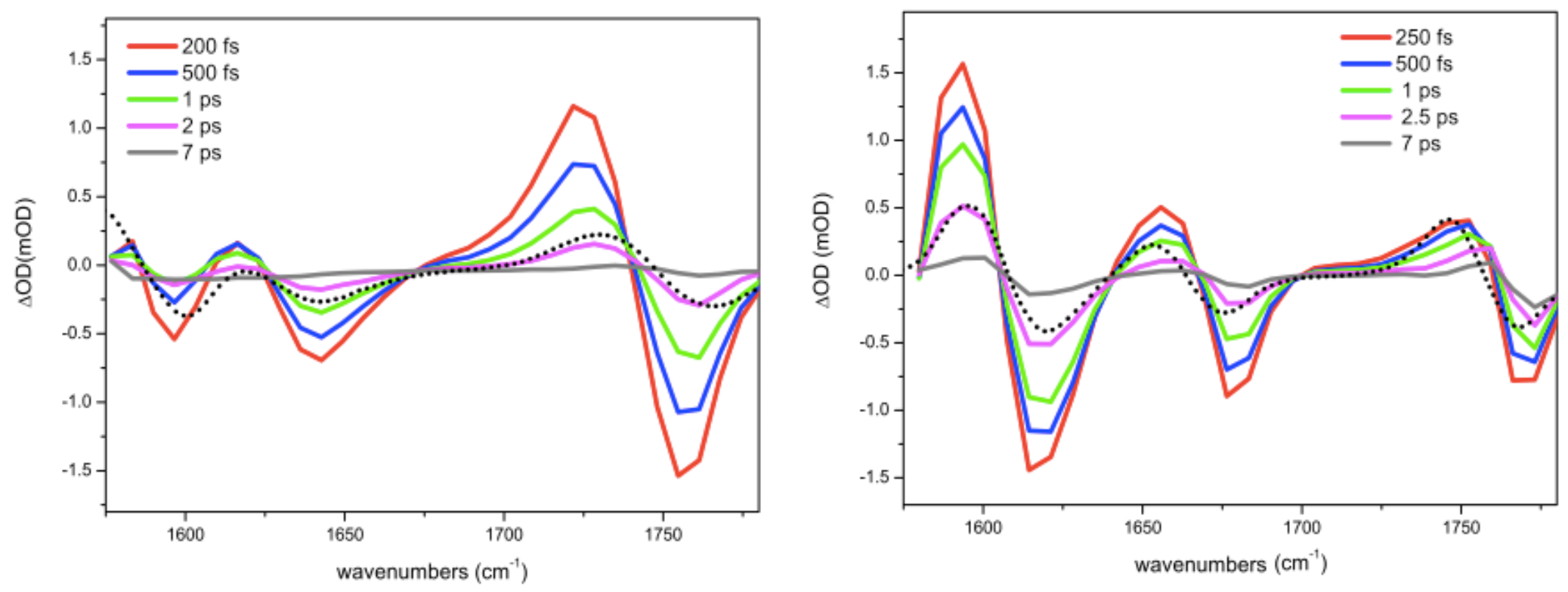

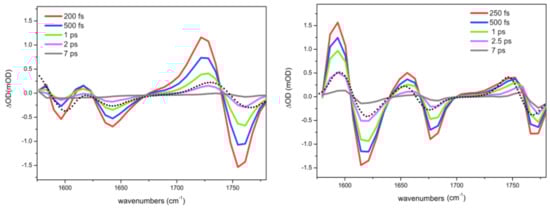

**Figure 4.**Transient broadband parallel spectra in ${D}_{2}O$ (on the

**left**) and in $DMSO-d6$ (on the

**right**). The black dot lines represent simulations of the transient spectra obtained by summing the linear IR spectrum with its reversed one, shifted by the averaged value of anharmonicity (27 cm${}^{-1}$ for ${D}_{2}O$ and 20 cm${}^{-1}$ for $DMSO-d6$).

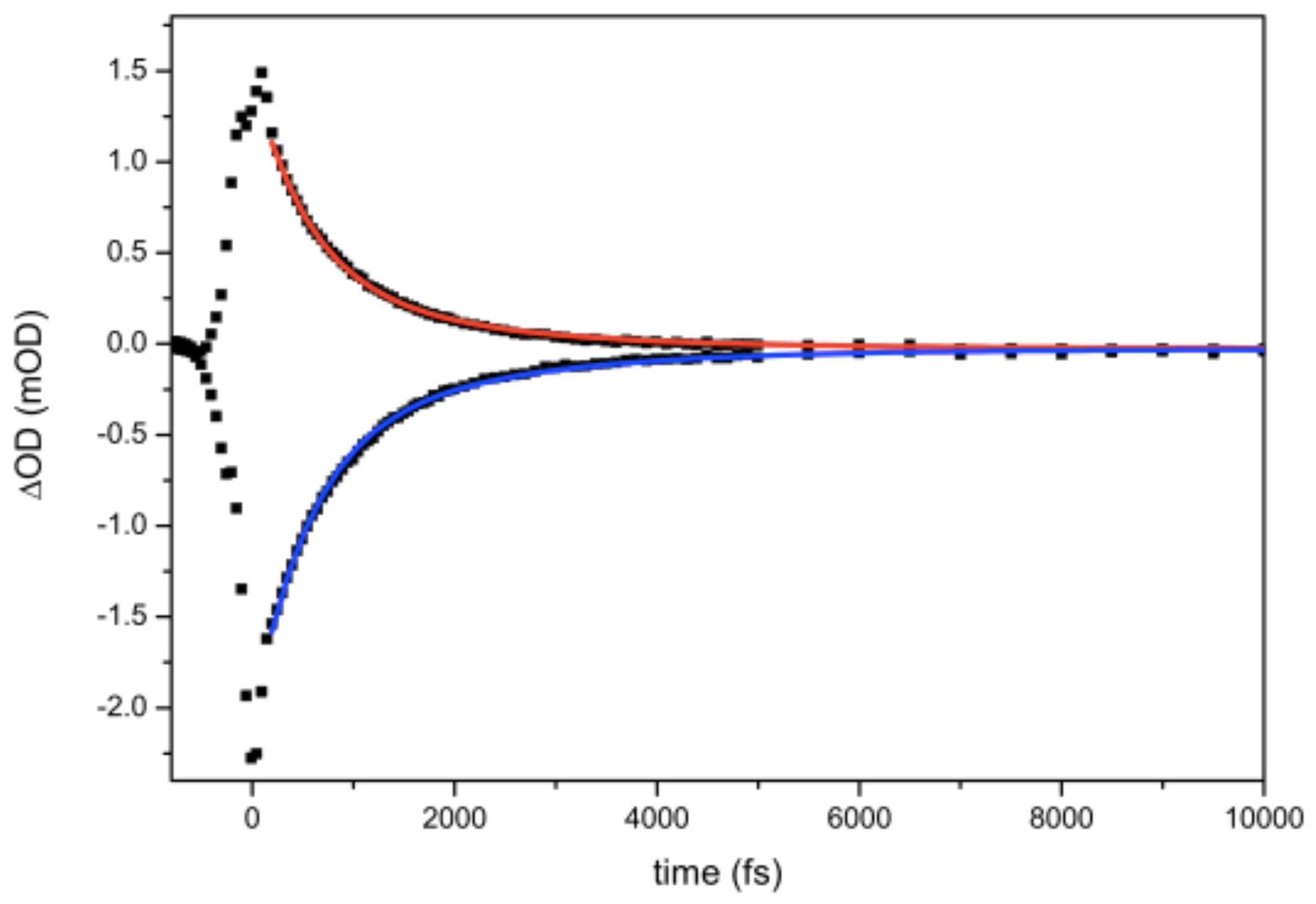

**Figure 5.**Bi-exponential decay of excited state absorption and ground state recovery of $\beta -lactam$ CO in ${D}_{2}O$. Fitting is done starting from 200 fs. In the first 200 fs cross phase modulation phenomena due to temporal overlap between pump and probe occur.

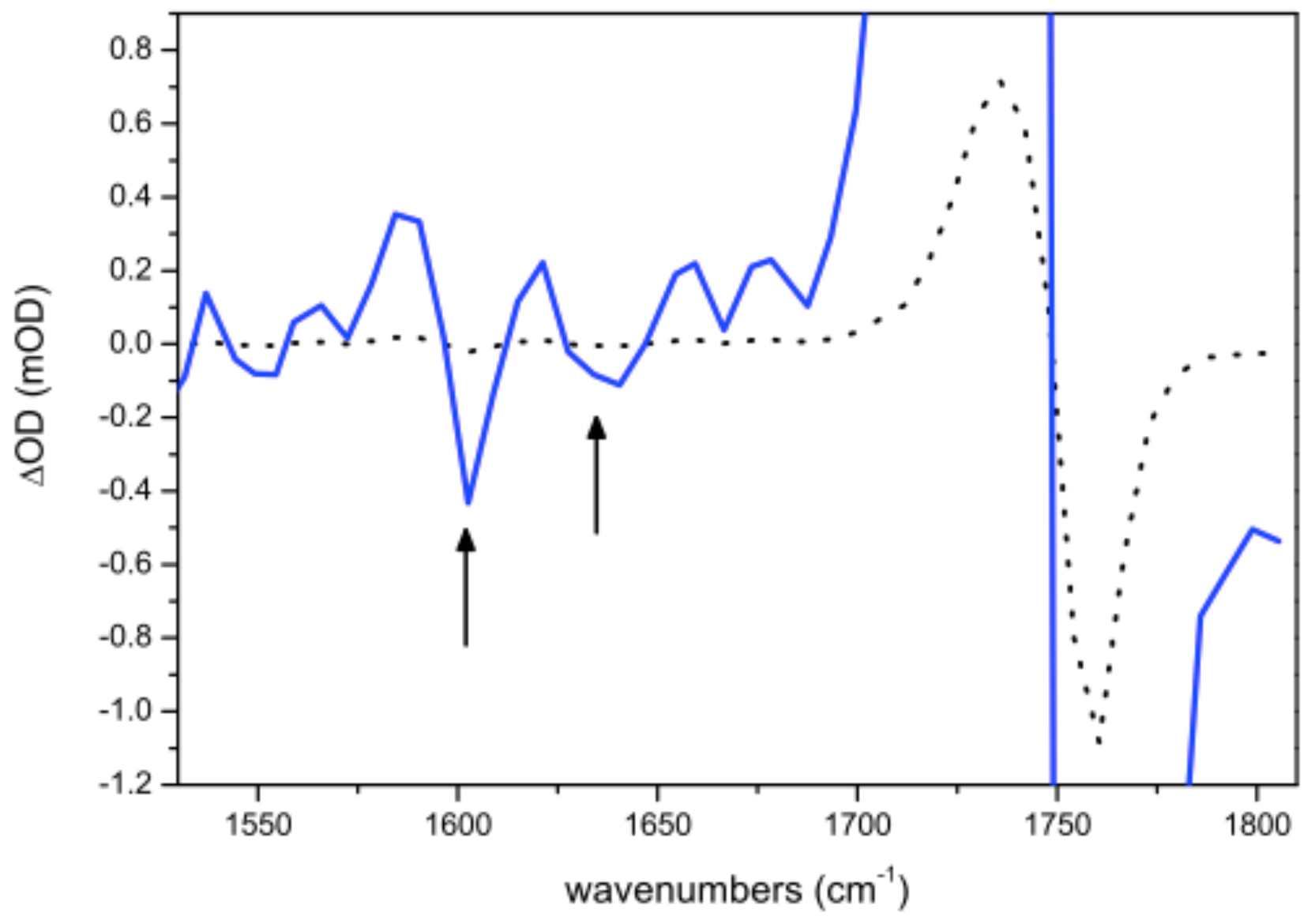

**Figure 6.**Narrowband experiment in ${D}_{2}O$: the dot line show the scaled intensities to the most intense signal recorded when the $\beta -lactam$ at 1762 cm${}^{-1}$ is excited. In order to highlight cross peaks (black arrows) the spectrum has been 20 times enlarged. The presence of the cross peak due to the coupling between the $\beta -lactam$ and the carboxylate is clearly visible while the cross peak with the amide I mode is hidden in the noise.

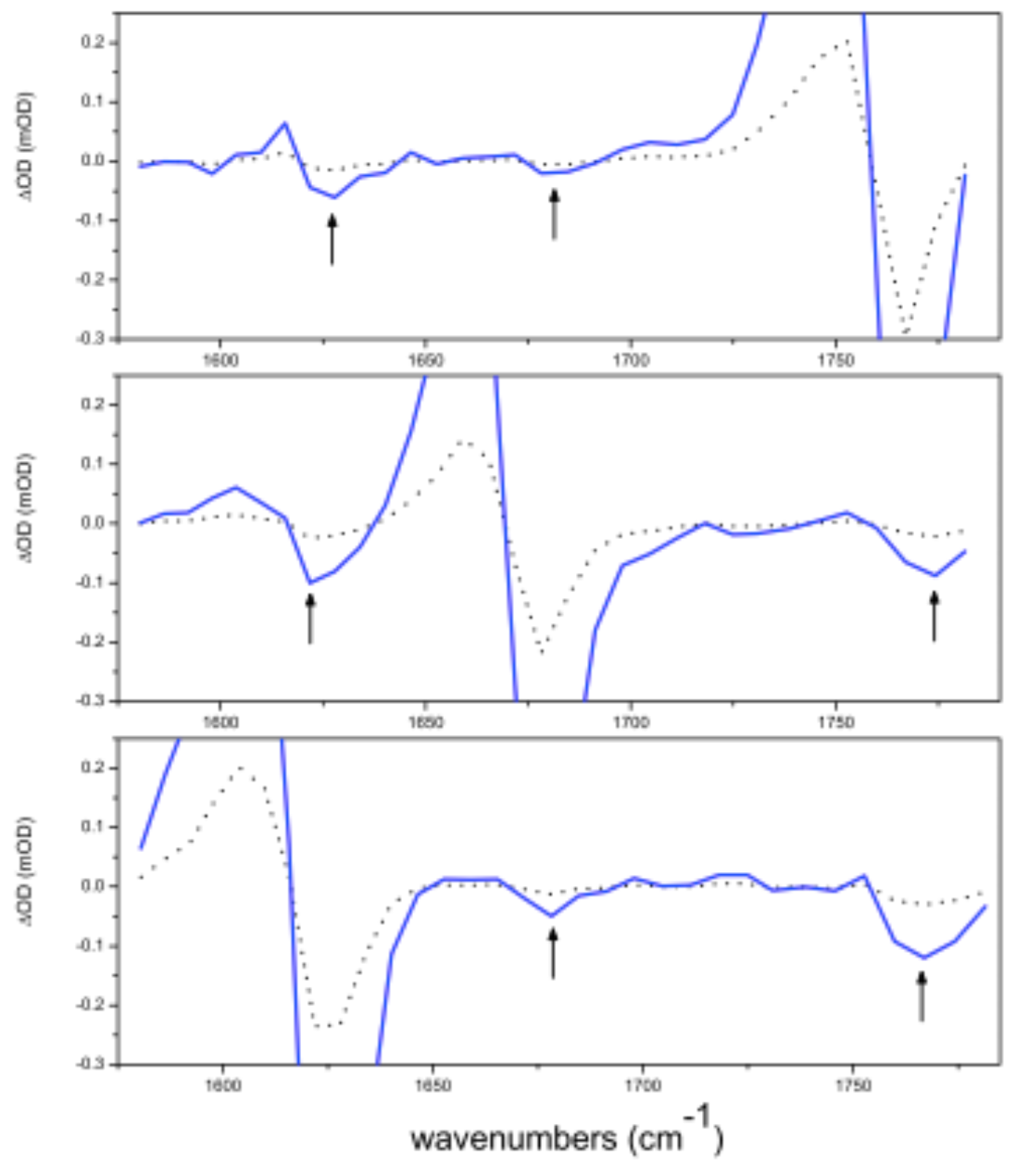

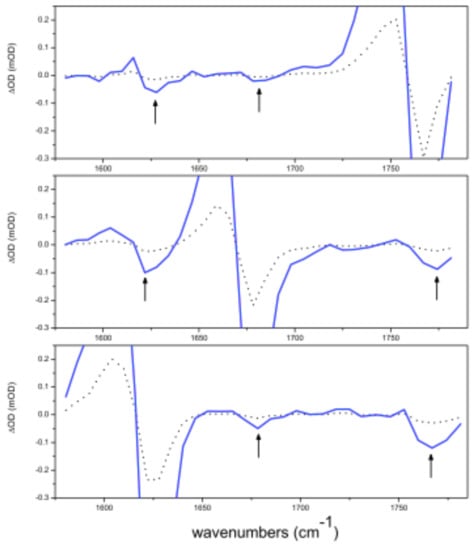

**Figure 7.**Cross peaks in the CO stretching region of Penicillin G in DMSO-d6. Excitation frequencies are centred at 1767 cm${}^{-1}$, 1678 cm${}^{-1}$ and 1622 $cm-1$. Black arrows indicate the position of cross peaks (four times enlarged).

**Table 1.**Experimental and calculated FT-IR frequencies (cm${}^{-1}$) of the three investigated vibrational modes and their assignment.

${\mathit{D}}_{2}\mathit{O}$ | $\mathit{DMSO}-\mathit{d}6$ | $\mathit{Mode}$ | ||
---|---|---|---|---|

$\mathit{\nu}$$\mathit{Exp}$ | $\mathit{\nu}$$\mathit{Calc}$ | $\mathit{\nu}$$\mathit{Exp}$ | $\mathit{\nu}$$\mathit{Calc}$ | |

1762 | 1762 | 1767 | 1767 | $\beta -lactam$ carbonyl stretching |

1640 | 1655 | 1674 | 1674 | amide I |

1601 | 1580 | 1615 | 1588 | carboxylate asymmetric stretching |

**Table 2.**Excited state absorption (ESA) and ground state recovery (GSR) lifetimes in ${D}_{2}O$ and $DMSO-d6$. A thermal contribution of 0.05/0.1 m optical density (OD) is measured in $DMSO-d6$. Time values of the exponentials are in $fs$.

${\mathit{D}}_{2}\mathit{O}$ | $\mathit{DMSO}-\mathit{d}6$ | |||
---|---|---|---|---|

$\mathit{\beta}-\mathit{lactam}$ | $\mathit{\beta}-\mathit{lactam}$ | Amide I | Carboxylate | |

ESA | 1.1 exp(-t/550) | 0.2 exp(-t/324) | 0.3 exp(-t/490) | 0.9 exp(-t/136) |

0.4 exp(-t/1750) | 0.3 exp(-t/2040) | 0.3 exp(-t/2125) | 1.2 exp(-t/2195) | |

$\u2329\tau \u232a$ = 0.9 ± 0.1 ps | $\u2329\tau \u232a$ = 1.4 ± 0.1 ps | $\u2329\tau \u232a$ = 1.3 ± 0.1 ps | $\u2329\tau \u232a$ = 1.3 ± 0.1 ps | |

GSR | 1.5 exp(-t/550) | 0.4 exp(-t/512) | 0.5 exp(-t/580) | 0.5 exp(-t/154) |

0.5 exp(-t/1850) | 0.4 exp(-t/2940) | 0.5 exp(-t/2100) | 1.3 exp(-t/2200) | |

$\u2329\tau \u232a$ = 0.9 ± 0.1 ps | $\u2329\tau \u232a$ = 1.7 ± 0.1 ps | $\u2329\tau \u232a$ = 1.3 ± 0.1 ps | $\u2329\tau \u232a$ = 1.6 ± 0.1 ps |

**Table 3.**Experimental values for coupling constant $\beta $ (in cm${}^{-1}$) evaluated in the weak coupled anharmonic mode model (see text).

${\mathit{D}}_{2}\mathit{O}$ | $\mathit{DMSO}-\mathit{d}6$ | |
---|---|---|

$\beta -lactam$/Amide I | 6.7 | |

$\beta -lactam$/carboxylate | 9.2 | 19 |

Amide I/carboxylate | 8.3 |
