# Wavelet Feature Outdoor Fingerprint Localization Based on ResNet and Deep Convolution GAN

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

- (1)
- A fingerprint database is constructed by converting the collected signal data into wavelet feature maps, which visualizes the collected signal features.
- (2)
- To enhance the richness of the fingerprint database, a DCGAN-based model is used to generate symmetric wavelet feature maps of the sampling areas, which can help to reduce the labor required to collect data.
- (3)
- Considering the large amount of data in the fingerprint database, Resnet, with satisfactory learning ability, is proposed for positioning. Furthermore, several data enhancement methods are proposed to improve the robustness of the positioning system.
- (4)
- To verify the superiority of the positioning system, extensive experiments are conducted in a real outdoor environment. Our experimental results show that the proposed positioning system can achieve better performance than other schemes.

## 2. Related Works

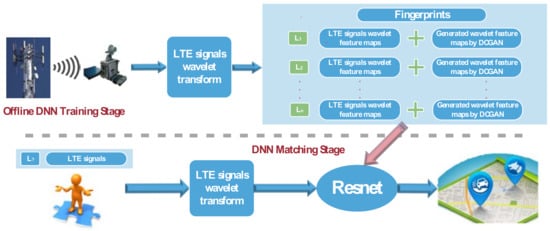

## 3. Proposed Positioning System Architecture

#### 3.1. LTE Signal Wavelet Transform

^{2}(R) and its Fourier transform $\widehat{\phi}\left(\omega \right)$ meet the following condition:

^{2}(R) is the Square integrable complex function space. The corresponding wavelet family contains a set of sub-wavelets, which are generated by the expansion and translation of the wavelet function φ(t), as shown below:

^{2}norm Hilbert space, as shown below:

_{m}, let t = mδt and b = nδt, where m,n = 0, 1, 2,…, N–1, N is the sampling point number and δt is the sampling interval. The CWT of x

_{m}is defined as follows:

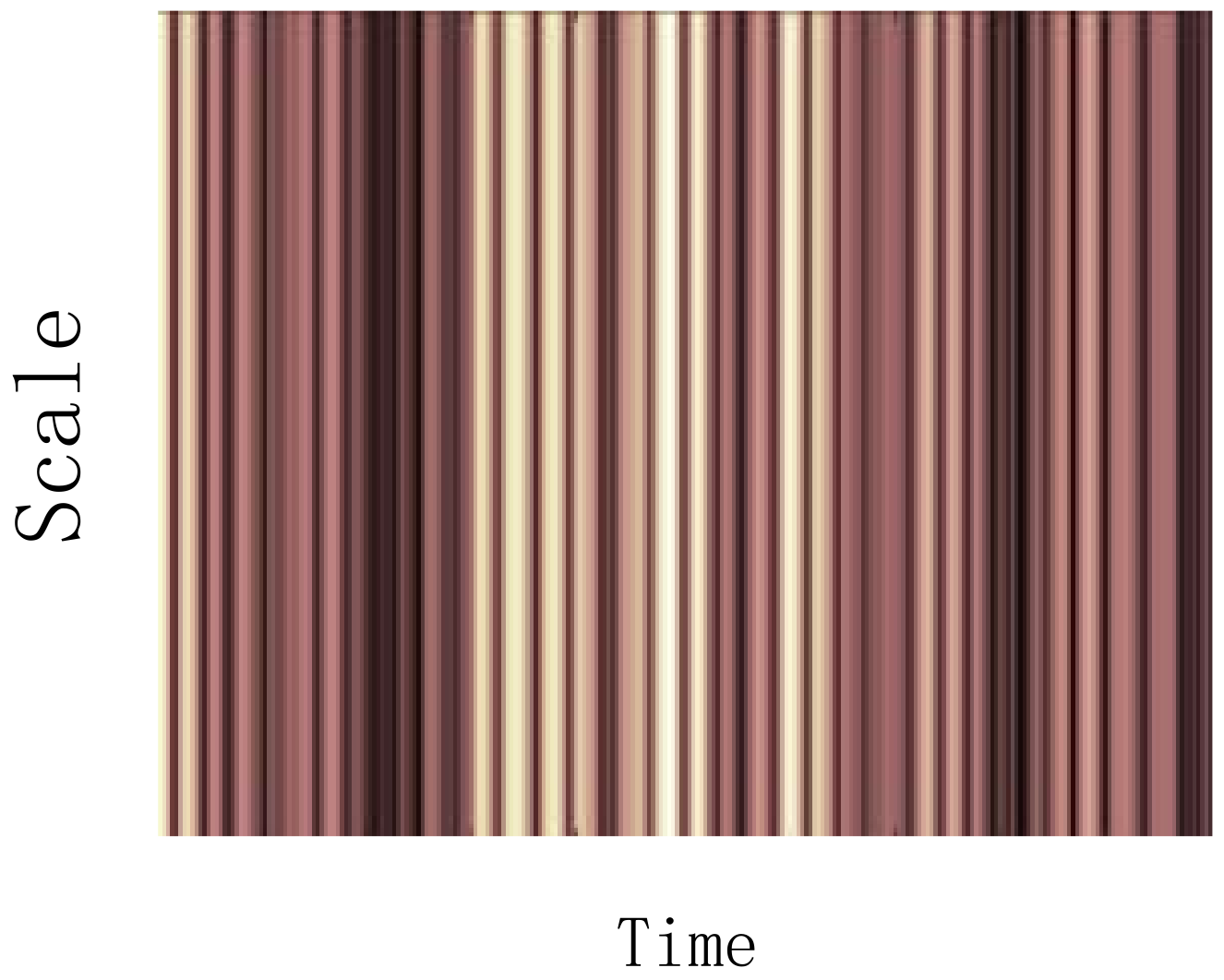

#### 3.2. Fingerprint Database Construction

_{data}(x) is the real data, z is a uniformly distributed signal, P

_{z}(z) is the fake data, and G(z) and D(x) are the output of generator and discriminator, respectively.

- (1)
- Cancel the pooling layer and use deconvolution for upsampling in G, while using strided convolutions in D to replace the pooling layer;
- (2)
- The data in G and D are batch normalized to solve the problem of poor initialization;
- (3)
- Remove the fully connected layer from G, thus making it a fully convolutional network;
- (4)
- The activation function in the G network uses the ReLU function, while the last layer uses the Tanh function;
- (5)
- The activation function of all layers in the D network uses the LeakyReLU function.

#### 3.3. Resnet Training and Matching

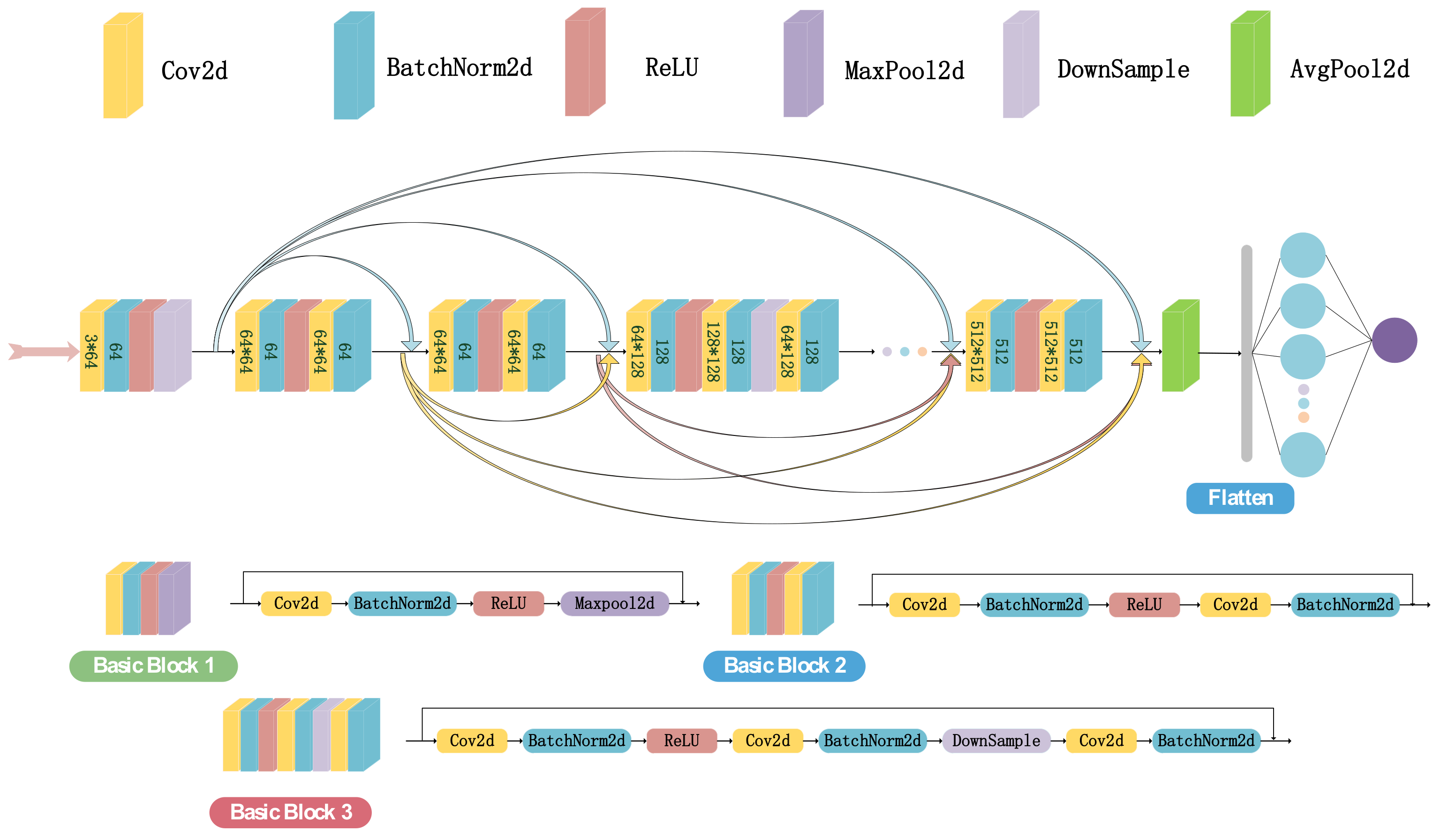

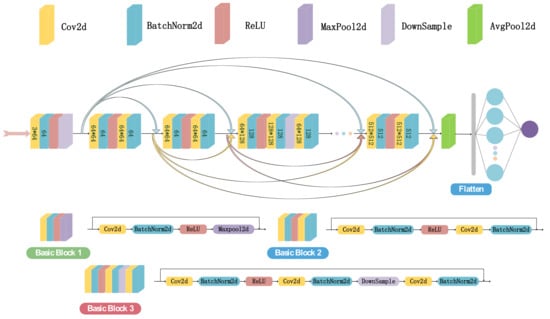

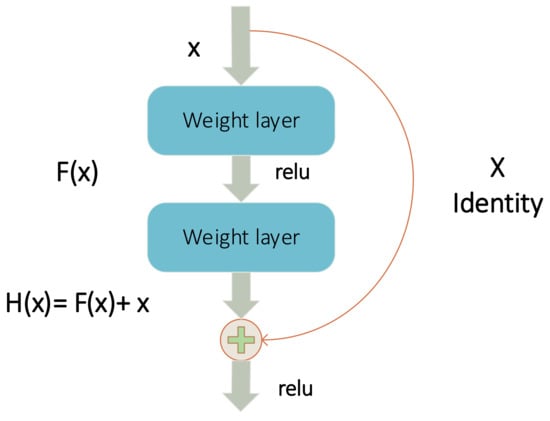

#### Resnet Model Introduction

#### 3.4. Resnet Training and Matching

## 4. Experiments and Results

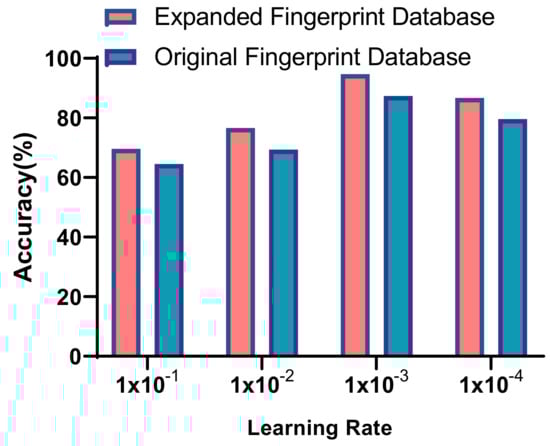

#### 4.1. Influence of Different Learning Rate on Positioning Performance

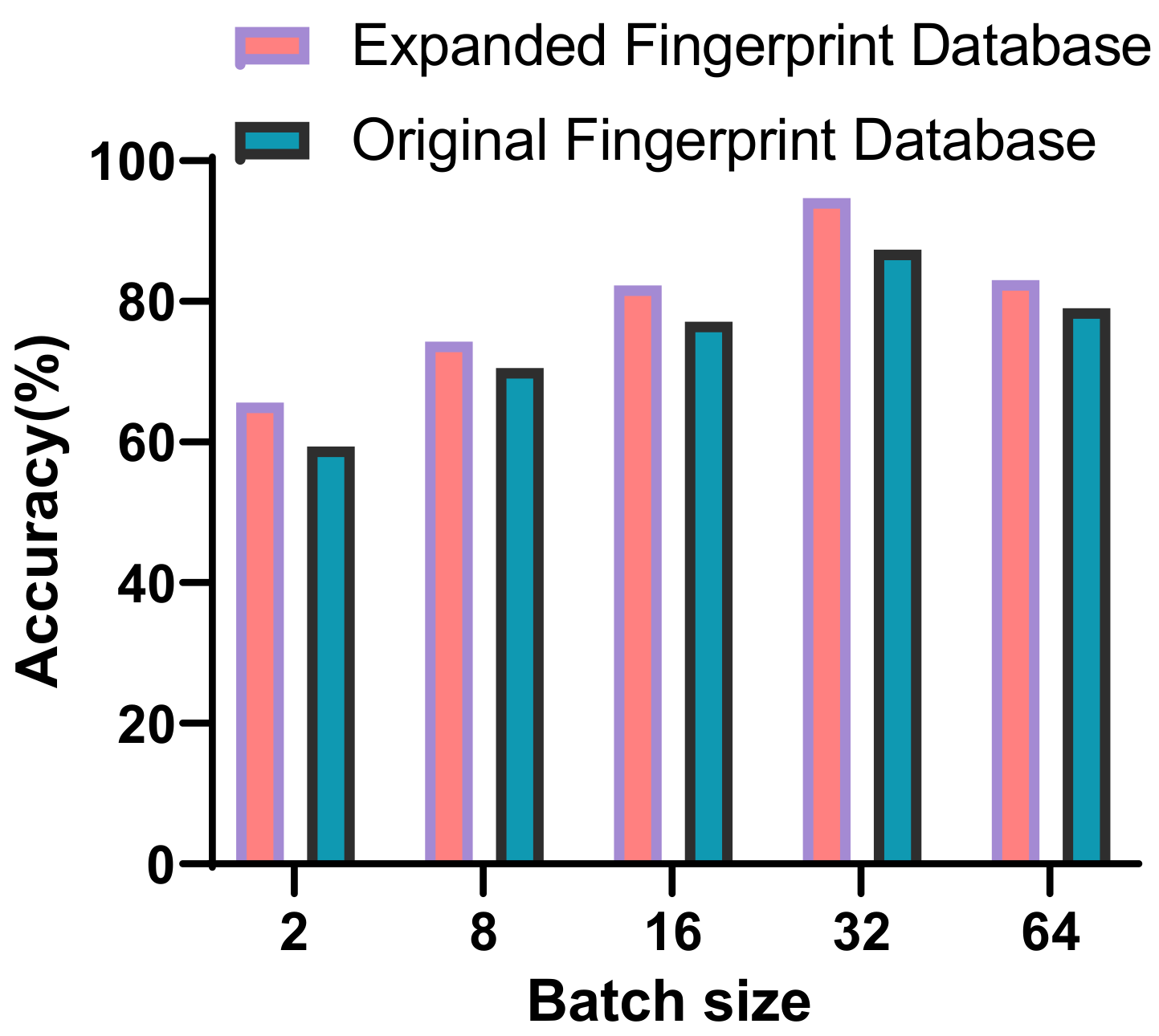

#### 4.2. Influence of Different Batch Size on Positioning Accuracy

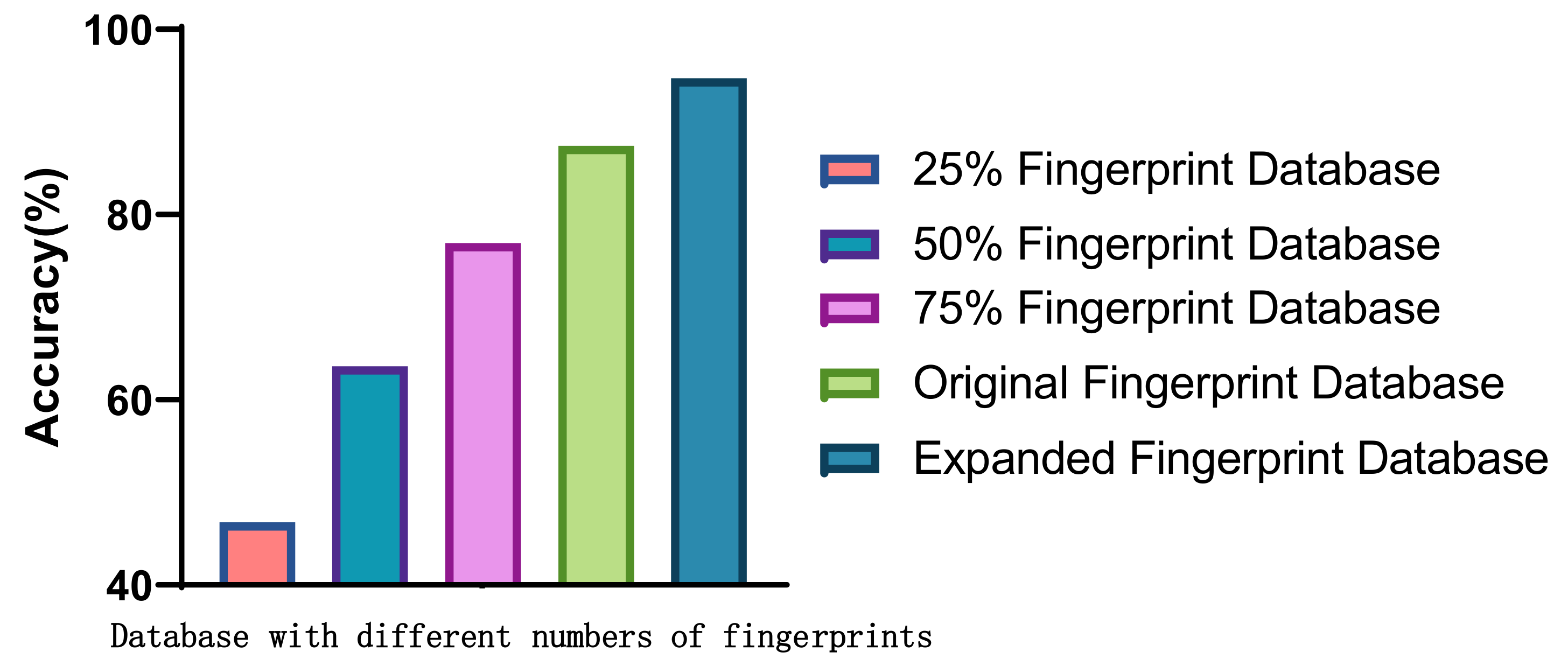

#### 4.3. Influence of Different Number of Fingerprints on Positioning Accuracy

#### 4.4. Performance Comparation

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Huang, H.; Gartner, G.; Krisp, J.M.; Raubal, M.; Van De Weghe, N. Location based services: Ongoing evolution and research agenda. J. Locat. Based Serv.
**2018**, 12, 63–93. [Google Scholar] [CrossRef] - Ali, W.H.; Kareem, A.A.; Jasim, M. Survey on Wireless Indoor Positioning Systems. Cihan Univ. Erbil Sci. J.
**2019**, 3, 42–47. [Google Scholar] [CrossRef] [Green Version] - Vo, Q.D.; De, P. A survey of fingerprint-based outdoor localization. IEEE Commun. Surv. Tutor.
**2015**, 18, 491–506. [Google Scholar] [CrossRef] - Niu, J.; Lu, B.; Cheng, L.; Gu, Y.; Shu, L. Ziloc: Energy efficient wifi fingerprint-based localization with low-power radio. In Proceedings of the IEEE Wireless Communications and Networking Conference (WCNC), Shanghai, China, 7–10 April 2013; pp. 4558–4563. [Google Scholar]
- Youssef, M.; Agrawala, A. The Horus location determination system. Wirel. Netw.
**2008**, 14, 357–374. [Google Scholar] [CrossRef] - Yiu, S.; Dashti, M.; Claussen, H.; Perez-Cruz, F. Wireless RSSI fingerprinting localization. Signal Process.
**2017**, 131, 235–244. [Google Scholar] [CrossRef] - Yeh, L.W.; Hsu, M.H.; Huang, H.Y.; Tseng, W.T. Design and implementation of a self-guided indoor robot based on a two-tier localization architecture. Pervasive Mob. Comput.
**2012**, 8, 271–281. [Google Scholar] [CrossRef] - Kessel, M.; Werner, M. Automated WLAN calibration with a backtracking particle filter. In Proceedings of the International Conference on Indoor Positioning and Indoor Navigation, Sydney, Australia, 13–15 November 2012; pp. 1–10. [Google Scholar]
- Goodfellow, I.; Bengio, Y.; Courville, A. Deep Learning; MIT Press: Cambridge, MA, USA, 2016. [Google Scholar]
- Zhang, C.; Kuhn, M.J.; Merkl, B.C.; Fathy, A.E.; Mahfouz, M.R. Real-time noncoherent UWB positioning radar with millimeter range accuracy: Theory and experiment. IEEE Trans. Microw. Theory Tech.
**2009**, 58, 9–20. [Google Scholar] [CrossRef] - Ni, L.M.; Liu, Y.; Lau, Y.C.; Patil, P.A. LANDMARC: Indoor location sensing using active RFID. In Proceedings of the First IEEE International Conference on Pervasive Computing and Communications, Fort Worth, TX, USA, 26 March 2003; pp. 407–415. [Google Scholar]
- Xu, J.; Liu, W.; Zhang, Y.; Wag, C.L. RSSI-based anti-interference WSN positioning algorithm. J. Northeast. Univ. Nat. Sci.
**2010**, 31, 647–650. [Google Scholar] - Yan, J.; Tiberius CC, J.M.; Janssen GJ, M.; Teunissen, P.J.G.; Bellusci, G. Review of range-based positioning algorithms. IEEE Aerosp. Electron. Syst. Mag.
**2013**, 28, 2–27. [Google Scholar] [CrossRef] [Green Version] - Gu, Z.; Chen, Z.; Zhang, Y.; Zhu, Y.; Lu, M.M.; Chen, A. Reducing fingerprint collection for indoor localization. Comput. Commun.
**2016**, 83, 56–63. [Google Scholar] [CrossRef] - Pulkkinen, T.; Roos, T.; Myllymäki, P. Semi-supervised learning for wlan positioning. In Proceedings of the ICANN: International Conference on Artificial Neural Networks, Munich, Germany, 17–19 September 2011; Honkela, T., Duch, W., Girolami, M., Kaski, S., Eds.; Springer: Berlin/Heidelberg, Germany, 2011; pp. 355–362. [Google Scholar]
- Mirowski, P.; Ho, T.K.; Yi, S.; MacDonald, M. SignalSLAM: Simultaneous localization and mapping with mixed WiFi, Bluetooth, LTE and magnetic signals. In Proceedings of the International Conference on Indoor Positioning and Indoor Navigation, Montbeliard-Belfort, France, 28–31 October 2013; pp. 1–10. [Google Scholar]
- Dissanayake MW, M.G.; Newman, P.; Clark, S.; Durrant-Whyte, H.F.; Csorba, M. A solution to the simultaneous localization and map building (SLAM) problem. IEEE Trans. Robot. Autom.
**2001**, 17, 229–241. [Google Scholar] [CrossRef] [Green Version] - Bahl, P.; Padmanabhan, V.N. RADAR: An in-building RF-based user location and tracking system. In Proceedings of the Nineteenth Annual Joint Conference of the IEEE Computer and Communications Societies, Tel Aviv, Israel, 26–30 March 2000; pp. 775–784. [Google Scholar]
- Brunato, M.; Battiti, R. Statistical learning theory for location fingerprinting in wireless LANs. Comput. Netw.
**2005**, 47, 825–845. [Google Scholar] [CrossRef] [Green Version] - Pei, L.; Liu, J.; Guinness, R.; Chen, Y.; Kussmiemi h Chen, R. Using LS-SVM based motion recognition for smartphone indoor wireless positioning. Sensors
**2012**, 12, 6155–6175. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ye, X.; Yin, X.; Cai, X.; Yuste, P.A. Neural-network-assisted UE localization using radio-channel fingerprints in LTE networks. IEEE Access
**2017**, 5, 12071–12087. [Google Scholar] [CrossRef] - Liu, Z.; Dai, B.; Wan, X.; Li, W.X. Hybrid Wireless Fingerprint Indoor Localization Method Based on a Convolutional Neural Network. Sensors
**2019**, 19, 4597. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Sinha, S.; Routh, P.S.; Anno, P.D.; Castagna, J.P. Spectral decomposition of seismic data with continuous-wavelet transform. Geophysics
**2005**, 70, 19–25. [Google Scholar] [CrossRef] - Li, Q.; Qu, H.; Liu, Z.; Sun, W.; Shao, X.; Li, J. Wavelet Transform DC-GAN for Diversity Promoted Fingerprint Construction in Indoor Localization. In Proceedings of the 2018 IEEE Globecom Workshops (GC Wkshps), Abu Dhabi, UAE, 9–13 December 2018; pp. 1–7. [Google Scholar]
- Radford, A.; Metz, L.; Chintala, S. Unsupervised representation learning with deep convolutional generative adversarial networks. arXiv
**2015**, arXiv:preprint/1511.06434. [Google Scholar] - Boroumand, M.; Chen, M.; Fridrich, J. Deep residual network for steganalysis of digital images. IEEE Trans. Inf. Forensics Secur.
**2018**, 14, 1181–1193. [Google Scholar] [CrossRef] - Berruet, B.; Baala, O.; Caminada, A.; Guillet, V. DelFin A Deep Learning Based CSI Fingerprinting Indoor Localization in IoT Context. In Proceedings of the 2018 International Conference on Indoor Positioning and Indoor Navigation (IPIN), Nantes, France, 24–27 September 2018; pp. 1–8. [Google Scholar]

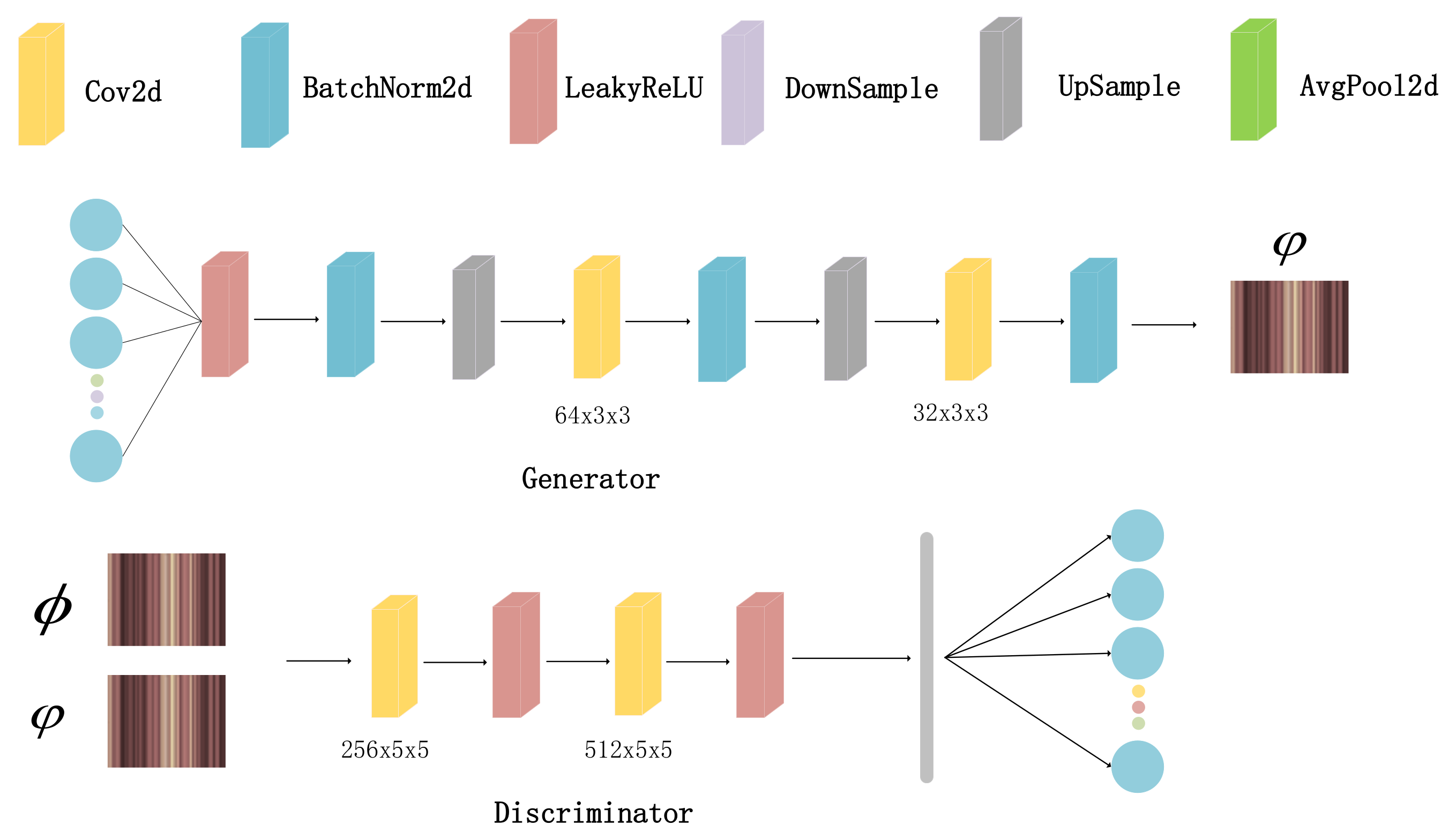

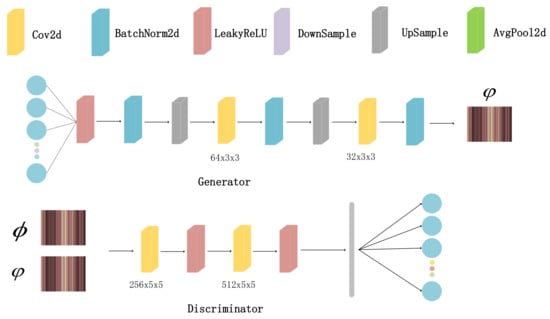

**Figure 3.**Structure diagram of the DCGAN generator. φ denotes the symmetric feature maps generated by the generator; ϕ are feature maps from the training set.

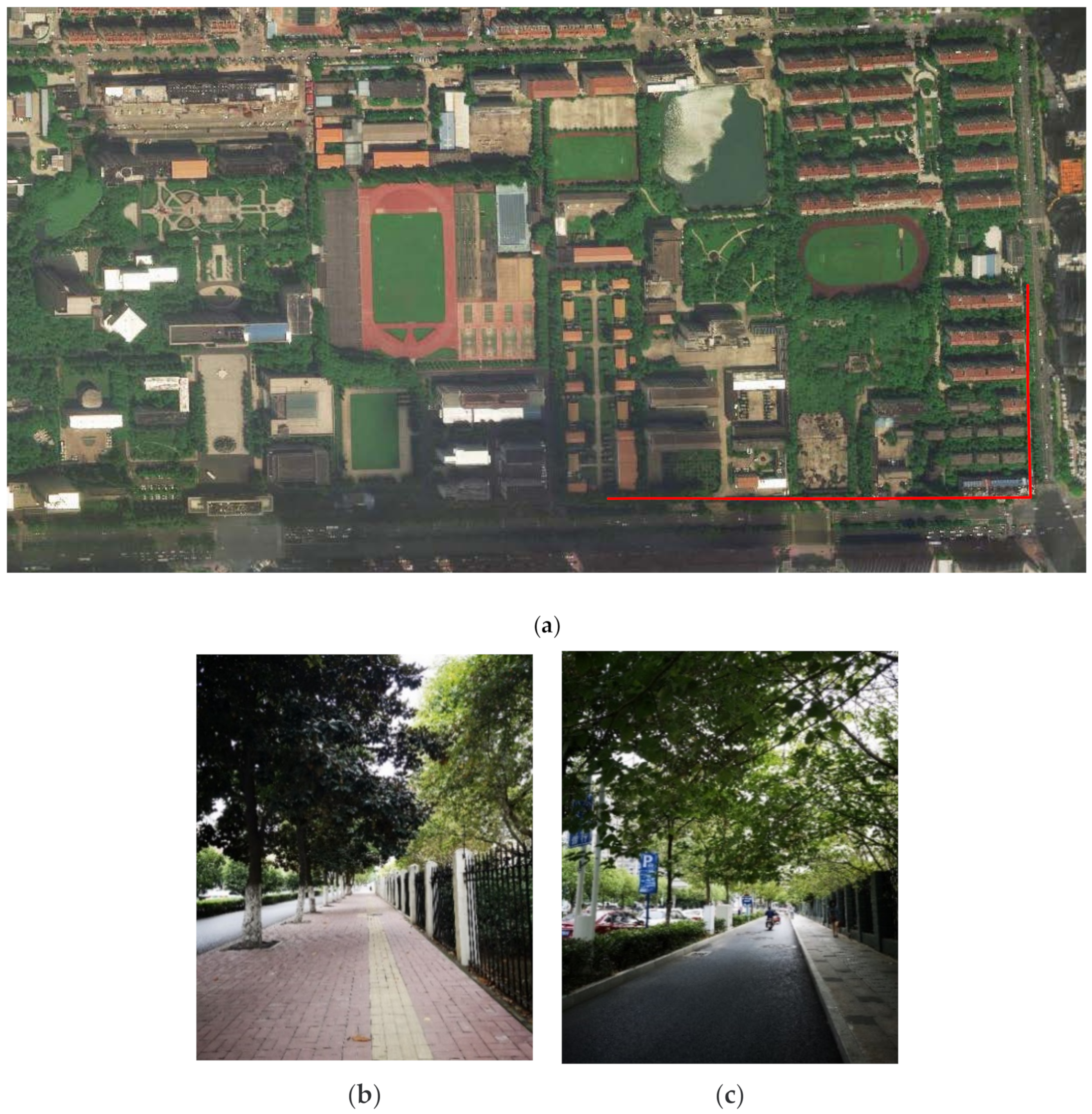

**Figure 6.**(

**a**) Overall diagram of the experimental area and (

**b**,

**c**) experimental scenes of the outdoor area.

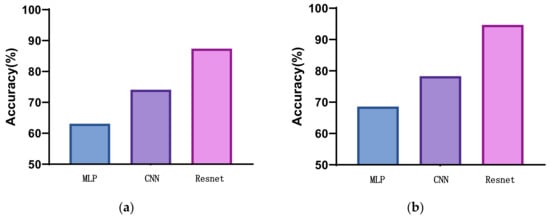

**Figure 10.**Positioning comparation with different algorithms: (
