Document Clustering Using KMeans with Term Weighting as SimilarityBased Constraints
Abstract
:1. Introduction
2. Related Works
2.1. Comparative Analysis on Four Learning/Mining Schemes
2.2. SimilarityBased Constrained Clustering
3. Constrained Document Clustering with DistributionBased Term Weighting
3.1. DistributionBased Term Weighting Scheme
 Term frequency (TF):$$t{f}_{ij}=N({d}_{i},{t}_{j})$$
 Inverse document frequency (IDF):$$id{f}_{j}={\mathrm{log}}_{10}(1+\frac{\leftD\right}{d{f}_{j}})$$
 Standard deviation (SD):$$s{d}_{j}=\sqrt{\frac{{\sum}_{k}{\sum}_{{d}_{i}\in {C}_{k}}{(t{f}_{ij}\left(\frac{{\sum}_{k}{\sum}_{{d}_{i}\in {C}_{k}}{tf}_{ij}}{{\sum}_{k}\left{C}_{k}\right}\right))}^{2}}{{\sum}_{k}\left{C}_{k}\right}}$$
 Average class standard deviation (ACSD):$$acs{d}_{j}=\frac{1}{\leftC\right}\sum _{k}\sqrt{\frac{1}{{C}_{k}}\sum _{{d}_{i}\in {C}_{k}}{(t{f}_{ij}{\overline{tf}}_{jk})}^{2}}\phantom{\rule{0.166667em}{0ex}}\phantom{\rule{0.166667em}{0ex}}\phantom{\rule{0.166667em}{0ex}}$$
 Interclass standard deviation (ICSD):$$\begin{array}{ccc}\hfill ics{d}_{j}& =& \sqrt{\frac{1}{\leftC\right}\sum _{k}{({\overline{tf}}_{jk}\left(\frac{1}{\leftC\right}\sum _{k}{\overline{tf}}_{jk}\right))}^{2}}\hfill \end{array}$$$$\begin{array}{ccc}\hfill {\overline{tf}}_{jk}& =& \frac{{\sum}_{{d}_{i}\in {C}_{k}}{tf}_{ij}}{{C}_{k}}\hfill \end{array}$$
3.2. Constrained Document Clustering with Term Weighting

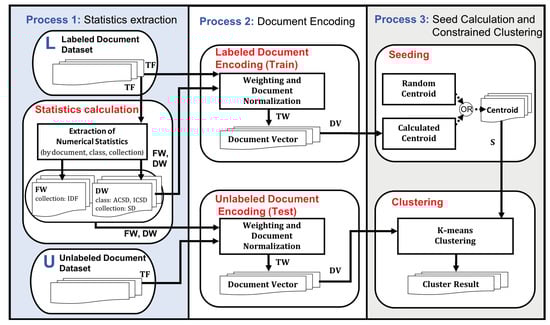

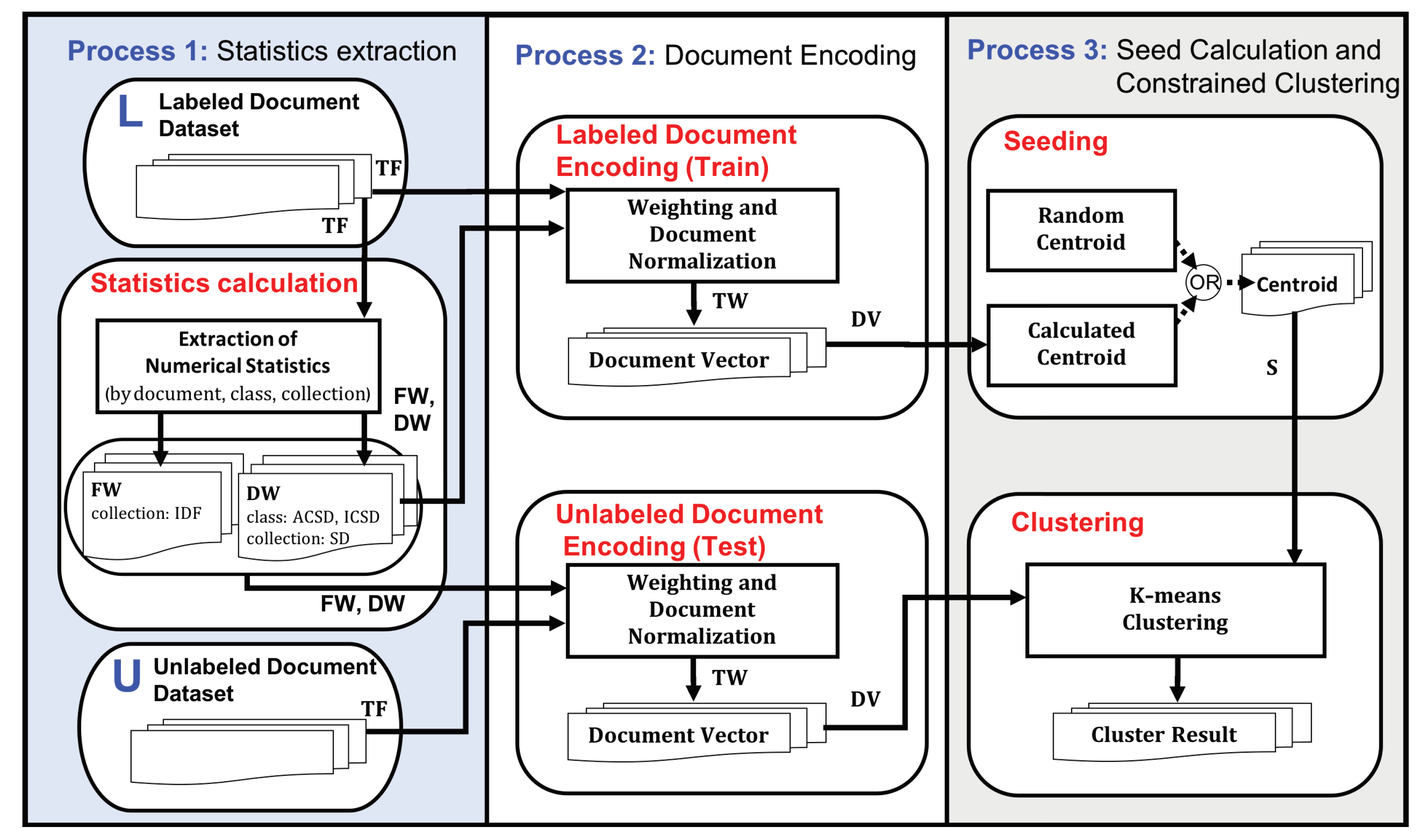

3.3. The Framework of Clustering with Term Weighting
Algorithm 1 Pseudocode of main procedure of the constrained kmeans clustering (semiunsupervised learning) by distributionbased term weighting

Algorithm 2 Pseudocode of subfunctions for constrained kmeans clustering

4. Experiment Settings and Metrics
4.1. Data Sets and Preprocessing
4.2. Experiment Settings
4.3. Evaluation Measures
5. Experimental Results
5.1. Cluster Quality of Single Factor
5.2. Cluster Quality of Multiple Factors
5.3. Term Weighting as Expression of User Intention

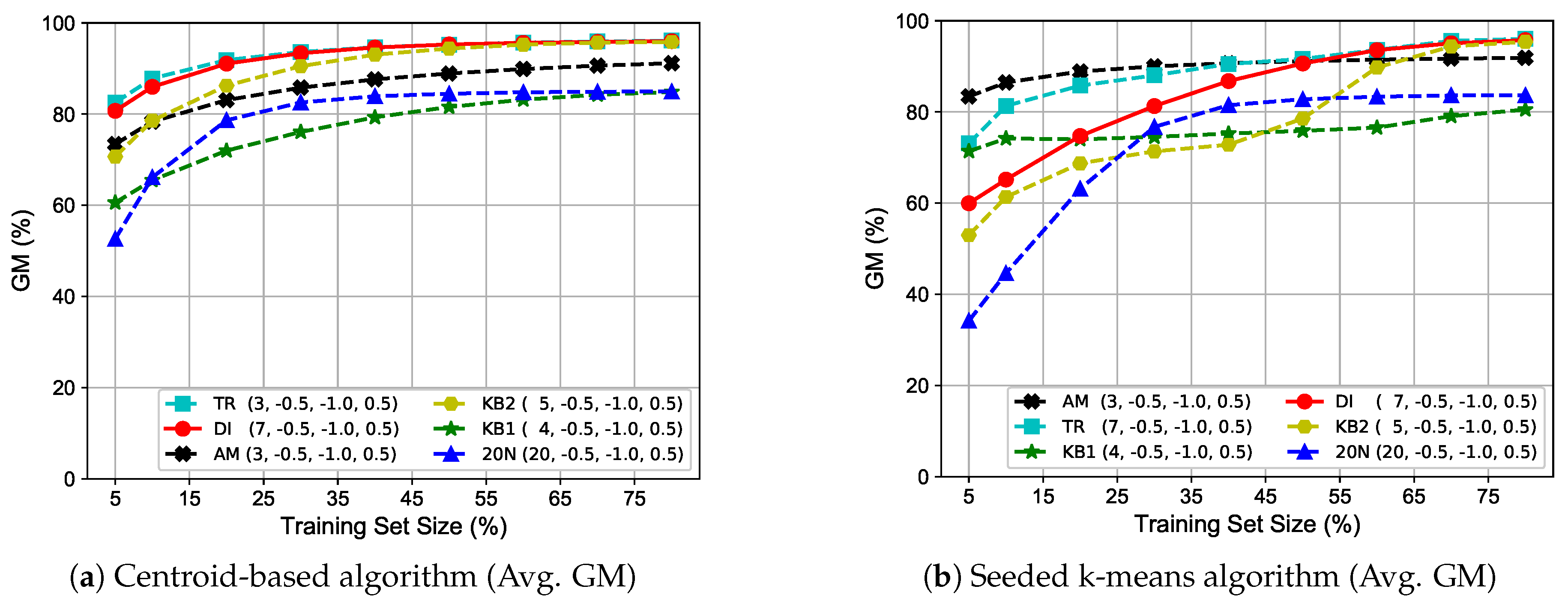

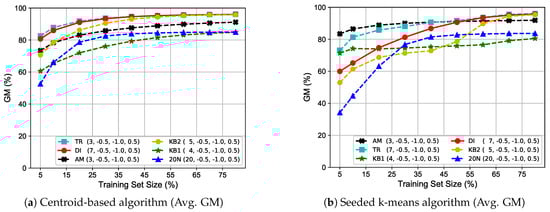

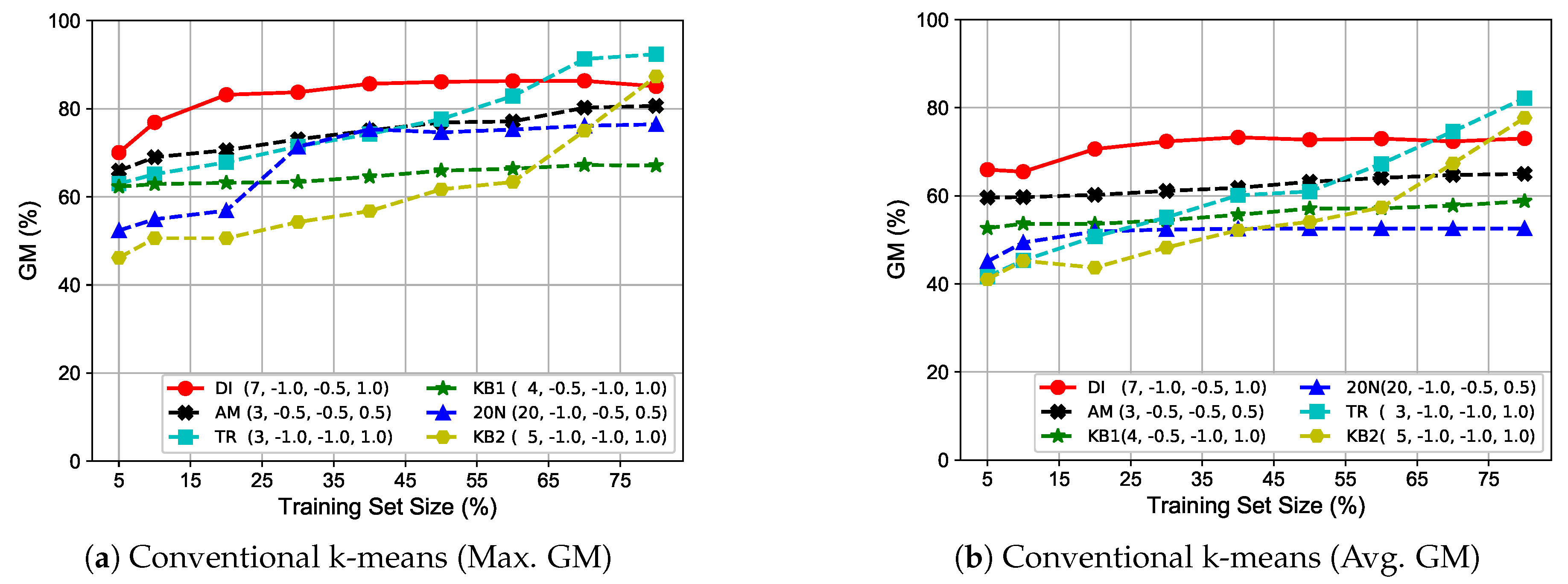

5.4. Investigation of Various Training Set Sizes

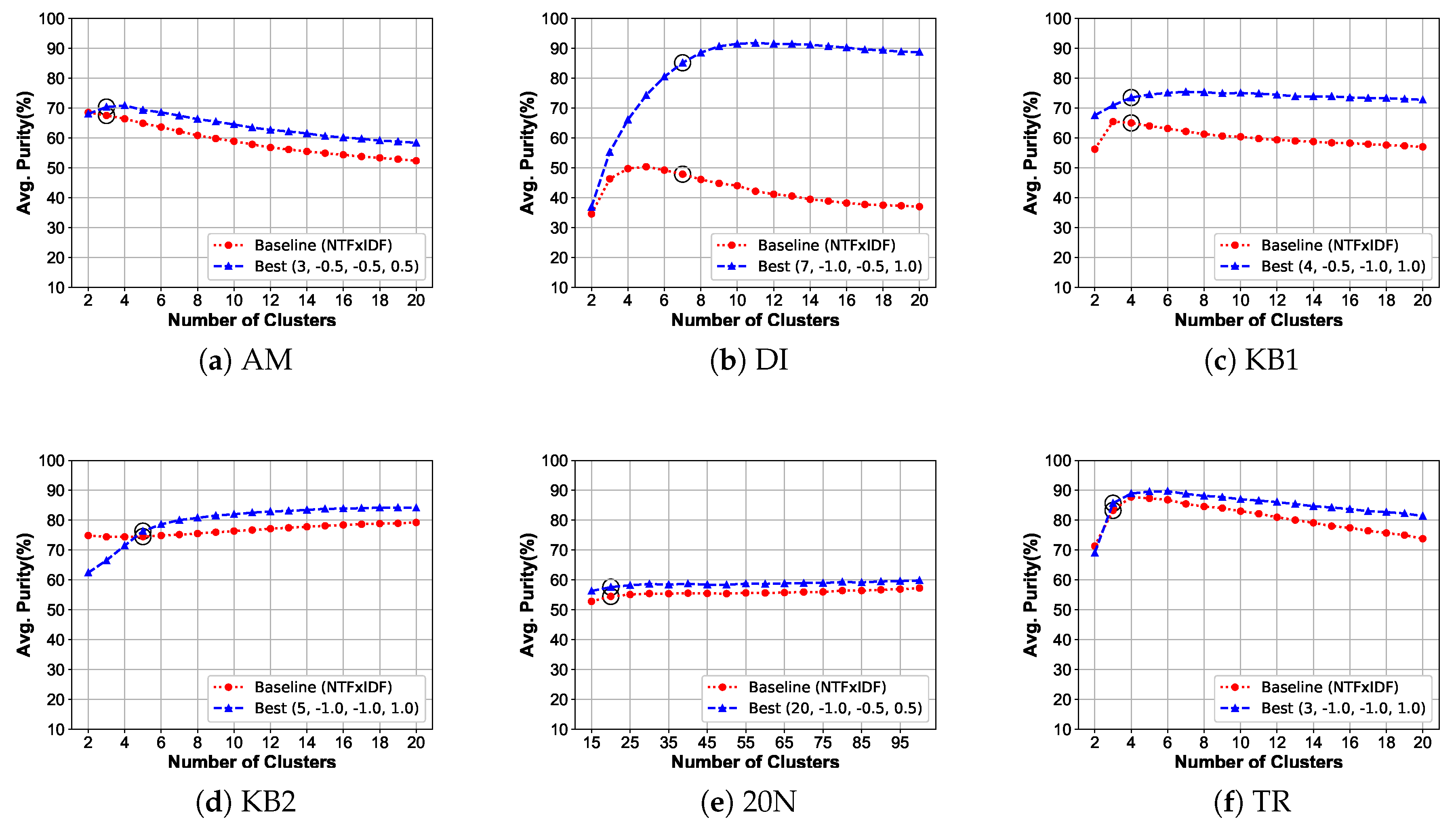

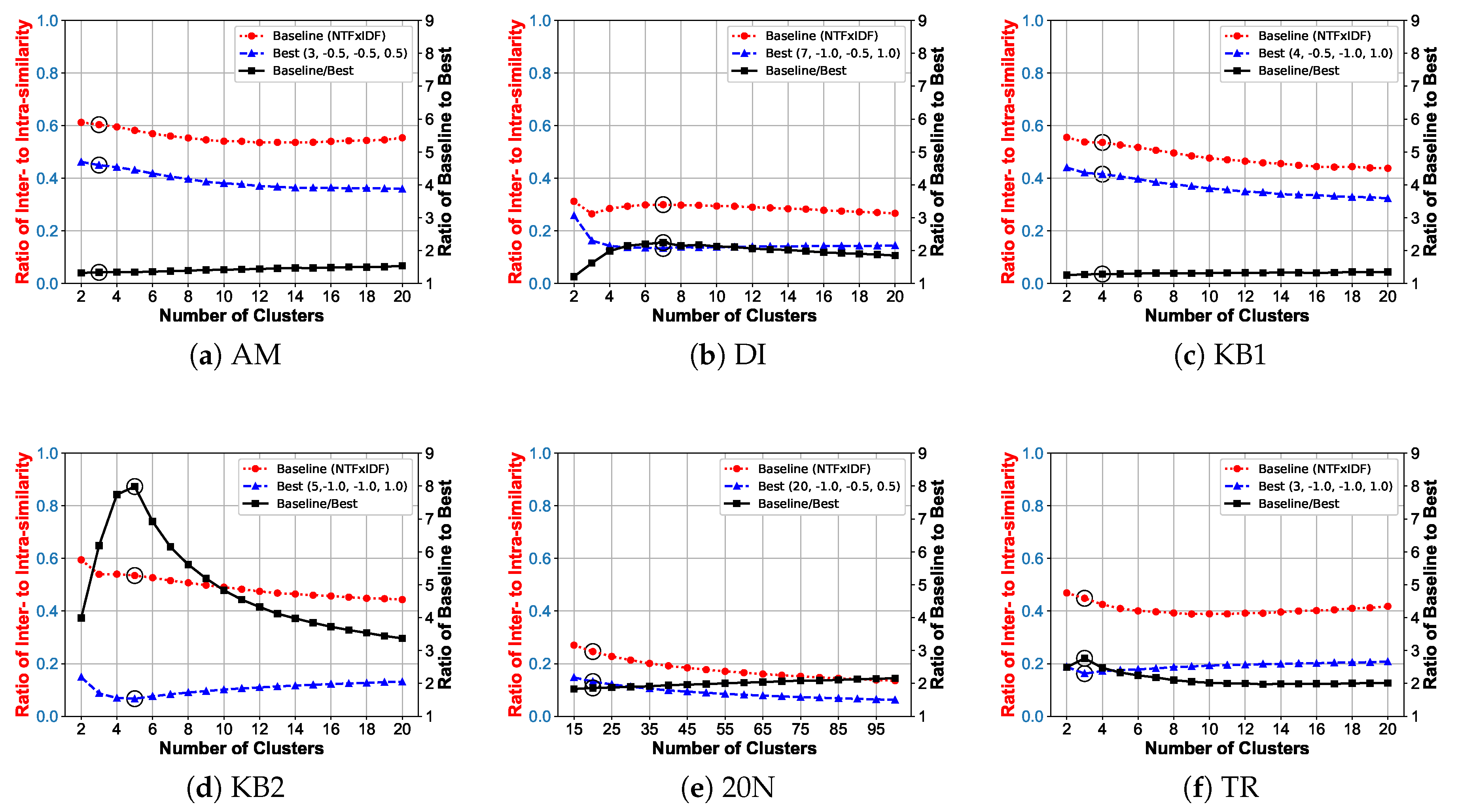

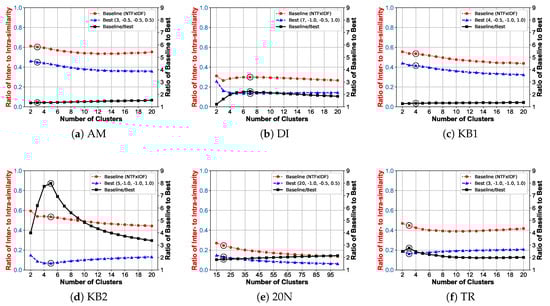

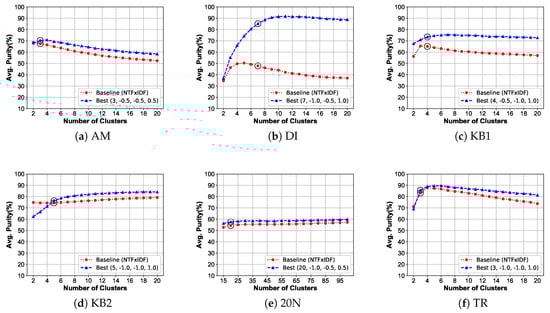

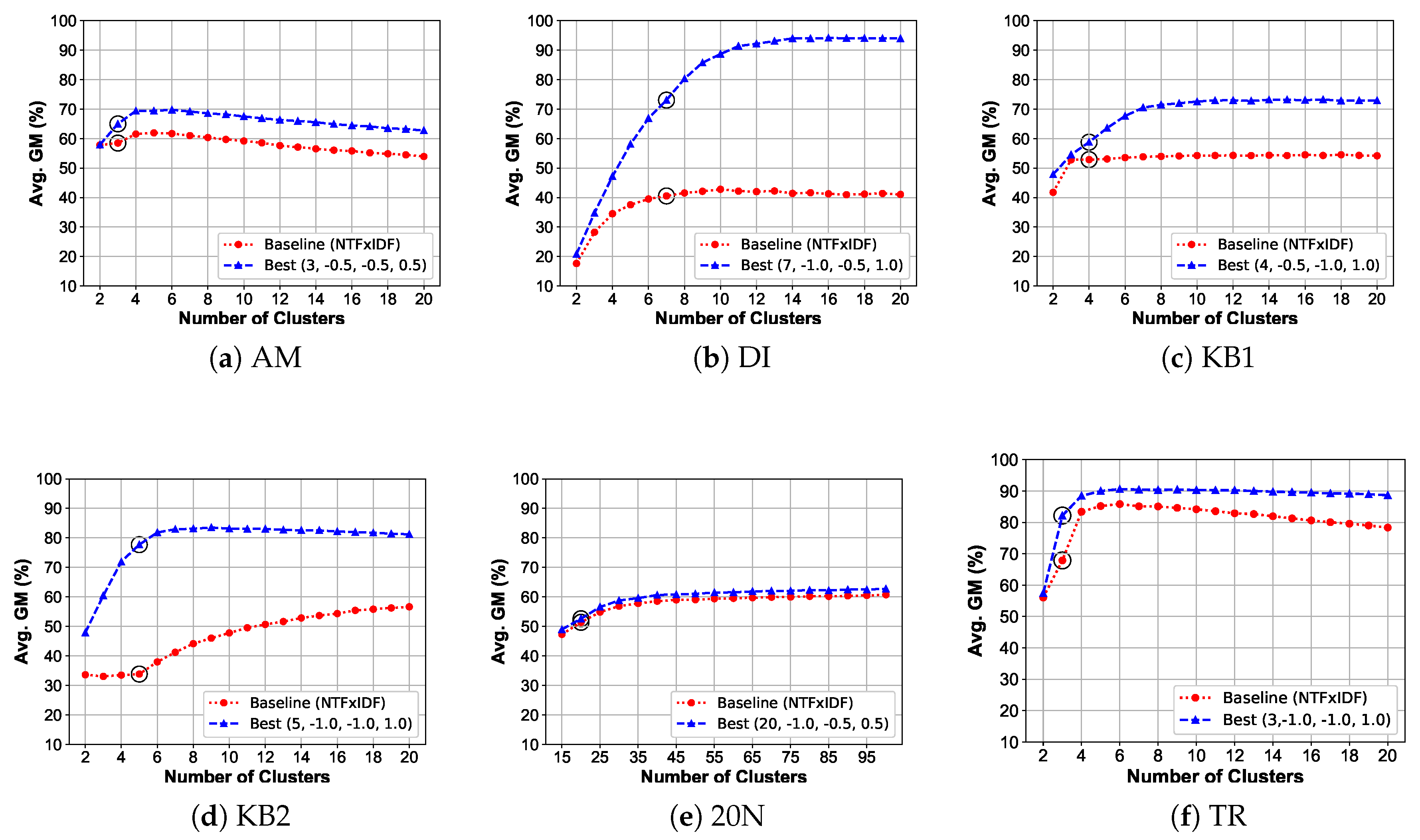

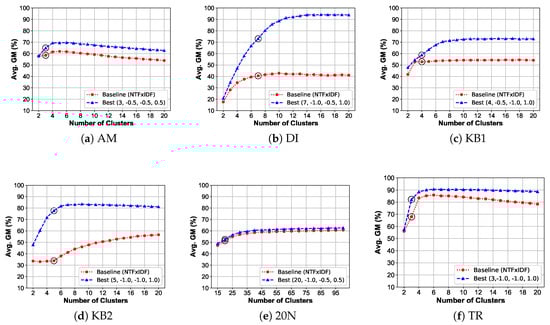

5.5. Effect of Cluster Number on Cluster Quality
6. Discussion and Related Works
7. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
 Goswami, J. A Comparative Study on Clustering and Classification Algorithms. Int. J. Sci. Eng. Appl. Sci. (IJSEAS) 2015, 1, 170–178. [Google Scholar]
 Hinneburg, A.; Keim, D.A. A general approach to clustering in large databases with noise. Knowl. Inf. Syst. 2003, 5, 387–415. [Google Scholar] [CrossRef]
 Huang, Y.; Chen, C.H.; Khoo, L.P. Kansei clustering for emotional design using a combined design structure matrix. Int. J. Ind. Ergon. 2012, 42, 416–427. [Google Scholar] [CrossRef]
 Ding, H.; Sun, C.; Zeng, J. Fuzzy Weighted Clustering Method for Numerical Attributes of Communication Big Data Based on Cloud Computing. Symmetry 2020, 12, 530. [Google Scholar] [CrossRef] [Green Version]
 Chen, S.; Ma, B.; Zhang, K. On the similarity metric and the distance metric. Theor. Comput. Sci. 2009, 410, 2365–2376. [Google Scholar] [CrossRef] [Green Version]
 Willetts, M.; Roberts, S.J.; Holmes, C.C. SemiUnsupervised Learning with Deep Generative Models: Clustering and Classifying using UltraSparse Labels. arXiv 2019, arXiv:1901.08560. [Google Scholar]
 Nigam, K.; McCallum, A.K.; Thrun, S.; Mitchell, T. Text classification from labeled and unlabeled documents using EM. Mach. Learn. 2000, 39, 103–134. [Google Scholar] [CrossRef] [Green Version]
 Lam, D.; Wei, M.; Wunsch, D. Clustering data of mixed categorical and numerical type with unsupervised feature learning. IEEE Access 2015, 3, 1605–1613. [Google Scholar] [CrossRef]
 Zhao, Z.; Qi, W.; Han, J.; Zhang, Y.; Bai, L.F. Semisupervised classification via discriminative sparse manifold regularization. Signal Process. Image Commun. 2016, 47, 207–217. [Google Scholar] [CrossRef]
 Dong, A.; Chung, F.L.; Wang, S. Semisupervised classification method through oversampling and common hidden space. Inf. Sci. 2016, 349, 216–228. [Google Scholar] [CrossRef]
 Wagstaff, K.; Cardie, C.; Rogers, S.; Schrödl, S. Constrained Kmeans Clustering with Background Knowledge. In Proceedings of the Eighteenth International Conference on Machine Learning (ICML), Williamstown, MA, USA, 28 June–1 July 2001; pp. 577–584. [Google Scholar]
 Bilenko, M.; Basu, S.; Mooney, R.J. Integrating constraints and metric learning in semisupervised clustering. In Proceedings of the TwentyFirst International Conference on Machine Learning; ACM: New York, NY, USA, 2004; p. 11. [Google Scholar]
 Basu, S.; Banerjee, A.; Mooney, R. Semisupervised clustering by seeding. In Proceedings of the 19th International Conference on Machine Learning (ICML2002); Citeseer: Sydney, Australia, 2002. [Google Scholar]
 Basu, S.; Banerjee, A.; Mooney, R.J. Active semisupervision for pairwise constrained clustering. In Proceedings of the 2004 SIAM international Conference on Data Mining; SIAM: Lake Buena Vista, FL, USA, 2004; pp. 333–344. [Google Scholar]
 Okabe, M.; Yamada, S. Clustering with Extended Constraints by CoTraining. In Proceedings of the 2012 IEEE/WIC/ACM International Joint Conferences on Web Intelligence and Intelligent Agent TechnologyVolume 03, IEEE Computer Society, Macau, China, 4–7 December 2012; pp. 79–82. [Google Scholar]
 Xiong, S.; Azimi, J.; Fern, X.Z. Active learning of constraints for semisupervised clustering. IEEE Trans. Knowl. Data Eng. 2014, 26, 43–54. [Google Scholar] [CrossRef]
 Xu, X.; He, P. Improving clustering with constrained communities. Neurocomputing 2016, 188, 239–252. [Google Scholar] [CrossRef]
 Davidson, I.; Wagstaff, K.L.; Basu, S. Measuring constraintset utility for partitional clustering algorithms. In European Conference on Principles of Data Mining and Knowledge Discovery; Springer: Berlin, Germany, 2006; pp. 115–126. [Google Scholar]
 Klein, D.; Kamvar, S.D.; Manning, C.D. From InstanceLevel Constraints to SpaceLevel Constraints: Making the Most of Prior Knowledge in Data Clustering. Technical Report, Stanford. 2002. Available online: http://ilpubs.stanford.edu:8090/528/ (accessed on 5 June 2020).
 Lertnattee, V.; Theeramunkong, T. Effect of term distributions on centroidbased text categorization. Inf. Sci. 2004, 158, 89–115. [Google Scholar] [CrossRef]
 Lertnattee, V.; Theeramunkong, T. Class normalization in centroidbased text categorization. Inf. Sci. 2006, 176, 1712–1738. [Google Scholar] [CrossRef]
 Qian, P.; Zhou, J.; Jiang, Y.; Liang, F.; Zhao, K.; Wang, S.; Su, K.H.; Muzic, R.F. Multiview maximum entropy clustering by jointly leveraging interview collaborations and intraviewweighted attributes. IEEE Access 2018, 6, 28594–28610. [Google Scholar] [CrossRef]
 Dinler, D.; Tural, M.K. A Survey of Constrained Clustering. In Unsupervised Learning Algorithms; Springer: Berlin, Germany, 2016; pp. 207–235. [Google Scholar]
 Basu, S.; Bilenko, M.; Mooney, R.J. Comparing and unifying searchbased and similaritybased approaches to semisupervised clustering. In Proceedings of the ICML2003 Workshop on the Continuum from Labeled to Unlabeled Data in Machine Learning and Data Mining; Citeseer: Washington, DC, USA, 2003; pp. 42–49. [Google Scholar]
 Sun, Y.; Norick, B.; Han, J.; Yan, X.; Yu, P.S.; Yu, X. Pathselclus: Integrating metapath selection with userguided object clustering in heterogeneous information networks. ACM Trans. Knowl. Discov. Data (TKDD) 2013, 7, 11. [Google Scholar] [CrossRef]
 Basu, S.; Bilenko, M.; Mooney, R.J. A probabilistic framework for semisupervised clustering. In Proceedings of the Tenth ACM SIGKDD International Conference on Knowledge Discovery and Data Mining; ACM: New York, NY, USA, 2004; pp. 59–68. [Google Scholar]
 Wagstaff, K.; Cardie, C. Clustering with Instancelevel Constraints. In Proceedings of the Seventeenth International Conference on Machine Learning (ICML 2000), Stanford, CA, USA, 29 June–2 July 2000; pp. 1103–1110. [Google Scholar]
 Zhu, S.; Wang, D.; Li, T. Data clustering with size constraints. Knowl.Based Syst. 2010, 23, 883–889. [Google Scholar] [CrossRef]
 Ganganath, N.; Cheng, C.T.; Tse, C.K. Data Clustering With Cluster Size Constraints Using a Modified KMeans Algorithm; Institute of Electrical and Electronics Engineers: Piscataway, NJ, USA, 2014. [Google Scholar]
 Tang, W.; Yang, Y.; Zeng, L.; Zhan, Y. Optimizing MSE for Clustering with Balanced Size Constraints. Symmetry 2019, 11, 338. [Google Scholar] [CrossRef] [Green Version]
 Chai, J.; Chen, Z.; Chen, H.; Ding, X. Designing baglevel multipleinstance featureweighting algorithms based on the large margin principle. Inf. Sci. 2016, 367, 783–808. [Google Scholar] [CrossRef]
 Buatoom, U.; Kongprawechnon, W.; Theeramunkong, T. Constrained Clustering with Feature Weighting Scheme. In Proceedings of the Fourth Asian Conference on Defence Technology (ACDT 2017); ACDT: Tokyo, Japan, 2017; p. 35. [Google Scholar]
 Buatoom, U.; Kongprawechnon, W.; Theeramunkong, T. Improving Seeded kMeans Clustering with Deviationand EntropyBased Term Weightings. IEICE Trans. Inf. Syst. 2020, 103, 748–758. [Google Scholar] [CrossRef]
 Bianchi, G.; Bruni, R.; Scalfati, F. Identifying eCommerce in Enterprises by means of Text Mining and Classification algorithms. Math. Probl. Eng. 2018, 2018. [Google Scholar] [CrossRef]
 Bruni, R.; Bianchi, G. Website categorization: A formal approach and robustness analysis in the case of ecommerce detection. Expert Syst. Appl. 2020, 142, 113001. [Google Scholar] [CrossRef] [Green Version]
 Liu, C.; Liu, J.; Peng, D.; Wu, C. A general multiobjective clustering approach based on multiple distance measures. IEEE Access 2018, 6, 41706–41719. [Google Scholar] [CrossRef]
 Zhang, Z.; Kwok, J.T.; Yeung, D. Parametric Distance Metric Learning with Label Information. In Proceedings of the 18th International Joint Conference on Artificial Intelligence (IJCAI), Acapulco, Mexico, 9–15 August 2003; pp. 1450–1452. [Google Scholar]
 Wang, D.; Tan, X. Robust Distance Metric Learning in the Presence of Label Noise; AAAI Publications: Palo Alto, CA, USA, 2014; pp. 1321–1327. [Google Scholar]
 Buchta, C.; Kober, M.; Feinerer, I.; Hornik, K. Spherical kmeans clustering. J. Stat. Softw. 2012, 50, 1–22. [Google Scholar]
 Huang, A. Similarity measures for text document clustering. In Proceedings of the Sixth New Zealand Computer Science Research Student Conference (NZCSRSC2008), Christchurch, New Zealand, 14–18 April 2008; pp. 49–56. [Google Scholar]
 Kim, M.; Kang, D.; Kim, H. Geometric mean based boosting algorithm with oversampling to resolve data imbalance problem for bankruptcy prediction. Expert Syst. Appl. 2015, 42, 1074–1082. [Google Scholar] [CrossRef]
 Kang, B.; Kim, D.; Lee, S. Exploiting concept clusters for contentbased information retrieval. Inf. Sci. 2005, 170, 443–462. [Google Scholar] [CrossRef]
 Lan, M.; Tan, C.L.; Su, J.; Lu, Y. Supervised and traditional term weighting methods for automatic text categorization. IEEE Trans. Pattern Anal. Mach. Intell. 2009, 31, 721–735. [Google Scholar] [CrossRef]
 Luo, Q.; Chen, E.; Xiong, H. A semantic term weighting scheme for text categorization. Expert Syst. Appl. 2011, 38, 12708–12716. [Google Scholar] [CrossRef]
 Liu, Y.; Loh, H.T.; Sun, A. Imbalanced text classification: A term weighting approach. Expert Syst. Appl. 2009, 36, 690–701. [Google Scholar] [CrossRef]
 Ren, F.; Sohrab, M.G. Classindexingbased term weighting for automatic text classification. Inf. Sci. 2013, 236, 109–125. [Google Scholar] [CrossRef]
Scheme Property  SL  SSL  SUSL  USL

Predefined classes  ◯  ◯  ×  ×
Model learning  ◯  ◯  △  ×
Availability of labeled examples  ◯  △  △  ×
Availability of unlabeled examples  ×  △  ◯  ◯
Term Weighting Scheme  WebKB1 (4 Classes)  WebKB2 (5 Classes)

SL  SSL  USL  SL  SSL  USL
TF  73.79  63.76  52.63  71.52  32.46  30.62
(74.71, 73.18)  (64.94, 62.60)  (53.94, 51.36)  (74.92, 68.27)  (40.19, 26.21)  (39.35, 23.83)
nTF  75.12  48.67  47.24  76.39  40.08  28.03
(74.96, 75.29)  (47.78, 49.58)  (48.14, 46.36)  (80.27, 72.70)  (46.49, 34.56)  (31.68, 24.80)
TF × IDF  79.66  70.55  55.03  86.43  61.68  30.25
(80.10, 79.22)  (71.01, 70.10)  (58.12, 52.11)  (90.03, 82.97)  (63.95, 59.48)  (39.06, 30.25)
nTF × IDF  81.82  78.68  56.00  93.32  86.24  38.14
(82.03, 81.60)  (78.42, 78.93)  (57.73, 54.32)  (95.34, 91.34)  (88.20, 84.32)  (43.45, 33.47)
Dataset  Amazon  Drug Info.  WebKB1  WebKB2  20Newsgroups  ThaiReform

General Characteristics
Abbreviation  AM  DI  KB1  KB2  20N  TR
Language  English  English  English  English  English  Thai
Genre  Product  Medicine  Education  Education  News  Politic
# classes  3  7  4  5  20  3
# doc./class  2000 each  640 each  501/922/1118/1620  221/237/249/304/3150  various (628999)  1000 each
Total terms  387,493  1,243,566  572,949  572,949  1,896,335  131,717
Distinct terms  7614  7768  6527  6527  8286  3549
Document Size (total terms)
Avg.  64.58  277.58  137.70  137.70  100.76  43.91
Max.  1654  4063  17,719  17,719  5366  1114
Min.  1  2  4  4  1  2
SD.  73.26  323.92  315.70  315.70  210.35  53.64
Document Size (distinct terms)
Avg.  51.52  136.60  79.64  79.64  64.43  31.98
Max.  743  846  2505  2505  1288  357
Min.  1  2  2  2  1  2
SD.  49.38  117.16  74.29  74.29  75.71  28.79
Class Size (total terms)
Avg.  129,164.33  177,652.29  143,237.25  114,589.80  94,816.75  43,905.67
Max.  148,115  309,812  181,757  430,950  173,234  56,608
Min.  94,784  59,112  86,085  28,499  52,972  21,459
SD.  24,353.03  97,841.22  35,145.48  158,348.95  20,107.90  15,918.06
Class Size (distinct terms)
Avg.  6041.67  5005.71  5446.75  4072.20  4891.55  2545.67
Max.  6933  6029  6008  6435  5613  2835
Min.  4375  3520  4839  3204  4136  2001
SD.  1179.46  977.75  515.30  1167.89  482.08  385.39
Inter/Intra size of TF by cosine similarity
Intersimilarity  0.0291  0.0487  0.1252  0.1314  0.0204  0.2063
Intrasimilarity  0.0429  0.1444  0.1659  0.1408  0.0575  0.2802
Inter/Intra  0.6784  0.3373  0.7547  0.9332  0.3548  0.7363
Method  FW = TF × IDF  Avg.  FW = NTF × IDF  Avg.

FW  ⊙  DW  AM  DI  KB1  KB2  20N  TR  AM  DI  KB1  KB2  20N  TR
Panel I: Centroidbased method (Classification)
FW  /  ${\mathrm{SD}}^{\mathrm{T}}$  92.13  92.21  89.69  90.74  87.56  94.76  91.18 ${}^{\u2020\u2020\u2020}$  92.25  91.96  89.61  91.20  87.80  94.92  91.29 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{SD}}^{\mathrm{T}}$  84.72  69.05  59.75  44.91  57.21  75.35  65.17  84.90  68.77  59.86  46.03  57.19  75.84  65.43
FW  /  ${\mathrm{ACSD}}^{\mathrm{T}}$  92.83  92.06  89.78  92.00  86.26  95.20  91.36 ${}^{\u2020\u2020\u2020}$  92.96  91.91  89.06  92.19  86.48  95.19  91.30 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{ACSD}}^{\mathrm{T}}$  83.15  70.48  54.67  41.50  54.01  66.07  61.65  83.37  70.14  52.59  42.12  53.88  66.33  61.41
FW  /  ${\mathrm{ICSD}}^{\mathrm{T}}$  77.44  69.18  78.17  79.43  81.94  79.90  77.68  78.57  68.79  77.74  80.42  82.02  79.84  77.90
FW  ×  ${\mathrm{ICSD}}^{\mathrm{T}}$  81.22  78.72  60.56  73.72  57.70  85.14  72.84  81.25  78.69  60.88  74.05  57.06  85.22  72.86
FW  /  ${\mathrm{SD}}^{\mathrm{N}}$  94.25  96.55  89.45  93.25  91.90  94.24  93.27 ${}^{\u2020\u2020\u2020}$  94.23  95.99  89.11  94.24  91.86  93.58  93.17 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{SD}}^{\mathrm{N}}$  79.77  81.01  62.79  65.49  66.27  85.22  73.43  79.80  81.24  60.30  65.83  66.16  85.54  73.15
FW  /  ${\mathrm{ACSD}}^{\mathrm{N}}$  94.60  97.02  90.59  93.83  90.08  94.76  93.48 ${}^{\u2020\u2020\u2020}$  94.63  96.53  90.30  94.48  90.03  94.01  93.33 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{ACSD}}^{\mathrm{N}}$  78.36  82.45  56.99  59.16  61.30  81.82  70.01  78.79  82.31  57.05  59.29  61.38  81.72  70.09
FW  /  ${\mathrm{ICSD}}^{\mathrm{N}}$  84.43  86.41  83.78  83.18  88.19  83.48  84.91 ${}^{\u2020\u2020}$  84.48  86.86  83.27  83.10  88.17  83.38  84.88 ${}^{\u2020\u2020}$
FW  ×  ${\mathrm{ICSD}}^{\mathrm{N}}$  77.66  80.16  65.54  77.64  59.69  85.57  74.38  77.89  79.98  65.55  77.99  59.81  85.61  74.47
FW  /  ${\mathrm{SD}}^{\mathrm{TI}}$  88.71  91.71  83.12  88.04  84.56  92.05  88.03 ${}^{\u2020\u2020\u2020}$  92.40  93.04  90.27  94.12  88.48  95.37  92.28 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{SD}}^{\mathrm{TI}}$  88.19  56.44  61.67  53.10  63.59  90.47  68.91  89.25  59.62  61.88  54.05  64.33  91.07  70.03
FW  /  ${\mathrm{ACSD}}^{\mathrm{TI}}$  88.94  91.55  82.43  86.69  84.08  91.38  87.51 ${}^{\u2020\u2020\u2020}$  93.31  93.00  90.86  93.68  87.18  95.76  92.3 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{ACSD}}^{\mathrm{TI}}$  88.37  53.48  60.81  65.91  63.40  89.96  70.32  89.33  56.83  62.14  68.43  64.43  90.84  72.00
FW  /  ${\mathrm{ICSD}}^{\mathrm{TI}}$  61.93  46.61  63.27  59.26  76.50  58.62  61.03  69.47  63.98  79.34  78.40  83.80  67.74  73.79
FW  ×  ${\mathrm{ICSD}}^{\mathrm{TI}}$  86.14  71.32  67.24  86.28  64.17  88.23  77.23 ${}^{\u2020\u2020\u2020}$  86.71  71.75  68.40  86.33  64.54  88.24  77.66
FW  /  ${\mathrm{SD}}^{\mathrm{NI}}$  94.68  96.77  89.42  97.83  91.75  96.46  94.49 ${}^{\u2020\u2020\u2020}$  87.57  93.37  80.12  97.82  86.42  94.93  90.04 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{SD}}^{\mathrm{NI}}$  86.38  80.42  77.82  88.82  75.59  90.74  83.30  85.07  77.41  76.04  88.8  73.73  90.74  81.97
FW  /  ${\mathrm{ACSD}}^{\mathrm{NI}}$  94.95  97.31  90.21  98.03  90.45  97.45  94.73 ${}^{\u2020\u2020\u2020}$  86.66  94.47  80.07  98.02  85.54  97.45  90.37 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{ACSD}}^{\mathrm{NI}}$  85.69  80.93  76.81  86.24  73.19  90.21  82.18  84.31  77.13  75.42  86.24  71.06  90.22  80.73
FW  /  ${\mathrm{ICSD}}^{\mathrm{NI}}$  83.72  90.17  84.00  86.52  89.38  86.51  86.72${}^{\u2020}$  70.04  61.99  61.23  86.54  76.88  86.51  73.87
FW  ×  ${\mathrm{ICSD}}^{\mathrm{NI}}$  82.12  81.88  80.55  87.89  68.21  89.44  81.68  81.70  82.00  79.74  87.88  67.21  89.44  81.33 ${}^{\u2020\u2020}$
Panel II: Seeded kmeans method (Clustering)
FW  /  ${\mathrm{SD}}^{\mathrm{T}}$  90.92  89.58  81.79  86.79  83.65  92.30  87.51 ${}^{\u2020\u2020\u2020}$  91.44  89.93  87.18  87.30  84.60  93.16  88.94 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{SD}}^{\mathrm{T}}$  75.31  43.83  53.74  31.78  40.05  46.29  48.50  72.66  44.15  53.79  31.41  41.25  54.04  49.55
FW  /  ${\mathrm{ACSD}}^{\mathrm{T}}$  91.73  90.37  81.90  80.76  82.47  93.39  86.77 ${}^{\u2020\u2020\u2020}$  92.31  90.81  85.73  83.77  83.32  94.05  88.33 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{ACSD}}^{\mathrm{T}}$  73.68  36.57  46.96  31.39  33.69  43.31  44.27  71.31  43.30  49.62  31.42  29.27  50.11  45.84
FW  /  ${\mathrm{ICSD}}^{\mathrm{T}}$  60.59  59.84  66.36  61.65  74.15  71.82  65.74  65.75  46.77  69.72  63.15  71.47  67.91  64.13
FW  ×  ${\mathrm{ICSD}}^{\mathrm{T}}$  75.60  65.81  46.28  66.19  46.26  79.94  63.35  75.39  58.75  45.87  67.98  45.12  78.05  61.86
FW  /  ${\mathrm{SD}}^{\mathrm{N}}$  88.17  84.98  70.73  77.13  82.76  79.33  80.52 ${}^{\u2020\u2020\u2020}$  88.74  95.48  87.5  90.58  90.69  88.64  90.27 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{SD}}^{\mathrm{N}}$  70.36  63.76  51.67  32.43  47.19  82.10  57.92  67.35  62.10  45.13  42.38  44.97  78.06  56.67
FW  /  ${\mathrm{ACSD}}^{\mathrm{N}}$  89.19  86.83  72.18  65.51  82.61  80.76  79.51 ${}^{\u2020\u2020\u2020}$  89.21  96.00  88.76  78.71  88.54  89.44  88.44 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{ACSD}}^{\mathrm{N}}$  69.29  60.77  49.95  31.53  35.41  58.86  50.97  64.58  58.17  46.12  32.47  30.33  59.67  48.56
FW  /  ${\mathrm{ICSD}}^{\mathrm{N}}$  66.67  64.45  62.12  51.55  69.91  62.44  62.86  73.78  79.75  77.94  62.87  82.28  75.04  75.28${}^{\u2020}$
FW  ×  ${\mathrm{ICSD}}^{\mathrm{N}}$  74.74  71.26  51.73  68.33  47.55  85.71  66.55  73.90  70.90  50.14  69.62  45.32  85.21  65.85
FW  /  ${\mathrm{SD}}^{\mathrm{TI}}$  87.38  84.73  75.46  75.17  82.24  91.12  82.68 ${}^{\u2020\u2020\u2020}$  91.79  82.30  83.32  89.74  86.35  94.59  88.02 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{SD}}^{\mathrm{TI}}$  83.94  32.91  49.40  34.95  81.66  76.06  59.82  76.63  43.42  53.48  40.57  48.74  87.20  58.34
FW  /  ${\mathrm{ACSD}}^{\mathrm{TI}}$  87.75  86.25  74.57  67.88  69.33  91.01  79.47 ${}^{\u2020\u2020\u2020}$  92.86  92.60  83.14  88.76  84.92  95.17  89.58 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{ACSD}}^{\mathrm{TI}}$  86.59  30.20  48.31  32.68  76.66  81.06  59.25  76.95  38.86  51.61  42.85  42.61  85.08  56.33
FW  /  ${\mathrm{ICSD}}^{\mathrm{TI}}$  35.04  33.41  52.56  38.62  49.46  44.95  42.34  36.55  37.58  68.12  50.41  76.25  40.47  51.56
FW  ×  ${\mathrm{ICSD}}^{\mathrm{TI}}$  79.05  67.52  53.56  85.25  43.65  86.12  69.19 ${}^{\u2020\u2020\u2020}$  77.57  62.16  48.29  85.50  51.84  83.64  68.17 ${}^{\u2020\u2020}$
FW  /  ${\mathrm{SD}}^{\mathrm{NI}}$  89.45  86.65  75.24  82.47  82.97  83.66  83.41 ${}^{\u2020\u2020\u2020}$  85.23  92.39  67.76  97.59  85.18  93.16  86.88 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{SD}}^{\mathrm{NI}}$  75.39  52.92  69.04  66.62  60.54  89.70  69.04  73.20  60.07  52.36  81.89  56.87  89.61  69.00
FW  /  ${\mathrm{ACSD}}^{\mathrm{NI}}$  90.95  88.18  77.36  76.50  84.61  85.46  83.84 ${}^{\u2020\u2020\u2020}$  84.45  93.00  68.78  96.60  83.98  97.38  87.37 ${}^{\u2020\u2020\u2020}$
FW  ×  ${\mathrm{ACSD}}^{\mathrm{NI}}$  74.80  49.19  65.39  49.29  51.33  88.99  63.17  70.83  51.91  57.47  67.54  46.55  87.41  63.62
FW  /  ${\mathrm{ICSD}}^{\mathrm{NI}}$  52.87  67.61  58.01  54.51  73.05  65.46  61.92  55.64  53.72  49.68  76.26  70.14  74.82  63.38
FW  ×  ${\mathrm{ICSD}}^{\mathrm{NI}}$  77.42  69.29  65.71  85.86  54.10  88.56  73.49 ${}^{\u2020\u2020}$  75.80  76.30  63.60  85.93  56.22  88.14  74.33 ${}^{\u2020\u2020}$
Method  Power of DW (p)  Total

−1  −0.5  0  0.5  1
Panel I: Centroidbased algorithm
Panel A (Best):
SD  5(3)  7(5)  5(2)  2(0)  1(0)  20(10)
ACSD  8(3)  7(5)  4(2)  1(0)  0(0)  20(10)
ICSD  0(0)  0(0)  11(6)  7(4)  2(0)  20(10)
Panel B (Worst):
SD  5(4)  4(2)  2(0)  3(1)  6(3)  20(10)
ACSD  5(3)  3(2)  1(1)  2(1)  9(3)  20(10)
ICSD  12(8)  5(2)  1(0)  1(0)  1(0)  20(10)
Panel II: Seeded kmeans algorithm
Panel A (Best):
SD  6(3)  7(4)  5(2)  1(1)  1(0)  20(10)
ACSD  7(3)  6(4)  5(2)  2(1)  0(0)  20(10)
ICSD  0(0)  0(0)  10(7)  7(3)  3(0)  20(10)
Panel B (Worst):
SD  3(0)  3(0)  2(1)  4(3)  8(6)  20(10)
ACSD  3(0)  2(0)  1(1)  4(3)  10(6)  20(10)
ICSD  11(6)  5(3)  3(1)  0(0)  1(0)  20(10)
Panel III: Conventional kmeans algorithm
Panel A (Best):
SD  6(4)  6(4)  5(2)  3(0)  0(0)  20(10)
ACSD  7(3)  6(4)  5(3)  2(0)  0(0)  20(10)
ICSD  0(0)  0(0)  0(0)  10(4)  10(6)  20(10)
Panel B (Worst):
SD  2(0)  3(1)  6(3)  6(3)  3(3)  20(10)
ACSD  3(0)  2(0)  4(3)  5(3)  6(4)  20(10)
ICSD  16(9)  4(1)  0(0)  0(0)  0(0)  20(10)
Method  Power of DW  AM  DI  KB1  KB2  20N  TR  Avg.  Panel Ranking

SD  ACSD  ICSD  I  II  III
Panel I:Centroidbased algorithm
SC1  −0.5  −1  0.5  91.15  95.99  84.85  95.80  84.93  96.10  91.47  1  1  18
SC2  −1  −0.5  0.5  91.46  95.77  84.43  94.91  85.51  95.93  91.34  2  2  21
SC3  −0.5  −1  0  91.04  95.38  84.48  95.45  86.20  95.23  91.30  3  3  45
SC4  0  −0.5  0  91.23  94.54  84.08  95.58  86.76  95.19  91.23  4  4  50
SC5  −0.5  0  0  91.68  94.38  83.23  96.03  86.31  95.63  91.21  5  5  54
SC6  0  −1  0.5  91.93  94.47  86.35  93.13  83.24  93.91  90.51  6  11  12
SC7  −1  −0.5  0  91.20  93.71  82.35  95.14  84.67  95.22  90.38  7  9  44
SC8  −0.5  −0.5  0  87.18  94.20  80.32  98.53  86.47  95.23  90.32  8  7  72
SC9  −0.5  −0.5  0.5  91.77  94.35  85.41  92.40  83.21  94.14  90.21  9  6  3
SC10  −1  0  0  87.57  93.37  80.12  97.82  86.42  94.93  90.04  10  10  71
BSC  0  0  0  91.25  90.78  81.82  93.32  83.06  93.74  89.00  16  12  65
Panel II:Seeded kmeans algorithm
SK1  −0.5  −1  0.5  91.87  95.75  80.52  95.37  83.65  96.04  90.53  1  1  18
SK2  −1  −0.5  0.5  91.79  93.88  79.39  92.68  83.98  95.11  89.47  2  2  21
SK3  −0.5  −1  0  91.33  92.95  76.93  95.40  84.95  94.56  89.35  3  3  45
SK4  0  −0.5  0  89.93  94.80  72.39  95.06  84.12  95.56  88.64  4  4  50
SK5  −0.5  0  0  90.33  95.71  72.14  94.49  83.65  95.40  88.62  5  5  54
SK6  −0.5  −0.5  0.5  91.51  90.21  78.03  91.68  80.21  93.88  87.59  9  6  3
SK7  −0.5  −0.5  0  90.74  89.76  79.25  86.21  84.98  93.03  87.33  8  7  72
SK8  0  −1  0  84.46  93.00  68.78  96.60  85.61  94.05  87.08  11  8  70
SK9  −1  −0.5  0  90.92  91.30  76.05  91.76  78.23  93.86  87.02  7  9  44
SK10  −1  0  0  85.23  92.39  67.76  97.59  85.18  93.16  86.88  10  10  72
BSK  0  0  0  90.17  89.28  78.68  86.24  80.12  93.01  86.25  16  12  65
Panel III:Conventional kmeans algorithm
UK1  −1  −0.5  1  80.25  85.08  66.91  86.63  71.81  89.57  80.04  21  19  1
UK2  −0.5  −1  1  79.74  82.96  67.09  86.97  72.70  89.46  79.82  19  17  2
UK3  −0.5  −0.5  0.5  80.65  83.49  64.10  72.88  76.12  90.74  78.00  9  6  3
UK4  −1  −1  1  74.94  78.51  58.68  87.34  74.38  92.38  77.71  12  20  4
UK5  −1  0  0.5  76.03  83.94  64.27  73.82  75.40  91.78  77.54  14  14  5
UK6  0  −1  1  73.05  79.31  66.41  86.28  68.42  88.30  76.96  30  27  6
UK7  0  −0.5  0.5  76.04  77.99  62.72  84.10  71.26  89.07  76.86  20  13  7
UK8  −1  0  1  77.02  80.97  64.55  85.97  63.24  88.62  76.73  35  29  8
UK9  −0.5  0  0.5  76.66  80.23  62.31  82.65  69.67  88.61  76.69  25  16  9
UK10  −0.5  −0.5  1  74.70  79.49  66.30  85.96  65.16  88.36  76.66  32  21  10
BUK  0  0  0  59.85  51.21  51.80  33.15  44.04  68.13  51.36  16  12  65
Methods  Power of DW  User Dimension  Difference

SD  ACSD  ICSD  Dim.1 no. class = 4  Dim.2 no. class = 5  Dim.1 − Dim.2
Panel I: Distributionbased term weighting from KB1 (K = 4)
UKKB11  −0.5  −1  1  67.09 (70.46, 63.88)  29.80 (34.08, 26.05)  37.29 (36.38, 37.83)
UKKB12  −1  −0.5  1  66.91 (68.11, 65.72)  30.30 (34.15, 27.05)  36.61 (33.96, 38.67)
UKKB13  0  −1  1  66.41 (70.35, 62.69)  29.95 (33.63, 26.67)  36.46 (36.72, 36.02)
UKKB14  −0.5  −0.5  1  66.30 (69.00, 63.71)  31.14 (34.90, 27.78)  35.16 (34.10, 35.93)
UKKB15  −1  0  1  64.55 (67.68, 61.56)  30.39 (34.15, 27.05)  34.16 (33.53, 34.51)
Panel II: Distributionbased term weighting from KB2 (K = 5)
UKKB21  −1  −1  1  35.29 (48.32, 25.78)  87.34 (90.73, 84.07)  52.05 (42.41, 58.29)
UKKB22  −0.5  −1  1  31.72 (39.96, 25.18)  86.97 (90.18, 83.87)  55.25 (50.22, 58.69)
UKKB23  −1  −0.5  1  30.10 (35.69, 25.38)  86.63 (89.93, 83.45)  56.53 (54.24, 58.07)
UKKB24  0  −1  1  35.72 (46.66, 27.35)  86.28 (89.59, 83.09)  50.56 (42.93, 61.74)
UKKB25  −1  0  1  33.55 (44.68, 25.19)  85.97 (89.19, 82.86)  52.42 (44.51, 57.67)
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Buatoom, U.; Kongprawechnon, W.; Theeramunkong, T. Document Clustering Using KMeans with Term Weighting as SimilarityBased Constraints. Symmetry 2020, 12, 967. https://doi.org/10.3390/sym12060967
Buatoom U, Kongprawechnon W, Theeramunkong T. Document Clustering Using KMeans with Term Weighting as SimilarityBased Constraints. Symmetry. 2020; 12(6):967. https://doi.org/10.3390/sym12060967
Chicago/Turabian StyleBuatoom, Uraiwan, Waree Kongprawechnon, and Thanaruk Theeramunkong. 2020. "Document Clustering Using KMeans with Term Weighting as SimilarityBased Constraints" Symmetry 12, no. 6: 967. https://doi.org/10.3390/sym12060967
