# Bifurcations, Hidden Chaos and Control in Fractional Maps

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{8}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Basic Concepts

**Definition**

**1.**

**Theorem**

**1.**

#### Stability of Fractional Order Maps

**Theorem**

**2.**

**Lemma**

**1.**

**Theorem**

**3.**

## 3. New Two and Three-Dimensional Fractional Maps

#### 3.1. Description of the New Two-Dimensional Fractional Map

#### 3.2. Bifurcation and 0-1 Test

#### 3.3. Description of the New Three-Dimensional Fractional Map

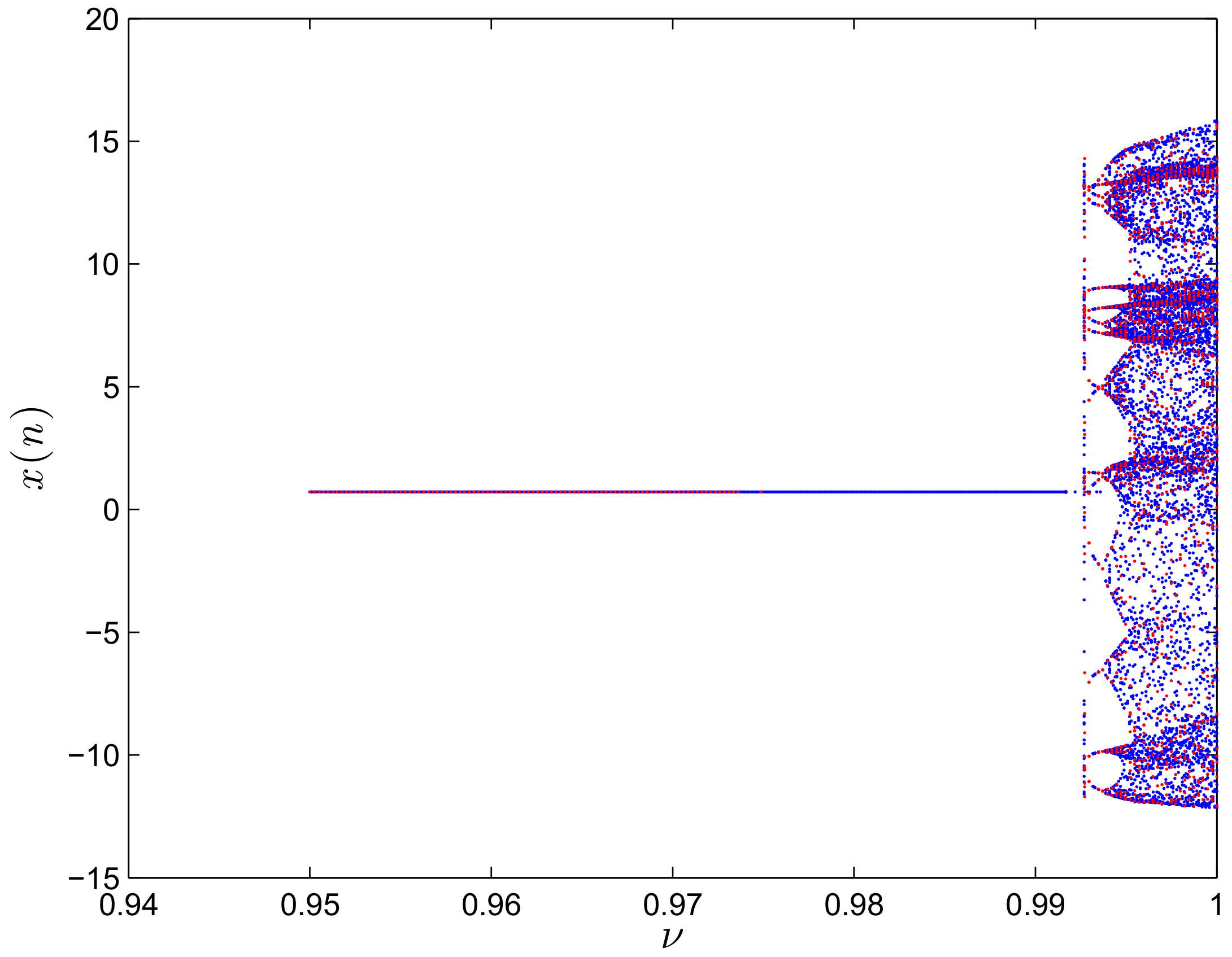

#### 3.4. Bifurcation and 0-1 Test

## 4. Chaos Control

**Theorem**

**4.**

**Proof.**

**Theorem**

**5.**

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Hénon, M. A two-dimensional mapping with a strange attractor. In The Theory of Chaotic Attractors; Springer: New York, NY, USA, 2004; pp. 94–102. [Google Scholar]
- Anton, H.; Rorres, C. Elementary Linear Algebra: Application Version, 7th ed.; Howard, Drexel Unversity: Philadelphia, PA, USA, 1994; pp. 571–572. [Google Scholar]
- Lozi, R. Un attracteur étrange du type attracteur de Hénon. J. Phys. Colloq.
**1978**, 39, C5-9. [Google Scholar] - Leonov, G.A.; Kuznetsov, N.V. Hidden attractors in dynamical systems: From hidden oscillation in Hilbert–Kolmogorov, Aizerman and Kalman problems to hidden chaotic attractor in Chua circuits. Int. J. Bifurc. Chaos
**2013**, 23, 1330002. [Google Scholar] [CrossRef] [Green Version] - Jafari, S.; Sprott, J.C.; Nazarimehr, F. Recent new examples of hidden attractors. Eur. Phys. J. Spec. Top.
**2015**, 224, 1469. [Google Scholar] [CrossRef] - Jafari, S.; Pham, V.T.; Golpayegani, S.M.R.H.; Moghtadaei, M.; Kingni, S.T. The relationship between chaotic maps and some chaotic systems with hidden attractors. Int. J. Bifurc. Chaos
**2016**, 26, 1650211. [Google Scholar] [CrossRef] - Jiang, H.; Liu, Y.; Wei, Z.; Zhang, L. A new class of three-dimensional maps with hidden chaotic dynamics. Int. J. Bifurc. Chaos
**2016**, 26, 1650206. [Google Scholar] [CrossRef] - Shabestari, P.S.; Panahi, S.; Hatef, B.; Jafari, S.; Sprott, J.C. Two simplest quadratic chaotic maps without equilibrium. Int. J. Bifurc. Chaos
**2018**, 28, 1850144. [Google Scholar] - Jiang, H.; Liu, Y.; Wei, Z.; Zhang, L. Hidden chaotic attractors in a class of two-dimensional maps. Nonlinear Dyn.
**2016**, 85, 2719–2727. [Google Scholar] - Jiang, H.; Liu, Y.; Wei, Z.; Zhang, L. A New Class of Two-Dimensional Chaotic Maps with Closed Curve Fixed Points. Int. J. Bifurc. Chaos
**2019**, 29, 1950094. [Google Scholar] [CrossRef] - Wu, G.C.; Baleanu, D. Discrete fractional logistic map and its chaos. Nonlinear Dyn.
**2014**, 75, 283–287. [Google Scholar] [CrossRef] - Khennaoui, A.A.; Ouannas, A.; Bendoukha, S.; Wang, X.; Pham, V.T. On chaos in the fractional-order discrete-time unified system and its control synchronization. Entropy
**2018**, 20, 530. [Google Scholar] [CrossRef] [Green Version] - Kang, X.; Luo, X.; Zhang, X.; Jiang, J. Homogenized Chebyshev-Arnold map and its application to color image encryption. IEEE Access
**2019**, 7, 114459–114471. [Google Scholar] [CrossRef] - Xin, B.; Peng, W.; Kwon, Y. A fractional-order difference Cournot duopoly game with long memory. arXiv
**2019**, arXiv:1903.0430. [Google Scholar] - Jouini, L.; Ouannas, A.; Khennaoui, A.A.; Wang, X.; Grassi, G.; Pham, V.T. The fractional form of a new three-dimensional generalized Hénon map. Adv. Differ. Equ.
**2019**, 1, 122. [Google Scholar] [CrossRef] - Khennaoui, A.A.; Ouannas, A.; Bendoukha, S.; Grassi, G.; Lozi, R.P.; Pham, V.T. On fractional–order discrete–time systems: Chaos, stabilization and synchronization. Chaos Solitons Fractals
**2019**, 119, 150–162. [Google Scholar] [CrossRef] - Ouannas, A.; Khennaoui, A.A.; Grassi, G.; Bendoukha, S. On chaos in the fractional-order Grassi–Miller map and its control. J. Comput. Appl. Math.
**2019**, 358, 293–305. [Google Scholar] [CrossRef] - Ouannas, A.; Khennaoui, A.A.; Bendoukha, S.; Grassi, G. On the dynamics and control of a fractional form of the discrete double scroll. Int. J. Bifurc. Chaos
**2019**, 29, 1950078. [Google Scholar] [CrossRef] - Ouannas, A.; Khennaoui, A.A.; Odibat, Z.; Pham, V.T.; Grassi, G. On the dynamics, control and synchronization of fractional-order Ikeda map. Chaos Solitons Fractals
**2019**, 123, 108–115. [Google Scholar] [CrossRef] - Ouannas, A.; Khennaoui, A.A.; Grassi, G.; Bendoukha, S. On the Q–S chaos synchronization of fractional-order discrete-time systems: General method and examples. Discret. Dyn. Nat. Soc.
**2018**, 2018, 2950357. [Google Scholar] [CrossRef] [Green Version] - Khennaoui, A.A.; Ouannas, A.; Bendoukha, S.; Grassi, G.; Wang, X.; Pham, V.T. Generalized and inverse generalized synchronization of fractional-order discrete-time chaotic systems with non-identical dimensions. Adv. Differ. Equ.
**2018**, 2018, 1–14. [Google Scholar] - Bendoukha, S.; Ouannas, A.; Wang, X.; Khennaoui, A.A.; Pham, V.T.; Grassi, G.; Huynh, V.V. The Co-existence of different synchronization types in fractional-order discrete-time chaotic systems with non–identical dimensions and orders. Entropy
**2018**, 20, 710. [Google Scholar] [CrossRef] [Green Version] - Ouannas, A.; Wang, X.; Khennaoui, A.A.; Bendoukha, S.; Pham, V.T.; Alsaadi, F.E. Fractional form of a chaotic map without fixed points: Chaos, entropy and control. Entropy
**2018**, 20, 720. [Google Scholar] - Khennaoui, A.A.; Ouannas, A.; Boulaaras, S.; Pham, V.T.; Taher Azar, A. A fractional map with hidden attractors: Chaos and control. Eur. Phys. J. Spec. Top.
**2020**, 229, 1083–1093. [Google Scholar] - Ouannas, A.; Khennaoui, A.A.; Momani, S.; Grassi, G.; Pham, V.T. Chaos and control of a three-dimensional fractional order discrete-time system with no equilibrium and its synchronization. AIP Adv.
**2020**, 10, 045310. [Google Scholar] - Ouannas, A.; Khennaoui, A.; Momani, S.; Pham, V.T.; El-Khazali, R. Hidden attractors in a new fractional-order discrete system: Chaos, complexity, entropy and control. Chin. Phys. B
**2020**, 29, 050504. [Google Scholar] - Gottwald, G.A.; Melbourne, I. On the implementation of the 0–1 test for chaos. SIAM J. Appl. Dyn. Syst.
**2009**, 8, 129–145. [Google Scholar] [CrossRef] - Atici, F.M.; Eloe, P.W. Discrete fractional calculus with the nabla operator. Electron. J. Qual. Theory Differ. Equ.
**2009**, 3, 1–12. [Google Scholar] [CrossRef] - Anastassiou, G.A. Principles of delta fractional calculus on time scales and inequalities. Math. Comput. Model.
**2010**, 52, 556–566. [Google Scholar] [CrossRef] - Cermak, J.; Gyori, I.; Nechvatal, L. On explicit stability conditions for a linear fractional difference system. Fract. Calc. Appl. Anal.
**2015**, 18, 651–672. [Google Scholar] [CrossRef] - Mozyrska, D.; Wyrwas, M. Stability by linear approximation and the relation between the stability of difference and differential fractional systems. Math. Methods Appl. Sci.
**2017**, 40, 4080–4091. [Google Scholar] [CrossRef] - Sprott, J.C. Strange Attractors: Creating Patterns in Chaos; M & T Books: New York, NY, USA, 1993. [Google Scholar]

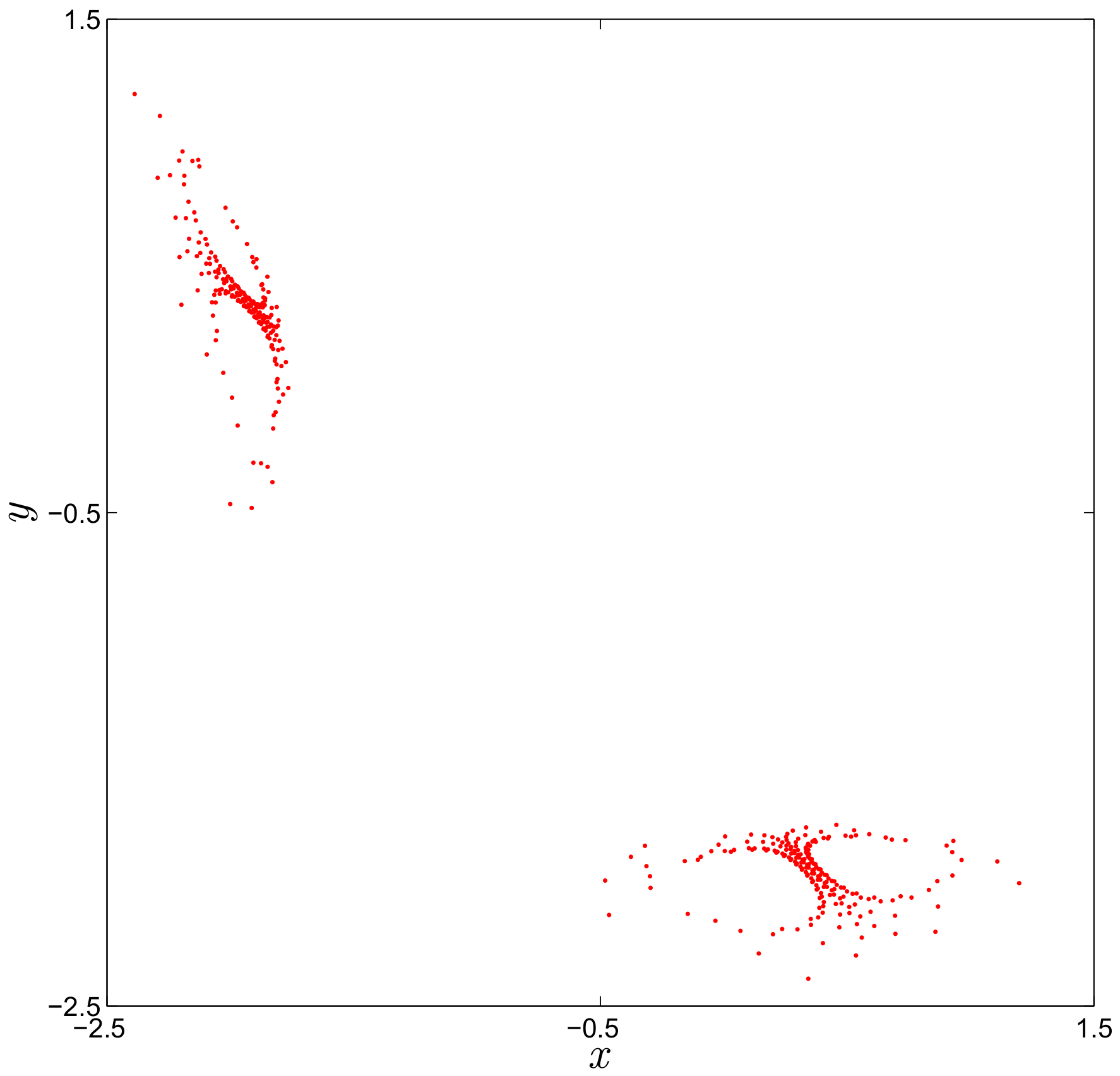

**Figure 1.**Strange attractor of the two-dimensional fractional map (10) for $\nu =0.999$ and $A=-0.83$.

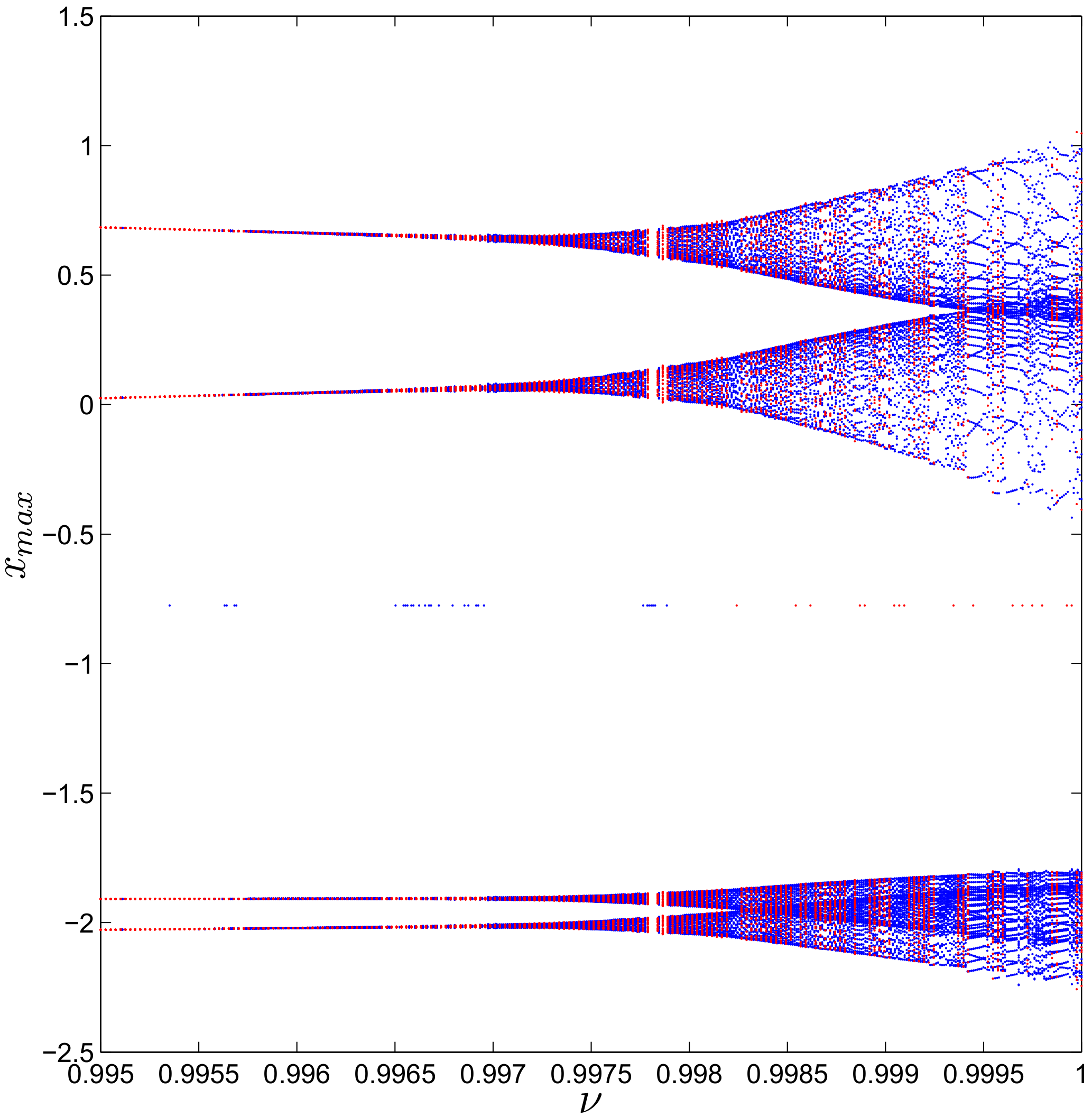

**Figure 2.**Bifurcation diagrams of the two-dimensional fractional map (10) versus $\nu $ for $A=-0.83$.

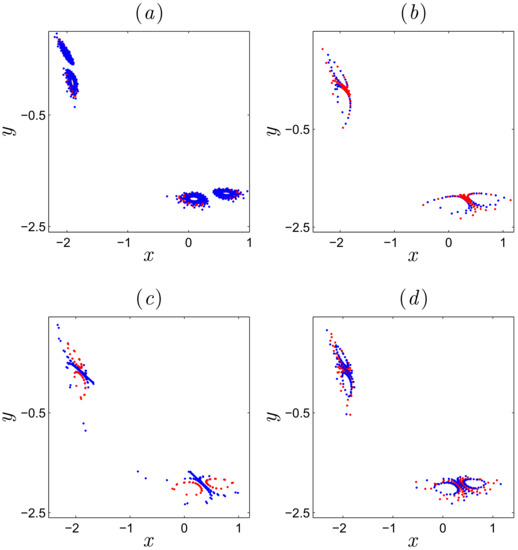

**Figure 3.**The coexisting hidden attractors of the two-dimensional fractional map (10) for system parameter $A=-0.83$ and initial condition $(-0.32,-1.85)$ for red attractors and $(0.32,-1.85)$ for blue attractors, with fractional order varying: (

**a**) $\nu =0.9996$, (

**b**) $\nu =0.9989$, (

**c**) $\nu =0.9987$, (

**d**) $\nu =0.9984$.

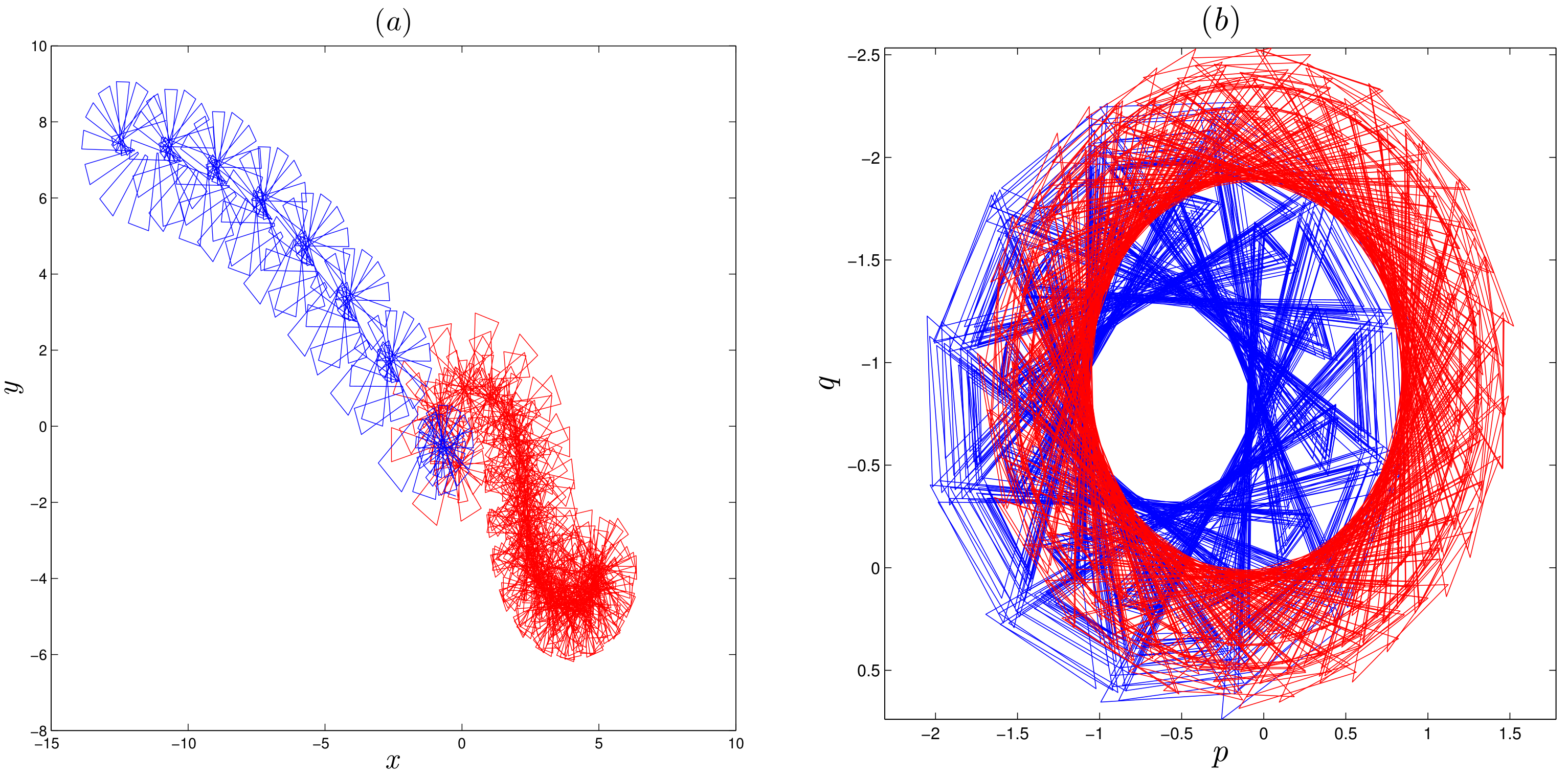

**Figure 4.**The 0-1 test of the two-dimensional fractional map. (

**a**) Brownian like trajectories for both initial conditions with $\nu =0.9996$, (

**b**) bounded trajectories for both initial conditions with $\nu =0.9984$.

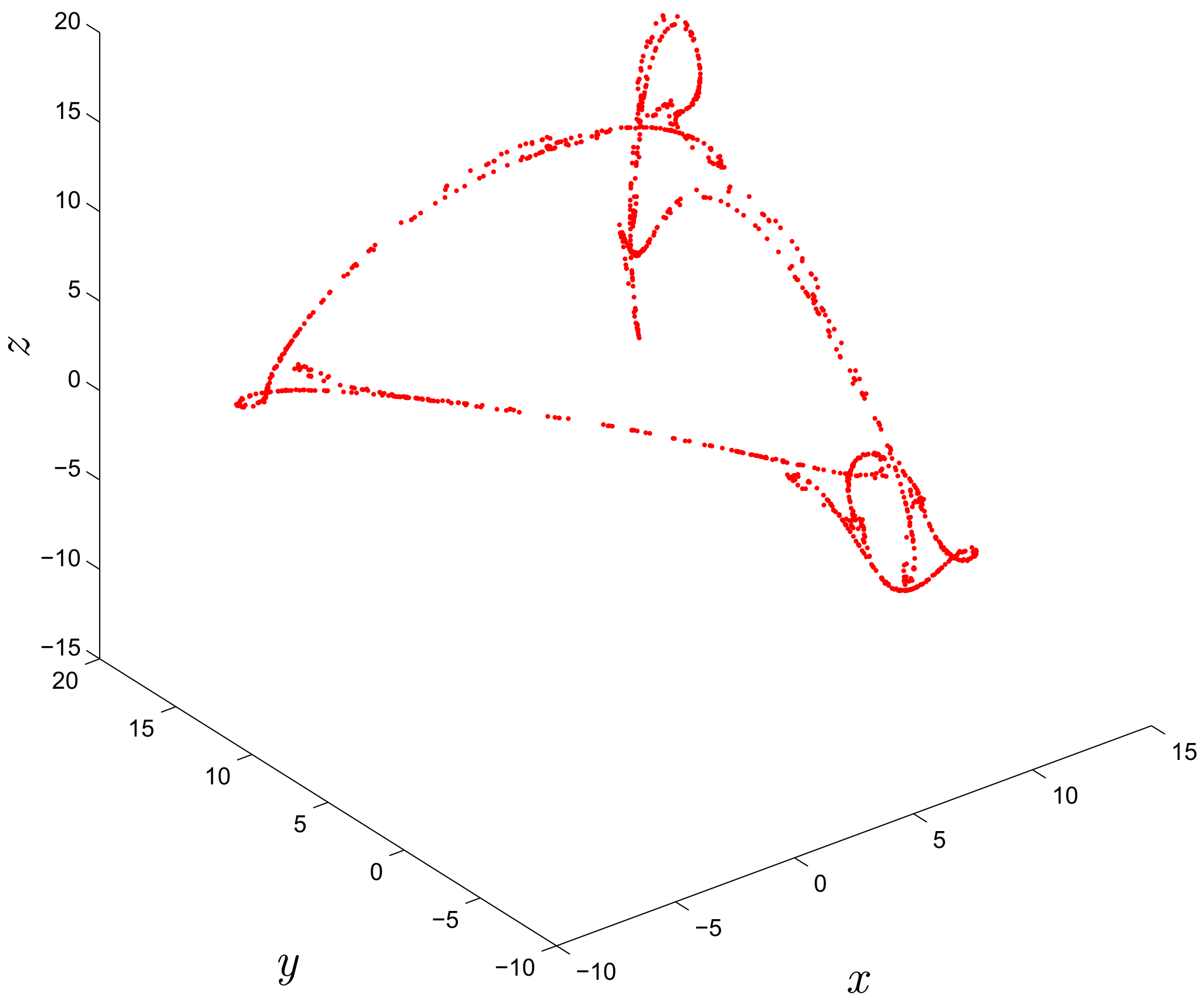

**Figure 5.**Strange attractor of the three-dimensional fractional map (17).

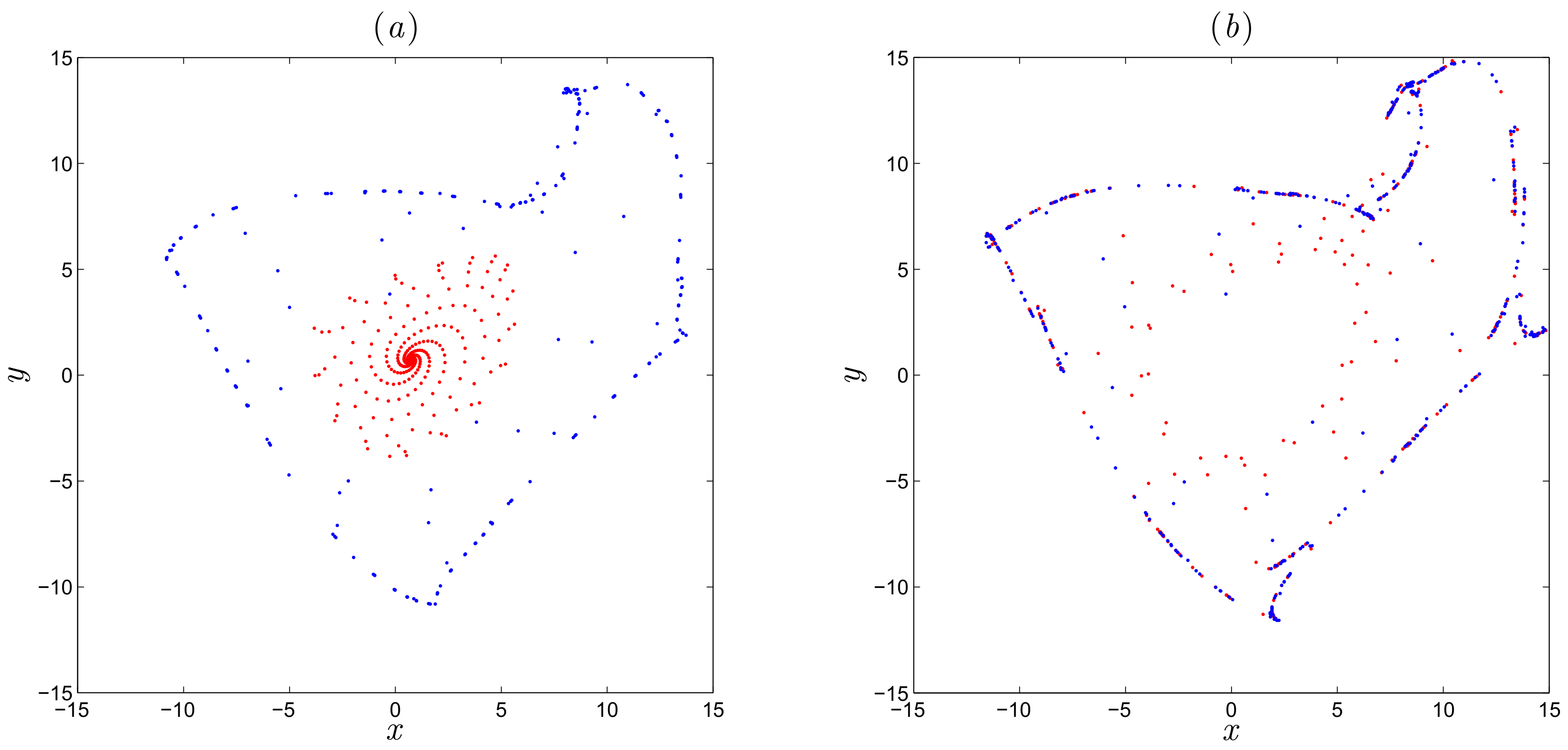

**Figure 7.**Coexisting hidden attractors of the three-dimensional fractional map (17) with initial condition $(-0.26,3.83,-2.22)$ for red attractors and $(-0.26,-3.83,-2.22)$ for blue attractors, (

**a**) for fractional order $\nu =0.993$, (

**b**) for fractional order $\nu =0.9984$.

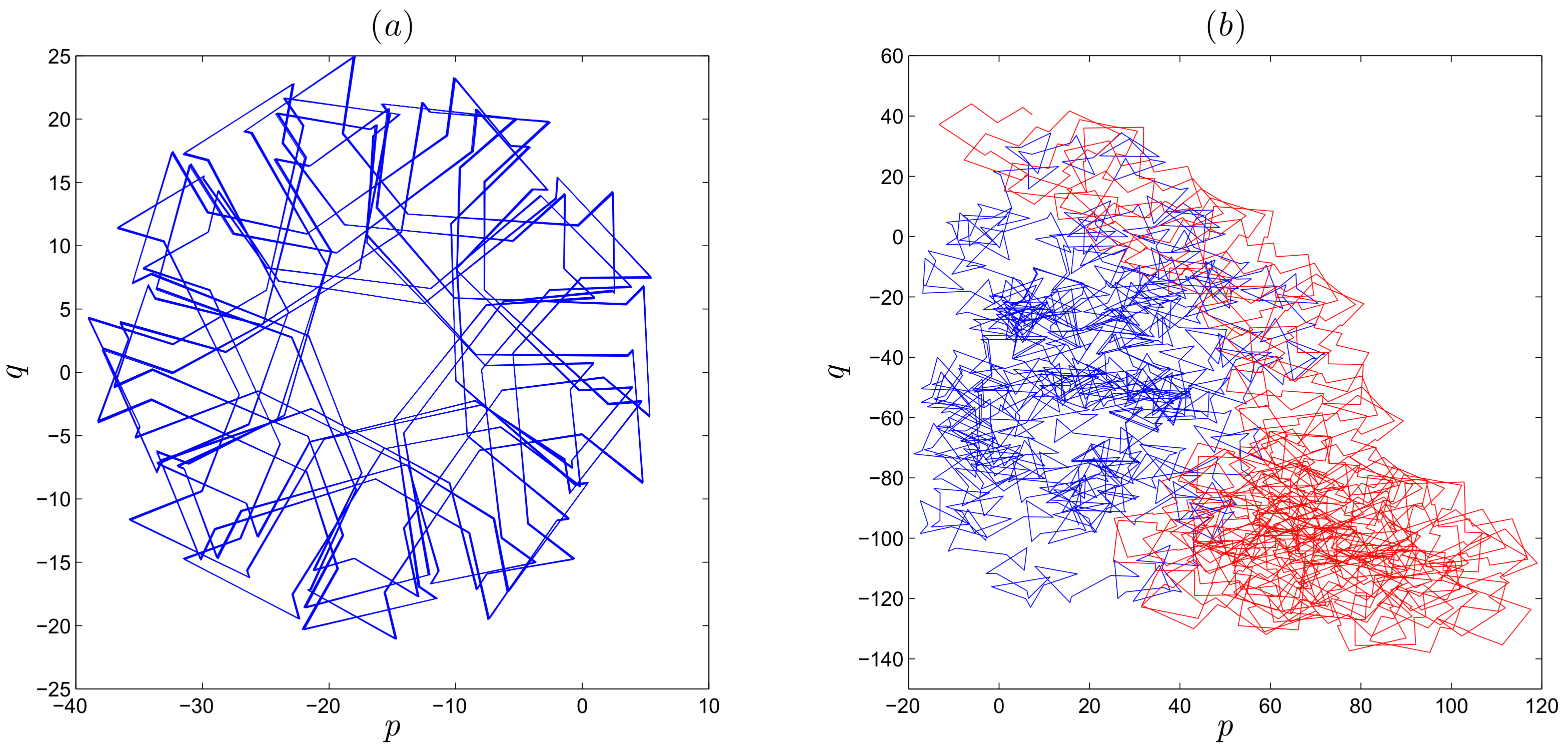

**Figure 8.**The $p-q$ plots of the three-dimensional fractional map, (

**a**) bounded trajectories for $\nu =0.993$, (

**b**) Brownian-like trajectories for both initial conditions with $\nu =0.9948$.

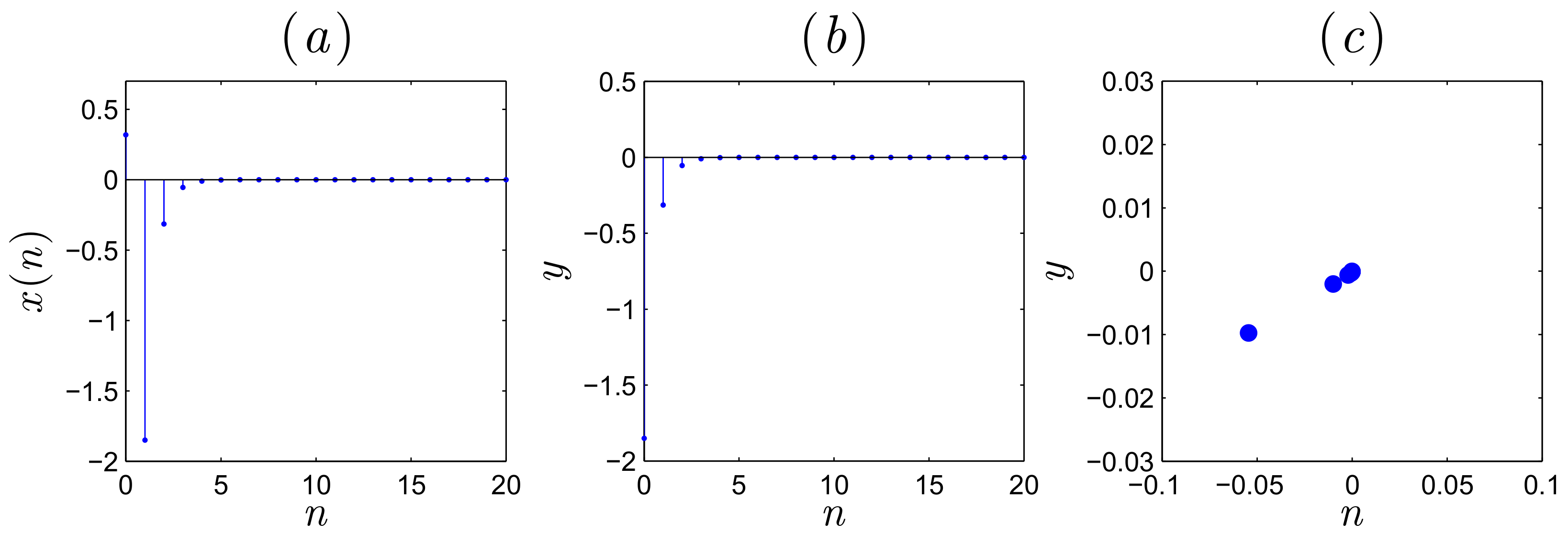

**Figure 9.**(

**a**) Stabilization of state $x\left(n\right)$, (

**b**) stabilization of state $y\left(n\right)$, (

**c**) attractor of the controlled system (10) for $\nu =0.999$.

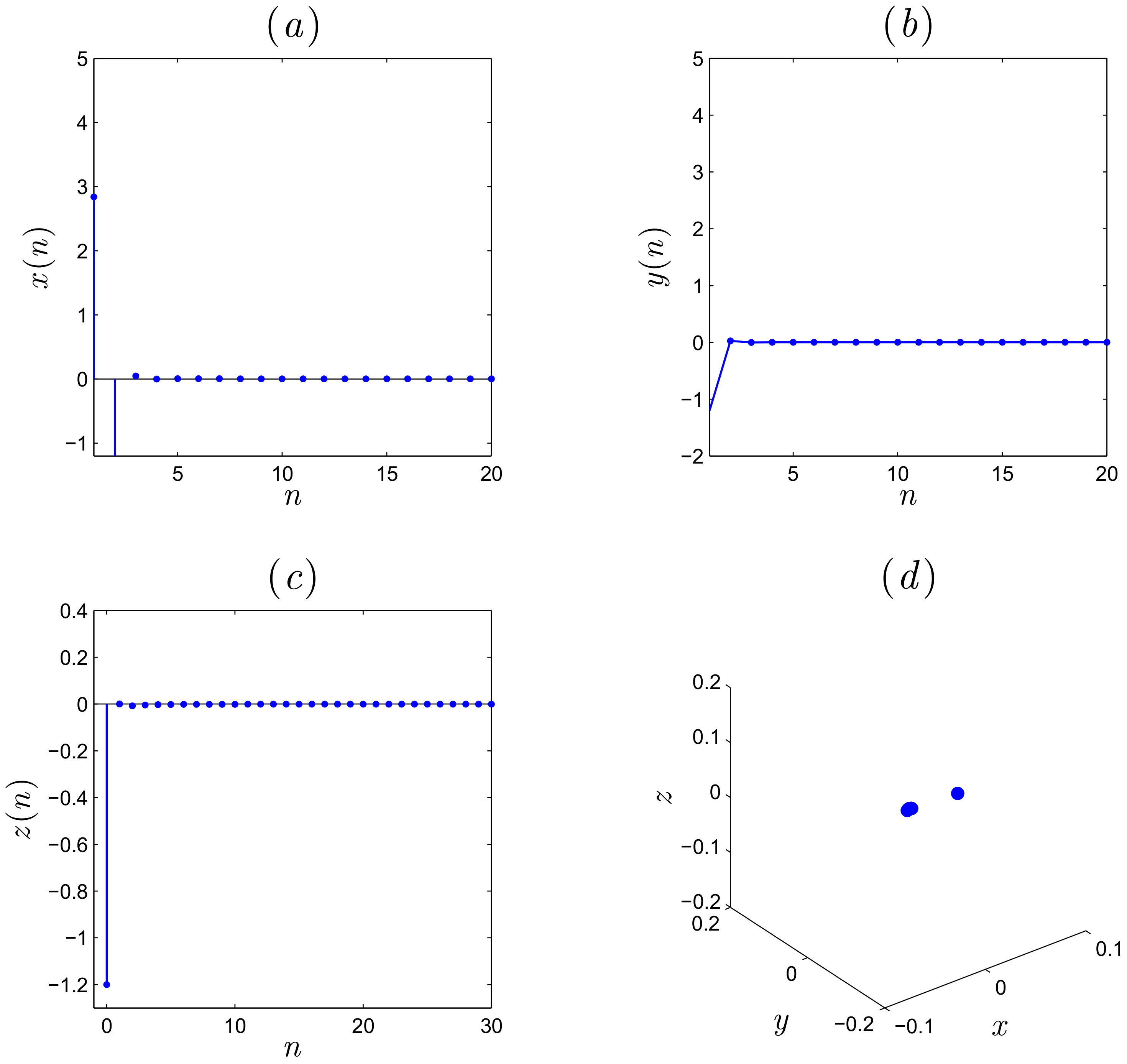

**Figure 10.**(
