# Analysis of Packet Diversity in Buffer-Aided Relaying over Symmetric and Asymmetric Rayleigh Fading Channels

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

#### Contributions

- The first scheme known as joint packet and relay selection (JPARS)-SNR is proposed for SNR-based relay selection. The relay selection is carried out first. The most suitable channel based on channel quality is picked for information transfer from all channels. After the relay selection, the packet selection is executed. If the chosen channel is of C2, the scheme picks the best matching from buffers of all relays. The best match is found according to the channel to packet matching notion. According to the condition of C2, the packet that affords the highest end-to-end SNR is picked from the buffer of the corresponding relay. In this design, the overall outage probability of the system is enhanced.
- JPARS-buffer state-based (BSB) being the second proposed scheme considers current buffer possession in relay selection. The relay with the freest or most occupied buffer space is selected for information processing. The packet selection step is the same as in JPARS-SNR scheme.
- The proposed JPARS-SNR scheme is simulated for both symmetric and asymmetric channel configurations and investigation for the outage probability, throughput and end-to-end packet delay are presented. The proposed JPARS-BSB scheme is simulated for the symmetric channel configuration using the relay thresholding technique.
- The results are analyzed with the existing schemes.

## 2. Relay and Packet Selection Schemes

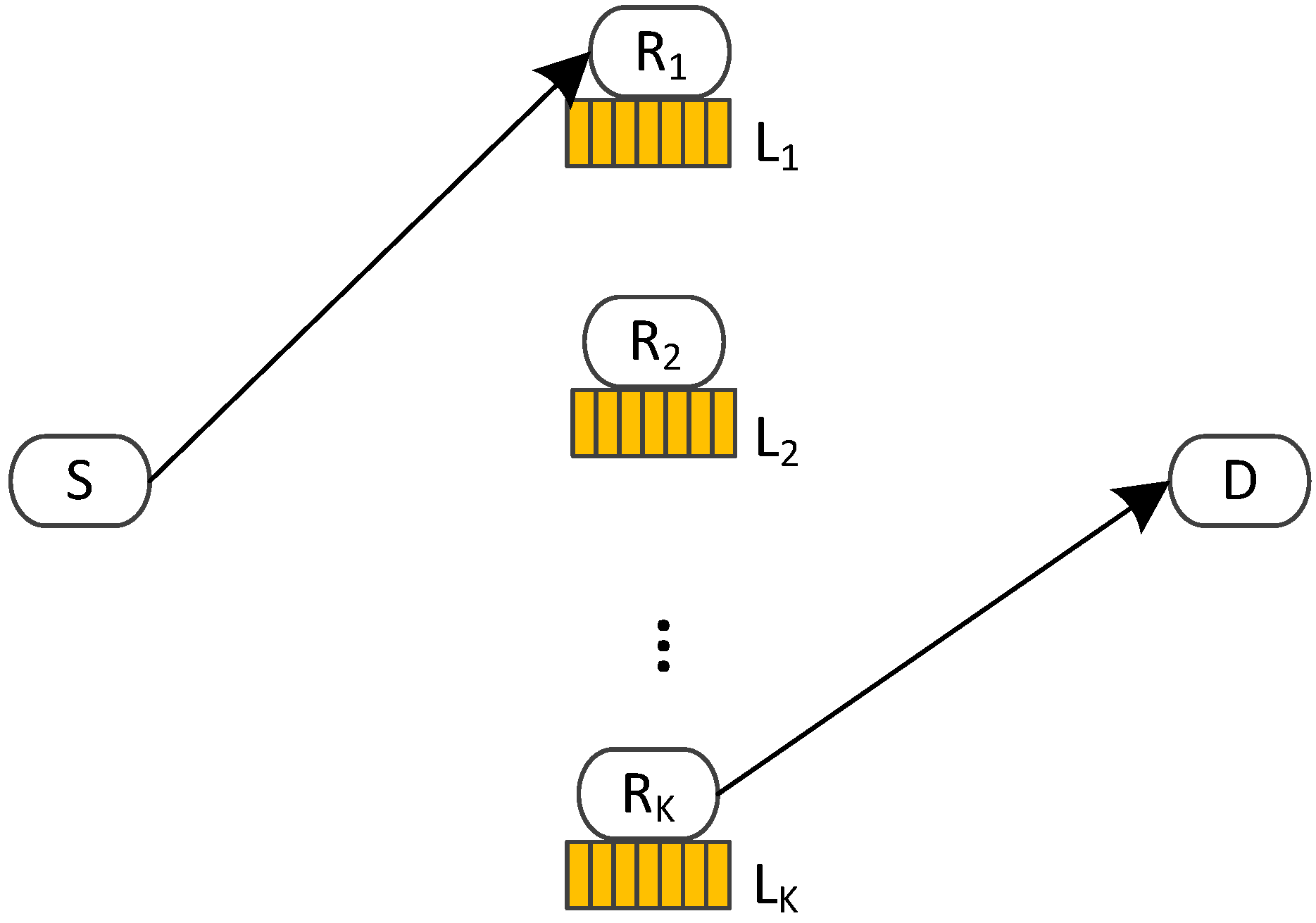

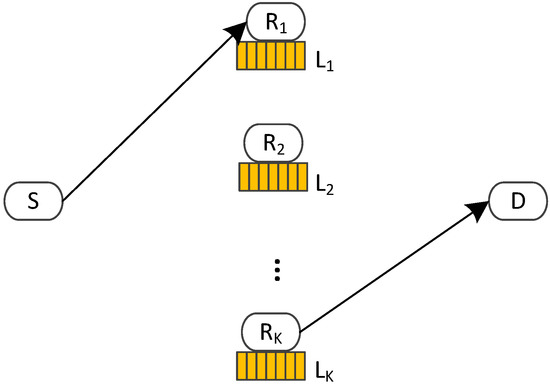

#### 2.1. Network Model

#### 2.1.1. Channel Model

#### 2.1.2. Transmission Scheme

#### 2.2. Max-Link Scheme

#### 2.3. AF Max-Link Scheme

#### 2.4. AF Packet Selection Scheme

#### 2.5. Buffer Occupancy-Based AF Scheme

#### 2.6. Motivation for Proposed Work

## 3. Joint Packet and Relay Selection (JPARS) Schemes

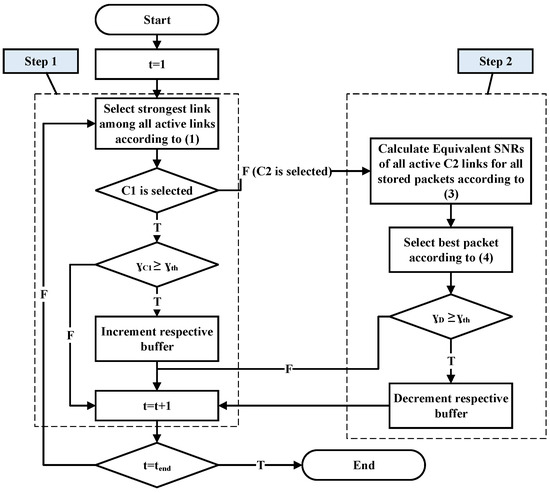

#### 3.1. SNR-Based JPARS Scheme

#### 3.1.1. Step 1: Relay Selection

#### 3.1.2. Phase 2: Packet Selection

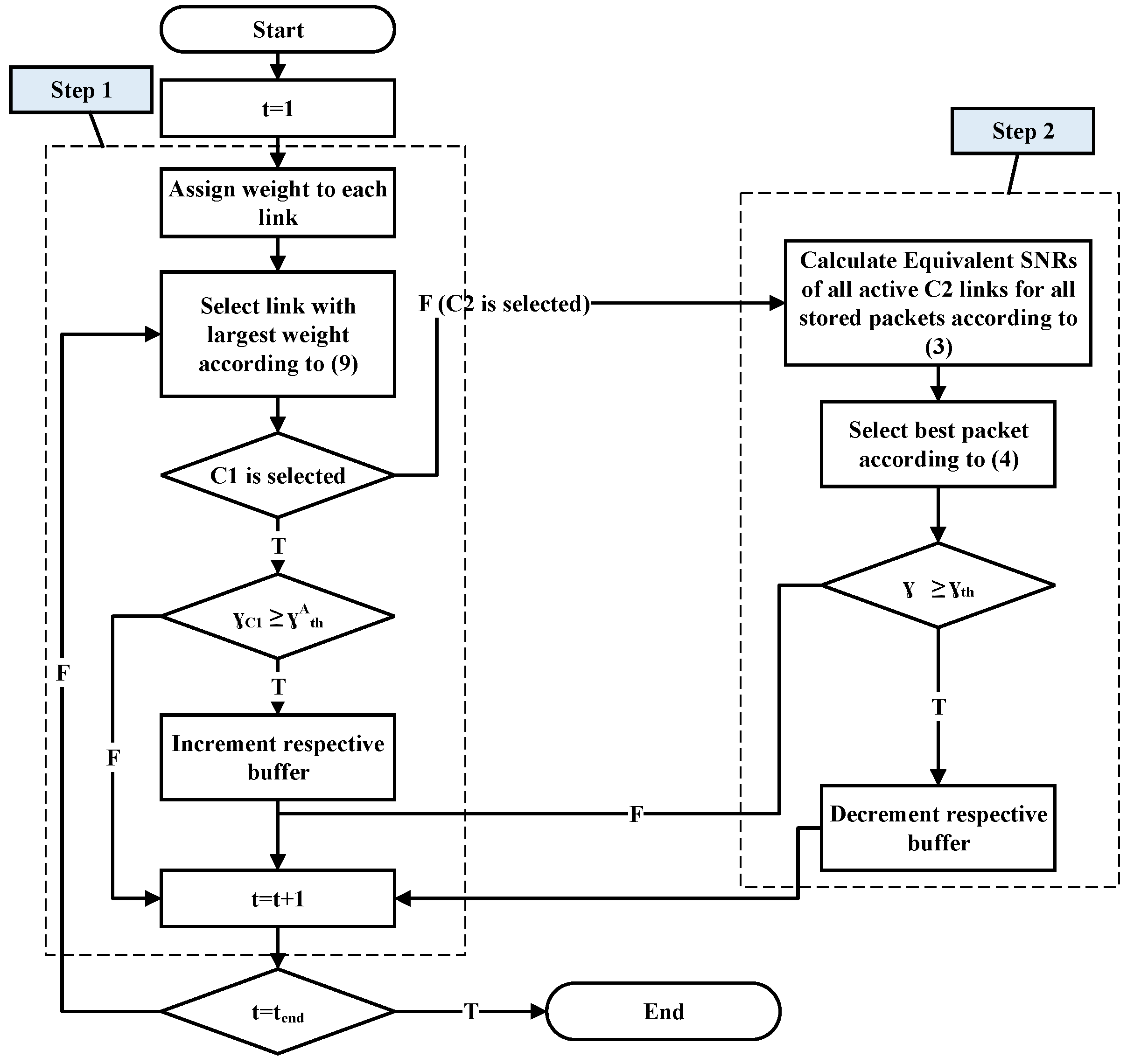

#### 3.2. Buffer State-Based Relay and Packet Selection

#### 3.2.1. Step 1: Relay Selection

#### 3.2.2. Step 2: Packet Selection Selection

#### 3.3. Buffer Access

## 4. Numerical Results

#### 4.1. Outage Probability: Symmetric Channel Conditions ${\overline{\gamma}}_{C1}={\overline{\gamma}}_{C2}=\overline{\gamma}$

#### 4.2. Outage Probability: Asymmetric Channel Conditions ${\overline{\gamma}}_{C1}=\alpha \phantom{\rule{3.33333pt}{0ex}}\overline{\gamma}$ and ${\overline{\gamma}}_{C2}=\beta \phantom{\rule{3.33333pt}{0ex}}\overline{\gamma}$

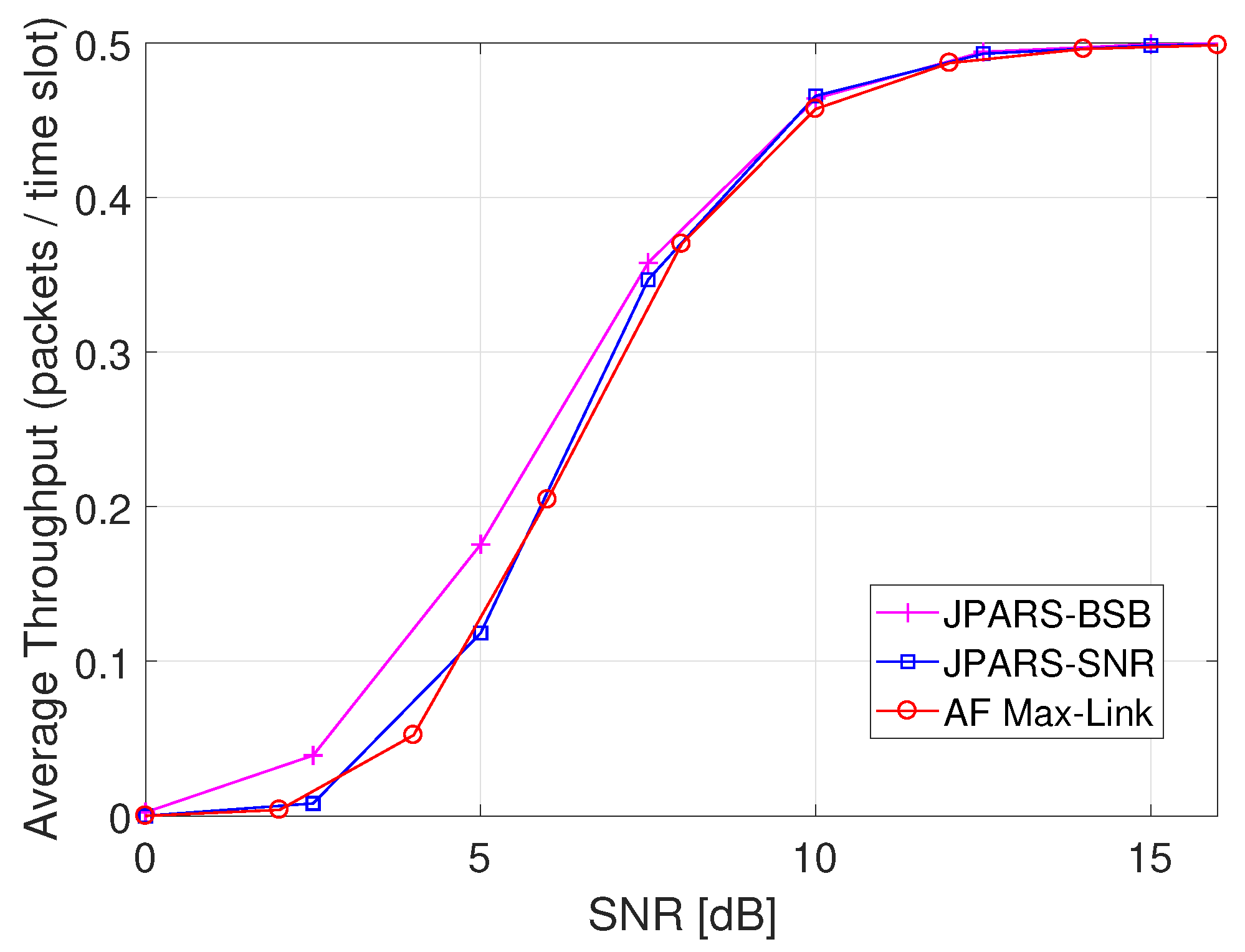

#### 4.3. Average Throughput

#### 4.4. Packet Delay

## 5. Conclusions and Future Works

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Bletsas, A.; Khisti, A.; Reed, D.P.; Lippman, A. A simple Cooperative diversity method based on network path selection. IEEE J. Sel. Areas Commun.
**2006**, 24, 659–672. [Google Scholar] [CrossRef] [Green Version] - Zlatanov, N.; Ikhlef, A.; Islam, T.; Schober, R. Buffer-aided cooperative communications: Opportunities and challenges. IEEE Commun. Mag.
**2014**, 52, 146–153. [Google Scholar] [CrossRef] - Ikhlef, A.; Michalopoulos, D.S.; Schober, R. Max-Max Relay Selection for Relays with Buffers. IEEE Trans. Wirel. Commun.
**2012**, 11, 1124–1135. [Google Scholar] [CrossRef] - Krikidis, I.; Charalambous, T.; Thompson, J.S. Buffer-aided relay selection for cooperative diversity systems without delay constraints. IEEE Trans. Wirel. Commun.
**2012**, 11, 1957–1967. [Google Scholar] [CrossRef] - Lin, S.L.; Liu, K.H. Relay selection for cooperative relaying networks with small buffers. IEEE Trans. Veh. Technol.
**2016**, 65, 6562–6572. [Google Scholar] [CrossRef] - Charalambous, T.; Nomikos, N.; Krikidis, I.; Vouyioukas, D.; Johansson, M. Modeling buffer-aided relay selection in networks with direct transmission capability. IEEE Commun. Lett.
**2015**, 19, 649–652. [Google Scholar] [CrossRef] - Xu, P.; Ding, Z.; Krikidis, I.; Dai, X. Achieving Optimal Diversity Gain in Buffer-Aided Relay Networks With Small Buffer Size. IEEE Trans. Veh. Technol.
**2016**, 65, 8788–8794. [Google Scholar] [CrossRef] - Raza, W.; Javaid, N.; Nasir, H.; Alrajeh, N.; Guizani, N. Buffer-Aided Relay Selection with Equal-Weight Links in Cooperative Wireless Networks. IEEE Commun. Lett.
**2017**. [Google Scholar] [CrossRef] - Manoj, B.R.; Mallik, R.K.; Bhatnagar, M.R. Performance Analysis of Buffer-Aided Priority-Based Max-Link Relay Selection in DF Cooperative Networks. IEEE Trans. Commun.
**2018**, 66, 2826–2839. [Google Scholar] [CrossRef] - Oiwa, M.; Tosa, C.; Sugiura, S. Theoretical Analysis of Hybrid Buffer-Aided Cooperative Protocol Based on Max–Max and Max–Link Relay Selections. IEEE Trans. Veh. Technol.
**2016**, 65, 9236–9246. [Google Scholar] [CrossRef] - Luo, S.; Teh, K.C. Buffer State Based Relay Selection for Buffer-Aided Cooperative Relaying Systems. IEEE Trans. Wirel. Commun.
**2015**, 14, 5430–5439. [Google Scholar] [CrossRef] - Tian, Z.; Gong, Y.; Chen, G.; Chambers, J. Buffer-aided Relay Selection with Reduced Packet Delay in Cooperative Networks. IEEE Trans. Veh. Technol.
**2016**. [Google Scholar] [CrossRef] [Green Version] - Oiwa, M.; Sugiura, S. Reduced-Packet-Delay Generalized Buffer-Aided Relaying Protocol: Simultaneous Activation of Multiple Source-to-Relay Links. IEEE Access
**2016**, 4, 3632–3646. [Google Scholar] [CrossRef] - Nomikos, N.; Charalambous, T.; Vouyioukas, D.; Karagiannidis, G.K. Low-Complexity Buffer-Aided Link Selection with Outdated CSI and Feedback Errors. IEEE Trans. Commun.
**2018**. [Google Scholar] [CrossRef] - Tian, Z.; Chen, G.; Gong, Y.; Chen, Z.; Chambers, J.A. Buffer-Aided Max-Link Relay Selection in Amplify-and-Forward Cooperative Networks. IEEE Trans. Veh. Technol.
**2015**, 64, 553–565. [Google Scholar] [CrossRef] [Green Version] - Oiwa, M.; Nakai, R.; Sugiura, S. Buffer-State-and-Thresholding-Based Amplify-and-Forward Cooperative Networks. IEEE Wirel. Commun. Lett.
**2017**, 6, 674–677. [Google Scholar] [CrossRef] - Li, G.X.; Dong, C.; Liu, D.; Li, G.; Zhang, Y. Outage Analysis of Dual-Hop Transmission with Buffer Aided Amplify-and-Forward Relay. In Proceedings of the 2014 IEEE 80th Vehicular Technology Conference (VTC2014-Fall), Vancouver, BC, Canada, 14–17 September 2014; pp. 1–5. [Google Scholar] [CrossRef] [Green Version]
- Nasir, H.; Javaid, N.; Raza, W.; Imran, M.; Guizani, M. Performance analysis of a buffer-aided incremental relaying in cooperative wireless network. In Proceedings of the 2017 13th International Wireless Communications and Mobile Computing Conference (IWCMC), Valencia, Spain, 26–30 June 2017; pp. 1483–1488. [Google Scholar]
- Chen, G.; Tian, Z.; Gong, Y.; Chen, Z.; Chambers, J.A. Max-Ratio Relay Selection in Secure Buffer-Aided Cooperative Wireless Networks. IEEE Trans. Inf. Forensics Secur.
**2014**, 9, 719–729. [Google Scholar] [CrossRef] [Green Version] - Tang, X.; Cai, Y.; Huang, Y.; Duong, T.Q.; Yang, W.; Yang, W. Secrecy Outage Analysis of Buffer-Aided Cooperative MIMO Relaying Systems. IEEE Trans. Veh. Technol.
**2018**, 67, 2035–2048. [Google Scholar] [CrossRef] - Zhou, B.; Cui, Y.; Tao, M. Stochastic Throughput Optimization for Two-Hop Systems With Finite Relay Buffers. IEEE Trans. Signal Process.
**2015**, 63, 5546–5560. [Google Scholar] [CrossRef] [Green Version] - Hasna, M.O.; Alouini, M.S. End-to-end performance of transmission systems with relays over Rayleigh-fading channels. IEEE Trans. Wirel. Commun.
**2003**, 2, 1126–1131. [Google Scholar] [CrossRef] [Green Version] - Laneman, J.N.; Wornell, G.W. Energy-efficient antenna sharing and relaying for wireless networks. In Proceedings of the 2000 IEEE Wireless Communications and Networking Conference, Conference Record (Cat. No. 00TH8540), Chicago, IL, USA, 23–28 September 2000; Volume 1, pp. 7–12. [Google Scholar]

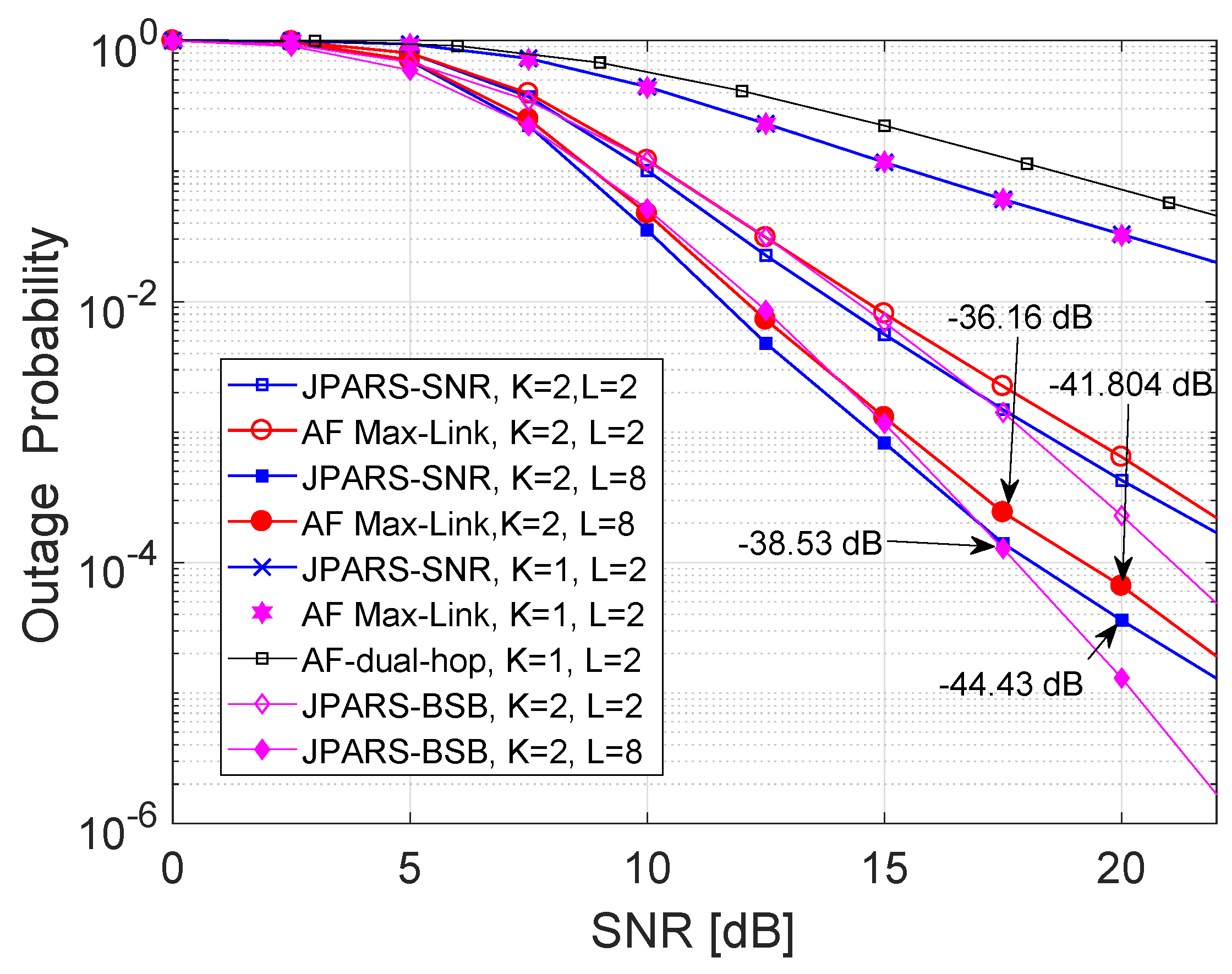

**Figure 4.**Outage probability of the proposed JPARS, AF Max-Link and AF-dual-hop schemes with the combinations of (K,L) as (1,2), (2,2) and (2,8).

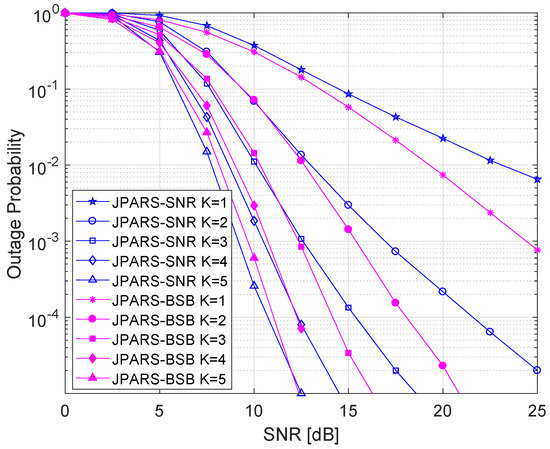

**Figure 5.**Outage probability of the proposed JPARS schemes for $L=3$ with the increasing number of relays.

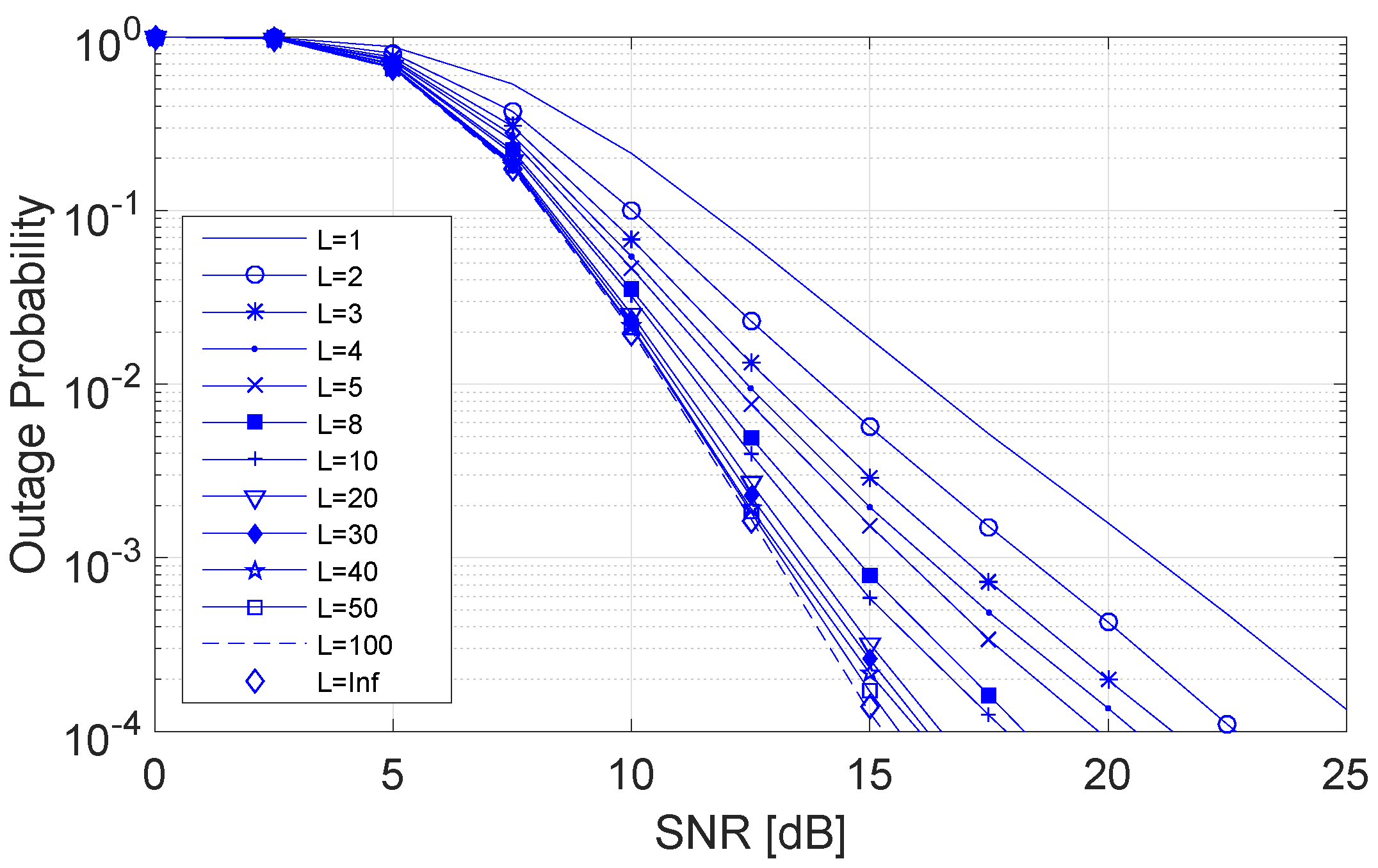

**Figure 6.**Outage probability of the proposed JPARS-SNR-based scheme for $K=2$ with the increasing buffer size.

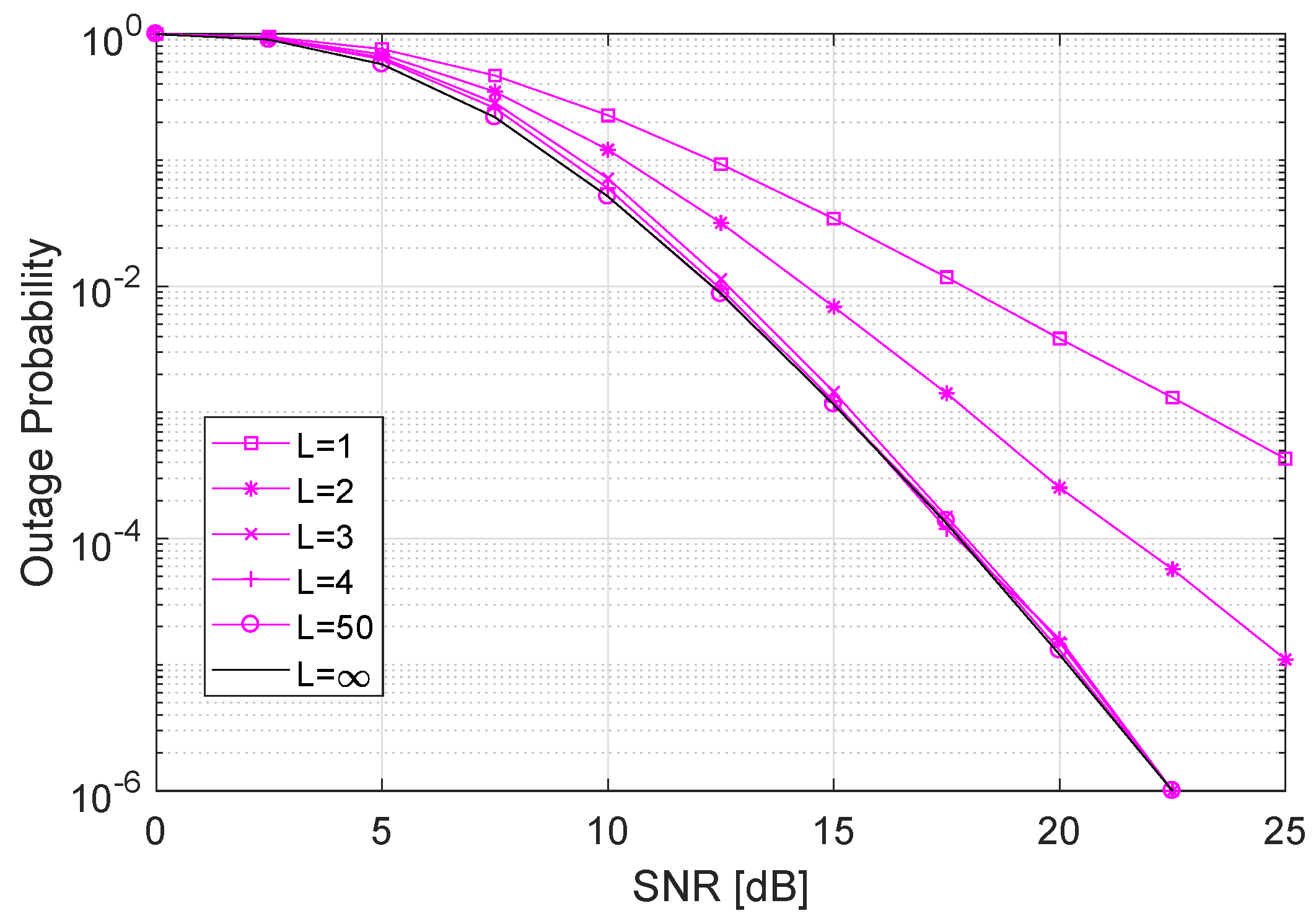

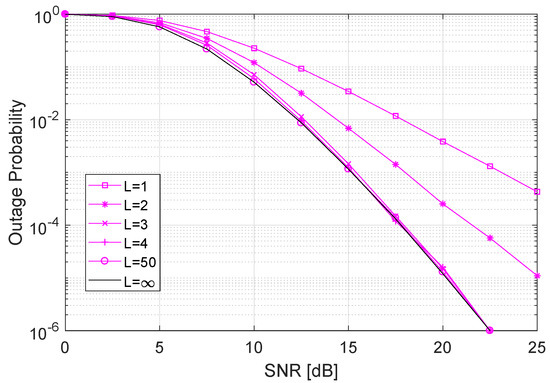

**Figure 7.**Outage probability of the proposed JPARS-buffer state-based-based scheme for $K=2$ with the increasing buffer size.

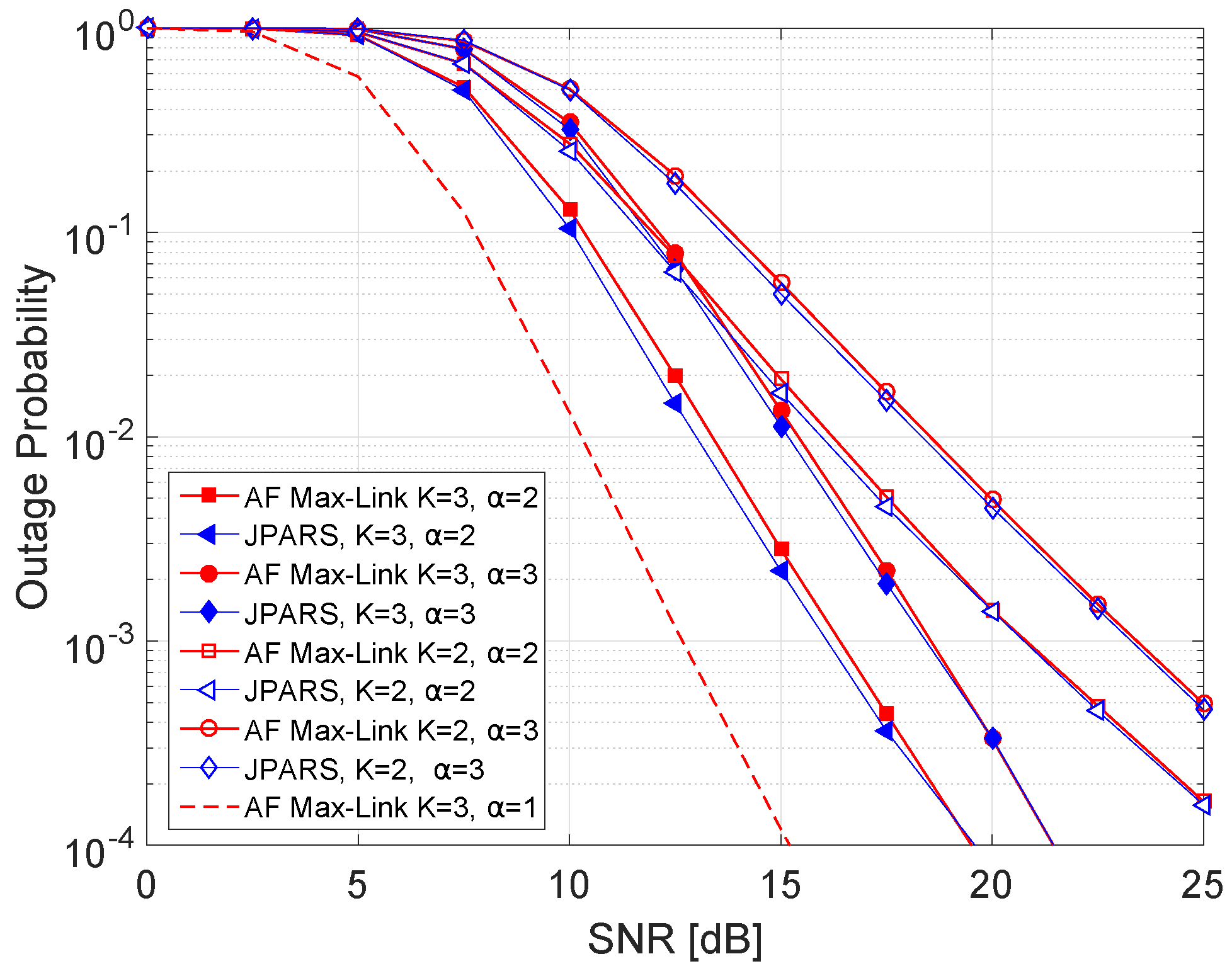

**Figure 8.**Outage probability of the proposed JPARS-SNR scheme when C1 is prioritized for $L=4$, $K=2\phantom{\rule{3.33333pt}{0ex}}\mathrm{and}\phantom{\rule{3.33333pt}{0ex}}3$, $\alpha =2\phantom{\rule{3.33333pt}{0ex}}\mathrm{and}\phantom{\rule{3.33333pt}{0ex}}3$ and $\beta =1$.

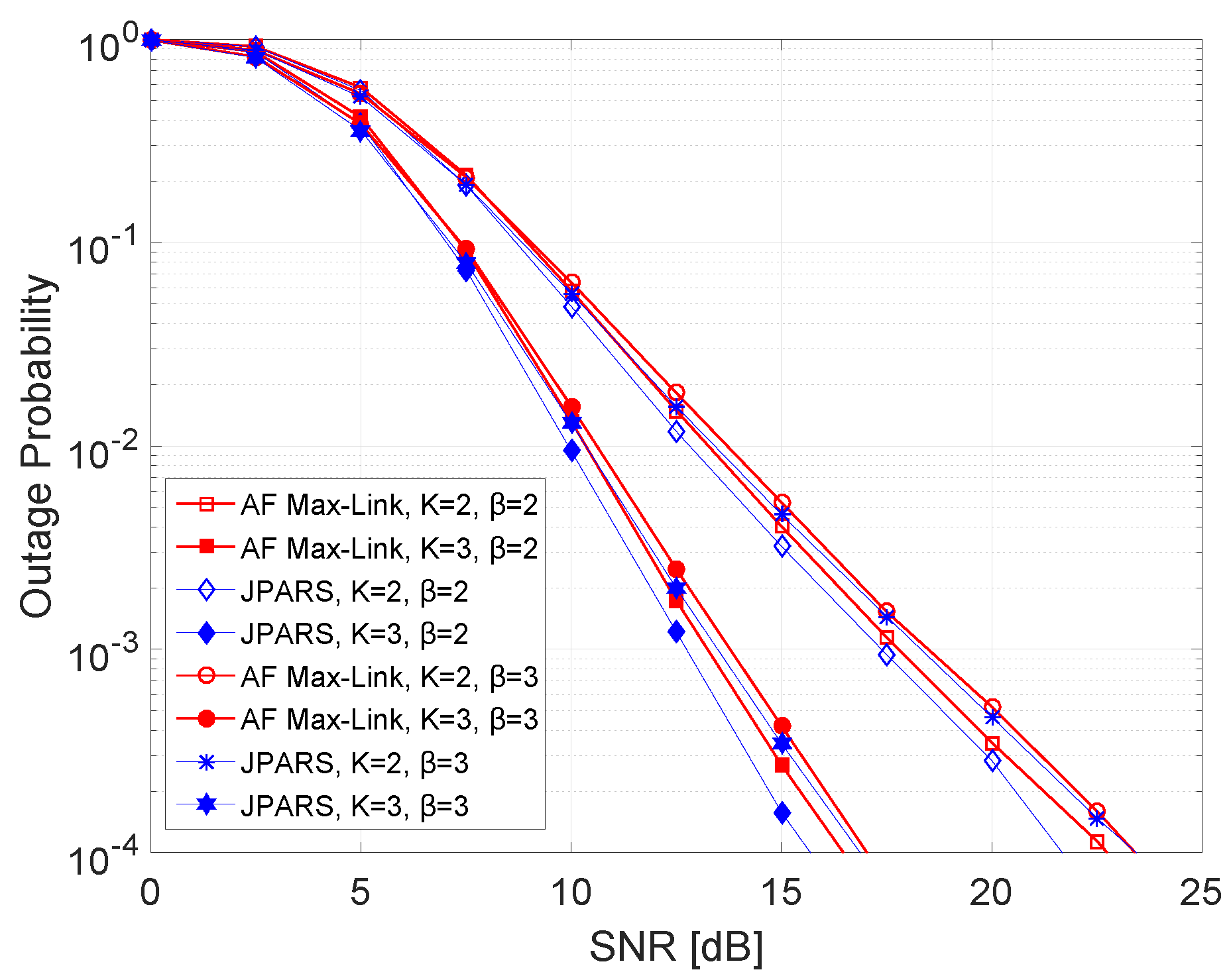

**Figure 9.**Outage probability of the proposed JPARS-SNR scheme when C2 is prioritized for $L=4$, $K=2\phantom{\rule{3.33333pt}{0ex}}\mathrm{and}\phantom{\rule{3.33333pt}{0ex}}3$, $\alpha =1$ and $\beta =2\phantom{\rule{3.33333pt}{0ex}}\mathrm{and}\phantom{\rule{3.33333pt}{0ex}}3$.

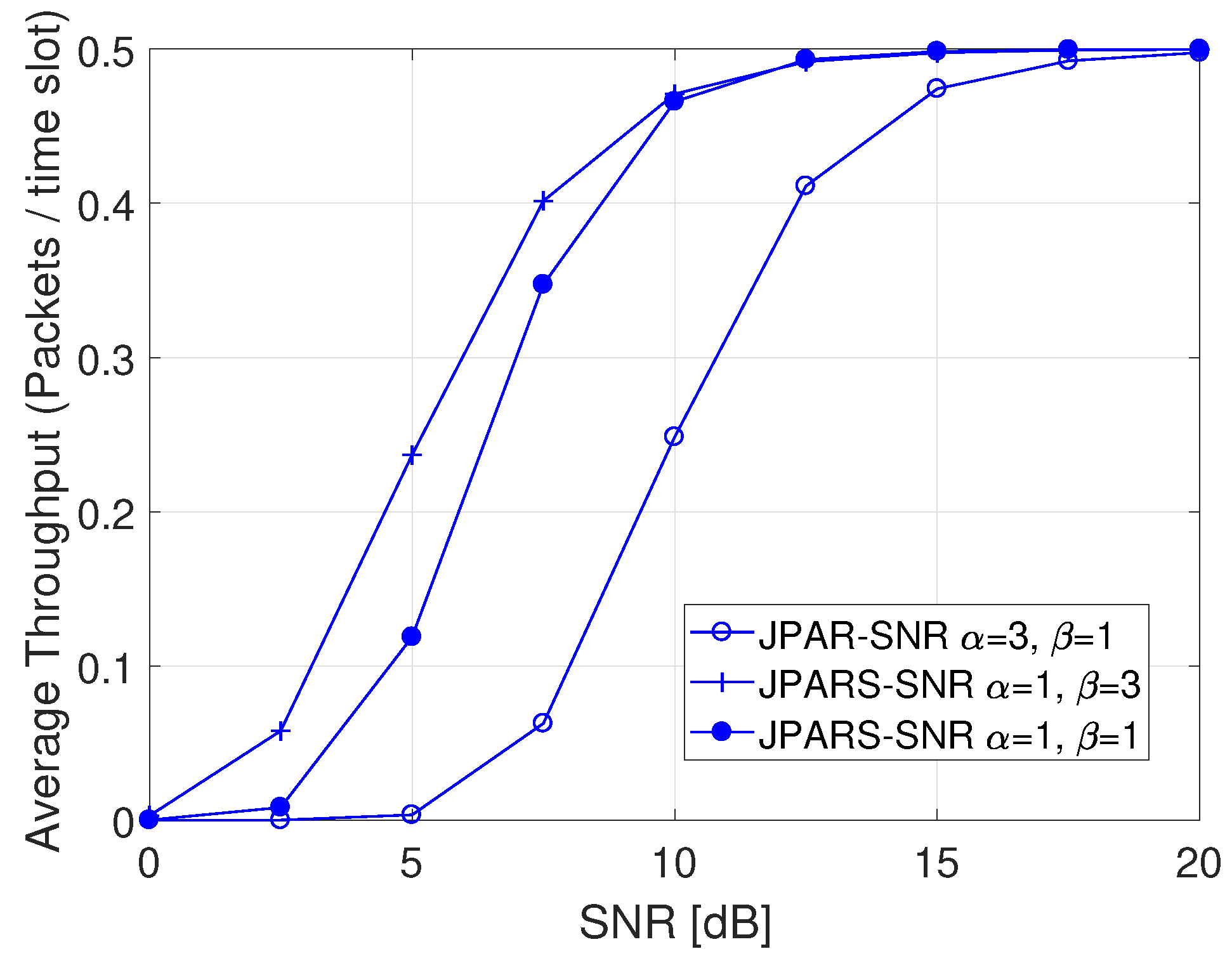

**Figure 11.**Average throughput of the proposed schemes for $K=2$ and $L=3$ in asymmetric channel conditions.

**Table 1.**Comparison on relay selection and packet selection schemes in buffer-aided cooperative relaying.

Sr. | Scheme | Relaying Technique | Relay Selection | Packet Selection | Buffer Access |
---|---|---|---|---|---|

1 | Max-Link | DF | Yes | No | FIFO |

2 | AF Max-Link | AF | Yes | No | FIFO |

3 | AF-dual-hop | AF | No | Yes | Random |

4 | AF buffer state-based | AF | Yes | No | FIFO |

5 | JPARS-SNR | AF | Yes | Yes | Random |

6 | JPARS-BSB | AF | Yes | Yes | Random |

**Table 2.**Comparison on packet delay of JPARS-SNR, JPARS-BSB and AF Max-Link schemes for symmetric channel conditions $\overline{\gamma}=20\phantom{\rule{3.33333pt}{0ex}}$ dB.

AF Max-Link | JPARS-SNR | JPARS-BSB | |||||
---|---|---|---|---|---|---|---|

Max. | Min. | Max. | Min. | Max. | Min. | ||

$K=2$ | $L=2$ | 80 | 2 | 60 | 2 | 51 | 2 |

$L=8$ | 1094 | 2 | 862 | 2 | 478 | 2 | |

$K=3$ | $L=2$ | 132 | 2 | 107 | 2 | 52 | 2 |

$L=8$ | 1530 | 2 | 1107 | 2 | 489 | 2 |

**Table 3.**Comparison on maximum and minimum packet delay of JPARS-SNR and AF Max-Link schemes for $K=2$ and asymmetric channel conditions ${\overline{\gamma}}_{C1}=\alpha \overline{\gamma},\phantom{\rule{3.33333pt}{0ex}}{\overline{\gamma}}_{C2}=\beta \overline{\gamma}$.

AF Max-Link | JPARS-SNR | ||||
---|---|---|---|---|---|

Max. | Min. | Max. | Min. | ||

$\alpha =2,\phantom{\rule{3.33333pt}{0ex}}\beta =1$ | $L=2$ | 176 | 2 | 141 | 2 |

$L=8$ | 43,214 | 2 | 36,728 | 2 | |

$\alpha =1,\phantom{\rule{3.33333pt}{0ex}}\beta =2$ | $L=2$ | 42 | 2 | 39 | 2 |

$L=8$ | 120 | 2 | 103 | 2 |
