# A Novel 2D—Grid of Scroll Chaotic Attractor Generated by CNN

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The Generation of 2D-Grid of Scroll from a Modified Chua Model

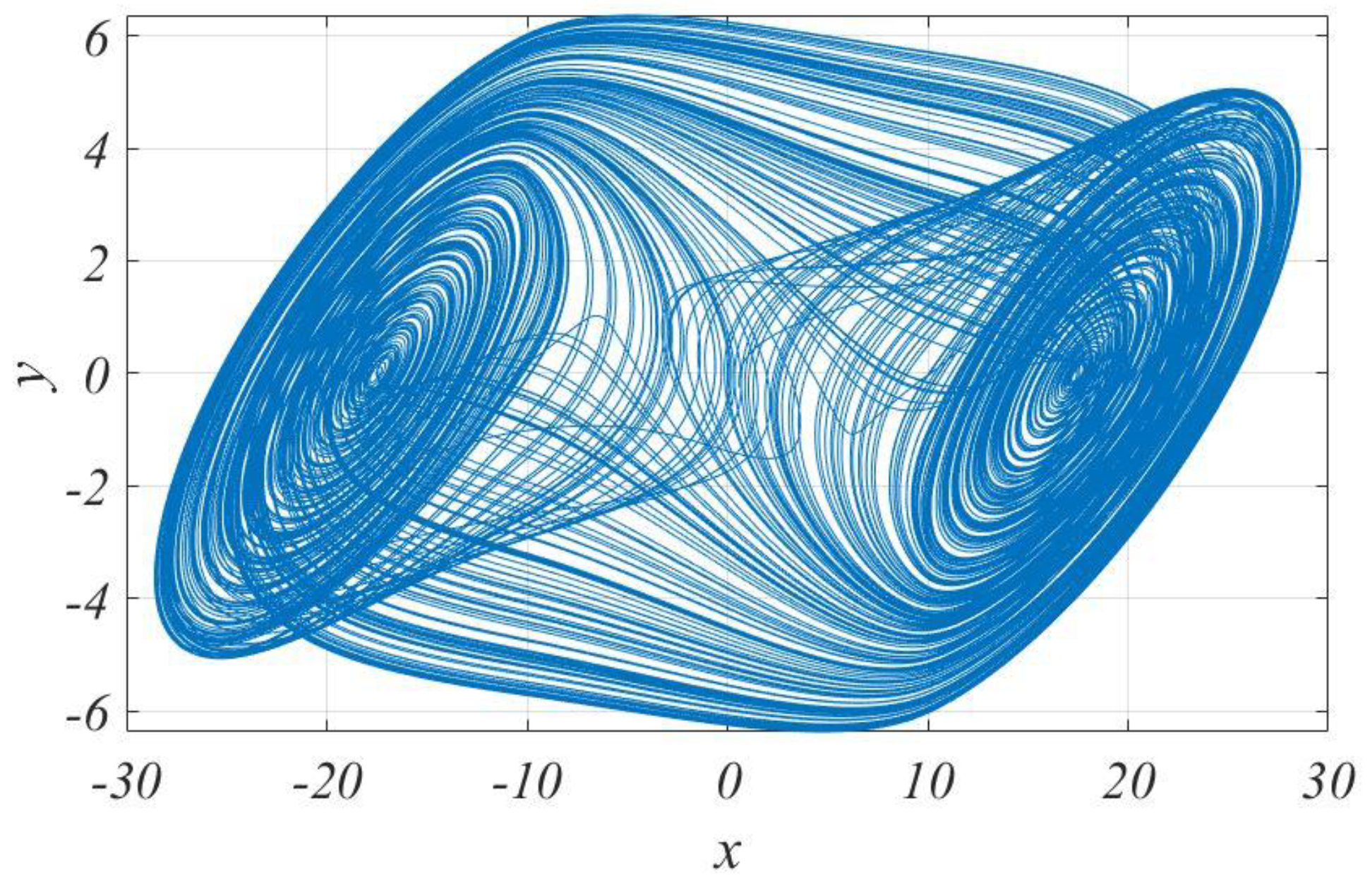

**A. Chua Oscillator Model**

**B. Modified Chua Oscillator Model**

**C. Dynamics of New Model**

- (1)

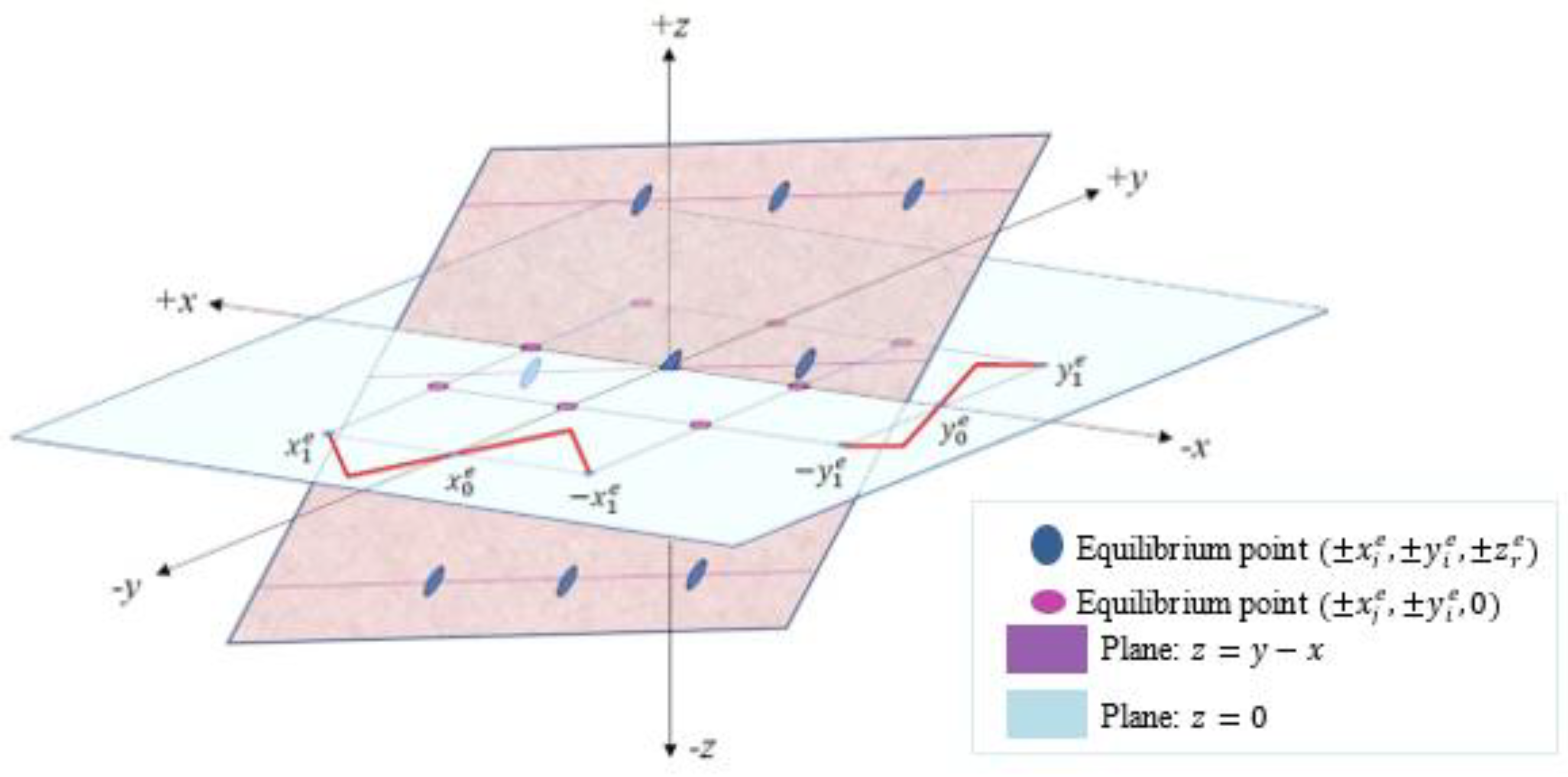

- Equilibrium points: As mentioned earlier, the distribution of saddle index-2 equilibrium points over the $xy$-plane to get a $2\mathrm{D}$ grid of scroll chaotic attractor. By setting $\dot{x}=\dot{y}=\dot{z}=0$, the equilibrium points can be discussed as follows:
- The equilibrium points $\pm {y}_{i}^{e}\left(i=0,1,2,\dots ,{q}_{{\xi}_{2}}-1\right)$ are located on the $y$-direction in the state space.One can deduce all positive equilibrium points by using the recursive formula which is given by$${y}_{1}^{e}=\frac{{\sum}_{i=1}^{i}\left({m}_{k}-{m}_{k-1}\right){\xi}_{2k}^{b}}{{m}_{1}},\phantom{\rule{0ex}{0ex}}{y}_{2}^{e}=\frac{{\sum}_{i=1}^{i}\left({m}_{k}-{m}_{k-1}\right){\xi}_{2k}^{b}}{{m}_{2}},\phantom{\rule{0ex}{0ex}}\vdots \phantom{\rule{0ex}{0ex}}{y}_{i}^{e}=\frac{{\sum}_{k=1}^{i}\left({m}_{k}-{m}_{k-1}\right){\xi}_{2k}^{b}}{{m}_{{q}_{2-1}}},$$
- For the equilibrium points $\pm {x}_{j}^{e}\left(j=0,1,2,\dots ,{q}_{{\xi}_{1}}-1\right)$ which are located on the $x$-direction in the state space. The positive equilibrium points:$${x}_{j}^{e}=\left(\frac{a}{b}\right)\frac{{\sum}_{k=1}^{j}\left({m}_{k}-{m}_{k-1}\right){\xi}_{k}^{b}}{{m}_{{q}_{1-1}}},$$
- For the equilibrium points $\pm {z}_{r}^{e}=\left(r=0,1,2,\dots ,\left({q}_{{\xi}_{1}}-1\right)\left({q}_{{\xi}_{2}}-1\right)\right)$ which are located on the z-direction in the state space. The positive equilibrium points:$${z}_{r}^{e}={y}_{i}^{e}-{x}_{j}^{e},i\in \left[0,1,2\dots .{q}_{{\xi}_{2}}\right],j\in \left[0,1,2\dots .{q}_{{\xi}_{1}}\right]$$

- (2)

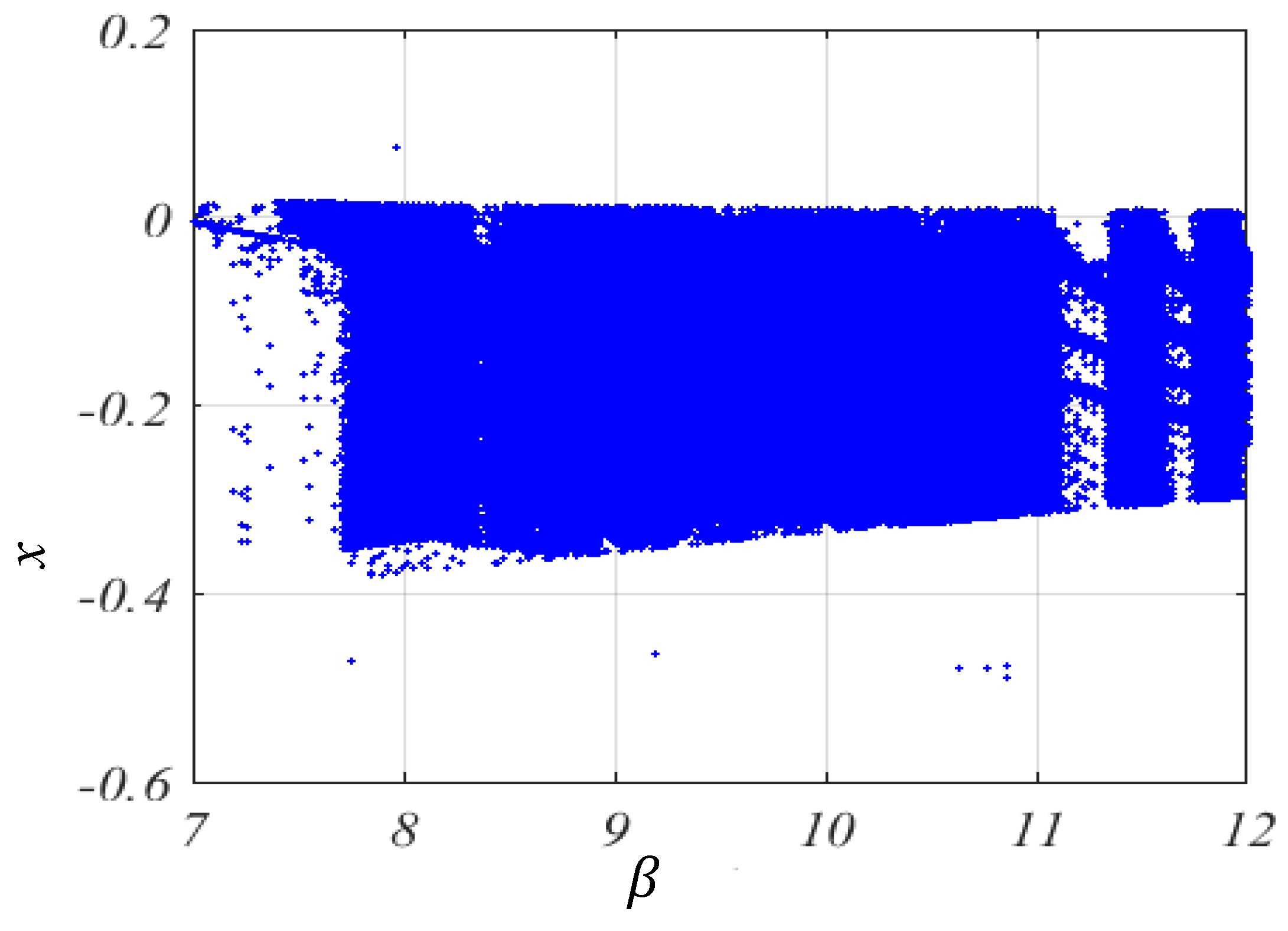

- Bifurcation diagram: To confirm the existence of chaos in the new system (3) with (4), assume that the case of ${q}_{\xi j}=3$. Then, $\beta \in \left[7,12\right]$. The bifurcation diagram of the parameter $\beta $ of system (3) with (4) can be obtained as illustrated in Figure 4.

**D. Numerical Simulation Results**

## 3. Design of CNN—Based New Chaotic System

## 4. CNN Circuit Implementation

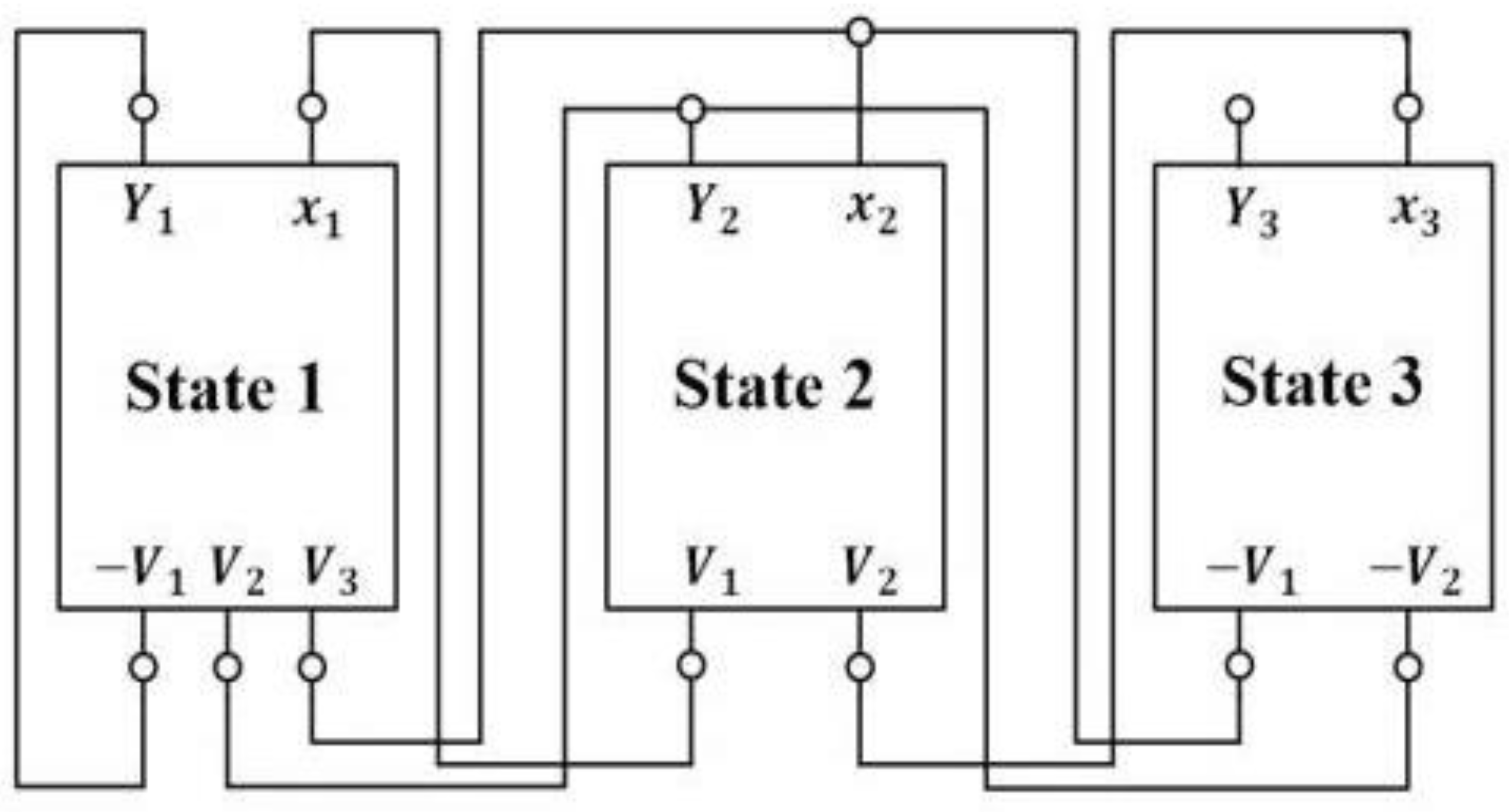

**N**is the first state variable generator; ${a}_{1}=\frac{{R}_{5}}{{R}_{3}}$, ${a}_{12}=\frac{{R}_{5}}{{R}_{2}}$, ${s}_{11}=\frac{{R}_{5}}{{R}_{4}}$, ${s}_{12}=\frac{{R}_{5}}{{R}_{1}}$._{1}**N**is the second state variable generator; ${s}_{23}=\frac{{R}_{10}}{{R}_{8}}$, ${s}_{21}=\frac{{R}_{10}}{{R}_{7}}$._{2}**N**is the third state variable generator; ${a}_{32}=\frac{{R}_{14}}{{R}_{13}}$, ${s}_{32}=\frac{{R}_{14}}{{R}_{12}}$._{3}**N**is an inverting amplifier block with unity gain._{4}- Both ${Y}_{1}\mathrm{and}{Y}_{2}$ are the nonlinearities of the CNN.

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Chua, L.; Komuro, M.; Matsumoto, T. The double scroll family: Part I: Rigorous Proof of chaos. IEEE Trans. Circuits Syst.
**1986**, 33, 1072–1118. [Google Scholar] [CrossRef] - Matsumoto, T.; Chua, L.O.; Komuro, M. Birth and death of the double scroll. Phys. D Nonlinear Phenomena
**1987**, 24, 97–124. [Google Scholar] [CrossRef] - Transaction, I.; Circuits, O.N. Canonical Realization of Chua’s. IEEE Trans. Circuits Syst.
**1990**, 37, 885–902. [Google Scholar] - Chua, L.O.; Wu, C.W.; Huang, A.S.; Zhon, G.Q. A Universal Circuit for Studying and Generating Chaos 2. Strange Attractors. IEEE Trans. Circuits Syst. I Fundam. Theory Appl.
**1993**, 40, 745–761. [Google Scholar] [CrossRef] - Zhong, G. Implementation of Chua’s Circuit with a Cubic Nonlinearity. IEEE Trans. Circuits Syst. I Fundam. Theory Appl.
**1994**, 41, 934–941. [Google Scholar] [CrossRef] - Wang, X.F.; Chen, G. Chaotification via arbitrarily small feedback controls: Theory, method, and applications. Int. J. Bifurcation Chaos
**2000**, 10, 549–570. [Google Scholar] [CrossRef] - Chen, G. On a generalized Lorenze canonical form of chaotic systems. Int. J. Bifurc. Chaos Appl. Sci. Eng.
**2002**, 12, 1789–1812. [Google Scholar] - Kong, H. A new chaotic attractor coined. Int. J. Bifurc. Chaos
**2002**, 12, 659–661. [Google Scholar] - Wang, L. Yet another 3D quadratic autonomous system generating three-wing and four-wing chaotic attractors. Chaos
**2014**, 19, 013107. [Google Scholar] [CrossRef] - Zhang, J.; Tang, W. A novel bounded 4D chaotic system. Nonlinear Dyn.
**2012**, 67, 2455–2465. [Google Scholar] [CrossRef] - Cicek, S.; UYAROĞLU, Y.; Pehlivan, I. Simulation and circuit implementation of sprott case H chaotic system and its synchronization application for secure communication systems. J. Circuits Syst. Comput.
**2013**, 22, 1350022. [Google Scholar] [CrossRef] - Suykens, J.A.K.; Vandewalle, J. Experimental Confirmation of 3- and 5-Scroll Attractors from a Generalized Chua’s Circuit. IEEE Trans. Circuits Syst. I Fundam. Theory Appl.
**2000**, 47, 425–429. [Google Scholar] - Ozo, S. Families of scroll grid attractors. Int. J. Bifurc. Chaos
**2002**, 12, 23–41. [Google Scholar] - Deng, W. Design of multidirectional multiscroll chaotic attractors based on fractional differential systems via switching control. Chaos
**2006**, 16, 043120. [Google Scholar] [CrossRef] [PubMed] - Lü, J.; Chen, G. Generating multiscroll chaotic attractors: Theories, methods. Int. J. Bifurc. Chaos
**2006**, 16, 775–858. [Google Scholar] [CrossRef] - Yu, S.; Lü, J.; Chen, G. Theoretical design and circuit implementation of multidirectional multi-torus chaotic attractors. IEEE Trans. Circuits Syst. I Regul. Pap.
**2007**, 54, 2087–2098. [Google Scholar] [CrossRef] - Lü, J.; Murali, K.; Sinha, S.; Leung, H.; Aziz-Alaoui, M.A. Generating multi-scroll chaotic attractors by thresholding. Phys. Lett. Sect. A Gen. Atomic Solid State Phys.
**2008**, 372, 3234–3239. [Google Scholar] [CrossRef] - Xu, F.; Yu, P. Chaos control and chaos synchronization for multi-scroll chaotic attractors generated using hyperbolic functions. J. Math. Anal. Appl.
**2010**, 362, 252–274. [Google Scholar] [CrossRef] [Green Version] - Liu, C.; Yi, J.; Xi, X.; An, L.; Qian, Y.; Fu, Y. Research on the Multi-Scroll Chaos Generation Based on Jerk Mode. Procedia Eng.
**2012**, 29, 957–961. [Google Scholar] [Green Version] - Zuo, T.; Sun, K.; Ai, X.; Wang, H. High-order grid multiscroll chaotic attractors generated by the second-generation current conveyor circuit. IEEE Trans. Circuits Syst. II Express Briefs
**2014**, 61, 818–822. [Google Scholar] [CrossRef] - Choo, L.C.; Ling, C. Superposition lattice coding for Gaussian broadcast channel with confidential message. In Proceedings of the 2014 IEEE Information Theory Workshop, Hobart, TAS, Australia, 2–5 November 2014; pp. 311–315. [Google Scholar]
- Yu, S.; Tang, W.K.S.; Lü, J.; Member, S.; Chen, G. Generation of n × m-Wing Lorenz-Like Attractors from a Modified Shimizu–Morioka Model. IEEE Trans. Circ. Syst. II Express Briefs
**2008**, 55, 1168–1172. [Google Scholar] [CrossRef] - Wang, F.-Q.; Liu, C.X. Generation of multi-scroll chaotic attractors via the saw-tooth function. Int. J. Modern Phys. B
**2008**, 22, 2399–2405. [Google Scholar] [CrossRef] - Lin, Y.; Wang, C.H.; Yin, J.W.; Hu, Y. A Simple Grid Multiscroll Chaotic Electronic Oscillator Employing CFOAs. Int. J. Bifurc. Chaos
**2014**, 24. [Google Scholar] [CrossRef] - Hu, X.; Liu, C.; Liu, L.; Yao, Y.; Zheng, G. Multi-scroll hidden attractors and multi-wing hidden attractors in a 5-dimensional memristive system. Chin. Phys. B
**2017**, 26. [Google Scholar] [CrossRef] - Tahir, F.R.; Ali, R.S.; Pham, V.T.; Buscarino, A.; Frasca, M.; Fortuna, L. A novel 4D autonomous 2n-butterfly wing chaotic attractor. Nonlinear Dyn.
**2016**, 85, 2665–2671. [Google Scholar] [CrossRef] - Schultz, A.; Rekeczky, C.; Szatmari, I.; Roska, T.; Chua, L.O. Spatio-temporal CNN algorithm for object segmentation and object recognition. In Proceedings of the 1998 Fifth IEEE International Workshop on Cellular Neural Networks and Their Applications, London, UK, 14–17 April 1998; pp. 347–352. [Google Scholar]
- Arena, P.; Baglio, S.; Fortuna, L.; Manganaro, G. Chua’s Circuit Can Be generalized by CNN Cells. IEEE Trans. Circuits Syst. I Fundam. Theory Appl.
**1995**, 42, 123–125. [Google Scholar] [CrossRef] - Rahma, F.; Fortuna, L.; Frasca, M. New Attractors and New Behaviors in the Photo-Controlled Chua’s Circuit. Int. J. Bifurc. Chaos
**2009**, 19, 329. [Google Scholar] [CrossRef] - Huang, X.; Zhao, Z.; Wang, Z.; Li, Y. Chaos and hyperchaos in fractional-order cellular neural networks. Neurocomputing
**2012**, 94, 13–21. [Google Scholar] [CrossRef] - Günay, E.; Altun, K. Multi-Scroll Chaotic Attractors in SC-CNN via Hyperbolic Tangent Function. Symmetry
**2018**, 7, 67. [Google Scholar] [CrossRef] - Günay, E.; Altun, K. Switched State Controlled-CNN: An Alternative Approach in Generating Complex Systems with Multivariable Nonlinearities Using CNN. Int. J. Bifurc. Chaos
**2018**, 28, 1830019. [Google Scholar] [CrossRef] - Arena, P.; Baglio, S.; Fortuna, L.; Manganaro, G. SC-CNN Based systems to realize a class of autonomous and coupled chaotic circuits. In Proceedings of the 1997 IEEE International Symposium on Circuits and Systems, Hong Kong, China, 9–12 June 1997. [Google Scholar]
- Chua, L.O.; Yang, L. Cellular Neural Network: Theory. IEEE Trans. Circ. Syst.
**1988**, 35, 1257–1272. [Google Scholar] [CrossRef] - Chua, L.O.; Yang, L. Cellular Neural Networks: Applications. IEEE Trans. Circuits Syst.
**1988**, 35, 1273–1290. [Google Scholar] [CrossRef] - Chua, L.O.; Roska, T. Cellular Neural Networks and Visual Computing: Foundations and Applications; Cambridge University Press: Cambridge, England, 2002. [Google Scholar]
- Deregel, P. Chua’s Oscillator: Azoo of attractors. J. Circuits Syst. Comput.
**1993**, 3, 309–359. [Google Scholar] [CrossRef] - Kevorkian, P. Snapshots of Dynamical Evolution of Attractors from Chua’s Oscillator. IEEE Trans. Circ. Syst.
**1993**, 40, 762–780. [Google Scholar] [CrossRef]

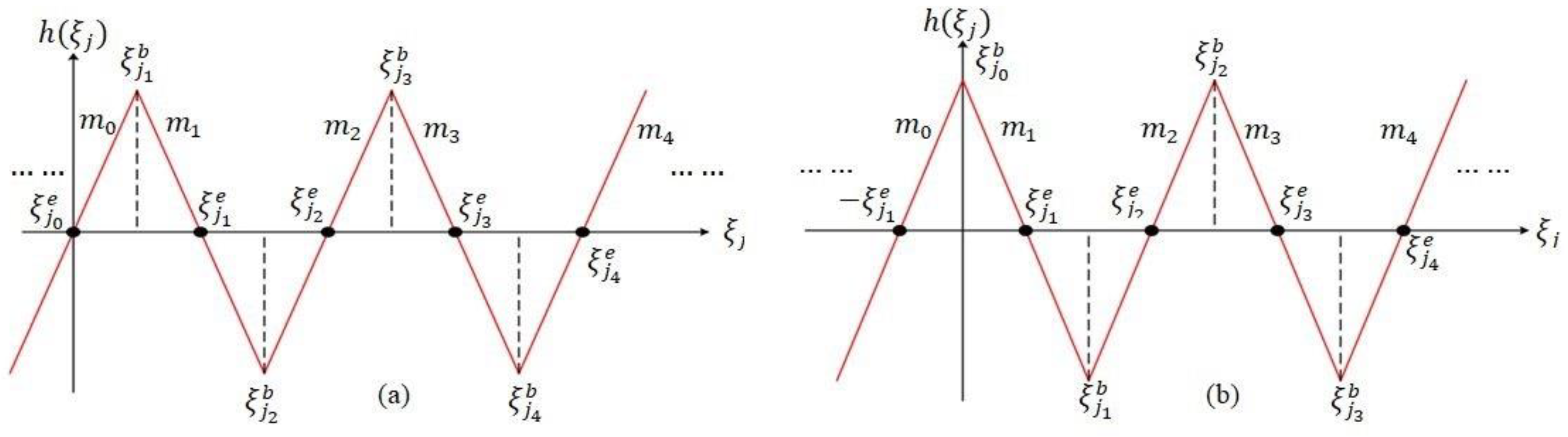

**Figure 2.**PWL function $h\left({\xi}_{j}\right)$: (

**a**) Odd number of scroll; (

**b**) Even number of scroll.

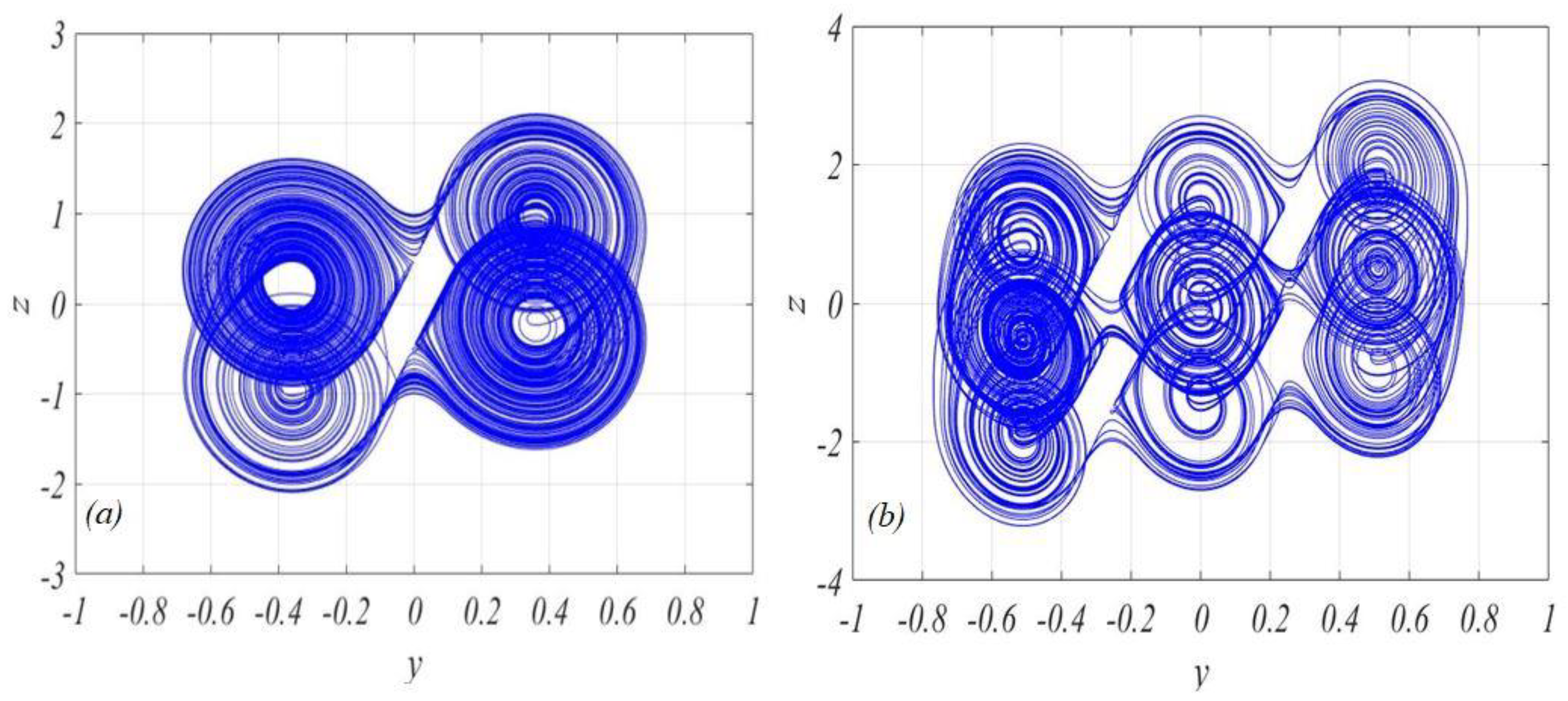

**Figure 5.**2D-grid of scroll chaotic attractor on $yz$-plane. (

**a**) $2\times 2$ grid (

**b**) $3\times 3$ grid.

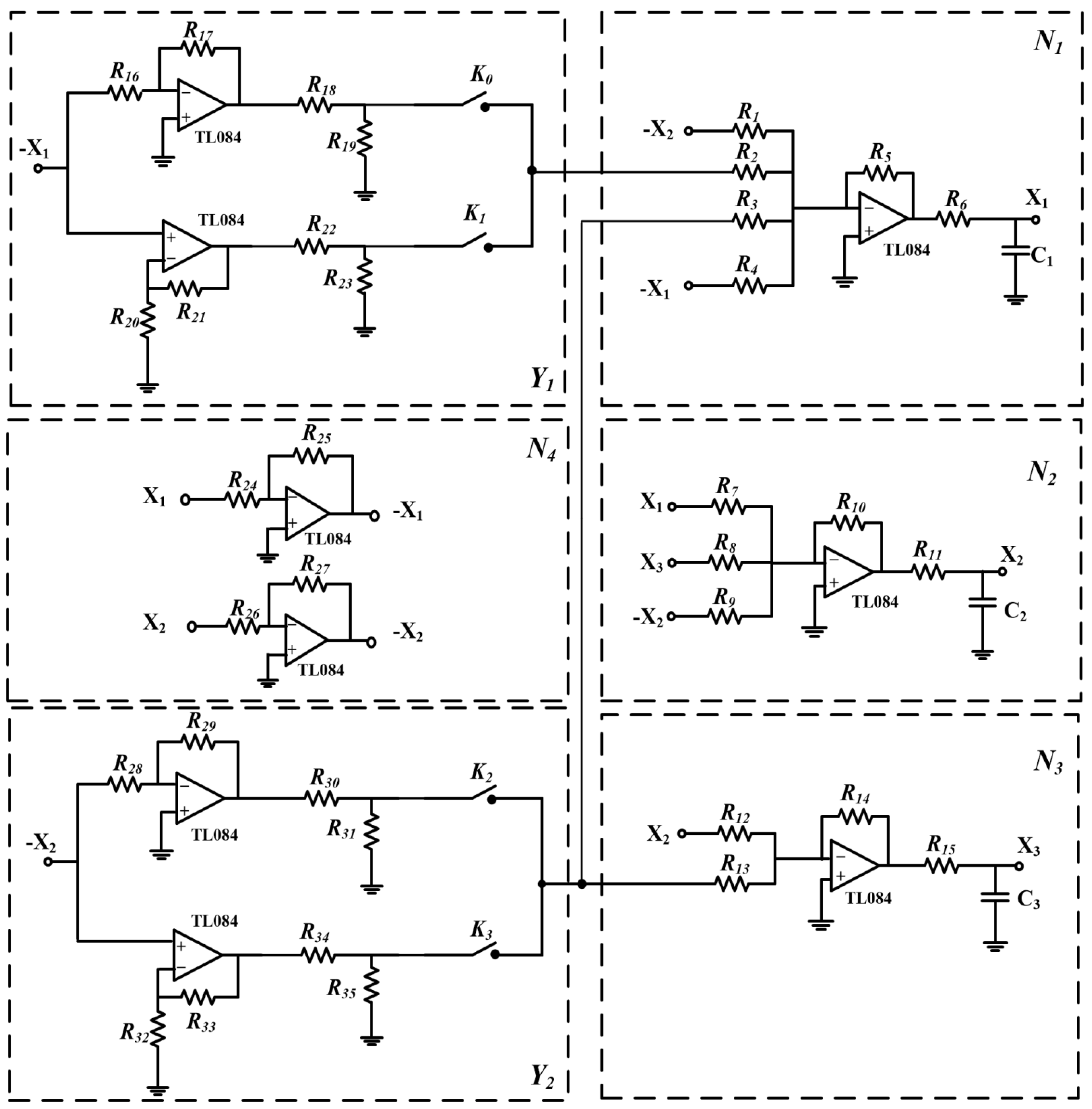

**Figure 7.**The CNN circuit scheme of system (13). The components are chosen as follows: ${\mathrm{R}}_{1}=0.1428\mathrm{k}\mathsf{\Omega}$, ${\mathrm{R}}_{2}=0.066\mathrm{k}\mathsf{\Omega}$, ${\mathrm{R}}_{3}=0.00396\mathrm{k}\mathsf{\Omega}$, ${\mathrm{R}}_{4}=0.4\mathrm{k}\mathsf{\Omega}$, ${\mathrm{R}}_{5}={R}_{7}={R}_{8}={R}_{9}={R}_{18}={R}_{19}={R}_{20}={R}_{22}={R}_{23}={R}_{24}={R}_{25}={R}_{26}={R}_{27}={R}_{30}={R}_{31}={R}_{32}={R}_{34}={R}_{35}=1\mathrm{k}\mathsf{\Omega}$, ${\mathrm{R}}_{6}=10\mathrm{k}\mathsf{\Omega}$, ${\mathrm{R}}_{11}=8\mathrm{k}\mathsf{\Omega}$, ${\mathrm{R}}_{12}=0.1\mathrm{k}\mathsf{\Omega}$, ${\mathrm{R}}_{13}=0.027778\mathrm{k}\mathsf{\Omega}$, ${\mathrm{R}}_{14}=1\mathrm{k}\mathsf{\Omega}$, ${\mathrm{R}}_{15}=5\mathrm{k}\mathsf{\Omega}$, ${R}_{16}={R}_{28}=10$ k$\mathsf{\Omega}$, ${R}_{17}={R}_{29}=1000$ k$\mathsf{\Omega}$, ${R}_{21}={R}_{33}=199$ k$\mathsf{\Omega}$, ${\mathrm{C}}_{1}={\mathrm{C}}_{2}={\mathrm{C}}_{3}=100\mathrm{nF}$.

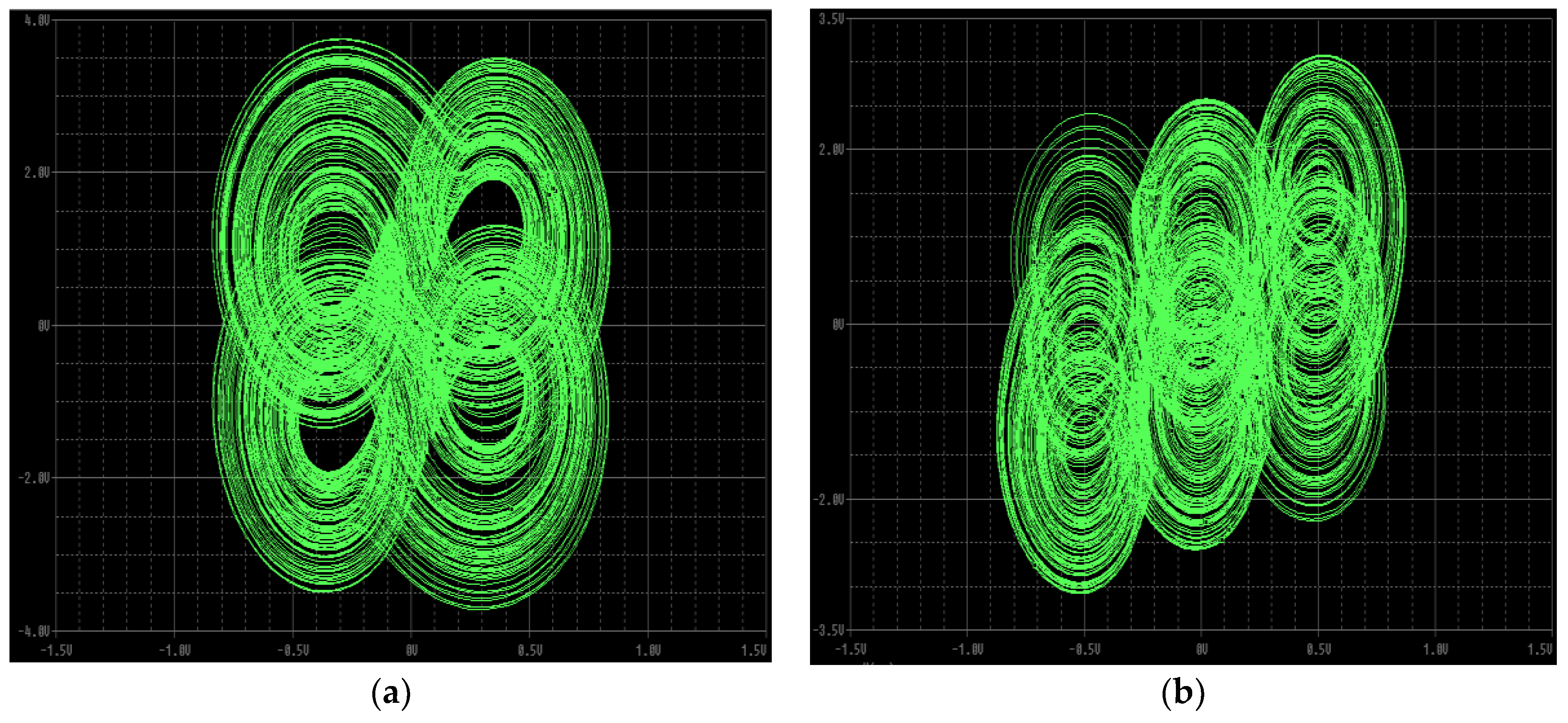

**Figure 8.**PSpice results. Phase portraits of $n\times m$ grid scroll attractors of CNN circuit as: (

**a**) $2\times 2$; (

**b**) $3\times 3$ on ${X}_{3}{X}_{2}$-projection, $x=0.5$ V/div, $y=2$ V/div.

Parameters | ${\mathit{a}}_{1}$ | ${\mathit{a}}_{12}$ | ${\mathit{a}}_{32}$ | ${\mathit{s}}_{11}$ | ${\mathit{s}}_{12}$ | ${\mathit{s}}_{21}$ | ${\mathit{s}}_{23}$ | ${\mathit{s}}_{32}$ | ${\mathit{s}}_{33}$ | |
---|---|---|---|---|---|---|---|---|---|---|

Grid | ||||||||||

2 × 2-scroll | 15.0 | −25.2 | 36.0 | −1.5 | 7.0 | 1.0 | 1.0 | −10.0 | 1.0 | |

3 × 3-scroll | −7.5 | 46.2 | −66.0 | −1.625 | 15.4 | 1.0 | 1.0 | −22.0 | 1.0 |

Switch | ${\mathit{K}}_{0}$ | ${\mathit{K}}_{1}$ | ${\mathit{K}}_{2}$ | ${\mathit{K}}_{3}$ | |
---|---|---|---|---|---|

Grids | |||||

2 × 2-scroll | ON | OFF | ON | OFF | |

3 × 3-scroll | ON | ON | ON | ON |
