# Optimal Allocation of Virtual Machines in Cloud Computing

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

- Global optimality guarantee: Compared with heuristic methods, the proposed approach transforms the virtual machine placement problem into a mixed-integer linear programming problem and is thus guaranteed to reach a global optimum.
- Computational efficiency enhancement: Compared with the existing deterministic method [5], the proposed method adds appropriate constraints to reduce the number of feasible solutions for enhancing computational efficiency.

## 2. Literature Review

- Heuristic Bin Packing: The VM placement problem is formulated as vector bin packing. VMs are considered to be small items that are tightly packed into the minimum number of bins, each considered a PM. Several heuristic methods are developed to approximate the optimal solution to this packing problem.
- Biology-based optimization: Several bio-inspired optimization techniques such as the ant colony optimization method, the self-adaptive particle swarm optimization method, and genetic algorithms are applied to pack VMs into the smallest number of PMs, given the current workload.
- Linear programming: The VM placement problem is constructed as a linear programming problem which considers a number of constraints derived from practical applications. LP-relaxation-based methods are developed to solve the formulated model.
- Constraint programming: Van et al. [11] have presented a resource management framework, which includes a dynamic utility-based VM provisioning manager and a dynamic VM placement manager, to obtain a suitable VM-PM mapping. Both management tasks are regarded as constraint satisfaction problems. More practical aspects can be taken into consideration by extending the constraints in these problems.
- Stochastic integer programming: Because the future demand of VM for providing network services is uncertain, the stochastic integer programming technique is used to predict a suitable VM-PM mapping.
- Simulated annealing optimization: Liao et al. [12] have proposed a dynamic runtime mapping framework that adopts a simulated annealing optimization algorithm to map VMs onto a small set of PMs in order to minimize power consumption without significant system degradation.

- N: set of data centers;
- K: set of virtual machines;
- U: set of users;
- ${a}_{i}$: capacity in number of VMs that data center i can host;
- ${B}_{ij}$: bandwidth between data centers i and j;
- ${L}_{ij}$: latency between data centers i and j;
- ${C}_{ij}$: cost of transferring a unit of data between data centers i and j;
- ${b}_{vw}$: required bandwidth between VMs v and w;
- ${l}_{vw}$: required latency between VMs v and w;
- ${t}_{vu}$: required latency between user u and VM v;
- d(u): the data center which hosts user u;
- ${c}_{iv}$: cost of allocating VM v in data center i;
- $z$: scaling cost factor.

## 3. Proposed Method

## 4. Numerical Experiments

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Usmani, Z.; Singh, S. A survey of virtual machine placement techniques in a cloud data center. Procedia Comput. Sci.
**2016**, 78, 491–498. [Google Scholar] [CrossRef] - Dong, J.; Jin, X.; Wang, H.; Li, Y.; Zhang, P.; Cheng, S. Energy-saving virtual machine placement in cloud data centers. In Proceedings of the 13th IEEE/ACM International Symposium on Cluster, Cloud, and Grid Computing (CCGrid 2013), Delft, The Netherlands, 13–16 May 2013; pp. 618–624. [Google Scholar]
- Silva Filho, M.C.; Monteiro, C.C.; Inácio, P.R.M.; Freire, M.M. Approaches for optimizing virtual machine placement and migration in cloud environments: A survey. J. Parallel Distrib. Comput.
**2018**, 111, 222–250. [Google Scholar] [CrossRef] - Greenberg, A.; Hamilton, J.R.; Jain, N.; Kandula, S.; Kim, C.; Lahiri, P.; Sengupta, S. VL2: A scalable and flexible data center network. ACM SIGCOMM Comput. Commun. Rev.
**2009**, 39, 51–62. [Google Scholar] [CrossRef] - Stefanello, F.; Buriol, L.S.; Aggarwal, V.; Resende, M.G. A new linear model for placement of virtual machines across geo-separated data centers. Simpsio Bras. Pesqui. Oper.
**2005**, 47, 1–11. [Google Scholar] - Song, W.; Xiao, Z.; Chen, Q.; Luo, H. Adaptive resource provisioning for the cloud using online bin packing. IEEE Trans. Comput.
**2014**, 63, 2647–2660. [Google Scholar] [CrossRef] - Beloglazov, A.; Buyya, R. Managing overloaded hosts for dynamic consolidation of virtual machines in cloud data centers under quality of service constraints. IEEE Trans. Parallel Distrib. Syst.
**2013**, 24, 1366–1379. [Google Scholar] [CrossRef] - Ghobaei-Arani, M.; Rahmanian, A.A.; Shamsi, M.; Rasouli-Kenari, A. A learning-based approach for virtual machine placement in cloud data centers. Int. J. Commun. Syst.
**2018**, 31. [Google Scholar] [CrossRef] - Bobroff, N.; Kochut, A.; Beaty, K. Dynamic placement of virtual machines for managing SLA violations. In Proceedings of the 10th IFIP/IEEE International Symposium on Integrated Network Management, Munich, Germany, 21–25 May 2007; pp. 119–128. [Google Scholar]
- Zheng, Q.; Li, R.; Li, X.; Shah, N.; Zhang, J.; Tian, F.; Chao, K.M.; Li, J. Virtual machine consolidated placement based on multi-objective biogeography-based optimization. Future Gener. Comput. Syst.
**2016**, 54, 95–122. [Google Scholar] [CrossRef] - Van, H.N.; Tran, F.D.; Menaud, J.-M. Performance and power management for cloud infrastructures. In Proceedings of the IEEE 3rd International Conference on Cloud Computing (CLOUD 2010), Miami, FL, USA, 5–10 July 2010; pp. 329–336. [Google Scholar]
- Liao, X.; Jin, H.; Liu, H. Towards a green cluster through dynamic remapping of virtual machines. Future Gener. Comput. Syst.
**2012**, 28, 469–477. [Google Scholar] [CrossRef] - Guo, C.; Lu, G.; Wang, H.J.; Yang, S.; Kong, C.; Sun, P.; Wu, W.; Zhang, Y. SecondNet: A Data Center Network Virtualization Architecture with Bandwidth Guarantees. In Proceedings of the 6th International Conference (Co-NEXT ’10), Philadelphia, PA, USA, 30 November–3 December 2010. Article No. 15. [Google Scholar]
- Ballani, H.; Costa, P.; Karagiannis, T.; Rowstron, A. Towards predictable datacenter networks. ACM SIGCOMM Comput. Commun. Rev.
**2011**, 41, 242–253. [Google Scholar] [CrossRef] - Xie, D.; Hu, Y.C. The only constant is change: Incorporating time-varying network reservations in data centers. ACM SIGCOMM Comput. Commun. Rev.
**2012**, 42, 199–210. [Google Scholar] [CrossRef] - Stefanello, F.; Aggarwal, V.; Buriol, L.S.; Gonçalves, J.F.; Resende, M.G. A biased random-key genetic algorithm for placement of virtual machines across geo-separated data centers. In Proceedings of the 2015 Conference on Genetic and Evolutionary Computation (GECCO’15), Madrid, Spain, 11–15 July 2015; pp. 919–926. [Google Scholar]
- Lee, C.G.; Ma, Z. The Generalized Quadratic Assignment Problem; Technical Report; Department of Mechanical and Industrial Engineering at the University of Toronto: Toronto, ON, Canada, 2004. [Google Scholar]
- Frieze, A.M.; Yadegar, J. On the quadratic assignment problem. Discret. Appl. Math.
**1983**, 5, 89–98. [Google Scholar] [CrossRef]

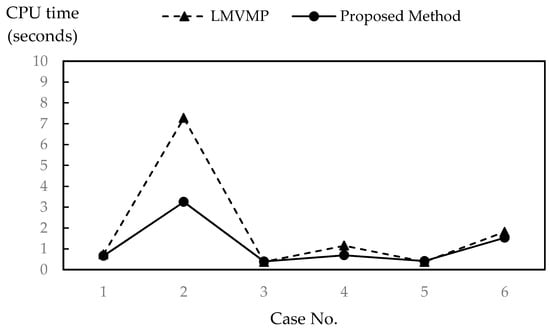

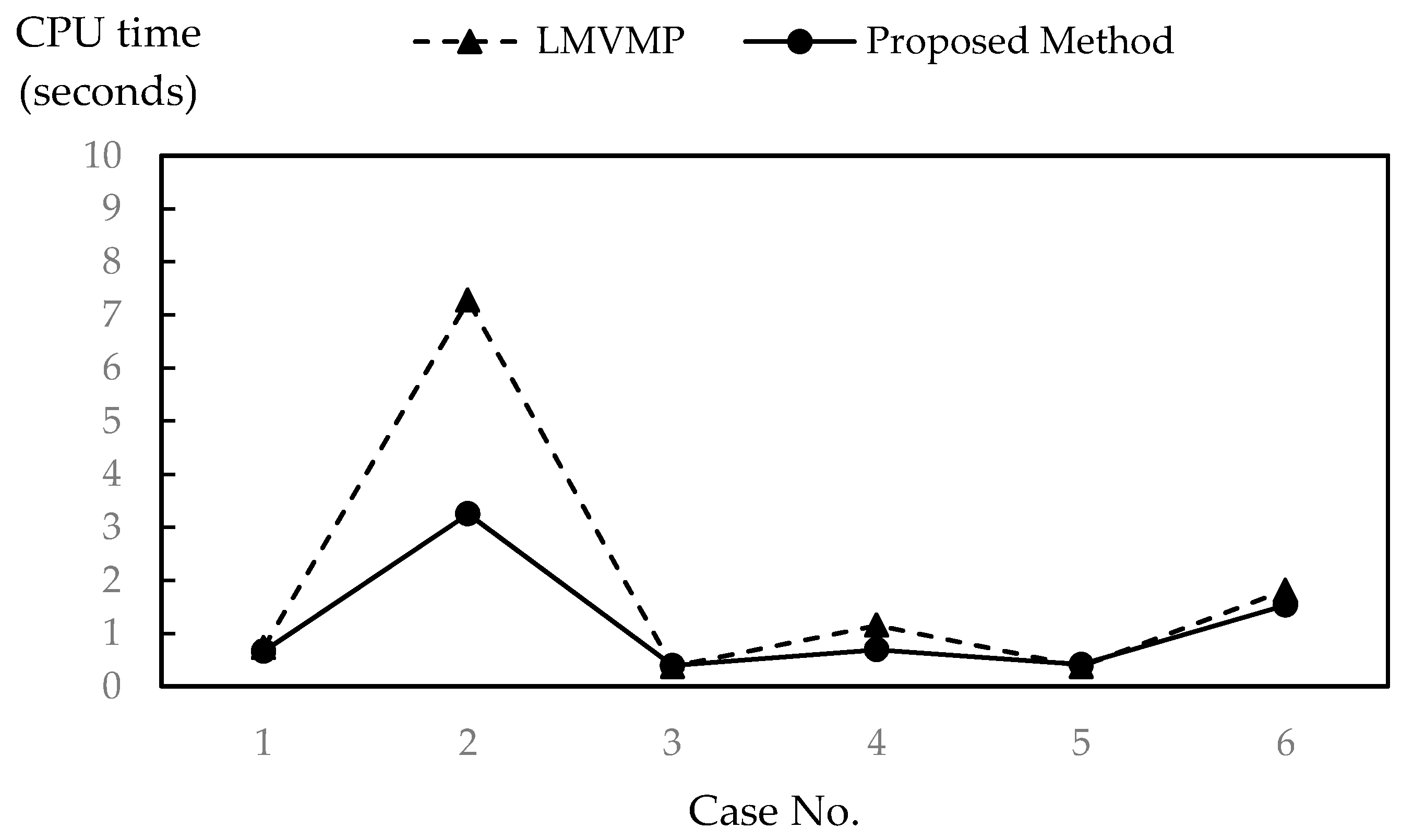

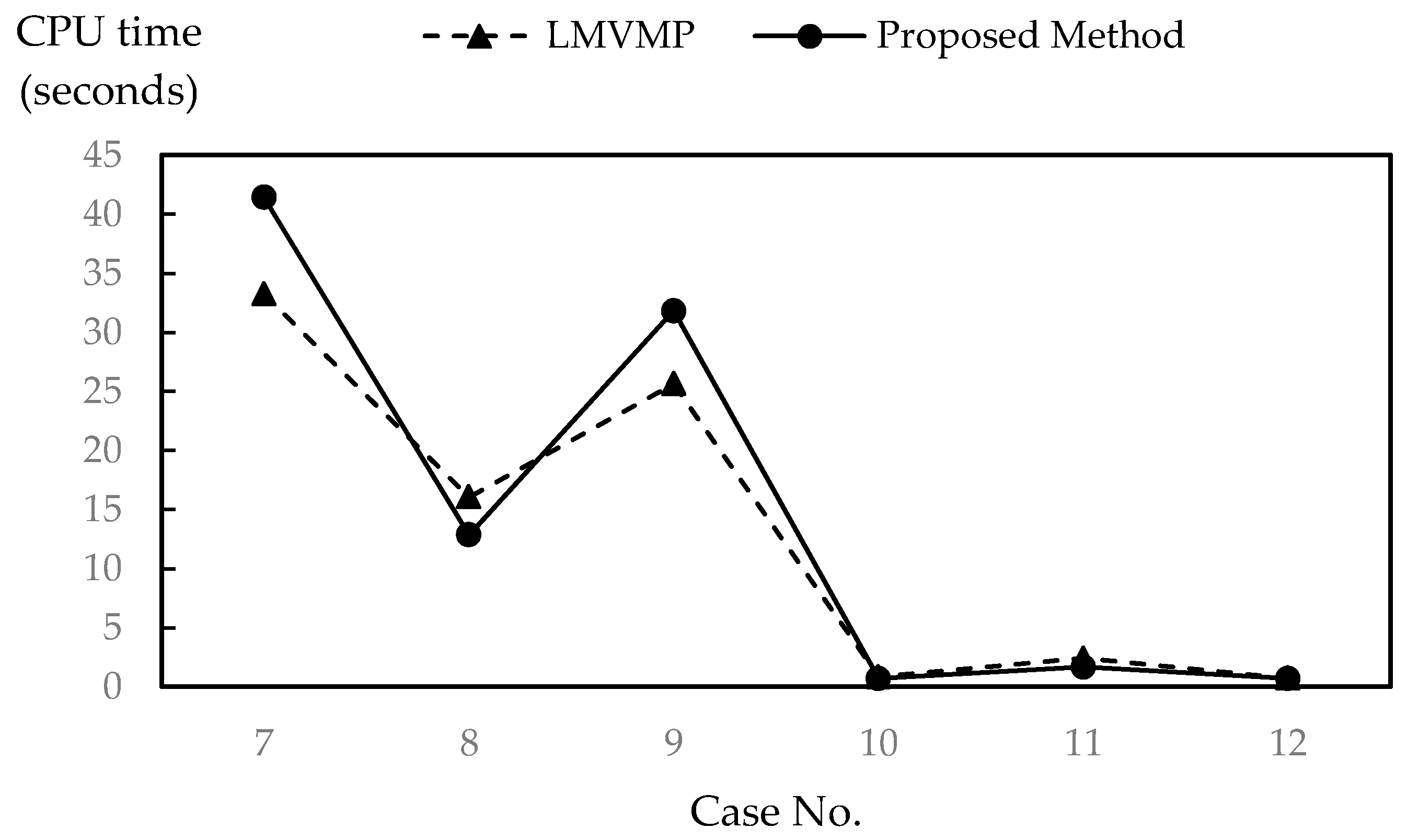

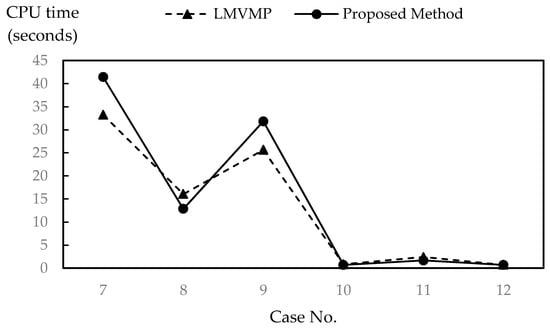

**Table 1.**Experimental results of the LMVMP (Linear Model for the VM Placement) model [5] and the proposed method.

Case No. | Instance | Objective | CPU Time (Seconds) | |
---|---|---|---|---|

LMVMP | Proposed Method | |||

1 | 005_015_007_070 | 25,844.02 | 0.73 | 0.66 |

2 | 005_015_007_090 | 23,557.30 | 7.27 | 3.25 |

3 | 005_015_015_070 | 10,904.78 | 0.37 | 0.39 |

4 | 005_015_015_090 | 24,354.96 | 1.15 | 0.69 |

5 | 005_015_022_070 | 14,163.60 | 0.37 | 0.41 |

6 | 005_015_022_090 | 32,318.02 | 1.81 | 1.53 |

7 | 005_020_010_070 | 38,572.62 | 33.24 | 41.43 |

8 | 005_020_010_090 | 64,710.80 | 16.07 | 12.86 |

9 | 005_020_020_070 | 55,288.76 | 25.65 | 31.81 |

10 | 005_020_020_090 | 57,574.90 | 0.83 | 0.70 |

11 | 005_020_030_070 | 28,433.34 | 2.42 | 1.68 |

12 | 005_020_030_090 | 66,088.70 | 0.73 | 0.70 |

13 | 005_025_012_070 | 43,300.76 | 154.39 | 151.15 |

14 | 005_025_012_090 | 10,0865.02 | N/A * | 6877.55 |

15 | 005_025_025_070 | 42,890.40 | 10.75 | 13.96 |

16 | 005_025_025_090 | 103.791.96 | N/A * | 8021.09 |

17 | 005_025_037_070 | 97,335.12 | 16.24 | 27.81 |
