Article

Assessing the Impact of Deforestation on Decadal Runoff Estimates in Non-Homogeneous Catchments of Peninsula Malaysia

1
Centre of Disaster Risk Reduction (CDRR), Lee Kong Chian Faculty of Engineering & Science, Universiti Tunku Abdul Rahman, Jalan Sungai Long, Kajang 43000, Malaysia
2
Centre for Photonics and Advanced Materials Research, Lee Kong Chian Faculty of Engineering & Science, Universiti Tunku Abdul Rahman, Jalan Sungai Long, Kajang 43000, Malaysia
3
School of Banking and Finance, Asia Pacific University, Technology Park Malaysia, Kuala Lumpur 57000, Malaysia
*
Author to whom correspondence should be addressed.
Water 2023, 15(6), 1162; https://doi.org/10.3390/w15061162
Submission received: 11 February 2023 / Revised: 12 March 2023 / Accepted: 14 March 2023 / Published: 17 March 2023
(This article belongs to the Special Issue Modelling Hydrologic Response of Non-homogeneous Catchments II)

Abstract

:
This study calibrated the Soil Conservation Service Curve Number (SCS-CN) model to predict decadal runoff in Peninsula Malaysia and found a correlation between the reduction of forest area, urbanization, and an increase in runoff volume. The conventional SCS-CN runoff model was found to commit a type II error in this study and must be pre-justified with statistics and calibrated before being adopted for any runoff prediction. Between 1970 and 2000, deforestation in Peninsula Malaysia caused a decline in forested land by 25.5%, resulting in a substantial rise in excess runoff by 10.2%. The inter-decadal mean runoff differences were more pronounced in forested and rural catchments (lower CN classes) compared to urban areas. The study also found that the CN value is a sensitive parameter, and changing it by ±10% can significantly impact the average runoff estimate by 40%. Therefore, SCS practitioners are advised not to adjust the CN value for better runoff modeling results. Additionally, NASA’s Giovanni system was used to generate 20 years of monthly rainfall data from 2001–2020 for trend analysis and short-term rainfall forecasting. However, there was no significant uptrend in rainfall within the period studied, and occurrences of flood and landslide incidents were likely attributed to land-use changes in Peninsula Malaysia.

1. Introduction

Humans have significantly altered the earth’s surface over time by transforming natural areas into industrial or agricultural regions. In the case of Malaysia, as a developing country, there has been extensive land-use and land-cover change since the 1970s. The rapid pace of development in Peninsula Malaysia has resulted in changes to the landscape and vegetation. These activities have had an uneven impact on the drainage basins, leading to changes in runoff patterns. Human activities, especially deforestation, have a greater impact on vegetation cover and the environment at local, regional, and global levels. Land-use and water cycle patterns are also influenced by anthropogenic activities, particularly deforestation, which has cleared the way for urban development. As a result, it is crucial to explore and estimate the impact of development activities on runoff patterns in rural catchments in Malaysia [1,2,3].
Forests are an essential element in sustaining our supply of water [4,5,6,7,8]. However, to make room for development, many forested areas have been cleared [9,10,11,12,13,14,15]. Between 2002 and 2020, Malaysia lost 27,000 km2 (roughly 2/3 of Switzerland or nearly 39 Singapores) [16] of humid primary forest area at the clearing rate of 1421 km2/year within 19 years. This had resulted in a 17% reduction of humid primary forest in Malaysia within the given time period [17]. Compared to the deforestation of an area of 13,000 km2 from 1978 to 1994 [18], the forest-clearing rate in Malaysia has doubled in recent decades. Deforestation challenged the quality and quantity of water [19] and caused significant hydrological changes which included an increase in runoff [20,21].
Interception losses in tropical and subtropical rainforests have been shown to vary from 6 to 42% of rainfall [22,23,24]. Meanwhile in Malaysia and Indonesia, forest interception loss was reported from 12.7% to 21% [25,26]. Forest removal will convert the interception losses into a contributing factor to increase surface runoff. Past research studies have investigated rainforest conversion and its hydrological impact [27,28,29,30,31,32,33,34]. Zhang et al. [35] reported that a reduction of forest cover from 22% to 10% caused changes in river discharge in China. Sharma et al. [36] concluded that under projected land-use scenarios, runoff would increase when forest areas were converted into agricultural land in the central Himalayas.
The conversion of natural land has increased the surface runoff while rapid urbanization and industrialization have been cited as the main causes of major flooding in Malaysia [37,38]. Many researchers quantified the effects on hydrological parameters as due to changes in vegetation cover or forest logging activities [39,40,41,42,43,44], while urbanization was also identified to be a key factor in landscape alteration, causing an increase in runoff. River discharge can also be affected by human interventions. The landscape alteration caused faster runoff from storms, increased peak flows and changed hydrologic cycles [45,46,47]. Sahin and Hall [48] reported that a 10% reduction in canopy cover resulted in a 20 to 25 mm increase in annual water yield while Bosh and Heewlett [39] found that a 10% removal increased the water yield by an average of 40 mm. Although flooding is a response to the complex hydrological system, the dynamic changes are caused by anthropogenic factors to mother nature.
The Soil Conservation Services (SCS) of the United States has developed a widely accepted methodology, called the Curve Number (CN), to estimate the direct runoff from rainfall in hydrological studies. This method is based on the concept that the amount of runoff produced by a rainfall event depends on various factors, such as land use, soil type, and the antecedent moisture condition of the soil. The SCS-CN method uses a CN value that represents the combined effect of these factors on runoff generation, ranging from 0 to 100. This value is used in an equation to estimate the amount of direct runoff from rainfall. The SCS-CN method is commonly used in watershed management, flood forecasting, and erosion control planning, and has been widely adopted by government agencies worldwide, integrated into software, and taught in hydrology courses.
However, studies around the world in recent decades reported runoff prediction accuracy problems with the conventional SCS-CN model [49,50]. Previous studies have utilized the SCS Curve Number (CN0.2) to demonstrate variations in runoff response due to agricultural land-use and seasonal changes [51]. This paper applied the SCS-CN model calibration methodology with inferential statistics that was developed by authors in a previous study [50] and demonstrated the extended application to model decadal rainfall-runoff conditions in Peninsula Malaysia. The correlation between deforestation and urbanization on runoff increment in Peninsula Malaysia was also established.

2. Materials and Methods

2.1. Study Site and Data Collection

Peninsula Malaysia, with a land area of 132,265 km2, is slightly larger than England (130,395 km2). It is bordered by Thailand to the north and Singapore across the strait of Johor to the south. This study utilized the calibrated SCS lump rainfall-runoff model in conjunction with the most recent rainfall-runoff dataset published by the Malaysian federal agency. The dataset, which can be located in the appendix of the Department of Irrigation and Drainage’s Hydrological Procedures no. 27 (DID HP 27), documented 227 storm events across 41 distinct catchments between 1970 and January 2000 in Peninsula Malaysia [52]. The smallest recorded storm event had a rainfall depth of 19 mm, with a measurable runoff depth of 4.8 mm, while the largest event measured 420 mm in rainfall depth and 258 mm in runoff depth.
In this study, the DID HP 27 dataset was divided into three periods to investigate the potential relationship between decadal runoff conditions, urban population growth in Peninsula Malaysia, and deforestation data provided by the Forestry Department Peninsula Malaysia [53,54,55,56,57,58,59]. This study grouped 58 recorded storm events from 1970 to 1979 as the M70 dataset, 81 events from 1980 to 1989 as the M80 dataset, and 88 events from 1990 to January 2000 as the M90 dataset for runoff analyses and comparison.

2.2. Calibration of SCS-CN Model

The SCS initially developed the CN rainfall-runoff model (Equation (1)) for the federal flood control program in 1954, and it has since become the basic model for runoff estimation.
Q = P I a 2 P I a + S
Q = Runoff depth (mm)
P = Rainfall depth (mm)
Ia = Rainfall initial abstraction amount (mm)
S = Catchment maximum water retention potential (mm)
where Ia = λS. If P < Ia, Q = 0.
The SCS also put forth the hypothesis that Ia = λS = 0.2S, where λ represents the initial abstraction ratio coefficient, which was proposed as a constant value of 0.2. The justification for Equation (1) was based on daily rainfall and runoff data, rather than event measurements, and its only official documentation source can be found in the National Engineering Handbook, Section 4 (NEH-4) [60,61]. By substituting Ia = 0.2S, Equation (1) is simplified into Equation (2):
Q = P 0.2 S 2 P + 0.8 S
DID HP 27 dataset was used to assess the SCS-CN rainfall-runoff model in authors’ previous study [50] with inferential statistics and concluded that the existing SCS-CN model is not even statistically significant at alpha = 0.05 level for runoff predictions in Peninsula Malaysia. Therefore, it must be calibrated according to the local rainfall-runoff dataset and the key parameter λ must be derived to formulate a statistically significant rainfall-runoff model for Peninsula Malaysia. All statistical analyses were performed using the IBM SPSS software version 26.0 in this study [62].
The SCS model was calibrated according to each decadal rainfall-runoff data batch and the calibrated runoff predictive models were formulated with the newly derived λ value to represent the aforementioned decadal rainfall-runoff conditions. Inter-decadal runoff difference can then be mapped with the runoff difference between newly formulated decadal rainfall-runoff models while non-parametric statistics were used for runoff trend analyses.
This study also re-assessed the validity of Equation (1) on the entire M70, M80, and M90 datasets through the reverse derivation of the λ value. Equation (2) will be discarded if the inferential statistics of the P-Q dataset reject the validity of λ = 0.2. Equation (1) will then be calibrated according to the P-Q data pairs of M70, M80, and M90. Non-parametric inferential statistics, bootstrapping, and Bias Corrected and Accelerated (BCa) procedure (2000 samples with replacement) were conducted in SPSS on each batch of derived λ and S values in order to search for optimum values within the confidence intervals at alpha 0.01 level. The λ confidence intervals’ span can be used to assess the null hypothesis H0 as shown below:
Null Hypothesis (H0): Equation (2) (λ = 0.2) is valid to model runoff estimates with DID HP 27 dataset.
The SCS-CN model calibration of this study consists of the following steps:
  • Rearrange Equation (1) into: S = ( P I a ) 2 Q + I a P
  • For each P-Q event pair, calculate the corresponding S value with the above equation under the SCS constraint that Ia < P value and calculate the λ value with λ = Ia/S.
  • Conduct bootstrap, BCa (at α = 0.01 level) inferential statistical analyses (2000 samples with replacement) for the calculated λ and S datasets separately for each decadal model.
  • Generate 99% confidence intervals for λ and S datasets for each decadal model.
  • Test the null hypothesis (H0) by referring to the λ confidence intervals’ span and its standard deviation for each decadal model. If the λ = 0.2 value exists within the λ confidence interval, use Equation (2) to model rainfall-runoff. Otherwise, move to step 6.
  • Find the optimum λ and S values from BCa confidence intervals and calculate Ia for each decadal model using supervised optimization technique by minimizing the overall model bias (BIAS) near to the value of zero.
  • Formulate the calibrated SCS model by substituting Ia and S into Equation (1).
  • According to a group of researchers [63], when λ value other than 0.2 is detected, its corresponding S value (denoted by Sλ) must be correlated to the S0.2 values for CN calculation. As such, correlate Sλ and S0.2 with the S general formula which was derived by a past researcher [50]: S λ = P λ 1 Q 2 λ P Q P 2 + P λ 1 Q 2 λ 2 λ
  • Substitute optimum λ and Sλ into Equation (1) to formulate the decadal model.
  • Lastly, substitute S 0.2 = 25,400 C N 0.2 254 into each decadal model to express Q in term of P and CN0.2.
Note: Appendix B shows step 9 and 10 using an example.

2.3. IMERG Satellite Rainfall Trend Analysis

The Integrated Multi-Satellite Retrievals for Global Precipitation Measurement (IMERG) [64] is a unified satellite product that has been launched by NASA and JAXA. This product combines, calibrates, and integrates satellite microwave precipitation estimates with microwave-calibrated infrared satellite estimates, precipitation gauge analyses, and other precipitation estimators, in order to provide precipitation measurements at fine time and space scales across the globe. There are three types of IMERG systems: Early (IMERG-E), Late (IMERG-L), and Final (IMERG-F) runs, with latency times of 6 h, 18 h, and 3 months, respectively. All IMERG runs are available at half-hourly, daily, and monthly temporal resolutions, and have global coverage at a spatial resolution of 0.1°.
In this study, the IMERG-F monthly version 6 product at a spatial resolution of 0.1° was employed, as it has been bias-corrected using precipitation gauges from the Global Precipitation Climatology Centre (GPCC) and is considered more accurate for scientific research compared with other IMERG products. The data can be accessed through NASA’s Giovanni system [65]. Monthly rainfall data from 2001 to 2020 (Appendix A) was obtained from the Giovanni system to demonstrate the annual rainfall distribution across Malaysia.
Trend analysis was conducted on the monthly rainfall data in Malaysia. Before conducting the analysis, a normality test was performed to determine which central of tendency (mean or median) was to be used. If a dataset has less than 2000 samples, the Shapiro-Wilk test is recommended instead of the Kolmogorov-Smirnov test. This study used a dataset with less than 2000 samples; therefore, the Shapiro-Wilk test was employed. If the p-value is greater than 0.05, the dataset is considered to be normally distributed, and therefore, mean is used to measure the central tendency of the dataset [50]. The non-parametric inferential statistics using the BCa bootstrapping method was conducted on 2000 random samples (with replacement) to calculate the 99% confidence intervals of the mean or median for each interval.

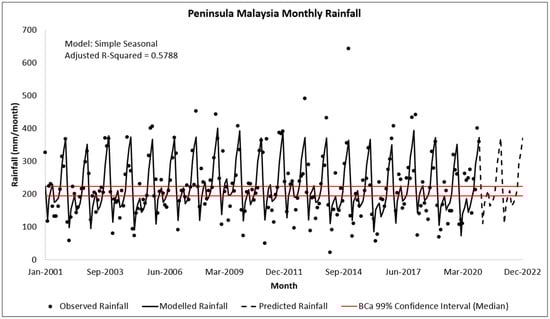

Rainfall time series forecasting models were created using monthly rainfall data in Malaysia from January 2001 to December 2020 (N = 240) with the Expert Modeler in SPSS. The rainfall amount was forecasted for the next 24 months, from January 2021 to December 2022 in Malaysia, to determine if there will be a significant change in rainfall pattern in the near future that could affect runoff prediction.

3. Results and Discussion

3.1. The Optimum λ and S of Decadal Models

Table 1, Table 2 and Table 3 display the BCa 99% confidence intervals of λ for the M70, M80, and M90 decadal datasets. The BCa 99% confidence intervals of both the mean and median for each decadal dataset do not include the value of 0.2, leading to the rejection of the null hypothesis (H0) at the alpha = 0.01 level. Equation (2) was found to be statistically invalid and, thus, cannot be utilized to model runoff conditions in Peninsula Malaysia for the M70, M80, and M90 decadal datasets. The rejection of H0 necessitates the search for a new, optimal value of λ to develop a new rainfall-runoff prediction model.
The λ dataset is skewed and tested to be non-normally distributed in SPSS for all three decadal groups and therefore, the search for an optimal representative λ value using a supervised optimization technique will be concentrated on the range of median confidence intervals. These intervals are [0.049, 0.089] for the M70 dataset (Table 1), [0.034, 0.064] for the M80 dataset (Table 2), and [0.031, 0.063] for the M90 dataset (Table 3).
The BCa 99% confidence intervals of Sλ for the M70, M80, and M90 decadal datasets are presented in Table 4, Table 5 and Table 6. The normality of the Sλ dataset was tested using SPSS for all three decadal groups, and found to be normally distributed. Therefore, the optimal Sλ value was searched for within the range of the mean confidence intervals. There intervals are [117.083, 187.008] for M70 dataset (Table 4), [141.892, 231.088] for M80 dataset (Table 5), and [131.989, 192.939] for M90 dataset (Table 6).
The optimal λ and Sλ values for the M70, M80, and M90 decadal datasets using a supervised optimization technique are presented in Table 7. The product of the optimal λ and Sλ values gives the representative initial abstraction value for each dataset, which can be calculated as Ia = λSλ.

3.2. The Decadal Rainfall-Runoff Models

The decadal rainfall-runoff models for Peninsula Malaysia are presented in Table 8 by substituting the respective Ia and Sλ values from Table 7 into Equation (1). Equations (3)–(5) were then formulated to model the decadal rainfall-runoff conditions in Peninsula Malaysia. To further analyse decadal runoff trend across multiple rainfall depths and CN0.2 scenarios in Peninsula Malaysia, Equations (3)–(5) need to be re-expressed in terms of CN0.2 to benefit SCS practitioners as they are more familiar with the use of curve number [50].
To calculate Sλ and S0.2 for each decadal dataset, the general Sλ formula (step 8 in methodology Section 2.2) can be used with the optimum λ values. Through SPSS, this study identified statistically significant power function correlation between Sλ and S0.2 for the M70, M80, and M90 decadal datasets, which is consistent with previous research findings [66,67,68]. The final equations are listed in Table 9.
Equations (6)–(8) played a crucial role in converting Sλ to S0.2, enabling SCS practitioners to use a rainfall-runoff model with CN0.2, which they are more familiar with. Furthermore, by establishing a correlation between the newly derived Sλ and S0.2, Equations (3)–(5) were modified to be expressed in CN0.2 terms, facilitating decadal trend analyses with CN0.2.
Equations (3)–(5) can be expressed in CN0.2 by substituting Sλ in Equation (1) with Equations (6)–(8), as well as the SCS-CN formula (Step 10 in methodology Section 2.2). By doing so, the decadal runoff predictive models can be re-expressed as shown in Appendix B. The resulting alternate representations for decadal runoff predictive models in Peninsula Malaysia are presented in Table 10 in term of CN0.2.

3.3. The Decadal Runoff Trend Analyses

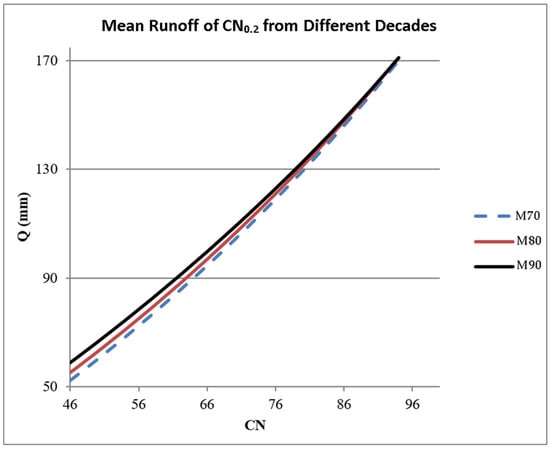

The decadal runoff models (Equations (9)–(11)) enable the quantification of runoff conditions for various decades under different rainfall depths (P) and CN0.2 scenarios, facilitating the analysis of runoff changes. The DID HP 27 dataset contains the lowest and highest recorded rainfall depths, ranging from 20 mm to 430 mm across CN0.2 classes from 46 to 94. Runoff difference tables can then be calculated between any two decadal models.

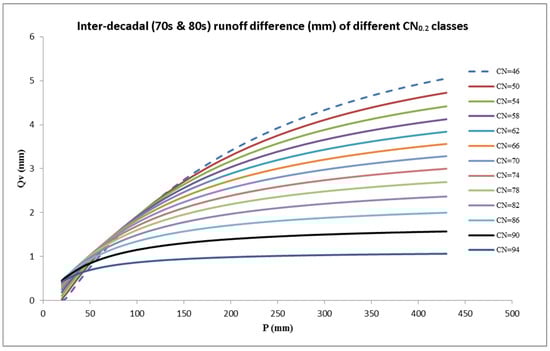

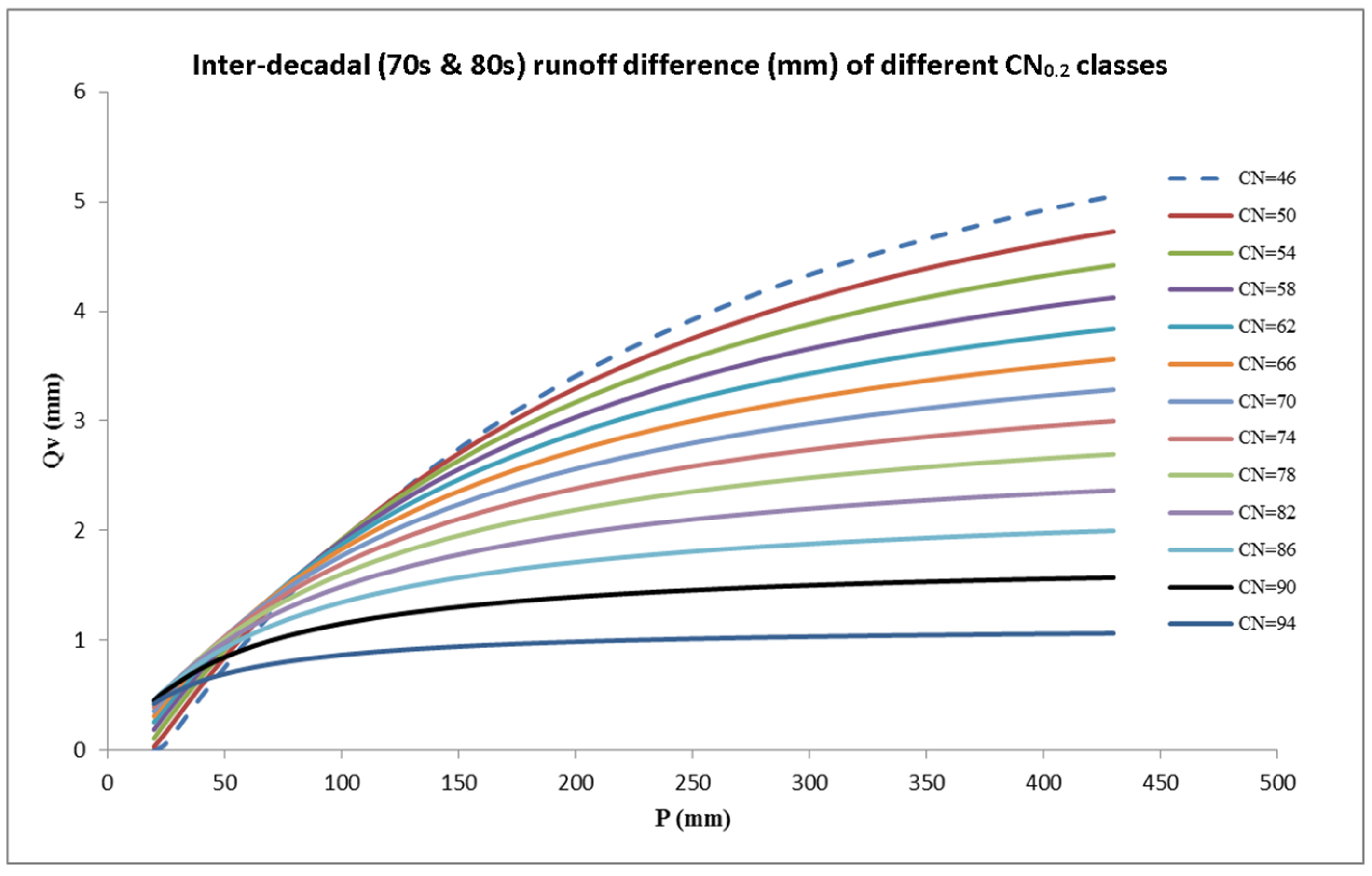

This study evaluated the inter-decadal runoff differences between M70 and M80, M80 and M90, and M70 and M90 in Peninsula Malaysia. The runoff amount of the earlier decade was subtracted from the latter to determine the inter-decadal runoff difference. For instance, the inter-decadal runoff difference between M70 (Equation (9)) and M80 (Equation (10)) was calculated by subtracting the runoff amount of M70 from that of M80. A positive inter-decadal runoff difference amount indicated a larger runoff amount in M80 compared to M70 and vice versa. Statistical analyses were performed to determine significant runoff trends between different decades. This study also correlated decadal runoff changes with deforestation and urbanization data in Peninsula Malaysia.
Non-parametric Kendall’s Tau b and Spearman’s Rho statistics were used to evaluate the inter-decadal runoff trend in SPSS. Both statistics showed a significant positive correlation (2-tailed) at alpha = 0.01 for all inter-decadal periods, rainfall depths, and CN0.2 classes mentioned above. This positive correlation indicates an upward trend in inter-decadal runoff, which can be visually represented in Figure 1, Figure 2 and Figure 3. To assess the magnitude of this upward trend in each inter-decadal scenario and CN0.2 class (ranging from 46 to 94) according to rainfall depths from 20 mm to 430 mm, Sen slopes and its collective inferential statistics were calculated. The Sen slopes and inferential statistics of all CN0.2 classes were then analysed collectively for each inter-decadal scenario at the alpha = 0.01 level, and the results are tabulated in Table 11, Table 12 and Table 13.
Calculated Sen slope values were tested as normally distributed in SPSS. Therefore, the mean Sen slope value was used to represent each inter-decadal runoff scenario. On average, the collective Sen slope value was 0.0121 (p = 0.01, 99% confidence interval from 0.00701 to 0.01720) to indicate the runoff incremental trend between M80 and M90. The Sen slope between M70 and M80 was 0.0051 (p = 0.01, 99% confidence interval from 0.00313 to 0.00713), while between M70 and M90 it was 0.0178 (p = 0.01, 99% confidence interval from 0.01049 to 0.02506). The Sen slope values also estimated the percentage of rainfall depth that becomes incremental runoff. For instance, the average expected runoff increment from a rainfall depth of 100 mm across CN0.2 classes from 46 to 94 can be estimated to be 1.21 mm between M80 and M90 (i.e., 0.0121 × 100 mm).
The study conducted a repetition of all statistical analyses with a CN0.2 range of 46 to 70 to assess the runoff changes across lower CN0.2 classes, which correspond to rural and forested catchments. This was done to obtain a more accurate estimate of the inter-decadal runoff increment conditions in these areas. The results showed that the runoff incremental trend between M80 and M90 of CN0.2 (46 to 70) had a Sen slope value of 0.0190 (p = 0.01, 99% confidence interval from 0.01595 to 0.02216). The Sen slope value between M70 and M80 was 0.0075 (p = 0.01, 99% confidence interval from 0.00606 to 0.00898), and between M70 and M90, it was 0.0276 (p = 0.01, 99% confidence interval from 0.02262 to 0.03239). For example, the expected runoff increment from rainfall of 100 mm across CN0.2 classes from 46 to 70 was estimated to be 1.90 mm between M80 and M90. The study found that runoff increments were significant (p = 0.01) between all inter-decadal scenarios and were more apparent in forested and rural areas (highlighted area in Figure 4).

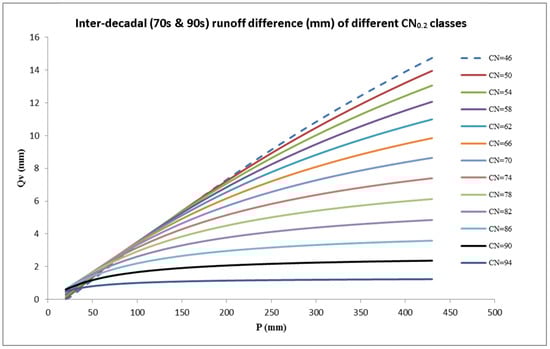

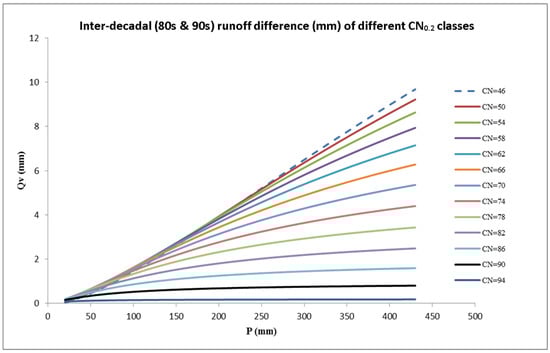

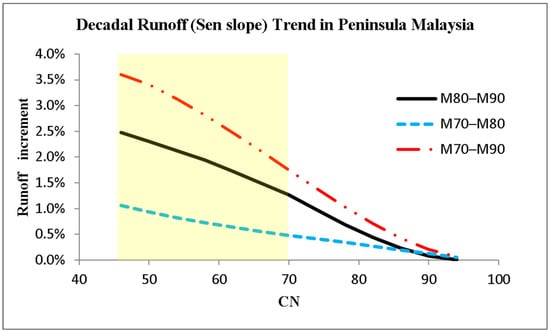

Positive inter-decadal runoff difference in Peninsula Malaysia is depicted in Figure 1, Figure 2 and Figure 3. High rainfall depths and low CN0.2 groups, which are associated with forested catchments, are particularly affected. These study outcomes are in line with previous studies [67,68,69,70]. Inter-decadal runoff differences are more pronounced under high rainfall depths. The mean runoff of different decades across different CN0.2 classes was calculated and compiled, as shown in Figure 5. M90 had the highest runoff, while M70 had the lowest. Greater percentage changes in mean runoff were observed in lower CN0.2 classes (forested catchments) compared to higher CN0.2 classes (urban area). The largest mean runoff incremental percentage was 12.6% (6.6 mm) from M70 to M90 at CN0.2 = 46, while the smallest change was 0.1% (0.1 mm) from M80 to M90 at CN0.2 = 94.

3.4. The Impact of CN0.2 Variation on Runoff

According to [71], due to variation in hydrological conditions, CN0.2 value is often calibrated to match observed runoff dataset in modelling practice. Researchers observed that a variation of ±10% in CN0.2 might lead to ±50% runoff variation [72] while [73] it was reported that even 1% increase in CN0.2 with rainfall depth of 175 mm had caused 2.03% increase in runoff. References [73,74] concluded that CN0.2 variations will have a larger impact on runoff than other parameters in Equation (1).
CN0.2 tweaking becomes a convenient way to calibrate and validate hydrological models. However, other studies reported that CN0.2 value of a catchment was unstable and decreased when rainfall increased [74,75,76]. The error and sensitivity analysis results by some researchers stated that CN0.2 variations would induce a larger impact on runoff calculation with inherent error rather than rainfall depth variations [72,74,77]. CN0.2 tweaking might achieve or improve temporal hydrological modelling accuracy through the trial-and-error technique, but the practicality of the end result was often uncertain and lack of statistical justification.

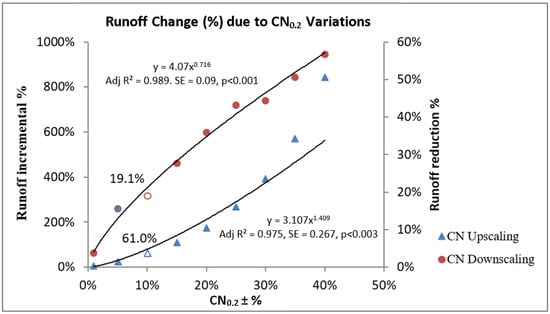

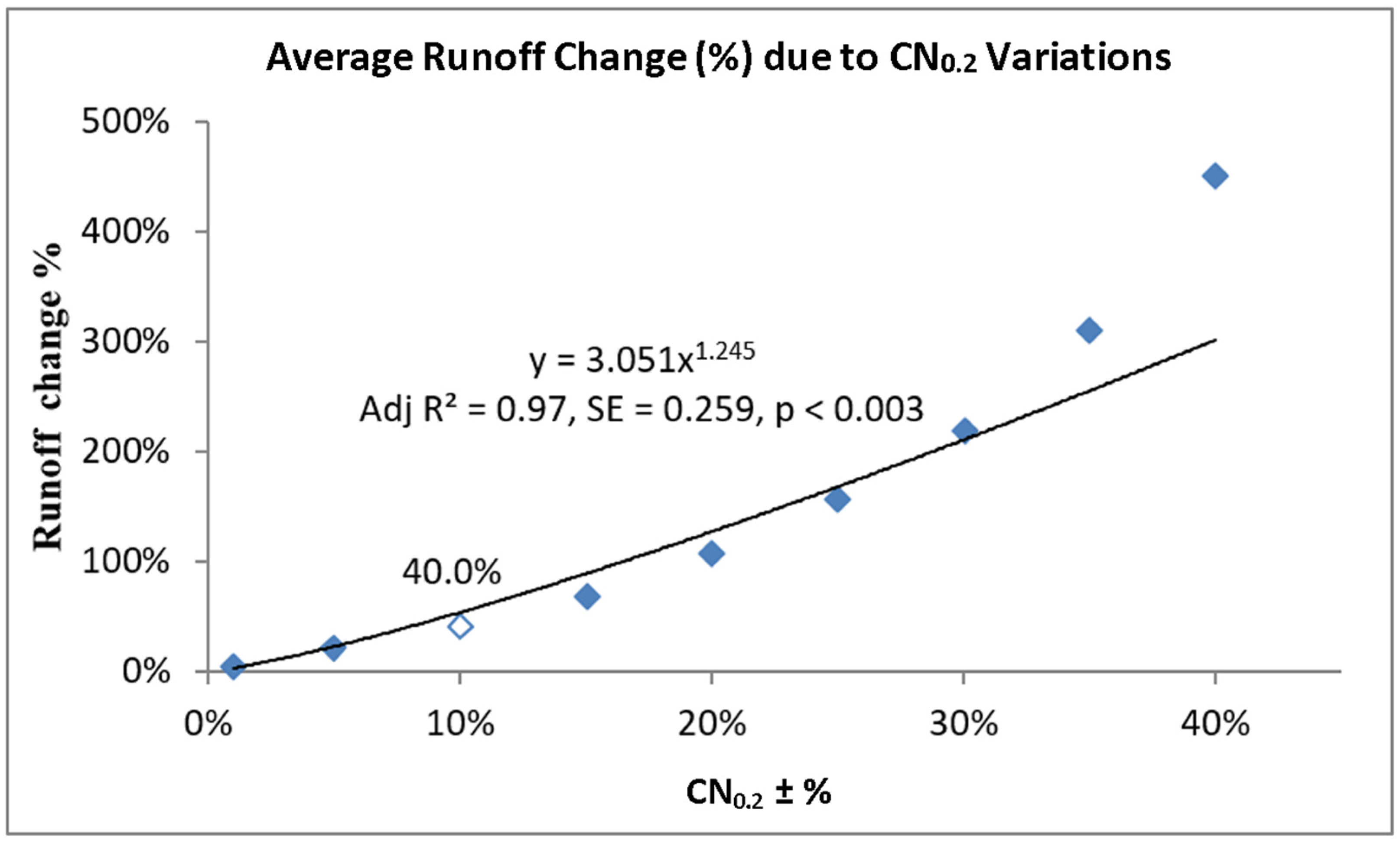

This study modelled the impact of CN0.2 variation with the DID HP 27 dataset. According to [78], the practical CN values were likely to be within the range of 40 to 98. The optimum best collective CN0.2 was 71 for the entire DID HP 27 dataset, thus, CN0.2 variation up to 40% was chosen to cover the range of CN0.2 from 43 to 99 and rainfall from 20 mm to 430 mm. CN0.2 upscaling induced larger runoff change than downscaling while both effects were largely felt at rainfall depths below 100 mm. On average, runoff would reduce by 37% when CN0.2 was downscaled up to 40% between 20 mm and 430 mm. On the other hand, the average runoff increased by 306% when CN0.2 was upscaled up to 40%. The average runoff for both scenarios was almost identical when rainfall depths were limited to higher rainfall depths (100 mm to 430 mm). The average runoff reduced by 34% when CN0.2 was downscaled up to 40%, while average runoff increased by 35% when CN0.2 was upscaled to the same range. Varying the CN0.2 value by ±10% resulted in an average runoff change of 40%, which is consistent with the findings reported in [72]. Similarly, upscaling the CN0.2 value by 1% with a rainfall depth of 175 mm caused a 2% increase in runoff, which matches the range reported by [73]. Sen slope analyses showed that in both CN0.2 upscaling and downscaling scenario, runoff reduction and incremental rates reduced toward the high rainfall depths but increased according to the CN0.2 variation percentage. Lower rainfall depths (20 to 100 mm) had higher runoff variation percentages than higher rainfall depths (100 to 430 mm), as reported by previous studies [67,68,69,70]. Figure 6 and Figure 7 present the overview of the impact of CN0.2 variation on runoff with equations to estimate the percentage change in runoff.

3.5. The Impact of Deforestation and Urbanization on Runoff in Peninsula Malaysia

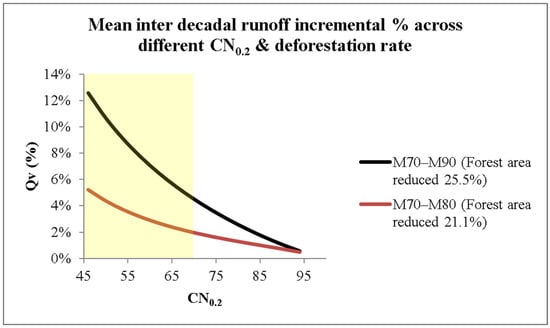

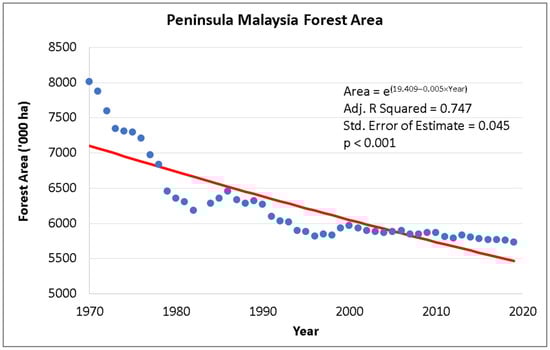

According to statistics from the Malaysia Department of Forestry, Peninsula Malaysia went through extensive deforestation from the 1970s. Forest area decreased at fast rates in the 1980s and started to stabilise in the 1990s. Forest area had reduced by 21.1% from M70 to M80 and 25.5% from M70 to M90 (Figure 8). Figure 9 was created to show the relationship between these decadal forest area reduction rate and its corresponding mean inter-decadal incremental runoff difference (Qv%) across different CN0.2 classes in Peninsula Malaysia. During the period between M70 and M90 in Peninsula Malaysia, the mean excess (incremental) runoff volume difference for CN0.2 classes ranging from 46 to 70 was calculated to be 6.8 mm, equivalent to 6.8 million litres per square kilometre. This corresponds to a 10.2% increase in excess runoff, and it occurred simultaneously with a 25.5% decrease in forest area. These findings provide insights into the hydrological impacts of deforestation on non-homogeneous catchments. In general, inter-decadal mean runoff differences were more pronounced in forested and rural catchments (lower CN0.2 classes) than urban areas. Inter-decadal runoff difference between M70 and M90 is significantly greater than runoff difference between M70 and M80 (Figure 9).
According to the published data and figures from the Department of Statistics Malaysia [79,80,81,82,83,84,85,86,87], the urban population in Peninsula Malaysia had been increasing rapidly (Table 14). In comparison to the forest area statistics from the Department of Forestry [53,54,55,56,57,58,59], an inverse correlation was identified in SPSS as:
FA = 5.533 + (4.922/Urb-pop)
R2adj = 0.964, SE = 0.175, p < 0.012
FA = Forest area (Million hectare)
Urb-pop = Urban population in Peninsula Malaysia (Millions)
The inverse correlation between urban population and the forest area in Peninsula Malaysia implies that urban development has significant correlations with deforestation (Figure 8). On the other hand, the deforestation has a direct impact on runoff amount as shown in Figure 9.
Table 14. Decadal urban population and forest area in Peninsula Malaysia [12,80,81,82,83,84,85,86,87].
Table 14. Decadal urban population and forest area in Peninsula Malaysia [12,80,81,82,83,84,85,86,87].
YearUrban Population (Millions)Forest Area (Millions Hectare)
19702.038.01
19804.816.35
19907.976.27
200012.265.97

3.6. Decadal λ and Ia

In recent decades, urbanization in Peninsula Malaysia has caused uneven land development, leading to non-homogeneity in catchments. This study aimed to address this issue by calibrating the SCS-CN model using rainfall-runoff data from different decades to develop decadal models. The models demonstrated a strong ability to estimate runoff amounts, achieving a Nash-Sutcliffe Index ranging from 0.907 to 0.958 (Table 8), even in non-homogeneous catchments. These findings suggest that recalibrating the SCS-CN models based on regional and decadal specific rainfall-runoff conditions could be an effective approach for estimating runoff in non-homogeneous catchments.
In a previous study by the authors, the optimum λ value for the entire DID HP 27 dataset was identified as 0.051 to model overall runoff conditions. However, in this study, different optimum λ values were derived for the decadal datasets of M70, M80, and M90, which also led to changes in the corresponding initial abstraction (Ia) values (Table 7). Over time, the optimal λ and Ia values for each decade were found to decrease, indicating changes in land cover resulting from deforestation and urbanization that impact runoff conditions in rural catchments. The decreasing trend in λ leads to a corresponding increase in runoff over time in Peninsula Malaysia.
SCS practitioners commonly calibrate CN0.2 with one batch of runoff data and validate the final results against another batch to determine the optimum CN0.2 value for modelling a combined dataset. However, this study highlights concerns with this practice due to land-use and land-cover changes in Peninsula Malaysia, which directly affect catchment runoff conditions over time.
There is a statistically significant upward trend in runoff (at alpha = 0.01) across all CN0.2 classes from M70 to M90 due to changes in land use. Therefore, SCS practitioners must be cautious and aware that blindly accepting the λ value as 0.2 is not advisable, and it is strongly recommended to derive a regional-specific λ value. Although an optimum λ value of 0.051 was used in a previous study [50] to model the entire dataset with a Nash-Sutcliffe value of 0.92, it differed significantly from the optimum λ values of different decades. Hence, runoff predictive models formulated with different optimum λ values will yield differences in runoff predictions.

3.7. Rainfall Trend Analyses

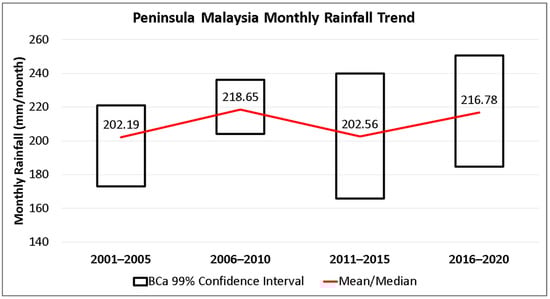

The BCa bootstrapping method with a 99% confidence interval was used to analyse the monthly rainfall trend in Peninsula Malaysia (Figure 10), which revealed that there has been no significant trend in the monthly rainfall over the past 20 years. The forecasted rainfall from 2021 to 2022 was consistent with the current trend. The results were supported by the model generated by Expert Modeler (Figure 11), which indicated that there would be no significant alteration in the rainfall trend in the near future.
Flood occurrences are strongly influenced by changes in land use, including deforestation, agricultural activities, and urbanization. The conversion of natural land cover to urban and other developed land use can significantly alter the hydrological cycle, resulting in increased surface runoff and reduced infiltration. This alteration of the landscape can lead to changes in the frequency, magnitude, and timing of floods, as well as increased erosion and sedimentation in rivers and streams [37].
The increase in surface runoff resulting from the conversion of natural land for human use has caused major flooding in Malaysia [88]. Floods are the most destructive natural disasters in the country, with an estimated 85 river basins, mainly in Peninsula Malaysia, prone to recurrent flooding. Based on a study in 2014, approximately 9% of the total area of Malaysia, covering 29,800 km2, is vulnerable to flood disaster, affecting almost 4.82 million people, equivalent to 22% of the total population [89]. In 2014, the states of Johor, Kelantan, Pahang, Perak, and Terengganu in Peninsula Malaysia, which were severely affected by floods, also recorded high rates of forest loss [38].
Recent floods and landslides in Malaysia have been attributed to deforestation, which results in the release of sediment and weakened soil. Trees help to prevent sediment runoffs and hold water, making them an essential factor in maintaining a stable environment. The excessive clear-cutting of trees for oil palm plantations has been identified as the primary cause of mudslides in recent times, with poor construction standards also contributing to the problem. Therefore, it can be inferred that deforestation and poor construction standards are the key factors responsible for these events, rather than El Niño or global warming, as suggested by studies [90,91,92,93,94].

4. Conclusions

This study adopted the CN hydrological model calibration technique developed by the authors in a previous study [50] and applied it in decadal runoff prediction study in Peninsula Malaysia. The correlation between forest area reduction, urbanization, and runoff volume increment was established. Highlights of the study are summarized as below:
  • The use of the conventional SCS-CN runoff model will commit type II error in this study to predict runoff conditions of different study periods. It must be pre-justified with statistics and calibrated prior to adoption for any runoff prediction. It is also not recommended to conduct calibration and validation on the entire DID HP 27 dataset of this study as each demarcated decade was represented with its unique and statistically significant runoff predictive model. Calibration and validation methodology based on the conventional SCS-CN runoff model fail to quantify accurate runoff conditions spanning across different time periods with significant land-use and cover change.
  • CN adjustment practice to formulate a hydrological model can have a large inherent error as small adjustments on the curve number can lead to large variation in the runoff. Given sufficient sample size, SCS-CN runoff model should be calibrated and formulated according to its unique optimum λ values to represent rainfall-runoff conditions of different time periods. In this study, when CN value was varied ± 10%, the average runoff changed by 40%. This study found a significant increase in runoff across all CN0.2 classes in Peninsula Malaysia due to changes in land use, emphasizing the importance of deriving a regional-specific λ value and cautioning that different optimum λ values for different decades will yield differences in runoff predictions.
  • This study emphasizes the significance of accounting for regional and decadal-specific rainfall-runoff conditions to estimate runoff in non-homogeneous catchments effectively. The calibrated SCS-CN model using data from different decades showed a remarkable ability to accurately estimate runoff amounts, even in non-homogeneous catchments. The models achieved a strong ability to estimate runoff amounts, attaining a Nash-Sutcliffe Index ranging from 0.907 to 0.958, even in non-homogeneous catchments.
  • Calibrated SCS decadal (lump) runoff models show significant decadal runoff uptrend which coincides with the overall deforestation rate in Peninsula Malaysia. The presented methodology may become more apparent with regional specific deforestation rate and its corresponding rainfall-runoff dataset. The reduction of forest area by 25.5% in Peninsula Malaysia between 1970 and 2000 was found to be directly proportional to an increase in excess runoff volume of 10.2%. In general, inter-decadal mean runoff differences were more pronounced in forested and rural catchments (lower CN classes) than urban areas.
  • NASA’s Giovanni system was used to generate 20 years of annual rainfall maps while monthly rainfall data (2001 to 2020) was also extracted for trend analysis and short-term forecast. This study found no significant uptrend in the rainfall within the period, and the occurrence of flood and landslide incidents can likely be attributed to land-use changes in Peninsula Malaysia.

Author Contributions

Conceptualization, L.L.; methodology, J.F.K. and L.L.; software, J.F.K. and L.L.; validation, S.L. and L.L.; formal analysis, J.F.K. and L.L.; investigation, J.F.K. and L.L.; resources, J.F.K. and L.L.; data curation, J.F.K. and L.L.; writing—original draft preparation, J.F.K. and L.L.; writing—review and editing, J.F.K., S.L., V.L.L. and L.L; visualization, J.F.K. and L.L.; supervision, L.L.; project administration, L.L.; funding acquisition, L.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Ministry of Higher Education (MoHE) through the Fundamental Research Grant Scheme (FRGS/1/2021/WAB07/UTAR/02/1) and partly supported by the Brunsfield Engineering Sdn. Bhd., Malaysia industrial grants (Brunsfield 8013/0002 & 8126/0001).

Data Availability Statement

Rainfall-runoff data is available at the appendix of DID, Hydrological Procedure No. 27. Design Flood Hydrograph Estimation for Rural Catchments in Peninsula Malaysia. JPS, DID, Kuala Lumpur. 2010. Available online: https://www.water.gov.my/jps/resources/PDF/Hydrology%20Publication/Hydrological_Procedure_No_27_(HP_27).pdf (accessed on 10 March 2023). IMERG-F monthly version 6 product at a spatial resolution of 0.1° data can be obtained from the NASA’s Giovanni system (https://giovanni.gsfc.nasa.gov/giovanni (accessed on 15 October 2021)). Authors would like to thank Zhen Xiang Soo (Eugene) for sharing the IMERG-F data with us.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Monthly rainfall in Peninsula Malaysia from 2001 to 2009 [64].
Table A1. Monthly rainfall in Peninsula Malaysia from 2001 to 2009 [64].
YearMonthRainfall (mm/Month)YearMonthRainfall (mm/Month)YearMonthRainfall (mm/Month)
200113262004120620071323
2117280292
322431853179
423141744210
516251785211
613261276191
713272117226
816381638183
921492599221
103141037410332
112851128511229
123671227012452
20021114200519420081223
2582732160
312931423278
422341554236
520052305169
614461526185
715971837210
819181728242
921691959220
102171031810310
112981140111443
123301240612370
200312632006119420091248
212222442107
319331423330
420442084208
51452435221
618162016120
720971677162
822081608232
920592109209
103701024210257
113451131011407
123691237212335
Table A2. Monthly rainfall in Peninsula Malaysia from 2010 to 2018 [64].
Table A2. Monthly rainfall in Peninsula Malaysia from 2010 to 2018 [64].
YearMonthRainfall (mm/Month)YearMonthRainfall (mm/Month)YearMonthRainfall (mm/Month)
201011512013120420161137
27322892124
3147388357
42064188477
523251915237
623161266185
721371597182
818181718162
920292309215
102181031510275
113331128711305
123631243212370
201113272014116620171408
2502232149
33683903203
415841534259
519352645245
615161366156
711471507169
819882178248
922091799281
103881029210247
113841135511433
123921264312271
201212382015113420181442
2146271274
32623113140
423042014164
523951815236
69761636172
715271337149
818782428123
923992109218
102541024710330
112601134011279
124921222612360
Table A3. Monthly rainfall in Peninsula Malaysia from 2019 to 2020 [64].
Table A3. Monthly rainfall in Peninsula Malaysia from 2019 to 2020 [64].
YearMonthRainfall (mm/Month)
20191164
268
392
4167
5236
6210
7108
8148
9149
10320
11274
12261
20201108
2121
3110
4262
5241
6249
7275
8142
9246
10213
11401
12360

Appendix B

Using M70 dataset as a calculation example, the optimum λ value was identified to be 0.049 (Table 7). Substituting it into Equation (1) to obtain:
Q 0.049 = P 0.049 S 0.049 2 P 0.049 S 0.049 + S 0.049
Substituting Equation (6) into S0.049 in above will yield:
Q 0.049 = P 0.049 1.184 S 0.2 1.081 2 P + 0.951 1.184 S 0.2 1.081
Substituting S0.2 = (25,400/CN0.2) − 254 into S0.2 in above to obtain:
Q 0.049 = P 0.049 1.184 25,400 C N 0.2 254 1.081 2 P + 0.951 1.184 25,400 C N 0.2 254 1.081
Q 0.049 = P 23.077 100 C N 0.2 1 1.081 2 P + 447.876 100 C N 0.2 1 1.081
Equation (A1) is also subject to the constraint P > 0.049S0.049
Or P > 23.077 100 C N 0.2 1 1.081 else Q0.049 = 0
P = Rainfall depth (mm)
CN0.2 = Conventional SCS tabulated curve number
Q0.049 = Runoff depth (mm) of λ = 0.049 for M70 dataset.

References

  1. Akomolafe, G.F.; Rosazlina, R. Land use and land cover changes influence the land surface temperature and vegetation in Penang Island, Peninsular Malaysia. Sci. Rep. 2022, 12, 21250. [Google Scholar] [CrossRef] [PubMed]
  2. Wong, C.L.; Liew, J.; Yusop, Z.; Ismail, T.; Venneker, R.; Uhlenbrook, S. Rainfall characteristics and regionalization in Peninsular Malaysia based on a high resolution gridded data set. Water 2016, 8, 500. [Google Scholar] [CrossRef] [Green Version]
  3. Baig, M.F.; Mustafa, M.R.U.; Baig, I.; Takaijudin, H.B.; Zeshan, M.T. Assessment of land use land cover changes and future predictions using CA-ANN simulation for Selangor, Malaysia. Water 2022, 14, 402. [Google Scholar] [CrossRef]
  4. Abdul Rahim, N.; Zulkifli, Y. Hydrological impacts of forestry and land use activities: Malaysian and regional experience. In Paper Presented at the Seminar on Water, Forestry and Land Use Perspectives; Forest Research Institute Malaysia: Kepong, Malaysia, 1999. [Google Scholar]
  5. Bonell, M. Selected issues in mountain hydrology of the humid tropics. In Water: Forestry and Land Use Perspectives; IHPVI/Technical document in Hydrology; UNESCO: Paris, France, 2004; pp. 34–56. [Google Scholar]
  6. Bruijnzeel, L.A.; Bonell, M.; Gilmour, D.A.; Lamd, D. Conclusion: Forest water and people in the humid tropics: An emerging view. In Forest, Water and People in the Humid Tropics; Past, Present and Future Hydrological Research for Integrated Land and Water Management; Cambridge University Press: Paris, France, 2005; pp. 906–925. [Google Scholar]
  7. Hall, A.L. People in tropical forest: Problem or solutions? In Forest, Water and People in the Humid Tropics; Past, Present and Future Hydrological Research for Integrated Land and Water Management; Cambridge University Press: Paris, France, 2005; pp. 75–85. [Google Scholar]
  8. Murdiyarso, D. Water resources management policy responses to land cover change in South East Asian River basins. In Forest, Water and People in the Humid Tropics; Past, Present and Future Hydrological Research for Integrated Land and Water Management; Cambridge University Press: Paris, France, 2005; pp. 121–133. [Google Scholar]
  9. Calder, I.R. The Blue Revolution: Land Use and Integrated Water Resources Management; Earthscan Publications Ltd.: London, UK, 1999. [Google Scholar]
  10. Velaquez, A.; Duran, E.; Ramirez, I.; Mas, J.F.; Bocco, G.; Ramirez, G.; Palacio, J.L. Land use-cover change processes in highly biodiverse areas: The case of Qaxaca, Mexico. Glob. Environ. Chang. 2003, 13, 175–184. [Google Scholar] [CrossRef]
  11. Yunus, A.J.M.; Nakagoshi, N.; Ibrahim, A.L. Riparian land use and land cover change analysis using GOS in Pinang River watershed, Malaysia. Tropics 2004, 13, 235–248. [Google Scholar] [CrossRef]
  12. Miyamoto, M.; Parid, M.M.; Aini, Z.N.; Michinaka, T. Proximate and underlying causes of forest cover change in Peninsula Malaysia. For. Policy Econ. 2014, 44, 18–25. [Google Scholar] [CrossRef] [Green Version]
  13. Hamid, W.A.; Rahman, S.B.W.A. Comparison results of forest cover mapping of Peninsular Malaysia using geospatial technology. IOP Conf. Ser. Earth Environ. Sci. 2016, 37, 012027. [Google Scholar] [CrossRef] [Green Version]
  14. Kamlisa, U.K.; Renate, B.A.; Mui-How, P. Monitoring deforestation in Malaysia between 1985 and 2013: Insight from South-Western Sabah and its protected peat swamp area. Land Use Policy 2016, 57, 418–430. [Google Scholar]
  15. Mohd Jaafar, W.S.W.; Maulud, K.N.A.; Kamarulzaman, A.M.M.; Raihan, A.; Md Sah, S.; Ahmad, A.; Saad, S.N.M.; Mohd Azmi, A.T.; Syukri, N.K.A.J.; Khan, W.R. The influence of deforestation on land surface temperature—A case study of Perak and Kedah, Malaysia. Forests 2020, 11, 670. [Google Scholar] [CrossRef]
  16. Geography > Area > Total: Countries Compared. Available online: https://www.nationmaster.com/country-info/stats/Geography/Area/Total (accessed on 15 October 2021).
  17. Malaysia. Available online: https://www.globalforestwatch.org/ (accessed on 15 October 2021).
  18. Department of Forestry, Malaysia. Annual forestry Report 1997; Ministry of Science Technology and the Environment: Kuala Lumpur, Malaysia, 1998. [Google Scholar]
  19. Ngah, M.S.Y.C.; Othman, Z. Impact of land development on water quantity and water quality in Peninsular Malaysia. Malaysian J. Environ. Manag. 2011, 12, 113–120. [Google Scholar]
  20. Hamilton, L.S.; King, P.N. Tropical Forested Watershed: Hydrologic and Soils Responses to Major Uses of Conversion; Wesview Press Inc.: Boulder, CO, USA, 1983. [Google Scholar]
  21. Hamilton, L.S.; Pearce, A.J. What Are the Soil and Water Benefits of Planting Trees in Developing Countries Watershed? Sustainable Resources Development in The Third World; Westview Press: Boulder, CO, USA, 1987. [Google Scholar]
  22. Hutjes, R.W.A.; Wierda, A.; Veen, A.W.L. Rainfall interception in the Tai Forest, Ivory Coast: Application of two simulation model to a humid tropical system. J. Hydrol. 1990, 114, 259–275. [Google Scholar] [CrossRef]
  23. Sinun, W.; Wong, W.M.; Douglas, I.; Spencer, T. Throughfall, stemflow, overland flow and throughflow in the Ulu Segama rain forest, Sabah, Malaysia. Phil. Tran. R. Soc. 1992, 335, 389–395. [Google Scholar]
  24. Asdak, C.; Jarvis, P.G.; Gardingen, P.V.; Fraser, A. Rainfall interception loss in unlogged and logged forest areas of Central Kalimantan, Indonesia. J. Hydrol. 1998, 206, 237–244. [Google Scholar] [CrossRef] [Green Version]
  25. Calder, I.R. The influence of land use on water yield in upland areas of the UK. J. Hydrol. 1986, 88, 201–212. [Google Scholar] [CrossRef]
  26. Abdul Rahim, N.; Saifuddin, S.; Zulkifli, Y. Water balance and hydrological characteristics of forested watersheds in Peninsular Malaysia. In Proceedings of the 2nd International Study Conference on GEWEX in Asia and GAME, Pattaya, Thailand, 6–10 March 1995. [Google Scholar]
  27. Abdul Rahim, N.; Baharuddin, K. Hydrologic Regime of Dipterocarp Forest Catchments in Peninsular Malaysia; Hydrology Workshop; Universiti Kebangsaan Malaysia: Kota Kinabalu, Malaysia, 1986. [Google Scholar]
  28. Abdul Rahim, N. Water yield changes after forest conversion to agricultural land use in Peninsular Malaysia. J. Trop. Sci. 1988, 1, 67–84. [Google Scholar]
  29. Zulkifli, Y. Effect of selective logging methods on dissolved nutrient export in Berembun Watershed, Peninsular Malaysia. In Proceedings of the Regional Seminar on Tropical Forest Hydrology, Kuala Lumpur, Malaysia, 4–9 September 1989. [Google Scholar]
  30. Bruijnzeel, L.A. Hydrology of Moist Tropical Forests and Effects of Conversion: A State of Knowledge Review; UNESCO IHP Tropic Programme; UNESCO: Paris, France, 1990. [Google Scholar]
  31. Bruijnzeel, L.A. Land use and hydrology in warm humid region: Where do we stand? IAHS 1993, 216, 1–34. [Google Scholar]
  32. Bonell, M. Progress in the understanding of runoff generation dynamics in forest. J. Hydrol. 1993, 150, 217–275. [Google Scholar] [CrossRef]
  33. Bonell, M. Tropical Forest hydrology and the role of UNESCO International Hydrological programme. HESS 1999, 3, 451–461. [Google Scholar] [CrossRef]
  34. Malmer, A. Hydrological effects and nutrient losses of forest plantation establishment on tropical rainforest land in Sabah, Malaysia. Water Resour. Res. 1996, 32, 2213–2220. [Google Scholar] [CrossRef]
  35. Zhang, P.; Shao, G.; Zhao, G.; Le Master, D.C.; Parker, G.R.; Dunning, J.B., Jr.; Li, Q. China’s forest policy for the 21th century. Science 2000, 288, 2135–2136. [Google Scholar] [CrossRef] [Green Version]
  36. Sharma, K.P.; Vorosmarty, C.J.; Moore, B. Sensitivity of the Himalayan hydrology to land-use and climate changes. Clim. Chang. 2000, 47, 117–139. [Google Scholar] [CrossRef]
  37. Lazaro, T.R. Urban Hydrology: A Multidisciplinary Perspective; Revised Edition; Technomic Publishing Company, Inc.: Lancaster, UK, 1990. [Google Scholar]
  38. High Deforestation Rates in Malaysian States Hit by Flooding. Available online: https://news.mongabay.com/2015/01/high-deforestation-rates-in-malaysian-states-hit-by-flooding/ (accessed on 15 October 2021).
  39. Bosch, J.M.; Hewlett, J.D. A review of catchment experiments to determine the effect of vegetation changes on water yield and evapotranspiration. J. Hydrol. 1982, 55, 3–23. [Google Scholar] [CrossRef]
  40. Brown, A.G.; Nambiar, E.K.S.; Cossalter, C. Plantations for the tropics: Their role, extent and nature. In Management of Soil, Nutrients and Water in the Tropical Plantation Forests; Nambiar, E.K.S., Brown, A.G., Eds.; Australian Centre for International Agricultural Research: Canberra, Australia; pp. 1–23.
  41. Sidle, R.C.; Sasaki, S.; Otsuki, M.; Noguchi, S.; Abdul Rahim, N. Sediment pathways in a tropical forest: Effects of logging roads and skid trails. Hydrol. Proc. 2004, 18, 703–720. [Google Scholar] [CrossRef]
  42. Adnan, N.A.; Atkinson, P.M.; Yusoff, Z.M.; Rasam, A.R.A. Climate variability and anthropogenic impacts on a semi-distributed monsoon catchment runoff simulations. In Proceedings of the International Colloquium on Signal Processing & Its Applications, CSPA, Kuala Lumpur, Malaysia, 7–9 March 2014; pp. 178–183. [Google Scholar]
  43. Jourgholami, M.; Karami, S.; Tavankar, F.; Monaco, A.L.; Picchio, R. Effects of slope gradient on runoff and sediment yield on machine-induced compacted soil in temperate forests. Forests 2021, 12, 49. [Google Scholar] [CrossRef]
  44. Hu, P.; Cai, T.; Sui, F.; Duan, L.; Man, X.; Cui, X. Response of runoff to extreme land use change in the permafrost region of Northeastern China. Forests 2021, 12, 1021. [Google Scholar] [CrossRef]
  45. Liu, X.Z.; Kang, S.Z.; Liu, L.D.; Zhang, X.P. SCS model based on geographic information and its application to simulate rainfall-runoff relationship at typical small watershed level in Loess Plateau. Tran. CSAE 2005, 21, 93–97. [Google Scholar]
  46. Baltas, E.A.; Dervos, N.A.; Mimikou, M.A. Technical note: Determination of the SCS initial abstraction ratio in an experimental watershed in Greece. HESS 2007, 11, 1825–1829. [Google Scholar] [CrossRef] [Green Version]
  47. Mansor, S.; Saadatkhah, N.; Khuzaimah, Z. Regional modelling of rainfall-induced runoff using hydrological model by incorporating plant cover effects: Case study in Kelantan, Malaysia. Nat. Hazards 2018, 93, 739–764. [Google Scholar] [CrossRef]
  48. Sahin, V.; Hall, M.J. The effects of afforestation and deforestation on water yields. J. Hydrol. 1996, 178, 293–309. [Google Scholar] [CrossRef]
  49. Ling, L.; Yusop, Z.; Yap, W.S.; Tan, W.L.; Chow, M.F.; Ling, J.L. A calibrated, watershed-specific SCS-CN method: Application to Wangjiaqiao watershed in the three gorges area, China. Water 2019, 12, 60. [Google Scholar] [CrossRef] [Green Version]
  50. Ling, L.; Yusop, Z.; Ling, J.L. Statistical and Type II Error Assessment of a Runoff Predictive Model in Peninsula Malaysia. Mathematics 2021, 9, 812. [Google Scholar] [CrossRef]
  51. Hawkins, R.H.; Ward, T.J.; Woodward, D.E.; Vanmullem, J.A. Progress Report: ASCE Task Committee on Curve Number Hydrology. Managing Watersheds for Human and Natural Impacts; ASCE: New York, NY, USA, 2005; pp. 1–12. [Google Scholar]
  52. DID, Hydrological Procedure No. 27. Design Flood Hydrograph Estimation for Rural Catchments in Peninsula Malaysia. JPS, DID, Kuala Lumpur. 2010. Available online: https://www.water.gov.my/jps/resources/PDF/Hydrology%20Publication/Hydrological_Procedure_No_27_(HP_27).pdf (accessed on 19 October 2021).
  53. Forestry Department Peninsular Malaysia. Forestry Statistics Peninsular Malaysia 1971–1978; Forestry Department Peninsular Malaysia: Kuala Lumpur, Malaysia, 1979. [Google Scholar]
  54. Forestry Department Peninsular Malaysia. Forestry Statistics Peninsular Malaysia 1993; Forestry Department Peninsular Malaysia: Kuala Lumpur, Malaysia, 1994. [Google Scholar]
  55. Forestry Department Peninsular Malaysia. Forestry Statistics Peninsular Malaysia 1995; Forestry Department Peninsular Malaysia: Kuala Lumpur, Malaysia, 1996. [Google Scholar]
  56. Forestry Department Peninsular Malaysia. Forestry Statistics Peninsular Malaysia 2000; Forestry Department Peninsular Malaysia: Kuala Lumpur, Malaysia, 2001. [Google Scholar]
  57. Forestry Department Peninsular Malaysia. Forestry Statistics Peninsular Malaysia 2005; Forestry Department Peninsular Malaysia: Kuala Lumpur, Malaysia, 2006. [Google Scholar]
  58. Forestry Department Peninsular Malaysia. Forestry Statistics Peninsular Malaysia 2009; Forestry Department Peninsular Malaysia: Kuala Lumpur, Malaysia, 2010. [Google Scholar]
  59. Forestry Department Peninsular Malaysia. Forestry Statistics Peninsular Malaysia 2010; Forestry Department Peninsular Malaysia: Kuala Lumpur, Malaysia, 2011. [Google Scholar]
  60. Hawkins, R.H. Curve Number Method: Time to Think Anew? J. Hydrol. Eng. 2014, 19, 1059. [Google Scholar] [CrossRef]
  61. Davidsen, S.; Löwe, R.; Ravn, N.H.; Jensen, L.N.; Arnbjerg-Nielsen, K. Initial conditions of urban permeable surfaces in rainfall-runoff models using Horton’s infiltration. Water Sci. Technol. 2017, 77, 662–669. [Google Scholar] [CrossRef] [PubMed]
  62. Downloading IBM SPSS Statistics 26. Available online: https://www.ibm.com/support/pages/downloading-ibm-spss-statistics-26 (accessed on 15 October 2021).
  63. Hawkins, R.H.; Ward, T.J.; Woodward, D.E.; Van Mullem, J. Curve Number Hydrology: State of the Practice; ASCE: Reston, VA, USA, 2009. [Google Scholar]
  64. Huffman, G.J.; Stocker, E.F.; Bolvin, D.T.; Nelkin, E.J.; Tan, J. GPM IMERG Final Precipitation L3 1 Month 0.1 Degree x 0.1 Degree V06; Goddard Earth Sciences Data and Information Services Center (GES DISC): Greenbelt, MD, USA, 2019. [Google Scholar]
  65. Giovanni. Available online: https://giovanni.gsfc.nasa.gov/giovanni/ (accessed on 15 October 2021).
  66. Jiang, R.Y. Investigation of Runoff Curve Number Initial Abstraction Ratio. Master’s Thesis, The University of Arizona, Tucson, AZ, USA, 2001. [Google Scholar]
  67. Woodward, D.E.; Hawkins, R.H.; Jiang, R.; Hjelmfelt, A.T.; Van Mullem, J.A.; Quan, Q.D. Runoff curve number method: Examination of the initial abstraction ratio. In Proceedings of the World Water and Environmental Resources Congress, Philadelphia, PA, USA, 23–26 June 2003; pp. 1–10. [Google Scholar]
  68. Hawkins, R.H.; Ward, T.J.; Woodward, D.E.; Van Mullem, J.A. Continuing Evolution of Rainfall-Runoff and the Curve Number Precedent. In Proceedings of the 2nd Joint Federal Interagency Conference Proceeding, Las Vegas, NV, USA, 27 June–1 July 2010; pp. 1–12. [Google Scholar]
  69. Ponce, V.M.; Hawkins, R.H. Runoff Curve Number: Has it Reached Maturity? J. Hydrol. 1996, 1, 11–19. [Google Scholar] [CrossRef]
  70. Hawkins, R.H.; Khojeini, A.V. Initial abstraction and loss in the curve number method. In Proceedings of the Arizona State Hydrological Society Proceedings, Las Vegas, NV, USA, 15–17 April 2000; pp. 115–119. [Google Scholar]
  71. Kim, N.W.; Lee, J.; Lee, J.E. SWAT application to estimate design runoff curve number for South Korean conditions. Hydrol. Proc. 2010, 24, 2156–2170. [Google Scholar] [CrossRef]
  72. Boughton, W.C. A Review of the USDA SCS Curve Number Method. Aust. J. Soil Res. 1989, 27, 511–523. [Google Scholar] [CrossRef]
  73. McCuen, R.H. Approach to confidence interval estimation for curve numbers. J. Hydrol. 2002, 1, 43–48. [Google Scholar] [CrossRef]
  74. Hawkins, R.H. Improved Prediction of Storm Runoff in Mountain Watersheds. J. Irrig. Drain. Eng. ASCE 1973, 99, 519–523. [Google Scholar] [CrossRef]
  75. Zevenbergen, A.T. Runoff Curve Numbers for Rangelands from Rangeland from Landsat Data; Technical Rep, HL85-1; U.S. Department of Agriculture Research Service, Hydraulic Laboratory: Beltsville, MD, USA, 1985. [Google Scholar]
  76. Sneller, J.A. Computation of Runoff Curve Numbers for Rangelands from Landsat Data; Technical Rep, HL85-2; U.S. Department of Agriculture Research Service, Hydraulic Laboratory: Beltsville, MD, USA, 1985. [Google Scholar]
  77. Hawkins, R.H. Asymptotic determination of runoff curve numbers from data. J. Irrig. Drain. Eng. ASCE 1993, 119, 334–345. [Google Scholar] [CrossRef]
  78. Van Mullen, J.A. Runoff and peak discharges using Green–Ampt infiltration model. J. Hydr. Eng. Div.-ASCE 1991, 117, 354–370. [Google Scholar] [CrossRef]
  79. Official Website Forestry Department of Peninsular Malaysia. Available online: https://www.forestry.gov.my/en/2016-06-07-02-53-46/2016-06-07-03-12-29 (accessed on 15 October 2021).
  80. Cheng, M.H. The Impact of Ethnicity on the Regional Economic Development in Malaysia. Master’s Thesis, Hiroshima University, Hiroshima, Japan, 2011. [Google Scholar]
  81. Department of Statistics, Malaysia. General Report of the Population Census of Malaysia 1970; Department of Statistics, Malaysia: Kuala Lumpur, Malaysia, 1977; Volume 1. [Google Scholar]
  82. Department of Statistics, Malaysia. General Report of the Population Census of Malaysia 1991; Department of Statistics, Malaysia: Kuala Lumpur, Malaysia, 1995; Volume 1. [Google Scholar]
  83. Department of Statistics, Malaysia. Preliminary Count Report for Urban and Rural Areas; Department of Statistics, Malaysia: Kuala Lumpur, Malaysia, 2001. [Google Scholar]
  84. Department of Statistics, Malaysia. Population Distribution and Basic Demographic Characteristics; Department of Statistics, Malaysia: Kuala Lumpur, Malaysia, 2001. [Google Scholar]
  85. Department of Statistics, Malaysia. Migration Survey Report Malaysia 2007; Department of Statistics, Malaysia: Putrajaya, Malaysia, 2009. [Google Scholar]
  86. Department of Statistics, Malaysia. Preliminary Count Report 2010; Department of Statistics, Malaysia: Putrajaya, Putrajaya, Malaysia, 2010. [Google Scholar]
  87. Department of Statistics, Malaysia. Population Distribution by Local Authority Areas and Mukims; Department of Statistics, Malaysia: Putrajaya, Malaysia, 2011. [Google Scholar]
  88. Iya, S.G.D.; Gasim, M.B.; Toriman, M.E.; Abdullahi, M.G. Floods in Malaysia: Historical reviews, causes, effects and mitigations approach. Int. J. Interdiscip. Res. Innov. 2014, 2, 59–65. [Google Scholar]
  89. Malaysia Flood List. Available online: https://floodlist.com/tag/malaysia (accessed on 18 October 2021).
  90. When Forest can no Longer Prevent Floods. Available online: https://themalaysianreserve.com/2021/01/11/when-forest-can-no-longer-prevent-floods/ (accessed on 18 October 2021).
  91. Deforestation the Cause of Flood. Available online: https://www.thestar.com.my/opinion/letters/2014/11/08/deforestation-the-cause-of-flood (accessed on 18 October 2021).
  92. Deforestation Likely Behind Deadly Sabah Mudslide, Says Expert. Available online: https://www.nst.com.my/news/2017/04/227539/deforestation-likely-behind-deadly-sabah-mudslide-says-expert (accessed on 18 October 2021).
  93. Akter, A.; Mohd Noor, M.J.M.; Goto, M.; Khanam, S.; Parvez, A.; Rasheduzzaman, M. Landslide disaster in Malaysia: An overview. Int. J. Innov. Res. 2019, 8, 292–302. [Google Scholar] [CrossRef]
  94. Majid, N.A.; Taha, M.R.; Selamat, S.N. Historical landslide events in Malaysia 1993–2019. Indian J. Sci. Technol. 2020, 13, 3387–3399. [Google Scholar] [CrossRef]
Figure 1. Decadal runoff difference of Equations (9) and (10) for selected CN0.2 values to reflect the runoff change between M70 and M80 under different rainfall depths.
Figure 1. Decadal runoff difference of Equations (9) and (10) for selected CN0.2 values to reflect the runoff change between M70 and M80 under different rainfall depths.
Water 15 01162 g001
Figure 2. Decadal runoff difference of Equations (9) and (11) for selected CN0.2 values to reflect the runoff change between M70 and M90 under different rainfall depths.
Figure 2. Decadal runoff difference of Equations (9) and (11) for selected CN0.2 values to reflect the runoff change between M70 and M90 under different rainfall depths.
Water 15 01162 g002
Figure 3. Decadal runoff difference of Equations (10) and (11) for selected CN0.2 values to reflect the runoff change between M80 and M90 under different rainfall depths.
Figure 3. Decadal runoff difference of Equations (10) and (11) for selected CN0.2 values to reflect the runoff change between M80 and M90 under different rainfall depths.
Water 15 01162 g003
Figure 4. The Sen Slope for decadal runoff increment for CN0.2 classes between M70 to M90. Sen slopes and inferential statistics were used to analyse the collective inter-decadal runoff increment conditions. Forested and rural areas are highlighted at lower CN0.2 area from 46 to 70. The estimated percentage of rainfall depths by Sen slope calculation were compared between all scenarios to contrast the inter-decadal runoff incremental percentage.
Figure 4. The Sen Slope for decadal runoff increment for CN0.2 classes between M70 to M90. Sen slopes and inferential statistics were used to analyse the collective inter-decadal runoff increment conditions. Forested and rural areas are highlighted at lower CN0.2 area from 46 to 70. The estimated percentage of rainfall depths by Sen slope calculation were compared between all scenarios to contrast the inter-decadal runoff incremental percentage.
Water 15 01162 g004
Figure 5. Mean runoff (mm) of decadal datasets of M70, M80, and M90 for selected CN0.2 values.
Figure 5. Mean runoff (mm) of decadal datasets of M70, M80, and M90 for selected CN0.2 values.
Water 15 01162 g005
Figure 6. Effects of upscaling and downscaling of CN0.2 on runoff. CN0.2 upscaling caused runoff incremental change and vice versa. Note: CN0.2 upscaling data points refer to primary axis. CN0.2 variations start from CN0.2 = 71, variation range (43 to 99) across rainfall depth range from 25 mm to 425 mm. The blank circle and triangular data point are benchmark points of CN0.2 ± 10%, the indicated 19.1% and 61% are runoff reduction and incremental due to CN0.2 variations.
Figure 6. Effects of upscaling and downscaling of CN0.2 on runoff. CN0.2 upscaling caused runoff incremental change and vice versa. Note: CN0.2 upscaling data points refer to primary axis. CN0.2 variations start from CN0.2 = 71, variation range (43 to 99) across rainfall depth range from 25 mm to 425 mm. The blank circle and triangular data point are benchmark points of CN0.2 ± 10%, the indicated 19.1% and 61% are runoff reduction and incremental due to CN0.2 variations.
Water 15 01162 g006
Figure 7. Response of runoff change to variation of CN0.2. Runoff change % data points are the averaged runoff change due to CN0.2 upscaling and downscaling of a specific variation %. The blank data point shows the average runoff change % due to CN0.2 ± 10% variation.
Figure 7. Response of runoff change to variation of CN0.2. Runoff change % data points are the averaged runoff change due to CN0.2 upscaling and downscaling of a specific variation %. The blank data point shows the average runoff change % due to CN0.2 ± 10% variation.
Water 15 01162 g007
Figure 8. Annual statistics of forest area in Peninsula Malaysia [12,53,54,55,56,57,58,59,79].
Figure 8. Annual statistics of forest area in Peninsula Malaysia [12,53,54,55,56,57,58,59,79].
Water 15 01162 g008
Figure 9. Mean inter-decadal runoff incremental % across different CN0.2 classes (46 to 70) between 1970 (M70) and 2000 (M90). Note: The graph was created with decadal runoff models and Malaysia Department of Forestry data to coincide with the total forest area loss within the same period. On average, runoff volume for CN0.2 classes ranging from 46 to 70 increased by 10.2% in Peninsular Malaysia while forest area reduced by 25.5% from 1970 to 2000.
Figure 9. Mean inter-decadal runoff incremental % across different CN0.2 classes (46 to 70) between 1970 (M70) and 2000 (M90). Note: The graph was created with decadal runoff models and Malaysia Department of Forestry data to coincide with the total forest area loss within the same period. On average, runoff volume for CN0.2 classes ranging from 46 to 70 increased by 10.2% in Peninsular Malaysia while forest area reduced by 25.5% from 1970 to 2000.
Water 15 01162 g009
Figure 10. Monthly rainfall trend in Peninsula Malaysia from 2001 to 2020 (divided into 5-year interval).
Figure 10. Monthly rainfall trend in Peninsula Malaysia from 2001 to 2020 (divided into 5-year interval).
Water 15 01162 g010
Figure 11. Monthly rainfall time series forecasting model for Peninsula Malaysia using Expert Modeler. Modelled period: 2001–2020 (N = 240, see Appendix A). Forecasted period: 2021–2022 (N = 24).
Figure 11. Monthly rainfall time series forecasting model for Peninsula Malaysia using Expert Modeler. Modelled period: 2001–2020 (N = 240, see Appendix A). Forecasted period: 2021–2022 (N = 24).
Water 15 01162 g011
Table 1. Inferential statistics results of derived λ for M70 decadal dataset at α = 0.01.
Table 1. Inferential statistics results of derived λ for M70 decadal dataset at α = 0.01.
λStatisticsBootstrap, BCa 99%
BiasStd. ErrorConfidence Intervals
LowerUpper
Skewness3.815
Kurtosis19.768
Mean0.0980.00030.0140.0690.142
Median0.0650.00060.002940.0490.089
Table 2. Inferential statistics results of derived λ for M80 decadal dataset at α = 0.01.
Table 2. Inferential statistics results of derived λ for M80 decadal dataset at α = 0.01.
λStatisticsBootstrap, BCa 99%
BiasStd. ErrorConfidence Intervals
LowerUpper
Skewness3.217
Kurtosis13.028
Mean0.0950.00020.0140.0660.135
Median0.0470.00220.0070.0340.064
Table 3. Inferential statistics results of derived λ for M90 decadal dataset at α = 0.01.
Table 3. Inferential statistics results of derived λ for M90 decadal dataset at α = 0.01.
λStatisticsBootstrap, BCa 99%
BiasStd. ErrorConfidence Intervals
LowerUpper
Skewness5.393
Kurtosis34.674
Mean0.0760.000050.0130.0510.115
Median0.0420.001830.0070.0310.063
Table 4. Inferential statistics results of derived Sλ for M70 decadal dataset at α = 0.01.
Table 4. Inferential statistics results of derived Sλ for M70 decadal dataset at α = 0.01.
SλStatisticsBootstrap, BCa 99%
BiasStd. ErrorConfidence Intervals
LowerUpper
Skewness1.298
Kurtosis0.975
Mean151.592−0.48214.954117.083187.008
Median123.615−0.16611.36791.255157.815
Table 5. Inferential statistics results of derived Sλ for M80 decadal dataset at α = 0.01.
Table 5. Inferential statistics results of derived Sλ for M80 decadal dataset at α = 0.01.
SλStatisticsBootstrap, BCa 99%
BiasStd. ErrorConfidence Intervals
LowerUpper
Skewness1.794
Kurtosis5.201
Mean180.994−0.33914.954141.892231.088
Median147.950−3.92119.112113.890183.670
Table 6. Inferential statistics results of derived Sλ for M90 decadal dataset at α = 0.01.
Table 6. Inferential statistics results of derived Sλ for M90 decadal dataset at α = 0.01.
SλStatisticsBootstrap, BCa 99%
BiasStd. ErrorConfidence Intervals
LowerUpper
Skewness1.132
Kurtosis1.407
Mean161.8270.22111.934131.989192.939
Median142.610−2.56621.29895.236189.506
Table 7. Optimal λ, Sλ and Ia for M70, M80 and M90 decadal datasets.
Table 7. Optimal λ, Sλ and Ia for M70, M80 and M90 decadal datasets.
DatasetOptimal λOptimal SλIa = λSλ
M700.049160 mm7.904 mm
M800.034190 mm6.431 mm
M900.031160 mm4.956 mm
Table 8. Decadal rainfall-runoff models for M70, M80 and M90 decadal datasets.
Table 8. Decadal rainfall-runoff models for M70, M80 and M90 decadal datasets.
DatasetRunoff Predictive ModelNash-Sutcliffe IndexEquation Number
M70 Q = P 7.904 2 P 152.096 0.958(3)
M80 Q = P 6.431 2 P 183.569 0.910(4)
M90 Q = P 4.956 2 P 155.044 0.907(5)
Q = runoff depth (mm), P = rainfall depth (mm).
Table 9. Correlation equations between Sλ and S0.2 for M70, M80 and M90 decadal datasets.
Table 9. Correlation equations between Sλ and S0.2 for M70, M80 and M90 decadal datasets.
DatasetCorrelation EquationAdjusted
R-Squared
Standard Error
of Estimate
Equation Number
M70 S 0.049 = 1.184 S 0.2 1.081 0.9390.134(6)
M80 S 0.034 = 1.107 S 0.2 1.094 0.9100.201(7)
M90 S 0.031 = 1.179 S 0.2 1.069 0.9070.165(8)
All correlations are significant at p < 0.001.
Table 10. Alternate form of decadal rainfall-runoff models for M70, M80 and M90 decadal datasets.
Table 10. Alternate form of decadal rainfall-runoff models for M70, M80 and M90 decadal datasets.
DatasetRunoff Predictive ModelEquation Number
M70 Q 0.049 = P 23.077 100 C N 0.2 1 1.081 2 P + 447.876 100 C N 0.2 1 1.081 (9)
M80 Q 0.034 = P 15.992 100 C N 0.2 1 1.094 2 P + 456.589 100 C N 0.2 1 1.094 (10)
M90 Q 0.031 = P 13.618 100 C N 0.2 1 1.069 2 P + 425.963 100 C N 0.2 1 1.069 (11)
Table 11. Inferential statistics of Sen Slopes for inter decadal runoff difference between M80 and M90.
Table 11. Inferential statistics of Sen Slopes for inter decadal runoff difference between M80 and M90.
Sen Slopes
M80 to M90
StatisticsBootstrap, BCa 99%
BiasStd. ErrorConfidence Intervals
LowerUpper
Skewness−0.022
Kurtosis−1.512
Mean0.0121−0.000020.002250.007010.01720
Median0.0127−0.000290.004220.004390.02119
Std. Deviation0.0087−0.000390.001030.005880.01032
Range0.0247
Table 12. Inferential statistics of Sen Slopes for inter decadal runoff difference between M70 and M80.
Table 12. Inferential statistics of Sen Slopes for inter decadal runoff difference between M70 and M80.
Sen Slopes
M70 to M80
StatisticsBootstrap, BCa 99%
BiasStd. ErrorConfidence Intervals
LowerUpper
Skewness0.272
Kurtosis−0.940
Mean0.0051−0.000010.000810.003130.00713
Median0.00480.000080.001260.002300.00824
Std. Deviation0.0031−0.000150.000460.001780.00396
Range0.1000
Table 13. Inferential statistics of Sen Slopes for inter decadal runoff difference between M70 and M90.
Table 13. Inferential statistics of Sen Slopes for inter decadal runoff difference between M70 and M90.
Sen Slopes
M70 to M90
StatisticsBootstrap, BCa 99%
BiasStd. ErrorConfidence Intervals
LowerUpper
Skewness0.065
Kurtosis−1.473
Mean0.0178−0.000030.003220.010490.02506
Median0.01750.000150.005890.007120.03125
Std. Deviation0.0124−0.000570.001490.008230.01479
Range0.0353
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Khor, J.F.; Lim, S.; Ling, V.L.; Ling, L. Assessing the Impact of Deforestation on Decadal Runoff Estimates in Non-Homogeneous Catchments of Peninsula Malaysia. Water 2023, 15, 1162. https://doi.org/10.3390/w15061162

AMA Style

Khor JF, Lim S, Ling VL, Ling L. Assessing the Impact of Deforestation on Decadal Runoff Estimates in Non-Homogeneous Catchments of Peninsula Malaysia. Water. 2023; 15(6):1162. https://doi.org/10.3390/w15061162

Chicago/Turabian Style

Khor, Jen Feng, Steven Lim, Vania Lois Ling, and Lloyd Ling. 2023. "Assessing the Impact of Deforestation on Decadal Runoff Estimates in Non-Homogeneous Catchments of Peninsula Malaysia" Water 15, no. 6: 1162. https://doi.org/10.3390/w15061162

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
