# Analysis of Fluid–Structure Coupling Vibration Mechanism for Subsea Tree Pipeline Combined with Fluent and Ansys Workbench

^{*}

## Abstract

**:**

## 1. Introduction

- AnsysFluent and AnsysCFX have been usually used to analyze fluid or fluid–structure coupling analysis in the past. In this paper, amethod based on the coupling between Fluent and Ansys Workbench structural mechanics module was adopted to conduct the analysis;
- In this paper, the research and analysis of pipeline vibration mechanism were applied to subsea tree to analyze the vibration mechanism of underwater subsea tree pipeline;
- This paper puts forward the measures to reduce the vibration of subsea tree pipelines and provides construction advice for the safe production of subsea trees.

## 2. Fluid–Structure Coupling Vibration Analysis Method of Subsea Tree Pipeline

- Friction coupling: due to the molecular interaction between the fluid and the pipe wall in contact with it, that is, the viscosity of the fluid, which not only leads to the friction between the fluid and the solid but also causes the internal friction of the fluid;
- Poisson coupling: related to the material properties of the pipe. It is caused by the periodic change of pressure caused by the change of a parameter of the flow field in the pipe and the local interaction between the pipe walls. It is named because it is related to Poisson’s ratio of the pipe;
- Connection coupling: refers to a strong local coupling effect at the pipeline connection. This coupling is caused by the instability of fluid pressure, which will cause potential safety hazards at the pipeline connection;
- Bourdon coupling: often acts on the bend section of the pipeline because the existence of the bend section of the pipeline forces the pressure change caused by changing the flow channel;simultaneously, the changed fluid pressure will also react on the bend section to make it straight.

- 5.
- Classical water hammer model [29]: because of the convenience and practicability of its mathematical theory, it is widely used in some industrial fields. In 2021, Zhang et.al. deduced the differential equation of lateral vibration of the fluid conveying pipeline. The exponential decay function is introduced to simulate the oscillating decay characteristics of the flow velocity when water hammer occurs, and the expression of the dynamic instability region of the fluid conveying pipeline under the action of the internally excited oscillating decay flow is derived;
- 6.
- Beam model [30]: Guo made a summary in the paper. The basic assumptions are: (1) the fluid is not dry and incompressible; (2) the tube is analyzed as a beam model; (3) the tube is only on a plane. The internal vibration does not consider the influence of shear deformation and the moment of inertia of the section. In addition, Yang Ke and Zhang Lixiang [31] used the beam theory to obtain the fluid–solid coupling axial vibration of a liquid-filled pipe. RenJianting et al. [32] established the waveguide equation of the pipeline fluid–solid composite system using the straight beam model.
- 7.
- Shell model [33]: Ni used the shell model to study the distribution of shear stress between layers of laminated structures. A test sample tube was made using this distribution law, and a short-term hydraulic blasting test was carried out. At the same time, the test verified that the effect of delamination defects on the burst pressure of the composite pipe is related to the interlaminar shear stress.

## 3. Analysis of Tree Flow Field Based On Computational Fluid Dynamics

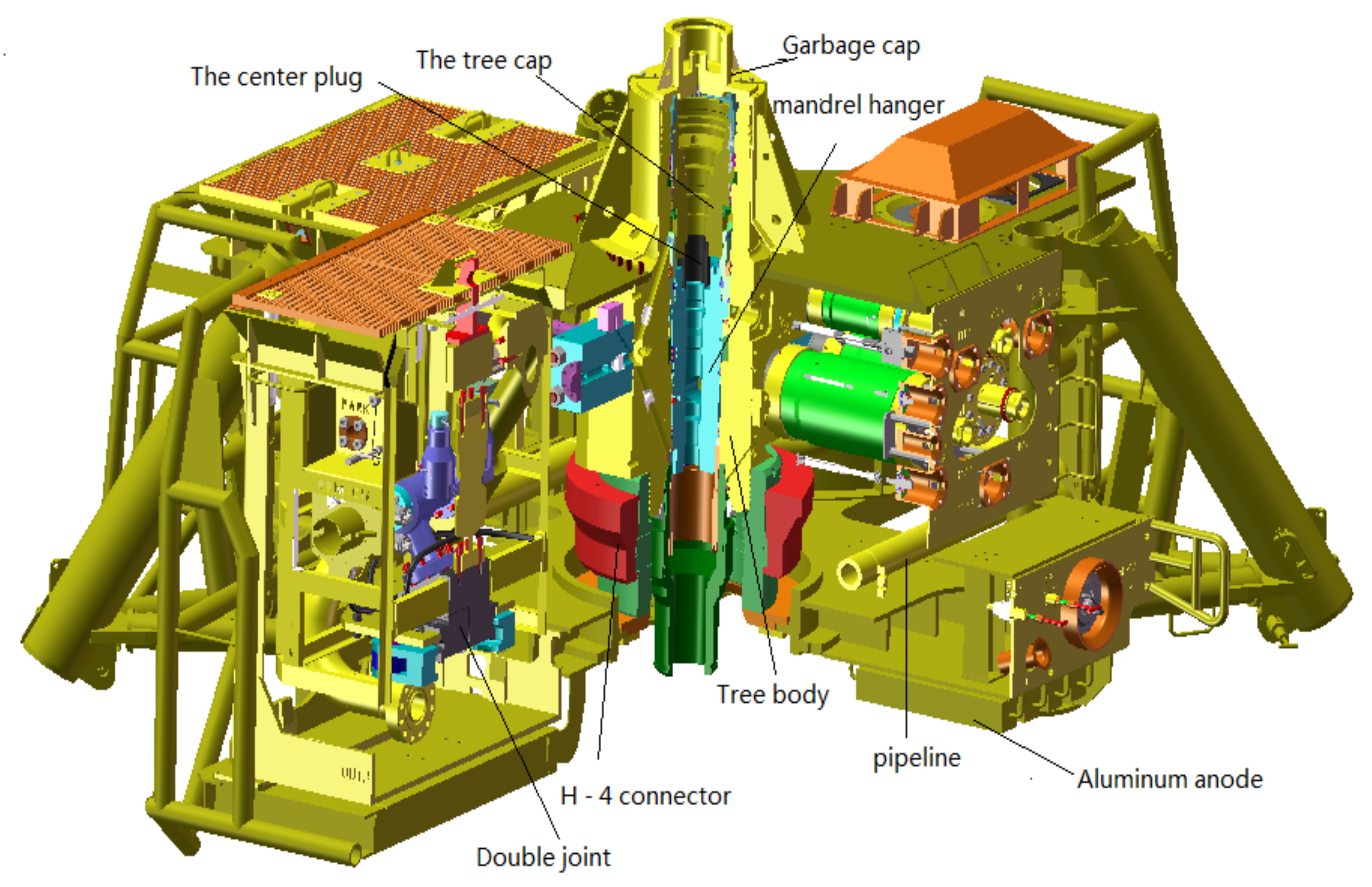

#### 3.1. Introduction To Subsea Trees

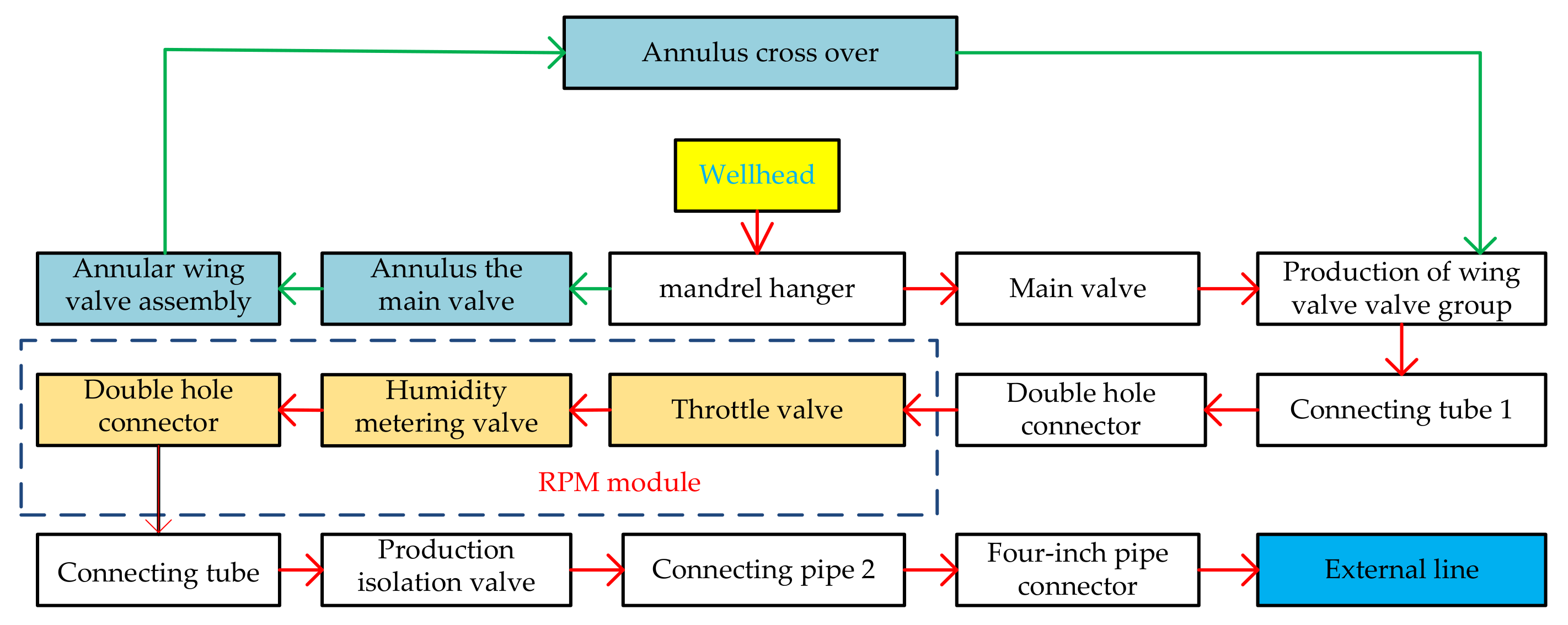

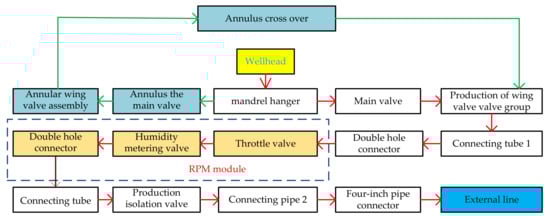

- The device is installed in the tubing hanger inside the body of the Christmas tree;
- The Christmas tree valve group is installed on the side of the tubing hanger;
- During the installation process, the Christmas tree body, is installed first, followed by the tubing hanger and production tubing.

#### 3.2. Environmental Conditions of Subsea Tree Operation

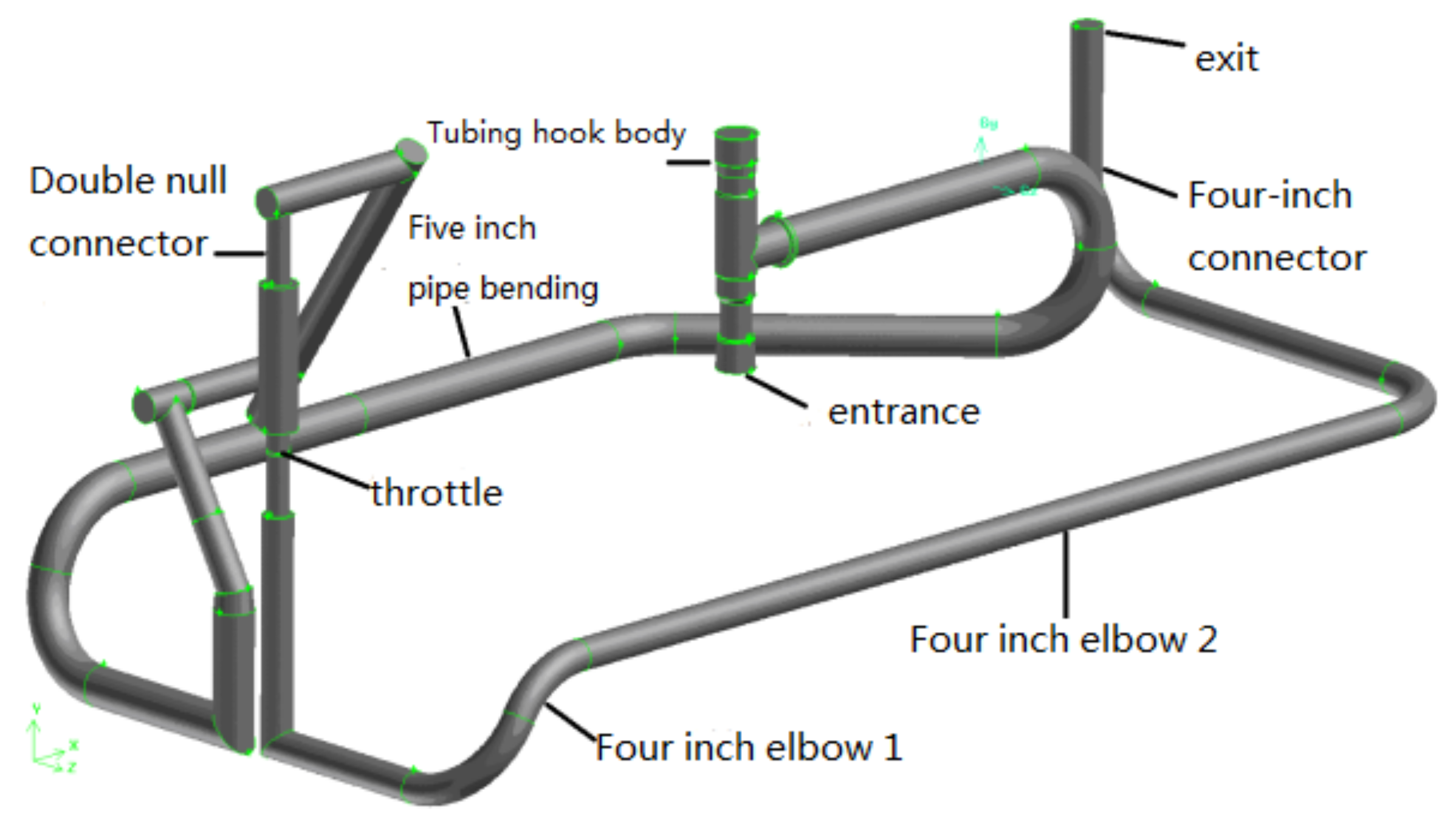

#### 3.3. Modeling and Mesh Analysis of Subsea Tree Pipeline Fluid Domain

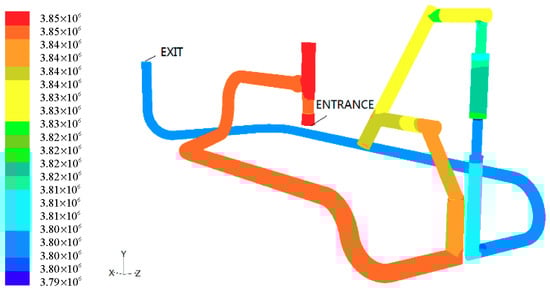

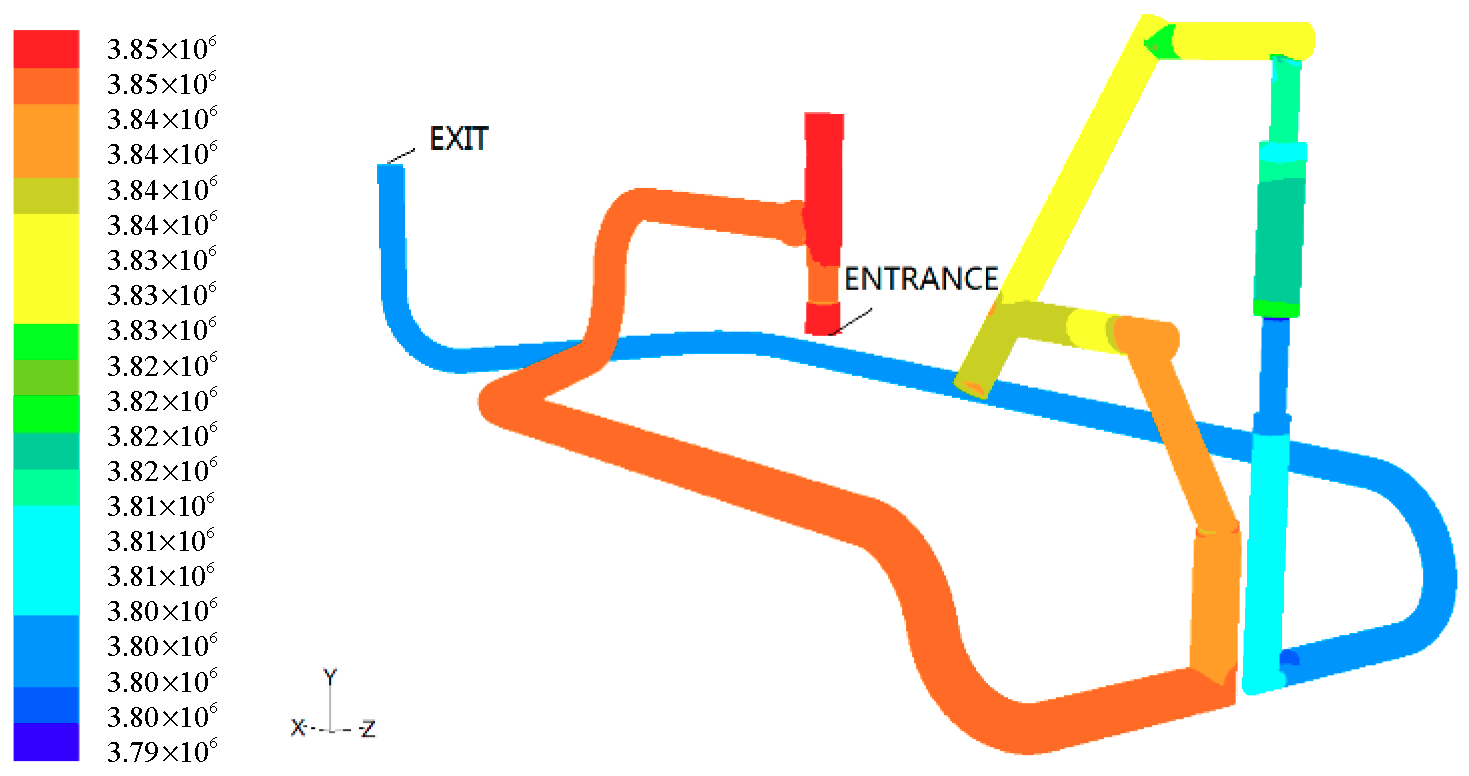

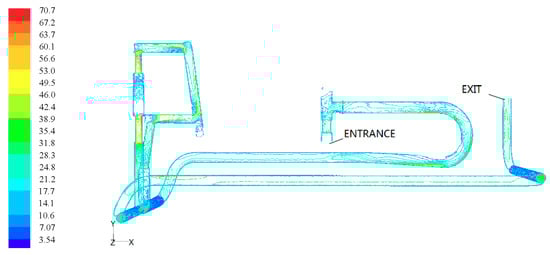

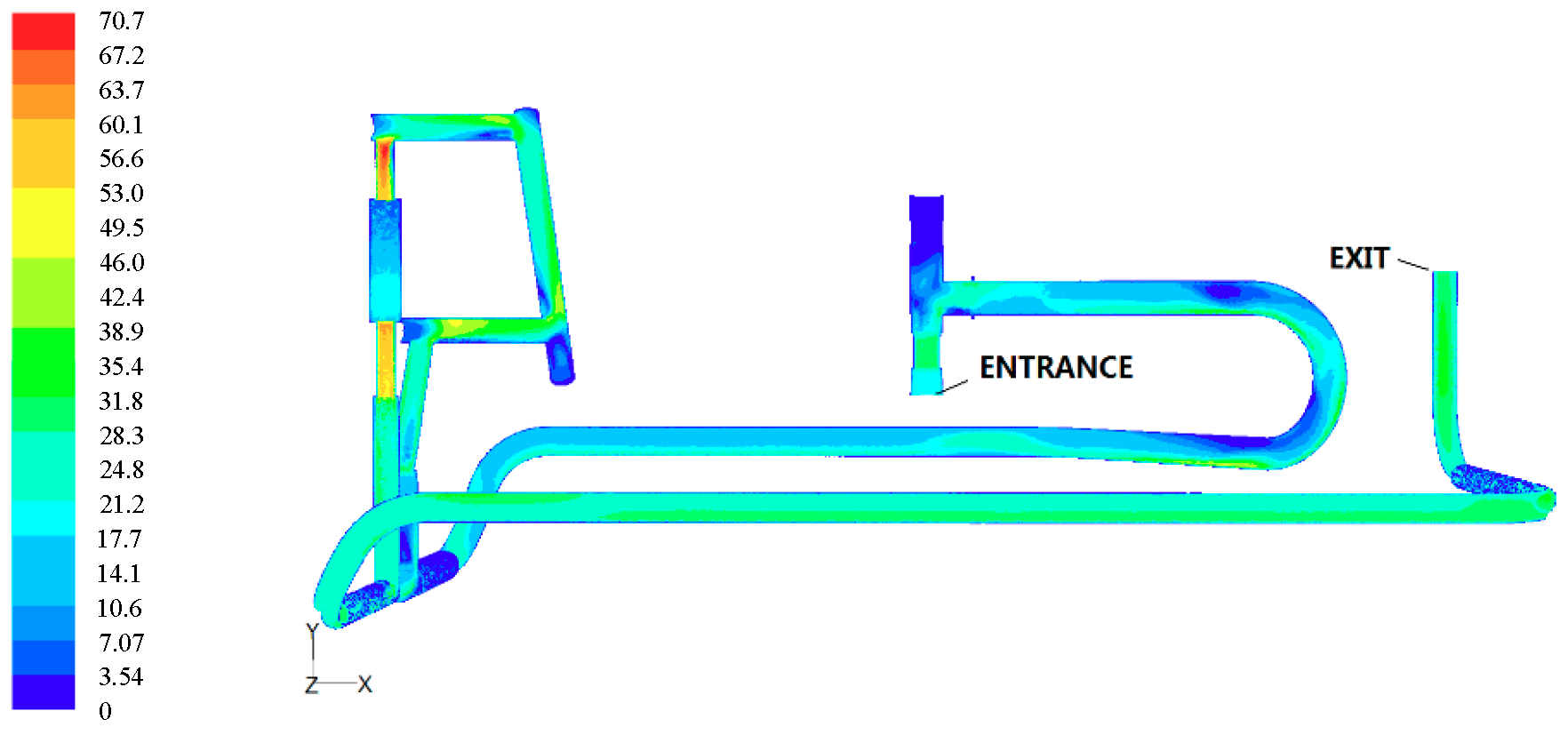

#### 3.4. Fluent calculation results and analysis

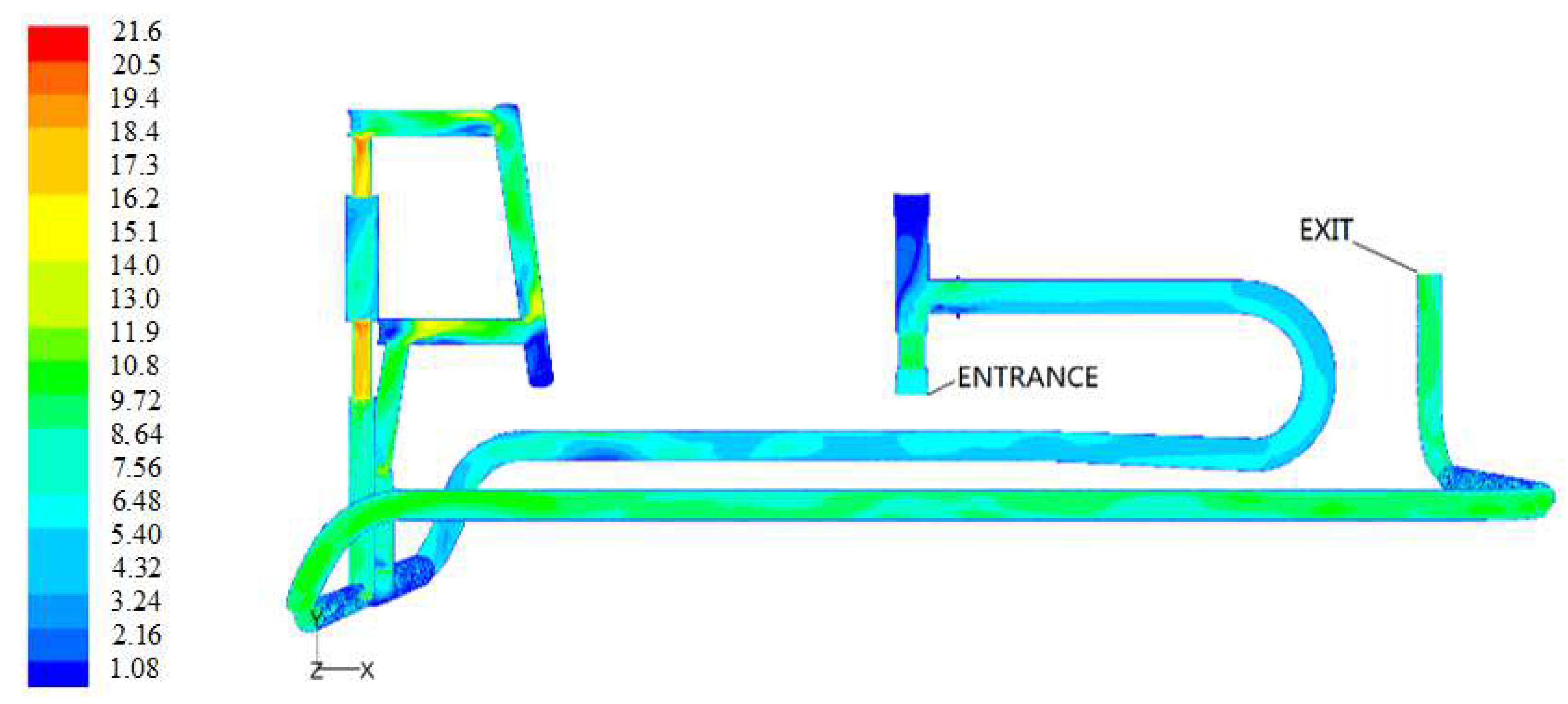

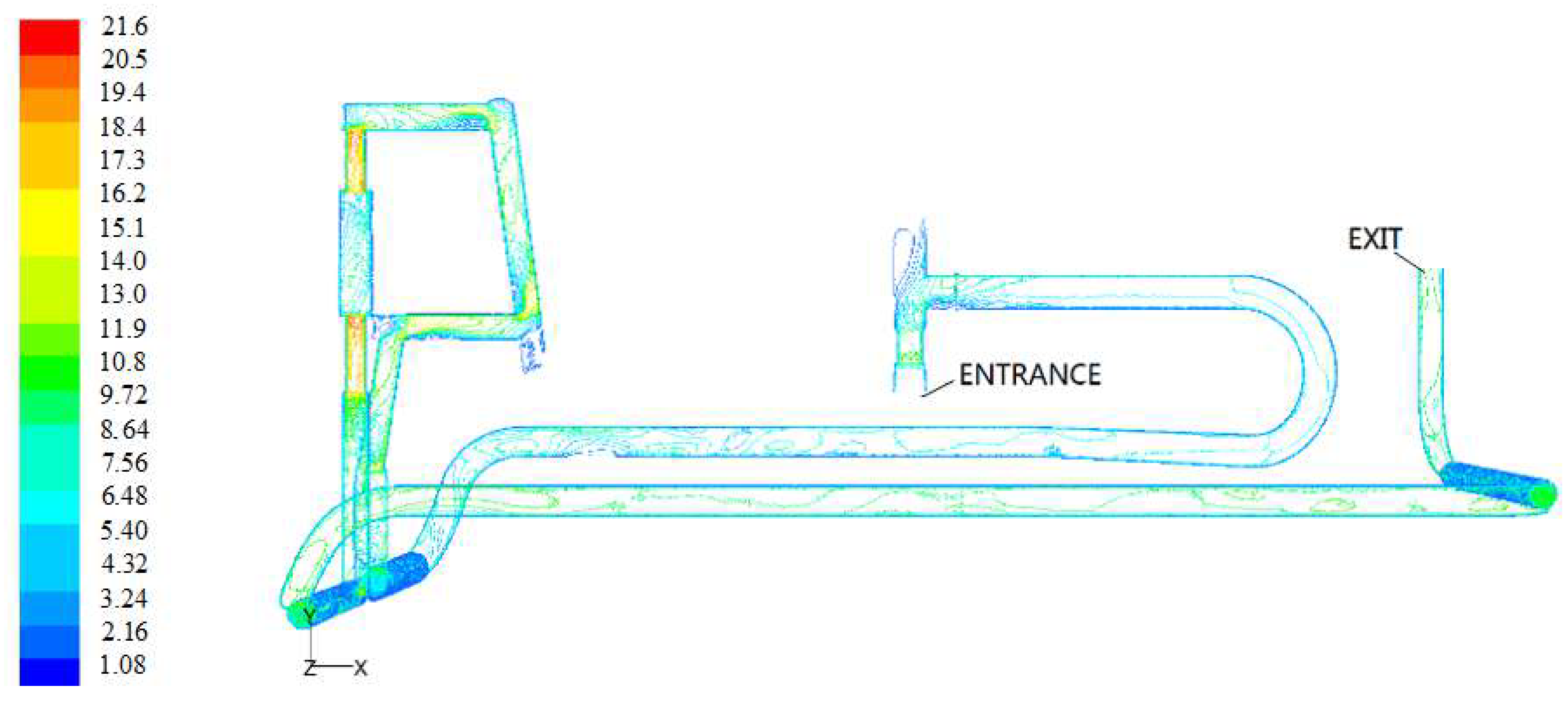

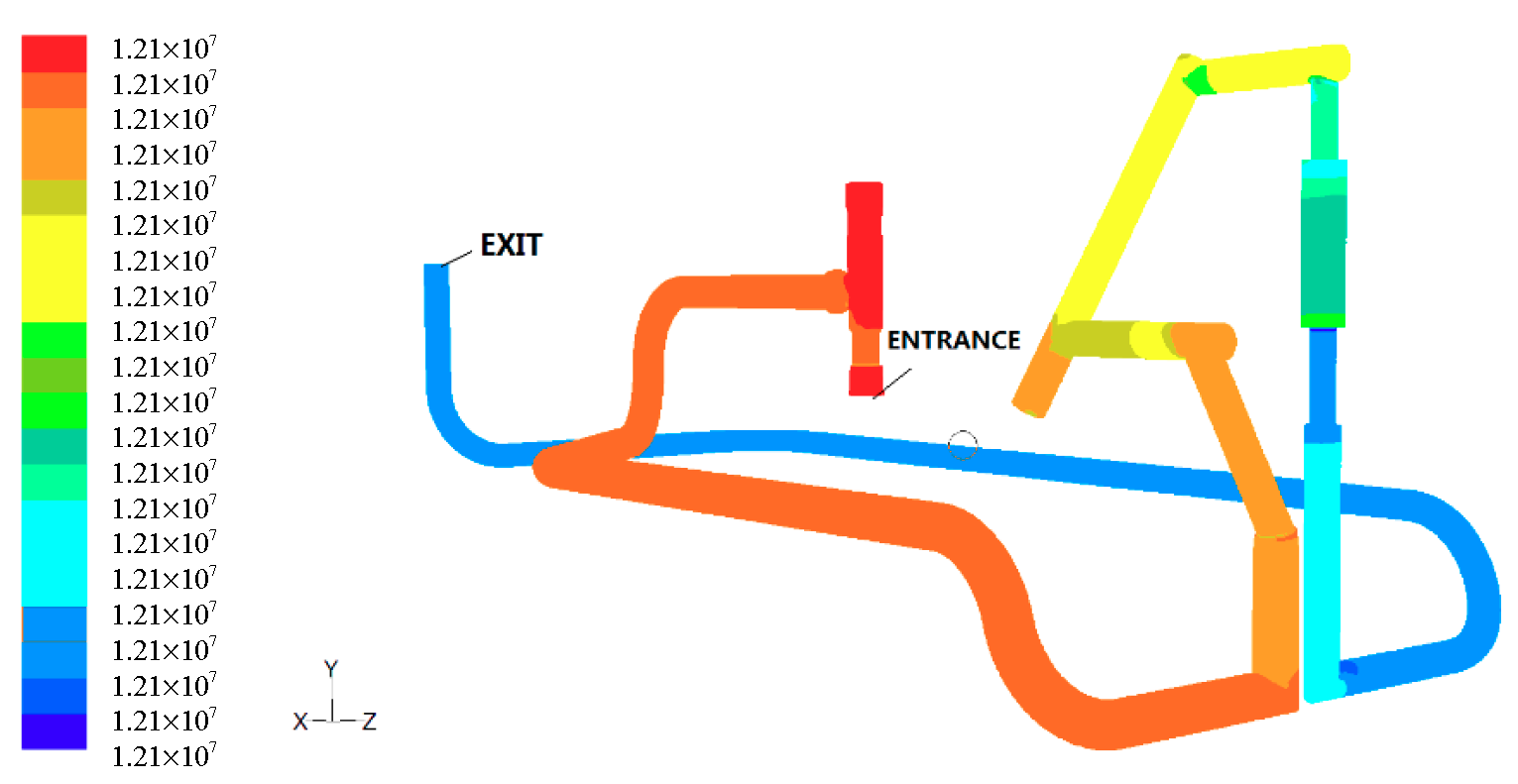

#### 3.5. Fluent Calculation Results and Analysis

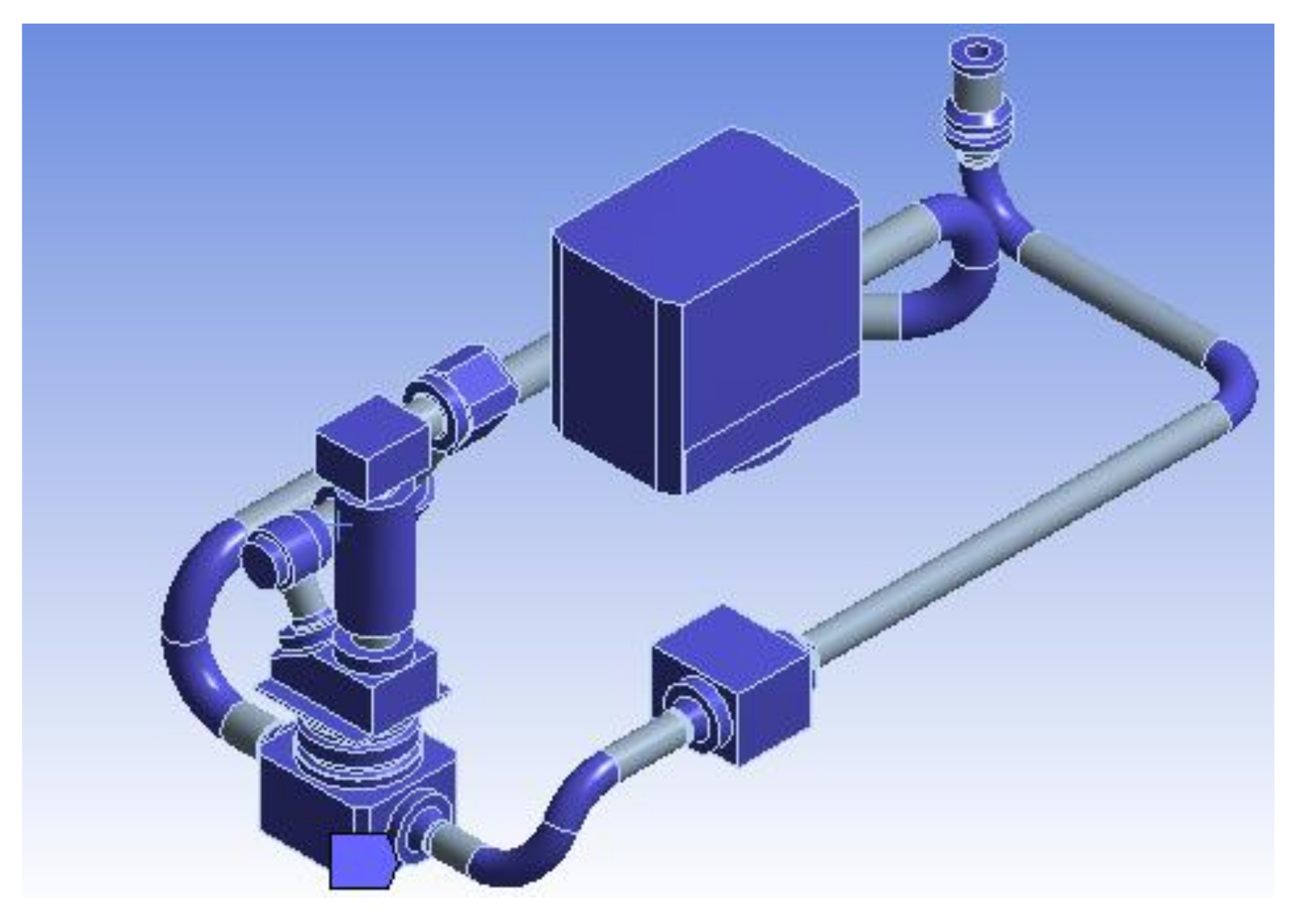

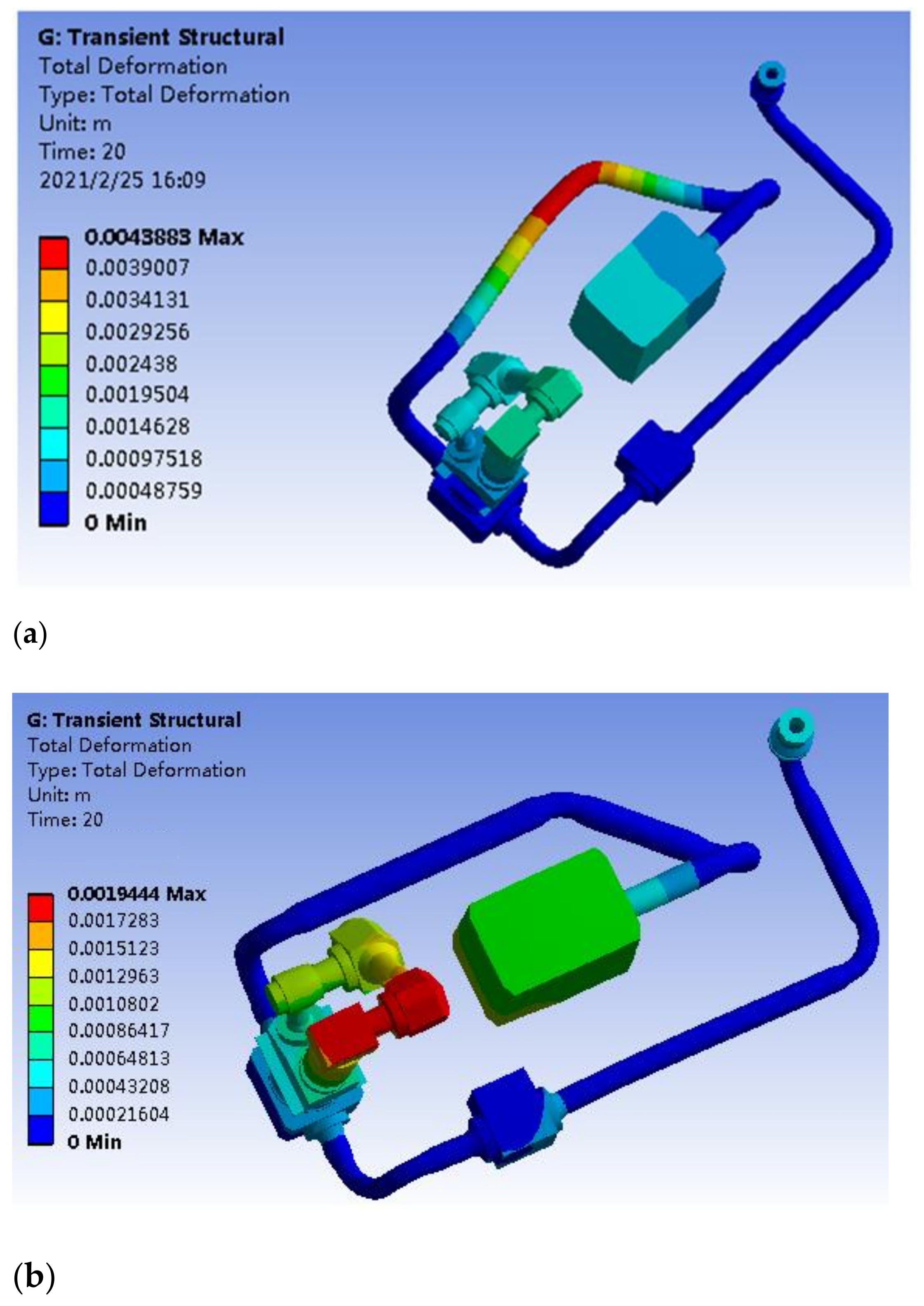

## 4. Two-Way Fluid–Structure Coupling Analysis of Subsea Tree Pipeline

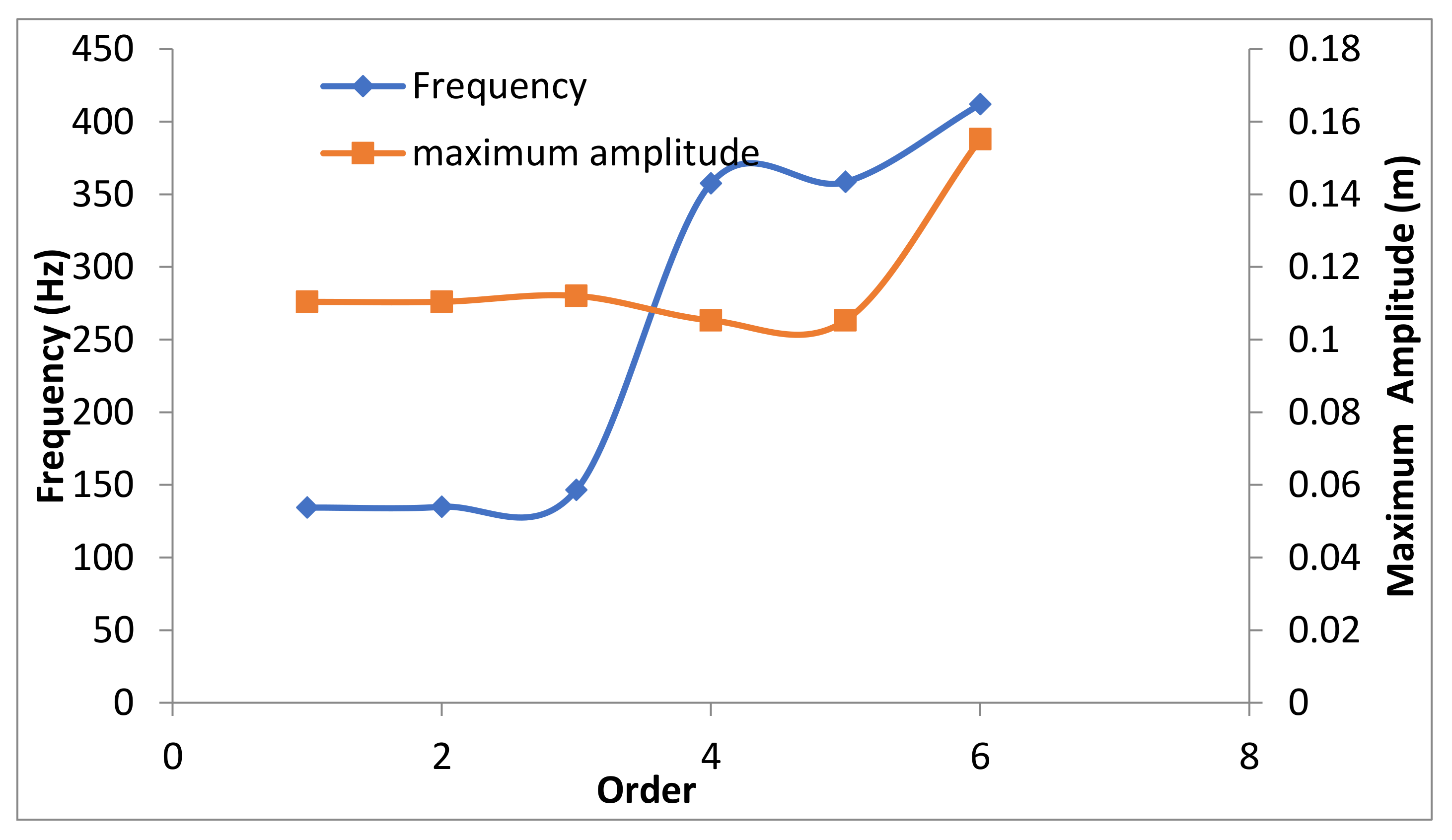

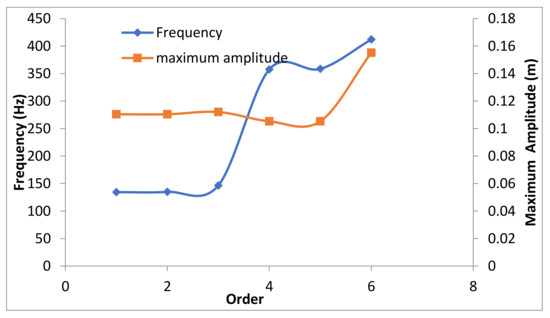

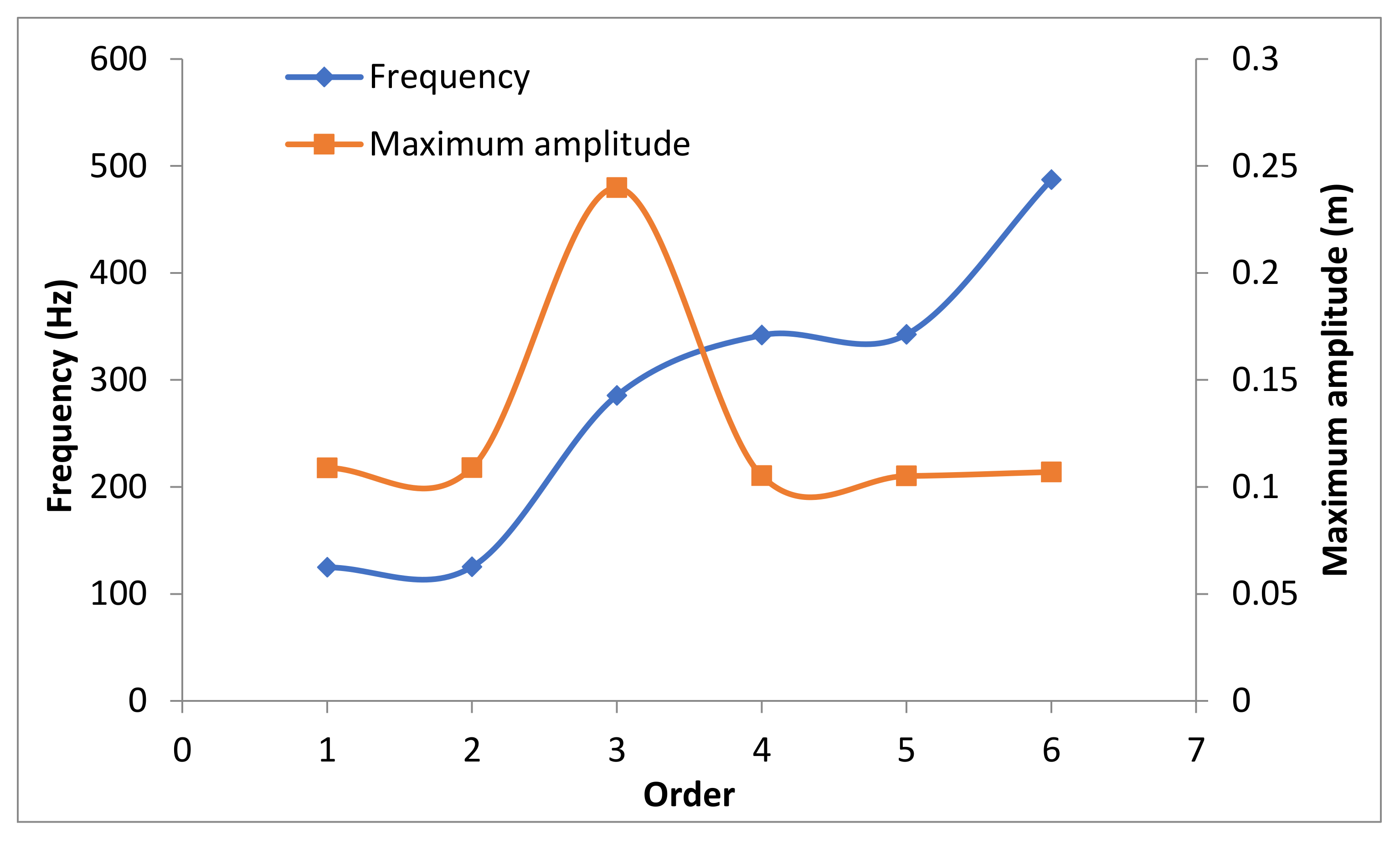

#### 4.1. Modal Calculation Analysis of Underwater Subsea Tree

#### 4.2. Thermal Analysis of the Subsea Tree

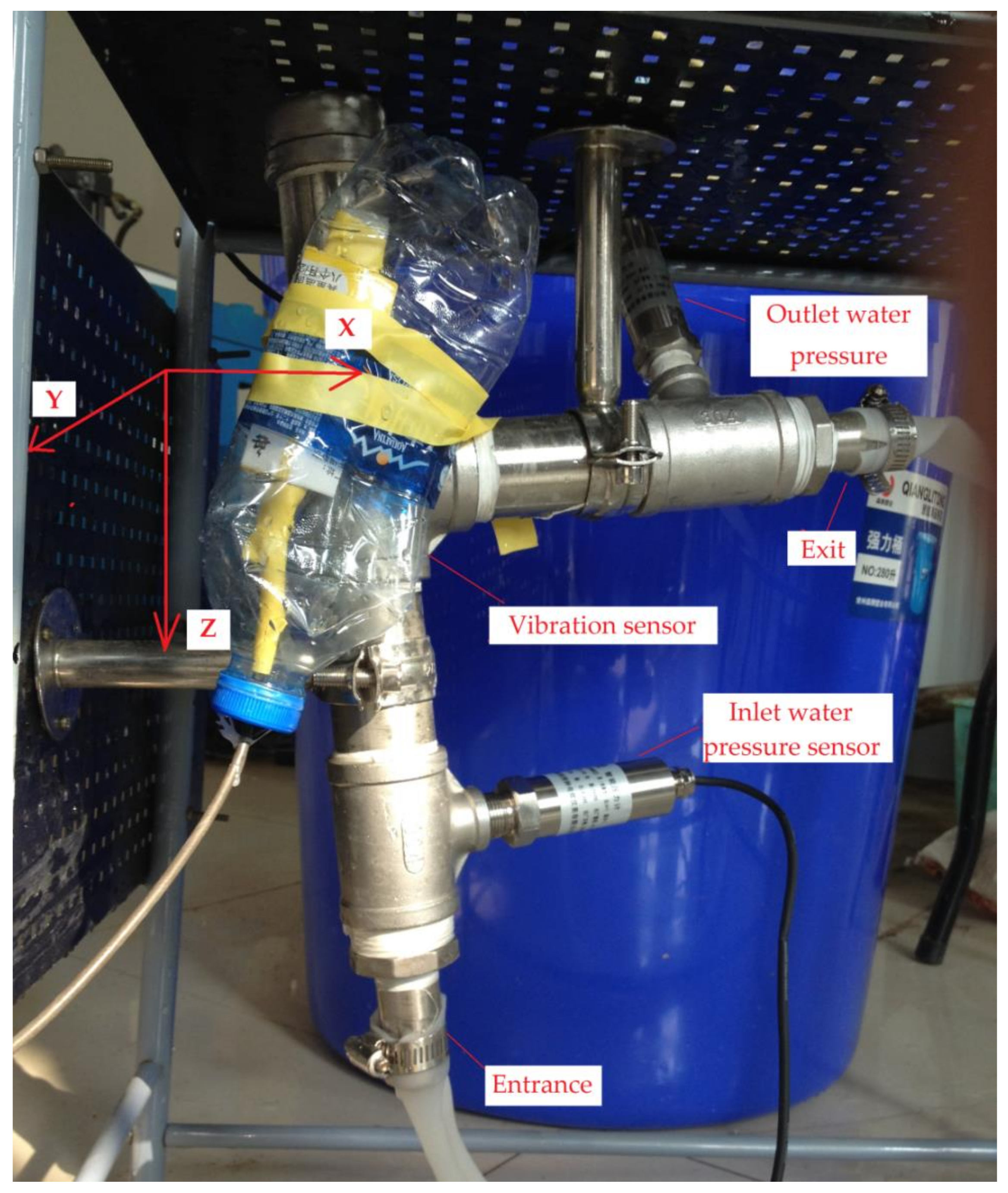

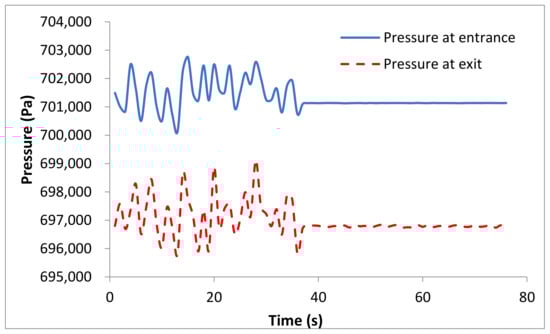

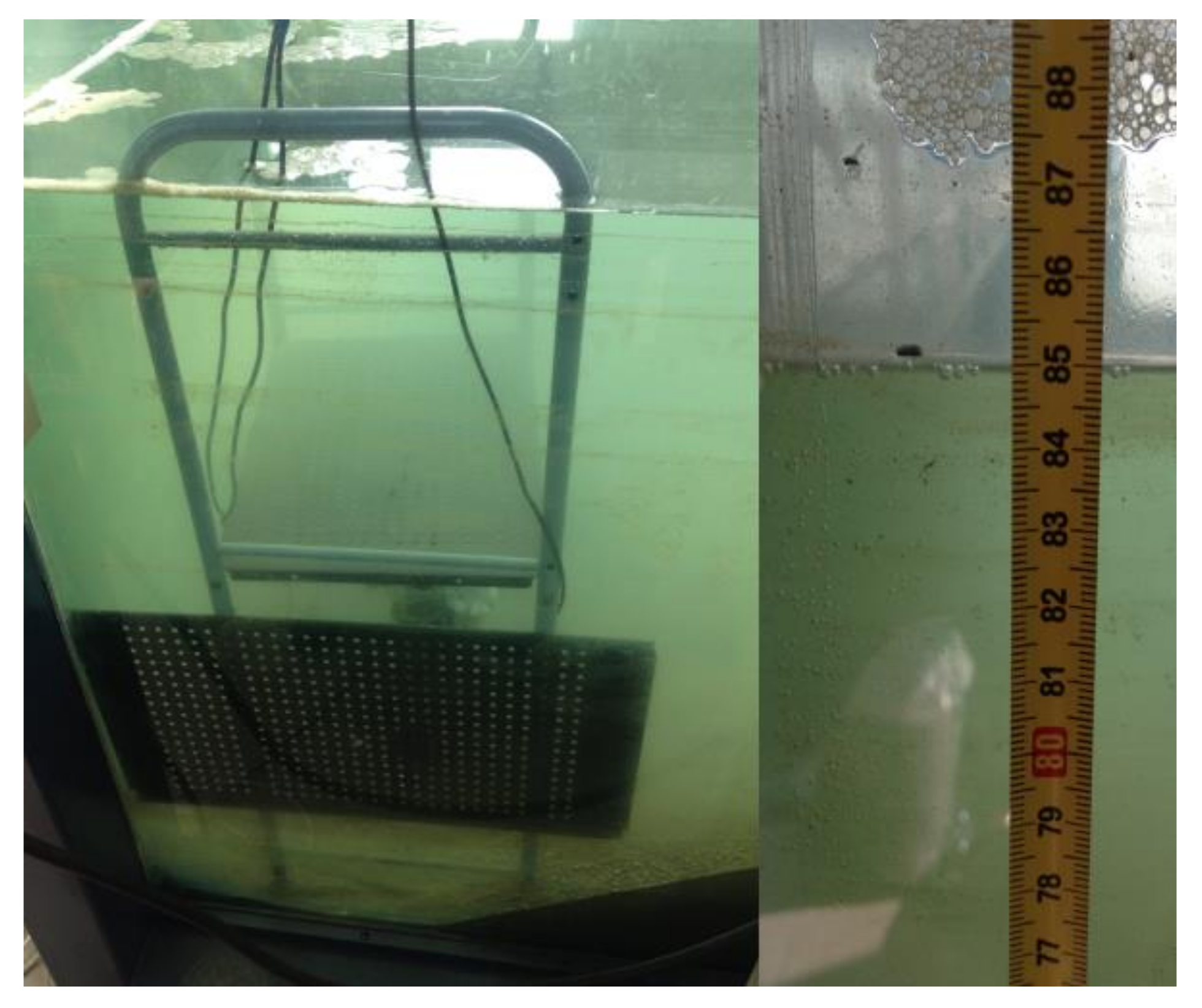

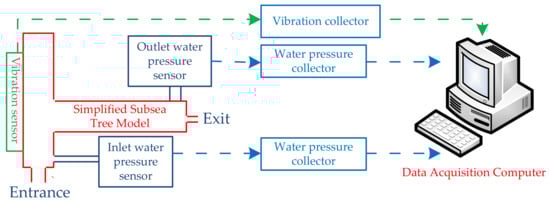

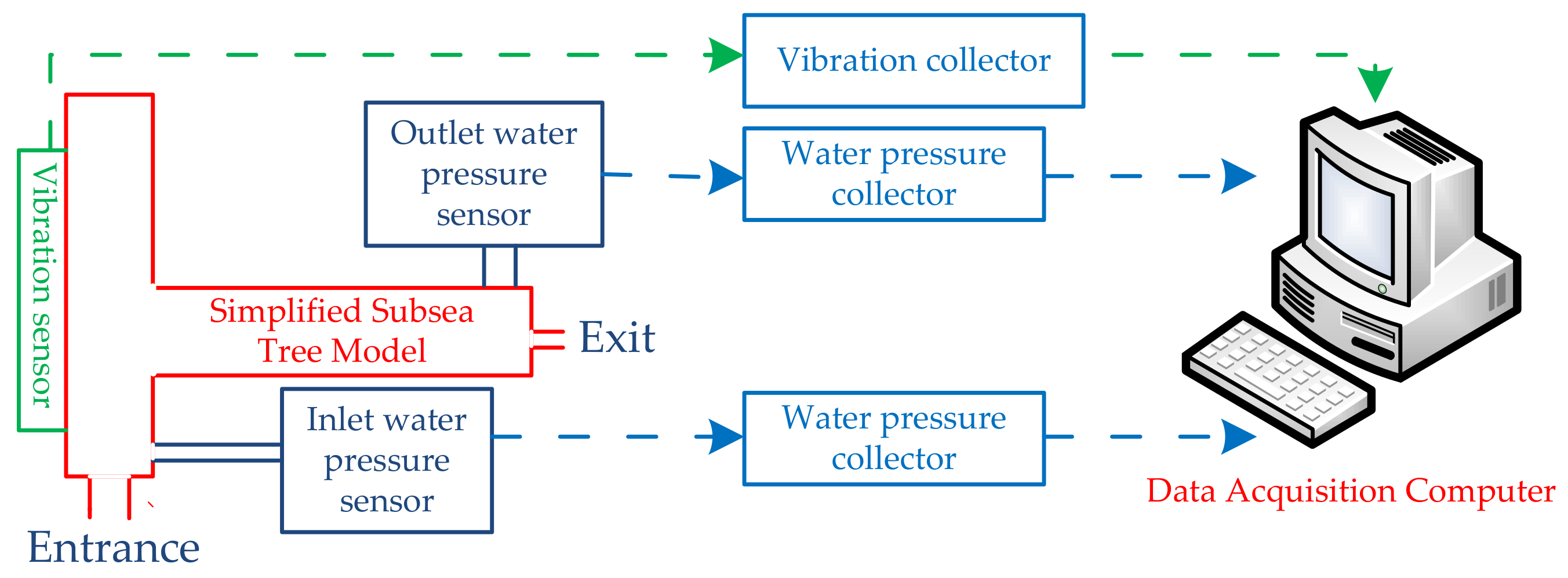

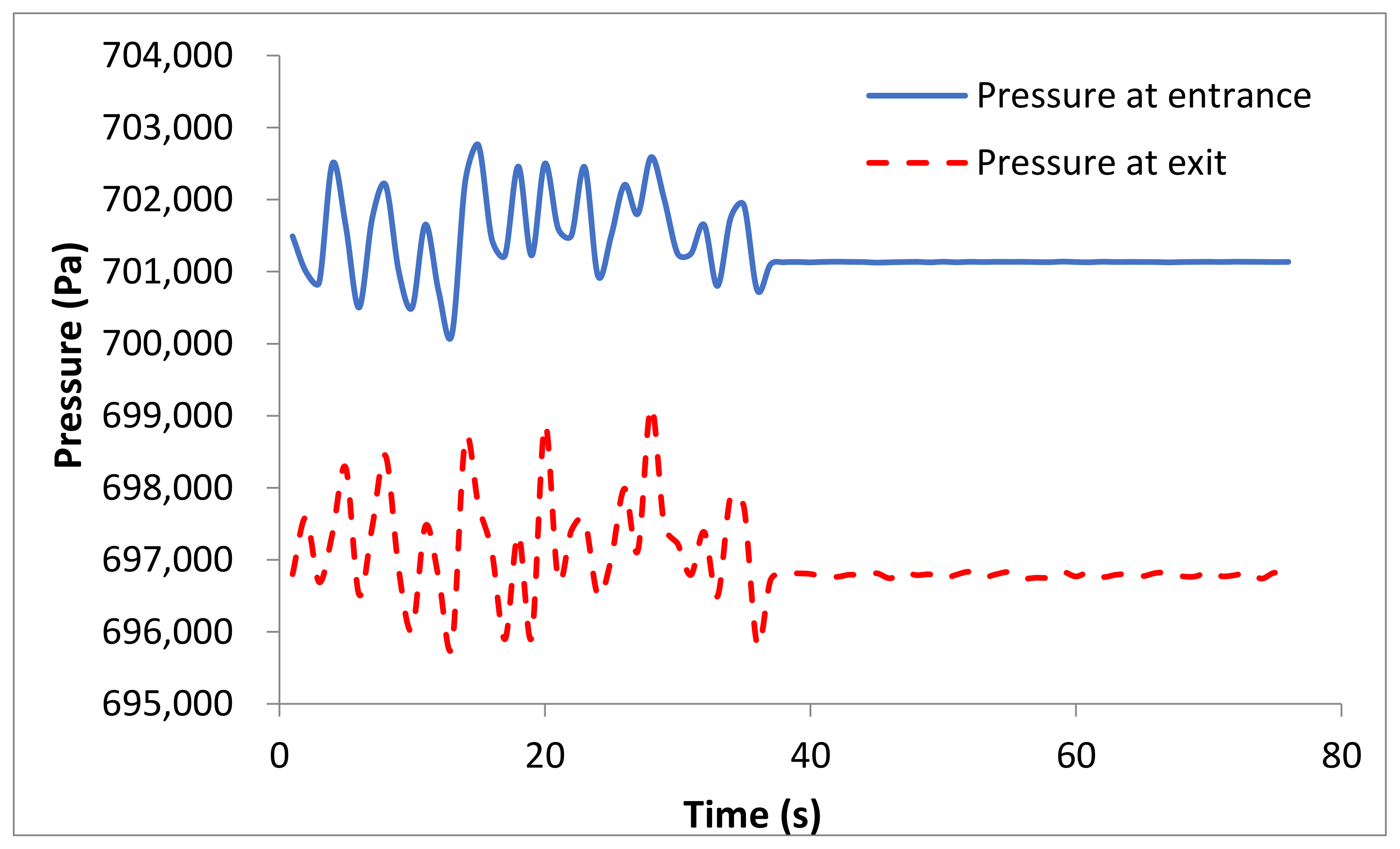

## 5. Experimental Device and Scheme Design

^{2}; the average y-axis acceleration was 0.71 mm/s

^{2}; the average z-axis acceleration was 0.135 mm/s

^{2}, as shown in Figure 20. The y-axis acceleration was the largest. The formula could be obtained, represents the distance the water flows through, represents the initial velocity of the water flow, represents the time, and represents the acceleration of the water flow, the maximum amplitude at the entrance pointwas 0.4 mm, and the smallest third-order mode maximum vibration amplitude was 0.48 mm; that was, the actuallymeasured amplitude did not exceed the maximum vibration amplitude calculated by the numerical simulation.

^{2}and the average x-axis acceleration at the exit was 0.46 mm/s

^{2}, both of which were smaller than the average x-axis acceleration at a right-angle corner. The average y-axis acceleration at the entrance was 0.69 mm/s

^{2}, and the average y-axis acceleration at the exit was 0.59 mm/s

^{2}, both of which were smaller than the average y-axis acceleration at a right-angle corner. The z-axis acceleration line graph at the exit and the entrance, the average z-axis acceleration at the entrance was 0.107 mm/s

^{2}, and the average z-axis acceleration at the exit was 0.099 mm/s

^{2}, both of which were smaller than the average z-axis acceleration at a right-angle corner. In summary, the vibration amplitude at the right-angle corner of the trigeminal pipeline was the largest, which verified the correctness of the conclusions that the fluid in Section 3 and Section 4.

## 6. Conclusions

- There willinevitably be a bend, diameter, branch, valve and other pipe components in the subsea tree pipeline. The existence of these exciting sources will produce exciting forces. Pipe layout should strive to be simple, as far as possible to reduce unnecessary elbow, size and other easy-to-produce vibration force pipe fittings. At the turning point of the piping system, elbows with a large curvature radius should be used as muchas possible instead of elbows; inclined connections should be used instead of right-angle connections, and forward connections should be used. These measures can effectively reduce the mechanical vibration amplitude, thereby reducing the harm caused by vibration;
- Support stiffness is an important factor affecting the natural frequency of the pipeline. The stronger the brace’s stiffness, the more influence the stiffness of the bracewill haveon the natural frequency of the system. The lower the support stiffness, the lower the natural frequency value of the pipe system, and vice versa; the stronger the support stiffness, the higher the natural frequency. Therefore, when designing the support, the stiffness of the support should be large, and the mass of the support should be small, and the connection between the pipe and the support should be as rigid as possible;
- The vibration is increasedwhen the pressure change frequency of the tree air inlet is close to the natural frequency of the pipeline. Attention should be paid to the frequency obtained from the modal analysis to avoid resonance and to strengthen the fixation at large displacement. Where the vibration amplitude is the largest under the first six modes frequency, these frequencies should be avoided in practical work, and measures should be taken to strengthen the fixing of the top.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Rostami, S.; Sepehrirad, M.; Dezfulizadeh, A.; Hussein, A.K.; Goldanlou, A.S.; Shadloo, M.S. Exergy optimization of a solar collector in flat plate shape equipped with elliptical pipes filled with turbulent nanofluid flow: A study for thermal management. Water
**2020**, 12, 2294. [Google Scholar] [CrossRef] - Ren, K.R.; Wang, D.Y.; Zhou, T.M.; Shen, D.C.; Chen, C.H. Current situation and development trend of offshore oil subsea equipment. China Pet. Mach.
**2008**, 36, 151–153. [Google Scholar] - Yang, J.; Liu, S.J.; Zhou, J.L.; Yan, D.; Tian, R.R.; Li, C. Development of deepwater oil drilling and production engineering simulation test device. China Pet. Mach.
**2011**, 39, 1–3. [Google Scholar] - Zhao, H.L.; Cheng, H.R.; Tian, H.P.; Duan, M.l.; He, T.; Tang, K. Design of key parameters of lowering tool of deepwater tree tubing hanger. China Pet. Mach.
**2014**, 42, 16–19. [Google Scholar] - Gong, M.X.; Liu, Z.S.; Duan, M.L.; Wang, J.G.; Zhang, M.H. Analysis and research on the process of deep-sea underwater tree laying. China Pet. Mach.
**2013**, 41, 50–54. [Google Scholar] - Zhang, S.; Lu, Y.; Weijiong, C.; Liu, X. Intelligence Study on Subsea Christmas Tree Industry Based on Patent Analysis. J. Inf.
**2014**, 6, 74–78. [Google Scholar] - Zhu, G.L.; Zhao, H.L.; Duan, M.L. Design elements analysis of subsea control module underwater Christmas tree. Pet. Field Mach.
**2013**, 42, 1–6. [Google Scholar] - Lu, P.W.; Yuan, X.B.; Ou, Y.J.; Luo, Y.G.; Yang, W.; Su, R.H.; Zhang, Y.W.; Zhang, C.Q.; Cai, B.P. Research on the development status of underwater for Christmas tree. Pet. Field Mach.
**2015**, 6, 6–13. [Google Scholar] - FMC Technologies. Subsea [K/OL]. Available online: http://www.fmctechnologies.com/en/Subsea%Systems/Technologies/Subsea%Production%Systems/SubseaTrees.aspx (accessed on 21 February 2021).
- Samad, J. Subsea development of marginal deepwater fields. In Proceedings of the Offshore Technology Conference-Asia, Kuala Lumpur, Malaysia, 25–28 March 2014. [Google Scholar]
- Zhang, H.; Chen, Z.G.; Wan, B. Research on the structural strength and experimental verification methods of underwater Christmas tree. Mod. Manuf.
**2017**, 30, 142–143. [Google Scholar] [CrossRef] - Wu, Y.F. The Comparison of Two Coupling Approaches on the Analysis of Two-Way Fluid-Solid Interaction; Tianjin University: Tianjin, China, 2009. [Google Scholar]
- Yang, Y.; Chen, Z.Y. Calculation and analysis on natural frequency of fluid structure interaction in aero-engine pipelines. Gas Turbine Test Res.
**2010**, 23, 42–46. [Google Scholar] - Li, H.F.; Ai, Y. Solution of fluid-structure coupling problem based on ANSYS and redevelop. Electroacoust. Technol.
**2011**, 35, 19–21. [Google Scholar] [CrossRef] - Tao, D.L.; Geng, Z.; Shi, P.G. Numerical simulation analysis and optimal design of lubricating oil pipeline vibration for 10-K-302C reciprocating compressor. Guangdong Chem. Ind.
**2014**, 8, 118–123. [Google Scholar] - Yu, S.R.; Ma, L.; Yu, L. Analysis of dynamic characteristics of fluid-structure coupling in curved pipes conveying fluid. Noise Vib. Control
**2015**, 35, 43–47. [Google Scholar] - Zhang, J.; Liang, Z.; Han, C.J. Fluid-structure coupling analysis of U-shaped liquid-filled pipe. Chin. J. Appl. Mech.
**2015**, 32, 64–68. [Google Scholar] - Ye, H.L.; Shao, P.Z.; Chen, N. Dynamic analysis and parameters’ influences on fluid-structure interaction in a fluid-filled pipes system. J. Beijing Univ. Technol.
**2015**, 41, 167–173. [Google Scholar] [CrossRef] - Cao, Y. Research on Vibration Mechanism of Gas-Solid Coupling Pipeline; Yanshan University: Hebei, China, 2016. [Google Scholar]
- Dou, Y.H.; Yu, K.Q.; Yang, X.T.; Cao, Y.P. Finite element analysis of fluid-structure coupling vibration of fluid-conveying elbows. Mach. Des. Manuf. Eng.
**2017**, 46, 18–21. [Google Scholar] [CrossRef] - Zhang, X.M. Research on Vibration Characteristics of Fluid-Solid Coupling Indoor Water Supply Pipeline Based on ANSYS Workbench. Chongqing. Master’s Thesis, Southwest University, Chongqing, China, 2018. [Google Scholar]
- Bai, Y.C.; Xie, W.D.; Gao, X.F.; Xu, W. Dynamic analysis of a cantilevered pipeconveying fluid with density variation. J. Fluids Struct.
**2018**, 81, 638–655. [Google Scholar] [CrossRef] - Xie, C.L.; Wang, Z.Y. Numerical simulation of fluid-solid coupling of L-tube gas-liquid two-phase internal flow-induced vibration. Pet. Mach.
**2019**, 47, 124–128. [Google Scholar] [CrossRef] - Wang, F.M.; Xu, Z.L.; Wu, W.B.; Liu, S.J. Analysis of dynamic characteristics of straight pipes filled with liquid under pulse dynamic action. Noise Vib. Control
**2013**, 2, 11–14. [Google Scholar] - Liang, J.S.; Su, Q.; Li, X.Y. Modal analysis of fluid-structure interaction bellows based on ANSYS/Workbench. Mach. Des. Manufact.
**2013**, 2, 91–93. [Google Scholar] [CrossRef] - Shi, D.D.; Xie, W.Y.; Kong, G.; Liu, W.B.; Bie, Y.B. Finite element analysis of mechanical properties of seismic supports and hangers for building pipelines. Comput. Aided Eng.
**2019**, 28, 56–62. [Google Scholar] [CrossRef] - Liu, H.G.; Kong, J.Y.; Li, G.F.; Wang, X.D.; Liu, Y.J. Vibration analysis and control of liquid-filled pipeline system. J. Hubei Univ. Technol.
**2005**, 20, 2–4. [Google Scholar] - Zhang, L.X. iResearch on fluid-structure coupling vibration of pipeline. Adv. Hydrodyn. Res.
**2000**, 15, 3. [Google Scholar] - Zhang, T.; Lin, Z.H.; Lin, T.; Zhang, H. Analysis of dynamic instability of fluid conveying pipeline under the action of internally excited oscillating attenuated flow. J. Vib. Shock
**2021**, 40, 3. [Google Scholar] [CrossRef] - Guo, S.Q. Random Uncertainty Modeling and Vibration Analysis of Pipes Conveying Multi-phase Fluid; Zhejiang University: Hangzhou, China, 2014. [Google Scholar]
- Yang, K.; Zhang, L.X.; Wang, B.D. A symmetric model of liquid filled pipe in axial vibration. Res. Prog. Hydrodyn.
**2005**, 20, 8–13. [Google Scholar] - Ren, J.T. Traveling wave method of pipeline fluid-structure coupling vibration. Chin. J. Appl. Mech.
**2006**, 22, 530–535. [Google Scholar] - Ni, Z.L. Burst Pressure of Glass Fiber Reinforced Composite Pipe with Delamination Defect; Zhejiang University: Hangzhou, China, 2020. [Google Scholar] [CrossRef]
- Besbes, S.; Hajem, M.; Aissia, H.B.; Champagne, J.Y. Low reynolds number turbulence models to simulate the bubble plume behavior with the euler-euler method. J. Appl. Fluid Mech.
**2021**, 14, 1–10. [Google Scholar] [CrossRef] - Siddiqui, N.A.; Chaab, M.A. A simple passive device for the drag reduction of an ahmed body. J. Appl. Fluid Mech.
**2021**, 14. [Google Scholar] [CrossRef]

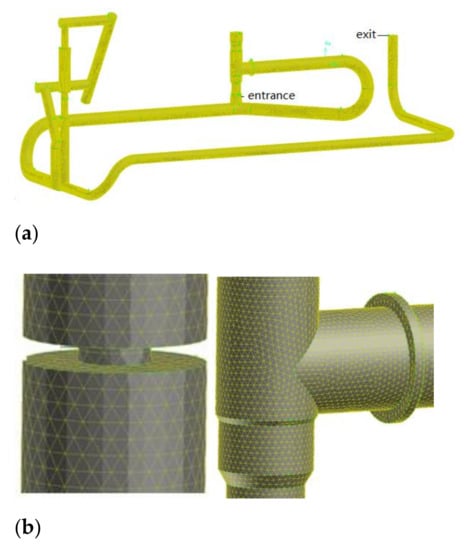

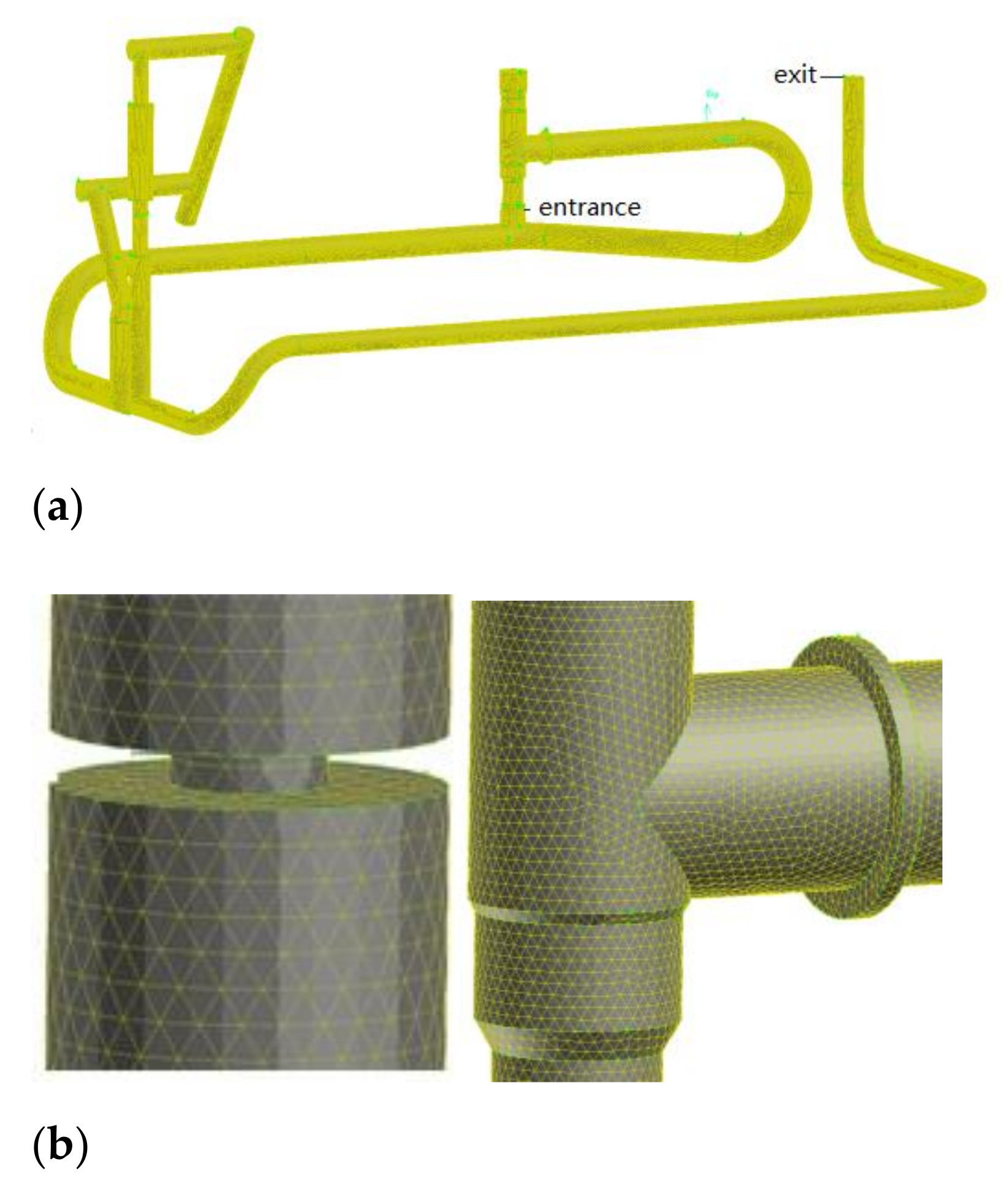

**Figure 4.**Analysis of subsea tree meshing. (

**a**) Subsea treemeshing; (

**b**) local mesh amplification of the throttle valve and tubing hanger body.

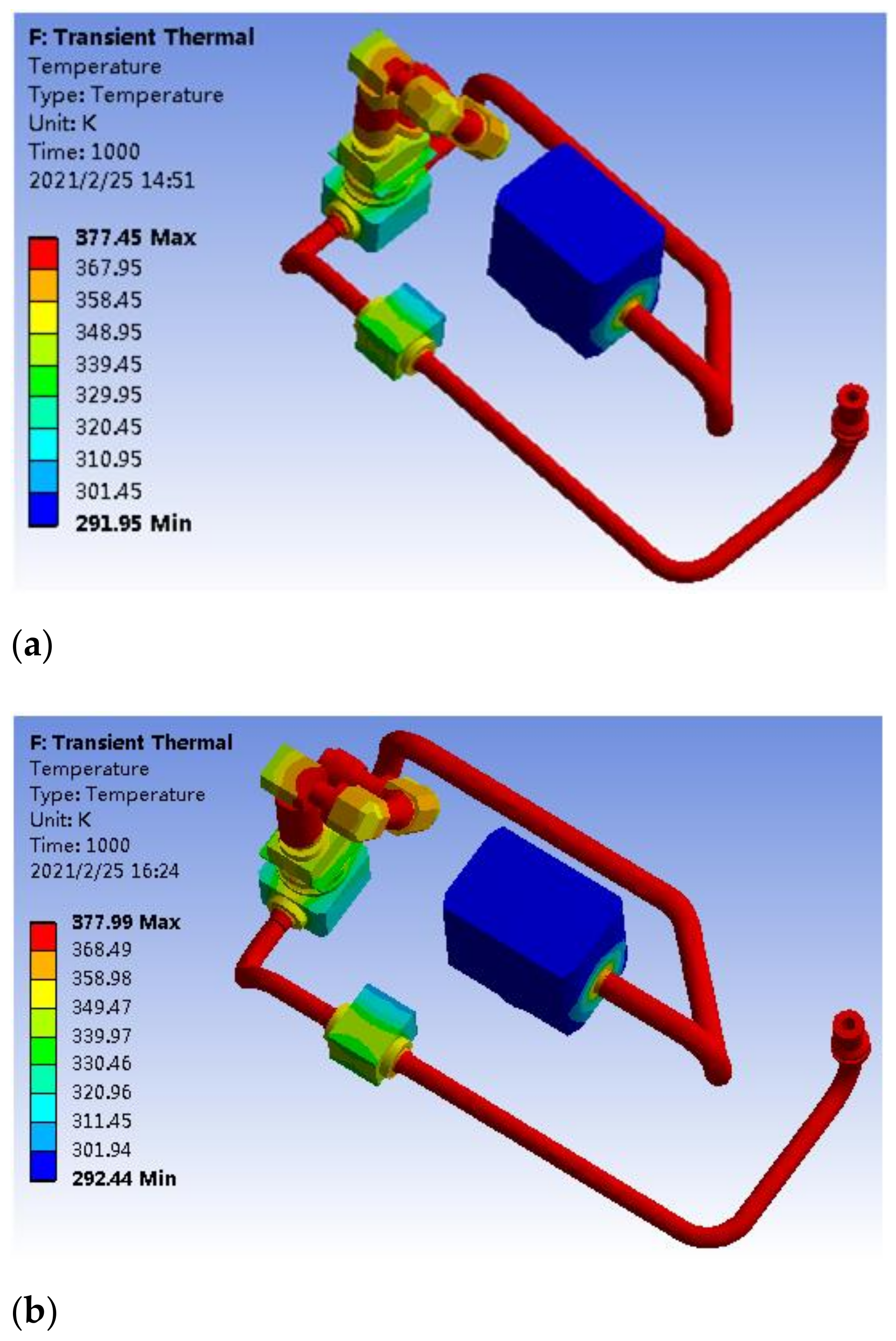

**Figure 14.**Overall temperature distribution cloud diagram for the subsea tree (

**a**) under condition 1 and (

**b**) under condition 2.

**Figure 15.**Overall temperature distribution cloud diagram for the subsea tree (

**a**) under condition 1 and (

**b**) under condition 2.

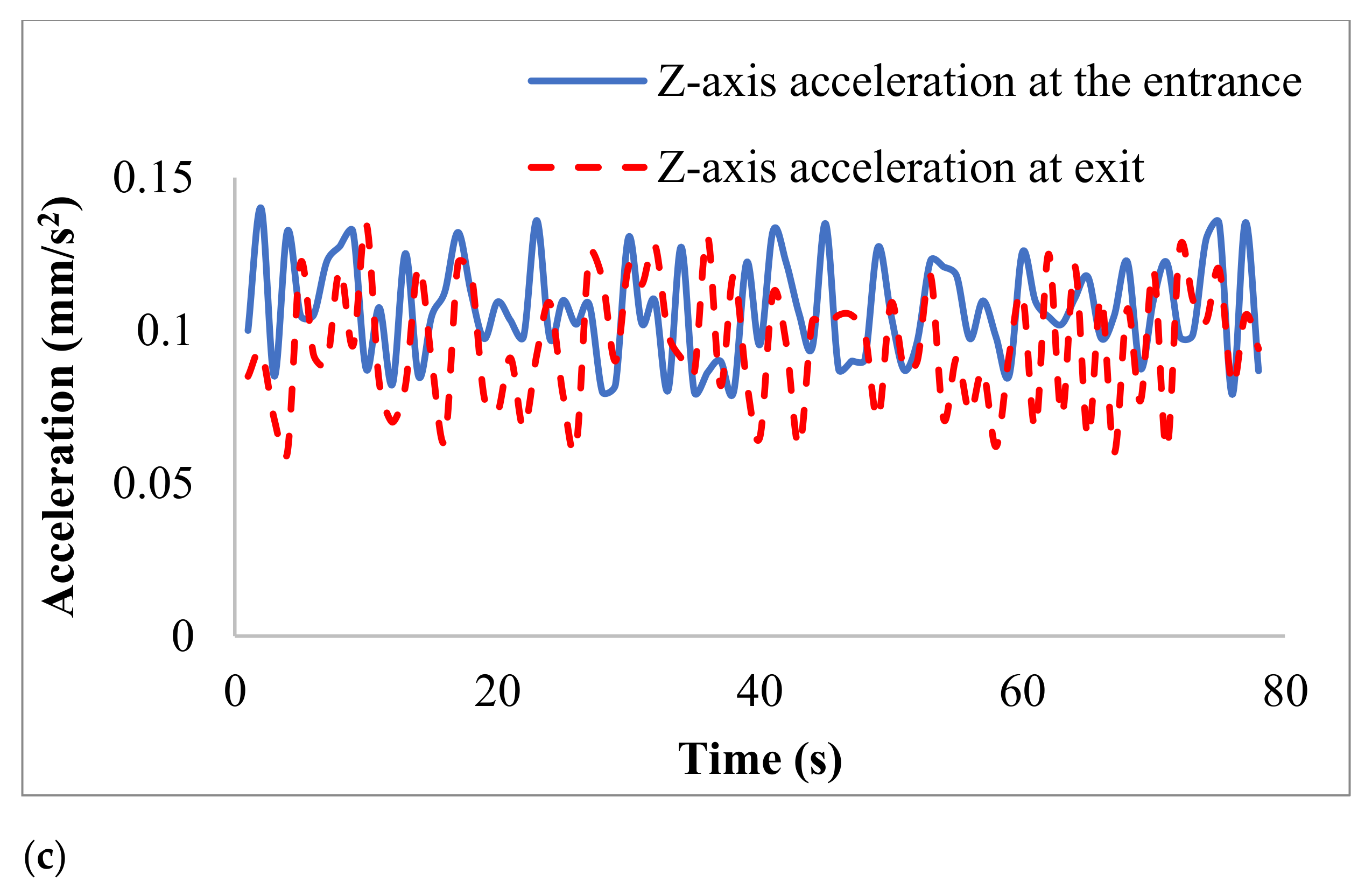

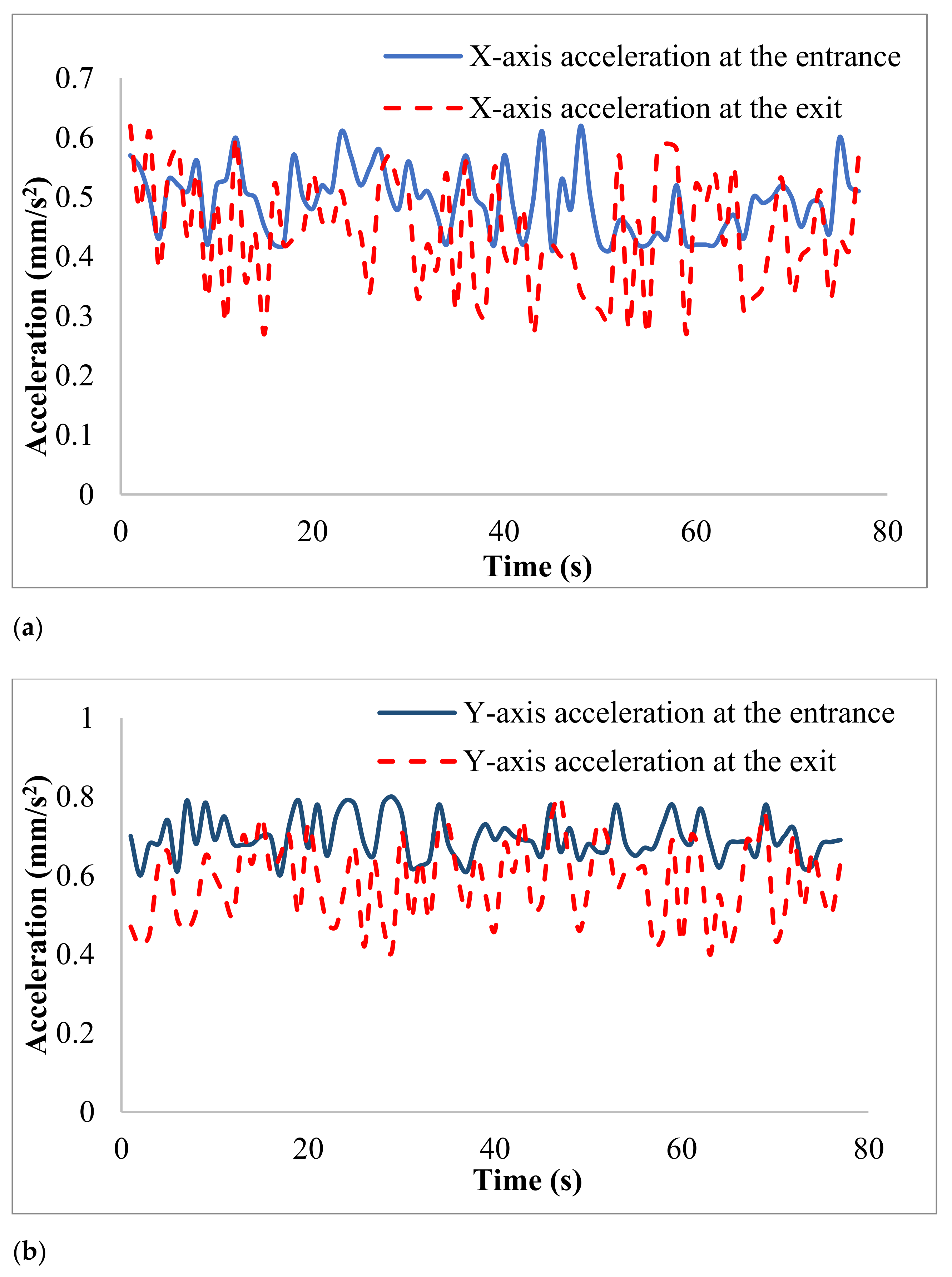

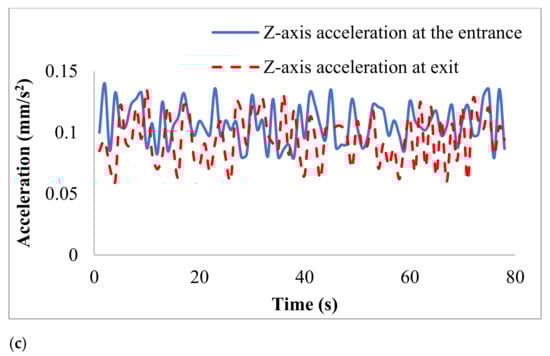

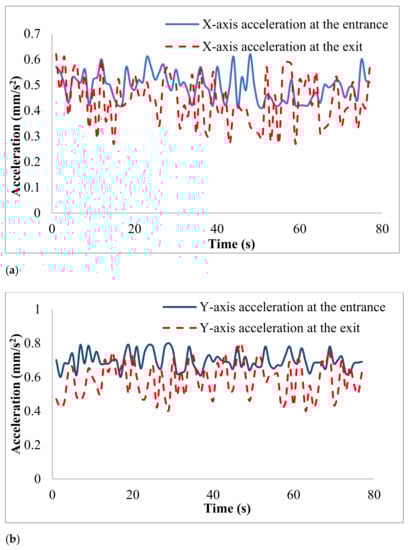

**Figure 20.**Comparison of acceleration in each direction of entrance and exit. (
