# Hydrodynamic Forces Exerting on an Oscillating Cylinder under Translational Motion in Water Covered by Compressed Ice

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Governing Equations and Boundary Conditions

## 3. Solutions of the Stationary Problem

## 4. Solutions of the Radiation Problem

## 5. Numerical Results

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Nomenclature

$\rho $ water density |

${\rho}_{1}$ ice density |

${h}_{1}$ thickness of the ice plate |

g acceleration due to gravity |

E Young’s modulus of elastic plate |

$\nu $ Poisson ratio |

$D=E{h}_{1}^{3}/\left[12(1-{\nu}^{2})\right]$ ice rigidity |

Q longitudinal ice stress |

${Q}_{0}$ first critical value of the stress parameter when the anomalous dispersion occurs |

${Q}_{*}=2\sqrt{\rho gD}$ second critical value of the stress parameter when the ice buckling occurs |

$M={\rho}_{1}{h}_{1}$ parameter describing the inertial property of ice |

${c}_{p}$ phase velocity of FGWs |

${c}_{g}$ group velocity of FGWs |

a cylinder radius |

$\mathsf{\Omega}$ frequency of cylinder oscillations |

$Fr\equiv U/\sqrt{ga}$ Froude number in terms of the cylinder radius a |

${\overline{F}}_{s1}\equiv {F}_{s1}/\left(\right)open="("\; close=")">\pi \rho \phantom{\rule{0.166667em}{0ex}}g\phantom{\rule{0.166667em}{0ex}}{a}^{2}$ normalised wave resistance in the stationary flow |

${\overline{F}}_{s2}\equiv {F}_{s2}/\left(\right)open="("\; close=")">\pi \rho \phantom{\rule{0.166667em}{0ex}}g\phantom{\rule{0.166667em}{0ex}}{a}^{2}$ normalised lift force in the stationary flow |

${\tau}_{jk}$ a complex matrix of radiation forces |

${\mu}_{jk}$ a real matrix of added masses |

${\lambda}_{jk}$ a real matrix of damping coefficients |

$\overline{\mu}={\mu}_{jj}/\left(\pi \rho \phantom{\rule{0.166667em}{0ex}}{a}^{2}\right)$ normalised added mass coefficient |

$\overline{\lambda}={\lambda}_{jj}/\left(\pi \rho \phantom{\rule{0.166667em}{0ex}}{a}^{2}\mathsf{\Omega}\right)$ -normalised damping coefficient |

## Abbreviations

FGW | flexural-gravity wave |

## References

- Squire, V.A. Ocean wave interactions with sea ice: A reappraisal. Annu. Rev. Fluid Mech.
**2020**, 52, 37–60. [Google Scholar] [CrossRef] [Green Version] - Kheisin, D.Y. Dynamics of Floating Ice Cover; Technical English Translation in: FSTC-HT-23-485-69, U.S. Army Foreign Science and Technology Center; Gidrometeoizdat: Leningrad, Russia, 1967. (In Russian) [Google Scholar]
- Krasil’nikov, V.V. On excitation of flexural-gravity waves. Akust. Zhurnal
**1962**, 8, 133–136. (In Russian) [Google Scholar] - Sahoo, T. Mathematical Techniques for Wave Interaction with Flexible Structures; CRC Press: New York, NY, USA, 2012. [Google Scholar]
- Squire, V.A.; Hosking, R.J.; Kerr, A.D.; Langhorne, P.J. Moving Loads on Ice Plates; Springer: Berlin, Germany, 1996. [Google Scholar]
- Sturova, I.V. Unsteady three-dimensional sources in deep water with an elastic cover and their applications. J. Fluid Mech.
**2013**, 730, 392–418. [Google Scholar] [CrossRef] - Davys, J.W.; Hosking, R.J.; Sneyd, A.D. Waves due to a steadily moving source on a floating ice plate. J. Fluid Mech.
**1985**, 158, 269–287. [Google Scholar] [CrossRef] - Il’ichev, A.T.; Savin, A.A.; Savin, A.S. Formation of wave on an ice-sheet above the dipole, moving in a fluid. Dokl. Phys.
**2012**, 57, 202–205. [Google Scholar] [CrossRef] - Pavelyeva, E.B.; Savin, A.S. Establishment of waves generated by a pulsating source in a finite-depth fluid. Fluid Dyn.
**2018**, 53, 461–470. [Google Scholar] [CrossRef] - Savin, A.A.; Savin, A.S. Ice cover perturbation by a dipole in motion within a liquid. Fluid Dyn.
**2012**, 47, 139–146. [Google Scholar] [CrossRef] - Savin, A.A.; Savin, A.S. Waves generated on an ice cover by a source pulsating in fluid. Fluid Dyn.
**2013**, 48, 303–309. [Google Scholar] [CrossRef] - Savin, A.A.; Savin, A.S. Three-dimensional problem of disturbing an ice cover by a dipole moving in fluid. Fluid Dyn.
**2015**, 50, 613–620. [Google Scholar] [CrossRef] - Schulkes, R.M.S.M.; Hosking, R.J.; Sneyd, A.D. Waves due to a steadily moving source on a floating ice plate. J. Fluid Mech.
**1987**, 180, 297–318. [Google Scholar] [CrossRef] - Li, Z.F.; Wu, G.X.; Shi, Y.Y. Interaction of uniform current with a circular cylinder submerged below an ice sheet. Appl. Ocean Res.
**2019**, 86, 310–319. [Google Scholar] [CrossRef] [Green Version] - Das, S.; Kar, P.; Sahoo, T.; Meylan, M.H. Flexural-gravity wave motion in the presence of shear current: Wave blocking and negative energy waves. Phys. Fluids
**2018**, 30, 106606. [Google Scholar] [CrossRef] - Das, S.; Sahoo, T.; Meylan, M.H. Dynamics of flexural gravity waves: From sea ice to Hawking radiation and analogue gravity. Proc. R. Soc. A
**2018**, 474, 2017223. [Google Scholar] [CrossRef] [Green Version] - Das, S.; Sahoo, T.; Meylan, M.H. Flexural-gravity wave dynamics in two-layer fluid: Blocking and dead water analogue. J. Fluid Mech.
**2018**, 854, 121–145. [Google Scholar] [CrossRef] - Stepanyants, Y.; Sturova, I. Waves on a compressed floating ice plate caused by motion of a dipole in water. J. Fluid Mech.
**2021**, 907, A7. [Google Scholar] [CrossRef] - Wu, G.X. Hydrodynamic forces on a submerged cylinder advancing in water waves of finite depth. J. Fluid Mech.
**1991**, 224, 645–659. [Google Scholar] [CrossRef] - Wu, G.X. Radiation and diffraction of water waves by a submerged circular cylinder at forward speed. J. Hydrodyn. Ser. B.
**1993**, 5, 85–96. [Google Scholar] - Sturova, I.V. Radiation instability of a circular cylinder in a uniform flow of a two-layer fluid. J. Appl. Math. Mechs.
**1997**, 61, 957–965. [Google Scholar] [CrossRef] - Bukatov, A.E. Waves in the Sea With a Floating Ice Cover; Marine Hydrophys. Inst.: Sebastopol, Ukraine, 2017; Available online: http://mhi-ras.ru/news/news201802151133.html (accessed on 12 March 2021). (In Russian)
- Newman, J.N. Marine Hydrodynamics; The MIT Press: Cambridge, MA, USA, 1985. [Google Scholar]
- Abramowitz, M.; Stegun, I.A. (Eds.) Handbook of Mathematical Functions with Formulas, Graphs, and Mathematical Tables; Applied Mathematics Series. 55 (Ninth Reprint with Additional Corrections of Tenth Original Printing with Corrections; National Bureau of Standards; Dover Publications: New York, NY, USA, 1983. [Google Scholar]
- Wu, G.X.; Eatock Taylor, R. Reciprocity relations for the hydrodynamic coefficients of bodies with forward speed. Intl. Shipbuild. Prigr.
**1988**, 35, 145–153. [Google Scholar] - Newman, J.N. The damping of an oscillating ellipsoid near a free surface. J. Ship Res.
**1961**, 5, 44–58. [Google Scholar] - Gaponov-Grekhov, A.V.; Dolina, I.S.; Ostrovsky, L.A. The anomalous Doppler effect and radiative instability of the motion of oscillators in hydrodynamics. Sov. Phys. Docl.
**1983**, 28, 117–119. [Google Scholar] - Dinway, E.; Kalisch, H.; Părău, E.I. Fully dispersive models for moving loads on ice sheets. J. Fluid Mech.
**2019**, 876, 122–149. [Google Scholar] [CrossRef] [Green Version] - Semenov, Y.A. Nonlinear flexural-gravity waves due to a body submerged in the uniform stream. arXiv
**2021**, arXiv:2103.02573v1. [Google Scholar] - Ren, H.; Fu, S.; Liu, C.; Zhang, M.; Xu, Y.; Deng, S. Hydrodynamic forces of a semi-submerged cylinder in an oscillatory flow. Appl. Sci.
**2020**, 10, 6404. [Google Scholar] [CrossRef]

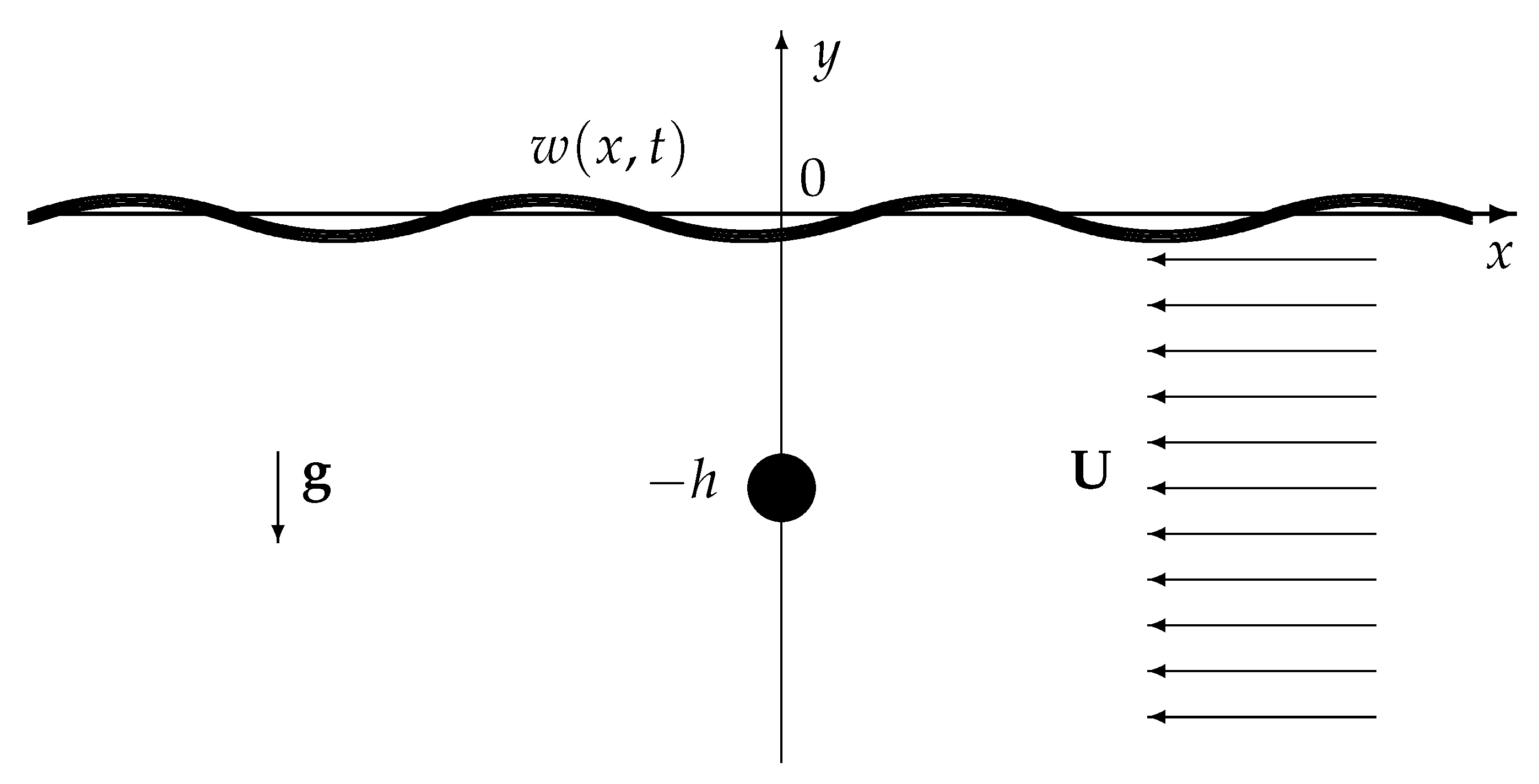

**Figure 1.**Sketch of the flow around a rigid cylinder in a deep water covered by a flexible ice cover.

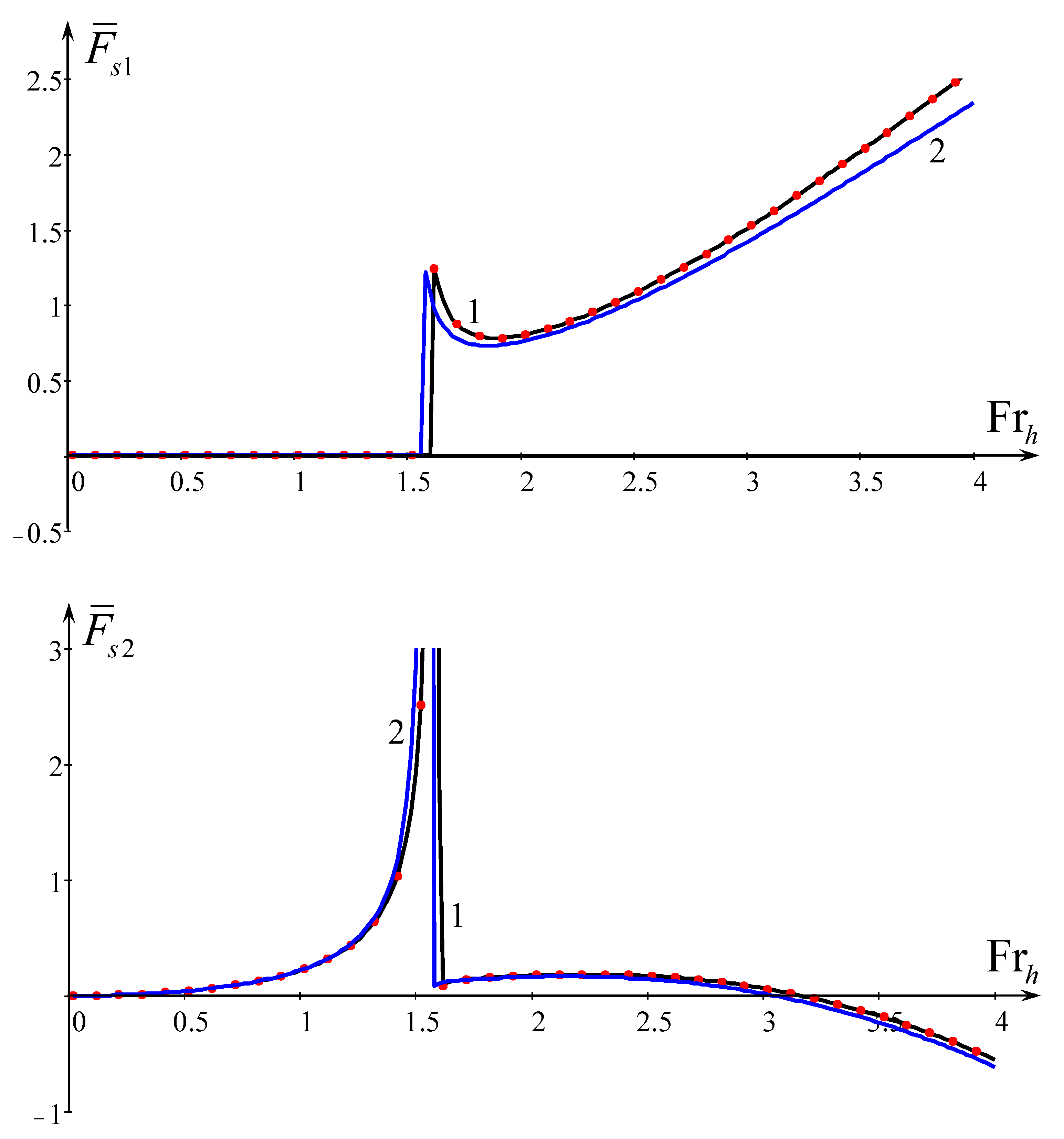

**Figure 2.**(Color online.) The wave resistance ${\overline{F}}_{s1}$ and lift force ${\overline{F}}_{s1}$ as functions of the dimensionless velocity ${\mathrm{Fr}}_{h}\equiv U/\sqrt{gh}$. Solid black lines (1) represent the results shown in Figure 6 of [14] for the infinitely deep fluid; red dots are the results of this work for $M=0$; blue lines (2) are the results of this work for $M=922.5$ kg/m${}^{2}$.

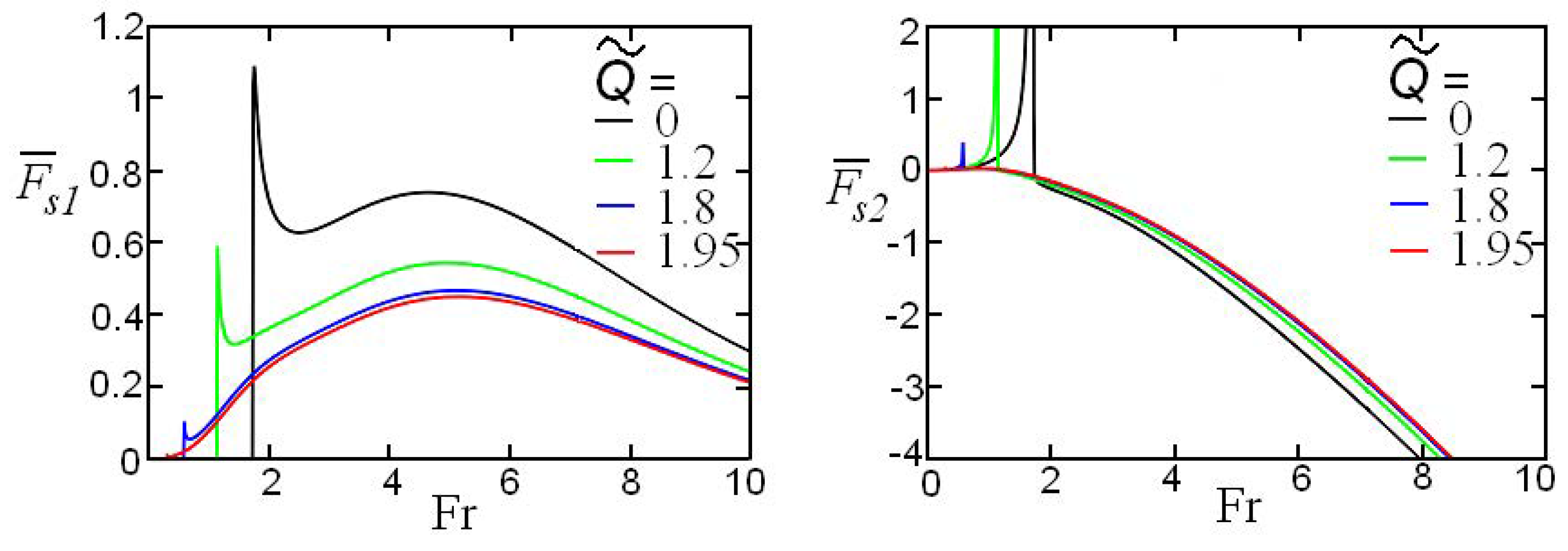

**Figure 3.**(Color online.) The wave resistance ${\overline{F}}_{s1}$ and lift force ${\overline{F}}_{s2}$ as functions of the Froude number $\mathrm{Fr}=U/\sqrt{ga}$ for different values of the compression parameter $\tilde{Q}=0,1.2,1.8,1.95.$

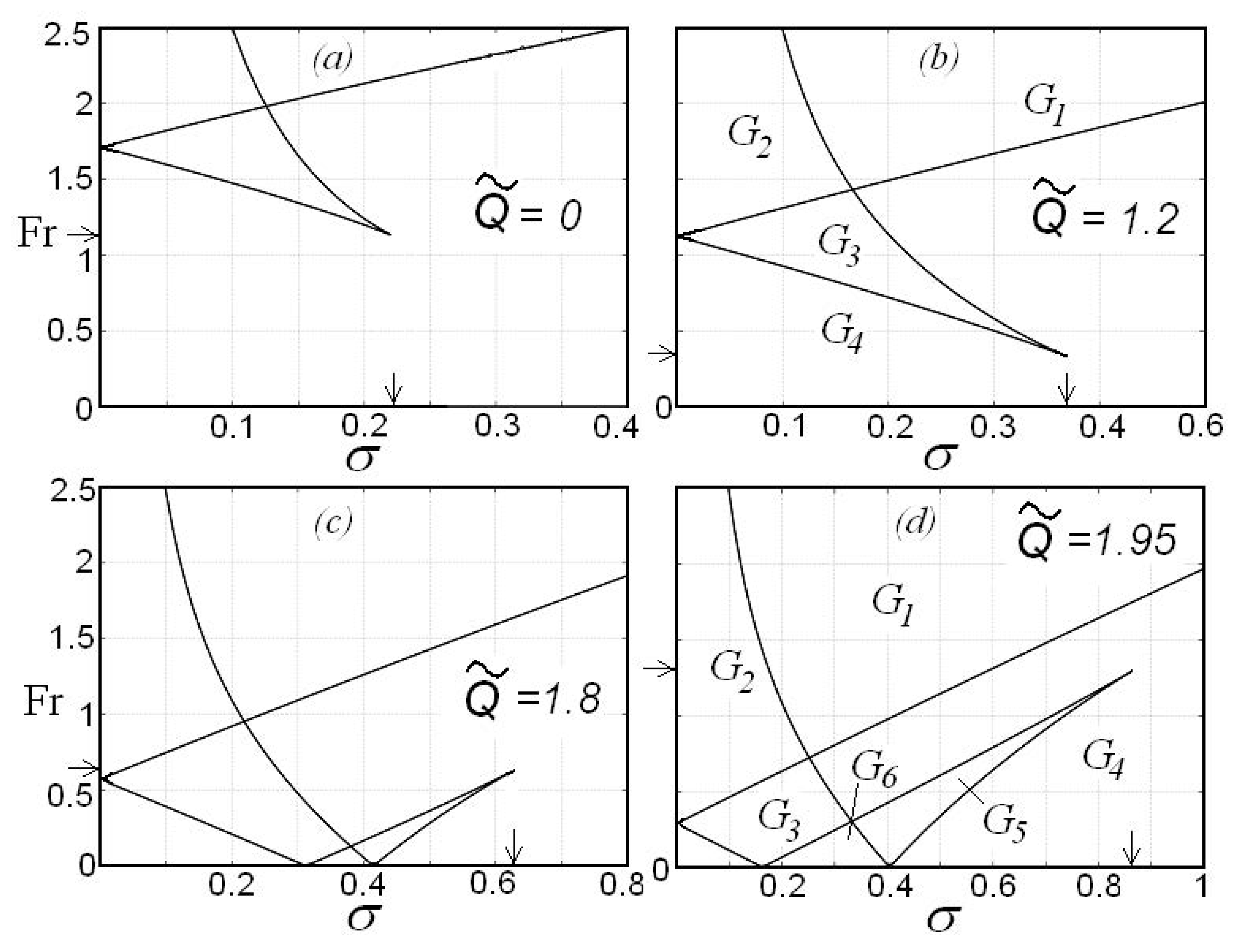

**Figure 4.**Configuration of the domains ${G}_{j}\phantom{\rule{0.277778em}{0ex}}(j=1,...,6)$ for different values of the compression parameter $\tilde{Q}:0\phantom{\rule{0.277778em}{0ex}}\left(\mathbf{a}\right);1.2\phantom{\rule{0.277778em}{0ex}}\left(\mathbf{b}\right);1.8\phantom{\rule{0.277778em}{0ex}}\left(\mathbf{c}\right);\mathrm{and}1.95\phantom{\rule{0.277778em}{0ex}}\left(\mathbf{d}\right)$. The thickness of the ice plate was ${h}_{1}=0.5$ m.

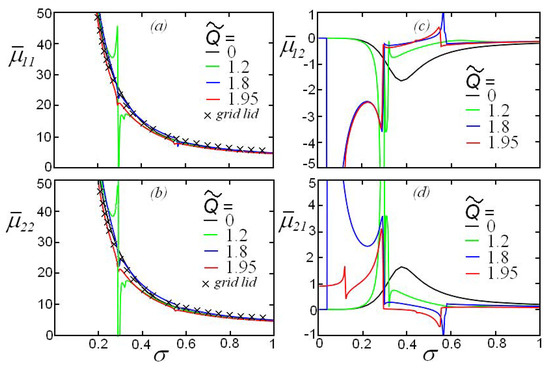

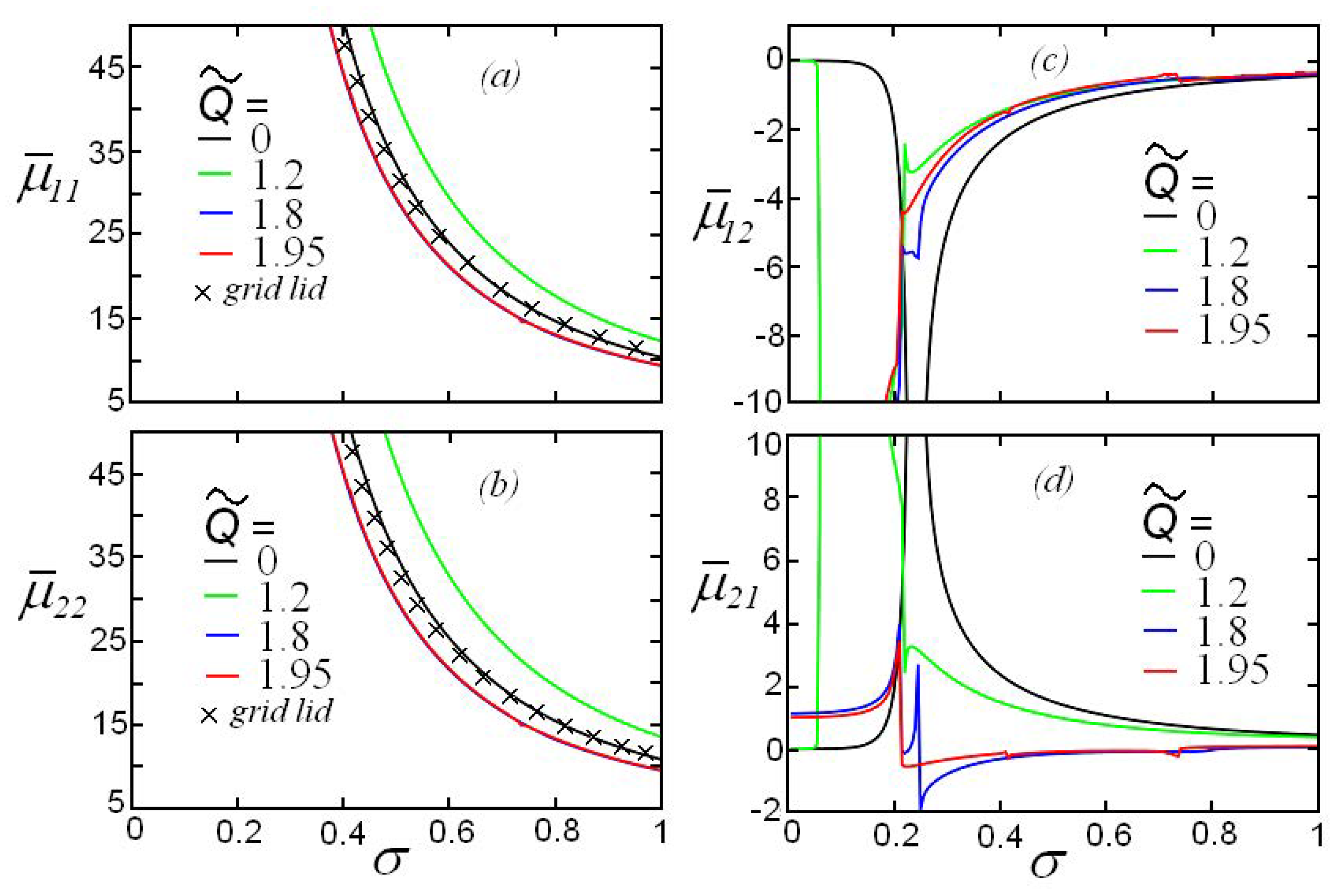

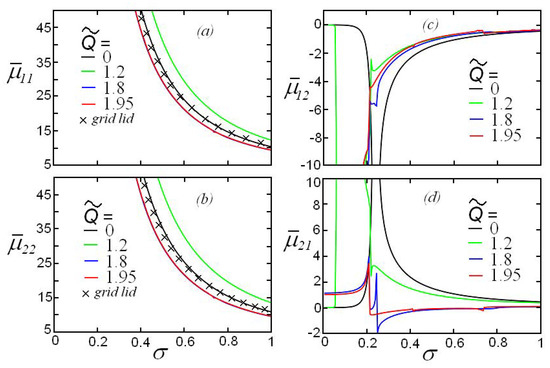

**Figure 5.**(Color online.) The dependence of the added mass coefficients: ${\overline{\mu}}_{ij}\phantom{\rule{0.277778em}{0ex}}(i,j)=1,2$ on the dimensionless frequency of cylinder oscillation for $\tilde{Q}=0,1.2,1.8,1.95$ and fixed Froude number $\mathrm{Fr}=0.5$. Crosses show the values of ${\overline{\mu}}_{11}$ and ${\overline{\mu}}_{22}$ for the fluid covered by a rigid lid.

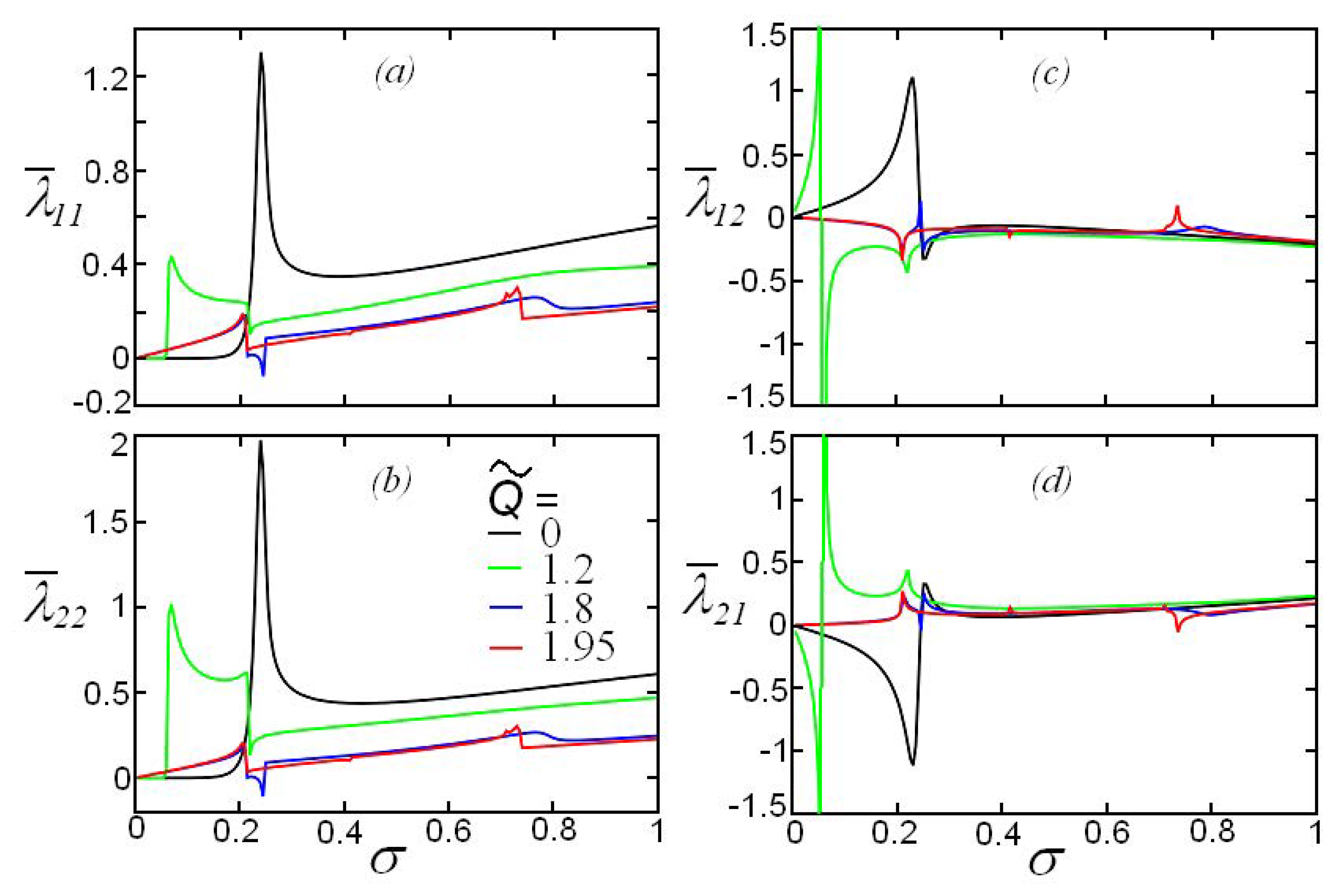

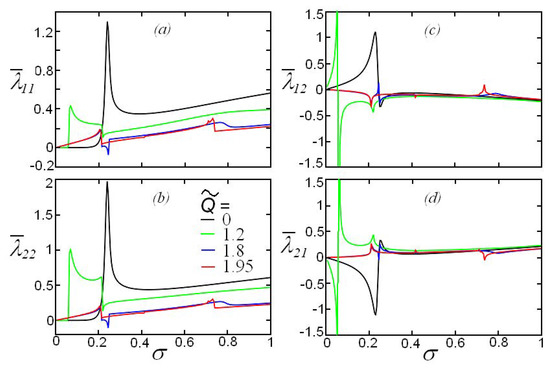

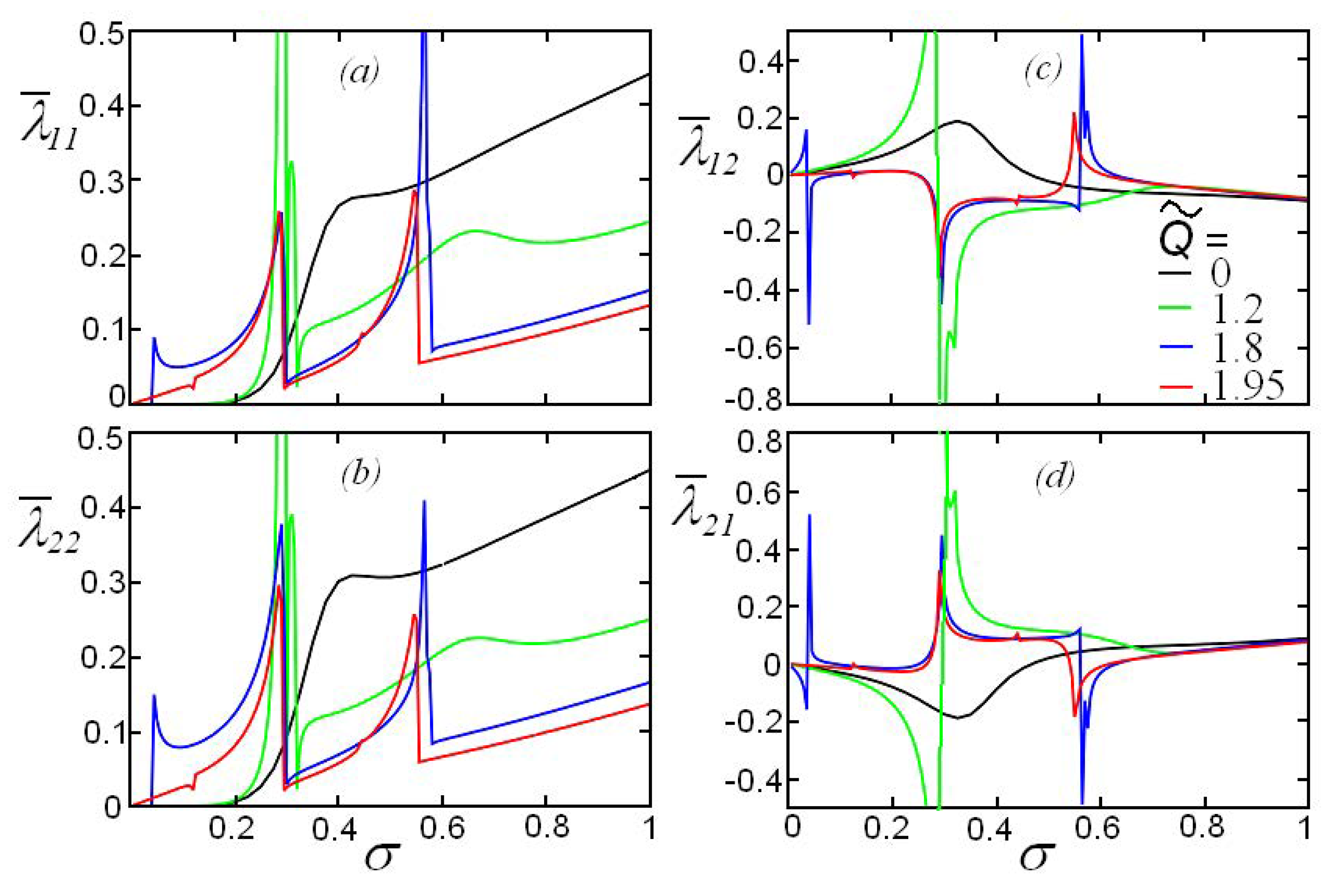

**Figure 6.**(Color online.) The dependence of the added damping coefficients: ${\overline{\lambda}}_{ij}\phantom{\rule{0.166667em}{0ex}}\phantom{\rule{0.277778em}{0ex}}(i,j)=1,2$ on the dimensionless frequency of cylinder oscillation for $\tilde{Q}=0,1.2,1.8,1.95$ and fixed Froude number $\mathrm{Fr}=0.5$.

**Figure 7.**(Color online.) The dependence similar to those shown in Figure 6 but for $\mathrm{Fr}=1$.

**Figure 8.**(Color online.) The dependence similar to those shown in Figure 6 but for $\mathrm{Fr}=1$.

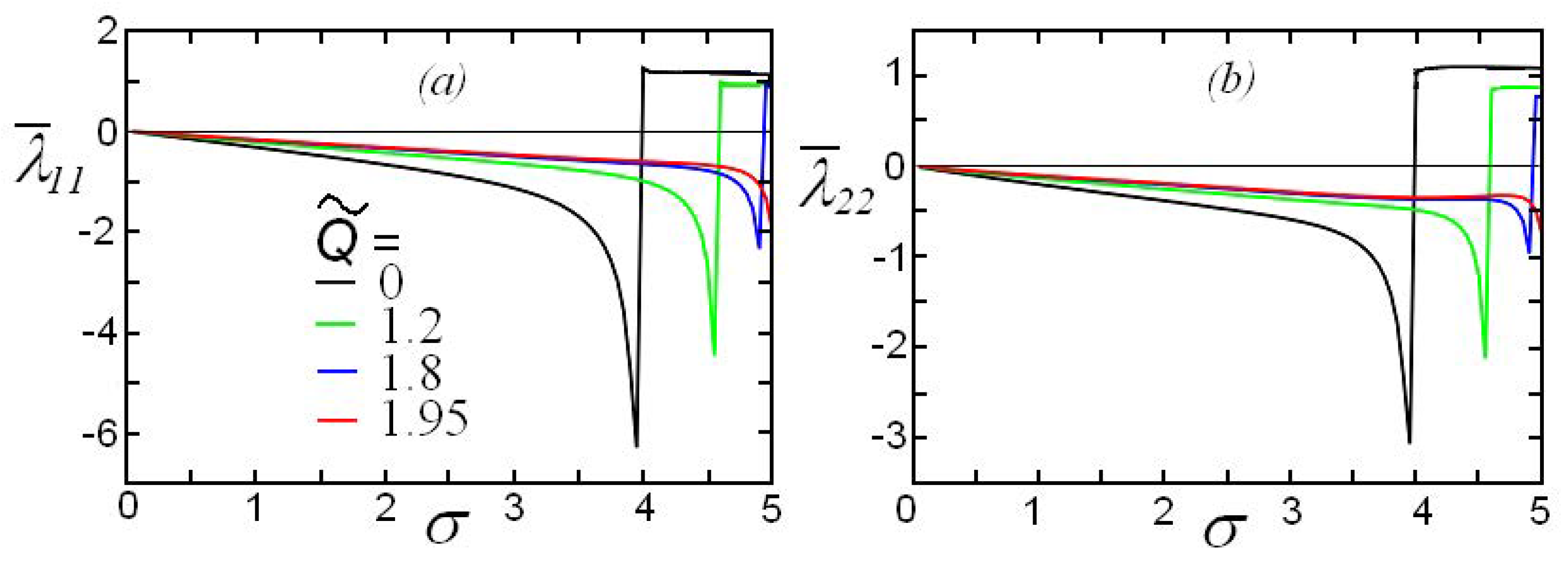

**Figure 9.**(Color online.) The dependences of the diagonal damping coefficients ${\overline{\lambda}}_{11}$ (

**a**) and ${\overline{\lambda}}_{22}$ (

**b**) on the dimensionless frequency $\tilde{Q}=0,1.2,1.8,1.95$ and Froude number $\mathrm{Fr}=7$.

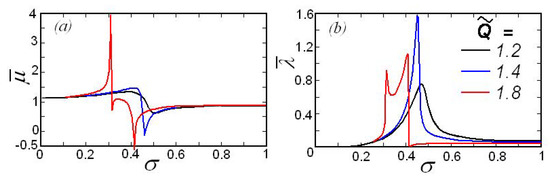

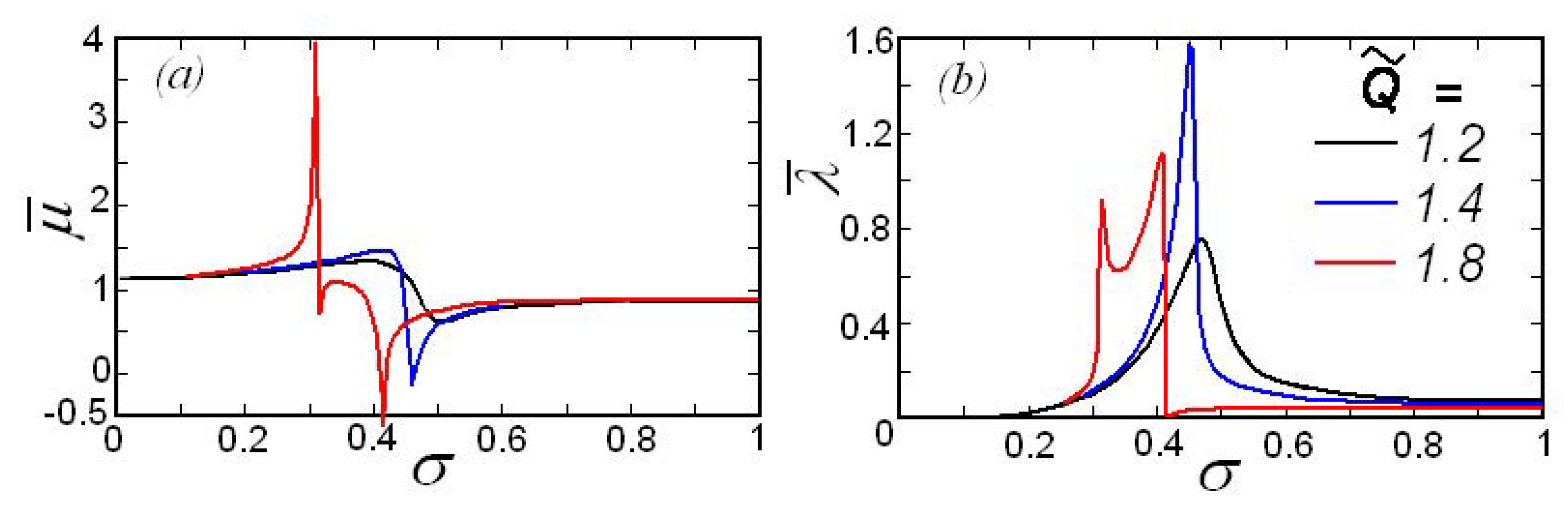

**Figure 10.**(Color online.) The frequency dependences of the added mass $\overline{\mu}$ (
