Response of Growth and Grazing Rate of Nanoflagellates on Synechococcus spp. to Experimental Nutrient Enrichment

Abstract

As important bacterivores in planktonic food webs, mixotrophic nanoflagellates cancause mortality in marine Synechococcus spp. Our previous study found that the pigmented nanoflagellate (PNF) has a significant grazing impact on Synechococcus spp. In the current study, we applied the dilution approach to test the growth and grazing rates of nanoflagellates on Synechococcus spp. We then compared the differences between experimental nutrient additions and in situ conditions in the coastal waters of the East China Sea during the summer season from July to September. The growth rates of Synechococcus spp. in the ambient environment were between 0.54 and 0.62 day⁻¹, which were slightly higher than the 0.56 and 0.66 day⁻¹ with nutrient enrichment in summer. In contrast, our nutrient enrichment experiments produced a marked decline approximately from 21% to 58% in the nanoflagellate grazing rate on Synechococcus spp. The reason was that the mixotrophic PNFs directly used the added nutrients and reduced their supply of nutrients from prey during the incubation experiments.

1. Introduction

Synechococcus spp. is a genus of cyanobacteria that lives in coastal environments and is responsible for primary production [1]. Generally, Synechococcus are the numerically dominant picophytoplankton [2,3], and the dynamics of Synechococcus abundance are therefore of importance for our understanding of the microbial food web. Some previous studies demonstrate the importance of the grazing mortality of marine Synechococcus, of which daily removal rate of Synechococcus assemblage could be as high as 50% [4,5]. Hence, it is apparent that grazing is critical in the marine food webs and provides energy to the higher trophic levels.

Although grazing by heterotrophic nanoflagellates is showed by top-down control in the bacterial communities, pigmented nanoflagellates (PNFs) have been considered as important bacterivores in planktonic food webs in recent studies [6,7,8]. Some field studies observed that in marine and freshwater systems, PNFs outnumber the heterotrophic nanoflagellates, and thus have a greater grazing impact on the bacterial community [6,8,9,10]. PNFs can survive in different environments by relying on bacterivory during low-light conditions, darkness, dissolved nutrient concentration, and photosynthesis when prey concentration is low [11,12,13,14].

The important role of pigmented nanoflagellatesas important bacterial consumers has been demonstrated in previous studies [6,8], but their significance in regulating bacterial communities is still under discussion. PNFs are also important Synechococcus grazers in marine environments [15]. Our previous findings showed a significant impact of PNF grazing on Synechococcus [16]. This finding has provided new data for estimating the impact of grazing on Synechococcus and the importance of PNF in a marine ecosystem. Our results showed that the nutrient concentrations were low during warm seasons [3]. Therefore, with their smaller cell sizes and high surface area to volume ratio, Synechococcus can take up nutrients more efficiently than PNFs. As PNFs cannot successfully compete with Synechococcus under these conditions, we suggested that PNFs employ phagotrophic behaviors as a means to obtain extra supplemental nutrients.

Other field studies suggested that resources (inorganic nutrients) and temperature are the two primary factors limiting the growth of Synechococcus [17,18,19]. Moreover, the growth of phytoplankton and Synechococcus in warmer seasons is seemingly controlled by the availability of nutrients (also referred to as bottom-up control) [17,18]. Considering this significant control role of inorganic nutrients on Synechococcus growth in warmer seasons, some studies reported higher growth rates of Synechococcus in nutrient-enriched incubations [20,21]. We believe that nutrient supply accelerates the growth rates of Synechococcus. However, the effects of PNF grazing rates under nutrient enrichment have rarely been elucidated [22]. Here, we hypothesize that the nanoflagellate grazing rates on Synechococcus would increase due to the greater abundance and growth rates of Synechococcus in nutrient-enriched incubations. In this study, we tested the response of growth and nanoflagellate grazing rates on Synechococcus to experimental nutrient additions in dilution experiments in coastal waters of the western subtropical Pacific Ocean during the summer of 2020.

2. Material and Methods

2.1. Study Sites and Samplings

Samples were collected using a bucket on 5 and 29 July, 10 August, and 17 September 2020 from the surface waters at an established station, which is located in coastal waters off the Northeastern Taiwan coast (25°09′06″ N, 121°46′38.5″ E). Seawater was collected on each sampling day from 09:00 to 10:00 in the morning (local time) for dilution experiments. Water temperature was taken at the time of casting. The zooplankton-free whole water was obtained by gently siphoning the seawater through a 200 μm mesh immediately into acid-cleaned10 L polypropylene carboys, which were rinsed with 10% HCl and Milli-Q water. All samples were deposited in the lab within 30 min of sampling. Nutrient concentrations were measured with a custom-made flow injection analyzer with phosphate (PO₄) and nitrate (NO₃) detection limits of 0.03 and 1.5 μmol L⁻¹, respectively [23].

2.2. Incubation Experiments

A major objective of this study was to understand the effects of experimental nutrient additions on growth and nanoflagellate grazing rates on Synechococcus. We estimated these rates using a dilution technique following the method described by Landry and Hasset [24]. Samples were size-fractionated by filtration. We used a 10 μm Nuclepore filter to remove microzooplankton, and a 0.2 μm Nuclepore filter pore with low pressure (<100 mm Hg) to remove the remaining planktonic organisms, including the bacteria. Additionally, we chose the size fractionation for grazers (<10 μm) based on our previous study, and eliminated ciliates, except for nanoflagellates [6]. The 10 μm filtrates were diluted in the 0.2 μm filtrate in a four-point dilution series: 25, 50, 75, and 100% of the 10 μm filtered seawater sample. Furthermore, each dilution was poured into triplicates in 500 mL acid-washed polycarbonate bottles. The final concentrations of the nutrients were 20 μmol L⁻¹ NO₃ and 2 μmol L⁻¹ PO₄ before added to these bottles. Another dilution series was prepared with no added nutrients, and the difference of growth and nanoflagellate grazing on Synechococcus was compared between these two (nutrient-enriched and in situ condition) treatments. The samples were placed in a water bath under natural light for 24 h and were made in triplicates. Synechococcus abundance (Nt₀; N_t24) was estimated based on the subsamples (50 mL) taken at the beginning (t₀) and 24 h (t₂₄) after the incubation. The net growth rate of Synechococcus (k, day⁻¹) was calculated as k = (lnN_t24−lnNt₀)/t, where t is the incubation time (24 h), and N_t24 and Nt₀ are the Synechococcus abundance at the end and the start of the experiments, respectively. In the linear regression of the observed net growth rates versus dilution, μ is the y-intercept of the regression and a direct estimate of grazing rates (g) of nanoflagellates from the slope of the regression line. The growth (μ) and nanoflagellate grazing rates (g) on Synechococcus were estimated based on the linear regression.

We used an epifluorescence microscope (NikonOptiphot-2) (1000×) to count the Synechococcus and nanoflagellate abundance. After we placed the subsamples of 1–2 mL or 20 mL onto 0.2 μm or 0.8 μm black Nuclepore filters for Synechococcus and nanoflagellates, we stained the samples with DAPI at a final concentration of 1 μg mL⁻¹ [25] to count heterotrophic (nonpigmented) nanoflagellates (HNF). A separate filter set optimized for chlorophyll or DAPI was used to count the PNFs and HNFs based on the absence or presence of chlorophyll autofluorescence. Under UV illumination, HNFs were in blue fluorescence, and under blue excitation light, PNFs and Synechococcus were in red and orange autofluorescence, respectively.

2.3. Statistical Analysis

Least-squares regression analysis was performed to analyze the relationship between Synechococcus net growth rate and fraction of 10 μm filtered water in the ambient nutrients and nutrient enrichment experiments. Significance of the regression lines was tested using an analysis of variance (ANOVA). Moreover, the significance between both slopes was determined using an F test. STATISTICA 7.0 (StatSoft Inc., Tulsa, OK, USA) software was used for all statistical operations, with a statistical significance level of <0.05.

3. Results

The in situ abundance of Synechococcus was observed between 3.2 × 10⁴ and 6.2 × 10⁴ cells mL⁻¹ during the study periods. Heterotrophic (nonpigmented) and pigmented nanoflagellates abundance ranged from 1.8 to 2.8 × 10³ cells mL⁻¹ and 3.2 to 4.3 × 10³ cells mL⁻¹ at our study site, respectively. In the current study, we found that PNFs have more abundance than nonpigmented nanoflagellate communities, comprising about 60% of the total nanoflagellate population at our study site.

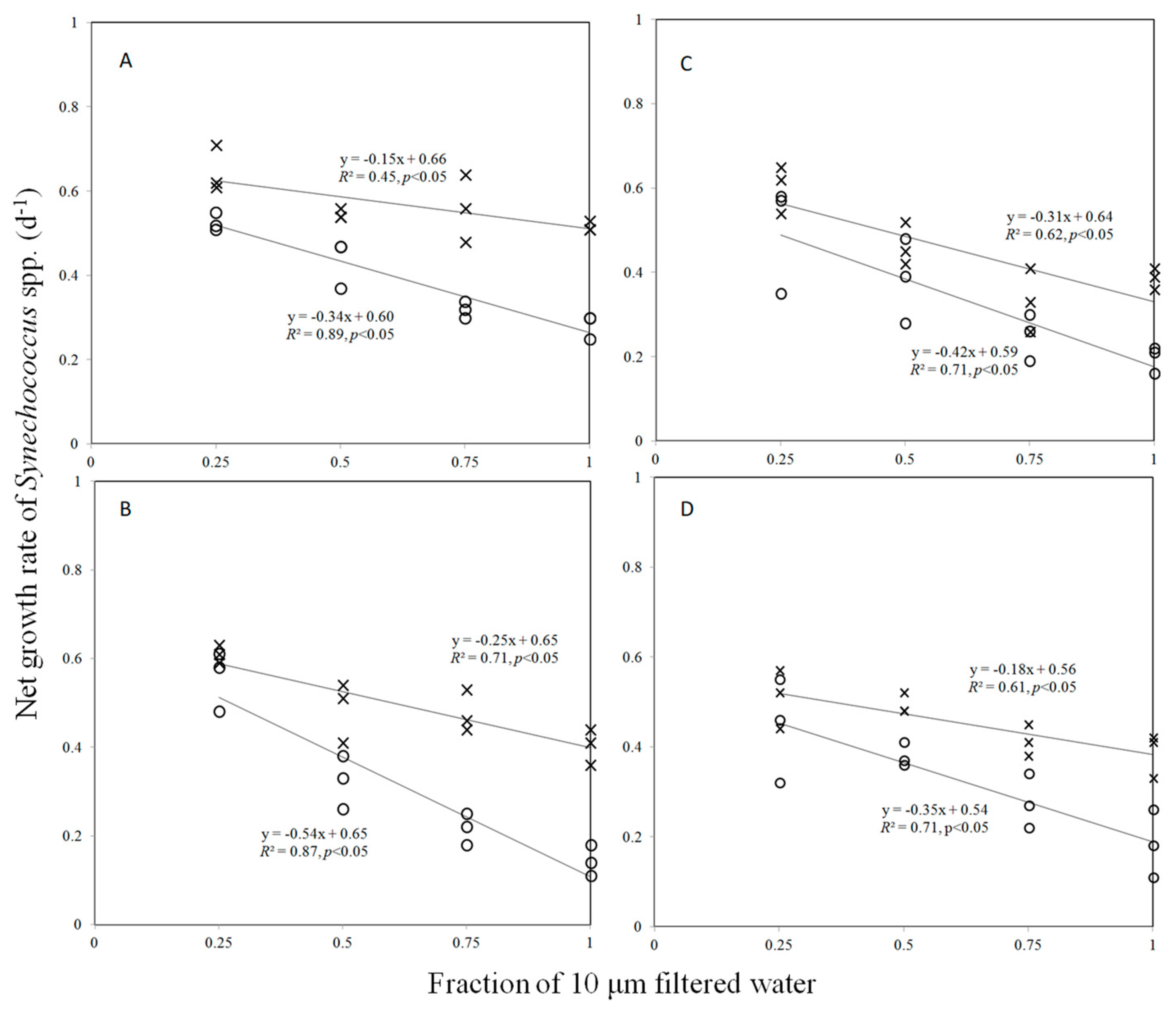

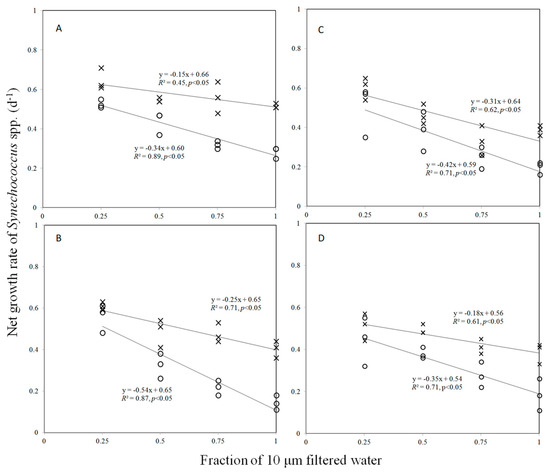

Figure 1 shows the estimates based on the dilution experiments for growth and grazing rate of nanoflagellates on Synechococcus with added nutrients and ambient nutrients. On the other hand, NO₃ and PO₄ concentrations in added nutrients and the ambient condition are shown in

Table 1. Surface in situ water temperature, nutrients at the sampling site, and enriched incubations at the beginning of experiments. Growth and nanoflagellate grazing rates upon Synechococcus spp. estimated by linear regression of dilution experiments under in situ and nutrient-enriched conditions conducted during the study period. ^a: Percentage of difference of grazing rate between nutrient enriched and in situ condition.

	Temperature	NO3	PO4	Growth Rate	Grazing Rate	Decreased Percentage of Grazing Rate a
	(°C)	(μmol L−1)	(μmol L−1)	(day−1)	(day−1)
5 July
In situ	28.5	2.3	0.4	0.60	0.34
nutrient-enriched		19.4	1.9	0.66	0.15	56%
29 July
In situ	30	1.8	0.5	0.62	0.50
nutrient-enriched		18.6	1.8	0.65	0.21	58%
August
In situ	29	3.1	0.8	0.59	0.42
nutrient-enriched		16.2	1.5	0.64	0.31	21%
September	28.5
In situ		3.5	0.7	0.54	0.35
nutrient-enriched		18.9	1.6	0.56	0.18	49%

. The growth rates of Synechococcus ranged from 0.54 to 0.62 day⁻¹ and 0.56 to 0.66 day⁻¹ with ambient nutrients and nutrient enrichment experiments during the study periods, respectively (Figure 1, Table 1).

The observed effects of the experimental nutrient amendment on the grazing rates of nanoflagellates on Synechococcus were observed between 0.15 and 0.31 day⁻¹ in the summer (Table 1, Figure 1). Overall, the grazing rate of nanoflagellates on Synechococcus was significantly lower in nutrient-enriched treatments than in the in situ condition (Table 1); the grazing rate of nanoflagellatesin nutrient-enriched treatments decreased from about 21% to 58%compared to that in ambient conditions (Table 1).

4. Discussion

Synechococcus is an important part of the microbial food web and carbon flow. It is also well recognized that nanoflagellate grazing is an important top-down control for Synechococcus mortality, particularly in the summer in the western Pacific coastal region [3]. In this study, we experimentally exposed the same community to changes in the nanoflagellate grazing rates on Synechococcus after nutrient addition. The experimental results do not support our hypothesis that the nanoflagellate grazing rates on Synechococcus would increase due to the greater abundance and growth rates of Synechococcus in nutrient-enriched incubations. Our results show that the grazing rate of PNFs on Synechococcus was significantly lower in nutrient-enriched treatments than in the in situ condition.

In the present study, the addition of nutrients into the experimental bottles only led to slightly increased growth rates of Synechococcus (Table 1). Similarly, Worden and Binder [5] noted that changes in the nitrogen and phosphorus contents did not have a significant effect on the growth rates of Synechococcus. In the laboratory experiments on Synechococcus isolates, preference of NH₄ over NO₃ was observed [26]. In our previous study, we observed that viruses significantly affect the nutrient regeneration, and enhanced the growth rates in Synechococcus during the daytime in the subtropical western Pacific coastal waters [27]. Data from the previous studies indicated that viral-induced ammonium regeneration resulted in increased growth of Synechococcus [28,29]. The abovementioned results could explain the meager increase in the growth rates of Synechococcus in the nutrient-enriched bottles in this study.

Phytoplankton cells grazed by microzooplanktons vary in size from picophytoplankton to large cells [30]. However, at our study site, microzooplanktons (e.g., ciliates) could only remove 3% of Synechococcus production [16]. Indeed, in this region, our study is the first to identify the dominant PNF populations in the nanoflagellate community and report that PNF dominated grazing on Synechococcus [16]. This finding proved that Synechococcus represents the transfer of carbon and nutrients to PNF through the microbial food web in our study site.

After nutrient addition, the grazing rate of PNFs on Synechococcus increases, which may be caused by the changes in the quality of the cyanobacteria available as food for grazers [16]. In contrast, the grazing rate of PNFs on Synechococcus in nutrient-enriched treatments decreased between 21% and 58%, compared with that in the ambient condition in this study (Table 1). Some studies concluded that nutrient limitation might stimulate mixotrophic grazing in some environments [31,32]. Olrik [32] demonstrated that ingesting bacteria by mixotrophic Chrysophytes could limit their demand for phosphorus. Similarly, Tsai et al. [6] found that the PNF population ingested bacteria for phosphate supplement when soluble reactive phosphorus was low. In this study, we suggest that PNF used the added nutrients and reduced their feeding ability to supply themselves with nutrients from preys during the incubation experiments. A similar result was reported earlier in another nutrient-enriched experiment, wherein Sargasso Sea populations also caused a remarkable decline in phagotrophically active PNFs after adding phosphorus [22].

In most earlier dilution studies, nutrients were added to the bottles to prevent nutrient limitation of phytoplankton growth during incubation [5,19,33]. However, it is notable that the effects of nutrients on the grazing rates on picoplankton were different in the in situ conditions. In fact, the importance of Synechococcus consumers in nanoflagellate composition should be taken into consideration. In the case of PNF dominance, the grazing rate of PNFs on Synechococcus under nutrient-enriched incubations may be underestimated due to the reduced feeding ability of PNFs, similar to that observed in our study. Some studies were unable to assess the reason for so many non-significant grazing rates in their dilution experiments, and suggested varied factors, such as food selection and dilution effects on microzooplankton [34], as the cause for such a high portion of non-significant grazing estimates. The grazing impact of PNFs on Synechococcus under nutrient-enriched conditions was not considered in these field studies.

5. Conclusions

In summary, our study tested the Synechococcus growth and the grazing rates of nanoflagellates under conditions of with and without nutrient additions. The samples were collected from the coastal waters of the western subtropical Pacific Ocean during the summer season. The experimental results suggest that nutrient enrichment did not have a significant effect on the growth rates of Synechococcus. Furthermore, we suggest that in the summer season, as Synechococcus has great capacity to acquire regenerated nutrients at low concentrations, its growth rate is greatly affected. Overall, the grazing rate of PNFs on Synechococcus was significantly lower in nutrient-enriched treatments than that with ambient nutrients. In this situation, we speculate that the PNFs used the added nutrients and decreased their ability to supply themselves with nutrients from prey in the incubation experiments. The present study should guide future work towards understanding the functional roles of PNF in other environments.
