# A Generalized Semi-Analytical Solution for the Dispersive Henry Problem: Effect of Stratification and Anisotropy on Seawater Intrusion

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

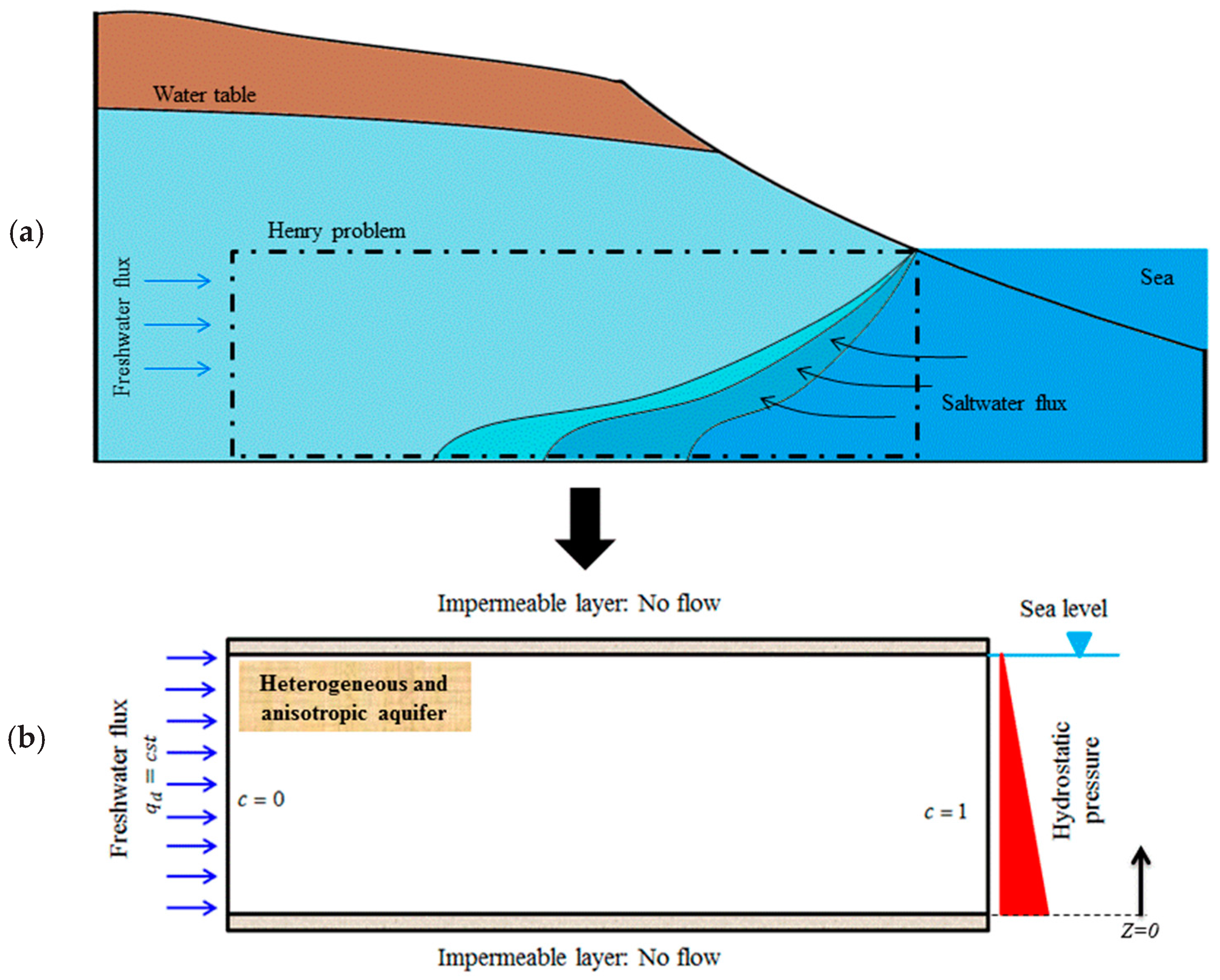

## 2. The Mathematical Model and Boundary Conditions

## 3. The Semi-Analytical Solution

- The length of the toe (${L}_{toe}$): The dimensionless distance between the seaside boundary and the point where the 50% isochlor intersects the aquifer bottom.
- The average vertical width of the mixing zone (${W}_{MZ}$): Defined as the average of the vertical dimensionless distances between the 10% and 90% isochlors. The mixing zone is defined by the interval $0.3\times {L}_{toe}$ to $0.7\times {L}_{toe}$.
- The total dimensionless salt flux (${Q}_{s}$): Represents the advective, diffusive and dispersive salt flux that enters the domain from the seaside boundary, normalized by the freshwater inland flux.
- The depth of the zone of groundwater discharge to the sea (${d}_{disch}$): Equal to the distance from the aquifer top surface to the point separating the discharge zone and seawater inland flow zone at the sea boundary.

## 4. The New Technique for Solving the System of Equations in the Spectral Space

## 5. Verification of the Fourier Series Solution: Stability and Comparison against Numerical Solution

#### 5.1. The Pure Diffusive Henry Problem

#### 5.2. The Dispersive Henry Problem

^{-4}) [57]. The anisotropy ratio (${r}_{k}$) and the rate of stratification ($\mathsf{\Upsilon}$) are kept the same as for the pure diffusive cases. Non-dimensional and corresponding physical parameters are given in Table 1 and Table 2. For homogenous and heterogeneous cases, oscillation-free solutions have been obtained using 4725 ($Nm=15$, $Nn=90$, $Nr=20$ and $Ns=160$) and 6,405 ($Nm=15$, $Nn=90$, $Nr=20$ and $Ns=240$) Fourier modes, respectively. This confirms that only the concentration Fourier modes in the x-direction are mainly affected by heterogeneity. The SA and numerical isochlors are depicted in Figure 5. SWI metrics are given in Table 3. As for the homogenous case, Figure 5 and Table 3 highlight the excellent agreement between the analytical and numerical solutions. The same remark, as in the homogenous case, can be made regarding the agreement between SA and numerical values of ${Q}_{s}$. Table 3 provides quantitative indicators that can be useful for benchmarking DDF codes in realistic configurations of anisotropy and heterogeneity. First an observation from the comparison between the Figure 4 and Figure 5 indicates that the effect of heterogeneity on SWI is more important in the dispersive case. Figure 5 shows that the solution of the dispersive HP is sharper and more realistic than for the diffusive case. This sharpness explains why the dispersive test case requires more Fourier modes than the diffusive one.

## 6. Effects of Anisotropy and Heterogeneity on SWI

#### 6.1. Effect of Anisotropy on SWI in a Homogenous Aquifer

#### 6.2. Coupled Effect of Anisotropy and Stratified Heterogeneity on SWI

## 7. Conclusions

- It derives the first SA solution of SWI with the DDF model in an anisotropic and heterogeneous domain with velocity-dependent dispersion. The SA solution is useful for testing and validating DDF numerical models in realistic configurations of anisotropy and stratification. In this context, we derived, analytically (using the Fourier series), quantitative indicators (i.e., seawater intrusion metrics ${L}_{toe}$ ,${W}_{MZ}$, ${d}_{disch}$ and ${Q}_{s}$) that can be effectively used for code verification.
- From a numerical point of view, an efficient technique is presented for solving the HP in the spectral space. With this technique, we showed that the governing equations in the spectral space can be solved with only the concentration as a primary unknown. The spectral velocity field can be analytically expressed in terms of concentration. This technique improves the practicality of the Henry problem’s SA solution and renders it more suitable for further studies requiring repetitive evaluations as in inverse modeling or sensitivity analysis.
- The developed SA solution is used to investigate the effects of anisotropy and stratification on SWI. This is the first time that these effects have been investigated analytically with the DDF model. In previous works, analytical studies on this issue have been limited to the sharp interface model. While in most of the existing studies, the effects of anisotropy and heterogeneity have been mainly discussed in regard to the position of the saltwater wedge, we provided here a deeper understanding of these effects on several metrics characterizing SWI.
- Taking advantage of the SA solution, we explained the contradictory results in regard to the effect of anisotropy on the position of the saltwater wedge. We showed that at a constant gravity number, the decrease in the anisotropy ratio leads to landward migration of the saltwater wedge. Contradictions observed in the previous studies are related to the way in which the anisotropy ratio is changed (whether by varying horizontal or vertical hydraulic conductivity). The SA solution shows also that anisotropy leads to a wider mixing zone and intensifies the saltwater flux to the aquifer. It leads to a shallower zone of groundwater discharge to the sea.
- The combined effects of anisotropy and stratification on SWI have been investigated. We showed that the width of the mixing zone is slightly sensitive to the rate of stratification. This sensitivity is more significant in highly anisotropic aquifers. Complementary effects of anisotropy and heterogeneity are observed on the saltwater wedge and toe position as well as on the saltwater flux, while opposite effects are observed on the depth of the groundwater discharge zone.

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Appendix A

## References

- Henry, H. Effects of dispersion on salt encroachment in coastal aquifer. U.S. Geol. Surv. Water Supply Pap.
**1964**, 1613, C70–C84. [Google Scholar] - Werner, A.D.; Bakker, M.; Post, V.E.A.; Vandenbohede, A.; Lu, C.; Ataie-Ashtiani, B.; Simmons, C.T.; Barry, D.A. Seawater intrusion processes, investigation and management: Recent advances and future challenges. Adv. Water Resour.
**2013**, 51, 3–26. [Google Scholar] [CrossRef] - Yang, J.; Graf, T.; Herold, M.; Ptak, T. Modelling the effects of tides and storm surges on coastal aquifers using a coupled surface–subsurface approach. J. Contam. Hydrol.
**2013**, 149, 61–75. [Google Scholar] [CrossRef] [PubMed] - Grillo, A.; Logashenko, D.; Stichel, S.; Wittum, G. Simulation of density-driven flow in fractured porous media. Adv. Water Resour.
**2010**, 33, 1494–1507. [Google Scholar] [CrossRef] - Sebben, M.L.; Werner, A.D.; Graf, T. Seawater intrusion in fractured coastal aquifers: A preliminary numerical investigation using a fractured Henry problem. Adv. Water Resour.
**2015**, 85, 93–108. [Google Scholar] [CrossRef] - Nick, H.M.; Raoof, A.; Centler, F.; Thullner, M.; Regnier, P. Reactive dispersive contaminant transport in coastal aquifers: Numerical simulation of a reactive Henry problem. J. Contam. Hydrol.
**2013**, 145, 90–104. [Google Scholar] [CrossRef] [PubMed] - Laabidi, E.; Bouhlila, R. Nonstationary porosity evolution in mixing zone in coastal carbonate aquifer using an alternative modeling approach. Environ. Sci. Pollut. Res.
**2015**, 22, 10070–10082. [Google Scholar] [CrossRef] [PubMed] - Laabidi, E.; Bouhlila, R. Reactive Henry problem: effect of calcite dissolution on seawater intrusion. Environ. Earth Sci.
**2016**, 75. [Google Scholar] [CrossRef] - Held, R.; Attinger, S.; Kinzelbach, W. Homogenization and effective parameters for the Henry problem in heterogeneous formations. Water Resour. Res.
**2005**, 41. [Google Scholar] [CrossRef] - Kerrou, J.; Renard, P. A numerical analysis of dimensionality and heterogeneity effects on advective dispersive seawater intrusion processes. Hydrogeol. J.
**2010**, 18, 55–72. [Google Scholar] [CrossRef] - Alhama Manteca, I.; Alcaraz, M.; Trigueros, E.; Alhama, F. Dimensionless characterization of salt intrusion benchmark scenarios in anisotropic media. Appl. Math. Comput.
**2014**, 247, 1173–1182. [Google Scholar] [CrossRef] - Qu, W.; Li, H.; Wan, L.; Wang, X.; Jiang, X. Numerical simulations of steady-state salinity distribution and submarine groundwater discharges in homogeneous anisotropic coastal aquifers. Adv. Water Resour.
**2014**, 74, 318–328. [Google Scholar] [CrossRef] - Abarca, E.; Carrera, J.; Sanchez-Vila, X.; Dentz, M. Anisotropic dispersive Henry problem. Adv. Water Resour.
**2007**, 30, 913–926. [Google Scholar] [CrossRef] - Mehnert, E.; Jennings, A.A. The effect of salinity-dependent hydraulic conductivity on saltwater intrusion episodes. J. Hydrol.
**1985**, 80, 283–297. [Google Scholar] [CrossRef] - Walther, M.; Graf, T.; Kolditz, O.; Liedl, R.; Post, V. How significant is the slope of the sea-side boundary for modelling seawater intrusion in coastal aquifers. J. Hydrol.
**2017**, 551, 648–659. [Google Scholar] [CrossRef] - Sun, D.; Niu, S.; Zang, Y. Impacts of inland boundary conditions on modeling seawater intrusion in coastal aquifers due to sea-level rise. Nat. Hazards
**2017**, 88, 145–163. [Google Scholar] [CrossRef] - Post, V.E.A.; Vandenbohede, A.; Werner, A.D.; Maimun; Teubner, M.D. Groundwater ages in coastal aquifers. Adv. Water Resour.
**2013**, 57, 1–11. [Google Scholar] [CrossRef] - Javadi, A.; Hussain, M.; Sherif, M.; Farmani, R. Multi-objective Optimization of Different Management Scenarios to Control Seawater Intrusion in Coastal Aquifers. Water Resour. Manag.
**2015**, 29, 1843–1857. [Google Scholar] [CrossRef] [Green Version] - Hardyanto, W.; Merkel, B. Introducing probability and uncertainty in groundwater modeling with FEMWATER-LHS. J. Hydrol.
**2007**, 332, 206–213. [Google Scholar] [CrossRef] - Herckenrath, D.; Langevin, C.D.; Doherty, J. Predictive uncertainty analysis of a saltwater intrusion model using null-space Monte Carlo. Water Resour. Res.
**2011**, 47. [Google Scholar] [CrossRef] - Rajabi, M.M.; Ataie-Ashtiani, B. Sampling efficiency in Monte Carlo based uncertainty propagation strategies: Application in seawater intrusion simulations. Adv. Water Resour.
**2014**, 67, 46–64. [Google Scholar] [CrossRef] - Rajabi, M.M.; Ataie-Ashtiani, B.; Janssen, H. Efficiency enhancement of optimized Latin hypercube sampling strategies: Application to Monte Carlo uncertainty analysis and meta-modeling. Adv. Water Resour.
**2015**, 76, 127–139. [Google Scholar] [CrossRef] - Rajabi, M.M.; Ataie-Ashtiani, B.; Simmons, C.T. Polynomial chaos expansions for uncertainty propagation and moment independent sensitivity analysis of seawater intrusion simulations. J. Hydrol.
**2015**, 520, 101–122. [Google Scholar] [CrossRef] - Burrows, W.; Doherty, J. Efficient Calibration/Uncertainty Analysis Using Paired Complex/Surrogate Models. Groundwater
**2015**, 53, 531–541. [Google Scholar] [CrossRef] [PubMed] - Riva, M.; Guadagnini, A.; Dell’Oca, A. Probabilistic assessment of seawater intrusion under multiple sources of uncertainty. Adv. Water Resour.
**2015**, 75, 93–104. [Google Scholar] [CrossRef] - Sanz, E.; Voss, C.I. Inverse modeling for seawater intrusion in coastal aquifers: Insights about parameter sensitivities, variances, correlations and estimation procedures derived from the Henry problem. Adv. Water Resour.
**2006**, 29, 439–457. [Google Scholar] [CrossRef] - Carrera, J.; Hidalgo, J.J.; Slooten, L.J.; Vázquez-Suñé, E. Computational and conceptual issues in the calibration of seawater intrusion models. Hydrogeol. J.
**2010**, 18, 131–145. [Google Scholar] [CrossRef] - Boufadel, M.C.; Suidan, M.T.; Venosa, A.D. A numerical model for density-and-viscosity-dependent flows in two-dimensional variably saturated porous media. J. Contam. Hydrol.
**1999**, 37, 1–20. [Google Scholar] [CrossRef] - Chen, B.-F.; Hsu, S.-M. Numerical Study of Tidal Effects on Seawater Intrusion in Confined and Unconfined Aquifers by Time-Independent Finite-Difference Method. J. Waterw. Port Coast. Ocean Eng.
**2004**, 130, 191–206. [Google Scholar] [CrossRef] - Gotovac, H.; Andricevic, R.; Gotovac, B. Multi-resolution adaptive modeling of groundwater flow and transport problems. Adv. Water Resour.
**2007**, 30, 1105–1126. [Google Scholar] [CrossRef] - Soto Meca, A.; Alhama, F.; González Fernández, C.F. An efficient model for solving density driven groundwater flow problems based on the network simulation method. J. Hydrol.
**2007**, 339, 39–53. [Google Scholar] [CrossRef] - Younes, A.; Fahs, M.; Ahmed, S. Solving density driven flow problems with efficient spatial discretizations and higher-order time integration methods. Adv. Water Resour.
**2009**, 32, 340–352. [Google Scholar] [CrossRef] - Servan-Camas, B.; Tsai, F.T.-C. Saltwater intrusion modeling in heterogeneous confined aquifers using two-relaxation-time lattice Boltzmann method. Adv. Water Resour.
**2009**, 32, 620–631. [Google Scholar] [CrossRef] - Servan-Camas, B.; Tsai, F.T.-C. Two-relaxation-time lattice Boltzmann method for the anisotropic dispersive Henry problem. Water Resour. Res.
**2010**, 46. [Google Scholar] [CrossRef] - Langevin, C.D.; Dausman, A.M.; Sukop, M.C. Solute and Heat Transport Model of the Henry and Hilleke Laboratory Experiment. Ground Water
**2010**, 48, 757–770. [Google Scholar] [CrossRef] [PubMed] - Langevin, C.D.; Guo, W. MODFLOW/MT3DMS-Based Simulation of Variable-Density Ground Water Flow and Transport. Ground Water
**2006**, 44, 339–351. [Google Scholar] [CrossRef] [PubMed] - Pool, M.; Carrera, J.; Dentz, M.; Hidalgo, J.J.; Abarca, E. Vertical average for modeling seawater intrusion. Water Resour. Res.
**2011**, 47. [Google Scholar] [CrossRef] - Abd-Elhamid, H.F.; Javadi, A.A. A Cost-Effective Method to Control Seawater Intrusion in Coastal Aquifers. Water Resour. Manag.
**2011**, 25, 2755–2780. [Google Scholar] [CrossRef] - Abd-Elhamid, H.F.; Javadi, A.A. A density-dependant finite element model for analysis of saltwater intrusion in coastal aquifers. J. Hydrol.
**2011**, 401, 259–271. [Google Scholar] [CrossRef] - Javadi, A.A.; Abd-Elhamid, H.F.; Farmani, R. A simulation-optimization model to control seawater intrusion in coastal aquifers using abstraction/recharge wells. Int. J. Numer. Anal. Methods Geomech.
**2012**, 36, 1757–1779. [Google Scholar] [CrossRef] - Li, X.; Chen, X.; Hu, B.X.; Navon, I.M. Model reduction of a coupled numerical model using proper orthogonal decomposition. J. Hydrol.
**2013**, 507, 227–240. [Google Scholar] [CrossRef] - Jamshidzadeh, Z.; Tsai, F.T.-C.; Mirbagheri, S.A.; Ghasemzadeh, H. Fluid dispersion effects on density-driven thermohaline flow and transport in porous media. Adv. Water Resour.
**2013**, 61, 12–28. [Google Scholar] [CrossRef] - Emami-Meybodi, H.; Hassanzadeh, H. Two-phase convective mixing under a buoyant plume of CO2 in deep saline aquifers. Adv. Water Resour.
**2015**, 76, 55–71. [Google Scholar] [CrossRef] - Mugunthan, P.; Russell, K.T.; Gong, B.; Riley, M.J.; Chin, A.; McDonald, B.G.; Eastcott, L.J. A Coupled Groundwater-Surface Water Modeling Framework for Simulating Transition Zone Processes. Groundwater
**2017**, 55, 302–315. [Google Scholar] [CrossRef] [PubMed] - Yoon, S.; Williams, J.R.; Juanes, R.; Kang, P.K. Maximizing the value of pressure data in saline aquifer characterization. Adv. Water Resour.
**2017**, 109, 14–28. [Google Scholar] [CrossRef] - Ségol, G. Classic Groundwater Simulations: Proving and Improving Numerical Models; Prentice Hall: Upper Saddle River, NJ, USA, 1994; ISBN 978-0-13-137993-0. [Google Scholar]
- Diersch, H.-J.G.; Kolditz, O. Variable-density flow and transport in porous media: approaches and challenges. Adv. Water Resour.
**2002**, 25, 899–944. [Google Scholar] [CrossRef] - Simpson, M.J.; Clement, T.P. Improving the worthiness of the Henry problem as a benchmark for density-dependent groundwater flow models. Water Resour. Res.
**2004**, 40. [Google Scholar] [CrossRef] - Simpson, M.J.; Clement, T.P. Theoretical analysis of the worthiness of Henry and Elder problems as benchmarks of density-dependent groundwater flow models. Adv. Water Resour.
**2003**, 26, 17–31. [Google Scholar] [CrossRef] - Weatherill, D.; Simmons, C.T.; Voss, C.I.; Robinson, N.I. Testing density-dependent groundwater models: two-dimensional steady state unstable convection in infinite, finite and inclined porous layers. Adv. Water Resour.
**2004**, 27, 547–562. [Google Scholar] [CrossRef] - Prasad, A.; Simmons, C.T. Using quantitative indicators to evaluate results from variable-density groundwater flow models. Hydrogeol. J.
**2005**, 13, 905–914. [Google Scholar] [CrossRef] - Goswami, R.R.; Clement, T.P. Laboratory-scale investigation of saltwater intrusion dynamics. Water Resour. Res.
**2007**, 43. [Google Scholar] [CrossRef] - Voss, C.I.; Simmons, C.T.; Robinson, N.I. Three-dimensional benchmark for variable-density flow and transport simulation: matching semi-analytic stability modes for steady unstable convection in an inclined porous box. Hydrogeol. J.
**2010**, 18, 5–23. [Google Scholar] [CrossRef] - Younes, A.; Fahs, M. A semi-analytical solution for saltwater intrusion with a very narrow transition zone. Hydrogeol. J.
**2014**, 22, 501–506. [Google Scholar] [CrossRef] - Zidane, A.; Younes, A.; Huggenberger, P.; Zechner, E. The Henry semianalytical solution for saltwater intrusion with reduced dispersion. Water Resour. Res.
**2012**, 48. [Google Scholar] [CrossRef] - Chang, S.W.; Clement, T.P.; Simpson, M.J.; Lee, K.-K. Does sea-level rise have an impact on saltwater intrusion. Adv. Water Resour.
**2011**, 34, 1283–1291. [Google Scholar] [CrossRef] [Green Version] - Fahs, M.; Ataie-Ashtiani, B.; Younes, A.; Simmons, C.T.; Ackerer, P. The Henry problem: New semianalytical solution for velocity-dependent dispersion. Water Resour. Res.
**2016**, 52, 7382–7407. [Google Scholar] [CrossRef] - Michael, H.A.; Russoniello, C.J.; Byron, L.A. Global assessment of vulnerability to sea-level rise in topography-limited and recharge-limited coastal groundwater systems. Water Resour. Res.
**2013**, 49, 2228–2240. [Google Scholar] [CrossRef] - Simmons, C.T.; Fenstemaker, T.R.; Sharp, J.M. Variable-density groundwater flow and solute transport in heterogeneous porous media: Approaches, resolutions and future challenges. J. Contam. Hydrol.
**2001**, 52, 245–275. [Google Scholar] [CrossRef] - Chang, C.-M.; Yeh, H.-D. Spectral approach to seawater intrusion in heterogeneous coastal aquifers. Hydrol. Earth Syst. Sci.
**2010**, 14, 719–727. [Google Scholar] [CrossRef] - Lu, C.; Chen, Y.; Zhang, C.; Luo, J. Steady-state freshwater–seawater mixing zone in stratified coastal aquifers. J. Hydrol.
**2013**, 505, 24–34. [Google Scholar] [CrossRef] - BniLam, N.; Al-Khoury, R. A spectral element model for nonhomogeneous heat flow in shallow geothermal systems. Int. J. Heat Mass Transf.
**2017**, 104, 703–717. [Google Scholar] [CrossRef] - Gardner, W.R. Some Steady-state solutions of the unsaturated moisture flow equation with application to evaporation from water table. Soil Sci.
**1958**, 85, 228. [Google Scholar] [CrossRef] - Fajraoui, N.; Fahs, M.; Younes, A.; Sudret, B. Analyzing natural convection in porous enclosure with polynomial chaos expansions: Effect of thermal dispersion, anisotropic permeability and heterogeneity. Int. J. Heat Mass Transf.
**2017**, 115, 205–224. [Google Scholar] [CrossRef] - Wang, X.-S.; Jiang, X.-W.; Wan, L.; Ge, S.; Li, H. A new analytical solution of topography-driven flow in a drainage basin with depth-dependent anisotropy of permeability. Water Resour. Res.
**2011**, 47. [Google Scholar] [CrossRef] - Jiang, X.-W.; Wan, L.; Wang, X.-S.; Ge, S.; Liu, J. Effect of exponential decay in hydraulic conductivity with depth on regional groundwater flow. Geophys. Res. Lett.
**2009**, 36. [Google Scholar] [CrossRef] - Kuang, X.; Jiao, J.J. An integrated permeability-depth model for Earth’s crust: Permeability of Earth’s crust. Geophys. Res. Lett.
**2014**, 41, 7539–7545. [Google Scholar] [CrossRef] - Zlotnik, V.A.; Cardenas, M.B.; Toundykov, D. Effects of Multiscale Anisotropy on Basin and Hyporheic Groundwater Flow. Ground Water
**2011**, 49, 576–583. [Google Scholar] [CrossRef] [PubMed] - Younes, A.; Fahs, M. Extension of the Henry semi-analytical solution for saltwater intrusion in stratified domains. Comput. Geosci.
**2015**, 19, 1207–1217. [Google Scholar] [CrossRef] - Ghezzehei, T.A.; Kneafsey, T.J.; Su, G.W. Correspondence of the Gardner and van Genuchten-Mualem relative permeability function parameters. Water Resour. Res.
**2007**, 43. [Google Scholar] [CrossRef] - Fahs, M.; Younes, A.; Mara, T.A. A new benchmark semi-analytical solution for density-driven flow in porous media. Adv. Water Resour.
**2014**, 70, 24–35. [Google Scholar] [CrossRef] - Pool, M.; Post, V.E.A.; Simmons, C.T. Effects of tidal fluctuations and spatial heterogeneity on mixing and spreading in spatially heterogeneous coastal aquifers. Water Resour. Res.
**2015**, 51, 1570–1585. [Google Scholar] [CrossRef] - Houben, G.J.; Stoeckl, L.; Mariner, K.E.; Choudhury, A.S. The influence of heterogeneity on coastal groundwater flow-physical and numerical modeling of fringing reefs, dykes and structured conductivity fields. Adv. Water Resour.
**2017**, 113, 155–166. [Google Scholar] [CrossRef] - Dose, E.J.; Stoeckl, L.; Houben, G.J.; Vacher, H.L.; Vassolo, S.; Dietrich, J.; Himmelsbach, T. Experiments and modeling of freshwater lenses in layered aquifers: Steady state interface geometry. J. Hydrol.
**2014**, 509, 621–630. [Google Scholar] [CrossRef] - Guevara Morel, C.R.; van Reeuwijk, M.; Graf, T. Systematic investigation of non-Boussinesq effects in variable-density groundwater flow simulations. J. Contam. Hydrol.
**2015**, 183, 82–98. [Google Scholar] [CrossRef] [PubMed] - Huyakorn, P.S.; Andersen, P.F.; Mercer, J.W.; White, H.O. Saltwater intrusion in aquifers: Development and testing of a three-dimensional finite element model. Water Resour. Res.
**1987**, 23, 293–312. [Google Scholar] [CrossRef] - Mehdizadeh, S.S.; Werner, A.D.; Vafaie, F.; Badaruddin, S. Vertical leakage in sharp-interface seawater intrusion models of layered coastal aquifers. J. Hydrol.
**2014**, 519, 1097–1107. [Google Scholar] [CrossRef] - Najib, K.; Rosier, C. On the global existence for a degenerate elliptic–parabolic seawater intrusion problem. Math. Comput. Simul
**2011**, 81, 2282–2295. [Google Scholar] [CrossRef] - Felisa, G.; Ciriello, V.; Federico, V. Saltwater Intrusion in Coastal Aquifers: A Primary Case Study along the Adriatic Coast Investigated within a Probabilistic Framework. Water
**2013**, 5, 1830–1847. [Google Scholar] [CrossRef] - Marion, P.; Najib, K.; Rosier, C. Numerical simulations for a seawater intrusion problem in a free aquifer. Appl. Numer. Math.
**2014**, 75, 48–60. [Google Scholar] [CrossRef] - Masciopinto, C.; Liso, I.; Caputo, M.; De Carlo, L. An Integrated Approach Based on Numerical Modelling and Geophysical Survey to Map Groundwater Salinity in Fractured Coastal Aquifers. Water
**2017**, 9, 875. [Google Scholar] [CrossRef] - Essaid, H.I. A multilayered sharp interface model of coupled freshwater and saltwater flow in coastal systems: Model development and application. Water Resour. Res.
**1990**, 26, 1431–1454. [Google Scholar] [CrossRef] - Pistiner, A.; Shapiro, M. A model for a moving interface in a layered coastal aquifer. Water Resour. Res.
**1993**, 29, 329–340. [Google Scholar] [CrossRef] - Dagan, G.; Zeitoun, D.G. Seawater-freshwater interface in a stratified aquifer of random permeability distribution. J. Contam. Hydrol.
**1998**, 29, 185–203. [Google Scholar] [CrossRef] - Liu, Y.; Mao, X.; Chen, J.; Barry, D.A. Influence of a coarse interlayer on seawater intrusion and contaminant migration in coastal aquifers. Hydrol. Process.
**2014**, 28, 5162–5175. [Google Scholar] [CrossRef] - Qin, R.; Wu, Y.; Xu, Z.; Xie, D.; Zhang, C. Numerical modeling of contaminant transport in a stratified heterogeneous aquifer with dipping anisotropy. Hydrogeol. J.
**2013**, 21, 1235–1246. [Google Scholar] [CrossRef] - Woumeni, R.S.; Vauclin, M. A field study of the coupled effects of aquifer stratification, fluid density, and groundwater fluctuations on dispersivity assessments. Adv. Water Resour.
**2006**, 29, 1037–1055. [Google Scholar] [CrossRef]

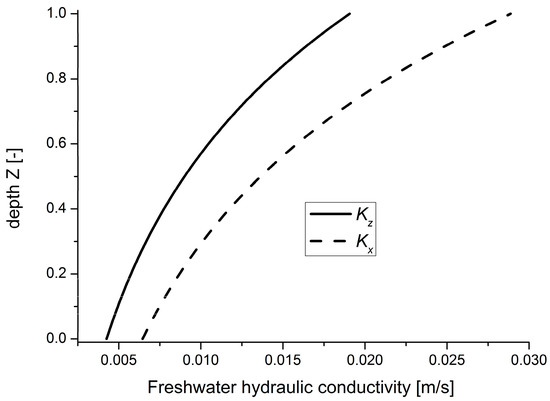

**Figure 2.**Variation of the horizontal and vertical hydraulic conductivities with respect to depth for $\mathsf{\Upsilon}=1.5$ and $\overline{{K}_{z}}=8.213\times {10}^{-3}\text{}\mathrm{m}/\mathrm{s}$. Depth datum is at the aquifer bottom surface.

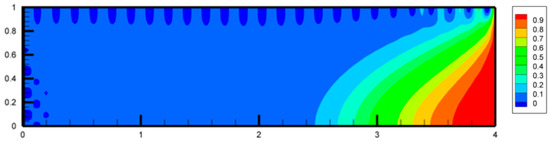

**Figure 3.**Non-physical oscillations related to the Gibbs phenomenon: the heterogeneous pure diffusive case evaluated with insufficient number of Fourier modes.

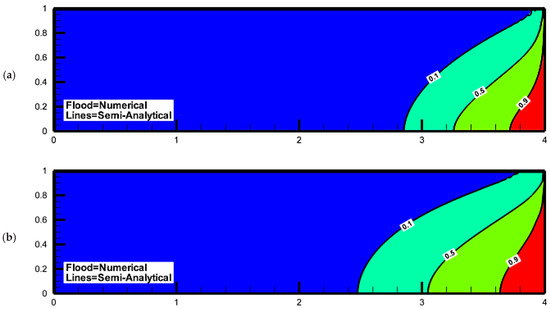

**Figure 4.**Semi-analytical and numerical isochlors (10%, 50% and 90%) for the pure diffusive cases: (

**a**) homogenous and (

**b**) heterogonous aquifer.

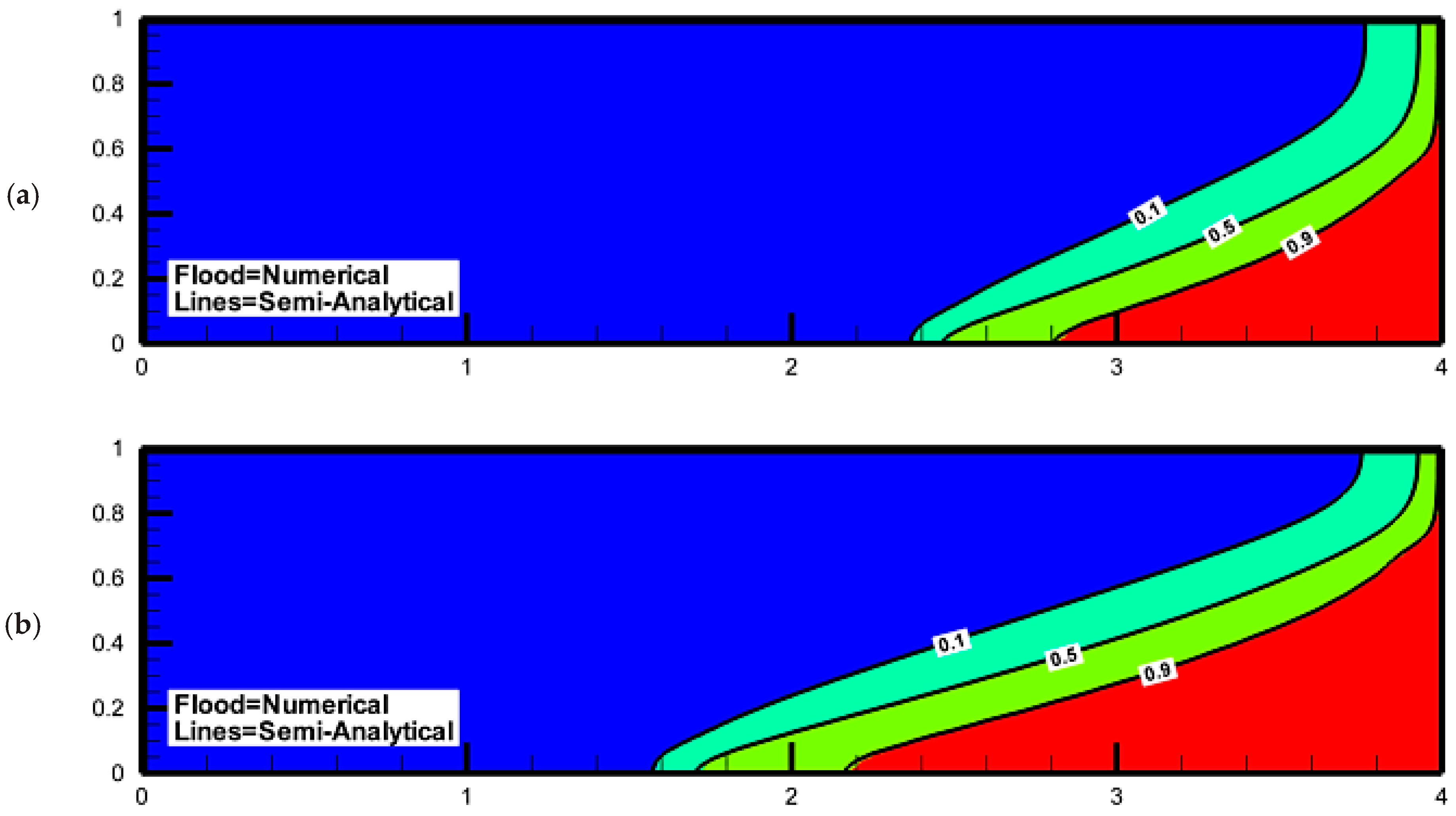

**Figure 5.**Semi-analytical and numerical isochlors (10%, 50%, 90%) for the dispersive cases: (

**a**) homogenous and (

**b**) heterogonous aquifer.

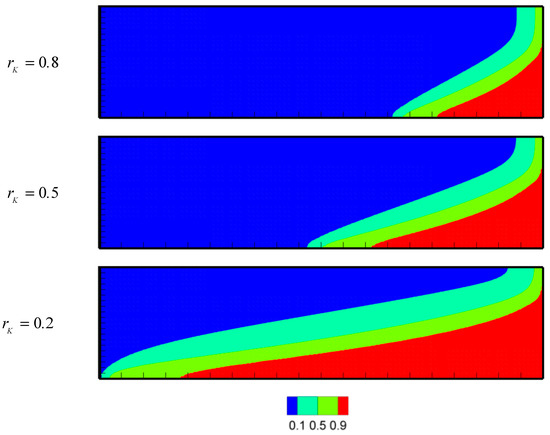

**Figure 6.**Effect of anisotropy on the isochlors’ positions (90%, 50%, 10%): Results obtained for the dispersive homogenous case (see Table 1 for all parameters, except ${r}_{K}$, which is given in the figure).

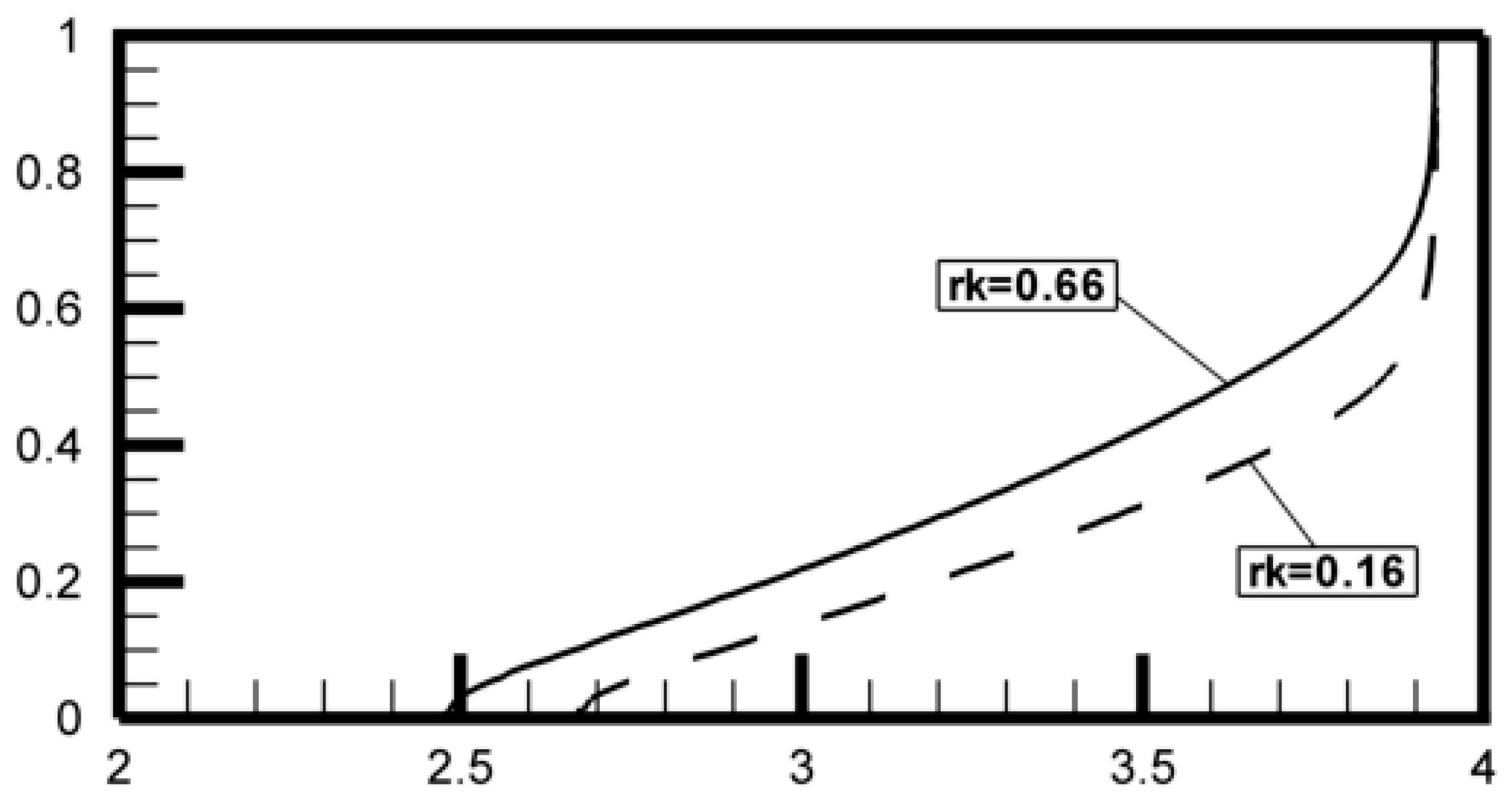

**Figure 7.**Effect of anisotropy ratio on the 50% isochlor’s position when ${r}_{K}$ is changed based on the vertical hydraulic conductivity. The case ${r}_{K}=0.66$ corresponds to the homogenous dispersive case (Table 2). The case ${r}_{K}=0.16$ is obtained with reduced ${K}_{z}$ (divided by 4.125).

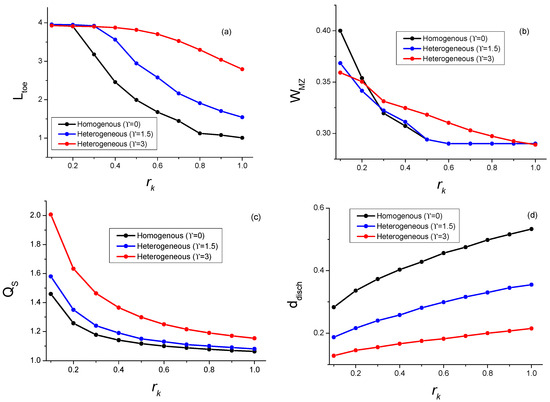

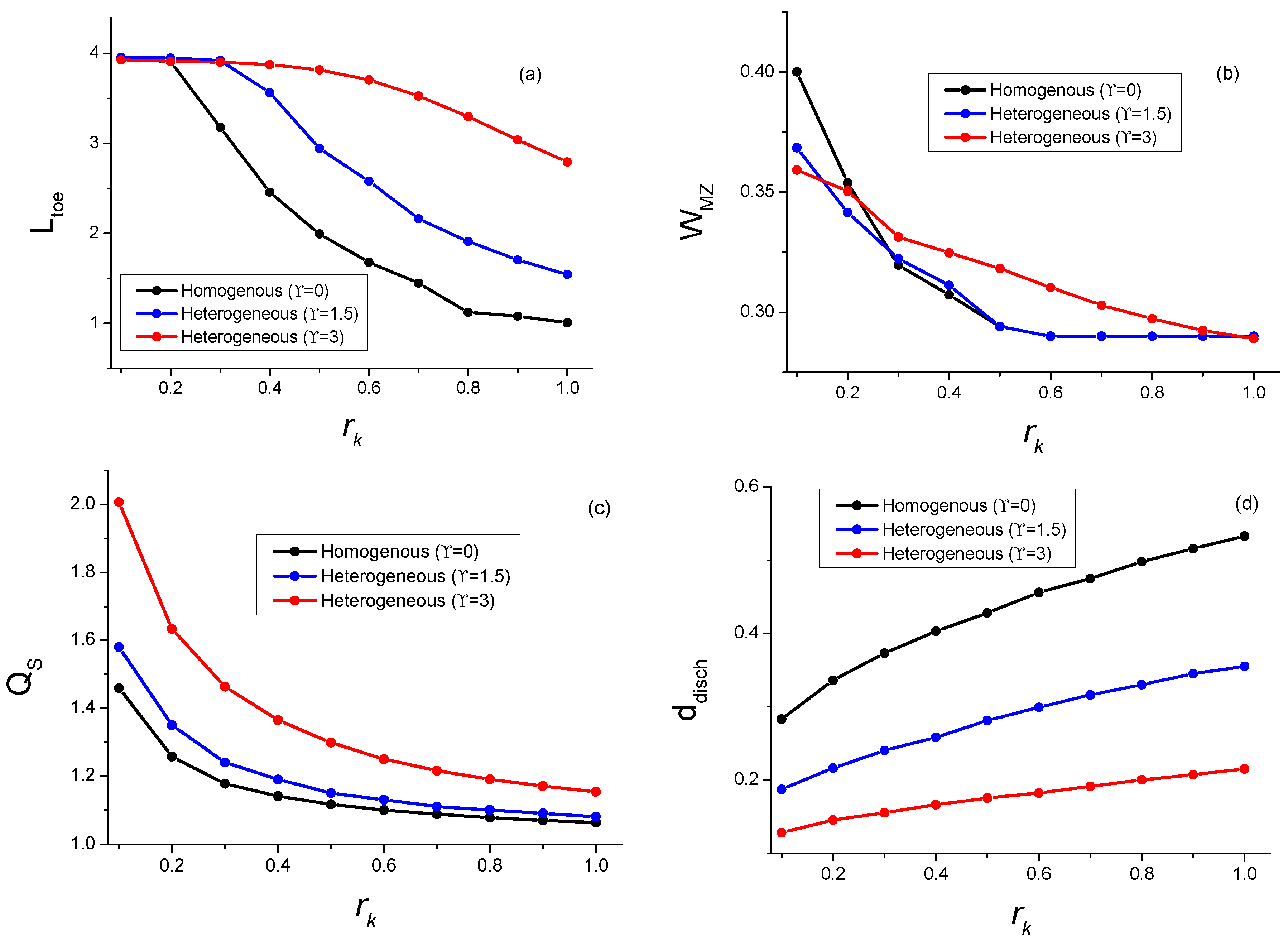

**Figure 8.**Variation of the SWI metrics ((

**a**) ${L}_{toe}$, (

**b**) ${W}_{MZ}$, (

**c**) ${Q}_{s}$ and (

**d**) ${d}_{disch}$) versus ${r}_{k}$. Results obtained for the dispersive case (see Table 1 for all parameters, except ${r}_{K}$ and $\mathsf{\Upsilon}$, which are given in the figure).

**Figure 9.**Coupled influence of anisotropy and heterogeneity on the main isochlors (10%, 50%, 90%). Results obtained for a fixed large-scale gravity number $\overline{NG}=3.11$. All other parameters are similar to the dispersive case in Table 1.

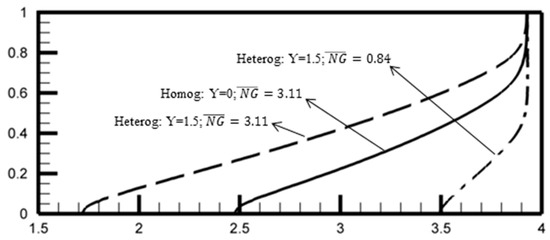

**Figure 10.**Effect of the heterogeneity for a varying large-scale gravity number. The 50% isochlor in the case of the homogenous aquifer with $\overline{NG}=3.11$ (solid line), heterogeneous aquifer with $\overline{NG}=3.11$ (dashed line) and heterogeneous aquifer with $\overline{NG}=0.84$ (dash-dotted line). Heterogeneous cases are obtained with $\mathsf{\Upsilon}=1.5$.

**Table 1.**Non-dimensional parameters used in the semi-analytical solution for the verification test cases.

Dimensionless Parameters | Value | Cases |
---|---|---|

$\overline{NG}=\frac{\overline{{K}_{z}}d\Delta \rho}{{\rho}_{0}{q}_{d}}.$ | 3.11 | All cases |

${b}_{m}=\epsilon {D}_{m}/{q}_{d}$ | 0.1 5 × 10 ^{−4} | Diffusive cases Dispersive cases |

Non-dimensional longitudinal dispersion ${b}_{L}={\alpha}_{L}/d$ | 0 0.1 | Diffusive cases Dispersive cases |

Transverse to longitudinal dispersion coefficients ratio ${r}_{\alpha}={\alpha}_{T}/{\alpha}_{L}$ | 0 0.1 | Diffusive cases Dispersive cases |

${r}_{K}={K}_{z}/{K}_{x}$ | 0.66 | All cases |

The rate of heterogeneity $\mathsf{\Upsilon}$ | 0 1.5 | Homogenous cases Heterogeneous cases |

Parameters | Value | Cases |
---|---|---|

$\Delta \rho $ [kg/m^{3}] | 25 | All cases |

${\rho}_{0}$ [kg/m^{3}] | 1000 | All cases |

${q}_{d}$ [m^{2}/s] | 6.6 × 10^{−5} | All cases |

$d$ [m] | 1 | All cases |

$\ell $ [m] | 4 | All cases |

$\overline{{K}_{z}}$ [m/s] | 8.213 × 10^{−3} | All cases |

${r}_{k}$ [-] | 0.66 | All cases |

$\epsilon $ [-] | 0.35 | All cases |

${D}_{m}$ [m^{2}/s] | 53.88 × 10^{−6}3.300 × 10 ^{−8} | Diffusive cases Dispersive cases |

${\alpha}_{L}$ [m] | 0 0.1 | Diffusive cases Dispersive cases |

${\alpha}_{T}$ [m] | 0 0.01 | Diffusive cases Dispersive cases |

$\mathsf{\Upsilon}$ [-] | 0 1.5 | Homogenous cases Heterogeneous cases |

**Table 3.**Physical parameters used in the numerical model for the verification test cases (L

_{toe}: length of the toe, W

_{MZ}: average vertical width of the mixing zone, Q

_{S}: total dimensionless salt flux, d

_{disch}: depth of the zone of groundwater discharge to the sea).

Semi-Analytical Solution | Numerical Solution | |||||||
---|---|---|---|---|---|---|---|---|

Metrics | ${L}_{toe}$ | ${W}_{MZ}$ | ${Q}_{s}$ | ${d}_{disch}$ | ${L}_{toe}$ | ${W}_{MZ}$ | ${Q}_{s}$ | ${d}_{disch}$ |

Diffusive homogenous | 0.74 | 0.78 | 1.06 | 0.57 | 0.74 | 0.79 | 1.09 | 0.56 |

Diffusive heterogeneous | 0.95 | 0.83 | 1.09 | 0.35 | 0.95 | 0.84 | 1.01 | 0.36 |

Dispersive homogenous | 1.54 | 0.29 | 1.07 | 0.46 | 1.53 | 0.29 | 1.09 | 0.47 |

Dispersive heterogeneous | 2.30 | 0.59 | 1.09 | 0.31 | 2.29 | 0.59 | 1.12 | 0.31 |
