Characteristics of VOCs Emissions from Circulating Water of Typical Petrochemical Enterprises and Their Impact on Surroundings

Abstract

The petrochemical industry is regarded as the main source of anthropogenic VOCs emissions in China. As one of the main sources of unorganized emissions, circulating water is scarcely studied and reported. In this research, six circulating water systems (LC2X, HGLY, YJ, XJ, LC4X and LC5X) of a typical petrochemical enterprise were selected as targets to characterize VOCs emitted from such unorganized emissions. The results showed that there was a great difference in the VOCs disorganized emissions from the six circulating water systems, among which the main VOCs of HG2X, HGLY and YJ were oxygen-containing VOCs (OVOCs), accounting for about 48.0–81.2%. The main compounds of XJ, LC4X and LC5X were alkynes (89.1%), aromatic hydrocarbons (69.7%) and alkane (50.1%), respectively. TVOCs ranged from 276.0 to 23,009.6 µg·m⁻³. Based on POC test results, VOCs emissions of the circulating water system were 1237.5 tons, indicating further control was needed. As for their ambient impact, XJ had higher OFP contribution, and the OFP values of the six systems ranged from 823.3 to 145,739.0 µg·m⁻³, among which the major contributors were aromatic hydrocarbons (0.2–85.1%), OVOCs (0.1–77.2%) and alkynes (1.7–97.6%). In addition, aromatic hydrocarbons showed the largest contribution of the potential of SOA generation, which was more than 88.0%. As far as control was concerned, the replacement of an open cooling tower to closed cooling tower combined with regular POC detection will be an efficient way to control VOCs from such sources.

1. Introduction

Volatile organic compounds (VOCs), the collective term for organic compounds with a boiling point lower than 250 °C under standard atmospheric pressure, are important participants in atmospheric chemical reactions and major precursors for the formation of PM_2.5 and O₃ [1,2,3,4]. In addition, VOCs also have a certain impact on human health [5,6,7]. In recent years, China has successively issued relevant plans to put forward relevant requirements for VOCs management, put forward comprehensive rectification plans for key VOCs emission industries, such as petrochemicals, and pointed out the strengthening of fugitive emission control [8,9,10]. As a pillar industry of the national economy, the petrochemical industry is also the main anthropogenic VOCs emission source and has become the largest anthropogenic emission sub-source in China [11,12,13,14]. In view of this, researchers have paid more attention to VOCs pollution emissions of petrochemical enterprises. At present, the research mainly focuses on the emission characteristics of VOCs in the ambient air, inside and outside the factory area of petrochemical enterprises [15,16,17,18,19,20]. In addition, studies have shown that the unorganized VOCs emissions of petrochemical enterprises are as high as 14.4% of the anthropogenic emissions [21], and the emitted VOCs have the characteristics of high concentration, large emissions and strong activity, which easily produce O₃ and secondary aerosol pollution and are harmful to human health [22,23]. Among those organized and unorganized sources, a circulating cooling water system is regarded as one of the most important sources contributing to VOCs emission amounts in the petrochemical industry. However, VOCs characterizations, including species, releasing behaviors and impact on environment from circulating cooling water system, are scarcely reported [19].

Based on those mentioned above, about six circulating cooling water systems were selected in a typical petrochemical enterprise in North China as the targets. VOCs were sampled at the cooling tower sites and then analyzed for the component determination. In addition, the releasing processes, impact on surrounding environment and control measures were also discussed with the purpose to understand more about VOCs from such sources for better control.

2. Materials and Methods

2.1. Sampling

VOCs from six circulating cooling water systems related to refining processes (HG2X, LC4X, LC5X), chemical product transportation (HGLY), organic product manufacture (YJ) and rubber manufacture (XJ) were passively collected by negative pressure through the Summa containers, and the inner wall was polished and silanized. The sampling sites were downwind of the wastewater treatment facility and the sample collection time was about 10 min. During the sampling period, a restrictor valve was used to ensure a uniform sampling speed. In addition, water samples were also collected. Two bottles of water samples were collected at the inlet and outlet of the cooling tower of each circulating cooling water system. The water samples were stored at 3–4 °C and sent to the testing unit for POC (purgeable organic carbon) testing.

2.2. Analysis Methods

The samples in the Summa containers were analyzed according to the TO-15 method recommended by the US EPA, and the qualitative and quantitative VOCs were analyzed by a three-stage cold-trap preconcentration two-dimensional GC-MS/FID system. The VOCs samples were first passed through an automatic pre-concentrator (Entech 7100) for pretreatment. After removing water and CO₂, VOCs were trapped in the third-stage cold trap. The system was heated up rapidly to vaporize the components enriched in the cold trap and VOCs were frequently brought into the GC-MS/FID system (Agilent 7890A/5975C) for separation and quantification. The carrier gas was high-purity helium (purity > 99.999%). The standard gases included TO-15 mixed custom standard gas containing 63 compounds (Scott Gases, Philadelphia, PA, USA), mixed standard gas containing 56 ozone precursors (PAMS) (Spectra gases, Branchburg, NJ, USA) and internal standard gas containing (bromochloromethane,1,4-difluorobenzene, D5-chlorobenzene,1-bromo-4-fluorobenzene) (Spectra gases, Branchburg, NJ, USA). High-concentration samples were diluted by using Summa container pressure combined with dilution injection to avoid possible contamination. More information about the analysis can be seen elsewhere [24]. Meanwhile, for the POC analysis, they were thawed at room temperature and placed in a glass dish. Then the samples were dried at low temperature and wrapped with tin foil after removing the inorganic carbon with HCl (1 mol·L⁻¹). Finally, Perkin Elmer Elemental analyzer was employed for the POC determination.

2.3. Emission Amount Calculation

In order to further study the current VOCs emission amount in this research, the formula cited from the “Guidelines for the Investigation of VOCs Pollution Sources in the Petrochemical Industry” issued by the Ministry of Environment is shown as follows.

$$E_{ww}={\displaystyle \sum }_{i=1}^n{Q}_i\times \left(EVOC{s}_{ini}-EVOC{s}_{outi}\right)\times t\times {10}^{-3}$$

(1)

where E_ww is the amount of volatile organic compounds emitted by the wastewater collection or treatment facility, kg·a⁻¹; Q_i is the wastewater flow of the ith collection or treatment facility, m³·h⁻¹; EVOCs_ini is the fugitive volatile organic compound concentration in the influent of the ith collection or treatment facility, mg·L⁻¹; EVOCs_outi is the concentration of fugitive volatile organic compounds in the effluent of the ith collection or treatment facility, mg·L⁻¹; t is the annual operating time of each section of the wastewater collection and treatment system, h·a⁻¹; n is the number of wastewater collection and treatment system facilities.

2.4. Environmental Impact Assessment

The effect of VOCs on atmospheric chemical reactivity can be measured by the Ozone Formation Potential (OFP) [25,26]. The Maximum Increment Reactivity (MIR) is used to measure the ozone generation potential (OFP) of VOCs, which reflect the ability of different components of VOCs to participate in atmospheric chemical reactions [27]. The formula is as follows:

OFP_i = MIR_i × VOCs_i

(2)

where OFP_i is the ozone formation potential of species i, MIR_i is the ozone generation coefficient of species i in the maximum ozone increment reaction and VOCs_i is the emission concentration of species i.

In addition, Secondary Organic Aerosol (SOA) is an important component of PM₂.₅. In order to study the contribution of VOCs emitted from circulating water systems to secondary organic aerosols, the aerosol formation coefficient method (FAC method) was used to estimate the secondary organic aerosol generation potential of VOCs released from the circulating water system. The calculation formula is as follows:

SOAp = VOCi × FACi/(1 − FVOCr)

(3)

In the formula, SOAp is the SOA formation potential of VOCs compounds, g·m⁻³; FACi is the formation coefficient of SOA, %; FVOCr is the fraction of VOCs compounds participating in the reaction, %, where FVOCr and FACi are obtained from relevant literature [28,29].

3. Results and Discussion

3.1. VOCs Emission Characteristics

VOCs is mainly caused by the leakage of VOCs containing materials into the circulating water during the heat-exchange process of the heat exchanger. Studies show that the corrosion of the circulating water heat exchanger is the most important factor that brings organic materials into the circulating water. When the circulating water containing VOCs entered the cooling tower, VOCs were released into the atmosphere under the stripping action of the cooling tower fan. The volatilization of VOCs in this process could be divided into three stages, which were the volatilization of static open surface, air stripping and falling system. In most cases, during the cooling process of the cooling tower, air entered from the bottom of the cooling tower at a high speed. During the falling and cooling process of the circulating water, the organic matter in the circulating water volatilized into the air and was taken away by the air in the process of surface flash evaporation and heat evaporation. During the cooling process of circulating water, the temperature difference of circulating water needs to be reduced by about 10 degrees and VOCs in the circulating water will be directly released through the air duct, which contributed to a large percentage of total VOCs emissions. While, in this research, the production process associated with each set of circulating water is different, the VOCs emission is also quite different. The results showed that the TVOCs emission concentrations of HG2X, HGLY and YJ were relatively low, which were 660.4 µg·m⁻³, 377.9 µg·m⁻³ and 276.0 µg·m⁻³, respectively. The TVOCs emission concentrations of LC4X and XJ were 1254.9 µg·m⁻³ and 1942.7 µg·m⁻³, respectively, 4–7-times that of YJ. The TVOCs emission concentration of LC5X was the highest, reaching 23,009.6 µg·m⁻³, which was 83-times that of YJ emission concentration.

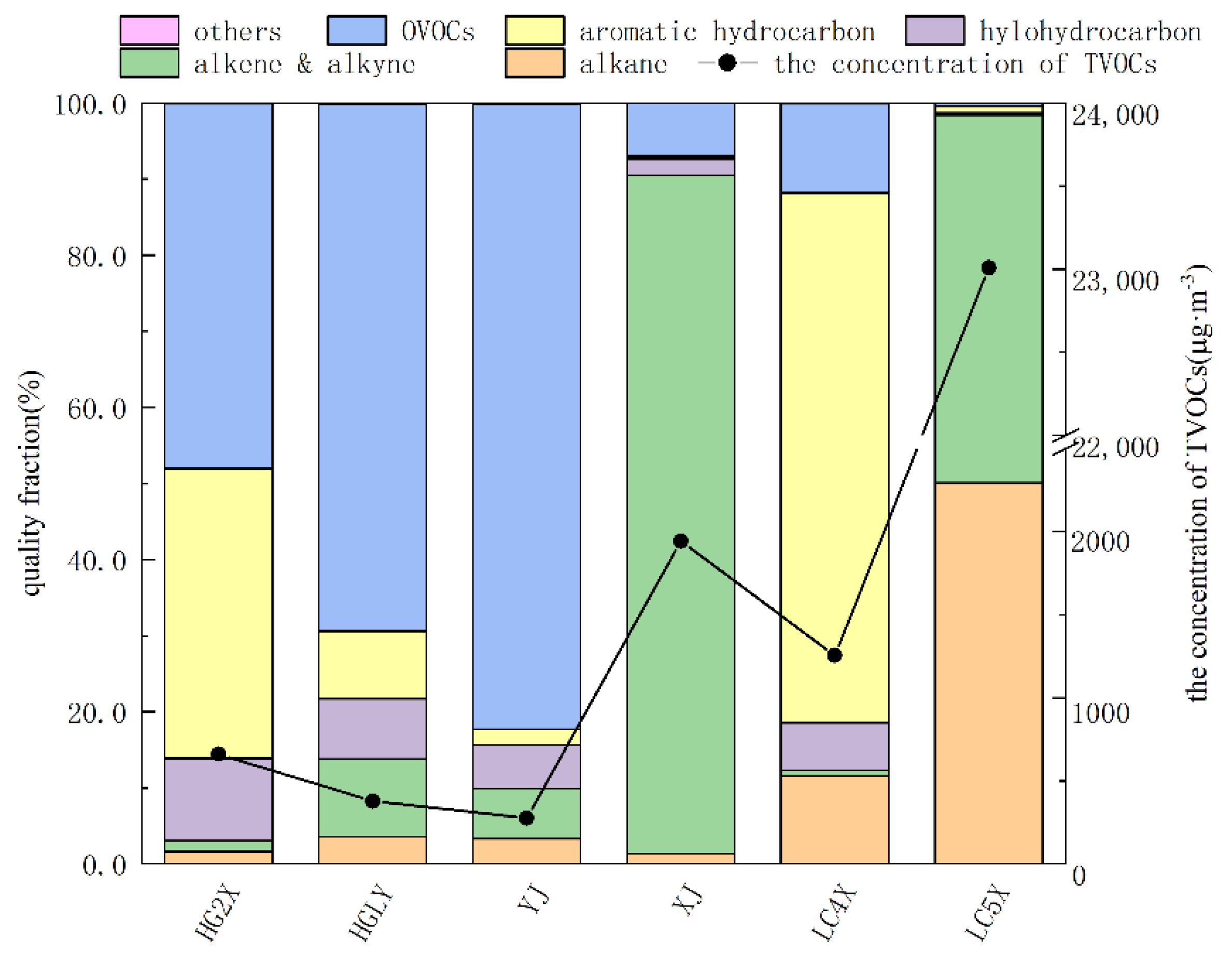

As shown in Figure 1, OVOCs were the major emission types with the largest proportion of HG2X, HGLY and YJ, accounting for 48.0%, 69.2% and 82.1%, respectively. The VOCs emission composition of XJ was the same, mainly alkenes, accounting for 89.1%. Aromatic hydrocarbons were the main compounds in LC4X, accounting for nearly 70%, followed by alkanes and oxygen-containing VOCs, accounting for 11.6% and 11.8%, respectively. The VOCs emission composition of LC5X was mainly composed of alkanes and alkenes, of which the proportions were relatively close, accounting for 50.1% and 48.4%, respectively.

The main components of VOCs emitted by each circulating water system were also different. The main VOCs components of HG2X were butyraldehyde, p/m−xylene, o−xylene, ethanol and 1,2−dichloromethane. Ethane accounted for 67.8% of the total emissions; ethanol was the primary pollutant of HGLY, accounting for 27.3%, followed by butyraldehyde, acetone, etc.; for YJ, the VOCs components are mainly vinyl acetate and ethanol, accounting for 28.7% and 22.2%; 1,3−butadiene and styrene were the primary pollutants of XJ and LC4X, accounting for 88.1% and 67.7%, respectively, and the remaining components accounted for less than 7.0%; isobutane, 1−Butene, trans−2−butene, butane and cis−2−butene were the main VOCs components of LC5X, accounting for 98.1% of the total emissions. The reason for the difference is mainly due to the different production processes at the front end of the circulating water connection and the different materials of the heat exchangers in each circulating water field, resulting in different VOCs components discharged from the circulating cooling water system. In addition, compared with the studies in other industries, VOCs were also different in terms of concentration and components [30,31,32,33].

As for the VOCs emission amount, the consumption of total circulating cooling water and the POC values shown in

Table 1. POC test results of circulating water system.

Sampling Location	Outlet (mg·L−1)	Inlet (mg·L−1)	Relative Difference (%)
HG2X	1.1	1.6	31.3
HGLY	8.1	8.8	7.95
XJ	1.5	1.6	6.25
YJ	0.1	1.8	94.4
LC4X	2.1	2.2	4.55
LC5X	3.0	5.5	45.5

were used for calculation according to Formula (1). Based on the investigation, the total flow of the six circulating cooling water systems was about 27,485.4 m³·h⁻¹ and the average annual operating time of each system was 8040 h. As a result, the total amount of VOCs emitted from the circulating cooling water systems was 1237.5 tons, which accounted for about 43% of the total emission amount of the petrochemical enterprise. Though these circulating cooling water systems show high contributions, they were often ignored or underestimated [34]. In addition, according to the “Guidelines for the Investigation of VOCs Pollution Sources in the Petrochemical Industry”, if the relative difference (RD) ≥ 10%, there might be an obvious leakage from the organic materials into the circulating cooling water system. As shown in Table 1, the RD values of HG2X, YJ and LC5X all exceeded 10% and LC5X showed the highest value 45.5%, indicating there might be a serious leakage related to the refining processes, but the specific leakage units still need to be identified.

3.2. Environmental Impact Assessment

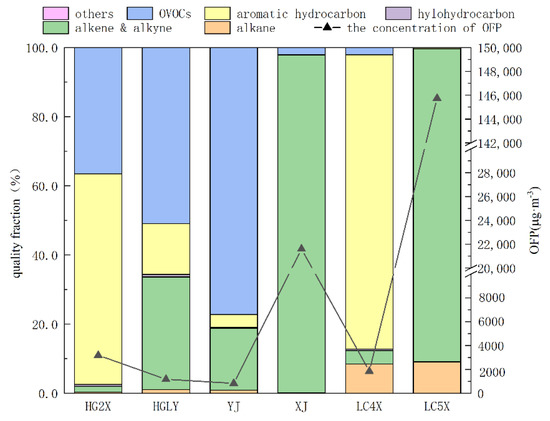

The ozone formation potential of VOCs in the circulating water system is shown in Figure 2. The OFP value of LC5X was the largest, which was 145,739 µg·m⁻³; the second is XJ, whose OFP value was 21,603 µg·m⁻³; the OFP values of HG2X, LC4X and HGLY ranged from 1176 to around 3175 µg·m⁻³; YJ showed the smallest OFP value relatively, which was just 823.3 µg·m⁻³.

The contribution ratio of VOCs species in the six circulating water systems is shown in Figure 2. Aromatic hydrocarbons were the compounds that contributed the most to O₃ formation in HG2X, with a contribution rate exceeding 60.0%, followed by oxygen containing VOCs (36.5%), in which the high contribution rate components were mostly p/m−xylene (33.9%), butyraldehyde (26.6%) and o−xylene (18.9%). For HGLY, oxgen containing VOCs yielded the largest proportion of OFP and alkenes took the second place, with proportions of 50.9% and 32.6%, respectively. Propylene, butyraldehyde and ethanol were the components with high contribution rates of O₃ formation, accounting for 27.1%, 19.2% and 12.7%, respectively. For YJ, the oxygen-containing VOCs showed that the largest proportions of OFP (30.0%), butyraldehyde (28.6%) and ethanol (10.8%) were also the key active components in YJ. For XJ and LC5X, olefins showed the largest contribution to the formation of O₃, with a contribution rate more than 90.0%. The proportion of highly reactive olefins, such as 1,3−butadiene, 1−butene, trans−2−butene and cis−2−butene, was relatively high, in which 1,3−butadiene (96.7%) yielded the highest contribution rate in XJ. Meanwhile, LC5X was mainly composed of 1−butene (36.9%), trans−2−butene (33.4%) and cis−2−butene (20.0%), which was similar to HG2X.The compounds that contributed the most to O₃ formation in LC4X were aromatic hydrocarbons (85.1%) followed by styrene with a proportion up to 76.0%, which was the key factor of active ingredients in LC4X. Generally, for the control of O₃ formation, the main compounds to be controlled were aromatic hydrocarbons in HG2X and LC4X, oxygen-containing VOCs in HGLY and YJ and olefins in XJ and LC5X. In addition, compared with the studies in other industries, OFPs were also different, which were rather larger than others reported [30,31,32,33].

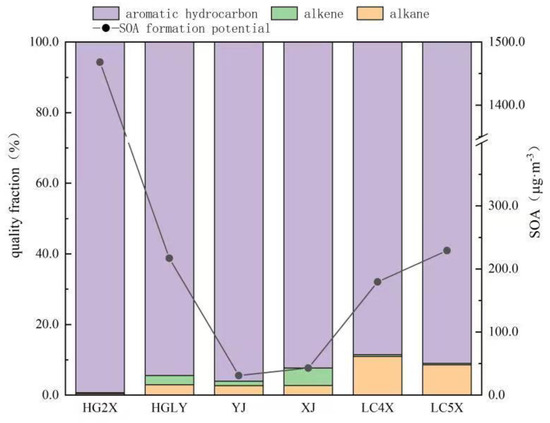

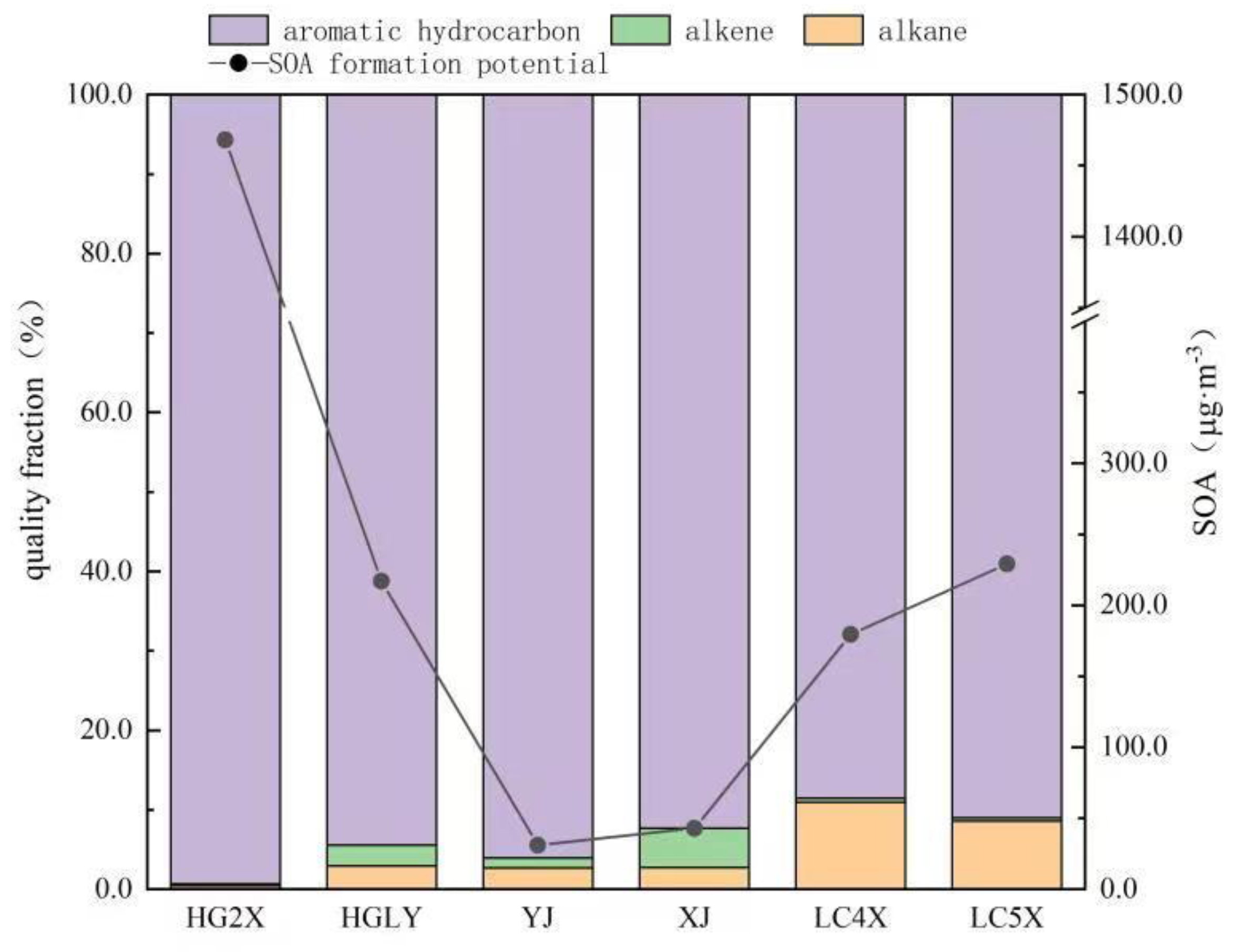

The SOA generation potential of VOCs in the circulating cooling water system is shown in Figure 3. The results showed that the SOA generation potential of HG2X was the highest, followed by LC5X, HGLY, LC4X, XJ and YJ. The SOA values of LC5X, HGLY, LC4X, XJ and YJ were 229.1, 216.9, 179.4, 42.9 and 31.0 µg·m⁻³, respectively. The SOA value of HG2X was 1467.9 µg·m⁻³, which was about 6~47 times of the other values in the remaining five circulating cooling water systems. Aromatic hydrocarbons were the components with the largest contribution rate to SOA generation in the six circulating cooling water systems, and the contribution rate to SOA in HG2X, HGLY, YJ, XJ and LC5X all exceeded 90.0%, except LC4X, which was just about 88%. For HG2X, the VOCs species with a higher contribution rate to SOA generation were mainly o−xylene (37.1%), p/m−xylene (36.8%) and ethylbenzene (13.2%). For HGLY, cumene (25.7%), −,3,5−trimethyl −benzene (21.1%) and m−ethyltoluene (20.3%) were the major species with higher contri−bution rates. The species with higher contribution rates to SOA generation were mainly m-ethyl toluene and 1,3,5−trimethylbenzene in YJ and XJ, with contribution rates higher than 25.0%.P/m−xylene (11.9~13.6%) and o−xylene (11.8~12.2%) were the species with higher contribution rates in LC4X and LC5X, and 1,2,3−trimethylbenzene (15.4%) was the species with the highest contribution rate in LC4X. Generally, for SOA generation control, the main compounds that need to be controlled in the six circulating water systems were mainly aromatic hydrocarbons.

3.3. Control Measures for VOCs

As mentioned above, VOCs in the circulating cooling water system mainly originated from the leakage of organic materials caused by corrosion of relevant heat exchangers and entered into the circulating water system, released into the air in the cooling tower unit. According to the emission amount calculation, VOCs emission from the circulating water cooling tower cannot be underestimated, and control measures must be taken for better control. Generally, the heat exchanger unit should be overhauled regularly to reduce corrosion, so as to reduce organic materials entering the circulating cooling water system. This approach is the most economical and feasible. In addition, POC detection can also be carried out regularly at the water inlet and outlet of the cooling tower to determine whether the RD value is greater than 10% as the basis for regular leak detection. Meanwhile, most of the existing petrochemical enterprises’ circulating cooling water systems are equipped with open cooling towers, which are characterized by economic operation, but the disadvantage is that direct contact of circulating water with air would lead to the release of VOCs into the atmosphere. Therefore, changing the open cooling tower to a closed cooling tower could also be a possible way, in which the direct contact of circulating water with air is banned and the escape of VOCs is prevented. However, it should be pointed out that although VOCs escape is eliminated, the leakage of VOCs from organic materials to circulating cooling water systems cannot be prevented. As far as this study is concerned, HG2X, YJ and LC5X with serious leakage should be checked one by one in the short term to find specific leakage units and repair them. In the medium term, POC detection of these six circulating water systems should be carried out regularly to find potential leakage units in time and repair them. In the long term, the replacement of open cooling mode to closed cooling mode could be considered, and POC detection could be carried out regularly at the inlet and outlet of the cooling tower to detect and repair the leakage in time for the purpose of completely eliminating VOCs from the circulating cooling water system.

4. Conclusions

In this research, VOCs from circulating cooling water systems in a typical petrochemical enterprise were firstly studied. The results indicated that VOCs varied in a rather wide range in terms of concentration and components. Oxygen containing VOCs, alkenes and alkanes were dominated, which might be related to the detailed refining, transportation, chemical and organic product manufacture processes. During the cooling process of circulating water, VOCs in the circulating water will be directly released through the air duct, which contributed to a large percentage of total VOCs emission. In addition, combined with the POC test results, it was calculated that the VOCs emissions of the circulating water system from the enterprise were 1237.5 tons, contributing to 40% of total emissions, which should not be underestimated. As for their impact on the environment, high OFP and SOAp values suggested a significant contribution to O₃ and SOA formation. As a result, the replacement of the open cooling tower to be a closed cooling tower combined with regular POC detection will be an efficient way for VOCs control from such sources.
