Article

Genome-Wide Identification of GYF-Domain Encoding Genes in Three Brassica Species and Their Expression Responding to Sclerotinia sclerotiorum in Brassica napus

1
Hunan Provincial Key Laboratory of Phytohormones and Growth Development, College of Bioscience and Biotechnology, Hunan Agricultural University, Changsha 410128, China
2
College of Life Science, Chongqing Normal University, Chongqing 400047, China
3
Agricultural Science Academy of Xiangxi Tujia and Miao Autonomous Prefecture, Xiangxi 416000, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Genes 2023, 14(1), 224; https://doi.org/10.3390/genes14010224
Submission received: 23 December 2022 / Revised: 10 January 2023 / Accepted: 11 January 2023 / Published: 15 January 2023
(This article belongs to the Special Issue Genetics of Biotic and Abiotic Stress Response in Crops)

Abstract

:
GYF (glycine-tyrosine-phenylalanine)-domain-containing proteins, which were reported to participate in many aspects of biological processes in yeast and animals, are highly conserved adaptor proteins existing in almost all eukaryotes. Our previous study revealed that GYF protein MUSE11/EXA1 is involved in nucleotide-binding leucine-rich repeat (NLR) receptor-mediated defense in Arabidopsis thaliana. However, the GYF-domain encoding homologous genes are still not clear in other plants. Here, we performed genome-wide identification of GYF-domain encoding genes (GYFs) from Brassica napus and its parental species, Brassica rapa and Brassica oleracea. As a result, 26 GYFs of B. napus (BnaGYFs), 11 GYFs of B. rapa (BraGYFs), and 14 GYFs of B. oleracea (BolGYFs) together with 10 A. thaliana (AtGYFs) were identified, respectively. We, then, conducted gene structure, motif, cis-acting elements, duplication, chromosome localization, and phylogenetic analysis of these genes. Gene structure analysis indicated the diversity of the exon numbers of these genes. We found that the defense and stress responsiveness element existed in 23 genes and also identified 10 motifs in these GYF proteins. Chromosome localization exhibited a similar distribution of BnaGYFs with BraGYFs or BolGYFs in their respective genomes. The phylogenetic and gene collinearity analysis showed the evolutionary conservation of GYFs among B. napus and its parental species as well as Arabidopsis. These 61 identified GYF domain proteins can be classified into seven groups according to their sequence similarity. Expression of BnaGYFs induced by Sclerotinia sclerotiorum provided five highly upregulated genes and five highly downregulated genes, which might be candidates for further research of plant–fungal interaction in B. napus.

1. Introduction

The glycine-tyrosine-phenylalanine (GYF) domain, which was originally identified in CD2BP2 as an adaptor domain responsible for binding to the PPG motif of the T cell adhesion molecule CD2 [1], was defined as a small, versatile adaptor-conserved domain that recognizes proline-rich sequences (PRS) [2]. Along with more GYF domain-containing proteins reported, they were classified approximately into CD2BP2-type and SMY2-type based on their different binding models [2]. It was suggested that GYF domains are involved in translation initiation, mRNA splicing, supervision, and repression of translation, ubiquitin ligation, signal transduction, regulation of immune protease, and proper wound healing response in animals [3,4,5,6,7,8].
There also exists a set of plant-specific GYF domain-containing proteins [9]. In Arabidopsis thaliana, Needed for RDR2-independent DNA methylation (NERD) was reported to play a role in chromatin-based RNA silencing [10]. Mutant, snc1-enhancing 11 (MUSE11)/Essential for poteXvirus accumulation 1 (EXA1) is responsible for loss-of-susceptibility to plantago asiatica mosaic virus and is involved in nucleotide-binding leucine-rich repeat (NLR) receptor-mediated defense [11,12]. Plant SMY2-type ILE-GYF domain-containing protein 1 (PSIG1) dampens the induction of cell death during plant–pathogen interactions [13]. AT1G24300 and AT1G27430 are close homologs of AtEXA1; all of them showed significant enrichment when copurified with TUTase URT1, suggesting that they function in siRNA biogenesis [14]. However, unlike AtEXA1, both AT1G24300 and AT1G27430 do not have similar impact on plant defense [12]. Under X-ray treatment, phosphorylated AT1G24300 showed increased abundance, which means it might participate in DNA damage response [15].
The genus Brassica species provide important vegetable and oilseed crops cultivated worldwide. Chinese cabbage (Brassica rapa L.), broccoli (Brassica oleracea L.), and rapeseed (Brassica napus L.) are mostly cultivated as vegetables for human consumption and for producing oil, condiments, and fodder because of their nutrient contents, including vitamins, proteins, and minerals (e.g., zinc, iron, sodium, and potassium) [16,17,18]. However, oil rapeseed has been harassed from a bunch of diseases; the most concerning pathogen is S. sclerotiorum, which generates stem rot and causes serious damage to the yield and quality of rapeseed [19], resulting in massive losses annually. More than 400 plant species have suffered from S. sclerotiorum [20,21]. S. sclerotiorum produces cellulase, pectinase, and cutinase after infection of the host, decomposing cell wall polymers and disrupting the structural integrity of the wall [22,23]. S. sclerotiorum also secretes oxalic acid, phospholipase, and proteolytic enzymes to weaken the host’s defense and provide rich nutrients for itself when it invades the plant [24]. Thus, control of rapeseed disease has long been a widely concerning issue. In order to survive in disease events, plants have evolved a precise defense system against pathogens along with the long coevolution history [25]. B. napus (AACC), the main planted type of rapeseed crop, is formed by the natural hybridization of B. rapa (AA) with B. oleracea (CC) [26]. The AA or CC subgenome of B. napus shares homologies with its respective parental genomes, as well as A. thaliana [27].
Previously, Bra027983 was identified as a SET domain containing protein [28], while Bra037238 and Bra037299 were identified as plant homeodomain (PHD) finger proteins and upregulated under drought and salt treatment [29]. In addition, BnaA09g16090D was found to be the target of sRNAs which were upregulated during S. sclerotiorum infection [30]. Recently, GYF protein StEXA1 was reported as facilitating potato virus Y (PVY) accumulation in potatoes through the SG-dependent RNA regulatory pathway [31]. Nevertheless, the GYF-domain encoding homologous genes are still not clear in Brassica plants. We, then, conducted a genome wide identification of GYF-domain encoding genes (GYFs) in Brassica species, and analyzed the expression pattern of all GYFs in B. napus (BnaGYFs) under the induction of S. sclerotiorum, which might provide an understanding of plant–pathogen interaction profiling of GYF proteins.

2. Materials and Methods

2.1. Identification of GYFs

The generic feature file (GFF), FASTA DNA and protein sequence alignment file (FNA) of B. napus, B. rapa, B. oleracea, and A. thaliana were downloaded from BRAD (http://Brassicadb.cn/, accessed on 13 January 2023) [32], Ensemblplants (https://plants.ensembl.org/index.html, accessed on 13 January 2023), and the TAIR (http://www.arabidopsis.org, accessed on 13 January 2023), respectively. Through protein family code, family name, and BLAST search as well as HMM confirmation, 61 GYFs were finally confirmed.

2.2. Gene Structure, Motif Predicjtion, Cis-Element Prediction, Sequence Alignment, and Phylogenetic Analysis

After we downloaded the genomic sequences and CDS sequences of BnaGYFs from Ensemblplants (https://plants.ensembl.org/index.html, accessed on 13 January 2023), like in former studies [33], GSDS2.0 was recruited to draw the gene structure of BnaGYFs, and MEME suite [34] was recruited for the motif prediction of BnaGYFs. Similar to former studies [35], we conducted cis-element prediction, the promoter regions (about 2000-bp upstream) of BnaGYFs were extracted from genome general feature format (GFF) files using PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 13 January 2023), and visualized by TBtools [36]. Sequence alignments by Muscle, and a neighbor-joining (NJ) tree was generated with the alignments using MEGA 11.0 software with bootstrap analysis from 5000 replicates. The phylogenetic tree was modified by Adobe Illustrator. Upset plots for motifs and cis-elements were generated on SRplot website (http://www.bioinformatics.com.cn/en?keywords=upsetR, accessed on 13 January 2023).

2.3. Synteny Analysis and Chromosome Distribution Visualization of GYFs

Syntenic analysis and the duplication of Brassica GYFs and AtGYFs were calculated using the MCScanX program in TBtools [36,37]. Chromosome distribution information of Brassica GYFs was extracted from GFF file. TBtools [36] was recruited to visualize the chromosome distribution and the tandem duplications of Brassica GYFs.

2.4. Plant Growth and Infection Treatment

Seeds of B. napus variety Zhongshuang11 were provided by Zhongsong Liu (Hunan Agricultural University, Changsha 410128, China). Plants were grown in a growth room at 20–22 °C, with a 16 h light and 8 h dark photoperiod, 30 d seedlings were recruited for infection treatments. S. sclerotiorum strain 1980 was obtained from Jeffrey Rollins (University of Florida). S. sclerotiorum was grown in a chamber at 20–22 °C on PDA plates, and 2-day-old fungus was recruited for the infection treatments. Leaves of 30 d seedlings were inoculated with mycelia, harvested after 0, 24, 48, and 72 h post inoculation, flash-frozen in liquid nitrogen, and stored at −80 °C. Three plants with the closest phenotype and growth status were harvested, and the experiment was repeated three independent times.

2.5. RNA Extract and RT-qPCR

For the expression analysis of BnaGYFs, total RNA of the 0, 24, 48, and 72 h postinoculation was isolated from the infected leaves using the Eastep™ Super Total RNA Extraction Kit (Promega, Madison, WI, USA). Reverse transcription was carried out using the GoScript™ Reverse Transcription System (Promega, Beijing, China). The RT-qPCR assay was carried out using 2 × SYBR Green Premix Pro Taq HS Premix (AG11702, Accurate Biotechnology (Hunan) Co., Ltd., Changsha, China)) and a Step-One real-time fluorescence PCR instrument (Applied Biosystems, Bedford, MA, USA). The RT-qPCR reaction system contained 10 ng cDNA, 4 µM of each primer, 5 µL 2 × SYBR Green Premix Pro Taq HS Premix, 0.2 µL ROX reference dye, and 3.4 µL RNAase-free water. The RT-qPCR programming was as follows: denaturation at 95 °C for 120 s, followed by 40 amplification cycles (95 °C for 20 s, 55 °C for 20 s, and 72 °C for 30 s). BnaActin7 was used as an internal housekeeping gene. Two or more independent biological replicates and three technical replicates of each sample were performed for quantitative PCR analysis. Gene-specific primers used in the experiments are listed in Table S3.

2.6. RT-qPCR Results Analysis of BnaGYFs Induced by S. Sclerotiorum

The results of RT-qPCR were analyzed using Excel 2018. The internal reference gene is BnaACTIN7. Relative gene expression levels were analyzed using the 2−ΔΔCT method [38]. The RNA-seq data (Accession Number: GSE81545) was downloaded from NCBI [39]. The heatmaps were drawn by TBtools [36].

3. Results

3.1. Identification and Motif Analysis of GYFs

When searching with the protein family of PF02213 in the Ensemblplants database, 17 GYF domain-encoding genes were obtained, but more genes were found when GYF was searched in the Ensemblplants database. We also used all known GYF sequences as queries to perform a BLAST against BRAD and the Ensemblplants database, then the Hidden Markov Model (HMM) was used for further confirmation of the candidate GYFs. As a result, 26 GYF genes were confirmed in B. napus (AACC). In addition, 11 in B. rapa (AA), 14 in B. oleracea (CC), 10 in A. thaliana were identified by similar processes. Then, we analyzed the gene structure of all BnaGYFs, the exon numbers showed great diversity, ranging from 3 (BnaA09g08740D) to 21 (BnaA09g09480D, BnaA01g18730D, and BnaC06g11340D), and BnaA01g18730D showed similar gene structure features with BnaC06g11340D (Figure S1). While BnaA03g41160D has the longest intron (6231 bp) among BnaGYFs, BnaA02g32860D (3135 bp) has the second long one.
Then, we analyzed the conserved motifs in BnaGYFs, the length of BnaGYFs ranges from 460 (BnaC07g03700D) to 2298 aa (BnaA01g18730D) (Table S1). To better understand the motifs of GYFs in Brassicaceae, we generated 10 motifs from GYF proteins of Brassica napus, B. rapa (AA), B. oleracea and A. thaliana by HMMER analysis, 61 GYF proteins were analyzed, of them, 23 contain only GYF motif, 8 contain all 10 motifs. Motif2 exists in 33 genes, which is the second most common motif among all analyzed GYF proteins (Figure 1).

3.2. Chromosomal Localization and Collinearity Analysis of GYFs

Among the 26 BnaGYFs identified, 13 of them were mapped onto chrA (Figure 2A) and the other 13 were mapped onto chrC (Figure 2B). Only 13 of the 21 chromosomes contain BnaGYFs. ChrA09 contains five BnaGYFs (the highest), chrC09 contains four (the second). However, BnaGYFs are absent on eight chromosomes (Figure 2). Only three tandem duplication events were found, including BnaC03g57590 with BnaC03g57610 on chrC03 in B. napus, Bra010950 with Bra010951 on A08 in B. rapa, and Bo3g141450 with Bo3g141470 on C3 in B. oleracea. Similar to B. napus, chrA09 contains five BraGYFs (the most) in B. rapa, and chrC9 contains four BolGYFs (the most) in B. oleracea (Figure 2). In general, BnaGYFs distribute on A or C subgenome in a similar way to BraGYFs or BolGYFs in their respective genomes.
Subsequently, the duplications of 26 BnaGYF genes were analyzed by MCScanX [37] and visualized by TBtools [36], and the results showed 10 BnaGYF gene pairs in B. napus with only 2 in A. thaliana (Figure 3). When the syntenic relationship of GYFs between A. thaliana and Brassica genomes was investigated, we observed 11 gene pairs between A. thaliana and B. rapa, 18 between A. thaliana and B. oleracea, 25 between B. rapa and B. napus, and 48 between B. oleracea and B. napus (Figure S2). Ka/Ks analysis was also performed by TBtools [36] between A. thaliana and B. napus, and B. rapa and B. oleracea, respectively. The Ka/Ks value of all pairs was <0.5 (Table S2), suggesting that the main force for the evolution of those GYF gene pairs was negative selection.

3.3. Phylogenetic and Promoter Cis-Acting Elements Analysis of GYFs

To clarify the evolutionary relationship between Brassica GYFs and AtGYFs, we performed multiple sequence alignment and phylogenetic tree construction of GYF family members in B. rapa, B. oleracea, B. napus, and A. thaliana. A total of 61 GYF proteins from 4 species were classified to seven groups (Figure 4). Group I contained 15 proteins (the most), group VII contained 13 (the second), group III contained only 4 genes (the least). Sequence alignment showed the conserved signature polymorphism of each group (Figure S3). Additionally, the sequence logo showed the conserved signature of GYF domain in Brassica GYFs and AtGYFs (Figure S4).
Upstream 2000 bp of Brassica GYFs and AtGYFs were extracted for cis-acting elements analysis (Figure 5). Several stress-related cis-acting elements were analyzed, including anaerobic induction, abscisic acid (ABA) responsiveness, low-temperature responsiveness, salicylic acid (SA) responsiveness, gibberellin responsiveness, auxin responsiveness, zein metabolism regulation, defense and stress responsiveness, and wound-responsive element. Most genes (54 genes) have the anaerobic induction element, 43 genes have the abscisic acid-responsiveness element (the second), 33 genes have the gibberellin-responsiveness element (the third). The defense and stress responsiveness element exists in 23 genes, while the wound-responsive element only exists in 5 genes (the least). BnaA09g16220D contains 18 cis-acting elements (the most); however, BnaC09g09630D contains only 2 defense and stress responsiveness elements and 1 low temperature-responsiveness element (the least).

3.4. Expression of BnaGYFs under S. Sclerotiorum Induction

As a well-known crop pathogen, S. sclerotiorum has caused great agricultural loss all over the world. As shown in cis-element analysis, 38.4% of BnaGYFs possess the defense and stress responsiveness element (Table S1), and some GYF proteins were reported to be involved in plant defense [11,12,13]. Thus, we investigated the expression pattern of BnaGYFs under the stress of S. sclerotiorum. Tween-six BnaGYF genes were identified in this study, we then tried to test the expression for all of them. As a proper real-time primer pair for BnaC09g16860D failed, we tested the expression of the 25 BnaGYF genes at 24, 48, and 72 h postinoculation of B. napus cultivar ZHONGSHUANG11 (ZS11). Five genes were significantly upregulated (fold change > 2) when challenged with S. sclerotiorum and were nine significantly downregulated (fold change < 0.5). BnaA01g18730 and BnaA09g09480D were upregulated significantly (fold change > 5). BnaA02g32860D, BnaC02g41610D, BnaA09g54650D, BnaC03g57610D, and BnaC03g00170D were downregulated significantly (fold change ≤ 0.25) (Figure 6A and Figure S6).
We also searched the expression profiling data (Accession Number: GSE81545) of GYFs from the GEO database, 24 hpi (hour postinoculation) expression data of Westar and Zhongyou821 (ZY821) were presented [39]. From these downloaded data, only 16 BnaGYFs have valid expression data; we then compared the expression data of the 16 BnaGYFs with our data in ZS11 (Figure 6B). Most genes of the 16 genes showed a similar trend when challenged with S. sclerotiorum. Expression of 8 GYFs were upregulated 24 hpi, 5 genes were downregulated 24 hpi in all three B. napus cultivars. The other three GYFs were slightly downregulated in ZS11, while they were distinctly upregulated in Westar and ZY821. Different cultivars usually possess different resistance against pathogens; spatiotemporal differences might also be the reason. GYFs were obviously upregulated more in ZY821 than in Westar, this explained why ZY821 is a noticed mid-resistant cultivar, while Westar is a low-resistant cultivar [40].

4. Discussion

As a multifunctional domain, the GYF domain has been reported to be involved in plant defense in recent years [11,12,13]. Since B. napus (AACC) is a natural hybridized species by two parental species, B. rapa (AA) and B. oleracea (CC) [26], we identified 26 GYF genes in B. napus (AACC), 10 in A. thaliana, 11 in B. rapa (AA), and 14 in B. oleracea (CC) in this study. By confirming the GYF domain in these proteins with MEME suite, the GYF domain-encoding genes (GYFs) in these species were obtained. B. napus contains a higher number of GYFs than the total of its parental species, B. rapa and B. oleracea, and three Brassica species also contain a higher number GYFs than that of A. thaliana. According to U’s triangle theory, the triplication of ancestor Brassiceae genomes and allopolyploidization between its two parent species might have led to the expansion of the BnaGYF gene family in B. napus [27]. Gene structure analysis showed the diversity of BnaGYFs, some have many and long introns, while others only have few short introns (Figure S1). Generally, increased number and length of introns might provide an advantage for alternative splicing and functional diversity [41]. Chromosome localization showed the similarity between the AA subgenome and the CC subgenome of B. napus with B. rapa (AA) and B. oleracea (CC) (Figure 2). Ten BnaGYFs contain cis-acting elements of defense and stress responsiveness, only three of them showed upregulated expression after S. sclerotiorum infection; seven of them were downregulated. BnaA01g18730D contains two copies of defense and stress responsiveness cis-acting elements and its expression was upregulated the most at 72 h post-inoculation with S. sclerotiorum. However, BnaC06g11340D contains four copies which are the most, yet its expression was suppressed after S. sclerotiorum infection. Gene expression has a complex set of regulatory mechanisms, whereas cis-acting elements play only a minor role. Ten gene pairs of BnaGYFs were identified by MCScanX; among them, six pairs showed similar expression when challenged with S. sclerotiorum, while the other four pairs behaved differently. BnaA01g18730D, BnaC06g11340D, and BnaA05g13380D were together classified to group III, but the expression of BnaC06g11340D with the other two genes showed opposite results after S. sclerotiorum infection. BnaC06g11340D and BnaA05g13380D are gene pairs, and they share 65.68% sequence similarity, they both contain only GYF motif among the 10 motifs that we predicted with MEME suite (Figure S5), but they showed different cis-acting element composition (Figure S7). Tandem and segmental duplication events might contribute to the evolution and amplification of gene families [42]. The most common segmental duplication event in plants produces additional family members on different chromosomes [43]. Gene duplications and translocations after hybridization are common in natural hybridized species where inaccurate assembly universally occurred during genetic recombination; it might be the reason of the expression differences within gene pairs [44].
BnaA09g09480D and BnaA01g18730D upregulated the most among BnaGYFs; the former is classified to group II in the phylogenetic analysis, while the latter belongs to group III. BnaA01g32860D and BnaC02g41610D are gene pairs, and they share 76.7% sequence similarity, and are both downregulated extremely after S. sclerotiorum infection. BnaA01g32860D and BnaC02g41610D were classified to group IV in the phylogenetic analysis, and we found that BnaA01g32860D has an ortholog Bra029374 in B. rapa (AA), and BnaC02g41610D has an ortholog Bo2g160890 in B. oleracea (CC). In the phylogenetic analysis, BnaA09g16220D is the nearest homolog of AtEXA1; they share 66.2% sequence similarity, and they were both classified in group VII. However, in cultivar ZS11 and Westar, the expression of BnaA09g16220D was almost unchanged after S. sclerotiorum infection, only in cultivar ZY821, it was slightly upregulated. AtEXA1 was identified as a plant GYF domain protein and reported to be involved in translational repression of R protein and is indispensable for PlAMV infection in A. thaliana, which plays a negative role in plant defense [11,12]. Additionally, expression of At5g42950 (AtEXA1) was upregulated after S. sclerotiorum infection in former research [45]. Function deterioration might take place during the evolution. GYFs obviously upregulated more in ZY821 than in Westar, because ZY821 is a noticed mid-resistant cultivar, while Westar is a low-resistant cultivar. Different cultivars usually possess different resistance abilities toward pathogens; spatiotemporal differences might also be the reason for the difference [40]. Taken together, we found that most of BnaGYFs responded to S. sclerotiorum infection in B. napus, some were upregulated and some were downregulated. BnaA09g09480D, BnaA01g18730D, BnaA05g13380D, BnaC07g03700D, and BnaA10g18060D were greatly upregulated after S. sclerotiorum infection. Whereas BnaA01g32860D, BnaC02g41610D, BnaA09g54650D, BnaC03g57610D, and BnaC03g00170D were greatly downregulated after S. sclerotiorum infection, which might provide good candidates for further functional analysis.

5. Conclusions

We performed a genome wide identification of Brassica GYFs and AtGYFs, and their gene structure analysis, motif prediction, cis-acting element prediction, chromosome localization, phylogenetic analysis, and expression analysis were conducted in this study. As a well-known domain, the GYF domain showed conservatism between A. thaliana and Brassica species, and the phylogenetic analysis and collinearity analysis provided valuable insight on the evolutionary characteristics of Brassica GYFs. The phylogenetic analysis also provided clues for further function excavation of Brassicaceae GYFs involved in drought and salt response as well as siRNA biogenesis. Our results provided an insight into the evolution of GYF domain proteins in Brassica species and provided clues for further investigations of the function of Brassicaceae GYFs in development and immune response, and the S. sclerotiorum responsive genes identified in this study could be useful for further comprehensive study on plant–pathogen interactions and molecular breeding of disease-resistant rapeseed.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes14010224/s1, Figure S1: Gene structure of BnaGYFs. Figure S2: Syntenic analysis of GYFs in Brassica species and A. thaliana. Figure S3: Sequence alignment of the GYF domain region of 61 identified GYFs. Figure S4: Ten Motifs predicted in Brassica GYFs and AtGYFs. Figure S5: Motifs distribution on Brassica GYFs and AtGYFs. Figure S6: Expression of BnaGYFs indued by S. sclerotiorum. Figure S7: Cis-acting elements distribution of GYFs in B. rapa, B. oleracea, B. napus, and A. thaliana. Table S1: Information of Brassica GYFs and AtGYFs. Table S2: Ka/Ks in B. napus and A. thaliana, B. rapa and B. oleracea pairs. Table S3: Primers in this study.

Author Contributions

X.Z., L.Q. and S.X. contributed to the study conception and design. Material preparation, data collection, and analysis were performed by X.Z., L.Q., J.L., Y.X., X.T., X.L. and S.X. The first draft of the manuscript was written by X.Z. and L.Q, and all authors commented on versions of the manuscript. X.Z., L.Q., J.L. and S.X. critically revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by the National Nature Science Foundation of China (31971836).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Acknowledgments

We cordially thank Zhongsong Liu (Hunan Agricultural University) for sharing seeds of Zhongshuang11, and Jeffrey Rollins (University of Florida) for sharing WT S. sclerotiorum strain 1980.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nishizawa, K.; Freund, C.; Li, J.; Wagner, G.; Reinherz, E.L. Identification of a proline-binding motif regulating CD2-triggered T lymphocyte activation. Proc. Natl. Acad. Sci. USA 1998, 95, 14897–14902. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Kofler, M.M.; Freund, C. The GYF domain. FEBS J. 2006, 273, 245–256. [Google Scholar] [CrossRef] [PubMed]
  3. Hale, V.A.; Guiney, E.L.; Goldberg, L.Y.; Haduong, J.H.; Kwartler, C.S.; Scangos, K.W.; Goutte, C. Notch signaling is antagonized by SAO-1, a novel GYF-domain protein that interacts with the E3 ubiquitin ligase SEL-10 in Caenorhabditis elegans. Genetics 2012, 190, 1043–1057. [Google Scholar] [CrossRef] [Green Version]
  4. Ash, M.R.; Faelber, K.; Kosslick, D.; Albert, G.I.; Roske, Y.; Kofler, M.; Schuemann, M.; Krause, E.; Freund, C. Conserved β-hairpin recognition by the GYF Domains of Smy2 and GIGYF2 in mRNA surveillance and vesicular transport complexes. Structure 2010, 18, 944–954. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Morita, M.; Ler, L.W.; Fabian, M.R.; Siddiqui, N.; Mullin, M.; Henderson, V.C.; Alain, T.; Fonseca, B.D.; Karashchuk, G.; Bennett, C.F.; et al. A novel 4EHP-GIGYF2 translational repressor complex is essential for mammalian development. Mol. Cell. Biol. 2012, 32, 3585–3593. [Google Scholar] [CrossRef] [Green Version]
  6. Giovannone, B.; Tsiaras, W.G.; de la Monte, S.; Klysik, J.; Lautier, C.; Karashchuk, G.; Goldwurm, S.; Smith, R.J. GIGYF2 gene disruption in mice results in neurodegeneration and altered insulin-like growth factor signaling. Hum. Mol. Genet. 2009, 18, 4629–4639. [Google Scholar] [CrossRef] [Green Version]
  7. Geiger, J.A.; Carvalho, L.; Campos, I.; Santos, A.C.; Jacinto, A. Hole-in-one mutant phenotypes link EGFR/ERK signaling to epithelial tissue repair in Drosophila. PLoS ONE 2011, 6, e28349. [Google Scholar] [CrossRef] [Green Version]
  8. Amaya, R.C.C.; Hubbe, P.; Mandel, N.; Béthune, J. 4EHP-independent repression of endogenous mRNAs by the RNA-binding protein GIGYF2. Nucleic Acids Res. 2018, 46, 5792–5808. [Google Scholar]
  9. Freund, C.; Kühne, R.; Yang, H.; Park, S.; Reinherz, E.L.; Wagner, G. Dynamic interaction of CD2 with the GYF and the SH3 domain of compartmentalized effector molecules. EMBO J. 2002, 21, 5985–5995. [Google Scholar] [CrossRef] [Green Version]
  10. Pontier, D.; Picart, C.; Roudier, F.; Garcia, D.; Lahmy, S.; Azevedo, J.; Alart, E.; Laudié, M.; Karlowski, W.M.; Cooke, R. NERD, a plant-specific GW protein, defines an additional RNAi-dependent chromatin-based pathway in Arabidopsis. Mol. Cell 2012, 48, 121–132. [Google Scholar] [CrossRef] [Green Version]
  11. Hashimoto, M.; Neriya, Y.; Keima, T.; Iwabuchi, N.; Koinuma, H.; Hagiwara-Komoda, Y.; Ishikawa, K.; Himeno, M.; Maejima, K.; Yamaji, Y.; et al. EXA1, a GYF domain protein, is responsible for loss-of-susceptibility to plantago asiatica mosaic virus in Arabidopsis thaliana. Plant J. 2016, 88, 120–131. [Google Scholar] [CrossRef]
  12. Wu, Z.S.; Huang, S.; Zhang, X.B.; Wu, D.; Xia, S.T.; Li, X. Regulation of plant immune receptor accumulation through translational repression by a glycine-tyrosine-phenylalanine (GYF) domain protein. Elife 2017, 6, e23684. [Google Scholar] [CrossRef] [PubMed]
  13. Matsui, H.; Nomura, Y.; Egusa, M.; Hamada, T.; Hyon, G.S.; Kaminaka, H.; Watanabe, Y.; Ueda, T.; Trujillo, M.; Shirasu, K.; et al. The GYF domain protein PSIG1 dampens the induction of cell death during plant-pathogen interactions. PLoS Genet. 2017, 13, e1007037. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Scheer, H.; de Almeida, C.; Ferrier, E.; Simonnot, Q.; Poirier, L.; Pflieger, D.; Sement, F.M.; Koechler, S.; Piermaria, C.; Krawczyk, P. The TUTase URT1 connects decapping activators and prevents the accumulation of excessively deadenylated mRNAs to avoid siRNA biogenesis. Nat. Commun. 2021, 12, 1298. [Google Scholar] [CrossRef] [PubMed]
  15. Waterworth, W.M.; Wilson, M.; Wang, D.; Nuhse, T.; Warward, S.; Selley, J.; West, C.E. Phosphoproteomic analysis reveals plant DNA damage signaling pathways with a functional role for histone H2AX phosphorylation in plant growth under genotoxic stress. Plant J. 2019, 100, 1007–1021. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Kayum, M.A.; Kim, H.T.; Nath, U.K.; Park, J.I.; Kho, K.H.; Cho, Y.G.; Nou, I.S. Research on biotic and abiotic stress related genes exploration and prediction in Brassica rapa and B. oleracea: A review. Plant Breed. Biotechnol. 2016, 4, 135–144. [Google Scholar] [CrossRef] [Green Version]
  17. Lee, B.R.; Zaman, R.; Avice, J.C.; Ourry, A.; Kim, T.H. Sulfur use efficiency is a significant determinant of drought stress tolerance in relation to photosynthetic activity in Brassica napus cultivars. Front. Plant Sci. 2016, 7, 459. [Google Scholar] [CrossRef] [Green Version]
  18. Verma, S.K.; Das, A.K.; Gantait, S.; Kumar, V.; Gurel, E. Applications of carbon nanomaterials in the plant system: A perspective view on the pros and cons. Sci. Total Environ. 2019, 667, 485–499. [Google Scholar] [CrossRef]
  19. Ding, L.N.; Li, T.; Guo, X.J.; Li, M.; Liu, X.Y.; Cao, J.; Tan, X.L. Sclerotinia stem rot resistance in rapeseed: Recent progress and future prospects. J. Agric. Food Chem. 2021, 69, 2965–2978. [Google Scholar] [CrossRef]
  20. Boland, G.J.; Hall, R. Index of plant hosts of Sclerotinia sclerotiorum. Can. J. Plant Pathol. 1994, 16, 93–108. [Google Scholar] [CrossRef]
  21. Bolton, M.D.; Thomma, B.P.H.J.; Nelson, B.D. Sclerotinia sclerotiorum (lib.) de Bary: Biology and molecular traits of a cosmopolitan pathogen. Mol. Plant Pathol. 2006, 7, 1–16. [Google Scholar] [CrossRef] [PubMed]
  22. Lumsden, R.D. Pectolytic enzymes of Sclerotinia sclerotiorum and their localization in infected bean. Can. J. Bot. 1976, 54, 2630–2641. [Google Scholar] [CrossRef]
  23. Riou, C.; Freyssinet, G.; Fevre, M. Production of cell wall-degrading enzymes by the phytopathogenic fungus Sclerotinia sclerotiorum. Appl. Environ. Microbiol. 1991, 57, 1478–1484. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Collmer, A.; Keen, N.T. The role of pectic enzymes in plant pathogenesis. Annu. Rev. Phytopathol. 1986, 24, 383–409. [Google Scholar] [CrossRef]
  25. Jones, J.D.; Dangl, J.L. The plant immune system. Nature 2006, 444, 323–329. [Google Scholar] [CrossRef] [Green Version]
  26. Chalhoub, B.; Denoeud, F.; Liu, S.Y.; Parkin, I.A.P.; Tang, H.B.; Wang, X.Y.; Chiquet, J.; Belcram, H.; Tong, C.B.; Samans, B. Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome. Science 2014, 345, 950–953. [Google Scholar] [CrossRef] [Green Version]
  27. Nagaharu, U. Genome analysis in Brassica with special reference to the experimental formation of B. napus and peculiar mode of fertilization. Jpn. J. Bot. 1935, 7, 389–452. [Google Scholar]
  28. Huang, Y.; Liu, C.; Shen, W.H.; Ruan, Y. Phylogenetic analysis and classification of the Brassica rapa SET-domain protein family. BMC Plant Biol. 2011, 11, 175. [Google Scholar] [CrossRef] [Green Version]
  29. Alam, I.; Liu, C.C.; Ge, H.L.; Batool, K.; Yang, Y.Q.; Lu, Y.H. Genome wide survey, evolution and expression analysis of PHD finger genes reveal their diverse roles during the development and abiotic stress responses in Brassica rapa L. BMC Genom. 2019, 20, 773. [Google Scholar] [CrossRef] [Green Version]
  30. Regmi, R.; Newman, T.E.; Kamphuis, L.G.; Derbyshire, M.C. Identification of B. napus small RNAs responsive to infection by a necrotrophic pathogen. BMC Plant Biol. 2021, 21, 366. [Google Scholar] [CrossRef]
  31. Chen, R.; Tu, Z.; He, C.; Nie, X.; Li, K.; Fei, S.; Song, B.; Nie, B.; Xie, C. Susceptibility factor StEXA1 interacts with StnCBP to facilitate potato virus Y accumulation through the stress granule-dependent RNA regulatory pathway in potato. Hortic. Res. 2022, 9, uhac159. [Google Scholar] [CrossRef]
  32. Chen, H.; Wang, T.; He, X.; Cai, X.; Lin, R.; Liang, J.; Wu, J.; King, G.; Wang, X. BRAD V3.0: An upgraded Brassicaceae database. Nucleic Acids Res. 2022, 50, D1432–D1441. [Google Scholar] [CrossRef] [PubMed]
  33. Ayaz, A.; Saqib, S.; Huang, H.; Zaman, W.; Lü, S.; Zhao, H. Genome-wide comparative analysis of long-chain acyl-CoA synthetases (LACSs) gene family: A focus on identification, evolution and expression profiling related to lipid synthesis. Plant Physiol. Biochem. 2021, 161, 1–11. [Google Scholar] [CrossRef] [PubMed]
  34. Bailey, T.L.; Elkan, C. Fitting a mixture model by expectation maximization to discover motifs in biopolymers. Proc. Int. Conf. Intell. Syst. Mol. Biol. 1994, 2, 28–36. [Google Scholar] [PubMed]
  35. Li, D.H.; Zaman, W.; Lu, J.J.; Niu, Q.Q.; Zhang, X.H.; Ayaz, A.; Saqib, S.; Yang, B.; Zhang, J.X.; Zhao, H.Y.; et al. Natural lupeol level variation among castor accessions and the upregulation of lupeol synthesis in response to light. Ind. Crops Prod. 2023, 192, 116090. [Google Scholar] [CrossRef]
  36. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef] [PubMed]
  37. Wang, Y.; Tang, H.; Debarry, J.D.; Tan, X.; Li, J.; Wang, X.; Lee, T.H.; Jin, H.; Marler, B.; Guo, H. MCScanX: A toolkit for detection and evolutionary analysis of gene synteny and collinearity. Nucleic Acids Res. 2012, 40, e49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  39. Wu, J.; Zhao, Q.; Yang, Q.; Liu, H.; Li, Q.; Yi, X.; Cheng, Y.; Guo, L.; Fan, C.; Zhou, Y. Comparative transcriptomic analysis uncovers the complex genetic network for resistance to Sclerotinia sclerotiorum in Brassica napus. Sci. Rep. 2017, 7, 42829. [Google Scholar] [CrossRef] [Green Version]
  40. Wang, H.Z.; Liu, G.H.; Zheng, Y.B.; Wang, X.F.; Yang, Q. Breeding of the Brassica napus cultivar Zhongshuang 9 with high-resistance to Sclerotinia sclerotiorum and dynamics of its important defense enzyme activity. Sci. Agric. Sin. 2004, 37, 23–28. [Google Scholar]
  41. Li, W.; Lu, J.; Yang, C.; Xia, S. Identification of receptor-like proteins induced by Sclerotinia sclerotiorum in Brassica napus. Front. Plant Sci. 2022, 13, 944763. [Google Scholar] [CrossRef] [PubMed]
  42. He, F.; Duan, S.; Jian, Y.; Xu, J.; Hu, J.; Zhang, Z.; Lin, T.; Cheng, F.; Li, G. Genome-wide identification and gene expression analysis of the 14-3-3 gene family in potato (Solanum tuberosum L.). BMC Genom. 2022, 23, 811. [Google Scholar] [CrossRef] [PubMed]
  43. Cannon, S.B.; Mitra, A.; Baumgarten, A.; Young, N.D.; May, G. The roles of segmental and tandem gene duplication in the evolution of large gene families in Arabidopsis thaliana. BMC Plant Biol. 2004, 4, 10. [Google Scholar] [CrossRef] [PubMed]
  44. Boutte, J.; Maillet, L.; Chaussepied, T.; Letort, S.; Aury, J.M.; Belser, C.; Boideau, F.; Brunet, A.; Coriton, O.; Deniot, G. Genome size variation and comparative genomics reveal intraspecific diversity in Brassica rapa. Front. Plant Sci. 2020, 11, 577536. [Google Scholar] [CrossRef]
  45. Badet, T.; Voisin, D.; Mbengue, M.; Barascud, M.; Sucher, J.; Sadon, P.; Balagué, C.; Roby, D.; Raffaele, S. Parallel evolution of the POQR prolyl oligo peptidase gene conferring plant quantitative disease resistance. PLoS Genet. 2017, 13, e1007143. [Google Scholar] [CrossRef]

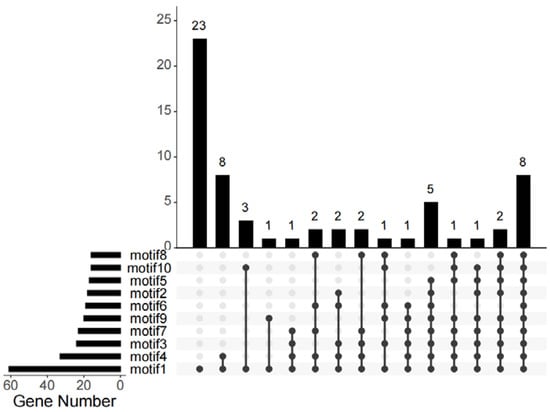

Figure 1. Distributions of motifs in Brassica GYFs and AtGYFs. The UpSet plot shows the distribution of motifs in Brassica GYFs and AtGYFs. The number chart above represents the number of genes contained in each type of GYFs. The bar chart at the bottom left represents the number of events included in each type of motif. The dotted line shows the type of motifs contained in the group.
Figure 1. Distributions of motifs in Brassica GYFs and AtGYFs. The UpSet plot shows the distribution of motifs in Brassica GYFs and AtGYFs. The number chart above represents the number of genes contained in each type of GYFs. The bar chart at the bottom left represents the number of events included in each type of motif. The dotted line shows the type of motifs contained in the group.
Genes 14 00224 g001

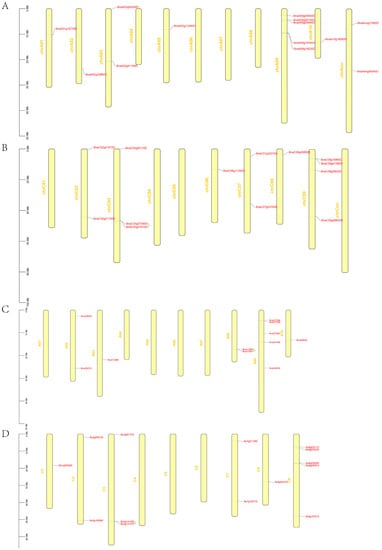

Figure 2. Locations of Brassica GYFs on chromosomes. (A,B) Locations of GYFs on A or C subgenome in Brassica napus. (C) Locations of GYFs on chromosomes in Brassica rapa. (D) Locations of GYFs on chromosomes in Brassica oleracea. A01-A09, C1-C9, and chrA01-chrCnn represent the chromosome number in B. rapa, B. oleracea, and B. napus, respectively. The green line represents tandem duplication.
Figure 2. Locations of Brassica GYFs on chromosomes. (A,B) Locations of GYFs on A or C subgenome in Brassica napus. (C) Locations of GYFs on chromosomes in Brassica rapa. (D) Locations of GYFs on chromosomes in Brassica oleracea. A01-A09, C1-C9, and chrA01-chrCnn represent the chromosome number in B. rapa, B. oleracea, and B. napus, respectively. The green line represents tandem duplication.
Genes 14 00224 g002

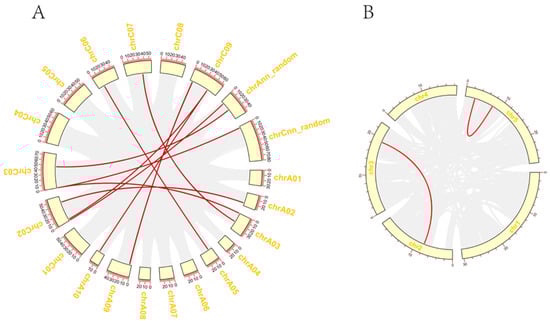

Figure 3. Duplication of BnaGYFs and AtGYFs. (A) Duplication of GYFs in B. napus. (B) Duplication of GYFs in Arabidopsis thaliana. The red line represents the gene pairs, and the yellow boxes represent the chromosomes.
Figure 3. Duplication of BnaGYFs and AtGYFs. (A) Duplication of GYFs in B. napus. (B) Duplication of GYFs in Arabidopsis thaliana. The red line represents the gene pairs, and the yellow boxes represent the chromosomes.
Genes 14 00224 g003

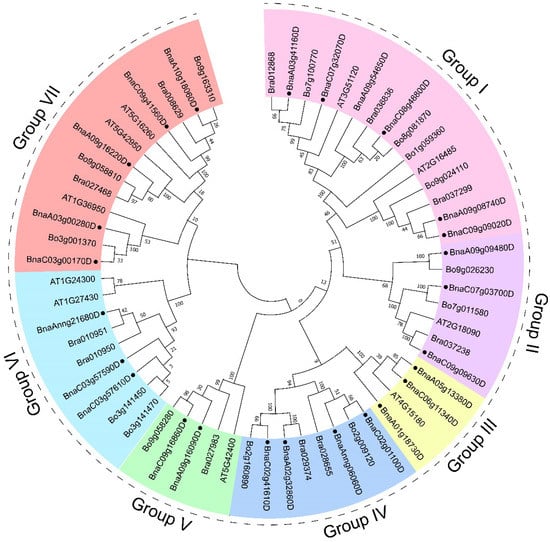

Figure 4. Phylogenetic tree of GYF proteins in B. napus (●), B. rapa, B. oleracea, and A. thaliana. The phylogenetic tree was generated by the NJ method with bootstrap analysis (5000 bootstrap replicates) using an amino acid sequence alignment of GYF proteins from B. napus (●), B. rapa, B. oleracea, and A. thaliana by the MEGA 11.0 program. GYF proteins were divided into 7 groups.
Figure 4. Phylogenetic tree of GYF proteins in B. napus (●), B. rapa, B. oleracea, and A. thaliana. The phylogenetic tree was generated by the NJ method with bootstrap analysis (5000 bootstrap replicates) using an amino acid sequence alignment of GYF proteins from B. napus (●), B. rapa, B. oleracea, and A. thaliana by the MEGA 11.0 program. GYF proteins were divided into 7 groups.
Genes 14 00224 g004

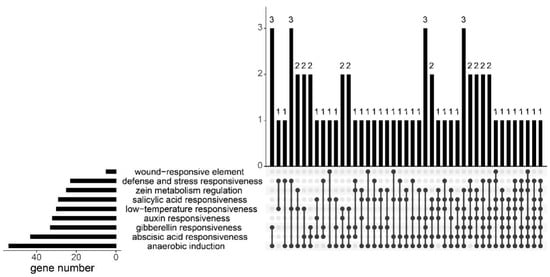

Figure 5. Distributions of cis-acting elements in promoters of Brassica GYFs and AtGYFs. The UpSet plot shows the distribution of cis-acting elements in GYFs promoters. The bar chart above represents the number of genes contained in each type of GYFs. The bar chart at the bottom left represents the number of genes included in each type of cis-acting element. The dotted line shows the types of cis-acting elements contained in the group.
Figure 5. Distributions of cis-acting elements in promoters of Brassica GYFs and AtGYFs. The UpSet plot shows the distribution of cis-acting elements in GYFs promoters. The bar chart above represents the number of genes contained in each type of GYFs. The bar chart at the bottom left represents the number of genes included in each type of cis-acting element. The dotted line shows the types of cis-acting elements contained in the group.
Genes 14 00224 g005

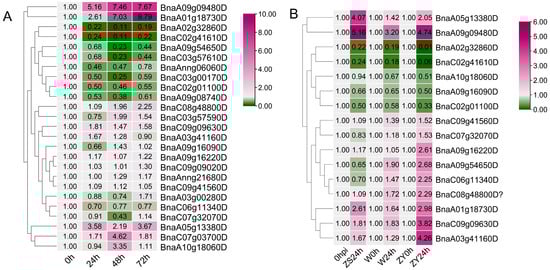

Figure 6. Gene expression heat map of GYFs in rapeseed cultivars induced by Sclerotinia sclerotiorum. (A) Gene expression heat map of ZHONGSHUANG11 (ZS11) infected by S. sclerotiorum at 24, 48, and 72 h post-inoculation. (B) Gene expression heat map of ZS11, Westar (W), and ZHONGYOU821 (ZY821) infected by S. sclerotiorum at 24 h post-inoculation.
Figure 6. Gene expression heat map of GYFs in rapeseed cultivars induced by Sclerotinia sclerotiorum. (A) Gene expression heat map of ZHONGSHUANG11 (ZS11) infected by S. sclerotiorum at 24, 48, and 72 h post-inoculation. (B) Gene expression heat map of ZS11, Westar (W), and ZHONGYOU821 (ZY821) infected by S. sclerotiorum at 24 h post-inoculation.
Genes 14 00224 g006
