Prevalence and Clinical Characteristics of Hearing Loss Caused by MYH14 Variants

Ken Hiramatsu
Shin-ya Nishio
Shin-ichiro Kitajiri
Tomohiro Kitano
Hideaki Moteki
Shin-ichi Usami
1,2,* and
on behalf of the Deafness Gene Study Consortium
Department of Otorhinolaryngology, Shinshu University School of Medicine, 3-1-1 Asahi, Matsumoto, Nagano 390-8621, Japan
Department of Hearing Implant Sciences, Shinshu University School of Medicine, 3-1-1 Asahi, Matsumoto, Nagano 390-8621, Japan
Author to whom correspondence should be addressed.
Note: We thank some members of Deafness Gene Study Consortium.
Genes 2021, 12(10), 1623;
Submission received: 24 September 2021 / Revised: 5 October 2021 / Accepted: 11 October 2021 / Published: 15 October 2021
(This article belongs to the Section Human Genomics and Genetic Diseases)


Variants in MYH14 are reported to cause autosomal dominant nonsyndromic hereditary hearing loss (ADNSHL), with 34 variants reported to cause hearing loss in various ethnic groups. However, the available information on prevalence, as well as with regard to clinical features, remains fragmentary. In this study, genetic screening for MYH14 variants was carried out using a large series of Japanese hearing-loss patients to reveal more detailed information. Massively parallel DNA sequencing of 68 target candidate genes was applied in 8074 unrelated Japanese hearing-loss patients (including 1336 with ADNSHL) to identify genomic variations responsible for hearing loss. We identified 11 families with 10 variants. The prevalence was found to be 0.14% (11/8074) among all hearing-loss patients and 0.82% (11/1336) among ADNSHL patients. Nine of the eleven variants identified were novel. The patients typically showed late-onset hearing loss arising later than 20 years of age (64.3%, 9/14) along with progressive (92.3%, 12/13), moderate (62.5%, 10/16), and flat-type hearing loss (68.8%, 11/16). We also confirmed progressive hearing loss in serial audiograms. The clinical information revealed by the present study will contribute to further diagnosis and management of MYH14-associated hearing loss.

1. Introduction

Hearing loss (HL) is the most common sensory impairment. A wide variety of genes and variants have been reported as causative for HL, and more than 120 genes have been reported to cause nonsyndromic HL [1]. The clinical features of HL, including age at onset, progression, severity, audiometric configuration, and effectiveness of interventions, differ among the various genes and variants [2]. Toward the more appropriate treatment of each HL patient, the identification of the causative variants by genetic testing and clarification of the clinical characteristics caused by each deafness gene variant are vital.
The inheritance patterns of hereditary HL include autosomal recessive, autosomal dominant, X-linked, and mitochondrial patterns. A majority of autosomal dominant nonsyndromic hereditary hearing loss (ADNSHL) is postlingual onset, progressive HL, which accounts for approximately 20% of nonsyndromic hereditary HL patients [2]. To date, 46 causative genes for ADNSHL have been identified [1].
MYH14 encodes nonmuscle myosin II C (NMIIC), a member of the myosin superfamily, and is a causative gene for ADNSHL (DFNA 4) [3]. It is widely expressed in the inner ear, including the organ of Corti. There have been reports of 34 MYH14 variants causing ADNSHL [4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24].
With regard to prevalence, four studies have investigated the prevalence of MYH14 variants in deafness cohorts from Europe, the USA, and China [4,8,9,10], but the information regarding clinical characteristics, including age at onset, progression, and audiometric configurations, remains fragmentary. In this study, we performed screening for MYH14 variants for a large number of Japanese HL patients (n = 8074, including 1336 with ADNSNL), and examined the clinical features in detail.

2. Materials and Methods

2.1. Subjects

A total of 8074 Japanese HL patients were enrolled nationwide, as previously reported [25]. All patients showed sensorineural HL, with 1336 of them showing autosomal dominant (AD) inheritance patterns. This study was approved by the Shinshu University Ethical Committee, as well as the respective ethical committees of the other participating institutions, and was conducted in accordance with the Declaration of Helsinki. Informed consent was obtained from all patients (or from their next of kin, caretaker, or legal guardian in the cases of minors or children). Clinical information and peripheral blood samples were obtained from patients and all relatives from whom written informed consent was obtained.

2.2. Variant Analysis

Massively parallel DNA sequencing (MPS) analysis for 68 target deafness genes (Table S1) was performed for all patients. The detailed protocol was described elsewhere [25]. An Ion AmpliSeq Custom Panel (ThermoFisher Scientific, Waltham, MA, USA) was designed using an Ion AmpliSeq Designer, and the amplicon libraries were prepared using an Ion AmpliSeq library kit version 2.0 (ThermoFisher Scientific, Waltham, MA, USA). The emulsion PCR and MPS were performed using an Ion PGM, Ion Proton or IonS5 sequencer (ThermoFisher Scientific, Waltham, MA, USA), and the sequence data were mapped against the human genome sequence (build GRCh37/hg19).
The protein-affecting variants (including the missense, nonsense, insertion/deletion, and splicing variants) with an allele frequency of less than 1% of the ExAC03 [26], ToMMo 3.5KJPN [27], and the 333 in-house Japanese normal hearing controls were selected. The annotation for each variant was analyzed by ANNOVAR software ver. 20191024 [28]. Functional in silico predictions were performed for missense variants by SIFT [29], PolyPhen2 [30], Mutation Taster [31], Mutation Assessor [32], FATHMM [33], and Combined Annotation Dependent Depletion (CADD) [34] software programs including in dbNSFP ver.3.5. The remaining MYH14 variants were confirmed by direct sequencing. Segregation analysis for family members was also performed by direct sequencing. The pathogenicity of the identified variants was evaluated using the American College of Medical Genetics (ACMG) standards and guidelines [35].
The variants classified as “Likely Pathogenic” or “Pathogenic” were considered to be causative variants. In addition, variants classified as being of “Uncertain significance” were also considered to be pathogenic if all three of the following conditions were satisfied: (1) no other candidate variants were identified in the other 67 genes; (2) the allele frequency was under 0.0001 in the control populations in ExAC03, gnomAD, ToMMo 3.5KJPN, and in-house controls; and (3) the CADD score was 20 or more.

2.3. Clinical Evaluation

Clinical information, including: (1) onset age; (2) progression of HL; (3) pedigree; (4) episodes or symptoms of vertigo; and (5) intervention for HL, was collected from a review of medical charts. Evaluation of HL was performed by pure-tone audiometry on patients aged 4 years or older, and the auditory steady-state response (ASSR) or play audiometry was performed for those who could not be evaluated by pure-tone audiometry. The pure-tone average (PTA) was calculated from the audiometric thresholds at four frequencies (500, 1000, 2000, and 4000 Hz). The severity of HL was classified into 4 categories: mild (PTA 20–40 dB), moderate (41–70 dB), severe (71–90 dB), and profound (>91 dB) [36]. The audiometric configurations were categorized into Flat, Low-frequency ascending, Mid-frequency U-shaped, High-frequency gently sloping, and High-frequency steeply sloping, as reported previously [36]. Caloric testing was performed for one of the two patients who complained of vestibular symptoms.

3. Results

Among the 1336 unrelated ADNSHL probands, we identified 11 probands (Table 1, Figure 1) carrying 10 possibly disease-causing MYH14 variants (Table 2). Among the 10 variants, 8 were novel. Therefore, the frequency of MYH14-related HL patients among Japanese ADNSHL patients was 0.82% (11/1336). Most of the MYH14 variants in previous reports were missense variants, with only two being nonsense variants (Table 3).
In this study, one nonsense variant, one frameshift variant, one non-frameshift variant causing a nonsense codon, six missense variants, and one variant with frameshift and missense variants in the cis allele were identified. One nonsense variant was located near the N-terminal region of MYH14, three missense variants were located in the Myosin head domain, three missense variants were located in the coiled-coil domain, and the other three variants were located in the C-terminal region (Table 2, Figure 2).
We included the 11 probands and six affected family members for clinical characteristics analysis. Regarding the onset of HL among the 11 probands and six family members identified, most of the patients showed late-onset hearing loss, and only two patients showed congenital onset (Figure 2). Both congenital HL patients had MYH14 variants located near the N-terminal region (Figure 2). The onset ages for the late-onset HL cases ranged from 3 to 44 (Table 1, Figure 2).
The audiometric configurations of the 11 probands and their affected family members were categorized into Flat (n = 11), Mid-frequency U-shaped (n = 2), High-frequency gently sloping (n = 1), High-frequency steeply sloping (n = 1), and Low-frequency ascending (n = 1) (Figure 1, Table 1). We could not identify any genotype–phenotype correlation among the domains (Figure 1 and Figure 2). The severity of deafness also varied among cases. In the PTA calculated from the audiometric thresholds at four frequencies (500, 1000, 2000, and 4000 Hz), 3 patients showed mild HL, 10 moderate HL, 2 severe HL, and 1 profound HL (Table 1). However, the one profound hearing loss case in Family No. 7 (Case I-4) had a history of repeated bilateral otitis media since childhood, and he had undergone bilateral middle ear surgery. After this middle ear surgery, he suffered bilateral deterioration in hearing. Thus, it is unclear whether the profound HL observed for this case was purely due to genetic causes. Among the 17 patients, at least 8 patients used hearing aids. Two of the eleven probands complained of dizziness, and one (Family No. 5) underwent an examination for nystagmus and caloric testing, but no obvious abnormal findings were observed.
Anamnestic evaluation of the 11 probands and 6 of their family members was also performed, and 12 were conscious of the progression of deafness (Table 1). Figure 3 shows serial audiograms for eight patients from six families. The audiograms for the better-hearing ear were used to evaluate progression. The patients who were observed for more than 10 years showed clear progression (Family No. 4 IV-2, Family No. 6 III-2, and Family No. 6 IV-2). Family No.9 IV-2 also showed hearing progression over two years. The observation periods for Family No. 7, No. 8, and No. 10 were too short to allow evaluation of progression (5 months to 16 months).

4. Discussion

As MYH14-associated HL is rare, the currently available information regarding the variant spectrum and clinical characteristics is limited. In this study, using a cohort of 8074 HL patients, we identified nine novel variants, and were able to summarize the variant spectrum. This is the largest cohort studied for MYH14-associated hearing loss to date. In addition, we were able to clarify the prevalence of MYH14 gene variants in patients; that is, 0.14% (11/8074) among HL patients and 0.82% among ADNSHL patients (11/1336). To date, there have been four reports of the variant prevalence of MYH14-associated HL. Shearer et al. [7] reported that the frequency of MYH14-associated HL was 3.0% among all HL patients in the USA (3/100 probands). Sloan-Heggen et al. [8] reported that 5 of 1119 HL patients (0.45%) carried MYH14 candidate pathogenic variants, and these variants accounted for 3.5% of ADNSHL patients (5/141). Chen et al. [9] reported the prevalence of MYH14-associated HL in Chinese to be 2.59% (3/116). It is difficult to compare prevalence, as it depends on study subjects and pathogenicity classification methods. In this study, as stated in Section 2.2, more definitive criteria for pathogenicity were applied.
Various genes have been reported to be causative in ADNSHL families [6,8]; however, at present, there is no particular major responsible deafness gene for ADNSHL. Our screening using the same cohort clarified the frequencies for the other causative genes in ADNSHL patients; KCNQ4: 6.6% [37], POU4F3: 4% [38], TECTA: 2.9% [39], WFS1: 2.5% [40], MYO6: 2.4% [41], ACTG1: 1.1% [42], and EYA4: 0.9% [43]. Although MYH14-associated HL is rare, the present results indicated that this gene should be included in HL screening, especially that for ADNSHL.
Among the 11 probands, two cases (Family No. 8 and 9) carried the same variant. These two cases were in unrelated families. As the mechanism of these commonly observed variants could have occurred by founder mutation or in a mutational hotspot, haplotype analysis could afford a method of clarifying their genesis. However, we obtained only the proband sample for Family No. 8, and could not perform haplotype analysis.
With regard to onset age, a majority of patients were shown to be have experienced adult onset occurring later than 20 years of age (9/14, 64.3%). The onset age had not been reported previously, except for two pedigrees with congenital or prelingual onset (Table 3). In this study, we clearly determined that late onset was one of the characteristic clinical features of MYH14-associated HL. It was noteworthy, however, that there were four patients with an onset age under 10 years old. Among them, HL in one patient (Family No. 1, III-2) was found through the newborn hearing screening program. It is interesting to note that this case carried the same nonsense variant (c.73C > T p.Q25X) as that previously reported in a congenital HL case4. This variant was located near the N-terminal region. As all other variants located in the other domains identified in this study did not cause congenital HL, truncation within this domain may cause congenital HL through haploinsufficiency.
Information regarding the severities and audiometric configurations of MYH14-associated HL in previous reports was also fragmentary (Table 3). The present study showed that a majority of patients exhibited moderate (62.5%, 10/16) and Flat-type HL (68.8%, 11/16) (Figure 1, Table 1).
In terms of the progression of MYH14-associated HL, 92.3% of patients (12/13) had noticed the progression of their HL (Table 1). In this study, as shown in Figure 3, at least five patients showed progression based on serial audiometric evaluations. In particular, three patients (Family No. 4 IV-2, Family No. 6 III-2, and Family No. 6 IV-2) underwent serial audiometric evaluations over more than 10 years and showed obvious progression of HL. The present data strongly supported the notion that the progression of HL, which has been previously reported [3,4], is one of the characteristic features of MYH14-associated HL.
With regards to intervention, 8 of the 16 patients used hearing aids (HAs) (Table 1), indicating that hearing aids should be recommended as hearing devices. In this study, no patient received cochlear implantation, suggesting that the HL was within the hearing range for which HAs are indicated in most cases. Liu et al. [15] reported a case in which cochlear implantation was performed for a patient with a MYH14 variant. However, it should be noted that this case also had a MYO15A compound heterozygous variant. Therefore, it is unclear whether the MYH14 variant itself causes profound hearing loss for which cochlear implantation is indicated.
We could not identify any genotype–phenotype correlations among the domains. In addition, we could not identify any genotype–phenotype correlations through combination of the clinical information obtained in our study and that of previously reported cases.

5. Conclusions

The present study revealed an updated variant spectrum and the clinical characteristics of MYH14-associated HL, including onset age, severity and progression of hearing loss, audiometric configuration, and recommended intervention. The information provided in this paper will play a crucial role in managing patients in the future.

Supplementary Materials

The following are available online at, Table S1: The 68 deafness-causative genes analyzed in this study.

Author Contributions

Conceptualization, S.-i.K., S.-y.N. and S.-i.U.; methodology, S.-i.K., T.K. and S.-y.N.; software, S.-y.N.; validation, K.H. and T.K.; formal analysis, K.H. and S.-y.N.; investigation, S.-i.U.; data curation, K.H., S.-i.K., T.K., H.M. and S.-y.N.; writing—original draft preparation, K.H.; writing—review and editing, K.H., S.-i.K., T.K., H.M. and S.-y.N.; visualization, K.H.; supervision, S.-i.U.; project administration, S.-i.U.; funding acquisition, S.-i.U. All authors have read and agreed to the published version of the manuscript.


This study was funded by a Health and Labor Sciences Research Grant for Research on Rare and Intractable Diseases and Comprehensive Research on Disability Health and Welfare from the Ministry of Health, Labour and Welfare of Japan (S.U. H29-Nanchitou(Nan)-Ippan-031, 20FC1048); a Grant-in-Aid from the Japan Agency for Medical Research and Development (AMED) (S.U. 16kk0205010h0001, 17kk0205010h0002, 18kk0205010h0003, 16ek0109114h0002, 17ek0109114h0003, 18ek0109363h0001, 19ek0109363h0002, 20ek0109363h0003); and a Grant-in-Aid for Scientific Research (A) from the Ministry of Education, Culture, Sports, Science and Technology of Japan (S.U. 15H02565).

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Ethics Committee of Shinshu University School of Medicine (No. 387—4 September 2012, and No. 576—2 May 2017).

Informed Consent Statement

Informed consent was obtained from all patients (or from their next of kin, caretaker, or legal guardian in the cases of minors or children).

Data Availability Statement

The sequencing data are available in the DDBJ databank of Japan (Accession number: JGAS000323).


We thank Chihiro Morimoto, Kozo Kumakawa, Satoko Abe, Takahisa Abe, Hiromitsu Miyazaki, Kyoko Nagai, Satoshi Iwasaki, Kiyoshi Oda, Tomoko Shintani, and Takeshi Ishino for providing samples and clinical information. We also thank Sachiko Matsuda and Fumiko Tomioka for their technical assistance with this research.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.


  1. Hereditary Hearing Loss Homepage. Available online: (accessed on 30 December 2019).
  2. Smith, R.J.H.; Bale, J.F.; White, K.R. Sensorineural hearing loss in children. Lancet 2005, 365, 879–890. [Google Scholar] [CrossRef]
  3. Donaudy, F.; Snoeckx, R.; Pfister, M.; Zenner, H.P.; Blin, N.; Di Stazio, M.; Ferrara, A.; Lanzara, C.; Ficarella, R.; Declau, F.; et al. Nonmuscle myosin heavy-chain gene MYH14 is expressed in cochlea and mutated in patients affected by autosomal dominant hearing impairment (DFNA4). Am. J. Hum. Genet. 2004, 74, 770–776. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Kim, B.J.; Kim, A.R.; Han, J.H.; Lee, C.; Oh, D.Y.; Choi, B.Y. Discovery of MYH14 as an important and unique deafness gene causing prelingually severe autosomal dominant nonsyndromic hearing loss. J. Gene Med. 2017, 4, 19. [Google Scholar] [CrossRef] [PubMed]
  5. Yang, T.; Pfister, M.; Blin, N.; Zenner, H.P.; Pusch, C.M.; Smith, R.J. Genetic heterogeneity of deafness phenotypes linked to DFNA4. Am. J. Med. Genet. A 2013, 139, 9–12. [Google Scholar] [CrossRef] [PubMed]
  6. Iwasa, Y.I.; Nishio, S.Y.; Usami, S.I. Comprehensive Genetic Analysis of Japanese Autosomal Dominant Sensorineural Hearing Loss Patients. PLoS ONE 2016, 11, e0166781. [Google Scholar] [CrossRef]
  7. Shearer, A.E.; Black-Ziegelbein, E.A.; Hildebrand, M.S.; Eppsteiner, R.W.; Ravi, H.; Joshi, S.; Guiffre, A.C.; Sloan, C.M.; Happe, S.; Howard, S.D.; et al. Advancing genetic testing for deafness with genomic technology. J. Med. Genet. 2013, 50, 627–634. [Google Scholar] [CrossRef]
  8. Sloan-Heggen, C.M.; Bierer, A.O.; Shearer, A.E.; Kolbe, D.L.; Nishimura, C.J.; Frees, K.L.; Ephraim, S.S.; Shibata, S.B.; Booth, K.T.; Campbell, C.A.; et al. Comprehensive genetic testing in the clinical evaluation of 1119 patients with hearing loss. Hum. Genet. 2016, 135, 441–450. [Google Scholar] [CrossRef] [Green Version]
  9. Chen, S.; Dong, C.; Wang, Q.; Zhong, Z.; Qi, Y.; Ke, X.; Liu, Y. Targeted Next-Generation Sequencing Successfully Detects Causative Genes in Chinese Patients with Hereditary Hearing Loss. Genet. Test. Mol. Biomark. 2016, 20, 660–665. [Google Scholar] [CrossRef]
  10. Qing, J.; Yan, D.; Zhou, Y.; Liu, Q.; Wu, W.; Xiao, Z.; Liu, Y.; Liu, J.; Du, L.; Xie, D.; et al. Whole-Exome Sequencing to Decipher the Genetic Heterogeneity of Hearing Loss in a Chinese Family with Deaf by Deaf Mating. PLoS ONE 2014, 9, e109178. [Google Scholar] [CrossRef] [Green Version]
  11. Sommen, M.; Schrauwen, I.; Vandeweyer, G.; Boeckx, N.; Corneveaux, J.J.; Ende, J.V.D.; Boudewyns, A.; Leenheer, E.D.; Janssens, S.; Claes, K.; et al. DNA Diagnostics of Hereditary Hearing Loss: A Targeted Resequencing Approach Combined with a Mutation Classification System. Hum. Mutat. 2016, 37, 812–819. [Google Scholar] [CrossRef]
  12. Shearer, A.E.; Eppsteiner, R.W.; Booth, K.T.; Ephraim, S.S.; Gurrola, J., 2nd; Simpson, A.; Black-Ziegelbein, E.A.; Joshi, S.; Ravi, H.; Giuffre, A.C.; et al. Utilizing Ethnic-Specific Differences in Minor Allele Frequency to Recategorize Reported Pathogenic Deafness Variants. Am. J. Hum. Genet. 2014, 95, 445–453. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Abouelhoda, M.; Faquih, T.; El-kalioby, M.; Alkuraya, F.S. Revisiting the morbid genome of Mendelian disorders. Genome Biol. 2016, 17, 235. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Kim, N.K.D.; Kim, A.R.; Park, K.T.; Kim, S.Y.; Kim, M.Y.; Nam, J.-Y.; Woo, S.J.; Oh, S.-H.; Park, W.-Y. Whole-exome sequencing reveals diverse modes of inheritance in sporadic mild to moderate sensorineural hearing loss in a pediatric population. Genet. Med. 2015, 17, 901–911. [Google Scholar] [CrossRef] [Green Version]
  15. Liu, W.-H.; Chang, P.-Y.; Chang, S.-C.; Lu, J.-J.; Wu, C.-M. Mutation screening in non-syndromic hearing loss patients with cochlear implantation by massive parallel sequencing in Taiwan. PLoS ONE 2019, 14, e0211261. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Miyagawa, M.; Nishio, S.; Ikeda, T.; Fukushima, K.; Usami, S. Massively Parallel DNA Sequencing Successfully Identifies New Causative Mutations in Deafness Genes in Patients with Cochlear Implantation and EAS. PLoS ONE 2013, 8, e75793. [Google Scholar]
  17. Choi, B.O.; Hee Kang, S.; Hyun, Y.S.; Kanwal, S.; Park, S.W.; Koo, H.; Kim, S.B.; Choi, Y.C.; Yoo, J.H.; Kim, J.W.; et al. A complex phenotype of peripheral neuropathy, myopathy, hoarseness, and hearing loss is linked to an autosomal dominant mutation in MYH14. Hum. Mutat. 2011, 32, 669–677. [Google Scholar] [CrossRef] [Green Version]
  18. Kim, S.J.; Lee, S.; Park, H.J.; Kang, T.H.; Sagong, B.; Baek, J.I.; Oh, S.K.; Choi, J.Y.; Lee, K.Y.; Kim, U.K. Genetic association of MYH genes with hereditary hearing loss in Korea. Gene 2016, 591, 177–182. [Google Scholar] [CrossRef]
  19. Vona, B.; Müller, T.; Nanda, I.; Neuner, C.; Hofrichter, A.H.H.; Schröder, J.; Bartsch, O.; Läßig, A.; Keilmann, A.; Schraven, S.; et al. Open Targeted next-generation sequencing of deafness genes in hearing-impaired individuals uncovers informative mutations. Genet. Med. 2014, 16, 945–953. [Google Scholar] [CrossRef] [Green Version]
  20. Iyadurai, S.; Arnold, W.D.; Kissel, J.T.; Ruhno, C.; McGovern, V.L.; Snyder, P.J.; Prior, T.W.; Roggenbuck, J.; Burghes, A.H.; Kolb, S.J. Variable phenotypic expression and onset in MYH14 distal HMN phenotype in a large, multigenerational North American family. Muscle Nerve 2017, 176, 139–148. [Google Scholar]
  21. Almutawa, W.; Smith, C.; Sabouny, R.; Smit, R.B.; Zhao, T.; Wong, R.; Lee-Glover, L.; Desrochers-Goyette, J.; Ilamathi, H.S.; Suchowersky, O.; et al. The R941L mutation in MYH14 disrupts mitochondrial fission and associates with peripheral neuropathy. EBiolMedicine 2019, 45, 379–392. [Google Scholar] [CrossRef] [Green Version]
  22. Seco, C.Z.; Wesdorp, M.; Feenstra, I.; Pfundt, R.; Hehir-Kwa, J.Y.; Lelieveld, S.H.; Castelein, S.; Gilissen, C.; Wijs, I.W.; Admiraal, R.J.; et al. The diagnostic yield of whole-exome sequencing targeting a gene panel for hearing impairment in the Netherlands. Eur. J. Hum. Genet. 2017, 25, 308–314. [Google Scholar] [CrossRef] [Green Version]
  23. Moteki, H.; Azaiez, H.; Booth, K.T.; Shearer, A.E.; Sloan, C.M.; Kolbe, D.L.; Nishio, S.Y.; Hattori, M.; Usami, S.I.; Smith, R.J. Comprehensive genetic testing with ethnic-specific filtering by allele frequency in a Japanese hearing-loss population. Clin. Genet. 2017, 89, 466–472. [Google Scholar] [CrossRef]
  24. Wang, M.; Zhou, Y.; Zhang, F.; Fan, Z.; Bai, X.; Wang, H. A novel MYH14 mutation in a Chinese family with autosomal dominant nonsyndromic hearing loss. BMC Med. Genet. 2020, 21, 154. [Google Scholar] [CrossRef]
  25. Maekawa, K.; Nishio, S.; Abe, S.; Goto, S.I.; Honkura, Y.; Iwasaki, S.; Kanda, Y.; Kobayashi, Y.; Oka, S.; Okami, M.; et al. Mutational Spectrum and Clinical Features of Patients with LOXHD1 Variants Identified in an 8074 Hearing Loss Patient Cohort. Genes 2019, 10, 735. [Google Scholar] [CrossRef] [Green Version]
  26. The Exome Aggregation Consortium Database (ExAC). Available online: (accessed on 1 July 2019).
  27. ToMMo 3.5KJPN-Integrative Japanese Genome Variation Database. Available online: (accessed on 1 July 2019).
  28. Wang, K.; Li, M.; Hakonarson, H. ANNOVAR: Functional annotation of genetic variants from high-throughput sequencing data. Nucleic Acids Res. 2010, 38, e164. [Google Scholar] [CrossRef] [PubMed]
  29. Kumar, P.; Henikoff, S.; Ng, P.C. Predicting the effects of coding non-synonymous variants on protein function using the SIFT algorithm. Nat. Protoc. 2009, 4, 1073–1081. [Google Scholar] [CrossRef] [PubMed]
  30. Adzhubei, I.A.; Schmidt, S.; Peshkin, L.; Ramensky, V.E.; Gerasimova, A.; Bork, P.; Kondrashov, A.S.; Sunyaev, S.R. A method and server for predicting damaging missense mutations. Nat. Methods 2010, 7, 248–249. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Schwarz, J.M.; Rodelsperger, C.; Schuelke, M.; Seelow, D. MutationTaster evaluates disease-causing potential of sequence alterations. Nat. Methods 2010, 7, 575–576. [Google Scholar] [CrossRef] [PubMed]
  32. Reva, B.; Antipin, Y.; Sander, C. Predicting the functional impact of protein mutations: Application to cancer genomics. Nucleic Acids Res. 2011, 39, e118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Shihab, H.A.; Gough, J.; Cooper, D.N.; Stenson, P.D.; Barker, G.L.; Edwards, K.J.; Day, I.N.M.; Gaunt, T.R. Predicting the functional, molecular, and phenotypic consequences of amino acid substitutions using hidden Markov models. Hum. Mutat. 2013, 34, 57–65. [Google Scholar] [CrossRef]
  34. Kircher, M.; Witten, D.M.; Jain, P.; O’Roak, B.J.; Cooper, G.M.; Shendure, J. A general framework for estimating the relative pathogenicity of human genetic variants. Nat. Genet. 2014, 46, 310–315. [Google Scholar] [CrossRef] [Green Version]
  35. Richards, S.; Aziz, N.; Bale, S.; Bick, D.; Das, S.; Gastier-Foster, J.; Grody, W.W.; Hegde, M.; Lyon, E.; Spector, E.; et al. Standards and guidelines for the interpretation of sequence variants: A joint consensus recommendation of the American College of Medical Genetics and Genomics and the Association for Molecular Pathology. Genet. Med. 2015, 17, 405–424. [Google Scholar] [CrossRef]
  36. Mazzoli, M.; Camp, G.V.; Newton, V.; Giarbini, N.; Declau, F.; Parving, A. Recommendations for the Description of Genetic and Audiological Data for Families with Nonsyndromic Hereditary Hearing Impairment. Audiol. Med. 2003, 1, 148–150. [Google Scholar]
  37. Naito, T.; Nishio, S.; Iwasa, Y.; Yano, T.; Kumakawa, K.; Abe, S.; Ishikawa, K.; Kojima, H.; Namba, A.; Oshikawa, C.; et al. Comprehensive Genetic Screening of KCNQ4 in a Large Autosomal Dominant Nonsyndromic Hearing Loss Cohort: Genotype-Phenotype Correlations and a Founder Mutation. PLoS ONE 2013, 8, e63231. [Google Scholar] [CrossRef]
  38. Kitano, T.; Miyagawa, M.; Nishio, S.; Moteki, H.; Oda, K.; Ohyama, K.; Miyazaki, H.; Hidaka, H.; Nakamura, K.; Murata, T.; et al. POU4F3 mutation screening in Japanese hearing loss patients: Massively parallel DNA sequencing-34based analysis identified novel variants associated with autosomal dominant hearing loss. PLoS ONE 2017, 12, e0177636. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Yasukawa, R.; Moteki, H.; Nishio, S.; Ishikawa, K.; Abe, S.; Honkura, Y.; Misako Hyogo, M.; Mihashi, R.; Ikezono, T.; Shintani, T.; et al. The prevalence and clinical characteristics of TECTA-associated autosomal dominant hearing loss. Genes 2019, 10, 744. [Google Scholar] [CrossRef] [Green Version]
  40. Kobayashi, M.; Miyagawa, M.; Nishio, S.; Moteki, H. WFS1 mutation screening in a large series of Japanese hearing loss patients: Massively parallel DNA sequencing-based analysis. PLoS ONE 2018, 13, e0193359. [Google Scholar] [CrossRef] [PubMed]
  41. Oka, S.; Day, T.F.; Nishio, S.; Moteki, H.; Miyagawa, M.; Morita, S.; Izumi, S.; Ikezono, T.; Abe, S.; Nakayama, J.; et al. Clinical characteristics and in vitro analysis of MYO6 variants causing late-onset progressive hearing loss. Genes 2020, 11, 273. [Google Scholar] [CrossRef] [Green Version]
  42. Miyajima, H.; Moteki, H.; Day, T.; Nishio, S.; Murata, T.; Ikezono, T.; Takeda, H.; Abe, S.; Iwasaki, S.; Takahashi, M.; et al. Novel ACTG1 mutations in patients identified by massively parallel DNA sequencing cause progressive hearing loss. Sci. Rep. 2020, 10, 7056. [Google Scholar] [CrossRef]
  43. Shinagawa, J.; Moteki, H.; Nishio, S.; Ohyama, K.; Otsuki, K.; Iwasaki, S.; Masuda, S.; Oshikawa, C.; Ohta, Y.; Arai, Y.; et al. Prevalence and clinical features of hearing loss caused by EYA4 variants. Sci. Rep. 2020, 10, 3662. [Google Scholar] [CrossRef]

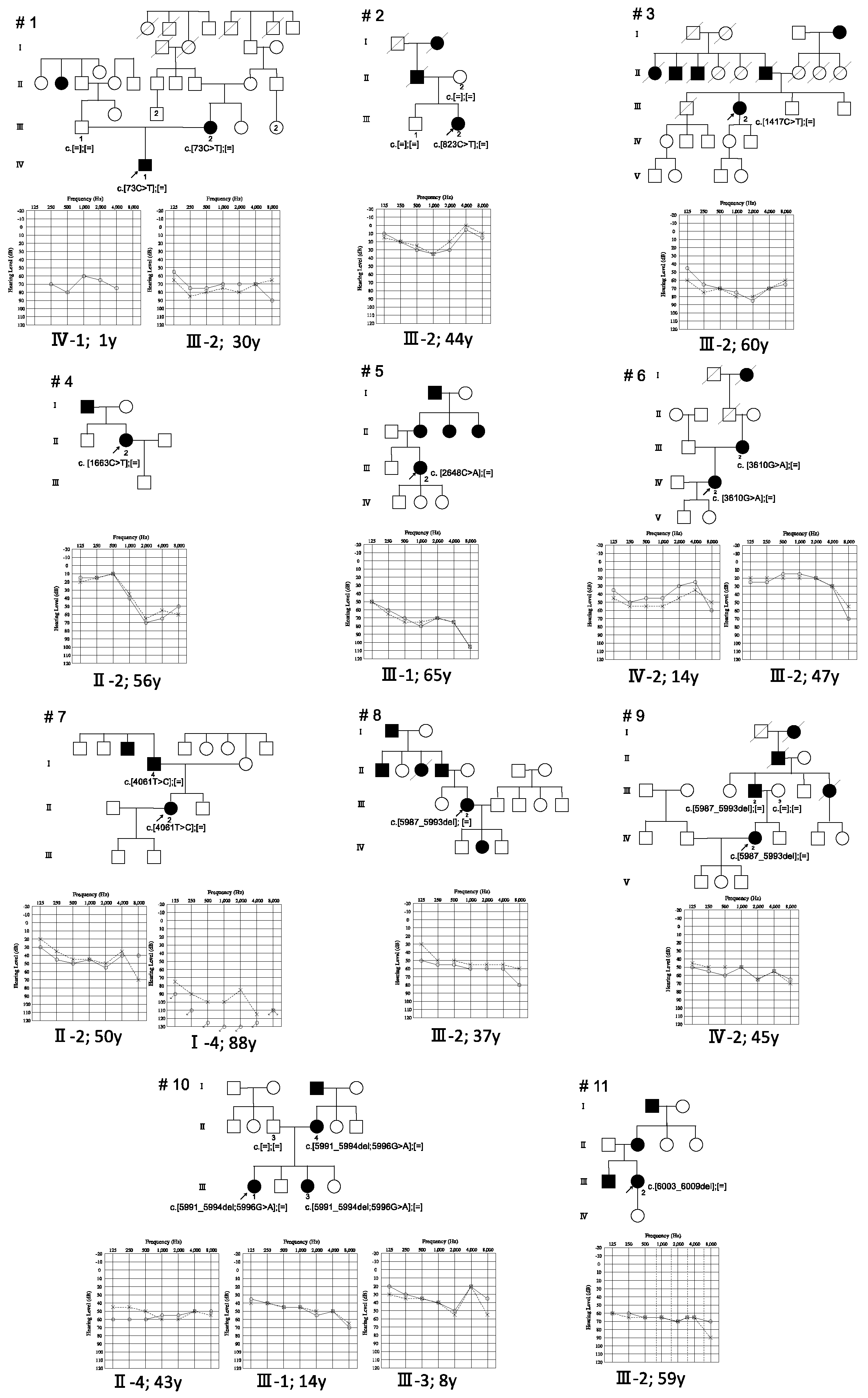

Figure 1. Pedigree, identified variants, and audiograms for the MYH14-associated hearing-loss patients identified in this study. Arrowheads indicate the proband for each family. Identified variants are indicated on the pedigree. Audiograms for the proband and other affected family members are shown with the age at hearing testing.
Figure 1. Pedigree, identified variants, and audiograms for the MYH14-associated hearing-loss patients identified in this study. Arrowheads indicate the proband for each family. Identified variants are indicated on the pedigree. Audiograms for the proband and other affected family members are shown with the age at hearing testing.
Genes 12 01623 g001

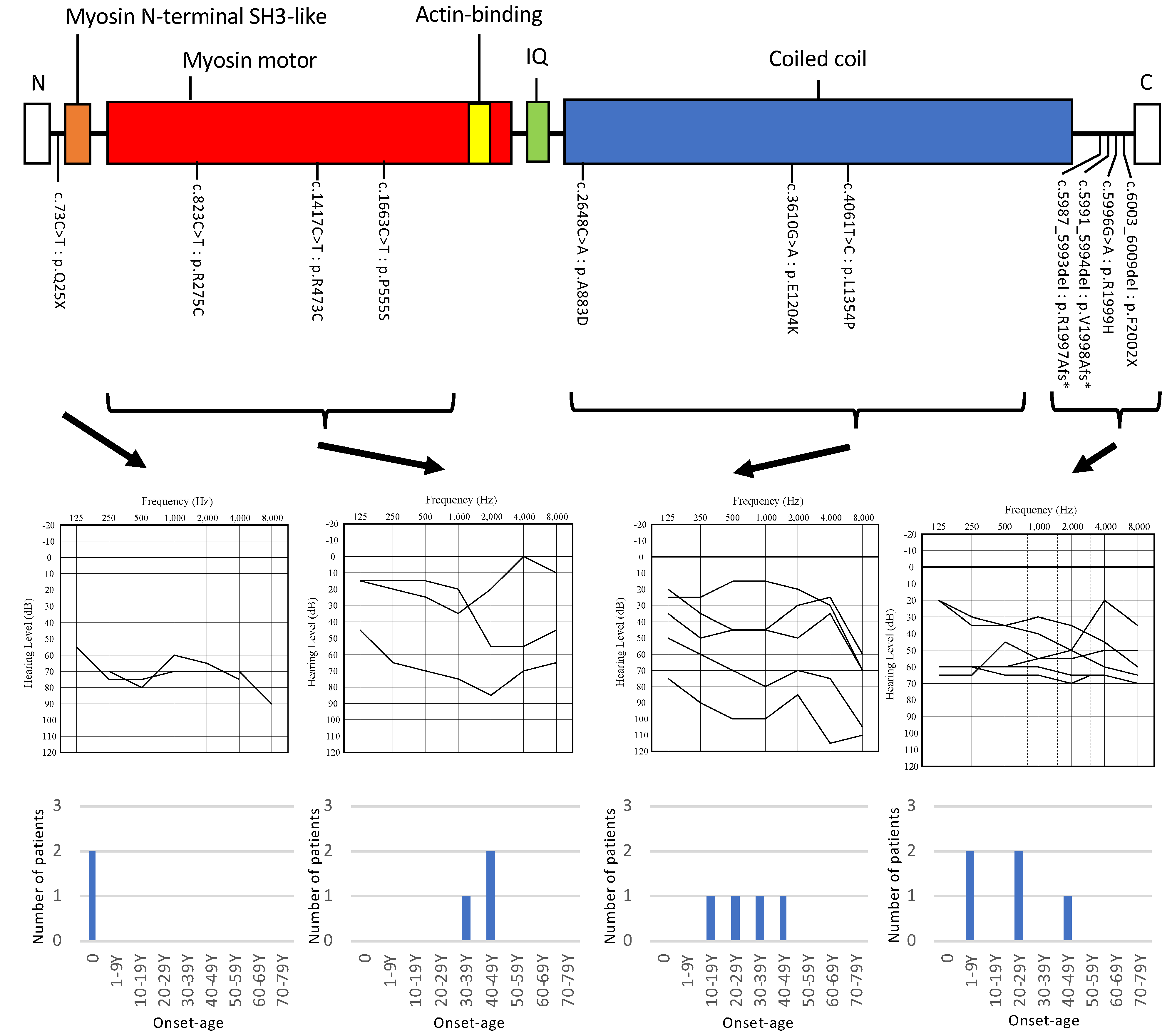

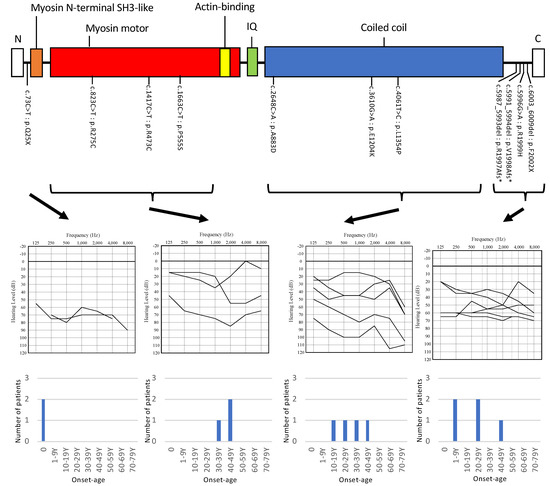

Figure 2. Domain structure of MYH14, identified variants, the overlapping audiograms from the better-hearing ear, and onset-age distribution for the patients with each domain variant. Domain structures are indicated based on UniProtKB (Q7Z406). Orange: Myosin N-terminal SH3 like domain, Red: Myosin motor domain, Yellow: Actin binding domain, Green: IQ domain, Blue: Coiled coil domain.
Figure 2. Domain structure of MYH14, identified variants, the overlapping audiograms from the better-hearing ear, and onset-age distribution for the patients with each domain variant. Domain structures are indicated based on UniProtKB (Q7Z406). Orange: Myosin N-terminal SH3 like domain, Red: Myosin motor domain, Yellow: Actin binding domain, Green: IQ domain, Blue: Coiled coil domain.
Genes 12 01623 g002

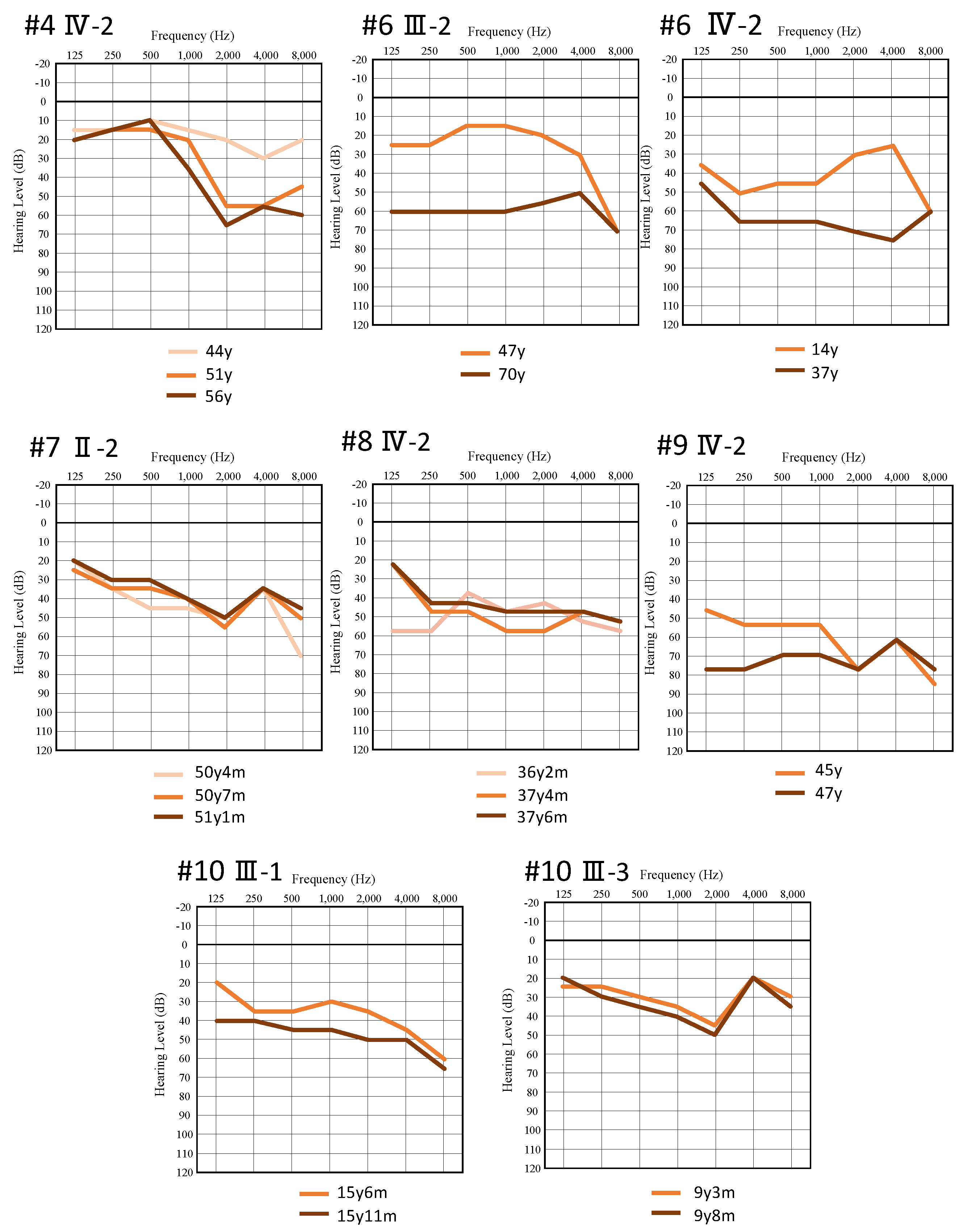

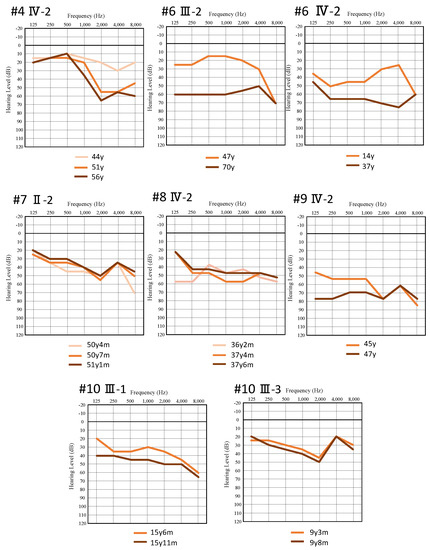

Figure 3. Serial audiograms of eight individuals from six families with MYH14 variants.
Figure 3. Serial audiograms of eight individuals from six families with MYH14 variants.
Genes 12 01623 g003
Table 1. Variants and clinical information for MYH14-associated HL patients and affected family members identified in this study (all MYH14 variants are indicated in NM_001145809.2).
Table 1. Variants and clinical information for MYH14-associated HL patients and affected family members identified in this study (all MYH14 variants are indicated in NM_001145809.2).
Nucleotide ChangeAmino Acid ChangeGenderOnsetProgression of HLAgeAudiometric ConfigurationPTA (Better-Hearing Ear, dB)SeverityVestibular SymptomsInterventionNewborn Hearing ScreeningFamily No.Patient No.
c.73C > Tp.Q25XF0 sNo30 YFlat71.25SevereNoHArefer1Ⅲ-2
c.73C > Tp.Q25XM0n/a1 YFlat70Moderaten/an/an/a1Ⅳ-1
c.823C > Tp.R275CF41 YYes44 YU-shaped20MildNon/an/a2Ⅲ-2
c.1417C > Tp.R473CF35 YYes60 YFlat75Severen/an/an/a3Ⅲ-2
c.1663C > Tp.P555SF44 YYes56 YSteeply sloping41.25ModerateNoHAn/a4Ⅱ-3
c.2648C > Ap.A883DF44 Yn/a65 YGently sloping73.75ModerateYesn/an/a5Ⅲ-1
c.3610G > Ap.E1204KF12 YYes14 YLow-frequency ascending47.5ModerateNoHAn/a6III-1
c.3610G > Ap.E1204KFn/aYes47 YFlat20MildNon/an/a6Ⅱ-3
c.4061T > Cp.L1354PM20 sYes83 YFlat100Profoundn/an/an/a7I-4
c.4061T > Cp.L1354PF30 sYes50 YFlat43.75ModerateNoHAn/a7II-2
c.5987_5993delp.R1997Afs *F20 YYes37 YFlat53.75ModerateYesHAn/a8Ⅲ-2
c.5987_5993delp.R1997Afs *F20 sYes45 YFlat55ModerateNoHAn/a9Ⅳ-2
c.5987_5993delp.R1997Afs *Mn/an/an/an/an/an/an/an/an/a 9Ⅲ-2
c.[5991_5994del; 5996G > A]p.[V1998Afs *; R1999H]Fn/an/a43 YFlat55Moderaten/an/an/a10Ⅱ-4
c.[5991_5994del; 5996G > A]p.[V1998Afs *; R1999H]M6 YYes14 YFlat47.5ModerateNoHApass10Ⅲ-1
c.[5991_5994del; 5996G > A]p.[V1998Afs *; R1999H]F3 YYes8 YU-shaped29MildNoHApass10Ⅲ-3
c.6003_6009delp.F2002XF41 YYes59 YFlat66.25ModerateNon/an/a11Ⅲ-2
* indicate the stop codon as in standrd HGVS nomenclature. n/a, not available; HA, hearing aids; CI, cochlear implant. Family No. and Patient No. indicate the patient number in Figure 1.
Table 2. Identified MYH14 variants and in silico predication score (all MYH14 variants are indicated in NM_001145809.2).
Table 2. Identified MYH14 variants and in silico predication score (all MYH14 variants are indicated in NM_001145809.2).
ExonAmino Acid ChangeDomainSIFTPP2Mut
RevelCADD PhredAllele Frequency in In-house ControlsMAF in ExAC03MAF in
ACMG CriteriaReference
c.73C > T2p.Q25XMyosin, N-terminal A 36000Likely PathogenicDonaudy et al., 2004 [3]
c.823C > T8p.R275CMyosin head, motor domainDDDD0.6483400.0000082520Uncertain SignificanceIwasa et al., 2016 [6]
c.1417C > T13p.R473CMyosin head, motor domainDPDM0.6483402.81 × 10−50Uncertain SignificanceThis study
c.1663C > T15p.P555SMyosin head, motor domainDDDM0.70126.1000Uncertain SignificanceThis study
c.2648C > A22p.A883DMyosin tailDDDM0.69228000Uncertain SignificanceThis study
c.3610G > A28p.E1204KMyosin tailTBDL0.67824.702.29 × 10−50Uncertain SignificanceThis study
c.4061T > C31p.L1354PMyosin tailDDDM0.81328.4000Uncertain SignificanceThis study
c.5987_5993del p.R1997Afs 000Uncertain SignificanceThis study
c.[5991_5994del; 5996G > A]43p.[V1998Afs; R1999H] 000Uncertain SignificanceThis study
DPNL0.25124.103.35 × 10−50Uncertain SignificanceThis study
c.6003_6009del43p.F2002X 000Uncertain SignificanceThis study
PP2, PolyPhen2; Mut Taster, Mutation Taster; Mut Assessor, Mutation Assessor; D, Deleterious (SIFT); B, Benign (SIFT); D, Probably Damaging (PP2); P, Possibly Damaging (PP2); A, Disease-causing automatic (Mut Taster); D, Disease-causing (Mutation Taster); N, Polymorphism (Mut Taster); M, Medium (Mut Assessor); L, Low (Mut Assessor).
Table 3. MYH14 variants and clinical information in previous reports (all MYH14 variants are indicated in NM_001145809.2).
Table 3. MYH14 variants and clinical information in previous reports (all MYH14 variants are indicated in NM_001145809.2).
Nucleotide ChangeAmino Acid ChangeGenderOnsetProgression of HLAgeAudiometric ConfigurationPTA (Better-Hearing Ear)SeverityVestibular
InterventionNewborn Hearing ScreeningReference
c.20C > Ap.S7Xn/a10 or 20Yesn/an/an/aSevere to profound in 40 yearsn/an/an/aDonaudy et al., 2004 [3]
c.73C > Tp.Q25XF0 YYes7 Mn/an/an/an/an/an/aKim et al., 2017 [4]
Fn/an/a33 YFlat82.5Severen/an/an/a
c.359C > Tp.S120Ln/an/an/a28 YFlat53.8Moderaten/an/an/aYang et al., 2005 [5]
n/an/an/a33 YFlat65Moderaten/an/an/a
n/an/an/a35 YFlat76.3Moderaten/an/an/a
n/an/an/a63 YFlat72.5Moderaten/an/an/a
c.505G > Ap.E169Kn/an/an/an/an/an/an/an/an/an/aSloan-Heggen et al., 2016 [8]
c.526G > Ap.A176Tn/an/an/an/an/an/an/an/an/an/aChen et al., 2016 [9]
c.541G > Ap.A181TFThe first decaden/an/aU-sharped73.75Moderaten/an/an/aQing et al., 2014 [10]
MThe first decaden/an/aFlat71.3Moderaten/an/an/a
FThe first decaden/an/aU-sharpedn/aSeveren/an/an/a
c.572A > Gp.D191GMCongenital
or prelingual
No?5 YFlat71.3Moderaten/an/an/aKim et al., 2017 [4]
c.823C > Tp.R275CF41 YYes44 YU-shaped20MildNon/an/aIwasa et al., 2016 [6]
c.1049G > Ap.R350Qn/an/an/an/an/an/an/an/an/an/aIwasa et al., 2016 [6]
c.1067C > Tp.T356Mn/an/an/an/an/an/an/an/an/an/aSommen et al., 2016 [11]
c.1150G > Tp.G384Cn/an/an/a9 Yn/an/aModerateNon/an/aDonaudy., 2004 [3]
n/an/an/an/an/an/an/an/an/an/aShearer et al.,2014 [12]
n/an/an/an/an/an/an/an/an/an/aAbouelhoda et al., 2016 [13]
c.1360G > Ap.A454Tn/an/an/an/an/an/an/an/an/an/aChen et al., 2016 [9]
c.1427G > Ap.R476Hn/an/an/an/an/an/an/an/an/an/aSloan-Heggen et al., 2016 [8]
c.1609G > Ap.D537NFn/aYes8YFlat40Moderaten/an/an/aKim et al., 2015 [14]
c.1625T > Gp.L542Rn/an/an/an/an/an/an/an/an/an/aSloan-Heggen et al., 2016 [8]
c.1919G > Ap.R640Qn/an/an/an/an/an/an/an/an/an/aShearer et al., 2013 [7]
c.2089G > Ap.G697Sn/an/an/an/an/an/an/an/an/an/aIwasa et al., 2016 [6]
c.2203C> Gp.R735CMn/an/an/aFlat115Severen/aCIn/aLiu et al., 2019 [15]
c.2299C > Ap.R767Sn/an/aYesn/an/an/aMild to moderateNon/an/aDonaudy et al., 2004 [3]
c.2621T > Cp.L874Pn/an/an/an/an/an/an/an/an/an/aChen et al., 2016 [9]
c.2692A > Cp.K898Qn/an/an/an/an/an/an/an/an/an/aMiyagawa et al., 2013 [16]
c.2717C > Tp.T906MFThe first decaden/an/aU-shaped83Severen/an/an/aQing et al., 2014 [10]
FThe first decaden/an/aU-shaped80Severen/an/an/a
c.2921G > Ap.R974Hn/an/an/an/an/an/an/an/a n/aSloan-Heggen et al., 2016 [8]
c.2921G > Tp.R974LMn/an/a52 Yn/an/an/an/an/an/aChoi et al., 2011 [17]
Mn/an/a48 Yn/an/an/an/an/an/a
Fn/an/a45 Yn/an/an/an/an/an/a
Fn/an/a41 Yn/an/an/an/an/an/a
Mn/an/a15 Yn/an/an/an/an/an/a
c.2921G > Tp.R974Ln/a20 YYesn/an/an/an/an/an/an/aIyadurai et al., 2017 [20]
c.2921G > Ap.R974LFn/an/an/an/an/an/an/an/an/aAlmutawa et al., 2019 [21]
Fn/an/a58 Yn/an/an/an/an/an/a
Mn/an/a23 Yn/an/an/an/an/an/a
Fn/an/a24 Yn/an/an/an/an/an/a
c.3049C > Tp.L1017FMn/an/an/an/an/aMild to moderateNon/an/aDonaudy et al., 2004 [3]
c.3877G > Cp.E1293Qn/an/an/an/an/an/an/an/an/an/aSommen et al., 2016 [11]
c.4903G > Ap.E1635Kn/an/an/an/an/an/an/an/an/an/aMiyagawa et al., 2013 [16]
c.5008C > Tp.R1670CFn/an/an/an/an/an/an/an/an/aVona et al., 2014 [19]
c.5020G > Ap.V1674Mn/an/an/an/an/an/an/an/an/an/aShearer et al., 2013 [7]
c.5176C > Tp.R1726Wn/an/an/an/an/an/an/an/an/an/aSeco et al., 2017 [22]
c.5384G > Ap.R1795Hn/an/an/an/an/an/an/an/an/an/aMoteki et al., 2017 [23]
c.5516C > Ap.A1839DM30 sn/a51 YGently sloping56.25ModerateNo n/an/aWang et al., 2020 [24]
M30 sYes45 YGently sloping50Moderaten/a n/an/a
M10 sYes29 YFlat56.25ModerateNo n/an/a
c.5602G > Ap.A1868TMn/an/an/an/a66.3n/an/an/an/aKim et al., 2016 [18]
Low-amplitude in oVEMP; labyrinth reactivity lower in caloric test; n/a, not available; CI, Cochlear Implant.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hiramatsu, K.; Nishio, S.-y.; Kitajiri, S.-i.; Kitano, T.; Moteki, H.; Usami, S.-i.; on behalf of the Deafness Gene Study Consortium. Prevalence and Clinical Characteristics of Hearing Loss Caused by MYH14 Variants. Genes 2021, 12, 1623.

AMA Style

Hiramatsu K, Nishio S-y, Kitajiri S-i, Kitano T, Moteki H, Usami S-i, on behalf of the Deafness Gene Study Consortium. Prevalence and Clinical Characteristics of Hearing Loss Caused by MYH14 Variants. Genes. 2021; 12(10):1623.

Chicago/Turabian Style

Hiramatsu, Ken, Shin-ya Nishio, Shin-ichiro Kitajiri, Tomohiro Kitano, Hideaki Moteki, Shin-ichi Usami, and on behalf of the Deafness Gene Study Consortium. 2021. "Prevalence and Clinical Characteristics of Hearing Loss Caused by MYH14 Variants" Genes 12, no. 10: 1623.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
