Bacillus subtilis CBR05 for Tomato (Solanum lycopersicum) Fruits in South Korea as a Novel Plant Probiotic Bacterium (PPB): Implications from Total Phenolics, Flavonoids, and Carotenoids Content for Fruit Quality

by
Murugesan Chandrasekaran
1,
Se Chul Chun
2,
Jae Wook Oh
3,*,
Manivannan Paramasivan
4,
Ramesh Kumar Saini
5 and
Jesudoss Joseph Sahayarayan
6
1
Department of Food Science and Biotechnology, Sejong University, Gwangjin-gu, Seoul 05006, Korea
2
Department of Environmental Health Science, Konkuk University, Gwangjin-gu, Seoul 05029, Korea
3
Department of Stem Cell and Regenerative Biotechnology, Konkuk University, Gwangjin-gu, Seoul 05029, Korea
4
Department of Microbiology, Bharathidasan University, Tiruchirappalli 620024, India
5
Department of Crop Science, Konkuk University, Gwangjin-gu, Seoul 05029, Korea
6
Department of Bioinformatics, Alagappa University, Karaikudi 630 003, India
*
Author to whom correspondence should be addressed.
Agronomy 2019, 9(12), 838; https://doi.org/10.3390/agronomy9120838
Submission received: 7 September 2019 / Revised: 27 November 2019 / Accepted: 29 November 2019 / Published: 3 December 2019
(This article belongs to the Special Issue Toward a Sustainable Agriculture Through Plant Biostimulants: From Experimental Data to Practical Applications)
Browse Figures
Versions Notes

Abstract

:
Plant growth-promoting rhizobacteria (PGPR) are naturally occurring soil biota which benefit plants by improving plant productivity and immunity. The aim of the present work was to evaluate the effect of the inoculation of PGPR strain, Bacillus subtilis CBR05 on the quality of tomato fruits produced under greenhouse conditions. Results were compared with mock-inoculated control and market sample. We found a significant increase in total phenol and flavonoid contents of tomato fruits in PGPR strain B. subtilis CBR05 inoculated plants compared to those of mock-inoculated control and market sample. Moreover, B. subtilis CBR05 inoculation stimulated antioxidant activities and levels of carotenoid (β carotene and lycopene) content in plants. In addition, the inoculation of the strain B. subtilis CBR05 produced the highest content of lycopene (21.08 μg/g FW) in tomato fruits as compared to mock-inoculated plants. Our results show that the PGPR strain B. subtilis CBR05 is a versatile soil bacterium that enhances tomato production by elevating antioxidant activities and carotenoid (β carotene and lycopene) levels in fruit.

1. Introduction

Tomato (Solanum lycopersicum) is regarded as the second most vegetable crop next to potato in the agricultural implications of human consumption. According to agricultural statistics, tomatoes along with sweet corn and snap beans constitute 93% of crop production and processing strategies (Agricultural Statistics, United States Department of Agriculture (USDA), 2016). The positive benefits of tomato consumption have been rigorously proved against a variety of diseases like chronic degenerative diseases, owing to the escalated content of significant phytochemicals with potent health benefits, like the carotenoids (β-carotene and lycopene), the glycoalkaloids (dehydrotomatine and α-tomatine), ascorbic acid, tocopherols, and many phenolic and flavonoid compounds [1,2,3]. Tomato also contributes as a major dietary ingredient for Vitamin A and C which implies increased per individual consumption in the United States and many Western countries [2,4]. Fruit ripening in tomato comprises a cascade of events on biochemical, physiological, and structural perspectives involving the influence of secondary metabolites that confer flavor, aroma, texture, and appearance of the tomato [5,6]. Accumulation of large quantities of pigments, especially lycopene and β carotene, inside the plastoglobules of chromoplast provides a visual indication that the fruit is mature and suitable for consumption [4].
Agronomic practices are recognized as a vital factor in determining the nutritional quality of tomato crops [7,8]. The nutrient contents in tomato fruits depend on the environment in which they grow [9,10]. Nowadays, the use of crop modeling to identify effective farmer strategies to counteract adverse future climatic conditions has become a standard in climate change impact assessments [11,12,13]. Over the past few years, a variety of methods have been proposed to comprehensively assess fruit quality and its relationship with water, including principal component analysis (PCA), analytic hierarchy process (AHP), gray relational analysis (GRA), and technique for order preference by similarity to ideal solution (TOPSIS) [14,15,16,17]. The challenge of producing fresh fruits and vegetables is increasing both yield and quality to satisfy consumers as the environment changes in ways that are deleterious to crop species [18]. The quality of agricultural products is affected by many pre- and postharvest factors [9]. The utilization of biofertilizers that mitigate these adverse environmental effects has become a feasible and beneficial production practice. Plant growth-promoting rhizobacteria (PGPR) may be considered as preharvest biotic factors that mitigate adverse environmental effects and promote improved crop yield and quality [19,20].
Among various PGPR approaches, Bacillus species are considered as likely candidates due to their broad-spectrum antagonistic activity against phytopathogens, production of long-lived and stress-tolerant spores, secondary metabolites, lytic enzymes, resistance to adverse environments, and plant growth promotion [19,21,22,23]. Bacillus subtilis plays a significant role in improving plant growth and tolerance to both biotic and abiotic stresses. PGPR strains also act as bio-stimulants of phytohormones and peptide synthesis [20,24], but studies of the PGPR strain, B. subtilis CBR05 on tomato have not yet appeared. Preharvest factors that directly affect crop yield and quality can be summarized into biological factors comprising pathological, entomological, and animal issues, which was found to be nullified upon increased usage of PGPR. The dire need for assessment of tomato and tomato-based products is given significant attention concerning nutrition and quality relying on the nature of the variety, maturity at harvest, effective transport, and storage [25]. Characterization of the carotenoids, mainly β-carotene and lycopene during storage and various ripening stages, shows drastic developments in sustainable yield and quality parameters of tomato [26]. This information adds to our understanding of temporal differentiation of nutritionally significant phytochemicals during ripening of tomato fruits. The objective of this study was to evaluate the effects of B. subtilis CBR05 on the quality of tomato fruits under greenhouse conditions.

2. Material and Methods

2.1. Chemicals and Reagents

Authentic standards of carotenoid, all-E-lutein, was purchased from Cayman Chemical Company, Michigan, USA. All-E-β-carotene were purchased from Sigma-Aldrich, St. Louis, MO, USA. Only the HPLC grade of organic solvents was employed in carotenoid extraction (Daejung, Siheung-si, Korea).

2.2. Bacterial Strain and Culture Conditions

B. subtilis CBR05 isolated from our lab maintained on tryptic soy agar (TSA) plates. For long-time storage, bacterial cultures were maintained in tryptic soy broth at −80 °C. For experimental purposes, the cultures were transferred to TSA (MBCell, Seoul, Korea) and incubated at 30 °C for 24 h. The inoculum mixture of the strain was prepared by culturing in nutrient broth and incubating at 28 °C with constant shaking at 130 rpm. The bacterial cells were centrifuged at 10,000 g for 10 min at 4 °C. The cell precipitate was resuspended in 10 mM MgCl2 and the cell concentration of bacterial suspensions of B. subtilis CBR05 was adjusted to 108 colony-forming unit (CFU)/mL (OD600 = 1.0) for further studies.

2.3. Plant and Growth Conditions

Tomato seeds (Korean cultivar, Kwangbok) utilized for this study were obtained from a Korean seed resource center, Seoul, South Korea. They were surface sterilized in sodium hypochlorite, rinsed several times with distilled water, and planted onto pots containing sterilized growth media (Peat moss with perlite in a ratio of 3:1). Two sets of plants (three plants per set) were maintained, one without PGPR (mock-inoculated control) inoculation and the other with PGPR strain, B. subtilis CBR05 inoculum. All treatments were placed randomly in the greenhouse and replicated 3 times. Plant growth-promoting B. subtilis CBR05 were applied under sterile conditions to the base of the plants close to the roots to ensure better colonization. Plants were maintained under greenhouse conditions at a temperature of 25 °C with watering carried out every alternate day, to make a better availability for nutrition and plant growth promotion.

2.4. Antioxidant Assays

2.4.1. DPPH Assay

1,1-diphenyl-2-picrylhydrazyl (DPPH) assay was performed to assess the fractions exhibiting scavenging property of free radicals in vitro [27]. Then, 0.2 mM solution of DPPH in ethanol was added to the fraction of aliquot at concentrations (100 μg/mL). The mixture was allowed to stand for 30 min and the absorbance was measured at 517 nm using a UV-Visible spectrophotometer. The percent scavenging activity was determined and Trolox was used as the standard.

2.4.2. ABTS (2,2’-azino-bis (3-ethylbenzothiazoline-6-sulfonic acid) Assay

A Trolox equivalent antioxidant capacity (TEAC)/ABTS assay was conducted based on the method of Ramos et al. [28]. The ABTS solution (7 mM) was oxidized with potassium peroxodisulfate (2.45 mM) for 16–18h at room temperature. The ABTS solution was diluted with solvents. An aliquot (100 μg/mL) was mixed with diluted ABTS solution and the absorbance was read at 734 nm. Trolox and ascorbic acid were used as reference standards.

2.5. Determination of Total Phenolic Contents

The Folin–Ciocalteu method was used to estimate various concentrations concerned with the total phenolic content. The extracts were dissolved in absolute methanol and later 200 μL of the extract was mixed with 800 μL of 1 N Folin–Ciocalteu reagent (1: 10). After 5 min at room temperature, 3 mL of sodium carbonate (15%) was added to the extracts. Following incubation for 30 min at room temperature, the absorbance was read at 765 nm using a UV-spectrophotometer. A standard curve for gallic acid equivalents (GAE) (milligrams per gram of extract (mg GAE/ge)) was utilized to evaluate the concentration of total phenolic compounds. Analyses were performed in triplicate per each extract.

2.6. Determination of Total Flavonoid Contents

Screening the content of flavonoids was done by a modified protocol as reported previously [29]. The extracts were dissolved in absolute methanol. In a 15 mL conical tube, 1 mL of a sample was mixed with 0.3 mL of 5% sodium nitrite, followed by incubation for 5 min. After incubation, 0.3 mL of aluminum chloride (10%) and 2 mL of sodium hydroxide (1 mol/L) were added to the reaction mixture, and the absorbance was read at 496 nm with a UV-spectrophotometer, using catechin as the standard. Quercetin equivalents (QE) present per g of extract (mg QE/ge) was used to quantify the expression levels.

2.7. Extraction and Quantification of Carotenoids

Carotenoids were extracted in triplicates and quantified according to previously established protocol with minor modifications [30,31]. All the preparations were performed in low light conditions to avoid the degradation of carotenoids. Three independent biological samples were extracted separately. Briefly, one whole tomato fruit was finely chopped and mixed thoroughly. Five grams of chopped fruits (exact to 0.001 g) from each treatment were separately transferred into test tubes containing 20 mL of acetone and 0.1% butylated hydroxytoluene (BHT: w/v). The samples were homogenized with a mechanical homogenizer and centrifuged at 5000× g (5 min at 4 °C temperature). The supernatant was recovered and pelleted samples were repeatedly extracted until the pallets became colorless. Supernatants from all extractions were pooled and vacuum-dried in a rotary evaporator (Temperature < 35 °C) (Büchi RE 111, Switzerland).

2.8. HPLC Analysis

The extract was recovered with 10 mL of methylene chloride (CH2Cl2) containing 0.1% BHT and transferred to an amber color HPLC vial for HPLC analysis. The chromatographic separation was achieved using an Agilent Model 1100 HPLC instrument (Agilent Technologies Canada Inc., Mississauga, ON, Canada) equipped with a degasser, autosampler, dual pump, and diode array detector (DAD). Samples were scanned (200–800 nm) with 0.05 min (1 s) response time, 8.0 mm slit width, and a detection wavelength of 450 (for most of the carotenoids) and 470 nm (for lycopene). The bandwidth was ±16 nm for all detection wavelengths. Similarly, 600 nm was used as a reference wavelength with ±50 nm bandwidth in all detections. The column used was a YMC, C30 carotenoid column, 250 × 4.6 mm, 5 μm (YMC, Wilmington, NC, USA), and the chromatographic data were recorded with ChemStation LC 3D software. The column thermostat was maintained at 25 °C temperature. Then, 20 μL of standards and samples were injected with an autosampler. The solvent system consisted of Methanol: methyl tertiary butyl ether (MTBE): water (81:15:4) (Mobile phase A) and MTBE: Methanol (91:9) (Mobile phase B). The gradient elution was 0%–100% B in 90 min, and 5-min post-run at a flow rate of 1 mL/min.

2.9. Statistics

All of the experiments were conducted in triplicate and results were tabulated as the Mean ± standard deviation (SD). Statistical significance of the data was determined using one-way analysis of variance (one-way ANOVA) followed by Fisher LSD (Least Significant Difference) test. Data analyses were performed using Sigmastat v8.02 (Systat Software Inc., San Jose, CA, USA). A p value of ≤ 0.05 was considered significant.

3. Results

In the present investigation, the effects of the PGPR strain, B. subtilis CBR05 inoculation on the maintenance of carotenoids, total phenolics, flavonoid contents, and antioxidant properties were evaluated. The results revealed that the PGPR strain, B. subtilis CBR05 has the capacity to improve the plant growth and change some of the tomato fruit quality characteristics under greenhouse conditions. Tomato plants treated with PGPR strain, B. subtilis CBR05 showed significantly higher biomass compared with mock-inoculated controls. Significant increases in root length and dry weight, over mock-inoculated controls, were achieved in green-house conditions (data not shown). In addition, antioxidant activities of three tomato fruits (mock-inoculated, B. subtilis CBR05 inoculated, and market fruit) were determined using both DPPH and ABTS radical scavenging method. The extract of fruits from plants inoculated with B. subtilis CBR05 strain was the most active against DPPH and ABTS radical and that of fruits from the market, the differences being significant when compared to mock-inoculated control (Figure 1).
The total phenolic content of the fruit extracts is shown in Figure 2. Among the fruits, the PGPR strain, B. subtilis CBR05 inoculated plants had the highest phenolic content followed by market fruits. Moreover, the flavonoid contents were also elevated in PGPR treated tomato fruits as compared to those of both mock-inoculated control and market fruits (Figure 2). We did not find any significant differences between mock-inoculated control and market fruit. The results of this study show that B. subtilis CBR05 is an effective probiotic agent for the promotion of tomato fruit quality.
The carotenoids, such as lycopene and β-carotene, were extracted and quantified (Table 1). The contents and composition of carotenoids were found to differ among control, B. subtilis CBR05 inoculated, and market fruits (Figure 3). Carotenoid levels (lycopene) in tomato fruits in plants treated with PGPR strain, B. subtilis CBR05 were higher than both the control and market fruits (Table 1; Figure 3).
The present investigation extends their results by comparing the contents of carotenoids from the fruits using HPLC–DAD (Figure 4). Using this methodology, all-E- β -carotene and all-E- lycopene were identified as the major carotenoids in tomato fruits, based on retention time with standards and by comparing the peak spectra recorded with a DAD during the analysis. The chromatograms (470 nm) and the peak spectra of major identified peaks were shown in Figure 4. The other minor carotenoids were not quantified due to the unavailability of standard compounds. We did not find any significant differences in β-carotene. However, in the present study, we have recorded a significantly higher amount of lycopene (All-E-lycopene) in fruits during ripening in PGPR strain, B. subtilis CBR05 inoculated plants than those of both mock-inoculated control and market fruits. These results validate the productive roles of the B. subtilis CBR05 in enhancing the nutritional potential of tomato fruits.

4. Discussion

The use of PGPR is increasing in agriculture and may offer an attractive alternative to synthetic chemicals and fertilizers. Plant growth-promoting microorganisms are efficient microbial competitors that can promote plant growth by producing phytohormones and/or by increasing available nutrients through production of secondary metabolites or act as biocontrol agents to protect plants from infection by phytopathogens [19,21,22,23,24]. There have been many reports on PGPR and their effective roles [19,20,21,22,23,24]. Insufficient experimental work has been reported to speculate on the mechanisms of PGPR effects on fruit quality. In the present study, PGPR strain, B. subtilis CBR05 isolated from rice were used as inoculants for tomato plants grown under greenhouse conditions. Our results showed that PGPR inoculations significantly increased the total biomass and root length compared to those in the control. B. subtilis CBR05 appears to impart plant growth promotion effects that are distinct from other commercial biocontrol agents. Tomato fruits are a good source of antioxidant compounds that can reduce harmful oxidation reactions in the human body, thus preventing various diseases associated with free radical oxidation, such as cardiovascular and neurological disorders and cancer [1,2,3,4].
Antioxidant activity has been widely used to test the ability of plant extracts to act as free radical scavengers [32]. In the present investigation, B. subtilis CBR05 had a net positive effect on the antioxidant activity measured by the DPPH and ABTS scavenging capacity, which seems to indicate that the bacteria acted as a regulator of the synthesis of antioxidant compounds in the plant (Figure 1). Strong scavenging of ion radical was exhibited by the inoculated tomato fruits, thus showing that B. subtilis CBR05 inoculation increased the radical scavenging capacity of tomato fruits. In a previous study, B. licheniformis inoculated plants had increased antioxidant profiles in tomato plants under greenhouse conditions [32]. Similar results concerned with enhanced fruit quality and marketable grade have been reported for other crops under the influence of PGPR [33] but this report is the first of its kind to specifically address PGPR strain, B. subtilis CBR05 in improvement of fruit quality. Moreover, PGPR enhances fruit characteristics based on the mediation of increased availability of nutrients to plants like phosphorous and iron, enhancing the nutritional status of the plants in the rhizosphere [33,34,35].
Phenolic contents perform an essential role in plant resistance and defense against phytopathogens, which are closely linked with reactive oxygen species (ROS). This study reveals that among the selected tomato fruits, PGPR strain, B. subtilis CBR05 inoculated tomato fruits had the highest amount of phenolics (Figure 2). Some phenolic compounds may prevent oxidative damage in vivo and thus protect against the development of the disease such as cardiac disease and cancer [1,2]. This might be considered as useful for health purposes. In addition, inoculation of B. subtilis significantly increased flavonoid content compared to those of both control and market fruits. Similarly, increases in total flavonoids content by B. licheniformis have been reported for tomato fruits [32]. In our previous studies, we also found that B. subtilis CBR05 inoculation enhanced the accumulation of peroxidase and polyphenol oxidase enzymes, which are involved in the metabolism of phenols and flavonoids [22,23]. Hence, this shows that B. subtilis colonization induces resistance against biotic and abiotic stress agents. The results of antioxidant assays also revealed that tomatoes are a rich source of antioxidants, thus their habitual consumption can potentially help to combat the oxidative stress.
Regulation of carotenoid biosynthesis and high-accumulation lycopene during tomato fruit development is widely studied [36,37,38]. In the present study, we found a significantly higher amount of lycopene (All-E-lycopene) in B. subtilis CBR05 inoculated tomato fruits (Figure 3 and Figure 4). Lycopene possesses the highest antioxidant potential among the carotenoids and several other antioxidants found in fruits and vegetables [39]. Thus, the addition of PGPR enhances lycopene content in tomato fruits and can potentially contribute to antioxidant levels of diets. This potent antioxidant activity of lycopene protects from a variety of ROS and reactive nitrogen species (RNS), thus helping in preventing chronic diseases in humans [31,36]. Similar to the lycopene contents, the DPPH and ABTS antioxidant activity of B. subtilis CBR05 inoculated tomato fruits was much higher than both the control and market fruits. Earlier, we also reported that defense-related enzymes in tomato after treatment with B. subtilis CBR05 efficiently combated X. campestris pv, vesicotoria [40] and induction of defense-related enzymes like superoxide dismutase, catalase, peroxidase, and polyphenol oxidase assessment revealed the up-regulation of glucanase and phenyl ammonia lyase indicating induced systemic resistance (ISR) in tomato. The earlier results established that the antioxidant capabilities of tomatoes are naturally present. Further, it was specifically proved that B. subtilis CBR05 mechanism of disease resistance against X. campestris pv, vesicotoria was confirmed for the involvement of the de novo pathway involved in Vitamin B6 biosynthesis [41]. In addition, known bacterial elicitors of ISR are microbial associated molecular patterns triggering immunity. When this fails, microbial effector-triggered immunity is induced and leads to programmed cell death. It increases the plant’s systemic resistance to subsequent pathogen challenge by PGPR. Moreover, plant probiotic bacterium (PPB) could be used to reduce the use of chemicals (fertilizers, pesticides) in agriculture. This could lead to improved quality at reduced costs and could provide the basis for more sustainable agriculture [42]. Organic agriculture has been widely promoted and adopted to establish better sustainability in food production and crop protection. Micromonospora has been regarded as a PPB due to rhizobia helper bacteria properties in Medicago sativa L. [43]. Similarly, Phyllobacterium and B. licheniformis also show promising benefits for increasing vitamin C content across various functional foods and have been considered as PPB, devoid of economic loss [32,44].
In the present investigation, we extracted and quantified phenols, flavonoids, and carotenoids, in the mock-inoculated control, B. subtilis CBR05 inoculated plants and market fruits. Among them, PGPR strain, B. subtilis CBR05 inoculated tomato fruits were found to have the richest source of lycopene, total phenolics, and flavonoids contents. Additionally, the PGPR strain, B. subtilis CBR05 inoculated tomato fruits showed potent antioxidant activities. The significantly higher lycopene content and radical-quenching activity of PGPR strain, B. subtilis CBR05 inoculation confer tomato fruits with more nutritional value, and their consumption can minimize oxidative stress-mediated chronic diseases. Thus, biofertilizers based on PGPR may be a viable alternative to improve the nutraceutical quality of greenhouse-produced tomato fruits.

Author Contributions

Conceptualization, M.C., and S.C.C.; methodology, M.C., R.K.S., and S.C.C.; formal analysis, M.C., R.K.S., M.P., and S.C.C.; writing—Original draft preparation, M.C., M.P., J.J.S., and J.W.O.; writing and editing, M.C., J.J.S., M.P., and J.W.O.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Choi, S.H.; Kim, D.S.; Kozukue, N.; Kim, H.J.; Nishitani, Y.; Mizuno, M.; Levin, C.E.; Friedman, M. Protein, free amino acid, phenolic, β-carotene, and lycopene content, and antioxidative and cancer cell inhibitory effects of 12 greenhouse-grown commercial cherry tomato varieties. J. Food Compos. Anal. 2014, 34, 115–127. [Google Scholar] [CrossRef]
  2. Franceschi, S.; Bidoli, E.; La Vecchia, C.; Talamini, R.; D’Avanzo, B.; Negri, E. Tomatoes and risk of digestive-tract cancers. Int. J. Cancer 1994, 59, 181–184. [Google Scholar] [CrossRef] [PubMed]
  3. Saini, R.K.; Zamany, A.J.; Keum, Y.S. Ripening improves the content of carotenoid, alpha-tocopherol, and polyunsaturated fatty acids in tomato (Solanum lycopersicum L.) fruits. 3 Biotech 2017, 7, 43. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Klee, H.J.; Giovannoni, J.J. Genetics and control of tomato fruit ripening and quality attributes. Annu. Rev. Genet. 2011, 45, 41–59. [Google Scholar] [CrossRef]
  5. Alexander, L.; Grierson, D. Ethylene biosynthesis and action in tomato: A model for climacteric fruit ripening. J. Exp. Bot. 2002, 53, 2039–2055. [Google Scholar] [CrossRef]
  6. Konozy, E.H.E.; Rogniaux, H.; Causse, M.; Faurobert, M. Proteomic analysis of tomato (Solanum lycopersicum) secretome. J. Plant Res. 2012, 126, 251–266. [Google Scholar] [CrossRef]
  7. Barrett, D.M.; Weakley, C.; Diaz, J.V.; Watnik, M. Qualitative and nutritional differences in processing tomatoes grown under commercial organic and conventional production system. J. Food Sci. 2007, 72, 441–451. [Google Scholar] [CrossRef]
  8. Erba, D.; Casiraghi, M.C.; Ribas-Agustí, A.; Cáceres, R.; Marfà, O.; Castellari, M. Nutritional value of tomatoes (Solanum lycopersicum L.) grown in greenhouse by different agronomic techniques. J. Food Compos. Anal. 2013, 31, 245–251. [Google Scholar] [CrossRef]
  9. Dumas, Y.; Dadomo, M.; Di Lucca, G.; Grolier, P. Effects of environmental factors and agricultural techniques on antioxidant content of tomatoes. J. Sci. Food Agric. 2003, 83, 369–382. [Google Scholar] [CrossRef]
  10. Wang, X.; Xing, Y. Evaluation of the effects of irrigation and fertilization on tomato fruit yield and quality: A principal component analysis. Sci. Rep. 2017, 7, 350. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Beveridge, L.; Whitfield, S.; Challinor, A. Crop modelling: Towards locally relevantand climate-informed adaptation. Clim. Chang. 2018, 147, 475–489. [Google Scholar] [CrossRef] [Green Version]
  12. Challinor, A.J.; Müller, C.; Asseng, S.; Deva, C.; Nicklin, K.J.; Wallach, D.; Vanuytrecht, E.; Whitfield, S.; Ramirez-Villegas, J.; Koehler, A.K. Improving the use of crop models for risk assessment and climate change adaptation. Agric. Syst. 2018, 159, 296–306. [Google Scholar] [CrossRef] [PubMed]
  13. Giuliani, M.M.; Gatta, G.; Cappelli, G.; Gagliardi, A.; Donatelli, M.; Fanchini, D.; De Nart, D.; Mongiano, G.; Bregaglio, S. Identifying the most promising agronomic adaptation strategies for the tomato growing systems in Southern Italy via simulation modeling. Eur. J. Agron. 2019, 111, 125937. [Google Scholar] [CrossRef]
  14. Wang, F.; Kang, S.; Du, T.; Li, F.; Qiu, R. Determination of comprehensive quality index for tomato and its response to different irrigation treatments. Agric. Water Manag. 2011, 98, 1228–1238. [Google Scholar] [CrossRef]
  15. Shi, S.; Chen, D.; Fu, J.; Liu, L.; Wei, Y.; Shu, B.; Li, W.; Liang, Q.; Liu, C. Comprehensive evaluation of fruit quality traits in longan ‘Fengliduo’ × ‘Dawuyuan’ sexual progenies. Sci. Hortic. 2015, 192, 54–59. [Google Scholar] [CrossRef]
  16. Wang, C.; Gu, F.; Chen, J.; Yang, H.; Jiang, J.; Du, T.; Zhang, J. Assessing the response of yield and comprehensive fruit quality of tomato grown in greenhouse to deficit irrigation and nitrogen application strategies. Agric. Water Manag. 2015, 161, 9–19. [Google Scholar] [CrossRef]
  17. Luo, H.; Li, F. Tomato yield, quality and water use efficiency under different drip fertigation strategies. Sci. Hortic. 2018, 235, 181–188. [Google Scholar] [CrossRef]
  18. Mader, P.; Fliessbach, A.; Dubois, D.; Gunst, L.; Fried, P.; Niggli, U. Soil fertility and biodiversity in organic farming. Science 2002, 296, 1694–1697. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Vessey, J.K. Plant growth promoting rhizobacteria as biofertilizers. Plant Soil 2003, 255, 571–586. [Google Scholar] [CrossRef]
  20. Mena-Violante, H.G.; Olalde-Portugal, V. Alteration of tomato fruit quality by root inoculation with plant growth-promoting rhizobacteria (PGPR): Bacillus subtilis BEB-13bs. Sci. Hortic. 2007, 113, 103–106. [Google Scholar] [CrossRef]
  21. Zehnder, G.W.; Murphy, I.F.; Sikora, E.J.; Kloepper, J.W. Application to rhizobacteria for induced resistance. Eur. J. Plant Pathol. 2001, 107, 39–50. [Google Scholar] [CrossRef]
  22. Chandrasekaran, M.; Chun, S.C. Induction of defence-related enzymes in tomato (Solanum lycopersicum) plants treated with Bacillus subtilis CBR05 against Xanthomonas campestris pv. vesicatoria. Biocontrol Sci. Technol. 2016, 26, 1366–1378. [Google Scholar] [CrossRef]
  23. Chandrasekaran, M.; Chun, S.C. Expression of PR-protein genes and induction of defense-related enzymes by Bacillus subtilis CBR05 in tomato (Solanum lycopersicum) plants challenged with Erwinia carotovora subsp. carotovora. Biosci. Biotechnol. Biochem. 2016, 80, 2277–2283. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Glick, B.R.; Penrose, D.M.; Li, J. A model for the lowering of plant ethylene concentrations by plant growth promoting bacteria. J. Theor. Biol. 1998, 190, 63–68. [Google Scholar] [CrossRef] [PubMed]
  25. Verheul, M.; Maessen, H.; Grimstad, O.S. Optimizing a year-round cultivation system of tomato under artificial light. Acta Hortic. 2012, 956, 389–394. [Google Scholar] [CrossRef]
  26. Moco, S.; Capanoglu, E.; Tikunov, Y.; Bino, R.J.; Boyacioglu, D.; Hall, R.D.; Vervoort, J.; De Vos, R.C. Tissue specialization at the metabolite level is perceived during the development of tomato fruit. J. Exp. Bot. 2007, 58, 4131–4146. [Google Scholar] [CrossRef] [Green Version]
  27. Blois, M.S. Antioxidant determinations by the use of a stable free radical. Nature 1958, 181, 1199–1200. [Google Scholar] [CrossRef]
  28. Ramos, A.; Rivero, R.; Victoria, M.C.; Visozo, A.; Piloto, J.; Garcia, A. Assessment of mutagenicity in Parthenium hysterophorus L. J. Ethnopharmacol. 2001, 77, 25–30. [Google Scholar] [CrossRef]
  29. Chen, L.; Xin, X.; Yuan, Q.; Su, D.; Liu, W. Phytochemical properties and antioxidant capacities of various colored berries. J. Sci. Food Agric. 2014, 94, 180–188. [Google Scholar] [CrossRef]
  30. Rodriguez-Amaya, D.B. A Guide to Carotenoid Analysis in Foods; ILsi Press: Washington, DC, USA, 2001. [Google Scholar]
  31. Saini, R.K.; Nile, S.H.; Park, S.W. Carotenoids from fruits and vegetables: Chemistry, analysis, occurrence, bioavailability and biological activities. Food Res. Int. 2015, 76, 735–750. [Google Scholar] [CrossRef]
  32. Ochoa-Velasco, C.E.; Valadez-Blanco, R.; Salas-Coronado, R.; Sustaita-Rivera, F.; Hernández-Carlos, B.; García-Ortega, S.; Santos-Sánchez, N.F. Effect of nitrogen fertilization and Bacillus licheniformis biofertilizer addition on the antioxidants compounds and antioxidant activity of greenhouse cultivated tomato fruits (Solanum lycopersicum L. var. Sheva). Sci. Hortic. 2016, 201, 338–345. [Google Scholar] [CrossRef]
  33. Baset Mia, M.A.; Shamsuddin, Z.H. Nitrogen fixation and transportation by rhizobacteria: A scenario of rice and banana. Int. J. Bot. 2010, 6, 235–242. [Google Scholar]
  34. Bar-Ness, E.; Chen, Y.; Hadar, Y.; Marchner, H.; Romheld, V. Siderophores of Pseudomonas putida as an iron source for dicot and monocot plants. Plant Soil 1991, 130, 231–241. [Google Scholar] [CrossRef]
  35. Lucas, G.J.A.; Probanza, A.; Ramos, B.; Palomino, M.R.; Gutierrez Mañero, F.J. Effect of inoculation of Bacillus licheniformis on tomato and pepper. Agronomie 2004, 24, 169–176. [Google Scholar]
  36. Martí, R.; Roselló, S.; Cebolla-Cornejo, J. Tomato as a source of carotenoids and polyphenols targeted to cancer prevention. Cancer 2016, 8, 58. [Google Scholar] [CrossRef]
  37. Ronen, G.; Cohen, M.; Zamir, D.; Hirschberg, J. Regulation of carotenoid biosynthesis during tomato fruit development: Expression of the gene for lycopene epsilon-cyclase is downregulated during ripening and is elevated in the mutant Delta. Plant J. Cell Mol. Biol. 1999, 17, 341–351. [Google Scholar] [CrossRef]
  38. Su, L.; Diretto, G.; Purgatto, E.; Danoun, S.; Zouine, M.; Li, Z.; Roustan, J.P.; Bouzayen, M.; Giuliano, G.; Chervin, C. Carotenoid accumulation during tomato fruit ripening is modulated by the auxin–ethylene balance. BMC Plant Biol. 2015, 15, 114. [Google Scholar] [CrossRef]
  39. Zhang, Y.; Liu, Y.; Lv, Q. DFT study on the quenching mechanism of singlet oxygen by lycopene. RSC Adv. 2016, 6, 98498–98505. [Google Scholar] [CrossRef]
  40. Chandrasekaran, M.; Belachew, S.T.; Yoon, E.; Chun, S.C. Expression of β-1,3-glucanase (GLU) and phenylalanine ammonia-lyase (PAL) genes and their enzymes in tomato plants induced after treatment with Bacillus subtilis CBR05 against Xanthomonas campestris pv. vesicatoria. J. Gen. Plant Pathol. 2016, 83, 7–13. [Google Scholar] [CrossRef]
  41. Chandrasekaran, M.; Manivannan, P.; Chun, S.C. Bacillus subtilis CBR05 induces Vitamin B6 biosynthesis in tomato through the de novo pathway in contributing disease resistance against Xanthomonas campestris pv. vesicatoria. Sci. Rep. 2019, 9, 6495. [Google Scholar] [CrossRef]
  42. Jiménez-Gómez, A.; Flores-Félix, J.D.; García-Fraile, P.; Mateos, P.F.; Menéndez, E.; Velázquez, E.; Rivas, R. Probiotic activities of rhizobium laguerreae on growth and quality of spinach. Sci. Rep. 2018, 8, 295. [Google Scholar] [CrossRef]
  43. Martínez-Hidalgo, P.; García, J.M.; Pozo, M.J. Induced systemic resistance against Botrytis cinerea by Micromonospora strainsisolated from root nodules. Front. Microbiol. 2015, 6, 922. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Flores-Felix, J.D.; Silva, L.R.; Rivera, L.P.; Marcos-Garcia, M.; Garcia-Fraile, P.; Martinez-Molina, E.; Mateos, P.F.; Velazquez, E.; Andrade, P.; Rivas, R. Plants probiotics as a tool to produce highly functional fruits: The case of Phyllobacterium and vitamin C in strawberries. PLoS ONE 2015, 10, e0122281. [Google Scholar] [CrossRef]
Agronomy 09 00838 g001 550

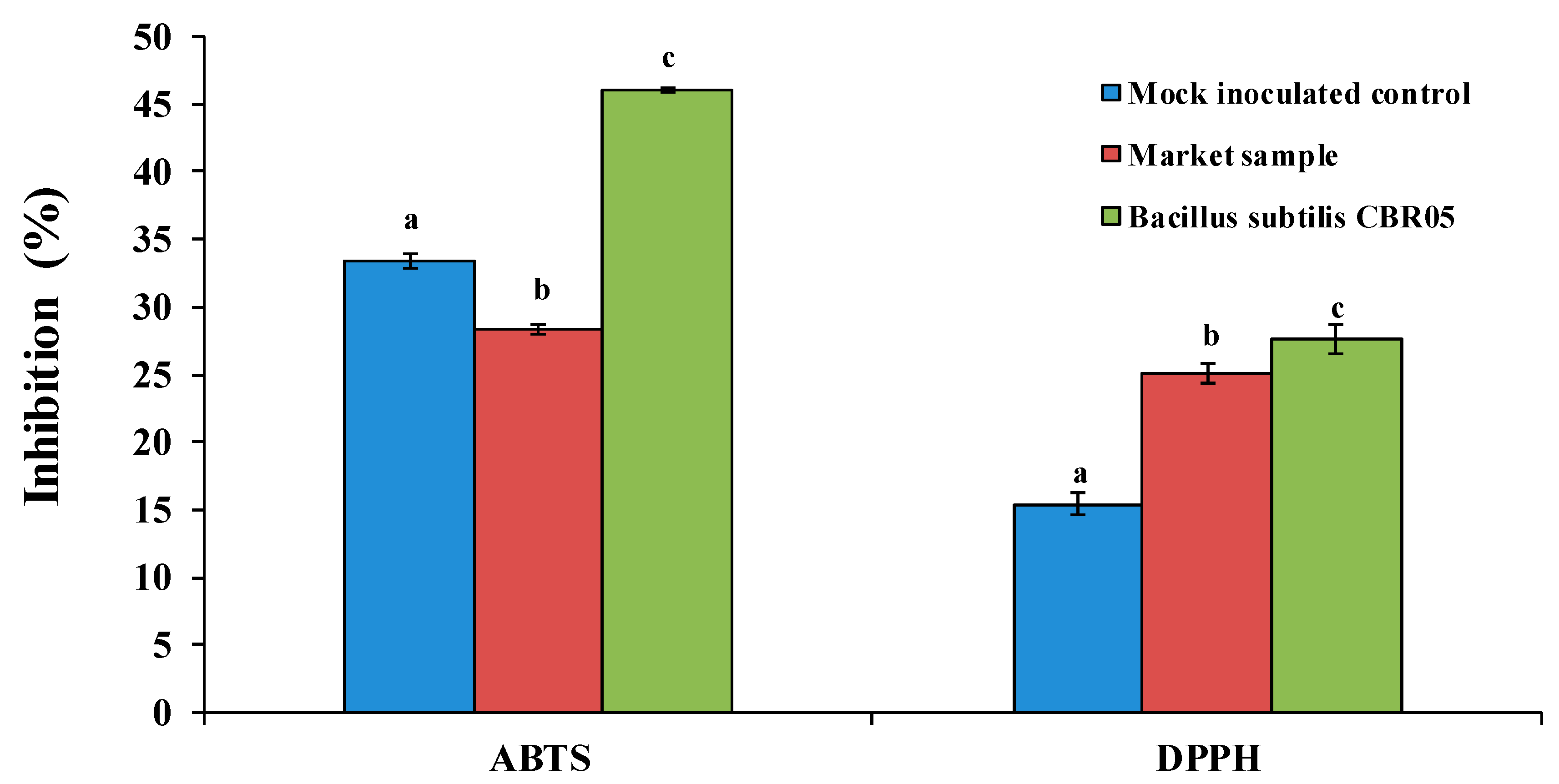

Figure 1. Antioxidant assays ((2,2’-azino-bis (3-ethylbenzothiazoline-6-sulfonic acid) (ABTS) and 1,1-diphenyl-2-picrylhydrazyl (DPPH)). Values are mean ± standard deviation from three replicates. Bars followed by the same letter(s) are not significantly different (p ≤ 0.05).
Figure 1. Antioxidant assays ((2,2’-azino-bis (3-ethylbenzothiazoline-6-sulfonic acid) (ABTS) and 1,1-diphenyl-2-picrylhydrazyl (DPPH)). Values are mean ± standard deviation from three replicates. Bars followed by the same letter(s) are not significantly different (p ≤ 0.05).
Agronomy 09 00838 g001
Agronomy 09 00838 g002 550

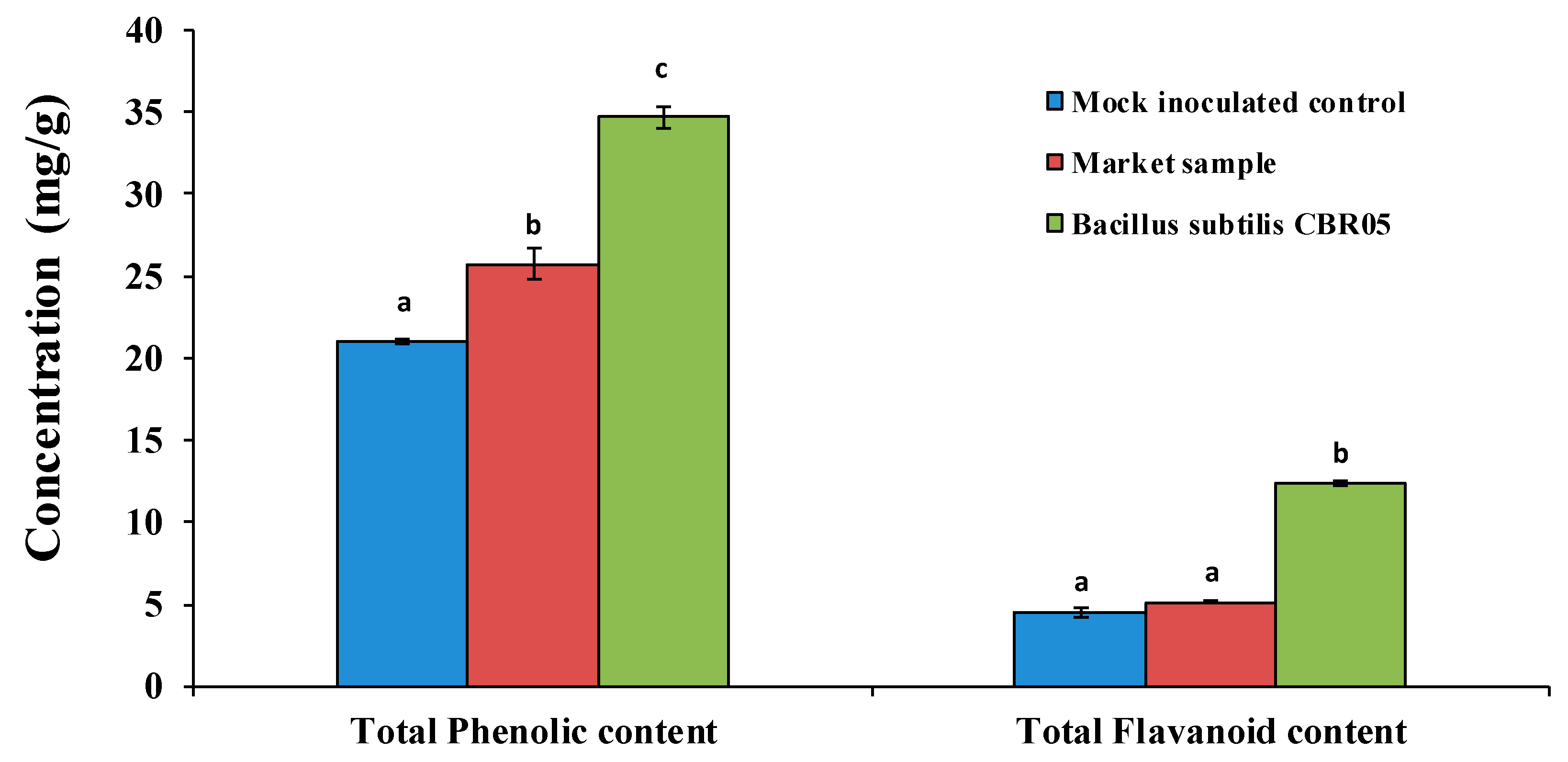

Figure 2. Total phenol and flavonoids contents. Values are mean ± standard deviation from three replicates. Bars followed by the same letter(s) are not significantly different (p ≤ 0.05).
Figure 2. Total phenol and flavonoids contents. Values are mean ± standard deviation from three replicates. Bars followed by the same letter(s) are not significantly different (p ≤ 0.05).
Agronomy 09 00838 g002
Agronomy 09 00838 g003 550

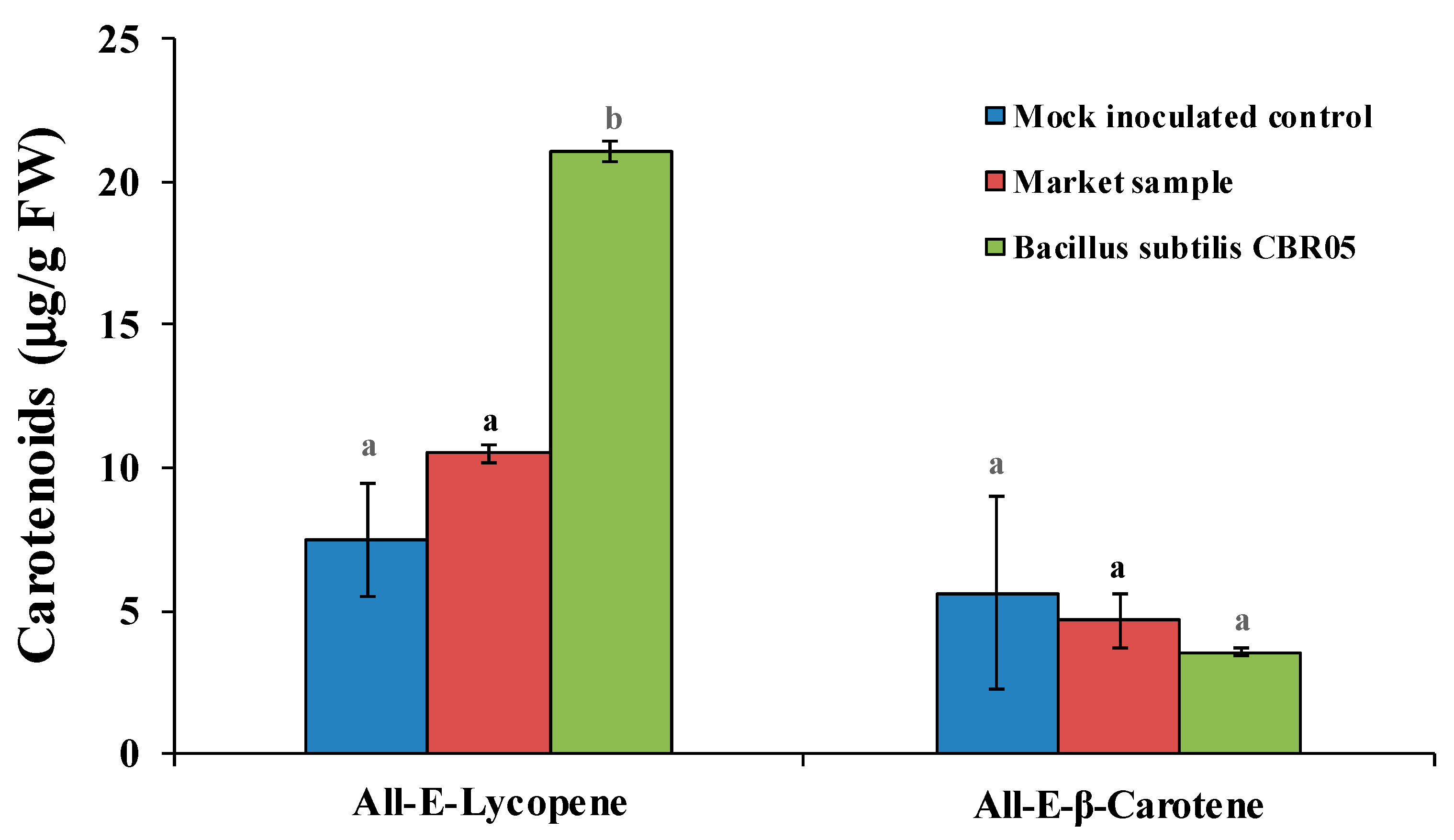

Figure 3. Carotenoids’ contents (lycopene and β-carotene). Values are mean ± standard deviation from three replicates. Bars followed by the same letter(s) are not significantly different (p ≤ 0.05).
Figure 3. Carotenoids’ contents (lycopene and β-carotene). Values are mean ± standard deviation from three replicates. Bars followed by the same letter(s) are not significantly different (p ≤ 0.05).
Agronomy 09 00838 g003
Agronomy 09 00838 g004 550

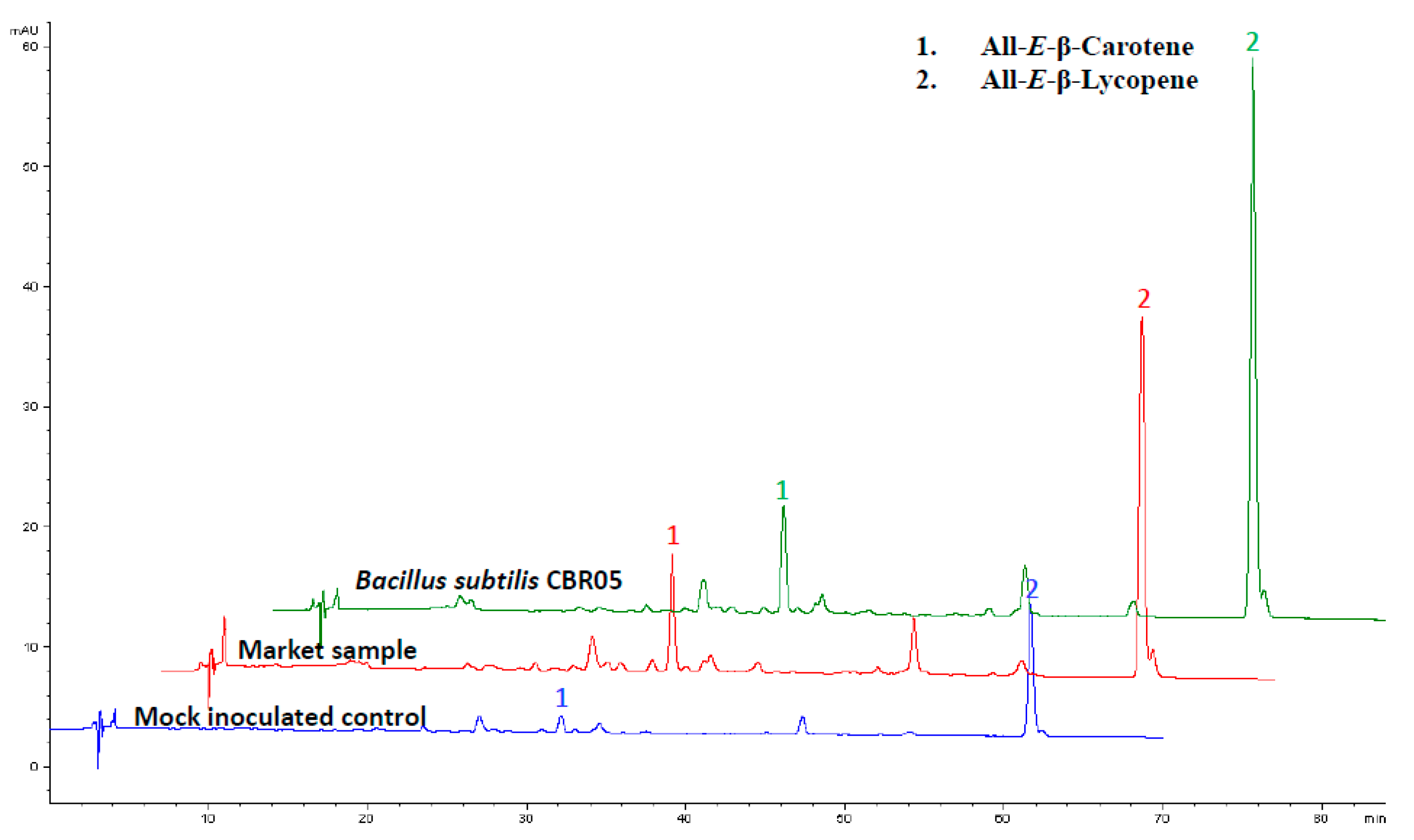

Figure 4. HPLC chromatogram of carotenoids.
Figure 4. HPLC chromatogram of carotenoids.
Agronomy 09 00838 g004
Table
Table 1. Contents of carotenoids in tomato fruits.
Table 1. Contents of carotenoids in tomato fruits.
TreatmentCarotenoidsContent (μg/g FW)
Mock inoculated controlAll-E-β-Carotene5.63 ± 0.28 a
All-E-Lycopene7.48 ± 1.96 a
Market tomatoAll-E-β-Carotene4.65 ± 0.96 a
All-E-Lycopene10.51 ± 3.34 a
Bacillus subtilis CBR05All-E-β-Carotene3.53 ± 0.12 a
All-E-Lycopene21.08 ± 0.32 b
In each experiment, means followed by different superscript letters are significantly different among the treatment groups (p ≤ 0.05). Values are mean ± standard deviation from three replicates.
