Glyphosate Resistance Confirmation and Field Management of Red Brome (Bromus rubens L.) in Perennial Crops Grown in Southern Spain

Abstract

The excessive use of the herbicide glyphosate on annual and perennial crops grown in Southern Spain has caused an increase in resistant weed populations. Bromus rubens has begun to spread through olive and almond cultivars due to low glyphosate control over these species, whereas previously it had been well controlled with field dose (1080 g ae ha⁻¹). Characterization using Simple Sequence Repeat (SSR) markers confirmed the presence of B. rubens collected in Andalusia. A rapid shikimic acid accumulation screening showed 17 resistant (R) populations with values between 300 and 700 µg shikimate g⁻¹ fresh weight and three susceptible (S) populations with values between 1200 and 1700 µg shikimate g⁻¹ fresh weight. In dose–response experiments the GR₅₀ values agreed with previous results and the resistance factors (RFs: GR₅₀ R/GR₅₀ S (Br1)) were between 4.35 (Br9) and 7.61 (Br19). Foliar retention assays shown no differences in glyphosate retention in both R and S populations. The tests carried out in a resistant field (Br10) demonstrated the control efficacy of pre-emergence herbicides since flazasulfuron in the tank mix with glyphosate had up to 80% control 15 to 120 days after application (DAA) and grass weed postemergence herbicides, such as propaquizafop + glyphosate and quizalofop + glyphosate, had up to 90% control 15 to 90 DAA. Results confirm the first scientific report of glyphosate-resistant B. rubens worldwide; however, the use of herbicides with another mode of action (MOA) is the best tool for integrated weed management.

1. Introduction

Weed control has been performed by the application of multiples herbicides with different modes of action (MOAs) since the 1940s [1]. Specifically, the herbicide glyphosate (N-(hosphonomethyl)glycine) has been commercialized worldwide since the 1970s and is used as a broad-spectrum and postemergence treatment for weed control due to its translocation ability in plants [2]. The MOA of glyphosate is by aromatic amino acids biosynthesis inhibition [3]. The broad-spectrum activity of this herbicide is due to the inhibition of 5-enolpyruvyl-3-shikimate phosphate synthase (EPSPS), which is present in all plants [4]. The EPSPS enzyme acts in the shikimic acid pathway in the biosynthesis of aromatic amino acids, such as phenylalanine, tyrosine, and tryptophan [5]. These amino acids are essential for plants and when they are inhibited by the action of glyphosate all susceptible plants die.

Nowadays, it is know that the weed resistance is the consequence of selection pressure by farmers coupled with the high evolution capacity of weed populations [6]. The resistant populations shown a selective-evolutive advantage over other weed species treated with herbicides, which increase the potential of the establishment of resistant weeds [7,8]. Thus, one consequence of the widespread usage of glyphosate for weed control (as a unique control tool) has been the evolution of glyphosate-resistant (G-R as from now) weeds [9,10]. This represents a dramatic scenario because growers should be increasing the rate doses or changing to other herbicides to obtain satisfactory control over weed populations [11]. There have been reports of G-R in grass weeds since the 1990s [12]. Recently, 52 species were classified as G-R, 26 of which were monocotyledons of various genera, including Bromus spp. Although this list includes B. catharticus (2017), B. diandrus (2011), and Bromus rubens (2014) [13], there are only two publications with established resistance parameters B. diandrus [14] in Southern Australia (AU) and B. sterilis [15] in the United Kingdom (UK).

Bromus L. is a large genus of the Poaceae family which comprises around 160 annual and perennial species [16]. This genus is distributed worldwide and is well known for being taxonomically complex [16,17] because of important morphological variations, plasticity, and hybridization [18]. In the Mediterranean region, B. rubens L. ((syn.: Anisantha rubens (L.) Nevski, B. madritensis L. subsp. rubens (L.) Husnot) (Medit.)), also known as red brome, is an important winter-annual grass weed [19]. This species has typical brush-like condensed panicles that are markedly different from Bromus madritensis L. [20]. B. rubens and B. madritensis are successful colonizers in North America and other countries [21]. In Spain, farmers sometimes use it as a cover crop with perennial crops, such as olive and almond. Soil erosion is one of the most important problems in Mediterranean agriculture. In the 1990s, it was concluded that cultivation with cover crops is of great interest in olive and almond groves with soils at a special risk of erosion. The soil losses in perennial crops on slopes are around 10 to 50 t ha⁻¹ year⁻¹ [22].

Regarding integrated weed management, cover crops are an important tool for control of weed species and erosion soil. However, another type of control is also necessary. With the aim of establishing the use of herbicides as rapid and effective tools in control of weed populations, farmers should incorporate pre- and postemergence herbicides to manage them in olive and almond crops. In the last four decades, the most frequently used herbicides have been Photosystem II and I (PS II and I), Acetolactate synthase (ALS), Acetyl CoA Carboxylase (ACCase), Glutamine synthase (GS), and EPSPS inhibitors [22,23].

B. rubens has been maintained principally by mechanical mowing and herbicides such as arloxyphenoxypropionate (FOP) and glyphosate (ACCase and EPSPS inhibitors, respectively). In 2018, farmers in Southern Spain reported failures in the field B. rubens control. Because glyphosate was used for weed control in olive and almond crops for many years, we hypothesized that B. rubens may have been selected as resistant. The concern of this scenario is serious because there are not many herbicides capable of such effective control and low cost as glyphosate.

Due to the complexity and adaptative attributes of the Bromus genus, the aims of this work were: (a) discriminate different species of the Bromus genus using molecular markers; (b) confirm B. rubens G-R in Spain using rapid shikimic acid accumulation and dose–response bioassays; (c) search directly in an almond field for alternative herbicide control with different MOAs.

2. Materials and Methods

2.1. Plant Material

In 2018, glyphosate application had poor control of B. rubens present in different perennial crops in Andalusia, Spain, mainly in the provinces of Cordoba, Malaga, and Granada. Twenty populations were harvested from different fields with/without history of glyphosate treatments. The populations were separated and labeled in paper envelopes and taken into a cold chamber (4 °C day/night) until further assays (

Table 1. Characteristics of Bromus rubens populations used in this work, code assigned to each population, history of application, and coordinates.

Code	Location	Crops	History of Application (Years) a	Coordinates
Br1	Malaga	Young olive	organic	37.105500, −4.551778
Br2	Cordoba	Orchard	>10	37.646157, −4.311400
Br3	Granada	Railway	Tank mix b	37.389201, −3.582310
Br4	Granada	Orchard	20	37.394245, −3.566320
Br5	Granada	Orchard	>15	37.393319, −3.564946
Br6	Cordoba	Almond	>10	37.736953, −4.645727
Br7	Cordoba	Almond	>15	37.737263, −4.645049
Br8	Cordoba	Orchard	>15	37.708111, −4.789167
Br9	Granada	Orchard	10–15	37.394377, −3.570889
Br10	Cordoba	Almond	>15	37.737492, −4.646091
Br11	Cordoba	Young olive	3	37.681839, −4.632792
Br12	Granada	Orchard	10–15	37.393853, −3.572896
Br13	Cordoba	No crop	>15	37.631281, −4.280830
Br14	Cordoba	Orchard	>15	37.710540, −4.790917
Br15	Cordoba	Orchard	10–15	37.707483, −4.789220
Br16	Malaga	Olive	>15	36.983067, −4.950822
Br17	Malaga	Olive	>15	36.979917, −4.939506
Br18	Malaga	Olive	10–15	37.035831, −4.590087
Br19	Malaga	Olive	20	36.978790, −4.649318
Br20	Malaga	Olive	20	37.051456, −4.354452

^a Years using glyphosate; during the last 10 years, farmers declared use of other herbicides such as oxyfluorfen (Protoporphyrinogen Oxidase (PPO) inhibitor) or flazasulfuron (Acetolactate Synthase (ALS) inhibitor) in tank mixtures with glyphosate. ^b Mix of herbicides to control grasses and broadleaf plants.

). For germination, the seeds were placed in trays (15 × 15 × 5 cm) with previously humidified peat-moss and trays were placed in a cold chamber for 48 h. After this time, they were taken to a growth chamber (26/18 °C day/night) with 60% relative humidity and 12 h of light density at 850 mmol m⁻² s⁻¹.

Seedlings of the 20 populations were transplanted into pots (one plant plot⁻¹) with 240 g of substrate (soil:peat moss (1:1)) that was previously irrigated. All populations were transferred to a greenhouse and watered daily to field capacity before and during assays.

2.2. Molecular Characterization of Bromus spp.

Four populations previously identified as B. sterilis, B. tectorum, B. diandrus, and B. madritensis [24] plus twenty populations of B. rubens identified in situ were used for molecular characterization. A total of 24 populations were characterized using Simple Sequence Repeat (SSR) markers following the methodology described by Ramakrishnan et al. [25] with some modifications. For this step, ten individuals from each population were used. Samples of ~100 mg of young leaf tissue from each plant at BBCH 13–14 stage [26] were taken to obtain DNA. Forward primers were tailed with the M13 sequence (5′-TGTAAAACGACGCCAGT-3′) at the 5′ ends for fluorescent labelling of PCR fragments [27]. Amplification of DNA was carried out in a 15 µL reaction mixture containing 20 ng of DNA, 5x Buffer (50 mM KCl, 10 mM Tris-HCl, 0.1% Triton X-100), 2.5 mM MgCl₂, 250 µM of dNTPs, 0.1 µM of forward primer, 0.4 µM of reverse primer, 0.4 µM of 6-FAM, and 0.25 units of Taq DNA polymerase (BIOTOOLS). PCR reactions were performed in a Biometra^® thermocycler and conditions of the PCR amplification were as follows: one cycle of 15 min at 95 °C, then 40 cycles of 30 s at 95 °C, 30 s at 60 °C, and 30 s at 72 °C, followed by 8 cycles of 30 s at 90 °C, 45 s at 53 °C, and 45 s at 72 °C, and one final extension step of 10 min at 72 °C. Subsequently, the PCR products were separated using an automatic capillary sequencer (ABI 3130 Genetic Analyzer Applied Biosystems, Madrid/HITACHI, Madrid, Spain) from the University of Cordoba, Spain. The results were analyzed using Genotyper software 3.7 (Applied Biosystems). A DNA standard (400HD-ROX) was used to calculate the size of the amplified PCR fragments (alleles) for each SSR marker alleles. Genetic distances between all individuals were calculated using Jaccard’s coefficient of similarity. Grouping of the genotypes was determined using the unweighted pair group method with arithmetic mean (UPGMA) and a dendrogram was generated with the NTSYS program [28].

2.3. Resistant Fast Screening by Shikimic Acid Accumulation Assay

The main objective of this assay was to differentiate resistant and susceptible populations, knowing that the increase in shikimic acid accumulation referred to the action of glyphosate and therefore, were considered susceptible (S). However, those populations that accumulated very little or nothing were labeled as resistant (R). Discs were cut from the youngest leaf of ten plants and then were pooled. In total, 50 mg from each mix per population was transferred into 2 mL Eppendorf tubes containing 999 µL of monoammonium phosphate (NH₄H₂PO₄ 10 mM, pH 4.4) plus 1 µL of glyphosate (1000 µM). The shikimic acid accumulation was performed according to methodology described by Vázquez-García et al. [29] with some modifications. Four treated replications and four nontreated samples were used in a completely random design test. Finally, the results were indicated in µg of shikimic acid g⁻¹ fresh tissue.

2.4. Glyphosate Dose–Response Curves Assay

Whole plants at BBCH 13–14 stage [26] of each population were treated with glyphosate (Roundup Energy^® SL, 45% as isopropylamine salt, Monsanto) doses ranging from 0 to 3000 g ae ha⁻¹. Herbicide application was performed by chamber (SBS-060 De Vries Manufacturing, Hollandale, MN, United States) equipped with an 8002 flat fan nozzle delivering 200 L ha⁻¹ at 250 KPa. After application, the plants were taken into the greenhouse and irrigated daily as necessary. Ten replications (one plant = one replication) per glyphosate dose were used in a completely random design test. At 21 days after application, the survival plants were evaluated to estimate the lethal dose to kill 50% of population (LD₅₀). In addition, plants were weighed after dried them at 60 °C for 48 h. Subsequently, the dose that inhibits the plant growth to 50% (GR₅₀) was estimated.

2.5. Glyphosate Foliar Retention Assay

The retention experiment was performed in six plants of each B. rubens population. According to González-Torralva et al. [30], a glyphosate dose of 360 g ae ha⁻¹ plus 100 mg L⁻¹ Na-fluorescein was applied to B. rubens plants. The treatment equipment was described in the previous section. Two hours after application, the plants were cut and transferred to test tubes which contained 50 mL of 5 mM NaOH. Then, test tubes were shaken for 30 s to remove the spray solution. Subsequently, the washed solution was transferred to glass vials to measure the fluorescein absorbance; for this step, a spectrofluorometer (Hitachi F-2500, Tokyo, Japan) with an excitation wavelength of 490 nm and absorbance at 510 nm was used. Finally, plants were weighed after 48 h at 60 °C drying. A completely randomized design was performed with two repetitions (one repetition = six plants per population). The results are expressed in µL spraying solution per gram dry matter.

2.6. Chemical Alternatives In Situ

This trial was carried out during two growing seasons at winter–spring time (2018–2019 and 2019–2020) in a field where some G-R populations originated. In “La Reina” (37.737492, −4.646091), almond groves infested with B. rubens (80% infestation) were treated with glyphosate and other herbicides (

Table 2. Herbicide treatments tested in situ for control effectiveness of glyphosate-resistant Bromus rubens in field.

Active Ingredient a	Commercial Name b	Doses (g ae/ai ha−1)	Timing
Untreated	-	-	-
Flazasulfuron + glyphosate	Terafit® WG + Roundup Energy® SL	50 + 1080	Pre-emergence
Diflufenican + iodosulfuron + glyphosate	Musketeer® OF + Roundup Energy® SL	150 + 10 + 1080	Pre-emergence
Chlorotoluron + diflufenican	Anibal® SC	1800+ 113	Pre-emergence
Diflufenican + glyphosate	Zarpa® SC	280 + 1120	Pre-emergence
Glyphosate	Roundup Energy® SL	1080	Postemergence
Glyphosate	Roundup Energy® SL	1800	Postemergence
Flazasulfuron + glyphosate	Chikara Duo® WG	20 + 860	Postemergence
Glyphosate + propaquizafop	Roundup Energy® SL + Ágil® EC	1080 + 150	Postemergence
Glyphosate + quizalofop	Roundup Energy® SL + Leopard® EC	1080+ 100	Postemergence

^a (Flazasulfuron (Terafit^®, 25% WG, Syngenta, Spain); Glyphosate (Roundyp Energ^®, 45% p/v. SL, Monsanto, Spain); Diflufenican + glyphosato (Musketeer^®, 15% p/v. diflufenican + 1% p/v. iodosulfuron-methyl, OF, Bayer CropScience, Sapain); Chlorotoluron + diflufenican (Anibal^®. 40% p/v. chlorotoluron + 2.5% p/v. diflufenican, SC, ADAMA, Spain); Diflufenican + glyphosate (Zarpa^®, 4% p/v. diflufenican + 16% p/v. glyphosate, SC, BASF Agro, Spain); Flazasulfuron + glyphosate (Chikara Duo^®, 6.7 g kg⁻¹ flazasulfuron + 288 g kg⁻¹ glifosato, WG, Belchim Crop Protection, Spain); Propaquizafop (Agil^®, 10% p/v, EC, ADAMA, Spain); Quizalofop (Leopard^®, 5% p/v, EC ADAMA, Spain). ^b WG: water dispensable granules; SL: Soluble concentrate; OF: Oil miscible flowable concentrate; SC: Suspension concentrate; EC: Emulsifiable concentrate.

) to test their performances. A randomized complete block design with four replications was used. The herbicide treatments were performed in plots of 10 m² at two different stages: (a) pre-emergence and (b) postemergence. A Pulverex backpack sprayer equipped with four flat fan nozzles Teejet 11002, at a spraying pressure of 200 kPa and calibrated to deliver a volume of 200 L ha⁻¹ was used for applications. The control was evaluated 30, 60, 90, and 120 days after application (DAA) at pre- and 30, 60, and 90 DAA at postemergence stages for the percentage of effectiveness in B. rubens control. Control ratings were expressed on a 0 (no control) to 100 (plant dead) scale.

2.7. Statistical Analyses

Parameters GR₅₀ and LD₅₀ described in dose–response curve assays were estimated with a nonlinear regression using Equation (1).

Y = c + {(d − c)/[1 + (x/g)b]}

(1)

where Y is the dry weight, or plant mortality expressed as a percentage of the value for the untreated control, c and d are the coefficients corresponding to the lower (fixed at 0) and upper asymptotes, respectively, b is the slope of the curve point (i.e., GR₅₀, LD₅₀), x (independent variable) is the glyphosate doses, and g is the herbicide rate at the point of inflection curve. The nonlinear regression analyses were conducted using the R package “drc” [31].

In addition, GR₅₀ and LD₅₀ resistance factor (RF) was calculated with Equation (2).

RF = (GR₅₀ or LD₅₀ R/GR₅₀ or LD₅₀ S)

(2)

where “R” is the resistant population and “S” is susceptible population.

For the rest of experiments, the normal error distribution and the homogeneity of the variance were verified for each set. Finally, data were assessed via analysis of variance (ANOVA) using the Statistix software version 10.0 (Analytical software, Tallahassee, FL, USA). A Tukey (p < 0.05) test was conducted to compare the means.

3. Results

3.1. Bromus spp. Molecular Characterization

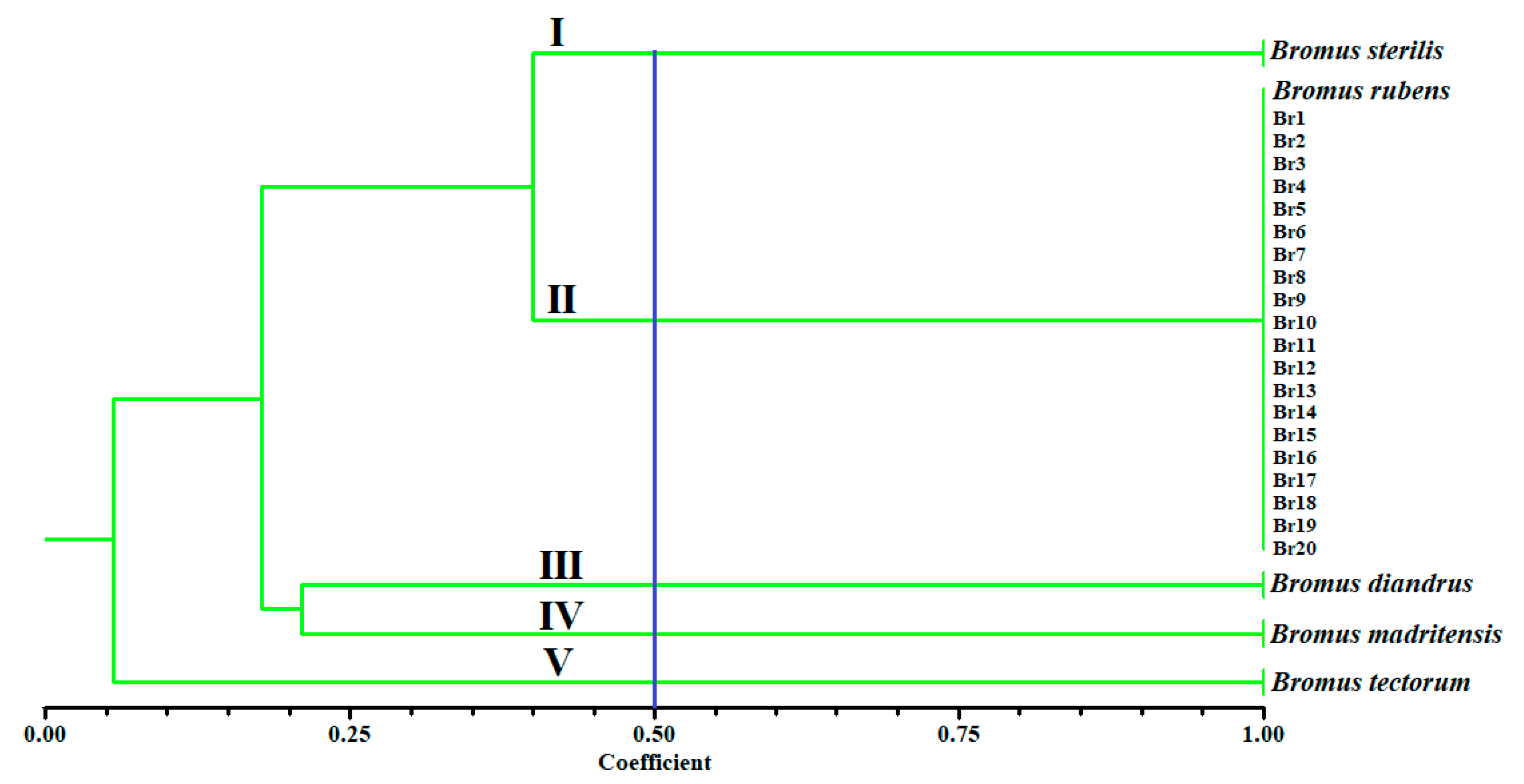

Seven SSR markers (Bt03, Bt04, Bt05, Bt12, Bt26, Bt30 and Bt33) were enough to discriminate the Bromus species tested. The dendrogram shows five groups at a similarity coefficient of 0.5 (Figure 1). Group I was formed by B. sterilis individuals. The second group corresponded to B. rubens and included the 20 populations from Andalusia. All B. rubens populations grouped together regardless of the province where they were collected, and R and S individuals could not be distinguished by the seven SSR markers used in this study. B. diandrus and B. madritensis were differentiated in groups III and IV, respectively. Finally, group V was comprised of the B. tectorum population.

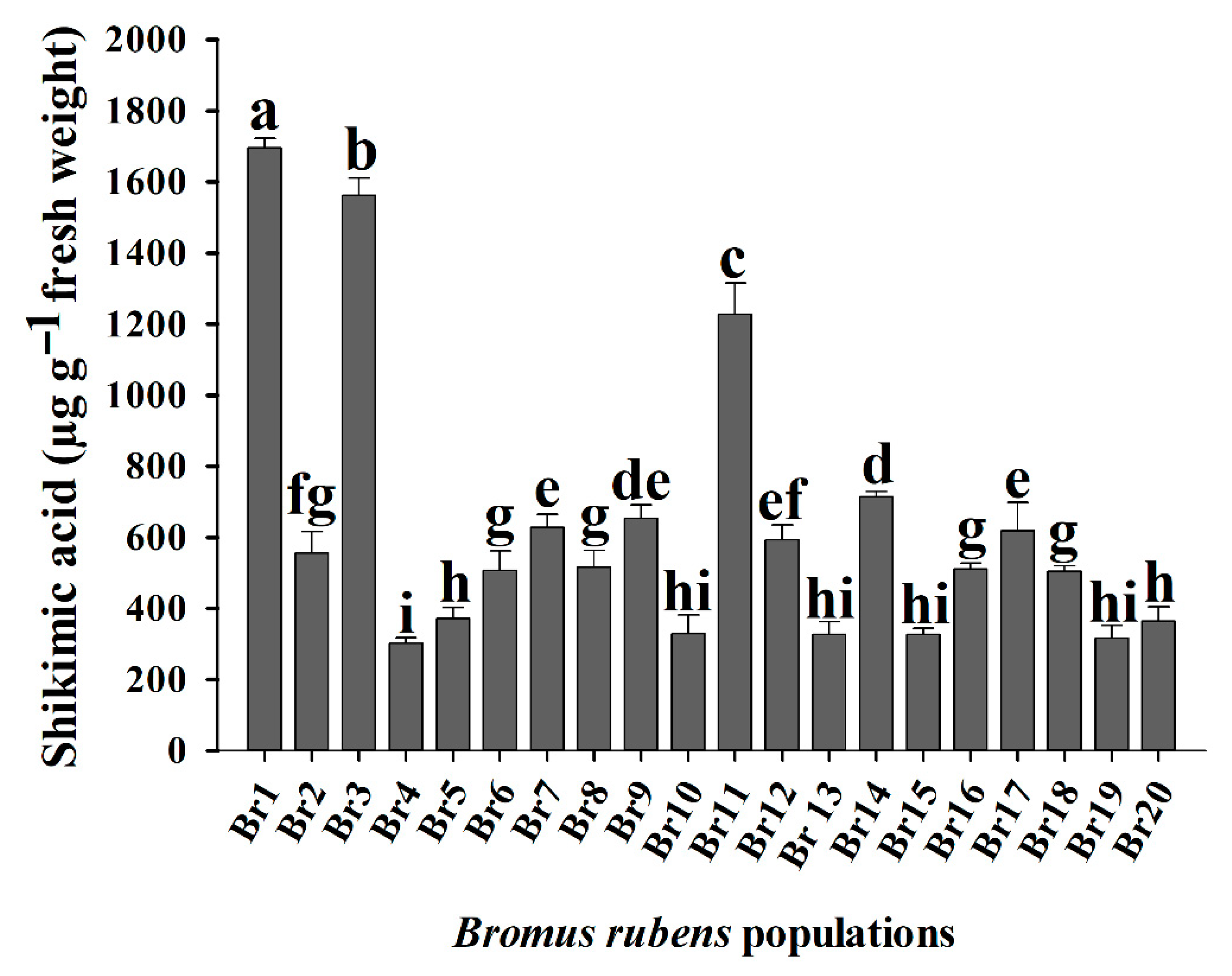

3.2. Resistant Fast Screening by Shikimic Acid Accumulation Assay

Overall, the B. rubens populations response was different, which resulted in multiple patrons of resistance to the herbicide glyphosate. This fast screening at 1000 µM of glyphosate, showed 17 resistant populations out of 20, which had accumulated the least shikimic acid (Figure 2). Br1, Br3, and Br11 populations accumulated the highest amount of shikimic acid at a rate of 1200 to 1700 µg g⁻¹ fresh weight, whereas the other 17 populations accumulated 300 to 700 µg g⁻¹ fresh weight.

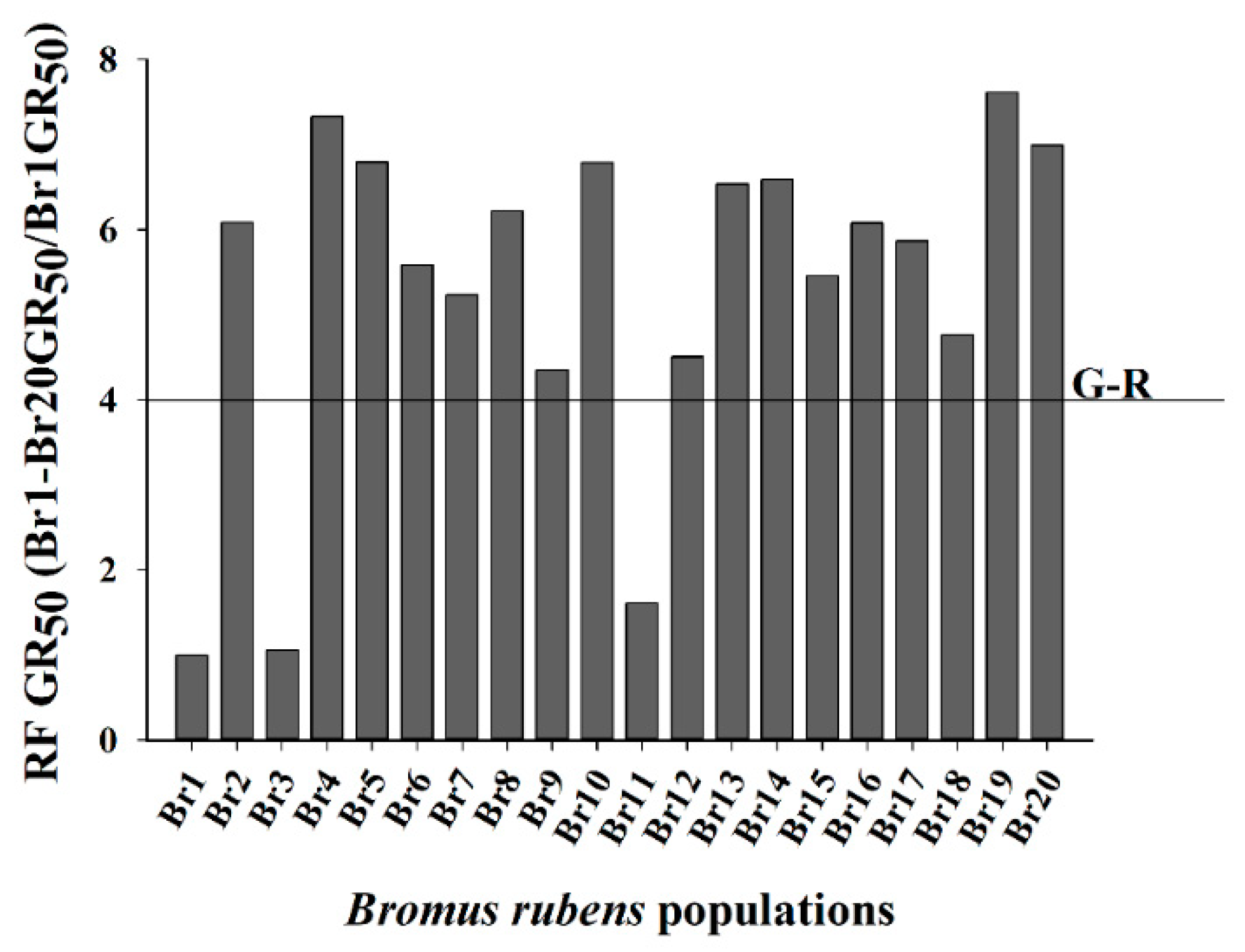

3.3. Glyphosate Dose–Response Curves

The estimated dose–response curve parameters demonstrated different resistance levels in B. rubens populations (

Table 3. Dose–response parameters of Bromus rubens resistant (R) and susceptible (S) populations.

Code	d *	b *	GR50 (g ae ha−1)	RF	d *	b *	LD50 (g ae ha−1)	RF
Br1	89.92	4.71	140.64 ± 5.86	-	101.17	3.80	229.87 ± 8.85	-
Br2	96.30	1.66	856.06 ± 54.09	6.09	100.27	7.37	1706.78 ± 18.78	7.42
Br3	102.30	2.84	148.33 ± 6.62	1.05	102.19	3.26	274.22 ± 7.46	1.19
Br4	88.54	2.99	1031.76 ± 55.51	7.34	99.92	7.76	2100.40 ± 80.12	9.14
Br5	99.43	1.24	955.96 ± 54.08	6.80	100.62	5.16	1766.50 ± 73.58	7.68
Br6	91.57	2.42	785.70 ± 42.36	5.59	99.36	7.12	1427.68 ± 18.57	6.21
Br7	93.65	4.01	736.51 ± 28.04	5.24	98.62	3.20	1378.60 ± 27.07	6.00
Br8	89.79	3.39	875.52 ± 35.49	6.23	100.41	6.11	1759.61 ± 24.00	7.65
Br9	94.28	3.37	611.65 ± 24.35	4.35	99.84	5.32	1284.82 ± 25.16	5.59
Br10	99.03	1.47	955.35 ± 62.06	6.79	100.27	1.27	1702.52 ± 34.02	7.41
Br11	94.70	1.48	226.21 ± 20.95	1.61	96.01	2.31	563.46 ± 38.95	2.45
Br12	93.20	3.23	634.08 ± 26.68	4.51	98.18	5.24	1320.45 ± 33.26	5.74
Br13	90.69	3.18	919.97 ± 42.06	6.54	98.64	8.49	1658.63 ± 22.88	7.22
Br14	97.60	1.89	926.95 ± 54.08	6.59	100.86	5.79	1570.29 ± 26.83	6.83
Br15	99.25	1.77	767.66 ± 57.86	5.46	99.22	4.77	1428.05 ± 42.49	6.21
Br16	95.23	3.96	855.78 ± 27.87	6.08	100.43	4.68	1292.96 ± 42.77	5.62
Br17	95.74	4.21	825.43 ± 17.74	5.87	100.33	3.47	1180.57 ± 43.28	5.14
Br18	96.68	4.60	669.84 ± 15.58	4.76	100.93	3.67	1080.33 ± 36.33	4.70
Br19	90.88	6.80	1070.97 ± 33.16	7.61	100.23	5.61	2024.47 ± 27.90	8.81
Br20	94.56	8.07	983.50 ± 17.23	7.00	99.00	6.73	1757.68 ± 31.79	7.65

* d is the upper coefficient and b is the slope of the curve.

). Seventeen populations were resistant because they required at least 1080.33 to 2100.40 g ae ha⁻¹ to reduce their mortality to 50%, indicating that the glyphosate field dose should be doubled or even tripled for total control. Br4 and Br19 populations were the most resistant these required 2100.4 and 2024.47 g ae ha⁻¹, respectively, to kill 50% of the population, whereas Br3 and Br1 populations needed only 274.22 and 229.87 g ae ha⁻¹, respectively. In contrast, GR₅₀ values showed a S population (Br1) needed only 140.64 g ae ha⁻¹, whereas the most resistant needed 1031 g ae ha⁻¹ to reduce the dry weight at 50%. This meant that the RF referred to a dry weight reduction (GR₅₀) varying from 1.05 to 7.61 (Table 3, Figure 3). According to the RF results, we characterized 17 populations as G-R. (Figure 3).

3.4. Foliar Retention Assay

There were not differences between the 20 B. rubens populations. They had values from 371.6 to 416.75 µL glyphosate g⁻¹ dry weight. Both R and S B. rubens populations had no significant differences in this assay; thus, foliar retention was not involved in the low susceptibility to glyphosate.

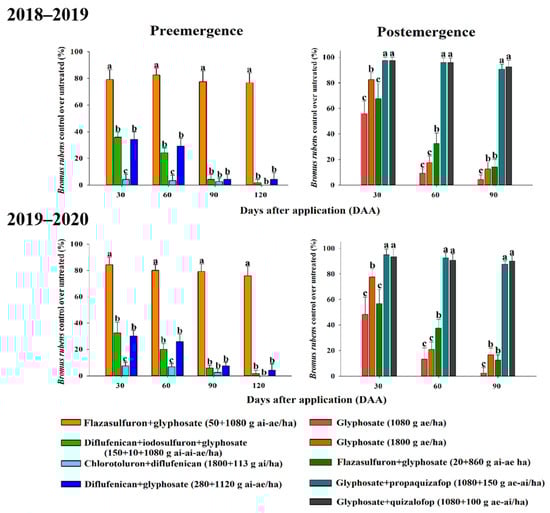

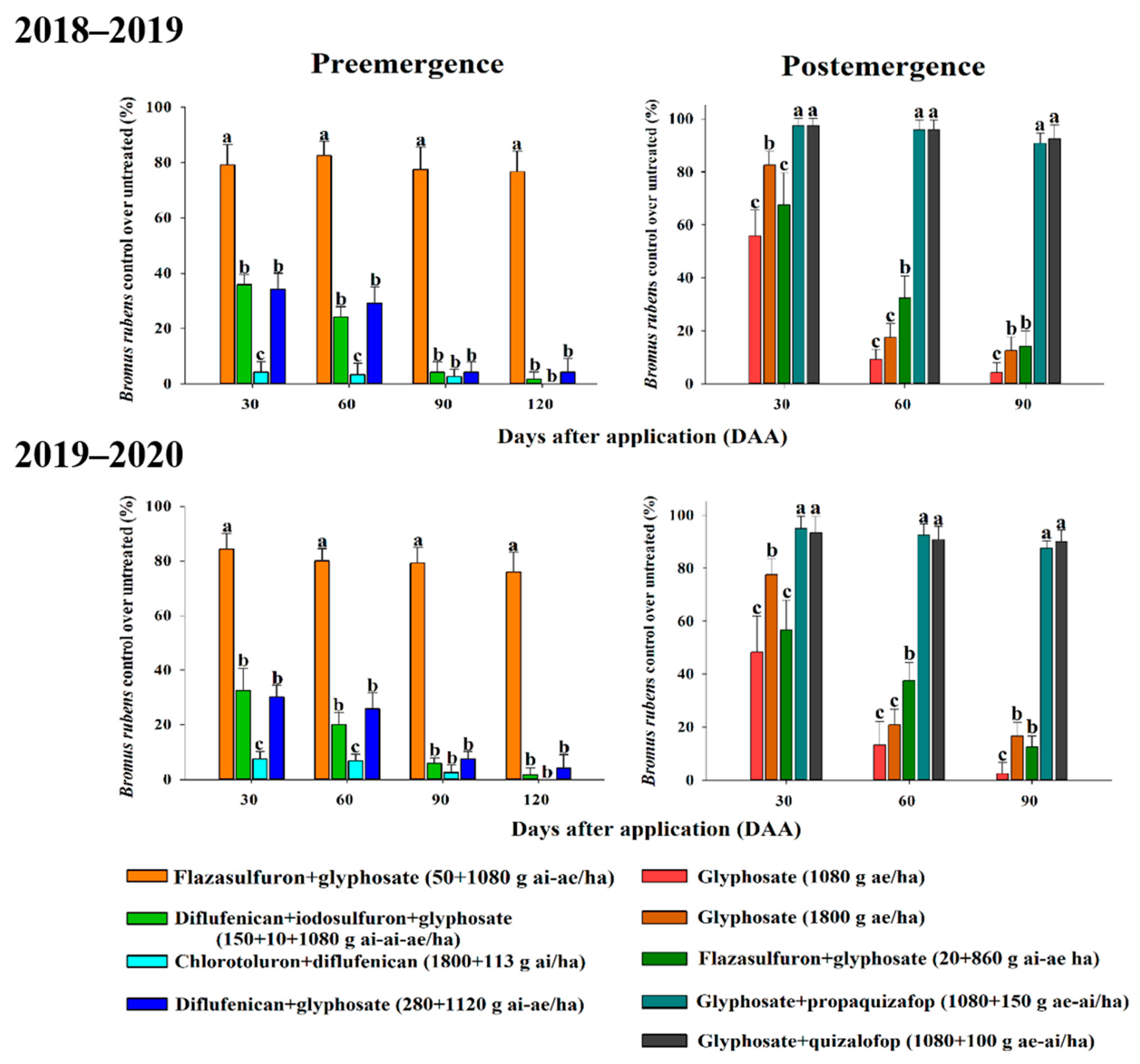

3.5. Chemical Alternatives In Situ

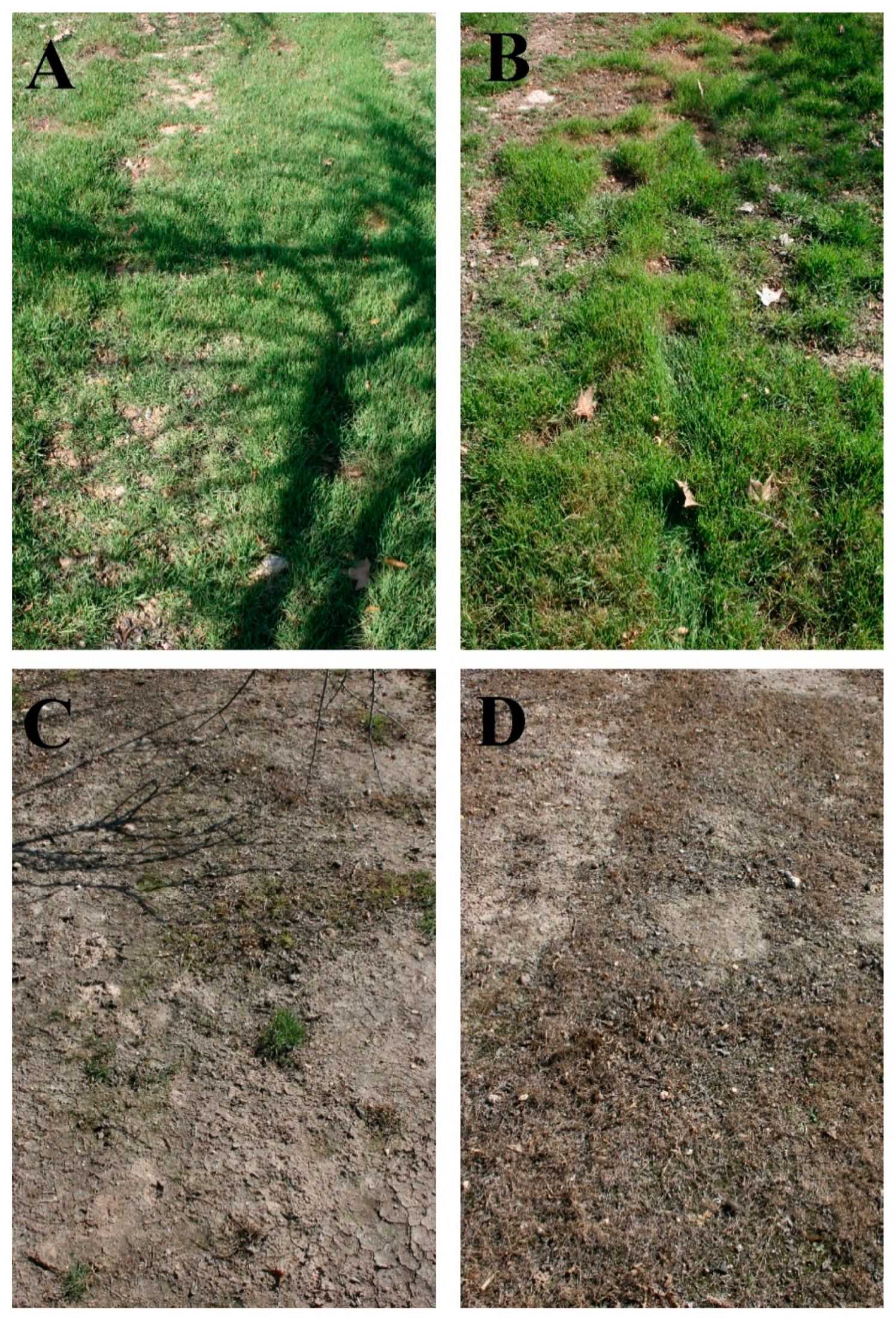

Field trials carried out in “La Reina” (Br10 (GR₅₀ factor: 6.79 and LD₅₀ factor: 7.41)) in almond trees, demonstrated the potential alternatives to glyphosate. Overall, the percentage B. rubens control was similar in the two seasons. Treatments applied pre-emergence were the least promising because only the glyphosate and flazasulfuron tank mix had the best results in both seasons (Figure 4). This treatment maintained an efficacy close to 80% (±) against B. rubens from 30 DAA to 120 DAA (Figure 4). Otherwise, the application with chlorotoluron and diflufenican had the worst result, with poor control (20%) from 30 to 120 DAA in both growing seasons. Diflufenican plus iodosulfuron and glyphosate had satisfactory control in nontarget species, such as Lolium sp., Vulpia sp., and Conyza sp. but not against B. rubens (Figure 4 and Figure 5). Herbicides applied in postemergence were a more promising chemical alternative. Grass weed herbicides (ACCase inhibitors), such as propaquizafop and quizalofop in tank mix with glyphosate, controlled B. rubens up to 90% from 30 to 90 DAA (Figure 5). Additionally, this tank mix controlled other important weeds, such as Lolium sp., Hordeum murinum, and Bromus sp. Glyphosate resistance was visualized with applications at 1080 g (control under 60%) and 1800 g ae ha⁻¹ (control close to 80% but only at 30 DAA). Flazasulfuron (20 g ai ha⁻¹) plus glyphosate (860 g ae ha⁻¹) is a commercial product (Chikara Duo^®) that showed to be a good treatment, but only for the first 30 DAA, after which time B. rubens control was poor (Figure 4).

4. Discussion

Molecular markers have been successfully employed for genetic diversity and genetic characterization in a wide range of plant species. Particularly, SSR markers are very reliable and suitable for the study of genetic diversity between species of the same genus because of their transferability and power to detect closely related polymorphic individuals. It has been reported that, in general, cross-species transferability within genera is moderate to high (50–100% success) [32,33]. In this work, we used seven SSRs developed in B. tectorum [25] to discriminate five Bromus species. All SSR markers were polymorphic and transferable to the five species. Although we could not genetically distinguish R and S populations of B. rubens, the seven SSRs were useful tools for discriminating between the Bromus species. Thus, the dendrogram constructed in this study revealed that the five Bromus species are genetically distinct from each other and the 20 populations collected in Andalusia belong to B. rubens.

In contrast, the rapid screening using the leaf disc shikimic acid accumulation allowed us to separate glyphosate-R and -S populations. In our study, the Br1 population accumulated a higher shikimic acid compared to Br4, Br5, Br6, Br7, Br8, Br9, Br10, Br12, Br13, Br14, Br15, Br16, Br17, Br18, Br19, and Br20 (Figure 2). These results indicate low sensibility to glyphosate due to no interaction between herbicide and its target site (EPSPS). These different patterns have been shown in different grasses, such as Chloris spp. [34,35,36,37,38] and Hordeum spp. [29,39].

Glyphosate field doses recommended for the control of weeds in Southern Spain under field conditions (1080 g ae ha⁻¹) can control S (Br1, Br3, and Br11) B. rubens populations (LD₅₀ between 229.87 to 563.46 g ae ha⁻¹). However, R populations required greater field doses than those used by farmers (Table 3). These results are supported by the definition of Herbicide Resistance Action Committee (HRAC), which defines tolerant and/or resistant plants as those that survive higher doses of glyphosate than those usually used by farmers [13]. However, this definition is very subjective since there are countries where glyphosate doses are lower than in others; therefore, a weed may be resistant in one country but not in another [15,29,34,35,37,39] (Figure 3). The high RF and low accumulation of shikimic acid observed in the different R B. rubens are in agreement with those plants that have acquired resistance to the addition of more than one resistance mechanism, which could be a non-target site (NTSR) and/or mechanism of resistance to the target site (TSR). This scenario has been demonstrated in other grass weed species [40,41,42]. Our results conclude that RF values also separated the 20 populations of B. rubens into one group -S and another much larger group (17 populations) of glyphosate-R (Figure 3). Therefore, we can observe that all R populations meet the requirements of RF values greater than 4 to be considered resistant [29,35].

Overall, this study revealed different levels of G-R in B. rubens harvested from different agricultural areas in Southern Spain, where there are a variety of soils and climatic differences. The proposed response of herbicides between different places depends on local ecological factors, such as a variation in climate, soil type, tillage practices, types of crops, and fertilizers, among others. [34,43,44]. Additionally, the use of different glyphosate formulations and the dose rate, application time per year, application technique used by farmers, and environmental conditions could respond to the differences found [45,46]. In addition, an increase in relative humidity and temperature increases the absorption, translocation, and effectiveness of glyphosate in many species of grass weeds, which could help us understand the differences between populations of B. rubens [47,48].

Only in some cases did differences in plant architecture or total leaf surface area contribute to a plant’s sensitivity to glyphosate, as a change in the fitness of R versus S plants can alter the growth of R plants to reduce glyphosate retention [49,50,51]. Our results determined that the R and S populations of B. rubens did not exhibit differences in fitness and herbicide retention. In addition, glyphosate retention was similar to that found in other grass weeds, such as Hordeum murinum [29], among others.

When a weed begins to predominate due to a lack of control, it is necessary to carry out a study of alternative herbicides that will help in short- and medium-term management in the field. The study must include pre-emergent or postemergence application alternatives [52]. We found that for pre-emergent applications, the best results were obtained when mixing glyphosate and flazasulfuron (Figure 5C); it is obvious that the control of B. rubens offered by this mixture is attributed to flazasulfuron (an ALS herbicide). Similar results were obtained by Reeves and Hoyle [53], where the application of flazasulfuron resulted in acceptable controls against Poa anua up to 133 DAA. The application of postemergence herbicides used alone or in combination with pre-emergence herbicides is very frequent in plantations, as they help to carry out fewer applications per year. As for postemergence applications, in this work, the best results were obtained with the mixture of glyphosate plus propaquizafop or quizalofop (Figure 5D). ACCase herbicides have multiple advantages of being applied in postemergence. However, they are specific to grass weeds, such as B. rubens, and have excellent selectivity in crops [54]. Other studies in B. tectorum and B. japonicus found that glyphosate is effective in reducing biomass [55,56,57].

There is little information related to the application of graminicides for the control of Bromus sp. [58,59]. Ball et al. [58] found better efficacy of quizalofop and fluazifop than sethoxydim. Our results are promising for the benefit of farmers, both in pre- and postemergence applications. The key to success in weed control is to alternate modes of action, use the recommended dose and apply it in a suitable phenological state [60]. These tools must be used correctly to preserve their efficacy. In addition, farmers must learn weed management lessons and use other nonchemical measures that can help decrease the seed bank and seedling density in the field.

5. Conclusions

The results confirmed the resistance of B. rubens populations to glyphosate collected in Southern Spain. This research is the first scientific report with established resistance parameters of G-R in B. rubens from Spain. Furthermore, field trials demonstrated that, at the moment, there are alternative herbicides to control these R populations. Flazasulfuron (pre-emergence herbicide) in the tank mix with glyphosate (postemergence herbicide), propaquizafop, or quizalofop (postemergence herbicides) plus glyphosate increase the control of B. rubens. Nowadays, we are aware of that fact and effective research is in progress to characterize resistance mechanisms NTSR or TSR involving these populations.
