Synthesis and Properties of Polyarylene Ether Nitrile and Polyphenylene Sulfone Copolymers

by
Azamat Zhansitov
*,
Kamila Shakhmurzova
,
Zhanna Kurdanova
,
Azamat Slonov
,
Ilya Borisov
,
Elena Rzhevskaya
,
Ismel Musov
,
Artur Baykaziev
and
Svetlana Khashirova
Center for Progressive Materials and Additive Technologies, Kabardino-Balkarian State University Named After H.M. Berbekov, 360004 Nalchik, Russia
*
Author to whom correspondence should be addressed.
Polymers 2026, 18(2), 159; https://doi.org/10.3390/polym18020159
Submission received: 27 November 2025 / Revised: 4 January 2026 / Accepted: 6 January 2026 / Published: 7 January 2026
(This article belongs to the Special Issue Advanced Polymeric Materials for Harsh Environments: Innovations, Challenges and Applications)
Browse Figures
Versions Notes

Abstract

Copolymers of polyphenylene sulfone and polyarylene ether nitrile were synthesized using nucleophilic polycondensation. 2,6-difluorobenzonitrile (DFBN), 4,4′-dihydroxybiphenyl, and 4,4′-dichlorodiphenyl sulfone were used as monomers. The structure of the obtained copolymers was confirmed by means of IR spectroscopy, and their solubility in various solvents was studied. Thermal properties were studied using differential scanning calorimetry (DSC) and thermogravimetric analysis, as well as a set of basic mechanical properties. It was found that both thermal stability and glass transition temperature are virtually independent of the copolymer composition, while samples with a DFBN monomer content of more than 75% exhibit a melting peak in the region of 357 °C on the DSC curves, indicating an increase in the degree of crystallinity, accompanied by a deterioration in the solubility of these polymers. With increasing DFBN content, a uniform increase in elastic modulus is observed, and both bending and tensile strength increase significantly. However, the introduction of DFBN segments into the polyphenylene sulfone structure leads to a decrease in impact strength.

1. Introduction

Membrane separation technologies occupy a leading position in modern separation processes due to a number of significant advantages over traditional methods: high energy efficiency, technological simplicity, environmental safety, and process scalability [1]. These technologies have been successfully integrated into the pharmaceutical industry [2], biotechnology [3], fuel cell systems [4], and, in particular, into water and wastewater treatment processes [5,6].
Polymer membrane materials used on an industrial scale are represented by a wide range of highly effective polymers, including polysulfone (PSF) [7,8,9,10,11,12], polyethersulfone (PES) [13,14], polyvinylidene fluoride [15,16,17,18], polyimides [19,20,21,22], and polyacrylonitrile [23,24]. The listed materials are characterized by an optimal combination of mechanical characteristics, physical and chemical resistance and thermal stability, which ensures their wide application [25,26].
Among polymer membranes, polyarylsulfones, including PSF, PES, and polyphenylene sulfone (PPSU), have found wide application as membranes for various applications in gas separation, micro- and ultrafiltration, hemodialysis, and other processes due to their high mechanical strength, chemical inertness, thermal stability, and hydrolytic resistance to superheated steam [12,27]. The results of studies on the synthesis and characterization of new copolymers based on polyarylsulfones, their chemical modification, and functionalization to obtain membranes with a given set of properties are regularly published [11,27,28,29,30].
PPSU is a rather promising polymer from the polyarylsulfone series for the production of various types of membranes, which can withstand treatment with superheated steam without losing its original properties for up to 2000 cycles [28]. It is known that PPSU is used as a membrane-forming material in various filtration processes such as nanofiltration of organic media [31,32], ultrafiltration of aqueous media [33,34,35], and gas separation [36,37].
Polyarylene ether nitrile (PAEN) is a semicrystalline engineering polymer with an outstanding combination of performance properties. Due to its excellent mechanical properties, high thermal and radiation resistance, and exceptional physical and chemical stability [38,39,40], this material has found wide application in the automotive, electronics, defense, and aerospace industries. Studies have been conducted using various bisphenols to synthesize PAEN via nucleophilic aromatic polycondensation [39,41,42,43,44,45,46].
In the last decade, research interest in PAEN has significantly expanded in the context of membrane water treatment technologies [47], opening up promising avenues for its practical application in environmental technologies.
However, the practical use of PAEN in membrane technologies is associated with significant technological limitations. Being a semicrystalline polymer with an ordered macromolecular structure [48], PAEN exhibits extremely limited solubility in common organic solvents. PAEN dissolution is achieved exclusively in aggressive environments—concentrated mineral acids (sulfuric, trifluoroacetic) and toxic phenolic solvents [40,49], the use of which in technological processes for the formation of membranes via the phase inversion method is practically unacceptable from the point of view of industrial safety, environmental requirements and economic feasibility.
In view of the above limitations, chemical modification of PAEN by introducing polar functional groups into the polymer chain appears to be a promising approach. Thus, in [50], PAENS copolymers based on bisphenol A and 4,4′-dichlorodiphenylsulfone (DCDPS) together with 2,6-dichlorobenzonitrile (DCBN) were synthesized and their optical, thermal, mechanical, and dielectric properties were studied. It has been shown that with an increase in the proportion of DCDPS, the thermal properties improve, but the mechanical and dielectric properties are worse compared to PAEN. In [41], PAEN copolymers were synthesized and studied using the nucleophilic substitution method of DCBN with different molar ratios based on 4,4′-dihydroxybiphenyl (DHBP) and hydroquinone. Moreover, the obtained copolymers were dissolved in N,N-dimethylacetamide, N-methyl-2-pyrrolidone and dimethylformamide only upon heating. It was found that the glass transition temperature with an increase in the content of DHBP units increases to 216 °C and the melting temperature to 352 °C, and the tensile strength of the copolymers also increases. Similar results were obtained in [44,51], in which the thermal, mechanical and dielectric properties of PAEN-based films based on DHBP and DCBN were studied.
At the same time, given the results obtained in recent years on the fabrication and study of the properties of PPSU-based membranes [27,52,53], demonstrating the promise of their use, including in water purification, the synthesis of copolymers based on DHBP and DCDPS using 2,6-difluorobenzonitrile (DFBN) as a comonomer is of scientific interest.
The choice of this approach is determined by several factors. Firstly, copolymers of this structure have been little studied in the scientific literature and represent a promising class of materials combining the advantages of both PAEN and PPSU. Secondly, the use of materials of this structure for the fabrication of selective membranes has not been described in the scientific literature, opening up opportunities for producing new membranes with a unique combination of properties. Thirdly, the introduction of a polysulfone block into the PAEN structure solves the problem of polymer solubility in technologically acceptable aprotic dipolar solvents (N,N-dimethylacetamide, N-methyl-2-pyrrolidone, dimethyl sulfoxide) by reducing the degree of crystallinity. Moreover, the presence of nitrile groups is expected to increase the hydrophilicity and water absorption of the resulting membranes, while the use of DHBP will improve the mechanical and thermal properties compared to bisphenol A-based PAEN copolymers.
Thus, the aim of this study is to synthesize and characterize the basic physicochemical properties of PPSU copolymers with PAEN to determine the feasibility of their further use as materials for the fabrication of new polymer membranes for various applications.

2. Materials and Methods

2.1. Materials

2,6-difluorobenzonitrile (98%) was obtained from Yangzhou Tianchen Chemicals (Guazhou, China). 4,4′-dihydroxybiphenyl (99%) was obtained from Zhengzhou Alfa Chemical Co., Ltd. (Qinyang City, China). 4,4′-dichlorodiphenyl sulfone (≥99.5%) was purchased from Hebei Jianxin Chemical Co., Ltd. (Cangzhou, China). N,N-dimethylacetamide (≥99%), N-Methyl-2-pyrrolidone (≥99%), chloroform (≥99%), and methylene chloride (˃99%) were purchased from EKOS-1 (Moscow, Russia). Potassium carbonate (99+%) and styrene (98+%) were purchased from Reachem (Moscow, Russia). Tetrahydrofuran (99.9%) was obtained from RCI Labscan Limited (Bangkok, Thailand), dimethylformamide (≥99%) was obtained from Vecton (Saint Petersburg, Russia), and dichloroacetic acid (99+%) was obtained from Alfa Aesar (Haverrill, MA, USA). All of the materials were used as received without further purification.

2.2. Synthesis of PPSU and PAEN Random Copolymers

PPSU and PAEN random copolymers were synthesized by the nucleophilic aromatic substitution polycondensation in a 500 mL three-neck flask equipped with a nitrogen inlet, a mechanical stirrer, a Dean–Stark trap, and a reflux condenser. The method for obtaining PPSU is the same as in the article [54].
Copolymer of PPSU with 2,6-difluorobenzonitrile was synthesized according to Scheme 1.
A typical preparation of PAEN copolymers is described below. DHBP (29.79 g, 0.16 mol), DFBN (5.56 g, 0.04 mol), DCDPS (36.01 g, 0.1256 mol), and K2CO3 (33.1 g, 0.24 mol) were added to a 500-mL three-necked flask. Then, N,N-dimethyl acetamide (450 mL) as reaction solvent was added. The reaction mixture was gradually heated to 165 °C for 4 h to distill the dimethylacetamide–water mixture. After the temperature reached 165 °C, the reaction mixture was allowed to proceed at this temperature for 6 h. After synthesis, the mixture was discharged, and the formed salts were filtered. The reaction solution was slowly poured into the water, acidified by oxalic acid. The precipitated polymer was filtered and washed 10 times with hot distilled water and dried in a vacuum oven at 160 °C for about 12 h. The ratios of monomers in the synthesis of polymers are given in Table 1.

2.3. Characterization and Methods

IR spectra were recorded on a Fourier spectrometer (Spectrum Two; PerkinElmer, Inc., Waltham, MA, USA) in the range of 4000–450 cm−1 with a spectral resolution of 0.4 cm−1. The glass transition temperature of the synthesized polymers was determined by differential scanning calorimetry (DSC) on a DSC 4000 instrument (PerkinElmer, Inc., Waltham, MA, USA). The quantity of 5–10 mg of the sample was sealed in an aluminum hermetic pan and heated to 400 °C at 10 °C/min under a flow of nitrogen (20 mL/min).
Thermogravimetric analysis (TGA) of the synthesized polymers was carried out on a TGA 4000 instrument (PerkinElmer, Inc., Waltham, MA, USA) under a flow of air (20 mL/min). at a heating rate of 10 °C/min in the range from 30 to 850 °C.
The melt flow index (MFI) of polymers was determined at a temperature of 380 °C and a load of 5 kg on a capillary viscometer (PTR-LAB-02, LOIP, Saint Petersburg, Russia).
Mechanical tests were carried out on a universal testing machine, CT-TCS 2000 (Gotech Testing Machine Inc., Taichung, Taiwan), at 23 °C. Impact tests were performed with and without a notch, by the Izod method on the instrument, GT-7045-MD (Gotech Testing Machine Inc., Taichung, Taiwan).
The solubility of the synthesized samples in various solvents was studied at 23 °C for 24 h for 5% polymer solutions.
The crystallinity of the synthesized powders was assessed by X-ray phase analysis using a D2 Phaser diffractometer (Bruker AXS, Karlsruhe, Germany) with monochromatic CuKα radiation (λ = 1.5406 Ǻ) in the range of 10–90°.

3. Results and Discussion

3.1. Study of the Structure of Copolymers by IR Spectroscopy

The structure of the synthesized copolymers was studied using IR spectroscopy. The absorption bands in the spectra of the synthesized polyphenylene sulfone (PPSU) correspond to those previously described for this polymer [30]. The skeletal vibrations of the C–C aromatic bonds appear as bands with maxima at 1584 and 1486 cm−1 (Figure 1). In the studied copolymers, a bifurcation of these bands is observed, with additional peaks appearing in the region of 1600 and 1458 cm−1, the intensity of which increases consistently with increasing DFBN comonomer content. PPSU also exhibits highly characteristic absorption bands in the 1325 cm−1 and 1149 cm−1, due to symmetric and antisymmetric vibrations of the SO2 group, respectively. Moreover, the intensity of these bands decreases naturally with a decrease in the proportion of 4,4′-dichlorodiphenylsulfone in the copolymers. The intense band at 1235 cm−1 is associated with asymmetric stretching vibrations of the C–O group [55].
The absorption band at 2230 cm−1 is characteristic of the symmetrical stretching vibration of the CN group [46]. The intensity of this band can also be used to estimate the percentage of DFBN in the copolymers.

3.2. Thermal and Rheological Properties

In order to obtain copolymers with specified molecular weight values, allowing their processing by injection molding and extrusion methods, and to minimize the effect of molecular weight values on the studied properties of the copolymers, the synthesis was carried out using the monomer equivalence rule according to the monomer ratios selected previously [54] for the synthesis of PPSU. As can be seen from the obtained MFI values (Table 1), these monomer ratios made it possible to obtain copolymers with similar molecular weight values, allowing the production of samples for testing mechanical properties by injection molding. In the majority of published studies on the synthesis of various PAEN copolymers, mechanical property tests were carried out on films obtained from solution [41,44,45,46,50,51].
As can be seen from the results presented in Table 2 and Figure 2, the glass transition temperatures determined during the second heating of the samples have similar values, with a tendency to decrease slightly with an increasing proportion of DFBN comonomer, which is consistent with previously obtained results in [41,44,50,51]. The lower glass transition temperature (209 °C) of the PPSU/PAEN 25/75 sample is associated with a lower molecular weight compared to the other samples, which is confirmed by higher melt flow index (MFI) values. The obtained values of the glass transition temperature of the PPSU homopolymer completely coincide with the passport values of the industrially produced PPSU Radel R-5000 brand [56].
In the DSC curves of the first heating (Figure 3), only pure PAEN and the copolymer with 75% DFBN comonomer showed melting peaks in the DSC curves, indicating an increase in the degree of crystallinity of these samples. Moreover, the PAEN homopolymer has a fairly high melting point, manifested in the form of 2 melting peaks in the region of 358 and 371 °C. It is also worth noting that when cooling the samples, crystallization peaks were not observed, and upon reheating, only a phase transition corresponding to the glass transition was present on the DSC curves, which indicates a decrease in the degree of crystallinity of the samples after heat treatment above the melting point.
The results obtained by wide-angle XRD are consistent with the DSC analysis results. As can be seen in Figure 4, the curves of both PPSU and copolymer samples with different DCDPS contents have an amorphous halo, while the PAEN homopolymer exhibits narrow, intense long-range diffraction peaks at approximately 2θ ≈ 17° and 23° and a small peak at 2θ ≈ 29°, indicating the presence of a crystalline phase in this polymer, which is consistent with the results previously described for this polymer [44].
It is worth noting that the thermal stability of all samples was virtually identical (Figure 5), with the exception of the PAEN sample, which exhibited a slight decrease in thermal stability. Moreover, the TGA curves of the PPSU/PAEN 25/75 and PAEN samples, unlike the other samples, did not show a pronounced second stage of degradation.

3.3. Study of Solubility in Various Solvents

One of the main requirements for polymeric materials used in the manufacture of membranes (gas separation, filtration, etc.) produced from solution is their ability to dissolve in organic solvents. Good solubility is also important for polymeric materials used as coatings, including carbon and glass fibers, which improve adhesion between the fiber and the polymer matrix. The insolubility of PAEN homopolymers limits their application.
The solubility of the synthesized homopolymers and copolymers was studied for 24 h at room temperature, using both powder samples obtained during synthesis and pellets obtained from the melt after MFI analysis of these samples. The polymer solution concentration was 5%. As can be seen from the results presented in Table 3, the PAEN homopolymer samples were insoluble in all solvents used, and only the pellets swelled in dimethylacetamide and dimethylformamide. Reducing the DFBN content to 75% in the copolymer results in granulated samples becoming soluble after 24 h in solvents such as N-methyl-2-pyrrolidone and dimethylacetamide. Samples with 25 and 50% DFBN contents dissolve significantly better, as does the PPSU homopolymer. The improved solubility of granules obtained by melting, compared to the initial powder samples, may be due to the increased crystallinity of the powders obtained during synthesis, which prevents their dissolution, and the significant amorphization of the molten samples obtained after MFI analysis. This is confirmed by the results of DSC analysis, where no melting peaks are observed in the second heating cycle, and no peaks corresponding to the crystallization process are observed upon cooling the sample.

3.4. Mechanical Properties

Table 4 shows that increasing DFBN content leads to a uniform increase in elastic modulus, increasing by 25% for the PAEN sample. Both flexural and tensile strength also increase significantly. However, the introduction of DFBN segments into the PPSU structure leads to a decrease in impact strength, with PAEN exhibiting approximately half the impact strength of the original PPSU. Despite this, impact strength values, both notched and unnotched, remain quite high for all copolymer samples.
The decrease in ductility is also confirmed by changes in the stress-strain curves of the studied materials. Figure 6 shows that the original PPSU exhibits a pronounced yield point and subsequent plastic deformation. The copolymer containing 25% DFBN as a comonomer also exhibits necking, but the magnitude of plastic deformation is significantly reduced. At 50% DFBN content, the yield strength is very weak, and the sample fails without forming a complete neck. A further increase in DFBN content to 75% in the copolymer is accompanied by an even greater decrease in ductility, and the PAEN itself exhibits a rather brittle fracture pattern.
The observed changes in properties may be due to the influence of the DFBN comonomer on the rigidity of the macromolecular chain, the nature of intermolecular interactions, and the molecular weight characteristics of the synthesized materials.

4. Conclusions

Thus, previously unstudied copolymers of PPSU and PAEN were synthesized using nucleophilic polycondensation.
It was found that the synthesized copolymers retain the high thermal stability and glass transition temperature characteristic of the PPSU homopolymer. Increasing the DPBN content in the copolymers to more than 75% leads to an increase in the degree of crystallinity of the polymer powders formed during synthesis, while after heating above the melting point, upon repeated heating, these copolymers do not exhibit melting or crystallization peaks in the DSC curves. At the same time, increasing the DPBN content leads to a uniform increase in the elastic modulus, with a significant increase in both flexural and tensile strength. However, the introduction of DPBN segments into the polyphenylene sulfone structure leads to a decrease in impact strength.
As expected, the introduction of a polysulfone block into the structure solves the solubility problem of the PAEN polymer based on DFBN and DHBP in organic aprotic dipolar solvents by reducing the degree of crystallinity. Thus, copolymers containing 25 and 50% DFBN, like the PPSU homopolymer, dissolve in N,N-dimethylacetamide, N-methyl-2-pyrrolidone, and dimethylformamide at room temperature, which significantly expands their potential applications, including the production of separation membranes. The resulting copolymers exhibit both increased hydrophilicity compared to PPSU, due to the presence of nitrile groups, and superior thermal and mechanical properties compared to similar PAEN copolymers based on DFBN, DCDPS, and bisphenol A.

Author Contributions

Conceptualization, A.Z., Z.K. and I.B.; methodology, A.Z.; software, Z.K.; validation, A.Z., I.B. and S.K.; formal analysis, K.S.; investigation, A.S., I.M., A.B., E.R., A.Z., Z.K. and K.S.; resources, K.S.; data curation, A.Z. and I.B.; writing—original draft preparation, Z.K., K.S. and A.S.; writing—review and editing, A.Z. and S.K.; visualization, I.M.; supervision, A.Z., S.K. and I.B.; project administration, A.Z.; funding acquisition, I.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, Russia (project no. 22-19-00711-П) https://rscf.ru/project/22-19-00711/ (accessed on 10 November 2025).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

The authors have reviewed and edited the output and take full responsibility for the content of this publication.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
DCDPS4,4′-dichlorodiphenyl sulfone
DFBN2,6-difluorobenzonitrile
DHBP4,4′-dihydroxybiphenyl
DSCDifferential scanning calorimetry
MFIMelt flow index
PAENPolyarylene ether nitrile
PESPolyethersulfone
PPSUPolyphenylene sulfone
PSFPolysulfone
TGAThermogravimetric analysis

References

  1. Ulbricht, M. Advanced functional polymer membranes. Polymer 2006, 47, 2217–2262. [Google Scholar] [CrossRef]
  2. Chen, D.; K Sirkar, K.; Jin, C.; Singh, D.; Pfeffer, R. Membrane-based technologies in the pharmaceutical industry and continuous production of polymer-coated crystals/particles. Curr. Pharm. Design 2017, 23, 242–249. [Google Scholar] [CrossRef]
  3. Sahu, J.N.; Karri, R.R.; Zabed, H.M.; Shams, S.; Qi, X. Current perspectives and future prospects of nano-biotechnology in wastewater treatment. Sep. Purif. Rev. 2021, 50, 139–158. [Google Scholar] [CrossRef]
  4. Das, G.; Choi, J.H.; Nguyen, P.K.T.; Kim, D.J.; Yoon, Y.S. Anion exchange membranes for fuel cell application: A review. Polymers 2022, 14, 1197. [Google Scholar] [CrossRef]
  5. Kotobuki, M.; Gu, Q.; Zhang, L.; Wang, J. Ceramic-polymer composite membranes for water and wastewater treatment: Bridging the big gap between ceramics and polymers. Molecules 2021, 26, 3331. [Google Scholar] [CrossRef] [PubMed]
  6. Sayed, M.M.; Abdel-Hakim, M.; Mahross, M.H.; Aly, K.I. Synthesis, physico-chemical characterization, and environmental applications of meso porous crosslinked poly(azomethine-sulfone)s. Sci. Rep. 2022, 12, 12878. [Google Scholar] [CrossRef]
  7. Syed, I.G.P.; Isloor, A.M.; Inamuddin; Asiri, A.M.; Ismail, A.F.; Kumar, R.; Ahamed, M.I. Performance intensification of the polysulfone ultrafiltration membrane by blending with copolymer encompassing novel derivative of poly(styrene-co-maleic anhydride) for heavy metal removal from wastewater. Chem. Eng. J. 2018, 353, 425–435. [Google Scholar]
  8. Moideen, I.K.; Isloor, A.M.; Garudachari, B.; Ismail, A.F. The effect of glycine betaine additive on the PPSU/PSF ultrafiltration membrane performance. Desalination Water Treat. 2016, 57, 24788–24798. [Google Scholar] [CrossRef]
  9. Mamah, S.C.; Goh, P.S.; Ismail, A.F.; Suzaimi, N.D.; Yogarathinam, L.T.; Raji, Y.O.; El-badawy, T.H. Recent development in modification of polysulfone membrane for water treatment application. J. Water Process Eng. 2021, 40, 101835. [Google Scholar] [CrossRef]
  10. Wu, H.; Zhao, H.; Lin, Y.; Liu, X.; Yao, H.; Yu, L.; Wang, X. Fabrication of polysulfone membrane with sponge-like structure by using different non-woven fabrics. Sep. Purif. Technol. 2022, 297, 121553. [Google Scholar] [CrossRef]
  11. Kheirieh, S.; Asghari, M.; Afsari, M. Application and modification of polysulfone membranes. Rev. Chem. Eng. 2018, 34, 657–693. [Google Scholar] [CrossRef]
  12. Golli-Bennour, E.E.; Kouidhi, B.; Dey, M.; Younes, R.; Bouaziz, C.; Zaied, C.; Bacha, H.; Achour, A. Cytotoxic effects exerted by polyarylsulfone dialyser membranes depend on different sterilization processes. Int. Urol. Nephrol. 2011, 43, 483–490. [Google Scholar] [CrossRef]
  13. Liu, C.; Yan, M.; Guo, K.; Gao, Y.; Liu, F.; Gao, B. Ta-Fe in-situ coating PES membrane and its application in oily wastewater treatment: Insight into modification and anti-fouling mechanisms. Sep. Purif. Technol. 2024, 346, 127506. [Google Scholar] [CrossRef]
  14. Zhao, J.; Zhang, M.; Piao, H.; Zuo, S.; Shi, X.; Quan, Q.; Xiao, C. ZnS/Ag2S decorated PES membrane with efficient near-infrared response and enhanced photocatalysis for pollutants photodegradation on high-turbidity water. Appl. Surf. Sci. 2023, 635, 157728. [Google Scholar] [CrossRef]
  15. Salahshoori, I.; Mohseni, A.; Jorabchi, M.N.; Ghasemi, S.; Afshar, M.; Wohlrab, S. Study of modified PVDF membranes with high-capacity adsorption features using Quantum mechanics, Monte Carlo, and Molecular Dynamics Simulations. J. Mol. Liq. 2023, 375, 121286. [Google Scholar] [CrossRef]
  16. Hu, X.; Chen, X.; Giagnorio, M.; Wu, C.; Luo, Y.; Hélix-Nielsen, C.; Zhang, W. Beaded electrospun polyvinylidene fluoride (PVDF) membranes for membrane distillation (MD). J. Membr. Sci. 2022, 661, 120850. [Google Scholar] [CrossRef]
  17. Wan, L.; Tian, W.; Li, N.; Chen, D.; Xu, Q.; Li, H.; Lu, J. Hydrophilic porous PVDF membrane embedded with BaTiO3 featuring controlled oxygen vacancies for piezocatalytic water cleaning. Nano Energy 2022, 94, 106930. [Google Scholar] [CrossRef]
  18. Li, C.; Liu, W.; Mao, J.; Hu, L.; Yun, Y.; Li, B. Superhydrophobic PVDF membrane modified by dopamine self-polymerized nanoparticles for vacuum membrane distillation. Sep. Purif. Technol. 2023, 304, 122182. [Google Scholar] [CrossRef]
  19. Zhang, Q.Y.; Mao, H.; Wen, M.; Chen, B.H.; Li, Q.Q.; Zhang, Y.M.; Zhao, Z.P. Advances in Polyimide Membranes for Gas Separation: Synthesis, Modification, and Application. Molecules 2025, 30, 3507. [Google Scholar] [CrossRef]
  20. Gao, C.; Liao, J.; Lu, J.; Ma, J.; Kianfar, E. The effect of nanoparticles on gas permeability with polyimide membranes and network hybrid membranes: A review. Rev. Inorg. Chem. 2021, 41, 1–20. [Google Scholar] [CrossRef]
  21. Shi, Y.; Wang, Z.; Shi, Y.; Zhu, S.; Zhang, Y.; Jin, J. Synergistic design of enhanced π–π interaction and decarboxylation cross-linking of polyimide membranes for natural gas separation. Macromolecules 2022, 55, 2970–2982. [Google Scholar] [CrossRef]
  22. Wang, C.; Cai, Z.; Xie, W.; Jiao, Y.; Liu, L.; Gong, L.; Luo, S. Finely tuning the microporosity in dual thermally crosslinked polyimide membranes for plasticization resistance gas separations. J. Membr. Sci. 2022, 659, 120769. [Google Scholar] [CrossRef]
  23. Vatanpour, V.; Pasaoglu, M.E.; Kose-Mutlu, B.; Koyuncu, I. Polyacrylonitrile in the preparation of separation membranes: A review. Ind. Eng. Chem. Res. 2023, 62, 6537–6558. [Google Scholar] [CrossRef]
  24. Yang, X.; Bai, R.; Cao, X.; Song, C.; Xu, D. Modification of polyacrylonitrile (PAN) membrane with anchored long and short anionic chains for highly effective anti-fouling performance in oil/water separation. Sep. Purif. Technol. 2023, 316, 123769. [Google Scholar] [CrossRef]
  25. Ran, F. Polyethersulfone (PES). In Encyclopedia of Membranes; Drioli, E., Giorno, L., Eds.; Springer: Berlin/Heidelberg, Germany, 2016. [Google Scholar]
  26. Harper, C.A. Modern Plastics Handbook; McGraw Hill Education: New York, NY, USA, 2000. [Google Scholar]
  27. Raeva, A.; Matveev, D.; Anokhina, T.; Zhansitov, A.A.; Khashirova, S.; Volkov, V.; Borisov, I. Increasing the Permeability of Polyphenylene Sulfone Hollow Fiber Ultrafiltration Membranes by Switching the Polymer End Groups. Polymers 2025, 17, 53. [Google Scholar] [CrossRef] [PubMed]
  28. Serbanescu, O.; Voicu, S.; Thakur, V. Polysulfone functionalized membranes: Properties and challenges. Mater. Today Chem. 2020, 17, 100302. [Google Scholar] [CrossRef]
  29. Matveev, D.; Raeva, A.; Borisov, I.; Vasilevsky, V.; Matveeva, Y.; Zhansitov, A.; Khashirova, S.; Volkov, V. Effect of Molecular Weight and Chemical Structure of Terminal Groups on the Properties of Porous Hollow Fiber Polysulfone Membranes. Membranes 2023, 13, 412. [Google Scholar] [CrossRef] [PubMed]
  30. Kurdanova, Z.; Zhansitov, A.; Shakhmurzova, K.; Slonov, A.; Baykaziev, A.; Khashirova, S. Synthesis and Properties of Copolyphenylene Sulphones with Cardo Fragments. Polymers 2021, 13, 3689. [Google Scholar] [CrossRef]
  31. Burts, K.; Plisko, T.; Makarava, M.; Krasnova, M.; Penkova, A.; Ermakov, S.; Grigoryev, E.; Komolkin, A.; Bildyukevich, A. The effect of PEG-content and molecular weight of PEG-PPG-PEG block copolymers on the structure and performance of polyphenylsulfone ultra-and nanofiltration membranes. J. Membr. Sci. 2024, 704, 122869. [Google Scholar] [CrossRef]
  32. Sani, N.A.A.; Lau, W.J.; Ismail, A.F. Influence of polymer concentration in casting solution and solvent-solute-membrane interactions on performance of polyphenylsulfone (PPSU) nanofiltration membrane in alcohol solvents. J. Polym. Eng. 2014, 34, 489–500. [Google Scholar] [CrossRef]
  33. Taha, Y.R.; Zrelli, A.; Hajji, N.; Al-Juboori, R.A.; Alsalhy, Q. Impact of PCLNPG Nanopolymeric Additive on the Surface and Structural Properties of PPSU Ultrafiltration Membranes for Enhanced Protein Rejection. Processes 2024, 12, 1930. [Google Scholar] [CrossRef]
  34. Praneeth, K.; James, T.; Sridhar, S. Design of novel ultrafiltration systems based on robust polyphenylsulfone hollow fiber membranes for treatment of contaminated surface water. Chem. Eng. J. 2014, 248, 297–306. [Google Scholar] [CrossRef]
  35. Nafti-Mateur, M.; Jaouadi, M.; Van der Bruggen, B.; Naifer, K.H.; Jellouli Ennigrou, D. Development and characterization of porous membranes based on PPSU/PES using polyethylene glycol as porogen: Application for cobalt removal by polyelectrolyte enhanced ultrafiltration. J. Chem. Technol. Biotechnol. 2024, 99, 343–354. [Google Scholar] [CrossRef]
  36. Kujawski, W.; Li, G.; Van der Bruggen, B.; Pedišius, N.; Tonkonogij, J.; Tonkonogovas, A.; Stankevicius, A.; Sereika, J.; Jullok, N.; Kujawa, J. Preparation and characterization of polyphenylsulfone (PPSU) membranes for biogas upgrading. Materials 2020, 13, 2847. [Google Scholar] [CrossRef] [PubMed]
  37. Feng, F.; Liang, C.Z.; Wu, J.; Weber, M.; Maletzko, C.; Zhang, S.; Chung, T.S. Polyphenylsulfone (PPSU)-based copolymeric membranes: Effects of chemical structure and content on gas permeation and separation. Polymers 2021, 13, 2745. [Google Scholar] [CrossRef]
  38. You, Y.; Liu, S.N.; Tu, L.Y.; Wang, J.; Zhan, C.H.; Du, X.Y.; Wei, R.B.; Liu, X.B. Controllable fabrication of poly(arylene ether nitrile) dielectrics for thermal-resistant film capacitors. Macromolecules 2019, 52, 5850–5859. [Google Scholar] [CrossRef]
  39. Matsuo, S.; Murakami, T.; Takasawa, R. Synthesis and properties of new crystalline poly(arylene ether nitriles). J. Polym. Sci. A Polym. Chem. 1993, 31, 3439–3446. [Google Scholar] [CrossRef]
  40. Fink, J.K. 8-Poly(arylene ether nitrile)s. In Plastics Design Library, High Performance Polymers; William Andrew Publishing: New York, NY, USA, 2008; pp. 283–300. [Google Scholar] [CrossRef]
  41. Liu, X.B.; Du, R.H.; Hao, L.L.; Wang, S.; Cao, G.P.; Jiang, H. Synthesis, characterization and rheological property of biphenyl-based polyarylene ether nitrile copolymers. Express Polym. Lett. 2007, 1, 499–505. [Google Scholar] [CrossRef]
  42. Tu, L.; You, Y.; Tong, L.; Wang, Y.; Hu, W.; Wei, R.; Liu, X. Crystallinity of poly(arylene ether nitrile) copolymers containing hydroquinone and bisphenol A segments. J. Appl. Polym. Sci. 2018, 135, 46412. [Google Scholar] [CrossRef]
  43. Lakshmana Rao, V.; Saxena, A.; Ninan, K.N. Poly(arylene ether nitriles). J. Macromol. Sci. Part C—Polym. Rev. 2002, C42, 513–540. [Google Scholar] [CrossRef]
  44. You, Y.; Huang, X.; Pu, Z.; Jia, K.; Liu, X. Enhanced crystallinity, mechanical and dielectric properties of biphenyl polyarylene ether nitriles by unidirectional hot-stretching. J. Polym. Res. 2015, 22, 211. [Google Scholar] [CrossRef]
  45. Wu, J.; Chen, Y.; Zhang, T.; Nie, M.; Mo, C.; Tong, L.; Liu, X.; Liu, S. Effects of Molecular Structure Design on the Thermal, Mechanical, and Dielectric Properties of Polyarylene Ether Nitrile for Low-Dielectric Applications. J. Appl. Polym. Sci. 2025, 142, e57152. [Google Scholar] [CrossRef]
  46. Li, C.; Gua, Y.; Liu, X. 1993 of phenolphthalein-based polyarylene ether nitrile copolymers. Mater. Lett. 2006, 60, 137–141. [Google Scholar] [CrossRef]
  47. Zhan, Y.Q.; He, S.J.; Wan, X.Y.; Zhao, S.M.; Bai, Y.L. Thermally and chemically stable poly(arylene ether nitrile)/halloysite nanotubes intercalated graphene oxide nanofibrous composite membranes for highly efficient oil/water emulsion separa-tion in harsh environment. J. Membr. Sci. 2018, 567, 76–88. [Google Scholar] [CrossRef]
  48. Gao, W.; Liang, H.; Ma, J.; Mei, H.; Chen, Z.L.; Han, Z.S.; Li, G.B. Membrane fouling control in ultrafiltration technology for drinking water production: A review. Desalination 2011, 272, 1–8. [Google Scholar] [CrossRef]
  49. Nie, M.; Mo, C.; He, L.; Feng, X.; Liu, X.; Tong, L. Strong and tough semi-crystalline poly (aryl ether nitrile) with low coefficient of thermal expansion. Polymer 2024, 308, 127363. [Google Scholar] [CrossRef]
  50. Hu, W.; You, Y.; Tong, L.; Tu, L.; Wang, Y.; Wei, R.; Liu, X. Preparation and physical properties of polyarylene ether nitrile and polyarylene ether sulfone random copolymers. High Perform. Polym. 2018, 31, 095400831878571. [Google Scholar] [CrossRef]
  51. Zheng, P.; Pu, Z.; Yang, W.; Shen, S.; Jia, K.; Liu, X. Effect of multiwalled carbon nanotubes on the crystallization and dielectric properties of BP-PEN nanocomposites. J. Mater. Sci. Mater. Electron. 2014, 25, 3833–3839. [Google Scholar] [CrossRef]
  52. Anokhina, T.; Raeva, A.; Sokolov, S.; Storchun, A.; Filatova, M.; Zhansitov, A.; Kurdanova, Z.; Shakhmurzova, K.; Khashirova, S.; Borisov, I. Effect of Composition and Viscosity of Spinning Solution on Ultrafiltration Properties of Polyphenylene Sulfone Hollow-Fiber Membranes. Membranes 2022, 12, 1113. [Google Scholar] [CrossRef]
  53. Raeva, A.; Matveev, D.; Bezrukov, N.; Grushevenko, E.; Zhansitov, A.; Kurdanova, Z.; Shakhmurzova, K.; Anokhina, T.; Khashirova, S.; Borisov, I. Highly Permeable Ultrafiltration Membranes Based on Polyphenylene Sulfone with Cardo Fragments. Polymers 2024, 16, 703. [Google Scholar] [CrossRef]
  54. Zhansitov, A.; Kurdanova, Z.; Shakhmurzova, K.; Slonov, A.; Borisov, I.; Khashirova, S. Effect of Solvent and Monomer Ratio on the Properties of Polyphenylene Sulphone. Polymers 2023, 15, 2279. [Google Scholar] [CrossRef] [PubMed]
  55. Steiner, G.; Zimmerer, C. Poly(aryl ether sulfone) (PAES). In Landolt-Börnstein—Group VIII Advanced Materials and Technologies 6A1 (Polymer Solids and Polymer Melts—Definitions and Physical Properties I); Arndt, K.-F., Lechner, M.D., Eds.; Springer: Berlin/Heidelberg, Germany, 2013; Volume 6A1. [Google Scholar]
  56. Technical Data Sheet Radel R-5000 Polyphenylensulfone. Available online: https://catalog.ulprospector.com/datasheet.aspx?I=42041&FMT=PDF&E=1445 (accessed on 28 November 2025).
Polymers 18 00159 sch001

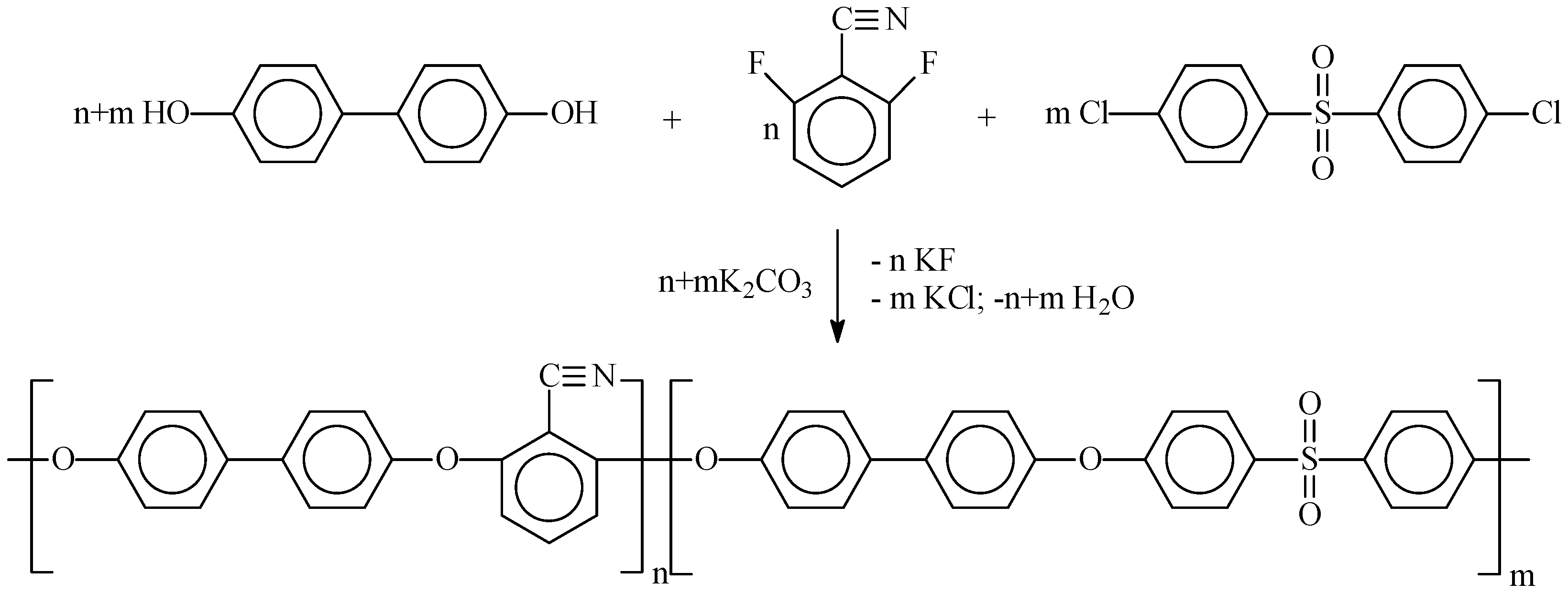

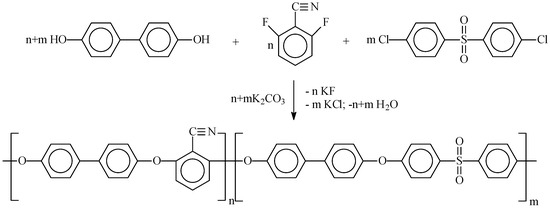

Scheme 1. Synthesis of copolymer polyphenylene sulfone (PPSU) with polyarylene ether nitrile (PAEN).
Scheme 1. Synthesis of copolymer polyphenylene sulfone (PPSU) with polyarylene ether nitrile (PAEN).
Polymers 18 00159 sch001
Polymers 18 00159 g001

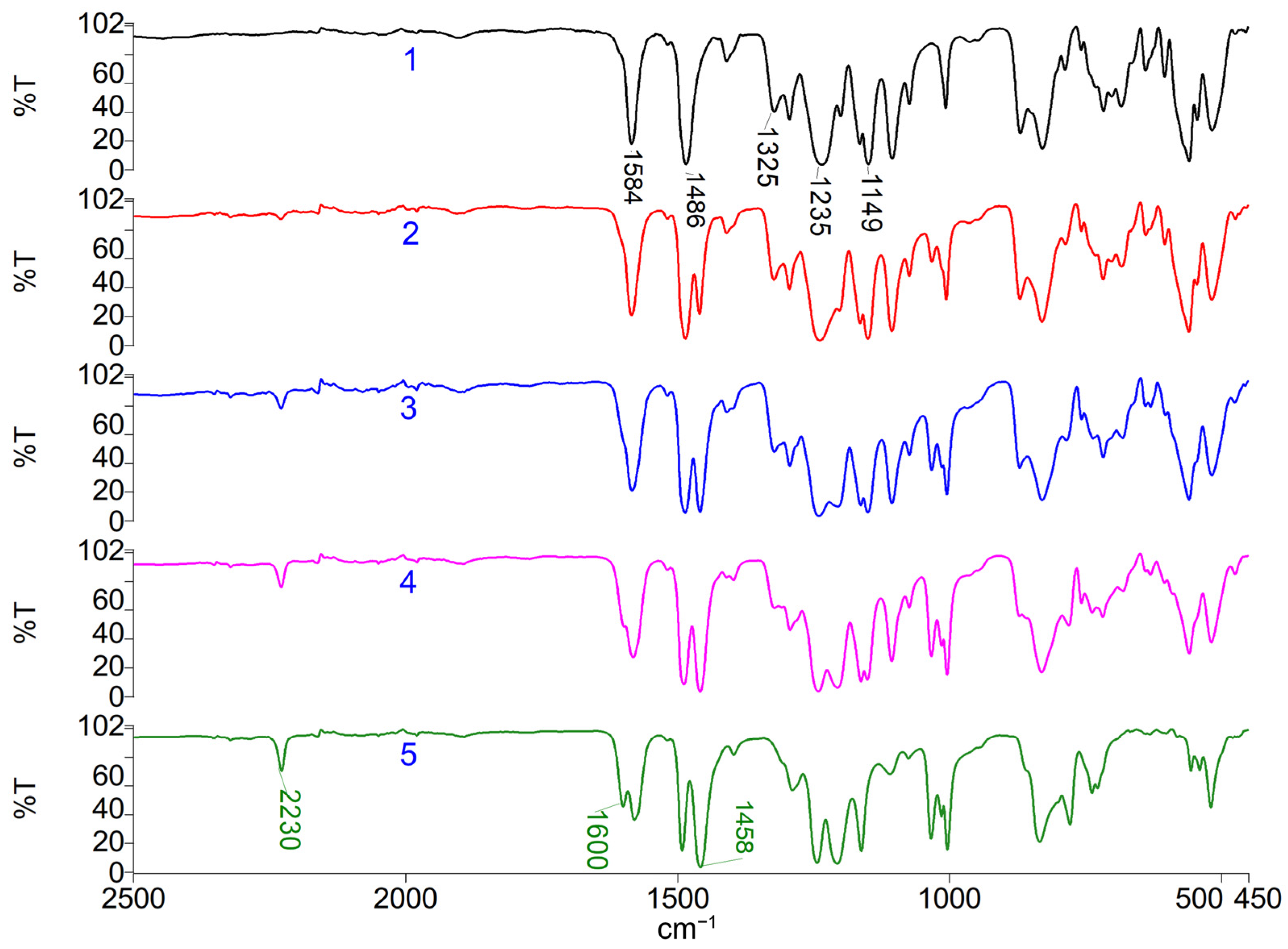

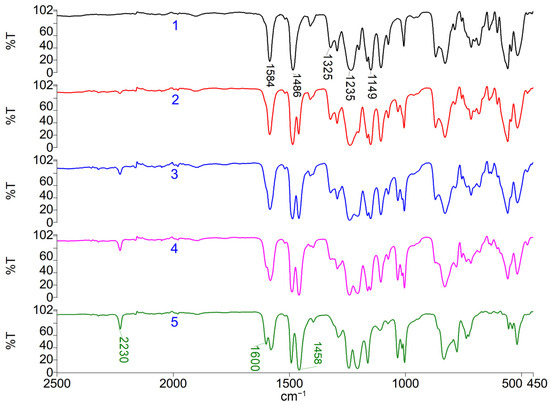

Figure 1. IR spectra: 1—PPSU; 2—PPSU/PAEN 75/25; 3—PPSU/PAEN 50/50; 4—PPSU/PAEN 25/75; 5—PAEN.
Figure 1. IR spectra: 1—PPSU; 2—PPSU/PAEN 75/25; 3—PPSU/PAEN 50/50; 4—PPSU/PAEN 25/75; 5—PAEN.
Polymers 18 00159 g001
Polymers 18 00159 g002

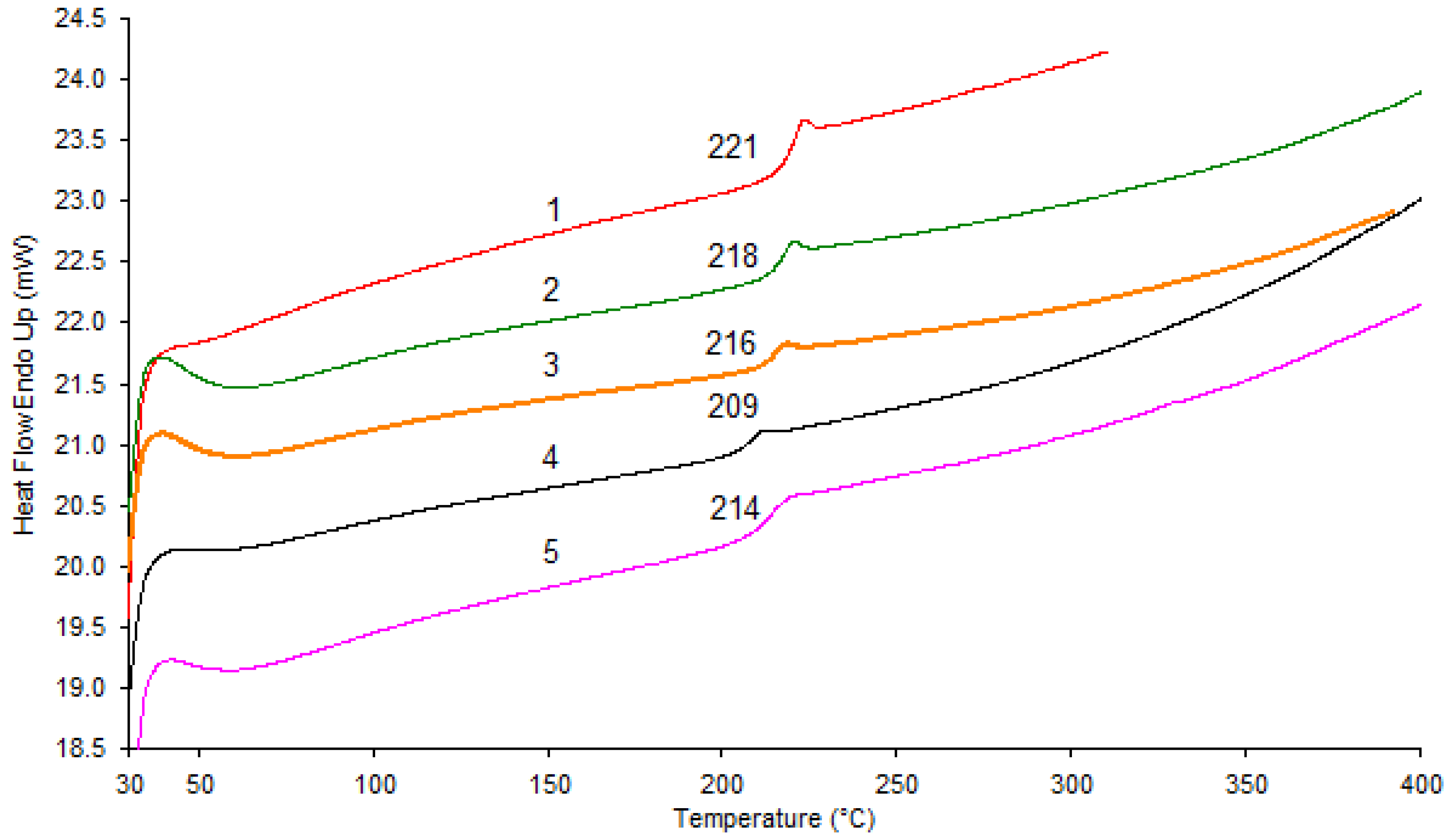

Figure 2. Differential scanning calorimetry second heating curves: 1—PPSU; 2—PPSU/PAEN 75/25; 3—PPSU/PAEN 50/50; 4—PPSU/PAEN 25/75; 5—PAEN.
Figure 2. Differential scanning calorimetry second heating curves: 1—PPSU; 2—PPSU/PAEN 75/25; 3—PPSU/PAEN 50/50; 4—PPSU/PAEN 25/75; 5—PAEN.
Polymers 18 00159 g002
Polymers 18 00159 g003

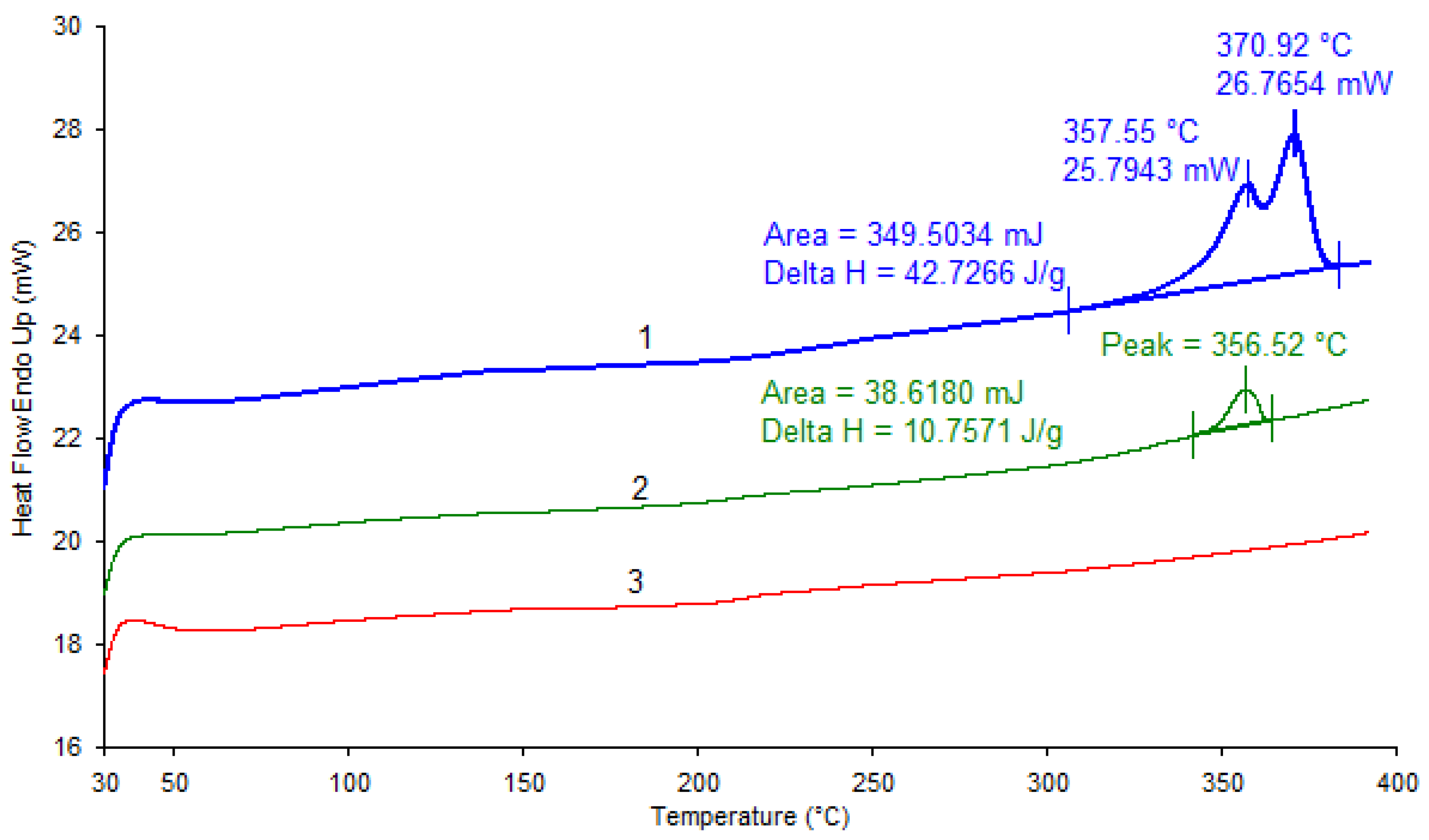

Figure 3. Differential scanning calorimetry first heating curves: 1—PAEN; 2—PPSU/PAEN 25/75; 3—PPSU/PAEN 50/50.
Figure 3. Differential scanning calorimetry first heating curves: 1—PAEN; 2—PPSU/PAEN 25/75; 3—PPSU/PAEN 50/50.
Polymers 18 00159 g003
Polymers 18 00159 g004

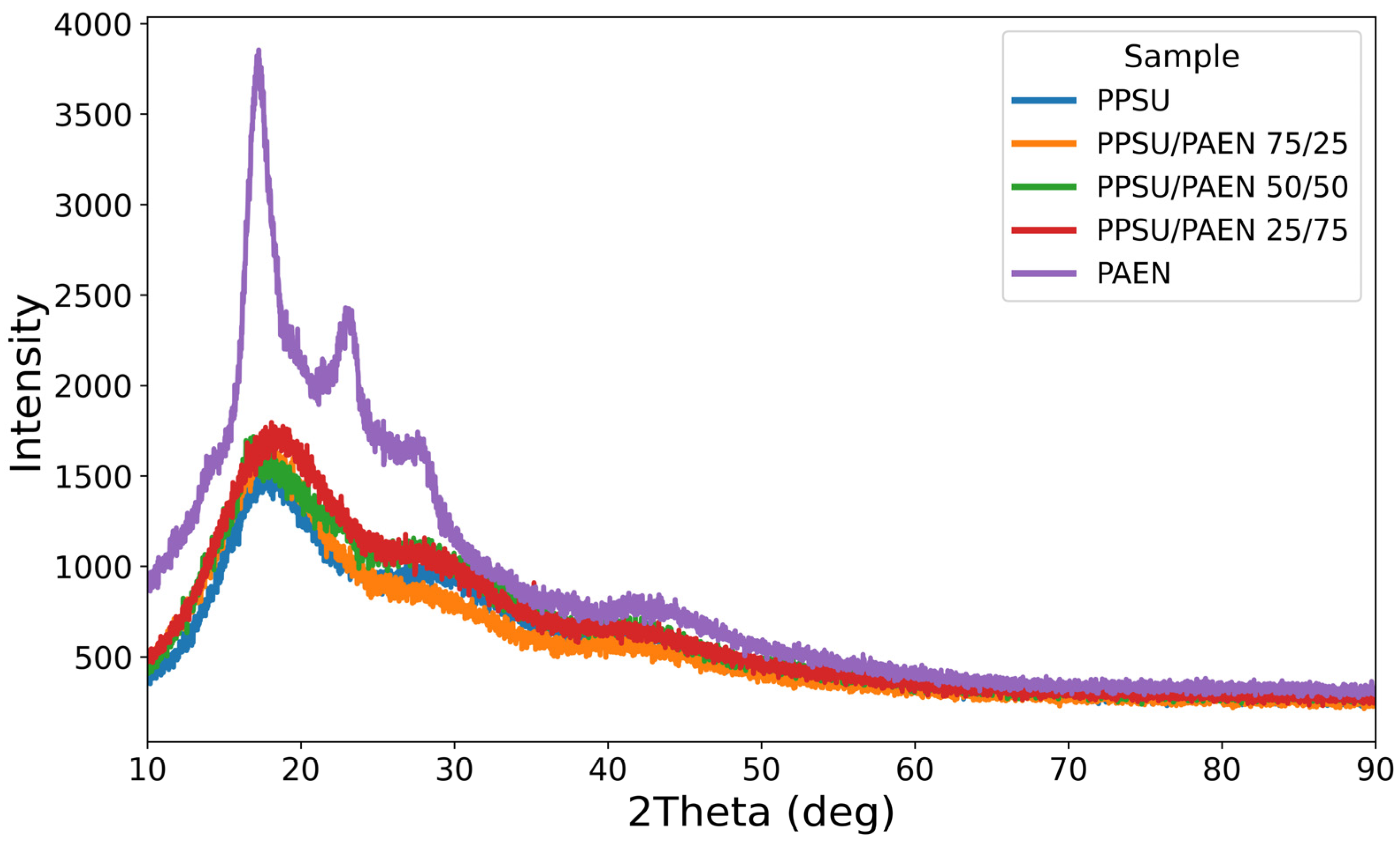

Figure 4. Wide-angle X-ray diffraction patterns of copolymers.
Figure 4. Wide-angle X-ray diffraction patterns of copolymers.
Polymers 18 00159 g004
Polymers 18 00159 g005

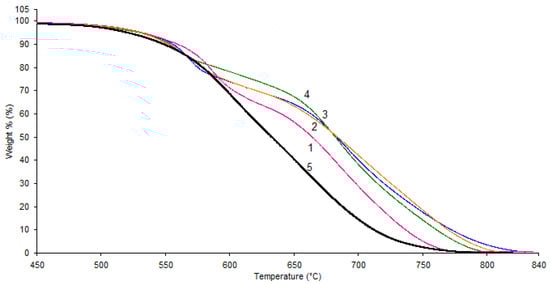

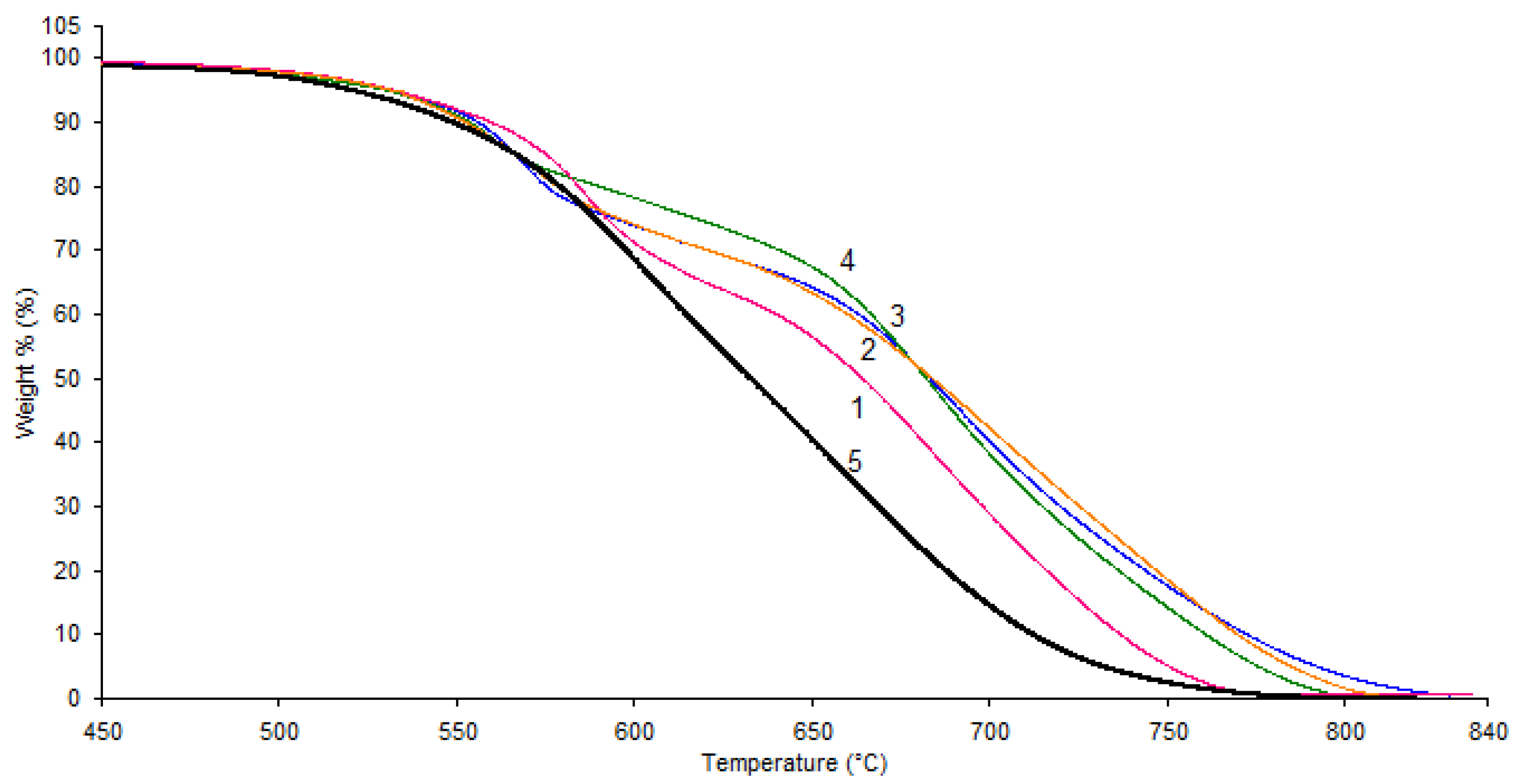

Figure 5. Thermogravimetric analysis curves: 1—PPSU; 2—PPSU/PAEN 75/25; 3—PPSU/PAEN 50/50; 4—PPSU/PAEN 25/75; 5—PAEN.
Figure 5. Thermogravimetric analysis curves: 1—PPSU; 2—PPSU/PAEN 75/25; 3—PPSU/PAEN 50/50; 4—PPSU/PAEN 25/75; 5—PAEN.
Polymers 18 00159 g005
Polymers 18 00159 g006

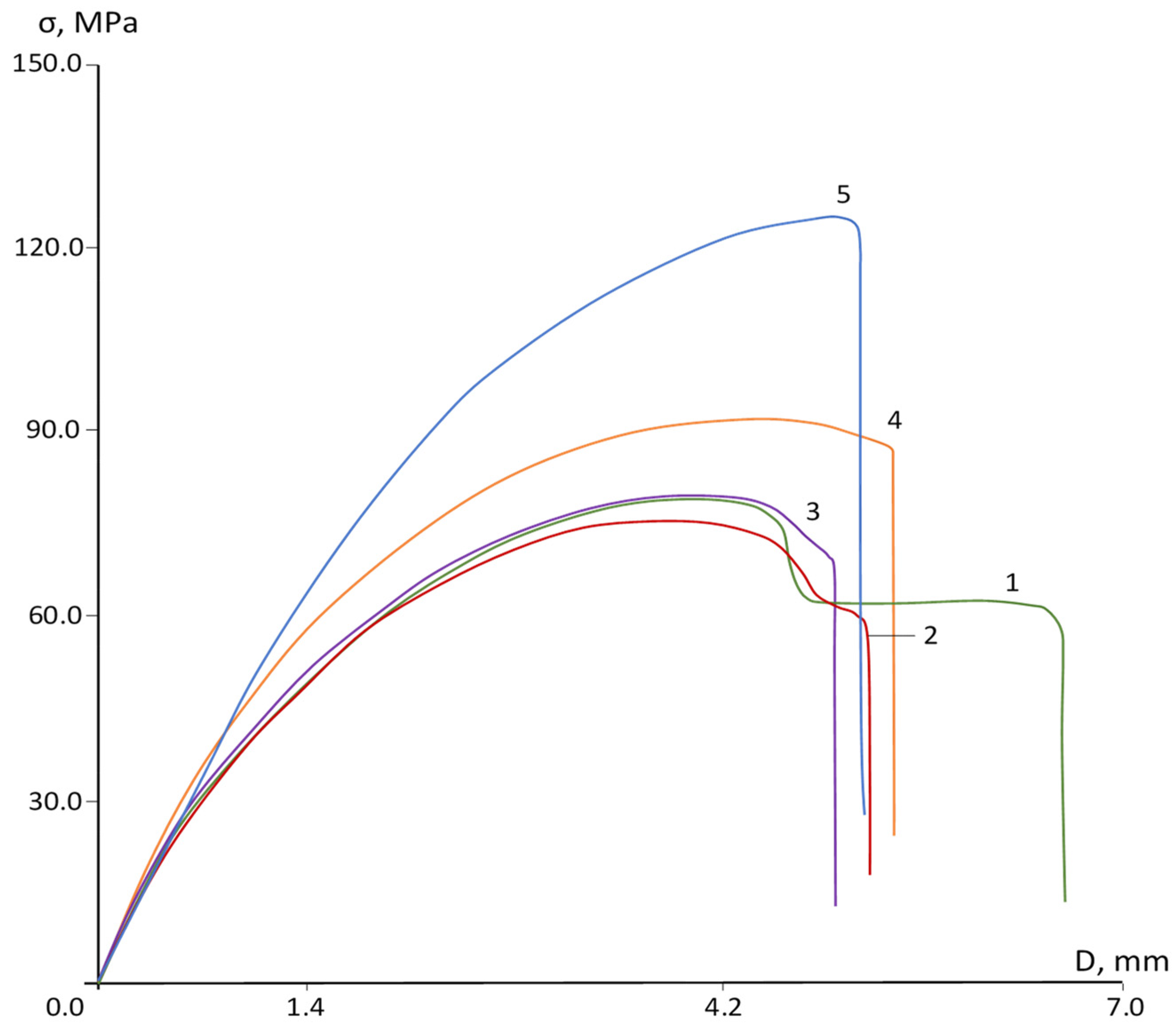

Figure 6. Deformation curves: 1—PPSU; 2—PPSU/PAEN 75/25; 3—PPSU/PAEN 50/50; 4—PPSU/PAEN 25/75; 5—PAEN.
Figure 6. Deformation curves: 1—PPSU; 2—PPSU/PAEN 75/25; 3—PPSU/PAEN 50/50; 4—PPSU/PAEN 25/75; 5—PAEN.
Polymers 18 00159 g006
Table 1. Monomer ratios during the synthesis of polymers.
Table 1. Monomer ratios during the synthesis of polymers.
SampleDHBP/DCDPS/DFBN (mol)
PPSU0.16/0.1656/0
PPSU/PAEN
75/25		0.16/0.1256/0.04
PPSU/PAEN
50/50		0.16/0.0856/0.08
PPSU/PAEN
25/75		0.16/0.0456/0.12
PAEN0.16.56/0/0.16
DHBP: 4,4′-dihydroxybiphenyl, DFBN: 2,6-difluorobenzonitrile, DCDPS: 4,4′-dichlorodiphenylsulfone.
Table 2. Thermal and rheological properties of PPSU/PAEN copolymers.
Table 2. Thermal and rheological properties of PPSU/PAEN copolymers.
SampleMFI (g min−1)T2%T5%T10%Tg, °CTm, °C∆Hm, J/g
PPSU28499534564221--
PPSU/PAEN
75/25		27497532552218--
PPSU/PAEN
50/50		28498532556216--
PPSU/PAEN
25/75		4448753155420935710.76
PAEN6483520549214358/37142.73
MFI: melt flow index, T2%, T5%, T10%: temperature of 2, 5 and 10% weight loss, respectively.
Table 3. Solubility of polymers and copolymers in various solvents at 23 °C.
Table 3. Solubility of polymers and copolymers in various solvents at 23 °C.
SolventPPSUPPSU/PAEN
75/25		PPSU/PAEN
50/50		PPSU/PAEN
25/75		PAEN
1 h
N-Methyl-2-pyrrolidone+ 1/+ 2+/−+/−−/−−/−
Dimethylacetamide+/++/−+/−−/−−/−
Dimethylformamide+/++/−+/−−/−−/−
Tetrahydrofuran+/++/−+/−−/−−/−
Methylene chloride+/++/−+/−−/−−/−
Chloroform+/++/−+/−−/−−/−
Styrene−/−−/−−/−−/−−/−
Dichloroacetic acid+/++/−+/−−/−−/−
8 h
N-Methyl-2-pyrrolidone+/++/++/−−/−−/−
Dimethylacetamide+/++/++/+−/±−/±
Dimethylformamide+/++/++/+−/±−/±
Tetrahydrofuran+/++/±+/−−/−−/−
Methylene chloride+/++/++/+−/−−/−
Chloroform+/++/++/+−/−−/−
Styrene−/−−/−−/−−/−−/−
Dichloroacetic acid+/++/−+/−−/−−/−
24 h
N-Methyl-2-pyrrolidone+/++/++/+−/+−/−
Dimethylacetamide+/++/++/+−/+−/±
Dimethylformamide+/++/++/+−/±−/±
Tetrahydrofuran+/++/++/+−/−−/−
Methylene chloride+/++/++/+−/−−/−
Chloroform+/++/++/+−/−−/−
Styrene−/−−/−−/−−/−−/−
Dichloroacetic acid+/++/−+/−−/−−/−
1 powder. 2 granules. − did not dissolve, + dissolved, ± swollen
Table 4. Mechanical properties of PPSU/PAEN copolymers.
Table 4. Mechanical properties of PPSU/PAEN copolymers.
SampleImpact Strength, kJ/m2Eflσbendσyieldσtenε
UnnotchedNotchedGPaMPaMPaMPa%
PPSU135.022.02.474.574.55818.0
PPSU/PAEN
75/25		129.218.12.474.074.15913.4
PPSU/PAEN
50/50		103.512.02.676.8(79.6)6913.0
PPSU/PAEN
25/75		75.48.62.882.9-8312.9
PAEN72.99.93.091.8-12313.1
Efl: flexural modulus, σyield: yield strength, σbend: bending strength, σten: tensile strength, and ε: elongation at break.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhansitov, A.; Shakhmurzova, K.; Kurdanova, Z.; Slonov, A.; Borisov, I.; Rzhevskaya, E.; Musov, I.; Baykaziev, A.; Khashirova, S. Synthesis and Properties of Polyarylene Ether Nitrile and Polyphenylene Sulfone Copolymers. Polymers 2026, 18, 159. https://doi.org/10.3390/polym18020159

AMA Style

Zhansitov A, Shakhmurzova K, Kurdanova Z, Slonov A, Borisov I, Rzhevskaya E, Musov I, Baykaziev A, Khashirova S. Synthesis and Properties of Polyarylene Ether Nitrile and Polyphenylene Sulfone Copolymers. Polymers. 2026; 18(2):159. https://doi.org/10.3390/polym18020159

Chicago/Turabian Style

Zhansitov, Azamat, Kamila Shakhmurzova, Zhanna Kurdanova, Azamat Slonov, Ilya Borisov, Elena Rzhevskaya, Ismel Musov, Artur Baykaziev, and Svetlana Khashirova. 2026. "Synthesis and Properties of Polyarylene Ether Nitrile and Polyphenylene Sulfone Copolymers" Polymers 18, no. 2: 159. https://doi.org/10.3390/polym18020159

APA Style

Zhansitov, A., Shakhmurzova, K., Kurdanova, Z., Slonov, A., Borisov, I., Rzhevskaya, E., Musov, I., Baykaziev, A., & Khashirova, S. (2026). Synthesis and Properties of Polyarylene Ether Nitrile and Polyphenylene Sulfone Copolymers. Polymers, 18(2), 159. https://doi.org/10.3390/polym18020159

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
