3. Results and Discussion

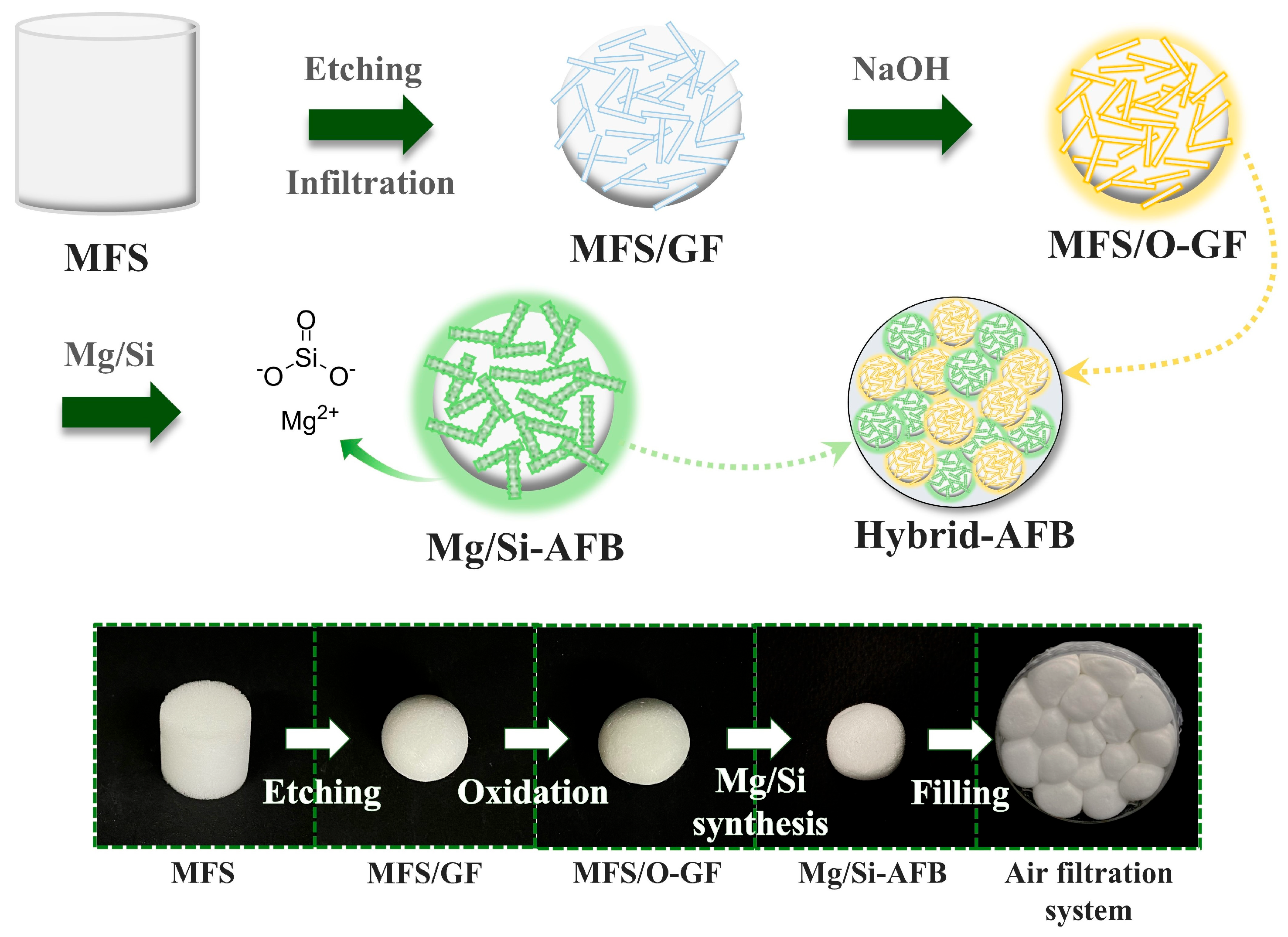

Figure 1 schematically illustrates the formation of a Mg/Si-embedded air filter ball (Mg/Si-AFB). The synthesis involves the physical etching of a melamine formaldehyde sponge (MFS), followed by the oxidation of glass fiber (GF) and the subsequent synthesis of the Mg/Si component. Given its porous, compressible, and sulfonated functional properties, MFS was employed as the base material. The Mg/Si-AFB (MFS/O-GF/Mg-Si) is prepared by immersing a cylindrical MFS into a beaker wrapped in sandpaper that contains the GF solution. During stirring, the centimeter-scale cylindrical MFS is gradually transformed into a tiny spherical GF-embedded MFS through collisions involving the MFS, GF, and sandpaper. To achieve the effective removal of PMs and HCHO, a disk-type air filter filled with 12 to 18 Mg/Si-AFBs or O-GF-AFBs was designed. Hybrid AFBs, composed of Mg/Si-AFBs and O-GF-AFBs, are prepared to realize customizable air filters that enable users or operators to selectively target specific pollutants.

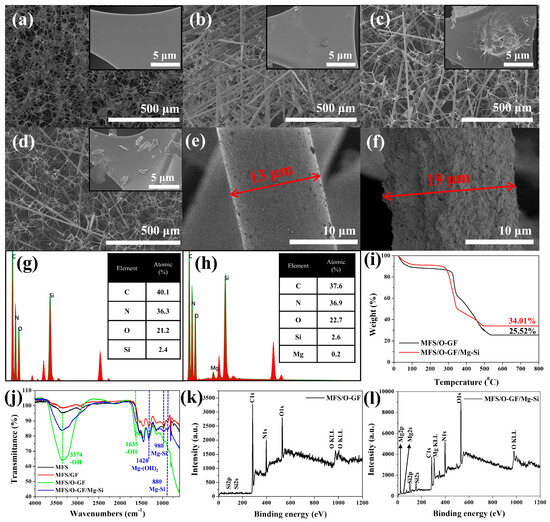

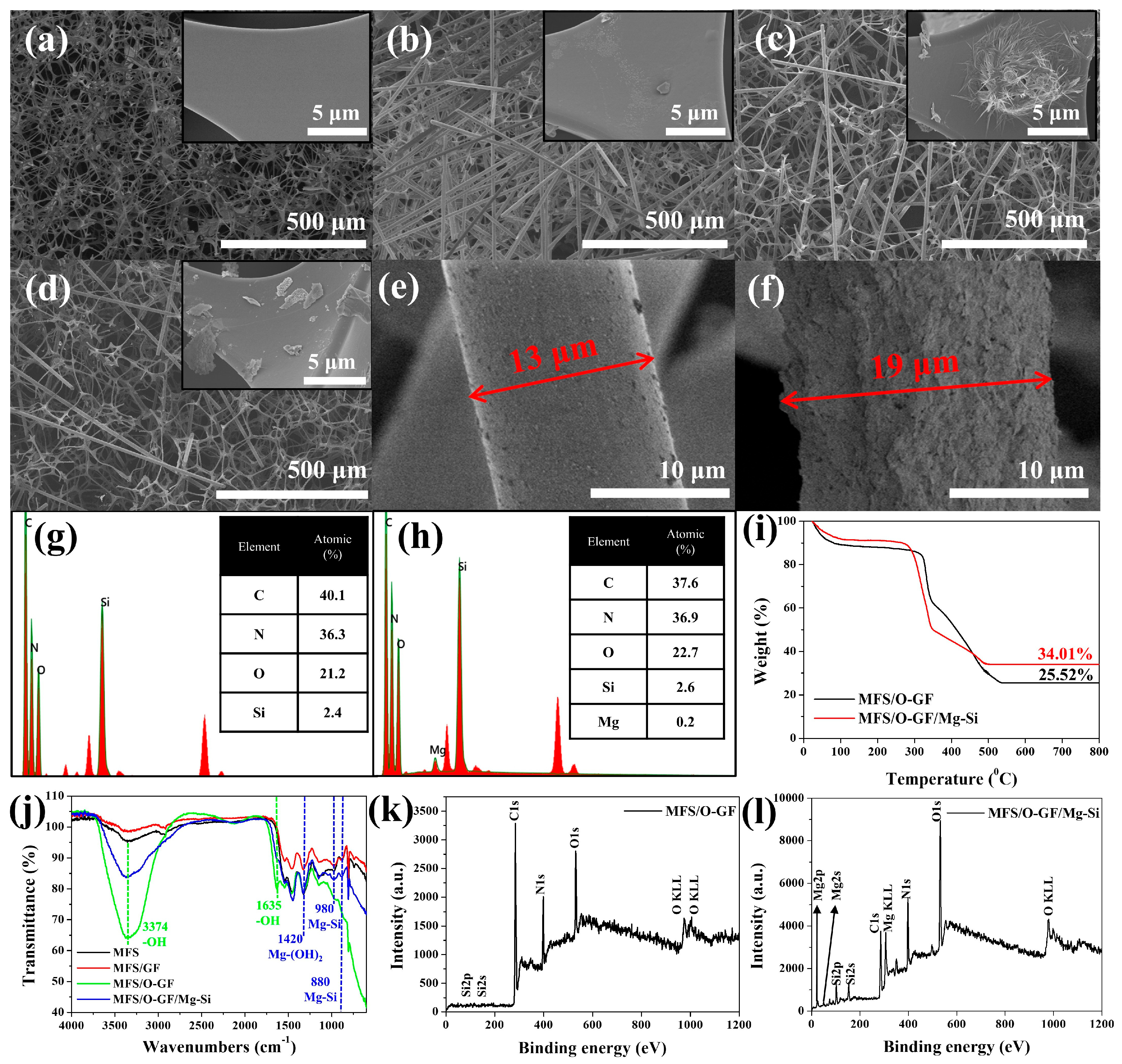

Figure 2a–d shows scanning electron microscopy (SEM) images of each step of the Mg/Si-AFB (MFS/O-GF/Mg-Si) formation. The MFS substrate exhibited an interconnected 3D network skeleton with its inherent surface morphology (
Figure 2a). After the physical etching of MFS using sandpaper and GF, the GF interpenetrated the MFS pores, and the MFS surfaces became marginally rougher (MFS/GF) (
Figure 2b). This change suggests that physical etching of the MFS surface occurred due to friction from the sandpaper and GF during the process. After the oxidation of the MFS/GF composite, the MFS surfaces became significantly rougher, and small particles were observed on the surface of the GF (MFS/O-GF) (
Figure 2c,e). Following the synthesis of Mg-Si onto the MFS/O-GF, the width of the O-GF/Mg-Si composite significantly increased from 13 μm to 19 μm (
Figure 2e,f). Concurrently, the surface of the O-GF/Mg-Si became remarkably rough and porous (MFS/O-GF/Mg-Si) (
Figure 2f). Brunauer–Emmett–Teller (BET) analysis revealed that the MFS/O-GF sample exhibited a specific surface area of 0.3145 m
2/g, while the MFS/O-GF/Mg–Si (Mg/Si-AFB) showed a higher surface area of 0.4894 m
2/g (
Figure S1). The ~55% increase in surface area is attributed to the Mg–Si nanostructures grown during the hydrothermal treatment, providing additional adsorption sites that contribute to improved filtration and HCHO RE. Energy-dispersive X-ray (EDX) and thermogravimetric analysis (TGA) analyses further confirmed the successful formation of the Mg/Si-AFB. The presence of Si in the MFS/O-GF composite suggested that the O-GF, which contains Si, successfully infiltrated the MFS structure (
Figure 2g). While Mg was not detected in the MFS/O-GF composite, its subsequent observation in the MFS/O-GF/Mg-Si composite indicated that the Si present in the MFS/O-GF was successfully transformed into the Mg-Si component within the final composite (
Figure 2h). The O-GF content, accounting for 25.52% of the total MFS/O-GF composite mass, supports the successful loading of O-GF onto the MFS (
Figure 2i). Furthermore, the mass percentage of the inorganic portion (Mg-Si or Si) increased to 34.01% in the MFS/O-GF/Mg-Si composite, which suggests the transformation of Si into Mg-Si during the synthesis (
Figure 2i). Fourier Transform Infrared (FT-IR) spectroscopy was performed to confirm the formation of the Mg/Si-AFB. Following oxidation, the MFS/O-GF composite exhibited new absorption peaks at 3374 cm
−1 (-OH) and 1635 cm
−1 (-OH) (
Figure 2j, green line), indicating the successful oxidation of GF to O-GF.
Finally, the MFS/O-GF/Mg-Si composite showed new characteristic absorption peaks at 1420 cm
−1 (Mg-(OH)
2), 980 cm
−1 (Mg-Si), and 880 cm
−1 (Mg-Si) (
Figure 2j, blue line) [
28]. These peaks confirm the transformation of Si into the Mg-Si component during the synthesis process. X-ray photoelectron spectroscopy (XPS) characterization provided additional evidence for the successful synthesis of the Mg/Si-AFB. The detection of Si 2p signals in the MFS/O-GF composite verified the effective incorporation of Si-containing O-GF into the MFS framework (
Figure 2k). In contrast, Mg-related peaks were absent in the MFS/O-GF composite but newly appeared in the MFS/O-GF/Mg-Si composite, confirming the formation of Mg–Si species (
Figure 2l). These results indicate that the Si sites originating from O-GF participated in the in situ transformation into Mg–Si components during the subsequent reaction. XRD analysis of the Mg/Si-AFB did not show distinct crystalline Mg–Si peaks; this is attributed to the low surface loading of Mg–Si relative to the dominant amorphous polymer matrix and to the likely poor crystallinity of the hydrothermally formed Mg–Si species (
Figure S2). FT-IR and XPS, however, detect Si–O–Mg-related vibrations and Mg-related chemical states, and BET measurements show a ∼55% increase in surface area after Mg–Si treatment (0.3145 → 0.4894 m
2/g), consistent with formation of nanoscale Mg–Si surface structures. Therefore, the combined dataset supports the formation of surface-localized, poorly crystalline (or amorphous) Mg–Si phases.
Before testing the performance of the Mg/Si-AFB, we investigated the PM removal capabilities of the MFS/GF and MFS/O-GF composites. As illustrated in

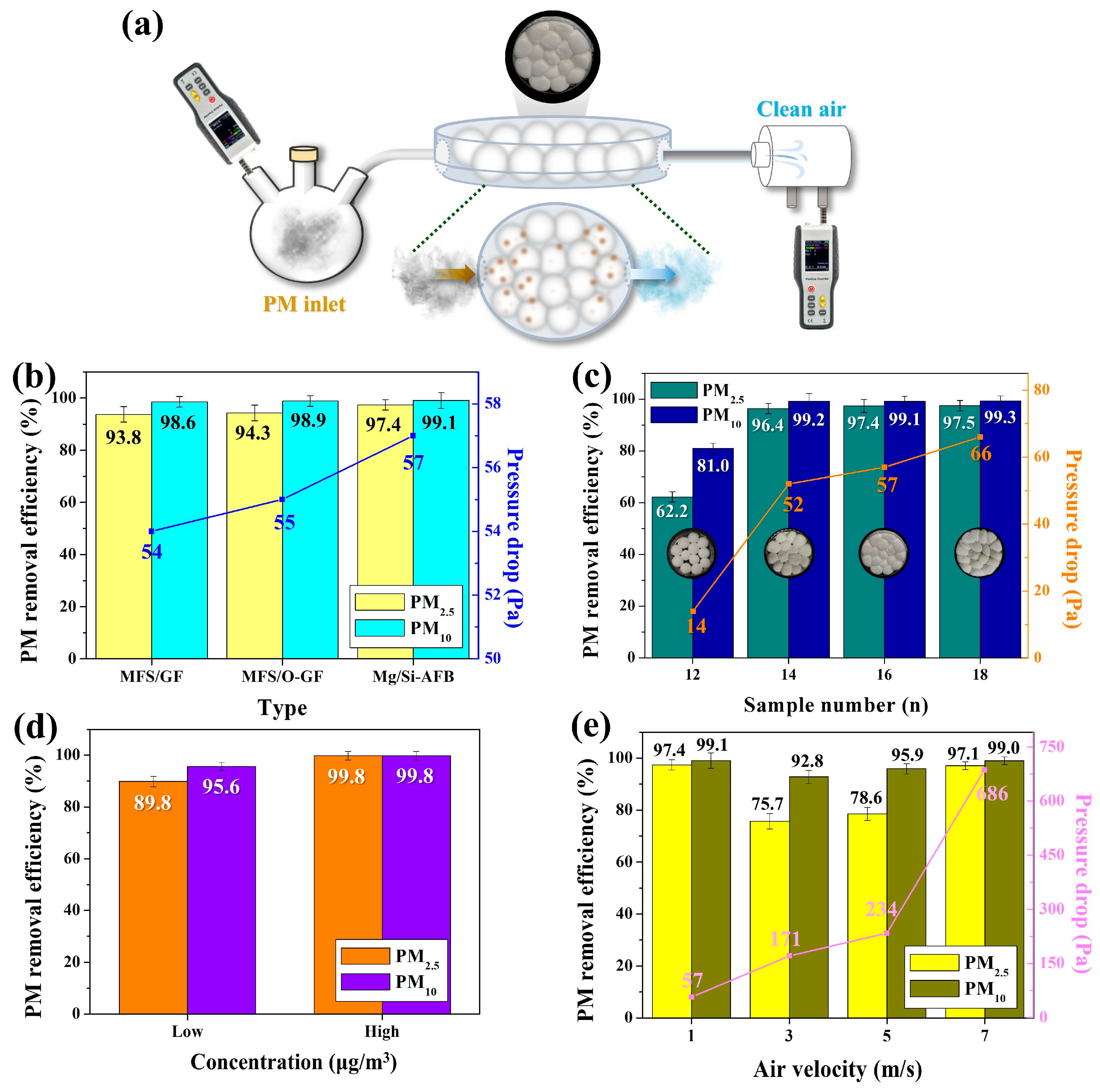

Figure 3a, a disk-type air filtration system loaded with the air filter was connected between the PM source/detector 1 (left) and detector 2 (right). The left chamber contained 500 mL of PM-laden air with 1510 μg/m
3 of PM
2.5. A constant air velocity of 1 m/s was applied to the source chamber to force the PM-laden air to flow from the left chamber to the right chamber through each air filter. Unfiltered PM released from the filter was then detected by the detector. To investigate the effects of the filter materials on PM removal efficiency (RE), three types of filters such as MFS/GF, O-GF-AFB (MFS/O-GF), and Mg/Si-AFB (MFS/O-GF/Mg-Si) were tested. The PM
2.5 RE of MFS/GF was 93.8%, which increased slightly to 94.3% for the O-GF-AFB (MFS/O-GF). This result suggests that the oxidation of GF contributes to improving the PM RE. The PM
2.5 RE of the Mg/Si-AFB was 97.4%, which was significantly higher than those of the MFS/GF (93.8%) and O-GF-AFB (MFS/O-GF) (94.3%), respectively (
Figure 3b). These results suggest that PM preferentially interacts with the Mg/Si surface in the Mg/Si-AFB rather than with the O-GF surface in the O-GF-AFB, likely due to the higher specific surface area of the Mg/Si material, as shown in
Figure 2f. The PM
10 REs of the three filters exhibited minimal variation (98.6~99.1%), which may be attributed to mechanical collection mechanisms such as inertial impaction and interception (ice blue bars,
Figure 3b). In contrast, the observed differences in PM
2.5 RE (93.8~97.4%) could be influenced by factors including diffusion (Brownian motion), electrostatic effects (electret), and the surface area and structural characteristics of the filter materials (yellow bars,
Figure 3b). Therefore, the relatively superior performance of Mg/Si-AFB is likely associated with its distinct surface morphology and material properties compared with the other filters. A disk-type air filtration system loaded with 16 Mg/Si-AFBs exhibited the highest pressure drop of 57 Pa, compared with 54 Pa and 55 Pa for the systems containing 16 MFS/GF balls and 16 O-GF-AFBs, respectively (
Figure 3b). These results indicate that the Mg/Si-AFB has a denser and more complex structure than the others. Thus, the Mg/Si-AFB, exhibiting a PM
2.5 RE of 97.4% and a pressure drop of 57 Pa, was selected as the optimized AFB.
Figure 3c shows the PM
2.5 RE and pressure drop of the disk-type air filtration system loaded with different numbers of Mg/Si-AFBs (12, 14, 16, and 18). These systems are denoted as AFB-12, AFB-14, AFB-16, and AFB-18, respectively. The internal void spaces within the disk-type air filtration system decreased and eventually disappeared as the packing density of AFBs increased (inset of
Figure 3c). Both the PM
2.5 RE and pressure drop increased with the packing density of AFBs. While the PM
2.5 REs of AFB-14 and AFB-16 increased noticeably, that of AFB-18 remained nearly identical to AFB-16, indicating that excessive packing of AFBs does not further enhance PM RE (green bars,
Figure 3c). In contrast, excessive packing led to a pronounced increase in the pressure drop of the filtration system. Therefore, the system loaded with 16 Mg/Si-AFBs was selected as the optimized configuration. The packing density of the Mg/Si-AFB was calculated as the total mass of the Mg/Si-AFBs divided by the disk-type filtration device volume (127.4 cm
3). For the Mg/Si-AFB (MFS/O-GF/Mg-Si), the packing densities were 14.16, 16.52, 18.89, and 21.24 kg/m
3 when 12, 14, 16, and 18 Mg/Si-AFBs were loaded, respectively, confirming that the filtration module enables precise control of packing density by simply varying the number of AFBs (
Figure S3). Because the system adopts a filling-type configuration, the packing density in the air filter chamber can be easily tuned, allowing straightforward adjustment of both removal efficiency and pressure drop through the number of AFBs loaded.
To evaluate the effect of PM concentration on RE, the PM REs of the system loaded with 16 Mg/Si-AFBs were measured at lower and higher PM concentrations (490 and 641,710 µg/m
3) relative to the standard concentration (1510 µg/m
3). The 16 Mg/Si-AFB system exhibited PM
2.5 REs of 89.8% and 99.8% at the lower and higher concentrations, respectively (orange bars,
Figure 3d). These observed PM RE values were significantly lower and higher, respectively, than the PM RE measured at the standard concentration. Exposed to high concentrations of PM, the air filters rapidly capture PM particles on their surface and between the fibers, leading to the formation of a dust cake. This accumulated layer of PM particles acts, in itself, as a denser and finer filtration medium. The dust cake more effectively captures smaller particles than the clean filter fibers alone, temporarily increasing the overall RE. Consequently, the filter is rapidly “aged” or conditioned during high-concentration tests, resulting in a higher RE. To investigate the removal performance of our air filtration system under different air velocities, the PM
2.5 REs were measured as the air velocity increased. Typically, the PM RE decreases with increasing air velocity due to the reduced contact time between airborne particles and the filter, while the pressure drop increases with increasing air velocity. In our system, the pressure drop rose from 57 Pa to 686 Pa as the air velocity increased (pink line,
Figure 3e). However, a distinctive pattern in PM RE was observed: the PM
2.5 RE decreased at an air velocity of 3 m/s, slightly increased at 5 m/s, and then significantly increased at 7 m/s (yellow bars,
Figure 3e). The PM
2.5 and PM
10 REs (97.1% and 99%, respectively) measured at an air velocity of 7 m/s were nearly identical to those obtained at 1 m/s (
Figure 3e). These results suggest that the disk-type air filtration system loaded with 16 Mg/Si-AFBs can maintain a consistent PM RE even under high air velocity conditions. Our reconfigurable air filtration platform allows easy insertion and removal of AFBs as many times as desired within the open/close-type disk chamber. This enables control of the RE and pressure drop of the air filtration system according to environmental conditions, as shown in
Figure 3c.

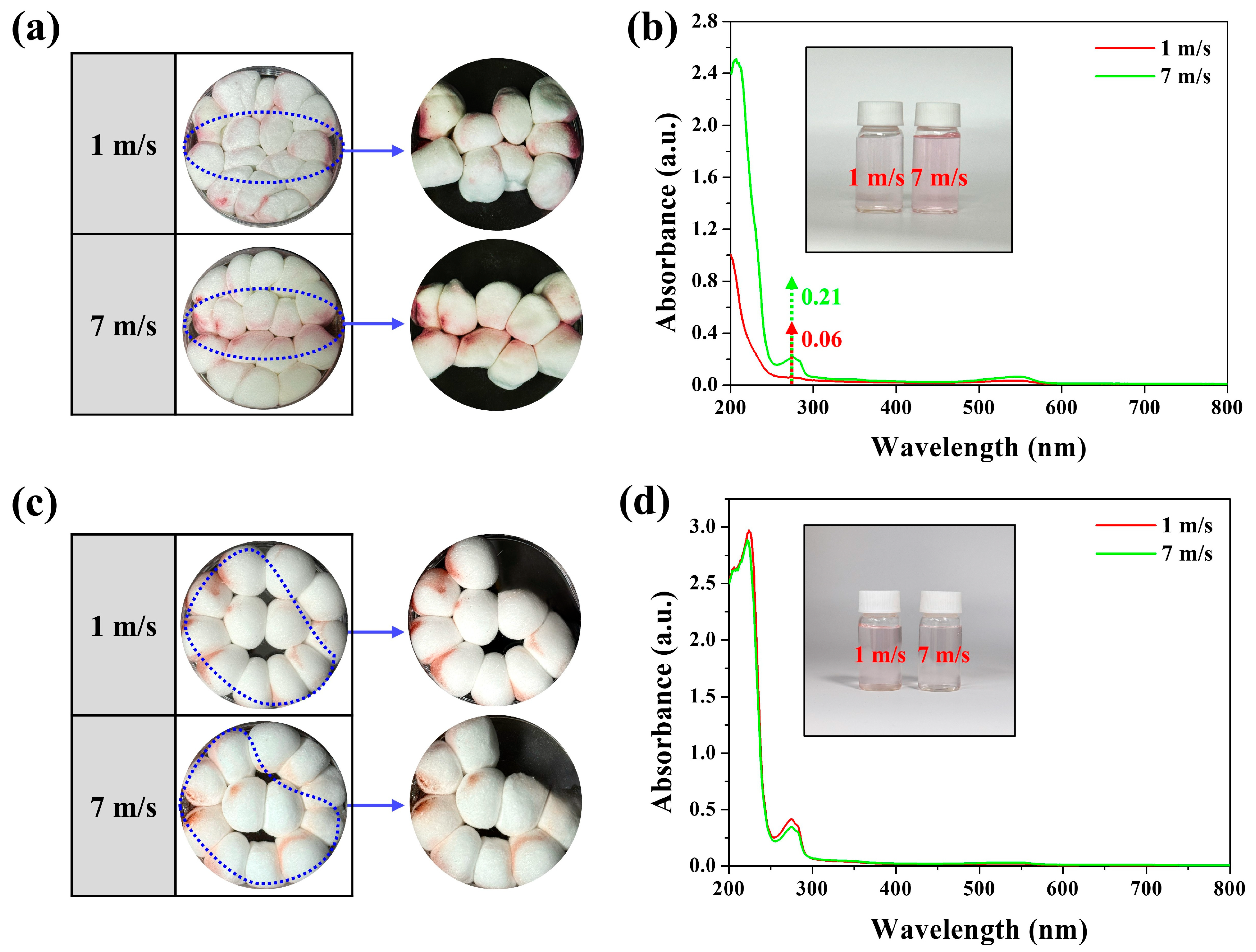

To clarify the reason why the Mg/Si-AFB maintained a high RE even at high air velocities, a visualization experiment was conducted to trace the movement path of PM-laden air within the filter. Red smoke bombs were used to visualize the PM trajectories, and 16 Mg/Si-AFB samples were used for this test. At an air velocity of 1 m/s, PM was uniformly adsorbed throughout the entire filter, whereas at 7 m/s, PM deposition was concentrated along the inlet and outlet flow paths (
Figure 4a). To quantitatively verify whether more PM was adsorbed by the Mg/Si-AFBs located along these paths, nine Mg/Si-AFBs were collected and immersed in water to measure the amount of adsorbed PM. The PM solution obtained from the 7 m/s sample exhibited a darker pink coloration and higher UV–vis absorbance compared to that from the 1 m/s sample, indicating greater PM accumulation along the flow path under high-flow conditions (
Figure 4b). To elucidate the effect of packing density on RE, adsorption behavior was examined in an air filtration system with a low packing density (12 Mg/Si-AFB samples). At this lower density, similar adsorption patterns were observed under both low (1 m/s) and high (7 m/s) air velocities, with PM deposition occurring uniformly throughout the filter (
Figure 4c). The PM solution obtained at 1 m/s exhibited a more intense pink coloration and slightly higher UV–vis absorbance than that obtained at 7 m/s (
Figure 4d). In other words, a slightly higher adsorption amount was detected at the lower air velocity (1 m/s), consistent with the longer residence time of PM-laden air. As expected, the filtration efficiency decreased at high air velocities under low packing density conditions, a typical trend in conventional air filters. However, as shown in
Figure 3e and
Figure 4a,b, when the packing density was increased (16 Mg/Si-AFB samples), no deterioration in RE was observed even at high air velocities. These findings indicate that maintaining a sufficiently high packing density allows the air filter to sustain high RE even under rapid airflow conditions. To quantitatively evaluate the contribution of the filter cake effect at high airflow velocities, we analyzed the PM mass and performance change between low-packing and high-packing systems. The absorbance of PM extracts at 7 m/s was 0.209 at 273 nm, corresponding to a ~348% higher PM mass compared to 1 m/s (0.06). This indicates rapid formation of a dense filter cake along the inlet–outlet flow path under high airflow (
Figure 4b). We also compared the performance change between low-packing (12 Mg/Si-AFBs) and high-packing (16 Mg/Si-AFBs) systems. The PM
2.5 RE decreased by 8.6% in the low-packing system when airflow increased from 1 to 7 m/s, whereas the high-packing system showed only a 0.3% decrease (
Figure S4). This demonstrates that the filter-cake layer plays a dominant role in sustaining filtration efficiency at high flow. To sum up, at a low air velocity, when PM-laden air encounters the filter, part of the flow penetrates while another part bypasses the fibers, allowing sufficient interaction between PM and the entire filter structure (
Figure 4a). In contrast, at a high air velocity, most PM-laden air passes directly toward the outlet without sufficient interaction with the filter matrix, resulting in preferential adsorption near the inlet and along the main flow passages (
Figure 4a). Consequently, a filter cake forms on the passage side, which further enhances the PM RE (
Figure 4b). Therefore, the unique internal architecture arising from the dense packing of AFBs enables the air filter to maintain a high RE even under elevated air velocities.
To comparatively investigate the HCHO removal performance of the Mg/Si-AFB and O-GF-AFB, a disk-type air filtration system packed with 16 of each type of AFB was connected to the HCHO source chamber (left, ≤5 ppm) and two detectors (1, upper; and 2, lower) (

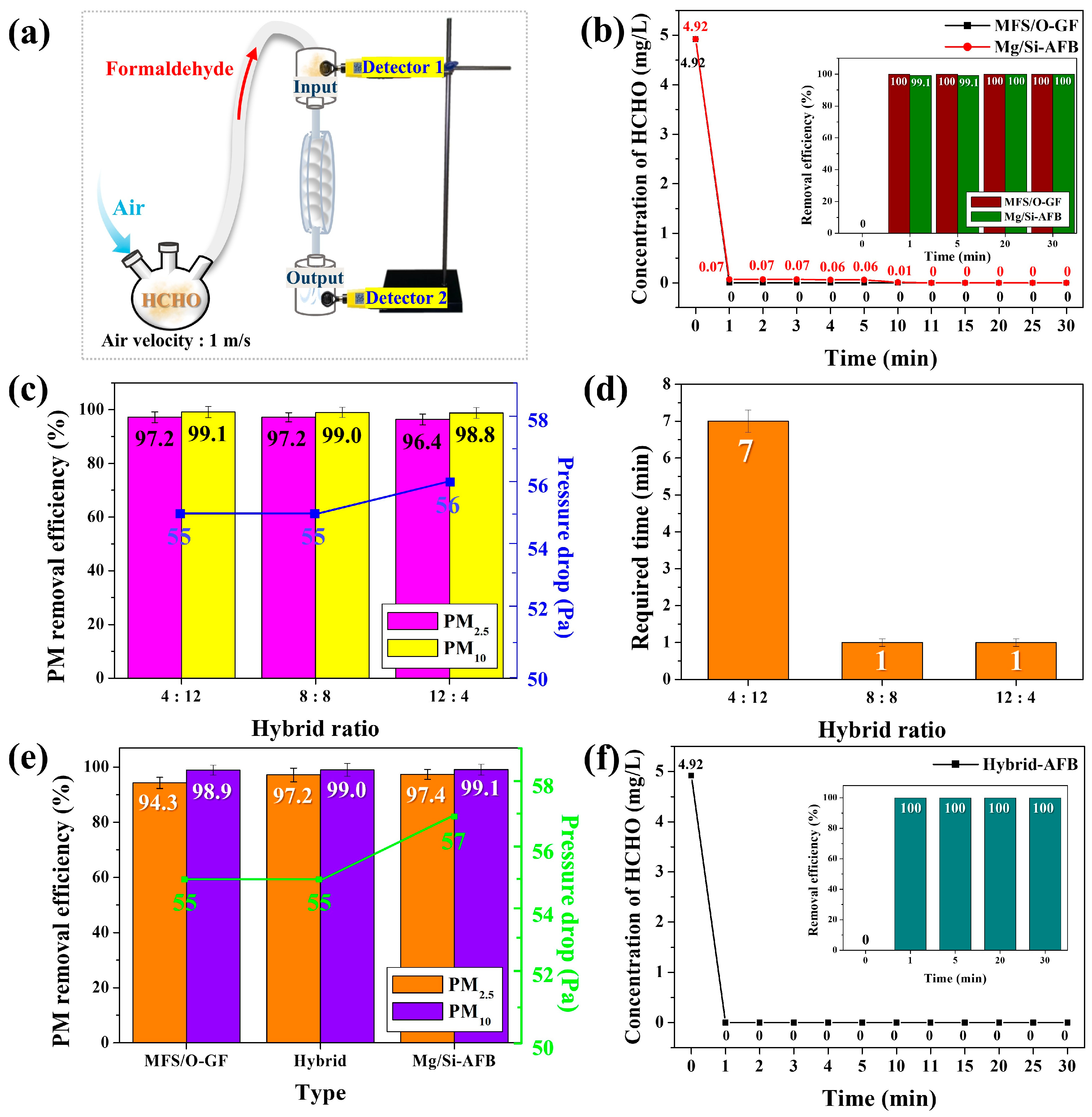

Figure 5a). To perform the blank stage test, the variation in the HCHO gas concentration emitted from the chamber without AFBs was monitored. In the absence of the AFBs, the HCHO gas concentration was recorded as 0.11 ppm at 1 min and decreased to 0.01 ppm at 15 min (
Figure S5). This decay suggests that HCHO was physically adsorbed onto the interior surface of the acrylate chamber when no filter was present.
The concentration of the HCHO gas emitted from the disk-type chamber—and thus, the residual HCHO concentration—was monitored by the lower detector (detector 2) as a function of time. As soon as the reaction began, the concentration of HCHO gas decreased sharply and reached 0 ppm within 1 min when using the O-GF-AFB (black line,
Figure 5b). After reaching 0 ppm at 1 min, the concentration remained constant at this level for 30 min, indicating that the HCHO gas had been completely and irreversibly removed. The RE of HCHO for the O-GF-AFB was therefore 100% at 1 min (inset of
Figure 5b). The concentration of HCHO gas also decreased sharply, reaching 0 ppm after 11 min with the Mg/Si-AFB (red line,
Figure 5b). Once the concentration reached 0 ppm at 11 min, the HCHO gas was considered to have been completely and irreversibly removed. The RE for HCHO was 99.9% at 1 min and 100% at 11 min for the Mg/Si-AFB (inset of
Figure 5b). Both types of air filters reduced the HCHO concentration to below the recommended indoor exposure limit (WHO standard, 0.08 ppm/m
3) within 1 min. However, the Mg/Si-AFB required 11 min for complete removal, whereas the O-GF-AFB achieved complete removal within 1 min (
Figure 5b). The adsorption behavior of HCHO gas on the O-GF-AFB was elucidated by FT-IR spectroscopy. Upon HCHO exposure, distinct vibrational bands emerged or intensified at 1457 cm
−1 (–CH stretching), 1328 cm
−1 (C–O stretching), 1075 cm
−1 (–C–O–C– stretching), and 809 cm
−1 (–CH stretching), corresponding to the characteristic absorptions of para-formaldehyde (
Figure S6, red line) [
29]. These observations indicate that the adsorbed HCHO molecules partially polymerized to para-HCHO on the surface of the O-GF-AFB, which is consistent with the known instability of gaseous formaldehyde [
29].
Once polymerized, the para-HCHO species were strongly retained on the surface and could not be desorbed even under vacuum at room temperature, likely due to their larger molecular size and reduced volatility. In addition, the abundant surface hydroxyl groups of the O-GF-AFB enhanced the adsorption affinity toward polar VOCs such as HCHO, promoting the capture and stabilization of the adsorbed species [
29]. The Mg/Si-AFB showed better performance in PM removal, while the O-GF-AFB was more effective in HCHO removal. Thus, hybrid AFBs composed of Mg/Si-AFBs and O-GF-AFBs were tested at different hybrid ratios to evaluate their PM and HCHO removal performance. The air filtration systems with different hybrid ratios (O-GF:Mg/Si = 4:12, 8:8, and 12:4) are referred to as hybrid AFB (4:12), hybrid AFB (8:8), and hybrid AFB (12:4), respectively. The hybrid AFBs with ratios of 4:12 and 8:8 exhibited nearly identical PM REs and pressure drops (
Figure 5c). However, when the proportion of O-GF-AFBs increased [Hybrid AFB (12:4)], the REs decreased while the pressure drops increased (
Figure 5c). These results indicate that a lower proportion of Mg/Si-AFBs leads to a deterioration in PM removal performance, and that a minimum Mg/Si-AFB content of 50% is required to achieve high PM RE. In the HCHO removal test, both hybrid AFB (8:8) and hybrid AFB (12:4) exhibited identical performance, completely removing HCHO within 1 min (
Figure 5d). In contrast, hybrid AFB (4:12) required 7 min for complete HCHO removal (
Figure 5d). These results indicate that a minimum of 50% O-GF-AFB content is essential for the rapid elimination of HCHO. Therefore, hybrid AFB (8:8), which represents an equal mixture of O-GF-AFB and Mg/Si-AFB, was identified as the optimal configuration for the simultaneous and efficient removal of both PM and HCHO. To accurately evaluate the performance of the optimized hybrid AFB (8:8), the REs of PM and HCHO were compared with those of the single-component AFBs, O-GF-AFB and Mg/Si-AFB. Compared with Mg/Si-AFB, which is specialized for PM removal, the hybrid AFB (8:8) exhibited superior overall performance, achieving comparable PM RE while maintaining a lower pressure drop (
Figure 5e). Moreover, the hybrid AFB (8:8) demonstrated the same HCHO RE as the O-GF-AFB, which is specifically designed for HCHO removal (
Figure 5f). These results demonstrate that combining O-GF-AFB and Mg/Si-AFB in a hybrid configuration effectively enhances the removal performance of both PM and HCHO by integrating their respective advantages and compensating for their individual limitations (
Table 1). A comprehensive comparison of different air filters is summarized in
Table 2 [
30,
31,
32,
33]. The data clearly indicate that the hybrid AFB (8:8) exhibits superior removal performance, especially when considering the required HCHO removal time.

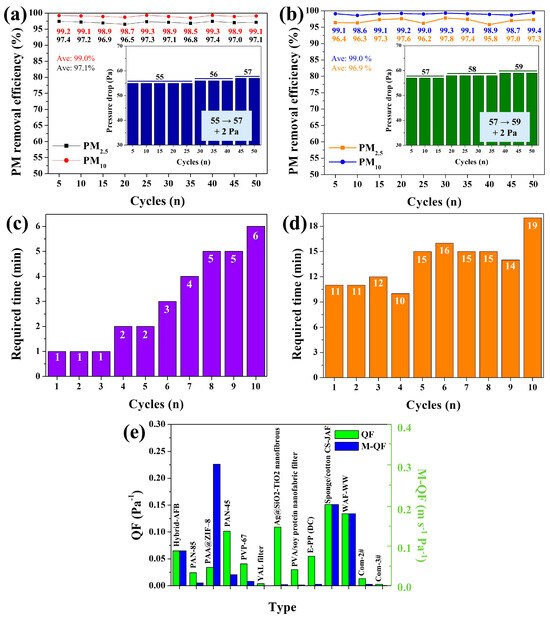

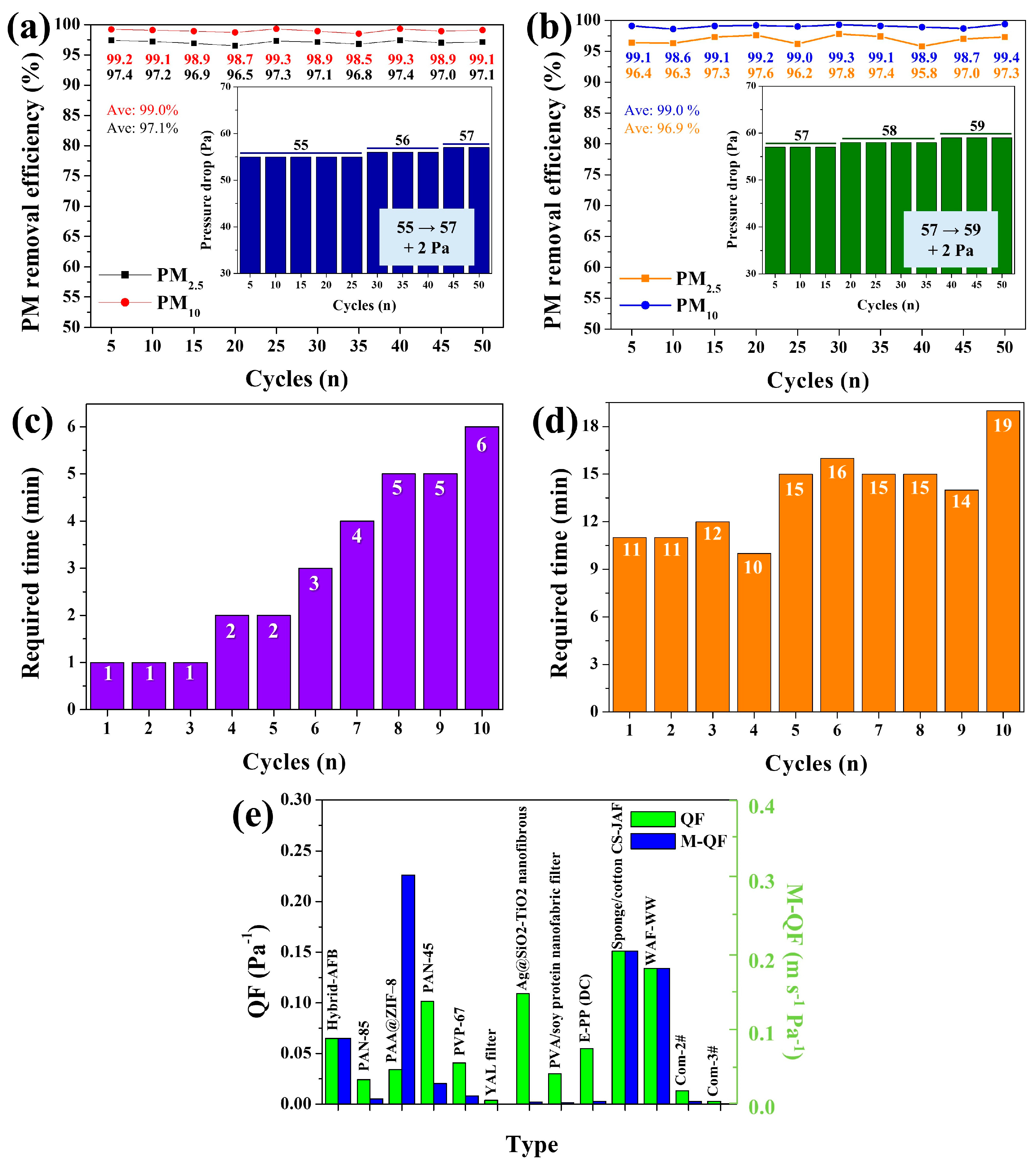

The long-term performance of the hybrid AFB (8:8) was further evaluated to assess its practical applicability. For clarity, data points were recorded every 5 cycles during the 50-cycle test. The hybrid AFB (8:8) exhibited outstanding recyclability over 50 cycles, achieving the highest average PM
2.5 removal efficiency (RE) of 97.1% (black line,
Figure 6a). Notably, its performance stability was remarkable—the PM
2.5 REs of the hybrid AFB (8:8) remained consistently high (97.4–96.5%) throughout 50 cycles. The variation between the maximum and minimum RE values (ΔRE = 0.9%) was negligible compared to that of the Mg/Si-AFB (ΔRE = 2.1%) (
Figure 6a,b), confirming the superior durability and stability of the hybrid AFB (8:8). The pressure drop is one of the most critical factors influencing the practical applicability of air filters. Therefore, the pressure drop of each filter was also measured after every cycle during the long-term test. For the hybrid AFB (8:8), the pressure drops remained between 55 and 57 Pa throughout 50 cycles at an air velocity of 1 m/s (inset of
Figure 6a). Specifically, the pressure drops were 55 Pa and 57 Pa after the 1st and 50th cycles, respectively, indicating only a 2 Pa increase over the entire testing period. The Mg/Si-AFB exhibited a pressure drop range of 57–59 Pa (ΔP = 2 Pa), comparable to that of the hybrid AFB (8:8) (55–57 Pa, ΔP = 2 Pa) (inset of
Figure 6b). However, the overall pressure drops for the Mg/Si-AFB system were higher, which can be attributed to the greater proportion of Mg/Si-AFB present. These results demonstrate that the hybrid AFB (8:8) exhibits outstanding recyclability, maintaining an average PM
2.5 RE of 97.1% over 50 cycles, with superior performance stability (ΔRE
min–max = 0.9%) and lower pressure drops (55–57 Pa) compared to the Mg/Si-AFB. Long-term performance and regeneration tests of the hybrid AFB (8:8) system were conducted at high PM concentrations (641,000 g/m
3) for up to 35 cycles. The hybrid system exhibited PM
2.5 REs ranging from 99.4% to 99.8% at this high concentration up to the 25th cycle (
Figure S7). These exhibited PM
2.5 REs subsequently decreased slightly to 98.7% at the 30th cycle. After the 30th cycle, the hybrid AFB (8:8) was washed with DI water to remove accumulated PM particles and subsequently re-tested for PM removal. The hybrid system exhibited PM
2.5 RE of 99.5% at the 35th cycle, a value analogous to those obtained during the initial 25 cycles. These results clearly demonstrate that the hybrid AFB (8:8) system maintains consistent performance even after regeneration and reuse.
Long-term performance tests were conducted at low HCHO concentrations below 5 ppm. The hybrid AFB (8:8) maintained 100% HCHO RE up to the 10th cycle (
Figure 6c). For all initial HCHO concentrations, the levels dropped sharply after filtration with the hybrid AFB (8:8), reaching 0 ppm within 1 min or, at most, 6 min, demonstrating that the hybrid AFB (8:8) retained complete removal performance through 10 consecutive cycles (
Figure 6c). In contrast, filtration with Mg/Si-AFB also reduced the initial HCHO concentrations to 0 ppm, but within a longer time range of 11–19 min, indicating a slower removal performance compared with the hybrid AFB (8:8) (
Figure 6d). Overall, the hybrid AFB (8:8) exhibited outstanding recyclability (HCHO RE
at 1–6 min = 100%) over 10 cycles, along with rapid and complete removal of low-concentration HCHO gas (<5 ppm), confirming its excellent performance for HCHO gas purification. To evaluate the overall performance of the hybrid AFB (8:8), the quality factor (QF), QF = −ln(1 − E)/ΔP) and the modified quality factor (m-QF), m-QF = −ln(1 − E)·V/ΔP), which accounts for the airflow rate, were employed, where E is the PM RE, ΔP is the pressure drop, and V is the air velocity. After long-term tests of PM and HCHO removal, the surface morphology of the hybrid AFB was monitored. Following 50 reuse cycles, the pores of the hybrid AFB were significantly blocked with PMs, and the surface of the AFB skeleton became coated with PM, leading to the formation of a rough morphology (
Figure S8). Furthermore, the pore size of the hybrid AFB remarkably decreased after HCHO filtration up to the 10th cycle, and the surface of the AFB skeleton was observed to be coated with para-HCHO (
Figure S8). These results demonstrate the effective filtration capability of the hybrid AFB for both PM and HCHO. A comprehensive comparison of different air filters is summarized in
Figure 6e and
Figure S9. The data clearly indicate that the hybrid AFB (8:8) exhibits superior air filtration performance considering ΔP, V, QF, and m-QF. Furthermore, its QF and m-QF values are comparable to the best results reported in the literature, demonstrating the hybrid AFB (8:8)’s effectiveness and rapid capability in purifying PM particles. Because the system employs a flexible sponge ball–filling structure, it can be designed and manufactured as a customized air filtration system specialized for PM removal, VOC removal, or combined PM/VOC removal, depending on the characteristics of the filled AFBs. Furthermore, since it is a filling-type system, the packing density within the air filter chamber can be readily adjusted, enabling easy control of both RE and pressure drop by varying the number of AFBs. Unlike typical microfibrous/nanofiber membranes-whose filtration performance is mainly determined by fixed pore size, fiber diameter, and membrane thickness-our AFB-based platform operates through a 3D-packed geometry that enables dynamic flow redistribution and tunable packing density. This unique design leads to several key performance differences. Compared with conventional microfibrous or nanofiber filters, the packed-type-AFB system demonstrates distinct advantages, including (i) stable PM
2.5 RE even at high air velocities (up to 7 m/s), (ii) lower pressure-drop increases due to its 3D porous packing architecture, and (iii) superior recyclability over 50 cycles. Furthermore, micro/nanofiber filters have fixed structural configurations once fabricated. Our system allows real-time control of the number of AFBs, enabling adjustment of both RE and pressure drop without altering the filter material itself. This reconfigurability is not achievable with conventional membranes. The hybrid AFB system also achieved superior dual-functionality through the modular AFB design. The system’s performance is tunable via modular AFB design and adjustable packing density, allowing for customization to target specific pollutants, such as PM, HCHO, or a combination of both. These features highlight the uniqueness of the AFB-based filtration platform relative to conventional fiber-based filtration materials. Because the filter performance can be tuned by adjusting the number and ratio of AFBs (Mg/Si-AFB vs. O-GF-AFB), it is appropriate for customizable cartridge-type filters in compact ventilation units, portable purifiers, and smart HVAC systems. The AFB system maintains high PM RE even at high air velocities (up to 7 m/s), making it applicable to factories, workshops, and point-of-source ventilation where strong airflow is unavoidable.
