# Linearization of Composite Material Damage Model Results and Its Impact on the Subsequent Stress–Strain Analysis

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

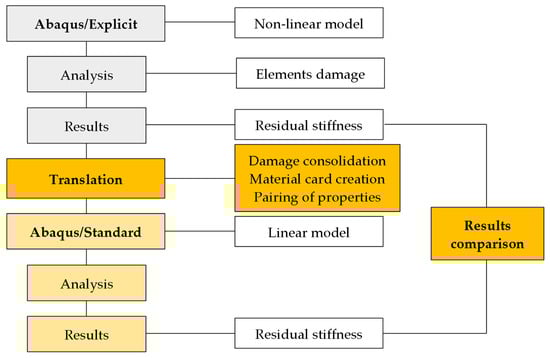

#### 2.1. Workflow Overview

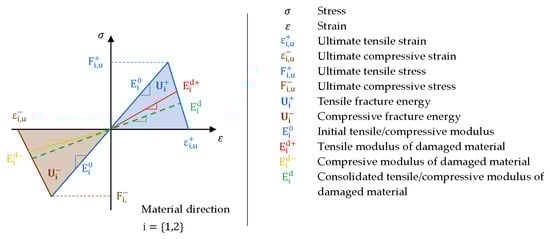

#### 2.2. Basic Calculus

#### 2.3. Graphic Interpretation of Hashin’s Violation

#### 2.4. Consolidation Function

#### 2.5. Material Card Generation

#### 2.6. Material Properties

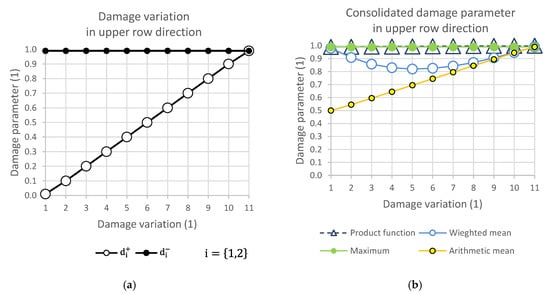

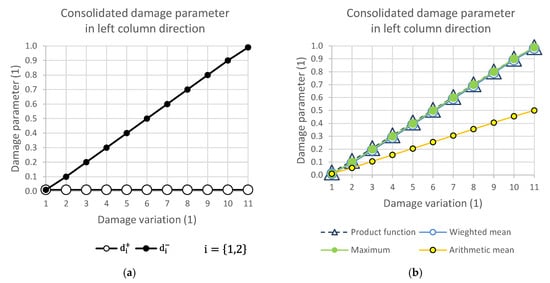

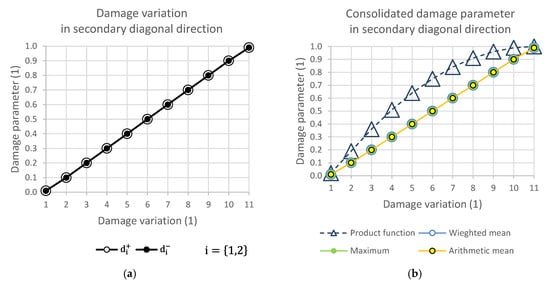

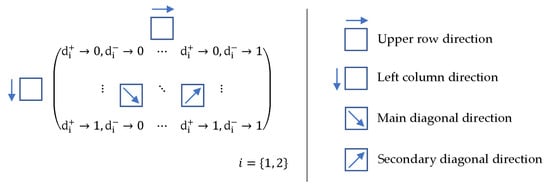

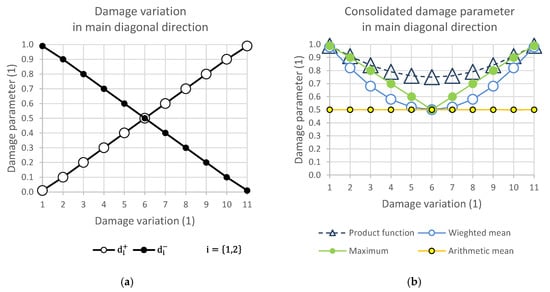

#### 2.7. Damage Variation Matrix and Response of Consolidation Functions

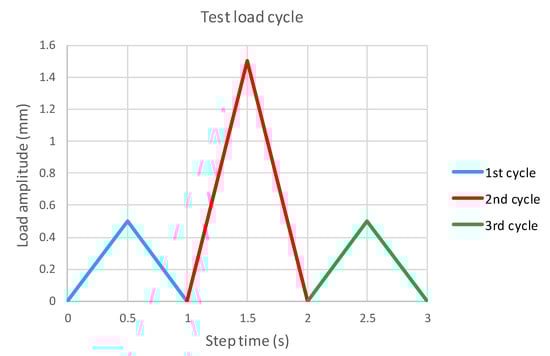

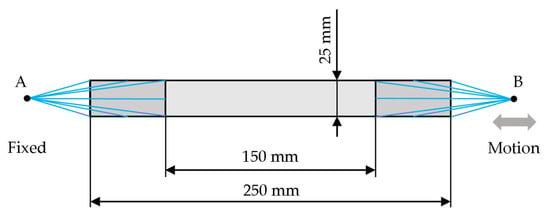

#### 2.8. Testing Examples

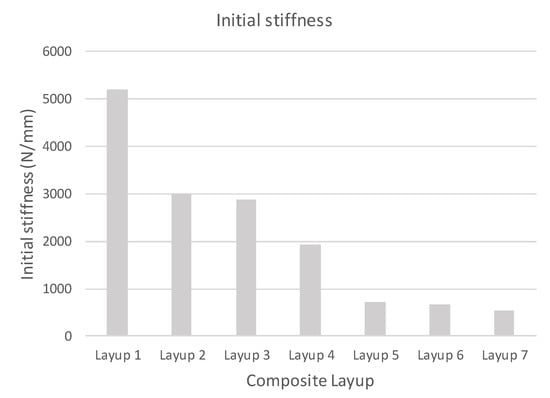

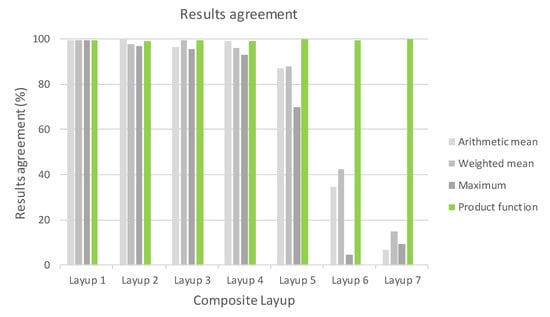

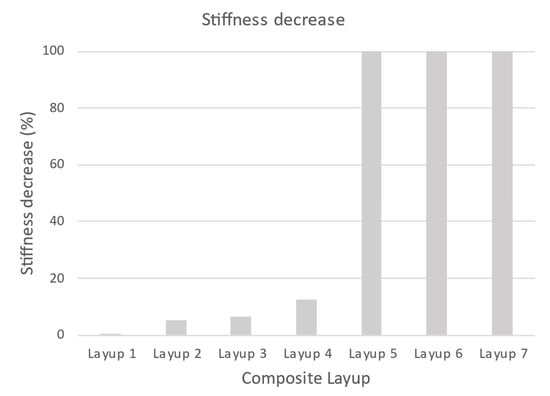

## 3. Results and Discussion

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

$\left\{\tilde{\mathsf{\sigma}}\right\}$ | (MPa) | Undamaged material stress response tensor |

$\left\{\hat{\mathsf{\sigma}}\right\}$ | (MPa) | Effective stress tensor |

$\left\{\mathsf{\sigma}\right\}$ | (MPa) | General stress tensor |

$\left\{\mathsf{\epsilon}\right\}$ | (1) | General strain tensor |

${\mathrm{E}}_{1}^{0}$ | (MPa) | Elastic modulus of non-damaged material in the direction 1 |

${\mathrm{E}}_{2}^{0}$ | (MPa) | Elastic modulus of non-damaged material in the direction 2 |

${\mathrm{G}}_{12}^{0}$ | (MPa) | Shear modulus of non-damaged material in plane 12 |

${\mathrm{G}}_{13}^{0}$ | (MPa) | Transverse shear modulus of non-damaged material in plane 13 |

${\mathrm{G}}_{23}^{0}$ | (MPa) | Transverse shear modulus of non-damaged material in plane 23 |

${\mathsf{\nu}}_{12}^{0}$ | (1) | Poisson’s ratio of undamaged material in plane 12 |

${\mathrm{E}}_{1}^{\mathrm{d}}$ | (MPa) | Consolidated elastic modulus of damaged material in the direction 1 |

${\mathrm{E}}_{2}^{\mathrm{d}}$ | (MPa) | Consolidated elastic of damaged material in the direction 2 |

${\mathrm{G}}_{12}^{d}$ | (MPa) | Consolidated shear modulus of damaged material in plane 12 |

${\mathrm{G}}_{13}^{d}$ | (MPa) | Consolidated transverse shear modulus of damaged material in plane 13 |

${\mathrm{G}}_{23}^{d}$ | (MPa) | Consolidated transverse shear modulus of damaged material in plane 23 |

${\mathsf{\nu}}_{12}^{0}$ | (1) | Poisson’s ratio of undamaged material in plane 12 |

${\mathrm{E}}_{1}^{\mathrm{d}+}$ | (MPa) | Tensile elastic modulus of damaged material in the direction 1 |

${\mathrm{E}}_{1}^{\mathrm{d}-}$ | (MPa) | Compressive elastic of damaged material in the direction 1 |

${\mathrm{E}}_{2}^{\mathrm{d}+}$ | (MPa) | Tensile elastic modulus of damaged material in the direction 2 |

${\mathrm{E}}_{2}^{\mathrm{d}-}$ | (MPa) | Compressive elastic of damaged material in the direction 2 |

${\mathrm{d}}_{1}$ | (1) | Consolidated damage factor in the direction 1 |

${\mathrm{d}}_{2}$ | (1) | Consolidated damage factor in the direction 2 |

${\mathrm{d}}_{12}$ | (1) | Consolidated damage factor in plane 12 |

${\mathrm{d}}_{\mathrm{s}}$ | (1) | Consolidated shear damage factor |

${\mathrm{d}}_{1}^{+}$ | (1) | Tensile damage factor in the direction 1 |

${\mathrm{d}}_{1}^{-}$ | (1) | Compressive damage factor in the direction 1 |

${\mathrm{d}}_{2}^{+}$ | (1) | Tensile damage factor in the direction 2 |

${\mathrm{d}}_{2}^{-}$ | (1) | Compressive damage factor in the direction 2 |

$\left[{\mathrm{C}}^{0}\right]$ | (MPa) | Stiffness matrix of undamaged material |

$\left[{\mathrm{S}}^{0}\right]$ | (MPa^{−1}) | Compliance matrix of undamaged material |

$\left[{\mathrm{C}}^{\mathrm{d}}\right]$ | (MPa) | Stiffness matrix of damaged material |

$\left[{\mathrm{S}}^{\mathrm{d}}\right]$ | (MPa^{−1}) | Compliance matrix of damaged material |

$\left[\mathrm{D}\right]$ | (1) | Damage operator matrix |

${\mathrm{F}}_{1,\mathrm{u}}^{+}$ | (MPa) | Ultimate tensile stress in direction 1 |

${\mathrm{F}}_{1,\mathrm{u}}^{-}$ | (MPa) | Ultimate compressive stress in direction 1 |

${\mathrm{F}}_{2,\mathrm{u}}^{+}$ | (MPa) | Ultimate tensile stress in direction 2 |

${\mathrm{F}}_{2,\mathrm{u}}^{-}$ | (MPa) | Ultimate compressive stress in direction 2 |

${\mathrm{F}}_{12,\mathrm{u}}$ | (MPa) | Ultimate shear stress in plane 12 |

${\mathrm{F}}_{13,\mathrm{u}}$ | (MPa) | Ultimate shear stress in plane 13 |

${\mathrm{F}}_{23,\mathrm{u}}$ | (MPa) | Ultimate shear stress in plane 23 |

${\mathsf{\epsilon}}_{1,\mathrm{u}}^{+}$ | (1) | Ultimate tensile strain in direction 1 |

${\mathsf{\epsilon}}_{1,\mathrm{u}}^{-}$ | (1) | Ultimate compressive strain in direction 1 |

${\mathsf{\epsilon}}_{2,\mathrm{u}}^{+}$ | (1) | Ultimate tensile strain in direction 2 |

${\mathsf{\epsilon}}_{2,\mathrm{u}}^{-}$ | (1) | Ultimate compressive strain in direction 2 |

${\mathrm{U}}_{1}^{+}$ | (mJ/mm^{2}) | Tensile fracture energy in direction 1 |

${\mathrm{U}}_{1}^{-}$ | (mJ/mm^{2}) | Compressive fracture energy in direction 1 |

${\mathrm{U}}_{2}^{+}$ | (mJ/mm^{2}) | Tensile fracture energy in direction 2 |

${\mathrm{U}}_{2}^{-}$ | (mJ/mm^{2}) | Compressive fracture energy in direction 2 |

$F1$ | Consolidation damage function in direction 1 | |

$F2$ | Consolidation damage function in direction 2 | |

$F12$ | Consolidation damage function in plane 12 |

## References

- ABAQUS-6.14. Theory Manual. Available online: http://130.149.89.49:2080/v6.14/ (accessed on 8 December 2021).
- Lahey, S.R.; Miller, P.M.; Reymond, M. MSC.NASTRAN 2004 Reference Manual; Version 68; MSC.Software Corporation: Santa Ana, CA, USA, 2004; Volume 2, pp. 583–584. [Google Scholar]
- Bathe, K. Finite Element Procedures; PHI Learning Private Limited: Delhi, India, 1996; Volume 1. [Google Scholar]
- Matzenmiller, A.; Lubliner, J.; Taylor, R. A constitutive model for anisotropic damage in fiber-composites. Mech. Mater.
**1995**, 20, 125–152. [Google Scholar] [CrossRef] - Donghyun, Y.; Sangdeok, K.; Jaehoon, K.; Youngdae, D. Development and Evaluation of Crack Band Model Implemented Progressive Failure Analysis Method for Notched Composite Laminate. Appl. Sci.
**2019**, 9, 5572. [Google Scholar] [CrossRef] [Green Version] - Koloor, S.; Karimzadeh, A.; Yidris, N.; Petru, M.; Ayatollahi, M.; Tamin, M. An Energy-Based Concept for Yielding of Multidirectional FRP Composite Structures Using a Mesoscale Lamina Damage Model. Polymers
**2020**, 12, 157. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Koloor, S.; Karimzadeh, A.; Abdulah, M.; Petru, M.; Yidris, N.; Sapuan, S.; Tamin, M. Linear-Nonlinear Stiffness Responses of carbon Fiber-Reinforced Polymer Composite Materials and Structures. Polymers
**2021**, 13, 344. [Google Scholar] [CrossRef] [PubMed] - Murakami, S. Continuum Damage Mechanics: A Continuum Mechanics Approach to the Analysis of Damage and Fracture; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2012; Volume 185. [Google Scholar]
- Wei, L.; Zhu, W.; Yu, Z.; Liu, J.; Wei, X. A new three-dimensional progressive damage model for fiber-reinforced polymer laminates and its applications to large open-hole panels. Compos. Sci. Technol.
**2019**, 182, 107757. [Google Scholar] [CrossRef] - Liao, B.; Jia, L.; Zhou, J.; Lei, H.; Gao, R.; Lin, Y.; Fang, D. An explicit–implicit combined model for predicting residual strength of composite cylinders subjected to low velocity impact. Compos. Struct.
**2020**, 247, 112450. [Google Scholar] [CrossRef] - Jia, L.; Yu, L.; Zhang, K.; Li, M.; Jia, Y.; Blackman, B.; Dear, J. Combined modelling and experimental studies of failure in thick laminates under out-of-plane shear. Compos. Part B Eng.
**2016**, 105, 8–22. [Google Scholar] [CrossRef] - Kim, E.; Rim, M.; Lee, I.; Hwang, T. Composite damage model based on continuum damage mechanics and low velocity impact analysis of composite plates. Compos. Struct.
**2013**, 95, 123–134. [Google Scholar] [CrossRef] - Šedek, J.; Bělský, P. Numerical evaluation of barely visible impact damage in a carbon fibre-reinforced composite panel with shear loading. WIT Trans. Eng. Sci.
**2017**, 116, 73–85. [Google Scholar] - Vlach, J.; Raška, J.; Horňas, J.; Petrusová, L. Impacted area description effect on strength of laminate determined by calculation. Procedia Struct. Integr.
**2022**, 35, 132–140. [Google Scholar] [CrossRef] - Afshar, A.; Daneshyar, A.; Mohammadi, S. XFEM analysis of fiber bridging in mixed-mode crack propagation in composites. Compos. Struct.
**2015**, 125, 314–327. [Google Scholar] [CrossRef] - Hashin, Z. Failure criteria for unidirectional fiber composites. J. Appl. Mech.
**1980**, 47, 329–334. [Google Scholar] [CrossRef] - Hashin, Z.; Rotem, A. A fatigue failure criterion for fiber-reinforced materials. J. Compos. Mater.
**1973**, 7, 448–464. [Google Scholar] [CrossRef] [Green Version] - Berthelot, J.M. Matériaux Composites, Comportement Mécanique et Analyse Des Structures, 1st ed.; Masson: Paris, France, 1992; pp. 154–196. [Google Scholar]
- Daniel, I.M.; Ishai, O. Engineering Mechanics of Composite Materials, 2nd ed.; Oxford University Press: New York, NY, USA, 2006; pp. 268–272. [Google Scholar]
- ASTM D3039/D3039M-14; Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials. ASTM International: Philadelphia, PA, USA, 2014.

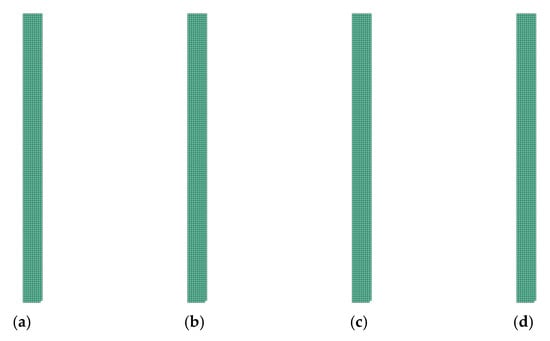

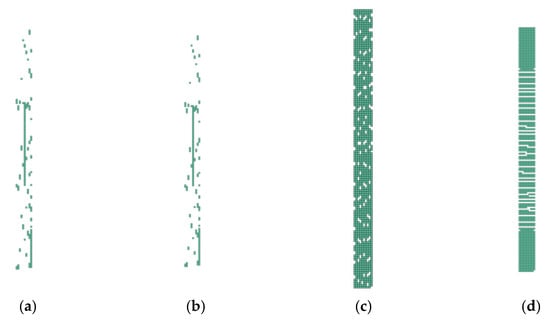

**Figure 13.**Damage of model Layup 4; Ply oriented at 0°; Selection (${\mathrm{d}}_{1}\to 0,{\mathrm{d}}_{2}\to 0$): (

**a**) Arithmetic mean; (

**b**) weighted mean; (

**c**) maximum; (

**d**) product function.

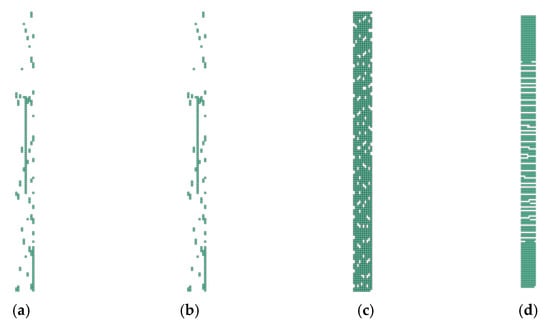

**Figure 14.**Damage of model Layup 4; Ply oriented at +45°; Selection (${\mathrm{d}}_{1}\to 0,{\mathrm{d}}_{2}\to 0$): (

**a**) Arithmetic mean; (

**b**) weighted mean; (

**c**) maximum; (

**d**) product function.

**Figure 15.**Damage of model Layup 4; Ply oriented at −45°; Selection (${\mathrm{d}}_{1}\to 0,{\mathrm{d}}_{2}\to 0$): (

**a**) Arithmetic mean; (

**b**) weighted mean; (

**c**) maximum; (

**d**) product function.

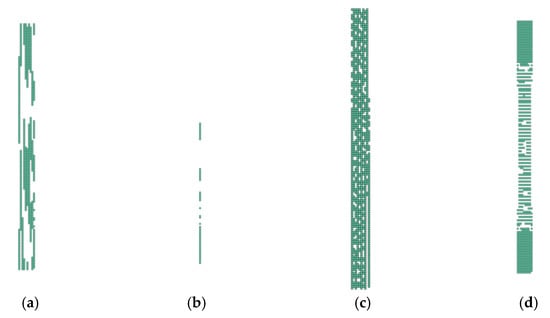

**Figure 16.**Damage of model Layup 4; Ply oriented at 90°; Selection (${\mathrm{d}}_{1}\to 0,{\mathrm{d}}_{2}\to 0$): (
