# Simulating Polymerization by Boltzmann Inversion Force Field Approach and Dynamical Nonequilibrium Reactive Molecular Dynamics

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

- (1)
- Initiation:$$\begin{array}{c}\hfill R+h\nu ={R}^{\u2022}\\ \hfill {R}^{\u2022}+M=R{M}^{\u2022}\end{array}$$
- (2)
- Propagation:$$\begin{array}{c}\hfill R{M}_{n}^{\u2022}+M=R{M}_{n+1}^{\u2022}\end{array}$$
- (3)
- Termination:$$\begin{array}{c}\hfill R{M}_{n}^{\u2022}+R{M}_{m}^{\u2022}=R{M}_{n+m}R\\ \hfill R{M}_{n}^{\u2022}+R{M}_{m}^{\u2022}=R{M}_{n}+R{M}_{m}\end{array}$$

## 2. Models and Methods

#### 2.1. Coarse-Grained Potential

#### 2.2. Coarse-Grained Reaction Modeling

#### 2.3. Dynamical Approach to Nonequilibrium Molecular Dynamics

## 3. Results and Discussion

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Zhang, J.Y.; Windall, G.; Boyd, I.W. UV curing of optical fibre coatings using excimer lamps. Appl. Surf. Sci.
**2002**, 186, 568–572. [Google Scholar] [CrossRef] - Rosero-Navarro, N.; Pellice, S.; Castro, Y.; Aparicio, M.; Durán, A. Improved corrosion resistance of AA2024 alloys through hybrid organic–inorganic sol–gel coatings produced from sols with controlled polymerisation. Surf. Coat. Technol.
**2009**, 203, 1897–1903. [Google Scholar] [CrossRef] - Layani, M.; Wang, X.; Magdassi, S. Novel Materials for 3D Printing by Photopolymerization. Adv. Mater.
**2018**, 30, 1706344. [Google Scholar] [CrossRef] - Bagheri, A.; Jin, J. Photopolymerization in 3D Printing. ACS Appl. Polym. Mater.
**2019**, 1, 593–611. [Google Scholar] [CrossRef] [Green Version] - Zhou, T.; McCarthy, E.D.; Soutis, C.; Cartmell, S.H. Lactone-layered double hydroxide networks: Towards self-assembled bioscaffolds. Appl. Clay Sci.
**2018**, 153, 246–256. [Google Scholar] [CrossRef] [Green Version] - Yu, C.; Schimelman, J.; Wang, P.; Miller, K.L.; Ma, X.; You, S.; Guan, J.; Sun, B.; Zhu, W.; Chen, S. Photopolymerizable Biomaterials and Light-Based 3D Printing Strategies for Biomedical Applications. Chem. Rev.
**2020**, 120, 10695–10743. [Google Scholar] [CrossRef] [PubMed] - Duval-Terrié, C.; Lebrun, L. Polymerization and Characterization of PMMA. Polymer Chemistry Laboratory Experiments for Undergraduate Students. J. Chem. Educ.
**2006**, 83, 443. [Google Scholar] [CrossRef] - Ansong, O.E.; Jansen, S.; Wei, Y.; Pomrink, G.; Lu, H.; Patel, A.; Li, S. Accelerated controlled radical polymerization of methacrylates. Polym. Int.
**2009**, 58, 54–65. [Google Scholar] [CrossRef] - Tsarevsky, N.V.; Sumerlin, B.S. (Eds.) Fundamentals of Controlled/Living Radical Polymerization; Royal Society of Chemistry: Cambridge, UK, 2013; pp. 1–59. [Google Scholar]
- Monteferrante, M.; Tiribocchi, A.; Succi, S.; Pisignano, D.; Lauricella, M. Capturing Free-Radical Polymerization by Synergetic Ab Initio Calculations and Topological Reactive Molecular Dynamics. Macromolecules
**2022**, 55, 1474–1486. [Google Scholar] [CrossRef] - Martin, M.G.; Siepmann, J.I. Transferable potentials for phase equilibria. 1. United-atom description of n-alkanes. J. Phys. Chem. B
**1998**, 102, 2569–2577. [Google Scholar] [CrossRef] - Wick, C.D.; Martin, M.G.; Siepmann, J.I. Transferable potentials for phase equilibria. 4. United-atom description of linear and branched alkenes and of alkylbenzenes. J. Phys. Chem. B
**2000**, 104, 8008–8016. [Google Scholar] [CrossRef] [Green Version] - Chen, B.; Poto, J.J.; Siepmann, J.I. Monte Carlo calculations for alcohols and their mixtures with alkanes. Transferable potentials for phase equilibria. 5. United-atom description of primary, secondary and tertiary alcohols. J. Phys. Chem. B
**2001**, 105, 3093–3104. [Google Scholar] [CrossRef] - Stubbs, J.M.; Poto, J.J.; Siepmann, J.I. Transferable potentials for phase equilibria. 6. United-atom description for ethers, glycols, ketones and aldehydes. J. Phys. Chem. B
**2004**, 108, 17596–17605. [Google Scholar] [CrossRef] - Kamath, G.; Robinson, J.; Poto, J.J. Application of TraPPE-UA force field for determination of vapor-liquid equilibria of carboxylate esters. Fluid Phase Equilibria
**2006**, 240, 46–55. [Google Scholar] [CrossRef] - Maerzke, K.A.; Schultz, N.E.; Ross, R.B.; Siepmann, J.I. TraPPE-UA force field for acrylates and Monte Carlo simulations for their mixtures with alkanes and alcohols. J. Phys. Chem. B
**2009**, 113, 6415–6425. [Google Scholar] [CrossRef] - Carbone, P.; Varzaneh, H.A.K.; Chen, X.; Müller-Plathe, F. Transferability of coarse-grained force fields: The polymer case. J. Chem. Phys.
**2008**, 128, 064904. [Google Scholar] [CrossRef] - Peter, C.; Kremer, K. Multiscale simulation of soft matter systems–from the atomistic to the coarse-grained level and back. Soft Matter
**2009**, 5, 4357–4366. [Google Scholar] [CrossRef] - D’Adamo, G.; Pelissetto, A.; Pierleoni, C. Predicting the thermodynamics by using state-dependent interactions. J. Chem. Phys.
**2013**, 138, 234107. [Google Scholar] [CrossRef] [PubMed] - Gartner III, T.E.; Jayaraman, A. Modeling and simulations of polymers: A roadmap. Macromolecules
**2019**, 52, 755–786. [Google Scholar] [CrossRef] [Green Version] - Chandran, S.; Baschnagel, J.; Cangialosi, D.; Fukao, K.; Glynos, E.; Janssen, L.M.; Müller, M.; Muthukumar, M.; Steiner, U.; Xu, J.; et al. Processing pathways decide polymer properties at the molecular level. Macromolecules
**2019**, 52, 7146–7156. [Google Scholar] [CrossRef] - D’hooge, D.R.; Van Steenberge, P.H.; Reyniers, M.F.; Marin, G.B. The strength of multi-scale modeling to unveil the complexity of radical polymerization. Prog. Polym. Sci.
**2016**, 58, 59–89. [Google Scholar] [CrossRef] - Odian, G. Principles of Polymerization; John Wiley & Sons: Hoboken, NJ, USA, 2004. [Google Scholar]
- Gissinger, J.R.; Jensen, B.D.; Wise, K.E. Modeling chemical reactions in classical molecular dynamics simulations. Polymer
**2017**, 128, 211–217. [Google Scholar] [CrossRef] [PubMed] - Gissinger, J.R.; Jensen, B.D.; Wise, K.E. REACTER: A Heuristic Method for Reactive Molecular Dynamics. Macromolecules
**2020**, 53, 9953–9961. [Google Scholar] [CrossRef] - Orlandini, S.; Meloni, S.; Ciccotti, G. Hydrodynamics from statistical mechanics: Combined dynamical-NEMD and conditional sampling to relax an interface between two immiscible liquids. Phys. Chem. Chem. Phys.
**2011**, 13, 13177–13181. [Google Scholar] [CrossRef] [PubMed] - Reith, D.; Pütz, M.; Müller-Plathe, F. Deriving effective mesoscale potentials from atomistic simulations. J. Comput. Chem.
**2003**, 24, 1624–1636. [Google Scholar] [CrossRef] [Green Version] - Henderson, R. A uniqueness theorem for fluid pair correlation functions. Phys. Lett. A
**1974**, 49, 197–198. [Google Scholar] [CrossRef] - de Oliveira, T.E.; Netz, P.A.; Kremer, K.; Junghans, C.; Mukherji, D. C–IBI: Targeting cumulative coordination within an iterative protocol to derive coarse-grained models of (multi-component) complex fluids. J. Chem. Phys.
**2016**, 144, 174106. [Google Scholar] [CrossRef] - Thompson, A.P.; Aktulga, H.M.; Berger, R.; Bolintineanu, D.S.; Brown, W.M.; Crozier, P.S.; in’t Veld, P.J.; Kohlmeyer, A.; Moore, S.G.; Nguyen, T.D.; et al. LAMMPS-a flexible simulation tool for particle-based materials modeling at the atomic, meso, and continuum scales. Comput. Phys. Commun.
**2022**, 271, 108171. [Google Scholar] [CrossRef] - Katsoulakis, M.A.; Plecháč, P. Information-theoretic tools for parametrized coarse-graining of non-equilibrium extended systems. J. Chem. Phys.
**2013**, 139, 074115. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Xie, H.; Basu, S.; DeMeter, E.C. Molecular Dynamics Simulations of Photo-Induced Free Radical Polymerization. J. Chem. Inf. Model.
**2020**, 60, 6314–6327. [Google Scholar] [CrossRef] - Torres-Knoop, A.; Kryven, I.; Schamboeck, V.; Iedema, P.D. Modeling the free-radical polymerization of hexanediol diacrylate (HDDA): A molecular dynamics and graph theory approach. Soft Matter
**2018**, 14, 3404–3414. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Meinel, M.K.; Müller-Plathe, F. Loss of molecular roughness upon coarse-graining predicts the artificially accelerated mobility of coarse-grained molecular simulation models. J. Chem. Theory Comput.
**2020**, 16, 1411–1419. [Google Scholar] [CrossRef] - Ciccotti, G.; Jacucci, G. Direct computation of dynamical response by molecular dynamics: The mobility of a charged Lennard-Jones particle. Phys. Rev. Lett.
**1975**, 35, 789. [Google Scholar] [CrossRef] - Ciccotti, G.; Jacucci, G.; McDonald, I. “Thought-experiments” by molecular dynamics. J. Stat. Phys.
**1979**, 21, 1–22. [Google Scholar] [CrossRef] - Daw, M.S.; Baskes, M.I. Embedded-atom method: Derivation and application to impurities, surfaces, and other defects in metals. Phys. Rev. B
**1984**, 29, 6443. [Google Scholar] [CrossRef] [Green Version] - Agrawal, V.; Peralta, P.; Li, Y.; Oswald, J. A pressure-transferable coarse-grained potential for modeling the shock Hugoniot of polyethylene. J. Chem. Phys.
**2016**, 145, 104903. [Google Scholar] [CrossRef] [PubMed] - Strauch, J.; McDonald, J.; Chapman, B.E.; Kuchel, P.W.; Hawkett, B.S.; Roberts, G.E.; Tonge, M.P.; Gilbert, R.G. Diffusion coefficients of the monomer and oligomers in hydroxyethyl methacrylate. J. Polym. Sci. Part Polym. Chem.
**2003**, 41, 2491–2501. [Google Scholar] [CrossRef] - Milano, G.; Muller-Plathe, F. Mapping Atomistic Simulations to Mesoscopic Models: A Systematic Coarse-Graining Procedure for Vinyl Polymer Chains. J. Phys. Chem. B
**2005**, 109, 18609–18619. [Google Scholar] [CrossRef] - Daw, M.S.; Baskes, M.I. Semiempirical, quantum mechanical calculation of hydrogen embrittlement in metals. Phys. Rev. Lett.
**1983**, 50, 1285. [Google Scholar] [CrossRef] - Tvorogov, N. The kinetic theory of gel formation in radical polymerization of polyfunctional unsaturated compounds. Polym. Sci. USSR
**1976**, 18, 2192–2202. [Google Scholar] [CrossRef] - Potestio, R. Is Henderson’s theorem practically useful? JUnQ
**2013**, 3, 13–15. [Google Scholar]

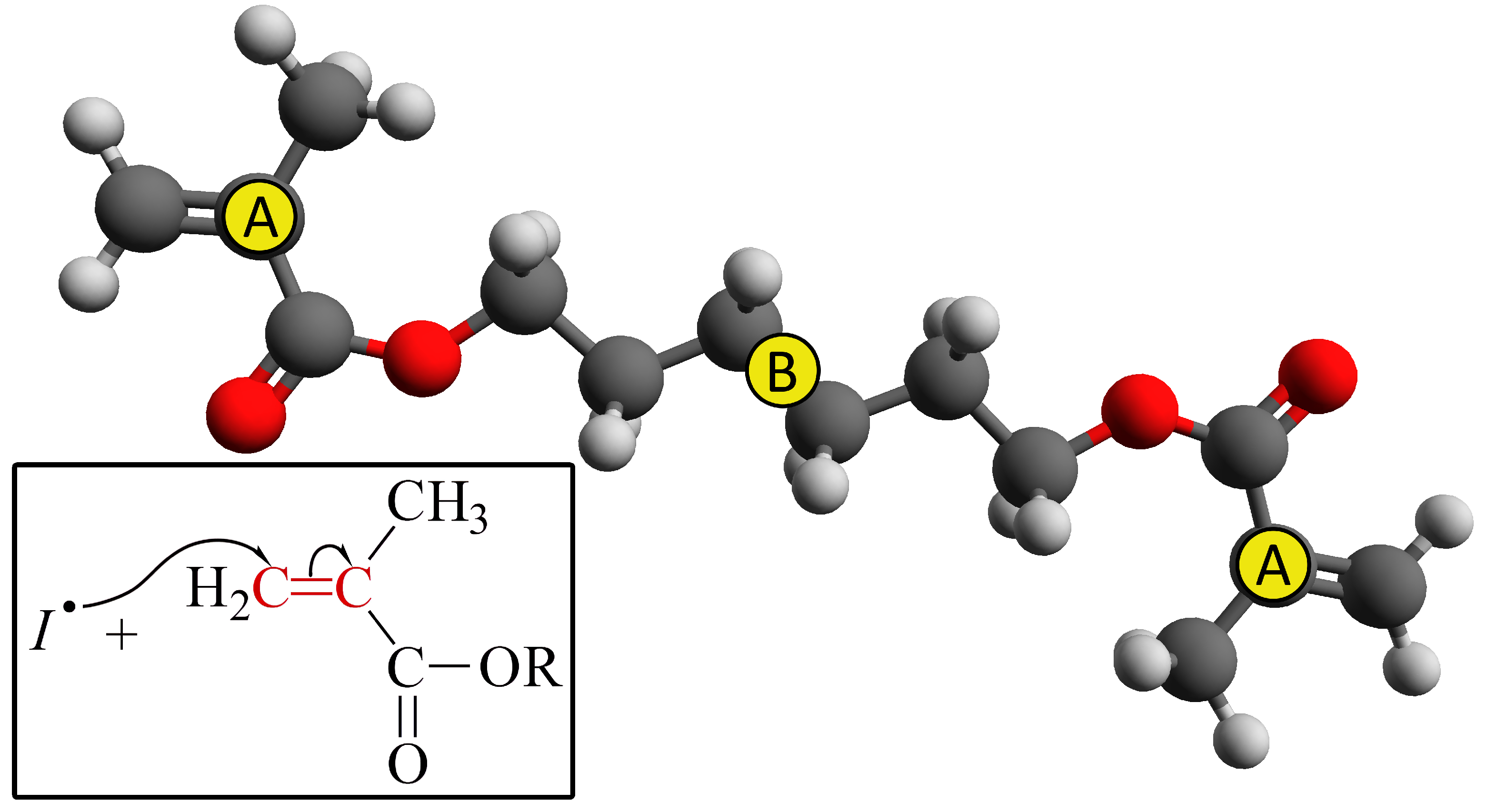

**Figure 1.**Structure of the 1,6-hexanediol dimethacrylate monomer. With yellow circles, the carbon atoms, of type A and B, used in the CG procedure as described in the text are marked.

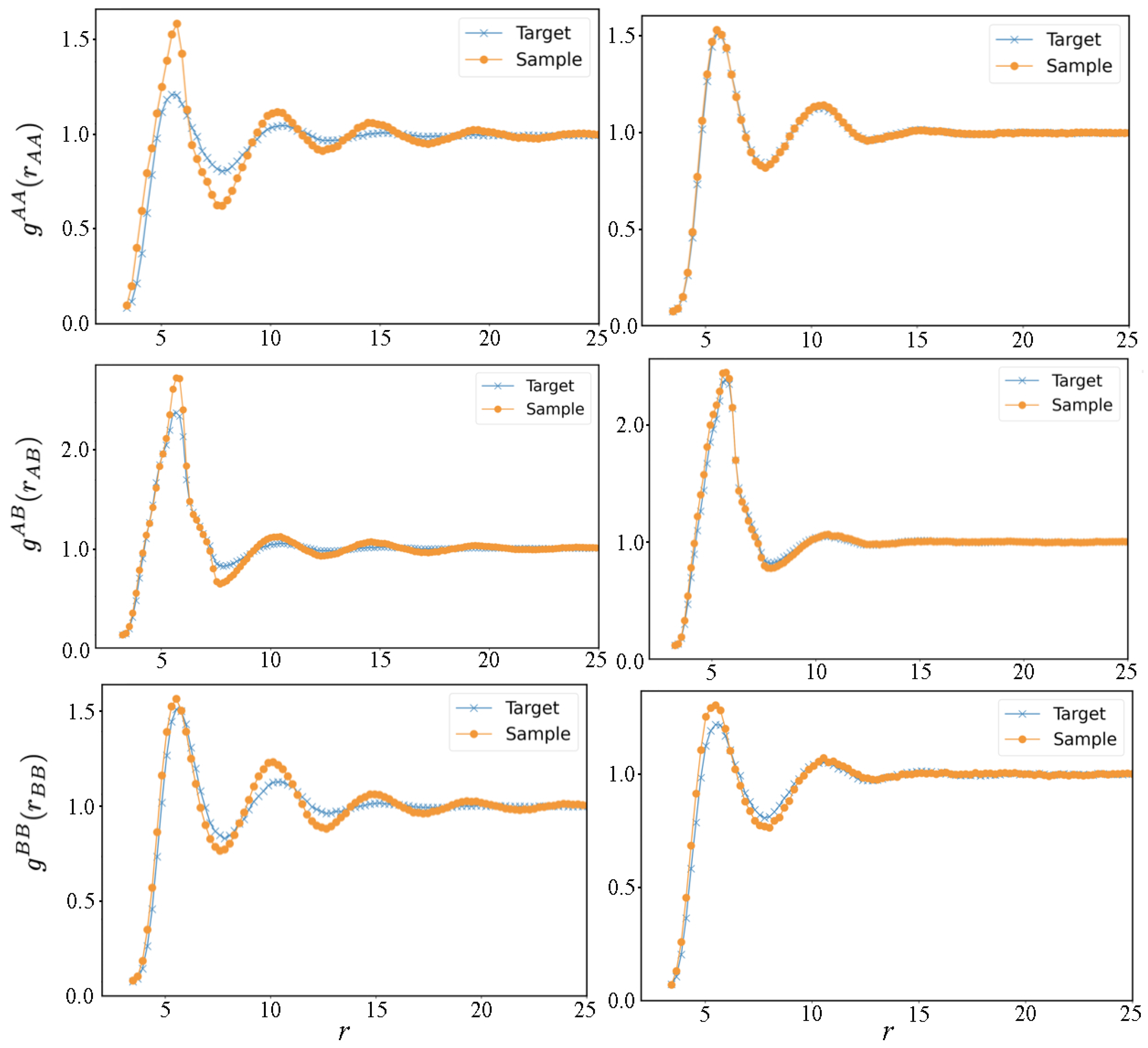

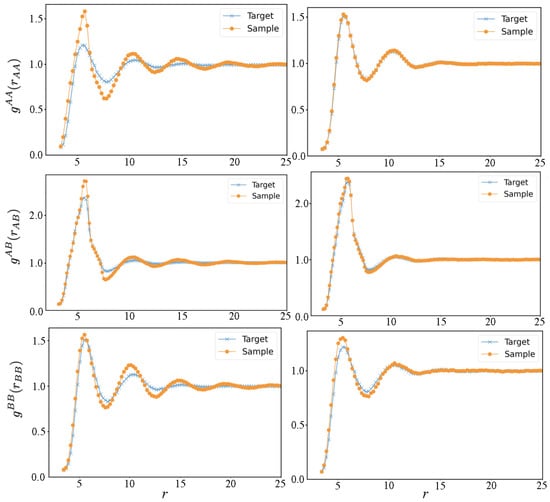

**Figure 2.**Long-range radial distributions obtained in all-atoms simulations, compared to the coarse-grained ones (distance in Å). In the left panels, the coarse-grained distributions in the first step of the IBI procedure are reported, and the right panels report the distributions in the final iteration.

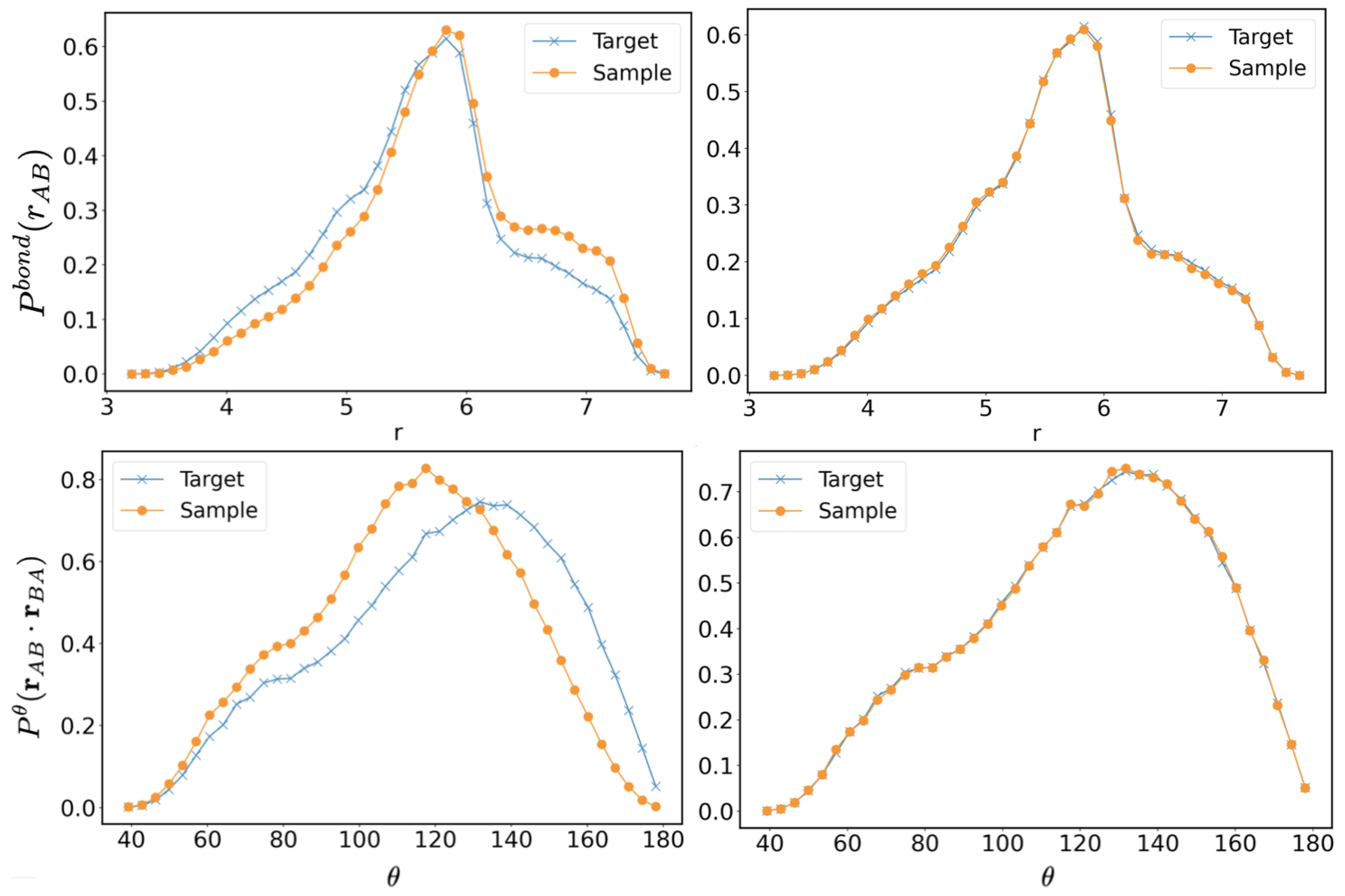

**Figure 3.**Short-range distributions obtained in AA simulation compared to CG ones (distance in Å). In the left panels, the coarse-grained distributions in the first step of the IBI procedure are reported, and in the right panels, the distributions in the final iteration.

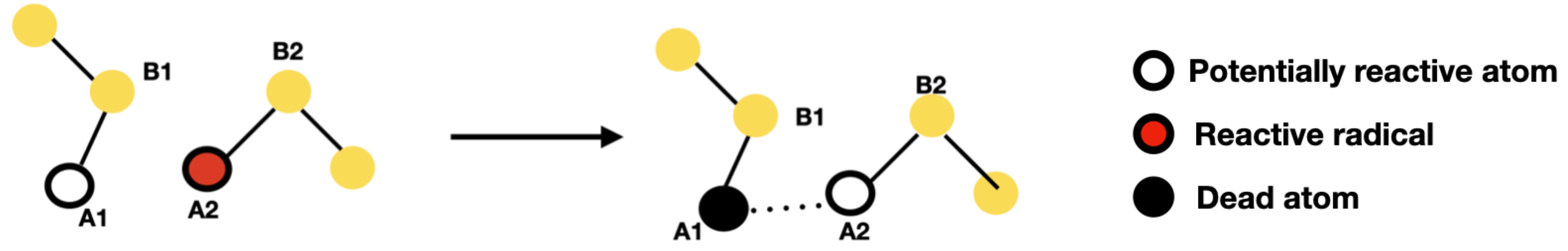

**Figure 4.**Illustration of the chain propagation reaction in the CG model. A new bond is created between the atoms A1, A2 if a reaction occurs (see text) and two angle potentials, B1-A1-A2 and A1-A2-B2, are added. In red, the reactive atoms; in white, the potentially reactive atoms; and in black, the inactive ones are drawn.

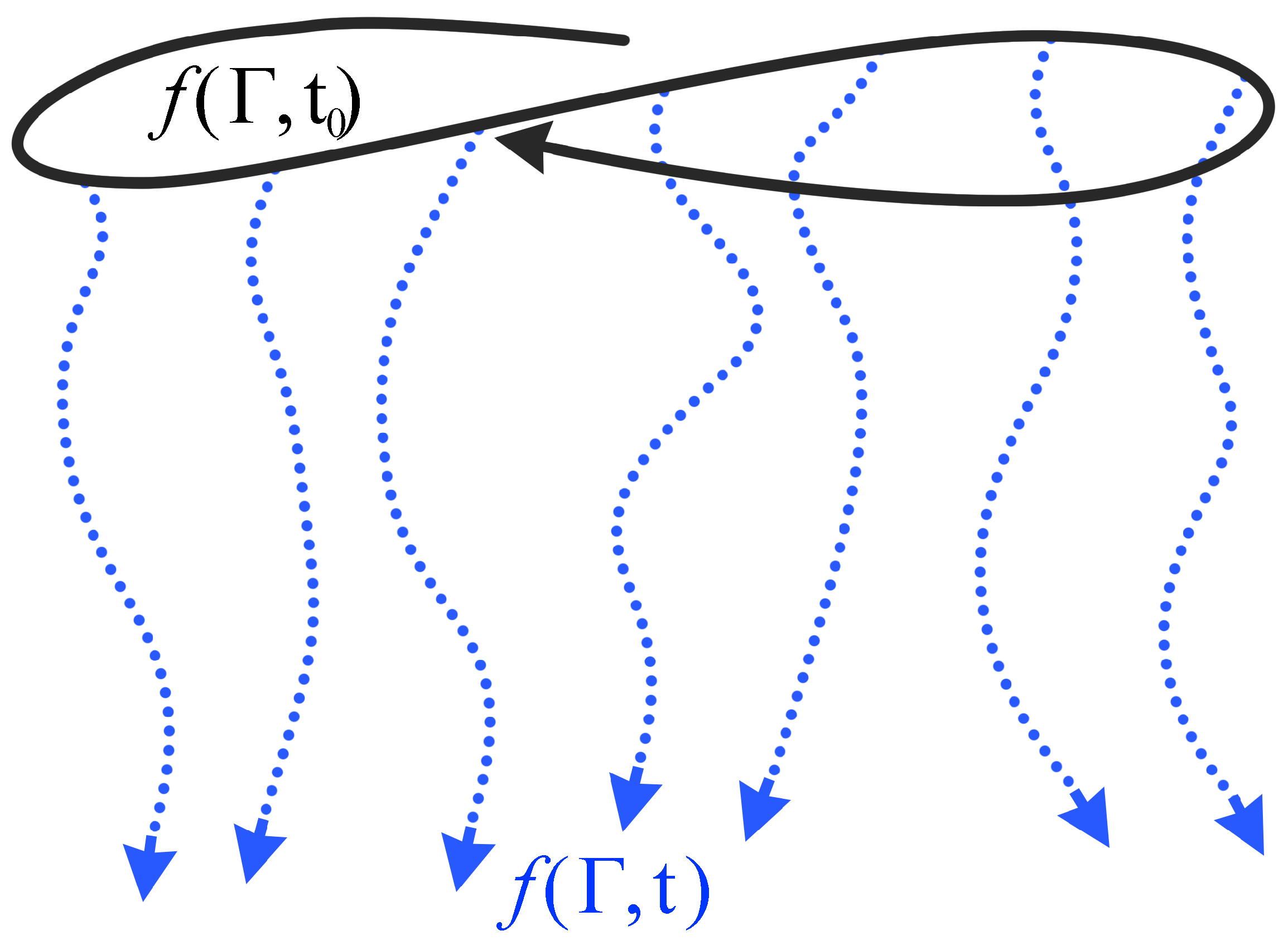

**Figure 5.**Sketch representing the NEMD paradigm. The continuous line represents the trajectory sampling the initial PDF $f\left(\mathrm{\Gamma},{t}_{0}\right)$, at the initial time, ${t}_{0}$. The pointed lines represent the independent trajectories evolved in time up to t sampling $f\left(\mathrm{\Gamma},t\right)$ from the initial configurations belonging to $f\left(\mathrm{\Gamma},{t}_{0}\right)$.

**Figure 6.**Snapshot of the polymeric structure with an initial radical concentration of $3\%$ and a $40\%$ double bonds conversion without the pressure correction term. Note that the bonds crossing the periodic boundaries are not drawn in the figure.

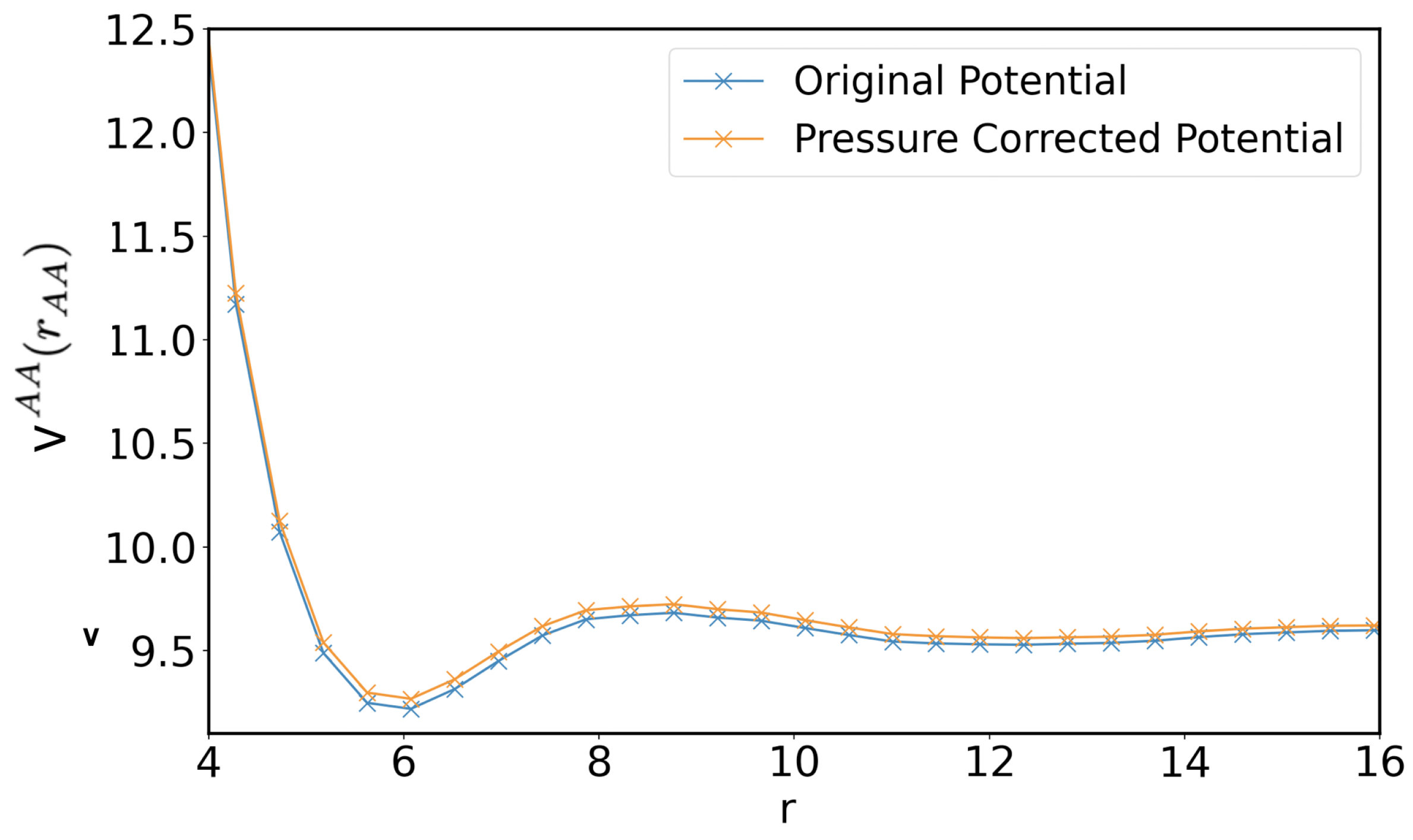

**Figure 7.**Comparison of the original coarse-grained potential in Kcal/mol obtained with the IBI method and the pressure corrected one for the inter-particle term AA as a function of their mutual distance in Å.

**Figure 8.**(

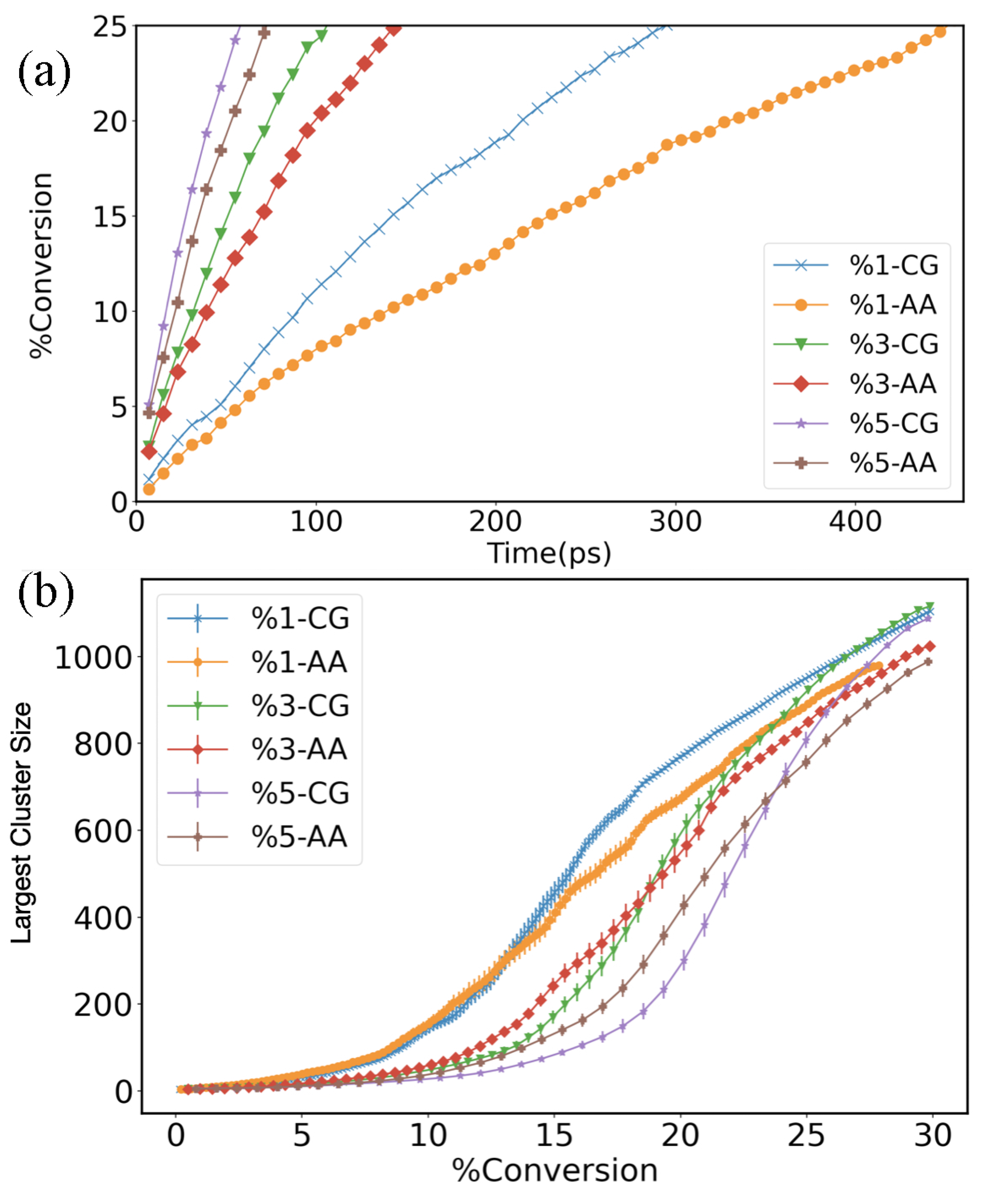

**a**) Double bond conversion as a function of simulation time averaged by D-NEMD for the full-atomistic (AA) and the coarse-grained (CG) force fields at different initial radical concentrations. (

**b**) Largest cluster size in function of double bond conversion. The curves were used to calculate the gel points.

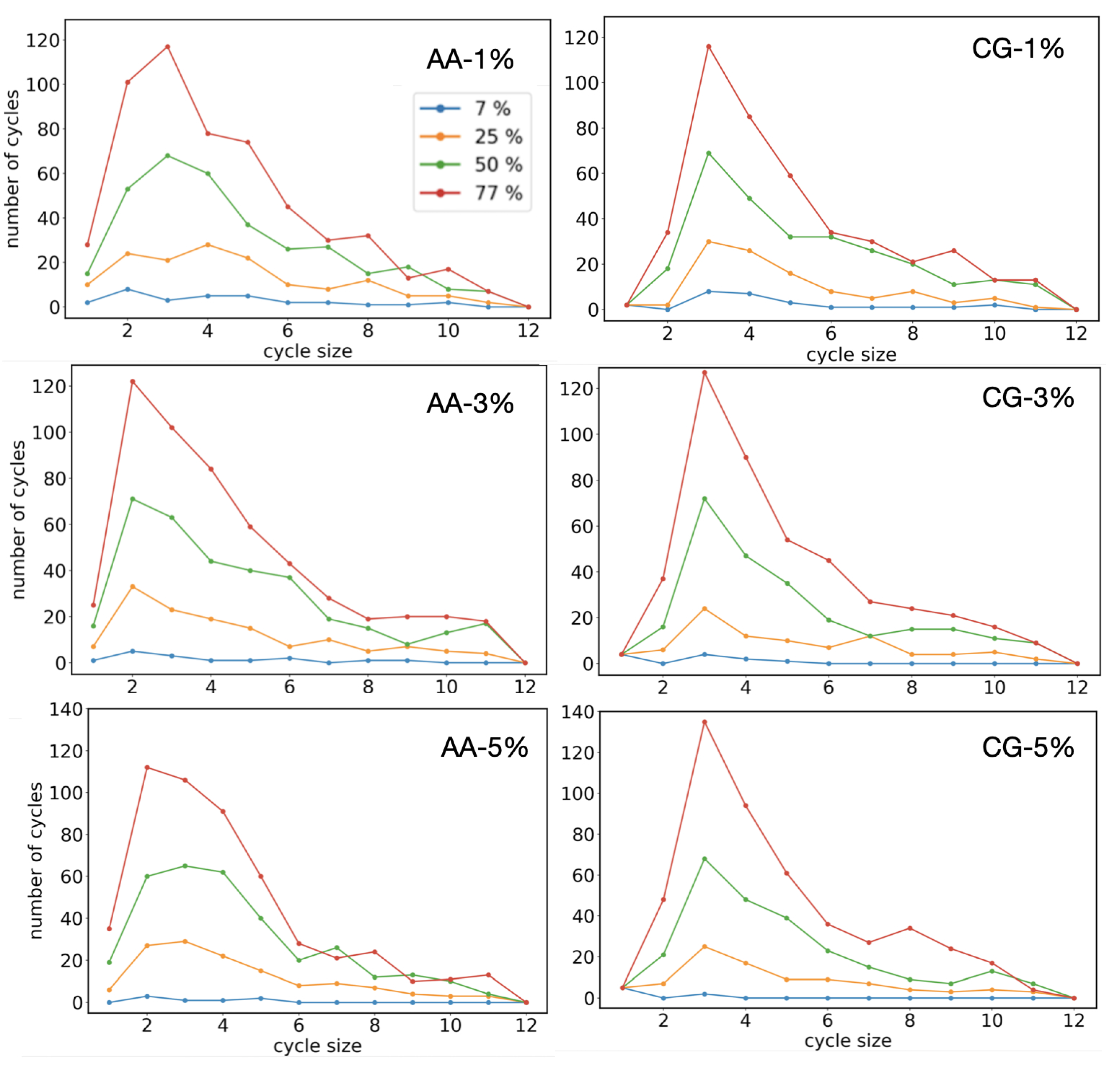

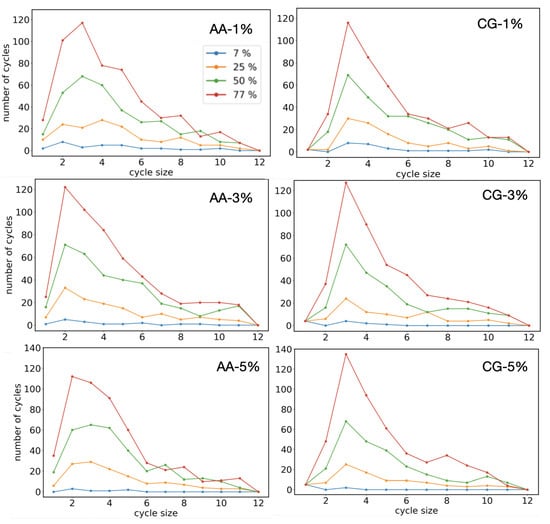

**Figure 9.**Cycles size distribution for the AA (from Ref. [10]) and CG systems at different stages of the polymerization process in double bonds conversion values and different initial radical concentrations. The distribution was computed as the mean over a set of 20 independent trajectories. The standard deviation (not reported in figure) was found to be always less than 5% of the corresponding mean values.
