Various Structural Types of Cyanide-Bridged FeIII–MnIII Bimetallic Coordination Polymers (CPs) and Polynuclear Clusters Based-on A New mer-Tricyanoiron(III)Building Block: Synthesis, Crystal Structures, and Magnetic Properties

by
Wenlong Lan
1,
Xiaoyun Hao
1,
Yong Dou
1,
Zhen Zhou
1,
Lu Yang
1,
Hui Liu
1,
Dacheng Li
2,
Yunhui Dong
1,
Lingqian Kong
3 and
Daopeng Zhang
1,*
1
College of Chemical and Chemical Engineering, Shandong University of Technology, Zibo 255049, China
2
College of Chemical and Chemical Engineering, Liaocheng University, Liaocheng 252059, China
3
Dongchang College of Liaocheng University, Liaocheng 252059, China
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(10), 1585; https://doi.org/10.3390/polym11101585
Submission received: 17 August 2019 / Revised: 22 September 2019 / Accepted: 22 September 2019 / Published: 27 September 2019
Browse Figures
Versions Notes

Abstract

:
Four cyanide-bridged FeIII–MnIII complexes {[Fe(qxcq)(CN)3][Mn(L1)(H2O)]}[Mn(L1)(H2O)(CH3OH)](ClO4)·1.5MeOH·0.5H2O (L1 = N,N′-bis(3-methoxy-5-bromosalicylideneiminate) (2), {[Fe(qxcq)(CN)3][Mn(L2)]}2·0.5H2O (L2 = N,N′-ethylene-bis(3-ethoxysalicylideneiminate)) (3), [Fe(qxcq)(CN)3][Mn(L3)] (L3 = bis(acetylacetonato)ethylenediimine) (4), [Fe(qxcq)(CN)3][Mn(L4)]·1.5MeOH·0.5CH3CN·0.25H2O (L4 = N,N′-(1,1,2,2-tetramethylethylene)bis(salicylideneiminate)) (5), were prepared by assembling a new structurally characterized mer-tricyanoiron(III) molecular precursor (Ph4P)[Fe(qxcq)(CN)3]·0.5H2O (qxcq− = 8-(2-quinoxaline-2-carboxamido)quinoline anion) (1) and the corresponding manganese(III) Schiff base compound. Complexes 2and 3containa cyanide-bridged heterobimetallic dinuclear entity, which can be further dimerized by self-complementary H-bond interactions through the coordinated water molecule from one complex and the free O4unit from the adjacent complex. Complexes 4 and 5 area one-dimensional coordination polymer (CP) comprised of the repeated [Mn(Schiffbase)-Fe(qxcq)(CN)3] units. Complex 4 shows a linear-chain conformation with two trans-located cyano groups bridgingthe neighboring Mn units, while complex 5 is a zigzag-like 1D CP, where the two cyano groups in cis configurationfunction as bridges. In bothcomplexes 4 and 5, the inter-chain π–πstack interactions within the aromaticrings of cyanide precursor extend the 1D chain into the supermolecular 2D networks. The magnetic property has been experimentally studied and theoretically fitted over the four Fe(III)-Mn(III) complexes, revealing the antiferromagnetic interaction in complexes 2 and 4 and the unusual ferromagnetic coupling in complexes 3 and 5 between the Fe(III) ion and the Mn(III) ion bridged by the cyano group. Furthermore, the different magnetic coupling nature has been analyzed on the basis of the magneto-structure correlation of the mer-tricyanometallate-based Fe(III)-Mn(III) magnetic system.

Graphical Abstract

1. Introduction

The research on molecule-based magnetic materials has always been within the hottest topics of interests for chemical and physical researchersdue to their potential values in molecule devices, information memorizer, and quanta computers, et. al. [1,2,3,4]. Among which, since their magnetic coupling nature between neighboring paramagnetic metal centers through the cyanogroup and the molecular topological structures can be relatively easily predicted and controlled, the cyanide-bridged magnetic systems have been widely and intensely studied. Recently, with the aim not only of further disclosing the magneto-structure correlation but also more importantly for the great potential in many high-tech fields, a large numberof molecular magnetic materials containing a cyanide linkagewith different structural types have been synthesized and magnetically studied.Many of the reported cyanide-bridged magnetic assemblies showed very interesting magnetic properties [5,6,7,8,9,10,11,12,13,14] including single-molecule magnet (SMM) and single-chain magnet (SCM), which behave as nanosized magnets under the blocking temperature because of the energy barrierscoming from the large ground spin state (ST) and the strong easy axial anisotropy (D) [15,16,17].
Previous reports have proven that modified polycyanometallates [M(L)m(CN)n]z−(M = Fe, Cr, Mo, W; L = mono- or multi-dentate blocking ligand) are good candidates for assembling lowdimensional molecule-based magnetism complexes [5,6,13,14,18,19]. The introduction of organic ligand(s) into the cyanometallate is very helpful for tuning the assemble architectures and molecular topologies of the resulting complexes. More than that, the blocking ligand(s) can define the magnetic orbitals used to describe the single electrons in paramagnetic metal ions and therefore affect the magnetic interaction mechanism, thereforeofferinga valuable chance for researchers to regulate and control the magnetic property of the complex system. Up to now, many 0D discrete clusters and 1D infinite coordination polymers have been successfully obtained by assembling the decorated polycyanometallates such as the blocked trans-dicyano-, fac-tricyano-, mer-tricyano- and tetracyanometallate, and the paramagnetic compound with or without the auxiliary ligand [18,19,20,21,22,23]. Several reports from our and other groups on the mer-[Fe(L](CN)3]-/2--based cyanide-bridged complexes, where L represents the equatorial in-plane ligands with relative large steric effect for efficiently lowering the dimensionality of the target complex such as bis(2-pyridylcarbonyl)amidate (bpca) [24,25], 8-(pyridine-2-carboxamido)quinoline (pcq) [26,27,28], 8-(pyrazine-2-carboxamido)quinoline (pzcq) [29], 8-(5-methylpyrazine-2-carboxamido)quinoline (mpzcq) [30], 8-(2-quinoline-2-carboxamido)quinoline (qcq) [31],N-(quinolin-8-yl)isoquinoline-1-carboxamide anion (iqc) [32], and bis(2-benzimidazolyl)pyridine (bbp) [33,34] showed that the mer-[Fe(L](CN)3]-/2- type precursors are excellent candidates for constructing interesting magnetic assemblies. Here, a new structurally characterized mer-tricyanoiron(III) building block 1 (Scheme 1) was first employed to assemble with the manganese Schiff base compounds (Scheme 1), leading to a series of new CN-bridged Fe(III)-Mn(III) complexes with various structural types formulated as {[Fe(qxcq)(CN)3][Mn(L1)(H2O)]}[Mn(L1)(H2O)(CH3OH)](ClO4)·1.5MeOH·0.5H2O (L1 = N,N′-bis(3-methoxy-5-bromosalicylideneiminate) (2), {[Fe(qxcq)(CN)3][Mn(L2)]}2·0.5H2O (L2 = N,N′-ethylene-bis(3-ethoxysalicylideneiminate)) (3), [Fe(qxcq)(CN)3][Mn(L3)] (L3 = bis(acetylacetonato)ethylenediimine) (4), and [Fe(qxcq)(CN)3][Mn(L4)]·1.5MeOH·0.5CH3CN·0.25H2O (L4 = N,N′-(1,1,2,2-tetramethylethylene)bis(salicylideneiminate)) (5).

2. Experimental

2.1. General Procedures and Materials

The preparation reaction for all compounds was finished at room temperaturein air, and all of the solvents and chemicals used were reagent grade without any further purification. The mer-[FeIII(qxcq)(CN)3]− precursor was preparedby referencing the method used to prepared other mer-tricyanoiron(III) compounds [35]. The Schiff base ligands can be obtained with acceptable yields by condensing the corresponding amine and aldehyde or ketone with the mole ratio 1:2. The four Mn(III) Schiffbase compounds could be obtained by referencing the procedure in the previous literature [36,37].
Caution! KCN is hazardous and hypertoxic. Metal complexes containing perchlorate are possibly explosive sothese materials should be treated with great caution.

2.2. Synthetic General Procedure for the Hqxcq Ligand and the Complexes 1–5

The Hqxcq ligand [38]: To the solution of 2-quinoxalinecarboxylicacid (0.87g, 5mmol) in pyridine (2mL) was added 8-aminoquinoline (0.72 g, 5 mmol) in pyridine (2mL) at 373K. The mixture was stirred gently for 10 min, and triphenylphosphite (1.55 g, 5 mmol) was added rapidly. Then, the resultant solution was heated with stirring in a water bath for 8 h. On cooling of the mixture, a dark yellow solid resulted, with a weight of 1.2 g (80%). An analytical sample was twice recrystallized from CH2Cl2 to give yellow needles. The recrystallized product was dissolved in CH2Cl2 and purified over silica gel withthe mixture of petroleum ether and ethyl acetate [3:1, v:v] as the eluent. The major band was collected, giving the bright yellow colormicrocrystallinetarget compound (Figure S1, Supplementary Materials) with a yield of about 60% (meltingpoint: 190–192 °C), which was structurally characterized withInfrared Spectrum and Nuclear Magnetic Resonance (Figures S2 and S3).
1H NMR (400 MHz, CDCl3, δ ppm): δ−12.25 (m, 1H), 9.984 (m, 1H), 9.04–9.00 (m, 2H), 8.40–8.38 (m, 1H), 8.24–8.21 (m, 2H), 7.92–7.90 (m, 2H), 7.65–7.60 (m, 2H), 7.53 (q, J = 4 Hz, 1H).
13C NMR (100 MHz, CDCl3, δ ppm): δ 161.7, 148.9, 144.1, 144.0, 144.0, 140.5, 139.3, 136.4, 134.1, 131.8, 130.9, 130.3, 129.5, 128.2, 127.4, 122.6, 121.8, 117.1.
Complex 1: The red solution, which was formed by mixing Hqxcq (3.00 g, 10.0 mmol) and FeCl3·6H2O (2.70 g, 10.0 mmol)dissolved in 20 and 60 mL methanol, respectively, was refluxed for 1h before KCN (3.91 g, 60.0 mmol) diluted in distilled water (40 mL) was then added. The solution was refluxed for 8 h until the color of the solution changed into dark blue. After cooling and filtering, the filtrate was concentrated under reduced pressure to about 30 mL. [Ph4P]Br (4.20 g, 10.0 mmol) was poured slowly into the filtrate, resulting in the target blue crystalline solid, which was collectedby suction filtration, washed with distilled water (2 × 10 mL), and dried for 12 h at r.tunder vacuum. Dark-blue crystals used for single x-ray diffraction were obtained by slowly evaporating the methanol solution of complex 1 for about one week at 298 K.
(Ph4P)[Fe(qxcq)(CN)3]·0.5H2O (1): Yield: 4.5 g (57.6%). Anal. Calcd. for C45H32FeN7O1.5P: C, 69.15; H, 4.13; N, 12.54; Found: C, 69.08; H, 4.01; N, 12.67%. IR (KBr, cm−1): 2115 (s,νC≡N).
Complexes 2 and 3: The preparation methods for the two complexes involved a similar volatilization method. The addition of [Mn(L1)(H2O)2](ClO4) (73.5 mg, 0.1 mmol) or [Mn(L2)(H2O)2](ClO4) (60.6 mg, 0.1 mmol) in methanol:water (1:1) to complex 1 (78.1mg, 0.1 mmol) in methanol produced a brown mixture solution. The mixture was only stirred for 10min at 298 K and filtered to remove the insoluble material, if any. By slowly evaporating the filtrate with nodisturbance for about one week, single crystals suitable for x-ray structural analysis wereobtained by filtration, then washed with the cooled methanol, and dried under air.
[Fe(qxcq)(CN)3][Mn(L1)(H2O)(CH3OH)]ClO4·1.5MeOH·0.5H2O (2): Yield: 46.8 mg, 53.9% (basedon the manganese compound). Anal. Calcd. for C59.5H58Br4ClFeMn2N11O18: C, 41.16; H, 3.37; N, 8.87. Found: C, 41.03; H, 3.28; N, 8.97%. IR (KBr cm−1): 2153, 2120(s, νC≡N), 1620(vs, νC=N).
{[Fe(qxcq)(CN)3][Mn(L2)]}2·0.5H2O (3): Yield: 36.9 mg, 42.6%. Anal. Calcd. for C82H71Fe2Mn2N18O12.5: C, 60.82; H, 4.42; N, 15.57. Found: C, 60.71; H, 4.33; N, 16.41%. IR (KBr cm−1): 2125, 2158 (s, νC≡N), 1627 (vs, νC=N).
Complex 4 and 5: The preparation methods for the two complexes were similarto the three layers diffusion method. 1(78.1mg, 0.1 mmol)solved in 5 mL water and methanol (1:1) was laid in the bottom of the single tube, above which a mixture of H2O and MeOH (1:3) was added dropwise.Then, the methanol:acetonitrile (1:1) solution containing [Mn(L3)(H2O)2]ClO4 (47.7mg, 0.1 mmol) or [Mn(L4)(H2O)2]ClO4 (57.3mg, 0.1 mmol) was cautiously added to the top of the buffer layer. Single crystals with a suitable dimension used forx-ray analysis were produced about two weeks later.
[Fe(qxcq)(CN)3][Mn(L3)] (4): Yield: 41.1 mg, 57.8%. Anal. Calcd. for C33H29FeMnN9O3: C, 55.79; H, 4.11; N, 17.44. Found: C, 55.67; H, 4.02; N, 17.32%. IR (KBrcm−1): 2118, 2155(s, νC≡N), 1625 (vs, νC=N).
[Fe(qxcq)(CN)3][Mn(L4)]·1.5MeOH·0.5CH3CN·0.25H2O (5): Yield: 49 mg, 55.5%. Anal. Calcd. for C43.5H41FeMN9.5O4.75: C, 59.13; H, 4.68; N, 15.06. Found: C, 59.01; H, 4.78; N, 15.15%. IR (KBr cm−1): 2120, 2157 (s, νC≡N), 1627 (vs, νC=N).

2.3. Single-Crystal X-Ray Diffraction and Structural Refinement

For the reported complexes 1–5, the corresponding single-crystal for x-ray analyses with a suitable sizewas mounted ona glass rod, and the crystal diffraction data were collected by using the ω scan mode on a Bruker APEX2 CCD diffractometer with a Mo Kα sealed tube (λ = 0.71073 Å) at room temperature. All structures were resolved using the direct method and further expanded employing Fourier difference techniques with the SHELXTL-2018 program package. All of the non-hydrogen atoms were anisotropically refined with anisotropic displacement coefficients. Hydrogen atoms were distributed to the isotropic displacement coefficients with U(H) =1.2 or 1.5U(C), and the coordinates were permitted to ride on the corresponding carbons utilizing SHELXL-2018, except for some solvent H atoms. The H atoms from the solvent molecules were isotropically refined with fixed U values, during which the DFIX command was utilized for the purpose of rationalizing the bond parameter. The supplementary crystallographic data for the reported complexes 1–5 were deposited in The Cambridge Crystallographic Data Center (CCDC) with the number 1902326-1902330, which is freely available from the Cambridge Crystallographic Data Centre [39]. The crystal parameters, data collection, and refinement are summarized in detail in Table S1 (Supplementary Materials). Some important bond parameters for complexes 1–3 and 4–5 are listed in Tables S2 and S3, respectively. The measured and calculated powder x-ray diffraction (PXRD) patterns for compounds 1–5 are given in Figures S4–S8 (Supplementary Materials). The calculated and experimental diffraction peaks were basically in the same position, demonstrating the phase purity of these compounds.

2.4. Physical Measurements

Elemental analysis for C, H, and N were carried out by using an Elementary Vario El and the infrared spectra were measured by employing KBr disks on a Shimadzu FTIR-8600 spectrophotometer. Magnetic susceptibilities were measured by a Quantum Design SQUID MPMS-XL magnetometer, where the dc measurements were collected within the temperature range 2–300 K and the field range of 0–50 KOe. All of the experimental susceptibilities were corrected for the diamagnetism of the constituent atoms (Pascal’s tables).

3. Results and Discussion

3.1. Preparation and General Characterization

The MnIII quadridentate Schiffbase compounds with always sizable anisotropic characteristics have been widely utilized to synthesize the CN-bridged magnetic compounds not only due to their easy preparation but also to the big spin (S = 2) and the intrinsic Jahn–Teller effectalong the axial direction [36]. Reactions of the four quasi planar tetradentate Schiffbase ligands based manganese(III) compounds with the new mer-tricyanoiron(III) building block provided four CN-bridged heterobimetallic compounds with different structural conformations, for which the corresponding synthesis scheme for the organic ligand and complexes 1–5 are provided in Scheme S1, indicating that the structure of the different Schiffbase has an obvious influence on the structural type of the target cyano-bridged complexes. Additionally, the obtained results also imply that the mer-tricyanoiron(III) precursor [Fe(qxcq)(CN)3]− is more favorable for constructing a low-dimensional molecular magnetism system.
The IR spectroscopy characterization (Figures S9–S13) for the CN-bridged Fe(III)-Mn(III) complexes2–5 as well as PPh4[Fe(qxcq)(CN)3]·0.5H2O werecarried out. In the infrared spectra of the cyano precursor, the absorption positioned at about2115 cm−1 was distributed to the uncoordinated cyanide group. For complexes 2–5, two sharp peaks originating from the CN group stretching vibration could be observed within 2120–2160 cm−1, implying the existence of both bridging and non-bridging cyano groups in these complexes.

3.2. Crystal Structure for Complexes 1–5

Complex 1. The crystal structure of complex 1 is comprised of PPh4+ cations and [Fe(qxcq)(CN)3]− anions (Figure 1). The Fe atom is complexed by three CN groups and three N donors of qxcq in a meridional configuration, forming octahedral coordination geometry. The Fe–C bonds are in the normal range compared with other reported mer-tricyanoiron(III) precursors [24,25,26,27,28,29,30,31,32,33,34]. One of the three Fe–Namide bond lengths with the value 1.945(5) Åwas slightly shorter than the other ones (2.004(5)–2.060(5) Å) relevant with qxcq, which can be attributed tothe strong σ-donor influence of the deprotonated amide ligand. Under the help of the intermolecular π–πinteraction from the aromatic rings of the amide ligands, the tricyanoiron(III) anion can be assembled into a supramolecular one-dimensional structure (Figure 1).
Complexes 2 and 3. Figure 2 and Figure 3 depict the molecular structure and the corresponding dimeric structure constructed by the intermolecular H-bond coactions for complexes 2 and 3, respectively. Complexes2and3are crystallized in a triclinic P-1space group. Complex 2 contains a cyanide-bridged binuclear unit and an additional co-crystallized mononuclear manganese(III) Schiffbase unit [Mn(L1)(H2O)(CH3OH)]ClO4, while complex 3 belongs to the pure cyanide-bridged binuclear structure containing two independent [Fe(qxcq)(CN)3][Mn(L2)(H2O)] units. Unlike complex 2, where the dimeric unit is constructed from the cationic [MnIII(L1)]+ part and the anionic precursor [FeIII(qxcq)(CN)3]− islinked by one of two trans-cyanide groups, the [MnIII(L2)(H2O)]+ cation in complex 3 is coordinated by the equatorial cyanide group of the mer-tricyanoiron(III) precursor. The difference in the structural composition and the coordination mode could be assigned to the different steric effect (MeO– or EtO–) of the Schiff base ligand. For both of these complexes, the structural extension is blocked by the water molecule coordinated to one of the axial positions of the manganese(III) Schiffbase. Similar to that in compound 1, the coordination geometry for the Fe(III) in the crystal structures of 2 and 3 can also be defined as a distorted octahedral involved in a C3N3 unit. A similar reason to that in complex 1 can be used to explain the shorter Fe–Namide bond distances of [Fe1–N5 = 1.906(5) Å] and [Fe1–N5 = 1.945(8) Å] for 2 and 3 in comparison to the other Fe–N lengths ranging from about 1.98–2.03 Å [25,27,29,30].
The Mn(III) ion in the cyanide-bridged entity is six-coordinated with the four equatorial positions bonded by a N2O2 unit from the Schiff base and the two axile ones from the N atom of the CNbridging group and the O atom of the solvent molecule. For all of the Mn(III) ions in complexes 2 and 3, the Jahn–Teller distortion was clear with an elongated octahedralproved by the shorter equational Mn–N(O) distances [mean Mn–N(O) = 1.989, 1.882 Å] than those of the axial Mn–Ncyanide/Osolventbond lengths [2.253(5), 2.308(3) Å and 2.248(6), 2.296(5)Å]. The Mn–N≡C angles corresponding to 153.4(4)° for 2 and 160.2(7)°for 3 showed a moderate difference and deviated obviously from the linear conformation. The intramolecular Fe–Mn distances through the cyano linkage were 5.169 Å in 2and 5.259, 5.281 Å in 3, respectively. Both of the cyanide-bridged binuclear entity and the monocnuclear unit can be self-assembledby the coordinated solvent molecule from one complex and the free O4unit from the adjacent complex, therefore giving the supramolecular dimerized structure. Furthermore, the dimeric moieties are linked into a one-dimensional supramolecular architecture by the π–π stacking interactions between the qxcq ligands.
Complexes 4 and 5. Figure 4 and Figure 5 show the independent binuclear, one-dimensional structure and the cell packing diagram presenting the π–π interaction along a axis for complex 4. For complex 5, its binuclear and one-dimensional structure is given in Figure 6. Complexes 4 and 5, which crystallize in the monoclinic P2(1)/n space group and contain four independent units, can be structurally categorized as a 1D chain comprised of the alternated [FeIII(qcq)(CN)3]− anion and the Schiff base Mn(III) cation. Within the chain, each of the Schiff base MnIII cations connects two [FeIII(qcq)(CN)3]− anions in trans arrangement, while each [FeIII(qcq)(CN)3]− anions coordinate axially to two MnIII (Schiff base) cations intrans-mode for 4 and cis-mode for 5, therefore resulting in the linear conformation and zig-zag arrangement for complexes 4 and 5, respectively. The structural parameters around the Fe atom were also quite similar to those in complex 1, indicating that the coordinating to the manganese Schiff base had no marked influence on the coordinationgeometry of the Fe(III) ion.
For the manganese Schiff base part, the MnIII ion waslocated in the highly elongated octahedron (Jahn–Teller effect), where thefour equatorial sites were occupied by four N/O atoms [Mn–N/O distances: 1.874(4)to 1.985(4) Å] from the Schiff base and the two axial positions were complexed by two N atoms [Mn-Ncyanide distances: 2.284(9) to 2.326(4) Å] from the CN groups of two neighboring [FeIII(qcq)(CN)3]−units. With respect to the Mn–N≡C bond angles in the bridging pathways for these two complexes, an obvious difference could be found. These types of bond angles deviatedobviously from the linear conformation with values of159.0(9) and 154.8(9)° in complex 4, while the corresponding angles remained most linear with the values 172.4(4) and 173.4(4)° in complex 5, demonstrating that the structure of the Schiff base manganese(III) and the coordination mode play important rolesin the Mn–N≡C bending. The linear chain in complex 4runs with intra-chain Mn…Fe distances of 5.205 Å corresponding to 5.408 Å in the zig-zag chain running along the baxis. The shortest inter-chain metal…metal separationswere 8.486 Å for complex 5, which was obviously shorter than the corresponding distance in complex 4 with the valueof 8.886 Å. It should be pointed out that either of the linear or the zigzag chains could be stacked in parallel by the π–π stacking interaction between the [FeIII(qcq)(CN)3]−moieties, leading to the 2D supramolecular sheet, where the solvent contents (for complex 5) were filled in the channels along the a or c axial.

3.3. Magnetic Properties of Complexes 2–5

The temperature dependent magnetic susceptibility with the form of per FeIIIMnIII2 for complex 2 and per FeIIIMnIII for complexes 3–5 measured from 2–300 K under the applied magnetic field of 2000 Oe using the corresponding single crystal with the quantity about 10-–0 mg are shown in Figure 7 and Figure 8, respectively. The variation trends of the χmT–T curves for compounds 2 and 4 were similar to each other, which was also similar for complexes 3 and 5. The χmT values at r.t. for these four complexes were about 6.16, 3.27, 3.32, and 3.31 emu·K·mol–1, respectively, which were basically in agreement with the spin-only value of 6.375 for the two isolated Mn(III) ions (S = 2), one low spin Fe(III) ion (S = 1/2) for 2 and 3.375 emu·K·mol–1 for one Mn(III) ion, and one Fe(III) ion for 3–5, respectively. For compounds 2 and 4, the χmT values decreased slowly, accompanying the temperature down to about 50 K, then the χmT values began to decrease quickly and reached their lowest value at about 1.47 and 0.56 emu·K·mol–1 at 2 K, respectively, primarily indicating the antiferromagnetic interaction between the Mn(III)–Fe(III) unit through the bridging cyanide group. The χmT–T curves for complexes 3 and 5 presenteda basically contrary change tendency to the above two compounds. By decreasing the temperature, the χmT value for these two complexes remained almost constant until 75 K, then began to increase smoothly and attained their maximum value at about 3.50 emu·K·mol–1 for 3 and 3.72 emu·K·mol–1 for 5, respectively, and then decreasedwith high speed to the minimum value of about 1.50 and 1.24 emu·K·mol–1for 3 and 5, respectively, at 2 K. The magnetic behavior of the complexes at very low temperature can probably be due to the intermolecular anti-ferromagnetic interaction resulting from the inter-molecular weak interactions and/or the zerofieldsplitting (ZFS) effect of the Mn(III) ion. The described change tendency for the χmT–T curves above primarily implied the antiferromagnetic and ferromagnetic coupling between the cyanide-bridged Mn(III) ion and Fe(III) ion in complexes 2 and 4 and 3 and 5, respectively.
The magnetic susceptibilities for complexes 2–5 obey the Curie–Weiss law well in 10–300 K. The obtained negative Weiss constant θ= −5.2 K, Curie constant C= 6.26 emu·K·mol–1 for 2, θ= −2.65 K, C= 3.30 emu·K·mol–1 for 4, positive θ= 0.65 K, C= 3.33 emu·K·mol–1 for 3, and θ= 1.35 K, C= 3.32 emu·K·mol–1 for 5, further confirming the overall antiferromagnetic or ferromagnetic interaction between the Mn(III) ion and Fe(III) ion in these complexes. The insets of Figure 7 and Figure 8 show that the field-dependent magnetization was measured up to 50 kOe at 2 K for the corresponding complexes. The magnetization for all complexes increasedquickly up to about 10 kOe. After that, the curve becamecomparatively even and gradually reached their largest value. The values at 50 kOe were 6.1 and 2.9 Nβ for complexes 2 and 4, which were significantly lower than the expected 9 and 5 Nβfor the uncoupled two or one high spin Mn(III) ion and one low spin Fe(III) ion based on g = 2.0, proving again the existence of overall antiferromagnetic coupling in complexes 2 and 4. The maximum field-dependent magnetization value for complexes 3 and 5 were about 4.9 Nβ, very close to the saturated value 5 Nβcorresponding to the spin state S = 5/2 from the high-spin Mn(III) ion andlow-spin Fe(III) ion, further revealing the intramolecular ferromagnetic interaction in them.
The theoretical magnetism analysis for complexes 2–5 was carried out according to their structural types.Complex 2 can be structurally considered as the cyanide-bridged binuclear entity by adding an isolated free Mn(III) ion compound, while complex 3 belongs to only a pure cyanide-bridged binuclear structure. Basedon the dinuclear MnIII-FeIII (S = 2 and 1/2) model, the magnetic susceptibilities for these two compounds can be simulated by the following expression originatingfrom the isotropic exchange spin Hamiltonian Ĥ = −2JŜFeŜMn. However, an additional isolated Mn(III) ion (χMn = Ng2β2ŜMn(ŜMn +1)/3kT, S = 2) needs to be included for complex 2.
χd = Ng2β2(35exp(2J/kT) + 10exp(-3J/kT))/2kT(6exp(2J/kT) + 4exp(-3J/kT))
χm = χd/(1-χd(2zJ’/ Ng2β2)
The magnetic data for these two compoundswere fitted in the temperature range of 10–300 K by introducing the mean-field approximation (zJ’), accounting for the effects other than the intramolecular magnetic coupling. The obtained best-fit parameters were J = −5.56 cm−1, g = 1.99, zJ’ = −0.81 cm−1and J = 2.15 cm−1, g = 1.98, zJ’ = −0.58 cm−1for complexes 2 and 3, respectively. The negative zJ’ values indicate that antiferromagnetic interactions occur between dimeric units, which are related to the presence of the intermolecular H-bonds. These results are basically comparable to those values found in the cyanide-bridged FeIIIMnIII polynuclear complex previously reported [35].
The magnetic data for the two one-dimensional chain-like complexes 4 and 5 werefitted by the Hamiltonian Ĥ = Ĥex + Ĥanis + gβĤŜ, where the first term corresponds to the isotropic interactions (the magnetic couplings through the single cyano bridge). The second term deals with the local anisotropy of the high spin Mn(III) ion, and the last one is the Zeeman effect. Considering that the two independent Fe(III)–CN–Mn(III) linkages in these two complexes were not markedly different to the two Mn–N≡C bond angles 154.7(10), 158.5(10)° in 4 and 173.4(4), 172.4(4)° in 5, respectively, these two compounds could be treated as a chain containing alternative spins 1/2 and 2 with approximately one exchange coupling J (Scheme 2). In this case, the magnetic susceptibilities of the two 1D chains could be fitted and calculated rationally on the basis of a closed loop model comprised by four pairs of 1/2–2 spin pairs. The simulation was done by numerical matrix diagonalization techniques employing a Fortran program [40]. The best fit parameters J = −2.56 cm−1, D = −1.72 cm−1, g = 2.03 and R = ∑(χobsdT-χcaldT)2/∑(χobsdT)2= 6.45 × 10−5 for 4 and J = 4.01 cm−1, D = −1.82 cm−1, g = 2.01 and R = 1.34 × 10−5 for 5, respectively.

3.4. Magneto–Structural Correlation

As has been proven, due to the strict orthogonality of the magnetic orbitals of [dxy/dxz/dyz]1 in iron(III) vs. [dz2]1 in manganese(III) and the overlap between the corresponding dxz, dyz, dxy orbitals, ferromagnetic or antiferromagnetic interaction could both be possible inCN-bridged FeIII–MnIII systems. Two factors contributed mainly to the magnetic coupling in the CN-bridged FeIII–MnIII complex, where one was the magnetic orbital of the low-spin FeIII ion with a t2g5eg0 electronic arrangement and the other was the bending of the Mn–N≡Cbridge. The electronic arrangement of the low-spin Fe(III) ion is t2g5eg0, where the magnetic orbital employed to describe the single electron ([dxy/dxz/dyz]1) is sensitive to the coordination environment induced electronic effects such as the location and the number of the CN groups bonded to the FeIII center. For the mer-tricyanoiron(III) types precursors, the DFT calculation has theoretically revealed that the main magnetic orbital may be dxz residing on the tricyano plane [35], resulting in the possibility ofdelocalizing the electron concentration on the π-pathway of the CN group, particularly on the NCN atom bonded to the manganese(III) ion. Therefore, due to the orthogonality or overlap of the magnetic orbitals, dxz(FeIII) vs. {(dxz, dyz, dxy)3(dz2)1}(MnIII),it is both possible that the interaction through the single cyanide linkage can lead to ferro- and antiferro-magnetic coupling. Previous reports have shown that the almost always antiferromagnetic coupling in mer-tricyano-based FeIII-MnIII complexes containing the always relatively smaller Mn–N≡Cbridge bond angles, which is in the favor of resulting in the overlap of the magnetic orbital. It is also apparent that the bigger the Mn–N≡Cbridge bending, the lower the magnetic orbital overlap and therefore increase the possibility of magnetic orbital orthogonality. As a consequence, the switch of the magnetic interaction nature between FeIII–MnIII through the cyanide bridge from antiferromagnetic to ferromagnetic can open once the Mn–N≡C angle increases to some extent, which can be further confirmed by the present results in complexes 3, 4 and also in one of the recently reported FeIII–MnIII compounds basedon [Fe(qcq)(CN)3]− with the Mn–N≡C angle over 170° [32].

4. Conclusions

In summary, a new mer-tricyanometallate wasfirst prepared and structurally characterized, and based on which and the different Schiff base manganese(III) compounds, a new series of cyanide-bridged magnetic complexes were obtained. Single crystalx-ray diffraction analysis revealed that their different structural types belonged to discrete polynuclear clusters and 1D infinite linear or zig-zag coordination polymers, which could be further dimerized by the intermolecular hydrogen bond interactions and assembled into a 2D supramolecular structure by the inter-chain π–π interactions, respectively, indicating that the structure of the Schiff base ligand could play an important rolein the structure of the target cyanide-bridged complexes. Systematic magnetic study on all complexes with the combination of the magneto–structural correlation disclosed the antiferromagnetic coupling in complexes 2 and 5 with smaller Mn–N≡Cbridge bond angles between the cyanide-bridged FeIII–MnIII, while the ferromagnetic magnetic interaction in the other two complexes containing the larger Mn–N≡Cbridge bond angle, which for the latter has been seldom been previously reported with regard to the mer-tricyano-based Fe(III)-Mn(III) magnetic assemblies. The results reported here offer meritorious information for the rational design of newmer-tricyano-containing precursors used to constructmolecular magnetism systems in coordination chemistry with various structural types and different magnetic coupling nature. The obtained new series of bimetallic complexes can further enrich the members of the cyanide-bridgedfamily, which are very helpful for thoroughly discovering the magneto–structural correlation in this field from the molecular magnetism perspective.

Supplementary Materials

Supplementary Materials: The following are available online at https://www.mdpi.com/2073-4360/11/10/1585/s1, Figure S1: The image for the microcrystalline yellow color Hqcxq ligand under the microscope. Figure S2: The IR of the Hqcxq ligand. Figure S3–S7: The calculated and measured XRD for the complexes 1–5. Figure S8–S12: The IR of the complexes 1–5. Scheme S1: The synthesis scheme for the organic ligand and the complexes 1–5. Table S1: Details of the Crystal Parameters, Data Collection, and Refinement for Complexes 1–5. Table S2: Selected bond lengths (Å) and angles (deg) for 1–3. Table S3: Selected bond lengths (Å) and angles (deg) for 4–5.

Author Contributions

W.L. carried out all of the preparation reactions and wrote the draft under the help of X.H. and Y.D.; Z.Z. and L.Y. carried out the XRD measurements; H.L. and Y.D. carried out the NMR measurements; D.L. carried out the magnetic data measurements; L.K. carried out the IR spectra; and D.Z. solved all of the structures and finished the final edition of the manuscript.

Acknowledgments

This work was financed by the Natural Science Foundation of China (21671121and 21773006), the Shandong Provincial Key Research and Development Program of China (2017GGX20131), and the Natural Science Foundation of Shandong Province (ZR2018BB002).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hill, S.; Edwards, R.S.; Aliaga-Alcalde, N.; Christou, G. Quantum Coherence in an Exchange-Coupled Dimer of Single-Molecule Magnets. Science 2003, 302, 1015–1018. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Sessoli, R.; Gatteschi, D.; Caneschi, A.; Novak, M.A. Magnetic bistability in a metal-ion cluster. Nature 1993, 365, 141–143. [Google Scholar] [CrossRef]
  3. Sun, H.L.; Wang, Z.M.; Gao, S. Strategies towards single-chain magnets. Coord. Chem. Rev. 2010, 254, 1081–1100. [Google Scholar] [CrossRef]
  4. Roch, N.; Florens, S.; Bouchiat, V.; Wernsdorfer, W.; Balestro, F. Quantum phase transition in a single-molecule quantum dot. Nature 2008, 453, 633–637. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Lan, W.; Wang, X.; Yang, L.; Si, W.; Zhuang, S.; Liu, H.; Liu, Q.; Zhang, D. Cyanide-bridged polynuclear heterobimetallic complexes: Synthesis, crystal structures, and magnetic properties. Transit. Met. Chem. 2019, 44, 383–389. [Google Scholar] [CrossRef]
  6. Ni, Z.H.; Xu, L.; Li, N.; Zhang, L.F. A cyanide-bridged one-dimensional CrIIICoII metamagnet based on the trans-dicyanidechromate(III) building block. Inorg. Chim. Acta 2017, 462, 204–208. [Google Scholar] [CrossRef]
  7. Zhu, X.; Su, S.; Cao, W.; Wen, Y.; Hu, S.; Wu, X.; Sheng, T. Redox effects of low-spin Ru(II/III) on slow magnetic relaxation of Ru–Mn(III) 1D cyanide-bridged complexes. Dalton Trans. 2017, 46, 7267–7272. [Google Scholar] [CrossRef]
  8. Li, H.; Sun, J.; Yang, M.; Sun, Z.; Xie, J.; Ma, Y.; Li, L. Functionalized nitronyl nitroxide biradical bridged one-dimensional lanthanide chains: Slow magnetic relaxation in the Tb and Dy analogues. New J. Chem. 2017, 41, 10181–10188. [Google Scholar] [CrossRef]
  9. Sayın, E.; Kürkçüoğlu, G.S.; Yeşilel, O.Z.; Taş, M.; Öztürk, M.; Yerli, Y. Synthesis, crystal structure and magnetic property of one-dimensional heterometallic cyanide-bridged complex: {[Cu(hmpH)2Cu(hmp)(hmpH)Co(μ-CN)4(CN)2]·2H2O}n. Polyhedron 2016, 115, 67–75. [Google Scholar]
  10. Alexandru, M.G.; Visinescu, D.; Shova, S.; Andruh, M.; Lloret, F.; Julve, M. Synthesis, Crystal Structures, and Magnetic Properties of Two Novel Cyanido-Bridged Heterotrimetallic {CuIIMnIICrIII} Complexes. Inorg. Chem. 2017, 56, 2258–2269. [Google Scholar] [CrossRef]
  11. Zhang, D.; Valverde-Muñoz, F.J.; Bartual-Murgui, C.; Piñeiro-López, L.; Muñoz, M.C.; Real, J.A. {[Hg(SCN)3]2(μ-L)}2–: An Efficient Secondary Building Unit for the Synthesis of 2D Iron(II) Spin-Crossover Coordination Polymers. Inorg. Chem. 2018, 57, 1562–1571. [Google Scholar] [CrossRef]
  12. Zhang, Y.; Zhang, J.J.; Jia, A.Q.; Xin, Z.F.; Zhang, Q.F. A Single-Molecule Magnet Tetranuclear [Mn3IIIMnIVO3Cl] Complex with Bis(diisopropylphosphinyl)imide Ligands. J. Clust. Sci. 2018, 29, 1345–1352. [Google Scholar] [CrossRef]
  13. Sun, H.; He, M.L.; Zhao, W.; Zhang, L.F.; Ni, Z.H. Synthesis, crystal structure and magnetic properties of a cyanide-bridged one-dimensional FeIIICoII metamagnet. Inorg. Chim. Acta 2018, 482, 48–52. [Google Scholar] [CrossRef]
  14. Pichon, C.; Suaud, N.; Duhayon, C.; Guihéry, N.; Sutter, J.P. Cyano-Bridged Fe(II)–Cr(III) Single-Chain Magnet Based on Pentagonal Bipyramid Units: On the Added Value of Aligned Axial Anisotropy. J. Am. Chem. Soc. 2018, 140, 7698–7704. [Google Scholar] [CrossRef]
  15. Murugesu, M.; Habrych, M.; Wernsdorfer, W.; Abboud, K.A.; Christou, G. Single-Molecule Magnets:  A Mn25 Complex with a Record S = 51/2 Spin for a Molecular Species. J. Am. Chem. Soc. 2004, 126, 4766–4767. [Google Scholar] [CrossRef]
  16. Caneschi, A.; Gatteschi, D.; Sessoli, R.; Barra, A.L.; Brunel, L.C.; Guillot, M. Alternating current susceptibility, high field magnetization, and millimeter band EPR evidence for a ground S = 10 state in [Mn12O12(CH3COO)16(H2O)4]·2CH3COOH·4H2O. J. Am. Chem. Soc. 1991, 113, 5873–5874. [Google Scholar] [CrossRef]
  17. Tsai, H.L.; Yang, C.I.; Wernsdorfer, W.; Huang, S.H.; Jhan, S.Y.; Liu, M.H.; Lee, G.H. Mn4 Single-Molecule-Magnet-Based Polymers of a One-Dimensional Helical Chain and a Three-Dimensional Network: Syntheses, Crystal Structures, and Magnetic Properties. Inorg. Chem. 2012, 51, 13171–13180. [Google Scholar] [CrossRef]
  18. Zhang, D.; Si, W.; Wang, P.; Chen, X.; Jiang, J. 1D to 3D Heterobimetallic Complexes Tuned by Cyanide Precursors: Synthesis, Crystal Structures, and Magnetic Properties. Inorg. Chem. 2014, 53, 3494–3502. [Google Scholar] [CrossRef]
  19. Zhang, H.; Xue, C.; Shi, J.; Liu, H.; Dong, Y.; Zhao, Z.; Zhang, D.; Jiang, J. Coordination Field Tuned Cyanide-Bridged Polynuclear and One-Dimensional Heterobimetallic Complexes: Synthesis, Crystal Structures, and Magnetic Properties. Cryst. Growth Des. 2016, 16, 5753–5761. [Google Scholar] [CrossRef]
  20. Wang, S.; Ding, X.H.; Zuo, J.L.; You, X.Z.; Huang, W. Tricyanometalate molecular chemistry: A type of versatile building blocks for the construction of cyano-bridged molecular architectures. Coord. Chem. Rev. 2011, 255, 1713–1732. [Google Scholar] [CrossRef]
  21. Wang, S.; Ding, X.H.; Li, Y.H.; Huang, W. Dicyanometalate chemistry: A type of versatile building block for the construction of cyanide-bridged molecular architectures. Coord. Chem. Rev. 2012, 256, 439–464. [Google Scholar] [CrossRef]
  22. Li, Y.H.; He, W.R.; Ding, X.H.; Wang, S.; Cui, L.F.; Huang, W. Cyanide-bridged assemblies constructed from capped tetracyanometalate building blocks [MA(ligand)(CN)4]1−/2− (MA = Fe or Cr). Coord. Chem. Rev. 2012, 256, 2795–2815. [Google Scholar] [CrossRef]
  23. Zhang, D.; Zhuo, S.; Wang, P.; Chen, X.; Jiang, J. A new series of cyanide-bridged heterobimetallic FeIII–FeIII/MnIII/CuII one-dimensional complexes: Synthesis, crystal structures, and magnetic properties. New J. Chem. 2014, 38, 5470–5479. [Google Scholar] [CrossRef]
  24. Wen, H.R.; Tang, Y.Z.; Liu, C.M.; Chen, J.L.; Yu, C.L. One-Dimensional Homochiral Cyano-Bridged Heterometallic Chain Coordination Polymers with Metamagnetic or Ferroelectric Properties. Inorg. Chem. 2009, 48, 10177–10185. [Google Scholar] [CrossRef]
  25. Lescouëzec, R.; Vaissermann, J.; Toma, L.M.; Carrasco, R.; Lloret, F.; Julve, M. Mer-[FeIII(bpca)(CN)3]−: A New Low-Spin Iron(III) Complex to Build Heterometallic Ladder-like Chains. Inorg. Chem. 2004, 43, 2234–2236. [Google Scholar] [CrossRef]
  26. Zhang, D.; Bian, Y.; Qin, J.; Wang, P.; Chen, X. The supramolecular interaction mediated chiral 1D cyanide-bridged metamagnet: Synthesis, crystal structures and magnetic properties. Dalton Trans. 2014, 43, 945–949. [Google Scholar] [CrossRef]
  27. Ni, Z.H.; Kou, H.Z.; Zhang, L.F.; Ni, W.W.; Jiang, Y.B.; Cui, A.L.; Ribas, J.; Sato, O. Mer-[Fe(pcq)(CN)3]−:  A Novel Cyanide-Containing Building Block and Its Application to Assembling Cyanide-Bridged Trinuclear FeIII2MnII Complexes [pcq− = 8 − (Pyridine−2−carboxamido)quinoline Anion]. Inorg. Chem. 2005, 44, 9631–9633. [Google Scholar] [CrossRef]
  28. Senapati, T.; Pichon, C.; Ababei, R.; Mathonière, C.; Clérac, R. Cyanido-Bridged Fe(III)–Mn(III) Heterobimetallic Materials Built From Mn(III) Schiff Base Complexes and Di or Tri-Cyanido Fe(III) Precursors. Inorg. Chem. 2012, 51, 3796–3812. [Google Scholar] [CrossRef]
  29. Kim, J.I.; Yoo, H.S.; Koh, E.K.; Kim, H.C.; Hong, C.S. Ferrimagnetic FeIII−MnIII Zigzag Chain Formed by a New mer-Positioned Iron(III) Cyanide Precursor. Inorg. Chem. 2007, 46, 8481–8483. [Google Scholar] [CrossRef]
  30. Kim, J.I.; Yoo, H.S.; Koh, E.K.; Hong, C.S. Field-Induced Metamagnetic Transition in the FeIII−MnIII Bimetallic Chain Built by a New Cyanide-Bearing FeIII Precursor. Inorg. Chem. 2007, 46, 10461–10463. [Google Scholar] [CrossRef]
  31. Shen, X.; Zhou, H.; Yan, J.; Li, Y.; Zhou, H. Syntheses, Crystal Structures, and Magnetic Properties of Four New Cyano-Bridged Bimetallic Complexes Based on the mer-[FeIII(qcq)(CN)3]− Building Block. Inorg. Chem. 2014, 53, 116–127. [Google Scholar] [CrossRef]
  32. Yoo, I.Y.; Won Ryu, D.; Hee Yoon, J.; Ram Sohn, A.; Soo Lim, K.; Ki Cho, B.; Kwan Koh, E.; Seop Hong, C. Syntheses, structures, and magnetic characterizations of cyanide-bridged FeIIIMnIII chains constructed by mer-Fe(III)tricyanide and Mn(III) Schiff bases: Magnetostructural relationship. Dalton Trans. 2012, 41, 1776–1785. [Google Scholar] [CrossRef]
  33. Panja, A.; Guionneau, P.; Jeon, I.-R.; Holmes, S.M.; Clérac, R.; Mathonière, C. Syntheses, Structures, and Magnetic Properties of a Novel mer-[(bbp)FeIII(CN)3]2– Building Block (bbp: bis(2-benzimidazolyl)pyridine dianion) and Its Related Heterobimetallic Fe(III)–Ni(II) Complexes. Inorg. Chem. 2012, 51, 12350–12359. [Google Scholar] [CrossRef]
  34. Zhang, D.; Zhuo, S.; Zhang, H.; Wang, P.; Jiang, J. Synthesis, crystal structures and magnetic properties of mer-cyanideiron(III)-based 1D heterobimetallic cyanide-bridged chiral coordination polymers. Dalton Trans. 2015, 44, 4655–4664. [Google Scholar] [CrossRef]
  35. Kim, J.I.; Kwak, H.Y.; Yoon, J.H.; Ryu, D.W.; Yoo, I.Y.; Yang, N.; Cho, B.K.; Park, J.G.; Lee, H.; Hong, C.S. Cyanide-Bridged FeIII−MnIII Bimetallic Complexes with Dimeric and Chain Structures Constructed from a Newly Made mer-Fe Tricyanide: Structures and Magnetic Properties. Inorg. Chem. 2009, 48, 2956–2966. [Google Scholar] [CrossRef]
  36. Miyasaka, H.; Matsumoto, N.; Ōkawa, H.; Re, N.; Gallo, E.; Floriani, C. Complexes Derived from the Reaction of Manganese(III) Schiff Base Complexes and Hexacyanoferrate(III):  Syntheses, Multidimensional Network Structures, and Magnetic Properties. J. Am. Chem. Soc. 1996, 118, 981–994. [Google Scholar] [CrossRef]
  37. Miyasaka, H.; Saitoh, A.; Abe, S. Magnetic assemblies based on Mn(III) salen analogues. Coord. Chem. Rev. 2007, 251, 2622–2664. [Google Scholar] [CrossRef]
  38. Neamti, N.; Zhou, J.; Kuang, Y.T.; Ye, N. Compositions and Methods Fro Treating and Preventing Cancer. Patent WO2016/187544, 24 November 2016. [Google Scholar]
  39. Available online: www.ccdc.cam.ac.uk/data_request/cif (accessed on 26 September 2019).
  40. Cano, J. VMPAG Package; University of València: Valencia, Spain, 2003. [Google Scholar]
Polymers 11 01585 sch001a 550Polymers 11 01585 sch001b 550

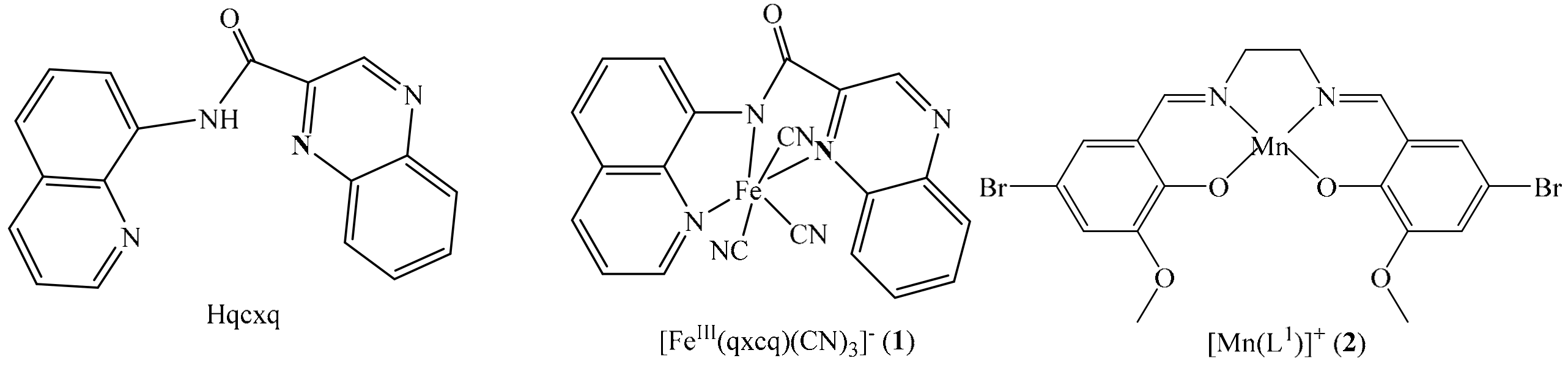

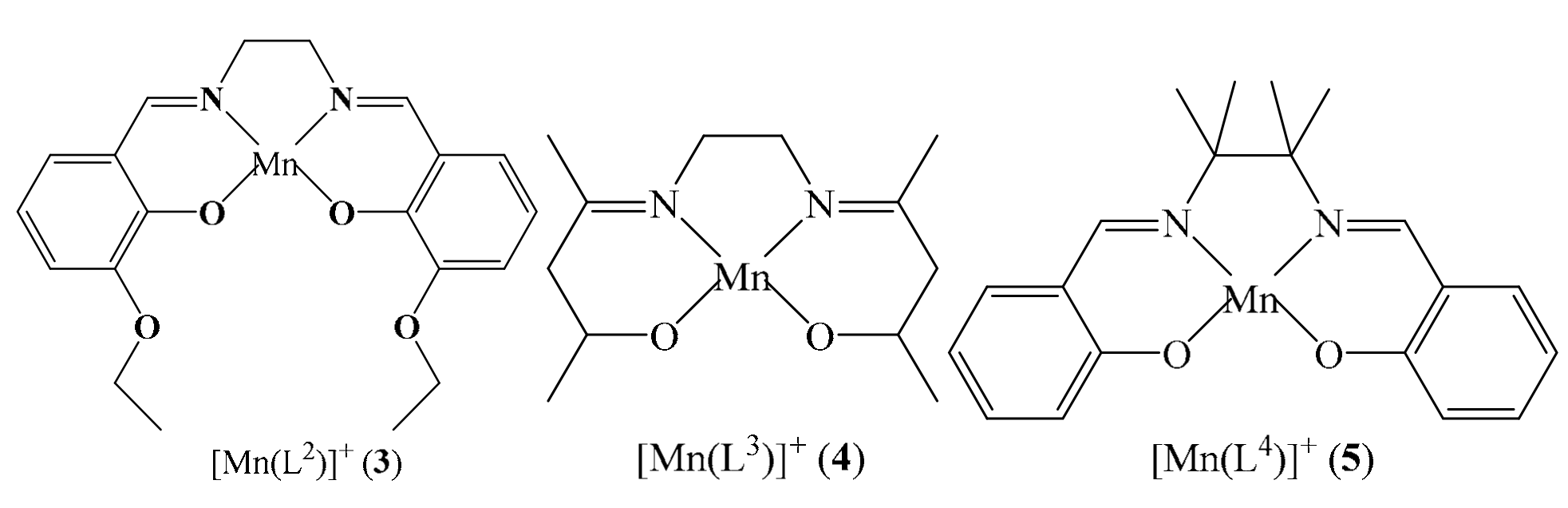

Scheme 1. The organic ligand, mer-[FeIII(qxcq)(CN)3]− anion and the MnIII(Schiffbase) employed in this paper.
Scheme 1. The organic ligand, mer-[FeIII(qxcq)(CN)3]− anion and the MnIII(Schiffbase) employed in this paper.
Polymers 11 01585 sch001aPolymers 11 01585 sch001b
Polymers 11 01585 g001 550

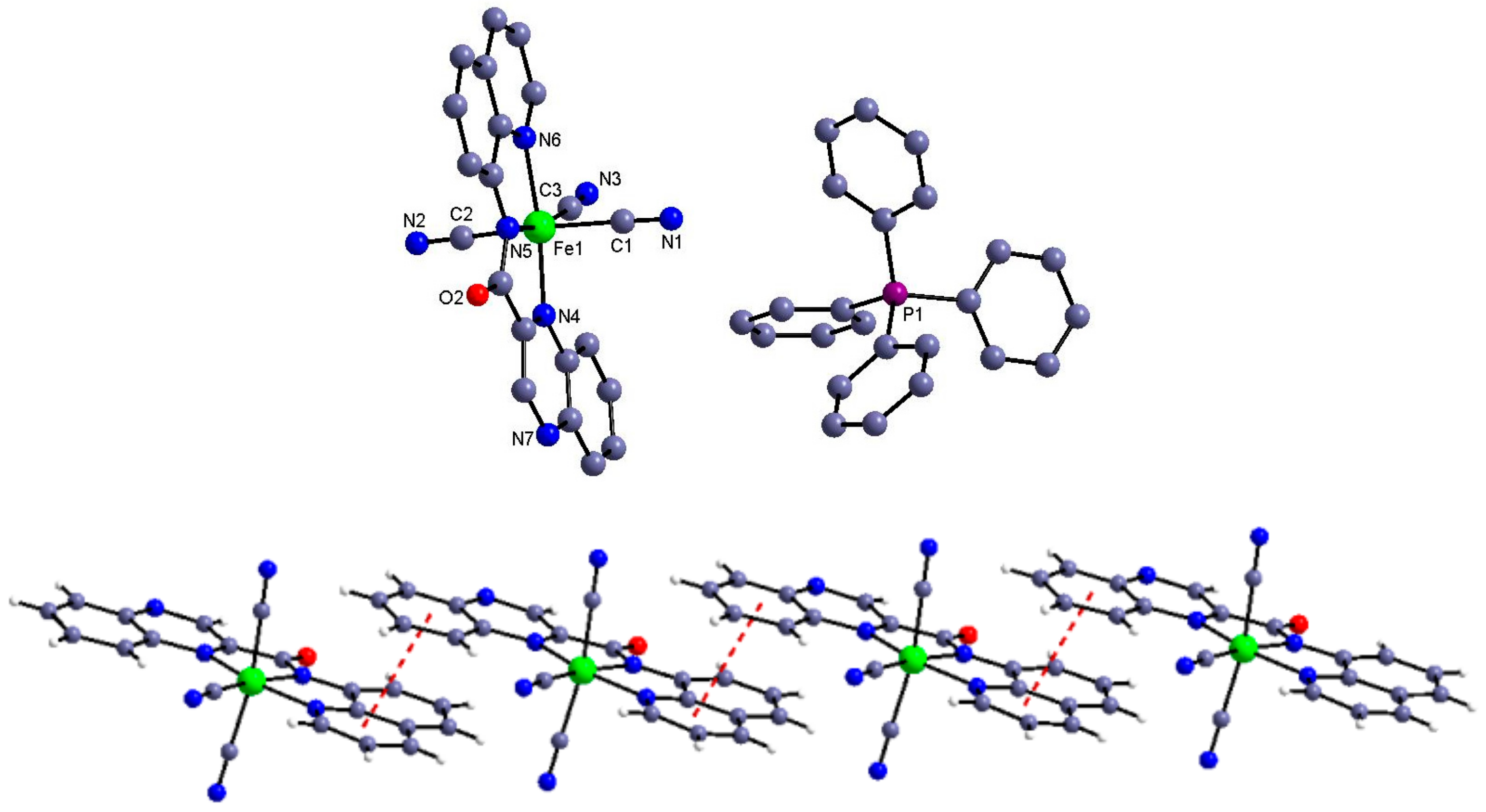

Figure 1. Molecular view of 1 with the selected atom-labeling scheme (top) and the one-dimensional supramolecular structure resulted from the intermolecular π–π interaction (bottom). The solvent water molecule has been omitted for clarity.
Figure 1. Molecular view of 1 with the selected atom-labeling scheme (top) and the one-dimensional supramolecular structure resulted from the intermolecular π–π interaction (bottom). The solvent water molecule has been omitted for clarity.
Polymers 11 01585 g001
Polymers 11 01585 g002a 550Polymers 11 01585 g002b 550

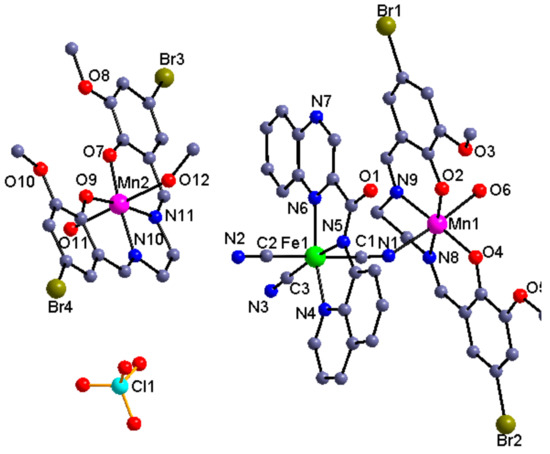

Figure 2. Molecular view of 2 with the selected atom label scheme and its H-bond interaction resulting supramolecular dimeric structure. The solvent contents have been omitted for clarity.
Figure 2. Molecular view of 2 with the selected atom label scheme and its H-bond interaction resulting supramolecular dimeric structure. The solvent contents have been omitted for clarity.
Polymers 11 01585 g002aPolymers 11 01585 g002b
Polymers 11 01585 g003 550

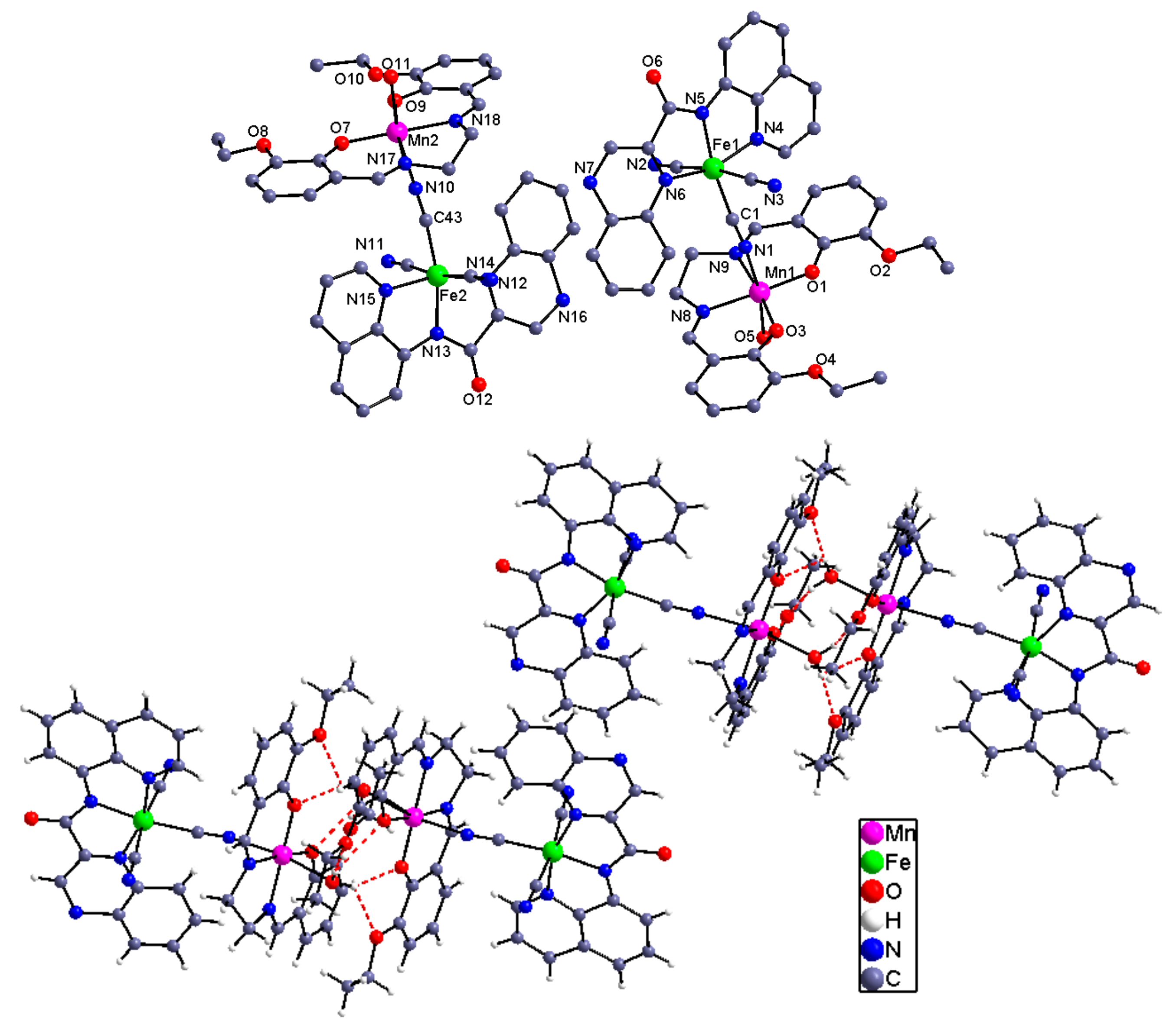

Figure 3. Molecular view of 3 with the selected atom-labeling scheme and its H-bond interaction resulting supramolecular dimeric structure. The solvent contents have been omitted for clarity.
Figure 3. Molecular view of 3 with the selected atom-labeling scheme and its H-bond interaction resulting supramolecular dimeric structure. The solvent contents have been omitted for clarity.
Polymers 11 01585 g003
Polymers 11 01585 g004 550

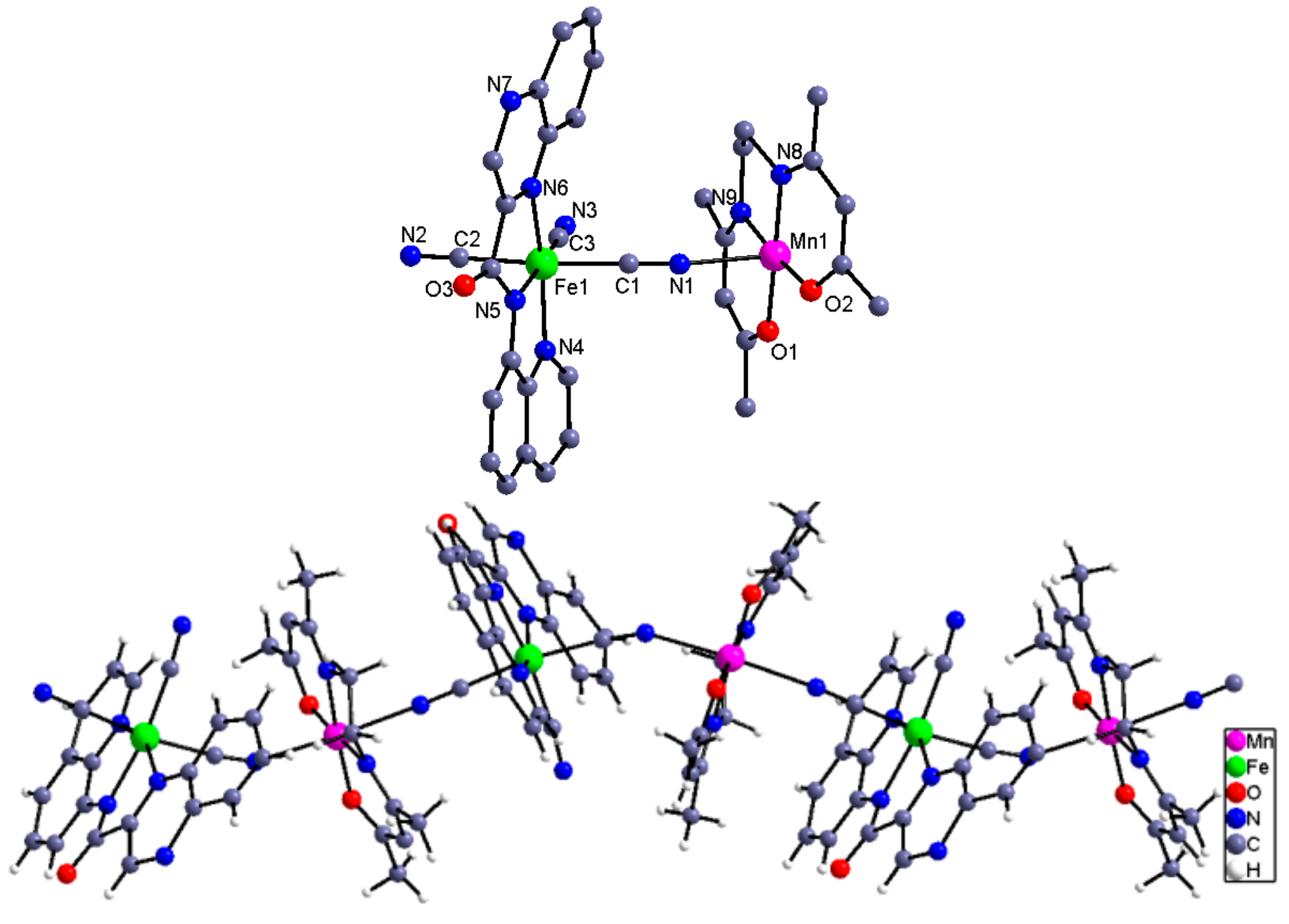

Figure 4. The independent binuclear and 1D structure of complex 4.
Figure 4. The independent binuclear and 1D structure of complex 4.
Polymers 11 01585 g004
Polymers 11 01585 g005 550

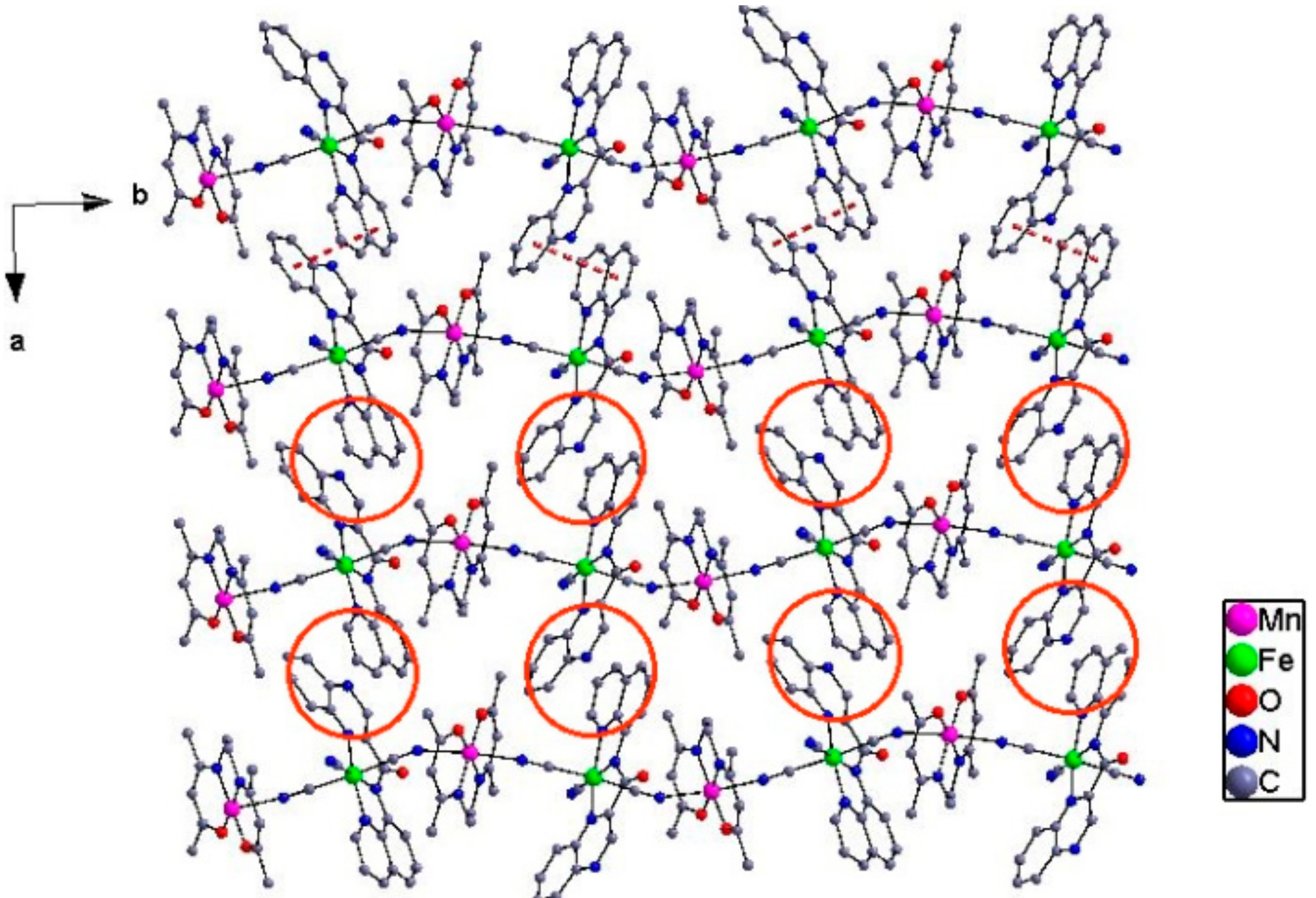

Figure 5. The cell packing diagram showing the π–π interaction along thea axis for complex 4.
Figure 5. The cell packing diagram showing the π–π interaction along thea axis for complex 4.
Polymers 11 01585 g005
Polymers 11 01585 g006 550

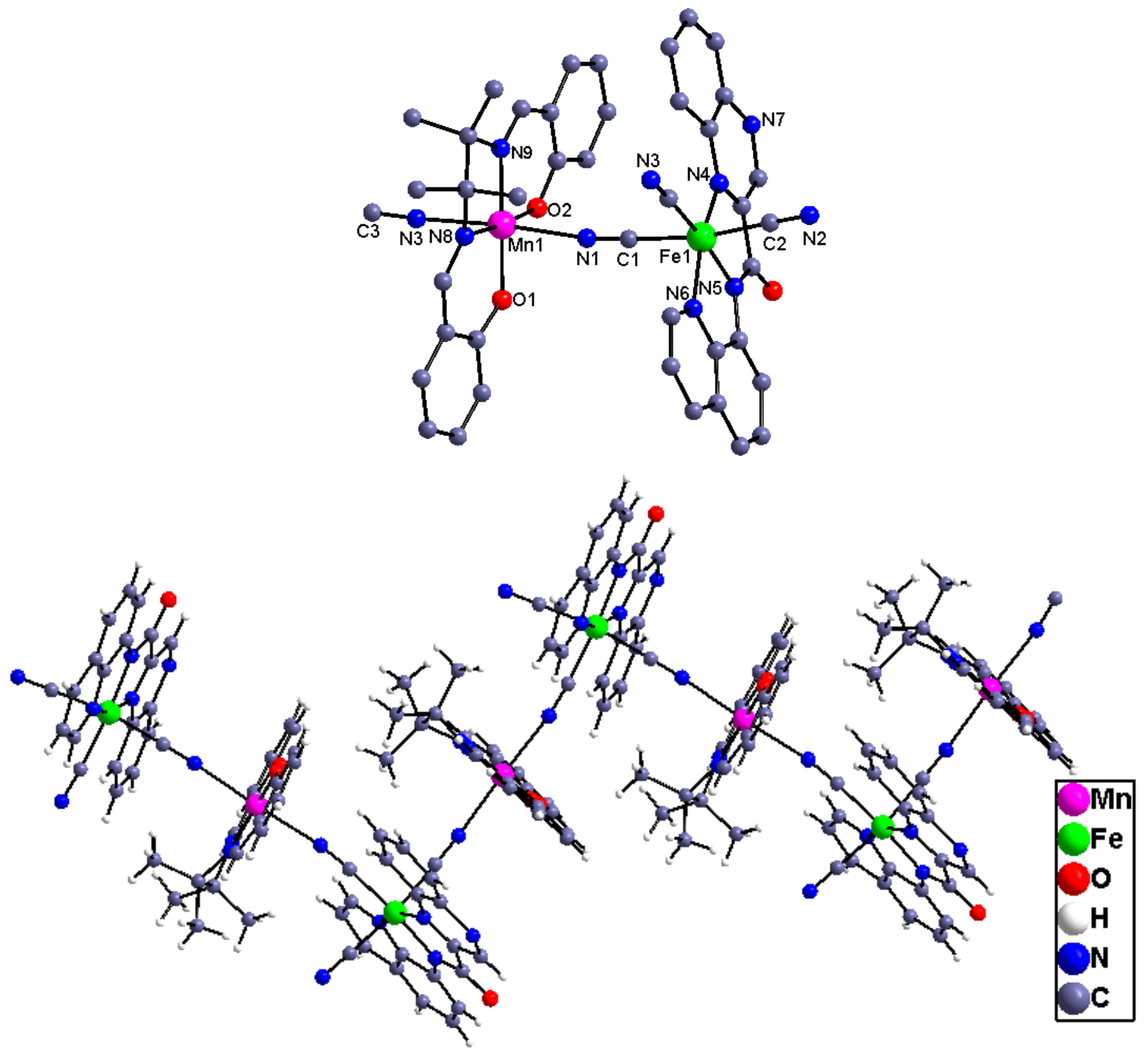

Figure 6. The independent binuclear and 1Dchain structure of complex 5. The solvent content has been omitted for clarity.
Figure 6. The independent binuclear and 1Dchain structure of complex 5. The solvent content has been omitted for clarity.
Polymers 11 01585 g006
Polymers 11 01585 g007 550

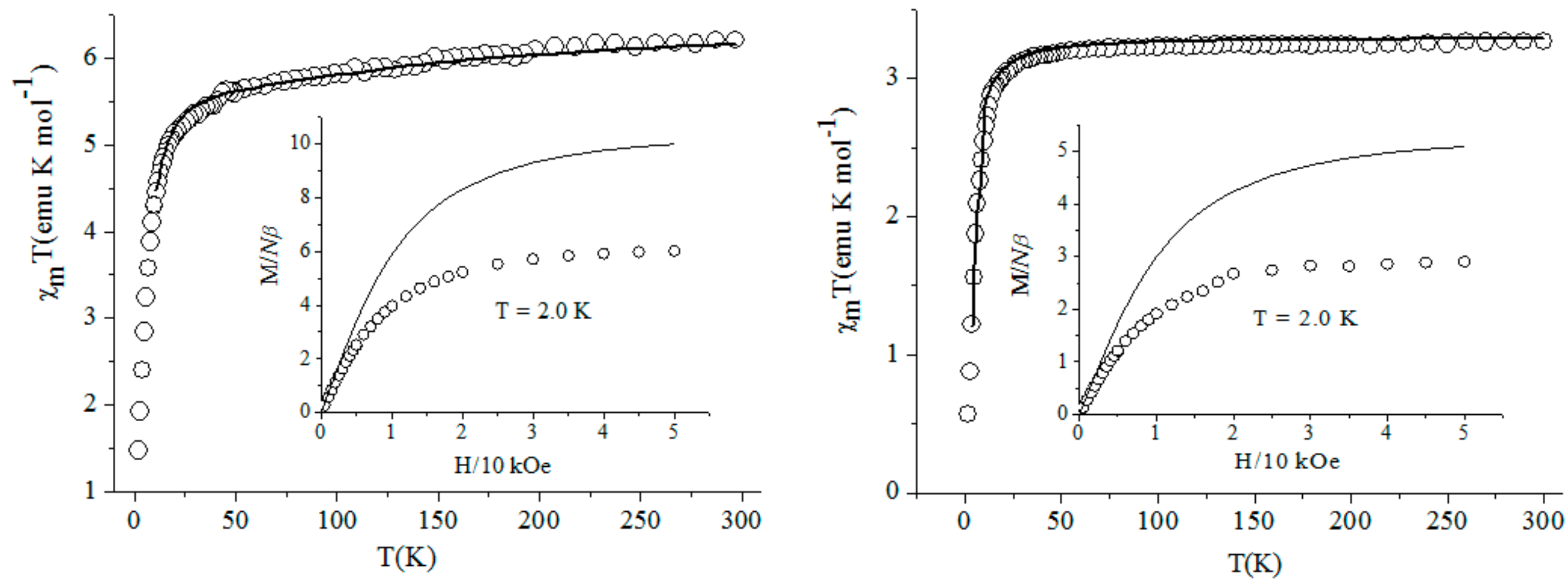

Figure 7. The magnetic property of complexes 2 and 4.
Figure 7. The magnetic property of complexes 2 and 4.
Polymers 11 01585 g007
Polymers 11 01585 g008 550

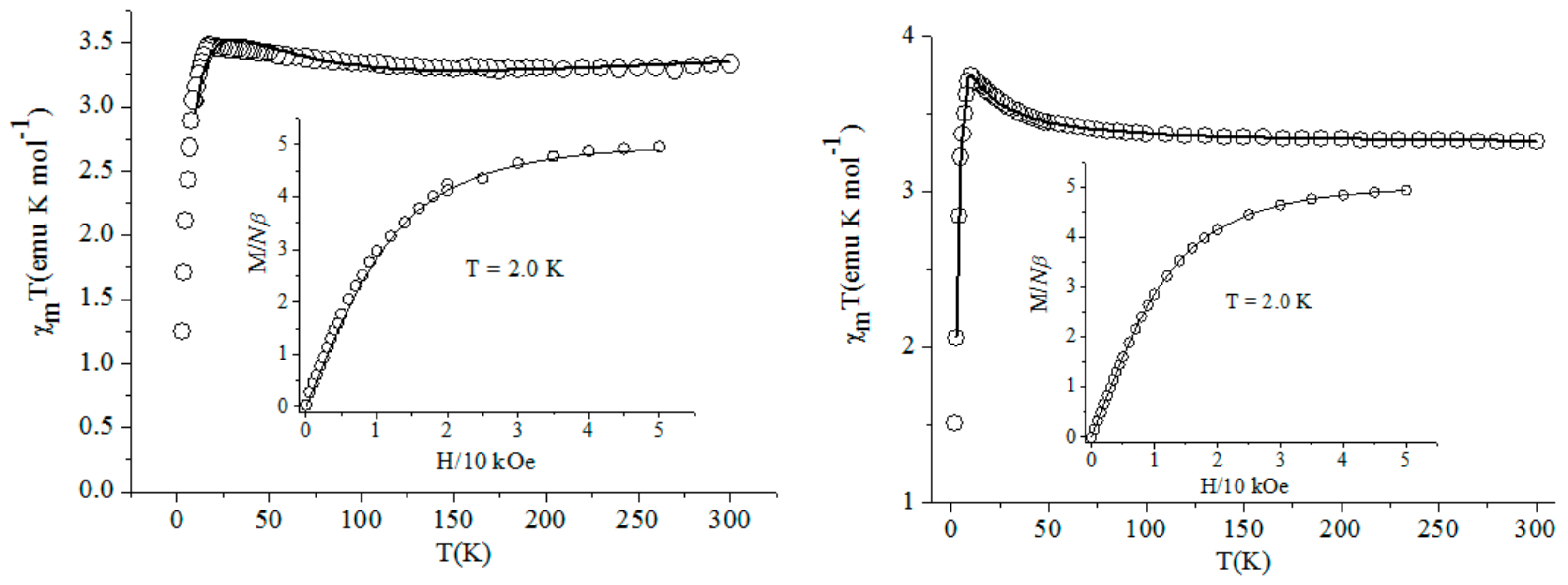

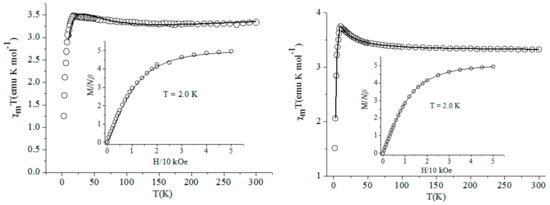

Figure 8. The magnetic property of complexes 3 and 5.
Figure 8. The magnetic property of complexes 3 and 5.
Polymers 11 01585 g008
Polymers 11 01585 sch002 550

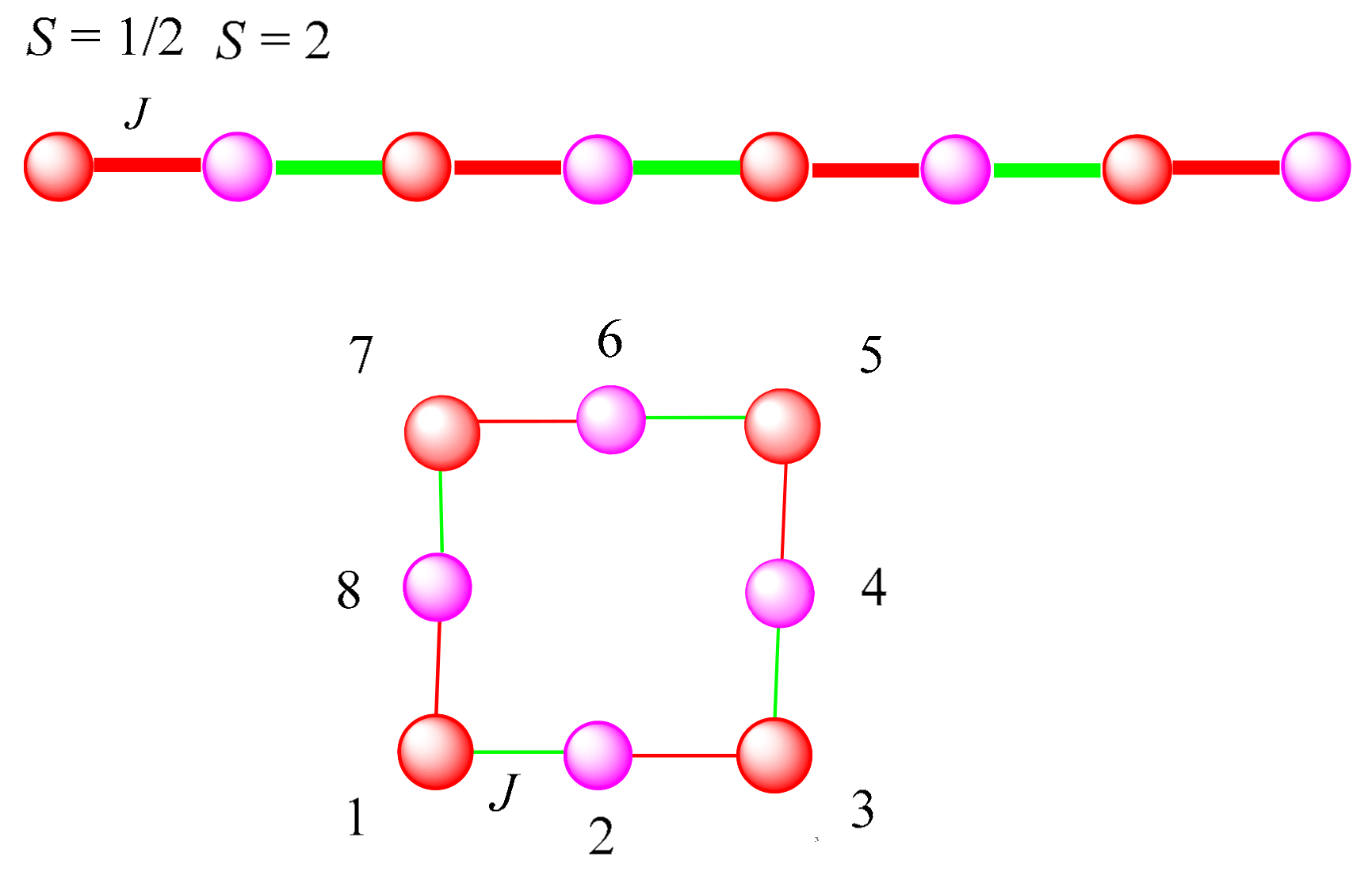

Scheme 2. The model used to simulate the magnetic property of complexes 4 and 5.
Scheme 2. The model used to simulate the magnetic property of complexes 4 and 5.
Polymers 11 01585 sch002
