Next Article in Journal
Integration of Heterogeneous Materials for Wearable Sensors
Next Article in Special Issue
Temperature Scanning Stress Relaxation of an Autonomous Self-Healing Elastomer Containing Non-Covalent Reversible Network Junctions
Previous Article in Journal
EBR Strengthening Technique for Concrete, Long-Term Behaviour and Historical Survey
Previous Article in Special Issue
The Abrasive Wear Resistance of the Segmented Linear Polyurethane Elastomers Based on a Variety of Polyols as Soft Segments
Article

Mechanical Properties Changes of Irradiated Thermoplastic Elastomer

1
CEBIA-Tech, Faculty of Applied Informatics, Tomas Bata University in Zlin, Nad Stranemi 4511, 760 05 Zlín, Czech Republic
2
Faculty of Technology, Tomas Bata University in Zlin, Vavreckova 275, 760 01 Zlín, Czech Republic
*
Author to whom correspondence should be addressed.
This article is dedicated, in memoriam, to Assoc. Prof . David Manas.
Polymers 2018, 10(1), 87; https://doi.org/10.3390/polym10010087
Received: 14 December 2017 / Revised: 12 January 2018 / Accepted: 15 January 2018 / Published: 17 January 2018
(This article belongs to the Special Issue Elastomers)

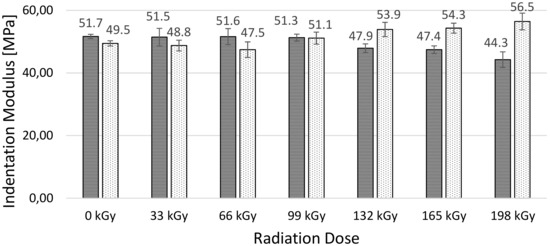

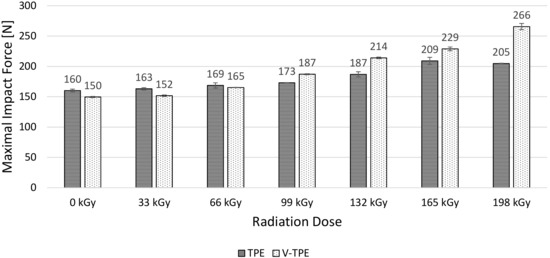

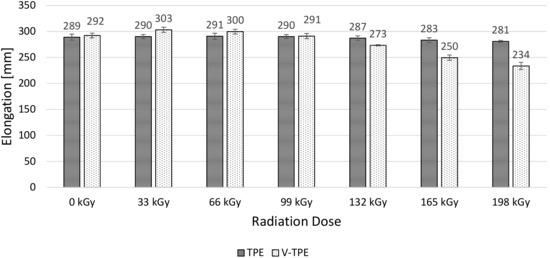

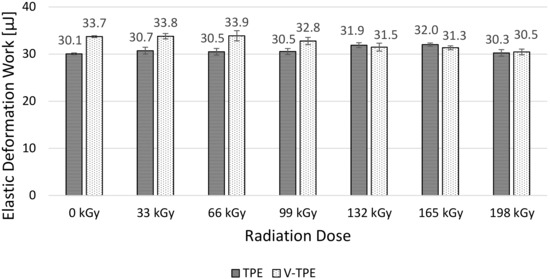

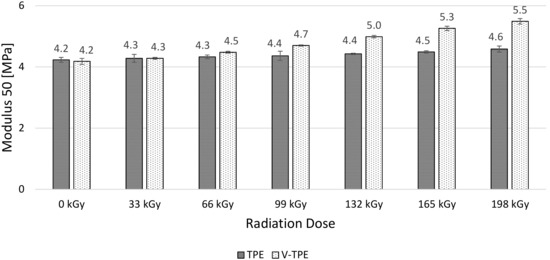

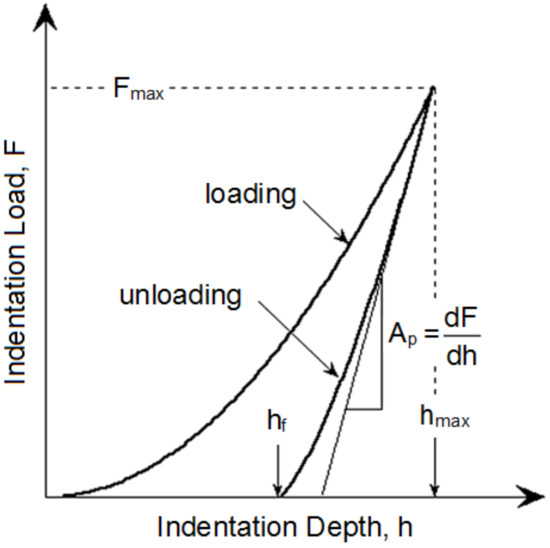

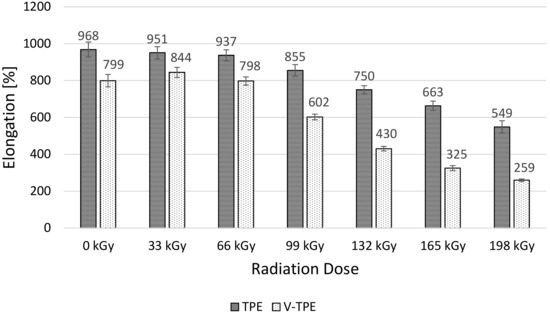

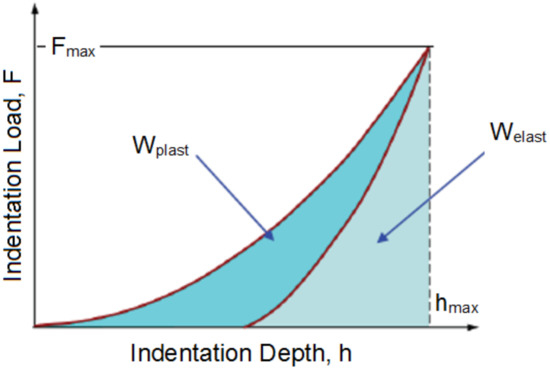

Some polymers need a cross-linking agent for the controlled cross-linking process of polymers with a tendency to degradation during the radiation cross-linking process. While, on the other hand, other polymers do not need a cross-linking agent—predominantly there are cross-linking polymers. The Thermo-Plastic Elastomer (TPE) that was used belongs to this group of predominantly cross-linking polymers; however, this agent is added because of faster reaction times and smaller irradiation doses. Microindentation–tensile and tensile impact tests were carried out on a thermoplastic sample—with, and without, a cross-linking agent. Small changes were measured between these materials at low radiation doses, (up to 66 kGy); nevertheless, at higher doses, the influence of the cross-linking agent on the mechanical properties is significant. View Full-Text
Keywords: thermoplastic elastomer; tensile test; micro-hardness testing; radiation cross-linking; mechanical properties thermoplastic elastomer; tensile test; micro-hardness testing; radiation cross-linking; mechanical properties

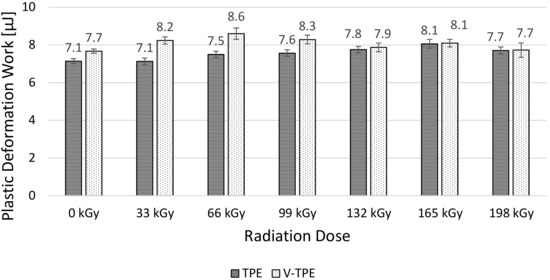

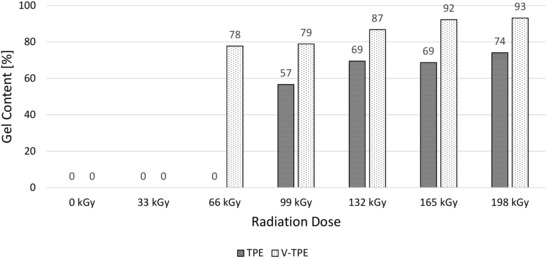

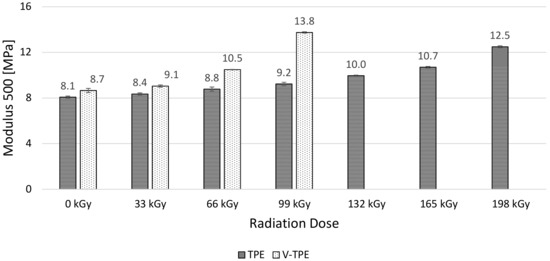

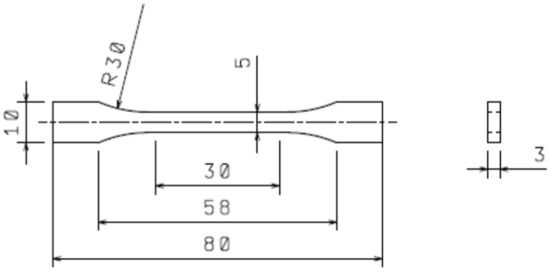

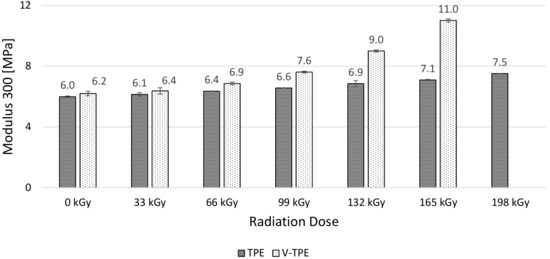

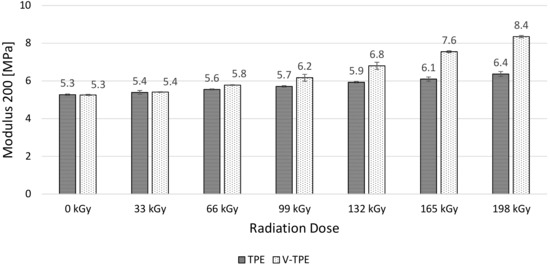

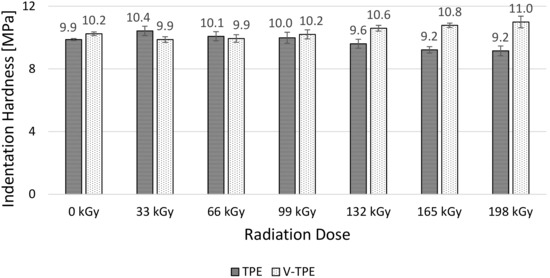

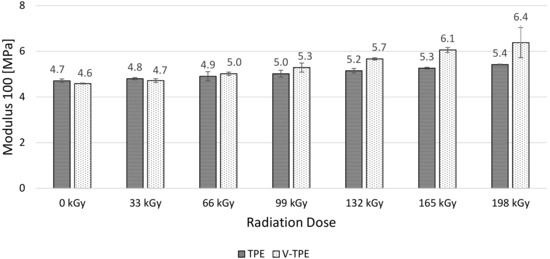

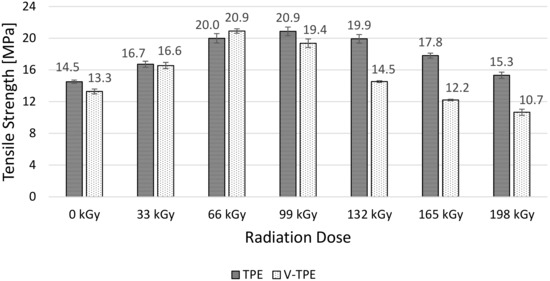

Show Figures

Graphical abstract

MDPI and ACS Style

Manas, D.; Mizera, A.; Manas, M.; Ovsik, M.; Hylova, L.; Sehnalek, S.; Stoklasek, P. Mechanical Properties Changes of Irradiated Thermoplastic Elastomer. Polymers 2018, 10, 87. https://doi.org/10.3390/polym10010087

AMA Style

Manas D, Mizera A, Manas M, Ovsik M, Hylova L, Sehnalek S, Stoklasek P. Mechanical Properties Changes of Irradiated Thermoplastic Elastomer. Polymers. 2018; 10(1):87. https://doi.org/10.3390/polym10010087

Chicago/Turabian Style

Manas, David, Ales Mizera, Miroslav Manas, Martin Ovsik, Lenka Hylova, Stanislav Sehnalek, and Pavel Stoklasek. 2018. "Mechanical Properties Changes of Irradiated Thermoplastic Elastomer" Polymers 10, no. 1: 87. https://doi.org/10.3390/polym10010087

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
