Press to Success: Gd5FW3O16—The First Gadolinium(III) Fluoride Oxidotungstate(VI)

1
Institute of Inorganic Chemistry, University of Stuttgart, Pfaffenwaldring 55, 70569 Stuttgart, Germany
2
Department of Materials and Environmental Chemistry, Stockholm University, Svante Arrhenius väg 16 C, 106 91 Stockholm, Sweden
*
Author to whom correspondence should be addressed.
Crystals 2019, 9(8), 424; https://doi.org/10.3390/cryst9080424
Received: 21 June 2019 / Revised: 9 August 2019 / Accepted: 12 August 2019 / Published: 16 August 2019
(This article belongs to the Special Issue Rare-Earth Metal Compounds)

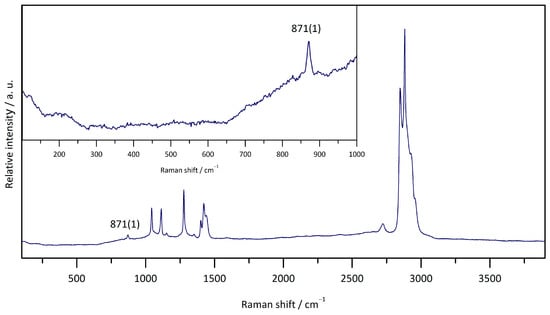

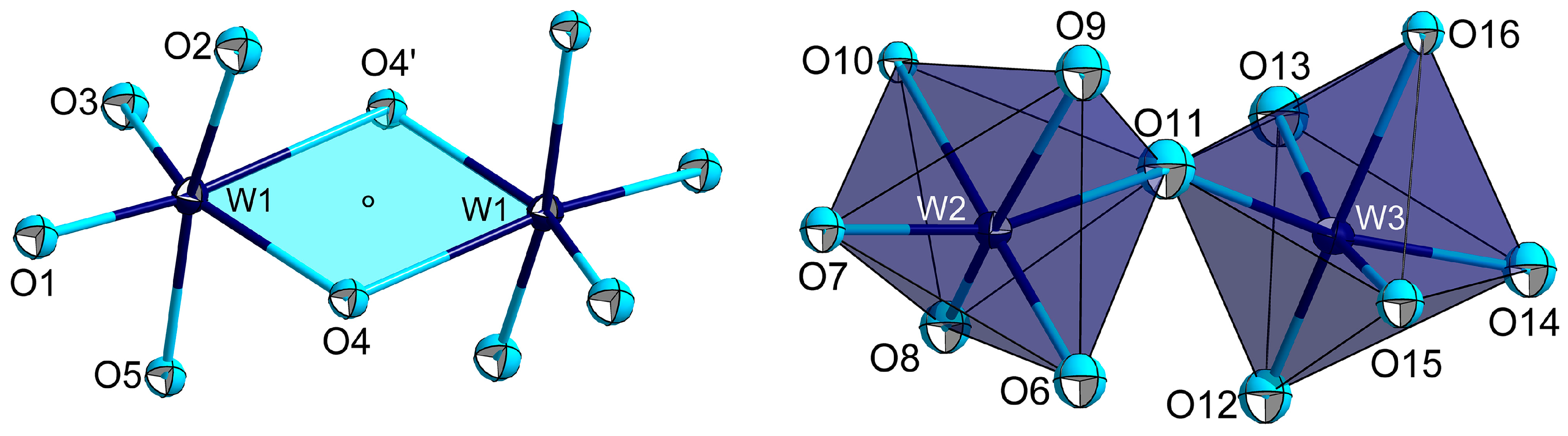

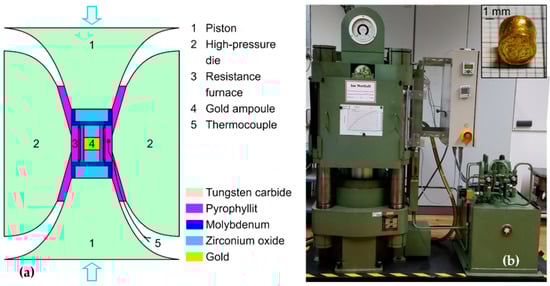

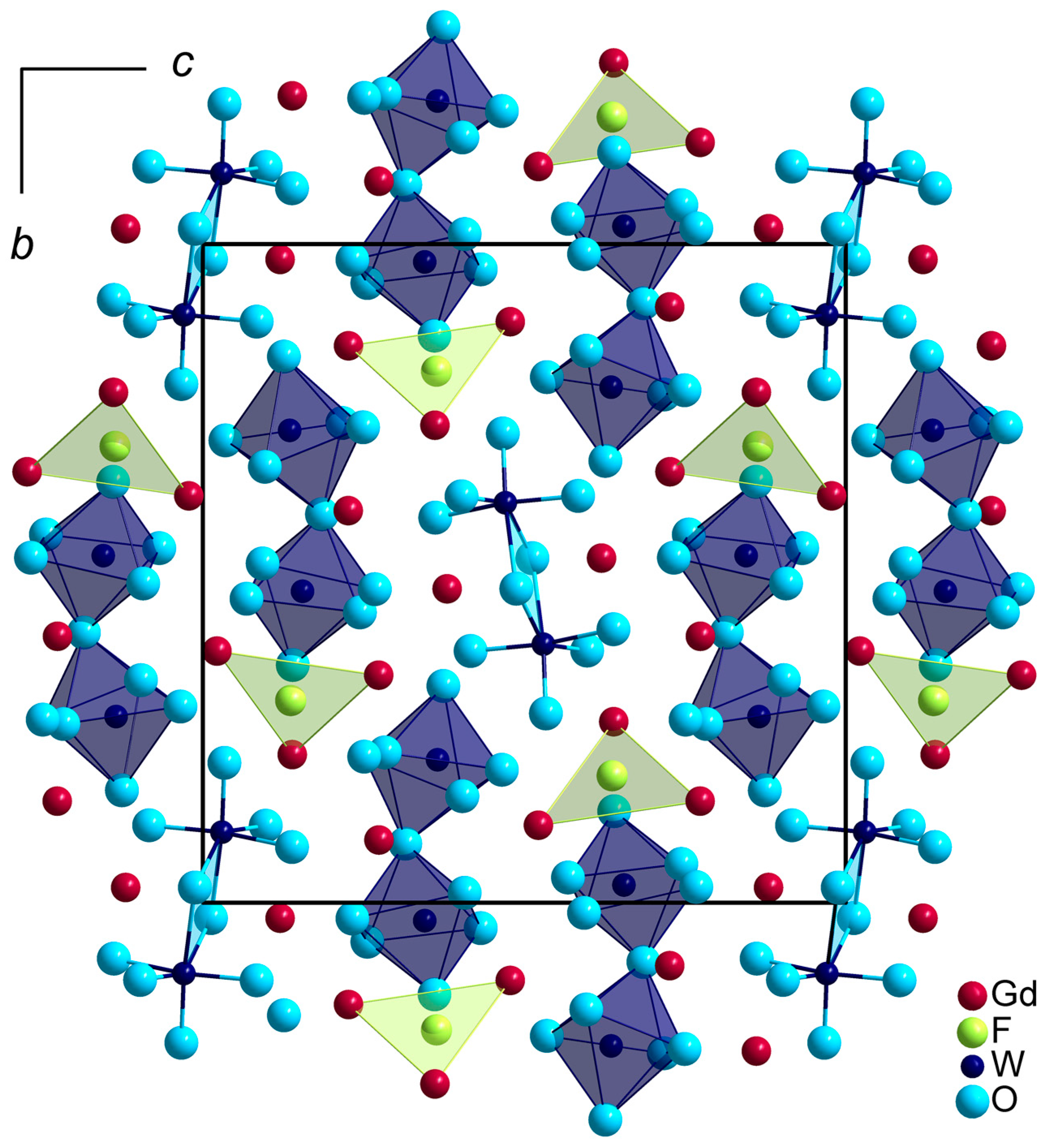

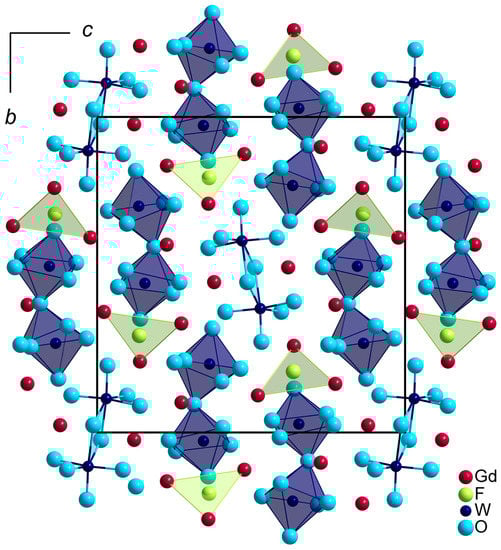

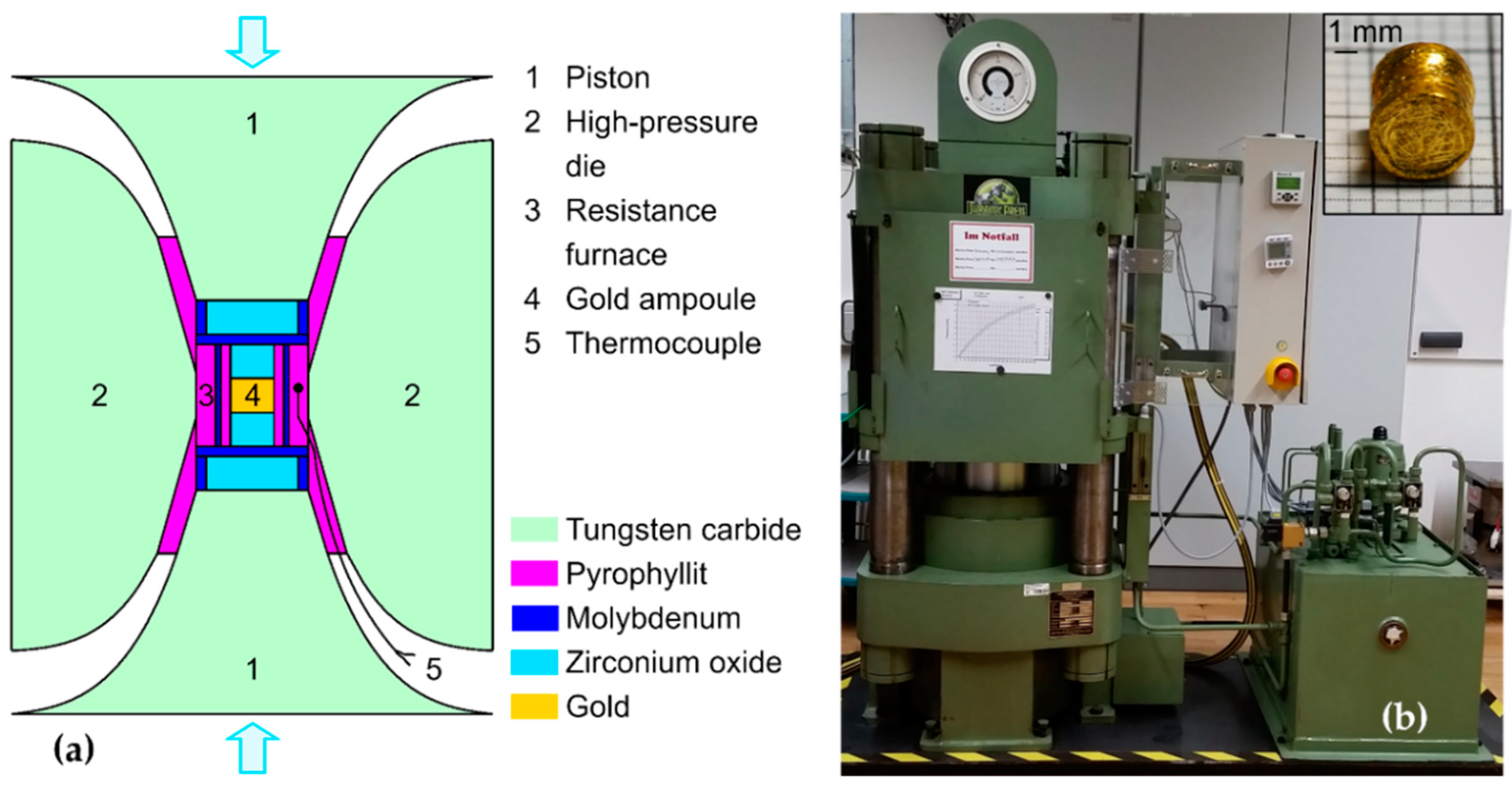

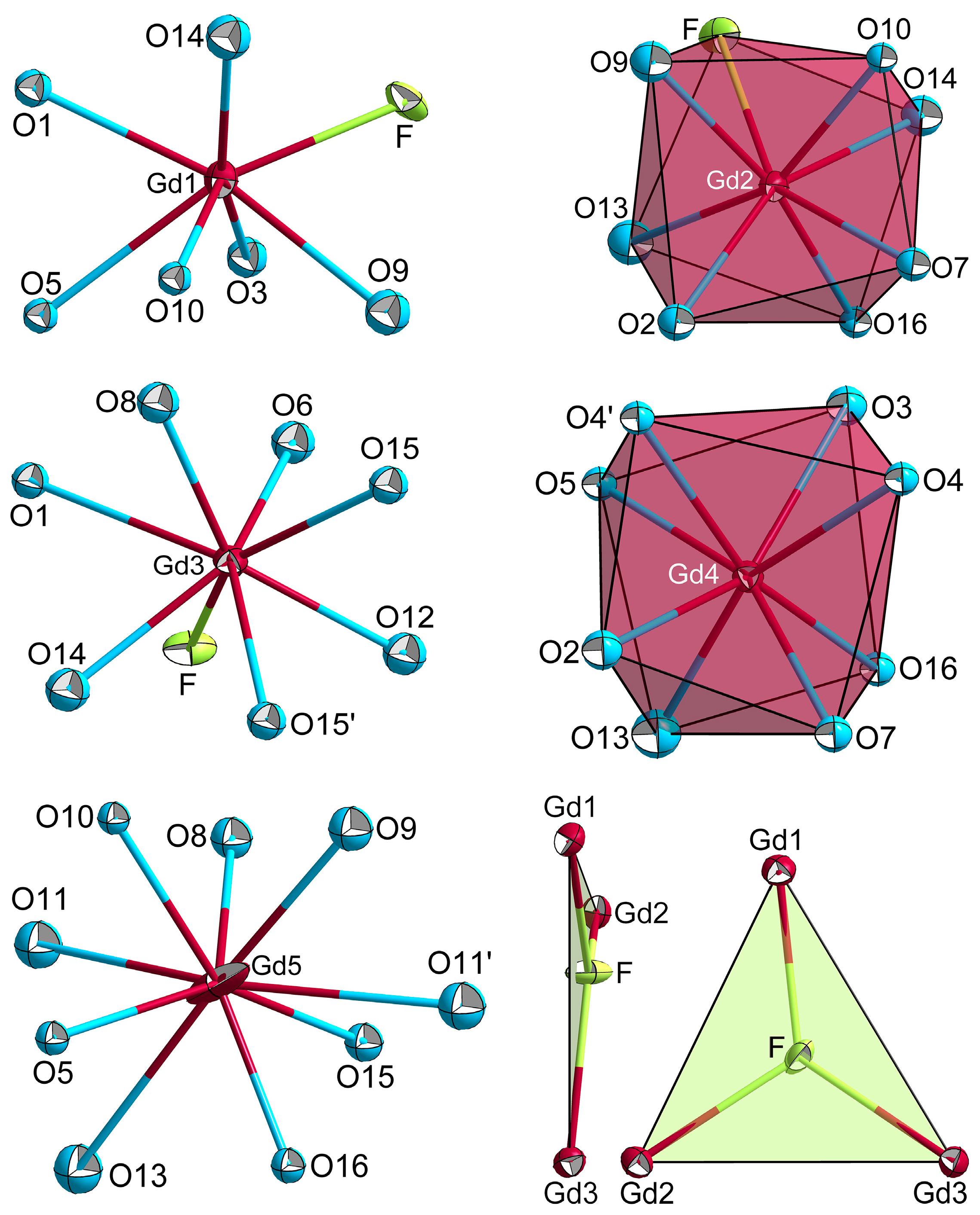

The gadolinium(III) fluoride oxidotungstate(VI), with the formula Gd5FW3O16, represents the first published fluoride-derivative of a rare-earth metal oxidotungstate. It is synthesized by a mixture of GdF3, Gd2O3, and WO3 at 800 °C and a pressure of 2 GPa with the help of a belt press. The title compound crystallizes in the monoclinic space group P21/c (no. 14) with four formula units per unit cell and the following lattice parameters: a = 539.29 (4), b = 1556.41 (12), c = 1522.66 (11) pm, and β = 93.452 (4). The crystal structure comprises five crystallographically distinguishable Gd3+ cations, which are surrounded by either oxide and fluoride anions (Gd1–3) or by oxide anions only (Gd4, Gd5), with coordination numbers ranging between seven and nine. The fluoride anions are trigonal non-planar coordinated by three Gd3+ cations (Gd1–3). The distorted [WO6]6− octahedra in this structure form isolates edge- and vertex-connected entities of the compositions [W2O10]8− and [W2O11]10−, respectively. According to the presented units, a structured formula can be written as Gd4[FGd3]2[W2O10][W2O11]2. The single-crystal Raman spectrum reveals the typical symmetric stretching vibration mode of octahedral oxidotungstate(VI) units at about 871 cm−1. View Full-Text
Keywords: high-pressure; gadolinium; fluorine; tungstate; single-crystal Raman high-pressure; gadolinium; fluorine; tungstate; single-crystal Raman
Show Figures

Graphical abstract

MDPI and ACS Style

Dorn, K.V.; Hartenbach, I. Press to Success: Gd5FW3O16—The First Gadolinium(III) Fluoride Oxidotungstate(VI). Crystals 2019, 9, 424.
