Next Article in Journal
Crystal-Chemical Properties of Synthetic Almandine-Pyrope Solid Solution by X-Ray Single-Crystal Diffraction and Raman Spectroscopy
Next Article in Special Issue
A Fundamental Reason for the Need of Two Different Semiconductor Technologies for Complementary Thin-Film Transistor Operations
Previous Article in Journal
Ice Crystals
Previous Article in Special Issue
Importance of Blade-Coating Temperature for Diketopyrrolopyrrole-based Thin-Film Transistors
Open AccessArticle

Ambipolar Transport in Methylammonium Lead Iodide Thin Film Transistors

Department of Information Display, Kyung Hee University, Seoul 130-701, Korea
*
Author to whom correspondence should be addressed.
Crystals 2019, 9(10), 539; https://doi.org/10.3390/cryst9100539
Received: 15 September 2019 / Revised: 17 October 2019 / Accepted: 17 October 2019 / Published: 19 October 2019
(This article belongs to the Special Issue Advances in Thin Film Materials and Devices)

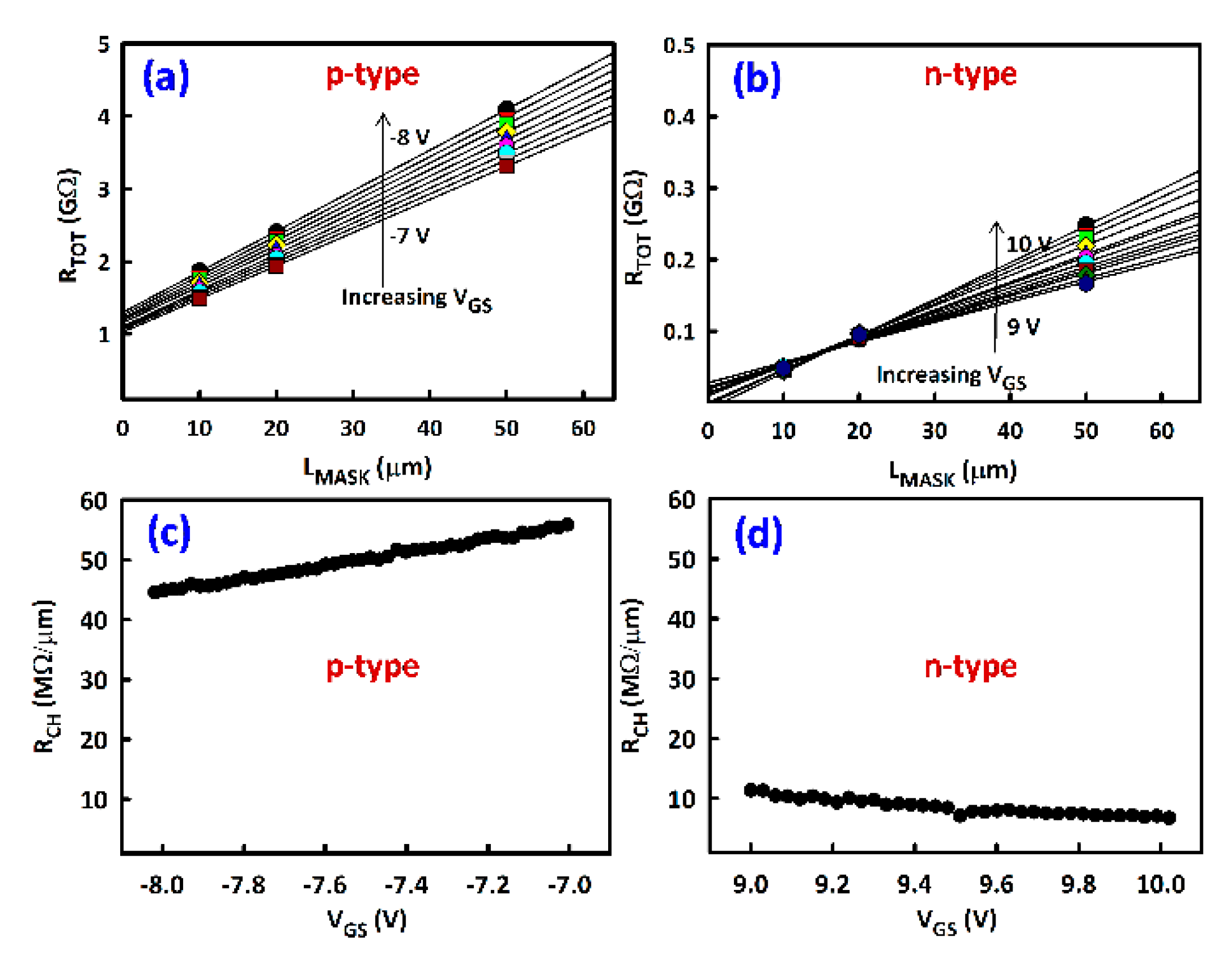

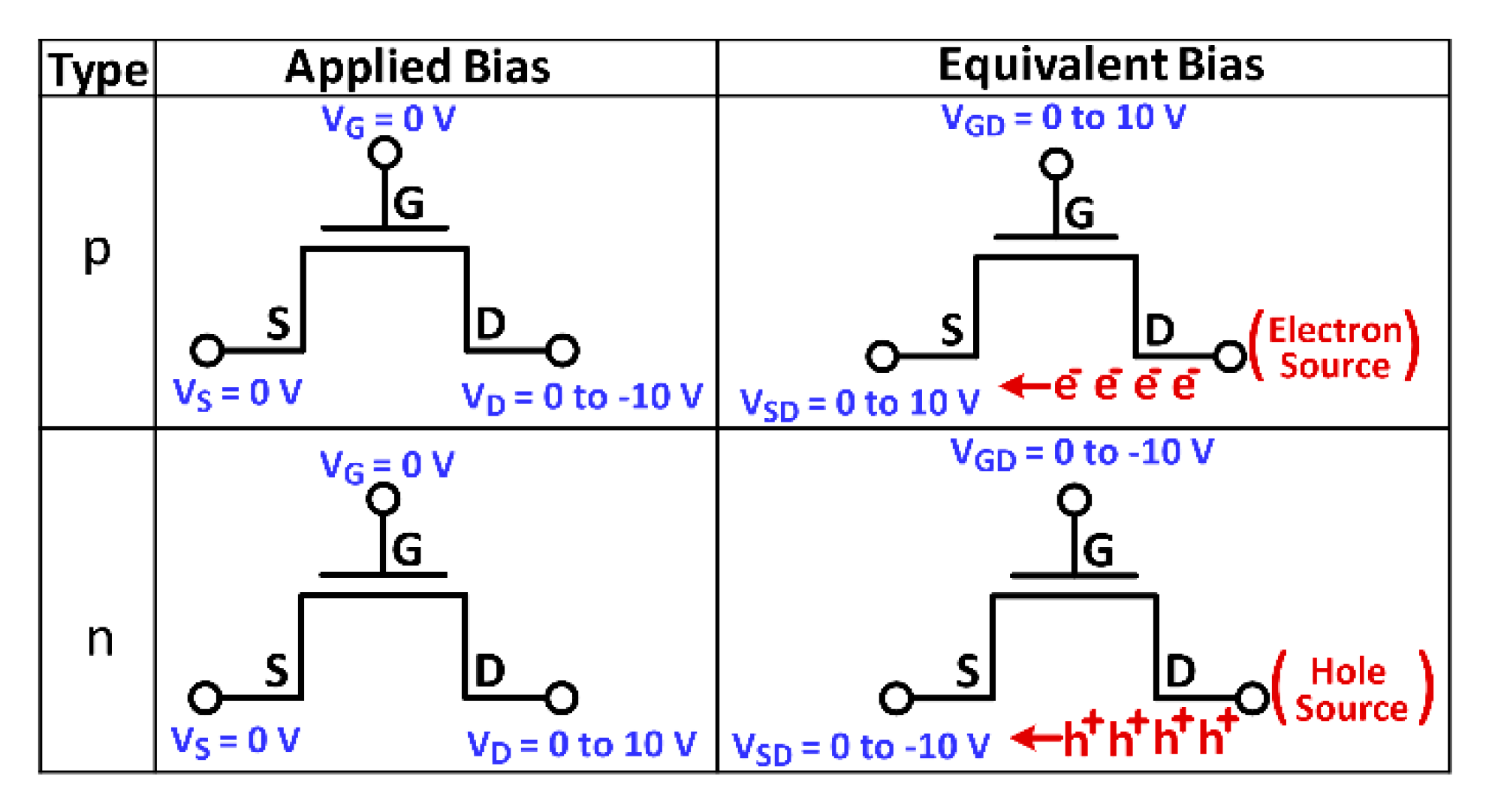

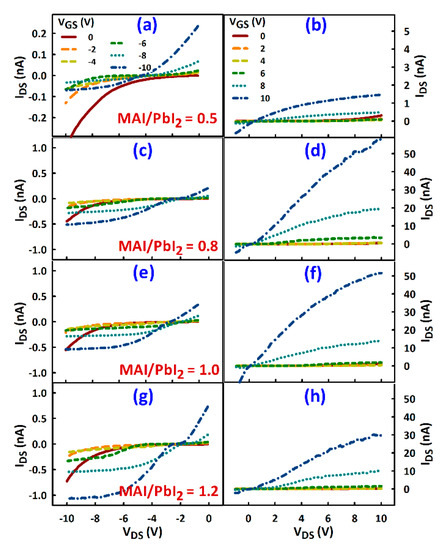

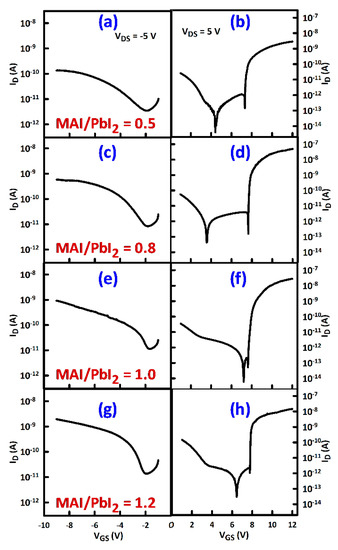

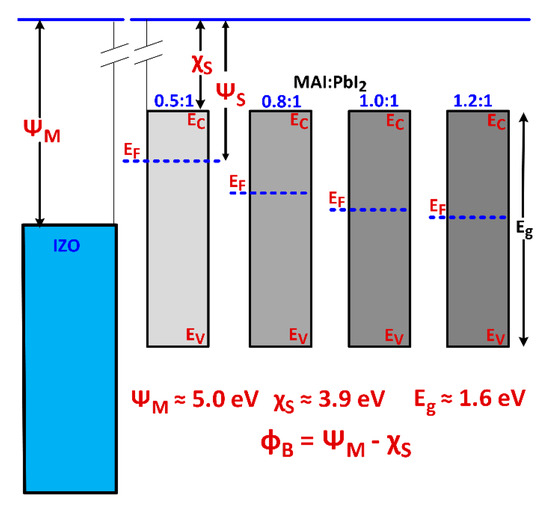

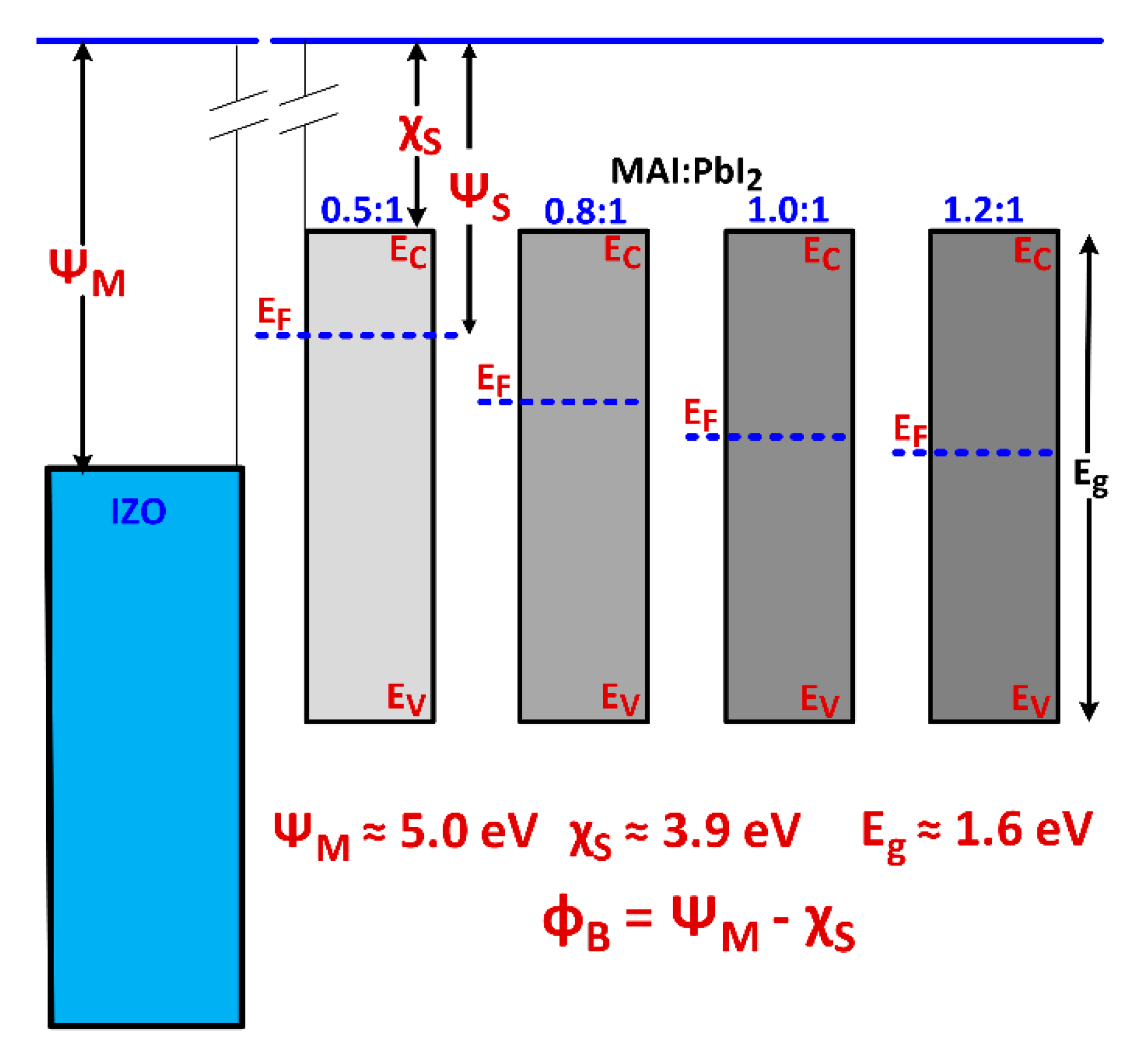

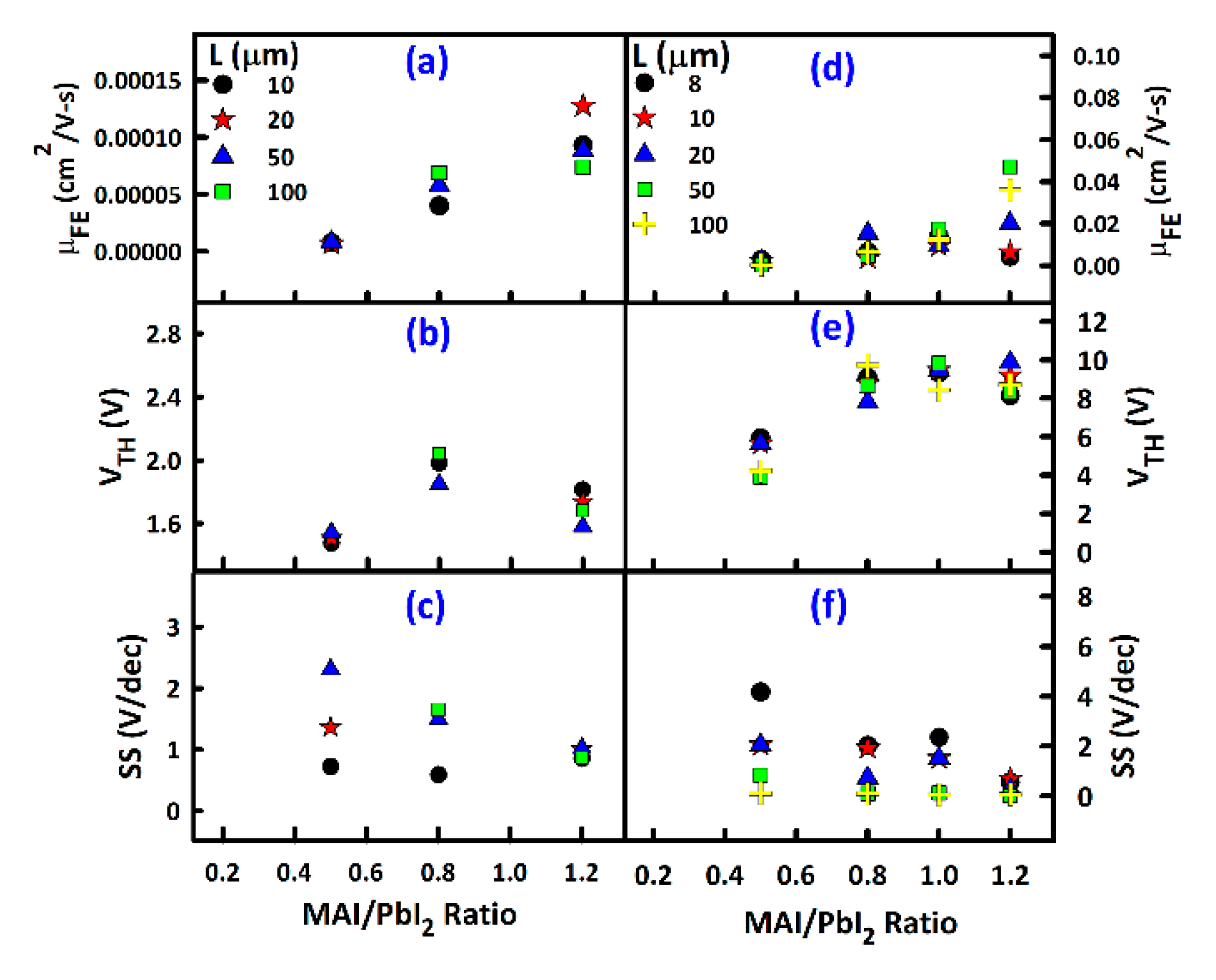

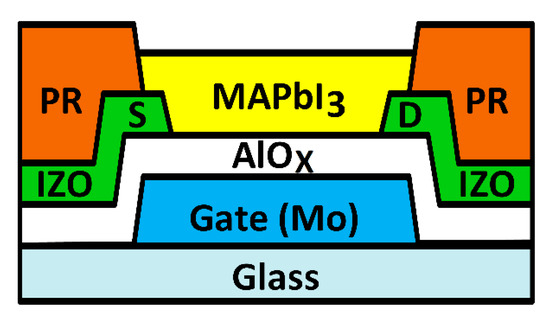

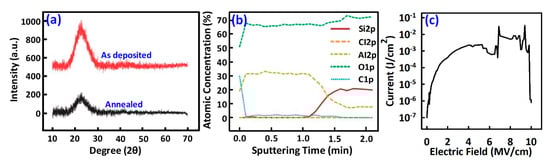

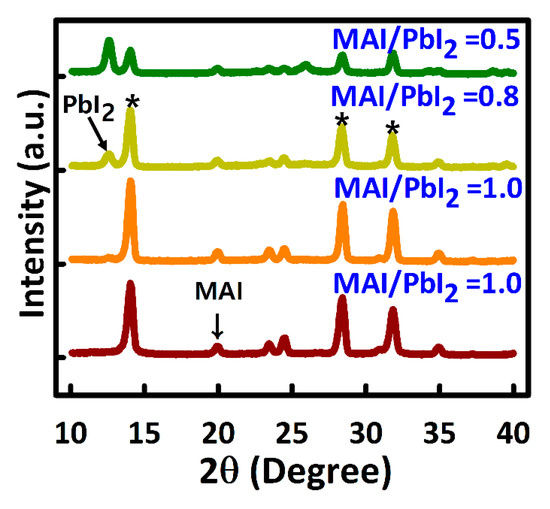

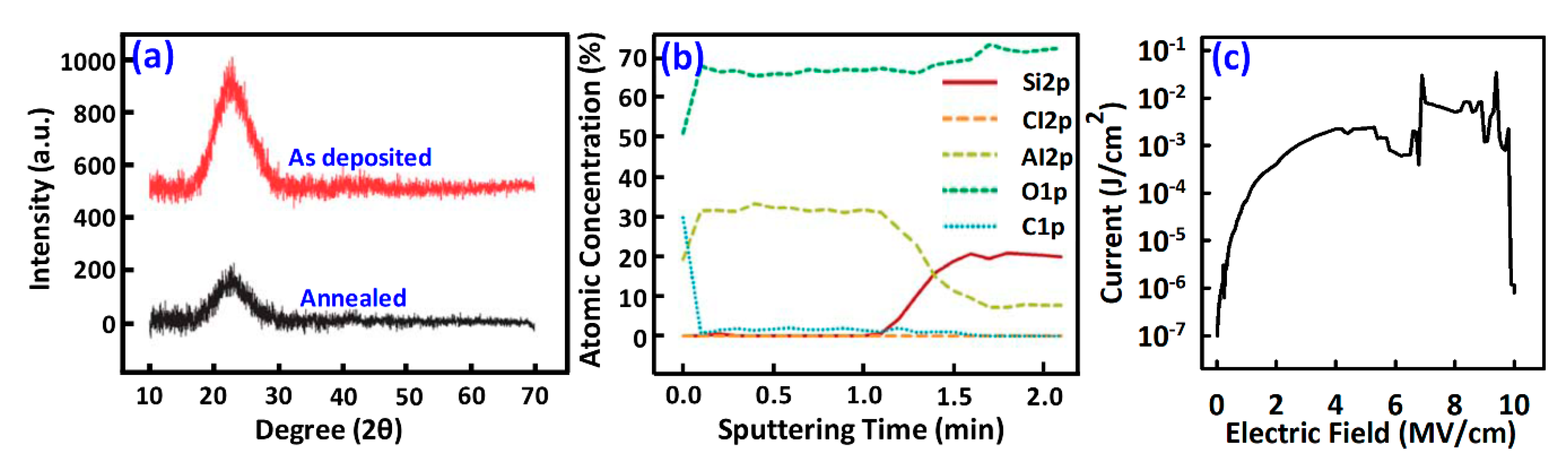

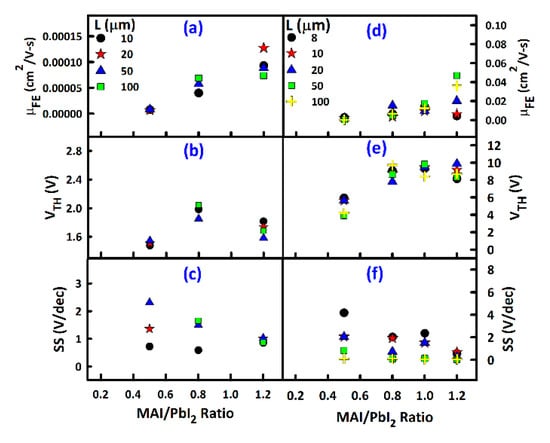

We report clear room temperature ambipolar transport in ambient-air processed methylammonium lead iodide (MAPbI3) thin-film transistors (TFTs) with aluminum oxide gate-insulators and indium-zinc-oxide source/drain electrodes. The high ionicity of the MAPbI3 leads to p-type and n-type self-doping, and depending on the applied bias we show that simultaneous or selective transport of electrons and/or holes is possible in a single MAPbI3 TFT. The electron transport (n-type), however, is slightly more pronounced than the hole transport (p-type), and the respective channel resistances range from 5–11 and 44–55 MΩ/μm. Both p-type and n-type TFTs show good on-state characteristics for low driving voltages. It is also shown here that the on-state current of the n-type and p-type TFTs is highest in the slightly PbI2-rich and MAI-rich films, respectively, suggesting controllable n-type or p-type transport by varying precursor ratio. View Full-Text
Keywords: Ambipolar transport; lead iodide; methylammonium; organic-inorganic hybrid; perovskite; thin film transistor Ambipolar transport; lead iodide; methylammonium; organic-inorganic hybrid; perovskite; thin film transistor
Show Figures

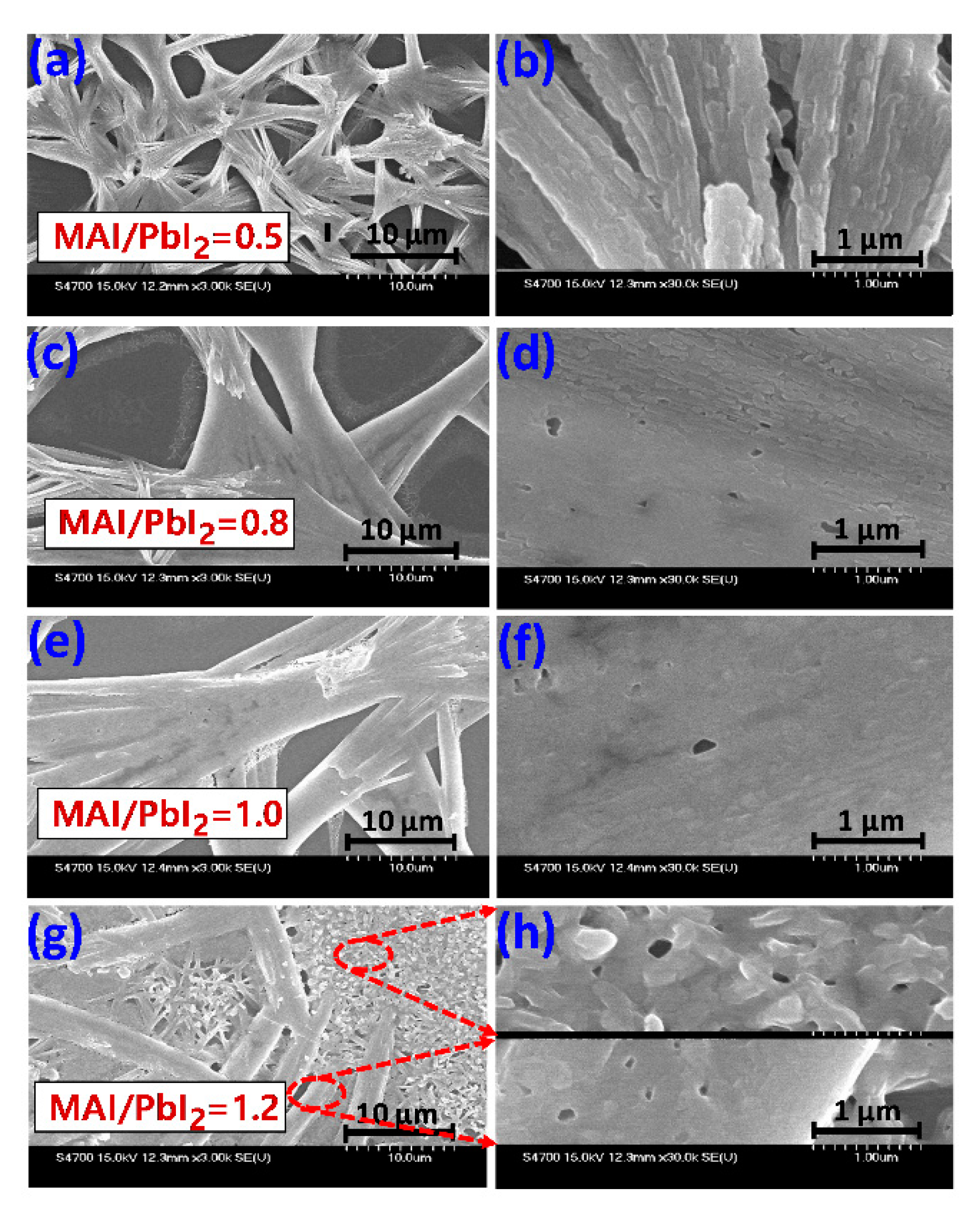

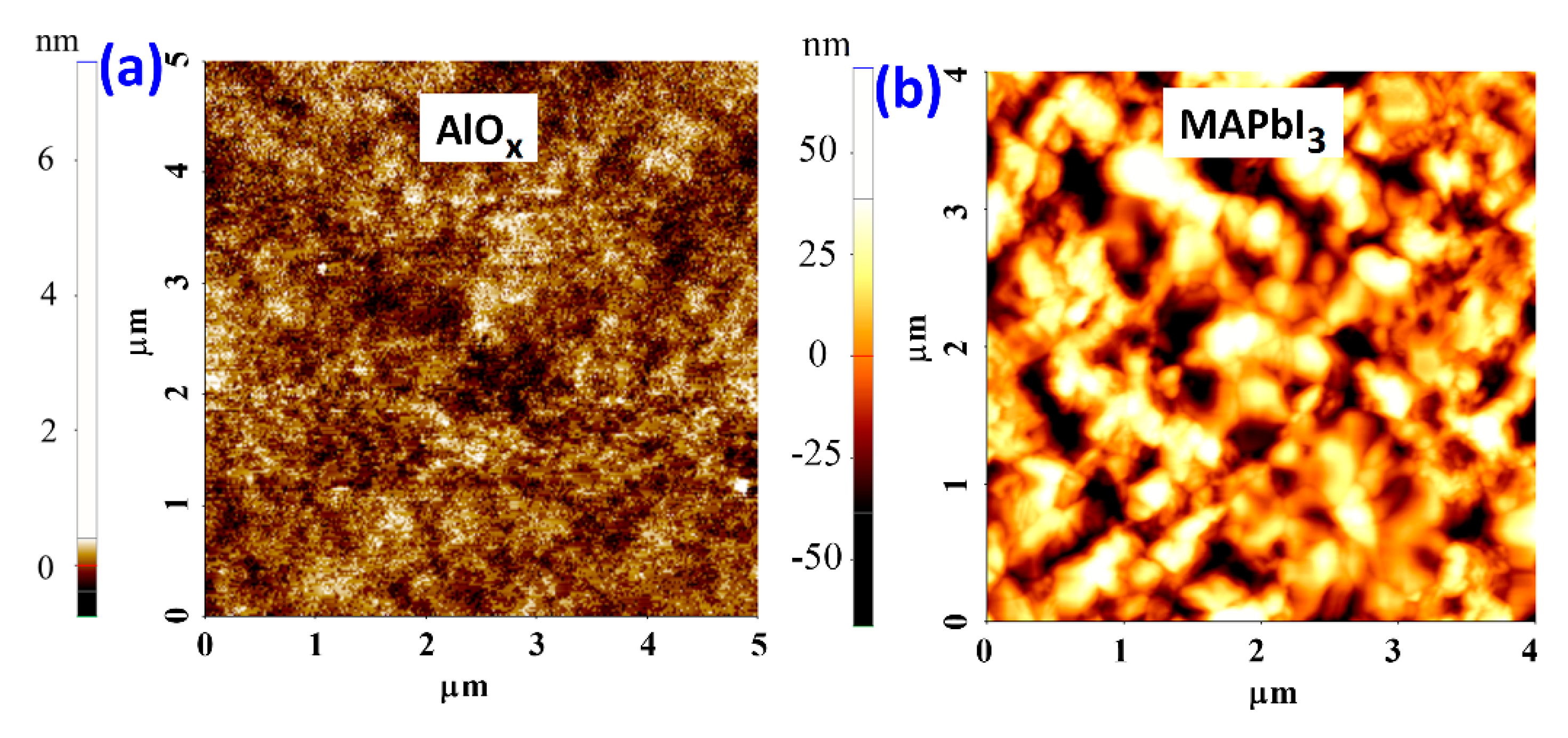

Figure 1

MDPI and ACS Style

Ji, J.; Haque, F.; Hoang, N.T.T.; Mativenga, M. Ambipolar Transport in Methylammonium Lead Iodide Thin Film Transistors. Crystals 2019, 9, 539.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
