Open AccessArticle
Crystals 2018, 8(12), 449; https://doi.org/10.3390/cryst8120449

Growth of Ordered Graphene Ribbons by Sublimation Epitaxy

1
National Research Center of Engineering Technology for Utilization of Botanical Functional Ingredients, Hunan Agricultural University, Changsha 410128, China
2
Key Laboratory of Ministry of Education for Tea Science, Hunan Agricultural University, Changsha 410128, China
3
Key Laboratory of Semiconductor Materials Science, Institute of Semiconductors, Chinese Academy of Sciences, Beijing 100083, China
*
Authors to whom correspondence should be addressed.
Received: 22 October 2018 / Revised: 28 November 2018 / Accepted: 28 November 2018 / Published: 30 November 2018
Full-Text   |   PDF [13478 KB, uploaded 30 November 2018]   |

Abstract

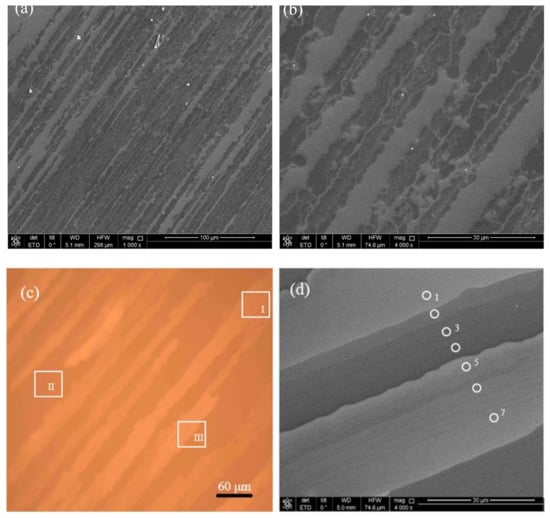

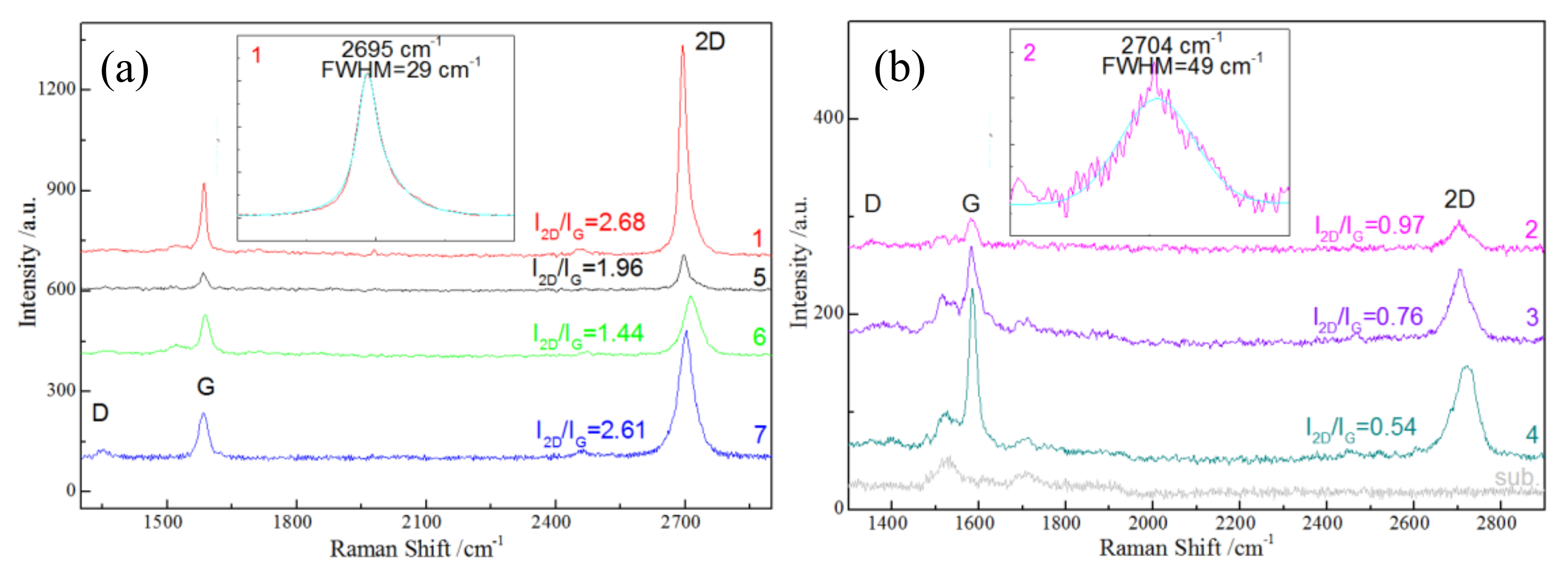

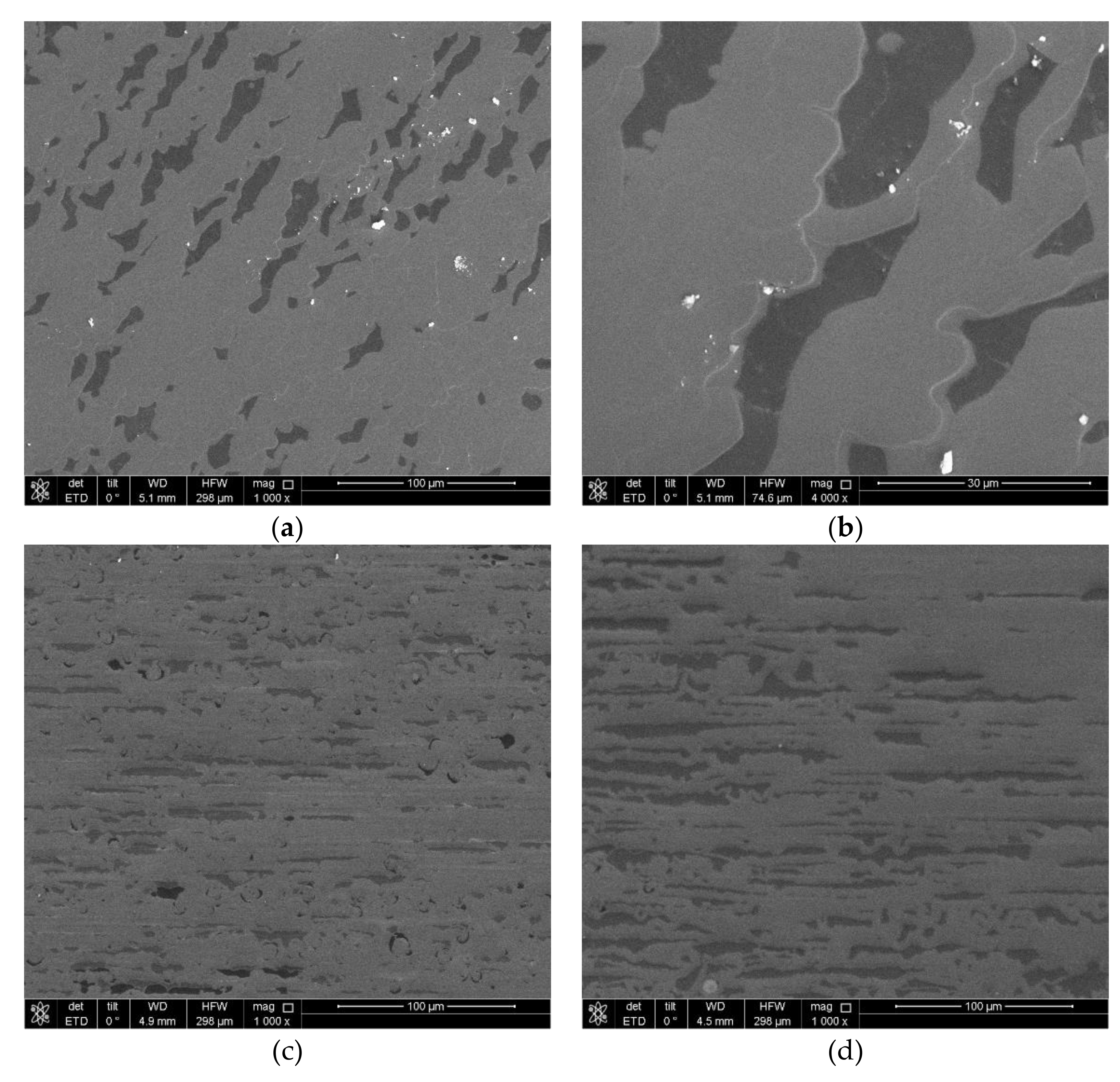

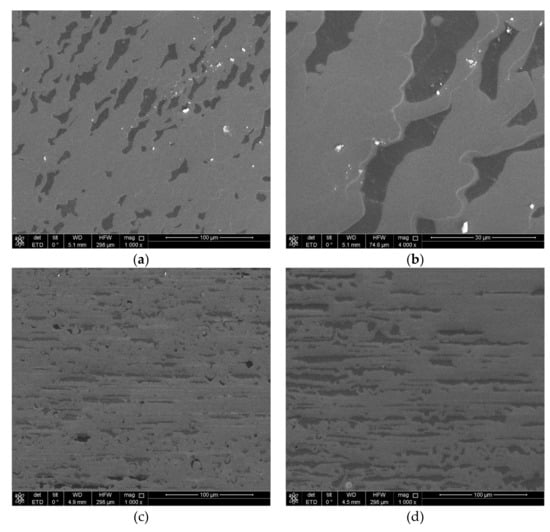

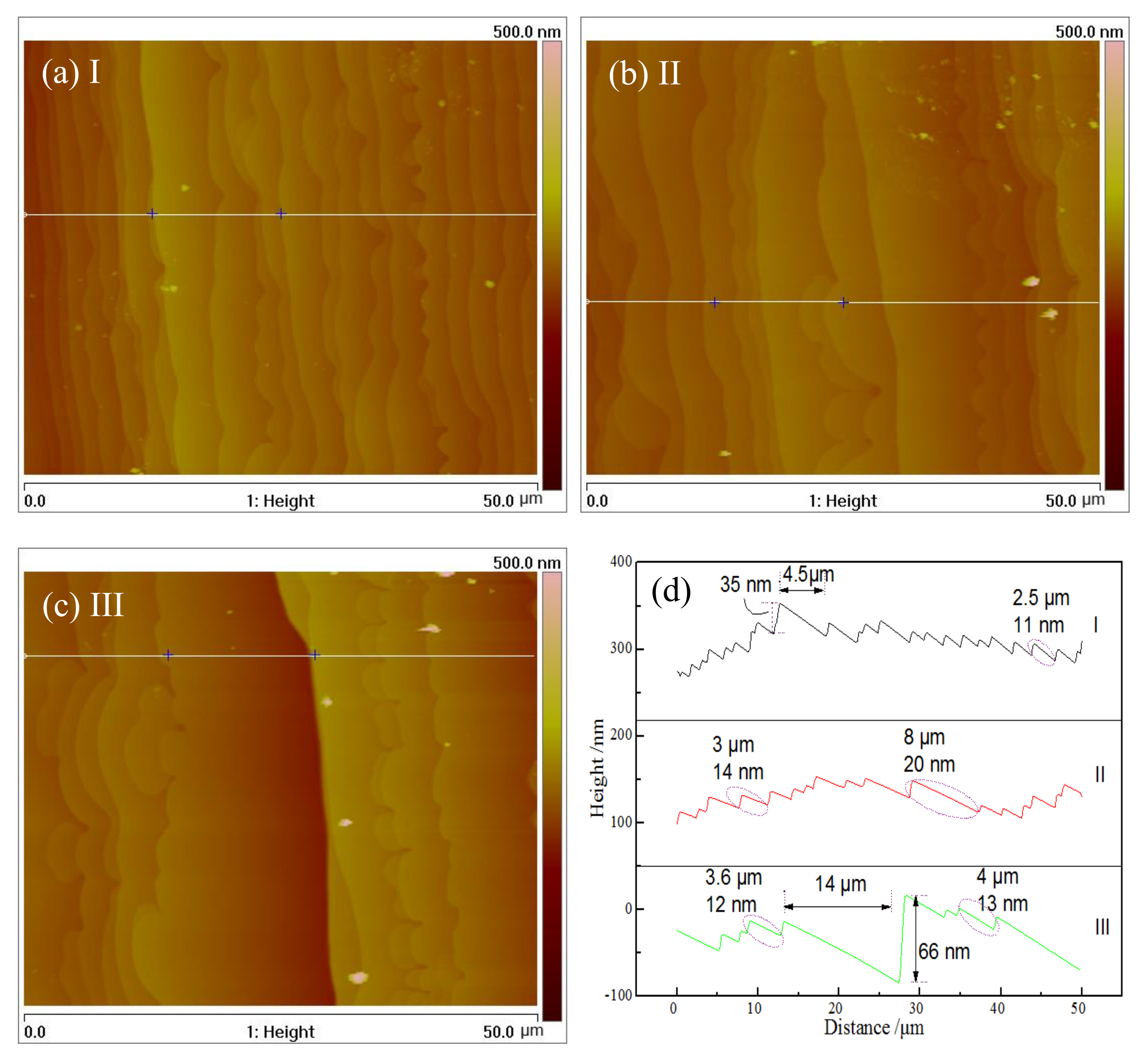

Ordered graphene ribbons were grown on the surface of 4° off-axis 4H-SiC wafers by sublimation epitaxy, and characterized by using scanning electron microscopy (SEM), atomic force microscopy (AFM) and micro-Raman spectroscopy (μ-Raman). SEM showed that there were gray and dark ribbons on the substrate surface, and AFM further revealed that these ordered graphene ribbons had clear stepped morphologies due to surface step-bunching. It was shown by μ-Raman that the numbers of graphene layers of these two types of regions were different. The gray region was composed of mono- or bilayer ordered graphene ribbon, while the dark region was of tri- or few-layer ribbon. Meanwhile, ribbons were all homogeneous and had a width up to 40 μm and a length up to 1000 μm, without micro defects such as grain boundaries, ridges, or mono- and few-layer graphene mixtures. The results of this study are useful for optimized growth of high-quality graphene film on silicon carbide crystal. View Full-Text
Keywords: graphene; ribbon; 4H-SiC; sublimation; epitaxy; Raman graphene; ribbon; 4H-SiC; sublimation; epitaxy; Raman
