Next Article in Journal
A Reversible Single-Crystal to Single-Crystal Thermal Phase Transformation of 3-(2-Bromo-4-(1-methylethyl)phenyl)-1,1-dimethyl urea
Previous Article in Journal
Effect of Diazotated Sulphonated Polystyrene Films on the Calcium Oxalate Crystallization
Previous Article in Special Issue
Numerical Modelling of the Czochralski Growth of β-Ga2O3
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Crystals 2017, 7(3), 74;

Numerical Study of the Thermal and Flow Fields during the Growth Process of 800 kg and 1600 kg Silicon Feedstock

Department of Mechanical Engineering, National Central University, Jhongli 320, Taiwan
Research and Development Division, GlobalWafers Co., Ltd., Hsinchu 300, Taiwan
Sino-American Silicon Products Inc., Zhunan 350, Taiwan
Author to whom correspondence should be addressed.
Academic Editor: Bing Gao
Received: 31 October 2016 / Accepted: 1 March 2017 / Published: 3 March 2017
(This article belongs to the Special Issue Global Modeling in Crystal Growth)
Full-Text   |   PDF [4609 KB, uploaded 6 March 2017]   |

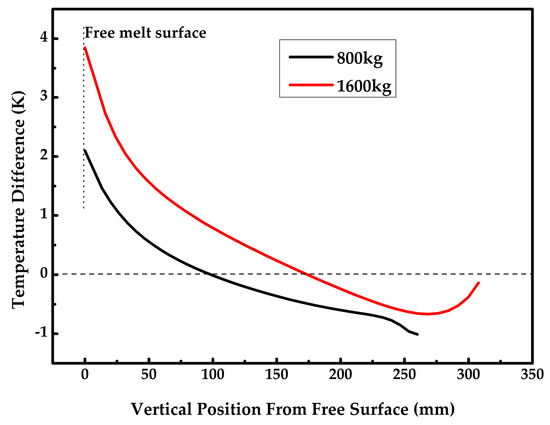

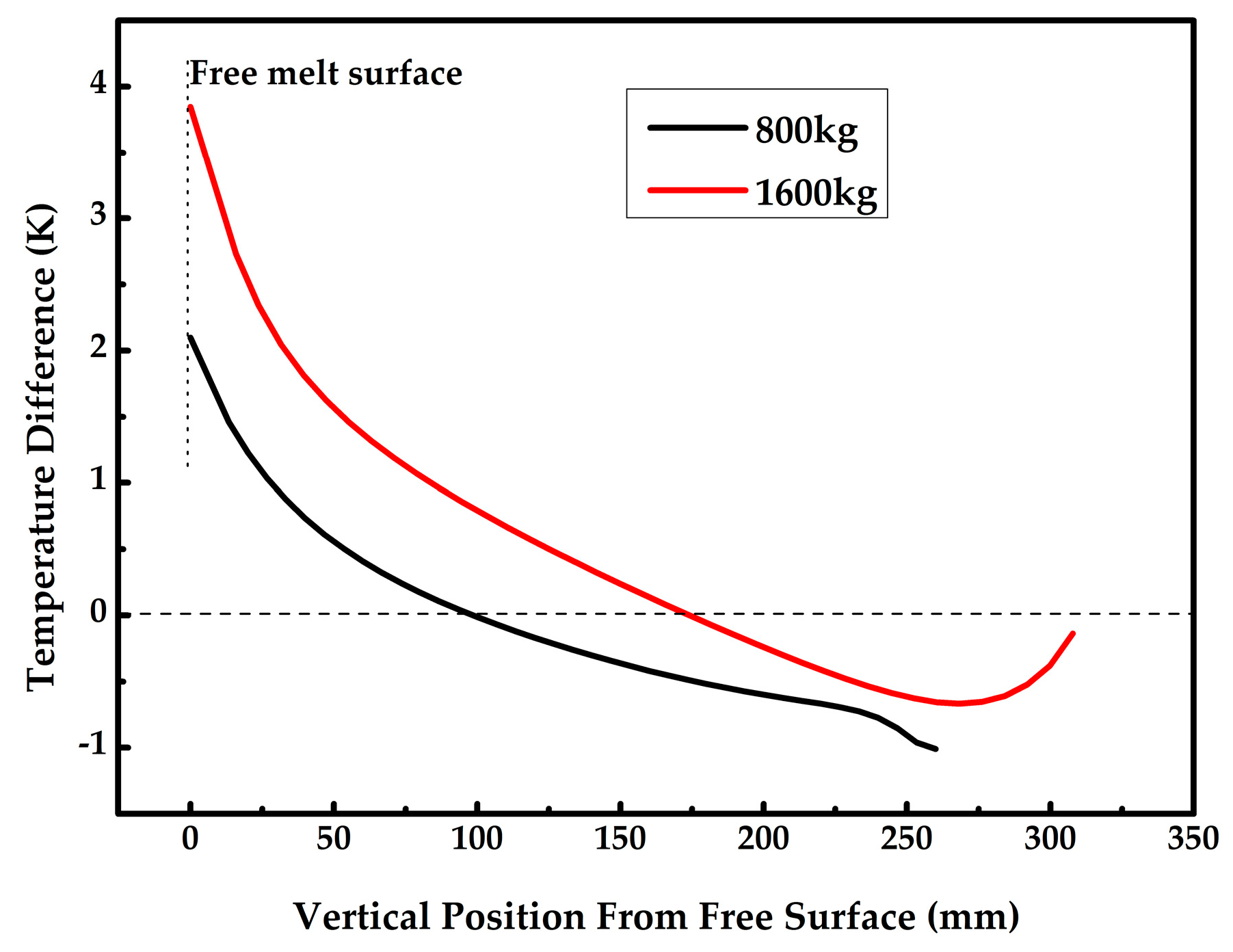

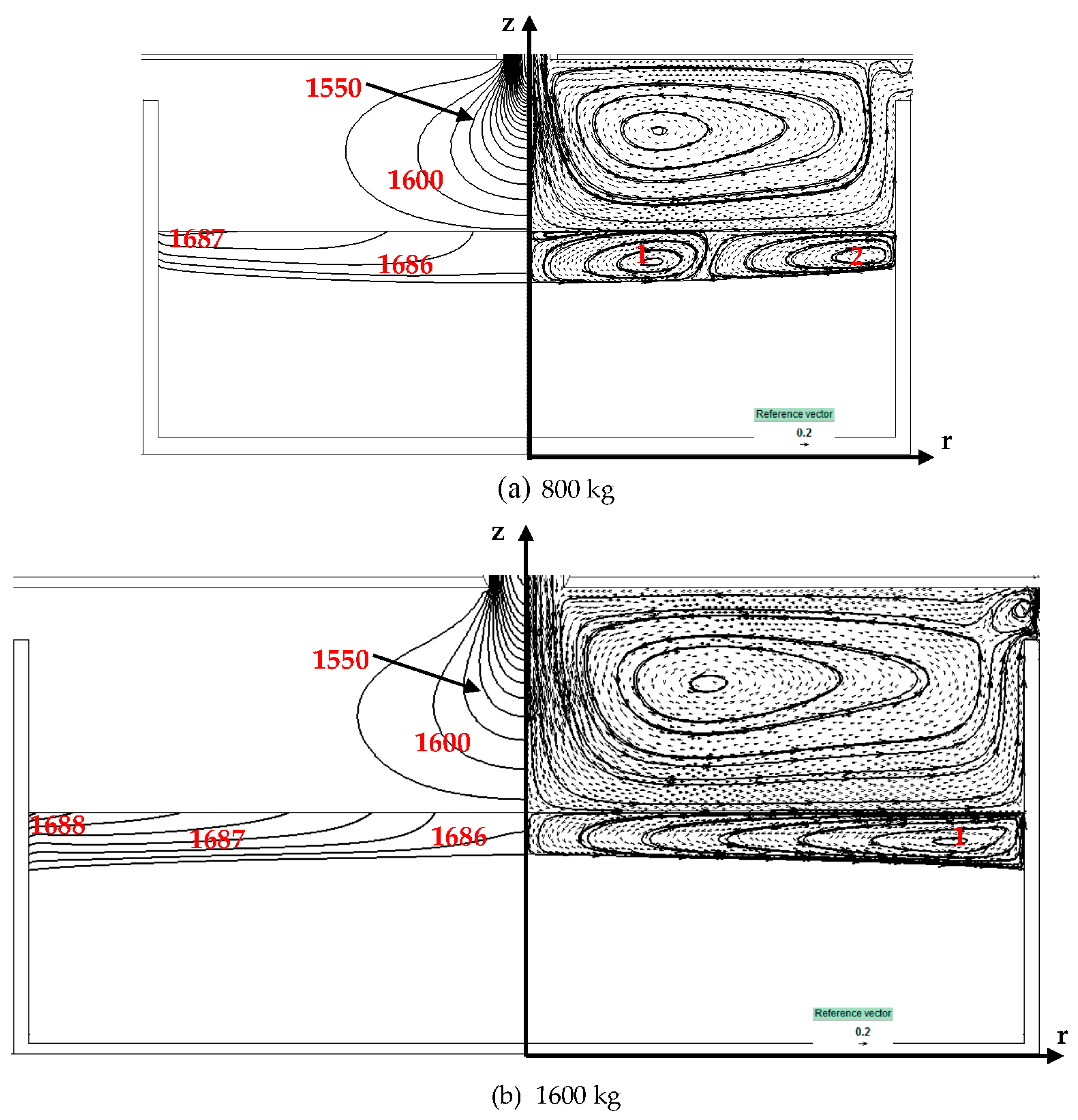

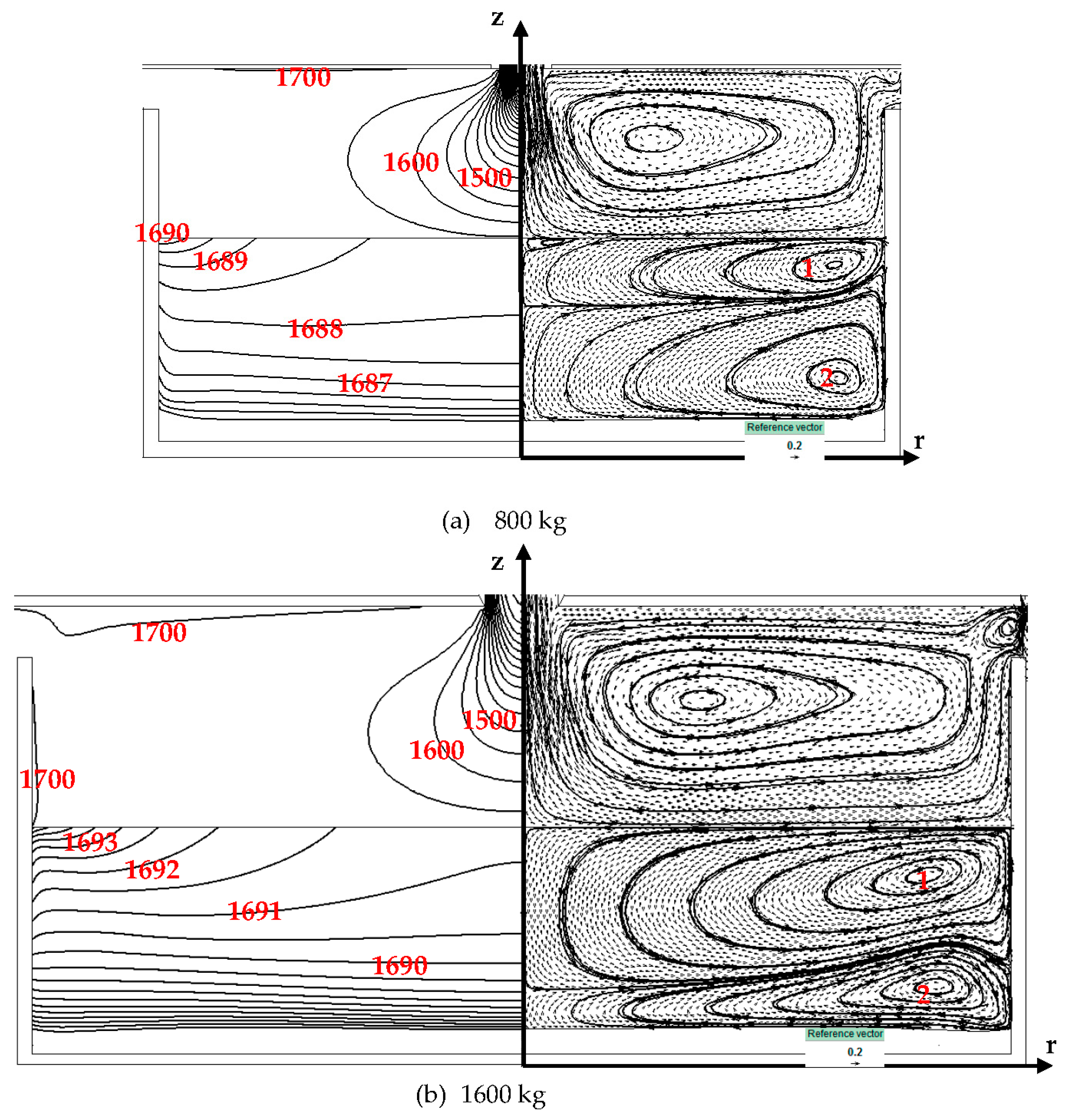

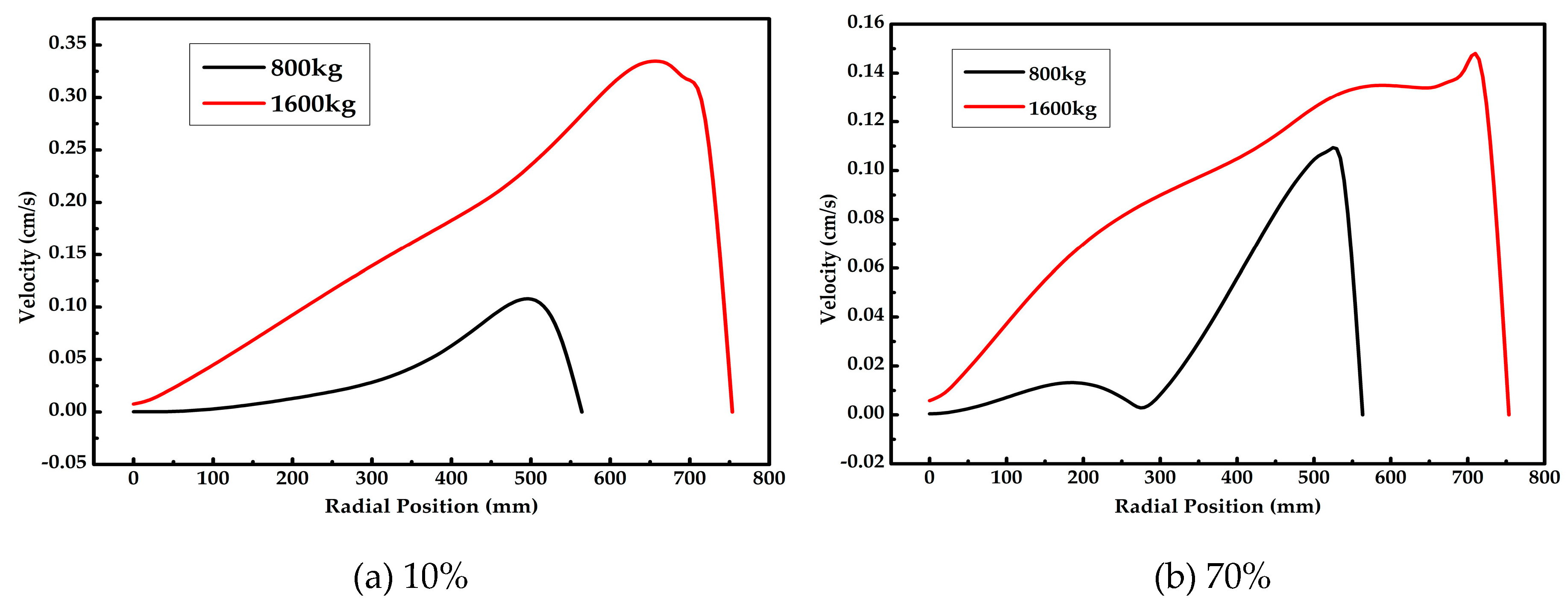

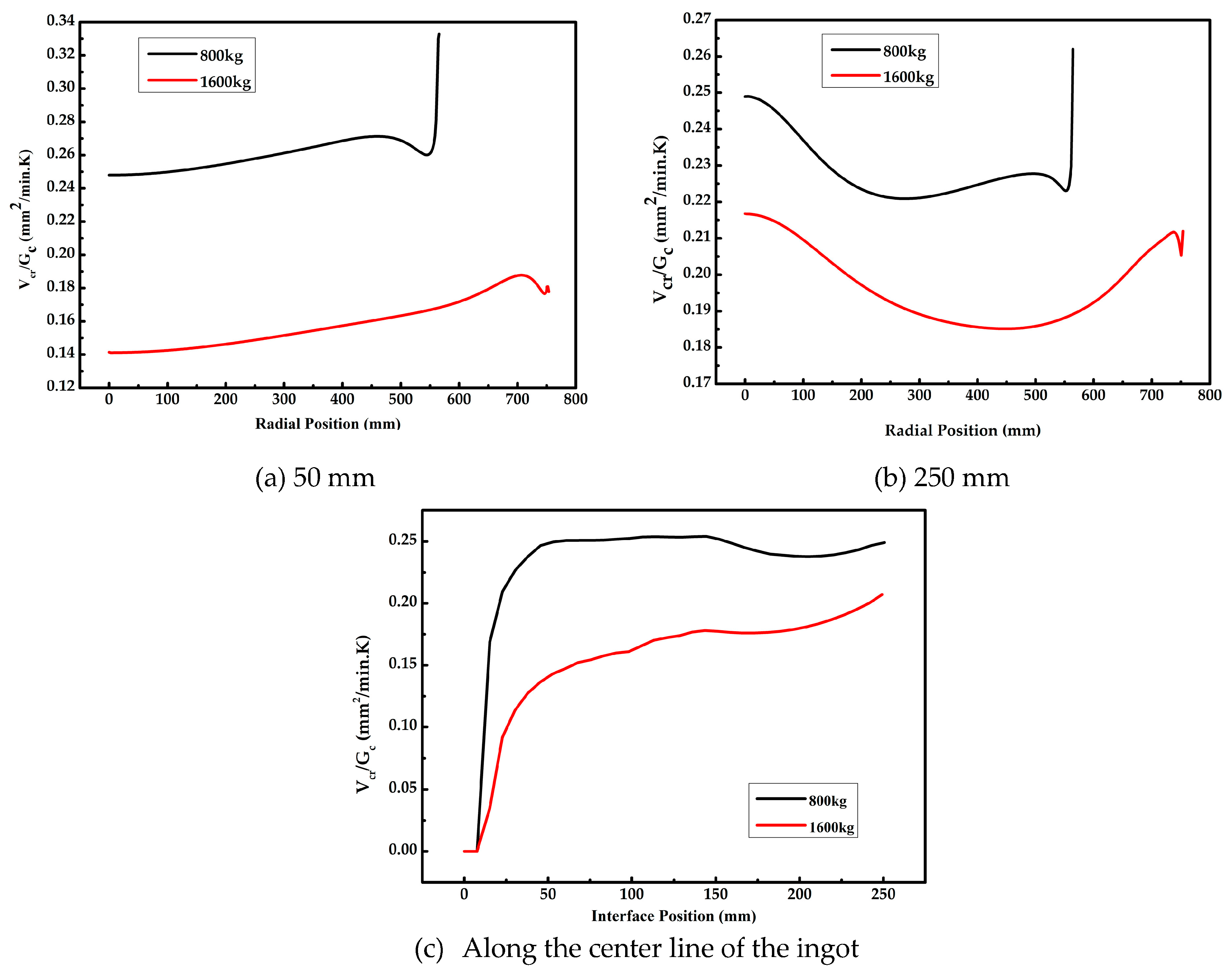

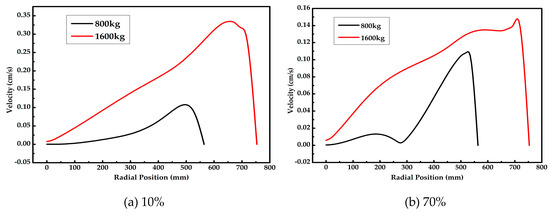

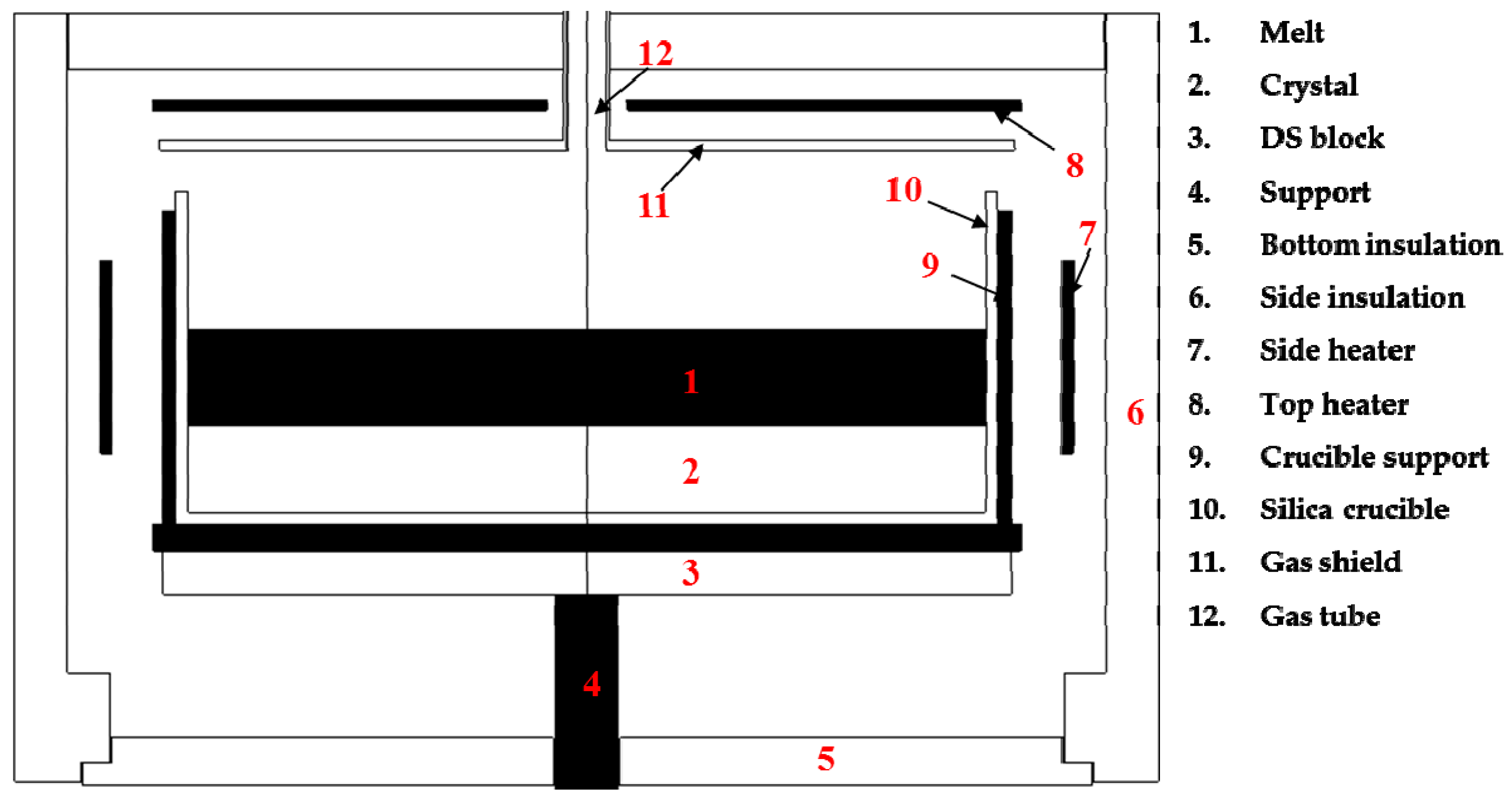

Two-dimensional (2D) transient numerical simulations are performed to investigate the evolution of the thermal and flow fields during the growth of multi-crystalline silicon ingots with two different silicon feedstock capacities, 800 kg and 1600 kg. The simulation results show that there are differences in the structure of the melt flow. In the 1600 kg case, there is a reduction in the concavity of the crystal-melt interface near the crucible wall and an increase in the convexity of the interface at higher solidification fractions. Moreover, the Voronkov ratios, which are indicative of the formation of defects, become lower during the solidification process. View Full-Text
Keywords: multi-crystalline silicon; directional solidification; solar cells multi-crystalline silicon; directional solidification; solar cells

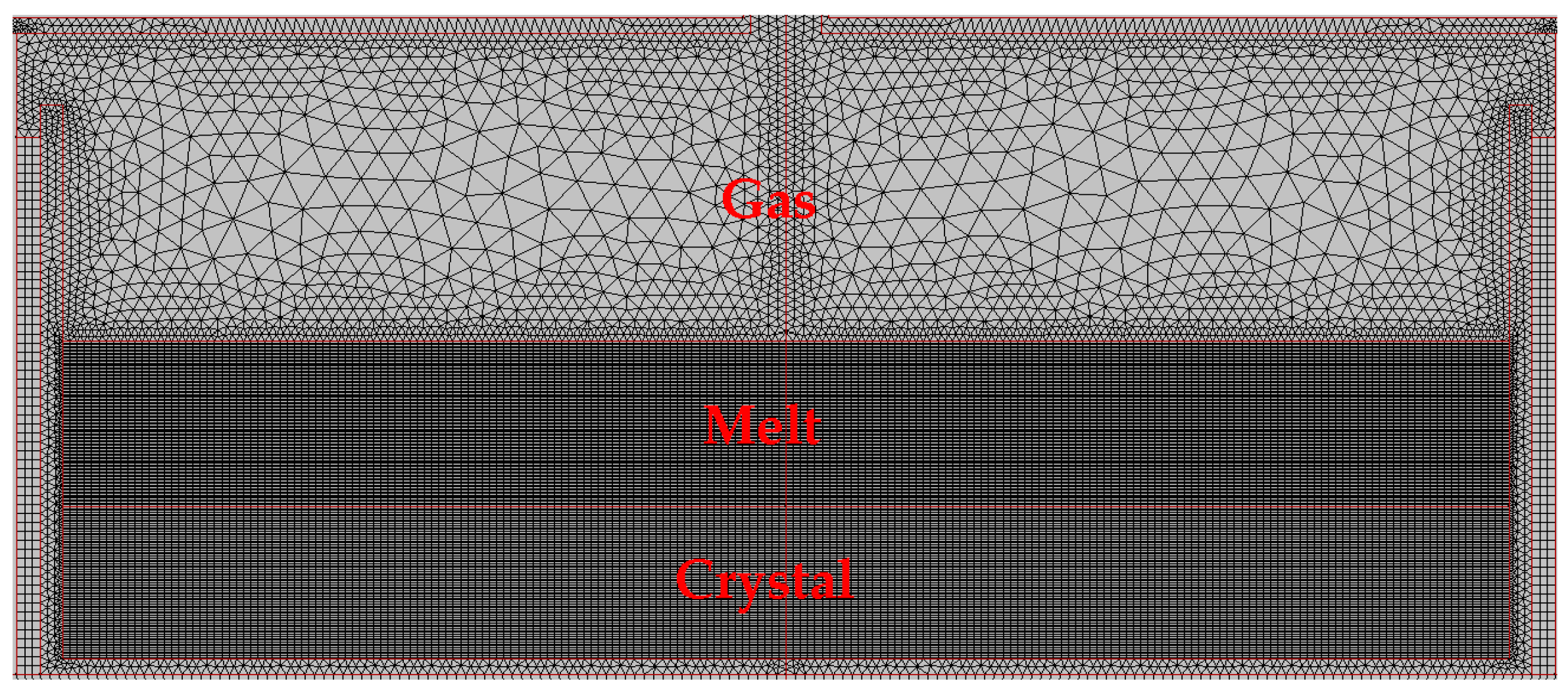

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Nguyen, T.H.T.; Chen, J.C.; Hu, C.; Chen, C.H.; Huang, Y.H.; Lin, H.W.; Yu, A.; Hsu, B.; Yang, M.; Yang, R. Numerical Study of the Thermal and Flow Fields during the Growth Process of 800 kg and 1600 kg Silicon Feedstock. Crystals 2017, 7, 74.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
