# Crystal-Structure Analysis with Moments of the Density-of-States: Application to Intermetallic Topologically Close-Packed Phases

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Moments of the Density-of-States

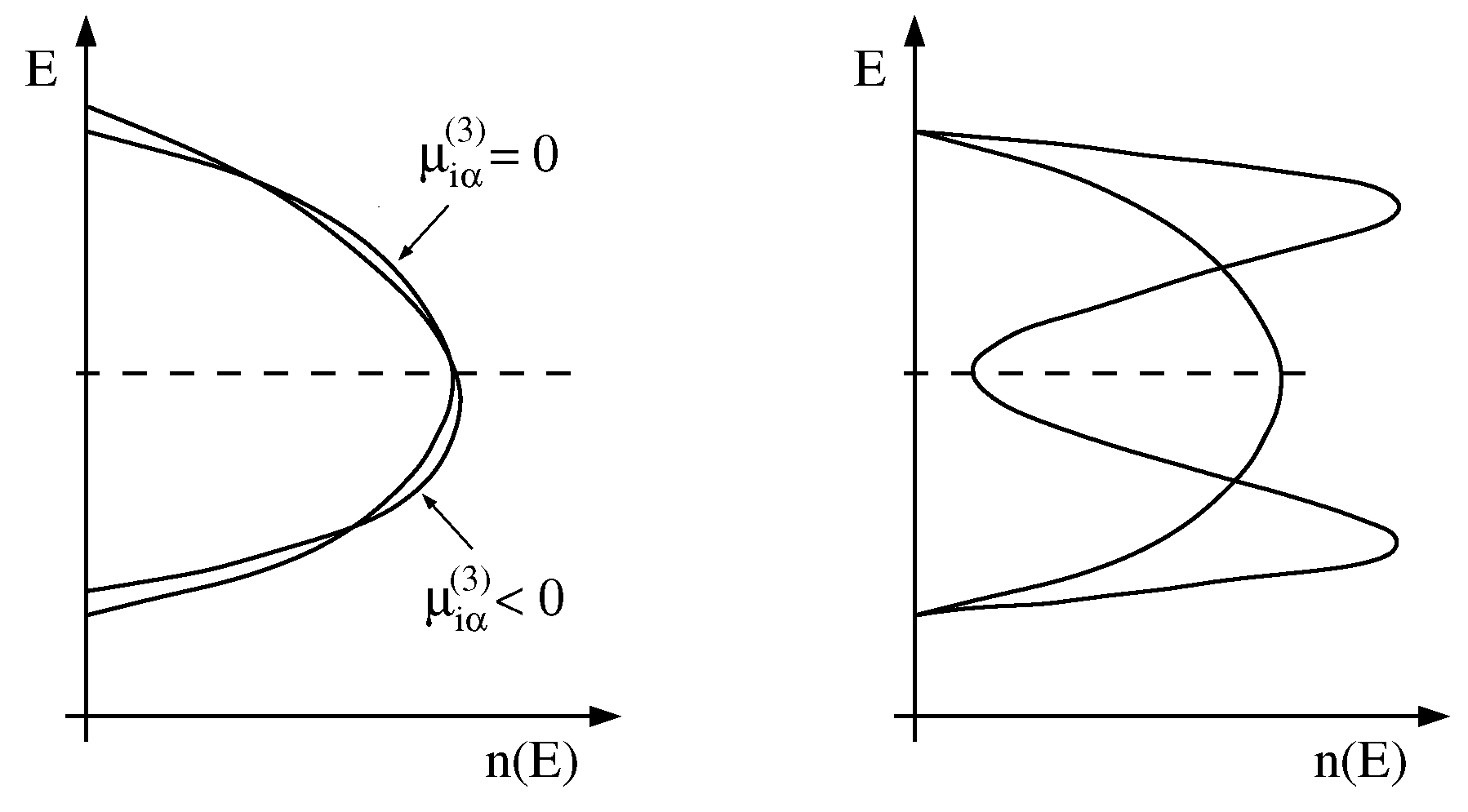

**Figure 1.**The third and fourth moment gives rise to a skewing (

**left**) and a bimodal shape (

**right**) of the DOS.

#### 2.2. Computational Details

**Table 1.**Frank–Kasper polyhedra with coordination numbers Z of the considered TCP phases, ordered by increasing average Z. The list indicates the multiplicity of the different Wyckoff positions with the same Z. The values in parentheses indicate coordination polyhedra that are not Frank–Kasper polyhedra.

Structure | fcc | χ | C14 | C15 | C36 | μ | A15 | σ | bcc |
---|---|---|---|---|---|---|---|---|---|

Z12 | (1) | 12 | 2, 6 | 4 | 4, 6, 6 | 1, 6 | 2 | 2, 8 | - |

Z13 | - | (12) | - | - | - | - | - | - | - |

Z14 | - | - | - | - | - | 2 | 6 | 8, 8 | (1) |

Z15 | - | - | - | - | - | 2 | - | 4 | - |

Z16 | - | 1, 4 | 4 | 2 | 4, 4 | 2 | - | - | - |

〈Z〉 | 12.00 | 13.10 | 13.33 | 13.33 | 13.33 | 13.39 | 13.50 | 13.57 | 14.00 |

#### 2.3. Moments of TCP Phases

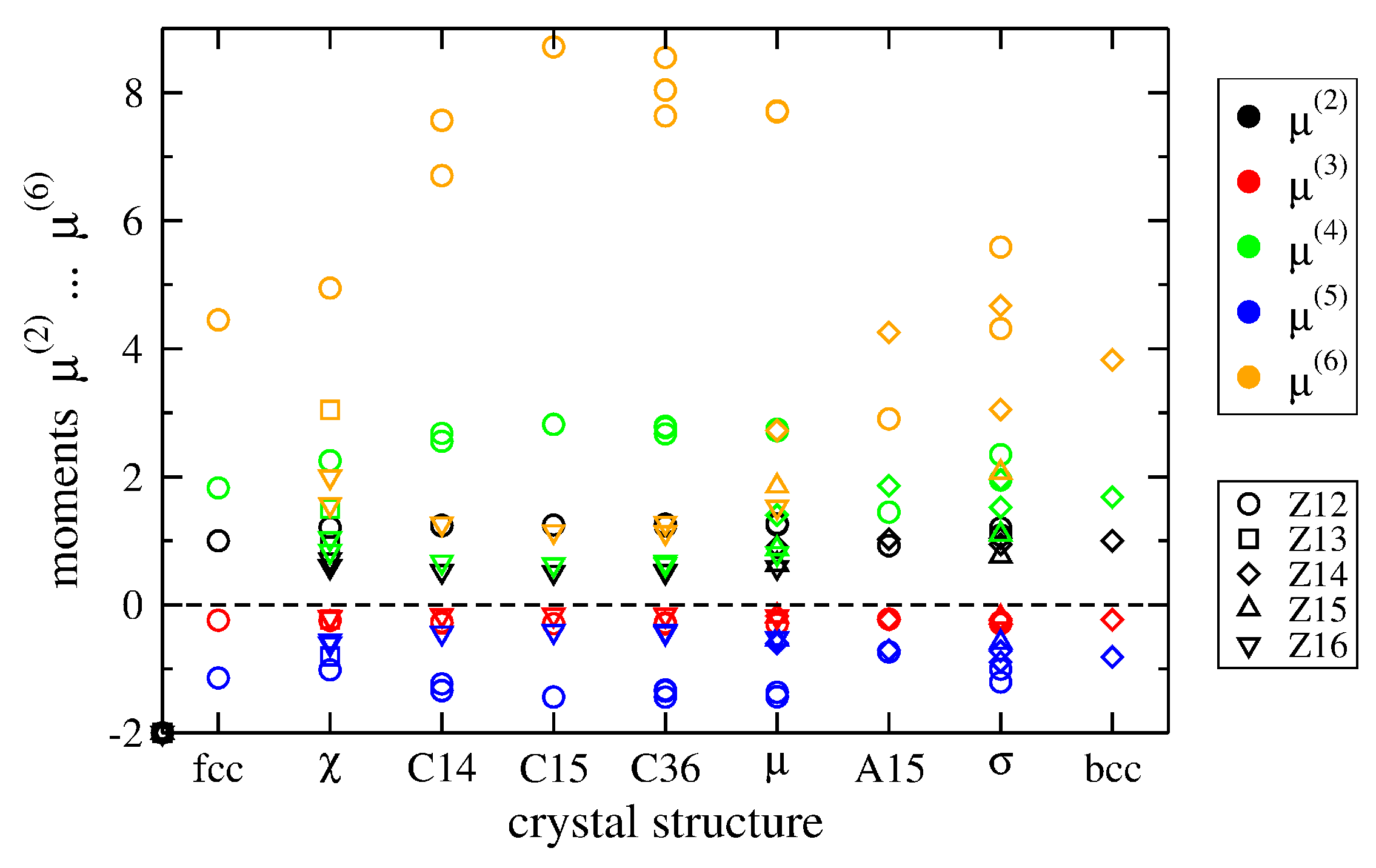

**Figure 2.**Second to sixth moments (colors) computed with a canonical d-valent TB model for DFT-relaxed crystal structures of Ta. Several values of the same moment (symbols) reflect the different environments of different Wyckoff positions. (This color coding is used in all following figures.)

**Table 2.**Similarity matrix of TCP phases in terms of the distance in moments space ${\Delta}_{ij}$. The entries are ordered by increasing difference to bcc. The symmetric lower-left part is omitted for brevity. The grey scale reflects the numerical entries and is included to guide the eye.

${\Delta}_{ij}^{\left(6\right)}\xb7100$ | bcc | χ | σ | A15 | fcc | μ | C14 | C36 | C15 |
---|---|---|---|---|---|---|---|---|---|

bcc | 0.000 | 0.226 | 0.304 | 0.362 | 0.885 | 1.365 | 1.619 | 1.982 | 2.301 |

χ | - | 0.000 | 0.220 | 0.315 | 0.808 | 1.301 | 1.550 | 1.922 | 2.247 |

σ | - | - | 0.000 | 0.290 | 0.662 | 1.124 | 1.378 | 1.747 | 2.069 |

A15 | - | - | - | 0.000 | 0.818 | 1.161 | 1.403 | 1.769 | 2.091 |

fcc | - | - | - | - | 0.000 | 0.655 | 0.886 | 1.236 | 1.546 |

μ | - | - | - | - | - | 0.000 | 0.257 | 0.623 | 0.947 |

C14 | - | - | - | - | - | - | 0.000 | 0.375 | 0.702 |

C36 | - | - | - | - | - | - | - | 0.000 | 0.327 |

C15 | - | - | - | - | - | - | - | - | 0.000 |

## 3. Moments Analysis of Volume Changes and Internal Relaxations

#### 3.1. Influence of Band Filling across TM Series

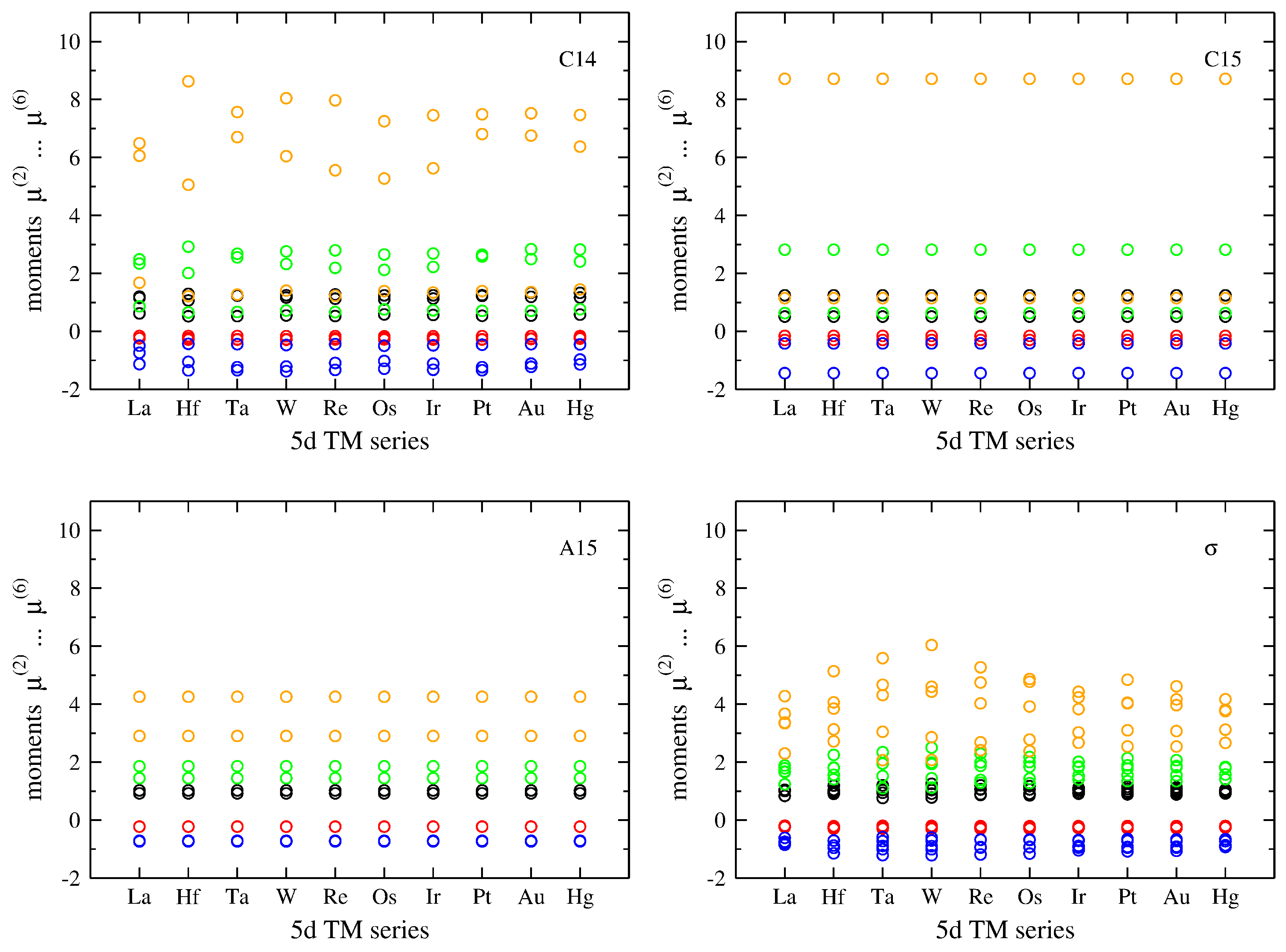

**Figure 3.**Trend of second to sixth moments of unary C14 (

**top left**), C15 (

**top right**), A15 (

**bottom left**) and σ (

**bottom right**) phases across the 5d TM series. The values were computed from the DFT-relaxed unit cells and scaled such that $\langle {\mu}^{\left(2\right)}\rangle =1$. (for color coding, see Figure 2.)

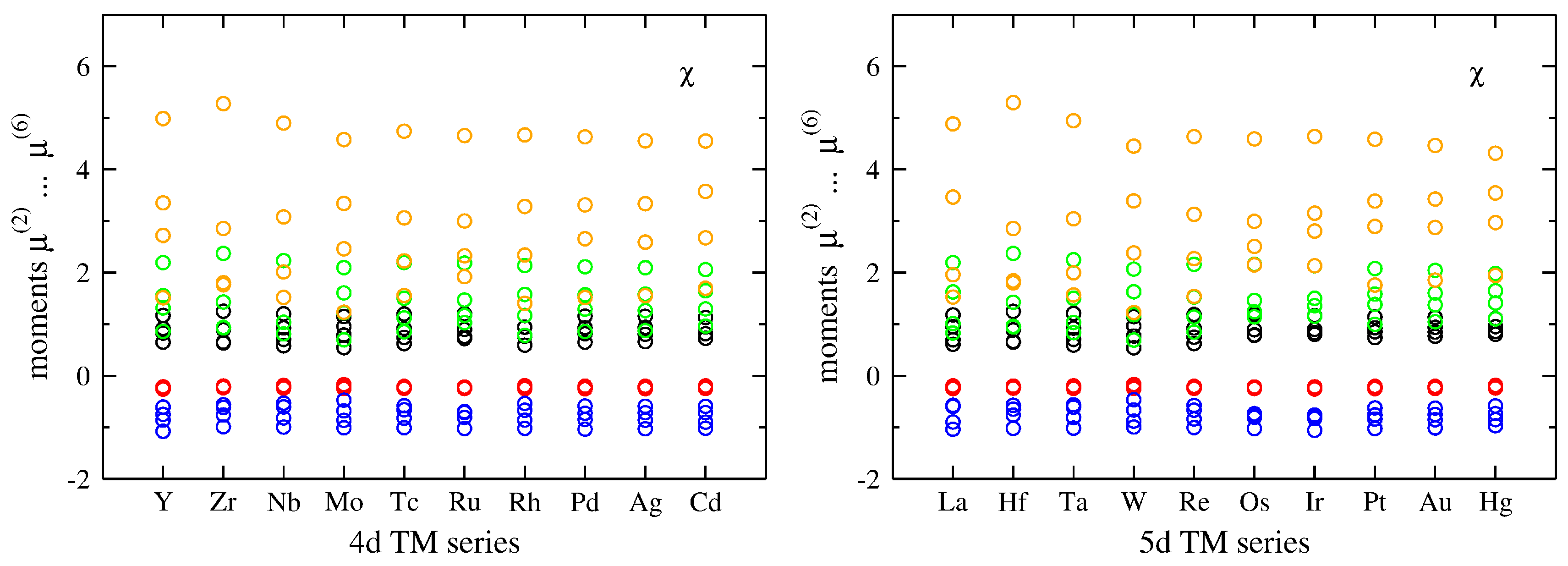

**Figure 4.**Comparison of second to sixth moments of the χ phase across the 4d (

**left**) and 5d (

**right**) TM series using the DFT-relaxed unit cells with scaling such that $\langle {\mu}^{\left(2\right)}\rangle =1$. (for color coding, see Figure 2.)

#### 3.2. Atomic-Volume Differences in Compounds: V-Ta

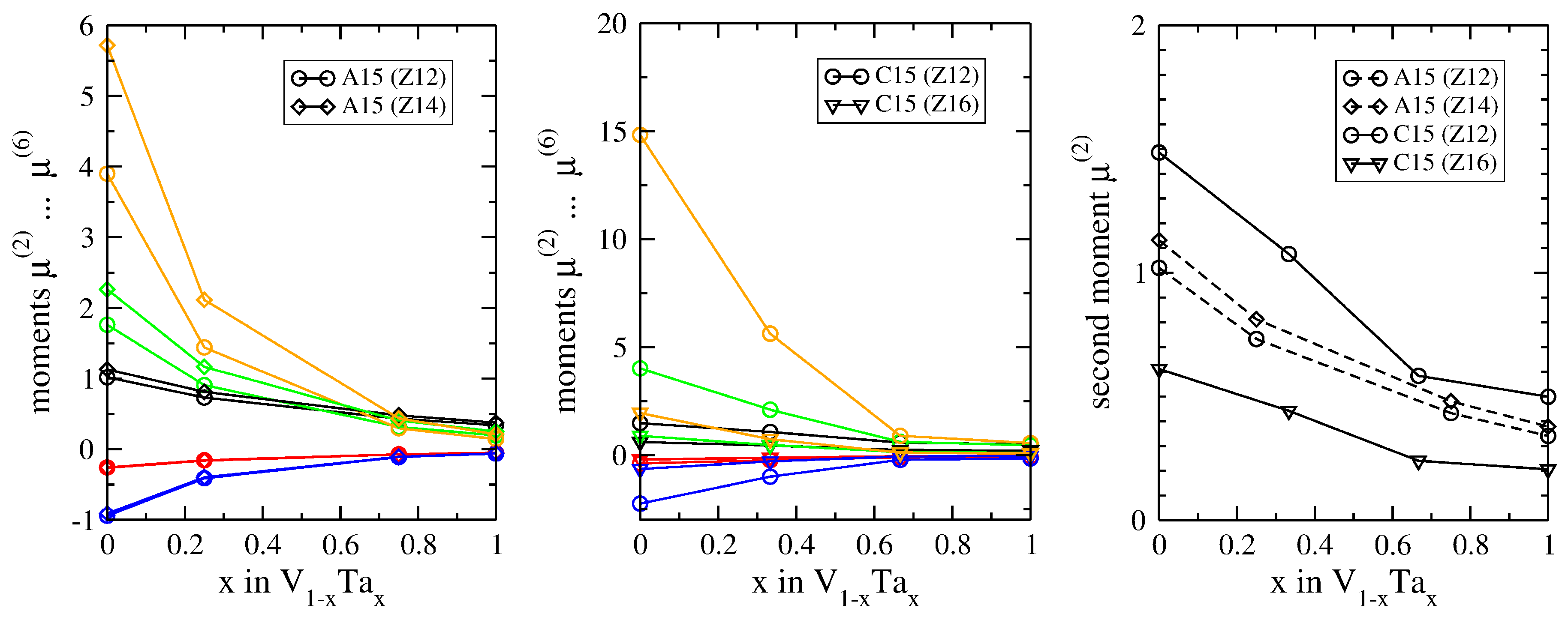

**Figure 5.**Influence of considerable atomic-size difference on moments of DFT-relaxed unit cells of A15 (

**left**) and C15 (

**middle**). Variation of second moment for different Wyckoff positions in A15 and C15 (

**right**). (for color coding, see Figure 2.)

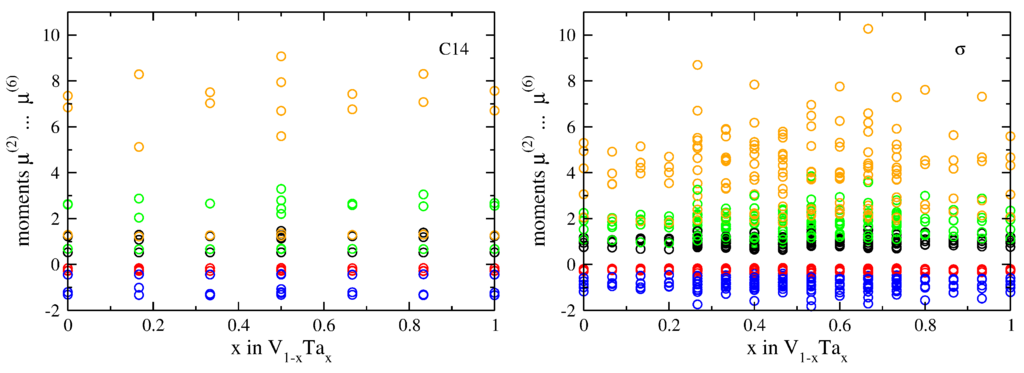

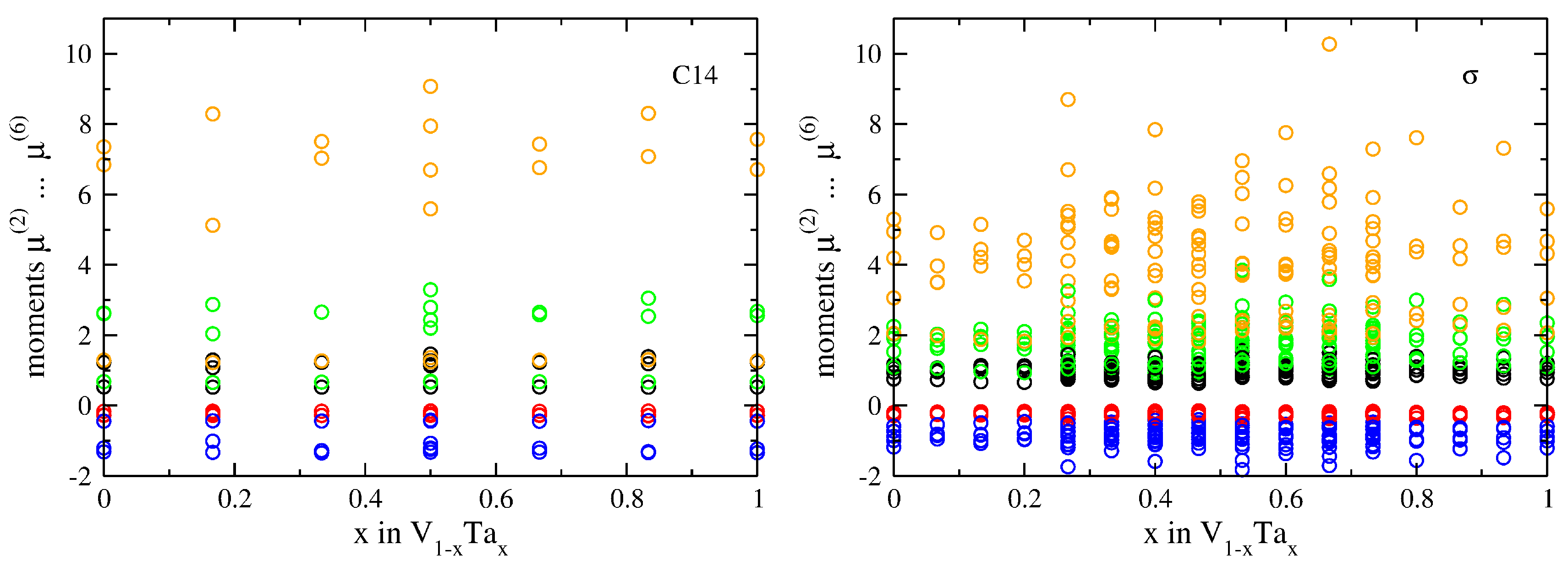

**Figure 6.**Variation of moments due to internal relaxation in the V-Ta compound system for the TCP phases C14 (

**left**) and σ (

**right**). The moments of the DFT-relaxed unit cells were scaled such that $\langle {\mu}^{\left(2\right)}\rangle =1$. (for color coding, see Figure 2.)

#### 3.3. Influence of Magnetism: Fe${}_{2}$Nb-C14

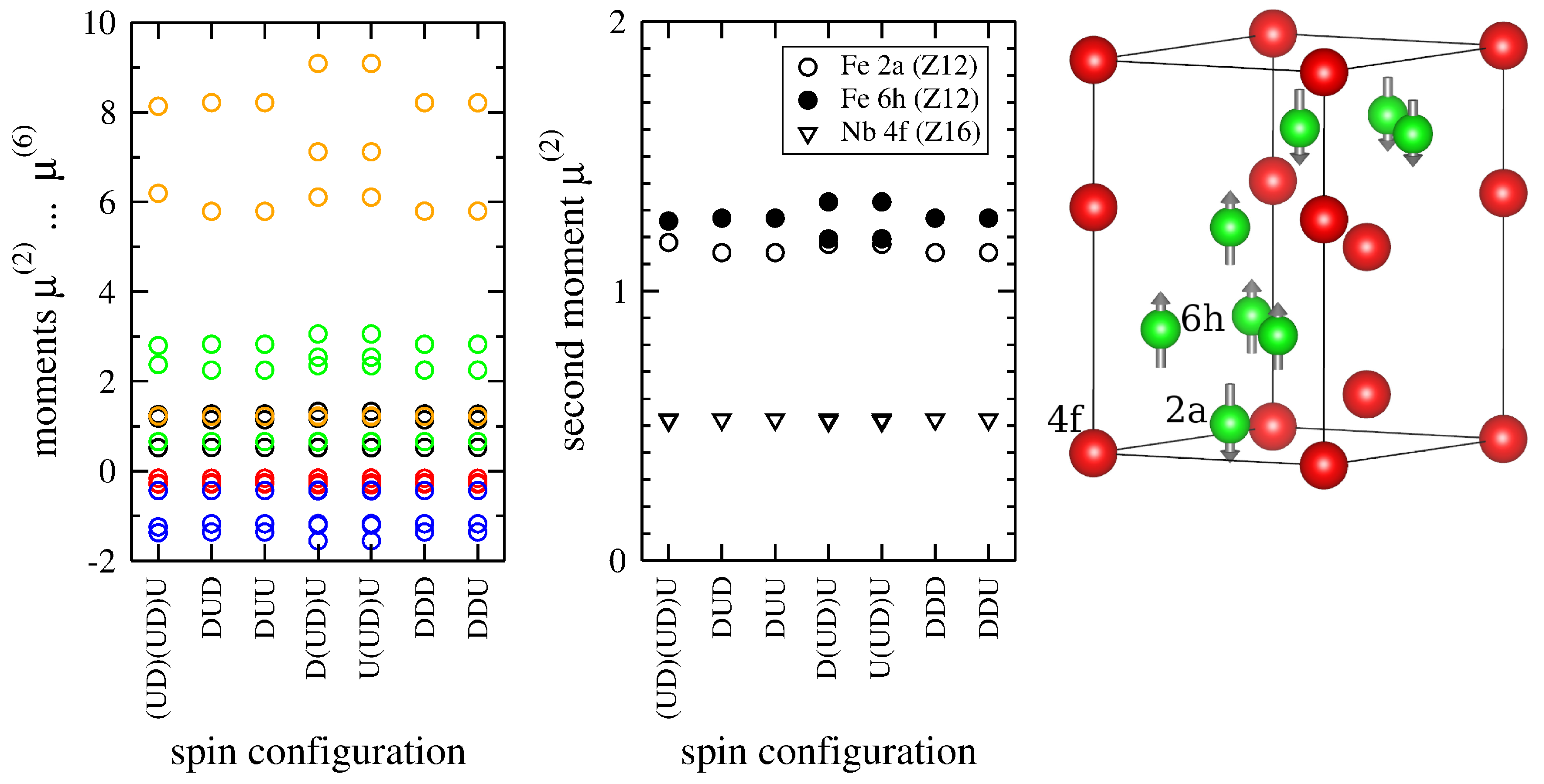

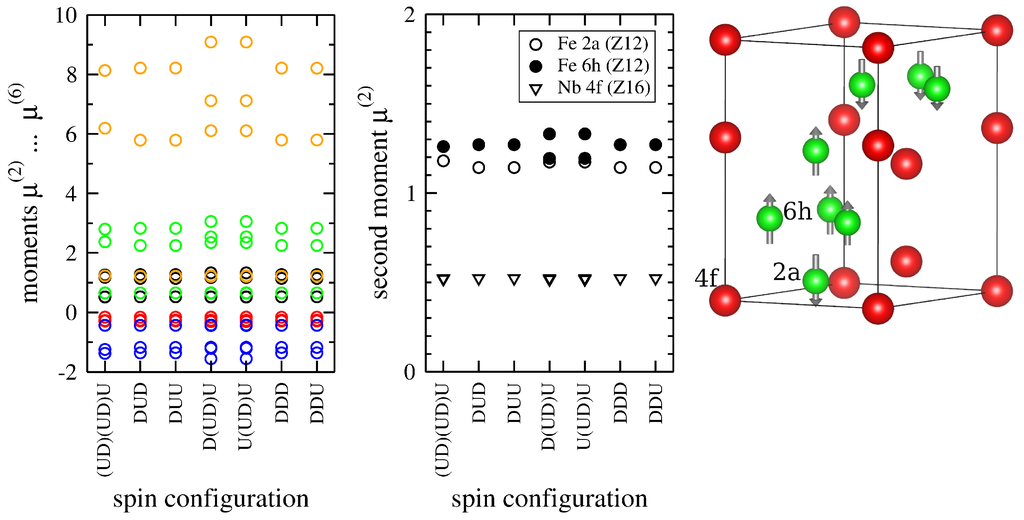

**Figure 7.**Variation of moments of C14-Fe${}_{2}$Nb (

**left**) with spin configuration of the Wyckoff sites 2a, 6h and 4f (

**right**), as well as site-resolved close-up on the second moment (

**middle**). The ordering is according to structural stability [51] starting with the energetically most favorable configuration (UD)(UD)U that is also indicated in the crystal structure (right). (for color coding, see Figure 2.)

## 4. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Rideout, S.P.; Manly, W.D.; Kamen, E.L.; Lement, B.S.; Beck, P.A. Intermediate phases in ternary alloy systems of transition elements. Trans. AIME
**1951**, 191, 872–876. [Google Scholar] - Boesch, W.J.; Slaney, J.S. Preventing sigma phase embrittlement in Nickel base superalloys. Met. Prog.
**1964**, 86, 109–111. [Google Scholar] - Morinaga, M.; Yukawa, M.; Adachi, H.; Ezaki, H. Superalloys 1984; Gell, M., Kortovich, C.S., Bricknell, R.H., Kent, W.B., Radavich, J.F., Eds.; The Metals, Minerals and Materials Society: Warrendale, PA, USA, 1984; p. 523. [Google Scholar]
- Watson, R.E.; Bennett, L.H. Transition-metal alloy formation. The occurence of topologically close packed phaeses—I. Acta Metall.
**1984**, 32, 477–489. [Google Scholar] [CrossRef] - Laves, F.; Wallbaum, H.J. Über den Einfluß geometrischer Faktoren auf die stöchiometrische Formel metallischer Verbindungen, gezeigt an der Kristallstruktur des KNa
_{2}. Z. Anorg. Allg. Chem.**1942**, 250, 110–120. [Google Scholar] [CrossRef] - Seiser, B.; Drautz, R.; Pettifor, D.G. TCP phase predictions in Ni-based superalloys: Structure maps revisited. Acta Mater.
**2011**, 59, 749–763. [Google Scholar] [CrossRef] - Joubert, J.M.; Phejar, M. Crystal chemistry and Calphad modeling of the χ phase. Prog. Mater. Sci.
**2009**, 54, 945–980. [Google Scholar] [CrossRef] - Ohta, Y.; Pettifor, D.G. Size versus electronic factors in transition metal Laves phase stability. J. Phys. Condens. Matter
**1990**, 2. [Google Scholar] [CrossRef] - Zhu, J.H.; Liu, C.T.; Pike, L.M.; Liaw, P.K. Enthalpies of formation of binary Laves phases. Intermetallics
**2002**, 10, 579–595. [Google Scholar] [CrossRef] - Stein, F.; Palm, M.; Sauthoff, G. Structure and stability of Laves phases. Part I. Critical assessment of factors controlling Laves phase stability. Intermetallics
**2004**, 12, 713–720. [Google Scholar] [CrossRef] - Hartsough, L.D. Stability of A15 type phases. J. Phys. Chem. Solids
**1974**, 35, 1691–1701. [Google Scholar] [CrossRef] - Turchi, P.; Treglia, G.; Ducastelle, F. Electronic structure and phase stability of A15 transition metals and alloys. J. Phys. Met. Phys.
**1983**, 13. [Google Scholar] [CrossRef] - Turchi, P.E.A.; Finel, A. Ordering phenomena in A15-based alloys. Phys. Rev. B
**1992**, 46. [Google Scholar] [CrossRef] - Moriarty, J.A. Angular forces and melting in bcc transition metals: A case study of molybdenum. Phys. Rev. B
**1994**, 49. [Google Scholar] [CrossRef] - Joubert, J.M. Crystal chemistry and Calphad modeling of the σ phase. Prog. Mater. Sci.
**2008**, 53, 528–583. [Google Scholar] [CrossRef] - Berne, C.; Pasturel, A.; Sluiter, M.; Vinet, B. Ab Initio Study of Metastability in Refractory Metal Based Systems. Phys. Rev. Lett.
**1999**, 83, 1621–1623. [Google Scholar] [CrossRef] - Berne, C.; Sluiter, M.; Kawazoe, Y.; Hansen, T.; Pasturel, A. Site occupancy in the Re-W sigma phase. Phys. Rev. B
**2001**, 64, 144103. [Google Scholar] [CrossRef] - Berne, C.; Sluiter, M.; Pasturel, A. Theoretical approach of phase selection in refractory metals and alloys. J. Alloys Comp.
**2002**, 334, 27–33. [Google Scholar] [CrossRef] - Sluiter, M.; Pasturel, A.; Kawazoe, Y. Site occupation in the Ni-Nb μ phase. Phys. Rev. B
**2003**, 67, 174203. [Google Scholar] [CrossRef] - Sluiter, M.H.F.; Pasturel, A. Site occupation in the Cr-Ru and Cr-Os σ phase. Phys. Rev. B
**2009**, 80, 134122. [Google Scholar] [CrossRef] - Crivello, J.C.; Joubert, J.M. First principles calculations of the σ and χ phases in the Mo-Re and W-Re systems. J. Phys. Condens. Matter
**2010**, 22, 035402. [Google Scholar] [CrossRef] [PubMed] - Dubiel, S.M.; Cieslak, J.; Sturhahn, W.; Sternik, M.; Piekarz, P.; Stankov, S.; Parlinski, K. Vibrational properties of the α and σ Phase Fe-Cr Alloy. Phys. Rev. Lett.
**2010**, 104, 155503. [Google Scholar] [CrossRef] [PubMed] - Pavlu, J.; Vrestal, J.; Sob, M. Ab initio study of formation energy and magnetism of sigma phase in Cr-Fe and Cr-Co system. Intermetallics
**2010**, 18, 212–220. [Google Scholar] [CrossRef] - Hammerschmidt, T.; Bialon, A.; Pettifor, D.; Drautz, R. Topologically close-packed phases in binary transition-metal compounds: matching high-throughput ab initio calculations to an empirical structure map. New J. Phys.
**2013**, 15, 115016. [Google Scholar] [CrossRef] - Palumbo, M.; Fries, S.; Hammerschmidt, T.; Abe, T.; Crivello, J.C.; Breidi, A.; Joubert, J.M.; Drautz, R. First-principles-based phase diagrams and thermodynamic properties of TCP phases in Re-X systems (X = Ta, V, W). Comput. Mater. Sci.
**2014**, 81, 433–445. [Google Scholar] [CrossRef] - Ducastelle, F.; Cyrot-Lackmann, F. Moments developments and their application to the electronic charge distribution of d bands. J. Phys. Chem. Solids
**1970**, 31, 1295–1306. [Google Scholar] [CrossRef] - Turchi, P.E.A. Interplay between local environment effect and electronic structure properties in close packed structures. Mater. Res. Soc. Symp. Proc.
**1991**, 206. [Google Scholar] [CrossRef] - Hammerschmidt, T.; Seiser, B.; Drautz, R.; Pettifor, D.G. Modelling topologically close-packed phases in superalloys: Valence-dependent bond-order potentials based on ab-initio calculations. In Superalloys 2008; Reed, R.C., Green, K., Caron, P., Gabb, T., Fahrmann, M., Huron, E., Woodward, S., Eds.; The Metals, Minerals and Materials Society: Warrendale, PA, USA, 2008; p. 847. [Google Scholar]
- Seiser, B.; Hammerschmidt, T.; Kolmogorov, A.N.; Drautz, R.; Pettifor, D.G. Theory of structural trends within 4d and 5d transition metals topologically close-packed phases. Phys. Rev. B
**2011**, 83, 224116. [Google Scholar] [CrossRef] - Németh, K.; Challacombe, M. Geometry optimization of crystals by the quasi-independent curvilinear coordinate approximation. J. Chem. Phys.
**2005**, 123, 194112. [Google Scholar] [CrossRef] [PubMed] - Kuz’min, V.; Artemenko, A.; Muratov, E. Hierarchical QSAR technology based on the Simplex representation of molecular structure. J. Comput. Aided Mol. Des.
**2008**, 22, 403–421. [Google Scholar] [CrossRef] [PubMed] - Isayev, O.; Fourches, D.; Muratov, E.; Oses, C.; Rasch, K.; Tropsha, A.; Curtarolo, S. Materials Cartography: Representing and Mining Materials Space Using Structural and Electronic Fingerprints. Chem. Mater.
**2015**, 27, 735–743. [Google Scholar] [CrossRef] - Behler, J. Atom-centered symmetry functions for constructing high-dimensional neural network potentials. J. Chem. Phys.
**2011**, 134, 074106. [Google Scholar] [CrossRef] - Rupp, M.; Tkatchenko, A.; Müller, K.R.; von Lilienfeld, O.A. Fast and accurate modeling of molecular atomization energies with machine learning. Phys. Rev. Lett.
**2012**, 108, 058301. [Google Scholar] [CrossRef] [PubMed] - Bartók, A.; Kondor, R.; Csányi, G. On representing chemical environments. Phys. Rev. B
**2013**, 87, 184115. [Google Scholar] [CrossRef] - Schablitzki, T.; Rogal, J.; Drautz, R. Topological fingerprints for intermetallic compounds for the automated classification of atomistic simulation data. Model. Simul. Mater. Sci. Eng.
**2013**, 21, 075008. [Google Scholar] [CrossRef] - Von Lilienfeld, O.; Ramakrishnan, R.; Rupp, M.; Knoll, A. Fourier series of atomic radial distribution functions: A molecular fingerprint for machine learning models of quantum chemical properties. J. Quantum Chem.
**2015**, 115. [Google Scholar] [CrossRef] - Cyrot-Lackmann, F. On the electronic structure of liquid transition metals. Adv. Phys.
**1967**, 16. [Google Scholar] [CrossRef] - Haydock, R. Recursive solution of the Schrödinger equation. Comput. Phys. Commun.
**1980**, 20, 11–16. [Google Scholar] [CrossRef] - Pettifor, D.G. Bonding and Structure of Molecules and Solids; Oxford Science Publications: New York, NY, USA, 1995. [Google Scholar]
- Horsfield, A.; Bratkovsky, A.M.; Fearn, M.; Pettifor, D.G.; Aoki, M. Bond-order potentials: Theory and implementation. Phys. Rev. B
**1996**, 53. [Google Scholar] [CrossRef] - Drautz, R.; Pettifor, D.G. Valence-dependent analytic bond-order potential for transition metals. Phys. Rev. B
**2006**, 74, 174117. [Google Scholar] [CrossRef] - Drautz, R.; Pettifor, D.G. Valence-dependent analytic bond-order potential for magnetic transition metals. Phys. Rev. B
**2011**, 84, 214114. [Google Scholar] [CrossRef] - Drautz, R.; Hammerschmidt, T.; Cak, M.; Pettifor, D. Bond-Order Potentials: Derivation and parameterization for refractory elements. Model. Simul. Mater. Sci. Eng.
**2015**, 23, 074004. [Google Scholar] [CrossRef] - Bieber, A.; Ducastelle, F.; Gautier, F.; Treglia, G.; Turchi, R. Electronic structure and relative stabilities of L1
_{2}and D0_{22}ordered structures occuring in transition metal alloys. Solid State Commun.**1983**, 45. [Google Scholar] [CrossRef] - Bieber, A.; Gautier, F. Multiatom interactions, order and stability in binary transition metal alloys. Z. Phys. B Condens. Matter
**1984**, 57, 335–343. [Google Scholar] [CrossRef] - Ducastelle, F.; Cyrot-Lackmann, F. Moments developments- II. Application to the crystalline structures and the stacking fault energies of transition metals. J. Phys. Chem. Solids
**1971**, 32, 285–301. [Google Scholar] [CrossRef] - Chen, Y.; Kolmogorov, A.; Pettifor, D.; Shang, J.X.; Zhang, Y. Theoretical analysis of structural stability of TM
_{5}Si_{3}transition metal silicides. Phys. Rev. B**2010**, 82, 184104. [Google Scholar] [CrossRef] - Andersen, O.K.; Klose, W.; Nohl, H. Electronic structure of Chevrel-phase high-critical-field superconductors. Phys. Rev. B
**1978**, 17. [Google Scholar] [CrossRef] - Pettifor, D.G.; Podloucky, R. The structures of binary compounds: II. Theory of the pd-bonded AB compounds. J. Phys. C Solid State Phys.
**1986**, 19. [Google Scholar] [CrossRef] - Ladines, A.; Hammerschmidt, T.; Drautz, R. Structural stability of Fe-based topologically close-packed phases. Intermetallics
**2015**, 59, 59–67. [Google Scholar] [CrossRef] - Sinha, A.K. Topologically close-packed structures of transition metal alloys. Prog. Mater. Sci.
**1972**, 15, 81–185. [Google Scholar] [CrossRef] - Cak, M.; Hammerschmidt, T.; Drautz, R. Comparison of analytic and numerical bond-order potentials for W and Mo. J. Phys. Condens. Matter
**2013**, 26, 265002. [Google Scholar] [CrossRef] [PubMed] - Ford, M.; Drautz, R.; Hammerschmidt, T.; Pettifor, D. Convergence of an analytic bond-order potential for collinear magnetism in Fe. Model. Simul. Mater. Sci. Eng.
**2014**, 22, 034005. [Google Scholar] [CrossRef] - Hammerschmidt, T.; Seiser, B.; Ford, M.E.; Pettifor, D.G.; Drautz, R. BOPfox program for tight-binding and bond-order potential calculations. under preparation.
- Pettifor, D.G. The structures of binary compounds: I. Phenomenological structure maps. J. Phys. C
**1986**, 19. [Google Scholar] [CrossRef] - Sutton, A.P.; Finnis, M.W.; Pettifor, D.G.; Ohta, Y. The tight-binding bond model. J. Phys. C
**1988**, 21. [Google Scholar] [CrossRef] - Koßmann, J.; Zenk, C.; Lopez-Galilea, I.; Neumeier, S.; Kostka, A.; Huth, S.; Theisen, W.; Göken, M.; Drautz, R.; Hammerschmidt, T. Microsegregation and precipitates of an as-cast Co-based superalloy—microstructural characterization and phase stability modelling. J. Mater. Sci.
**2015**, 50, 6329–6638. [Google Scholar] [CrossRef] - Lopez-Galilea, I.; Koßmann, J.; Kostka, A.; Drautz, R.; Roncery, L.M.; Hammerschmidt, T.; Huth, S.; Theisen, W. The thermal stability of topologically close-packed phases in the single-crystal Ni-base superalloy ERBO/1. J. Mater. Sci.
**2016**, 51, 2653–2664. [Google Scholar] [CrossRef]
