Influence of ZnO Morphology on the Functionalization Efficiency of Nanostructured Arrays with Hemoglobin for CO₂ Capture

Abstract

In this study, nanostructured ZnO arrays were synthesized by an accessible thermal oxidation (TO) methodology. The Zn films were chemically etched with nitric acid (HNO₃) and then oxidized in a furnace at 500 °C for 5 h. Two different morphologies were achieved by modifying the HNO₃ concentration in the etching process: (a) ZnO grass-like nanostructures and (b) rod-like nanostructures, with an etching process in HNO₃ solution at 2 and 8 M concentration, respectively. The physical and chemical properties of the samples were analyzed by X-ray diffraction (XRD), scanning (SEM) and transmission electron microscopy (TEM), energy dispersive X-ray spectroscopy (EDS), and Raman spectroscopy. Both morphologies were functionalized with hemoglobin, and a difference was found in the efficiency of functionalization, which was monitored by UV–Vis spectroscopy. The sample with the highest efficiency was the ZnO grass-like nanostructures. Afterward, the capture of carbon dioxide was evaluated by monitoring a sodium carbonate solution interacting with the as-functionalized samples. The evaluation was analyzed by UV–Vis spectroscopy and the results showed a CO₂ capture of 98.3% and 54% in 180 min for the ZnO grass-like and rod-like nanostructures, respectively.

1. Introduction

Today, energy production is still dominated by fossil-fuel-based power plants such as thermoelectric stations, coal plants, or gas plants [1]. As a consequence, the energy industry produces around 30 gigatons of carbon dioxide (CO₂) emissions every year [2]. This has led to resource depletion, an increase in costs, and a severe negative environmental impact as global temperatures increasingly rise, ice poles melt, and the number of forest fires increases [3]. CO₂ is considered the main cause of the greenhouse effect. In just one century, it has managed to increase the planet’s temperature by 0.6 K. This temperature increase has contributed to the most significant changes in the last two decades [4]. As the Earth’s average temperature has increased, many consequences have appeared, such as the rising sea level, promotion of ocean acidification, imbalance of ecosystems, and threats to the life of the species that inhabit them [5]. In addition, great efforts have been made by the scientific community to reduce and control CO₂ emissions. Among the recent proposals, CO₂ capture has appeared as an alternative that takes advantage of the chemical nature of this molecule to trap it on the surface of an active material [6]. CO₂ capture constitutes one step of the artificial photosynthesis (AP) process, which transforms the CO₂ molecule into products such as alcohols and light hydrocarbons, which constitute the current fuels employed by humans in small systems such as gas stoves and water heaters [7]. The AP process comprises systems to convert solar energy into chemical energy [7]. This can be achieved through different nanostructured materials that allow the absorption of light, transportation of electrons, and capture and modification of CO₂ molecules [8]. Thus, proposals for the development of each step that conforms to the process of AP (such as CO₂ capture) are important, and each effort contributes to solving the problems that the surplus of CO₂ in the atmosphere has brought.

Zinc oxide (ZnO) is a widely studied semiconductor material. The ZnO has been obtained as an array of micro- and nanostructures with modified chemical and physical properties. These characteristics make it useful for applications such as gas sensors [9], pressure sensors [10], photonic sensors [11], photodegradation of water pollutants [12,13], optical material for high-power laser applications [14], a highly efficient catalyst for various organic reactions [15], and for corrosion protection and self-cleaning for intelligent surface development [16] or CO₂ capture [17]. These previously mentioned applications are related to the surface properties of ZnO. The electronic properties of ZnO allow the capture of molecules such as CO₂ [17]. Among the methodologies for obtaining ZnO, thermal oxidation (TO) is an accessible technique that promotes modification of the surface due to defects in induction- and atomic-restructuration-related processes [18,19]. Recently, the chemical modification of the Zn surface before TO has become a useful tool to obtain different ZnO morphologies with variations in chemical and physical surface properties in a very accessible way [12,19].

Hemoglobin (Hb) is a molecule capable of transporting mainly O₂ and CO₂. This action depends on factors such as the hydrogen potential (pH), partial pressure of oxygen (pO₂), and partial pressure of carbon dioxide (pCO₂) [20]. At a high pH, Hb mainly transports oxygen; however, at a low pH, Hb can transport 15% to 20% of the undissociated CO₂ in the blood. This transportation is achieved by binding the molecules to hemoglobin at the N terminals of the chains through a reaction [10,21]. Thus, the Hb molecule can be combined with semiconductor materials to promote CO₂ capture. As ZnO has interesting surface properties, which drive the many applications mentioned before, it is a great candidate to serve as a base to be linked with Hb [22]. Even though ZnO has been functionalized with many molecules in other studies that focused on CO₂ capture (such as benzimidazole-based ionic liquid [23], carbon nitride [24], and multiwalled carbon nanotubes and SiO₂ [25]), finding accessible methodologies for achieving a commercial device is a current need [26]. Furthermore, understanding the relationship between the morphology in an inorganic material and the functionalization efficiency with an organic molecule is a topic of great interest for many applications [27].

This paper presents a contribution to the development of accessible CO₂ capture materials by understanding the relationship between the surface properties of ZnO nanostructures and the efficiency of functionalization with Hb. In this study, two kinds of ZnO nanostructures were synthesized by etching treatment in nitric acid, followed by TO. Afterward, the ZnO nanostructures were functionalized with a Hb molecule. The efficiency of the Hb functionalization process was studied in each morphology by UV–Vis spectroscopy. The CO₂ capture was evaluated by monitoring the spectroscopic changes in carbonate dilution across time. The influence of morphology on the surface properties of the ZnO nanostructures was determined. In addition, the influence of ZnO morphology on the CO₂ capture effectiveness was discussed.

2. Materials and Methods

2.1. Chemicals and Reagents

In this study, zinc foil (Zn, SKU: GF00595391, SIGMA-ALDRICH, USA) was used as a substrate for the growth of ZnO. Nitric acid (HNO₃, SKU: 225711-475ML, SIGMA-ALDRICH, USA), hydrogen chloride (HCl, SKU: 17935-250ML, SIGMA-ALDRICH, USA), sodium carbonate (Na₂CO₃, SKU: 223484-500G, SIGMA-ALDRICH, USA), ethanol (CH₃CH₂OH, SKU: 1070179026, SIGMA-ALDRICH, USA), deionized water (Resistivity of 18 MΩ), ammonia (NH₃, SKU: 294993, SIGMA-ALDRICH, USA), tetraethyl orthosilicate (TEOS, SKU: 333859, SIGMA-ALDRICH, USA), and chromatographic nitrogen (N₂) were commercially acquired and used in the experiments without further purification processes.

2.2. Synthesis of the Nanostructured ZnO Array

The nanostructured ZnO arrays were obtained by the known thermal oxidation (TO) methodology [12,19]. Two morphologies were selected from our past studies [19,28]: (a) ZnO grass-like nanostructures and (b) cane-like nanostructures. To create the ZnO grass-like nanostructures, the Zn film was cleaned in a HCl solution for 10 min to remove organic pollutants attached to the surface of the Zn foil. Then, the Zn substrate was etched into a 2 M HNO₃ solution for 1 min. To create the ZnO rod-like nanostructures, the Zn foil was cleaned in an HCl solution for 10 min, and was subsequently etched into an 8 M HNO₃ solution for 1 min. In both cases, the samples were cleaned in deionized water after each step and were immediately afterward dried by a N₂ flux of 20 L/min. Afterward, the samples were oxidized under a 20% of oxygen (weight) in the atmosphere at 500 °C. The oxidation process was continued for 5 h by an isothermal process in a horizontal furnace. After the oxidation process, the samples were rinsed using deionized water and dried under a N₂ flux.

2.3. Characterization of Physic and Chemical Properties

Once the samples were synthesized, the chemical and physical properties of the samples were compared. The structural features were analyzed by X-ray diffraction (XRD) by a Bruker D8 Eco Advance diffractometer. The excitation source was a copper tube with Kα radiation (λ = 1.5418 Å). The achieved morphologies in the ZnO arrays were studied by field-emission scanning electron microscopy (FESEM). The electron microscopy was a JEOL 7401F model equipped with an energy dispersive spectroscopy (EDS) system, which was employed to determine the chemical composition of samples. The evolution of atoms in the individual nanostructures of the ZnO arrays was analyzed across the TO process by transmission electron microscopy (TEM) in high-resolution (HRTEM) mode, employing a transmission electron microscope (JEOL ARM200F model). The vibrational modes exhibited by the samples were analyzed by Raman spectroscopy in INTEGRA Spectra equipment with a green laser as the excitation source (wavelength of 532 nm).

2.4. Functionalization of Nanostructured ZnO Array with Hemoglobin

For Hb functionalization, Hb was diluted in deionized water to obtain a 2 mM aqueous solution. The ZnO structures were preconditioned for interacting with the Hb molecule. Thus, 500 mL of ethanol, 500 mL of deionized water, and 400 mL of ammonia were mixed and placed in an ultrasonic bath for 10 min. Afterward, the ZnO nanostructures and 500 mL of the TEOS were added to the previously mentioned mixture. The mixture was agitated for 8 h at room temperature (RT). Then, the ZnO structures were removed from the reaction and immersed in deionized water to remove the remanent molecules. The preconditioned ZnO structures were immersed in the aqueous dispersion of Hb at a temperature of 80 °C for 1 h and then suddenly cooled down at 0 °C. Afterward, the samples were held at this temperature for 180 min. The remanent liquid was analyzed every 30 min by measuring the absorbance spectra with a UV–Vis spectrometer (i3 UV-VIS SPECTROPHOTOMETER, Hanon Instruments) to determine the percentage of Hb functionalized with the ZnO structure.

2.5. Evaluation of CO₂ Capture

The capability of the samples (Hb-functionalized ZnO structures) for CO₂ capture was studied. The samples were exposed to CO₂ (gas) coming from the following reaction:

$${\mathrm{Na}}_2{\mathrm{CO}}_3+2\mathrm{HCl} \to 2\mathrm{NaCl}+{\mathrm{H}}_2\mathrm{O}+{\mathrm{CO}}_2$$

(1)

The samples’ interaction with CO₂ was performed in a hermetic quartz cell to determine the functionality of the immobilized Hb for CO₂ capture. Thus, a Na₂CO₃ solution (186 mM concentration) was employed for the test. The CO₂ adsorption was indirectly measured from the absorbance signal measured from the remanent solution across time with a UV–Vis spectrometer (i3 UV-VIS SPECTROPHOTOMETER, Hanon Instruments). Absorbance spectra were recorded at room temperature every 15 min for 180 min.

3. Results and Discussion

3.1. Morphological and Structural Characterization of ZnO Arrays

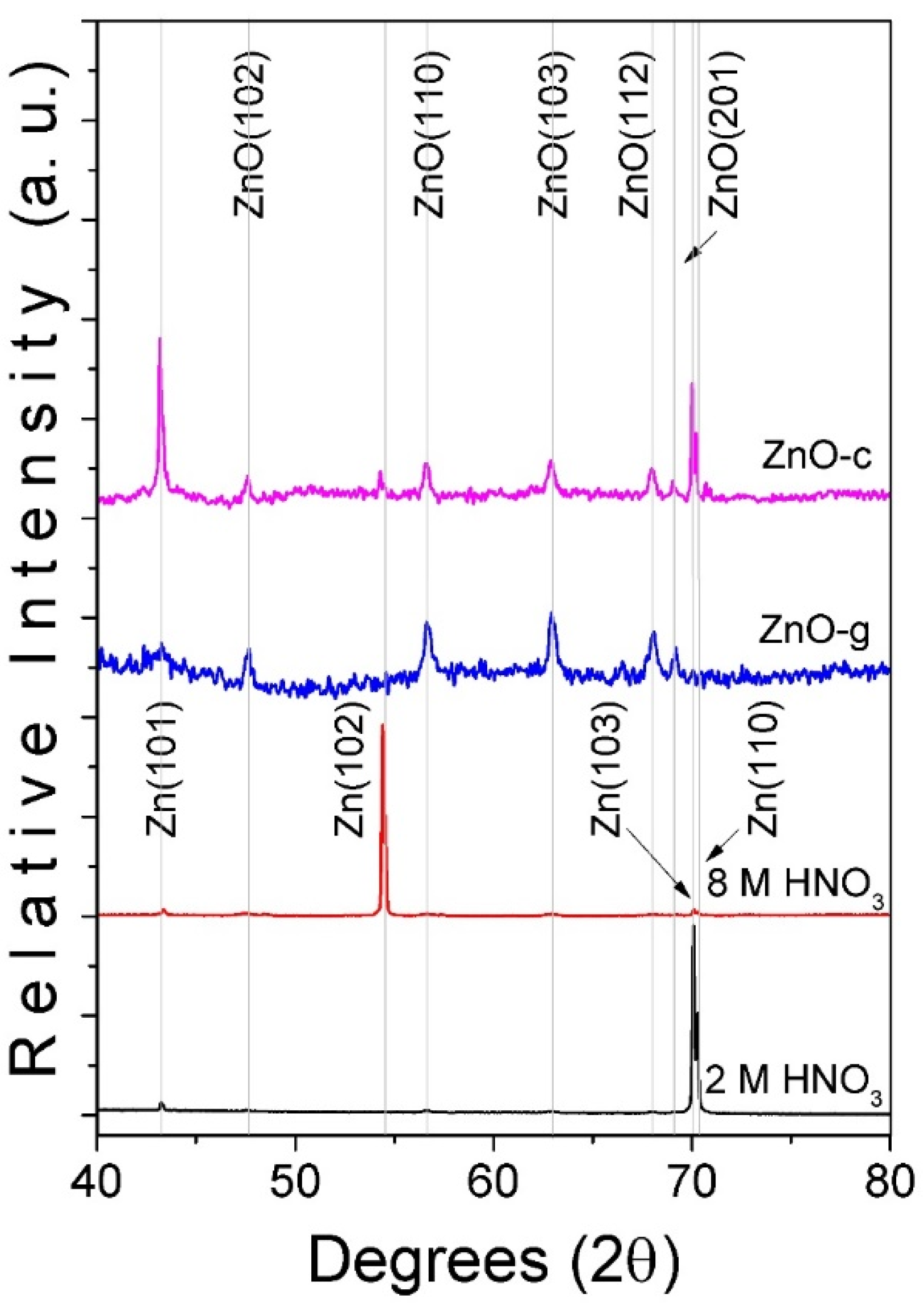

A comparison between the XRD pattern of the Zn foil after the HNO₃ etching process under a solution with 2 and 8 M concentrations is shown in Figure 1. The XRD pattern was measured before and after the TO process for both etching conditions. When the Zn foil was etched with the 2 M HNO₃ solution, three peaks at 43.22, 70.09, and 70.29 degrees were found to be in agreement with the diffraction exhibited by the (101), (103), and (110) planes in the hexagonal Zn phase (PDF # 04–0831). For the Zn foil etched with the 8 M HNO₃ solution, three peaks were located at 43.38, 54.40, and 70.08 degrees. These peaks were in agreement with the (101), (102), and (103) planes of the hexagonal Zn phase (PDF # 04–0831). In the Zn foil etched with the lower concentration, a predominant intensity of the plane (103) was observed, while the sample etched with the higher concentration promoted the prevalence of (102) plane exposition. These observations suggest that the concentration of HNO₃ has an important effect on the plane exposition in a similar way that was reported in the grain observation process for metallurgical practices [29]. After the oxidation process was completed, the peaks located at 47.67, 56.60, 62.91, 68.06, and 69.19 degrees were found in the sample treated with 2 M HNO₃ solution, which is labeled as ZnO-g in Figure 1. The peaks located at 47.59, 56.64, 62.91, 67.98, and 69.04 were found in the sample etched with 8 M HNO₃. In both cases, the peaks corresponded with the diffraction of the (102), (110), (103), (112), and (201) planes for the wurtzite hexagonal structure of ZnO (PDF # 036–1451). Both samples exhibited the diffraction of the (101) and (103) planes for Zn, which indicated that the substrate was not totally oxidized during the TO process.

Figure 2 shows a comparison between the obtained morphology from the Zn foil after the TO process across the explored etching conditions. As can be seen, both conditions led to nanostructures growing on the entire surface of the substrate. The sample etched with the 2 M HNO₃ solution was obtained with grass-like morphology (see Figure 2a), while the sample etched with the 2 M HNO₃ solution exhibited cane-like morphology (see Figure 2b). A close examination of both kinds of structures showed that ZnO grass-like structures (ZnO-g) were formed by flat structures with an average area of 1 ± 0.01 µm² and a thickness of 10 ± 0.2 nm (see Figure 2c). The ZnO cane-like structures (ZnO-c) were 100 ± 0 0.5 nm in length and had a diameter of 10 nm ± 0.1 nm. In addition, EDS was performed on each sample after the TO process, finding Zn and O as unique elements. This suggested that this methodology offers a great level of clean control for obtaining ZnO. For the ZnO-g (see Figure 2e), the amount of Zn was less than that found in the ZnO-c (see Figure 2f). This suggested that the etching with a higher concentration of HNO₃ promotes a reduction in oxidation in the Zn substrates, showing the signal of Zn that was not fully oxidized.

3.2. Growing Path of ZnO Arrays

The individual structures were analyzed by electron microscopy to identify the differences in the interfaces of ZnO grass-like structures (see Figure 3a) and ZnO cane-like structures (see Figure 3c). Once the samples were imaged by HRTEM, the interplanar distance was measured, and we an average distance of 2.85 Å for the ZnO-g and 1.95 Å for the ZnO-c structures. Thus, according to the measured data, the prevalence of plane (010) in the ZnO grass-like structures was revealed (see Figure 3b), while the plane (012) was found in high density on the ZnO cane-like structures (see Figure 3d). The difference in the exposed planes in each kind of structure explained the resulting morphology for each substrate, as was seen in other studies [12].

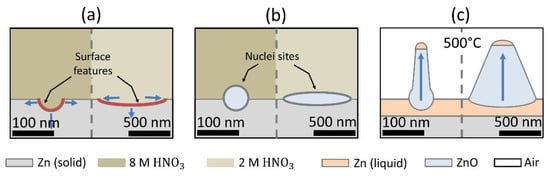

According to the results, the Zn etching made with HNO₃ is an important factor in producing morphological changes on the surface of the substrates that influence the final characteristics of the ZnO samples. It was reported [30] that oxide preferential growth occurs in Zn zones affected by etching along grain boundaries and scratches on nano-scaled dimensions. These nanostructured oxide regions [31] act as nuclei for further ZnO surface array deposition, as shown in Figure 2. Yu et al. [31] explained that ZnO nanowire deposition occurs at temperatures between the Zn melting and boiling point by means of two mechanisms: first, the development of ZnO nuclei sites formed by vapor-solid action; second, the nanowire formation controlled by the vapor–liquid mechanism. The oxidation temperature (T) in the experiments carried out in this study was 600 °C, which is a temperature between the Zn melting and boiling points (420 °C < T < 907 °C) [31]. The ZnO nanofeatures’ growth can be explained by the liquid–solid growth mechanism with preferential nucleation on the oxidized Zn nuclei first produced by acid etching [30] and then by the initial thermal process [30,31]. A scheme showing the influence of HNO₃ etching on the growth mechanism is depicted in Figure 4. The process starts with the formation of surface features by acid etching; according to the results, a nitric acid concentration of 2 M induces scratches on the surface, and the 8 M concentration promotes spherical craters; scratches and craters are marked in red in the scheme in Figure 4a. On the etched surface, nanostructured oxide formation takes place (Figure 4b), mainly on the features promoted by etching (preferential sites for oxidized nuclei formation). Finally, when the temperature reaches the isothermal point, at 500 °C, which is a temperature between Zn melting and boiling points [31], the known liquid–solid growth mechanism controls the arrays’ growth, with surface features acting as nucleation sites (Figure 4c), allowing the formation of ZnO surface nanoarrays on Zn foils.

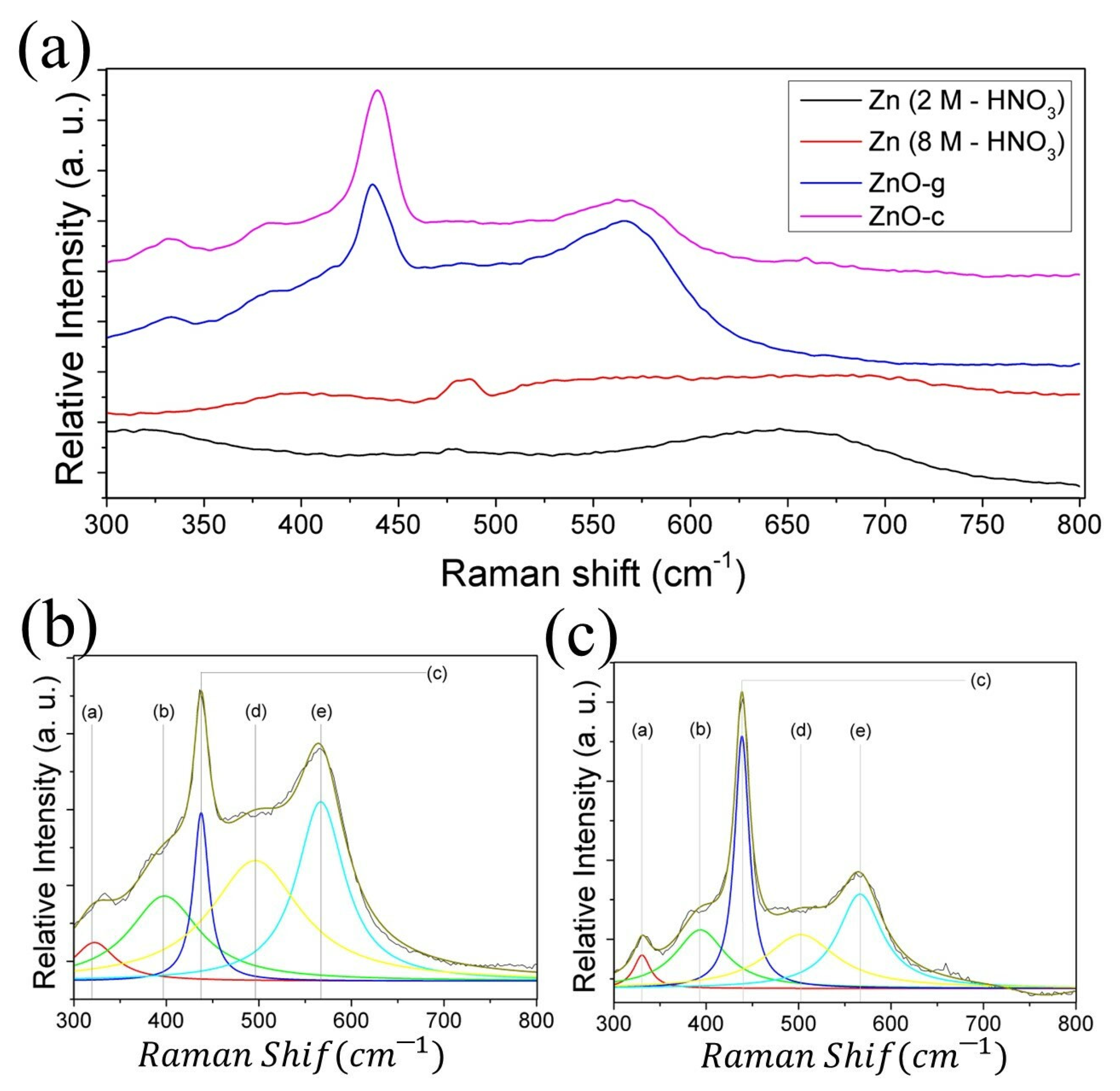

The Raman spectra were recorded to understand the structural differences between the ZnO grass-like and ZnO cane-like nanostructures. Figure 5 shows a comparison between the spectra recorded from the Raman spectroscopy from the Zn foils etched with the 2 and 8 M HNO₃ solutions before and after TO. As shown, the Raman shift was completely modified after the TO process. A Lorentzian fit was applied to the spectra recorded from the ZnO grass-like (see Figure 5b) and ZnO cane-like (see Figure 5c) nanostructures. In both samples, six vibrational modes were identified (see

Table 1. Comparison of Raman shift values for vibrational modes between the as-oxidized ZnO structures previously etched with 2 M (ZnO-g) and 8 M (ZnO-c) HNO₃ solutions. Note that * point a vibrational mode not reported for ZnO.

Vibrational Mode	ZnO-g (cm−1)	ZnO-c (cm−1)	Label in Figure 5	ZnO Bulk (cm−1) [33,34]	Nanotubes ZnO (cm−1) [32]
E2 (H)–E2 (L)	321.97	331.03	(a)	321	331
A1 (TO)	387.51	392.98	(b)	384	383
E2 (H)	437.29	438.80	(c)	438	437
*	486.72	502.26	(d)	-	-
E1 (LO)	567.23	566.22	(e)	580	578

). The E₂ (H)–E₂ (L), A₁ (TO), E₂ (H), and E₁ (LO) vibrational modes corresponded to the ZnO phase and were localized in all samples [19,32,33,34,35]. Although the same vibrational modes were found in both kinds of structures, the relationship between the area under the curve of the E₂ (H) mode with respect to the others was different in the ZnO-g and ZnO-c. These results suggested a difference in the defect concentration from one sample to another, which could have a significant impact on the functionalization efficiency of the Hb molecule.

3.3. Hb Functionalization of ZnO Nanostructures and CO₂ Capture

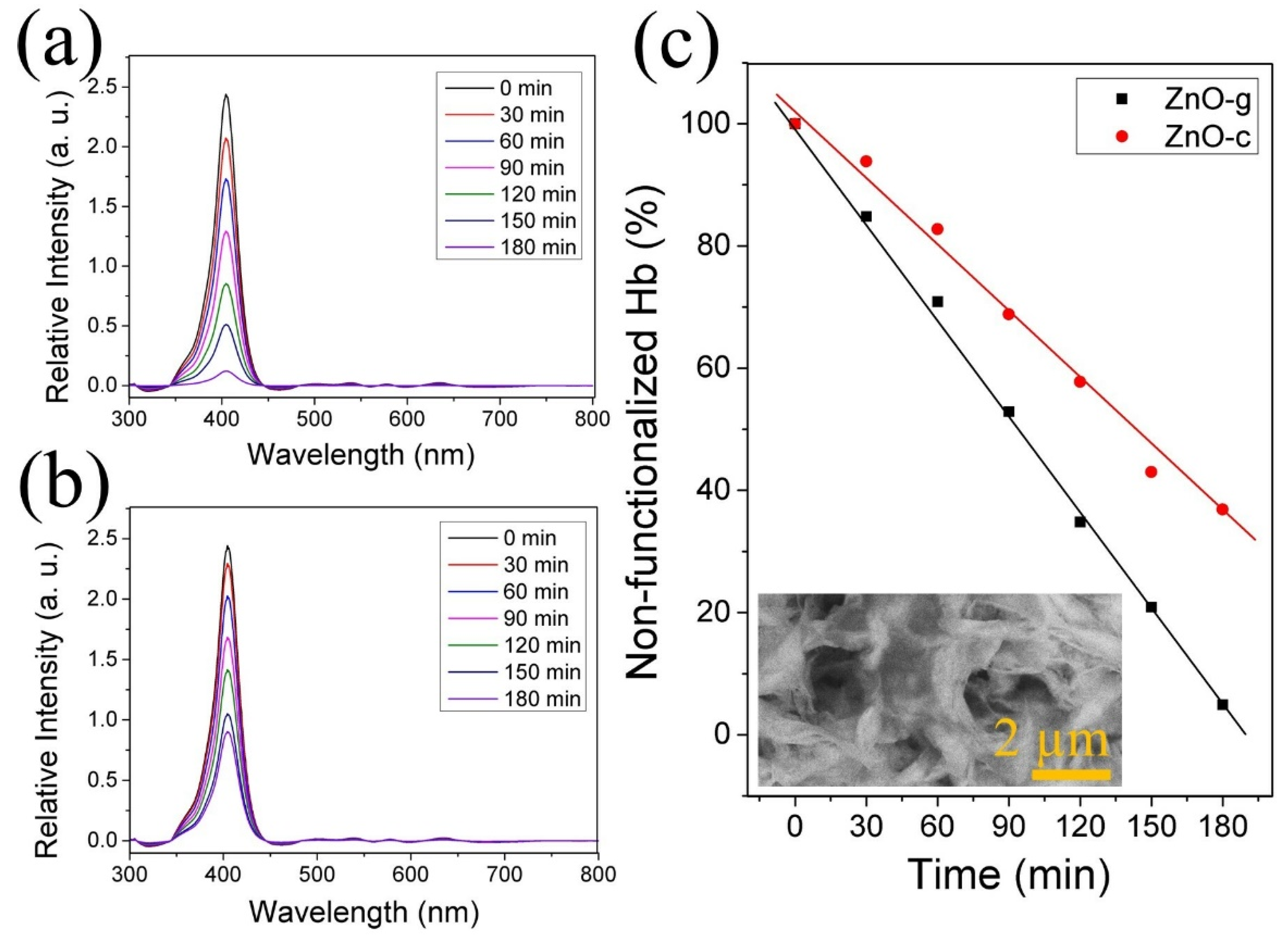

The supernatant from the Hb-functionalization reaction was analyzed over time with UV–Vis spectroscopy (see Section 2 for details). Figure 6a shows the remnant from the interaction of Hb with the ZnO grass-like structures, while Figure 6b shows the results from the interaction with the ZnO cane-like structures. By comparing these figures, it is clear that the ZnO grass-like structures exhibited a high efficiency for attaching to Hb molecules on the surface. This is clearest in Figure 6c, where the percentage of remnant Hb molecule over the reaction time is depicted. The cane-like structures presented the slowest functionalization rate and achieved a 32.1% Hb-functionalization efficiency. In comparison, the grass-like structures exhibited the fastest rate with an efficiency of 99.2%. This difference in Hb-functionalization efficiency could be attributed to the predominance of the (010) plane in the grass structures, along with the high density of defects in ZnO. This difference in functionalization efficiency due to morphology was seen in other systems [27]. The insert in Figure 6c shows the Hb-functionalized ZnO grass-like structures after the whole process, where a complete surface modification can be seen, possibly due to the incorporation of the Hb molecule at the surface of the sample.

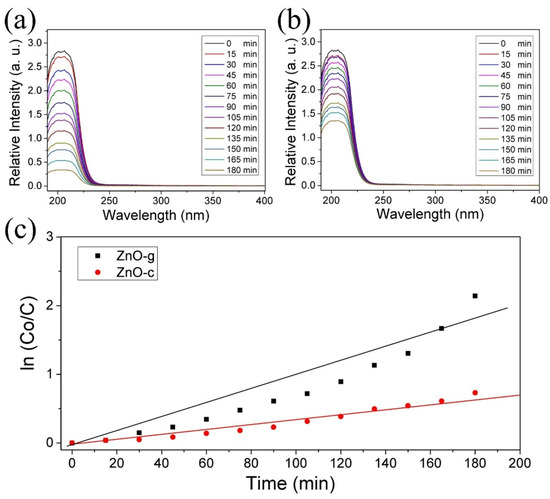

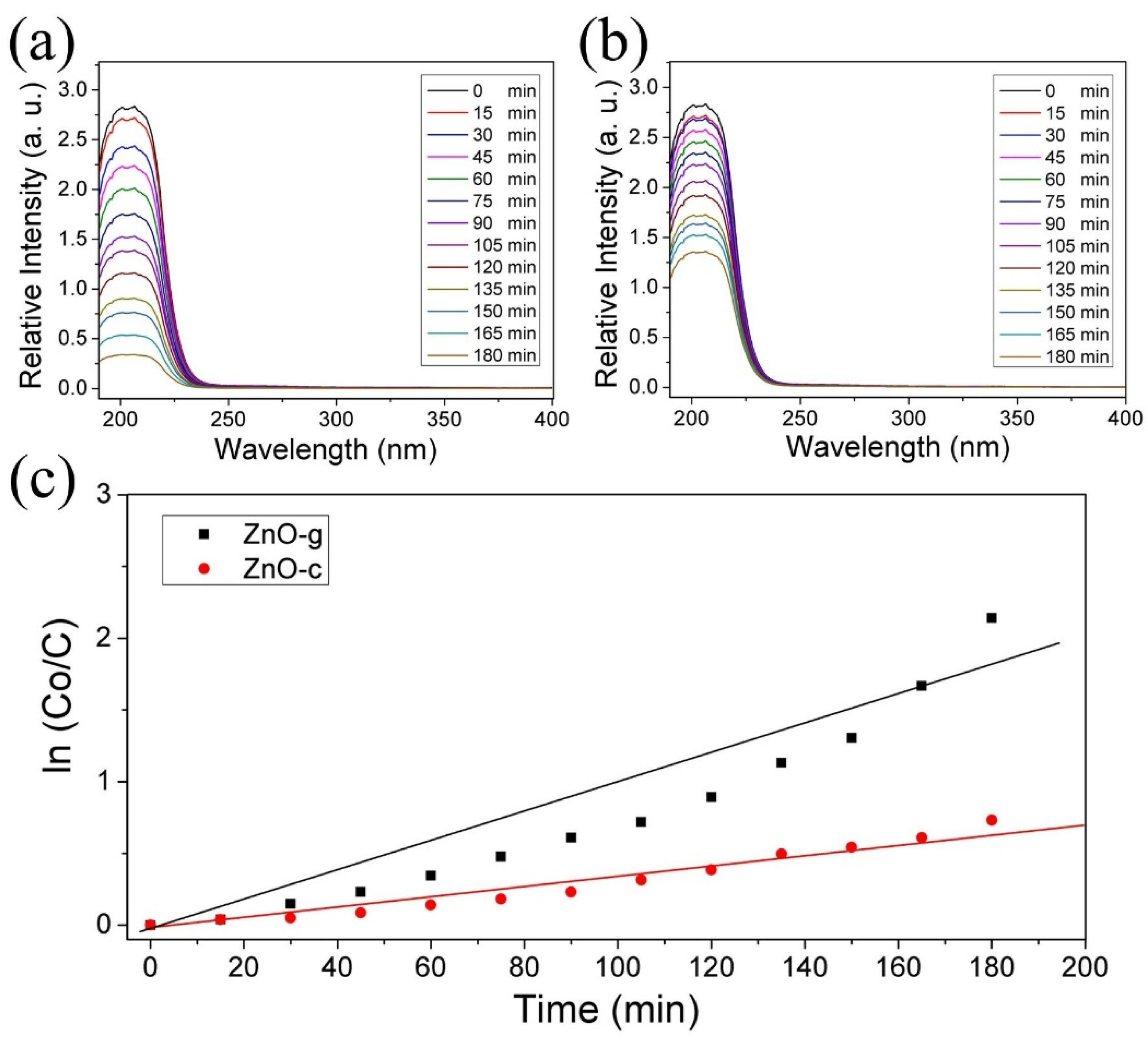

The CO₂ capture due to the Hb-functionalized ZnO structures was indirectly measured by the absorption spectra of sodium carbonate (see details in Section 2). The reaction for obtaining CO₂ presented an absorption peak below 250 nm. Thus, the decrease in this intensity was indicative of CO₂ capture. Note that the shape of the UV–Vis spectrum did not change in the entire process. This could be explained because the molecules in the sample not changing their chemical structure by the interaction with the ZnO structures. The intensity of the UV–Vis spectrum decreased over time because some molecules were trapped by the ZnO; here, this was the CO₂ molecule. As Figure 7a shows, the ZnO grass-like structures allowed significant CO₂ capture after 180 min, with a 98.3% of reduction in the initial intensity. The ZnO cane-like structures exhibited a 54% of reduction in intensity after 180 min of exposure to the Na₂CO₃ solution (see Figure 6b). To compare the rate of CO₂ adsorption, the kinetics of the reaction was computed according to the following equation:

$$\ln \left[\frac{C_O}{C}\right]=kt$$

where C_O is the concentration when time is equal to zero, C is the concentration at time (t), and k is the reaction rate constant [12]. For the sample ZnO-g, the k at 180 min was computed as 0.0118, while that for sample ZnO-c was 0.0040. This provided evidence of a the great difference in CO₂ capture promoted by the morphology in the ZnO arrays. The ZnO can capture CO₂ by itself [17]. According to our results, the morphology of ZnO nanostructures influences the functionalization efficiency with Hb because of the charge distribution on the surface (which is directly related to the structural properties). These observations are in agreement with the theoretical results reported by Usseinov et al. [17]. After the Hb-functionalization process, both kinds of ZnO nanostructures adsorbed the CO₂ molecule by the known interaction between the hemoglobin and CO₂ molecule [36]. Thus, the CO₂ capture difference depends on the Hb efficiency achieved by each ZnO nanostructure.

4. Conclusions

In this study, ZnO grass-like (ZnO-g) and ZnO cane-like (ZnO-c) nanostructures were obtained as an array with an accessible thermal oxidation technique. The ZnO-g structures were mainly constituted by the (010) plane, while the ZnO-c structures were mainly constituted by the (012) plane. The growth and formation of both kinds of ZnO structures explored in this study can be explained by the vapor–liquid mechanism influenced by the HNO₃ etching treatment. The ZnO structures were functionalized with hemoglobin, and we found that the ZnO grass-like structures exhibited the best efficiency, possibly due to the predominance of the (010) plane at the interface. This kind of structure also presented the best efficiency for CO₂ capture, with a 98.3% of initial concentration after 180 min.
