# Path Dependency of Plastic Deformation in Crystals: Work Hardening, Crystallographic Rotation and Dislocation Structure Evolution

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The Research Progress of Studies on Metallic Single Crystals under Tension

#### 2.1. The Effects of the Crystal Rotation of Metallic Single Crystals on Strain Hardening

#### 2.2. The Effects of Dislocation Evolution on Strain Hardening under Tension

## 3. The Work Hardening Mechanism of Single Crystals That were Deformed by Shear

#### 3.1. Different Methods for Shear

#### 3.2. Research on Metallic Single Crystals under Microshear

#### 3.3. Investigations on the Path Dependency of Single Crystals That Were Deformed by Shear

#### 3.4. The Effects of Dislocation Evolution on the Work Hardening of a Single Crystal That Was Deformed by Shear

## 4. Concluding Remarks and Prospective Future Research

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Bellis, J.D.; Bellucci, L.; Bottaro, G.; Labella, L.; Marchetti, F.; Samaritani, S.; Dell’Amico, D.B.; Armelao, L. Single-crystal-to-single-crystal post-synthetic modifications of three-dimensional LOFs (Ln = Gd, Eu): A way to modulate their luminescence and thermometric properties. Dalton Trans.
**2020**, 49, 2–26. [Google Scholar] [CrossRef] - Hosono, Y.; Harada, K.; Shimanuki, S.; Saitoh, S.; Yamashita, Y. Crystal growth and mechanical properties of Pb[(Zn
_{1/3}Nb_{2/3})_{0.91}Ti_{0.09}]O_{3}single crystal produced by solution bridgman method. Jpn. J. Appl. Phys.**1999**, 38, 5512–5515. [Google Scholar] [CrossRef] - Fang, Q.; Harada, K.; Shimanuki, S.; Wang, S.J.; Liang, Z.; Jiang, C.Y. Bridgman growth of LiYF
_{4}single crystal in nonvacuum atmosphere. Chin. Opt. Lett.**2010**, 8, 1071–1074. [Google Scholar] [CrossRef][Green Version] - Mizuno, K.; Yamamoto, S.; Okamoto, H. Ultrahigh-purity aluminium single crystals with a low dislocation density grown by strain-annealing method. J. Cryst. Growth
**2002**, 237–239, 367–372. [Google Scholar] [CrossRef] - Ciulik, J.; Taleff, E.M. Dynamic abnormal grain growth: A new method to produce single crystals. Scr. Mater.
**2009**, 61, 895. [Google Scholar] [CrossRef] - Mayerhofer, T.G. Symmetric Euler orientation representations for orientational averaging. Spectrochim. Acta Part A
**2005**, 61, 2611–2621. [Google Scholar] [CrossRef] - Stricker, M.; Sudmanns, M.; Schulz, K.; Hochrainer, T.; Weygandet, D. Dislocation multiplication in stage II deformation of fcc multi-slip single crystal. J. Mech. Phys. Solids
**2018**, 119, 319–333. [Google Scholar] [CrossRef] - Abe, T.; Ono, Y. Numerical study of grain rotation in polycrystalline metal during plastic deformation. Met. Mater.
**1998**, 4, 376–379. [Google Scholar] [CrossRef] - Chen, P.; Mao, S.C.; Liu, Y.; Wang, F.; Han, X.D. In-situ EBSD study of the active slip systems and lattice rotation behaviour of surface grains in aluminium alloy during tensile deformation. Mater. Sci. Eng. A
**2013**, 580, 114–124. [Google Scholar] [CrossRef] - Han, J.H.; Jee, K.K.; Oh, K.H. Orientation rotation behaviour during in situ tensile deformation of polycrystalline 1050 aluminium alloy. Int. J. Mech. Sci.
**2003**, 45, 1613–1623. [Google Scholar] [CrossRef] - Kota, N.; Burak Ozdoganlar, O. A model-based analysis of orthogonal cutting for single-crystal fcc metals including crystallographic anisotropy. Mach. Sci. Technol.
**2010**, 14, 102–127. [Google Scholar] [CrossRef] - Seeger, A.; Diehl, J.; Mader, S.; Rebstock, H. Work-hardening and work-softening of face-centred cubic metal crystals. Philos. Mag.
**1957**, 2, 323–350. [Google Scholar] [CrossRef] - Mitchell, T.E.; Spitzig, W.A. Three-stage hardening in tantalum single crystals. Acta Metall.
**1965**, 13, 1169–1179. [Google Scholar] [CrossRef] - Takeuchi, T. Work hardening of copper single crystals with multiple glide orientations. Trans. Jpn. Inst. Met.
**1975**, 16, 629–640. [Google Scholar] [CrossRef][Green Version] - Yoshida, Y.; Shibano, J.I.; Fukuda, K.I.; Terabayashi, K.; Eguchi, M.; Kajiwara, K.; Shobu, T.; Shiro, A. Crystal rotation and microstructures in an aluminium single-slip system under tensile loading. Mater. Charact.
**2018**, 146, 121–126. [Google Scholar] [CrossRef] - Sun, W.C.; Lu, S. A new model for elastic moduli of single-crystal superalloy considering the effect of crystal orientation. J. Comput. Theor. Nanosci.
**2012**, 12, 262–266. [Google Scholar] [CrossRef] - Picak, S.; Liu, J.; Hayrettin, C.; Nasim, W.; Karaman, I. Anomalous work hardening behaviour of Fe40Mn40Cr10Co10 high entropy alloy single crystals deformed by twinning and slip. Acta Mater.
**2019**, 181, 555–569. [Google Scholar] [CrossRef] - Yu, J.; Dong, C.; Zhang, Q.; Li, B.; Liu, R. Temperature and crystal orientation dependence of dislocation slip and twin nucleation in bilayer Ni/Ni3Al interface. Comput. Mater. Sci.
**2019**, 162, 162–170. [Google Scholar] [CrossRef] - Kong, U.; Davepon, B. Microstructure of polycrystalline Ti and its microelectrochemical properties by means of electron-backscattering diffraction. Electrochim. Acta
**2001**, 47, 149–160. [Google Scholar] [CrossRef] - Tong, V.; Jones, H.; Mingard, K. Micropillar compression of single crystal tungsten carbide, Part 2: Lattice rotation axis to identify deformation slip mechanisms. Int. J. Refract. Met. Hard Mater.
**2022**, 103, 105734. [Google Scholar] [CrossRef] - Han, J.H.; Kim, D.I.; Jee, K.K.; Oh, K.H. In-situ orientation rotation behaviour study during tensile deformation of aluminium single crystal and polycrystal. Mater. Sci. Forum
**2004**, 449–452, 593–596. [Google Scholar] [CrossRef] - Luo, Z.; Yoshino, M.; Terano, M.; Yamanaka, A. Texture evolution in single crystal iron static recrystallization through in-situ EBSD observation. Procedia Manuf.
**2018**, 15, 1565–1572. [Google Scholar] [CrossRef] - Luis, A.Z.; Alexander, S.; Tomas, O.; Bertin, N.; Barton, N.R.; Freitas, R.; Bulatov, V.V. Atomistic insights in metal hardening. Nat. Mater.
**2021**, 20, 315–320. [Google Scholar] - Xu, A.; Wei, T.; Bhattacharyya, D. The effect of strain rate and orientation on He ion irradiated Ni single crystals—An in situ micro-tensile study. Intern. J. Plast.
**2020**, 126, 102627. [Google Scholar] [CrossRef] - Reichardt, A.; Ionescu, M.; Davis, J.; Edwards, L.; Harrison, R.P.; Hosemann, P.; Bhattacharyya, D. In situ micro tensile testing of He+2 ion irradiated and implanted single crystal nickel film. Acta Mater.
**2015**, 100, 147–154. [Google Scholar] [CrossRef][Green Version] - Su, J.; Zhu, X. In-situ TEM observation of preferential amorphization in single crystal Si nanowire. Nanotechnology
**2018**, 29, 235703. [Google Scholar] [CrossRef][Green Version] - Namazu, T.; Inoue, S. Characterization of single crystal silicon and electroplated nickel films by uniaxial tensile test with in situ X-ray diffraction measurement. Fatigue Fract. Eng. Mater. Struct.
**2010**, 30, 13–20. [Google Scholar] [CrossRef] - Zhang, W.J.; Lu, J.X.; Wang, J.; Sang, L.J.; Ma, J.Y.; Zhang, Y.F.; Zhang, Z. In-situ EBSD study of deformation behaviour of Inconel 740H alloy at high-temperature tensile loading. J. Alloy. Componds
**2020**, 820, 153424. [Google Scholar] [CrossRef] - Burger, D.; Dlouhy, A.; Yoshimi, K.; Eggeler, G. On the stress and temperature dependence of low temperature and high stress shear creep in Ni-base single crystal superalloys. Mater. Sci. Eng. A
**2020**, 795, 139961. [Google Scholar] [CrossRef] - Mayer, A.E.; Krasnikov, V.S.; Pogorelko, V.V. Dislocation nucleation in Al single crystal at shear parallel to (111) plane: Molecular dynamics simulations and nucleation theory with artificial neural networks. Int. J. Plast.
**2021**, 139, 102953. [Google Scholar] [CrossRef] - Lilensten, L.; Couzinie, J.P.; Perriere, L.; Hocini, A.; Keller, C.; Dirras, G.; Guillot, I. Study of a bcc multi-principal element alloy: Tensile and simple shear properties and underlying deformation mechanisms. Acta Mater.
**2018**, 142, 131–141. [Google Scholar] [CrossRef] - Zhang, Y.; Wilson, C. Lattice rotation in polycrystalline aggregates and single crystals with one slip system: A numerical and experimental approach. J. Struct. Geol.
**1997**, 19, 875–885. [Google Scholar] [CrossRef] - Butler, B.G.; Paramore, J.D.; Ligda, J.P.; Ren, C.; Fang, Z.Z.; Middlemas, S.C.; Hemker, K.J. Mechanisms of deformation and ductility in tungsten—A review. Int. J. Refract. Met. Hard Mater.
**2018**, 75, 248–261. [Google Scholar] [CrossRef] - Rao, S.; Woodward, C.; Akdim, B.; Antillon, E.; Parthasarathy, T.A.; EI-Awady, J.A.; Dimiduk, D.M. Large-scale dislocation dynamics simulations of strain hardening of Ni microcrystals under tensile loading. Acta Mater.
**2019**, 164, 171–183. [Google Scholar] [CrossRef] - Mark, H.; Polanyi, M.; Schmid, E.; Physik, Z. Vorgänge bei der Dehnung von Zinkkristallen. Zeitschrift für Physik
**1923**, 12, 78–110. [Google Scholar] [CrossRef] - Schmid, E.; Boas, W. Kristallplastizität; Springer: Berlin, Germany, 1935. [Google Scholar]
- Vattre, A.; Devincre, B.; Roos, A. Orientation dependence of plastic deformation in nickel-based single crystal superalloys: Discrete–continuous model simulations. Acta Mater.
**2010**, 58, 1938–1951. [Google Scholar] [CrossRef] - Beardmore, P.; Hull, D. Deformation and fracture of tungsten single crystals. J. Less Common Met.
**1965**, 9, 168–180. [Google Scholar] [CrossRef] - Argon, A.S.; Maloof, S.R. Plastic deformation of tungsten single crystals at low temperatures. Acta Metall.
**1966**, 14, 1449–1462. [Google Scholar] [CrossRef] - Yang, J.R.; Wang, H.; Hu, R.; Zhang, F.; Li, S.M.; Liu, Y.; Luo, X.M. Atomistic simulation of orientation-dependent tension deformation behaviour of single crystal iridium. Rare Met. Mater. Eng.
**2019**, 48, 1380–1385. [Google Scholar] - Okada, T.; Fukuoka, T.; Liu, W.Y.; Inoko, F. Rotations involved in tensile deformation and recrystallization in Fe–11Cr–19Ni alloy single crystal. Isij Int.
**2007**, 40, 909–913. [Google Scholar] [CrossRef][Green Version] - Han, J.H.; Kim, D.I.; Jee, K.K.; Oh, K.H. Evolution of crystallographic orientations in an aluminium single crystal during tensile deformation. Mater. Sci. Eng. A
**2004**, 387–389, 60–63. [Google Scholar] [CrossRef] - Saai, A.; Tabourot, L.; Depres, C.; Louche, H. A fundamental model of aluminium single crystals behaviour with physical description of kinematic work hardening. Mater. Sci. Forum
**2007**, 550, 577–582. [Google Scholar] [CrossRef] - Paik, S.; Naveen Kumar, N.; Dutta, B.K.; Durgaprasad, P.V.; Tewari, R. Deformation of copper single crystals: Comparison of experimental results with crystal plasticity simulations. Mater. Today Commun.
**2020**, 24, 100997. [Google Scholar] [CrossRef] - Kim, K.H.; Koo, Y.M. In-situ X-ray diffraction study of single-slip-conditioned copper single crystals during uniaxial deformations. Philos. Mag. A
**2001**, 81, 479–488. [Google Scholar] [CrossRef] - Hosford, W.F. The Mechanics of Crystals and Textured Polycrystals; Oxford University Press: New York, NY, USA, 1993. [Google Scholar]
- Xu, A.; Saleh, M.; Davis, J.; Edwards, L.; Bhattacharyya, D. In-situ micro-tensile investigation of strain rate response along and directions in single crystal nickel. Int. J. Plast.
**2018**, 106, 129–144. [Google Scholar] [CrossRef] - Cottrell, A.H. Commentary. A brief view of work hardening. Dislocations Solids
**2002**, 11, vii–xvii. [Google Scholar] - Ungar, T.; Stoica, A.D.; Tichy, G.; Wang, X.L. Orientation-dependent evolution of the dislocation density in grain populations with different crystallographic orientations relative to the tensile axis in a polycrystalline aggregate of stainless steel. Acta Mater.
**2014**, 66, 251–261. [Google Scholar] [CrossRef] - Zheng, W.; Wangyue, Y.; Zuqing, S. Orientation dependency of shear stress-strain curves in B2-ordered Fe3Al single crystals deformed in tension at room temperature. Sci. China
**2002**, 45, 314–320. [Google Scholar] [CrossRef] - Tang, M.; Marian, J. Temperature and high strain rate dependence of tensile deformation behaviour in single-crystal iron from dislocation dynamics simulations. Acta Mater.
**2014**, 70, 123–129. [Google Scholar] [CrossRef][Green Version] - Song, W.; Wang, X.G.; Li, J.G.; Meng, J.; Sun, X.F. Effect of Ru on tensile behaviour and deformation mechanism of a nickel-based single crystal superalloy. Mater. Sci. Eng. A
**2021**, 802, 140430. [Google Scholar] [CrossRef] - Winther, G.; Huang, X. Dislocation structures. Part 2. Slip system dependence. Philos. Mag.
**2007**, 87, 5215–5235. [Google Scholar] [CrossRef] - Srivastava, K.; Weygand, D.; Caillard, D.; Gumbsch, P. Repulsion leads to coupled dislocation motion and extended work hardening in bcc metals. Nat. Commun.
**2020**, 11, 5098. [Google Scholar] [CrossRef] [PubMed] - Mishra, A.; Alankar, A. Revisiting dislocation reactions and their role in uniaxial deformation of copper single crystal micro-pillars. Model. Simul. Mater. Sci. Eng.
**2019**, 27, 005010. [Google Scholar] [CrossRef] - Devincre, B.; Kubin, L.P. Simulations of forest interactions and strain hardening in FCC crystals. Model. Simul. Mater. Sci. Eng.
**1994**, 2, 559. [Google Scholar] [CrossRef] - Jiao, B.; Zhao, Q.; Zhao, Y.; Li, L.; Li, J. The relationship between slip behaviour and dislocation arrangement for large-size Mo-3Nb single crystal at room temperature. J. Mater. Sci. Technol.
**2021**, 92, 208–213. [Google Scholar] [CrossRef] - Hansen, N.; Huang, X.; Winther, G. Effect of grain boundaries and grain orientation on structure and properties. Metall. Mater. Trans.
**2011**, 42, 613–625. [Google Scholar] [CrossRef] - Rahmati, S.; Veiga, R.; Jodoin, B.; Zuiga, A. Crystal orientation and grain boundary effects on plastic deformation of FCC particles under high velocity impacts. Materialia
**2021**, 15, 101004. [Google Scholar] [CrossRef] - Lim, H.; Noell, P.J.; Carroll, J.D. Crystallographic orientation dependent fracture behaviour in tantalum single crystals. Scr. Mater.
**2021**, 191, 76–80. [Google Scholar] [CrossRef] - Oh, S.H.; Legros, M.; Daniel, K.; Dehm, G. In situ observation of dislocation nucleation and escape in a sub-micrometer aluminium single crystal. Nat. Mater.
**2009**, 8, 95–100. [Google Scholar] [CrossRef] - Huang, X.; Winther, G. Dislocation structures. Part, I. Grain orientation dependence. Philos. Mag.
**2007**, 87, 5189–5214. [Google Scholar] [CrossRef] - Irwin, G.J.; Guiu, F.; Pratt, P.L. The influence of orientation on slip and strain hardening of molybdenum single crystal. Phys. Stat. Sol.
**1974**, 22, 685–698. [Google Scholar] [CrossRef] - Li, Y.; Chatterjee, S.; Martinez, E.; Ghoniem, N.; Po, G. On the cross-slip of screw dislocations in zirconium. Acta Mater.
**2021**, 208, 116764. [Google Scholar] [CrossRef] - Landau, P.; Shneck, R.; Makov, G.; Venkert, A. In-situ TEM study of dislocation patterning during deformation in single crystal. J. Phys. Conf. Ser.
**2010**, 241, 012060. [Google Scholar] [CrossRef][Green Version] - Burton, B. The dislocation network theory of creep. Philos. Mag. A
**1982**, 45, 657–675. [Google Scholar] [CrossRef] - Miyauchi, K. Rotation Problems in Simple Shear Deformation; Springer: Dordrecht, The Netherlands, 1991. [Google Scholar]
- G’Sell, C.; Gopez, A.J. Plastic banding in glassy polycarbonate under plane simple shear. J. Mater. Sci.
**1985**, 20, 3462–3478. [Google Scholar] [CrossRef] - Rauch, E.; G’Sell, C. Flow localization induced by a change in strain path in mild steel. Mater. Sci. Eng. A
**1989**, 111, 71–80. [Google Scholar] [CrossRef] - Mayr, C.; Eggeler, G.; Webster, G.A.; Peter, G. Double shear creep testing of superalloy single crystals at temperature above 1000 °C. Mater. Sci. Eng. A
**1995**, 199, 121–130. [Google Scholar] [CrossRef] - Orlová, A. Dislocation structures on the plane of shear in compressed double-notch copper single crystal specimens. Mater. Sci. Eng. A
**1999**, 260, 94–100. [Google Scholar] [CrossRef] - Cao, L.; Thome, P.; Jácome, L.A.; Somsen, C.; Cailletaud, G.; Eggeler, G. On the influence of crystallography on creep of circular notched single crystal superalloy specimens. Mater. Sci. Eng.
**2020**, 782, 139255. [Google Scholar] [CrossRef] - An, Y.; Vegter, H.; Heijne, J. Development of simple shear test for the measurement of work hardening. J. Mater. Processing Technol.
**2009**, 209, 4248–4254. [Google Scholar] [CrossRef] - Peirs, J.; Verleysen, P.; Paepegem, W.V.; Degrieck, J. Determining the stress-strain behaviour at large strains from high strain rate tensile and shear experiments. Int. J. Impact Eng.
**2011**, 38, 406–415. [Google Scholar] [CrossRef][Green Version] - Pettersson, K.B. The Inclined Double Notch Shear Test for Determination of Interlaminar Shear Properties of Composite Laminates. Ph.D. Thesis, KTH Royal Institute of Technology, Stockholm, Sweden, 2005. [Google Scholar]
- Petterson, K.B.; Neumeister, J.M.; Strandberg, M. V-notched shear specimens for the inclined double notch shear test. J. Test. Eval.
**2007**, 35, 85–94. [Google Scholar] - Katayama, S.; Miyamoto, H.; Vinogradov, A.; Hashimoto, S. Influence of a slip plane orientation with respect to the shear plane of ECAP on microstructure of copper single crystal subject to one pressing at room temperature. Mater. Sci. Forum
**2008**, 584–586, 387–392. [Google Scholar] [CrossRef] - Guo, T.; Wei, S.; Wang, C.; Li, Q.; Jia, Z. Texture evolution and strengthening mechanism of single crystal copper during ECAP. Mater. Sci. Eng.
**2019**, 759, 97–104. [Google Scholar] [CrossRef] - Li, S.; Beyerlein, I.J.; Bourke, M.A. Texture formation during equal channel angular extrusion of FCC and bcc materials: Comparison with simple shear. Mater. Sci. Eng. A
**2005**, 394, 66–77. [Google Scholar] [CrossRef] - Khlebnikova, Y.V.; Egorova, L.Y.; Pilyugin, V.P.; Suaridze, T.R.; Patselov, A.M. Evolution of the structure of an α-titanium single crystal during high-pressure torsion. Tech. Phys.
**2015**, 60, 1005–1013. [Google Scholar] [CrossRef] - Gravell, J.D.; Ryu, I. Latent hardening/softening behaviour in tension and torsion combined loadings of single crystal FCC micropillars. Acta Mater.
**2020**, 190, 58–69. [Google Scholar] [CrossRef] - Wang, H.; Lu, C.; Wang, R. A crystal plasticity FEM study on macro- and micro-subdivision of an aluminium single crystal after multi-pass unidirectional rolling, reverse rolling and accumulative roll-bonding. Int. J. Adv. Manuf. Technol.
**2020**, 111, 37–51. [Google Scholar] [CrossRef] - Wang, H.; Lu, C.; Tieu, K.; Liu, Y. A crystal plasticity FE study of macro- and micro-subdivision in aluminium single crystals {001} multi-pass rolled to a high reduction. J. Mater. Sci. Technol.
**2020**, 76, 231–246. [Google Scholar] [CrossRef] - Tome, C.; Canova, G.R.; Kocks, U.F.; Christodoulou, N.; Jonas, J.J. The relation between macroscopic and microscopic strain hardening in F.C.C. polycrystals. Acta Metall.
**1984**, 32, 1637–1653. [Google Scholar] [CrossRef] - Eggeler, G.; Wieczorek, N.; Fox, S.; Berglund, S.; Burger, D.; Dlouhy, A.; Wollgramm, P.; Neuking, K.; Schreuer, J.; Jacome, L.A.; et al. On shear testing of single crystal Ni-Base superalloys. Metall. Mater. Trans. A
**2018**, 49A, 3951–3962. [Google Scholar] [CrossRef][Green Version] - Hayakawa, M.; Nakayama, E.; Okamura, K.; Yamamoto, M.; Shizawa, K. Development of micro-shear fatigue test and its application to single crystal of pure iron. Procedia Eng.
**2016**, 160, 167–174. [Google Scholar] [CrossRef][Green Version] - Paul, H.; Driver, J.; Maurice, C.; Jasieński, Z. Shear band microtexture formation in twinned face centred cubic single crystals. Mater. Sci. Eng. A
**2003**, 359, 178–191. [Google Scholar] [CrossRef] - Heyer, J.K.; Brinckmann, S.; Pfetzing-Micklich, J.; Eggeler, G. Micro-shear deformation of gold single crystals. Acta Mater.
**2014**, 62, 225–238. [Google Scholar] [CrossRef] - Laplanche, G.; Wieczorek, N.; Fox, F.; Berglund, S.; Pfetzing-Micklich, J.; Kishida, K.; Inui, H.; Eggeler, G. On the influence of crystallography and dendritic microstructure on micro shear behaviour of single crystal Ni-based superalloys. Acta Mater.
**2018**, 160, 173–184. [Google Scholar] [CrossRef] - Seok, M.Y.; Gopalan, H.; Nandy, S.; Zaefferer, S.; Raabe, D.; Kirchlechner, C.; Dehm, G. Microscale plastic anisotropy of basal and pyramidal I slip in pure magnesium tested in shear. Materialia
**2020**, 14, 100932. [Google Scholar] [CrossRef] - Wieczorek, N.; Laplanche, G.; Heyer, J.K.; Parsa, A.B.; Pfetzing-Micklich, J.; Eggeler, G. Assessment of strain hardening in copper single crystals using in situ SEM micro-shear experiments. Acta Mater.
**2016**, 113, 320–334. [Google Scholar] [CrossRef][Green Version] - Hiroshi, F.; Shiro, K. Role of conjugate slip in deformation of Cu-10at%Al single crystals. J. Phys. Soc. Jpn.
**1983**, 52, 157–167. [Google Scholar] - Al-Fadhalah, K.J.; Alhajeri, S.N.; Almazrouee, A.I.; Langdon, T.G. Microstructure and microtexture in pure copper processed by high-pressure torsion. J. Mater. Sci.
**2013**, 48, 4563–4572. [Google Scholar] [CrossRef] - Franciosi, P.; Berveiller, M.; Zaoui, A. Latent hardening in copper and aluminium. Acta Metall.
**1980**, 28, 273–283. [Google Scholar] [CrossRef] - Liu, Q.; Wert, J.; Hansen, N. Location-dependent lattice rotation and shear strain in rolled aluminium single crystals of cube and Goss orientations. Acta Mater.
**2000**, 48, 4267–4279. [Google Scholar] [CrossRef] - Takayama, Y.; Xu, Y.; Yoshida, T.; Tanaka, H.; Onuki, Y.; Satoet, S. Texture evolutions in aluminium and Al-3%Mg alloy subjected to shear deformation and subsequent annealing. IOP Conf. Ser. Mater. Sci. Eng.
**2021**, 1121, 012017. [Google Scholar] [CrossRef] - Lopes, A.B.; Barlat, F.; Gracio, J.J.; Ferreira, J.F.; Rauch, E.F. Effect of texture and microstructure on strain hardening anisotropy for aluminium deformed in uniaxial tension and simple shear. Int. J. Plast.
**2003**, 19, 1–12. [Google Scholar] [CrossRef]

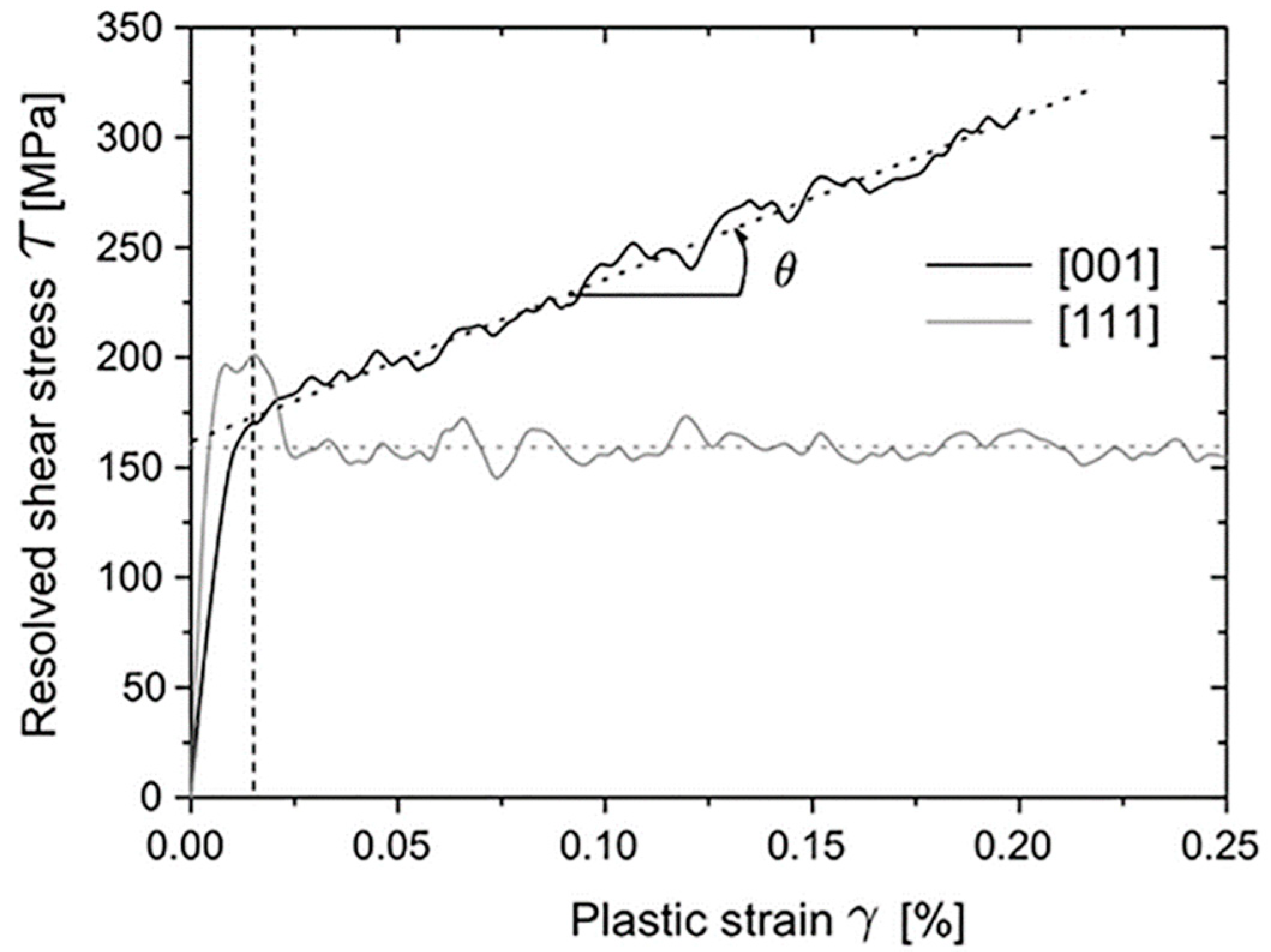

**Figure 1.**The stress–strain curves of single crystal nickel with an initial orientation of [001] (black line) and [111] (gray line), as obtained by the MD simulations [37].

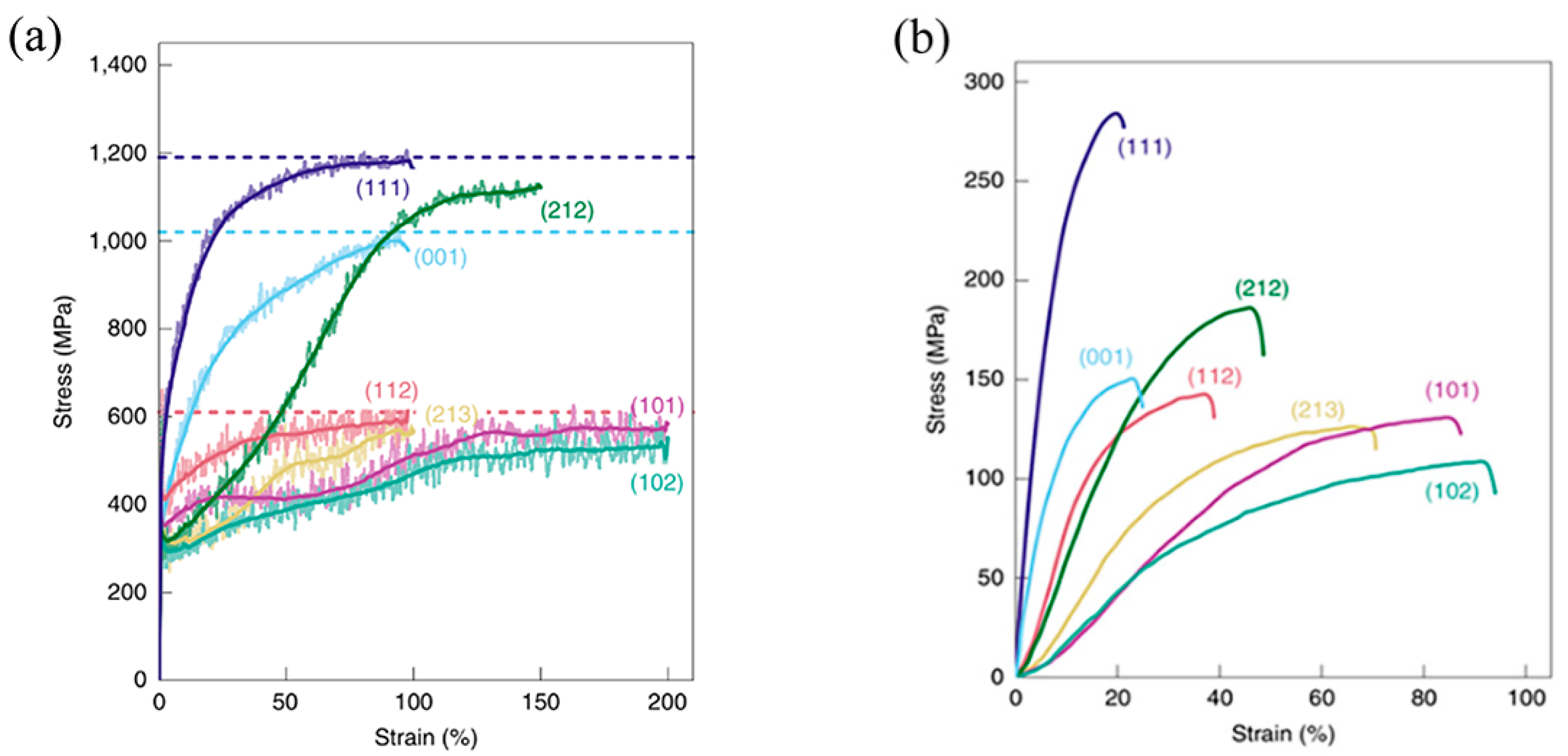

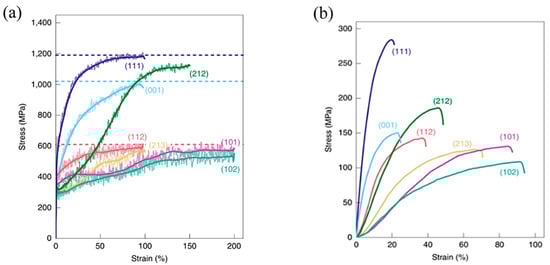

**Figure 2.**(

**a**) The stress–strain curves of single crystal aluminum with initial orientations of [001], [111], [112], [101], [102] and [213], as obtained by the MD simulations [23]; (

**b**) the corresponding experimental stress–strain curves, as obtained from tensile straining tests using single crystal copper [14].

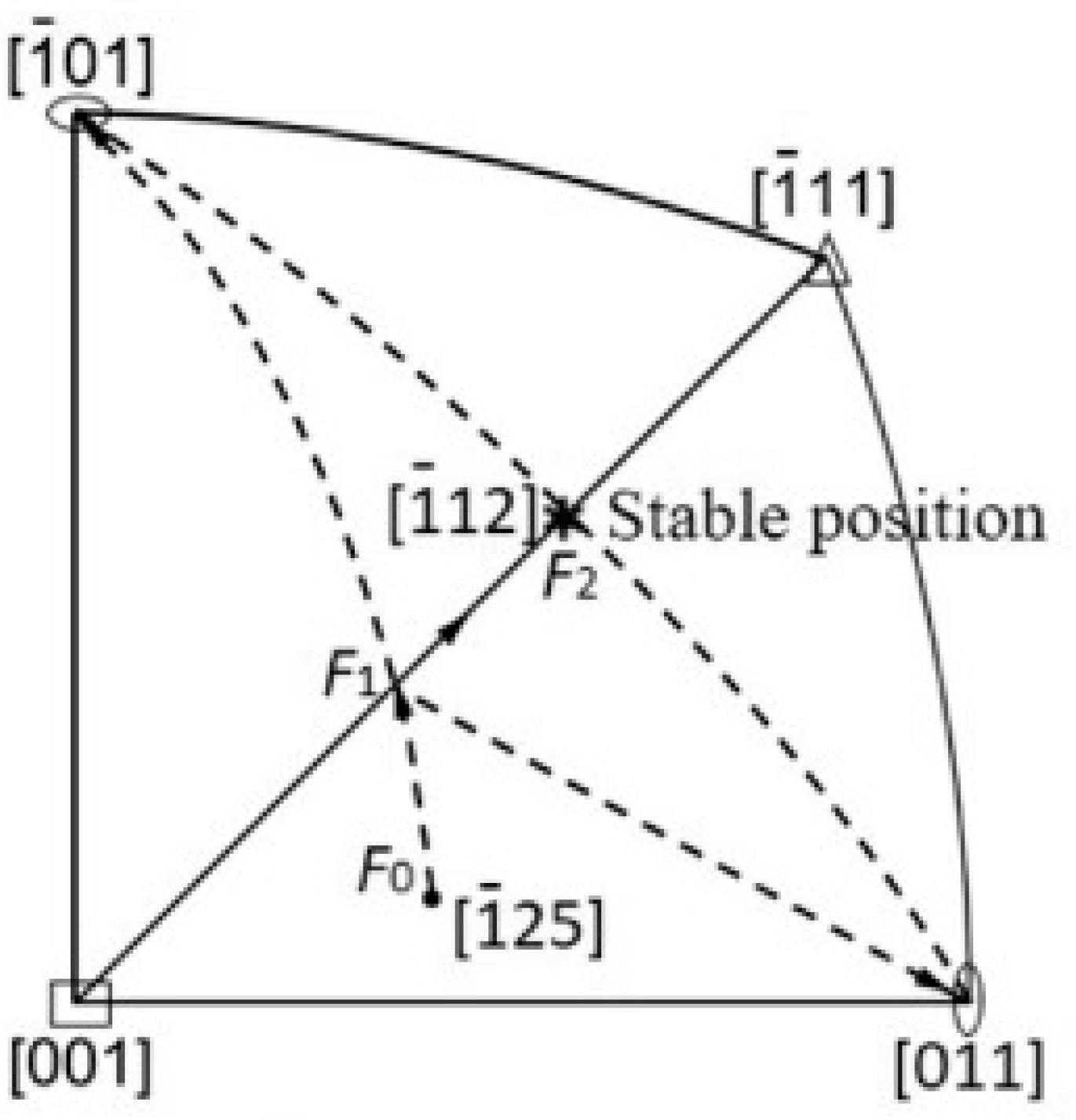

**Figure 3.**The theoretical rotation behavior of an FCC single crystal specimen under uniaxial tension [27]. The tensile axis starts from ${\mathrm{F}}_{0}$, rotates to ${\mathrm{F}}_{1}$ following the pathway of ${\mathrm{F}}_{0}\to {\mathrm{F}}_{1}\to \left[\overline{1}01\right]$ and then turns to $\left[\overline{1}12\right]$ along the edge of the orientation triangle.

**Figure 4.**(

**a**) An SEM image of the [110]-orientated single crystal nickel after tensile deformation; (

**b**) an EBSD inverse pole figure map of the right half of the fractured sample in (

**a**,

**c**) for the pole figures of single crystal nickel after tensile deformation; (

**d**) the pole figures of the [110]-oriented sample before testing [47].

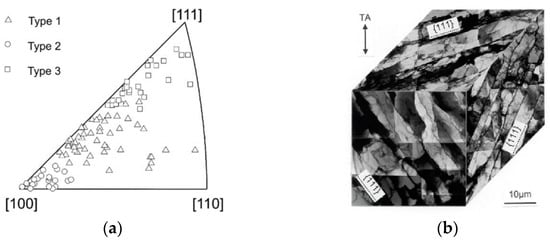

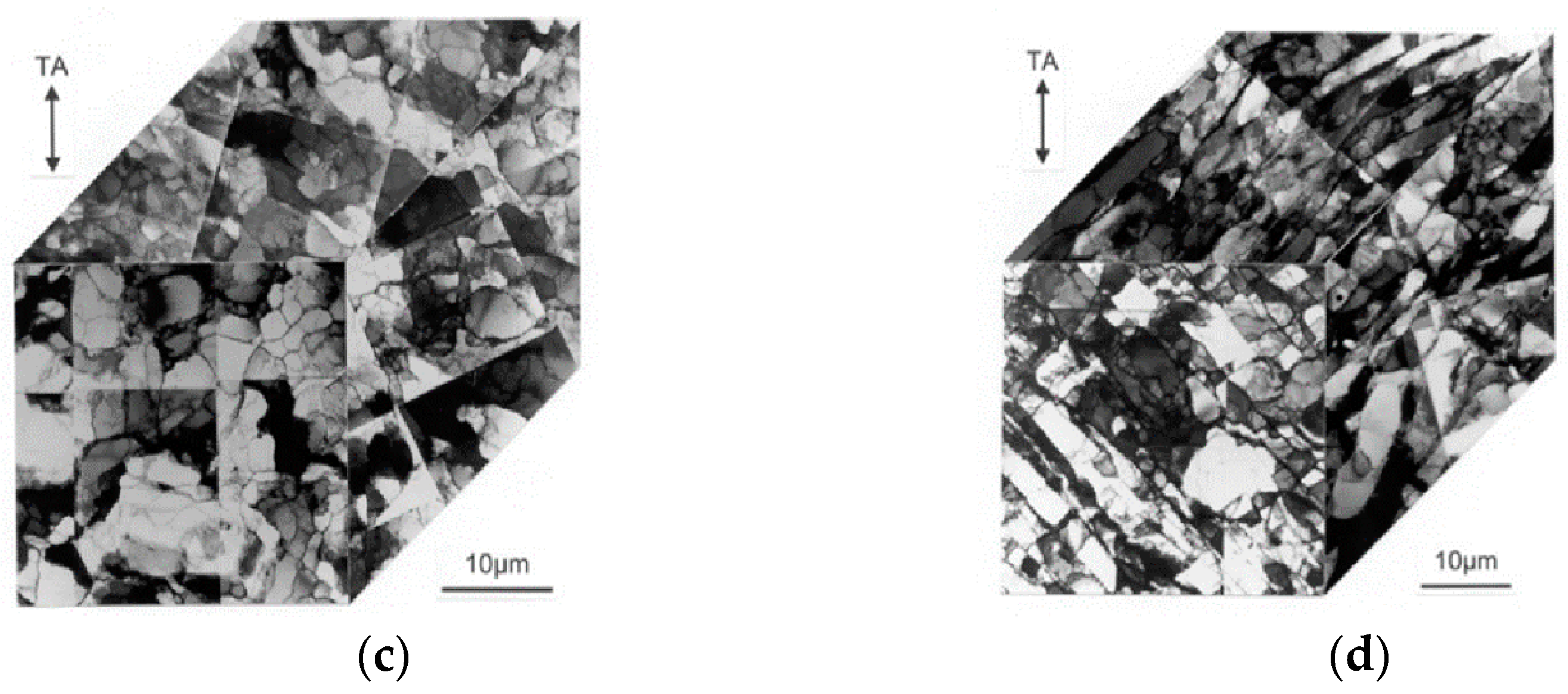

**Figure 5.**The dislocation structures of a 99.99% aluminum alloy that was deformed by tension: (

**a**) the TA orientations of 100 of the grains examined; (

**b**–

**d**) the TEM diagrams of grains with type I, II and III structures, respectively [62].

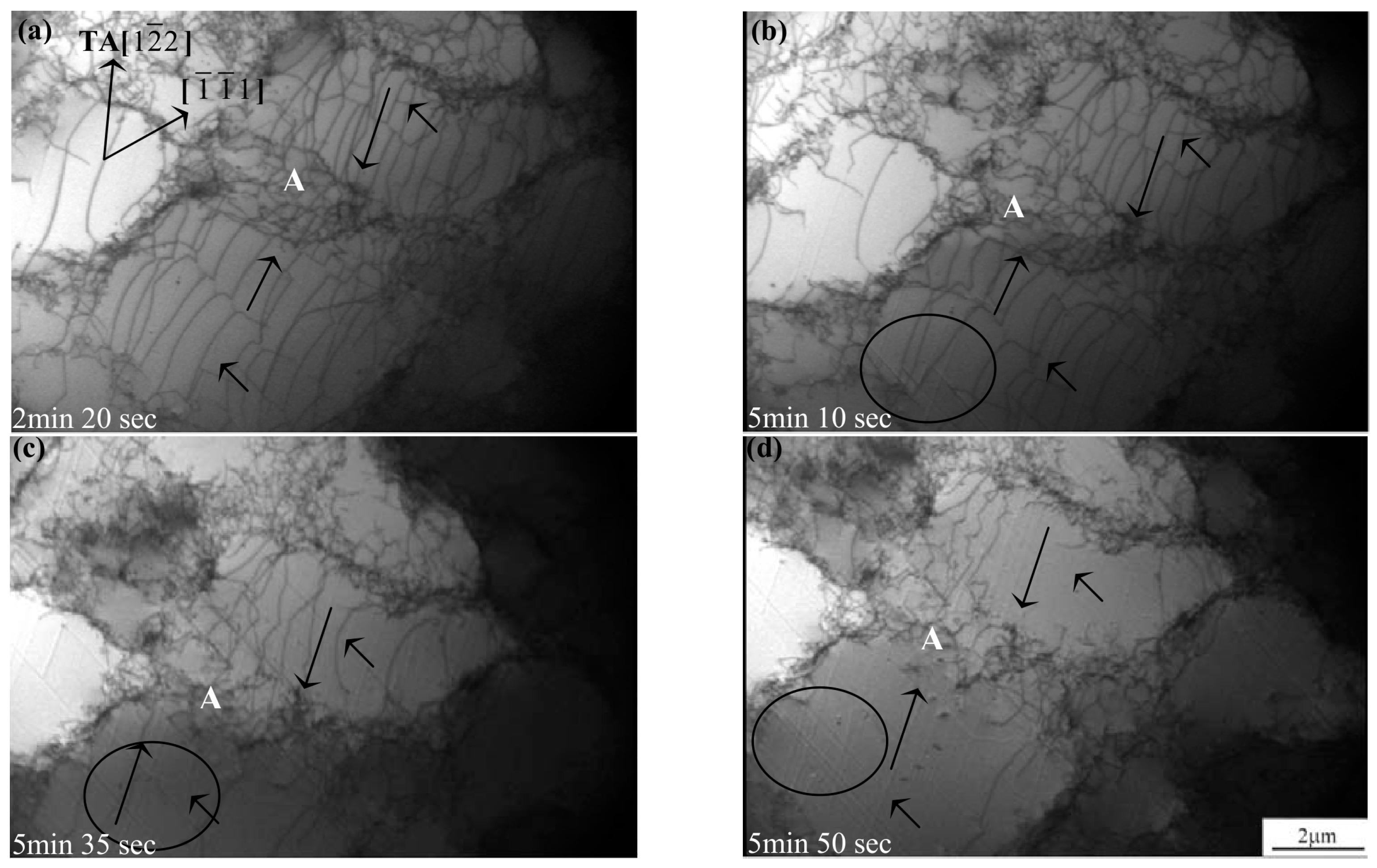

**Figure 6.**The in situ TEM observations of dislocation boundary evolution and the cross-slip of dislocation when single crystal aluminum was deformed to work hardening stage III [65], (

**a**–

**d**) frames at the time of 2 min 20 s, 5min 10 s, 5 min 35 s and 5 min 50 s, showing the depletion of the cell’s volume from dislocations into the cell’s boundary by cross slip of dislocation, respectively.

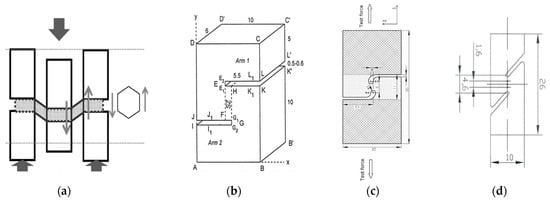

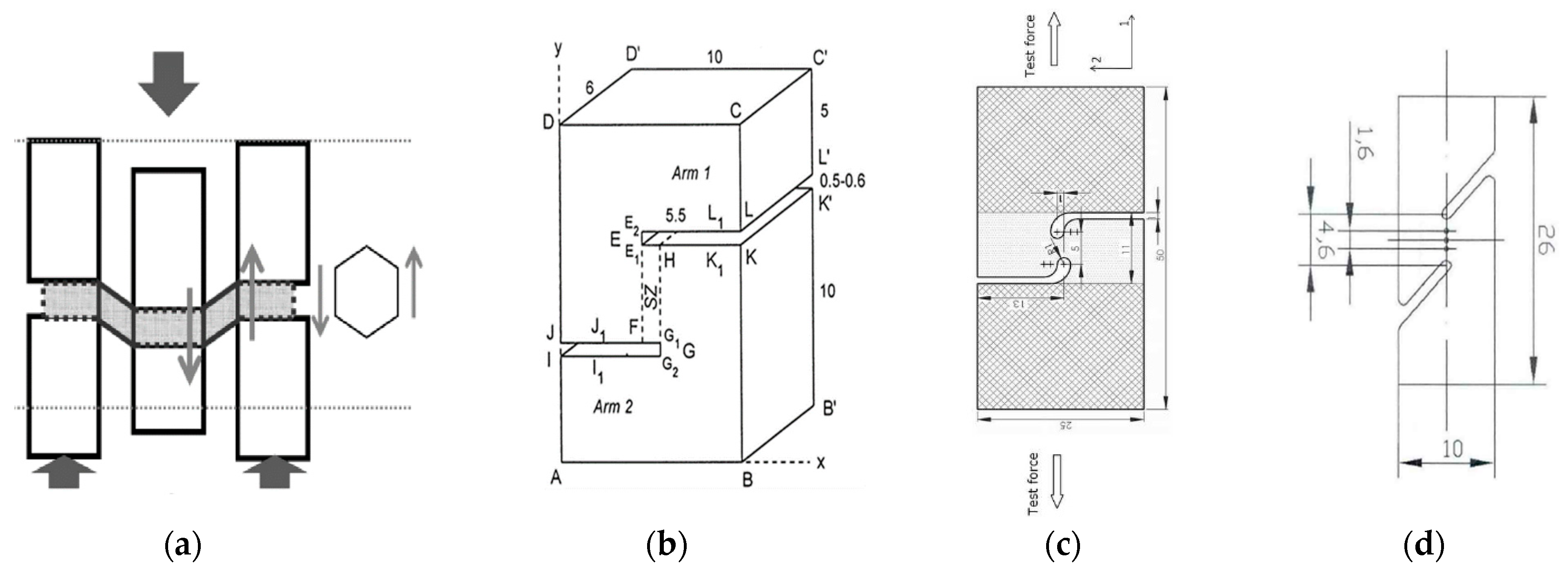

**Figure 7.**The different ways to directly apply simple shear that have been proposed in the literature: (

**a**) a specimen with a double shear zone [74]; (

**b**) a double-notch specimen in compression mode [70,71] (SZ is the zone of shear); (

**c**) a double-notch tensile–shear specimen [75]; (

**d**) a tilted double-notch tensile–shear specimen [76,77].

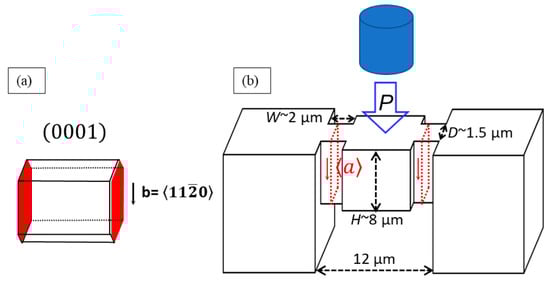

**Figure 8.**(

**a**) A schematic of the shear plane and the shear direction of single crystal magnesium; (

**b**) the geometry of single crystal magnesium under microshear [90].

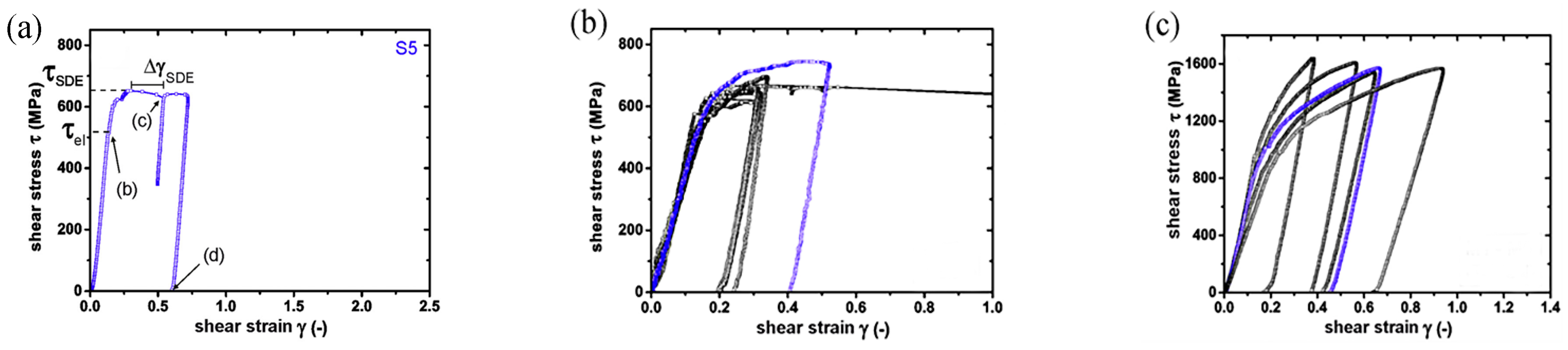

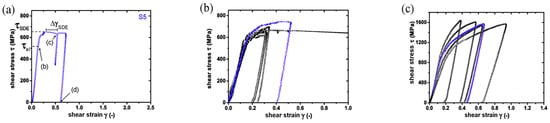

**Figure 9.**The mechanical results of a specimen (

**a**) under (111)[01$\overline{1}$] shear loading (single slip orientation); (

**b**) (111)[$\overline{2}$11] shear loading (double slip orientation); (

**c**) (100)[010] shear loading (multiple slip orientation) [89].

**Figure 10.**The TEM observations of dislocation tangles after tensile deformation along the [011] orientation when deformed by a strain of (

**a**) 0.06 and (

**b**) 0.12 and the TEM observations after simple shear deformation at 0.3 shear strain for (

**c**) 45° and (

**d**) 90° shear [97].

**Table 1.**The qualitative characteristics of strain hardening that were observed in the MD simulations [22].

Initial Axis | Initial Slip Symmetry | Does the Crystal Rotate? | Hardening Response | End Axis |
---|---|---|---|---|

[001] | Eightfold; holds | No | Parabolic | [001] |

[111] | Sixfold; holds | No | Parabolic | [111] |

[101] | Fourfold; breaks | Yes | Three-stage | [112] |

[112] | Twofold; holds | No | Parabolic | [112] |

[212] | Twofold; holds | Yes | Three-stage | [111] |

[102] | Twofold; breaks | Yes | Three-stage | [112] |

[213] | No symmetry | Yes | Three-stage | [112] |

[8 5 13] | No symmetry | Yes | Three-stage | [112] |

Slip Systems | Shear Directions and Planes | |||
---|---|---|---|---|

$\left(111\right)$$\left[11\overline{2}\right]$ | $(1\overline{1}$1)[110] | (001)[110] | $(1\overline{1}$2)[110] | |

$\left(111\right)[1\overline{1}$0] | 0 | 0 | 0 | 0 |

$\left(111\right)[10\overline{1}$] | 0.866 | 0.167 | 0.289 | 0.236 |

$\left(111\right)[01\overline{1}$] | 0.866 | 0.167 | 0.289 | 0.236 |

$(\overline{1}$11)[110] | 0.192 | 0.333 | 0.577 | 0 |

$(\overline{1}$11)[101] | 0.096 | 0.167 | 0.289 | 0 |

$\left(\overline{1}11\right)$$[01\overline{1}$] | 0.324 | 0.167 | 0.289 | 0 |

$(1\overline{1}$1)[110] | 0.192 | 1 | 0.577 | 0.942 |

$\left(1\overline{1}1\right)$$[10\overline{1}$] | 0.324 | 0.5 | 0.289 | 0.471 |

$(1\overline{1}$1)[011] | 0.096 | 0.5 | 0.289 | 0.471 |

$\left(11\overline{1}\right)$$[1\overline{1}0]$ | 0 | 0 | 0 | 0 |

$(11\overline{1}$)[101] | 0.096 | 0.167 | 0.289 | 0.236 |

$(11\overline{1}$)[011] | 0.096 | 0.167 | 0.289 | 0.236 |
