# Dual-Mechanism Absorptive Metasurface with Wideband 20 dB RCS Reduction

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Design Principle of Metasurface

_{1}and A

_{2}represents the amplitude of the reflected EM waves of unit cells “1” and “2”. Parameter $\alpha $ is the ratio of two unit cells and $\alpha =\frac{{n}_{1}}{{n}_{1}+{n}_{2}}$, $1-\alpha =\frac{{n}_{2}}{{n}_{1}+{n}_{2}}$, where ${n}_{1}$ is the number of unit cell “1” in whole metasurface while ${n}_{2}$ is that of unit cell “2”. The phase difference of two unit cells is ${\phi}_{d}$, which can be expressed as:

_{1}= A

_{2}= 1. The relationship between RCS reduction and parameter $\alpha $, ${\phi}_{d}$ can be expressed by Figure 2. The maximum range of ${\phi}_{d}$ appears at $\alpha $ = 0.5. In order to obtain 10 dB RCS reduction, the phase difference needs to be at (180° − 37°, 180° + 37°), which is consistent with the conclusion of AMC chessboard [14]. For RCS reduction above 20 dB, the phase difference needs to be at (180° − 11°, 180° + 11°). However, for the resonance phase, it is an extremely harsh constraint for two unit cells to meet the phase difference of 180° ± 11°. Therefore, the reduction effect using phase cancellation, which could get more than 20 dB RCS reduction, is only for individual frequency points. If “1” has 10 dB absorption property while “2” is lossless (A

_{1}= 0.316, A

_{2}= 1), the relationship can be expressed by Figure 3a. The 20 dB maximum range of ${\phi}_{d}$ appears at $\alpha $ = 0.78 from 180°− 24° to 180° + 24°, which is wider than 180° ± 11°. If “1” and “2” both have 10 dB absorption property (A

_{1}= A

_{2}= 0.316) (see Figure 3b), the 20 dB maximum range of ${\phi}_{d}$ appears at $\alpha $ = 0.5 and the range from 180° − 37° to 180° + 37°, which is wider than 180° ± 11°.

## 3. Results and Discussion

#### 3.1. Unit Cell Design

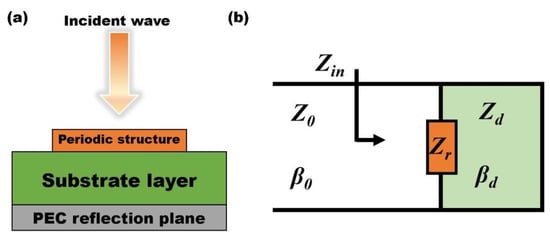

_{r}and Z

_{d}denote the equivalent impedance of the periodic structure and the substrate layer, respectively. Z

_{r}is a complex value that can be expressed by Z

_{r}= R + jX. Z

_{in}is the input impedance of this network. The reflection coefficient of the unit cell can be expressed as

_{0}is the intrinsic impedance of a vacuum, d and ${\epsilon}_{r}$ are the thickness and relative permittivity of the substrate layer, respectively. Thus, the reflection amplitude and phase can be expressed as

_{1}, A

_{2}, P

_{1}, P

_{1}, X

_{1}, X

_{2}, R

_{1}, R

_{2}. It is complex and time-consuming to optimize and select the eligible two unit cells. Thus, to simplify the process, we firstly design one absorption unit cell “1” and then choose the other counterpart.

_{1}= 5 mm, b

_{1}= a

_{1}− 3 mm, the height of h = 3 mm and dielectric loss of tan δ = 0.00081 is utilized as the dielectric spacer. For “1”, the sheet resistance of resistive film patterns is 10 Ω/sq, and the reflection phase and amplitude curves are shown in Figure 6b. The 10 dB absorption bandwidth is 9.9–17.5 GHz, but that of 20 dB is only 10.9–12.2 GHz.

_{r}are shown in Figure 7. When the sheet resistance value remains unchanged and only the length of the outer square ring varies, the curves of the real part R are almost overlapped, but the imaginary part X varies obviously. In another case, when the parameter a remains unchanged, and only the sheet resistance value varies, an opposite result will happen. Thus, according to the rule shown in Figure 7 and the relationship shown in Figure 5, unit cell “2” that meets the phase and absorption requirements can be designed.

#### 3.2. Metasurface Design and Simulation

#### 3.3. Metasurface Fabrication and Measurement

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Engheta, N.; Ziolkowski, R.W. Metamaterials: Physics and Engineering Applications; John Wiley & Sons: Hoboken, NJ, USA, 2006. [Google Scholar]
- Holloway, C.L.; Kuester, E.F.; Gordon, J.A.; O’Hara, J.; Booth, J.; Smith, D.R. An overview of the theory and applications of metasurfaces: The two-dimensional equivalents of metamaterials. IEEE Antennas Propag. Mag.
**2012**, 54, 10–35. [Google Scholar] [CrossRef] - Chen, H.T.; Taylor, A.J.; Yu, N. A review of metasurfaces: Physics and applications. Rep. Prog. Phys.
**2016**, 79, 076401. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zhu, H.L.; Cheung, S.W.; Chung, K.L.; Yuk, T.I. Linear-tocircular polarization conversion using metasurface. IEEE Trans. Antennas Propag.
**2013**, 61, 4615–4623. [Google Scholar] [CrossRef] [Green Version] - Grady, N.K.; Heyes, J.E.; Chowdhury, D.R.; Zeng, Y.; Reiten, M.T.; Azad, A.K.; Taylor, A.J.; Dalvit, D.A.; Chen, H.T. Terahertz metamaterials for linear polarization conversion and anomalous refraction. Science
**2013**, 340, 1304–1307. [Google Scholar] [CrossRef] [Green Version] - Zheng, Y.; Zhou, Y.; Gao, J.; Cao, X.; Yang, H.; Li, S.; Xu, L.; Lan, J.; Jidi, L. Ultra-wideband polarization conversion metasurface and its application cases for antenna radiation enhancement and scattering suppression. Sci. Rep.
**2017**, 7, 16137. [Google Scholar] [CrossRef] [Green Version] - Xu, H.X.; Tang, S.; Wang, G.M.; Cai, T.; Huang, W.; He, Q.; Sun, S.; Zhou, L. Multifunctional microstrip array combining a linear polarizer and focusing metasurface. IEEE Trans. Antennas Propag.
**2016**, 64, 3676–3682. [Google Scholar] [CrossRef] - Li, H.; Wang, G.; Xu, H.X.; Cai, T.; Liang, J. X-band phasegradient metasurface for high-gain lens antenna application. IEEE Trans. Antennas Propag.
**2015**, 63, 5144–5149. [Google Scholar] [CrossRef] - Huang, L.; Chen, X.; Mühlenbernd, H.; Zhang, H.; Chen, S.; Bai, B.; Tan, Q.; Jin, G.; Cheah, K.W.; Qiu, C.-W.; et al. Three-dimensional optical holography using a plasmonic metasurface. Nat. Commun.
**2013**, 4, 2808. [Google Scholar] [CrossRef] [Green Version] - Ye, W.; Zeuner, F.; Li, X.; Reineke, B.; He, S.; Qiu, C.-W.; Liu, J.; Wang, Y.; Zhang, S.; Zentgraf, T. Spin and wavelength multiplexed nonlinear metasurface holography. Nat. Commun.
**2016**, 7, 11930. [Google Scholar] [CrossRef] - Paquay, M.; Iriarte, J.C.; Ederra, I.; Gonzalo, R.; de Maagt, P. Thin AMC structure for radar cross-section reduction. IEEE Trans. Antennas Propag.
**2007**, 55, 3630–3638. [Google Scholar] [CrossRef] - Galarregui, J.C.I.; Pereda, A.T.; De Falcon, J.L.M.; Ederra, I.; Gonzalo, R.; De Maagt, P. Broadband radar cross-section reduction using AMC technology. IEEE Trans. Antennas Propag.
**2013**, 61, 6136–6143. [Google Scholar] [CrossRef] [Green Version] - Li, Y.; Zhang, J.; Qu, S.; Wang, J.; Chen, H.; Xu, Z.; Zhang, A. Wideband radar cross section reduction using two-dimensional phase gradient metasurfaces. Appl. Phys. Lett.
**2014**, 104, 221110. [Google Scholar] [CrossRef] - Sang, D.; Chen, Q.; Ding, L.; Guo, M.; Fu, Y. Design of checkerboard AMC structure for wideband RCS reduction. IEEE Trans. Antennas Propag.
**2019**, 67, 2604–2612. [Google Scholar] [CrossRef] - Pang, Y.; Li, Y.; Qu, B.; Yan, M.; Wang, J.; Qu, S.; Xu, Z. Wideband RCS reduction metasurface with a transmission window. IEEE Trans. Antennas Propag.
**2020**, 68, 7079–7087. [Google Scholar] [CrossRef] - Yuan, F.; Xu, H.X.; Jia, X.Q.; Wang, G.M.; Fu, Y.Q. RCS reduction based on concave/convex-chessboard random parabolic-phased metasurface. IEEE Trans. Antennas Propag.
**2020**, 68, 2463–2468. [Google Scholar] [CrossRef] - Xu, H.X.; Ma, S.; Ling, X.; Zhang, X.K.; Tang, S.; Cai, T.; Sun, S.; He, Q.; Zhou, L. Deterministic approach to achieve broadband polarization-independent diffusive scatterings based on metasurfaces. ACS Photonics
**2018**, 5, 1691–1702. [Google Scholar] [CrossRef] - Al-Nuaimi, M.K.T.; Hong, W.; Whittow, W.G. Aperiodic sunflower-like metasurface for diffusive scattering and RCS reduction. IEEE Antennas Wirel. Propag. Lett.
**2020**, 19, 1048–1052. [Google Scholar] [CrossRef] [Green Version] - Yuan, F.; Wang, G.M.; Xu, H.X.; Cai, T.; Zou, X.J.; Pang, Z.H. Broadband RCS reduction based on spiral-coded metasurface. IEEE Antennas Wirel. Propag. Lett.
**2017**, 16, 3188–3191. [Google Scholar] [CrossRef] - Yoo, M.; Lim, S. Polarization-independent and ultrawideband metamaterial absorber using a hexagonal artificial impedance surface and a resistance-capacitor layer. IEEE Trans. Antennas Propag.
**2014**, 62, 2652–2658. [Google Scholar] - Shen, Y.; Pang, Y.; Wang, J.; Ma, H.; Pei, Z.; Qu, S. Origamiinspired metamaterial absorbers for improving the larger-incident angle absorption. J. Phys. D Appl. Phys.
**2015**, 48, 445008. [Google Scholar] [CrossRef] - Begaud, X.; Lepage, A.C.; Varault, S.; Soiron, M.; Barka, A. Ultrawideband and wide-angle microwave metamaterial absorber. Materials
**2018**, 11, 2045. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Liu, X.; Lan, C.; Bi, K.; Li, B.; Zhao, Q.; Zhou, J. Dual band metamaterial perfect absorber based on mie resonances. Appl. Phys. Lett.
**2016**, 109, 062902. [Google Scholar] [CrossRef] - Shi, T.; Jin, L.; Han, L.; Tang, M.C.; Xu, H.X.; Qiu, C.W. Dispersion-engineered, broadband, wide-angle, polarization-independent microwave t metamaterial absorber. IEEE Trans. Antennas Propag.
**2021**, 69, 229–238. [Google Scholar] [CrossRef] - Zhang, W.; Liu, Y.; Gong, S.; Wang, J.; Jiang, Y. Wideband RCS reduction of a slot array antenna using a hybrid metasurface. IEEE Trans. Antennas Propag.
**2020**, 68, 3644–3652. [Google Scholar] - Song, J.; Wang, L.; Li, M.; Dong, J. A dual-band metamaterial absorber with adjacent absorption peaks. J. Phys. D Appl. Phys.
**2018**, 51, 385105. [Google Scholar] [CrossRef] - Landy, N.I.; Sajuyigbe, S.; Mock, J.J.; Smith, D.R.; Padilla, W.J. Perfect metamaterial absorber. Phys. Rev. Lett.
**2008**, 100, 207402-1–207402-4. [Google Scholar] [CrossRef] - Kowerdziej, R.; Jaroszewicz, L.R. Tunable dual-band liquid crystal based near-infrared perfect metamaterial absorber with high-loss metal. Liq. Cryst.
**2019**, 46, 1568–1573. [Google Scholar] [CrossRef] - Marin, P.; Cortina, D.; Hernando, A. Electromagnetic wave absorbing material based on magnetic microwires. IEEE Trans. Magn.
**2008**, 44, 3934–3937. [Google Scholar] [CrossRef] - Costa, F.; Monorchio, A.; Manara, G. Analysis and design of ultra thin electromagnetic absorbers comprising resistively loaded high impedance surfaces. IEEE Trans. Antennas Propag.
**2010**, 58, 1551–1558. [Google Scholar] [CrossRef] [Green Version] - Zhuang, Y.; Wang, G.; Liang, J.; Zhang, Q. Dual-band low-scattering metasurface based on combination of diffusion and absorption. IEEE Antennas Wirel. Propag. Lett.
**2017**, 16, 2606–2609. [Google Scholar] [CrossRef] - Zhou, L.; Shen, Z. Absorptive coding metasurface with ultrawideband backscattering reduction. IEEE Antennas Wirel. Propag. Lett.
**2020**, 19, 1201–1205. [Google Scholar] [CrossRef] - Ji, C.; Huang, C.; Zhang, X.; Yang, J.; Song, J.; Luo, X. Broadband low-scattering metasurface using a combination of phase cancellation and absorption mechanisms. Opt. Express
**2019**, 27, 23368–23377. [Google Scholar] [CrossRef] [PubMed] - Li, W.; Zhang, Y.; Wu, T.; Cao, J.; Chen, Z.; Guan, J. Broadband radar cross section reduction by in-plane integration of scattering metasurfaces and magnetic absorbing materials. Results Phys.
**2019**, 12, 1964–1970. [Google Scholar] [CrossRef] - Zhuang, Y.; Wang, G.; Zhang, Q.; Zhou, C. Low-scattering tri-band metasurface using combination of diffusion absorption and cancellation. IEEE Access
**2018**, 6, 17306–17312. [Google Scholar] [CrossRef] - Leung, S.; Liang, C.-P.; Tao, X.-F.; Li, F.-F.; Poo, Y.; Wu, R.-X. Broadband radar cross section reduction by an absorptive metasurface based on a magnetic absorbing material. Opt. Express
**2021**, 29, 33536. [Google Scholar] [CrossRef] [PubMed] - Karlsson, A.; Kazemzadeh, A. On the physical limit of radar absorbers. In Proceedings of the 2010 URSI International Symposium on Electromagnetic Theory (EMTS), Berlin, Germany, 16–19 August 2010; IEEE: Piscataway, NJ, USA, 2010. [Google Scholar]

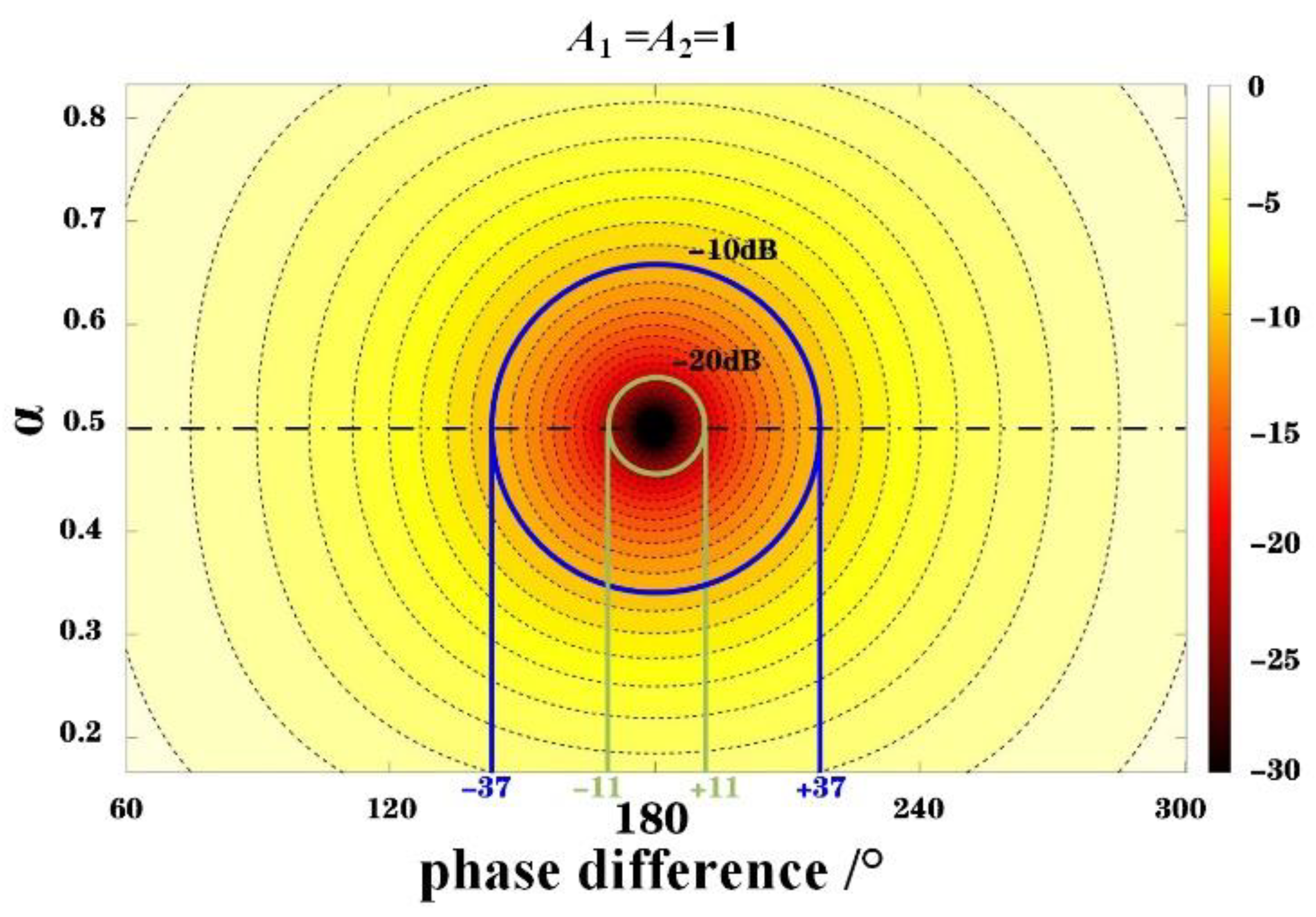

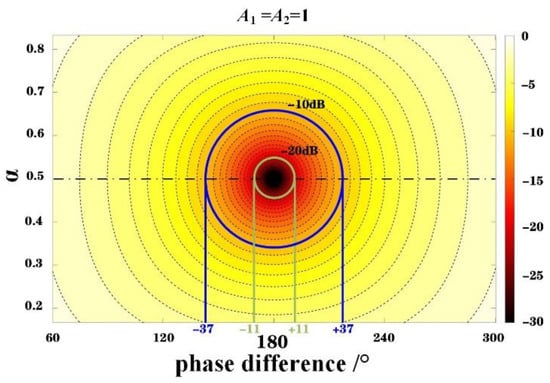

**Figure 2.**The relationship between RCS reduction and parameter α, ${\phi}_{d}$ when “1” and “2” have no absorption.

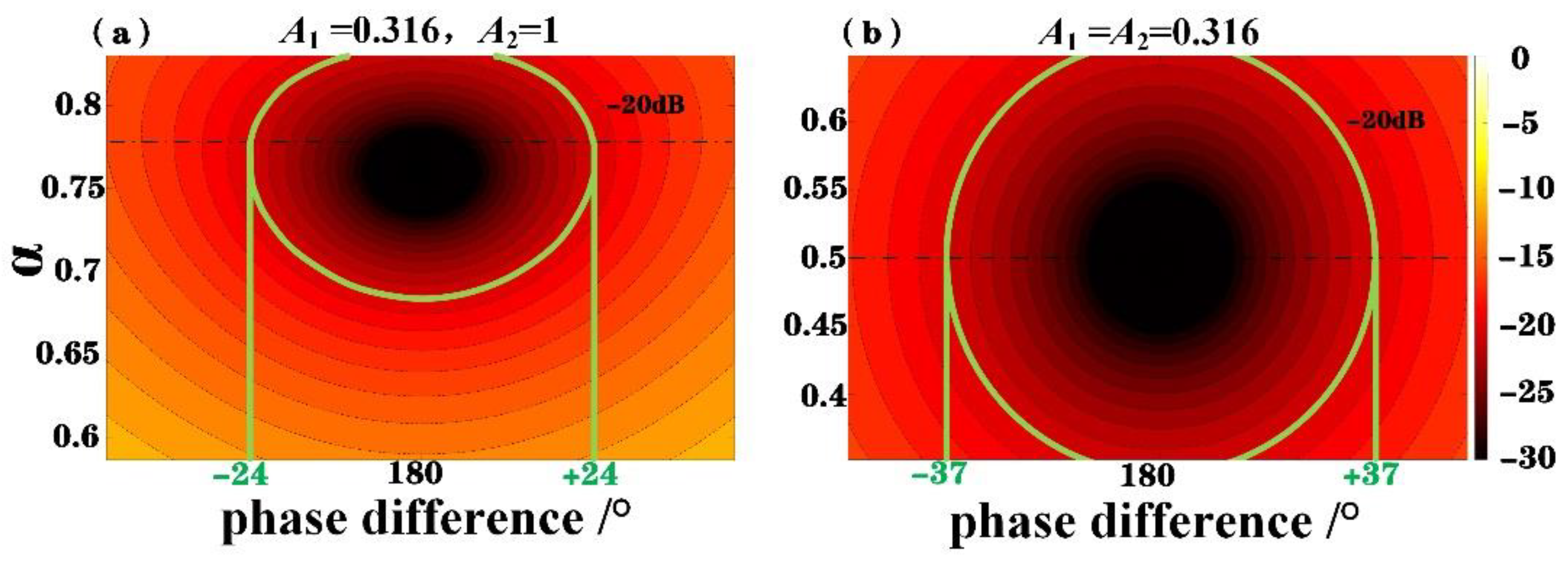

**Figure 3.**The relationship between RCS reduction and parameter α, ${\phi}_{d}$ when (

**a**) “1” has 10 dB absorption property, “2” not, (

**b**) “1” and “2” both have 10 dB absorption.

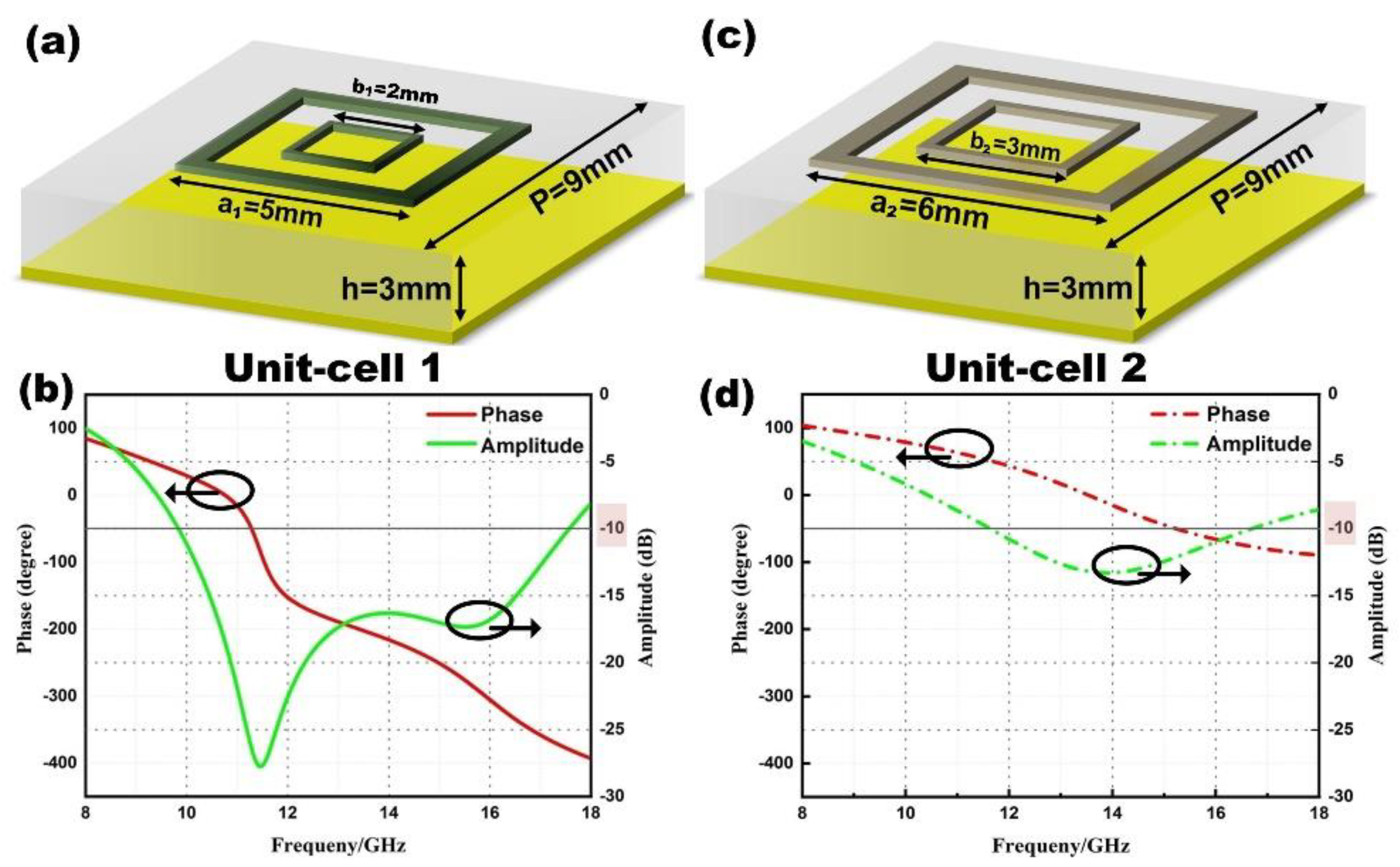

**Figure 6.**Schematic of the two unit cells (

**a**) unit cell “1” and (

**c**) unit cell “2”. The amplitude and phase curves of reflectivity of the two unit cells, (

**b**) unit cell “1” and (

**d**) unit cell “2”.

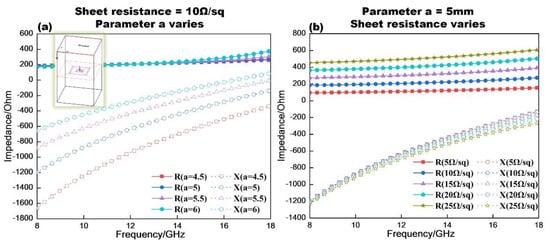

**Figure 7.**The impedance analysis of two square resistive film rings. (

**a**) Sheet resistance = 10 Ω/sq, parameter a varies from 4.5 to 6 with 0.5 step. (

**b**) Parameter a = 5 mm, sheet resistance varies from 5 to 25 mm with 5 step.

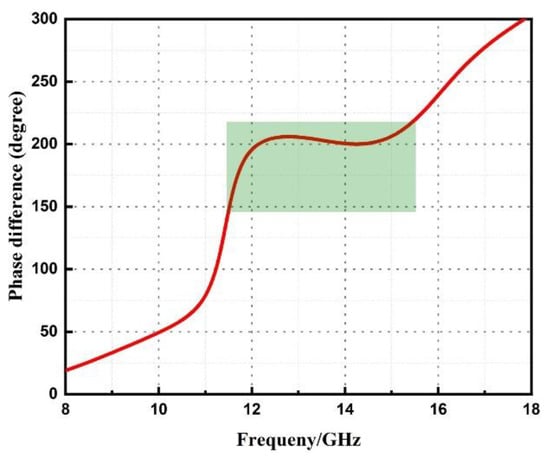

**Figure 8.**The phase difference between “1” and “2”. The green rectangle represents the phase difference region of 180° ± 37°.

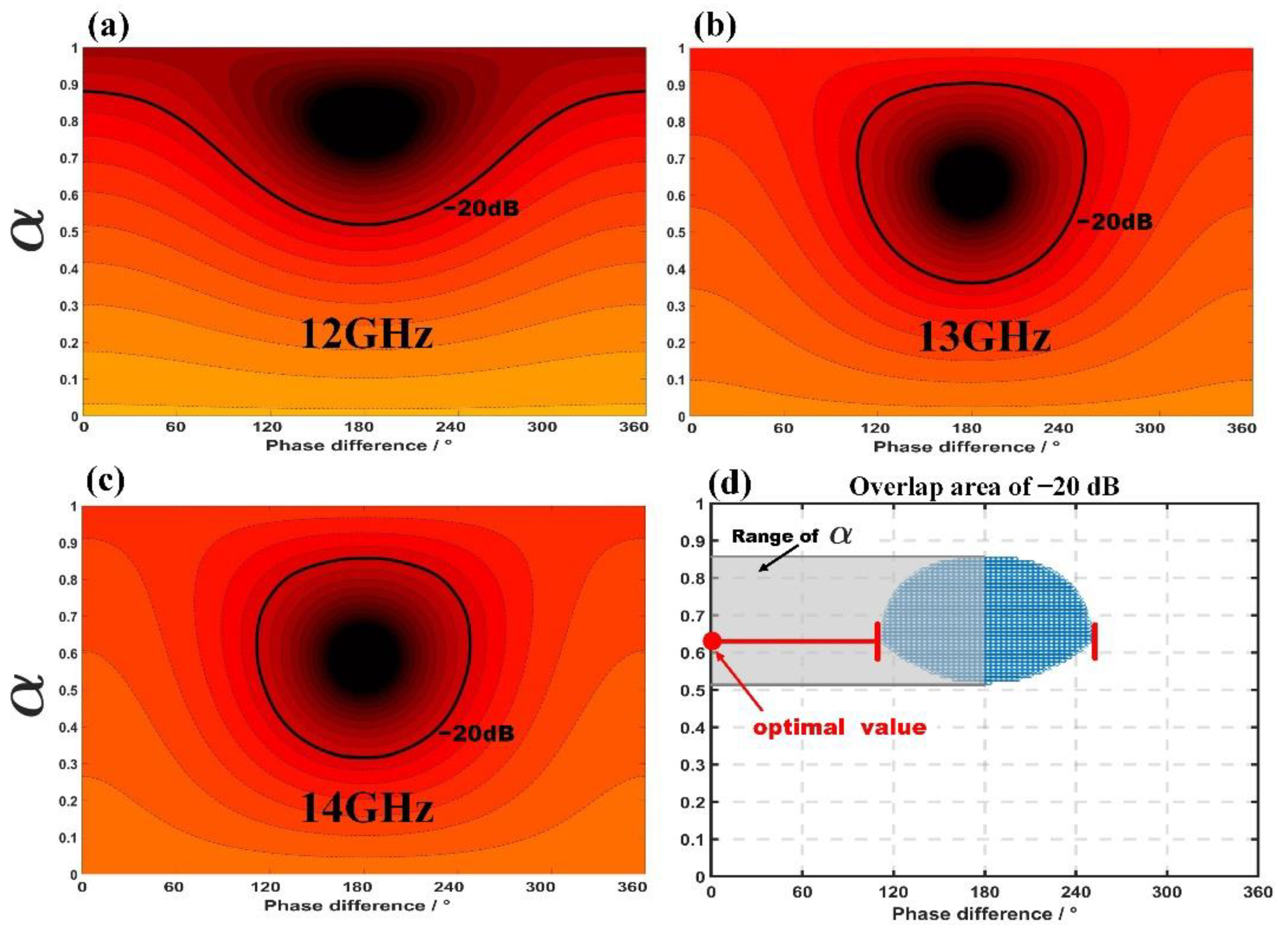

**Figure 9.**The 20 dB reduction area of (

**a**) 12 GHz (

**b**) 13 GHz and (

**c**) 14 GHz. (

**d**) The overlap area of these three frequency points.

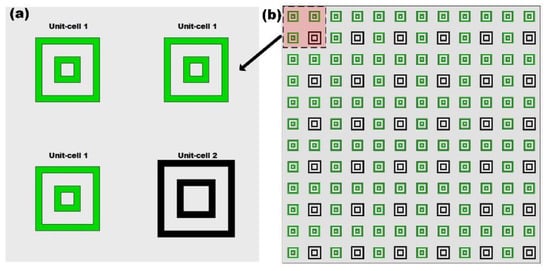

**Figure 10.**(

**a**) The simplest subarray of ratio $\alpha $ = 0.75. (

**b**) The schematic diagram of the whole metasurface.

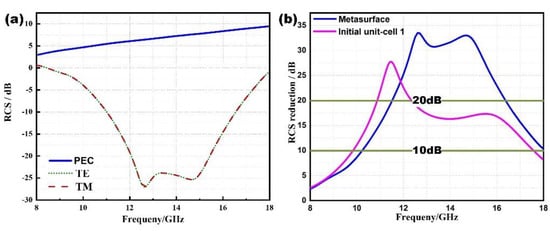

**Figure 11.**(

**a**) Simulated RCS curves of designed metasurface with TE and TM polarization, and equal-size PEC plane. (

**b**) Simulated RCS reduction curves of designed metasurface and surface composed only by unit cell “1”.

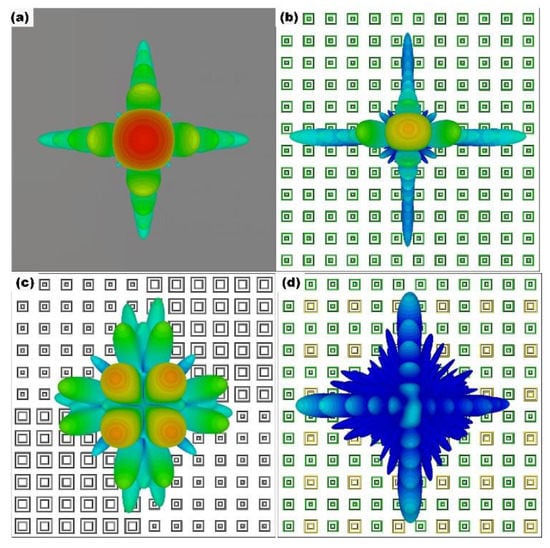

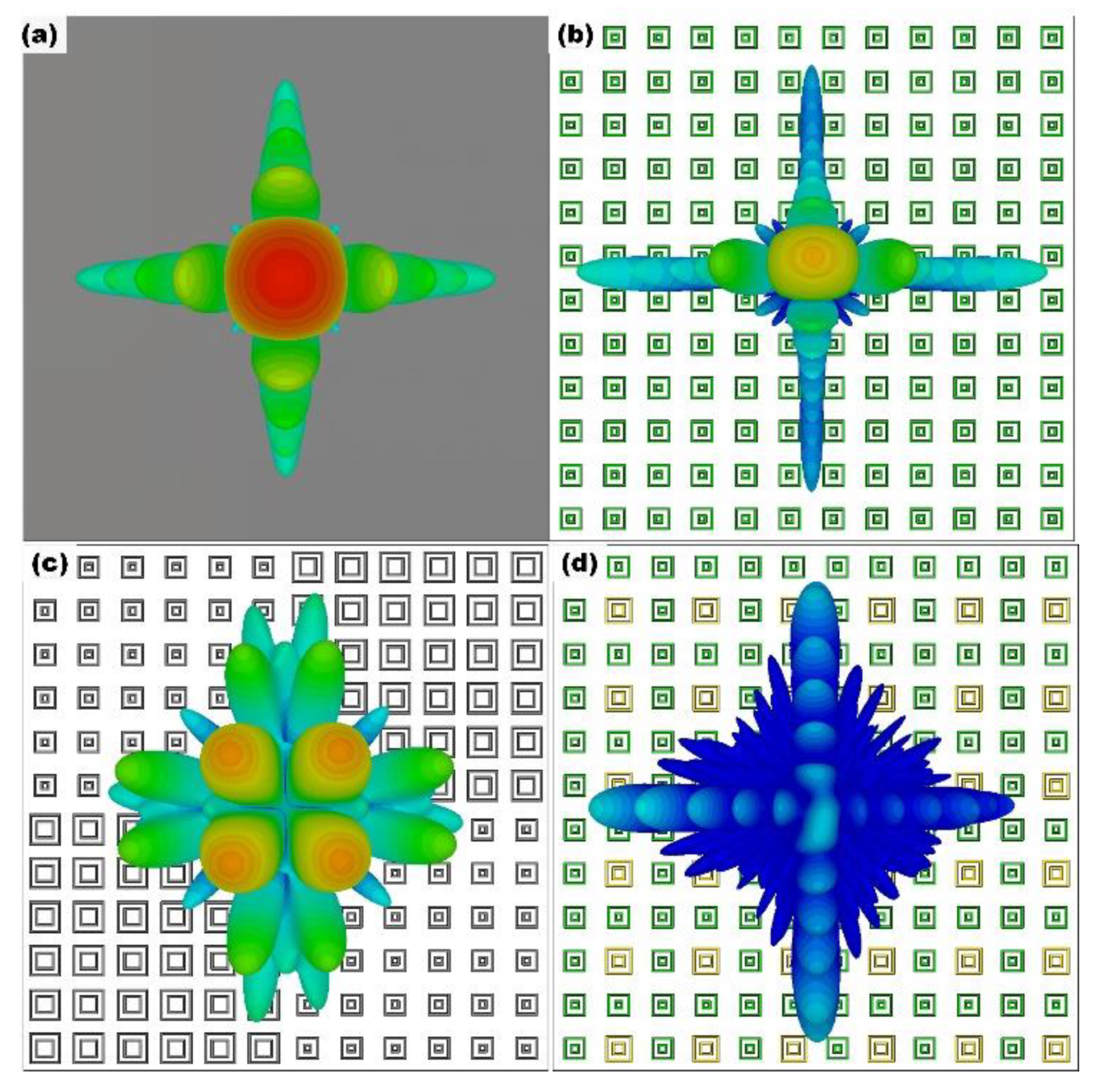

**Figure 12.**The simulated 3D far-field patterns of (

**a**) equal-size PEC plane, (

**b**) surface composed only by unit cell “1”, (

**c**) traditional chessboard cancellation metasurface, and (

**d**) designed dual-mechanism metasurface.

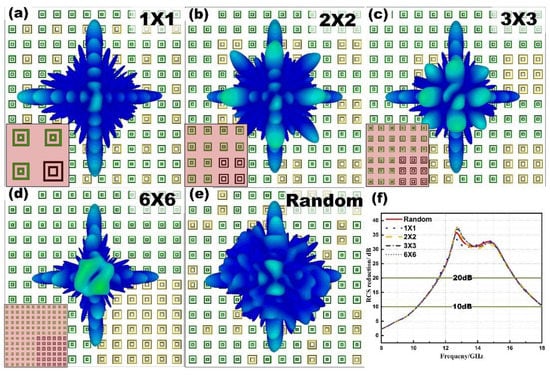

**Figure 13.**(

**a**–

**e**) The different arrangements of the whole metasurface with the same ratio $\alpha $ and their 3D far-field patterns. (

**f**) The RCS reduction curves of these metasurface arrangements.

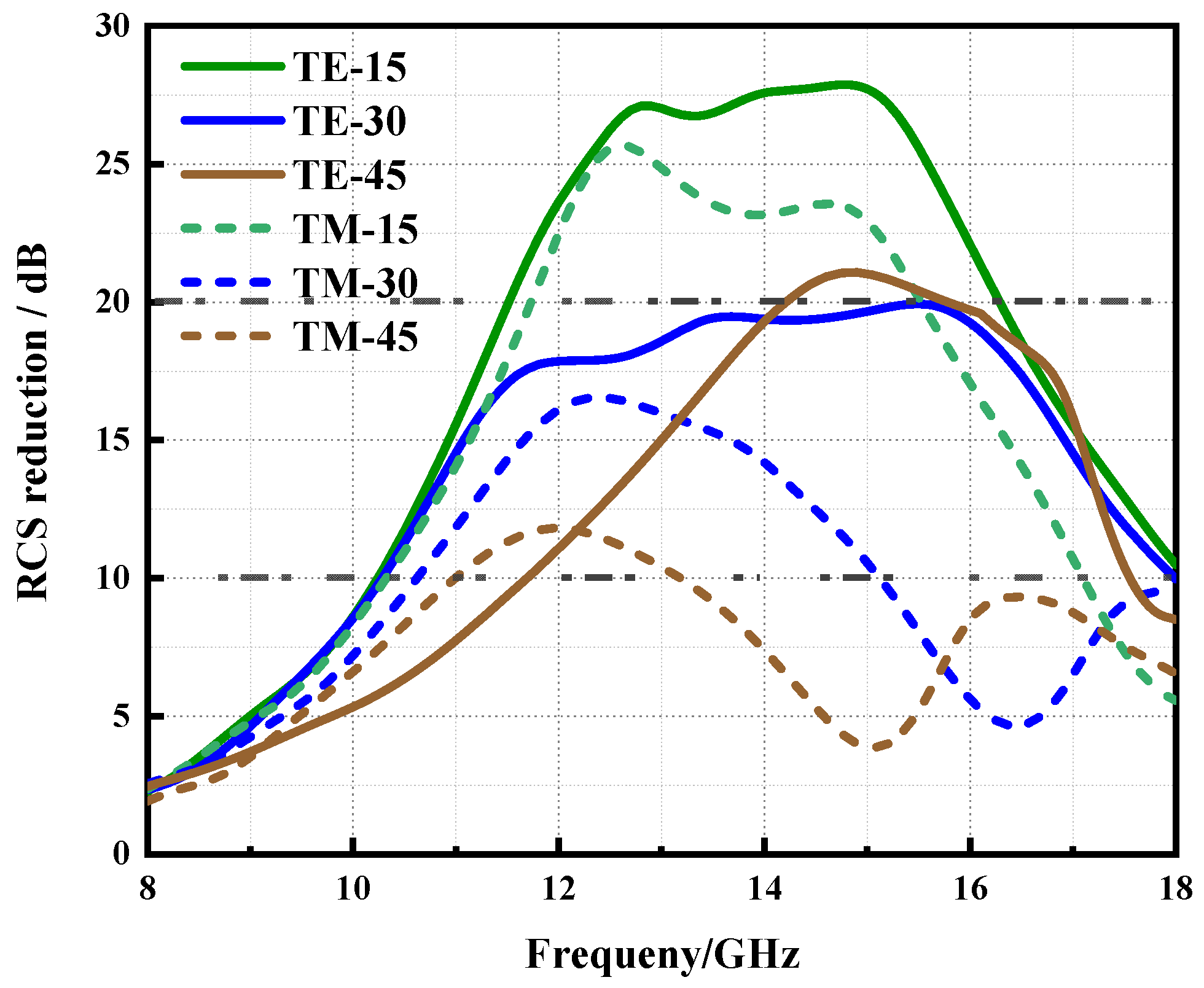

**Figure 14.**The operating characteristics when illuminated by TE and TM polarized waves at 15°, 30°, 45° angles of incidence.

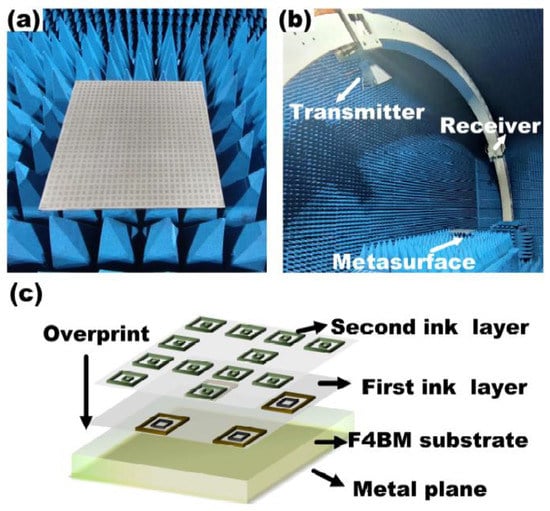

**Figure 15.**(

**a**) The sample of dual-mechanism absorptive metasurface. (

**b**) The testing platform of the anechoic chamber. (

**c**) The production process of the overprinted metasurface.
