Crystalline State Hydrogen Bonding of 2-(2-Hydroxybenzylidene)Thiazolo[3,2-a]Pyrimidines: A Way to Non-Centrosymmetric Crystals

by
Artem S. Agarkov
1,*,
Igor A. Litvinov
1,
Elina R. Gabitova
2,
Alexander S. Ovsyannikov
1,
Pavel V. Dorovatovskii
3,
Andrey K. Shiryaev
4,
Svetlana E. Solovieva
1 and
Igor S. Antipin
1
1
Arbuzov Institute of Organic and Physical Chemistry, FRC Kazan Scientific Center, Russian Academy of Sciences, Arbuzova 8, 420088 Kazan, Russia
2
Department of Organic and Medical Chemistry, Kazan Federal University, Kremlevskaya 18, 420008 Kazan, Russia
3
National Research Center “Kurchatov Institute”, Akademika Kurchatova 1, 123182 Moscow, Russia
4
Samara State Technical University, Molodogvardeyskaya 244, 443100 Samara, Russia
*
Author to whom correspondence should be addressed.
Crystals 2022, 12(4), 494; https://doi.org/10.3390/cryst12040494
Submission received: 28 February 2022 / Revised: 25 March 2022 / Accepted: 31 March 2022 / Published: 2 April 2022
(This article belongs to the Special Issue Advances in Chiral Crystallization, Resolution and Deracemization)
Browse Figures
Versions Notes

Abstract

:
Thiazolopyrimidines are attractive to medical chemists as new antitumor agents due to their high inhibiting activity towards the tumor cells replication process and easy modification of their structure by varying of the number and nature of substituents. The presence of asymmetric C5 carbon atoms requires the development of racemic mixture separation procedures for these heterocycles. One of the more effective ways is the crystallization of a racemic compound as a conglomerate. A prerequisite for such separation is the formation of non-centrosymmetric crystals presenting Sohncke space groups. For the construction of chiral supramolecular ensembles in a crystalline state, hydrogen bonds were chosen as supramolecular synthons. In this context, salicylic derivatives at the C2 atom of thiazolopyrimidines were synthesized. The crystal structures of the obtained compounds were established by SCXRD. The regularities of the solvent’s influence on the crystal packaging were revealed. The conditions for the preparation of crystals with the chiral space group due to intermolecular hydrogen bonds were discovered.

1. Introduction

In the 21st century, cancer ranks first among noncommunicable diseases (NCDs) that have a significant impact on extending of the human life [1]. In this respect, it is still highly challenging to develop new medicaments able to act against a wide variety of cancers and suppress a large range of pathogens. The determination of the structure of such molecules, especially in the crystalline phase, plays an important role in the study of conformational and supramolecular behavior of such species that eventually can afford the development of new synthetic strategies in rational design of such type of compounds aimed to improve their biological activity [2].
In recent years, thiazolopyrimidines (Figure 1) have attracted growing interest as new antitumor agents due to their high inhibiting activity of the tumor cells replication process [3,4,5,6,7].
Their molecular structure can be easily modified by varying the number and nature of substituents (aromatic, aliphatic, heterocyclic, etc.) at the four main sites (stated as X, Y, Z and W on Figure 1) for adjusting antitumor activity. The methylene group disposed at the second position of the thiazolidine fragment can be considered as one of the most attractive for functionalization because of its high activity in condensation reactions, especially when combined with either aromatic or heterocyclic aldehydes. It was shown that the products obtained by this method can exhibit a wide range of biological activity, i.e., they can act as antitumor agents [8,9] and act as effective growth inhibitors of the Bcl-2 protein that protects the tumor cells from many types of apoptosis [10,11], CDC25 phosphatase that plays a key role in the regulation of the cell reproduction cycle and is usually observed in many types of cancer, casein kinase, and protein kinase [12,13]. Some examples of inhibition of ISPF proteins of Mycobacterium tuberculosis, Plasmodium falciparum, and A. thaliana by such type of compounds were also reported [14].
It is well-known that the majority of biologically active substances used in medicine to treat humans or animals contain chiral centers in their molecular structure, generating optical isomerism. In most cases, only one of the enantiomers has the necessary biological activity [15,16,17]. The presence of another chiral antipode in the medicament composition may cause or enhance some side effects or even harm the health of a recipient. Thus, the development of separation methods for racemic mixtures of chiral molecules in order to obtain a pure enantiomer form is of great importance [18,19,20].
Due to the presence of an asymmetric carbon atom in the C5 position, thiazolopyrimidines can exist in both R- and S-enantiomeric forms. (Figure 2).
Some examples of thiazolo[3,2-a]pyrimidine derivatives bearing 2-arylidene groups have been already encountered in the literature [14,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41]. The X-ray diffraction analysis of these compounds revealed that all the obtained structures present a racemic mixture (centrosymmetric crystals). Only one attempt to separate enantiomers by the HPLC method on the chiral stationary phase was reported [14]. It was found that the obtained enantiopure compounds were stable individual substances for more than one week at room temperature. The chiral seeded crystallization, so-called entrainment crystallization method [42], is one of the efficient procedures to separate racemic mixtures. In order to realize this approach, the experimental conditions for the ccrystallization of a racemic compound as a conglomerate, i.e., as a mechanical mixture of crystals of individual enantiomers, must be established. A prerequisite for such separation is the attempt to crystallize the racemic compounds in Sohncke space groups.
In this paper, we report synthesis and crystal structures of new 2-arylidene thiazolo[3,2-a]pyrimidines derivatives (1–3) (Scheme 1) functionalized by proton-donor/acceptor hydroxyl group in D-fragment (Figure 1). The crystallization from protic/aprotic solvents such as EtOH or DMSO were also applied in order to control the self-assembly of chiral molecules in the crystal phase. The role of intermolecular H-bonding between thiazolo[3,2-a]pyrimidines and co-crystallized solvents molecules at the formation of racemic or homochiral crystalline phases will be discussed.

2. Materials and Methods

2.1. Synthesis and Crystallization

All reagents (Acros Organics (Geel, Belgium), Alfa Aesar (Ward Hill, MA, USA)) were used without further purification. The synthesis of the starting 1,2,3,4-tetrahydropyrimidine-2-thions and thiazolo[3,2-a]pyrimidines was carried out according to well-known methods in the literature [43,44,45,46,47]. The preparation of target 2-(2-hydroxybenzylidene)thiazolo[3,2-a]pyrimidines 1–3 consists of three stages. The first stage is a three-component Biginelli condensation between appropriate aldehyde (1 mmol) (benzaldehyde, 2-methoxybenzaldehyde, 4-methoxybenzaldehyde), thiourea (1.5 mmol), and acetoacetic ether (1 mmol) in the presence of a catalytic amount of molecular iodine (0.03 mmol) at refluxing in acetonitrile for 10 h. The second stage is the reaction of the obtained 1,2,3,4-tetrahydropyrimidine-2-thions (1 mmol) with ethyl chloroacetate (5 mmol) in solvent-free conditions at 110 °C for 2 h. At the final stage of the presented pathway, thiazolo[3,2-a]pyrimidines (1 mmol) reacts with salicylic aldehydes (1 mmol) in the presence of a 1% solution of sodium hydroxide and a catalytic amount of pyrrolidine in ethanol for 10 h.

2.1.1. Synthesis of Ethyl (Z)-2-(2-Hydroxybenzylidene)-7-Methyl-3-Oxo-5-Phenyl-2,3-Dihydro-5H-Thiazolo[3,2-a]Pyrimidine-6-Carboxylate, Compound 1

A mixture containing ethyl 7-methyl-3-oxo-5-phenyl-2,3-dihydro-5H-thiazolo[3,2-a]pyrimidine-6-carboxylate (0.32 g, 1 mmol), 2 drops of pyrrolidine, and salicylic aldehyde (0.134 g, 1.1 mmol) dissolved in 5 mL ethanol was stirred for 10 h at 80 °C. After 10 min of heating, the solution turned red. The precipitate formed after cooling down the reaction mixture to room temperature; it was then filtered out and washed with ethanol (20 mL). Compound 1: yield 80%, mp 215–218 °C; IR (KBr, cm−1): 3371 (OH), 3299 (OH), 1702 (C=O), 1682 (C=O), 1546, 1159, 1081, 754. MALDI-TOF: 421.2 [M]+. 1H NMR (DMSO-d6, 600 MHz) δ 1.12 (3H, t, J = 12, CH3), 2.39 (3H, s, CH3), 3.99–4.09 (2H, m, OCH2), 6.05 (1H, s, CH), 6.93–6.97 (2H, m, Ar-H), 7.28–7.38 (7H, m, Ar-H), 7.96 (1H, s, C=CH), 10.58 (1H, s, OH). 13C NMR (DMSO-d6, 151 MHz) δ 13.8, 22.4, 54.7, 60.2, 108.5, 116.2, 118.2, 119.8, 127.4, 128.5, 128.7, 131.5, 132.6, 137.2, 140.4, 151.3, 156.7, 157.2, 164.5. See supplementary materials (Figures S1–S5).
Slow evaporation of the ethanol solution containing dissolved Compound 1 formed monocrystals suitable for SCXRD after 5 days.

2.1.2. Synthesis of Ethyl (Z)-2-(2-Hydroxybenzylidene)-5-(4-Methoxyphenyl)-7-Methyl-3-Oxo-2,3-Dihydro-5H-Thiazolo[3,2-a]Pyrimidine-6-Carboxylate, Compound 2

A mixture containing ethyl 5-(4-methoxyphenyl)-7-methyl-3-oxo-2,3-dihydro-5H-thiazolo[3,2-a]pyrimidine-6-carboxylate (0.35 g, 1 mmol), 2 drops of pyrrolidine, and salicylic aldehyde (0.134 g, 1.1 mmol) dissolved in 5 mL ethanol was stirred for 10 h at 80 °C, leading to a red solution. After removing half of the solvent in a vacuum and cooling the mixture to 0 °C for 12 h, yellow precipitate was formed, filtered out, and washed with ethanol. Compound 2: yield 76%, mp 242–244 °C; IR (KBr, cm−1): 3412 (OH), 1717 (C=O), 1707 (C=O), 1512, 1157, 762. IR (KBr, cm−1): 3434 (OH), 1709 (C=O), 1600, 1542, 1173, 745. MALDI-TOF: 451.6 [M]+. 1H NMR (DMSO-d6, 600 MHz) δ 1.13 (3H, t, J = 12, CH3), 2.38 (3H, s, CH3), 3.71 (3H, s, OCH3), 3.99–4.08 (2H, m, OCH2), 5.99 (1H, s, CH), 6.88–6.96 (4H, m, Ar-H), 7.21–7.23 (2H, m, Ar-H), 7.29–7.36 (2H, m, Ar-H), 7.96 (1H, s, C=CH), 10.63 (1H, br. s, OH). 13C NMR (DMSO-d6, 151 MHz) δ 14.4, 22.9, 54.8, 55.6, 60.6, 107.3, 112.5, 116.6, 118.8, 120.3, 120.5, 127.7, 128.1, 129.1, 130.4, 131.4, 133.1, 151.1, 156.4, 157.5, 158.0, 165.0, 165.8. See supplementary materials (Figures S6–S11).
Slow evaporation of the ethanol (or DMSO) solution containing dissolved Compound 2 formed monocrystals 2a and 2b, respectively, suitable for SCXRD after 5 days.

2.1.3. Synthesis of Ethyl (Z)-2-(2-Hydroxybenzylidene)-5-(2-Methoxyphenyl)-7-Methyl-3-Oxo-2,3-Dihydro-5H-Thiazolo[3,2-a]Pyrimidine-6-Carboxylate, Compound 3

A mixture containing ethyl 5-(2-methoxyphenyl)-7-methyl-3-oxo-2,3-dihydro-5H-thiazolo[3,2-a]pyrimidine-6-carboxylate (0.35 g, 1 mmol), 2 drops of pyrrolidine, and salicylic aldehyde (0.134 g, 1.1 mmol) dissolved in 5 mL ethanol was stirred for 10 h at 80 °C, leading to a red solution. After removing half of the solvent in a vacuum and cooling the mixture to 0 °C for 12 h, yellow precipitate was formed, filtered out, and washed with ethanol. Compound 3: yield 85%, mp 187–190 °C; IR (KBr, cm−1): 3434 (OH), 1709 (C=O), 1600, 1542, 1173, 745. MALDI-TOF: 451.6 [M]+. 1H NMR (DMSO-d6, 600 MHz) δ 1.14 (3H, t, J = 12, CH3), 2.29 (3H, s, CH3), 3.72 (3H, s, OCH3), 3.99–4.04 (2H, m, OCH2), 6.17 (1H, s, CH), 6.90–7.01 (4H, m, Ar-H), 7.25–7.37 (4H, m, Ar-H), 7.89 (1H, s, C=CH), 10.51 (1H, s, OH). 13C NMR (DMSO-d6, 151 MHz) δ 14.3, 22.7, 53.7, 56.0, 60.6, 107.3, 112.5, 116.6, 118.8, 120.3, 120.5, 127.7, 128.1, 129.1, 130.4, 131.4, 133.1, 151.1, 156.4, 157.5, 158.0, 165.0, 165.8. See supplementary materials (Figures S12–S17).
Slow evaporation of the ethanol solution containing dissolved Compound 3 formed monocrystals suitable for SCXRD after 5 days.
An Ultraflex III TOF/TOF mass spectrometer (Bruker Daltonik GmbH, Bremen, Germany) in linear mode was used to register mass spectra. P-nitroaniline and 2,3-dihydroxybenzoic acid were used as matrices.
NMR experiments were performed on Bruker Avance instruments with an operating frequency of 400, 500, and 600 MHz for shooting 1H and 13C NMR spectra, two-dimensional, and low-temperature experiments. Chemical shifts were determined relative to the signals of residual protons of the CDCl3 or DMSO-d6 solvents.
IR spectra in KBr tablets were recorded on a Bruker Vector-22. The melting points of the substances were determined on a BOETIUS heating block with a visual device RNMK 05.
The X-ray diffraction study of the crystals 2a and 3 was performed at the “Belok/XSA” beamline of the Kurchatov Synchrotron Radiation Source [48,49]. Diffraction patterns were collected using Mardtb goniometer (marXperts GmbH, Werkstraße 3, 22844 Norderstedt, Germany) equipped with Rayonix SX165 CCD (Rayonix LLC, 1880 Oak Ave UNIT 120, Evanston, IL, USA) 2D positional sensitive CCD detector (λ = 0.7450 Å, φ-scanning in 1.0° steps). All data were collected at 100 K.
X-ray diffraction analysis of crystal solvates 1 and 2b was performed on a Bruker D8 QUEST automatic three-circle diffractometer with a PHOTON III two-dimensional detector and an IμS DIAMOND microfocus X-ray tube (λ[Mo Kα] = 0.71073 Å) at 100 (2) K. Data collection and processing of diffraction data were performed using APEX3 software package.
All structures were solved by the direct method using the SHELXT program [50] and refined by the full-matrix least squares method over F2 using the SHELXL program [51]. All calculations were performed in the WinGX software package [52]. The calculation of the geometry of molecules and intermolecular interactions in crystals was carried out using the PLATON program [53], and the drawings of molecules were done using the ORTEP-3 [52] and MERCURY [54] programs.
Non-hydrogen atoms were refined in the anisotropic approximation. The positions of the hydrogen atoms H(O) were determined using difference Fourier maps, and these atoms were refined isotropically. The remaining hydrogen atoms were placed in geometrically calculated positions and included in the refinement in the “riding” model. The crystal of Compound 2b is a solvate with DMSO (1:1); crystal 1-solvate with ethanol (1:1). The crystal of Compound 1 is pseudo-centrosymmetric; it was interpreted in the non-centrosymmetric space group P21 with two independent molecules 1 and two ethanol molecules. The PLATON program proposes a centrosymmetric space group P21/c with one molecule of Compound 1 and an ethanol molecule. An attempt to transfer the structure to a centrosymmetric group did not lead to success. The ethoxycarbonyl substituent and the solvate molecules diverged strongly in the structure. R factors in the centrosymmetric space group cannot be obtained below 18%. In addition, systematic absences in the h0l reflections were not observed. As a result, the structure was refined only in the noncentrosymmetric space group. The absolute structure of crystal 1 was not established due to pseudo-centrosymmetric crystal (racemic twin), and in structure 3, due to the poor quality of the crystal, the Flack parameter [55] was calculated with a high error, and the absolute structure was not determined. Crystallographic data of structures 1–3 were deposited at the Cambridge Crystallographic Data Center; deposition numbers and the crystallographic data are given in Table 1.

3. Results and Discussion

To the best of our knowledge, to date, the crystal structures 7-Methyl-3-oxo-5-phenyl-2,3-dihydro-5H-1,3-thiazolo[3,2-a]pyrimidine-6-carboxylates are rather scarcely presented in the literature. In the Cambridge Structural Database [56], there are only 23 structures (Figure 3) containing 7-Methyl-3-oxo-2,3-dihydro-5H-1,3-thiazolo[3,2-a]pyrimidine-6-carboxylate fragment [14,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41].
According to single-crystal XRD data analysis, the bicyclic thiazolo[3,2-a]pyrimidine fragment is found almost flat in all reported compounds. Six-membered cycle adopts the sofa conformation; the sp3 carbon atom C5 deviates slightly from the plane formed by other five atoms (0.341–0.378 Å). Ethoxycarbonyl and benzylidene substituents are also in the plane of the bicyclic fragment. Apparently, a long electron conjugated system from the ethoxycarbonyl group through the six-membered cycle, the carbonyl group, and the benzylidene substituent of a five-membered cycle is realized in these molecules according to XRD data.
Crystallization of a racemic compound as a conglomerate, i.e., a mechanical mixture of individual enantiomers crystals, is an effective way for the enantiomeric separation from technological and economical perspectives [56]. Through this work, we attempted to determine the experimental conditions for such crystallization of this type of compounds.
Usually, molecules intrinsically are prone to crystallize in symmetric, achiral nonpolar space groups that favor the minimization of dipole moments and close packing in crystal phase. Due to the anisotropic nature and complementarity, hydrogen bonds can be considered as efficient supramolecular synthons [57] for the design of chiral supramolecular assemblies. The construction of the chiral crystals from achiral molecules based on control on self-assembly of chiral 2D hydrogen-bonded layers was described recently [58]. In this aspect, the use of salicylic derivatives at the C2 atom of the bicyclic system seems a very promising approach to achieve generation of the chiral crystalline phase when interacting with either each other or solvent molecules acting as supplemental H-bond donors or acceptors.
The preparation of four single crystals of new compounds suitable for X-ray diffraction was successfully completed using slow evaporation techniques from ethanol (for 1, 2a, 3) and DMSO (for 2b). The crystal structures of the obtained crystals were studied using SCXRD, which revealed that all four compounds displayed the conformation behavior of a bicyclic system and the geometric parameters of the molecules similar to the parent compounds. Some selected crystallographic data are presented in Table 1. Aryl fragments in the Z-substituent are located in the axial position. The same molecular conformation is observed in all structures reported earlier. Hence, the geometry of molecules will not be discussed below. Particular attention will be focused on the description of crystal packings formed by intermolecular H-bonding.
Compound 1 with phenyl substituent at the C5 atom forms a non-centrosymmetric crystal solvate with ethanol. The asymmetric part consists of two enantiomers (R and S) of Compound 1 (1A and 1B) and two ethanol molecules. Molecule A is the S isomer, and molecule B is the R isomer. As was noted in the Experimental section, the PLATON proposes to translate the structure into a centrosymmetric space group with one independent molecule. However, an attempt to refine this structure in a centrosymmetric group was not successful. As a result, crystal packing analysis of 1 reveals a non-centrosymmetric system of hydrogen bonds. The hydrogen bonding between Compound 1 and solvate molecules of ethanol leads to the generation of two parallel homochiral chains (dO11A-O26A = 2.639(3) Å, dO26A-N8 = 2.748(3) Å), each composed of only R-isomers or S-isomers (Figure 4).
In the case of the OMe para-substituted derivative 2, single-crystal XRD revealed the formation of two types of solvates obtained from ethanol 2a and DMSO 2b. A unit cell of 2a presents a centrosymmetric space group and consists of one independent molecule of heterocycle (Figure 5) showing, in this case, no chiral discrimination.
No solvate molecules were found in the crystal of 2a. The formation of a non-centrosymmetric crystalline solvate with ethanol was not observed. This fact can be associated with steric factor. The H-bonding between two heterocyclic molecules leads to the formation of a centrosymmetric supramolecular dimer crystallized in triclinic space group P-1 (Figure 5) displaying the O-H…O distances equal to 2.696(3) Å and 3.219(2) Å.
Crystals of Compound 2 obtained from DMSO solution also turned out to be centrosymmetric monoclinic and present solvates with one DMSO molecule. They form the 1D-system of intermolecular hydrogen bonds between the hydroxyl group of 2 and the solvent molecule (Figure 6 (dO-O = 2.664 (1) Å) and nonclassical CH…O H-bonding between methoxy C26-atom and O3-atomcarbonyl group of thiazole moiety (dC-O = 3.077(1) Å).
Slow crystallization of ortho-isomer 3 from ethanol led to the conglomerate formation in the Sohncke space group P212121 with one independent molecule in the asymmetric part. It should be noted that although crystal 3 is obtained from ethanol solution, it does not contain solvate molecules. Due to the poor diffracting ability of the small crystals of Compound 3, its crystal structure was established using the synchrotron source of X-rays. It was discovered that the crystal of 3 is composed of only one enantiomer. The system of hydrogen bonds in this crystal is a one-dimensional zigzag chain of molecules. In this case, a different system is implemented than in the previous cases—O11-H…N8 (d = 2.66(1) Å) and O11-H…S1 type (d = 3.132(9) Å) (Figure 7).
In addition, one may notice that the formation of observed H-bonded supramolecular architectures in the studied crystal structures of obtained thiazolo[3,2-a]pyrimidines can also be related with OMe group position in the Z-substituent, leading to a change in electron density distribution within the molecule. However, in this case, the OMe-group can be considered as a weak H-donor, for which interaction with strong H-acceptors such as an oxygen atom of a carbonyl fragment does not play a dominant role in the formation of the crystal packing where the OH groups are involved in the formation of infinitive crystalline structure.

4. Conclusions

In this work, new derivatives of 2-(2-hydroxybenzylidene)thiazolo[3,2-a]pyrimidines 1–3 with phenyl and ortho-/para-anisyl substituents at the C5 atom were obtained. The crystal structures of all synthesized compounds have been established by SCXRD. The regularities of the solvent’s influence on the crystal packaging of obtained compounds were studied. The conditions for the preparation of crystals with Sohncke space group due to intermolecular hydrogen bonds were determined. Such a system of hydrogen bonds in the crystal gives the possibility for enantiomer’s discrimination of this compound by crystallization condition optimization. It was demonstrated that enantiomeric molecules of thiazolo[3,2-a]pyrimidines can be crystallized into racemic or chiral forms. It was shown that hydrogen bonding can be a driving force for the generation of chiral supramolecular assemblies, and crystals in the Sohncke space group P212121 was obtained. Thus, it could be considered as the first step of enantiomeric separation of 2-(2-hydroxybenzylidene)thiazolo[3,2-a]pyrimidines for further investigation of their antitumor activity.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cryst12040494/s1, Figure S1: 1H NMR spectrum of compound 1 (DMSO-d6, 600 MHz); Figure S2: MALDI TOF spectrum of compound 1 (matrix: p-nitroaniline); Figure S3: IR spectrum of compound 1 (KBr tablet); Figure S4: DSC curves of crystal 1; Figure S5: HRMS spectrum of compound 1; Figure S6: 1H NMR spectrum of compound 2 (DMSO-d6, 600 MHz); Figure S7: 13C NMR spectrum of compound 2 (DMSO-d6, 600 MHz); Figure S8: MALDI TOF spectrum of compound 2 (matrix: p-nitroaniline); Figure S9: IR spectrum of compound 2 (KBr tablet); Figure S10: DSC curves of crystal 2; Figure S11: HRMS spectrum of compound 2; Figure S12: 1H NMR spectrum of compound 3 (DMSO-d6, 600 MHz); Figure S13: 13C NMR spectrum of compound 3 (DMSO-d6, 600 MHz); Figure S14: MALDI TOF spectrum of compound 3 (matrix: p-nitroaniline); Figure S15: IR spectrum of compound 3 (KBr tablet); Figure S16: DSC curves of crystal 3a; Figure S17: HRMS spectrum of compound 3.

Author Contributions

Conceptualization, I.S.A., A.S.A. and S.E.S.; methodology, A.S.O. and I.A.L.; validation, A.S.A., I.A.L. and A.S.O.; formal analysis, I.A.L., A.S.O. and P.V.D.; investigation, E.R.G., P.V.D., A.S.A. and I.A.L.; resources P.V.D. and I.A.L.; data curation, A.S.A., I.S.A., S.E.S. and A.K.S.; writing—original draft preparation, A.S.A., I.A.L., A.S.O., I.S.A. and S.E.S.; writing—review and editing, A.S.A., I.A.L., A.S.O., I.S.A. and S.E.S.; visualization, A.S.O. and A.S.A.; supervision, I.S.A. and S.E.S.; project administration, A.S.A., I.S.A. and S.E.S.; funding acquisition, I.S.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by financial support from government assignment for the Arbuzov Institute of Organic and Physical Chemistry, FRC Kazan Scientific Center, Russian Academy of Sciences (122011800132-5).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors are grateful to the Assigned Spectral-Analytical Center of Shared Facilities for Study of Structure, Composition and Properties of Substances and Materials of the Federal Research Center of Kazan Scientific Center of Russian Academy of Sciences (CSF-SAC FRC KSC RAS) for technical support.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Beaglehole, R.; Bonita, R.; Horton, R.; Ezzati, M.; Bhala, N.; Amuyunzu-Nyamongo, M.; Mwatsama, M.; Reddy, K.S. Measuring progress on NCDs: One goal and five targets. Lancet 2012, 380, 1283–1285. [Google Scholar] [CrossRef]
  2. Herbstein, F.H. Crystalline Molecular Complexes and Compounds: Structures and Principles; Oxford University Press: Oxford, UK, 2005; Volume 18. [Google Scholar]
  3. Mayer, T.U.; Kapoor, T.M.; Haggarty, S.J.; King, R.W.; Schreiber, S.L.; Mitchison, T.J. Smart molecule inhibitor of mitotic spindle bipolarity identified in a phenotype-based screen. Science 1999, 286, 971–974. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Keshari, A.K.; Singh, A.K.; Saha, S. Bridgehead nitrogen thiazolo[3,2-a]pyrimidine: A privileged structural framework in drug discovery. Mini Rev. Med. Chem. 2017, 17, 1488–1499. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, L.; Jin, Y.; Fu, W.; Xiao, S.; Feng, C.; Fang, B.; Gu, Y.; Li, C.; Zhao, Y.; Liu, Z.; et al. Design, Synthesis, and Structure–Activity Relationship Analysis of Thiazolo[3,2-a]pyrimidine Derivatives with Anti-inflammatory Activity in Acute Lung Injury. ChemMedChem 2017, 12, 1022–1032. [Google Scholar] [CrossRef]
  6. Kashyap, S.J.; Sharma, P.K.; Garg, V.K.; Dudhe, R.; Kumar, N. Review on synthesis and various biological potential of thiazolopyrimidine derivatives. J. Adv. Sci. Res. 2011, 2, 18–24. [Google Scholar]
  7. Kajal, A.; Bala, S.; Sharma, N.; Kamboj, S.; Saini, V. Mannich Bases: An Important Pharmacophore in Present Scenario. Int. J. Med. Chem. 2014, 2014, 69–75. [Google Scholar]
  8. Gali, R.; Banothu, J.; Porika, M.; Velpula, R.; Hnamte, S.; Bavantula, R.; Busi, S. Indolylmethylene benzo[h]thiazolo [2,3-b]quinazolinones: Synthesis, characterization and evaluation of anticancer and antimicrobial activities. Bioorg. Med. Chem. 2014, 24, 4239–4242. [Google Scholar] [CrossRef]
  9. Studzińska, R.; Kołodziejska, R.; Redka, M.; Modzelewska-Banachiewicz, B.; Augustyńska, B. Lipophilicity study of thiazolo[3,2-a]pyrimidine derivatives as potential bioactive agents. J. Braz. Chem. Soc. 2016, 27, 1587–1593. [Google Scholar] [CrossRef]
  10. Zhou, B.; Li, X.; Li, Y.; Xu, Y.; Zhang, Z.; Zhou, M.; Wang, R. Discovery and Development of 2H-thiazolo[3,2-a]pyrimidine Derivatives as General Inhibitors of Bcl-2 Family Proteins. ChemMedChem 2011, 6, 904–921. [Google Scholar] [CrossRef]
  11. Feng, Y.; Ding, X.; Chen, T.; Chen, L.; Liu, F.; Jia, X.; Wang, H. Design, synthesis, and interaction study of quinazoline2(1H)-thione derivatives as novel potential Bcl-xL inhibitors. J. Med. Chem. 2010, 53, 3465–3479. [Google Scholar] [CrossRef]
  12. Kolb, S.; Mondésert, O.; Goddard, M.L.; Jullien, D.; Villoutreix, B.O.; Ducommun, B.; Braud, E. Development of Novel Thiazolopyrimidines as CDC25B Phosphatase Inhibitors. ChemMedChem. 2009, 4, 633–648. [Google Scholar] [CrossRef] [PubMed]
  13. Jin, C.H.; Jun, K.Y.; Lee, E.; Kim, S.; Kwon, Y.; Kim, K.; Na, Y. Ethyl 2-(benzylidene)-7-methyl-3-oxo-2,3-dihydro-5H-thiazolo[3,2-a] pyrimidine-6-carboxylate analogues as a new scaffold for protein kinase casein kinase 2 inhibitor. Bioorganic Med. Chem. 2014, 22, 4553–4565. [Google Scholar] [CrossRef] [PubMed]
  14. Geist, J.G.; Lauw, S.; Illarionova, V.; Illarionov, B.; Fischer, M.; Gräwert, T.; Rohdich, F.; Eisenreich, W.; Kaiser, J.; Groll, M.; et al. Thiazolopyrimidine inhibitors of 2-methylerythritol 2,4-cyclodiphosphate synthase (IspF) from Mycobacterium tuberculosis and Plasmodium falciparum. ChemMedChem. 2010, 5, 1092–1101. [Google Scholar] [CrossRef] [PubMed]
  15. Wang, X.; Zeng, S. Stereoselective metabolic and pharmacokinetic analysis of the chiral active components from herbal medicines. Curr. Pharm. Anal. 2010, 6, 39–52. [Google Scholar] [CrossRef]
  16. Jozwiak, K.; Lough, W.J.; Wainer, I.W. Drug Stereochemistry: Analytical Methods and Pharmacology, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2012. [Google Scholar]
  17. Sekhon, B.S. Exploiting the power of stereochemistry in drugs: An overview of racemic and enantiopure drugs. J. Mod. Med. Chem. 2013, 1, 10–36. [Google Scholar] [CrossRef] [Green Version]
  18. Calcaterra, A.; D’Acquarica, I. The market of chiral drugs: Chiral switches versus de novo enantiomerically pure compounds J. Pharm. Biomed. Anal. 2018, 147, 323–340. [Google Scholar] [CrossRef]
  19. Solano, D.M.; Muñoz Solano, D.; Hoyos, P.; Hernáiz, M.J.; Alcántara, A.R.; Sánchez-Montero, J.M. Industrial biotransformations in the synthesis of building blocks leading to enantiopure drugs. Bioresour. Technol. 2012, 115, 196–207. [Google Scholar] [CrossRef]
  20. Zhang, Y.; Wu, D.R.; Wang-Iverson, D.B.; Tymiak, A.A. Enantioselective chromatography in drug discovery. Drug Discov. Today 2005, 10, 571–577. [Google Scholar] [CrossRef]
  21. Liu, X.G.; Feng, Y.Q.; Li, X.F.; Liang, Z.P. Ethyl 2-(2, 4-dichlorobenzylidene)-7-methyl-3-oxo-5-phenyl-2, 3-dihydro-5H-thiazolo[3,2-a]pyrimidine-6-carboxylate dichloromethane solvate. Acta Crystallogr. Sect. E Struct. Rep. Online 2004, 60, 344–345. [Google Scholar] [CrossRef] [Green Version]
  22. Jotani, M.M.; Baldaniya, B.B. (2Z)-Ethyl 2-(4-chlorobenzylidene)-7-methyl-3-oxo-5-phenyl-2, 3-dihydro-5H-1, 3thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2006, 62, 5871–5873. [Google Scholar] [CrossRef]
  23. Jotani, M.M.; Baldaniya, B.B.; Jasinski, J.P. Crystal Structure of Ethyl (2Z, 5R)-2-benzylidene-7-methyl-3-oxo-5-phenyl-2, 3-dihydro-5H-[1,3] Thiazolo[3,2-a]Pyrimidine-6-carboxylate. J. Chem. Crystallogr. 2009, 39, 898–901. [Google Scholar] [CrossRef]
  24. Jotani, M.M.; Baldaniya, B.B. Ethyl 2-[(Z)-3-chlorobenzylidene]-7-methyl-3-oxo-5-phenyl-2, 3-dihydro-5H-1, 3-thiazolo[3,2-a] pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2008, 64, 739. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Liu, X.G.; Feng, Y.Q.; Li, X.F.; Gao, B. Ethyl 5-(2, 6-dichlorophenyl)-7-methyl-2-(1-naphthylmethylene)-3-oxo-2, 3-dihydro-5H-thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2004, 60, 464–465. [Google Scholar] [CrossRef]
  26. Banu, N.A.; Raju, V.B. Ethyl 2-(4-carboxybenzylidene)-7-methyl-3-oxo-5-phenyl-2, 3-dihydro-5H-thiazolo[3,2-a]pyrimidine-6-carboxylate–N, N-dimethylformamide. Acta Crystallogr. Sect. E Struct. Rep. Online 2012, 68, 441. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Hou, Z.H.; Zhou, N.B.; He, B.H.; Li, X.F. Ethyl 5-(4-chlorophenyl)-2-[(Z)-(methoxycarbonyl) methylene]-7-methyl-3-oxo-3, 5-dihydro-2H-thiazolo[3, 2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2009, 65, 375. [Google Scholar] [CrossRef]
  28. Jotani, M.M.; Baldaniya, B.B.; Tiekink, E.R. Ethyl 2-(2-acetoxybenzylidene)-7-methyl-3-oxo-5-phenyl-2, 3-dihydro-5H-1, 3-thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2010, 66, 762–763. [Google Scholar] [CrossRef]
  29. Baldaniya, B.B.; Jotani, M.M. Crystal Structure of Ethyl (2Z)-2-(4-acetyloxybenzylidene)-7-methyl-3-oxo-5-phenyl-2, 3-dihydro-5H-[1,3] thiazolo[3,2-a]pyrimidine-6-carboxylate. Anal. Sci. X-ray Struct. Anal. Online 2008, 24, 217–218. [Google Scholar] [CrossRef] [Green Version]
  30. Hou, Z.H. (2Z)-Ethyl 5-(4-methoxyphenyl)-7-methyl-3-oxo-2-(3, 4, 5-trimethoxybenzylidene)-3, 5-dihydro-2H-thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2009, 65, 235. [Google Scholar] [CrossRef]
  31. Krishnamurthy, M.S.; Nagarajaiah, H.; Begum, N.S. Crystal structure of ethyl 5-(3-fluorophenyl)-2-[(4-fluorophenyl) methylidene]-7-methyl-3-oxo-2H, 3H, 5H-[1,3] thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2014, 70, 1187–1188. [Google Scholar] [CrossRef] [Green Version]
  32. Jotani, M.M.; Baldaniya, B.B.; Jasinski, J.P. Ethyl (2Z)-2-(3-methoxybenzylidene)-7-methyl-3-oxo-5-phenyl-2, 3-dihydro-5H-1, 3-thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2010, 66, 599–600. [Google Scholar] [CrossRef] [Green Version]
  33. Nagarajaiah, H.; Begum, N.S. Structural modifications leading to changes in supramolecular aggregation of thiazolo[3,2-a]pyrimidines: Insights into their conformational features. J. Chem. Sci. 2014, 126, 1347–1356. [Google Scholar] [CrossRef]
  34. Chen, X.Y.; Wang, H.C.; Zhang, Q.; Song, Z.J.; Zheng, F.Y. (Z)-Ethyl 2-(2, 4-dimethylbenzylidene)-7-methyl-3-oxo-5-phenyl-3, 5-dihydro-2H-thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2012, 68, 127. [Google Scholar] [CrossRef] [PubMed]
  35. Hu, J.; Wu, X.X.; Shen, X.Q.; Tang, L.G.; Li, X.K. Ethyl 7-methyl-2-((1-methyl-1H-pyrrol-2-yl) methylene)-3-oxo-5-phenyl-3, 5-dihydro-2H-thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2012, 68, 3099. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Fischer, A.; Yathirajan, H.S.; Mithun, A.; Bindya, S.; Narayana, B. Ethyl 7-methyl-2-[4-(methylsulfanyl) benzylidene]-5-[4-(methylsulfanyl) phenyl]-3-oxo-2, 3-dihydro-5H-thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2007, 63, 1224–1225. [Google Scholar] [CrossRef]
  37. Jotani, M.M.; Baldaniya, B.B. Ethyl (2Z)-2-(2-chlorobenzylidene)-7-methyl-3-oxo-5-phenyl-2, 3-dihydro-5H-1, 3-thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2007, 63, 1937–1939. [Google Scholar] [CrossRef]
  38. Nagarajaiah, H.; Khazi, I.A.M.; Begum, N.S. Synthesis of some new derivatives of thiazolopyrimidines and hydrolysis of its arylidene derivative. J. Chem. Sci. 2015, 127, 467–479. [Google Scholar] [CrossRef] [Green Version]
  39. Zhao, C.G.; Hu, J.; Zhang, Y.L.; Zhang, J.; Yang, S.L. Ethyl (Z)-2-(2-fluorobenzylidene)-7-methyl-3-oxo-5-phenyl-3, 5-dihydro-2H-thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2011, 67, 3009. [Google Scholar] [CrossRef]
  40. Banu, N.A.; Bheema Raju, V. Ethyl 7-methyl-3-oxo-5-phenyl-2-(2, 4, 6-trimethoxybenzylidene)-2, 3-dihydro-5H-thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2012, 68, 1213. [Google Scholar] [CrossRef]
  41. Krishnamurthy, M.S.; Begum, N.S. Crystal structure of ethyl 2-(2-fluorobenzylidene)-5-(4-fluorophenyl)-7-methyl-3-oxo-2, 3-dihydro-5H-1, 3-thiazolo[3,2-a]pyrimidine-6-carboxylate. Acta Crystallogr. Sect. E Struct. Rep. Online 2014, 70, 1270–1271. [Google Scholar] [CrossRef] [Green Version]
  42. Bredikhin, A.A.; Bredikhina, Z.A.; Gubaidullin, A.T.; Litvinov, I.A. Crystallization of chiral compounds. 2. Propranolol: Free base and hydrochloride. Russ. Chem. Bull. 2003, 52, 853–861. [Google Scholar] [CrossRef]
  43. Lashmanova, E.A.; Rybakov, V.B.; Shiryaev, A.K. Synthesis of adamantylated pyrimidines using the Biginelli reaction. Synthesis 2016, 48, 3965–3970. [Google Scholar]
  44. Shiryaev, A.K.; Baranovskaya, N.S.; Eremin, M.S. Synthesis of 5H-thiazolo[3,2-a]pyrimidines. Chem. Heterocycl. Compd. 2012, 48, 1662–1667. [Google Scholar] [CrossRef]
  45. Shiryaev, A.K.; Kolesnikova, N.G.; Kuznetsova, N.M.; Lashmanova, E.A. Alkylation of tetrahydropyrimidine-2-thions with ethyl chloroacetate. Chem. Heterocycl. Compd. 2013, 49, 1812–1817. [Google Scholar] [CrossRef]
  46. Lashmanova, E.A.; Kirdyashkina, A.I.; Slepukhin, P.A.; Shiryaev, A.K. Oxidation of thiazolo[3,2-a]pyrimidin-3 (2H)-ones with DMSO and Lawesson’s reagent. Tetrahedron Lett. 2018, 59, 1099–1103. [Google Scholar] [CrossRef]
  47. Lashmanova, E.A.; Agarkov, A.S.; Rybakov, V.B.; Shiryaev, A.K. Rearrangement of thiazolo[3,2-a]pyrimidines into triazolo [4,3-a]pyrimidines induced by C=N bond reduction. Chem. Heterocycl. Compd. 2019, 55, 1217–1221. [Google Scholar] [CrossRef]
  48. Lazarenko, V.A.; Dorovatovskii, P.V.; Zubavichus, Y.V.; Burlov, A.S.; Koshchienko, Y.V.; Vlasenko, V.G.; Khrustalev, V.N. High-throughput small-molecule crystallography at the ‘Belok’beamline of the Kurchatov synchrotron radiation source: Transition metal complexes with azomethine ligands as a case study. Crystals 2017, 7, 325. [Google Scholar] [CrossRef] [Green Version]
  49. Svetogorov, R.D.; Dorovatovskii, P.V.; Lazarenko, V.A. Belok/XSA diffraction beamline for studying crystalline samples at Kurchatov Synchrotron Radiation Source. Cryst. Res. Technol. 2020, 55, 1900184. [Google Scholar] [CrossRef]
  50. Sheldrick, G.M. SHELXT–Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A Found. Adv. 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  51. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  52. Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Crystallogr. 2012, 45, 849–854. [Google Scholar] [CrossRef]
  53. Spek, A.L. Structure validation in chemical crystallography. Acta Crystallogr. Sect. D Biol. Crystallogr. 2009, 65, 148–155. [Google Scholar] [CrossRef] [PubMed]
  54. Macrae, C.F.; Edgington, P.R.; McCabe, P.; Pidcock, E.; Shields, G.P.; Taylor, R.; Towler, M.; Streek, J.V.D. Mercury: Visualization and analysis of crystal structures. J. Appl. Crystallogr. 2006, 39, 453–457. [Google Scholar] [CrossRef] [Green Version]
  55. Flack, H.D.; Bernardinelli, G. Reporting and evaluating absolute-structure and absolute-configuration dete rminations. J. Appl. Crystallogr. 2000, 33, 1143–1148. [Google Scholar] [CrossRef] [Green Version]
  56. Collet, A.; Brienne, M.J.; Jacques, J. Optical resolution by direct crystallization of enantiomer mixtures. Chem. Rev. 1980, 80, 215–230. [Google Scholar] [CrossRef]
  57. Desiraju, G.R. Supramolecular synthons in crystal engineering—A new organic synthesis. Angew. Chem. Int. Ed. Engl. 1995, 34, 2311–2327. [Google Scholar] [CrossRef]
  58. Sasaki, T.; Ida, Y.; Hisaki, I.; Tsuzuki, S.; Tohnai, N.; Coquerel, G.; Sato, H.; Miyata, M. Construction of Chiral Polar Crystals from Achiral Molecules by Stacking Control of Hydrogen-Bonded Layers Using Type II Halogen Bonds. Cryst. Growth Des. 2016, 16, 1626–1635. [Google Scholar] [CrossRef]

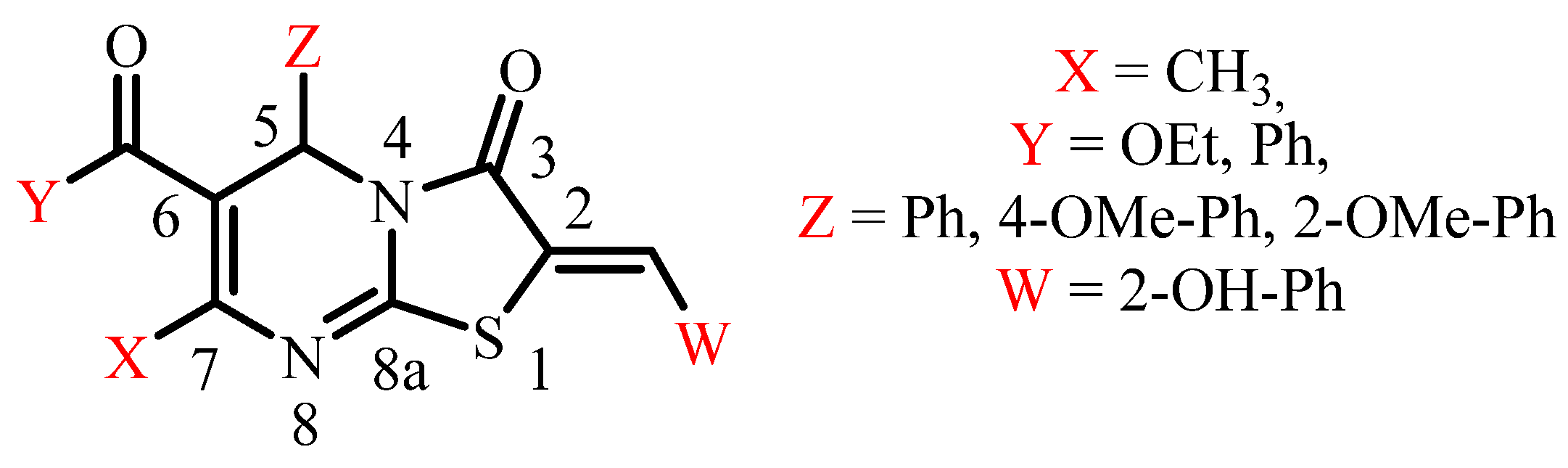

Crystals 12 00494 g001 550
Figure 1. Structure of thiazolo[3,2-a]pyrimidines modified by X, Y, Z, and W sites.
Figure 1. Structure of thiazolo[3,2-a]pyrimidines modified by X, Y, Z, and W sites.
Crystals 12 00494 g001
Crystals 12 00494 g002 550

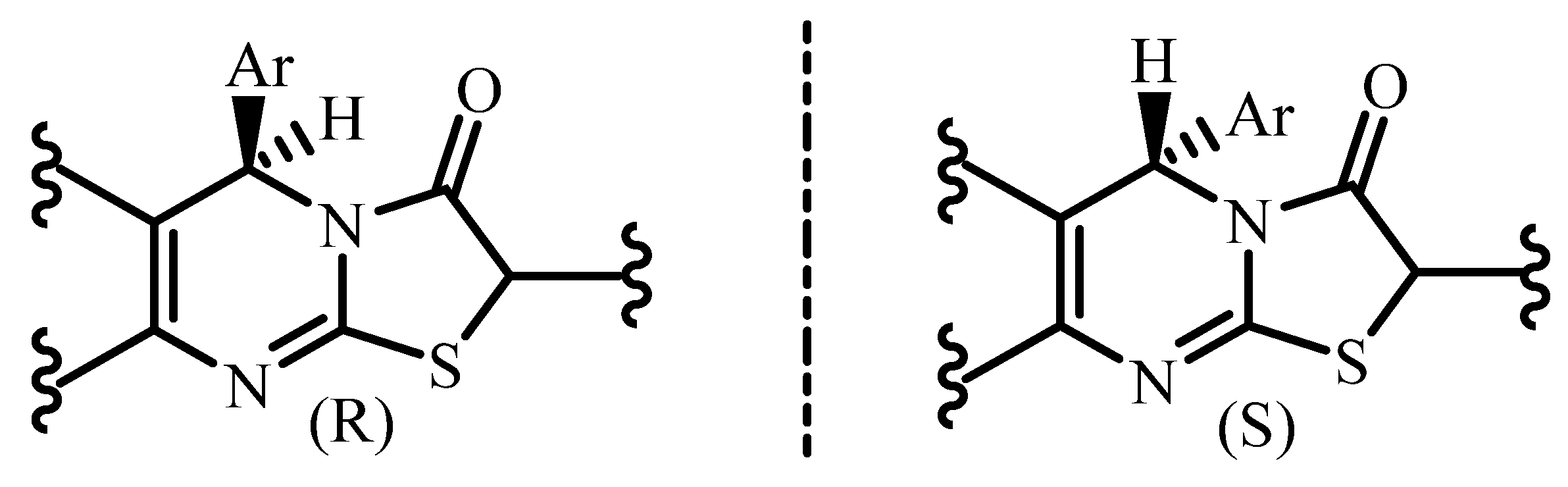

Figure 2. R- and S-enantiomeric forms of thiazolo[3,2-a]pyrimidine derivatives.
Figure 2. R- and S-enantiomeric forms of thiazolo[3,2-a]pyrimidine derivatives.
Crystals 12 00494 g002

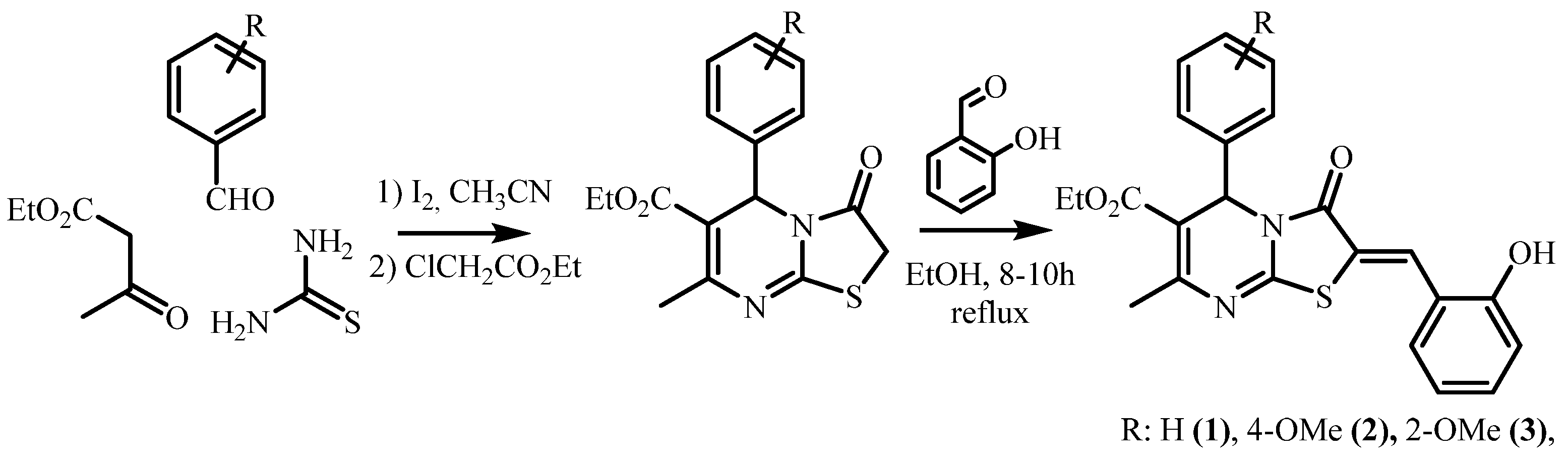

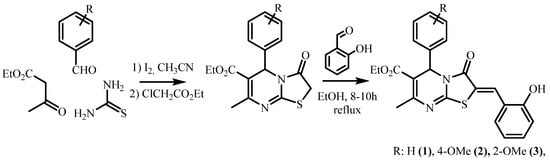

Crystals 12 00494 sch001 550
Scheme 1. Hydroxybenzylidene)thiazolo[3,2-a]pyrimidines 1–3.
Scheme 1. Hydroxybenzylidene)thiazolo[3,2-a]pyrimidines 1–3.
Crystals 12 00494 sch001

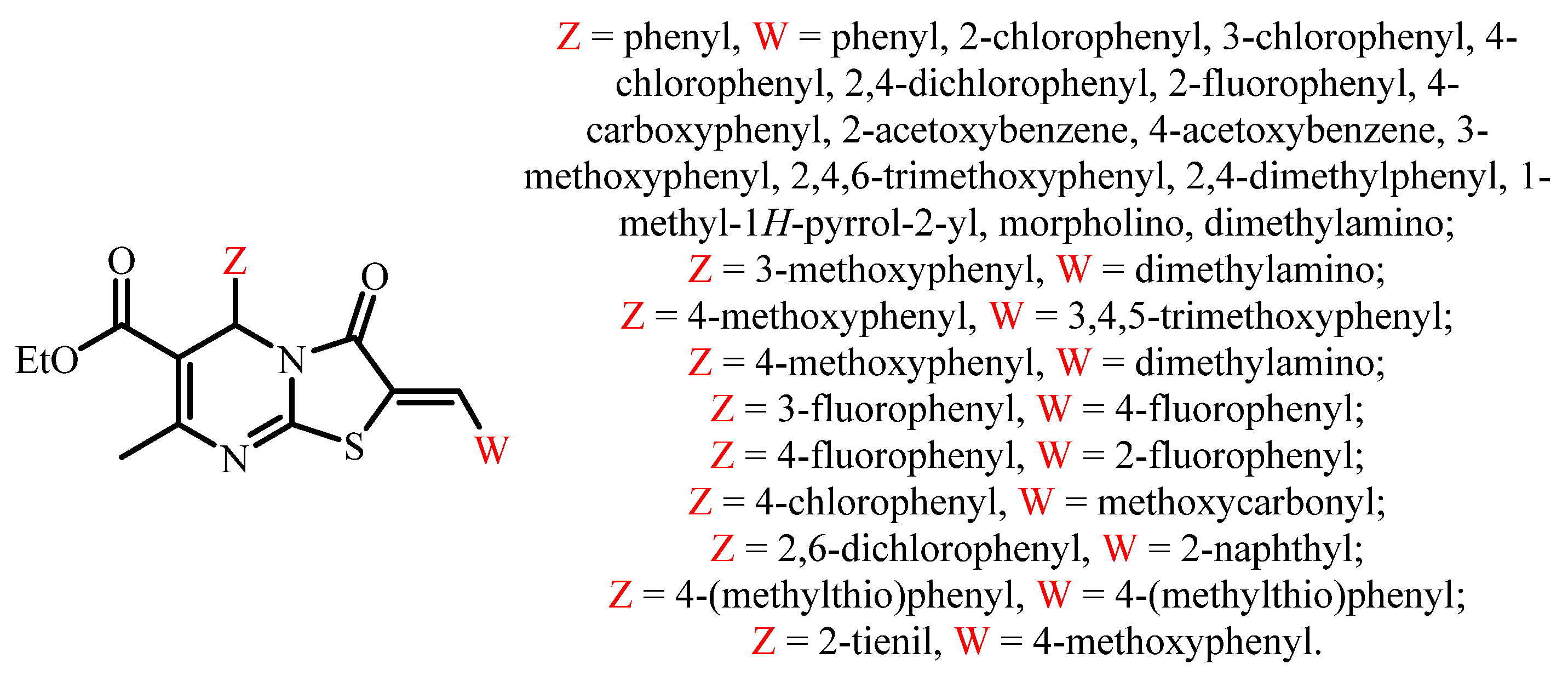

Crystals 12 00494 g003 550
Figure 3. The thiazolo[3,2-a]pyrimidines derivatives investigated by single-crystal XRD.
Figure 3. The thiazolo[3,2-a]pyrimidines derivatives investigated by single-crystal XRD.
Crystals 12 00494 g003

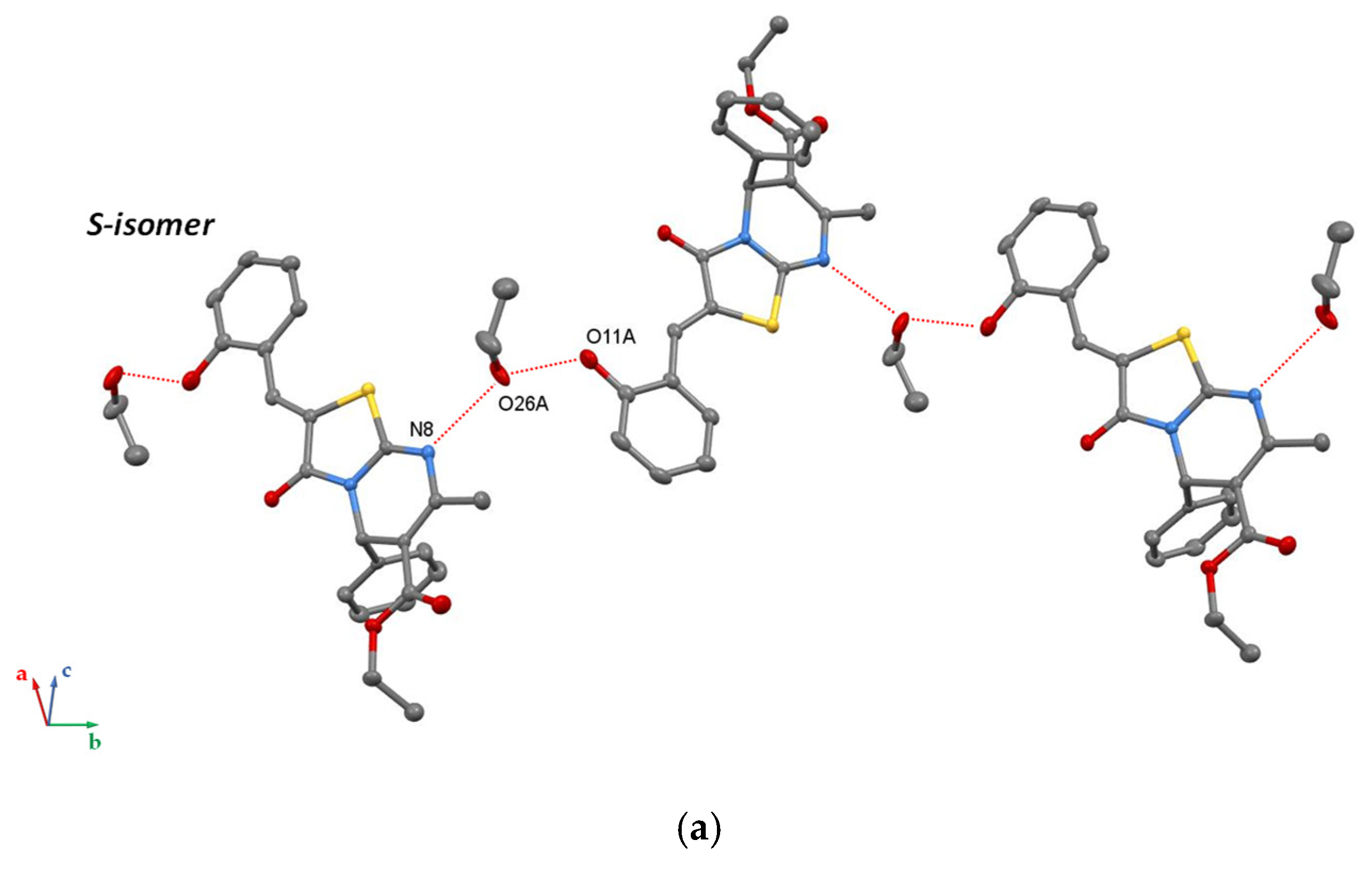

Crystals 12 00494 g004a 550Crystals 12 00494 g004b 550

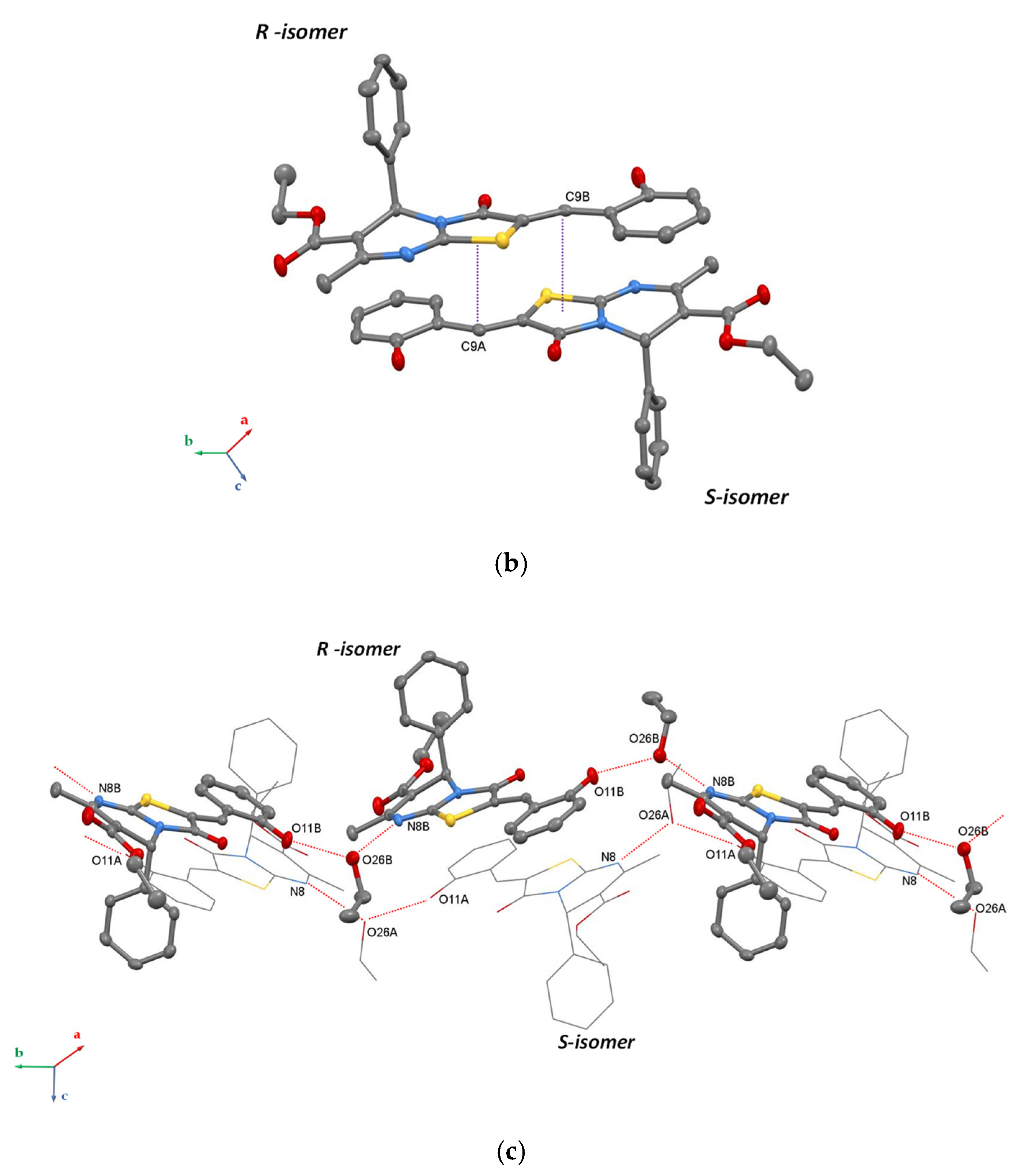

Figure 4. Portion of crystal structure of rac-1 showing formation of 1D H-bonded zigzag homochiral chain composed of S-isomer (a), π-stacking between R and S isomers (dC9A/C9B–C3NScentroid = 3.316 Å, ∠ = 4.61°) (b), crystal packing of S and R-isomer based chains (view along b axis) (c). Hydrogen bonds and π-stacking are shown by red and violet dotted lines, respectively.
Figure 4. Portion of crystal structure of rac-1 showing formation of 1D H-bonded zigzag homochiral chain composed of S-isomer (a), π-stacking between R and S isomers (dC9A/C9B–C3NScentroid = 3.316 Å, ∠ = 4.61°) (b), crystal packing of S and R-isomer based chains (view along b axis) (c). Hydrogen bonds and π-stacking are shown by red and violet dotted lines, respectively.
Crystals 12 00494 g004aCrystals 12 00494 g004b

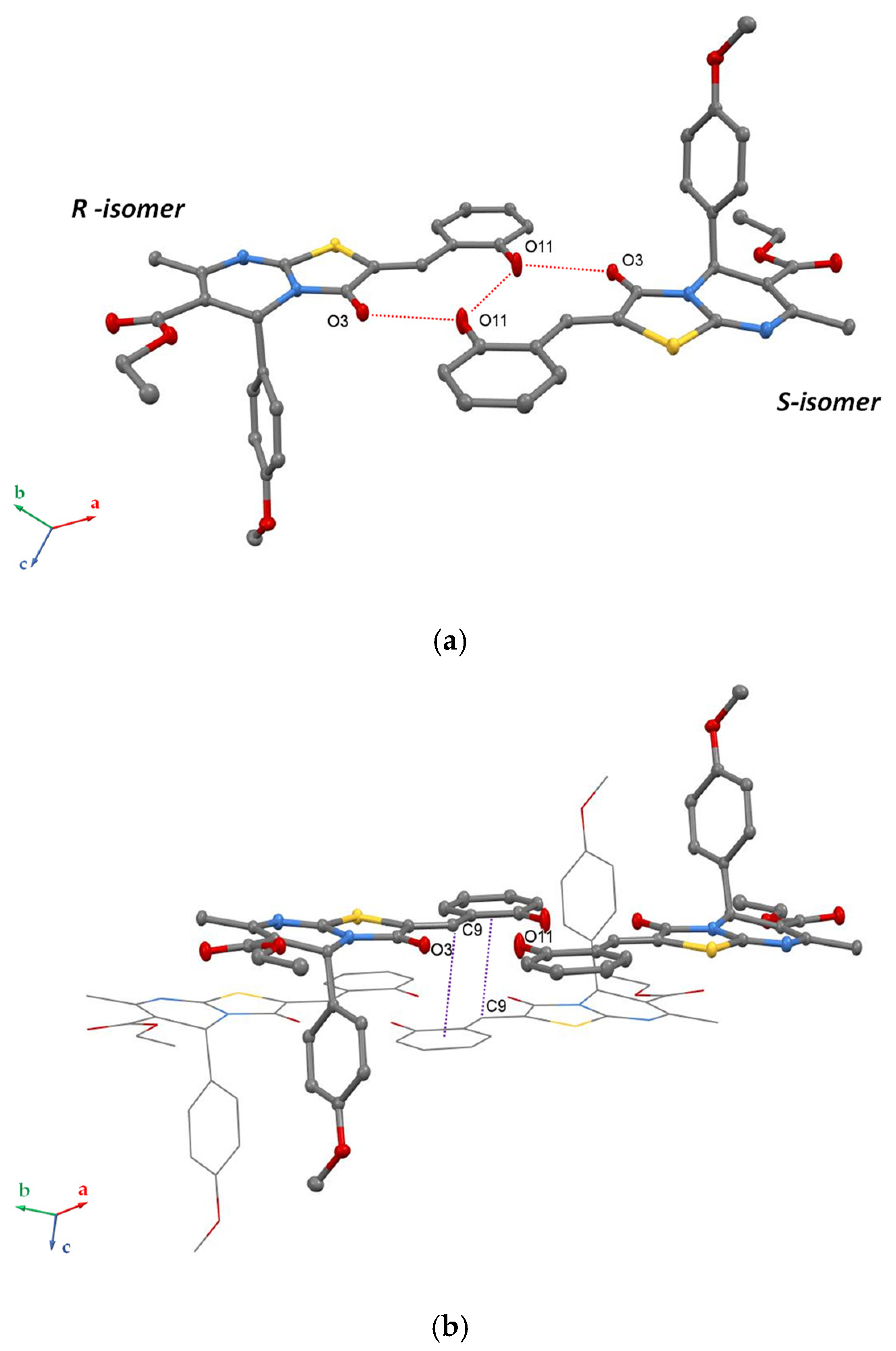

Crystals 12 00494 g005 550
Figure 5. Portion of crystal structure of rac-2a showing intermolecular H-bonding between oxygen atoms of S- and R-isomers leading to supramolecular dimer formation (a), π-stacking between the neighboring dimers within the crystal packing (dC9–C6centroid = 3.322 Å). ∠ = 0°) (b). Hydrogen bonds and π-stacking are shown by red and violet dotted lines, respectively.
Figure 5. Portion of crystal structure of rac-2a showing intermolecular H-bonding between oxygen atoms of S- and R-isomers leading to supramolecular dimer formation (a), π-stacking between the neighboring dimers within the crystal packing (dC9–C6centroid = 3.322 Å). ∠ = 0°) (b). Hydrogen bonds and π-stacking are shown by red and violet dotted lines, respectively.
Crystals 12 00494 g005

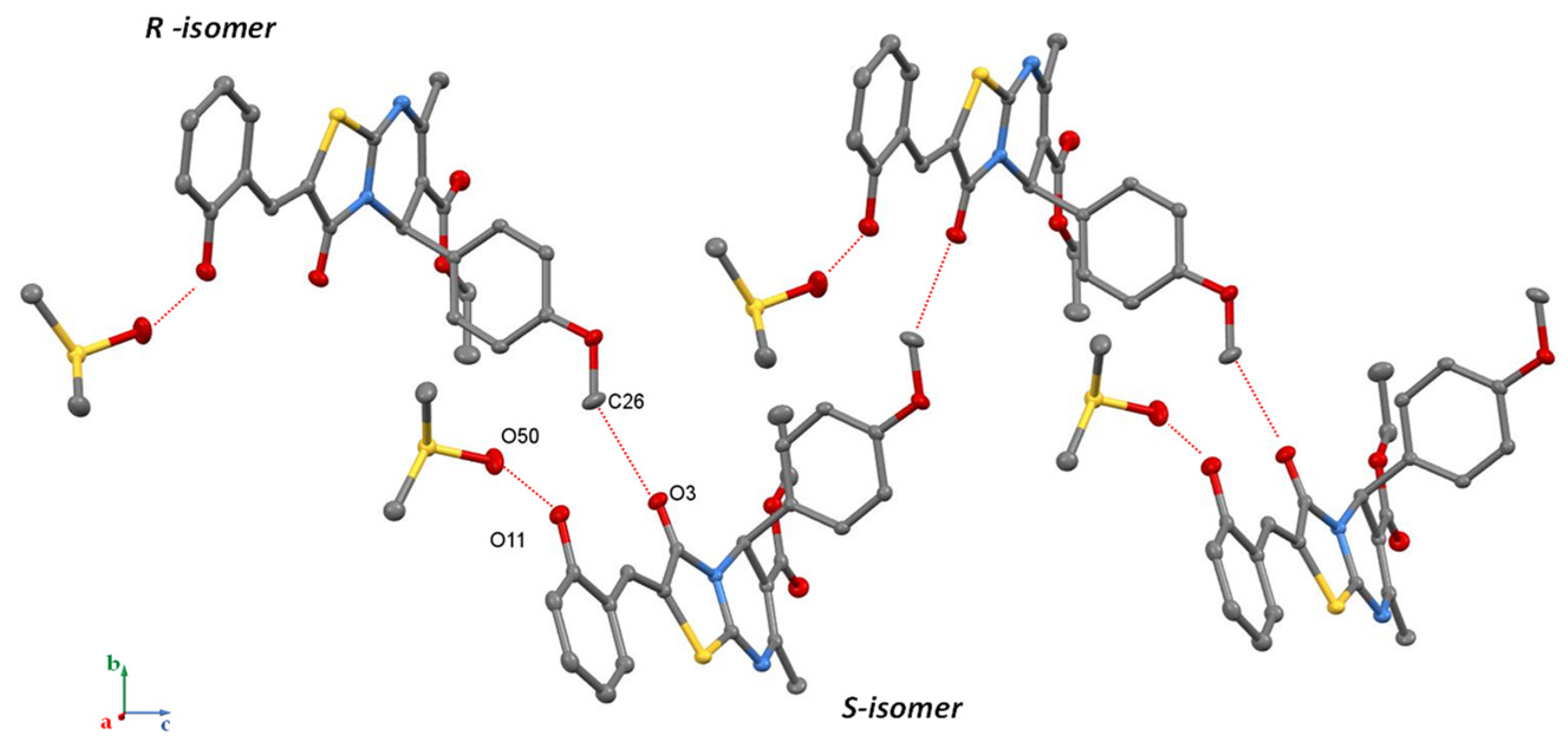

Crystals 12 00494 g006 550
Figure 6. Portion of crystal structure of rac-2b showing formation of 1D zigzag chain consisting of R- and S- isomers and ensured by intermolecular nonclassical CH…O H-bonding between methoxy carbon atom and oxygen of carbonyl group of thiazole moiety (view along c axis). Hydrogen bonds are shown in red dotted lines.
Figure 6. Portion of crystal structure of rac-2b showing formation of 1D zigzag chain consisting of R- and S- isomers and ensured by intermolecular nonclassical CH…O H-bonding between methoxy carbon atom and oxygen of carbonyl group of thiazole moiety (view along c axis). Hydrogen bonds are shown in red dotted lines.
Crystals 12 00494 g006

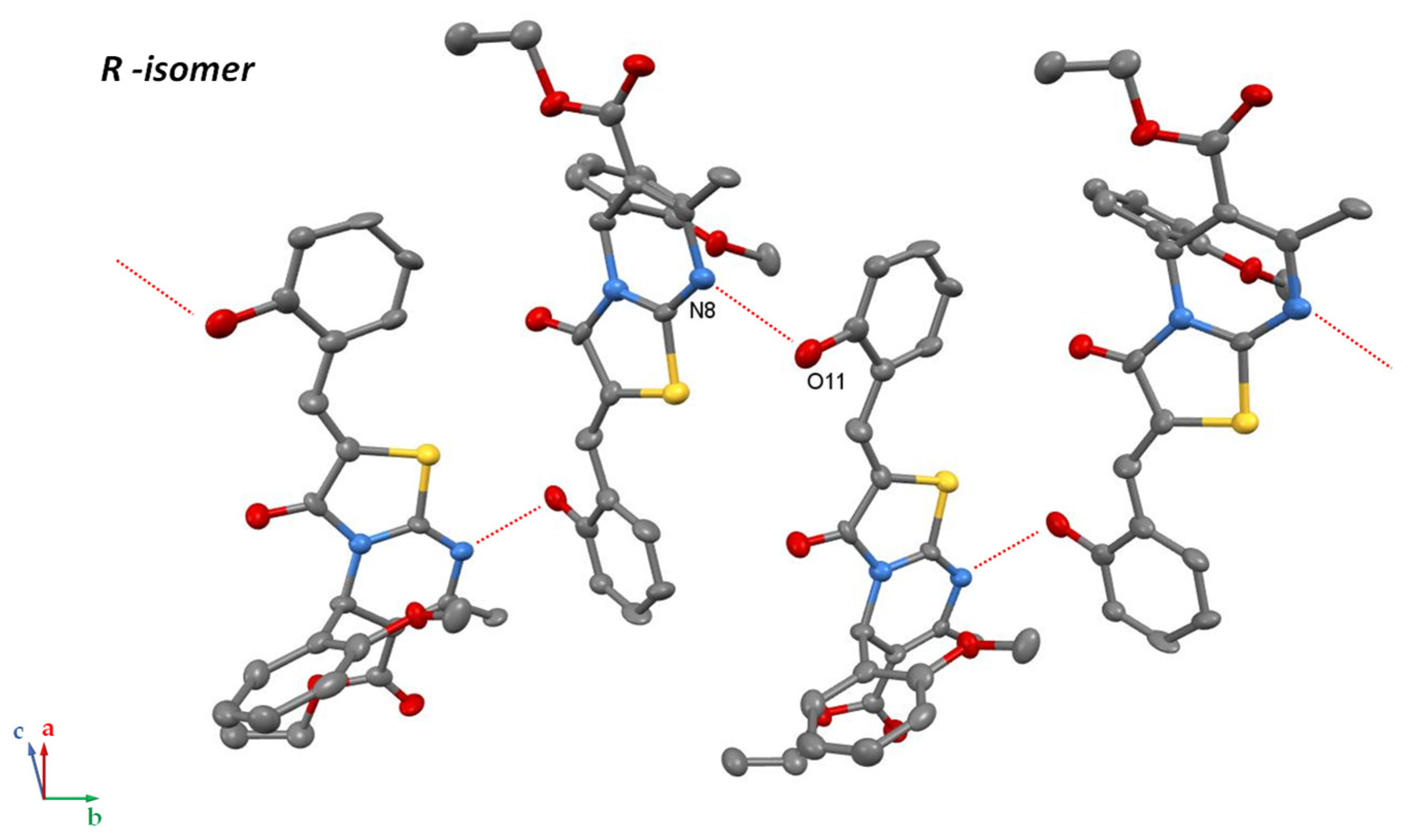

Crystals 12 00494 g007 550
Figure 7. Portion of homochiral crystal structure of 3, showing formation of 1D H-bonded zigzag chain composed of only R-isomer molecules (view along the b axis). Hydrogen bonds are shown in red dotted lines.
Figure 7. Portion of homochiral crystal structure of 3, showing formation of 1D H-bonded zigzag chain composed of only R-isomer molecules (view along the b axis). Hydrogen bonds are shown in red dotted lines.
Crystals 12 00494 g007
Table
Table 1. Crystallographic data for synthesized Compounds 1–3.
Table 1. Crystallographic data for synthesized Compounds 1–3.
Compound1 (from Ethanol)2a (from Ethanol)2b (from DMSO)3 (from Ethanol)
Molecular formulaC23H20N2O4 S, C2H6OC24H22N2O5SC24H22N2O5S, C2H6OSC24H22N2O5S
FormulaC25H26N2O5SC24H22N2O5SC26H28N2O6S2C24H22N2O5S
Formula Weight466.54450.50528.62450.50
Crystal Systemmonoclinictriclinicmonoclinicorthorhombic
Space groupP21P-1 (P1bar)P21/cP212121
Cell parametersa = 11.7398(16) Å,
b = 21.619(3) Å,
c = 9.6209(13) Å;
β = 108.231(4)°		a = 6.6700(13) Å,
b = 11.210(2) Å,
c = 14.630(3) Å;
α = 77.42(3)°
β = 77.45(3)°
γ = 78.96(3)°		a = 9.6076(8) Å,
b = 17.8987(15) Å,
c = 14.7477(12) Å;
β = 101.158(3)°		a = 7.7520(16) Å,
b = 12.147(2) Å,
c = 22.309(5) Å;
V [Å3]2319.2(6) Å31030.1(4) Å32488.1(4) Å32100.7(7) Å3
Z and Z′4 and 22 and 14 and 14 and 1
D(calc) [g/cm3]1.3361.4521.4111.424 Γ·CM−3
λ (Å)(MoKα) 0.710730.7450(MoKα) 0.710730.7450
μ [/mm]0.179 MM−10.221 MM−10.260 MM−10.217 MM−1
F(000)9844721112944
Theta Min-Max [Deg]1.9–26.5°2.0–30.0°2.2–30.0°1.9–26.3°
Reflections measured75,17019,400118,98111,919
Independent reflections9502516872513699
Observed reflections [I > 2σ(I)]8409489364941821
Goodness of fit0.9971.031.040.986
R [I > 2σ(I)]R1 = 0.0277,
wR2 = 0.0702		R1 = 0.0353,
wR2 = 0.0936		R1 = 0.0307,
wR2 = 0.0818		R1 = 0.0848,
wR2 = 0.1582
R (all reflections)R1 = 0.0341,
wR2 = 0.0719		R1 = 0.0368,
wR2 = 0.0951		R1 = 0.0352,
wR2 = 0.845		R1 = 0.1879,
wR2 = 0.2041
Max. and Min. Resd. Dens. [e/Å−3]0.216 and −0.182 e Å−30.41 and −0.24 e Å−30.52 и −0.34 e Å−30.32 and −0.34 e Å−3
Flack parameter0.48(5) (racemic twin, BASF 0.4785)--0.4(3)
Depositor numbers in CCDC2,155,2592,155,2612,155,2632,155,264
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Agarkov, A.S.; Litvinov, I.A.; Gabitova, E.R.; Ovsyannikov, A.S.; Dorovatovskii, P.V.; Shiryaev, A.K.; Solovieva, S.E.; Antipin, I.S. Crystalline State Hydrogen Bonding of 2-(2-Hydroxybenzylidene)Thiazolo[3,2-a]Pyrimidines: A Way to Non-Centrosymmetric Crystals. Crystals 2022, 12, 494. https://doi.org/10.3390/cryst12040494

AMA Style

Agarkov AS, Litvinov IA, Gabitova ER, Ovsyannikov AS, Dorovatovskii PV, Shiryaev AK, Solovieva SE, Antipin IS. Crystalline State Hydrogen Bonding of 2-(2-Hydroxybenzylidene)Thiazolo[3,2-a]Pyrimidines: A Way to Non-Centrosymmetric Crystals. Crystals. 2022; 12(4):494. https://doi.org/10.3390/cryst12040494

Chicago/Turabian Style

Agarkov, Artem S., Igor A. Litvinov, Elina R. Gabitova, Alexander S. Ovsyannikov, Pavel V. Dorovatovskii, Andrey K. Shiryaev, Svetlana E. Solovieva, and Igor S. Antipin. 2022. "Crystalline State Hydrogen Bonding of 2-(2-Hydroxybenzylidene)Thiazolo[3,2-a]Pyrimidines: A Way to Non-Centrosymmetric Crystals" Crystals 12, no. 4: 494. https://doi.org/10.3390/cryst12040494

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
