Broadband Active Control of Transverse Scattering from All-Dielectric Nanoparticle

Abstract

Steering electromagnetic scattering by subwavelength objects is usually accompanied by the excitation of electric and magnetic modes. The Kerker effect, which relies on the precise overlapping between electric and magnetic multipoles, is a potential approach to address this challenge. However, fundamental limitations on the reconfigurability and tunability challenge their future implementation in practical applications. Here, we demonstrate a design approach by applying coherent control to a silicon nanodisk. By utilizing an experimentally feasible two-wave excitation, this coherent light-by-light control enables a highly reconfigurable, broadband, and tunable transverse scattering, extending the feasibility of unidirectional scattering in various practical scenarios, including on-chip integrations and optical communications.

1. Introduction

Precise control over the scattering property of subwavelength nanostructure lies at the heart of nanotechnology [1,2]. For this purpose, the Kerker effect, which exploits the far-field interference between electric and magnetic multipoles, is widely adopted for unidirectional scattering [3,4,5]. Multipolar nanophotonics is closely associated with high-index dielectric materials owning to their suppressed dissipation losses and compatibility with modern CMOS techniques [6,7,8]. By judiciously engineering the geometry of dielectric nanoparticles, light can be unidirectionally scattered to forward [4,9], backward [4], or even transverse [10,11] directions. Currently, the study on unidirectional scattering mainly focuses on the design of natural resonant modes (or eigenstates) inside a nanostructure, which depends heavily on the geometry and the working wavelengths. For example, the electric dipole (ED) and magnetic dipole (MD) responses from a silicon nanosphere are dispersive, thereby resulting in an extremely narrow spectral window for it to act as a Huygens’ source [12]. Moreover, it is reported that the precise overlapping between higher-order electric and magnetic multipolar resonances leads to side-directed scattering, but at the cost of ultranarrow bandwidth, delicate nanostructure design, and stringent fabrication requirements [11]. In addition, the lack of reconfigurability for given nanostructure also hinders substantial developments for nanodevices with miscellaneous optical functions.

In contrast to the eigenstate-oriented design approach, the recently emerged concept of ‘coherent control’ suggests an on-demand strategy for reconfigurable unidirectional scattering [13]. In the context of nanophotonics, coherent light-by-light control refers to the excitation of nanostructures in interference fields, which can be constructed by, for example, multiple coherent plane waves [14,15], radially or azimuthally polarized lights, etc. [16,17]. By tuning the intensity and phase difference between incident lights, one can continuously tune the optical response of a static nanostructure noninvasively [14,15,18,19], enabling a variety of applications in ultrafast and nonlinear optics such as displacement sensing [20,21], optical force [22], coherent perfect absorption [23], and on-chip optoelectronic applications [24,25], etc.

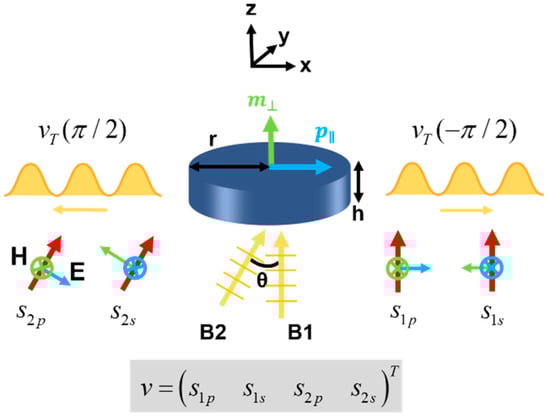

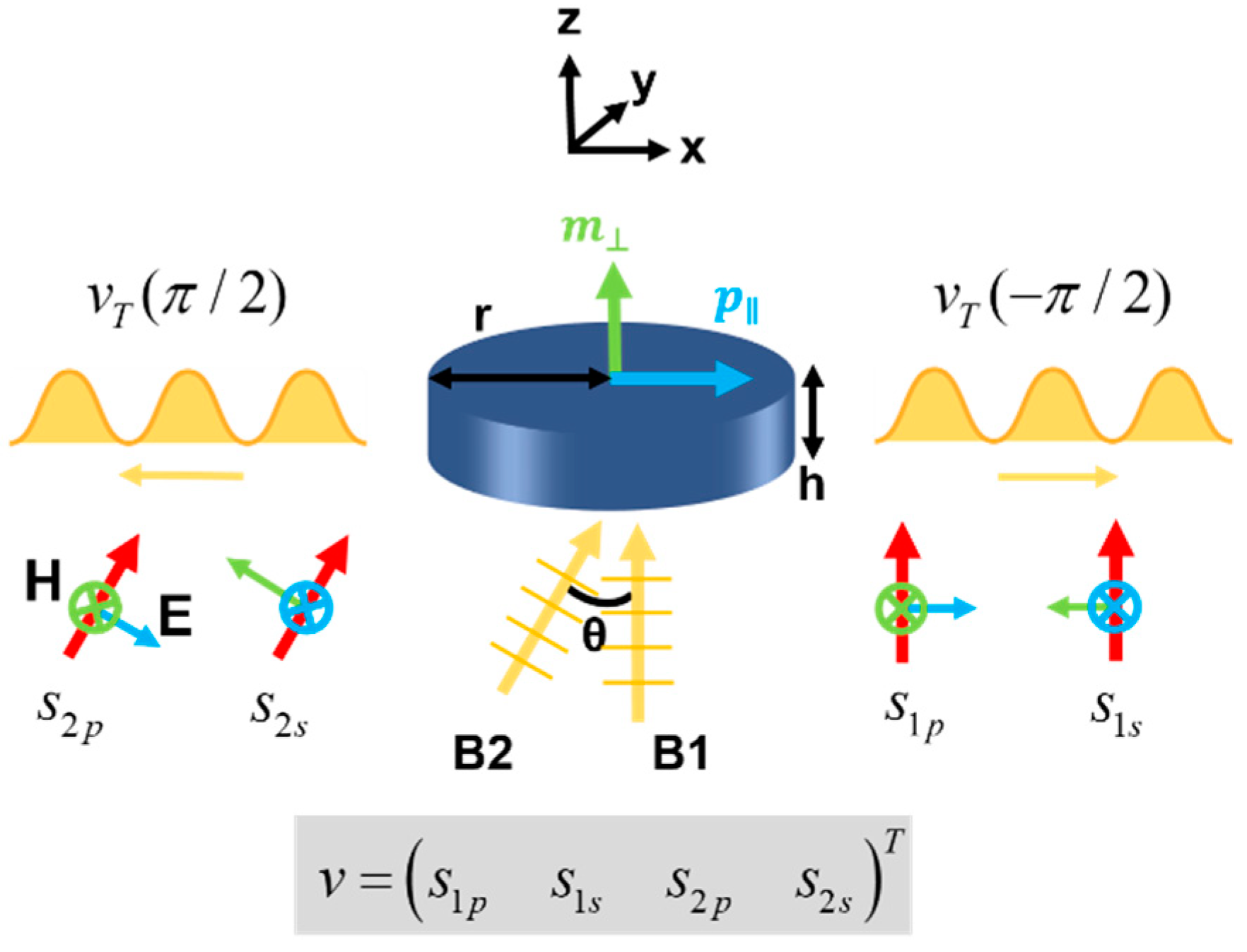

In this letter, we apply coherent control to a silicon nanodisk and demonstrate a highly reconfigurable, broadband, and tunable transverse scattering without utilizing higher-order multipoles. Specifically, by adjusting the polarization states and phase difference between two coherent plane waves, the out-of-plane MD ($m_{\perp }$) and in-plane ED ($p_{\parallel }$) moments from the silicon nanodisk are independently excited. Such coherent excitation enables the continuous tuning between ED and MD modes, thereby extending unidirectional scattering to all transverse angles and broadband spectra regions. Our results provide a simple way for reconfigurable scattering manipulation without moving the excitation beams, which may find applications in on-chip integrations and optical communications.

2. Principle of Coherent Control for Transverse Scattering

We start by discussing the coherent excitation of individual dipole mode. In general, the Kerker effect takes place in the presence of ED and MD modes, where their dipole moments should be (i) orthogonally oriented, (ii) in-phase or out-of-phase, and (iii) have equal magnitude. For conventional studies where a nanosphere is impinged by a plane wave, the first criterion is inherently fulfilled. However, as the ED and MD modes are simultaneously excited by a single beam, their dipole moments are determined by the electric and magnetic dipolar polarizabilities, which cannot always be precisely matched to fulfilled the latter two conditions. To overcome this fundamental limitation, coherent radially and azimuthally polarized beams with orthogonal incidence are investigated [16]. In this case, the ED mode of a nanosphere can only be excited by focused radially polarized light, while its MD counterpart can only be excited by focused azimuthally polarized light [16]. However, as the construction of radially/azimuthally polarized beams relies on two bulky high numerical aperture objectives, this approach is less practical from an experimental point of view. Herein, we propose a different approach to address this issue, which involves two plane waves impinging on a Mie resonator (Figure 1). We should emphasize that this configuration is experimentally feasible, for example, by incorporating Fourier space microscopy and interferometer setup (see Figure S1 in the Supplementary Material for a schematic diagram of the excitation setup) [17,26].

Based on this approach, we consider a silicon nanodisk located at the origin of the Cartesian coordinate system. When the size of the nanodisk is small compared to the wavelength, its ED and MD response can be expressed in terms of anisotropic polarizabilities $p=P_{e}E(0)$ and $m=P_{m}H(0)$, where $P_e$ and $P_m$ are electric and magnetic polarizability tensors, and $E(0)$ and $H(0)$ are the electric and magnetic fields at origin, respectively. The two coherent plane waves illuminate normally (denote as B1) and obliquely (denote as B2) towards the nanodisk, which is defined as an excitation vector $v={\left(\begin{array}{cccc}{s}_{1p}& s_{1s}& s_{2p}& s_{2s}\end{array}\right)}^T$. The incident angle of B2 wave is θ. Symbols $s_{1p}$, $s_{1s}$, $s_{2p}$, and $s_{2s}$ are the p- and s-polarized components of each beam, respectively. Therefore, the interplay between coherent sources leads to a flexible design of the interference field at origin, which can be expressed as,

$$E(0)=E_0\left(\begin{array}{cccc}1& 0& \cos \theta & 0\\ 0& 1& 0& 1\\ 0& 0& -\sin \theta & 0\end{array}\right)v,$$

(1)

$$H(0)=\frac{E_0}{\eta }\left(\begin{array}{cccc}0& -1& 0& -\cos \theta \\ 1& 0& 1& 0\\ 0& 0& 0& \sin \theta \end{array}\right)v,$$

(2)

where E₀ and η are the incident electric field and the impedance of the environment, respectively. One can notice from Equations (1) and (2) that there exist two particular interference fields for independent excitation. First, $v_E(\alpha )={\left(\begin{array}{cccc}\cos \alpha & \sin \alpha & 0& 0\end{array}\right)}^T$ corresponds to in-plane electric field ($E(0)=E_0{\left(\begin{array}{ccc}\cos \alpha & \sin \alpha & 0\end{array}\right)}^T$) along $\alpha$ direction and in-plane magnetic field ($H(0)=E_0/\eta {\left(\begin{array}{ccc}-\sin \alpha & \cos \alpha & 0\end{array}\right)}^T$) along $\alpha +\pi /2$ direction, where $\alpha$ is the incident polarization angle with respect to the x-axis. Second, $v_H=1/\sqrt{2}{\left(\begin{array}{cccc}0& 1& 0& -1\end{array}\right)}^T$ corresponds to a pure magnetic field ($E(0)=0$ and $H(0)=E_0/\eta {\left(\begin{array}{ccc}\cos \theta -1& 0& -\sin \theta \end{array}\right)}^T$) at the origin. In general, all the nonzero field components from $v_E(\alpha )$ and $v_H$ are possible to excite the dipolar modes. However, if a nanodisk is rationally designed to dominantly support $p_{\parallel }$ and $m_{\perp }$ modes (that is, $P_e=diag\left(\begin{array}{ccc}{\alpha }_e& {\alpha }_e& 0\end{array}\right)$ and $P_m=diag\left(\begin{array}{ccc}0& 0& {\alpha }_m\end{array}\right)$, where ${\alpha }_e$ and ${\alpha }_m$ are frequency-dependent electric and magnetic polarizabilities, respectively), the $v_E(\alpha )$ and $v_H$ excitations are decoupled. This can be manifested by incorporating $P_e$ and $P_m$ with Equations (1) and (2), which writes,

$$p(\alpha )=P_{e}E(0)=E_0\left(\begin{array}{cccc}{\alpha }_e& 0& {\alpha }_e\cos \theta & 0\\ 0& {\alpha }_e& 0& {\alpha }_e\\ 0& 0& 0& 0\end{array}\right)v,$$

(3)

$$m=P_{m}H(0)=\frac{E_0}{\eta }\left(\begin{array}{cccc}0& 0& 0& 0\\ 0& 0& 0& 0\\ 0& 0& 0& {\alpha }_m\sin \theta \end{array}\right)v,$$

(4)

Equations (3) and (4) can be reorganized by introducing the reduced excitation matrix $P$ given by,

$$\left(\begin{array}{c}{p}_x\\ p_y\\ m_z\end{array}\right)=Pv=E_0\left(\begin{array}{cccc}{\alpha }_e& 0& \cos \theta {\alpha }_e& 0\\ 0& {\alpha }_e& 0& {\alpha }_e\\ 0& 0& 0& \sin \theta {\alpha }_m/\eta \end{array}\right)v,$$

(5)

where $p_x$, $p_y$, and $m_z$ are the ED moments along the x- and y-axis, and MD moment along the z-axis, respectively. By applying $v_E(\alpha )$ and $v_H$ to Equation (5), one arrives at the individual excitation of each mode,

$$\left(\begin{array}{c}{p}_x\\ p_y\\ m_z\end{array}\right)=P{v}_E(\alpha )=E_0{\alpha }_e\left(\begin{array}{c}\cos \alpha \\ \sin \alpha \\ 0\end{array}\right),$$

(6)

$$\left(\begin{array}{c}{p}_x\\ p_y\\ m_z\end{array}\right)=P{v}_H=-\frac{\sin \theta {\alpha }_m}{\sqrt{2}}\frac{E_0}{\eta }\left(\begin{array}{c}0\\ 0\\ 1\end{array}\right).$$

(7)

Therefore, $v_E(\alpha )$ exclusively guides the orientation of in-plane ED resonance along the $\alpha$ direction, whereas $v_H$ can only excite the out-of-plane magnetic dipole mode. Based on the individual excitation condition, the Kerker condition, therefore, can be fulfilled by matching the ED and MD moments, which writes,

$$\left(\begin{array}{c}{p}_x\\ p_y\\ \sqrt{\epsilon \mu }{m}_z\end{array}\right)=P\left({\zeta }_e{v}_E(\alpha )+\sqrt{\epsilon \mu }{\zeta }_m{v}_H\right)\propto \left(\begin{array}{c}\cos \alpha \\ \sin \alpha \\ 1\end{array}\right),$$

(8)

where $\epsilon$, $\mu$, ${\zeta }_e$, and ${\zeta }_m$ are the permittivity and permeability of the environment, amplitude for $v_E(\alpha )$ and $v_H$ excitation, respectively. Solving Equation (8) one arrives at the transverse scattering condition for the nanodisk,

$$\frac{{\zeta }_e}{{\zeta }_m}=-\frac{\sin \theta }{\sqrt{2}}\frac{{\alpha }_m\epsilon }{{\alpha }_e}.$$

(9)

Therefore, by denoting the amplitude ratio $\kappa ={\zeta }_e/{\zeta }_m$, the transverse scattering condition is fulfilled under the excitation,

$$v_T(\alpha )=\kappa v_E(\alpha )+v_H.$$

(10)

Equation (10) is the central result of this work. We should emphasize that, since the scattering direction is perpendicular to both $p_{\parallel }$ and $m_{\perp }$ modes, the parameter $\alpha$ provides a full 2π transverse scattering coverage. That is, given a specific polarization angle $\alpha$, light will be exclusively scattered to the $\alpha +\pi /2$ direction. In addition, the applicability of Equation (10) can in principle cover a broadband spectral range, as long as the sole prerequisite that $p_{\parallel }$ and $m_{\perp }$ modes are the leading resonances is still valid.

3. Results and Discussion

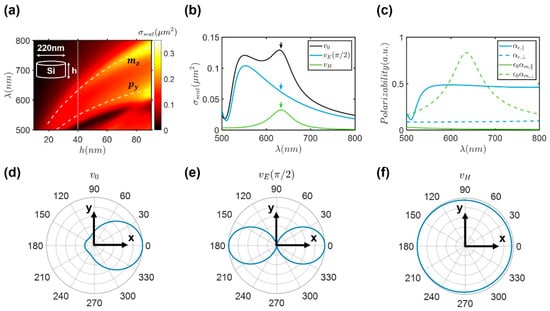

We carry out finite-difference time-domain (FDTD) method (Lumerical Inc., Vancouver, BC, Canada) to validate the theoretical predictions. We first design the high-index resonator with in-plane ED and out-of-plane MD modes. In general, the MD resonance results from the circular displacement currents inside the particle, while the ED resonance is due to the oscillating bound charges [27]. Therefore, it is convenient to tune the resonance overlap between ED and MD modes simply by adjusting the disk height-to-radius aspect ratio [28]. Figure 2a plots the scattering cross section σ_scat of a single Si nanodisk suspended in the air. The disk height h is ranging from 10 to 90 nm while the radius r is fixed to 110 nm. The nanodisk is illuminated by B2 with the incident angle defined by $\theta =\arcsin (\lambda \sin {\theta }_0/{\lambda }_0)$, where λ₀ = 533.7 nm and θ₀ = 30° (we denote as $v_0={\left(\begin{array}{cccc}0& 0& 0& 1\end{array}\right)}^T$ excitation). To better analyze the ED and MD modes, we use the freeware MENP to perform exact multipolar decompositions of the disk responses [29,30]. Their traced spectral maxima position of the dipole moments are superimposed as white dashed lines. The two resonance modes, labeled as $p_y$ and $m_z$, show a clear increase in σ_scat spectra for increasing h. The increase in σ_scat spectra can be attributed to the increase of particle volume and hence their polarizability. On the other hand, the resonance positions of the ED and MD modes experience a strong red-shift by increasing h, which is in sharp contrast to plasmonic nanoparticles where the increase in h gives rise to the blue shift for in-plane dipole mode. The observations in Figure 2a are consistent with the literature [31,32], which can be analytically estimated by the magnetic wall boundary condition [33]. In addition, the resonance peaks positioned at h > 50 nm and λ < 550 nm are due to the excitation of higher-order ED, MD, and magnetic quadrupole modes. For the purpose of this study, we restrict our coherent control hereafter to the h < 50 nm disks. The black line in Figure 2b plots the crosscut of the vertical dotted line in Figure 2a, which corresponds to the σ_scat spectrum of a Si disk with h = 40 nm and r = 110 nm. As expected, two clear peaks, which correspond to the ED mode at λ = 552 nm and the MD mode at λ = 632 nm, are simultaneously excited. The electric and magnetic polarizabilities for the Si disk, defined as the ratio of the multipolar moments to the electromagnetic fields at origin, are plotted in Figure 2c for comparison (i.e., ${\alpha }_{e,\parallel }=p_x/E_x(0)$, ${\alpha }_{e,\perp }=p_z/E_z(0)$ from $v={\left(\begin{array}{cccc}0& 0& 1& 0\end{array}\right)}^T$ excitation and ${\alpha }_{m,\parallel }=m_x/H_x(0)$, ${\alpha }_{m,\perp }=m_z/H_z(0)$ from $v={\left(\begin{array}{cccc}0& 0& 0& 1\end{array}\right)}^T$ excitation, where ${\alpha }_{e,\parallel }$ and ${\alpha }_{e,\perp }$ (${\alpha }_{m,\parallel }$ and ${\alpha }_{m,\perp }$) are the in-plane and out-of-plane electric (magnetic) polarizabilities, respectively). As one can see, ${\alpha }_{e,\parallel }$ and ${\alpha }_{m,\perp }$ are indeed the dominant polarizabilities, ensuring the applicability of the coherent control equations. We then conduct coherent control to excite these two modes independently. The coherent excitation in FDTD can be implemented by simultaneously introducing two total-field scattered-field sources during simulation. The σ_scat spectra of the Si nanodisk under $v_E(\pi /2)$ and $v_H$ excitations are depicted as blue and green lines in Figure 2b. The far-field σ_scat spectra clearly reveal that, $v_E(\pi /2)$ exclusively excites the ED mode, while $v_H$ excitation yields a single MD resonance peak. The individual excitation can in addition be confirmed by investigating their far-field radiation patterns. Figure 2d–f plot the nanodisk radiation patterns in the XY plane for $v_0$, $v_E(\pi /2)$ and $v_H$ excitations. The radiation wavelength is chosen to 633 nm (HeNe laser) for experimental consideration, which corresponds to the black, blue, and green arrows in Figure 2b, respectively. As one can see, when the nanodisk is illuminated by the $v_0$ incidence (black arrow, Figure 2b), both $p_y$ and $m_z$ dipoles are excited, leading to the far-field interference and therefore a small tail in the -x direction (Figure 2d). In contrast, $v_E(\pi /2)$ and $v_H$ give rise to the exclusive excitations for fundamental y-polarized ED and z-polarized MD modes, unambiguously confirming the coherent excitation principle we developed.

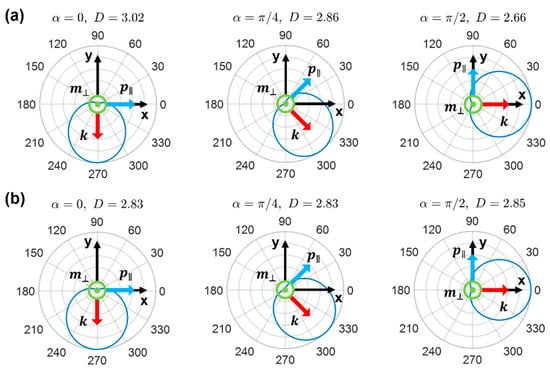

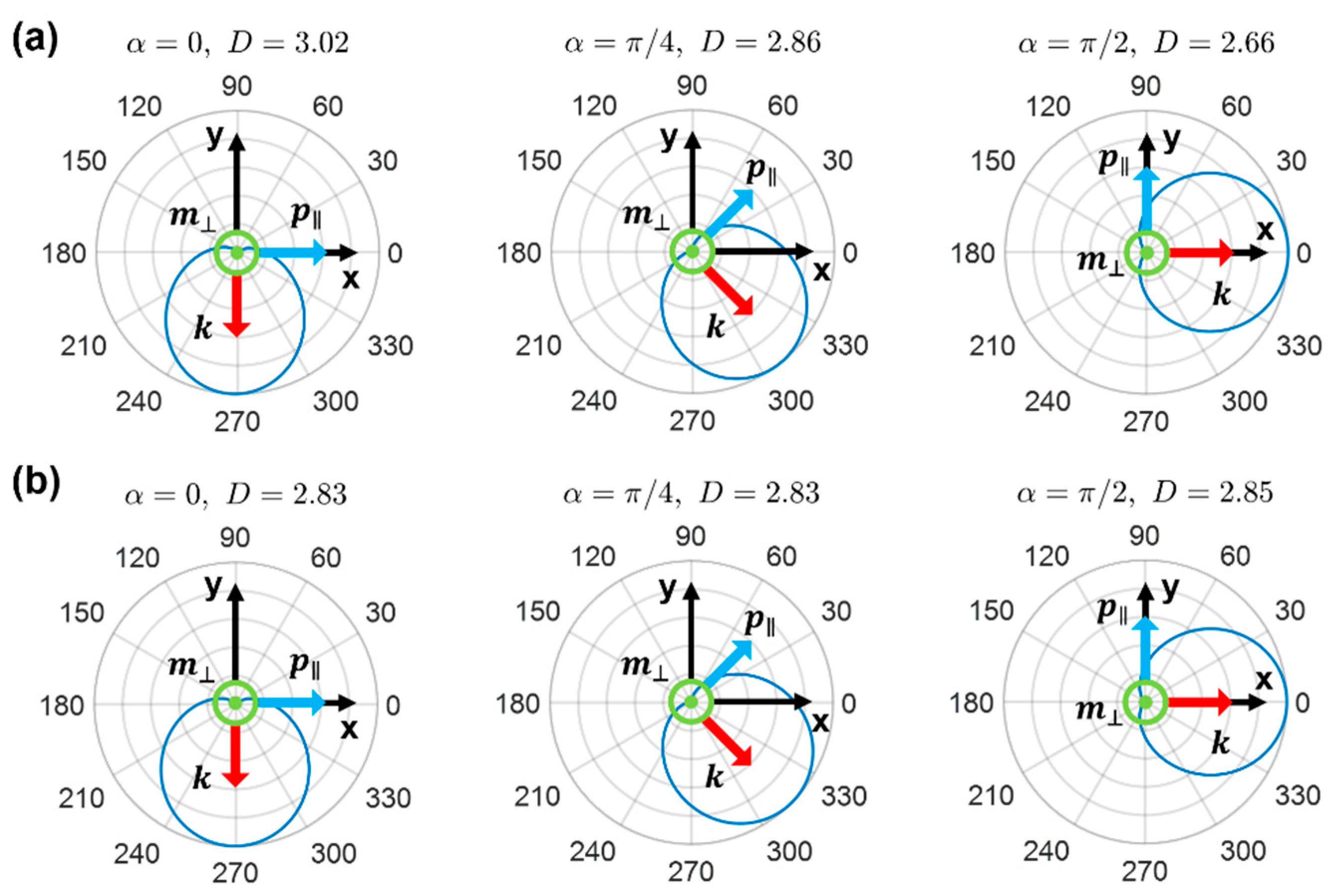

With the individual excitation of ED and MD modes ready, we proceed to perform coherent control for unidirectional scattering. Two wavelengths, 600 nm and 633 nm, are chosen here. Their vector amplitude ratio κ is calculated to be $0.44e^{-1.65i}$ (at 600 nm) and $0.72e^{-2.27i}$ (at 633 nm) based on the electric and magnetic polarizabilities (Equation (9) and Figure 2c). To demonstrate the capability of Equation (10), we numerically calculate the far-field radiation pattern under $v_T(\alpha )$ excitation by considering three polarization angles: α = 0, π/4, and π/2, respectively. Their corresponding scattering directions, according to the Kerker condition, are expected along −π/2, −π/4, and 0 directions with respect to x-axis, respectively. The simulated radiation patterns are shown in Figure 3, with Figure 3a corresponding to the operating wavelength at 600 nm and Figure 3b corresponding to the operating wavelength at 633 nm, respectively. The red, blue, and green arrows indicate the scattering direction, the orientation of ED and MD modes, respectively. As one can see, all coherent excitations exhibit complete suppression in the unwanted (−k) direction. Even at the off-resonance region (λ = 600 nm), Equation (10) faithfully provides the continuous routing to the full 2π transverse scattering range with high efficiency. We have also calculated the directivity of the radiation using the definition:

$$D=\frac{4\pi }{{\displaystyle {\int }_0^{2\pi }{\displaystyle {\int }_0^{\pi }{F}^2(\theta ,\phi )\sin \theta d\theta d\phi }}}$$

(11)

where $F(\theta ,\phi )$ is the radiated power in the direction (θ, φ), and θ, φ are the elevation and azimuthal angles, respectively. The corresponding directivities for Figure 3 are: 3.02 (α = 0), 2.86 (α = π/4), and 2.66 (α = π/2) for 600 nm excitation, and 2.83 (α = 0), 2.83 (α = π/4), and 2.85 (α = π/2) for 633 nm excitation, respectively. Both of them are close to the theoretical directivity value (D = 3) of the Kerker condition. We should emphasize that, this approach can also be applied to higher multipolar modes for better directivity [2]. In addition, as the capability of the coherent control solely depends on the “dominance” of the $p_{\parallel }$ and $m_{\perp }$ modes, it can be evaluated by the ${\alpha }_{e,\parallel }/{\alpha }_{e,\perp }$ and ${\alpha }_{m,\perp }/{\alpha }_{m,\parallel }$ information. The polarizability ratios are depicted in Figure S2a in the Supplementary Material, where their reasonably high values (exceed 3) are observed for wavelength larger than 520 nm. We have simulated the radiation pattern for $v_T(0)$ excitation at wavelength λ = 510, 520, 530, 730, and 790 nm. One clearly sees that for λ = 510 nm (${\alpha }_{e,\parallel }/{\alpha }_{e,\perp }=1.28$), the radiation pattern shows a small tail along α = 60° direction (Figure S2b). However, as $p_{\parallel }$ and $m_{\perp }$ modes prevail when λ > 520 nm, the radiation patterns in Figure S2c–f exhibit efficiency transverse scatting, clearly confirming the applicability of coherent control methods.

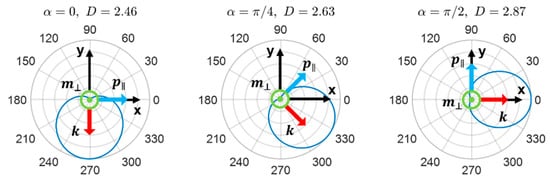

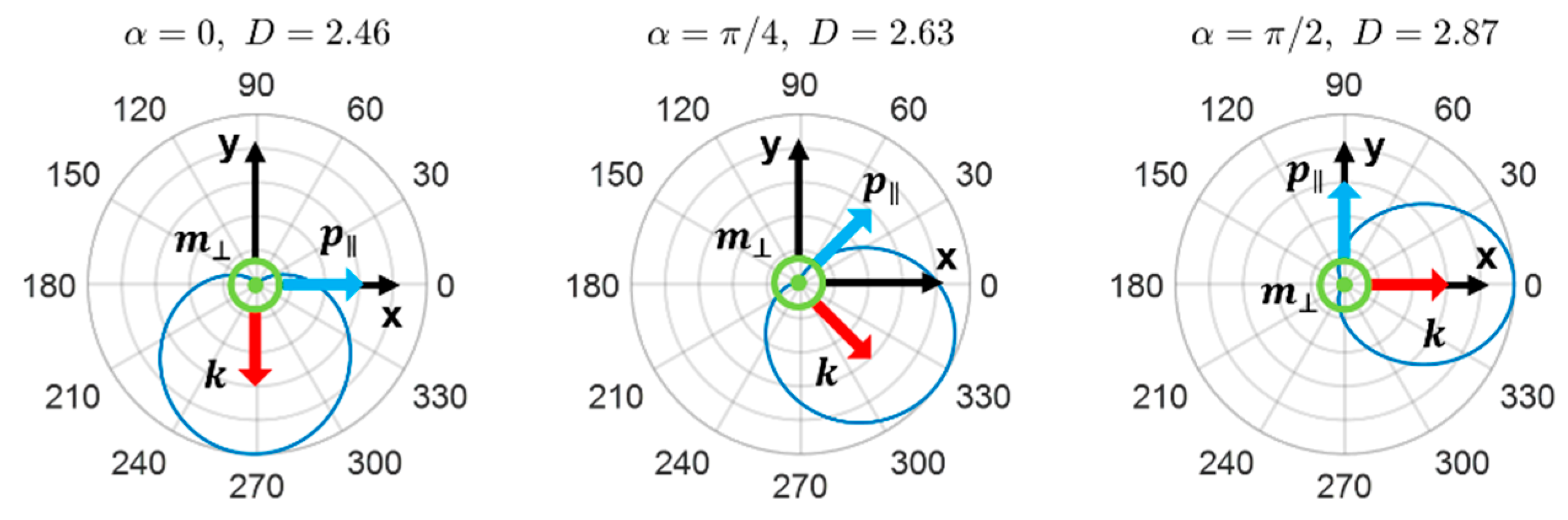

Finally, we perform the coherent control in a realistic system by placing the Si nanodisk on the N-BK7 glass substrate (n = 1.515). The nanodisk has the same geometry as in Figure 3. The system is further immersed in an index-matching oil to produce an optically homogeneous medium for the nanodisk. Following the same procedure described above, the vector amplitude ratio κ is calculated to be $0.53e^{-2.64i}$ at 633 nm. The numerically calculated radiation patterns with polarization angles α = 0, π/4, and π/2 are depicted in Figure 4. As expected, almost identical far-field profiles are observed, demonstrating the feasibility of continuous routing on realistic systems. In addition, since the continuous routing is based on the polarization angle α, which can be readily implemented by, for example, rotational polarizers or spatial light modulators, the above tuning approach does not require any movement components in excitation beams.

4. Conclusions

In summary, we have proposed an experimentally feasible approach to continuously manipulate the transverse scattering from a single silicon nanodisk, showing numerically that a highly reconfigurable and broadband unidirectional scattering can be obtained by coherent control method. We have demonstrated that the exclusive excitation of resonance mode, commonly unattainable for a single beam, can be achieved by coherent excitations. Our results provide a potential optical manipulation approach in next-generation on-chip integrations and optical communication without the need for movable components.
