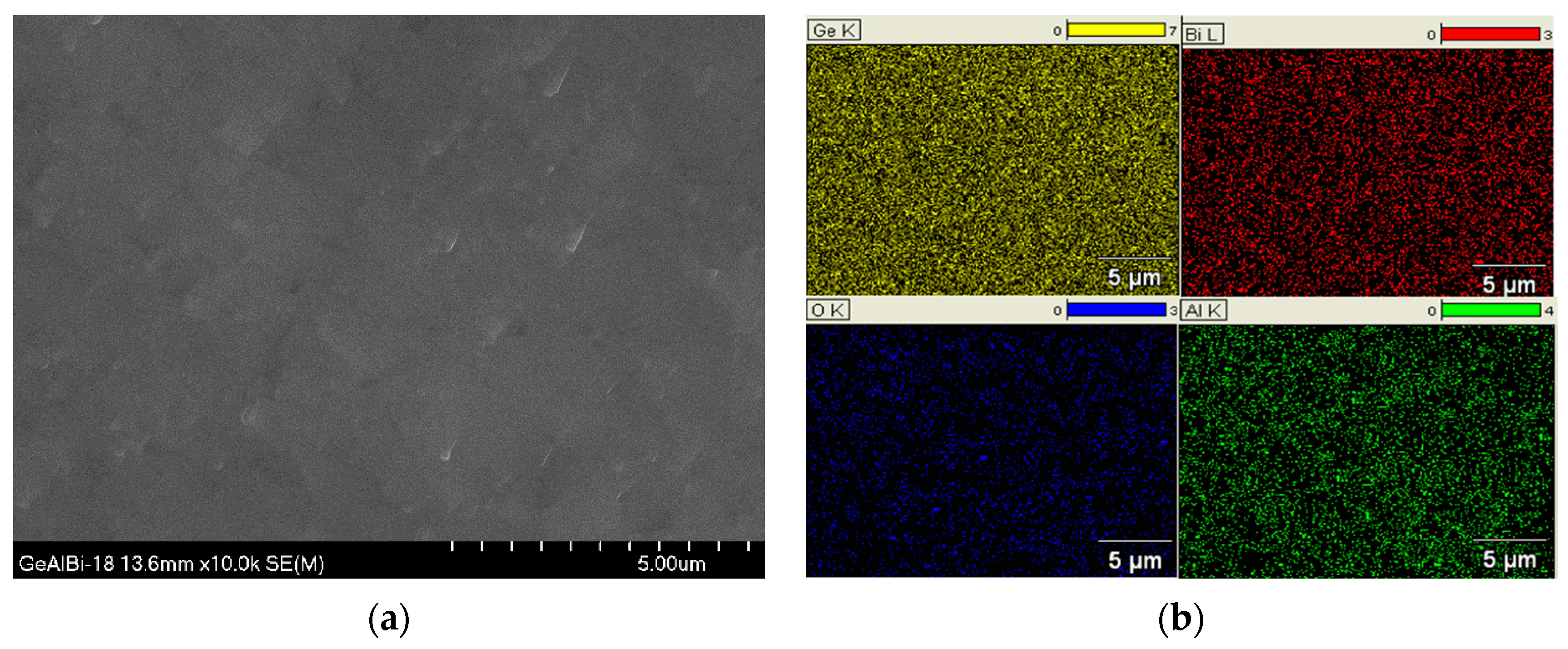

In the presented work, two kinds of germanium oxide glass with different compositions, namely GeO2

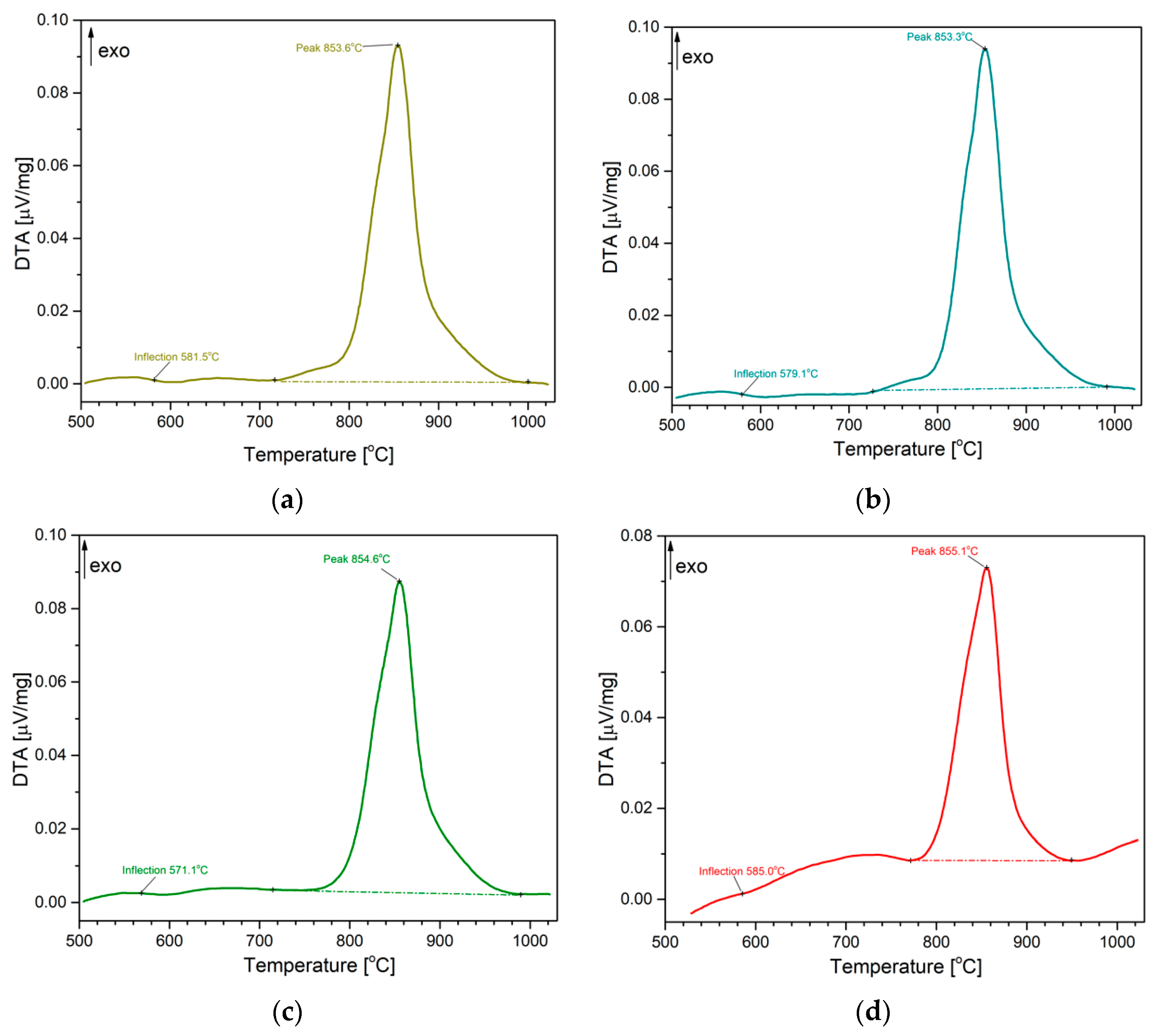

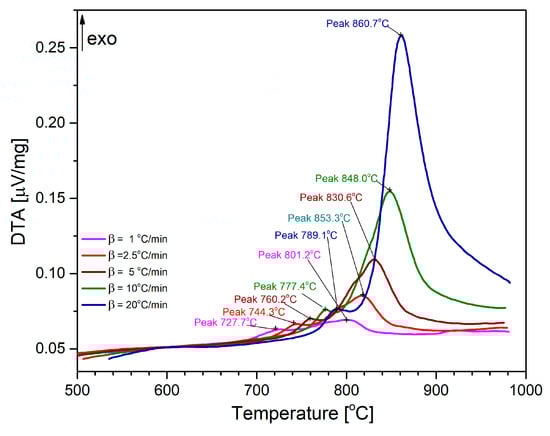

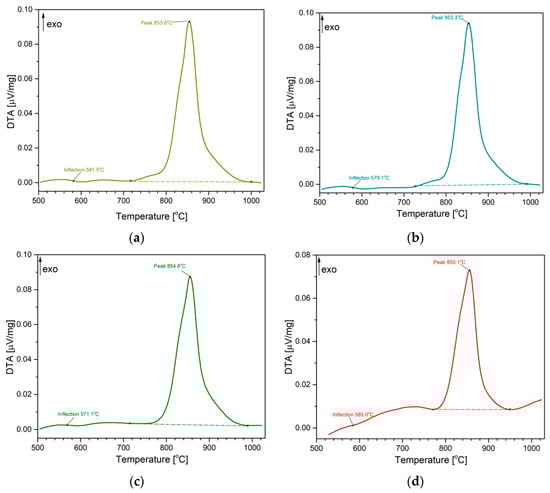

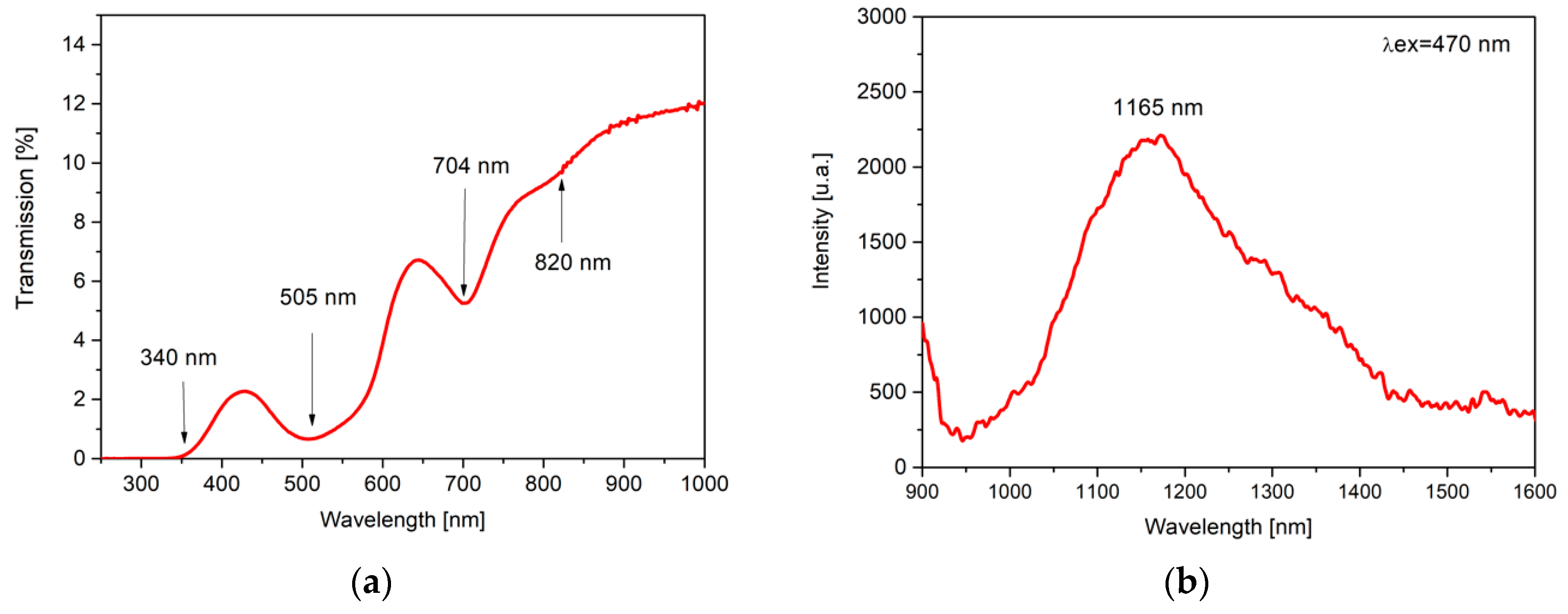

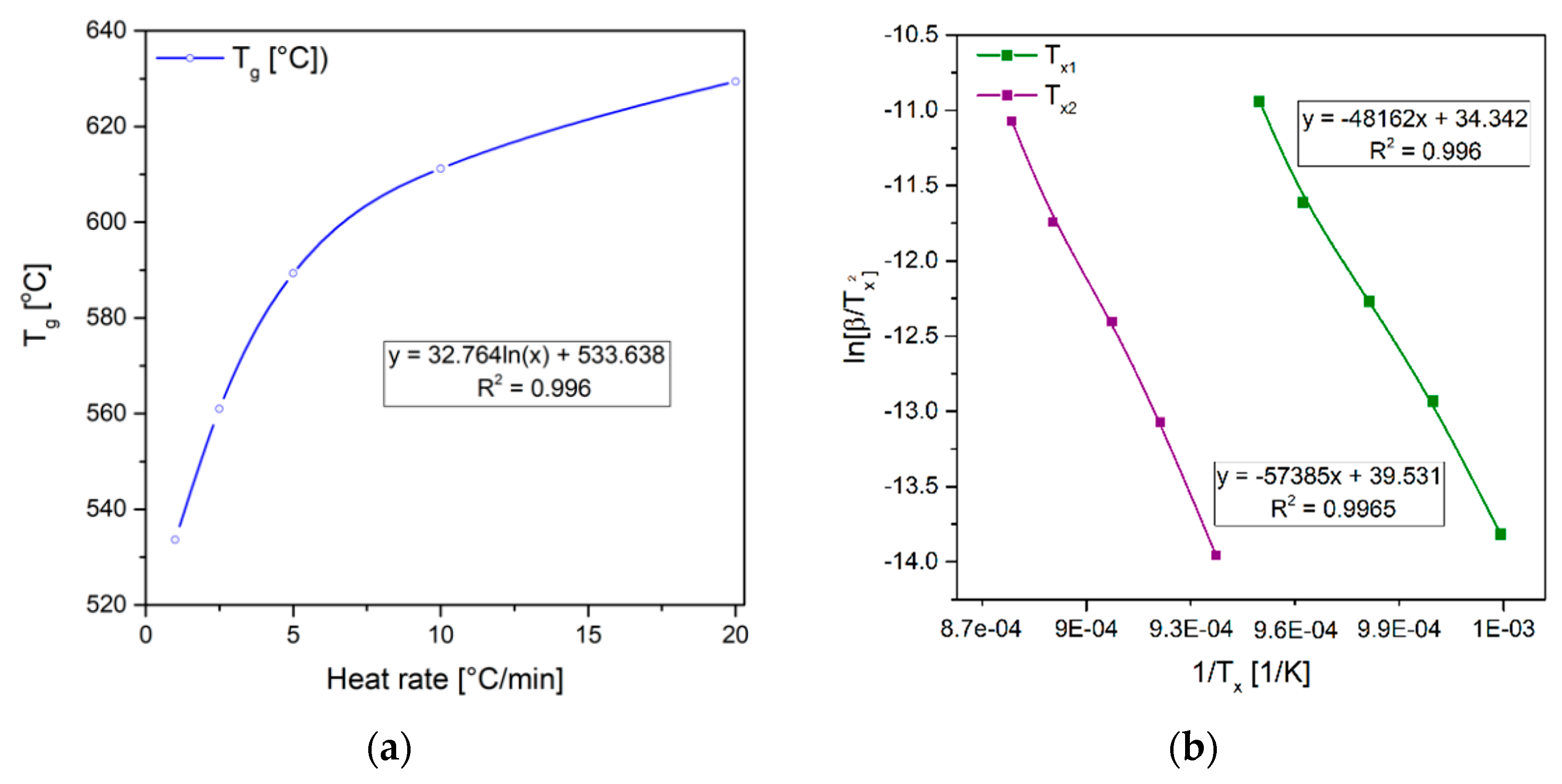

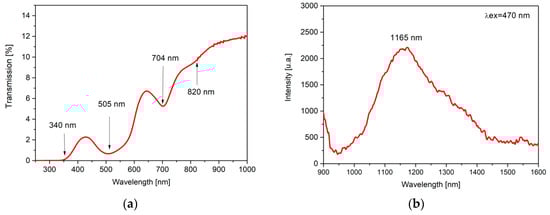

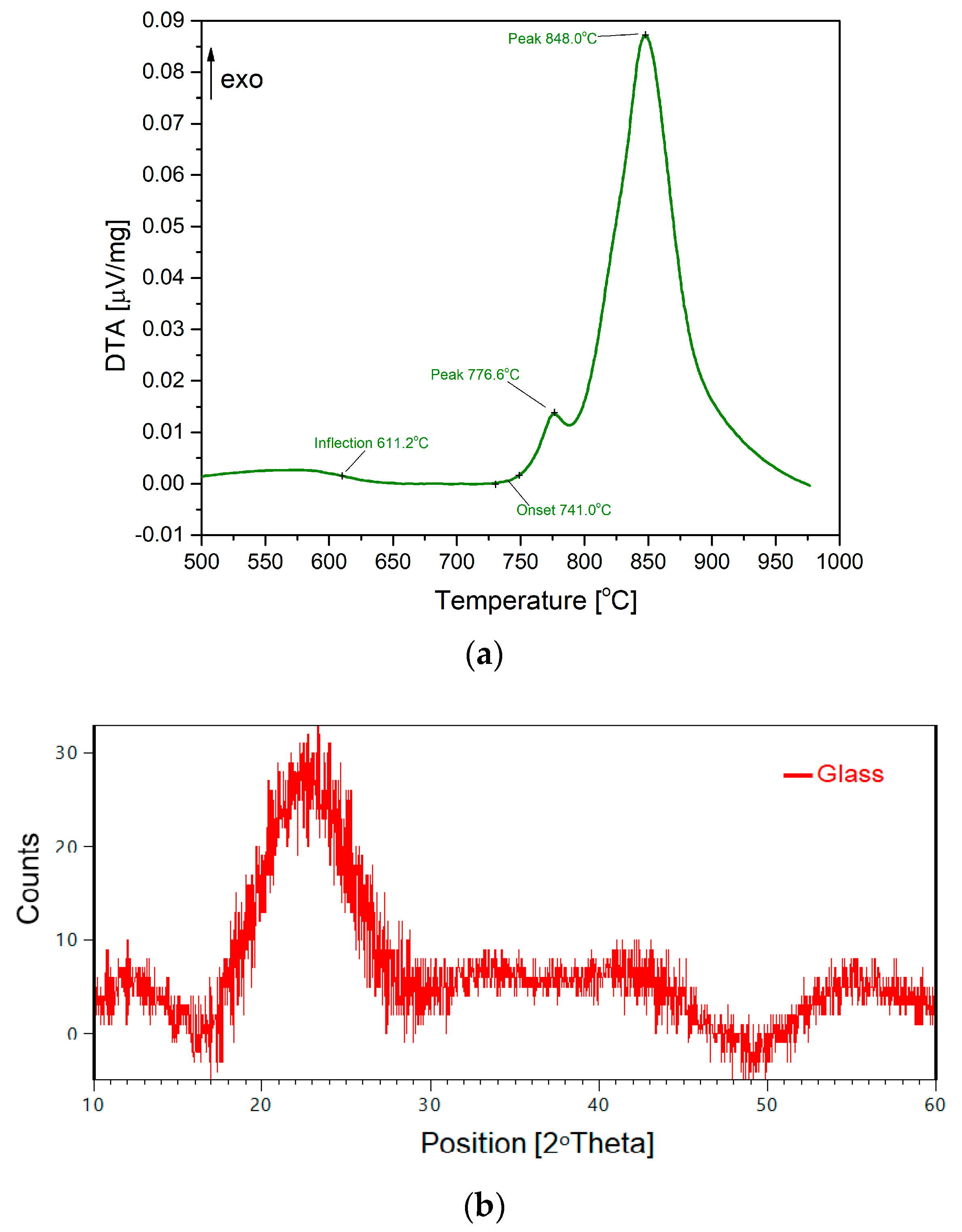

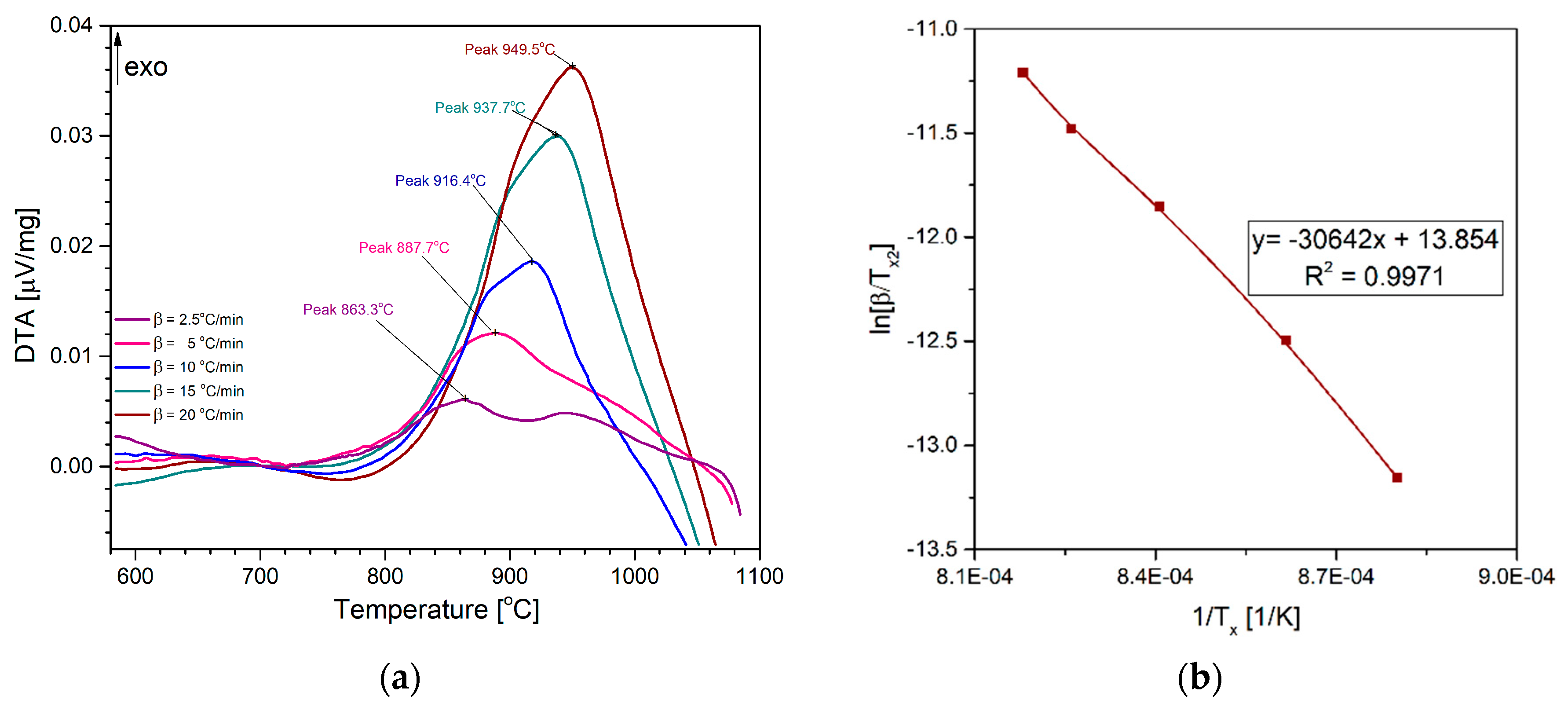

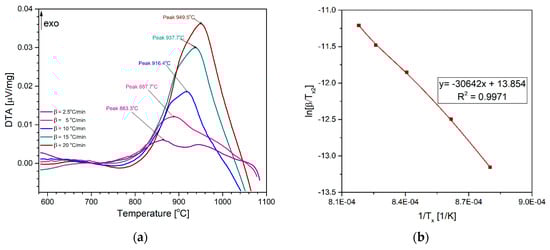

, were investigated. After controlled crystallization of a glassy sample, the emission in the NIR-range was determined (1165 nm with excitation at 470 nm). To better understanding the kinetics of the glass crystallization, the activation energy was also determined by applying the Kissinger method. The obtained results show that in the case of GeO2

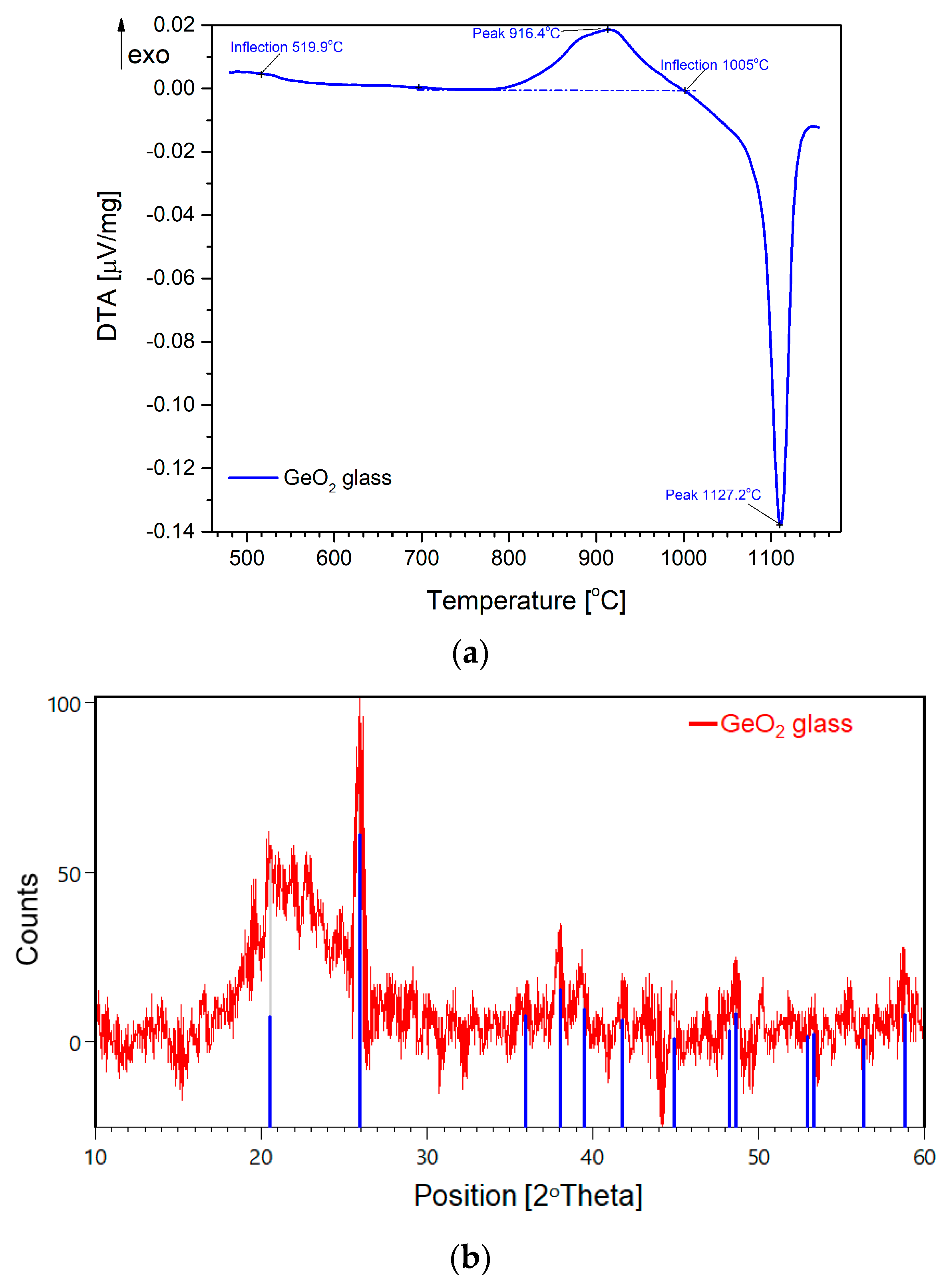

, activation energy value was 400 and 477 kJ/mol, which means that such values are significantly larger than for pure GeO2

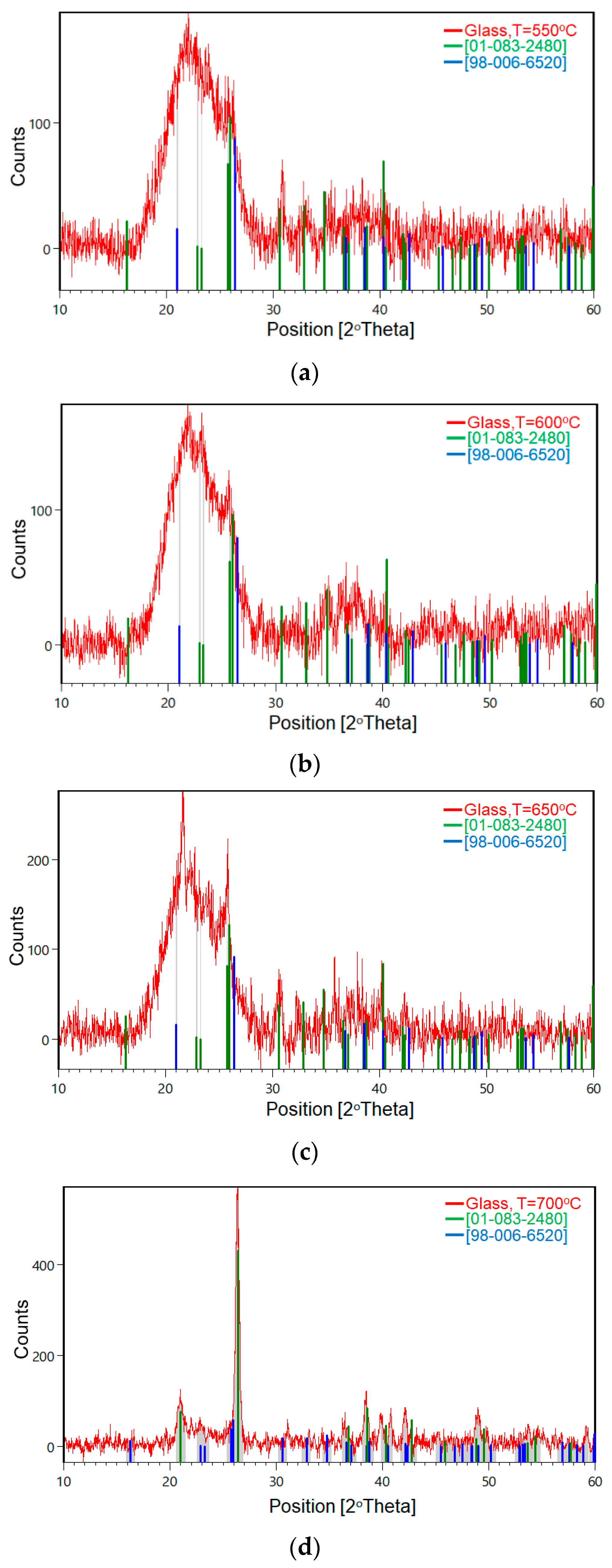

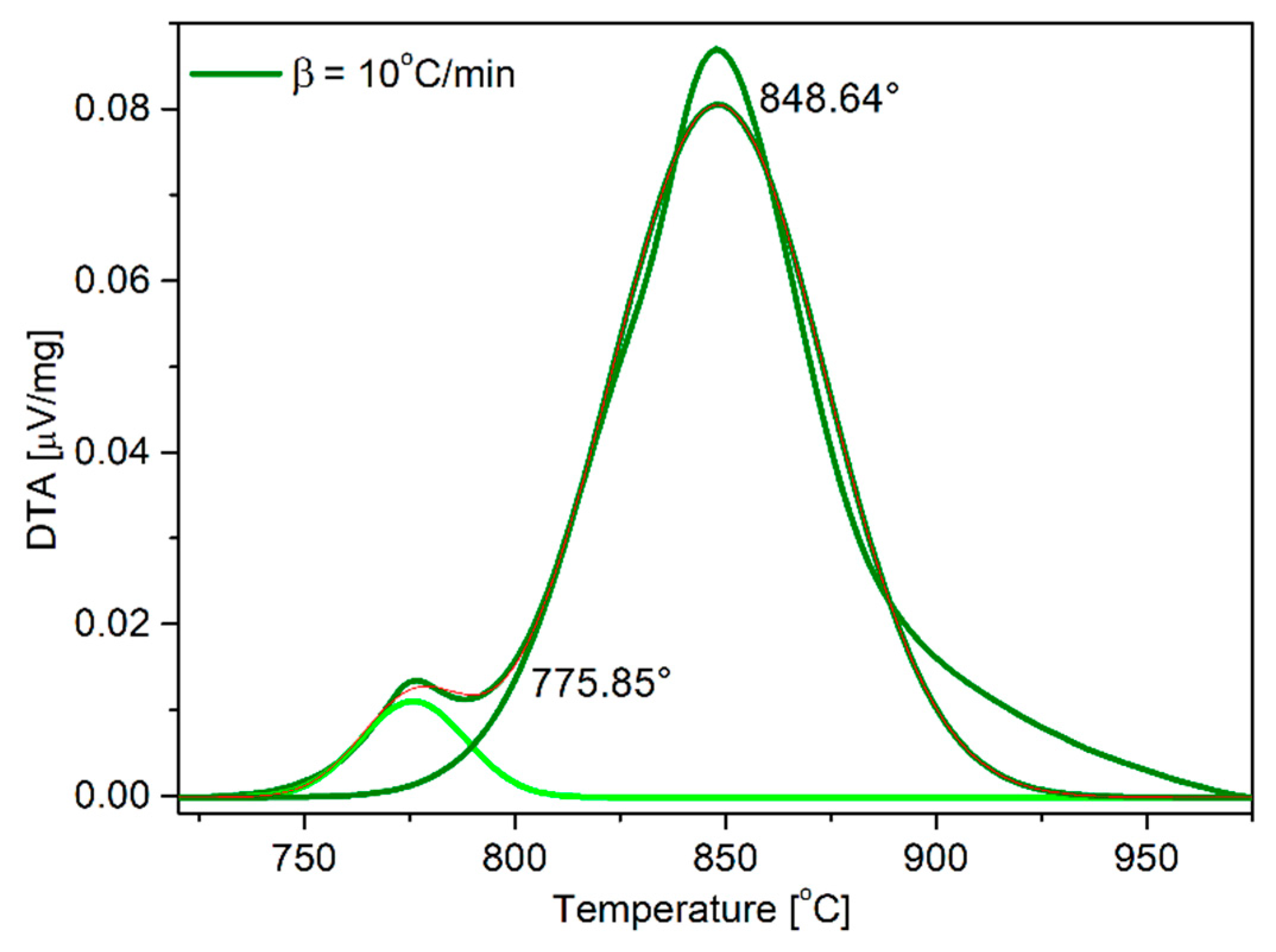

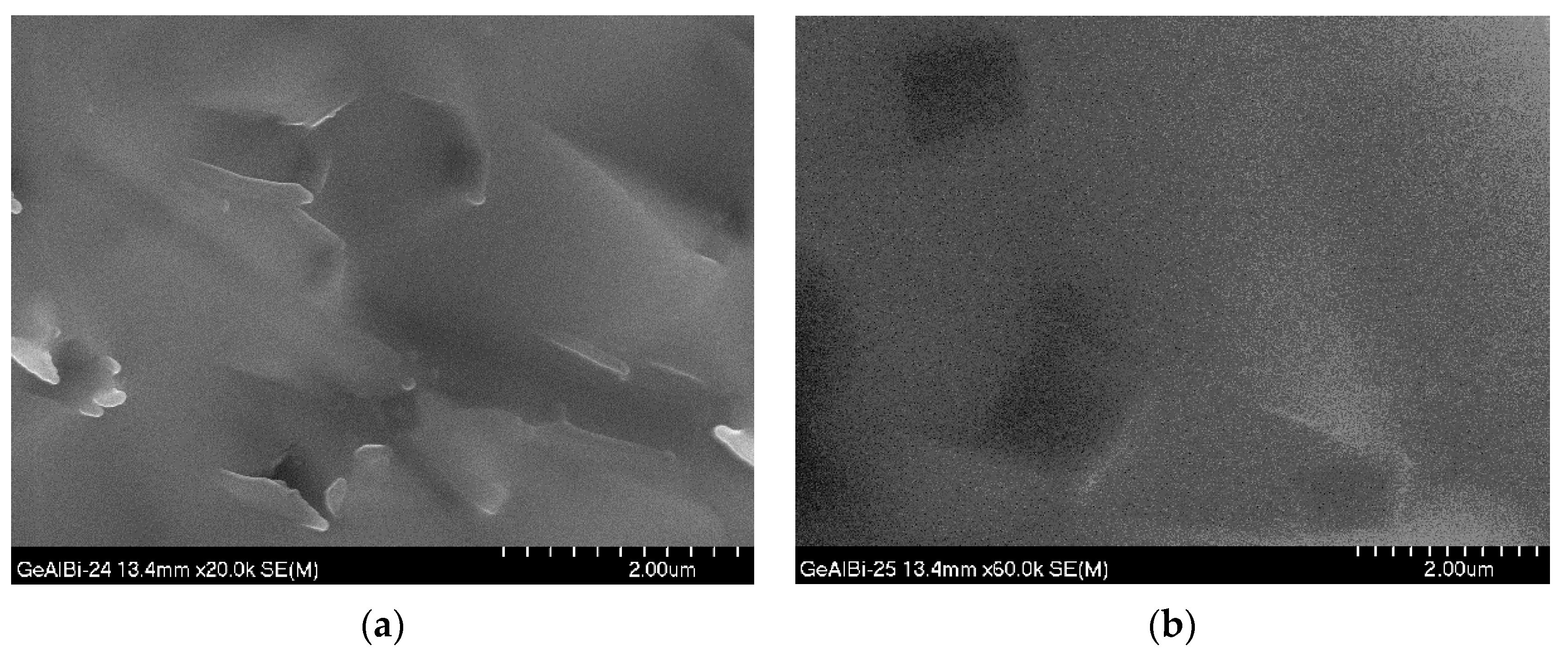

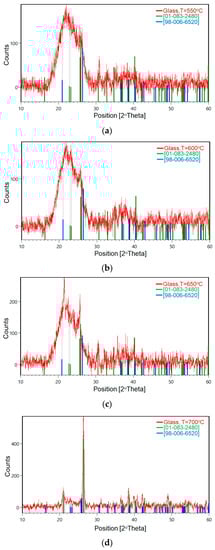

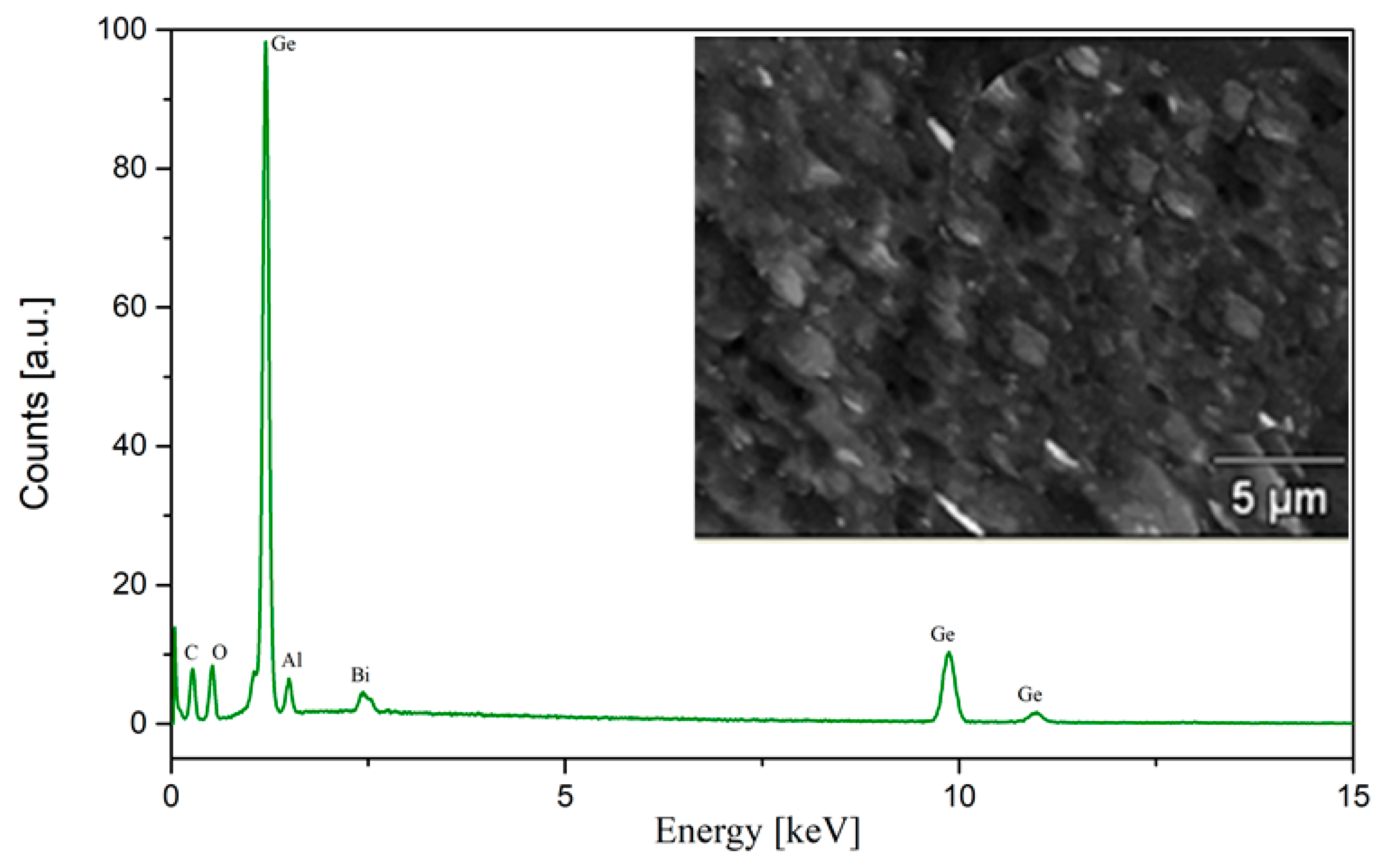

(254 kJ/mol). The investigations also show that two phases crystallized in the complex glass matrix: the mullite-like phase and germanium oxide.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
