Earth-Abundant Electrocatalysts in Proton Exchange Membrane Electrolyzers

Abstract

In order to adopt water electrolyzers as a main hydrogen production system, it is critical to develop inexpensive and earth-abundant catalysts. Currently, both half-reactions in water splitting depend heavily on noble metal catalysts. This review discusses the proton exchange membrane (PEM) water electrolysis (WE) and the progress in replacing the noble-metal catalysts with earth-abundant ones. The efforts within this field for the discovery of efficient and stable earth-abundant catalysts (EACs) have increased exponentially the last few years. The development of EACs for the oxygen evolution reaction (OER) in acidic media is particularly important, as the only stable and efficient catalysts until now are noble-metal oxides, such as IrO_x and RuO_x. On the hydrogen evolution reaction (HER) side, there is significant progress on EACs under acidic conditions, but there are very few reports of these EACs employed in full PEM WE cells. These two main issues are reviewed, and we conclude with prospects for innovation in EACs for the OER in acidic environments, as well as with a critical assessment of the few full PEM WE cells assembled with EACs.

1. Introduction

Currently, 81% of the global energy demand is met by fossil fuels and it is estimated that more than 540 EJ was supplied for the total global energy demand in 2014. This figure is expected to increase by 40% towards 2050 [1]. The CO₂ emissions from combustion of fossil fuels are large enough to severely alter the Earth’s climate and global ecosystem, forcing mankind to accelerate the return to renewable energy. This is amplified by the reserves of fossil fuels estimated to last only 50–60 years [2,3,4].

Hydrogen (H₂) can meet our future energy demands as a clean and sustainable fuel, but cost-effective ways need to be developed for a successful turn towards the hydrogen economy [5,6,7,8,9]. Water electrolysis is an environment friendly scheme for conversion of renewable electricity (e.g., solar, wind) into high purity hydrogen, but at present electrolysis accounts for only 4% of the total hydrogen production [10]. The rest is covered by transformation of fossil fuels, such as natural gas steam reforming, coal gasification and partial oxidation of hydrocarbons [11,12,13,14], however, all these routes involve the release of CO₂. Polymer electrolyte membrane water electrolysis (PEM WE) has the advantages of simplicity, compact design, fast response, high current densities, production of ultrapure hydrogen that can be electrochemically pressurized, and small footprint. The PEM WE concept was first investigated and demonstrated in the 1960s [15,16,17]. Since then, substantial research has been dedicated to improve the different PEM WE components, and as a result, this technology is approaching commercial markets [18]. What hinders the implementation of PEM WE on a large scale is its acidity, which necessitates the use of noble metals, such as Ir, Pt, or Ru as electrocatalysts. Additionally, acidic conditions are more preferable as the concentration of reactant protons is higher [19,20]. The high cost of the polymeric membrane is another obstacle. Currently, the capital investment cost (CAPEX) for a PEM WE system is around $1500 per kWe (kW electricity input) and the cost per kg of H₂ is $7.1, taking into account that the electricity is provided by renewables [21,22,23].

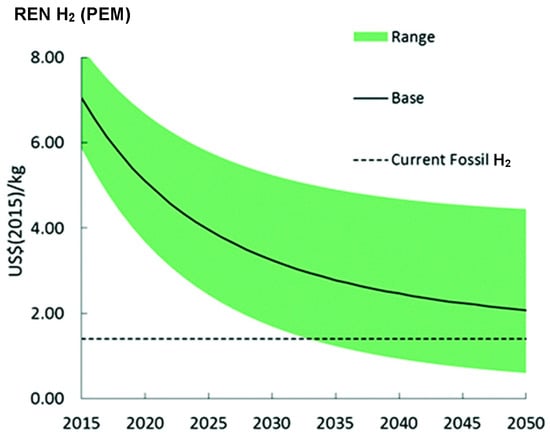

In comparison, the H₂ cost through steam methane reforming (SMR) is only $1.40 [25] and the optimistic break-even year for renewable PEM H₂ production based on learning curves is around 2033 (Figure 1) [24]. The same study underlines that the major cost of PEM lies in the electricity consumption [24]. This is directly connected to the overpotential required for efficient water electrolysis, i.e., the overpotential of the electrocatalysts to reach certain current densities. It is established that in terms of efficiency and stability, the platinum group metals (PGMs) are the best choices for electrodes in a PEM electrolyzers, however, the question is at what cost. For example, the annual global production of Pt in 2017 was 1.7 × 10⁵ kg, while the total demand for Pt in the same year was over 2.2 × 10⁵ kg. If the recycled Pt is also considered as part of the production, the annual production of Pt just met the total demand (USGS 2016 Mineral Years Report). Therefore, widespread installation of Pt-Ir based PEM electrolyzers will dramatically increase the total demand of PGMs. As an example, a Terra Watt (TW) hydrogen production system requires 0.5 and 10 years of annual global production of Pt and Ir, respectively [26]. One has also to take into consideration that Ir is typically produced as a minor by-product of Pt [27]. In other words, the annual production of Ir is also determined by the production rate of Pt. As a result, the increasing demands of Ir will increase their cost due to its dependence on Pt mining.

We performed our own calculations, using the state-of-the-art PEM electrolyzer that we will return to in Chapter 3. In this system, the cathode has 0.4 mg_Pt/cm² of Pt, and the anode 1.54 mg_Ir/cm² and 0.54 mg_Ru/cm² of Ir and Ru, respectively. Our calculations (see Supplementary Materials for more information) suggest that such a PEM system with a power density of 1.18 W/cm² requires 1.5, 180 and 12 years of annual production of Pt, Ir and Ru, respectively, to cover 1 TW of hydrogen production. It is evident, that the replacement of the noble metal electrocatalysts for both the hydrogen evolution reaction (HER) and oxygen evolution reaction (OER) will have a tremendous impact on the future scale-up activities for PEM WE. Furthermore, competition will be avoided with other industrial activities, such as the automobile and electronics sectors, where the demand for PGMs is big.

A wide range of earth abundant catalysts (EACs) for the HER in acidic, neutral and alkaline media have been developed and includes metal sulfides [28,29,30,31,32,33], metal phosphides [34,35,36,37,38,39], metal alloys [40,41], chalcogenides [42,43], as well as metal- and heteroatom-substituted carbon-based materials [44,45,46]. Some of these EACs show improved efficiencies and good endurance under strong acidic conditions [34,35,37,47,48] while others are not stable or they require large onset overpotentials [49,50,51,52]. The situation is even more challenging on the OER side, the bottleneck in overall water splitting, where the complex 4-electron process that produces protons and oxygen requires high overpotentials. Only noble-metal oxides such as IrO₂ and RuO₂ are efficient catalysts for the OER in acidic media, but the RuO₂ is unstable and deactivates rapidly [53,54], therefore the lack of cost-efficient alternatives to IrO₂ is the major challenge in the field of PEM-based water electrolysis.

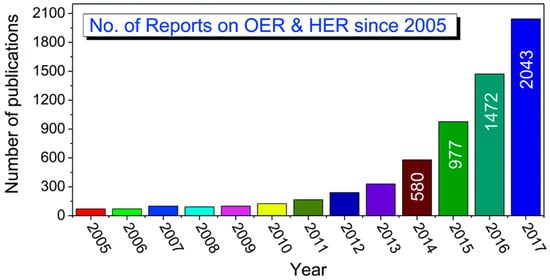

This field of research is very active, and according to Web of Science, 2043 reports have been published during 2017 on both OER and HER catalysts (Figure 2). Motivated by these figures, as well as the challenging electrochemistry under the intense conditions required by the PEM WE, we wanted to see how many of these reports referring to EACs were actually applied in PEM WE devices, replacing in fact the noble-metal catalysts. Therefore, the main purpose of this article is not primarily an exhaustive report on EACs developed for the HER and OER in acidic conditions, which were tested and studied in half-cells, typically involving measurements in three electrodes with rotating disc electrodes (RDE), but to focus on those applied and tested in full PEM WE cells. Do the catalysts perform as expected from the half-cell measurements, or are there deviations related to differences in configuration, supply of reactants, deposition on porous substrates, leaching of electroactive elements (i.e., stability), and surface area exposed? Moreover, what are the recent advances on EACs for the OER under strongly acidic conditions? In the current article we document the very first reports on EACs for the OER in acidic environment, as well as one applied EACs-based PEM WE system.

2. Principles of PEM Water Electrolysis

The electrochemical conversion of water to hydrogen and oxygen is known as water electrolysis, and was discovered already in 1800 [56]. Since then, the use of two electrodes immersed in an aqueous caustic solution of KOH electrolyte, known as alkaline water electrolysis, was developed and utilized for industrial applications [57]. Although some improvements as current density and operating pressure are foreseeable [54], this well-established technology is still the most cost-effective choice for electrochemical hydrogen production on an industrial scale at present.

Another promising water electrolysis cell that operates at low temperatures (normally below 80 °C) is the proton exchange membrane (also known as polymer electrolyte membrane) (PEM) electrolyzers. The concept of PEM water electrolysis was idealized by Grubb in the early fifties [15,16] and first manufactured by the General Electric Co. in 1966 [17], where they take the advantage of a solid polymer perfluorinated sulfonic membrane as electrolyte for hydrogen production. Some typical pros and cons for PEM water electrolyzers compared with the classic alkaline water electrolyzers are summarized in

Table 1. Advantages and disadvantages of PEM WE over alkaline water electrolysis.

Advantages [17,54,58]

Disadvantages [58,59,60]

Compact system design → Fast heat-up and cool-off time, short response time → Low gas cross-permeation. Withstands higher operating pressure across the membrane. Higher purity of hydrogen. Higher thermodynamic voltage → Easier hydrogen compression, facilitates hydrogen storage Solid, thin electrolyte → Shorter proton transport route, lower ohmic loss → Operates under wide range of power input Operates at higher current density → lower operational costs → Differential pressure across the electrolyte → Pressurizes hydrogen side alone, avoids danger related to pressurized oxygen

Acidic electrolyte → Higher manufacturing cost due to expensive materials and components, i.e., current collectors, bipolar plates, noble catalysts, membranes → Limited choices of stable earth-abundant electrocatalysts for the OER Solid, thin electrolyte → Easily damaged by inappropriate operation (e.g., overheating) and cell design → Sensitive to imperfections, dust, impurities

.

We highlight again that a cost reduction by developing earth-abundant electrocatalysts with comparable performance and a further improvement in the energy efficiency of the PEM water electrolyzers are essential factors before PEM WE becomes a competitive solution for large-scale hydrogen production.

2.1. Operating Principles

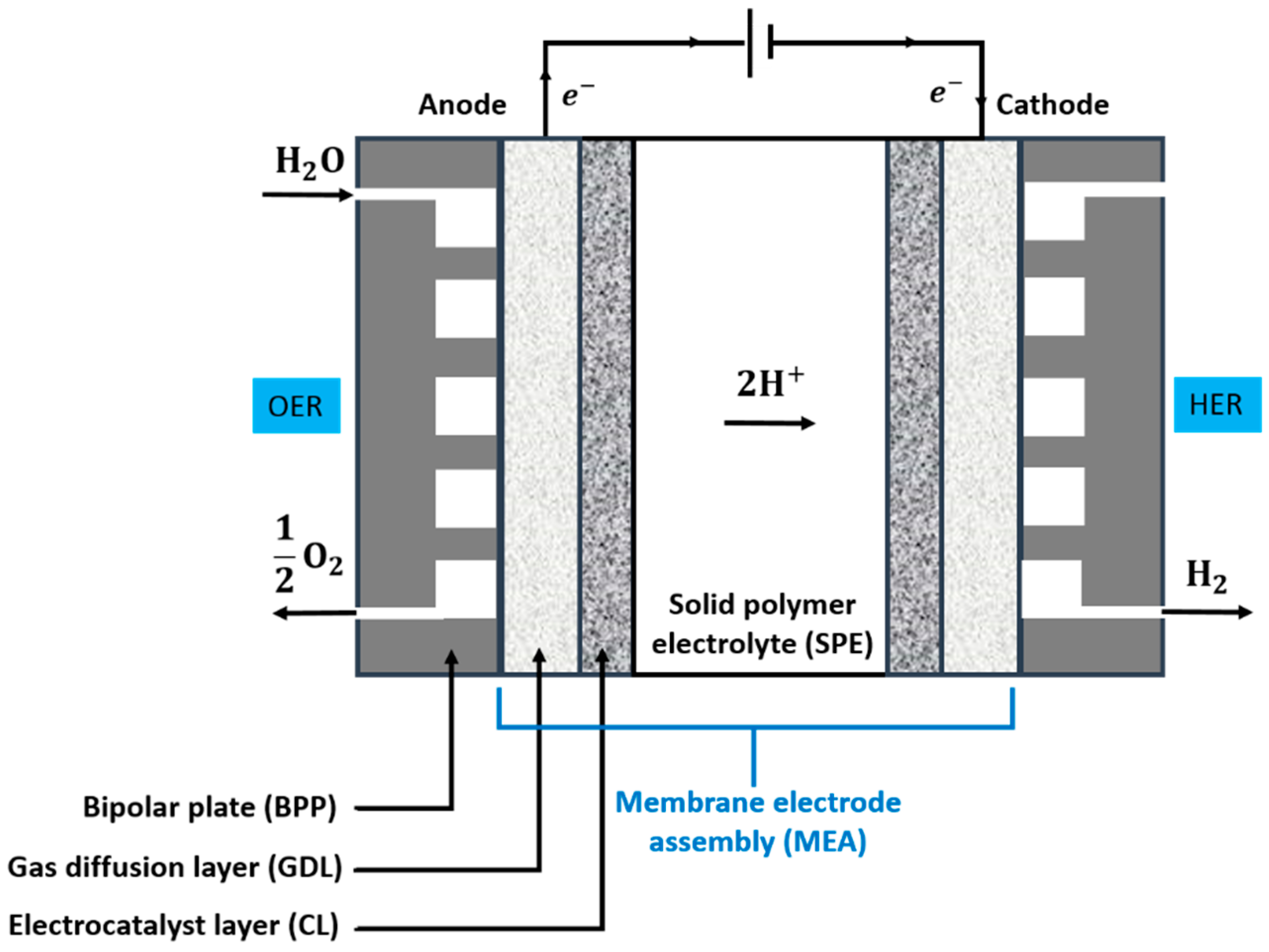

When a PEM electrolysis cell is in operation, an excess of water is supplied to the anode, where water decomposes into protons, electrons and oxygen gas by the electrical energy (Equation (1)). The protons are transported to the cathode by passing through the polymer electrolyte, while the generated electrons travel along an external circuit and combine with the protons into hydrogen gas, as described in Equation (2). The amount of hydrogen gas generated is twice that of oxygen, as defined by the overall reaction, Equation (3), whereas $\Delta G^0$ is the standard Gibbs free energy of the net water splitting reaction.

Anode (OER)

$${\mathrm{H}}_2\mathrm{O}\to 2{\mathrm{H}}^{+}+2{\mathrm{e}}^{-}+\frac{1}{2}{\mathrm{O}}_2$$

(1)

Cathode (HER)

$$2{\mathrm{H}}^{+}+2{\mathrm{e}}^{-}\to {\mathrm{H}}_2$$

(2)

Net water splitting reaction

$${\mathrm{H}}_2\mathrm{O}\stackrel{\Delta G^0}{\to }{\mathrm{H}}_2+\frac{1}{2}{\mathrm{O}}_2$$

(3)

2.2. Thermodynamics

The standard theoretical open circuit voltage (OCV), also referred as standard reversible cell voltage, $U_{rev}^0$, required by water electrolysis under standard conditions, can be derived from; the standard Gibbs free energy ($\Delta G_R^0$) of + 237.2 kJ/mol H₂, Faraday’s constant (F), and the number of electrons (n = 2) exchanged during water splitting under standard conditions; p = 1 bar, T = 298.15 K (Equation (4)) [61].

$$|U_{rev}^0|=|\frac{-\Delta G_R^0}{n·F}|=1.229 V$$

(4)

The positive Gibbs free energy change reflects that the water electrolysis reaction is thermodynamically unfavorable. For the reaction to proceed at finite rate, overpotentials for the OER and HER, as well as the electrolyte resistance, must be added to $U_{rev}^0$ [58]. These represent losses generating heat. At an overpotential of 0.25 V, i.e., an applied cell voltage of 1.48, V this heat balances the heat consumed by the reaction under standard conditions, and the cell operates in thermoneutral mode; 1.48 V is termed the thermoneutral voltage [62] and is reasonable to use when calculating the voltage efficiency of the cell. Thus, the actual operating cell voltage is the sum of all the different overpotentials (Equation (5)) [54,63].

$$U_{op}=U_{rev}^0+{\eta }_a+{\eta }_c+{\eta }_{el}+{\eta }_{sys}$$

(5)

$U_{op}$ is the operational voltage, $U_{rev}^0$ is the standard reversible potential, ${\eta }_a$, ${\eta }_c$, ${\eta }_{el}$ and ${\eta }_{sys}$ are the overpotentials related to the anode, cathode, ionic conductivity of the electrolyte membrane, and system losses (resistance in contacts, interconnects, current collectors, wires, etc.), respectively. It should be emphasized that the half-reactions described in Equations (1) and (2) are simplifications of more complex multistep and parallel electrochemical reaction pathways [64].

2.3. Main Cell Components and Requirements

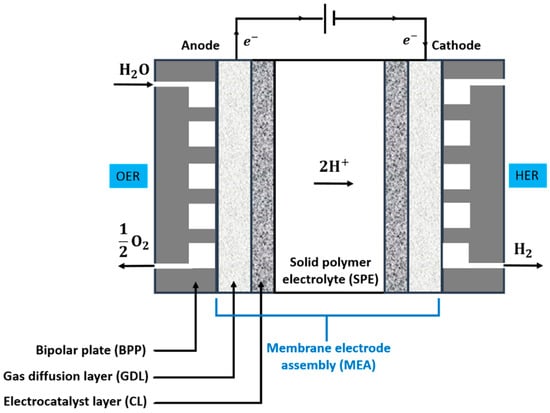

The core component of a PEM electrolysis cell is the membrane electrode assembly (MEA), which is composed of a solid polymer electrolyte (SPE) sandwiched between two electronically conductive electrodes, as shown in Figure 3.

The SPE must fulfil particular requirements, such as high chemical and mechanical stability, low gas permeability, and high proton conductivity. In this regard, Nafion^® is the most commonly used polymer membrane due to high proton conductivity, good mechanical stability and acceptable gas crossover. The electrodes are composed of a porous catalyst layer (CL) with electrocatalysts dispersed on a nanoporous support to lower the activation energy and promote charge transfer kinetics. Next comes a more openly porous gas diffusion layer (GDL), also acting as a current collector alone or by the help of additional metallic meshes or sinters. These are finally encased by bipolar plates (BPPs) which direct and distribute gases in flow channels, separate the anode and cathode side environments, and connect a cathode electrically to the next anode [58].

Due to the acidic environment of the cell, the catalysts for the hydrogen evolution reactions (HER) on the cathode and the oxygen evolution reactions (OER) on the anode are essentially dependent on noble metals and their alloys. Pt nanoparticles on carbon support is by far the best catalyst material for the HER because of their good catalytic activity and high corrosion resistance. Besides, Pd and Ir nanoparticles supported on carbon materials are also commonly utilized as HER electrocatalysts [65]. Less expensive earth-abundant materials such as sulfides, phosphides, carbides and nitrides [18], cobalt clathrochelate [66], polyoxometallates [62] have been proposed as alternative HER catalysts.

The slowest reaction is normally the OER of the anode, determining the reaction rate of the overall process. Non-noble catalysts such as Ni and Co in contact with the acidic electrolyte would start to corrode, meanwhile the Pt surface will be covered by a low conducting oxide film, which reduces the catalytic activity for the OER. In this respect, Ir and Ru oxide-based catalysts are typically used for the OER because of their high structural stability. As reported by Ahn and Holze [67], Ru oxide appears to be the most catalytically active electrode with the smallest activation overpotential at 353 K, followed by Ir/Ru-oxide, Ir-oxide, Ir metal, Rh-oxide, Rh metal and Pt. However, Ir is scarce, its average mass fraction in crustal rock is only 0.001 ppm [54].

3. State-of-the-Art Devices

After General Electric developed the PEM WE technology, its application was mostly limited to oxygen production [68], e.g., for submarine and spacecraft applications. In the late 1980s, the first pressurized PEM electrolyzers for H₂ production up to 100 bar with efficient MEAs, were constructed and tested [69,70]. Since then, MEAs with Ir, Ru- and Pt-based electrocatalysts and Nafion^® proton conductor polymer electrolyte have dominated frontier PEM electrolyzer cell designs [18,71].

The state-of-the-art OER catalyst for PEM electrolyzers is an oxide mixture composed of Ru₂O and IrO₂ [72], e.g., Ir_0.7Ru_0.3O₂ [73] and Ir_0.4Ru_0.6O₂ [74], with slight differences in overpotential and stability when varying the composition of each oxide. Although RuO₂ has shown the best OER performance among all the other materials [54,74], its poor stability due to the corrosion [75] from the strong local acidity at the perfluorosulfonic membrane, and high anodic potential, it requires the addition of the more stable IrO₂ [76,77]. However, Ir is one of the rarest elements on earth, and this sets the requirement to reduce/replace the Ir content in order to lower the price, such as by adding other elements that are more earth abundant, e.g., Co [78], Ta [79], and Sn [80]. A recent study reported the state-of-the-art OER performance of fluoride doped MnO₂, IrO₂ solid solution ((Mn_1−xIr_x)O₂:F), with even lower onset potential than IrO₂ [81], may further reduce the Ir loading of the OER catalysts.

For the cathode, it is established that Pt, especially highly dispersed C-based Pt, is the benchmark HER catalyst for PEM electrolyzer [18]. In fact, less research efforts have been made on the cathode material for PEM electrolyzers [54]. The reason is partially that the exchange current density of H⁺/H₂ on Pt is almost 1000 times larger than that of H₂O/O₂ on Ir [82], and Ir is also more precious than Pt, therefore research has been mainly focused on how to reduce the cost and increase the efficiency of OER catalyst. However, as the cathode side also contributes to a large extent in the cost of a PEM electrolyzer, it is necessary and important to reduce the loading of Pt [83], or replace it with efficient earth abundant electrocatalysts, such as MoS₂ [84] or CoP [85]. This effort is briefly summarized below and as we set out earlier, our main target is to document actual application of EACs in full PEM WE cells.

Reported PEM electrolyzers with state-of-the-art electrocatalysts are summarized in

Table 2. PEM electrolyzers with state-of-the-art electrocatalysts.

Cathode	Anode	T	Test Cell	Current Density	Cell Voltage	Ref.
Pt/C 0.5 mgPt/cm2	Ir0.5Ru0.3O2 2.5 mgoxide/cm2	25 °C	5 cm2 PEM cell, Nafion 115	1 A/cm2	~2.2 V	[86]
Pt/C 0.5 mgPt/cm2	Ir0.7Ru0.5O2 2.5 mgoxide/cm2				~2.3 V
Pt/C 0.5 mgPt/cm2	Ir0.7Ru0.5O2 1.5 mgoxide/cm2	90 °C	5 cm2 PEM cell, Nafion 115	2.6 A/cm2	1.8 V	[73]
Pt/C 0.4 mgPt/cm2	Ir0.7Ru0.3O2 thermally treated 1.0 mgoxide/cm2	80 °C	25 cm2 PEM cell, Nafion 212 CS	1 A/cm2	~1.7 V	[87]
Pt/C 0.1 mgPt/cm2	Ir0.7Ru0.3O2 1.5 mgoxide/cm2	90 °C	5 cm2 PEM cell, Aquivion ionomer	1.3 A/cm2	1.6 V	[88]
Pt/C 0.4 mgPt/cm2	Ir0.6Ru0.4O2 2.5 mgoxide/cm2	80 °C	5 cm2 PEM cell, Nafion 115	1 A/cm2	1.567 V	[79]
Pt/C 0.4 mgPt/cm2	Ir0.4Ru0.6O2 1.5 mgoxide/cm2	80 °C	5 cm2 PEM cell, Nafion 115	1 A/cm2	1.676 V	[77]
Pt/C 0.5 mgPt/cm2	Ir0.2Ru0.8O2 1.5 mgoxide/cm2	80 °C	5 cm2 PEM cell, Nafion® 1035	1 A/cm2	1.622 V	[74]

. One can notice that the performance of a PEM electrolyzer is not only determined by the electrocatalysts, but also by other elements, e.g., operation temperature, cell area and membrane type. However, those elements are out of the scope of this review, hence they are not to be discussed here.

4. Earth-Abundant Cathode Materials

Thus far, we have explored the theory and principles of PEM WE and summarized the state-of-the-art devices demonstrated in the literature. In the following sections, we will explore the most promising earth-abundant electrocatalyst materials that have been used in full PEM WE cells, replacing noble metal-based anodes and cathodes, especially under acidic conditions.

4.1. Molybdenum Sulfide, MoS₂

Molybdenum sulfide (MoS₂)-based materials are among the most extensively studied materials as catalyst for HER over the past decade due to their excellent stability, high activity, earth abundancy and low price. MoS₂ exists in nature with an atomic structure resembling that of graphite, a layered structure where each layer consists of a molybdenum layer sandwiched between two sulfur layers. Alternatively, the monolayers can be described as consisting of either edge sharing trigonal prisms (2H) or octahedrons (1T). Packing of these layers gives the basis for the three polytypes of bulk MoS₂ (Figure 4).

Despite the early indications of low HER activity for bulk MoS₂ [90], molybdenum sulfides turned out to be promising for replacing Pt. Theoretical work by Hinnemann et al. in 2005 showed that the edges are in fact catalytically active [91]. Using Density Functional Theory (DFT) they calculated the hydrogen binding energy of the Mo($\overline{1}010$) edge, where sulphur is unsaturated, and found it to be close to ideal value of 0 eV [89]. In addition, they fabricated an MEA using Nafion^®, nanoparticle MoS₂ on graphite as cathode, and Pt as anode, which achieved a current density of 10 mA/cm² at only 175 mV of overpotential. This was the best activity shown for an acid-stable and earth abundant catalyst at that time. Two years later, their theoretical prediction of the edges being the activity centers was confirmed experimentally by Jaramillo et al. [42]. They deposited monolayer MoS₂ on Au(111) with physical vapor deposition in an H₂S environment. After finding total edge lengths with STM and comparing with catalytic activity for various samples, they found that the reaction rate scaled with particle perimeter and not area. These findings sparked an interest in improving the catalytic activity in MoS₂ that is still growing today.

Since the main objective of the present review is to review the literature on device-tested electrodes, we will not go deep into the vast literature on MoS₂-based electrocatalysts. We will rather briefly mention some of the methods that have been identified for increasing the HER activity of MoS₂. One of the first and obvious approaches was to maximize the edge sites by making small particles. This led to investigations of the activity of [Mo₃S₄]⁴⁺-clusters that showed HER activity but were less stable [92]. Some years later, [Mo₃S₁₃]²⁻-clusters became a hot topic after results showing one of the highest per site activities [33]. Another approach that has produced promising results is to deposit molybdenum sulfide onto something highly conducting and/or with high surface area, like nanotubes, nanowires, reduced graphene oxide etc. [93,94,95,96]. Depending on the methods used, one often ends up with amorphous MoS_x. Efforts to improve the activity of the semiconductor phase comprise doping, introducing vacancies, and strain engineering, which can activate the basal plane and edges that are not intrinsically active [97,98,99,100]. The 1T phase is metastable, however, the metallic nature makes it highly conductive compared to the 2H phase, and, in addition, the basal plane is active as well, resulting in promising HER activity [101,102]. For more in-depth reviews the reader is referred to a number of reviews [84,89,103,104]. Despite all these efforts to improve the catalytic properties over the past decade, there are, to the best of our knowledge, only the following few reports on molybdenum sulfide-based cathodes implemented in a PEM cell.

In 2014, Corrales-Sánchez et al. were the first to report the performance of a PEM cell using MoS₂-based cathodes [84]. They reported the performance of three different types of MoS₂-based electrodes, bare pristine MoS₂, MoS₂ mixed with commercial conductive carbon, Vulcan^® XC72, and MoS₂ nanoparticles on reduced graphene oxide. The MEA used in the PEM cell consisted of IrO₂ particles and anode material that was spray deposited on each side of a Nafion membrane. Porous titanium diffusion layer and titanium current collectors on both sides of the MEA were sandwiched by the cell housing. The pristine MoS₂ was the worst performing cathode investigated achieving a current density of approximately 0.02 A/cm² at 1.9 V. Their best performing MoS₂/rGO electrode achieved a current density of 0.1 A/cm², while the best mixture of MoS₂ and Vulcan^® (47 wt.% MoS₂) reached almost 0.3 A/cm² at 1.9 V in the initial test. The latter electrode went through a stability test for 18 h at 2.0 V. The current density actually increased steadily for 15 h and reached 0.35 A/cm². The authors speculated that the increase might be due to hydration effects. Furthermore, they also tested the effect of hot pressing of the MEA, which is recommended to ensure good contact between electrode and membrane. For three different MoS₂/Vulcan mixes, the unpressed MEAs performed better than the hot-pressed ones.

Ng et al. identified three types of Mo-based cathode materials with excellent HER activity from three electrode measurements in 2015 [105]. They later loaded the materials onto carbon black and tested them as cathodes in a PEM electrolyzer with Nafion as membrane and Ir on Ti-mesh as anode. One of their electrodes was based on molybdenum sulfide with an excess of sulfur according to the XPS measurement. The electrode exhibited a good performance and required 1.86 V to reach 0.5 A/cm² in addition to good stability. Furthermore, the current density reached over 0.9 A/cm² at 2 V. Another cathode, based on Mo₃S₁₃ clusters, required only 1.81 V to reach 0.5 A/cm², while at 2 V the current density reached almost 1.1 A/cm². In the stability test, however, the current density dropped by approximately 120 mA/cm² over a period of 14 h at 1.85 V most likely due to detachment from the support or degradation of the clusters. The third and last material they tested was based on sulfur doped molybdenum phosphide and performed slightly better than the Mo₃S₁₃ electrode. These are the best performances reported for molybdenum sulfide cathode in PEM electrolyzers to this day.

In early 2016 Kumar et al. reported that a cell with a MoS₂ nanocapsule cathode maintained a current density of approximately 60 mA/cm² for 200 h at 2.0 V [106]. The cell consisted of a Nafion membrane and IrO₂ anode. The low performance is likely due to low conductivity and is comparable to that reported for bare MoS₂ [84]. A study of this system mixed with carbon black should follow to allow comparison with other systems reviewed here.

The same year, Lu et al. reported the performance of an electrolyzer using amorphous molybdenum sulfide coated on a carbon cloth as cathode [107]. The cathode was synthesized by using thermolysis to form amorphous MoS_x on the carbon cloth. A post treatment with remote H₂ plasma introduced sulfur vacancies. The cell consisted of a Nafion membrane and RuO₂ nanoparticles on carbon paper as the anode. The cell required 2.76 V to reach 1 A/cm² and the current density at 2.0 V was slightly above 0.3 A/cm². Earlier this year, Kim et al. published work on a similar cathode. They deposited amorphous molybdenum sulfide on carbon paper using electrodeposition. The PEM cell used a Nafion membrane and electrodeposited IrO₂ on carbon paper as anode. They investigated the effect of deposition potential and time on the performance. The best performing electrode reached a current 0.37 A/cm² at 1.9 V [108].

4.2. Nickel Phosphide, Ni₂P

Nickel phosphide (Ni₂P) has been demonstrated as one of the best earth-abundant electrocatalysts for HER [34,109]. Extensive investigations on Ni₂P have been performed in a three-electrode electrochemical cell and Ni₂P exhibits the superior activity to split water with low overpotentials, while sustaining high current densities [110,111,112,113,114,115]. However, after a thorough literature review, there are no reports, to our best of knowledge, that have implemented Ni₂P in a PEM device. Nevertheless, we compare Ni₂P with other earth-abundant electrocatalysts, and the recent developments on Ni₂P as electrocatalysts for HER are briefly reviewed.

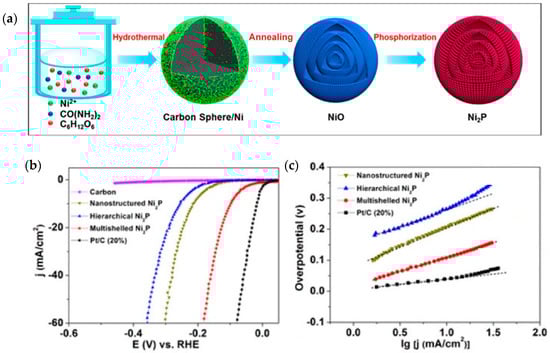

Ni₂P can be synthesized by a variety of methods including solution-phase synthesis and gas-solid synthesis. The solution-phase synthesis is performed by using tri-n-octylphosphine (TOP) as a phosphorus source to react with Ni precursor [116]. At elevated temperatures (above 300 °C), the TOP vaporizes rapidly and then phosphorizes different precursors, such as bulk Ni or Ni thin films, by forming Ni₂P. For instance, Read et al. successfully synthesized Ni₂P thin film on Ni substrate by the solution-phase synthesis method [113]. Figure 5a shows SEM images of representative Ni₂P film formed on the surface of Ni foil and the resulting Ni₂P is highly porous. The corresponding powder XRD pattern in Figure 5c, clearly shows that both Ni₂P and Ni are present without other impurities. The EDS element maps in Figure 5d and Figure 2e further confirm the presence of Ni and P at the surface and the existence of a sharp interface between the Ni₂P coating and the underlying Ni substrate. Figure 5f shows polarization data for the HER in 0.5 M H₂SO₄ for a few transition metal phosphides (Ni₂P, Fe₂P, Co₂P, Ni₂P, Cu₃P, and NiFeP) as cathodes. Ni₂P showed the best HER performance in acidic solutions among those and required overpotentials of only −128 mV and −153 mV to reach a current density of −10 mA/cm² and −20 mA/cm², respectively. However, in alkaline media, all tested metal phosphide electrodes exhibit lower electrocatalytic HER activity compared to those in acidic conditions. Ni₂P films require overpotentials of around −200 mV to reach current densities of −10 mA/cm² in 1.0 M KOH.

Gas-solid synthesis has also been implemented to synthesize Ni₂P, where hypophosphites, for instance NH₄H₂PO₂ and NaH₂PO₂, can decompose and release PH₃ at elevated temperatures;

$$2{\mathrm{NaH}}_2{\mathrm{PO}}_2\to {\mathrm{PH}}_3+{\mathrm{Na}}_2{\mathrm{HPO}}_4$$

(6)

The PH₃ can further react directly with Ni precursors, such as metal oxides and metal hydroxides, to form Ni₂P [117,118,119,120,121]. For instance, Sun et al., reported one porous multishelled Ni₂P, which was successfully synthesized by a gas-solid method [120]. The porous multishelled NiO precursor was reacted into Ni₂P by using NaH₂PO₂ as the phosphorus source, as shown in Figure 6a. Electrochemical measurements were performed in a 1 M KOH solution. Figure 6b shows the linear sweep curves for carbon, nanostructured Ni₂P, hierarchical Ni₂P, multishelled Ni₂P, and Pt/C. The multishelled Ni₂P exhibits a small overpotential of 10 mV (at current density of 1.0 mA/cm²) and a rapid cathodic current increase as more negative potentials were applied. The overpotential driving a cathodic current density of 10 mA/cm² was 98 mV, which is much lower than that observed on hierarchical Ni₂P (298 mV) and nanostructured Ni₂P (214 mV). Figure 6c shows the Tafel plots of the tested samples. At lower overpotentials, Tafel analysis on the multishelled Ni₂P exhibits a slope of 86.4 mV/decade, which is much smaller than those of hierarchical Ni₂P (108.4 mV/decade) and nanostructured Ni₂P (125.4 mV/decade), suggesting faster HER kinetics of the multishelled Ni₂P. At the high-overpotential regime, a slightly upward deviation is observed in Tafel plots of Pt/C and hierarchical Ni₂P, which could stem from the rate-limiting step gradually changing from the Heyrovsky to the Volmer mechanism at high current densities [122]. This porous multishelled structure endows Ni₂P with short charge transport distances and abundant active sites, resulting in superior catalytic activity than those of Ni₂P with other morphologies [120].

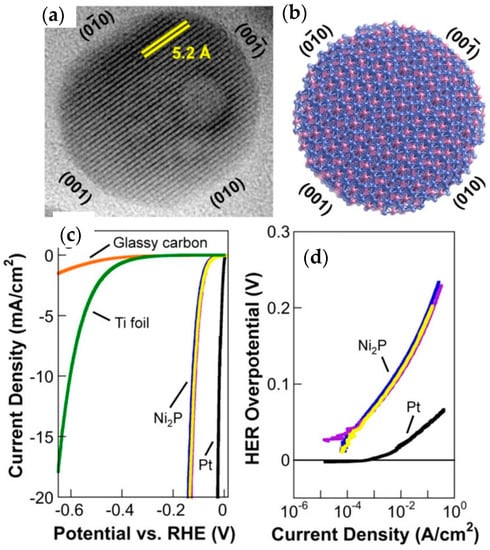

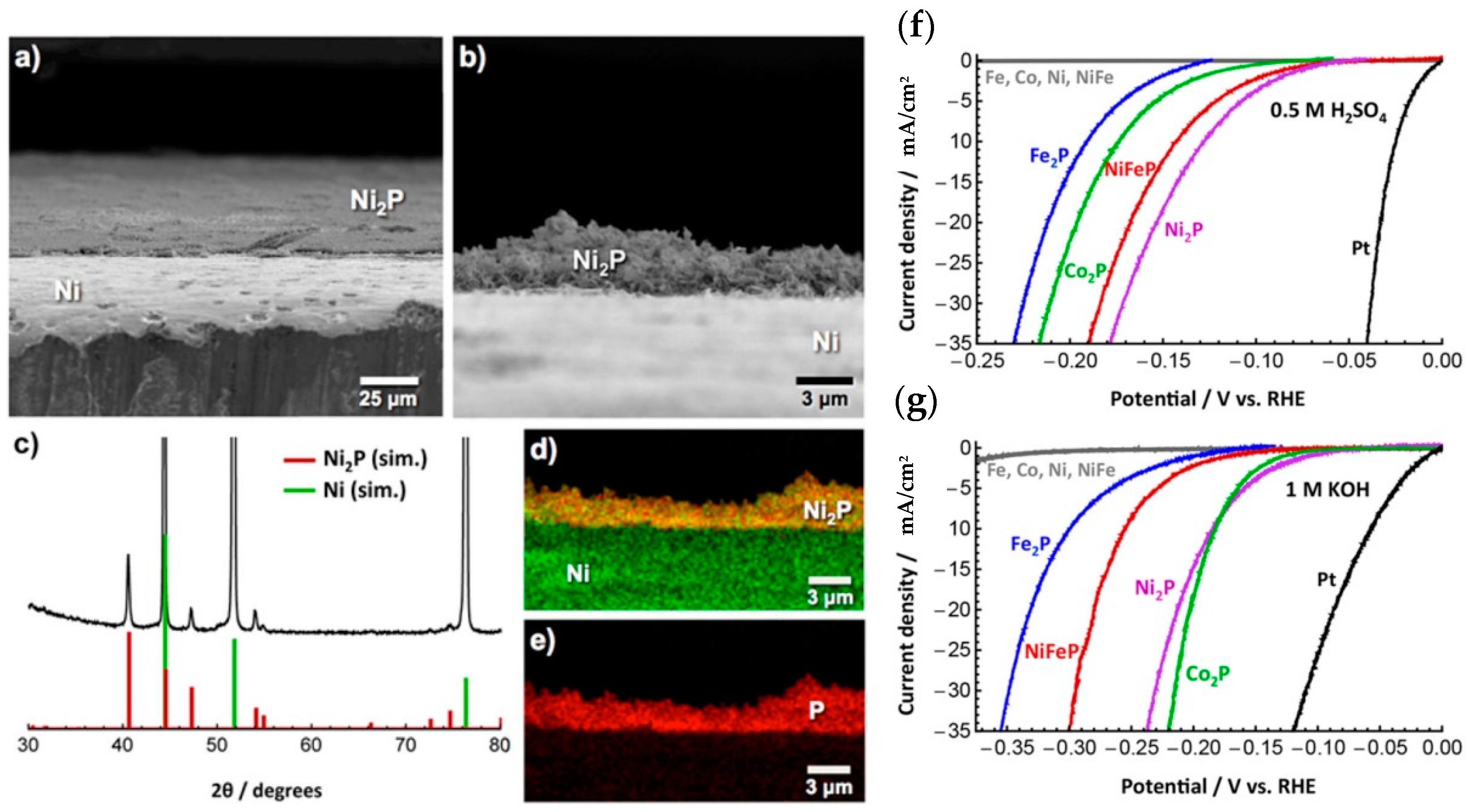

A catalytic reaction is highly sensitive to the surface of the catalyst. One of the most common strategies to enhance the catalyst performance is by increasing the active facet of the catalyst. Several computational studies have suggested that Ni₂P(001) surface is an active facet for HER due to an ensemble effect, whereby the presence of P decreases the number of metal-hollow sites, providing a relatively weak binding between protons and Ni−P bridges, the sites to facilitate catalysis of the HER [123,124]. Later on, Popczun et al. successfully synthesized Ni₂P nanoparticles which possessed a high density of exposed (001) facets (as shown in Figure 7) and then these Ni₂P were tested as cathodes for the HER in 0.50 M H₂SO₄ [125]. The overpotentials required for the Ni₂P nanoparticle to produce cathodic current densities of 20 and 100 mA/cm² were 130 and 180 mV, respectively. These overpotentials are lower than those of none-preferred facet Ni₂P [113] and other non-Pt HER electrocatalysts, including bulk MoS₂ [94] and MoC [126]. Figure 7c displays corresponding Tafel plots for Ni₂P electrodes. Tafel analyses of the Ni₂P nanoparticles show an exchange current density of 3.3 × 10⁻⁵ A/cm² and a Tafel slope of ~46 mV/decade in the overpotential region of 25–125 mV. At higher overpotentials (150–200 mV), the Tafel slope and exchange current density increased to ~81 mV/decade and 4.9 × 10⁻⁴ A/cm², respectively. Again, this Tafel slope behavior reflects the change in the rate-limiting step of the HER [122].

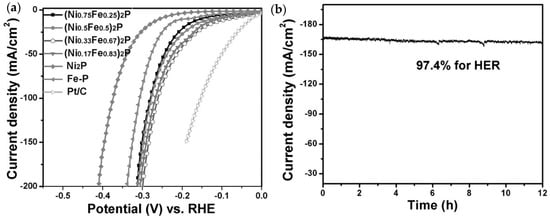

Cation doping is an effective strategy to improve the HER activity of electrocatalysts. A few cations, such as Mn, Fe and Mo, have been reported to dope Ni₂P [110,111,127,128,129]. For instance, Li et al. synthesized a series of (Ni_xFe_1−x)₂P by varying the amount of Fe doping ratio [128]. They found out that HER activities for (Ni_xFe_1−x)₂P electrodes show a volcano shape as a function of Fe doping ratio (see Figure 8); HER activities first increased as Fe content increased until the composition reaches (Ni_0.33Fe_0.67)₂P. Then, by further increasing the Fe content, HER performance decreased gradually. (Ni_0.33Fe_0.67)₂P shows the best performance among the tested (Ni_xFe_1−x)₂P samples, with a small overpotential of 214 mV to reach cathodic current densities of 50 mA/cm². Such an interesting behavior could stem from an increase in the electrocatalytically active surface areas, as well as a change in the electronic structure with increasing Fe content [128,130].

Electron conductivity and dispersion of electrocatalysts also severely affect the catalytic activity of the electrocatalysts. Various carbon materials, such as carbon nanotube and carbon cloth, which possess both strong electronic conductivity and high surface area, have been implemented as Ni₂P support materials to enhance HER activity [131,132,133,134,135,136,137,138,139,140,141]. For instance, Pan et al. reported a hybrid material where Ni₂P was supported on multiwalled carbon nanotubes (Ni₂P/CNT), as shown in Figure 9a [136]. The HER catalytic activity of the Ni₂P/CNT nanohybrid was evaluated in 0.5 M H₂SO₄. Ni₂P/CNT exhibits high catalytic activity with a low overpotential of 124 mV when current density reached 10 mA/cm². The corresponding Tafel slope is 53 mV/decade, reflecting that the HER reaction took place via a fast Volmer step followed by a rate-determining Heyrovsky step [142]. Furthermore, the turnover frequency (TOF) was calculated and normalized by the total number of active sites. To achieve a TOF value of 0.1 s⁻¹, Ni₂P/CNT needs only an overpotential of about 170 mV, much smaller than that required by the Ni₁₂P₅/CNT and Ni/CNT hybrid materials, further showcasing the high catalytic activity of Ni₂P.

4.3. Iron Sulfides, Fe_xS_y

Metal chalcogenides have received interest as HER electrocatalysts over the past decades such as molybdenum sulfide MoS₂ [42], tungsten sulfide WS₂ [143], iron phosphide FeP [47] or nickel phosphide Ni₂P [125]. Among them, iron sulfides (generally noted as Fe_xS_y) show great interest, especially being the most abundant mineral on the Earth’s surface, and pyrrhotite Fe₉S₁₀ being the most abundant iron sulfide in the Earth and solar system [144,145].

To our knowledge, the only study of iron sulfide electrocatalysts in a PEM WE device has been published by Di Giovanni et al. [145]. In this paper the authors describe the synthesis and characterization of different stoichiometries of iron sulfide Fe_xS_y nanomaterials and their activity toward the HER. Pyrite FeS₂, greigite Fe₃S₄, and pyrrhotite Fe₉S₁₀ crystalline phases were first prepared using a polyol synthetic route. Morphological and electronic properties of the prepared nanoparticles were characterized, as well as their electrochemical properties. Greigite is formed of micrometer-sized gypsum flowerlike particles consisting of thin platelets with a very high aspect ratio. Pyrite particles have a hierarchical morphology consisting of large micrometer-sized spheres of aggregated smaller particles. Their performances were investigated in situ in a PEM electrolyzer single cell. MEA were prepared using pyrite, pyrrhotite, or greigite as the anode catalyst and tested in a PEM electrolysis single cell. The catalysts were not supported, but were mixed with 20% of carbon black. Nafion 115 (125 μm) was used as the membrane and IrO₂ as the anode catalyst. A cross section SEM image is presented in Figure 10 left. For the same catalyst loading, both ex situ and in situ (Figure 10 right) electrochemical experiments showed that pyrite (FeS₂) is the most active compared to greigite Fe₃S₄ and pyrrhotite Fe₉S₁₀, with the electrocatalysis starting at an overpotential of ca. 180 mV. These three materials exhibited a very stable behavior during measurement, with no activity degradation for at least 5 days. All catalysts have been tested in a PEM electrolysis single cell, and pyrite FeS₂ allows a current density of 2 A/cm² at a voltage of 2.3 V.

It is noteworthy that Fe_xS_y based materials have been studied as electrocatalysts for the HER and showed promising results.

FeS pyrrhotite has been prepared by a solvothermal route and showed hexagonal shaped nanoparticles with size ranging from 50 to 500 nm, achieving electrocatalysis for molecular hydrogen evolution with no structural decomposition or activity decrease for at least six days at an overpotential of 350 mV in neutral water [146].

Fe₂S pyrite has been prepared by Faber et al. by electron-beam evaporation on borosilicate substrates following by a thermal sulfidation [147]. The cathodic overpotential to drive the HER at 1 mA/cm² for Fe₂S pyrite was 217 mV.

Miao et al. prepared mesoporous Fe₂S materials with high surface area by a sol-gel method followed by a sulfurization treatment in an H₂S atmosphere [148]. An interesting HER catalytic performance was achieved with a rather low overpotential of 96 mV at a current density of 10 mA/cm² and a Tafel slope of 78 mV/decade under alkaline conditions (pH 13).

Jasion et al. proposed the synthesis of nanostructured Fe₂S [149]. By changing the Fe:S ratio in the precursor solution, they were able to preferentially synthesize either 1D wire or 2D disc nanostructures. The HER electrocatalytic activity of the nanostructured FeS₂ (drop-casted on a glassy carbon electrode) was measured via linear sweep voltammetry (LSV) and showed the best results for the 2D disc structures with an overpotential of just 50 mV larger than that of Pt.

Chua and Pumera investigated the electrochemical hydrogen evolution of natural FeS₂ [150]. Interestingly, they focused on the susceptibility of natural FeS₂ hydrogen evolution performances towards sulfide poisoning, a major issue for cathodic hydrogen evolution. The results showed a better response of the FeS₂ electrodes than platinum.

A hybrid catalyst of cobalt-doped FeS₂ nanosheets–carbon nanotubes for the HER was proposed by Wang et al. [151]. The pyrite phase of Fe_1−xCo_xS₂/CNT showed a low overpotential of ~120 mV at 20 mA/cm², a low Tafel slope of ~46 mV/decade, and long-term durability over 40 h of HER operation. Huang et al. employed carbon black as a support to prepare a cobalt-doped iron sulfide electrocatalyst with high-electrical conductivity and maximal active sites [152]. Electrochemical results showed an enhancement in the HER activity of Co-doped FeS₂ in comparison to undoped FeS₂ in acidic electrolyte (pH = 0). The overpotential necessary to drive a current density of 10 mA/cm² is 150 mV and only decreases by 1 mV after 500 cycles during a durability test.

Bi-functional iron-only electrocatalysts for both water splitting half reactions are proposed by Martindale et al. [153]. Full water splitting at a current density of 10 mA/cm² is achieved at a bias of ca. 2 V, which is stable for at least 3 days.

Iron sulfide alloys have also shown potential catalytic activity. Yu et al. report the 3D ternary nickel iron sulfide (Ni_0.7Fe_0.3S₂) microflowers with a hierarchically porous structure delivering an overpotential of 198 mV at a current density of 10 mA/cm² [154]. Zhu et al. proposed bimetallic iron-nickel sulfide (Fe_11.1%–Ni₃S₂) nanoarrays supported on nickel foam having a η₁₀ of 126 mV [155].

A patent has also been filed for the use of iron sulfide in an electrolytic cell [156].

4.4. Carbon-Based Materials

Due to the earth abundancy and high electronic conductivity, carbon based materials, such as carbon nanoparticles (CNPs), carbon nanotubes (CNTs), graphene, etc., are mostly used as the supporting material for the electron transfer between the substrates and the electrocatalysts [157]. One of the most successful carbon material used as electrocatalyst support is carbon black, which is a commercially available product with high surface area (ca. 200–1000 m²/g) [158]. By uniformly dispersing electrocatalyst NPs on carbon black, the electrochemically active surface area (EASA) of the electrocatalyst can be maximized, and the amount of the catalyst, such as Pt, can be minimized. Pt/C is actually the benchmark HER catalyst for PEM electrolysis [159].

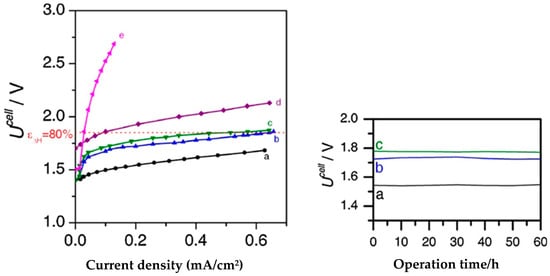

In order to further reduce the cost of H₂ produced by the PEM electrolyzer, other carbon-supported electrocatalysts, especially those only consist of earth abundant elements, such as Mo₂C/CNTs [126], A-Ni-C (atomically isolated Ni anchored on graphitic carbon) [160], Co-doped FeS₂/CNTs [151], CoFe nanoalloys encapsulated in N-doped graphene [161], Ni₂P/CNTs [136], WO₂/C nanowires [162], etc., have been studied as potential HER catalysts alternative to Pt. However, carbon-supported and Pt-free HER catalysts that have actually been tested in a real PEM device are rarely reported, and only a few can be found in the literature, and they are summarized in

Table 3. Summary of full PEM WE cells with EACs as cathodes.

Cathode (Loading in mg/cm2)	Membrane	Anode (Loading in mg/cm2)	Temp. (°C)	Performance	Stability	Ref.
MoS2	Nafion 117	IrO2 (2)	80 °C	0.02 A/cm2@1.9 V	Not reported	[84]
47wt.% MoS2/CB (2.5)	Nafion 117	IrO2 (2)	80 °C	0.3 A/cm2@1.9 V	Increasing current density after 18 h	[84]
MoS2/rGO (3)	Nafion 117	IrO2 (2)	80 °C	0.1 A/cm2@1.9 V	Not reported	[84]
MoSx/CB (3)	Nafion 115	Ir black(2)	80 °C	0.9 A/cm2@2.0 V	Stable current density over 24 h	[105]
Mo3S13/CB (3)	Nafion 115	Ir black(2)	80 °C	1.1 A/cm2@2.0 V	Current density decreased by more than 100 mA/cm2 after 24 h	[105]
MoS2 nCapsules (2)	Nafion 117	IrO2 (2)	80 °C	0.06 A/cm2@2.0 V	Stable current density for 200 h	[106]
MoSx/C-cloth	Nafion 117	RuO2 (2)	80 °C	0.3 A/cm2@2.0 V	Not reported	[107]
MoSx/C-paper	Nafion 212	IrO2 (0.1)	90 °C	0.37 A/cm2@1.9 V	Stable current density over 4 h	[108]

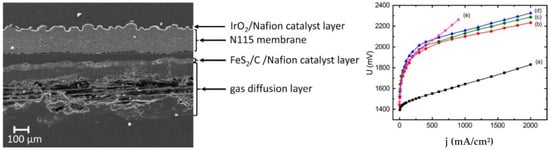

Pyrite FeS2	Nafion 115	IrO2 (2)	80 °C	1 A/cm2@2.101 V	Stable for 100 h	[145]
Greigite Fe3S4	Nafion 115	IrO2 (2)	80 °C	1 A/cm2@2.130 V	Stable for 100 h	[145]
Pyrrholite Fe9S10	Nafion 115	IrO2 (2)	80 °C	1 A/cm2@2.158 V	Stable for 100 h	[145]
30 wt.% Pd/P-doped C (carbon black)	Nafion 115	RuO2 (3)	80 °C	1 A/cm2@2 V	Stable for 500 h	[171]
30 wt.% Pd/N-doped CNTs	Nafion 115	RuO2 (3)	80 °C	1 A/cm2@2.01 V	Stable for 50 h	[172]
30 wt.% Pd/P-doped Graphene	Nafion 115	RuO2 (3)	80 °C	1 A/cm2@1.95 V	Cell voltage increased to 2.0 V after 2000 h	[173]
Activated single-wall carbon nanotubes	Nafion 115	IrRuOx	80 °C	1 A/cm2@1.64 V	Stable for 90 h	[174]
Co NPs/N-doped C	Nafion NRE-212	IrO2 (0.55)	80 °C	1 A/cm2@150 mV η from Pt/C	Not tested in the full cell. Stable cathode after 10,000 CV cycles @ 100 mV/s	[175]
Boron-capped tris (glyoximato) cobalt complexes on carbon black (Co(dmg)/C) 1 mg/cm2	Nafion 117	Ir black (2–2.5)	90 °C	1 A/cm2@2.1 V	Not reported	[62]
[Co(dmgBF2)2]-Vulcan XC72 2.5 mg/cm2 *	Nafion 117	IrO2	60 °C	0.5A/cm2@1.7 V	No sign of degradation after 60 h @ 0.2 A/cm2	[165]
[Co(dmg)3(BF)2]BF4-Vulcan XC72 2.5 mg/cm2 *	Nafion 117	IrO2	60 °C	0.65A/cm2@1.7 V		[165]
Co hexachloroclathrochelates impregnated on Vulcan XC72 5–12 × 10−4 mg/cm2 **	Nafion 117	Ir black	80 °C	1 A/cm2@2.15 V	Not reported	[166]

* Weight of whole complex. ** Weight of catalyst.

.

Nevertheless, the usage of C-based materials is not only limited to the anode. A recent study shows that carbon nitride (C₃N₄) resist the harsh conditions at the anode side and therefore can be used as the supporting material for OER catalysts, such as IrO₂, hence to reduce the Ir content at the anode [163].

4.5. Co-Clathrochelates

The interest in Co-clathrochelates as electrocatalysts is prompted by their ability to maintain the same ligand environment for Co in different oxidation states [164]. However, only a few studies can be found implementing Co-clathrochelates in PEM electrolyzers. As can be seen from Table 3, the cell performance when cathodes are impregnated with such stable Co-containing electrocatalyst complexes is comparable to other earth-abundant catalyst systems, achieving current densities of 0.65 and 1 A/cm² at 1.7 and 2.15 V, respectively (Dinh Nguyen et al. [165] and Grigoriev et al. [166]). In both these works, the Co-clathrochelates were implemented in 7 cm² cells, but with different loadings. Figure 11 left shows how a clean glassy carbon electrode (GCE) (a) is improved by addition of [Co(dmg)₃(BF)₂]BF₄ (a) and Co(dmgBF₂)₂ (b) in a 0.5 M H₂SO₄ aqueous solution. The two Co clathrochelate molecules are shown in Figure 11 right.

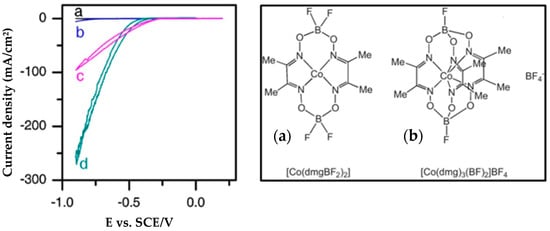

In Figure 11 left, the Co(dmgBF₂)₂ shows better electrochemical performance than [Co(dmg)₃(BF)₂]BF₄ in the three-electrode configuration. However, when the two electrode modifications above were implemented in single cells for i-V characterization and stability testing under operational conditions, the [Co(dmg)₃(BF)₂]BF₄ catalyst shows the best performance. The results are given in Figure 12 for current-potential and stability, respectively. The results reveal an increased cell voltage of 0.2–0.25 V when substituting the HER catalyst from Pt to Co-clathrochelates. The catalysts show no sign of degradation after 60 h of operation at 0.2 A/cm².

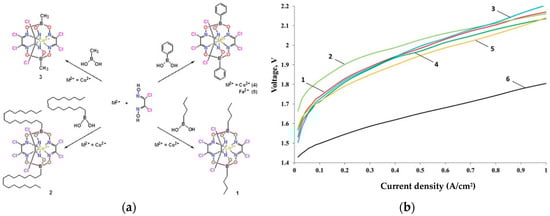

In an earlier study by Millet et al. [62], a 23 cm² cell was prepared with a Co(dmgBF2)2 catalyst with a loading of 1 mg/cm² in carbon black as compared to the 2.5 mg/cm² of the same catalyst in in the study of Dinh Nguyen et al., resulting in an increased cell voltage of 0.1 V to obtain a current density of 0.5 A/cm². It must here be noted, however, that Miller’s cell ran at 90 °C, while Dinh Nguyen’s was operated at 60 °C, so the real difference under equal condition can be expected to be somewhat larger, suggesting that a 150% increase in the catalyst loading makes a significant impact on cell efficiency. The discrepancy between the results in half-cell and full-cell testing clearly underlines the need for testing in operation conditions before concluding on electrochemical performance. Co- and Fe-hexachloroclathrochelates have also been applied by Grigoriev et al. in a full cell, impregnated on Vulcan XC72 Gas Diffusion Electrodes (GDEs) with a surface area of 7 cm² [166]. The main outcome is that substituting Co with Fe improves the electrocatalytic performance of the same macromolecule (Figure 13). One can also see that the overvoltage is around 0.25 V higher for the hexachloroclathrochelates than for the carbon supported Pt cathode used as reference. Comparing the results of Grigoriev et al. to the results reported by Dinh Nguyen et al. is difficult, since no information is given with respect to ohmic contributions to cell resistance for the former, while ohmic contributions are subtracted for the latter. However, the same difference in overvoltage can be seen with respect to carbon supported Pt.

Grigoriev et al. reported that the HER performance of Co-encapsulating macromolecules is improved by adding electron-withdrawing ligands, but otherwise changing ligands makes little difference as long as the electronic structure is similar. This can be seen for different aryl and alkyl apical substituents in [166]. El Ghachtouli et al. reported that the exchange of ligands between fluorine and phenyl or methyl groups has negligible effect on i-V behavior, although the ligands go from strongly electron-withdrawing fluorine, via moderately electron withdrawing phenyl to electron donating methyl groups. The electron affinity of the ligands did, however, affect the reduction potential of Co to surface nanoparticles, which in turn improved the HER [167]. Xile Hu et al. reported a more ambiguous effect of manipulating electron affinities by substituting phenyl- for methyl ligands. In this study, a more positive potential for H₂ evolution correlated with a decreased activity for electrocatalysis. Complex red-ox behavior was also reported in this study, such as Co(III) hydride intermediates formed upon reduction in acidic media [168]. Zelinskii et al. utilized perfluorophenyl-ribbed substituents to stabilize Co(I) in an effort to enhance the HER, but although the reduced Co(I) was successfully stabilized, the resulting Co-clathrochelate complex was not electrochemically active in the HER [169].

One of the main challenges for non-noble metal catalysts in aqueous electrolyzer cathodes is their stability in harsh acidic conditions. The Co-clathrochelates show good stability in the reported works, exemplified by a stable overvoltage of 240 mV and a faradaic efficiency of 80%, remaining stable for more than 7 h in pH = 2 and at 1 mA/cm² and 0.9 V [170].

4.6. Density Functional Theory (DFT) for HER Catalysts

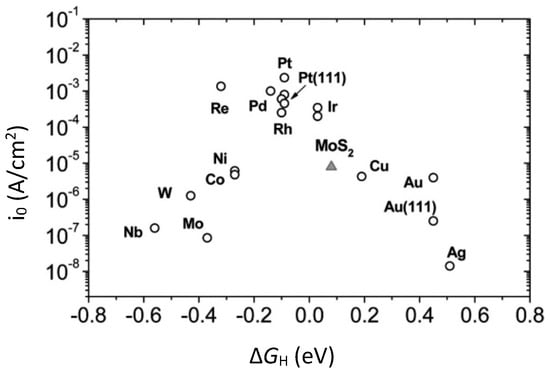

Density functional theory (DFT) is an essential tool for understanding the mechanisms and active sites of novel catalysts as it enables evaluation of the thermodynamics of the individual steps in HER. Modelling reaction barriers is however computationally demanding, and most studies as such, rather adopt a “ΔG approach”. As HER involves both proton transfer and charge transfer, the activity of a catalyst is intrinsically linked to its crystal and electronic structures. In that respect, the hydrogen bonding strength/adsorption energy (ΔG_H) has been widely used as descriptor of catalyst activity. Following the Sabatier principle, too strong or weak interactions with the catalyst surface tends to lower the overall catalyst activity yielding the typical volcano type behavior (Figure 14).

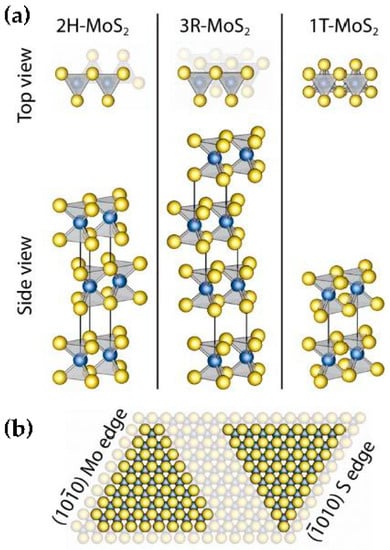

MoS₂ and similar layered transition metal dichalcogenides (TMD) crystallize in two structures, the 2H and 1T polymorphs (Figure 15), with trigonal prismatic and octahedral coordination, respectively.

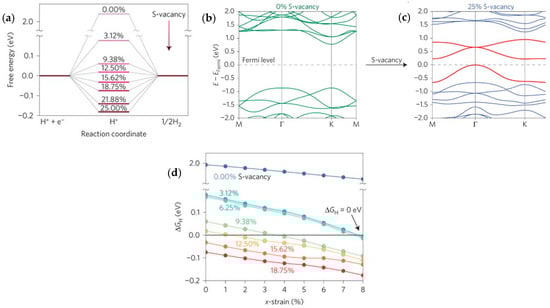

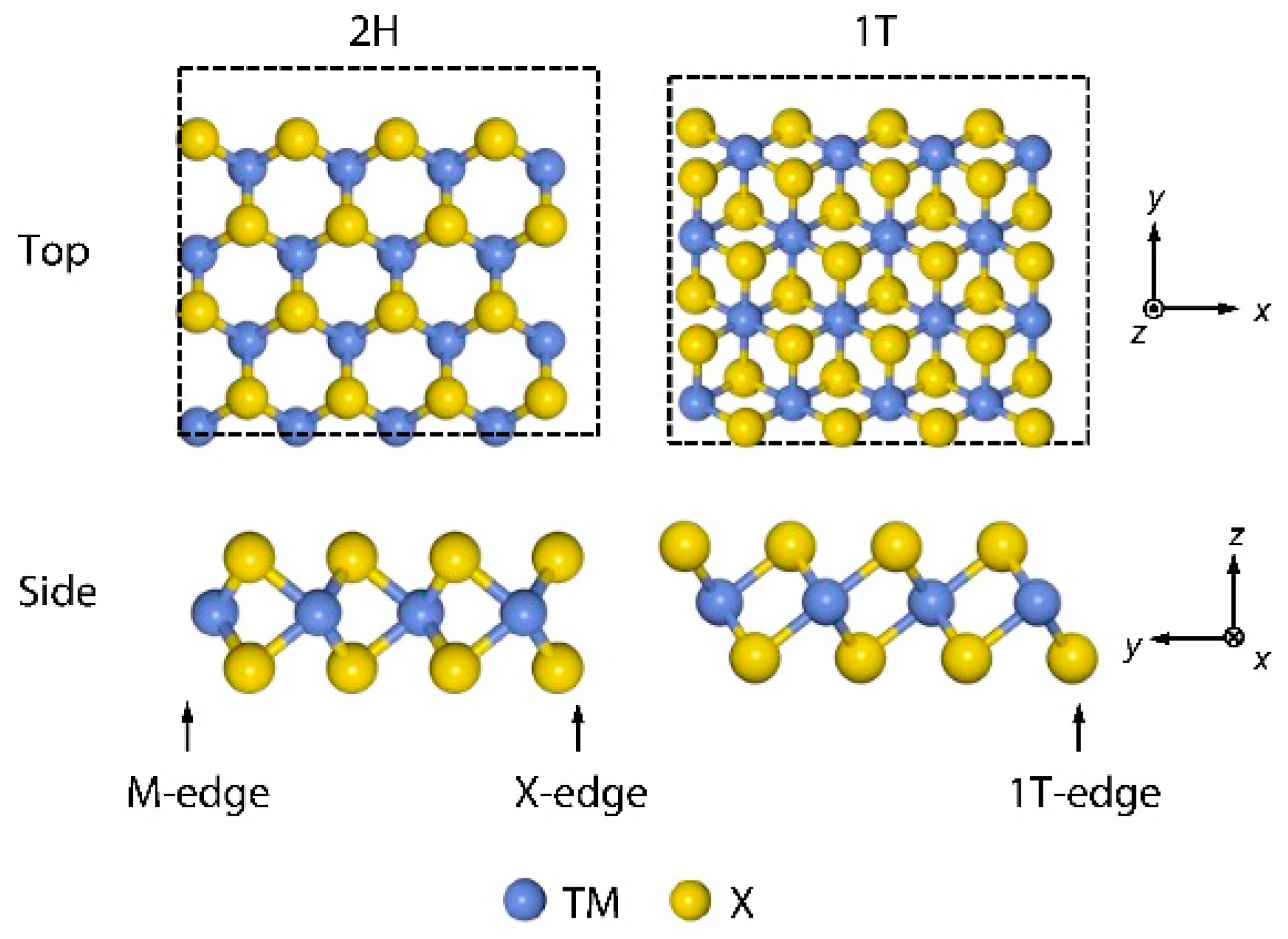

The thermodynamically stable 2H polymorph of single layer MoS₂ is semiconducting with a band gap of 1.74 eV [177], and its (0001) basal plane exhibits negligible catalytic activity towards HER due to a ΔG_H of ~2 eV [176]. On the other hand, Hinnemann et al. [91] showed that the ($10\overline{1}0$) Mo edge sites of single trilayer MoS₂ can be highly active towards HER, and that they resemble the active sites of the hydrogen-evolving enzymes nitrogenase and hydrogenase [42,91]. The Mo edge exhibits a calculated ΔG_H of merely 0.08 eV (Figure 16), compared to 0.18 eV of the (10-10) S edge [178], and is as such, close to thermoneutral (for low H coverages). The increased activity of the edge sites is attributed to in-gap surface states near the Fermi level, implying that 2D MoS₂ with a high edge site concentration can be activated towards HER [179]. Significant computational studies have been devoted to exploring strategies to increase the density of activity sites in MoS₂, and to optimize ΔG_H through electronic structure manipulation. Bonde et al. [178] for instance, showed that Co-promotion decreases the ΔG_H of the S edge to 0.07 eV, but not of the Mo edge, and as such leads to increased number of active sites. Tsai et al. [180] showed that various supports can also be used to tailor the hydrogen bonding to MoS₂; for Mo edges. Increasing the catalyst adhesion to the support was found to weaken the hydrogen bonding, and is attributed to downward shifts of the S p-states, which in turn lead to filling of H 1s antibonding states. Efforts have also been made to understand how the basal plane of MoS₂ can be activated towards HER through defect chemical, structural and strain engineering [181,182,183,184]. Li et al. [181] showed that ΔG_H of basal plane MoS₂ decreases with increasing S vacancy concentration (Figure 16), and that vacancy formation induces in-gap defect states stemming from undercoordinated Mo (Figure 16b), which allows for favourable hydrogen binding. Straining the vacancies was furthermore shown to decrease the ΔG_H (Figure 16c) even further. Ouyang et al. [184] showed that other native point defects such as V_MoS3 and MoS₂ and extended defects, such as grain boundaries affect hydrogen bonding and as such the HER performance. In addition, Deng et al. [185] showed that single atom transition metal substitution creates in-gap states that lower the ΔG_H, with Pt-MoS₂ yielding a close to thermoneutral binding energy.

While the basal plane of 2H-MoS₂ is semiconducting [177], its metastable 1T phase is metallic [186] and even its basal plane is highly active towards HER. The metallicity and high HER activity stems from the partially filled Mo 4 d and S states at the Fermi level, leading to favorable ΔG_H [187]. DFT calculations reveal that ΔG_H is highly coverage-dependent due to H induced surface reconstructions, reaching values between −0.28 and 0.13 eV for 12.5 to 25 % coverage [187]. The phase stability of the 1T phase, and its band gap and as such HER activity, can be tuned by surface functionalization, by e.g., −CH₃, CH₃, OCH₃, and NH₂, which all were shown to bind more strongly to the 1T surface compared to the 2H basal plane [188].

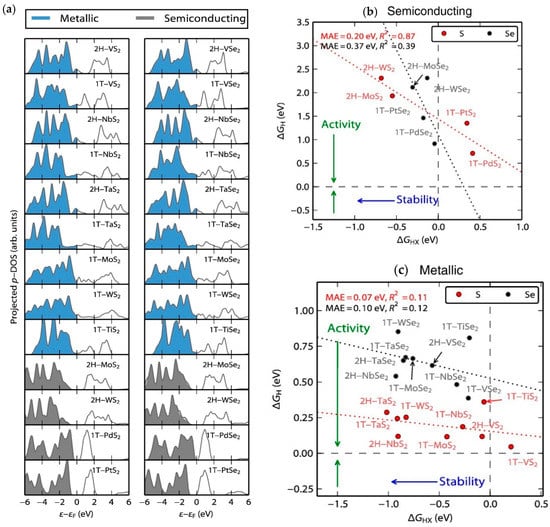

Realizing the importance of crystal and electronic structure with respect to HER activity of MoS₂, a range of other layered TMD have attracted attention both experimentally and computationally. Tsai et al. [189] showed also that for MoSe₂ and WeSe₂, the Mo and Se edge sites are more active than the basal planes, and that the selenides generally exhibit weaker H binding than their sulphur counterparts. Tsai et al. [176] furthermore explored the electronic structure, ΔG_H and the energy of HX adsorption, ΔG_HX (i.e., descriptor for stability) for the basal planes of a range of 2D MX₂ (M = Ti, V, Nb, Ta, Mo, W, Pd, and X = S or Se) TMDs. The 2D TMDs vary from semiconducting to metallic (Figure 17), with group 7 TMDs (Mo and W) changing from semiconducting to metallic from the 2H to the 1T phase. The metallic TMD were in general found to exhibit stronger H bonding (lower ΔG_H) than the semiconducting phases (Figure 17). The semiconducting TMDs span a wider range of ΔG_H than the metallic phases, reflecting the importance of the electronic structure with respect to the HER activity (Figure 17). They found an inverse correlation between ΔG_H and ΔG_HX for both semiconducting and metallic phases, reflecting the general understanding of the relationship between HER activity and. Furthermore, the metallic TMDs were in general found to exhibit stronger H bonding (lower ΔG_H) than the semiconducting phases.

Of the HER active transition metal phosphides, those of especially Ni and Mo have been the subject of extensive computational investigations. Bulk Ni₂P is metallic with a crystal structure consisting of alternating Ni₃P and Ni₃P₂ planes along the (0001) axis. The HER activity of Ni₂P (0001) surfaces were originally predicted computationally by Liu and Rodriguez [124] showing that the P sites on the phosphide surface play an important role in producing a weak-ligand effect involving Ni → P charge transfer, resulting in suitable ΔG_H and high activity for the dissociation of H₂. The bare Ni₃P terminated surface exhibits a strongly binding Ni₃ hollow site with ΔG_H of ~ −0.5 eV for the first H, and several sites of lower H binding strength [190,191]. DFT calculations show that the surfaces prefer a P-covered reconstruction of the Ni₃P termination in which a P ad-atom binds on-top of the strongly H binding Ni₃ hollow site [190] and that this P ad-atom reduces the bindings strength of the site, and can bind up to 3 H atoms [192,193]. Hakala and Laasonen [191] showed that the H adsorption properties can be modified through Al substitutions, leading to ΔG_H close to 0 eV.

In a joint experimental-computational effort, Xiao et al. [194] studied hydrogen binding at the Mo, Mo₃P and MoP surfaces showing that 001-Mo surface binds H strongly with a ΔG_H ranging from −0.54 to −0.46 eV for ¼ to ¾ monolayers. The Mo and P terminated (001) MoP surfaces was found to exhibit values of −0.63 to −0.59 and −0.36 to 0.34, respectively, indicating that the P terminated surface can adsorb H at low coverages and desorb at high coverages, reflecting the importance of P also in these catalysts.

5. Earth-Abundant Anode Materials

As mentioned previously, the only stable and well-established catalysts for the OER in acidic media are noble metal oxides such as IrO_x and RuO_x [195]. A recent study (2016) on benchmarking of water oxidation catalysts (WOC) revealed that there are no EACs that can reach the target metric of short-term acid stability, which is defined as operation at 10 mA/cm² for 2 h [196]. We also expected that there are no PEM WE reports based on EACs anodes for the OER side, but this is also not the case. Herein, we report on recent advances and current trends on EACs for the OER that show promising results in terms of performance and stability in acidic media, which exceeded the short-term target of 2 h in just two years. The presented materials and their performance are summarized in

Table 4. Summary of the EACs developed for OER in acidic conditions.

Material	η mV	Tafel mV/Decade	Loading	Media	Stability	OER Faradaic Efficiency	Applied in Full PEM WE Cell	Ref.
Activated MnOx	540@0.1 mA/cm2	90	thin film 2–4 nm	0.5 M H2SO4, pH = 2.5	8 h@0.1 mA/cm2	~1%	-	[197]
CoMnOx	450@0.1 mA/cm2	70–80	films	0.5 M H2SO4, pH = 2.5	12 h@0.1 mA/cm2	91% average	-	[198]
Ti-stabilized MnO2	~490@1 mA/cm2	170	thin film 40 nm	0.05 M H2SO4	89%, 1h@1.9V	-	-	[199]
Cu1.5Mn1.5O4:10F	320@9.15 mA/cm2	60	1 mg/cm2	0.5 M H2SO4	24 h@16 mA/cm2	-	ORR in PEM fuel cell	[200]
MEMD	305@100 mA/cm2	115	roughness factor 429/for DSA 388	2 M H2SO4	3500 s@280 mV	-	-	[201]
Ni0.5Mn0.5Sb1.7Oy	675@10 mA/cm2	60	thin film ~300 nm. Ni content 0.48 μmol/cm2	1 M H2SO4	168 h@10 mA/cm2. η increased to 735 mV	95% average	-	[202]
crystalline Co3O4	570@10 mA/cm2	80	thin film ~300 nm.	0.5 M H2SO4, pH = 0.3	12 h@10 mA/cm2. Dissolution rate 100 ng/min	above 95%	-	[209]
Ag-doped Co3O4	680@10 mA/cm2	219	film, 32.81 m2/g	0.5 M H2SO4	10 h@6 mA/cm2	-	-	[210]
PB-type	830@10 mA/cm2	108	film on FTO.	0.1 M KPi buffer, pH = 2	2 h@10 mA/cm2	close to theoretical@0.3 mA/cm2	-	[211]

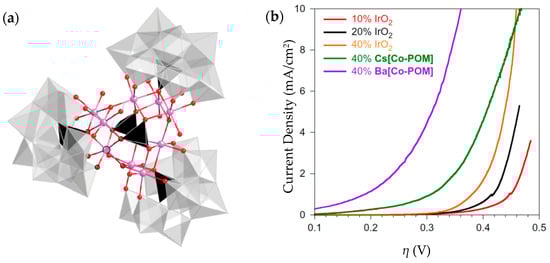

Ba[Co-POM]	189@1 mA/cm2	66	11 mg	1 M H2SO4, pH = 0.2	From >2 mA/cm2 to 0.35 after 24 h	99%	-	[212]
CoHFe on Sb-doped SnO2	780@0.9 mA/cm2	-	0.61 mg/cm2	0.1 M H2SO4,	-	-	OER. 50-100 mA@2 V. 6 mA/cm2@1.8 V with 0.5 mg cm-2. Stability: 21 h. Cathode: 0.5 mg/cm2 Pt/C	[213]
Fe-TiOx LNWs/Ti	260@1 mA/cm2	126.2	60 mg/cm2 as of Fe2O3	0.5 M H2SO4	20 h@1.9 V. 18.7% current reduction	-	-	[214]
Mixed maghemite-hematite	650@10 mA/cm2	56	1 mg/cm2	0.5 M H2SO4, pH = 0.3	>24 h@10 mA/cm2.	~100%	-	[215]

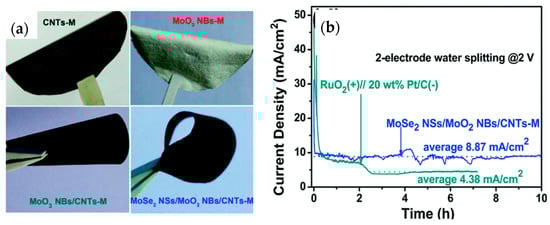

MoSe2 nanosheet/MnO2 nanobelt/CNT (bifunctional)	400@10 mA/cm2	112.3	98.46 m2/g	0.5 M H2SO4	10 h@8.87 mA/cm2	-	Two-electrode electrolyzer as anode and cathode@2 V	[216]
N-doped WC nanoarray (bifunctional)	470@60 mA/cm2	-	10 mg/cm2	0.5 M H2SO4	1 h@10 mA/cm2, η increases from 120 to 310 mV	-	Two-electrode electrolyzer as anode and cathode@1.4 V	[217]
Intermetallic polycrystalline Ni2Ta	570@10 mA/cm2	-	0.84 cm2 as EASA	0.5 M H2SO4	>66 h@10 mA/cm2.	85%@20 mA/cm2	-	[218]
Ni42Li205 steel	445@10 mA/cm2	150		0.05 M H2SO4 pH = 2	20 μg/mm2 loss after 14 h@10mA/cm2	79%@20 mA/cm2	-	[221]

.

Manganese oxide (MnO_x) was reported to be functional under acidic conditions and before activation exhibited a Tafel slope of approx. 650 mV/decade, but after potential cycling and activation of the MnO_x film the slope was improved to approx. 90 mV/decade [197]. The authors reported a galvanostatic stability of 8 h in 0.5 M H₂SO₄ at a current density of 0.1 mA/cm² and overpotential of 540 mV. The same group introduced Mn in CoO_x with the former acting as a stabilizing structural element and the CoMnO_x showed a Tafel slope of 70–80 mV/decade and a stability of more than 12 h without any dissolution [198]. The overpotential for a galvanostatic operation at 0.1 mA/cm², which is 2 orders of magnitude lower than the target values though, was approx. 450 mV. In another work, MnO₂ was stabilized by introduction of TiO₂ in the undercoordinated surface sites of MnO₂. Frydendal et al. applied a 5 nm layer of Ti-modified MnO₂ on a 35 nm think layer of pure MnO₂ [199]. The composite material exhibited a Tafel slope of 170 mV/decade and a moderate overpotential of approx. 490 mV at 1 mA/cm². The Mn dissolution in 0.05 M H₂SO₄ was suppressed by roughly 50% after the TiO₂ modification. The authors came up with this strategy after an initial DFT study, which indicated that guest oxides such as GeO₂ and TiO₂ should improve the stability of MnO₂. The reason is that both GeO₂ and TiO₂ have lower surface formation energies than MnO₂ and are more favorable for termination at the undercoordinated sites on MnO₂. Another Mn-containing system is reported by Patel et al., and is based on nanostructured Cu_1.5Mn_1.5O₄:x wt.% F (x = 0, 5, 10, 15) [200]. The Cu_1.5Mn_1.5O₄:10F electrocatalyst in 0.5 M H₂SO₄ at 40 °C exhibited an onset potential at 1.43 V vs. RHE for the OER and reached 9.15 mA/cm² at 1.55 V vs. RHE. Interestingly, the in-house made IrO₂ showed the same onset overpotential and 7.74 mA/cm² at 1.55 V. The reported Tafel slope for the EAC is 60 mV/decade and it should be noted that the current-voltage curves were iR corrected. In a report by Anantharaj et al. it is suggested that the method used to calculate the iR drop compensation should be reported, along with the uncompensated i-V curves [55]. The material showed also very good stability for almost 24 h of operation at constant current density of 16 mA/cm². This material is also suitable for the oxygen reduction reaction (ORR), where it showed again similar activity to IrO₂. The authors did not apply the Cu_1.5Mn_1.5O₄:10F as a anode in full PEM WE cell, but they did so for the cathode in a PEM fuel cell (PEM FC) mode. The results are promising and the performance is the same as with IrO₂ and quite close to the operation in a 3-electrode mode. It should be noted though that the loading of the EAC was 6.7 times higher than for IrO₂.

Another Mn-based electrocatalyst was a Mo- and Co-modified electrolytic manganese dioxide (MEMD) developed by Delgado et al. [201]. According to the authors, Mo was incorporated in EMD for improvement of its mechanical stability, while the role of Co was to reduce the water content in EMD and increase the electrical conductivity. The catalyst was synthesized by a simple electrodeposition method and the Mo and Co elements were electrodeposited simultaneously with the EMD. The optimized catalyst had Mo and Co contents of 12.77 wt.% and 0.33 wt.%, respectively, and exhibited an overpotential of 305 mV at 100 mA/cm² in 2 M H₂SO₄. The authors found that this catalyst outperformed a commercial IrO₂-based dimensionally stable anode (DSA^®) electrode, which under the same conditions had an overpotential of 341 mV. The improved stable performance is explained by the lower charge transfer resistance induced by the Co incorporation, as well as to an increase of the roughness factor. The stability of the catalyst was assessed at a lower overpotential, i.e., at 280 mV, and the degradation of the material was small after approx. 3500 s of operation. In principle, the authors should have reported the stability at 100 mA/cm² in order to provide more convincing results.

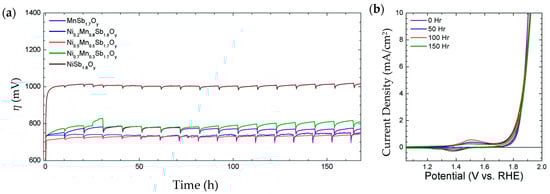

Moreno-Hernandez et al. developed a quaternary oxide, Ni_0.5Mn_0.5Sb_1.7O_y, which exhibited an initial OER overpotential of approx. 675 mV vs. RHE in order to reach 10 mA/cm² in 1.0 M H₂SO₄ [202]. The overpotential stabilized at approx. 735 mV and the electrocatalyst performed for 168 h of continuous operation (Figure 18). The authors reported a full cell application in a two-compartment electrolysis cell with Nafion as the separating membrane, but they did not use the catalyst in a full PEM WE cell. The stability of the Ni_0.5Mn_0.5Sb_1.7O_y is comparable to the noble metal oxides and is related to the fact that Ni, Mn and Sb oxides are stable in acidic conditions at OER potentials according to Pourbaix diagrams [203,204].

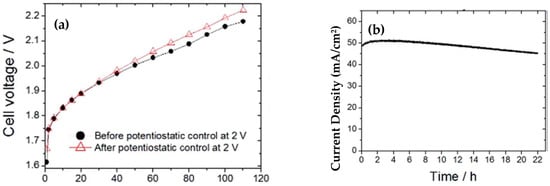

Another important element in the aqueous electrochemistry is cobalt (Co). Co oxide-based catalysts have shown excellent performance in alkaline and near neutral pH solution [205,206]. Under strong acidic conditions, however, they show fast dissolution, sluggish kinetics and high overpotentials [196,207,208]. Mondaschein et al. developed a highly crystalline Co₃O₄ nanostructured film, which was deposited on FTO by electron-beam evaporation followed by annealing at 400 °C [209]. The overpotential for 10 mA/cm² was 570 mV vs. RHE in 0.5 M H₂SO₄, and the catalyst maintained an OER with near-quantitative Faradaic yield for over 12 h. Unfortunately, the dissolution rate of Co at this high current density was considerable and further studies are needed for corrosion protection of such structures. To this end, Yan et al. have recently reported the synthesis of mesoporous Ag-doped Co₃O₄ nanowires, which showed improved stability over 10 h operation at 1.6 V vs. RHE in 0.5 M H₂SO₄, as Ag is known to be stable in acidic media [210]. The Ag-doped Co₃O₄ nanowires were synthesized by electrodeposition-hydrothermal process, which was followed by calcination at 400 °C. The nanostructured catalysts showed a Tafel slope of 219 mV/decade and an overpotential of approx. 680 mV at current density of 10 mA/cm². The authors do not provide any dissolution products analysis or any post-operation analysis of the material, as well as no comparison with IrO_x.

Another Co-based catalyst in the form of cobalt-iron Prussian blue-type analogues (PBAs) thin film was developed by Han et al. [211]. In this work, the PB-type water oxidation catalyst promoted the OER over a wide pH range spanning from pH = 1 to pH = 13. According to the authors, an especially interesting aspect of this universal catalyst was the very good behavior at pH = 2. The overpotential required at 10 mA/cm² was approx. 0.83 V with a Tafel slope of 108 mV/dec. The oxygen evolution was quite close the theoretical one and the catalyst was stable for at least 2 h of operation at 10 mA/cm². Co-containing polyoxometallates (Co-POMs) have shown promising catalytic properties for water splitting at near-neutral pH [212]. To this end, Blasco-Ahicart et al. developed the Ba salt of Co-phosphotungstate polyanion (Ba[Co-POM], see Figure 19a) that outperformed IrO₂ at pH < 1, showing an overpotential of 189 mV vs. RHE at 1 mA/cm² (Figure 19b) with a faradaic efficiency of 99%. The Tafel slope was 66 mV/decade at the long-term stability was assessed at an overpotential of 250 mV vs. RHE. The initial current was more than 2 mA/cm² but decreased down to 0.35 mA/cm² after 24 h of operation. This degradation is assigned to charge localization that reduces the overall performance, which can be retrieved after charge delocalization at open-circuit potential. The authors could not assess the performance of the material at 10 mA/cm² as the carbon paste, which acted as a binder was not stable.

An interesting work conducted by Rodriguez-Garcia et al. combines the Co and Sb elements in an anode made of cobalt hexacyanoferrate supported on Sb-doped SnO₂ [213]. In this work the synergistic effect of the OER catalysts (CoHFe) and the support, antimonite tin oxide (ATO) is highlighted and the “winning” configuration is when 17 wt.% of CoHFe is deposited on ATO. The onset of the OER was approx. at 1.75 V vs. RHE as determined by RDE experiments. Interestingly, the authors assembled a full PEM WE cell and they have found the onset potential as from the RDE experiments. A current density of the order of 50–100 mA/cm² was reached at 2 V cell voltage (Figure 20a). The PEM WE cell with this earth-abundant anode showed a rather stable performance at 2 V during a stability testing of 22 h (Figure 20b) The authors studied the Sn and Sb leaching rates during PEM operation and they observed increases leaching rates for cell voltages above 2 V. To our knowledge this the first report on full PEM WE cells using EACs for the anode, showing very promising stability under WE operation.

Zhao et al. prepared FeO_x which was incorporated into TiO₂ nanowires on Ti foam as the support [214]. The catalyst showed an OER overpotential of 260 mV for 1 mA/cm² in 0.5 M H₂SO₄. The reported Tafel slope was 126.2 mV/decade, while for the RuO₂ it was 56.2 mV/decade. The composite material showed very good stability with no significant degradation and after 20 h operation at the OER potential of 1.9 V the current was reduced by 18.7%, but the faradaic efficiency is not provided. Another catalyst involving Fe as the electroactive transition metal is provided by Kwong et al. [215]. In this work, three different Fe-based oxides are studied; the mixed maghemite-hematite, and the single polymorphs, maghemite and hematite. The hematite film was OER-inactive, the maghemite corroded after approx. 6 h of operation, while the mixed polymorph sustained a 10 mA/cm² for more than 24 h in 0.5 M H₂SO₄. The overpotential was 650 mV vs. RHE and increased about 13% after 24 h. The reported Tafel slope is of the order of 56 mV/decade and the faradaic efficiency is almost 100%.

In this paragraph, three more interesting materials for the OER in acid are reported. Yang et al. reported a bifunctional composite material, which is able to catalyze both OER and HER in acidic environment (0.5 M H₂SO₄) [216]. A flexible porous membrane comprised of MoSe₂ nanosheets on MoO₂ nanobelts and carbon nanotubes (MoSe₂ NS/MoO₂ NB/CNT-M, see Figure 21a) showed a Tafel slope of 112.3 mV/decade and an overpotential of 400 mV at 10 mA/cm². More importantly, the authors applied the composite porous membrane in a two-electrode water splitting cell and they compared the performance of the EAC against a configuration having RuO₂ as the anode and Pt/C as the cathode at a cell voltage of 2 V (Figure 21b). After a large attenuation of the current densities in both configurations the composite porous membrane stabilized at 8.87 mA/cm² and the noble-metal configuration at 4.38 mA/cm².

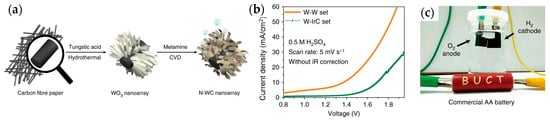

A superaerophobic bifunctional N-doped tungsten carbide nanoarrays catalyst was synthesized on carbon paper with a combination of hydrothermal and CVD methods by Han et al. [217]. The OER onset is at an overpotential of approx. 120 mV vs. RHE, while a high current density of 60 mA/cm² was reached at approx. 470 mV overpotential. This catalyst outperformed IrO₂ in 0.5 M H₂SO₄ under 3-electrode configuration as well as in a two-electrode water splitting cell, where both the anode and the cathode were the N-WC nanoarrays (Figure 22c). Unfortunately, the stability of the material is limited and after 1 h of operation at 10 mA/cm² the overpotential increased from 120 mV to 320 mV vs. RHE, but the faradaic OER efficiency is not reported.

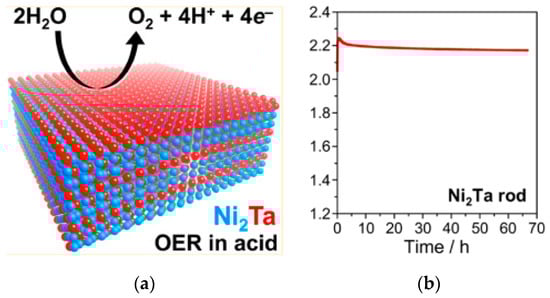

Mondschein et al. reported the intermetallic Ni₂Ta for the OER in 0.5 M H₂SO₄ [218]. Intermetallic alloys are metallic conductors and Ni₂Ta has been used as a corrosion resistance coating [219,220]. In their report, Mondschein et al. found that arc-melted Ni₂Ta rods combine the OER activity of Ni and the corrosion resistance of Ta and the intermetallic compound needed 980 mV to reach 10 mA/cm² (Figure 23b), a behavior assigned to the low electrochemically active surface area (EASA). The authors prepared a polycrystalline Ni-Ta electrode in order to increase the EASA and indeed, the overpotential at 10 mA/cm² was improved to 570 mV. The polycrystalline electrode showed improved corrosion resistance compared to a Ni pellet electrode prepared in a similar way, as the Ni content in the electrolyte after 36 h operation was below the detection limit of ICP-MS, while for the Ni pellet was 350.5 ppm.

Lastly, Schäfer et al. developed a steel-based catalyst by anodization of Ni42 steel in LiOH [221]. The unmodified Ni42 steel proved to be unstable in acidic media and OER potentials, whereas the LiOH-anodized Ni42 steel was quite stable. The main reason is the oxide formation in the latter, which protects the material from dissolution. This finding was explained by the higher Tafel slope of the treated sample (150 mV/decade) compared to the unmodified steel electrode (88 mV/decade). This supports the concept of the “oxide route” regarding the origin of oxygen formation during electrolysis. A higher activity, i.e., lower Tafel, leads to higher dissolution rates. The optimized sample (Ni42Li205) had an overpotential of 445 mV at 10 mA/cm² at pH = 0. Moreover, the faradaic efficiency for the OER at 10 mA/cm² was 79%, and a weight loss of 20 μg/mm² after 14 h of operation at pH = 1 was observed.

6. Summary, Challenges, Perspectives and Future Directions

In this review article, we briefly introduced the energy problem humanity is facing due to the depletion of fossil fuels and the climate changes resulting from their excessive usage. The “hydrogen economy” will become part of our future energy solutions and hydrogen fuel produced by water electrolysis represents a viable, renewable and environmentally friendly option that can replace fossil fuels. We presented a brief technoeconomic analysis and from the learning curves it is estimated that PEM water electrolysis will break even with the cost of hydrogen from fossil fuels around 2030, under an optimistic scenario. Currently, the high cost of hydrogen from PEM WE is related to the polymer exchange membrane, the noble metal electrocatalysts and the high overpotentials for water splitting. With this in mind, we have documented the progress done so far in the discovery and development of EACs both for the OER and HER sides of a PEM electrolyzer. We have not attempted an extensive literature review of EACs, because only for 2017, there were 2043 reports on the development of electrocatalysts. In addition, there are several other reviews, which the reader can refer to in this article, on EACs available in the literature covering either the whole range of new EACs or more specific classes, such as sulfides, phosphides etc. Instead, we reported the state-of-the-art full PEM WE cells based on noble metal catalysts and more importantly, we aimed in documenting how many of the newly developed EACs are actually used in full PEM WE cells, replacing the noble metal-based catalysts. This is equally important during the development stages of any catalyst, in order to observe and record efficiencies, stability and limitations under operating conditions, facts that may differ from the idealized measurements in half cells and rotating disc electrodes (RDE). This point is also emphasized by Spöri et al. in their review for benchmarking OER catalysts [222]. An adequate examination of OER catalysts should be performed both at low and high current densities and moreover, several other parameters should be carefully considered when reporting water oxidation catalysts [55]. For example, iR compensated curves, especially in the high current density region can dramatically differ from the uncompensated ones, reporting overestimated and inaccurate overpotential values. To our surprise, we found only 16 reports on HER EACs employed in full PEM WE cells and only one report for the OER. Of course, the great challenge is to find stable EACs for the OER in acidic environment, as currently the only stable and efficient catalyst is IrO₂.

On the other hand, we are among the first to compile the very first EACs with promising efficiencies and stability for the OER under acidic environment. The reader can find the very first 17 breakthrough papers, which we hope that will motivate more research in order to develop and improve the stability of transition metal elements, such as Ni, Co, Fe and Mn for operation under anodic current flow at strongly acidic conditions. Transition metal antimonates of rutile type, as the Ni_0.5Mn_0.5Sb_1.7O_y reported by Moreno-Hernandez et al. show very good stability, which is related to the fact that Mn, Ni and Sb oxides are stable in acid, according to their Pourbaix diagrams [202]. The strategy to integrate unstable catalysts with inactive counterparts, i.e., mixed polymorphs, may lead to stable electrocatalysts. Kwong et al. presented a fine example [215]. The authors combined maghemite and hematite and they achieved a stable operation for more than 24 h at 10 mA/cm² in 0.5 M H₂SO₄ at an overpotential of 650 mV vs. RHE, while maghemite and hematite alone are unstable and not active, respectively. The faradaic efficiency for the OER was also close to 100%. Another strategy is to combine a stable oxide with an unstable one, as the Ti-stabilized MnO₂ shown by Frydendal et al. [199]. In this work, a DFT work predicted that TiO₂ can be inserted for termination at the undercoordinated sites on MnO₂ and in fact, the stability of MnO₂ increased by more than 50%. Apart from TiO₂, the authors suggested GeO₂ as well, as it also has a lower surface formation energy than MnO₂.

Intermetallic alloys, such as Ni-Ta, have been used as corrosion protective coatings already from the 90’s. Mondschein et al. reported the polycrystalline Ni₂Ta alloy, which was stable for more than 66 h at a current density of 10 mA/cm² in 0.5 M H₂SO₄ [218]. The challenge with such alloys is to increase their surface area by nanostructuring. The same applies for steel-based anodes as presented by Schäfer et al. [221]. The reported Ni42 steel anode modified by a surface oxide layer appears to be both efficient and stable under OER potentials in strong acids. Other steel-based materials should also be tested, especially those containing Fe and Ni, as both elements are active towards OER electrocatalysis. Although surface passivation will increase the charge transfer resistance of the material, on the other hand is a promising trade-off for stable operation.

On the other side, the HER, one can find an enormous amount of EACs both for acidic and basic conditions. We very selectively touched upon the current state-of-the-art and the most promising HER EACs, and our main conclusion is that many more applied systems must be reported. Sixteen works out of thousands make a small sample to draw concrete conclusions from. It is encouraging to see that the HER and OER EACs tested in PEM WE showed similar performances to that expected by measurements in half-cells. There are cases though where the results do not correlate well, as we observed for some Co-clathrochelates. Moreover, in the development of both OER and HER catalysts, it is of utmost importance to report on faradaic efficiencies, as well as post-screening analysis of the electrolyte and catalyst. As we have seen from Table 3 and Table 4, it is common to neglect such an analysis. Faradaic efficiency will provide a more accurate and trustable picture of the stability and performance of the catalyst and in addition, will help to identify and distinguish between corrosive and parasitic currents and actual HER and OER currents. There is also a big mismatch on the stability testing times reported on both HER and OER EACs. We generally see that researchers are more confident for the HER catalysts, as the testing times are by far longer than that of OER catalysts. Currently, it is reasonable, as EACs for the OER are in a primitive state with their stability way more challenging. On the other hand, a consensus should be established regarding performance protocols. We encourage the reader to study two benchmarking reviews, which cover a wide range of applied systems for more in-depth information [196,222]. Moreover, a recent perspective article revisits and discusses the validity of ten important parameters that are commonly employed in HER and OER [55].

We take some of the best PEM electrolyzers based on noble metals and EACs, and a valuable comparison is given in

Table 5. Comparison between full PEM WE cells based on purely noble metal catalysts and those with EACs in the cathode or anode.

Cathode	Anode	T	Membrane	Current Density	Ref.
Pt/C 0.1 mgPt/cm2	Ir0.7Ru0.3O2 1.5 mgoxide/cm2	90 °C	Aquivion ionomer	1.3 A/cm2@1.6 V	[88]
Pt/C 0.5 mgPt/cm2	Ir0.7Ru0.5O2 1.5 mgoxide/cm2	90 °C	Nafion 115	2.6 A/cm2@1.8 V	[73]
Activated single-wall carbon nanotubes (SWNTs)	IrRuOx	80 °C	Nafion 115	1 A/cm2@1.64 V	[174]
Mo3S13/CB 3 mgPt/cm2	Ir black(2)	80 °C	Nafion 115	1.1 A/cm2@2.0 V	[105]
Pt/C 0.5 mg/cm2	CoHFe on Sb-doped SnO2 3 mg/cm2	80 °C	Nafion 115	0.05-0.1 A/cm2@2 V	[213]

.

It is very encouraging to see that EACs, especially for the HER, have already reached efficiencies very similar to those with noble metal catalysts. Apart from the importance of the transition metals, the non-metallic elements, such as P and S, are also key elements in the development of earth abundant catalysts. DFT works also highlight the noble metal-like activity of the TMD and transition metal phosphides, and in some instances, it is also comparable to the activity and turnover frequencies of enzymes, such as hydrogenases. Furthermore, computational works indicate that P and S, as well as their vacancies, create such an electronic environment that induces favorable binding energies for the adsorption desorption of the H atom.

There is a long way to go for the OER ones, especially concerning their stability, but nevertheless, these results highlight even more the need to employ and operate EACs in full cells. It is also interesting to notice that a PEM WE based on purely EACs can already be realized. It is difficult to say whether the cost of hydrogen from PEM WE breaks even with fossil fuels around 2033, but this review endorses this optimistic scenario. It also provides ways for materials’ optimization and development, in order to move forward PEM electrolyzers made purely by EACs, bringing/implying a significant cost reduction to the produced hydrogen.
