Formic Acid Dehydrogenation Using Noble-Metal Nanoheterogeneous Catalysts: Towards Sustainable Hydrogen-Based Energy

by
Abbas Al-Nayili
1,
Hasan Sh. Majdi
2,
Talib M. Albayati
3,* and
Noori M. Cata Saady
4
1
Chemistry Department, College of Education, University of Al-Qadisiyah, Al Diwaniyah 58001, Iraq
2
Department of Chemical Engineering and Petroleum Industries, Al-Mustaqbal University College, Babylon 51001, Iraq
3
Department of Chemical Engineering, University of Technology Iraq, Baghdad 35010, Iraq
4
Department of Civil Engineering, Memorial University of Newfoundland, St. John’s, NL A1B 3X5, Canada
*
Author to whom correspondence should be addressed.
Catalysts 2022, 12(3), 324; https://doi.org/10.3390/catal12030324
Submission received: 20 January 2022 / Revised: 28 February 2022 / Accepted: 1 March 2022 / Published: 11 March 2022
(This article belongs to the Topic Catalysis for Sustainable Chemistry and Energy)
Browse Figures
Review Reports Versions Notes

Abstract

:
The need for sustainable energy sources is now more urgent than ever, and hydrogen is significant in the future of energy. However, several obstacles remain in the way of widespread hydrogen use, most of which are related to transport and storage. Dilute formic acid (FA) is recognized asa a safe fuel for low-temperature fuel cells. This review examines FA as a potential hydrogen storage molecule that can be dehydrogenated to yield highly pure hydrogen (H2) and carbon dioxide (CO2) with very little carbon monoxide (CO) gas produced via nanoheterogeneous catalysts. It also present the use of Au and Pd as nanoheterogeneous catalysts for formic acid liquid phase decomposition, focusing on the influence of noble metals in monometallic, bimetallic, and trimetallic compositions on the catalytic dehydrogenation of FA under mild temperatures (20–50 °C). The review shows that FA production from CO2 without a base by direct catalytic carbon dioxide hydrogenation is far more sustainable than existing techniques. Finally, using FA as an energy carrier to selectively release hydrogen for fuel cell power generation appears to be a potential technique.

Graphical Abstract

1. Introduction

It is widely acknowledged that non-renewable coal and oil may be used for a few decades. Transportation and other energy-related sectors will be highly needed as safe and sustainable energy carriers in the future. Researchers are working in various sectors such as geothermal power, lithium-ion batteries, solar energy conversion, and nuclear energy, all of which have the potential to solve the energy crisis in the foreseeable future [1,2,3,4,5,6,7]. Hydrogen (H2) is a viable medium-term energy storage option. It is expected to contribute significantly to the future energy system as a supplementary fuel and energy carrier [8,9,10]. Hydrogen has a high specific energy of 33.30 kWh kg−1 than diesel, which holds only about 12–14 kWh kg−1. On the other hand, a hydrogen economy is unlikely to emerge unless major integrated technological advancements in H2 generation, storage, and delivery systems are achieved [11]. Figure 1 summarizes the key advantages of hydrogen gas as an energy carrier [8,12].
Creating a safe and effective hydrogen storage system is a major problem [13,14]. Accordingly, various sophisticated research techniques to create novel materials that store and distribute hydrogen at satisfactory rates have been developed to utilize hydrogen as a green energy source and solve the challenges of its efficient and safe storage. Physical or chemical storage can be classified according to the methods used. In the physical storage technique, H2 can be held in its diatomic molecule state in a covered vessel under low temperatures and high pressure, such as in the case of cryo-compression and tanks of high pressure [15], or adsorbed on high surface area materials, such as metal-organic frameworks [3,16,17,18,19], clathrate hydrates [20], zeolites [21,22] and various carbon materials [23,24,25,26]. In the chemical storage technique, H2 is stored in a chemically bonded state rather than in a molecular state. Typically, certain appropriate compounds have been selected because they have greater hydrogen content and can release hydrogen effectively at ambient conditions (temperature and pressure) by catalytic or non-catalytic methods. Examples of such compounds include hydrous hydrazine, metal amidoborates, metal borohydrides, ammonia borane, sodium borohydride and formic acid (HCOOH; FA) [27,28,29,30,31]. However, because of their poor kinetics for reversible hydrogen adsorption-desorption interactions, low intrinsic thermal conductivity, thermodynamic stability, toxicity, and high price, the practical applicability of several of these hydrogen storage compounds is greatly limited [32].
Organic liquid molecules such as FA have attracted interest because of their high energy density, low toxicity, and ease of handling [33,34]. Formic acid is one of the primary products generated during biomass processing, containing 4.4 wt.% hydrogen. In addition, pure FA contains 52 g H2/L or 43.8 g H2/kg, which makes it one of the important liquid organic hydrogen carriers (LOHC) [35]. Furthermore, FA transportation and refilling are simple because FA is liquid at room temperature; this allows it to be handled similarly to diesel and gasoline [36].

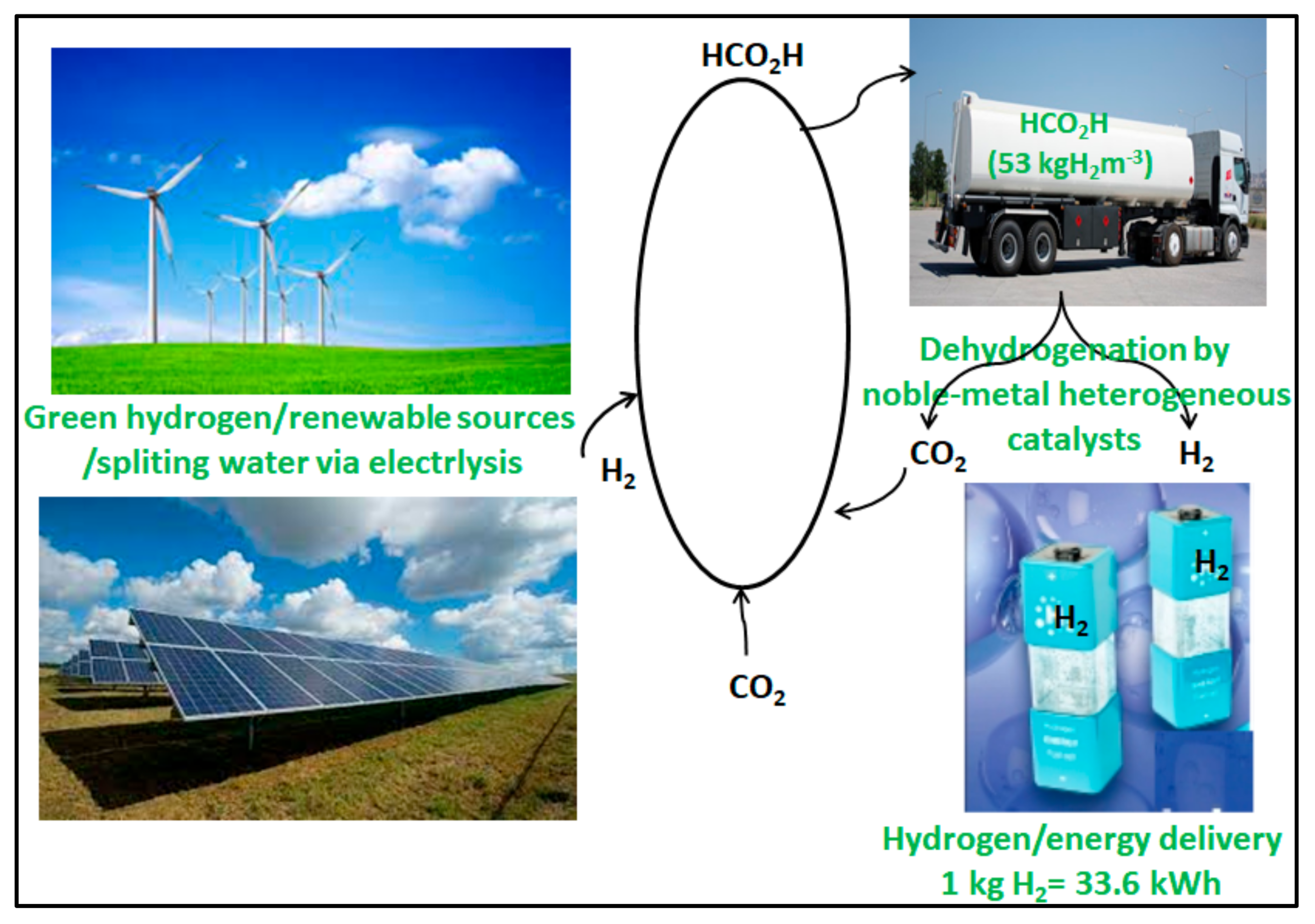

Formic acid is a highly promising hydrogen storage substance available nowadays. Although the hydrogen content of FA (4.40 wt.%) is lower than the US Department of Energy’s goal in 2012 [37], it outperforms most other state-of-the-art hydrogen storage materials in terms of usable/net capacity. In addition to its advantages, FA is highly stable at ambient temperature without catalysts. Besides its inherent properties, another significant advantage of using FA as a hydrogen storage substance is that even the carbon dioxide (CO2) produced during FA dehydrogenation can be hydrogenated later; this regenerates FA molecules in a carbon-free release process. Moreover, FA can serve as a connection between renewable energy and hydrogen fuel cells. Progress can only be achieved with the right catalysts. This study concentrates on noble-metal heterogeneous catalysts for formic acid dehydrogenation at ambient temperature (20–50) °C (Figure 2).
Other liquid organic compounds, commonly known as liquid organic hydrogen carriers (LOHC) [38], such as methanol carbazole, cycloalkanes, and others, have been intensively explored in addition to formic acid. However, these compounds have several drawbacks that make them unsuitable as hydrogen storage materials, including toxicity, expense, poor stability, slow dehydrogenation kinetics, and low regeneration efficiency [39,40].
For the past ten years, the homogeneous or heterogeneous catalytic breakdown of FA to pure hydrogen has been a focus of research. The use of homogeneous catalysts to degrade FA at moderate temperature and pressure has been documented in several studies [41,42]. They reported encouraging findings in terms of catalyst stability and selectivity to H2 and CO2 and considerably increased catalytic efficiency. Isolation from the reaction mixture, moderate selectivity, the requirement for organic solvents or additives, and, in certain circumstances, severe reaction conditions hinder scaling up these catalysts for practical uses [34,43]. An alternative and appealing method is using heterogeneous catalysts, which can produce high catalytic activity (high substrate-to-metal molar ratio and high turnover frequency (TOF)) at low temperatures and with good selectivity towards H2 [44,45]. As seen in reviews on various catalytic systems [4,32,46,47,48,49,50,51], the search for appropriate and efficient catalysts continues. Li et al. and Zhong et al. reviewed the dehydrogenation of aqueous formic acid by heterogeneous catalysts [32,52]. Doustkhah et al. focused on using Pd nanoalloys for hydrogen generation from formic acid [53]. This article reviews recent advances in using FA for chemical hydrogen storage, focusing on its dehydrogenation by metal nanoparticles as nanoheterogeneous catalysts with active noble metals such as Au and Pd at ambient temperature (20–50 °C) to obtain high catalytic activity and selectivity. Furthermore, we demonstrated that the low temperature required to create hydrogen from formic acid is a critical feature, as fuel cells are intended to provide energy to portable devices with low heat management profiles.

2. Formic Acid Decomposition

Fuel cells have remained unpopular because of the high cost of creating, storing, and transporting hydrogen. Rather than delivering hydrogen gas, having a chemical hydrogen storage substance or hydrogen-containing substance which can be decomposed under ambient circumstances to create H2 gas whenever needed is more practical.
Using a catalytic dehydrogenation process can release the hydrogen contained in FA through two main pathways (i) dehydrogenation/decarboxylation yielding H2 and CO2, and (ii) dehydration/decarboxylation yielding H2O and CO (Equations (1) and (2)) [54,55,56].
(i)
dehydrogenation/decarboxylation
HCOOH   →   H 2 + CO 2   ( Δ G 298   K ° = − 32.90   kJ   mol − 1 ,   Δ H 298   K ° = 31.20   kJ   mol − 1 ,   and   Δ S 298   K ° = 216.0   J   mol − 1   K − 1 )
(ii)
dehydration/decarbonylation
HCOOH   →   H 2 O + CO   ( Δ G 298   K ° = − 12.40   kJ   mol − 1 ,   Δ H 298   K ° = 29.20   kJ   mol − 1 ,   and   Δ S 298   K ° = 139.0   J   mol − 1   K − 1 )
The CO-free degradation of formic acid in the pathway (i) is essential for formic acid-based hydrogen storage, whereas pathway (ii) produces CO, which is an undesirable product that deactivates fuel cell catalysts. Therefore, pathway (ii) should be avoided. Based on this, and depending on the catalysts, reaction temperatures and pH values of the solutions, carbon monoxide (CO), a deadly poison to fuel cell catalysts, can also be produced by an undesired dehydration pathway (Equation (2)). High temperatures generally enhance dehydration during the reaction [57,58]. Fuel cell systems require ultrapure hydrogen to generate energy, and because CO poisons them, intake CO concentrations should be kept below 20 ppm to avoid long-term performance loss.
The dehydrogenation of FA (Equation (1)) produces only gaseous products (H2/CO2), with no accumulation or formation of by-products, making it advantageous compared to other alternative hydrogen carriers, particularly for portable usage. The gas combination produced is used as a feed-gas for an H2/air fuel cell directly [59]. Because such fuel cells are intended to deliver energy to portable devices with limited heat management capabilities, mild temperatures are crucial.

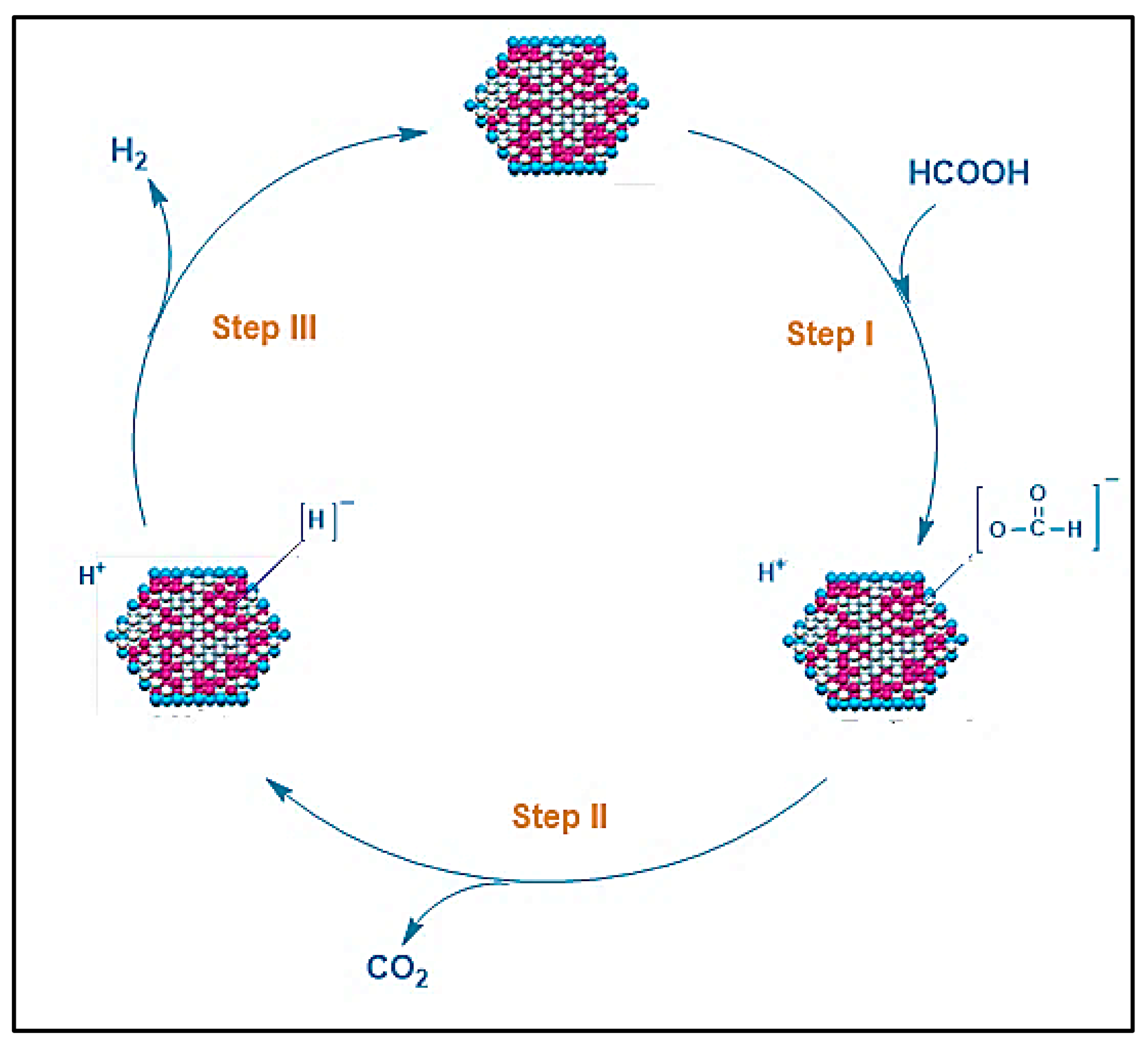

Figure 3 presents a plausible mechanism for producing hydrogen from formic acid using metal nanoparticle (MN) catalysts. The following reactions would occur as a result of the mechanism:
Step I: The cleavage of an O-H bond produces a proton (H+) and a metal nanoparticle-formate (MN-[HCOO]−) as an intermediate.
Step II: The C-H bond in the (MN-[HCOO]−) species is broken to produce metal nanoparticle hydride (MN-[H]−) and CO2.
Step III: After the recombination of MN-[H]− with an H+, H2 is produced, and the MN species regenerate.

3. Heterogeneous Catalysts

Studying FA decomposition using heterogeneous catalysts has occurred since the 1930s, yet optimizing the catalysts, and measuring the CO produced by the FA dehydration-side reaction were not fully examined in early research [44]. In that state, the reaction was mostly examined in the gas phase, necessitating temperatures greater than 100 °C (formic acid’s usual boiling point) or using an inert carrier gas that dilutes FA under its saturated vapor pressure; both would add to the setup’s complexity. Because of their large surface area/mass ratio, nanoparticles are particularly well suited to act as catalysts in fuel cells. As a result, their utilization saves time and money. Developing heterogeneous catalysts for liquid-phase FA dehydrogenation is therefore crucially required [60]. A number of publications on nanoheterogeneous catalysts with different support materials for the dehydrogenation of aqueous FA have been published, emphasizing H2 selectivity and low-temperature activity. Table 1 illustrates nanoheterogeneous catalysts used in the FA dehydrogenation reaction at ambient temperature (20–50 °C).
The majority of nanoheterogeneous catalysts decomposing aqueous FA to H2 and CO2, are supported by monometallic (single metal), bimetallic (two different metal elements), and trimetallic (three different metal elements) nanoparticles.

3.1. Monometallic Heterogeneous Catalyst

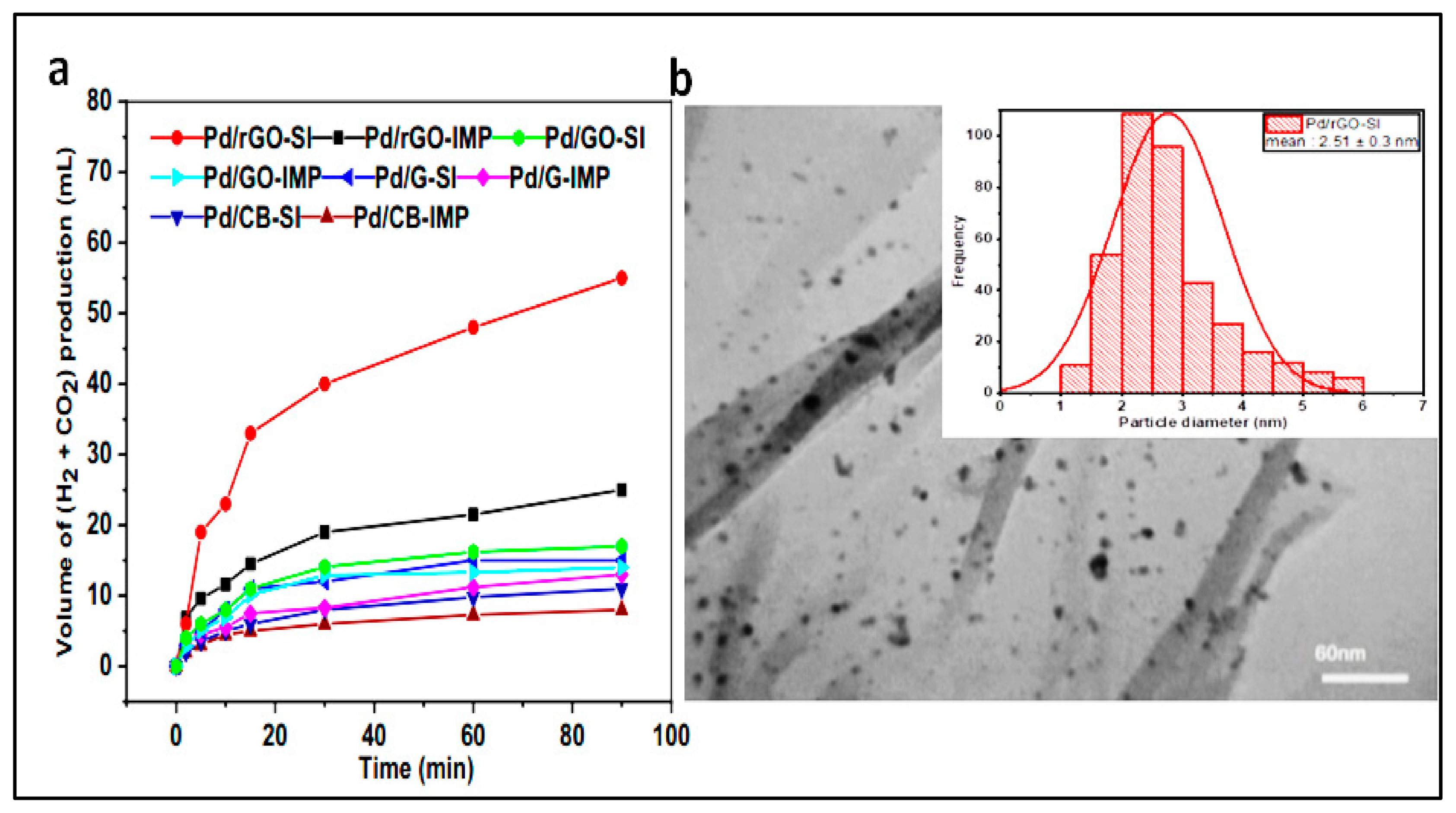

Several studies have been published recently on monometallic noble metal nanoparticles (NPs) based on different catalysts for FA dehydrogenation in an aqueous medium [62,74,75,76]. Bi et al. [77] used hyper-dispersed subnanometric gold NPs on ZrO2 as catalysts to show the moderate and selective dehydrogenation of an FA/amine mixture. Under ambient conditions, the catalytic processes happen effectively and selectively (100%), with high TOFs/catalyst turnover numbers (TONs), and without generating any undesirable by-products such as CO. At ambient temperature, very efficient hydrogen was obtained from the production, from aqueous solution, of formic acid/sodium formate catalyzed via in situ-produced Pd/C with citric acid. Surprisingly, the addition of citric acid in the middle of the synthesis and development of Pd NPs on carbon improves the catalytically activity of the resultant Pd/C, on which the greatest conversion and turnover frequency for the breakdown of formic acid/sodium formate system can be achieved at ambient temperature [78]. Recently, well-dispersed Pd NPs (2.5 ± 0.3 nm) dropped on reduced graphene oxide sheets (rGO) via soil-immobilization methods have been prepared. Under moderate temperature (303 k), the resulting Pd/rGO-SI showed a high catalytic activity and selectivity for dehydrogenation of FA without undesired CO contamination. It is interesting to note that the initial value of TOF has reached 911 h−1 (Figure 4) [79]. Zhu et al. created hyper-dispersed monometallic Pd NPs supported on MSC-30 (nanoporous carbon) which were synthesized via the sodium hydroxide-assisted reduction method. On MSC-30, the use of NaOH during particle production and development resulted in ultrafine Pd NPs that were well-dispersed. The resultant catalyst’s performance was greatly improved by the combination of - contact and high NP dispersion. For heterogeneously catalyzed FA breakdown at 50 °C, this catalyst had very high selectivity of H2 (100%) and activity (TOF = 2623 h−1) [62].

3.2. Bimetallic Heterogeneous Catalyst

It is generally known that adding a secondary metal to the active phase can change the electrical characteristics and adsorption behavior and the metal dispersion/particle size. Presently, supported Pd-based nanocatalysts are shown to be active for the dehydrogenation of aqueous FA [62,63,64,65,78]. Adding Au or Ag to Pd NPs in an aqueous medium significantly enhances their stability and catalytic activity [35,66,67,68,69]. The enhanced catalytic activity of bimetallic Pd-Au/C and Pd-Ag/C catalysts was attributable to the greater tolerance to CO poisoning of Ag and Au. The addition of CeO2(H2O)x increased catalytic activity even more because CeO2 forms cationic palladium species with strong activity in CO oxidation [80] and methanol decomposition [81]. An alternative justification is that CeO2(H2O)x on the Pd surface can trigger FA breakdown via a more effective mechanism, resulting in less poisoning intermediates [82]. Huang et al. developed a new Pd-Au bimetallic catalyst with a Pd-Au@Au core–shell nanostructure supported on carbon. They employed it to effectively catalyze hydrogen production by FA breakdown after being synthesized utilizing a simultaneous reduction process without the use of stabilizers. At low temperatures, the catalyst showed excellent activity, selectivity and stability, outperforming monometallic catalysts [83]. Tsang et al. created diverse core–shell nanoparticles with a metal element inner core and a palladium outer shell. At room temperature, Ag@Pd nanoparticles (diameter 8 nm) with 1–2 atomic layers of Pd shell had the maximum activity to break down FA, whereas comparable pure Pd and Ag/Pd alloy catalysts had extremely weak activity. At 20 °C, an equimolar H2 and CO2 mixture was constantly created with no evidence of CO. However, at temperatures greater than 50 °C, CO was observed [66,84]. Moreover, theoretical calculations revealed a firm link between the metal core’s work function and the catalytic activity: the highest net difference with the Pd shell’s work function led to excellent adsorption energy by charge transfer from its core to the shell. Therefore, the highest suitable activity of the resulting bimetallic structural system for FA decomposition was obtained. Yamashita et al. encapsulated Pd NPs via photo-assisted and ion exchange deposition techniques on metal-organic framework MIL-125, as well as its amine-functionalized equivalent NH2-MIL-125 [85]. In relation to Pd-MIL-125 and different Ti-based porous materials, Pd-NH2-MIL-125 exhibited impressive catalytic activity for H2 production from FA at 30 °C (TOF = 214 h−1). The fundamental Metal Organic Framework (MOF) functionalization and the small sizes of NP essentially dictated the remarkable catalytic performance. Furthermore, the photo-assisted deposition approach was acknowledged as being a remarkably successful method to create small and distributed NPs in MOF frameworks. The assembly of AgPd NPs on single-layer carbon material, e.g., reduced graphene oxide (rGO), was achieved utilizing a simple co-reduction approach, with the rGO acting as an influential dispersion agent and a unique sustenance for nanocatalysts [35]. With (105 h–1) initial TOF, the Ag0.1Pd0.9/rGO produced achieved 100% H2 selectivity and extremely strong activity toward full dehydrogenation of FA at ambient temperature [35]. Recently, the sol-immobilization approach has been used to effectively manufacture well-dispersed AuxPdy (Au/Pd: 3:1, 1:1, and 1:3) NPs supported on rGO. Under moderate circumstances, the Au-Pd/rGO produced a high catalytic activity and full selectivity for the dehydrogenation of FA without undesired CO contamination. The synergetic influence of Au–Pd nanostructures and the enhanced reaction sites equally dispersed over the rGO support are attributed to bimetallic catalyst’s greater activity (Figure 5) [86].
Zhang et al. created well-distributed Pd-Ni nanocatalysts developed on a composite of GNs–CB (graphene nanosheet–carbon black) to incorporate the benefits of graphene nanosheets and carbon black [88]. Surprisingly, Pd-Ni NCs built on GNs–CB had better catalytic activity for FA breakdown in the aqueous phase at 25 °C than Pd or Ni did alone. Further efforts to improve and sustain the catalytic efficiency of catalysts in the advancement of FA as a hydrogen storage substance will benefit from using GNs–CB as a novel type of carbon support to distribute, promote and anchor nanocatalysts with more active components.

3.3. Trimetallic Heterogeneous Catalyst

Trimetallic NPs have lately acquired increased attention, particularly in catalytic systems, because of their novel physicochemical features (e.g., catalytic, electrical, optical, and magnetic) which are caused by their monometallic counterparts’ synergistic effects [89]. Yurderi et al. used a simple and repeatable wet impregnation followed by a simultaneous reduction method at room temperature to synthesize Pd-Ni-Ag (trimetallic nanoparticles) with various metal ratios, as well as their Pd-Ni, Ni-Ag, and Pd-Ag (bimetallic) and Pd, Ni, and Ag (monometallic) counterparts, loaded on active carbon [72]. Under mild reaction conditions, all composites produced were used as nanoheterogeneous catalysts to break down FA. At 50 °C, Pd-NiAg/C catalyzed FA dehydrogenation with a 100% selectivity and a TOF of 85 h−1 activity. Pd-Ni-Ag nanoparticles have outstanding ability to resist leaching, CO poisoning and agglomeration, enabling the reusability of Pd-Ni-Ag/C catalysts in FA dehydrogenation. Yan et al. also reported that a Co0.30Au0.35Pd0.35 nanoalloy supported on carbon can generate hydrogen free of CO from FA dehydrogenation at 25 °C, and that it is a highly efficient, stable and low-costing catalyst [70]. Figure 6 shows the catalytic activity of Co0.30Au0.35Pd0.35/C, its mono-metallic counterparts Pd/C, Au/C, and Co/C, and its bi-metallic counterparts Au0.50Pd0.50/C, Co0.30Pd0.70/C, and Co0.30Au0.70/C for H2 production from FA breakdown at 25 °C. The activity of the Co0.30Au0.35Pd0.35/C catalyst as prepared was significantly higher than that of the mono-metallic and bi-metallic catalysts prepared via the identical method [70].
The catalytic trimetallic composite of Co-Au-Pd/DNA–rGO was synthesized using a DNA-directed and simple technique [61]. The FA dehydrogenation catalytic activity of Co-Au-Pd/DNA–rGO has been compared to that of Co-Au-Pd/rGO and Co-Au-Pd NPs in the absence of additives at 25 °C. In comparison to other catalysts, the Co-Au-Pd/DNA–rGO composite has the greatest activity, and the rank of activity is Co-Au-Pd NPs < Co-Au-Pd/rGO < Co-Au-Pd/DNA–rGO. With DNA or DNA–GO composite, no CO gas was created from the FA aqueous solution, suggesting that DNA and DNA–GO function, respectively, as a template and support for the formation of Co-AuPd NPs rather than as catalytic agents for FA dehydration.

4. Formic Acid Fuel Cells (DFAFCs)

FA’s hyper-gravimetric capability was recognized, and using FA as a secondary fuel in direct FA fuel cells (DFAFCs) was suggested and investigated [90]. While DFAFCs suffer from significant problems, hydrogen fuel cells perform a role in a well-established technology that has been commercialized in fuel cell vehicles (FCVs) with outputs of over 140 kW and ranges of over 600 km. As a result, producing H2 selectively from FA to power hydrogen fuel cells is a potential strategy with a speedy time-to-market. As a traditional fuel, energy discharge includes FA consumption, resulting in a massive release of CO2 (Figure 7).

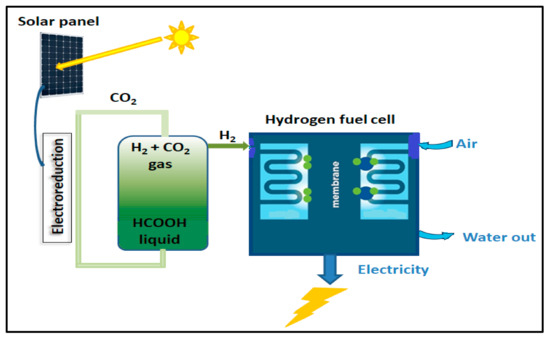

Direct formic acid fuel cells work in the same way as other fuel cells. They create electricity by oxidizing FA and reducing O2. FA and O2 (or air) are supplied to the anode and cathode, respectively, in the electrochemical cell. Protons can pass across an electrolyte membrane [91].
The following are the DFAFC’s direct anode, cathode, and total reactions [83]:
HCOOH   →   CO 2 + 2 H + + 2 e −
0.5 O 2 + 2 H + + 2 e −   →   H 2 O
HCOOH   →   CO 2 +   H 2 O
The anode indirect reaction is:
HCOOH   →   CO ads +   H 2 O   →   CO 2 + 2 H + + 2 e −
Direct FA oxidation occurs at the anode through decomposition (Equation (3)) [85].
In the optimal direct pathway, HCOOH   →   * HCOO   formate   or * COOH carboxyl converts   fully   into   H 2   and   CO 2   [86].
FA is dehydrated in an indirect manner (Equation (6)), HCOOH   →   * HCOO   →   * CO   → CO 2   by interacting with the active sites. However, the unwanted CO might poison the catalysts, increasing the overpotential needed for oxidation [85].
Theoretical [87,88] and experimental [89,90] studies have determined what occurred in the reaction.
A train of FA-based power can produce superior energy-to-mass ratios than existing fossil fuel-powered combustion engines when combined with a fuel cell and a lightweight electrical motor [92,93,94]. Furthermore, the cost of constructing and maintaining the distribution infrastructure is a significant barrier to large-scale consumer uses of H2 gas [95].
Because FA is a harmless, ecologically friendly liquid with limited flammability at ambient temperatures, the current infrastructure of gasoline can be simply modified for FA delivery [96]. A catalytic FA converter system that creates onboard hydrogen to power a fuel cell in an automobile has unique criteria that must be met with respect to catalyst design [97,98]. Vital issues are (1) catalyst activity, as measured by the TOF (catalysts turnover frequency) at a given temperature, (2) H2 selectivity, (3) catalyst lifetime or durability, as measured by the TONs (catalyst turnover numbers), and (4) the cost of the catalysts [99]. Economic factors heavily influence user acceptance of new technology. Any CO-generating activity must be controlled when FA is used as a chemical hydrogen carrier because CO formation affects total H2 yield and poisons the fuel cell’s catalyst. CO poisoning of the Pt catalysts in a proton-exchange membrane fuel cell (PEMFC) is a key challenge in manufacturing industrial hydrogen fuel with typical vital CO levels >10 ppm [100,101,102,103]. As a result, any acceptable FA decomposition catalyst must have 105 selectivity for dehydrogenation and dehydration. Heterogeneous transition metallic nanoparticle catalysts have very low selectivity and frequently create hydrogen with a high CO concentration > 1000 ppm. Enhanced hydrogen selectivity can be achieved with alloy nanoparticles [68,104,105,106].
Metal alloy nanoparticles, a single phased solid-solution mixture of two or more distinct metals, are a potential option for unpolluted Pt nanoparticles for hydrogen fuel cells. The nanoparticles of a metal alloy can give superior catalytic activity than monometallic nanoparticles because the synergistic effect of the catalytic activity of metal alloys is higher than the combined total of the individual metal components [107,108]. The strain and structure of the atoms at the metal alloy surface, which are important to the catalytic process, are modified when non-precious transition metals, such as Fe, Ni, or Co, are combined with Pt to generate Pt-based alloy nanoparticles [109,110]. This action alters catalytically active Pt’s electrical and geometric structures and increases its catalytic activity [111,112]. The surface morphology of metal alloy nanoparticles depends strongly on their surface composition. It may be modified during alloy production by nanoparticle size and shape and the reaction temperature [108]. More crucially, while having a lower precious metal concentration, the metal alloy nanoparticles can maintain or increase the catalytic performance, allowing for commercial applications by addressing the underlying challenge of Pt in fuel cells (i.e., scarcity and high cost) [86,113].

5. Formic Acid Production

Formic acid is a crucial component created from a variety of chemical molecules. FA is found in the venom of ants in nature [92] and is emitted into the atmosphere as a result of forest emissions. Various chemical techniques can be used to prepare it. The most frequent industrial procedure is the synthesis of methyl formate from a mixture of carbon monoxide and methanol in the existence of a strong base at 80 °C and 40 atm, followed by hydrolysis of the methyl formate to yield FA [114]. FA can also be synthesized as a by-product of acetic acid production, biomass oxidation, CO2 hydrogenation and biosynthesis via carbon dioxide reduction mediated by the enzyme formate dehydrogenase [115,116]. Despite the enormous progress that has been made in nano-chemistry and nanotechnology over the last two decades, and that forming FA from carbonates (primarily Pd-based) has been a subject of research for some time, few instances of supported metal catalysts at the nanometer scale for direct hydrogenation of carbon dioxide have been reported. These primarily involve Au, Pd, and Ru. CO2 hydrogenation through heterogeneous catalysts under mild reaction conditions will be the focus of this section. CO2, a main result of chemical or electrochemical FA decomposition and the final product of organic substance combustion in air, is a significant greenhouse gas. Using CO2 as a source for FA is not only a sensible way to create FA as a renewable energy source, but it also has the potential to benefit the environment. In 1935, the first report of CO2 hydrogenation to FA was published, utilizing RANEY® nickel as a catalyst with hydrogen at 200–400 bar and 80–150 °C. To change the thermodynamic equilibrium synthesizing FA, amine has to be supplemented [117]. Sivanesan et al. used the Pd/C catalyst to reduce the carbonates to FA in moderate reaction conditions [118]. However, the chemical equilibrium between the formate and the carbonate prevented the reaction from proceeding to completion. Lee et al. [64] developed a reversible nanoheterogeneous (>3 nm) Pd catalyst based on Pd/mpg-C3N4 (mesoporous graphitic carbon nitride) for FA and CO2 interconversion. This catalyst stimulates the generation of FA by CO2 hydrogenation and FA dehydrogenation with a TOF of 144 h−1, even in the absence of any external bases at 25 °C. In the presence of pristine NEt3, Au black catalyzes CO2 hydrogenation to create HCOOH/NEt3 adducts. Using the high-boiling amine (n-C6H13)3N, FA is isolated from HCOOH/NEt3 [119]. These discoveries, when combined with the catalytic FA breakdown to hydrogen free of CO and the readily removed and reused CO2, perfect the chemical circle for the long-awaited CO2-based hydrogen storage. When Pd NPs (ca. 4.4 nm) coated over g-C3N4 (graphitic carbon nitride) were equated with CNT-supported Pd NPs of comparable size, the catalytical activity on g-C3N4 was 12 times higher than on CNT. This investigation was conducted insde environmentally friendly solvent, namely water, in the absence of a base additive and in moderate circumstances (50 bar, 40 °C and H2/CO2 = 1). The great adsorption and activation of CO2 capacity of g-C3N4, which delivers the active form of formate or carbonate to Pd when H2 is activated, results in a considerable impact of the g-C3N4 support in contrast to CNT [120,121,122].

6. Conclusions and Perspectives

The benefits of a hydrogen economy are obvious, even if significant research is required to accomplish the essential technological advancements. Formic acid is an environmentally-benign hydrogen storage substance because of its easy storage and lack of poisonousness. Its production through dehydrogenation releases only gaseous products (H2/CO2). Interestingly, CO2 can be converted back to formic acid using catalysts under moderate conditions, resulting in a CO2-neutral hydrogen storage cycle. Noble metals, such as Au and Pd, can serve as nanoheterogeneous catalysts that work in aqueous formic acid solutions and ambient temperature (20–50 °C), were reviewed in this review. The Pd nanoparticles are employed in most nanoheterogeneous catalysts used in the formic acid dehydrogenation process. However, chemical intermediates adsorb on the nanoparticle surfaces and deactivate Pd monometallic systems. The situation with heterogeneous formic acid decomposition catalysts is identical to that with homogeneous systems. While the activity and H2 selectivity have not yet been achieved homogeneous system levels and most heterogeneous systems tested still have some degree of decarbonylation activity, this gap is narrowing. The recent use of state-of-the-art nanoparticle synthesis techniques has resulted in a variety of high-performance catalysts, including bimetallic and trimetallic Pd and Au combinations that produce high-quality H2 with minimal CO concentration. The direct formic acid fuel cell (DFAFC) example in this article marks significant progress toward prototype development, scale-up, and commercialization. Furthermore, CO2 may be converted back to formic acid using catalysts under moderate conditions, resulting in a CO2-neutral hydrogen storage cycle. More research is needed to make further advances, particularly for mobile applications.

Author Contributions

Conceptualization, A.A.-N. and T.M.A.; methodology, A.A.-N.; software, H.S.M.; validation, A.A.-N., H.S.M. and H.S.M.; formal analysis, H.S.M.; investigation, A.A.; resources, A.A.-N.; data curation, N.M.C.S.; writing—original draft preparation, N.M.C.S.; writing—review and editing, A.A.-N. and N.M.C.S.; visualization, T.M.A.; supervision, A.A.-N.; project administration, A.A.-N.; funding acquisition, H.S.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

All relevant data are included in the paper.

Acknowledgments

The authors are grateful to the Department of Chemical Engineering at the University of Technology-Iraq, the Chemistry Department, College of Education, University of Al-Qadisiyah, Al Diwaniyah, Iraq, the Department of Chemical and Petroleum Industries Engineering, Al-Mustaqbal University College, Babylon, Iraq, and the Department of Civil Engineering, Memorial University of Newfoundland, St. John’s, NL A1B 3X5, Canada.

Conflicts of Interest

We certify that the authors have no affiliations with or involvement in any organization or entity with any financial interest or nonfinancial interest in the subject matter or materials discussed in this manuscript.

References

  1. Durmaz, T. The economics of CCS: Why have CCS technologies not had an international breakthrough? Renew. Sustain. Energy Rev. 2018, 95, 328–340. [Google Scholar] [CrossRef]
  2. Nguyen, K.H.; Kakinaka, M. Renewable energy consumption, carbon emissions, and development stages: Some evidence from panel cointegration analysis. Renew. Energy 2019, 132, 1049–1057. [Google Scholar] [CrossRef]
  3. Li, S.-L.; Xu, Q. Metal–organic frameworks as platforms for clean energy. Energy Environ. Sci. 2013, 6, 1656–1683. [Google Scholar] [CrossRef]
  4. Onishi, N.; Iguchi, M.; Yang, X.; Kanega, R.; Kawanami, H.; Xu, Q.; Himeda, Y. Development of effective catalysts for hydrogen storage technology using formic acid. Adv. Energy Mater. 2019, 9, 1801275. [Google Scholar] [CrossRef]
  5. Li, X.; Yang, X.; Xue, H.; Pang, H.; Xu, Q. Metal–organic frameworks as a platform for clean energy applications. EnergyChem 2020, 2, 100027. [Google Scholar] [CrossRef]
  6. Lang, C.; Jia, Y.; Yao, X. Recent advances in liquid-phase chemical hydrogen storage. Energy Storage Mater. 2020, 26, 290–312. [Google Scholar] [CrossRef]
  7. Stucchi, M.; Capelli, S.; Cardaci, S.; Cattaneo, S.; Jouve, A.; Beck, A.; Sáfrán, G.; Evangelisti, C.; Villa, A.; Prati, L. Synergistic Effect in Au-Cu Bimetallic Catalysts for the Valorization of Lignin-Derived Compounds. Catalysts 2020, 10, 332. [Google Scholar] [CrossRef] [Green Version]
  8. Rosen, M.A.; Koohi-Fayegh, S. The prospects for hydrogen as an energy carrier: An overview of hydrogen energy and hydrogen energy systems. Energy Ecol. Environ. 2016, 1, 10–29. [Google Scholar] [CrossRef] [Green Version]
  9. De Blasio, N.; Pflugmann, F.; Lee, H.; Hua, C.; Nuñez-Jimenez, A.; Fallon, P. Mission Hydrogen: Accelerating the Transition to a Low Carbon Economy. October 2021. Available online: https://www.belfercenter.org/publication/mission-hydrogen-accelerating-transition-low-carbon-economy (accessed on 27 February 2022).
  10. Van Renssen, S. The hydrogen solution? Nat. Clim. Chang. 2020, 10, 799–801. [Google Scholar] [CrossRef]
  11. Navlani-García, M.; Mori, K.; Kuwahara, Y.; Yamashita, H. Recent strategies targeting efficient hydrogen production from chemical hydrogen storage materials over carbon-supported catalysts. NPG Asia Mater. 2018, 10, 277–292. [Google Scholar] [CrossRef] [Green Version]
  12. Hafeez, S.; Barlocco, I.; Al-Salem, S.M.; Villa, A.; Chen, X.; Delgado, J.J.; Manos, G.; Dimitratos, N.; Constantinou, A. Experimental and Process Modelling Investigation of the Hydrogen Generation from Formic Acid Decomposition Using a Pd/Zn Catalyst. Appl. Sci. 2021, 11, 8462. [Google Scholar] [CrossRef]
  13. Nie, W.; Luo, Y.; Yang, Q.; Feng, G.; Yao, Q.; Lu, Z.-H. An amine-functionalized mesoporous silica-supported PdIr catalyst: Boosting room-temperature hydrogen generation from formic acid. Inorg. Chem. Front. 2020, 7, 709–717. [Google Scholar] [CrossRef]
  14. Wen, C.; Rogie, B.; Kærn, M.R.; Rothuizen, E.D. A first study of the potential of integrating an ejector in hydrogen fuelling stations for fuelling high pressure hydrogen vehicles. Appl. Energy 2020, 260, 113958. [Google Scholar] [CrossRef]
  15. Xiao, R.; Tian, G.; Hou, Y.; Chen, S.; Cheng, C.; Chen, L. Effects of cooling-recovery venting on the performance of cryo-compressed hydrogen storage for automotive applications. Appl. Energy 2020, 269, 115143. [Google Scholar] [CrossRef]
  16. Chen, Y.; Li, P.; Noh, H.; Kung, C.; Buru, C.T.; Wang, X.; Zhang, X.; Farha, O.K. Stabilization of Formate Dehydrogenase in a Metal–Organic Framework for Bioelectrocatalytic Reduction of CO 2. Angew. Chem. Int. Ed. 2019, 58, 7682–7686. [Google Scholar] [CrossRef]
  17. Giappa, R.M.; Tylianakis, E.; Di Gennaro, M.; Gkagkas, K.; Froudakis, G.E. A combination of multi-scale calculations with machine learning for investigating hydrogen storage in metal organic frameworks. Int. J. Hydrog. Energy 2021, 46, 27612–27621. [Google Scholar] [CrossRef]
  18. Barnett, B.R.; Evans, H.A.; Su, G.M.; Jiang, H.Z.H.; Chakraborty, R.; Banyeretse, D.; Hartman, T.J.; Martinez, M.B.; Trump, B.A.; Tarver, J.D.; et al. Observation of an Intermediate to H2 Binding in a Metal–Organic Framework. J. Am. Chem. Soc. 2021, 143, 14884–14894. [Google Scholar] [CrossRef]
  19. Kalasha, K.R.; Albayatib, T.M. Remediation of oil refinery wastewater implementing functionalized mesoporous materials MCM-41 in batch and continuous adsorption process. Desalin Water Treat 2021, 220, 130–141. [Google Scholar] [CrossRef]
  20. Gupta, A.; Baron, G.V.; Perreault, P.; Lenaerts, S.; Ciocarlan, R.-G.; Cool, P.; Mileo, P.G.; Rogge, S.; Van Speybroeck, V.; Watson, G.; et al. Hydrogen Clathrates: Next Generation Hydrogen Storage Materials. Energy Storage Mater. 2021, 41, 69–107. [Google Scholar] [CrossRef]
  21. Farajzadeh, M.; Alamgholiloo, H.; Nasibipour, F.; Banaei, R.; Rostamnia, S. Anchoring Pd-nanoparticles on dithiocarbamate- functionalized SBA-15 for hydrogen generation from formic acid. Sci. Rep. 2020, 10, 1–9. [Google Scholar] [CrossRef]
  22. Alardhi, S.M.; Alrubaye, J.M.; Albayati, T.M. Adsorption of Methyl Green dye onto MCM-41: Equilibrium, kinetics and thermodynamic studies. Desalination Water Treat. 2020, 179, 323–331. [Google Scholar] [CrossRef]
  23. Zhang, X.; Shang, N.; Shang, H.; Du, T.; Zhou, X.; Feng, C.; Gao, S.; Wang, C.; Wang, Z. Nitrogen-Decorated Porous Carbon Supported AgPd Nanoparticles for Boosting Hydrogen Generation from Formic Acid. Energy Technol. 2019, 7, 140–145. [Google Scholar] [CrossRef] [Green Version]
  24. Mohan, M.; Sharma, V.K.; Kumar, E.A.; Gayathri, V. Hydrogen storage in carbon materials—A review. Energy Storage 2019, 1, e35. [Google Scholar] [CrossRef]
  25. Nechaev, Y.S.; Denisov, E.A.; Cheretaeva, A.O.; Davydov, S.Y.; Öchsner, A. On the real possibility of “super” hydrogen intercalation into graphite nanofibers. Fuller. Nanotub. Carbon Nanostruct. 2022, 30, 211–219. [Google Scholar] [CrossRef]
  26. Wang, C.; Kim, J.; Tang, J.; Kim, M.; Lim, H.; Malgras, V.; You, J.; Xu, Q.; Li, J.; Yamauchi, Y. New Strategies for Novel MOF-Derived Carbon Materials Based on Nanoarchitectures. Chem 2020, 6, 19–40. [Google Scholar] [CrossRef]
  27. Zheng, J.; Wang, C.-G.; Zhou, H.; Ye, E.; Xu, J.; Li, Z.; Loh, X.J. Current Research Trends and Perspectives on Solid-State Nanomaterials in Hydrogen Storage. Research 2021, 2021, 1–39. [Google Scholar] [CrossRef]
  28. Lee, S.-Y.; Lee, J.-H.; Kim, Y.-H.; Kim, J.-W.; Lee, K.-J.; Park, S.-J. Recent Progress Using Solid-State Materials for Hydrogen Storage: A Short Review. Processes 2022, 10, 304. [Google Scholar] [CrossRef]
  29. Chen, Z.; Kirlikovali, K.O.; Idrees, K.B.; Wasson, M.C.; Farha, O.K. Porous materials for hydrogen storage. Chem 2022. [Google Scholar] [CrossRef]
  30. Cai, X.-H.; Xie, B. Formic Acid as an Inexpensive and Convenient Reagent. Curr. Org. Chem. 2021, 25, 223–247. [Google Scholar] [CrossRef]
  31. Nazemi, A.; Steeves, A.; Kulik, H. Influence of the Greater Protein Environment on the Electrostatic Potential in Metalloenzyme Active Sites: The Case of Formate Dehydrogenase. chemRxiv 2021. [Google Scholar] [CrossRef]
  32. Zhong, H.; Iguchi, M.; Chatterjee, M.; Himeda, Y.; Xu, Q.; Kawanami, H. Formic Acid-Based Liquid Organic Hydrogen Carrier System with Heterogeneous Catalysts. Adv. Sustain. Syst. 2018, 2, 1700161. [Google Scholar] [CrossRef]
  33. Rodriguez-Lugo, R.E.; Trincado, M.; Vogt, M.; Tewes, F.; Santiso-Quinones, G.; Grützmacher, H. A homogeneous transition metal complex for clean hydrogen production from methanol–water mixtures. Nat. Chem. 2013, 5, 342–347. [Google Scholar] [CrossRef] [PubMed]
  34. Song, F.; Zhu, Q.-L.; Tsumori, N.; Xu, Q. Diamine-Alkalized Reduced Graphene Oxide: Immobilization of Sub-2 nm Palladium Nanoparticles and Optimization of Catalytic Activity for Dehydrogenation of Formic Acid. ACS Catal. 2015, 5, 5141–5144. [Google Scholar] [CrossRef]
  35. Ping, Y.; Yan, J.M.; Wang, Z.L.; Wang, H.L.; Jiang, Q. Ag 0.1-Pd 0.9/rGO: An efficient catalyst for hydrogen generation from formic acid/sodium formate. J. Mater. Chem. A 2013, 1, 12188–12191. [Google Scholar] [CrossRef]
  36. Enthaler, S.; von Langermann, J.; Schmidt, T. Carbon dioxide and formic acid—The couple for environmental-friendly hydrogen storage? Energy Environ. Sci. 2010, 3, 1207–1217. [Google Scholar] [CrossRef]
  37. Office of Energy Efficiency and Renewable Energy. The Freedom CAR and Fuel Partnership, Targets For Onboard Hydrogen Storage Systems For Light-Duty Vehicles; Office of Energy Efficiency and Renewable Energy: Washington, DC, USA, 2009. [Google Scholar]
  38. Teichmann, D.; Arlt, W.; Wasserscheid, P. Liquid Organic Hydrogen Carriers as an efficient vector for the transport and storage of renewable energy. Int. J. Hydrog. Energy 2012, 37, 18118–18132. [Google Scholar] [CrossRef]
  39. Nielsen, M.; Alberico, E.; Baumann, W.; Drexler, H.-J.; Junge, H.; Gladiali, S.; Beller, M. Low-temperature aqueous-phase methanol dehydrogenation to hydrogen and carbon dioxide. Nature 2013, 495, 85–89. [Google Scholar] [CrossRef]
  40. Monney, A.; Barsch, E.; Sponholz, P.; Junge, H.; Ludwig, R.; Beller, M. Base-free hydrogen generation from methanol using a bi-catalytic system. Chem. Commun. 2014, 50, 707–709. [Google Scholar] [CrossRef]
  41. Fellay, C.; Yan, N.; Dyson, P.J.; Laurenczy, G. Selective Formic Acid Decomposition for High-Pressure Hydrogen Generation: A Mechanistic Study. Chem. A Eur. J. 2009, 15, 3752–3760. [Google Scholar] [CrossRef]
  42. Johnson, T.C.; Morris, D.J.; Wills, M. Hydrogen generation from formic acid and alcohols using homogeneous catalysts. Chem. Soc. Rev. 2010, 39, 81–88. [Google Scholar] [CrossRef]
  43. Morris, D.J.; Clarkson, G.J.; Wills, M. Insights into Hydrogen Generation from Formic Acid Using Ruthenium Complexes. Organometallics 2009, 28, 4133–4140. [Google Scholar] [CrossRef]
  44. Grasemann, M.; Laurenczy, G. Formic acid as a hydrogen source—Recent developments and future trends. Energy Environ. Sci. 2012, 5, 8171–8181. [Google Scholar] [CrossRef]
  45. Boddien, A.; Junge, H. Acidic ideas for hydrogen storage. Nat. Nanotechnol. 2011, 6, 265–266. [Google Scholar] [CrossRef] [PubMed]
  46. Sun, Q.; Wang, N.; Xu, Q.; Yu, J. Nanopore-Supported Metal Nanocatalysts for Efficient Hydrogen Generation from Liquid-Phase Chemical Hydrogen Storage Materials. Adv. Mater. 2020, 32, e2001818. [Google Scholar] [CrossRef] [PubMed]
  47. Sordakis, K.; Tang, C.; Vogt, L.K.; Junge, H.; Dyson, P.J.; Beller, M.; Laurenczy, G. Homogeneous Catalysis for Sustainable Hydrogen Storage in Formic Acid and Alcohols. Chem. Rev. 2018, 118, 372–433. [Google Scholar] [CrossRef] [PubMed]
  48. Hoelzen, J.; Silberhorn, D.; Zill, T.; Bensmann, B.; Hanke-Rauschenbach, R. Hydrogen-powered aviation and its reliance on green hydrogen infrastructure—Review and research gaps. Int. J. Hydrog. Energy 2021, 47, 3108–3130. [Google Scholar] [CrossRef]
  49. Wang, X.; Meng, Q.; Gao, L.; Jin, Z.; Ge, J.; Liu, C.; Xing, W. Recent progress in hydrogen production from formic acid decomposition. Int. J. Hydrog. Energy 2018, 43, 7055–7071. [Google Scholar] [CrossRef]
  50. Navlani-García, M.; Mori, K.; Salinas-Torres, D.; Kuwahara, Y.; Yamashita, H. New Approaches Toward the Hydrogen Production From Formic Acid Dehydrogenation Over Pd-Based Heterogeneous Catalysts. Front. Mater. 2019, 6, 44. [Google Scholar] [CrossRef] [Green Version]
  51. Zhang, L.; Wu, W.; Jiang, Z.; Fang, T. A review on liquid-phase heterogeneous dehydrogenation of formic acid: Recent advances and perspectives. Chem. Pap. 2018, 72, 2121–2135. [Google Scholar] [CrossRef]
  52. Li, J.; Zhu, Q.-L.; Xu, Q. Dehydrogenation of Formic Acid by Heterogeneous Catalysts. Chim. Int. J. Chem. 2015, 69, 348–352. [Google Scholar] [CrossRef]
  53. Doustkhah, E.; Hasani, M.; Ide, Y.; Assadi, M.H.N. Pd Nanoalloys for H2 Generation from Formic Acid. ACS Appl. Nano Mater. 2020, 3, 22–43. [Google Scholar] [CrossRef] [Green Version]
  54. Loges, B.; Boddien, A.; Gärtner, F.; Junge, H.; Beller, M. Catalytic Generation of Hydrogen from Formic acid and its Derivatives: Useful Hydrogen Storage Materials. Top. Catal. 2010, 53, 902–914. [Google Scholar] [CrossRef]
  55. Hull, J.F.; Himeda, Y.; Wang, W.-H.; Hashiguchi, B.G.; A Periana, R.; Szalda, D.J.; Muckerman, J.T.; Fujita, E. Reversible hydrogen storage using CO2 and a proton-switchable iridium catalyst in aqueous media under mild temperatures and pressures. Nat. Chem. 2012, 4, 383–388. [Google Scholar] [CrossRef] [PubMed]
  56. Loges, B.; Boddien, A.; Junge, H.; Beller, M. Controlled generation of hydrogen from formic acid amine adducts at room temperature and application in H2/O2 fuel cells. Angew. Chem. Int. Ed. 2008, 47, 3962–3965. [Google Scholar] [CrossRef]
  57. Joó, F. Breakthroughs in Hydrogen Storage-Formic Acid as a Sustainable Storage Material for Hydrogen. ChemSusChem 2008, 1, 805–808. [Google Scholar] [CrossRef]
  58. Makowski, P.; Thomas, A.; Kuhn, P.; Goettmann, F. Organic materials for hydrogen storage applications: From physisorption on organic solids to chemisorption in organic molecules. Energy Environ. Sci. 2009, 2, 480–490. [Google Scholar] [CrossRef]
  59. Mardini, N.; Bicer, Y. Direct synthesis of formic acid as hydrogen carrier from CO2 for cleaner power generation through direct formic acid fuel cell. Int. J. Hydrog. Energy 2021, 46, 13050–13060. [Google Scholar] [CrossRef]
  60. Zhu, Q.-L.; Xu, Q. Liquid organic and inorganic chemical hydrides for high-capacity hydrogen storage. Energy Environ. Sci. 2015, 8, 478–512. [Google Scholar] [CrossRef]
  61. Wang, Z.-L.; Wang, H.-L.; Yan, J.-M.; Ping, Y.O.S.-I.; Li, S.-J.; Jiang, Q. DNA-directed growth of ultrafine CoAuPd nanoparticles on graphene as efficient catalysts for formic acid dehydrogenation. Chem. Commun. 2014, 50, 2732–2734. [Google Scholar] [CrossRef]
  62. Zhu, Q.-L.; Tsumori, N.; Xu, Q. Sodium hydroxide-assisted growth of uniform Pd nanoparticles on nanoporous carbon MSC-30 for efficient and complete dehydrogenation of formic acid under ambient conditions. Chem. Sci. 2014, 5, 195–199. [Google Scholar] [CrossRef]
  63. Jiang, K.; Xu, K.; Zou, S.; Cai, W.-B. B-Doped Pd Catalyst: Boosting Room-Temperature Hydrogen Production from Formic Acid–Formate Solutions. J. Am. Chem. Soc. 2014, 136, 4861–4864. [Google Scholar] [CrossRef]
  64. Lee, J.H.; Ryu, J.; Kim, J.Y.; Nam, S.-W.; Han, J.H.; Lim, T.-H.; Gautam, S.; Chae, K.H.; Yoon, C.W. Carbon dioxide mediated, reversible chemical hydrogen storage using a Pd nanocatalyst supported on mesoporous graphitic carbon nitride. J. Mater. Chem. A 2014, 2, 9490–9495. [Google Scholar] [CrossRef]
  65. Sanchez, F.; Alotaibi, M.H.; Motta, D.; Chan-Thaw, C.E.; Rakotomahevitra, A.; Tabanelli, T.; Roldan, A.; Hammond, C.; He, Q.; Davies, T.; et al. Hydrogen production from formic acid decomposition in the liquid phase using Pd nanoparticles supported on CNFs with different surface properties. Sustain. Energy Fuels 2018, 2, 2705–2716. [Google Scholar] [CrossRef] [Green Version]
  66. Tedsree, K.; Li, T.; Jones, S.C.; Chan, C.W.A.; Yu, K.M.K.; Bagot, P.; Marquis, E.; Smith, G.D.W.; Tsang, S.C.E. Hydrogen production from formic acid decomposition at room temperature using a Ag–Pd core–shell nanocatalyst. Nat. Nanotechnol. 2011, 6, 302–307. [Google Scholar] [CrossRef] [PubMed]
  67. Wang, Z.-L.; Yan, J.-M.; Wang, H.-L.; Ping, Y.; Jiang, Q. Au@Pd core–shell nanoclusters growing on nitrogen-doped mildly reduced graphene oxide with enhanced catalytic performance for hydrogen generation from formic acid. J. Mater. Chem. A 2013, 1, 12721–12725. [Google Scholar] [CrossRef]
  68. Zhang, S.; Metin, Ö.; Su, D.; Sun, S. Monodisperse AgPd Alloy Nanoparticles and Their Superior Catalysis for the Dehydrogenation of Formic Acid. Angew. Chem. Int. Ed. 2013, 52, 3681–3684. [Google Scholar] [CrossRef]
  69. Metin, Ö.; Sun, X.; Sun, S. Monodisperse gold–palladium alloy nanoparticles and their composition-controlled catalysis in formic acid dehydrogenation under mild conditions. Nanoscale 2013, 5, 910–912. [Google Scholar] [CrossRef] [Green Version]
  70. Wang, Z.-L.; Yan, J.-M.; Ping, Y.; Wang, H.-L.; Zheng, W.-T.; Jiang, Q. An Efficient CoAuPd/C Catalyst for Hydrogen Generation from Formic Acid at Room Temperature. Angew. Chem. 2013, 125, 4502–4505. [Google Scholar] [CrossRef]
  71. Wang, Z.-L.; Ping, Y.; Yan, J.; Wang, H.-L.; Jiang, Q. Hydrogen generation from formic acid decomposition at room temperature using a NiAuPd alloy nanocatalyst. Int. J. Hydrog. Energy 2014, 39, 4850–4856. [Google Scholar] [CrossRef]
  72. Yurderi, M.; Bulut, A.; Zahmakiran, M.; Kaya, M. Carbon supported trimetallic PdNiAg nanoparticles as highly active, selective and reusable catalyst in the formic acid decomposition. Appl. Catal. B Environ. 2014, 160–161, 514–524. [Google Scholar] [CrossRef]
  73. Chen, Y.; Zhu, Q.-L.; Tsumori, N.; Xu, Q. Immobilizing Highly Catalytically Active Noble Metal Nanoparticles on Reduced Graphene Oxide: A Non-Noble Metal Sacrificial Approach. J. Am. Chem. Soc. 2015, 137, 106–109. [Google Scholar] [CrossRef] [PubMed]
  74. Akbayrak, S.; Tonbul, Y.; Özkar, S. Nanoceria supported palladium(0) nanoparticles: Superb catalyst in dehydrogenation of formic acid at room temperature. Appl. Catal. B Environ. 2017, 206, 384–392. [Google Scholar] [CrossRef]
  75. Ojeda, M.; Iglesia, E. Formic Acid Dehydrogenation on Au-Based Catalysts at Near-Ambient Temperatures. Angew. Chem. Int. Ed. 2009, 48, 4800–4803. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Liu, J.; Lan, L.; Liu, X.; Yang, X.; Wu, X. Facile synthesis of agglomerated Ag–Pd bimetallic dendrites with performance for hydrogen generation from formic acid. Int. J. Hydrog. Energy 2021, 46, 6395–6403. [Google Scholar] [CrossRef]
  77. Bi, Q.-Y.; Du, X.-L.; Liu, Y.-M.; Cao, Y.; He, H.-Y.; Fan, K.-N. Efficient Subnanometric Gold-Catalyzed Hydrogen Generation via Formic Acid Decomposition under Ambient Conditions. J. Am. Chem. Soc. 2012, 134, 8926–8933. [Google Scholar] [CrossRef]
  78. Wang, Z.-L.; Yan, J.-M.; Wang, H.-L.; Ping, Y.; Jiang, Q. Pd/C Synthesized with Citric Acid: An Efficient Catalyst for Hydrogen Generation from Formic Acid/Sodium Formate. Sci. Rep. 2012, 2, 598. [Google Scholar] [CrossRef] [Green Version]
  79. Kadhem, A.A.; Al-Nayili, A. Dehydrogenation of Formic Acid in Liquid Phase over Pd Nanoparticles Supported on Reduced Graphene Oxide Sheets. Catal. Surv. Asia 2021, 25, 324–333. [Google Scholar] [CrossRef]
  80. Glaspell, G.; Fuoco, A.L.; El-Shall, M.S. Microwave Synthesis of Supported Au and Pd Nanoparticle Catalysts for CO Oxidation. J. Phys. Chem. B 2005, 109, 17350–17355. [Google Scholar] [CrossRef]
  81. Shen, W.-J.; Matsumura, Y. Interaction between palladium and the support in Pd/CeO2 prepared by deposition–precipitation method and the catalytic activity for methanol decomposition. J. Mol. Catal. A Chem. 2000, 153, 165–168. [Google Scholar] [CrossRef]
  82. Zhou, X.; Huang, Y.; Xing, W.; Liu, C.; Liao, J.; Lu, T. High-quality hydrogen from the catalyzed decomposition of formic acid by Pd–Au/C and Pd–Ag/C. Chem. Commun. 2008, 2008, 3540–3542. [Google Scholar] [CrossRef]
  83. Huang, Y.; Zhou, X.; Yin, M.; Liu, C.; Xing, W. Novel PdAu@ Au/C core−shell catalyst: Superior activity and selectivity in formic acid decomposition for hydrogen generation. Chem. Mater. 2010, 22, 5122–5128. [Google Scholar] [CrossRef]
  84. Tedsree, K.; Chan, C.W.A.; Jones, S.; Cuan, Q.; Li, W.-K.; Gong, X.-Q.; Tsang, S.C.E. 13 C NMR Guides Rational Design of Nanocatalysts via Chemisorption Evaluation in Liquid Phase. Science 2011, 332, 224–228. [Google Scholar] [CrossRef]
  85. Martis, M.; Mori, K.; Fujiwara, K.; Ahn, W.-S.; Yamashita, H. Amine-Functionalized MIL-125 with Imbedded Palladium Nanoparticles as an Efficient Catalyst for Dehydrogenation of Formic Acid at Ambient Temperature. J. Phys. Chem. C 2013, 117, 22805–22810. [Google Scholar] [CrossRef]
  86. Antolini, E. Pt-Ni and Pt-M-Ni (M = Ru, Sn) Anode Catalysts for Low-Temperature Acidic Direct Alcohol Fuel Cells: A Review. Energies 2017, 10, 42. [Google Scholar] [CrossRef] [Green Version]
  87. Al-Nayili, A.; Albdiry, M. AuPd bimetallic nanoparticles supported on reduced graphene oxide nanosheets as catalysts for hydrogen generation from formic acid under ambient temperature. New J. Chem. 2021, 45, 10040–10048. [Google Scholar] [CrossRef]
  88. Qin, Y.-L.; Wang, J.; Meng, F.-Z.; Wang, L.-M.; Zhang, X.-B. Efficient PdNi and PdNi@Pd-catalyzed hydrogen generation via formic acid decomposition at room temperature. Chem. Commun. 2013, 49, 10028–10030. [Google Scholar] [CrossRef]
  89. Park, J.H.; Ahn, H.S. Electrochemical synthesis of multimetallic nanoparticles and their application in alkaline oxygen reduction catalysis. Appl. Surf. Sci. 2020, 504, 144517. [Google Scholar] [CrossRef]
  90. Yang, S.; Chung, Y.; Lee, K.-S.; Kwon, Y. Enhancements in catalytic activity and duration of PdFe bimetallic catalysts and their use in direct formic acid fuel cells. J. Ind. Eng. Chem. 2020, 90, 351–357. [Google Scholar] [CrossRef]
  91. Maslan, H.N.; Rosli, M.I.; Masdar, M.S. Three-dimensional CFD modeling of a direct formic acid fuel cell. Int. J. Hydrog. Energy 2019, 44, 30627–30635. [Google Scholar] [CrossRef]
  92. Yu, X.; Pickup, P.G. Recent advances in direct formic acid fuel cells (DFAFC). J. Power Sources 2008, 182, 124–132. [Google Scholar] [CrossRef]
  93. Caglar, A.; Ulas, B.; Çögenli, M.S.; Yurtcan, A.B.; Kivrak, H. Synthesis and characterization of Co, Zn, Mn, V modified Pd formic acid fuel cell anode catalysts. J. Electroanal. Chem. 2019, 850, 113402. [Google Scholar] [CrossRef]
  94. Sui, L.; An, W.; Feng, Y.; Wang, Z.; Zhou, J.; Hur, S.H. Bimetallic Pd-Based surface alloys promote electrochemical oxidation of formic acid: Mechanism, kinetics and descriptor. J. Power Sources 2020, 451, 227830. [Google Scholar] [CrossRef]
  95. Joo, J.; Uchida, T.; Cuesta, A.; Koper, M.T.M.; Osawa, M. Importance of Acid–Base Equilibrium in Electrocatalytic Oxidation of Formic Acid on Platinum. J. Am. Chem. Soc. 2013, 135, 9991–9994. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  96. Elnabawy, A.O.; Herron, J.A.; Scaranto, J.; Mavrikakis, M. Structure Sensitivity of Formic Acid Electrooxidation on Transition Metal Surfaces: A First-Principles Study. J. Electrochem. Soc. 2018, 165, J3109–J3121. [Google Scholar] [CrossRef]
  97. Jiang, K.; Zhang, H.-X.; Zou, S.; Cai, W.-B. Electrocatalysis of formic acid on palladium and platinum surfaces: From fundamental mechanisms to fuel cell applications. Phys. Chem. Chem. Phys. 2014, 16, 20360–20376. [Google Scholar] [CrossRef] [PubMed]
  98. Hu, S.; Che, F.; Khorasani, B.; Jeon, M.; Yoon, C.W.; McEwen, J.-S.; Scudiero, L.; Ha, S. Improving the electrochemical oxidation of formic acid by tuning the electronic properties of Pd-based bimetallic nanoparticles. Appl. Catal. B Environ. 2019, 254, 685–692. [Google Scholar] [CrossRef]
  99. Watanabe, M.; Sato, T.; Inomata, H.; Smith, R.; Arai, K.; Kruse, A.; Dinjus, E. Chemical Reactions of C1 Compounds in Near-Critical and Supercritical Water. Chem. Rev. 2004, 104, 5803–5822. [Google Scholar] [CrossRef]
  100. Springer, T.E.; Rockward, T.; A Zawodzinski, T.; Gottesfeld, S. Model for Polymer Electrolyte Fuel Cell Operation on Reformate Feed: Effects of CO, H[sub 2] Dilution, and High Fuel Utilization. J. Electrochem. Soc. 2001, 148, A11–A23. [Google Scholar] [CrossRef]
  101. Das, S.K.; Reis, A.; Berry, K. Experimental evaluation of CO poisoning on the performance of a high temperature proton exchange membrane fuel cell. J. Power Sources 2009, 193, 691–698. [Google Scholar] [CrossRef]
  102. Kim, G.; Jhi, S.-H. Carbon Monoxide-Tolerant Platinum Nanoparticle Catalysts on Defect-Engineered Graphene. ACS Nano 2011, 5, 805–810. [Google Scholar] [CrossRef]
  103. Valdes-Lopez, V.F.; Mason, T.; Shearing, P.R.; Brett, D.J. Carbon monoxide poisoning and mitigation strategies for polymer electrolyte membrane fuel cells—A review. Prog. Energy Combust. Sci. 2020, 79, 100842. [Google Scholar] [CrossRef]
  104. Gu, X.; Lu, Z.-H.; Jiang, H.-L.; Akita, T.; Xu, Q. Synergistic Catalysis of Metal–Organic Framework-Immobilized Au–Pd Nanoparticles in Dehydrogenation of Formic Acid for Chemical Hydrogen Storage. J. Am. Chem. Soc. 2011, 133, 11822–11825. [Google Scholar] [CrossRef] [PubMed]
  105. Gawande, M.B.; Goswami, A.; Asefa, T.; Guo, H.; Biradar, A.V.; Peng, D.-L.; Zboril, R.; Varma, R.S. Core–shell nanoparticles: Synthesis and applications in catalysis and electrocatalysis. Chem. Soc. Rev. 2015, 44, 7540–7590. [Google Scholar] [CrossRef] [PubMed]
  106. Gilroy, K.D.; Ruditskiy, A.; Peng, H.-C.; Qin, D.; Xia, Y. Bimetallic Nanocrystals: Syntheses, Properties, and Applications. Chem. Rev. 2016, 116, 10414–10472. [Google Scholar] [CrossRef]
  107. Liao, H.; Fisher, A.; Xu, Z.J. Surface Segregation in Bimetallic Nanoparticles: A Critical Issue in Electrocatalyst Engineering. Small 2015, 11, 3221–3246. [Google Scholar] [CrossRef]
  108. Zhang, B.; Yang, H.; Wang, Y.; Dou, S.; Liu, H. A Comprehensive Review on Controlling Surface Composition of Pt-Based Bimetallic Electrocatalysts. Adv. Energy Mater. 2018, 8, 1703597. [Google Scholar] [CrossRef] [Green Version]
  109. Sneed, B.T.; Young, A.P.; Tsung, C.-K. Building up strain in colloidal metal nanoparticle catalysts. Nanoscale 2015, 7, 12248–12265. [Google Scholar] [CrossRef]
  110. Khadim, A.T.; Albayati, T.M.; Saady, N.M.C. Desulfurization of actual diesel fuel onto modified mesoporous material Co/MCM-41. Environ. Nanotechnol. Monit. Manag. 2021, 17, 100635. [Google Scholar] [CrossRef]
  111. Stamenkovic, V.; Mun, B.S.; Mayrhofer, K.J.J.; Ross, P.N.; Markovic, N.M.; Rossmeisl, J.; Greeley, J.; Nørskov, J.K. Changing the Activity of Electrocatalysts for Oxygen Reduction by Tuning the Surface Electronic Structure. Angew. Chem. Int. Ed. 2006, 45, 2897–2901. [Google Scholar] [CrossRef]
  112. Mistry, H.; Varela, A.S.; Kühl, S.; Strasser, P.; Cuenya, B.R. Nanostructured electrocatalysts with tunable activity and selectivity. Nat. Rev. Mater. 2016, 1, 16009. [Google Scholar] [CrossRef]
  113. Bing, Y.; Liu, H.; Zhang, L.; Ghosh, D.; Zhang, J. Nanostructured Pt-alloy electrocatalysts for PEM fuel cell oxygen reduction reaction. Chem. Soc. Rev. 2010, 39, 2184–2202. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  114. Reutemann, W.; Kieczka, H. Formic acid. Ullmann’s Encycl. Ind. Chem. 2016, 1, 1–22. [Google Scholar]
  115. Miyatani, R.; Amao, Y. Bio-CO2 fixation with formate dehydrogenase from Saccharomyces cerevisiae and water-soluble zinc porphyrin by visible light. Biotechnol. Lett. 2002, 24, 1931–1934. [Google Scholar] [CrossRef]
  116. Miyatani, R.; Amao, Y. Photochemical synthesis of formic acid from CO2 with formate dehydrogenase and water-soluble zinc porphyrin. J. Mol. Catal. B Enzym. 2004, 27, 121–125. [Google Scholar] [CrossRef]
  117. Ma, Z.; Legrand, U.; Pahija, E.; Tavares, J.R.; Boffito, D.C. From CO2 to Formic Acid Fuel Cells. Ind. Eng. Chem. Res. 2021, 60, 803–815. [Google Scholar] [CrossRef]
  118. Sivanesan, D.; Seo, B.; Lim, C.-S.; Kim, H.-G. Facile hydrogenation of bicarbonate to formate in aqueous medium by highly stable nickel-azatrane complex. J. Catal. 2019, 382, 121–128. [Google Scholar] [CrossRef]
  119. Preti, D.; Resta, C.; Squarcialupi, S.; Fachinetti, G. Carbon Dioxide Hydrogenation to Formic Acid by Using a Heterogeneous Gold Catalyst. Angew. Chem. Int. Ed. 2011, 50, 12551–12554. [Google Scholar] [CrossRef]
  120. Park, H.; Lee, J.H.; Kim, E.H.; Kim, K.Y.; Choi, Y.H.; Youn, D.H.; Lee, J.S. A highly active and stable palladium catalyst on a g-C3N4 support for direct formic acid synthesis under neutral conditions. Chem. Commun. 2016, 52, 14302–14305. [Google Scholar] [CrossRef]
  121. Kadhum, S.T.; Alkindi, G.Y.; Albayati, T.M. Eco friendly adsorbents for removal of phenol from aqueous solution employing nanoparticle zero-valent iron synthesized from modified green tea bio-waste and supported on silty clay. Chin. J. Chem. Eng. 2021, 36, 19–28. [Google Scholar] [CrossRef]
  122. Al-Khodor, Y.A.A.; Albayati, T.M. Employing sodium hydroxide in desulfurization of the actual heavy crude oil: Theoretical optimization and experimental evaluation. Process Saf. Environ. Prot. 2020, 136, 334–342. [Google Scholar] [CrossRef]
Catalysts 12 00324 g001 550
Figure 1. Advantages of hydrogen energy.
Figure 1. Advantages of hydrogen energy.
Catalysts 12 00324 g001
Catalysts 12 00324 g002 550
Figure 2. Carbon neutral energy storage via formic acid as a hydrogen carrier molecule.
Figure 2. Carbon neutral energy storage via formic acid as a hydrogen carrier molecule.
Catalysts 12 00324 g002
Catalysts 12 00324 g003 550
Figure 3. Reaction mechanism described for H2 generation from FA dehydrogenation catalyzed by metal nanoparticle catalysts.
Figure 3. Reaction mechanism described for H2 generation from FA dehydrogenation catalyzed by metal nanoparticle catalysts.
Catalysts 12 00324 g003
Catalysts 12 00324 g004 550
Figure 4. Formic acid decomposition over nanoheterogeneous Pd prepared by different methods, and TEM image: (a) Volume of generated gas (H2 + CO2) Reaction conditions: 0.12 mg of catalyst, 30 °C, 0.5 M FA, (substrate/metal molar ratio 2000:1), 800 rpm and 90 min reaction time. (b) TEM images and insert figure show distribution of particle size in Pd/rGO-SI. Reprinted with permission from ref. [79]. Copyright 2021 Springer Nature.
Figure 4. Formic acid decomposition over nanoheterogeneous Pd prepared by different methods, and TEM image: (a) Volume of generated gas (H2 + CO2) Reaction conditions: 0.12 mg of catalyst, 30 °C, 0.5 M FA, (substrate/metal molar ratio 2000:1), 800 rpm and 90 min reaction time. (b) TEM images and insert figure show distribution of particle size in Pd/rGO-SI. Reprinted with permission from ref. [79]. Copyright 2021 Springer Nature.
Catalysts 12 00324 g004
Catalysts 12 00324 g005 550

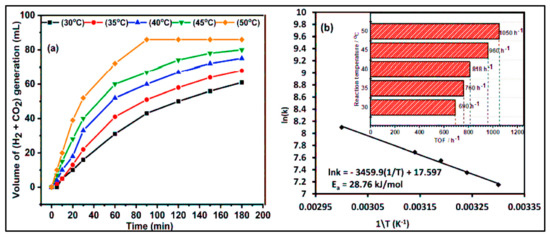

Figure 5. Volume of H2 gas evolution from the aqueous FA solutin and the corresponding TOF: (a) Volume of (H2 + CO2) gas formed from formic acid decomposition vs. time, and (b) TOF of H2 values produced with the Au1Pd3/rGO catalyst at (30–50 °C). Reproduced from ref. [87] with permission from the Royal Society of Chemistry.
Figure 5. Volume of H2 gas evolution from the aqueous FA solutin and the corresponding TOF: (a) Volume of (H2 + CO2) gas formed from formic acid decomposition vs. time, and (b) TOF of H2 values produced with the Au1Pd3/rGO catalyst at (30–50 °C). Reproduced from ref. [87] with permission from the Royal Society of Chemistry.
Catalysts 12 00324 g005
Catalysts 12 00324 g006 550

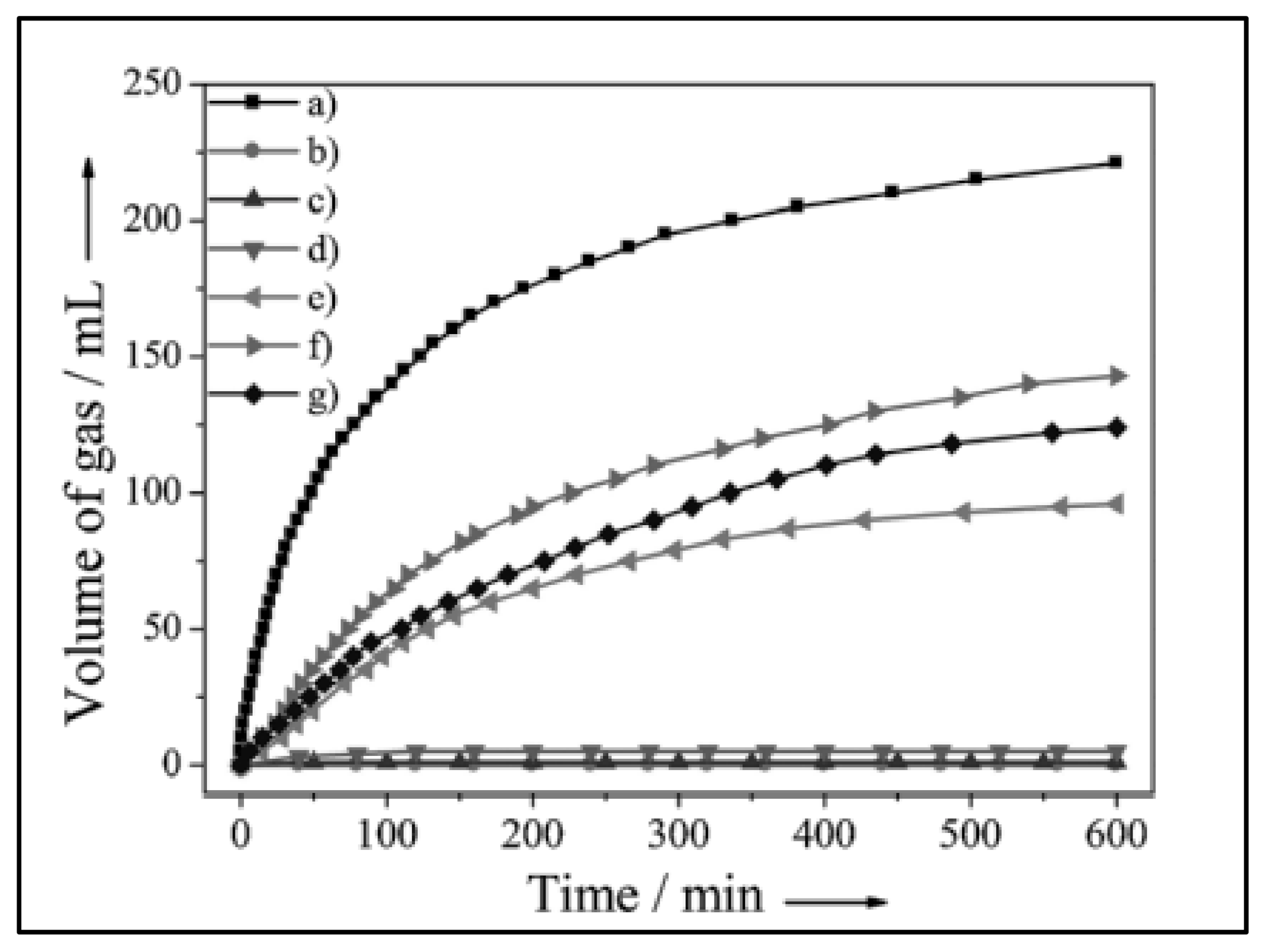

Figure 6. Gas generation by decomposition of FA (0.5 m, 10 mL) versus time in the presence of (a) Co 0.30 Au0.35Pd0.35 /C, (b) Co/C, (c) Au/C, (d) Co 0.30Au0.70 /C, (e) Pd/C, (f) Co 0.30 Pd0.70/C, and (g) Au0.50 Pd0.50 /C (nmetal /nFA = 0.02) at 298 K in ambient atmosphere. Reprinted with permission from ref. [70]. Copyright 2021 Wiley-VCH.
Figure 6. Gas generation by decomposition of FA (0.5 m, 10 mL) versus time in the presence of (a) Co 0.30 Au0.35Pd0.35 /C, (b) Co/C, (c) Au/C, (d) Co 0.30Au0.70 /C, (e) Pd/C, (f) Co 0.30 Pd0.70/C, and (g) Au0.50 Pd0.50 /C (nmetal /nFA = 0.02) at 298 K in ambient atmosphere. Reprinted with permission from ref. [70]. Copyright 2021 Wiley-VCH.
Catalysts 12 00324 g006
Catalysts 12 00324 g007 550
Figure 7. Basics of formic acid fuel cell and hydrogen energy.
Figure 7. Basics of formic acid fuel cell and hydrogen energy.
Catalysts 12 00324 g007
Table
Table 1. Nanoheterogeneous catalysts to decompose aqueous formic acid at ambient temperature (20–50 °C).
Table 1. Nanoheterogeneous catalysts to decompose aqueous formic acid at ambient temperature (20–50 °C).
CatalystTemp. (°C)ReagentTurnover
Frequency (TOF) (h−1)		Ref.
Pd/C25Formic acid64 b[61]
Pd/MSC-3030Formic acid (0.6 M)/sodium formate (different molar ratios)1059 a[62]
Pd/C25Formic acid (9.9 M)/sodium formate (3.3 M)304 a[63]
Pd/mpg-C3N425Formic acid (1.0 M)144 a[64]
PdIMP/CNF-HHT30Formic acid (0.5 M)563.2 a[65]
PdSI/CNF-HHT30Formic acid (0.5 M)527.5 a[65]
Ag@Pd/C20Formic acid (1.0 M)125 c[66]
Au@Pd/N-mrGO25Formic acid (1.0 M)89 a[67]
Ag0.1Pd0.9/rGO25Formic acid 105 a[35]
Ag42Pd5850Formic acid (1.0 M)382 a[68]
Au41Pd59/C50Formic acid (1.0 M)230 a[69]
Co0.30Au0.35Pd0.3525Formic acid (0.5 M)80 a[70]
CoAuPd/DNA–rGO25Formic acid (1.0 M)85 a[61]
Ni0.40Au0.15Pd0.45/C25Formic acid (0.5 M)12.4 a[71]
Pd-Ni-Ag/C50Formic acid (0.175 M)/sodium formate (0.175 M)85[72]
(Co6)Ag0.1Pd0.9/rGO50Formic acid (1 mol)/sodium formate (0.4 mol)2739[73]
a Initial TOF values calculated for the initial stages of the catalytic reactions. b TOF calculated after 160 min. c TOF calculated after 60 min.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Al-Nayili, A.; Majdi, H.S.; Albayati, T.M.; Saady, N.M.C. Formic Acid Dehydrogenation Using Noble-Metal Nanoheterogeneous Catalysts: Towards Sustainable Hydrogen-Based Energy. Catalysts 2022, 12, 324. https://doi.org/10.3390/catal12030324

AMA Style

Al-Nayili A, Majdi HS, Albayati TM, Saady NMC. Formic Acid Dehydrogenation Using Noble-Metal Nanoheterogeneous Catalysts: Towards Sustainable Hydrogen-Based Energy. Catalysts. 2022; 12(3):324. https://doi.org/10.3390/catal12030324

Chicago/Turabian Style

Al-Nayili, Abbas, Hasan Sh. Majdi, Talib M. Albayati, and Noori M. Cata Saady. 2022. "Formic Acid Dehydrogenation Using Noble-Metal Nanoheterogeneous Catalysts: Towards Sustainable Hydrogen-Based Energy" Catalysts 12, no. 3: 324. https://doi.org/10.3390/catal12030324

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
