# The Effect of a Phase Change on the Temperature Evolution during the Deposition Stage in Fused Filament Fabrication

^{1}

^{2}

^{*}

## Abstract

**:**

^{®}code to model cooling in FFF. The deposition and cooling of simple geometries is studied first, in order to assess the differences in cooling of amorphous and semi-crystalline polymers. Acrylonitrile Butadiene Styrene (ABS) was taken as representing an amorphous material. Then, the deposition and cooling of a realistic 3D part is investigated, and the influence of the build orientation is discussed.

## 1. Introduction

## 2. Related Work

## 3. A code for the Prediction of Temperature Evolution during Cooling in FFF

#### 3.1. Current Code

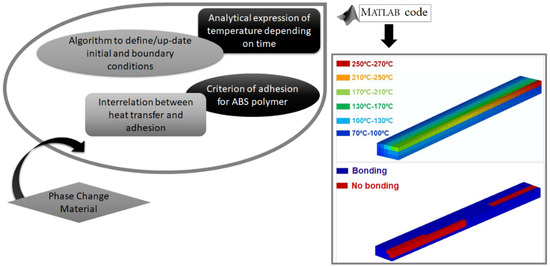

^{®}, which activates/deactivates contacts and thermal conditions arising as the deposition proceeds, depending on the part geometry, deposition sequence and operating conditions. By coupling a bonding criterion to the temperature profile history, it is also possible to predict the degree of bonding between adjacent filaments [28]. The following assumptions are considered in the model:

- The axial heat conduction is neglected. Given the low thermal conductivity of polymers and the small filaments radii, axial heat conduction is much smaller than convection and conduction between adjacent filaments;
- Computations are carried out when the Biot number is lower than 0.1, i.e., when the temperature gradient in each filament cross-section can be neglected;
- The thermal properties of the polymer are assumed to be temperature independent;
- The thermal contact conductance is assumed to be low (high thermal resistance) while bonding is not achieved, and high when bonding occurs.

#### 3.2. Insertion of a Phase Change

- Crystallization development during cooling does not affect the thermal properties, which are taken as temperature independent;

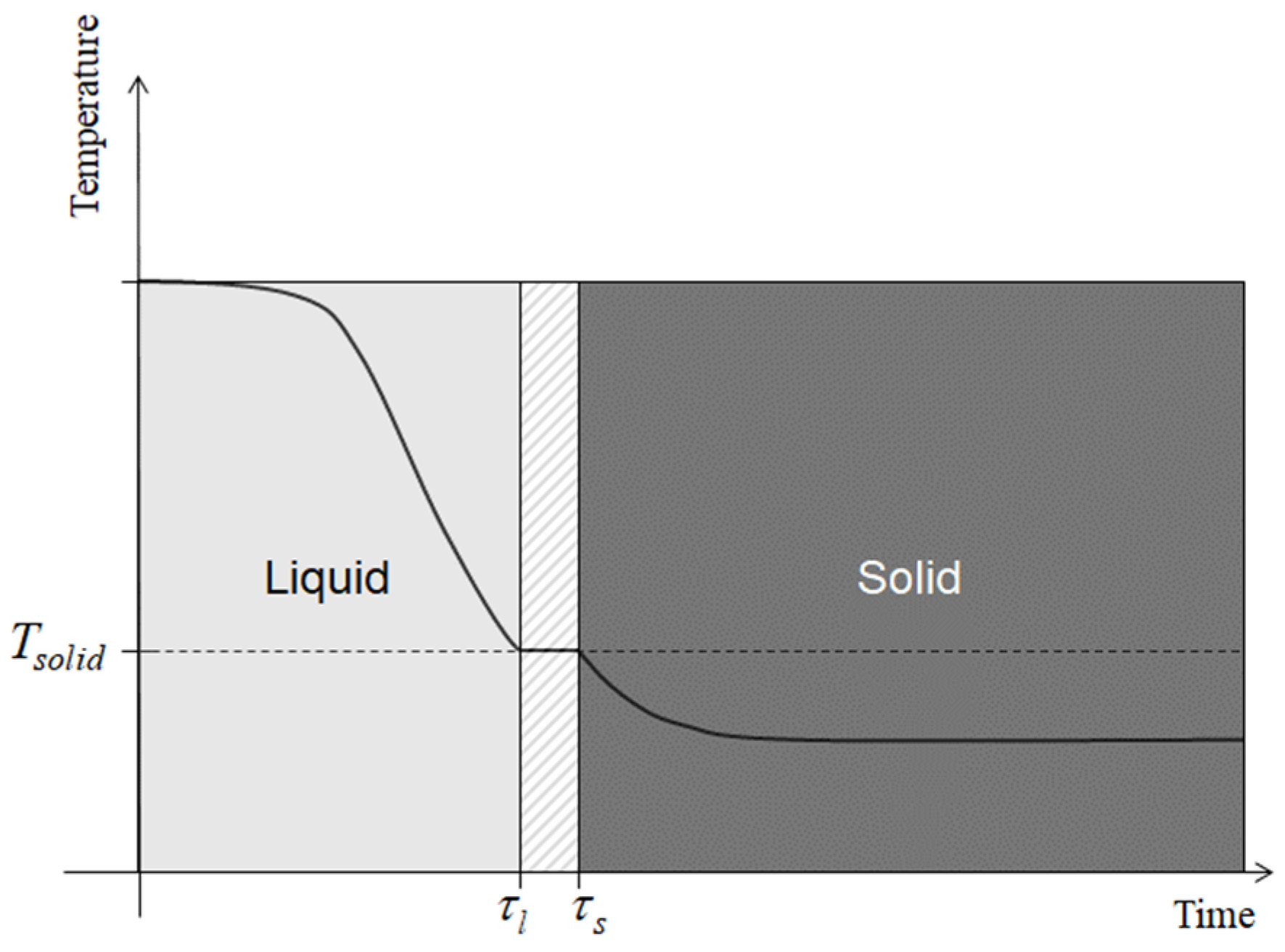

- When the temperature of the ${r}^{th}$ filament segment reaches ${T}_{solid}$, the thermal conditions used to compute ${\tau}_{s}$ are activated at ${\tau}_{l}$;
- If ${\left({\left({T}_{r}\right)}_{i}\right)}_{0}$ is the temperature of the adjacent filament segment for contact $i$ at instant ${\tau}_{l}$, the value of ${\left({T}_{r}\right)}_{i}$ will be assumed as the average between ${\left({\left({T}_{r}\right)}_{i}\right)}_{0}$ and ${T}_{E}$;
- If during a phase change a filament contacts a new hotter filament, its phase change is interrupted and the temperatures are re-computed. When its temperature reaches again ${T}_{solid}$, ${\tau}_{s}$ is computed for the new thermal conditions;

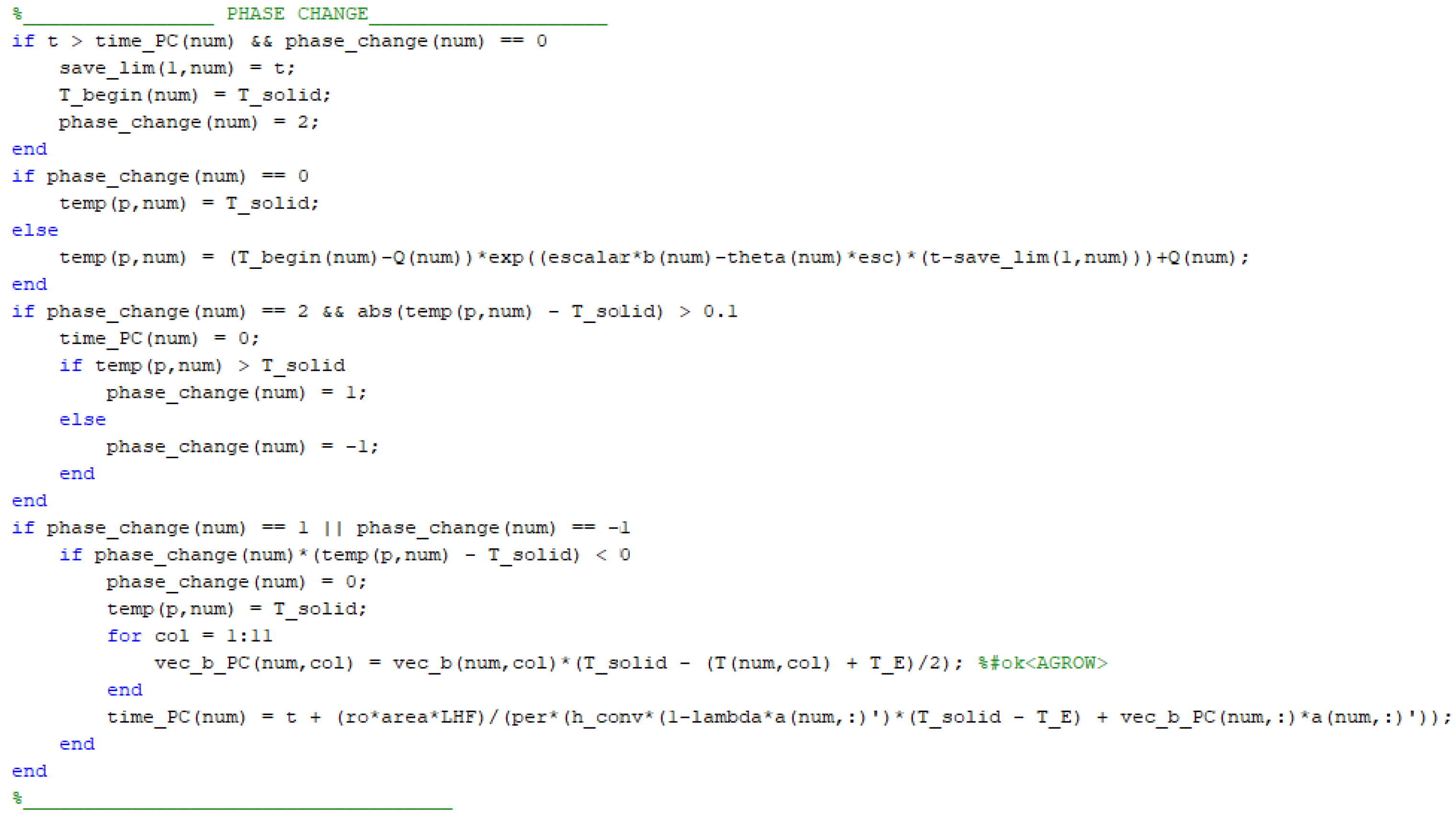

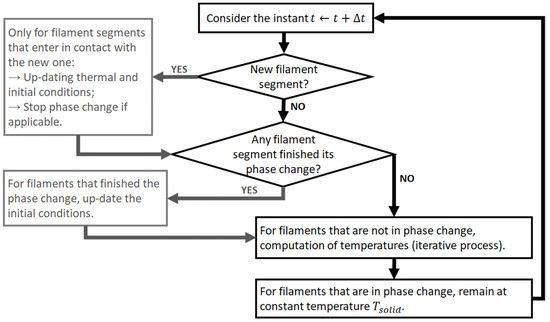

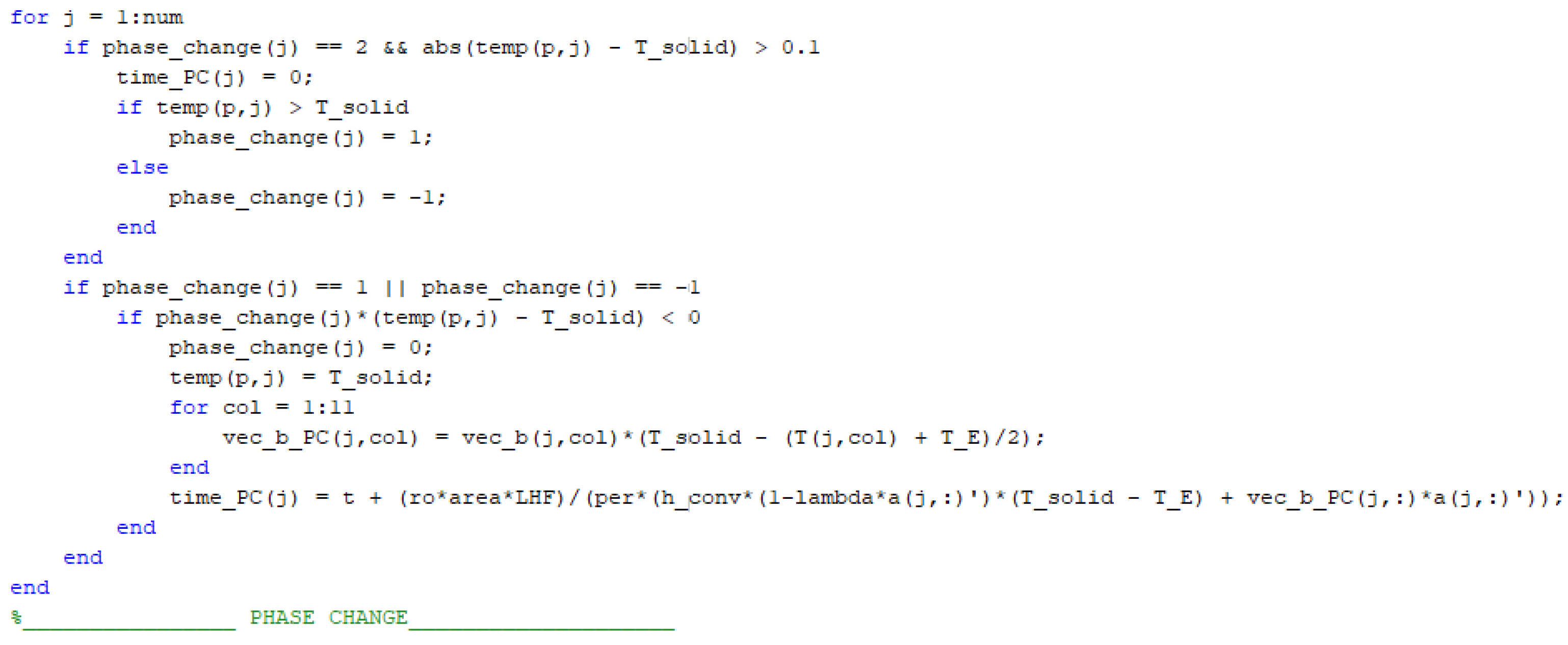

^{®}code is shown in Figure 4. This section was inserted in the computer code previously developed by the authors [35].

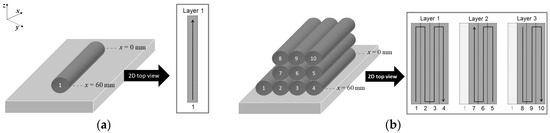

## 4. Application of the Code to Simple 3D Printed Structures

^{®}, Edina, MI, USA) and PLA (881N PLA, Filkemp

^{®}, Algueirão–Mem Martins, Portugal). Table 2 identifies the process parameters and computational variables. The heat transfer coefficient h

_{conv}was deduced using the correlation of Churchill and Chu [36], a high conductance between adjacent filaments was assumed, and an intermediate value for the extrusion temperature was considered to be suitable for both ABS and PLA. The version 9.2.0.556344 (R2017a) of MatLab

^{®}was used.

## 5. Applied Case Study

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Gebhardt, A. Understanding Additive Manufacturing: Rapid Prototyping–Rapid Tooling–Rapid Manufacturing, 1st ed.; Hanser: Munich, Germany, 2008. [Google Scholar]
- Chua, C.K.; Leong, K.F.; Lim, C.S. Rapid Prototyping: Principles and Applications, 3rd ed.; World Scientific: Singapore, 2010. [Google Scholar]
- Ingole, D.S.; Kuthe, A.M.; Thakare, S.B.; Talankar, A.S. Rapid prototyping—A technology transfer approach for development of rapid tooling. Rapid Prototyp. J.
**2009**, 15, 280–290. [Google Scholar] [CrossRef] - Long, J.; Gholizadeh, H.; Lu, J.; Bunt, C.; Seyfoddin, A. Application of Fused Deposition Modelling (FDM) Method of 3D Printing in Drug Delivery. Curr. Pharm. Des.
**2017**, 23, 433–439. [Google Scholar] [CrossRef] [PubMed] - Harris, M.; Potgieter, J.; Archer, R.; Arif, K.M. Effect of material and process specific factors on the strength of printed parts in fused filament fabrication: A review of recent developments. Materials
**2019**, 12, 1664. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Mackay, M.E. The importance of rheological behavior in the additive manufacturing technique material extrusion. J. Rheol.
**2018**, 62, 1549–1561. [Google Scholar] [CrossRef] - Sood, A.K.; Ohdar, R.K.; Mahapatra, S.S. Parametric appraisal of mechanical property of fused deposition modelling processed parts. Mater. Des.
**2010**, 31, 287–295. [Google Scholar] [CrossRef] - Sun, Q.; Rizvi, G.M.; Bellehumeur, C.T.; Gu, P. Effect of processing conditions on the bonding quality of FDM polymer filaments. Rapid Prototyp. J.
**2008**, 14, 72–80. [Google Scholar] [CrossRef] - Carneiro, O.S.; Silva, A.F.; Gomes, R. Fused deposition modeling with polypropylene. Mater. Des.
**2015**, 83, 768–776. [Google Scholar] [CrossRef] - Zanjanijam, A.R.; Major, I.; Lyons, J.G.; Lafont, U.; Devine, D.M. Fused Filament Fabrication of PEEK: A Review of Process-Structure-Property Relationships. Polymers
**2020**, 12, 1665. [Google Scholar] [CrossRef] - Vanaei, H.; Shirinbayan, M.; Deligant, M.; Raissi, K.; Fitoussi, J.; Khelladi, S.; Tcharkhtchi, A. Influence of process parameters on thermal and mechanical properties of polylactic acid fabricated by fused filament fabrication. Polym. Eng. Sci.
**2020**, 1–10. [Google Scholar] [CrossRef] - Vicente, C.M.S.; Martins, T.S.; Leite, M.; Ribeiro, A.; Reis, L. Influence of fused deposition modeling parameters on the mechanical properties of ABS parts. Polym. Adv. Technol.
**2020**, 31, 501–507. [Google Scholar] [CrossRef] - Hwang, S.; Reyes, E.I.; Moon, K.; Rumpf, R.C.; Kim, N.S. Thermo-mechanical Characterization of Metal/Polymer Composite Filaments and Printing Parameter Study for Fused Deposition Modeling in the 3D Printing Process. J. Electron. Mater.
**2013**, 44, 771–777. [Google Scholar] [CrossRef] - Izdebska, J. Printing on Polymers: Theory and Practice. Printing on Polymers: Fundamentals and Applications; Izdebska, J., Thomas, S., Eds.; William Andrew: Waltham, MA, USA, 2016; pp. 1–20. [Google Scholar]
- Kuznetsov, V.E.; Solonin, A.N.; Urzhumtsev, O.D.; Schilling, R.; Tavitov, A.G. Strength of PLA Components Fabricated with Fused Deposition Technology Using a Desktop 3D Printer as a Function of Geometrical Parameters of the Process. Polymers
**2018**, 10, 313. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Tymrak, B.M.; Kreiger, M.; Pearce, J.M. Mechanical properties of components fabricated with open-source 3D printers under realistic environmental conditions. Mater. Des.
**2014**, 58, 242–246. [Google Scholar] [CrossRef] - Waseem, M.; Salah, B.; Habib, T.; Saleem, W.; Abas, M.; Khan, R.; Ghani, U.; Siddiqi, M. Multi-Response Optimization of Tensile Creep Behavior of PLA 3D Printed Parts Using Categorical Response Surface Methodology. Polymers
**2020**, 12, 2962. [Google Scholar] [CrossRef] [PubMed] - Gosset, A.; Barreiro-Villaverde, D.; Permuy, J.C.; Lema, M.; Ares-Pernas, A.; López, M.J. Experimental and Numerical Investigation of the Extrusion and Deposition Process of a Poly(lactic Acid) Strand with Fused Deposition Modeling. Polymers
**2020**, 12, 2885. [Google Scholar] [CrossRef] - Melenka, G.W.; Schofield, J.S.; Dawson, M.R.; Carey, J.P. Evaluation of dimensional accuracy and material properties of the makerbot 3D desktop printer. Rapid Prototyp. J.
**2015**, 21, 618–627. [Google Scholar] [CrossRef] - Milde, J.; Hrusecky, R.; Zaujec, R.; Morovic, L.; Gorog, A. Research of ABS and PLA Materials in the Process of Fused Deposition Modeling Method. Ann. DAAAM Proc.
**2017**, 28, 812–820. [Google Scholar] - Hafsa, M.; Ibrahim, M.; Wahab, M.; Zahid, M. Evaluation of FDM pattern with ABS and PLA material. Appl. Mech. Mater.
**2013**, 465/466, 55–59. [Google Scholar] [CrossRef] - Rodríguez-Panes, A.; Claver, J.; Camacho, A.M. The influence of Manufacturing Parameters on the Mechanical Behaviour of PLA and ABS Pieces Manufactured by FDM: A comparative Analysis. Materials
**2018**, 11, 1333. [Google Scholar] [CrossRef] [Green Version] - Wojtyla, S.; Klama, P.; Baran, T. Is 3D printing safe? Analysis of the thermal treatment of thermoplastics: ABS, PLA, PET, and nylon. J. Occup. Environ. Hyg.
**2017**, 14, 80–85. [Google Scholar] [CrossRef] - Kim, Y.; Yoon, C.; Ham, S.; Park, J.; Kim, S.; Kwon, O.; Tsai, P.J. Emissions of nanoparticles and gaseous material from 3D printer operation. Environ. Sci. Technol.
**2015**, 49, 12044–12053. [Google Scholar] [CrossRef] [PubMed] - Rubies, E.; Palacín, J. Design and FDM/FFF Implementation of a Compact Omnidirectional Wheel for a Mobile Robot and Assessment of ABS and PLA Printing Materials. Robotics
**2020**, 9, 43. [Google Scholar] [CrossRef] - Shabana, R.V.; Santosh, N.; Sarojini, J.; Vikram, K.A.; Lakshmi, V.V. Evaluating the Mechanical Properties of Commonly Used 3d Printed ABS and PLA Polymers with Multi-Layered Polymers. Int. J. Eng. Adv. Technol.
**2019**, 8, 2341–2356. [Google Scholar] - Mudassir, A. Measuring Accuracy of Two 3D Printing Materials, Department of Engineering Technologies; Bowling Green State University: Bowling Green, OH, USA, 2016. [Google Scholar]
- Yang, F.; Pitchumani, R. Healing of Thermoplastic Polymers at an interface under Nonisothermal Conditions. Macromolecules
**2020**, 35, 3213–3224. [Google Scholar] - Costa, S.F.; Duarte, F.M.; Covas, J.A. Estimation of filament temperature and adhesion development in Fused Deposition Techniques. J. Mater. Process. Technol.
**2017**, 245, 167–179. [Google Scholar] [CrossRef] - Kong, Y.; Hay, J.N. The enthalpy of fusion and degree of crystallinity of polymers as measured by DSC. Eur. Polym. J.
**2003**, 39, 1721–1727. [Google Scholar] [CrossRef] - Zgryza, L.; Raczynska, A.; Pasnikowska-Lukaszuk, M. Thermovisual measurements of 3D printing of ABS and PLA filaments. Adv. Sci. Technol. Res. J.
**2020**, 12, 266–271. [Google Scholar] [CrossRef] - Costa, S.F.; Duarte, F.M.; Covas, J.A. Thermal conditions affecting heat transfer in FDM/FFE: A contribution towards the numerical modelling of the process. Virtual Phys. Prototyp.
**2014**, 10, 1–12. [Google Scholar] [CrossRef] - Costa, S.F.; Duarte, F.M.; Covas, J.A. An Analytical Solution for Heat Transfer during deposition in extrusion-based 3D Printing techniques. In Proceedings of the 15th International Conference Computational and Mathematical Methods in Science and Engineering, Rota Cadiz, Spain, 6–10 July 2015; pp. 1161–1172. [Google Scholar]
- Vanaei, H.R.; Shirinbayan, M.; Costa, S.F.; Duarte, F.M.; Covas, J.A.; Deligant, M.; Khelladi, S.; Tcharkhtchi, A. Experimental study of PLA thermal behavior during fused filament fabrication. J. Appl. Polym. Sci.
**2020**, 138, 49747. [Google Scholar] [CrossRef] - Costa, S.; Duarte, F.; Covas, J. Using MATLAB to Compute Heat Transfer in Free Form Extrusion. In MATLAB—A Ubiquitous Tool for the Practical Engineer; InTech: Rijeka, Croatia, 2011; pp. 453–474. [Google Scholar]
- Holman, J.P. Heat Transfer; McGraw-Hill Brasil: New York, NY, USA, 2010. [Google Scholar]

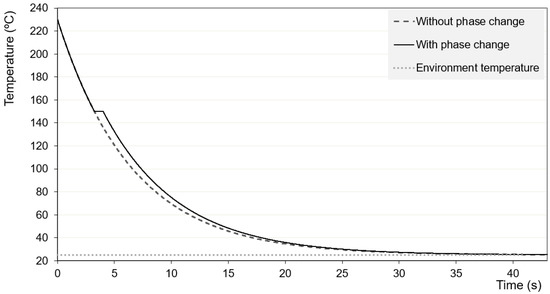

**Figure 6.**Evolution of temperature with time for a single PLA filament with and without phase change (at x = 30 mm from the edge).

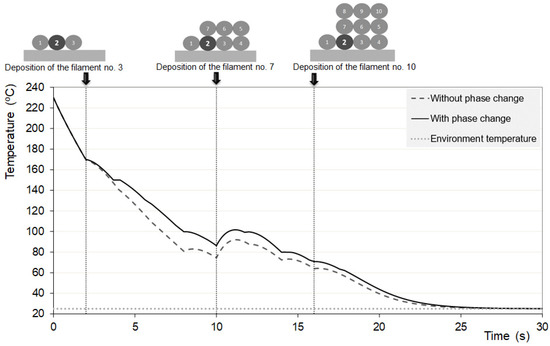

**Figure 7.**Evolution of temperature with time for filament no. 2 (PLA) with and without phase change (at x = 30 mm from the edge).

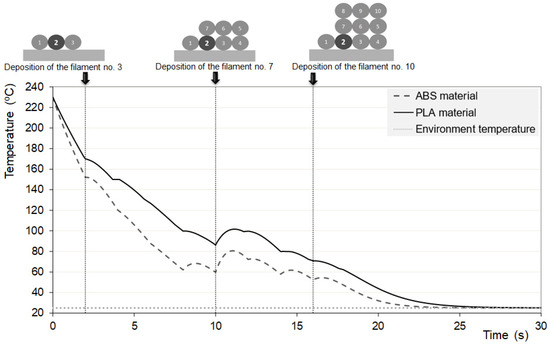

**Figure 8.**Evolution of temperature with time for filament no. 2 for ABS and PLA (at x = 30 mm from the edge).

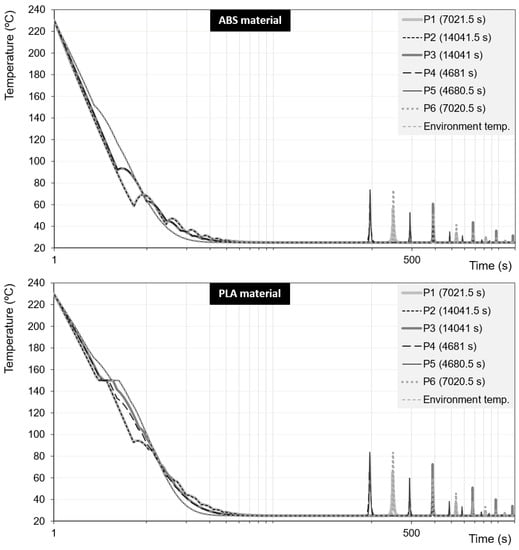

**Figure 10.**Temperature evolution during 3800 s of the cross-section at the middle of the central filament of the 20th layer (counting from the support) for the six build orientations, for ABS and PLA. The curves follow the evolution with time of temperature from the beginning of the deposition of the filament. The actual instants where the deposition began for each build orientation are identified in the respective labels.

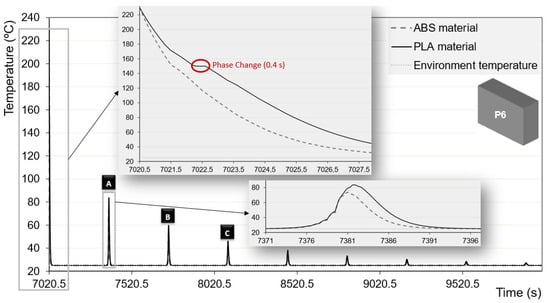

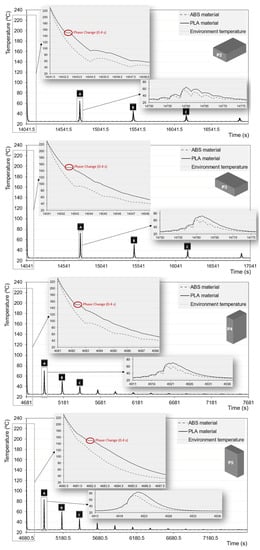

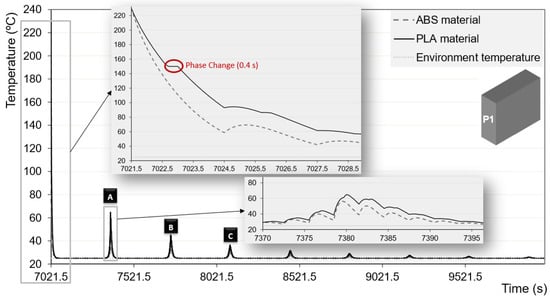

**Figure 11.**Temperature evolution of the cross-section at the middle of the central filament of the 20th layer (counting from the support) for the six build orientations (P1 to P6), for ABS and PLA. The curves follow the evolution with time of temperature from the beginning of the deposition of the part. The insets are magnifications of the progress of temperature during short time periods. A, B and C identify the peaks used to prepare Table 4.

Property | ABS | PLA |
---|---|---|

Density $\rho $ (kg/m^{3}) | 1050 | 1300 |

Thermal conductivity $k$ (W/m·$\xb0\mathrm{C}$) | 0.2 | 0.1 |

Specific heat $C$ (J/kg·$\xb0\mathrm{C}$) | 2020 | 2100 |

Latent heat of fusion $\lambda $ (J/kg) | --- | 30 000 |

Solidification temperature ${T}_{solid}$ ($\xb0\mathrm{C}$) | --- | 150 |

Property | Value |
---|---|

Process parameters | |

Extrusion temperature T_{L} ($\xb0\mathrm{C}$) | 230 |

Environment temperature T_{E} ($\xb0\mathrm{C}$) | 25 |

Deposition velocity (m/s) | 0.03 |

Convective heat transfer coefficient h_{conv} (W/m^{2} $\xb0\mathrm{C}$)—natural convection | 30 |

Thermal contact conductance between adjacent filaments h_{i} (W/m^{2}$\xb0\mathrm{C}$) | 200 |

Thermal contact conductance between filaments and support h_{i} (W/m^{2}$\xb0\mathrm{C}$) | 10 |

Fraction of contact area relative to filament area ${\alpha}_{i}$ | 0.2 |

Filament length (mm) | 60 |

Filament cross-section geometry | circle |

Filament cross-section diameter (mm) | 0.25 |

Deposition sequence | Unidirectional and aligned |

Computational parameters | |

Time increment (s) | 0.01 |

Temperature convergence error ($\xb0\mathrm{C}$) | 0.001 |

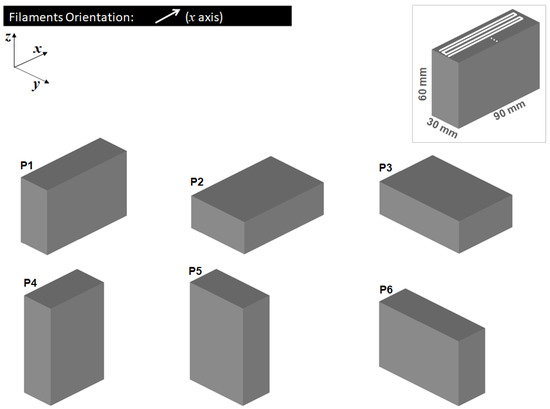

Build Orientation | Number of Filaments | Contact Area with the Support (mm^{2}) |
---|---|---|

P1 ($XZY$) | 28,800 | 2700 |

P2 ($XYZ$) | 28,800 | 5400 |

P3 ($YXZ$) | 43,200 | 5400 |

P4 ($ZXY$) | 43,200 | 1800 |

P5 ($ZYX$) | 86,400 | 1800 |

P6 ($YZX$) | 86,400 | 2700 |

**Table 4.**The effect of the type of material (ABS vs. PLA) on the temperature of the cross-section at the middle of the central filament of the 20th layer (counting from the support) for six build orientations, P1 to P6 (maximum temperature difference and temperatures of peaks A, B and C in Figure 11).

Build Orientation | Maximum Temperature Difference between ABS and PLA (°C) | Maximum Temperature of Peaks A (°C) | Maximum Temperature of Peaks B (°C) | Maximum Temperature of Peaks C (°C) |
---|---|---|---|---|

P1 | 40.4 | ABS: 56.2 PLA: 64.8 | ABS: 40.7 PLA: 45.2 | ABS: 33.8 PLA: 36.4 |

P2 | 39.4 | ABS: 56.1 PLA: 64.9 | ABS: 40.6 PLA: 45.2 | ABS: 33.7 PLA: 36.4 |

P3 | 41.6 | ABS: 60.3 PLA: 72.6 | ABS: 43.6 PLA: 51.0 | ABS: 35.9 PLA: 39.1 |

P4 | 41.2 | ABS: 61.0 PLA: 70.2 | ABS: 43.8 PLA: 49.8 | ABS: 35.9 PLA: 39.4 |

P5 | 40.4 | ABS: 73.6 PLA: 83.6 | ABS: 52.6 PLA: 59.7 | ABS: 41.4 PLA: 46.1 |

P6 | 40.4 | ABS: 73.6 PLA: 83.5 | ABS: 52.6 PLA: 59.7 | ABS: 41.4 PLA: 46.1 |
