Article

A Molecular Test for Quantifying Functional Notch Signaling Pathway Activity in Human Cancer

by
Kirsten Canté-Barrett
1,†,‡,
Laurent Holtzer
2,†,
Henk van Ooijen
3,
Rico Hagelaar
1,
Valentina Cordo’
1,
Wim Verhaegh
3,
Anja van de Stolpe
2,§ and
Jules P. P. Meijerink
1,*,§
1
Princess Máxima Center for Pediatric Oncology, 3584 CS Utrecht, The Netherlands
2
Philips Molecular Pathway Dx, Royal Philips, 5656 AE Eindhoven, The Netherlands
3
Philips Research, Royal Philips, 5656 AE Eindhoven, The Netherlands
*
Author to whom correspondence should be addressed.
†
These authors share equal contribution.
‡
Present address: Department of Immunology, Leiden University Medical Center, 2333ZA Leiden, The Netherlands.
§
These authors share equal senior authorship.
Cancers 2020, 12(11), 3142; https://doi.org/10.3390/cancers12113142
Submission received: 24 September 2020 / Revised: 16 October 2020 / Accepted: 18 October 2020 / Published: 27 October 2020
(This article belongs to the Section Methods and Technologies Development)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

The Notch signal transduction pathway is important for various physiological processes, including immune responses, and plays a role in many diseases, for example cancer. We have developed a new assay to quantitatively measure Notch pathway activity, and we validated it using data from various human cancer cell lines. The assay can be applied across different cell types, and offers numerous possibilities to explore the contribution of the Notch pathway to tumor formation and the stratification of cancer patients. We assessed Notch pathway activity in a cohort of T cell acute lymphoblastic leukemia (T-ALL) patient samples, and found that the pathway activity score more accurately reflects Notch pathway activity than a prediction on the basis of NOTCH1 mutations alone. Finally, we found that patients with low Notch pathway activity had a significantly shorter event-free survival compared to patients who had T-ALL cells with higher activity.

Abstract

Background: The Notch signal transduction pathway is pivotal for various physiological processes, including immune responses, and has been implicated in the pathogenesis of many diseases. The effectiveness of various targeted Notch pathway inhibitors may vary due to variabilities in Notch pathway activity among individual patients. The quantitative measurement of Notch pathway activity is therefore essential to identify patients who could benefit from targeted treatment. Methods: We here describe a new assay that infers a quantitative Notch pathway activity score from the mRNA levels of generally conserved direct NOTCH target genes. Following the calibration and biological validation of our Notch pathway activity model over a wide spectrum of human cancer types, we assessed Notch pathway activity in a cohort of T-ALL patient samples and related it to biological and clinical parameters, including outcome. Results: We developed an assay using 18 select direct target genes and high-grade serous ovarian cancer for calibration. For validation, seven independent human datasets (mostly cancer series) were used to quantify Notch activity in agreement with expectations. For T-ALL, the median Notch pathway activity was highest for samples with strong NOTCH1-activating mutations, and T-ALL patients of the TLX subtype generally had the highest levels of Notch pathway activity. We observed a significant relationship between ICN1 levels and the absence/presence of NOTCH1-activating mutations with Notch pathway activity scores. Patients with the lowest Notch activity scores had the shortest event-free survival compared to other patients. Conclusions: High Notch pathway activity was not limited to T-ALL samples harboring strong NOTCH1 mutations, including juxtamembrane domain mutations or hetero-dimerization combined with PEST-domain or FBXW7 mutations, indicating that additional mechanisms may activate Notch signaling. The measured Notch pathway activity was related to intracellular NOTCH levels, indicating that the pathway activity score more accurately reflects Notch pathway activity than when it is predicted on the basis of NOTCH1 mutations. Importantly, patients with low Notch pathway activity had a significantly shorter event-free survival compared to patients showing higher activity.

1. Introduction

An increasing number of precision drugs are becoming available for clinical medicine, and many more are in development. These targeted drugs are intended for personalized medicine and aim at targeting the pathophysiological defects underlying specific diseases in individual patients. For cancer, but also for many other diseases including auto-immune or immune-mediated diseases, patient samples may display a similar histopathology, while significant pathophysiological variations can be found at the cellular level [1,2]. Such variations may be the reason that only a portion of all patients with a specific disease responds to a targeted drug. Matching the right drug to the right patient has therefore become an increasingly important issue. However, developing a diagnostic approach to reliably predict therapy responses has proven difficult. The prime example is oncology, wherein efforts in predicting patient responses to targeted drugs based on cancer genome mutations have generally been disappointing, despite exceptions in select cases [3,4,5,6,7]. To improve clinical decision-making regarding targeted treatment, and therefore to improve clinical outcomes, assays are needed that accurately characterize and quantify the underlying pathophysiological processes in individual patient samples [1,8,9,10,11,12,13,14,15,16,17]. Cellular signal transduction pathways are evolutionarily conserved, and control fundamental cellular processes such as cell division, differentiation, migration and metabolism [1,18,19,20]. They include nuclear receptor pathways (e.g., androgen and estrogen receptor pathways), developmental pathways (Wnt, Hedgehog, TGFβ and Notch), the highly complex growth factor- and cytokine-regulated signaling pathway network (including JAK-STAT, PI3K-AKT-mTOR and MAPK pathways), and the inflammatory NFκB pathway [18,21]. The measurement of the functional activity of these pathways in tumor biopsies from individual patients is expected to improve the prediction of therapy response. We have previously described a novel approach to quantitatively measure the activity levels of individual signal transduction pathways in various cell and tissue types [22,23,24,25]. In addition to the development of assays to measure the activity of the estrogen and androgen receptor pathways, the PI3K, JAK-STAT3, Wnt, Hedgehog, TGFβ, NFκB and JAK-STAT1/2 pathways, we now report the development and biological validation of a quantitative Notch pathway activity assay. The human Notch pathway is an evolutionarily highly conserved developmental signaling pathway, activated by the interaction of one of four NOTCH transmembrane receptors with Jagged or Delta-like Canonical Notch ligands on neighboring cells [16]. Upon ligand binding, the receptor is cleaved by two consecutive protease steps that include an ADAM (a disintegrin and metalloproteinase) protease and the gamma-secretase complex. The resulting cleaved intracellular NOTCH (ICN) migrates to the nucleus, where it forms a transcription factor complex with DNA binding factor RBPJ (recombination signal binding protein for immunoglobulin kappa J region) and coactivators of the MAML (Mastermind-like) family, and activates the transcription of its target genes. The Notch pathway plays a role in multiple diseases, including T-cell acute lymphoblastic leukemia (T-ALL) [16,26]. Notch pathway inhibitors have been developed for multiple potential clinical applications, but their use has generally been associated with severe side effects [27,28,29,30,31,32]. In addition, NOTCH inducers have been developed, e.g., for small cell lung cancer [33]. A major clinical challenge is to minimize side effects and identify patients who benefit from Notch pathway-modifying drugs.
To illustrate the potential utility of the Notch pathway assay for clinical decision-making, a Notch pathway activity analysis was performed in a large cohort of diagnostic samples from pediatric T-ALL patients with known genetic backgrounds and mutation statuses. Activating mutations in the NOTCH1 pathway, including mutations in NOTCH1 and/or FBXW7 (which encodes for a ubiquitin ligase involved in the degradation of active intracellular NOTCH1 (ICN1)), are found in approximately 60% of T-ALL patients [34,35]. Publications on patient outcomes in T-ALL report different prognostic significances for NOTCH1-activating mutations alone [36]. We present evidence that patients with active Notch pathway signaling have a more favorable long-term outcome when on high-intensity combination treatment protocols [37,38,39].

2. Results

2.1. Development of the Notch pathway Assay and Selection of NOTCH Target Genes

For the development of the Notch pathway assay, we selected high evidence direct target genes of NOTCH. This selection was based on (i) the presence of minimally one binding element in the promoter region, (ii) the functionality of these binding elements that have been assessed, for instance, by gene promoter-reporter studies, (iii) the binding of ICN to the respective response/enhancer element using ChIP and/or Electrophoretic Mobility Shift Assay, (iv) their differential expression upon pathway activation and/or inhibition, and (v) the consistency of evidence as reported by multiple research groups for multiple cell/tissue types. Based on such accumulated experimental evidence as described before [22,23,24], we selected 18 direct target genes, CD44, DTX1, EPHB3, HES1, HES4, HES5, HES7, HEY1, HEY2, HEYL, MYC, NFKB2, NOX1, NRARP, PBX1, PIN1, PLXND1 and SOX9 (Table S1) [40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82]. This number is sufficient for the robust and sensitive prediction of the pathway activity while comprising only high evidence target genes that enable maximal specificity over multiple cell types.

2.2. Calibration and Validation of the Notch Pathway Activity Assay

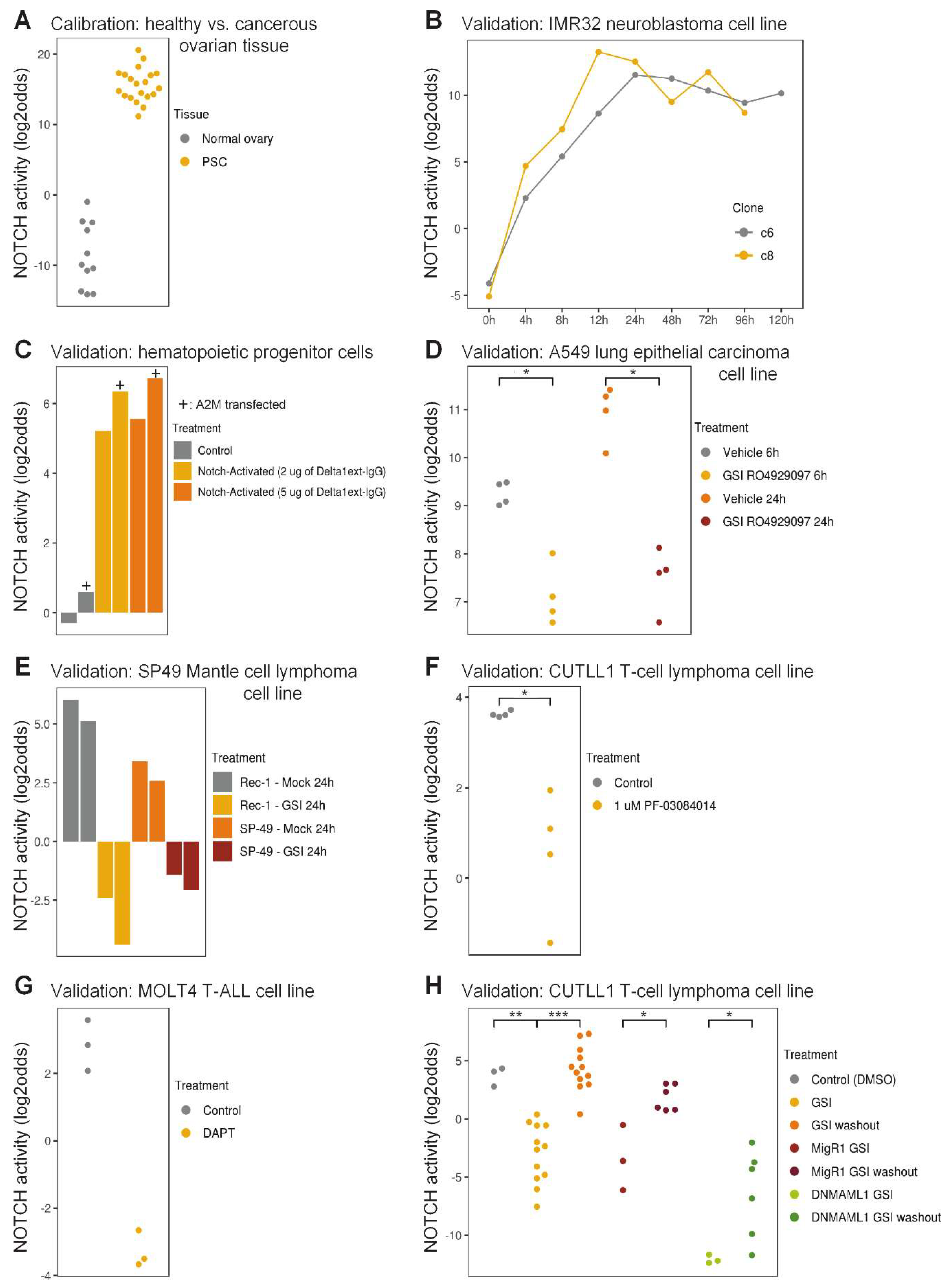

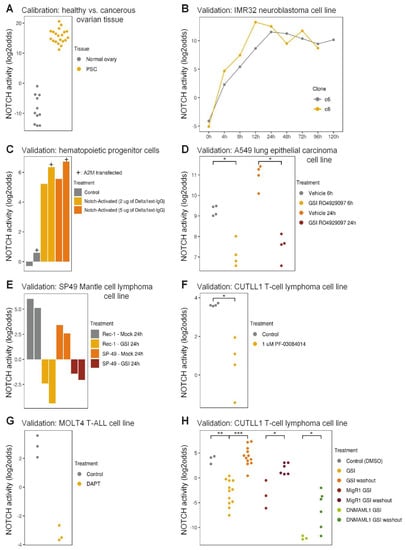

We calibrated the Notch pathway assay using data from high-grade serous (HGS) ovarian cancer samples with high Notch pathway activity, and normal ovarian tissue samples with low Notch pathway activity (Figure 1A). While in healthy ovarian tissue samples the Notch pathway is inactive, HGS ovarian cancer is associated with an active Notch pathway and activating NOTCH3 gene mutations or amplifications in about two third of the patients [83,84,85,86]. Following the freezing of the Notch pathway model, it was validated on various independent datasets from cells of different tissue origins with Notch pathway-activated or gamma-secretase inhibited conditions, including cell types from ectodermal (neuroblastoma) and endodermal (lung cancer cells) origins, in contrast to the mesodermal origin of the ovarian cancer samples the model had been calibrated on (Figure 1B–H). Two independent clones of a neuroblastoma cell line transfected with ICN3 showed a rapid and persistent quantitative increase in Notch pathway activity score, starting within 4 h and reaching a plateau activity at 12 h after transfection (Figure 1B). In leukemia, the AF1Q-MLLT11 fusion protein confers sensitivity to ligand-induced Notch pathway signaling [87,88]. Hematopoietic progenitor cells (CD34+CD45RA-Lin-) from umbilical cord blood were transduced with the A2M mutant version of this fusion product that sequesters it in the nucleus. Following a three-day exposure to immobilized NOTCH ligand Delta1ext-IgG at two different dose levels, high Notch pathway activity scores were measured for both mock and A2M transduced cells (Figure 1C). As expected, the Notch pathway activity scores were higher for A2M-transduced cells than control cells. This result provides additional evidence for the ability of the Notch pathway assay to quantify small differences in Notch pathway activity. In other experimental designs in which Notch pathway activity was inhibited by exposure to gamma-secretase inhibitors (GSIs), the robustness of the assay for various additional cell types was validated. A549 lung cancer cells exposed to the GSI RO4929097 for 6 or 24 h scored a significantly lower Notch pathway activity than control A549 cells (Figure 1D). Similar findings were found for the GSI-exposed Mantle B-cell lymphoma cell line SP-49 and the NOTCH mutant Rec-1 line [89] (Figure 1E), and for the T-cell lymphoma and leukemia cell lines CUTLL1 and MOLT4 (Figure 1F,G). In CUTLL1 cells, the wash-out of the GSI resulted in the reactivation of the Notch pathway, which was accurately quantified (Figure 1H). Furthermore, a dominant-negative form of the NOTCH cofactor MAML1 (DNMAML1) synergized with GSI and resulted in the lowest Notch pathway activity score. Interestingly, in this study the removal of GSI was performed both in the absence and presence of the protein translation inhibitor cycloheximide, so as to exclude any feedback or secondary effects from NOTCH-induced gene products. The measured Notch pathway activity scores were independent of protein translation, confirming that all genes that are part of the computational Notch pathway model are indeed direct target genes (Figure S1). In summary, these results demonstrate that the ovarian cancer-calibrated Notch pathway assay can be used to measure Notch pathway activity levels in T-cells, while the limited results available on other cell types suggest that the assay may also be usable in cell types of endodermal and ectodermal origin.

2.3. Notch Pathway Activity in Pediatric T-ALL Patient Samples

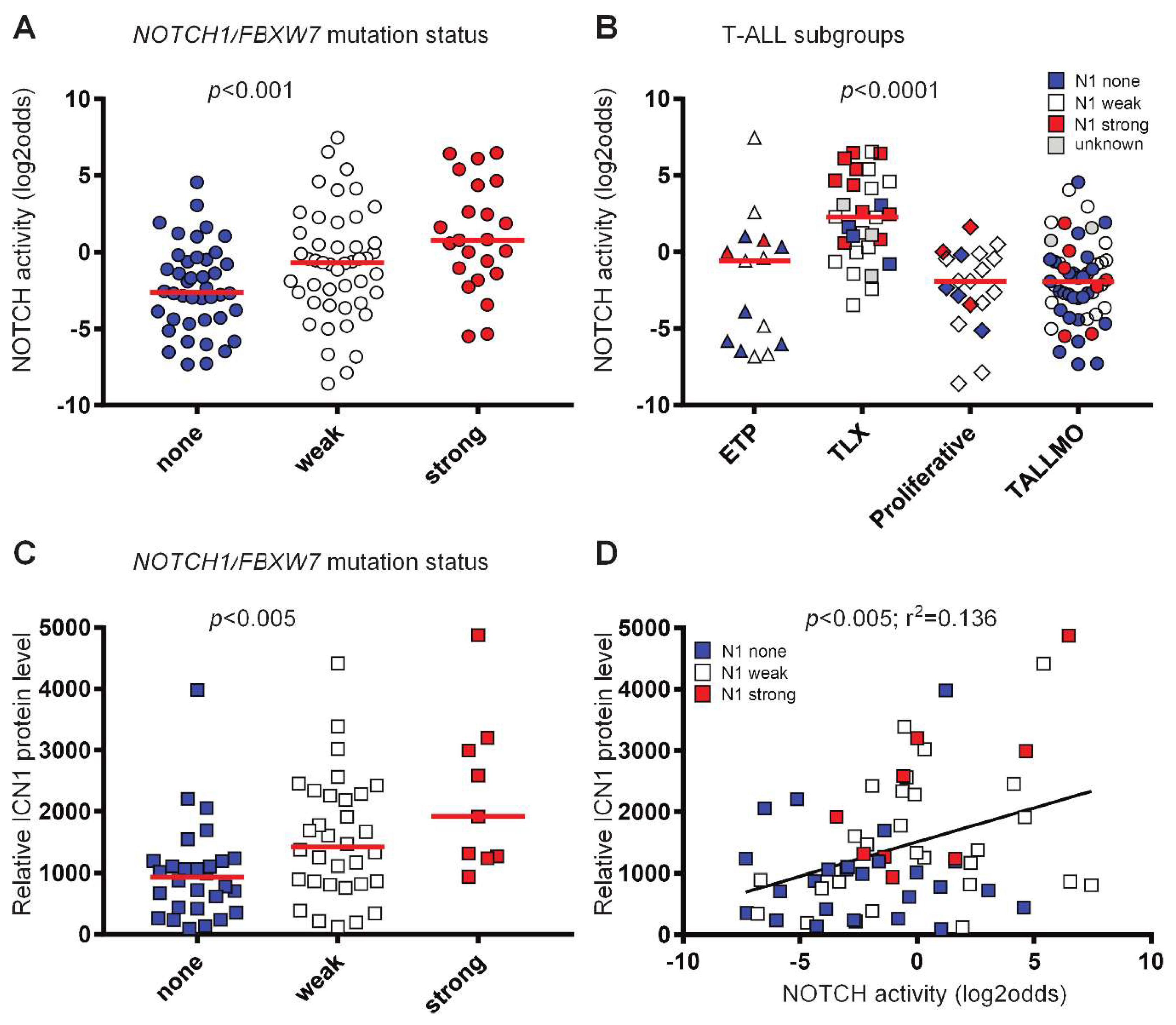

Following biological validation of the Notch pathway assay, we measured the Notch pathway activity scores in diagnostic samples from 117 pediatric T-ALL patients. This dataset has been previously used to distinguish four main T-ALL subgroups (ETP-ALL/immature, TLX, Proliferative and TALLMO) based on their differential gene expression profiles that strongly correlate with unique oncogenic rearrangements [98]. Notch pathway activity scores ranged from −8.59 to 7.45 on the linear log2 odds scale. To investigate these scores in relation to the presence of specific types of Notch pathway-activating mutations, we categorized NOTCH1 mutations into weak or strong activating mutations, as done before [35,99,100]. Weak NOTCH1 activating mutations are considered mutations in the NOTCH1 heterodimerization domain (HD) or PEST domain, or inactivating mutations in FBXW7. Strong NOTCH1-activating mutations are mutations in the juxtamembrane domain, or HD-mutations combined with PEST domain or FBXW7 mutations. Based on this division, the median Notch pathway activity score was lowest for the patient samples without NOTCH-activating mutations, and highest for the samples with strong NOTCH1-activating mutations (p < 0.001; Figure 2A). Still, there is considerable overlap in activity scores among these groups. To investigate the potential effect of differences in genetic background among patients, we compared Notch pathway activity levels between the four T-ALL subtypes. The TLX subtype had the highest Notch pathway activity scores compared to the other subtypes, and included 10 out of 23 patient samples with strong NOTCH mutations (Figure 2B). Various TLX samples without, or with only weak, NOTCH-activating mutations also had high Notch pathway activity scores, further supporting the previous observation that alternative Notch pathway-activating mechanisms may exist. We then related the activity scores to intracellular NOTCH1 (ICN1) levels as measured using reverse-phase protein array for 62 patient samples [35]. We observed a significant relationship between ICN1 levels and the absence or presence of NOTCH1-activating mutations (Figure 2C), and between ICN1 levels and the Notch pathway activity scores (Figure 2D). The significance of the correlation between ICN1 levels and Notch pathway activity was mainly attributed to the strong NOTCH1-activating mutations, as the significance was lost for patient samples without, or with only weak, NOTCH1-activating mutations (Figure S2). This raised the question of whether those samples could harbor other Notch pathway-activating mechanisms. For this, we assessed NOTCH3 protein levels as an alternative Notch pathway-activating mechanism for various NOTCH1/FBXW7 non-mutated T-ALL patient samples with low ICN1 levels but high Notch pathway activity scores. We did not find expression of NOTCH3 protein in these or other T-ALL samples tested. We then excluded the influence of bone marrow or peripheral blood origin of the T-ALL samples on the Notch pathway activity scores. Therefore, the incidental discrepancy between ICN and Notch pathway activity scores remains unclear. In conclusion, the results show that the Notch pathway assay quantitatively measures Notch pathway activity not only in cell line systems, but also in a cohort of primary T-ALL patient samples.

2.4. Notch Pathway Activity and T-ALL Patient Survival

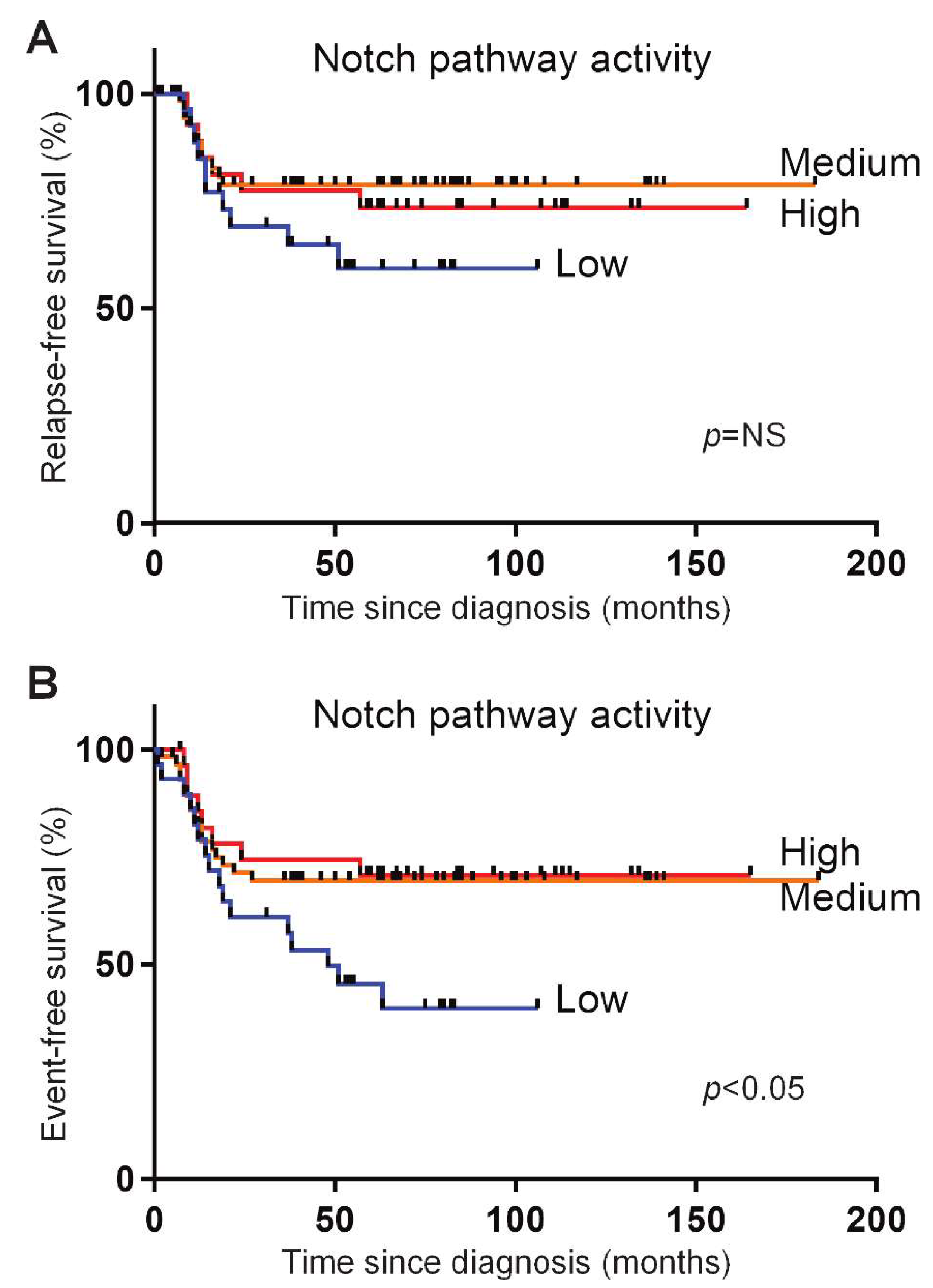

The prognostic significance of NOTCH-activating mutations is not consistent in various patient studies [36]. Part of this may be due to the mechanisms, other than activating mutations in hotspots of NOTCH1 or FBXW7, that activate Notch signaling in T-ALL patients, and which may explain the large overlap in the Notch pathway activity levels for T-ALL patients with and without NOTCH/FBXW7 mutations. In order to investigate outcomes in relation to Notch pathway activity, we divided the T-ALL patients into three groups based on their NOTCH activity scores: a group with the highest NOTCH activity scores (>75th percentile), a group with the lowest activity scores (<25th percentile) and a group with intermediate activity scores (between the 25th and 75th percentiles of activity scores). When assessing the event-free and relapse-free survival curves, we observed that the patients with the lowest activity scores had the shortest event-free survival compared to both of the other groups (p < 0.05), while relapse-free survival showed the same trend (Figure 3A,B).

2.5. Relation between Notch Pathway Activity and PTEN Loss

The group with the lowest NOTCH activity scores contained patients that lacked either PTEN protein and/or had inactivating mutations or deletions in PTEN. We found an increased percentage of patients (11 out of 29, 38%) with functional PTEN loss in the group with the lowest Notch pathway activity, whereas only 12 out of the 84 patients (14%) with intermediate and high Notch pathway activity scores had functional PTEN loss (p = 0.006, Pearson Chi-Square, 2-sided).

3. Discussion

We have developed an assay to measure Notch pathway activity, consisting of a Bayesian network computational model which calculates a pathway activity score based on target gene expression levels. The set of NOTCH target genes was selected based on experimental evidence, irrespective of cell type or gene function [22,23,24]. The computational model was successfully validated on a variety of samples from different cell types with known Notch pathway activity, i.e., brain, lung, hematopoietic stem cells, and T-ALL cell lines. This suggests that the assay can be used on multiple different cell types without model recalibration, even across cell types originating from different embryonic germ layers. This is to a large extent enabled by the selection of high evidence direct transcriptional target genes of the NOTCH transcription factor family (e.g., NOTCH1, NOTCH2, NOTCH3), eliminating cell type-specific influences on target gene expression as much as possible. In addition, the Bayesian network model is well suited to handling variations in input data, which presents a crucial advantage when analyzing patient samples that are intrinsically highly variable in gene expression regulation [22]. Other RNA-based pathway analysis tools are available, mainly for biomarker discovery applications, and differences have been discussed before [22,24,101,102,103]. In short, we use a knowledge-based Bayesian modeling approach as opposed to a more generally used data-driven approach, thus avoiding common problems with data-overfitting. This approach improves specificity in measuring signaling pathway activity, and enables development as a diagnostic assay across multiple disease types.
To explore the clinical utility of the biologically validated Notch pathway model, we have analyzed diagnostic samples from 117 pediatric T-ALL patients. We found that the Notch pathway activity score was related to the presence of NOTCH1-activating mutations and the type of mutations, and was correlated to the levels of ICN protein in these samples. Correspondingly, we found the highest Notch pathway activity scores in the TLX subgroup, a group that we described before as having the highest incidence of NOTCH1-activating mutations [35]. Most T-ALL patients in this T-ALL subgroup (21 out of 30 patients) bear TLX3-BCL11B rearrangements [98]. Moreover, the TLX subgroup is related to gamma-delta T-cell lineage development [104]. Interestingly, human gamma-delta T-cell lineage development especially depends on high Notch pathway activity levels, in contrast to alpha-beta T-lineage development [77]. The proliferative and TALLMO subgroups, which are associated with the early and late cortical stages of the alpha-beta T-lineage, respectively, indeed have lower Notch pathway activity scores. Therefore, the NOTCH dependency in normal development mirrors that of the respective T-ALL subgroups. Remarkably, about half of the ETP-ALL patients seem to have an activated Notch signaling pathway based on measured activity scores, despite their overall lower incidence of NOTCH-activating mutations [105]. We observed that various samples without, or with weak, NOTCH-activating mutations still have high Notch pathway activity scores [35]. This is especially evident for patients from the TLX subgroup, and points to other, as yet unidentified, mutations outside the present hotspot regions or other mechanisms that may activate the Notch pathway in T-ALL.
The patients with a Notch pathway activity score in the lowest 25th percentile had the worst event-free and relapse-free survival. Interestingly, NOTCH mutations in this cohort were not associated with beneficial outcomes, as reported before [35], while other studies identified activating NOTCH mutations as a favorable prognostic factor [37,38,39]. This result suggests that scoring the Notch pathway activity might be a more reliable method for determining prognosis than identifying NOTCH-activating mutations. In addition, the Notch pathway test has the potential to improve the stratification of patients to novel therapies targeting the Notch pathway.
The patients with the lowest Notch pathway activity scores were more likely to have functional PTEN loss, indicating that Notch pathway activation and PTEN inactivation reflect two distinct T-ALL entities, as we and others have reported before [100,106]. PTEN aberrancies are often found in the TALLMO T-ALL subgroup, in which they occur mutually exclusively with strong NOTCH1 mutations [100]. Moreover, patients with PTEN aberrancies have been shown to have an inferior survival rate [100,106]. The finding that PTEN aberrancies occurred more often in the patients with the lowest Notch pathway activity helps explain the inferior event-free/relapse-free survival of this group.
Overall, our results indicate that Notch pathway activity cannot be deduced from the presence of activating mutations only, which may provide an explanation for the differences in the prognostic significance of NOTCH-activating mutations in various pediatric and adult patient cohorts [36].
While the here-described Notch pathway assay is expected to be of value for a broad range of diseases, as well as for preclinical research and drug development, the first envisioned clinical application is therapy response prediction, e.g., to NOTCH inhibitors, for T-ALL, small cell lung cancer and other malignancies. To enable the use of the Notch pathway activity assay on formalin-fixed paraffin-embedded tissue samples, which are the standard in pathology diagnostics, the here-described Affymetrix-based Notch pathway activity test has been converted to an RT-qPCR-based test, which can be performed using standard lab equipment (in principle within three hours). To enable the determination of Notch pathway activity from RNA sequencing data, the assay has been converted to an RNAseq-based assay (www.philips.com/oncosignal). The conversion procedure has been described before, and does not involve the addition of new target genes [104,107]. These assays will be used in future clinical validation studies.

4. Materials and Methods

4.1. Development of the Notch Pathway Assay

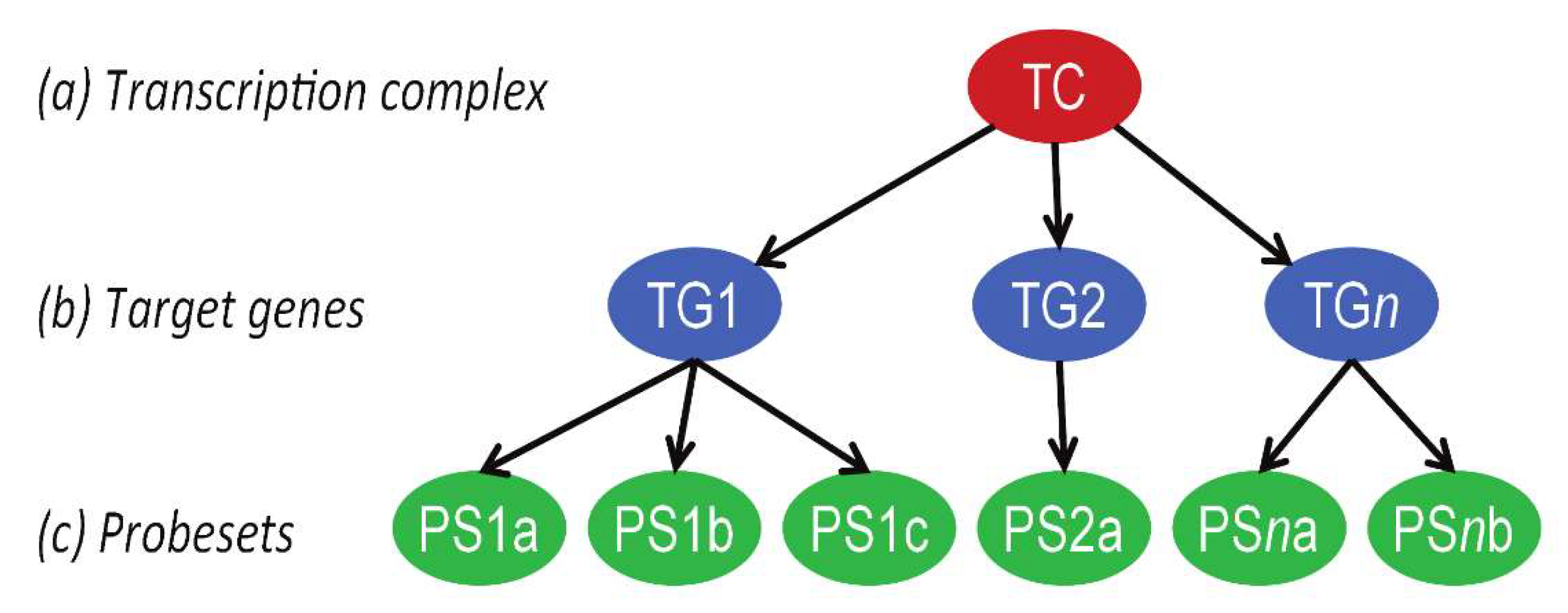

The mathematical approach to developing Bayesian network models for the measurement of signal transduction pathway activity, based on mRNA expression analysis, has been described in detail before [24]. In brief, a causal computational network model for the Notch signal transduction pathway was generated that calculates the probability that NOTCH transcription factors are active, based on the expression levels of direct target genes (Figure 4). The Bayesian network describes the causal relation between the up- or downregulation of NOTCH target genes and the presence of an active or inactive NOTCH transcription complex. The parameters that describe this relationship are based on literature evidence, and are calibrated on patient samples with known Notch pathway activity. Target genes for the Notch pathway assay were selected according to the same principles as described before, using the available scientific literature [22,24]. The probesets of direct target genes from the publicly available Affymetrix (Santa Clara, CA, USA) HG-U133Plus2.0 microarray datasets were selected using the Bioconductor package, hgu133plus2.db, available in the statistical environment R and manually curated using GRCh38/hg38, available on the UCSC Genome Browser (www.genome.ucsc.edu, last access 9-30-2020) [26,28,32,108,109]. Probesets representing intronic sequences, probesets on opposite strands, and other chromosomal sequences than the respective target gene, were excluded. Probesets that were missing in Bioconductor were added.

4.2. Calibration and Validation of the Notch Pathway Activity Model

The Notch pathway Bayesian model, intended for generic use across different cell and tissue types, was calibrated on a single public dataset containing data from normal (low Notch pathway activity) and high-grade serous ovarian cancer (high Notch pathway activity) tissue samples [86]. Following calibration, the model parameters were frozen. Subsequently, given that the Bayesian model describes how expression and probeset measurements depend causally on pathway activity, it can be used to reason backwards from a set of given measurements to assess the likelihood that the pathway was active. Upon entering new mRNA probeset measurements into the model, this reasoning is performed by Bayesian inference, which yields the odds that the pathway is active vs. not, after which we apply a log2 transformation to obtain a symmetric scale with higher resolution at the extreme ends [22,23]. The resulting Notch pathway score reflects the amount of evidence delivered by the target gene expression levels for being active, and thus is a read-out of functional Notch signaling pathway activity. In general, higher target gene expression levels will lead to higher Notch activity, and vice versa. The model-based Notch pathway assay was validated using multiple independent Affymetrix datasets containing gene expression data from samples with known Notch pathway activity.

4.3. Microarray Data Source and Quality Control

The Affymetrix HG-U133Plus2.0 datasets used for Notch pathway model calibration and validation, and for the Notch pathway analysis of T-ALL (GSE26713), are available at the GEO website (www.ncbi.nlm.nih.gov/geo, last access 9-30-2020). GEO datasets have been listed with their associated publications in the figure legends. Before using the microarray data, extensive quality control was performed on the Affymetrix data from each individual sample, based on 12 different quality parameters according to Affymetrix’s recommendations and previously published literature [22,110,111], and then they were further preprocessed in the statistical environment R using frozen RMA [112] with ‘robust weighted average’ summarization.

4.4. Description of the T-ALL Pediatric Patient Cohort

The Affymetrix HG-U133Plus2.0 gene expression profiles (GSE26713) from diagnostic biopsies of 117 T-ALL patients, who were treated according to the German co-operative study group for childhood ALL-97 protocol (COALL-97) or the Dutch Childhood Oncology Group (DCOG) protocols ALL-7,-8 or -9, were used in this study [98]. The patient data used in this study were obtained with informed consent from the subjects’ guardians and in accordance with the Declaration of Helsinki.

4.5. Statistics

For the validations of the Notch pathway model, two-sided Wilcoxon signed-rank statistical tests were performed. Other used statistical methods that are more appropriate due to the content of a specific dataset are indicated in the figure legends. For pathway correlation statistics, both Pearson correlation and Spearman rank correlation tests were performed; since the results were similar, only the Pearson correlation coefficient and associated p-value are reported. For outcome analysis, Kaplan–Meier survival curves were calculated together with the associated p-value using the log-rank test.

4.6. Ethics Approval and Consent to Participate

Informed consent was given in accordance with the Institutional Review Board of the Erasmus MC Rotterdam and in accordance with the Declaration of Helsinki.

5. Conclusions

We have developed an assay to measure Notch pathway activity, which calculates a pathway activity score that is based on the expression levels of conserved Notch direct target genes. This assay was successfully validated by detecting the Notch activity in a variety of tumor models of different cellular origins with known Notch pathway activity, i.e., brain, lung, hematopoietic stem cells, and T-ALL cell lines. Our assay is expected to be of value for a broad range of diseases, as well as for preclinical research and drug development. The first envisioned clinical application is therapy response prediction, e.g., to NOTCH inhibitors, for T-ALL, small cell lung cancer and other malignancies.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6694/12/11/3142/s1, Table S1: Scoring of NOTCH target genes with respect to evidence as to direct gene regulation by Notch transcription factors, Figure S1: Extended validation of the Notch pathway model in CUTLL1 cells, Figure S2: Correlations of ICN1 level and Notch pathway activity, divided per NOTCH1-activating mutation status.

Author Contributions

Conceptualization, W.V., A.v.d.S. and J.P.P.M.; Formal analysis, K.C.-B., L.H., R.H., V.C., A.v.d.S. and J.P.P.M.; Methodology, K.C.-B., L.H., H.v.O., W.V., A.v.d.S. and J.P.P.M.; Project administration, H.v.O. and J.P.P.M.; Supervision, A.v.d.S. and J.P.P.M.; Validation, L.H.; Visualization, K.C.-B., L.H. and R.H.; writing—original draft, K.C.-B., R.H., V.C. and A.v.d.S.; writing—review and editing, K.C.-B., L.H., A.v.d.S. and J.P.P.M. All authors have read and agreed to the published version of the manuscript.

Funding

K.C.-B and R.H. are funded by the Dutch ‘Kinderen Kanker Vrij’ foundation grants KiKa-295 and KiKa-219, respectively. V.C. is funded by the Dutch Cancer Society grant KWF-10355.

Conflicts of Interest

Laurent Holtzer, Henk van Ooijen, Wim Verhaegh, Anja van de Stolpe are employees of Royal Philips. The other authors declare no potential conflict of interest.
