# Meta-Atoms with Toroidal Topology for Strongly Resonant Responses

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Metasurface Full-Wave Simulations and Multipole Expansion

#### 2.2. Meta-Atom Fabrication with 3D Printing

#### 2.3. Electromagnetic Characterization with Rectangular Waveguide Setup

## 3. Results

#### 3.1. Free-Space Metasurface with Controllable Strongly Resonant Response

#### 3.2. Meta-Atoms in a Rectangular Waveguide Setup—Experimental Verification

## 4. Discussion and Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Afanasiev, G.N.; Stepanovsky, Y.P. The electromagnetic field of elementary time-dependent toroidal sources. J. Phys. A
**1995**, 28, 4565–4580. [Google Scholar] [CrossRef][Green Version] - Radescu, E.E.; Vaman, G. Exact calculation of the angular momentum loss, recoil force, and radiation intensity for an arbitrary source in terms of electric, magnetic, and toroid multipoles. Phys. Rev. E
**2002**, 65, 046609. [Google Scholar] [CrossRef] - Savinov, V.; Fedotov, V.A.; Zheludev, N.I. Toroidal dipolar excitation and macroscopic electromagnetic properties of metamaterials. Phys. Rev. B
**2014**, 89, 205112. [Google Scholar] [CrossRef] - Papasimakis, N.; Fedotov, V.A.; Savinov, V.; Raybould, T.A.; Zheludev, N.I. Electromagnetic toroidal excitations in matter and free space. Nat. Mater.
**2016**, 15, 263–271. [Google Scholar] [CrossRef][Green Version] - Alaee, R.; Rockstuhl, C.; Fernandez-Corbaton, I. Exact Multipolar Decompositions with Applications in Nanophotonics. Adv. Opt. Mater.
**2019**, 7, 1800783. [Google Scholar] [CrossRef][Green Version] - Zel’dovich, Y.B. Electromagnetic Interaction with Parity Violation. Sov. Phys. JETP
**1958**, 6, 1184. [Google Scholar] - Kaelberer, T.; Fedotov, V.A.; Papasimakis, N.; Tsai, D.P.; Zheludev, N.I. Toroidal dipolar response in a metamaterial. Science
**2010**, 330, 1510–1512. [Google Scholar] [CrossRef][Green Version] - Basharin, A.A.; Kafesaki, M.; Economou, E.N.; Soukoulis, C.M.; Fedotov, V.A.; Savinov, V.; Zheludev, N.I. Dielectric Metamaterials with Toroidal Dipolar Response. Phys. Rev. X
**2015**, 5, 011036. [Google Scholar] [CrossRef][Green Version] - Tasolamprou, A.C.; Tsilipakos, O.; Kafesaki, M.; Soukoulis, C.M.; Economou, E.N. Toroidal eigenmodes in all-dielectric metamolecules. Phys. Rev. B
**2016**, 94, 205433. [Google Scholar] [CrossRef][Green Version] - Zografopoulos, D.C.; Ferraro, A.; Algorri, J.F.; Martín-Mateos, P.; García-Cámara, B.; Moreno-Oyervides, A.; Krozer, V.; Acedo, P.; Vergaz, R.; Sánchez-Pena, J.M.; et al. All-Dielectric Silicon Metasurface with Strong Subterahertz Toroidal Dipole Resonance. Adv. Opt. Mater.
**2019**, 7, 1900777. [Google Scholar] [CrossRef][Green Version] - Jeong, J.; Goldflam, M.D.; Campione, S.; Briscoe, J.L.; Vabishchevich, P.P.; Nogan, J.; Sinclair, M.B.; Luk, T.S.; Brener, I. High Quality Factor Toroidal Resonances in Dielectric Metasurfaces. ACS Photonics
**2020**, 7, 1699–1707. [Google Scholar] [CrossRef] - Zografopoulos, D.C.; Algorri, J.F.; Fuscaldo, W.; López-Higuera, J.M.; Vergaz, R.; Sánchez-Pena, J.M.; Karolos, I.A.; Beccherelli, R.; Tsioukas, V.E.; Yioultsis, T.V.; et al. All-Dielectric Toroidal Metasurfaces for Angular-Dependent Resonant Polarization Beam Splitting. Adv. Opt. Mater.
**2021**, 9, 2002143. [Google Scholar] [CrossRef] - Basharin, A.A.; Chuguevsky, V.; Volsky, N.; Kafesaki, M.; Economou, E.N. Extremely high Q-factor metamaterials due to anapole excitation. Phys. Rev. B
**2017**, 95, 035104. [Google Scholar] [CrossRef][Green Version] - Liu, Z.; Du, S.; Cui, A.; Li, Z.; Fan, Y.; Chen, S.; Li, W.; Li, J.; Gu, C. High-Quality-Factor Mid-Infrared Toroidal Excitation in Folded 3D Metamaterials. Adv. Mater.
**2017**, 29, 1606298. [Google Scholar] [CrossRef] - Wu, P.C.; Liao, C.Y.; Savinov, V.; Chung, T.L.; Chen, W.T.; Huang, Y.; Wu, P.R.; Chen, Y.; Liu, A.; Zheludev, N.I.; et al. Optical Anapole Metamaterial. ACS Nano
**2018**, 12, 1920–1927. [Google Scholar] [CrossRef][Green Version] - Fan, Y.; Wei, Z.; Li, H.; Chen, H.; Soukoulis, C.M. Low-loss and high-Q planar metamaterial with toroidal moment. Phys. Rev. B
**2013**, 87, 115417. [Google Scholar] [CrossRef][Green Version] - Cong, L.; Srivastava, Y.K.; Singh, R. Tailoring the multipoles in THz toroidal metamaterials. Appl. Phys. Lett.
**2017**, 111, 081108. [Google Scholar] [CrossRef] - Gupta, M.; Savinov, V.; Xu, N.; Cong, L.; Dayal, G.; Wang, S.; Zhang, W.; Zheludev, N.I.; Singh, R. Sharp Toroidal Resonances in Planar Terahertz Metasurfaces. Adv. Mater.
**2016**, 28, 8206–8211. [Google Scholar] [CrossRef] - Fan, Y.; Zhang, F.; Shen, N.H.; Fu, Q.; Wei, Z.; Li, H.; Soukoulis, C.M. Achieving a high-Q response in metamaterials by manipulating the toroidal excitations. Phys. Rev. A
**2018**, 97, 033816. [Google Scholar] [CrossRef][Green Version] - Han, S.; Gupta, M.; Cong, L.; Srivastava, Y.K.; Singh, R. Toroidal and magnetic Fano resonances in planar THz metamaterials. J. Appl. Phys.
**2017**, 122, 113105. [Google Scholar] [CrossRef] - Yang, Y.; Bozhevolnyi, S.I. Nonradiating anapole states in nanophotonics: From fundamentals to applications. Nanotechnology
**2019**, 30, 204001. [Google Scholar] [CrossRef] - Christopoulos, T.; Tsilipakos, O.; Sinatkas, G.; Kriezis, E.E. On the calculation of the quality factor in contemporary photonic resonant structures. Opt. Express
**2019**, 27, 14505–14522. [Google Scholar] [CrossRef][Green Version] - Pu, M.; Hu, C.; Huang, C.; Wang, C.; Zhao, Z.; Wang, Y.; Luo, X. Investigation of Fano resonance in planar metamaterial with perturbed periodicity. Opt. Express
**2013**, 21, 992. [Google Scholar] [CrossRef] - Jenkins, S.D.; Ruostekoski, J.; Papasimakis, N.; Savo, S.; Zheludev, N.I. Many-Body Subradiant Excitations in Metamaterial Arrays: Experiment and Theory. Phys. Rev. Lett.
**2017**, 119, 053901. [Google Scholar] [CrossRef][Green Version] - Tsilipakos, O.; Maiolo, L.; Maita, F.; Beccherelli, R.; Kafesaki, M.; Kriezis, E.E.; Yioultsis, T.V.; Zografopoulos, D.C. Experimental demonstration of ultrathin broken-symmetry metasurfaces with controllably sharp resonant response. Appl. Phys. Lett.
**2021**, 119, 231601. [Google Scholar] [CrossRef] - Zografopoulos, D.C.; Tsilipakos, O. Recent advances in strongly resonant and gradient all-dielectric metasurfaces. Mater. Adv.
**2023**, 4, 11–34. [Google Scholar] [CrossRef] - Shi, L.; Evlyukhin, A.B.; Reinhardt, C.; Babushkin, I.; Zenin, V.A.; Burger, S.; Malureanu, R.; Chichkov, B.N.; Morgner, U.; Kovacev, M. Progressive Self-Boosting Anapole-Enhanced Deep-Ultraviolet Third Harmonic During Few-Cycle Laser Radiation. ACS Photonics
**2020**, 7, 1655–1661. [Google Scholar] [CrossRef] - Timofeeva, M.; Lang, L.; Timpu, F.; Renaut, C.; Bouravleuv, A.; Shtrom, I.; Cirlin, G.; Grange, R. Anapoles in Free-Standing III–V Nanodisks Enhancing Second-Harmonic Generation. Nano Lett.
**2018**, 18, 3695–3702. [Google Scholar] [CrossRef][Green Version] - Ahmadivand, A.; Semmlinger, M.; Dong, L.; Gerislioglu, B.; Nordlander, P.; Halas, N.J. Toroidal Dipole-Enhanced Third Harmonic Generation of Deep Ultraviolet Light Using Plasmonic Meta-atoms. Nano Lett.
**2018**, 19, 605–611. [Google Scholar] [CrossRef] - Totero Gongora, J.S.; Miroshnichenko, A.E.; Kivshar, Y.S.; Fratalocchi, A. Anapole nanolasers for mode-locking and ultrafast pulse generation. Nat. Commun.
**2017**, 8, 15535. [Google Scholar] [CrossRef][Green Version] - Ahmadivand, A.; Gerislioglu, B.; Manickam, P.; Kaushik, A.; Bhansali, S.; Nair, M.; Pala, N. Rapid Detection of Infectious Envelope Proteins by Magnetoplasmonic Toroidal Metasensors. ACS Sensors
**2017**, 2, 1359–1368. [Google Scholar] [CrossRef] - Ahmadivand, A.; Gerislioglu, B.; Ramezani, Z.; Ghoreishi, S.A. Attomolar Detection of Low-Molecular Weight Antibiotics Using Midinfrared-Resonant Toroidal Plasmonic Metachip Technology. Phys. Rev. Appl.
**2019**, 12, 034018. [Google Scholar] [CrossRef] - Gupta, M.; Singh, R. Toroidal metasurfaces in a 2D flatland. Rev. Phys.
**2020**, 5, 100040. [Google Scholar] [CrossRef] - Takou, E.; Tasolamprou, A.C.; Tsilipakos, O.; Economou, E.N. Dynamic anapole in metasurfaces made of sculptured cylinders. Phys. Rev. B
**2019**, 100, 085431. [Google Scholar] [CrossRef][Green Version] - Takou, E.; Tasolamprou, A.C.; Tsilipakos, O.; Viskadourakis, Z.; Kafesaki, M.; Kenanakis, G.; Economou, E.N. Anapole Tolerance to Dissipation Losses in Thermally Tunable Water-Based Metasurfaces. Phys. Rev. Appl.
**2021**, 15, 014043. [Google Scholar] [CrossRef] - Viskadourakis, Z.; Tamiolakis, E.; Tsilipakos, O.; Tasolamprou, A.C.; Economou, E.N.; Kenanakis, G. 3D-Printed Metasurface Units for Potential Energy Harvesting Applications at the 2.4 GHz Frequency Band. Crystals
**2021**, 11, 1089. [Google Scholar] [CrossRef] - Tasolamprou, A.C.; Mentzaki, D.; Viskadourakis, Z.; Economou, E.N.; Kafesaki, M.; Kenanakis, G. Flexible 3D Printed Conductive Metamaterial Units for Electromagnetic Applications in Microwaves. Materials
**2020**, 13, 3879. [Google Scholar] [CrossRef] - Ishikawa, A.; Kato, T.; Takeyasu, N.; Fujimori, K.; Tsuruta, K. Selective electroless plating of 3D-printed plastic structures for three-dimensional microwave metamaterials. Appl. Phys. Lett.
**2017**, 111, 183102. [Google Scholar] [CrossRef][Green Version] - Taghizadeh, A.; Mørk, J.; Chung, I.S. Ultracompact resonator with high quality-factor based on a hybrid grating structure. Opt. Express
**2015**, 23, 14913. [Google Scholar] [CrossRef][Green Version] - Tsilipakos, O.; Zhang, L.; Kafesaki, M.; Soukoulis, C.M.; Koschny, T. Experimental Implementation of Achromatic Multiresonant Metasurface for Broadband Pulse Delay. ACS Photonics
**2021**, 8, 1649–1655. [Google Scholar] [CrossRef] - Zografopoulos, D.C.; Algorri, J.F.; Ferraro, A.; García-Cámara, B.; Sánchez-Pena, J.M.; Beccherelli, R. Toroidal metasurface resonances in microwave waveguides. Sci. Rep.
**2019**, 9, 7544. [Google Scholar] [CrossRef] [PubMed][Green Version]

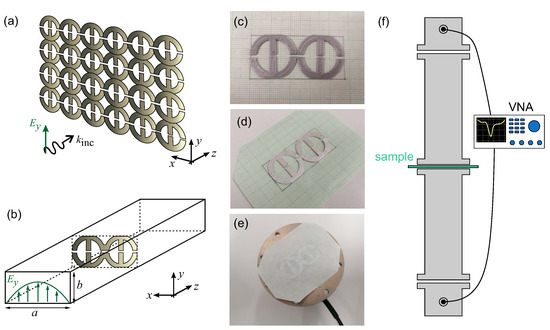

**Figure 1.**(

**a**) Periodic metasurface illuminated with a normally incident plane wave of ${E}_{y}$ polarization. (

**b**) Two unit cells fitted in a rectangular metallic waveguide. (

**c**) 3D-printed unit cells using a PLA filament. (

**d**) Structure after coating with a conductive silver paste. (

**e**) Test fitting of the structure under study on the flange of the waveguide-to-coax adapter. The unit cells are lightweight and can be simply glued on a piece of paper and inserted at any junction between waveguide segments. (

**f**) Measurement setup including a vector network analyzer allowing to measure reflection (S${}_{11}$) and transmission (S${}_{21}$) coefficients.

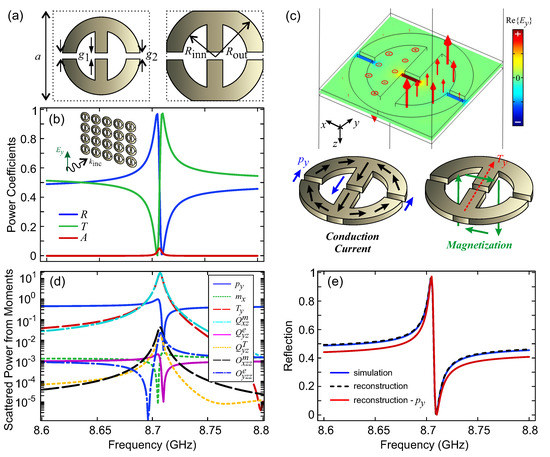

**Figure 2.**(

**a**) Meta-atom geometry. When ${R}_{\mathrm{out}}>a/2$, the neighboring meta-atoms are touching; in this case, no substrate is necessary. (

**b**) R/T/A power coefficients for plane-wave scattering by the periodic metasurface under normal incidence (${E}_{y}$ polarization). The dimensions are $a=15$ mm, ${R}_{\mathrm{out}}=7$ mm, ${R}_{\mathrm{inn}}=5$ mm ($w=2$ mm), ${g}_{1}=0.5$ mm and ${g}_{2}=0.5$ mm. The thickness of the conductive meta-atom is $h=1$ mm. (

**c**) Supported resonance associated with the spectral feature in panel (

**b**). The color corresponds to the ${E}_{y}$ component (real part) and the arrows correspond to the magnetic field distribution. The eigenmode is characterized by a residual electric dipole moment due to counteracting contributions from the inner gap vs. the outer gaps. The magnetic field circulation gives rise to a strong toroidal dipole moment, ${T}_{y}$. (

**d**) Power scattered from each multipole. The toroidal dipole and magnetic quadrupole moments are dominant at the resonant frequency. However, their scattered fields cancel out, since ${E}_{\mathrm{sca}}^{{T}_{y}}=-{E}_{\mathrm{sca}}^{{Q}_{xz}^{m}}$ exactly. Thus, the response is dictated by the residual electric dipole moment, ${p}_{y}$. (

**e**) Comparison of the reflection coefficient calculated from the full-wave simulation with those reconstructed from the multipole moments. The response can be described fairly accurately when only the electric dipole moment is considered.

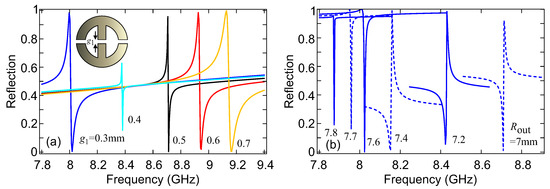

**Figure 3.**(

**a**) Tuning the central gap (${g}_{1}$), while keeping other gaps (${g}_{2}$) constant at 0.5 mm. This controls the residual electric dipole moment and consequently the radiative strength of the resonance. (

**b**) Varying the outer radius for ${R}_{\mathrm{inn}}={R}_{\mathrm{out}}-w$ with $w=2$ mm. As the radius increases, the non-resonant (background) electric dipole moment changes and with it the Fano lineshape. For ${R}_{\mathrm{out}}$ values of 7.6, 7.7, and 7.8 mm, the meta-atoms are touching; this modifies the residual electric dipole moment, as the outer gaps of each meta-atom begin to merge with those of the neighboring one.

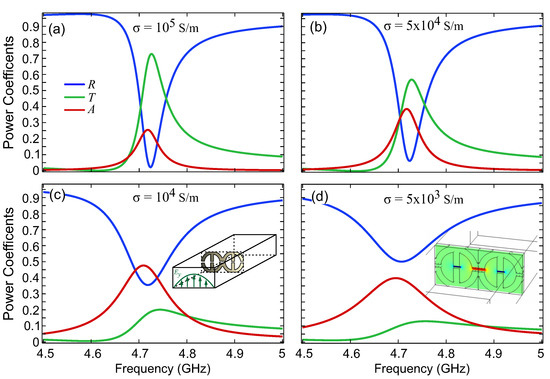

**Figure 4.**Simulations of the 3D-printed conductive unit cells within the WR-187 rectangular waveguide. The reflection ($R=|{S}_{11}{|}^{2}$), transmission ($T=|{S}_{21}{|}^{2}$) and absorption ($A=1-|{S}_{11}{|}^{2}-{\left|{S}_{21}\right|}^{2}$) power coefficients are plotted for different conductivities: (

**a**) $\sigma ={10}^{5}$ S/m, (

**b**) $\sigma =5\times {10}^{4}$ S/m, (

**c**) $\sigma ={10}^{4}$ S/m and (

**d**) $\sigma =5\times {10}^{3}$ S/m. As the conductivity is decreased, the spectral feature becomes broader and the absorption on resonance increases up to a maximum of 0.5 before starting to decrease again.

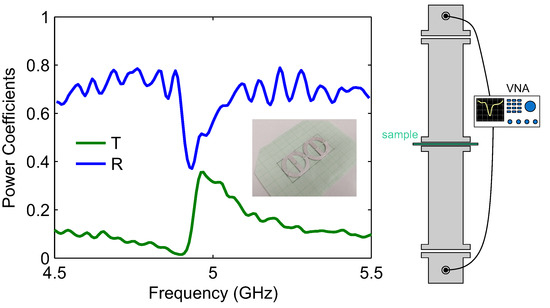

**Figure 5.**Measurement of the 3D-printed conductive unit cells within the WR-187 rectangular waveguide. The reflection ($R=|{S}_{11}{|}^{2}$) and transmission ($T=|{S}_{21}{|}^{2}$) power coefficients are plotted in the frequency range of 4.5–5.5 GHz.

**Table 1.**Quality factors for the cases depicted in Figure 3a. ${g}_{2}$ is held constant at 0.5 mm. They have been calculated using the complex eigenfrequency through $Q={\omega}^{\prime}/\left(2{\omega}^{\u2033}\right)$.

Central Gap ${\mathit{g}}_{1}$ (mm) | Resonant Frequency (GHz) | ${\mathit{Q}}_{\mathbf{tot}}$ |
---|---|---|

0.3 | 8.02 | 446 |

0.4 | 8.37 | 14,000 |

0.5 | 8.71 | 2,114 |

0.6 | 8.94 | 517 |

0.7 | 9.14 | 260 |
