A Simple and Robust Fabrication Process for SU-8 In-Plane MEMS Structures

Department of Electrical and Computer Engineering, University of British Columbia; 3063-2332 Main Mall, Vancouver, BC V6T 1Z4, Canada
*
Author to whom correspondence should be addressed.
Micromachines 2020, 11(3), 317; https://doi.org/10.3390/mi11030317
Received: 21 February 2020 / Revised: 11 March 2020 / Accepted: 18 March 2020 / Published: 18 March 2020
(This article belongs to the Special Issue Polymer Based MEMS and Microfabrication II)

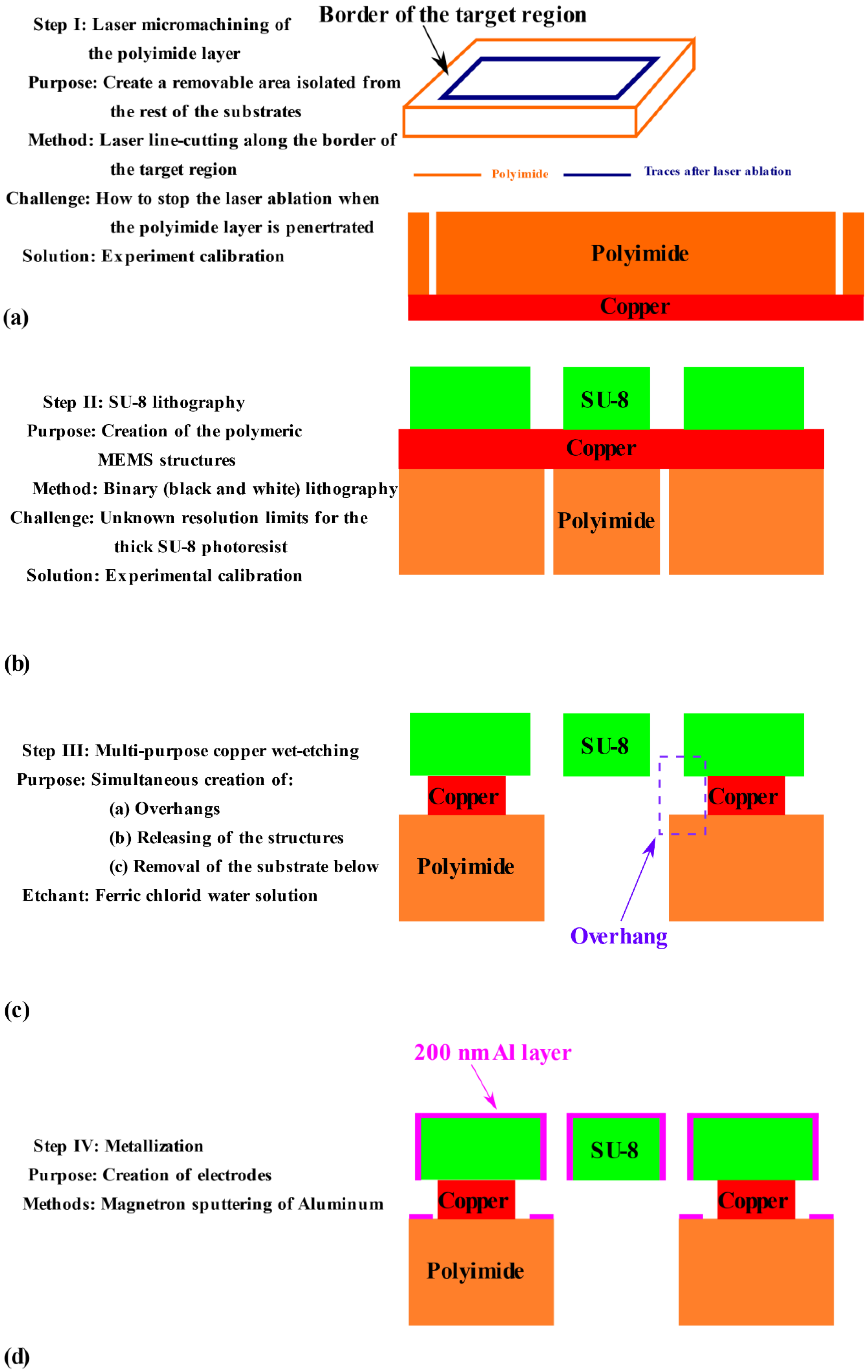

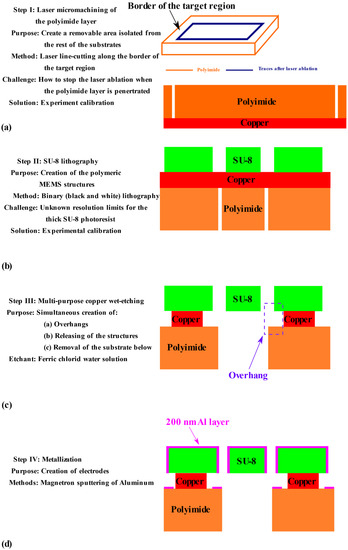

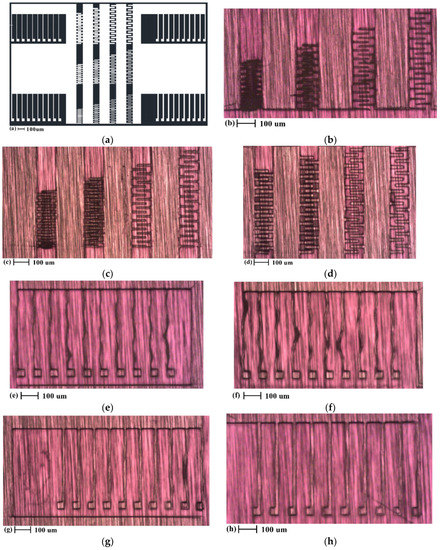

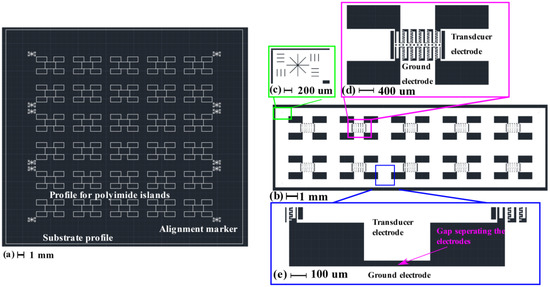

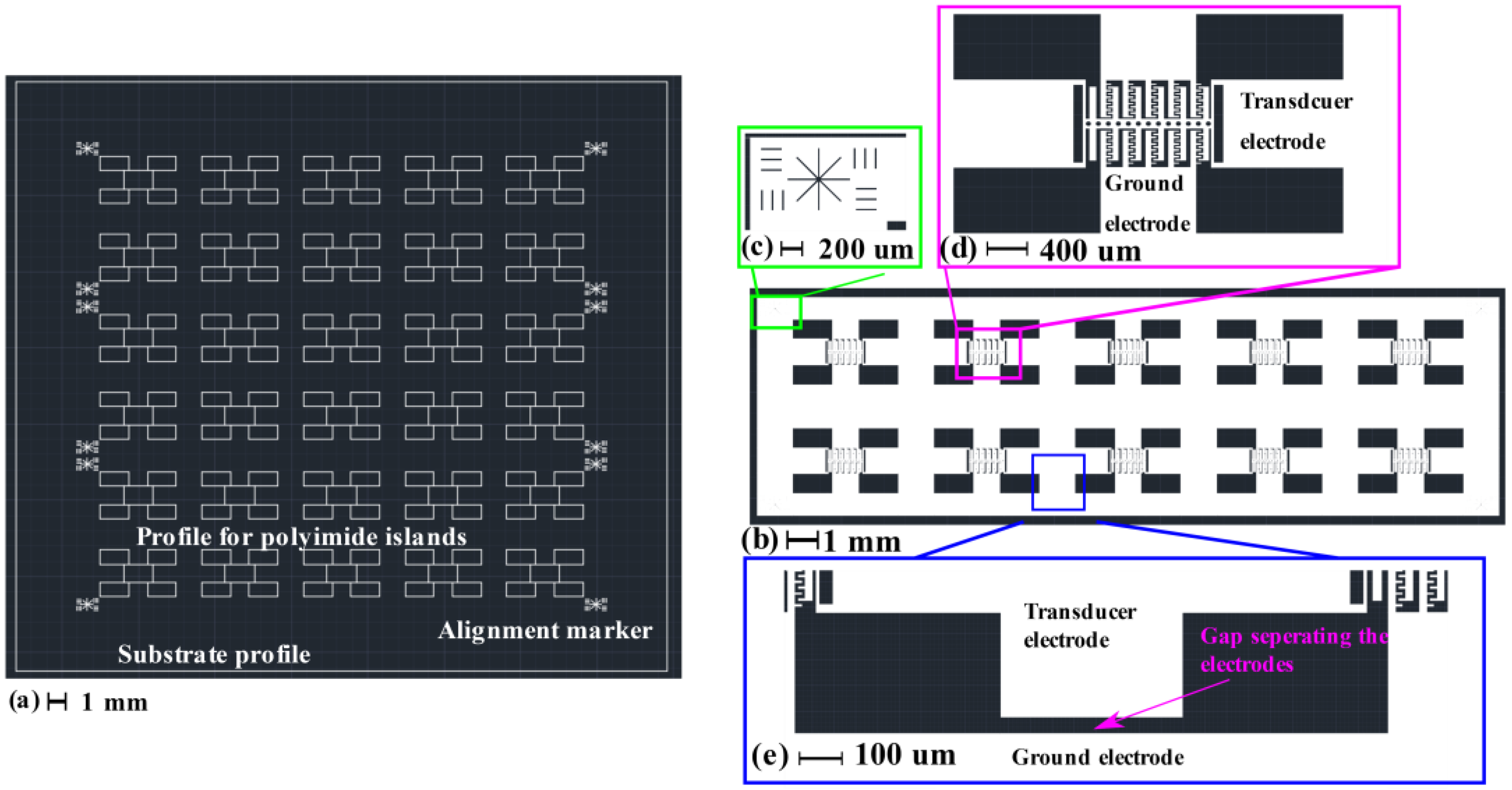

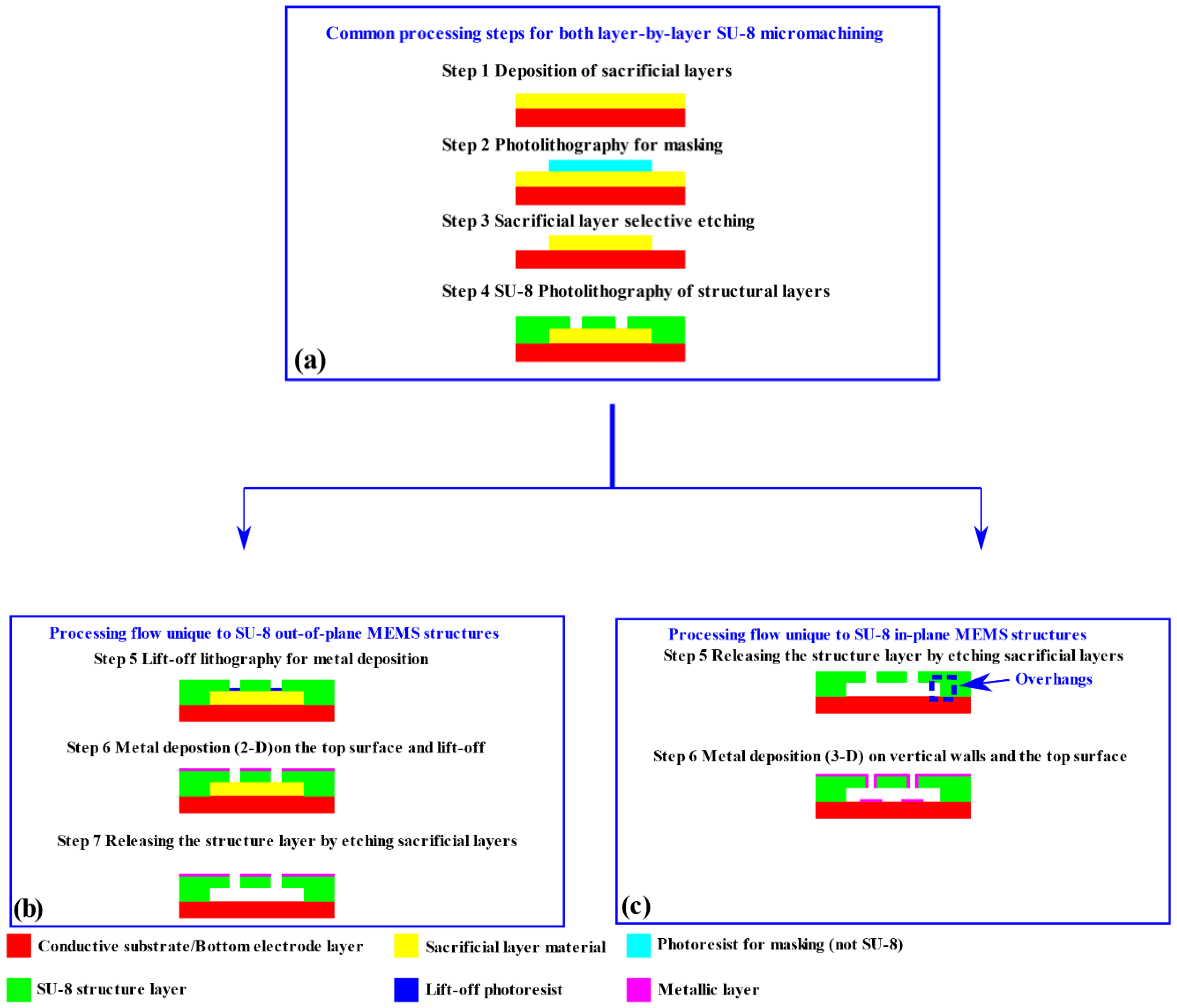

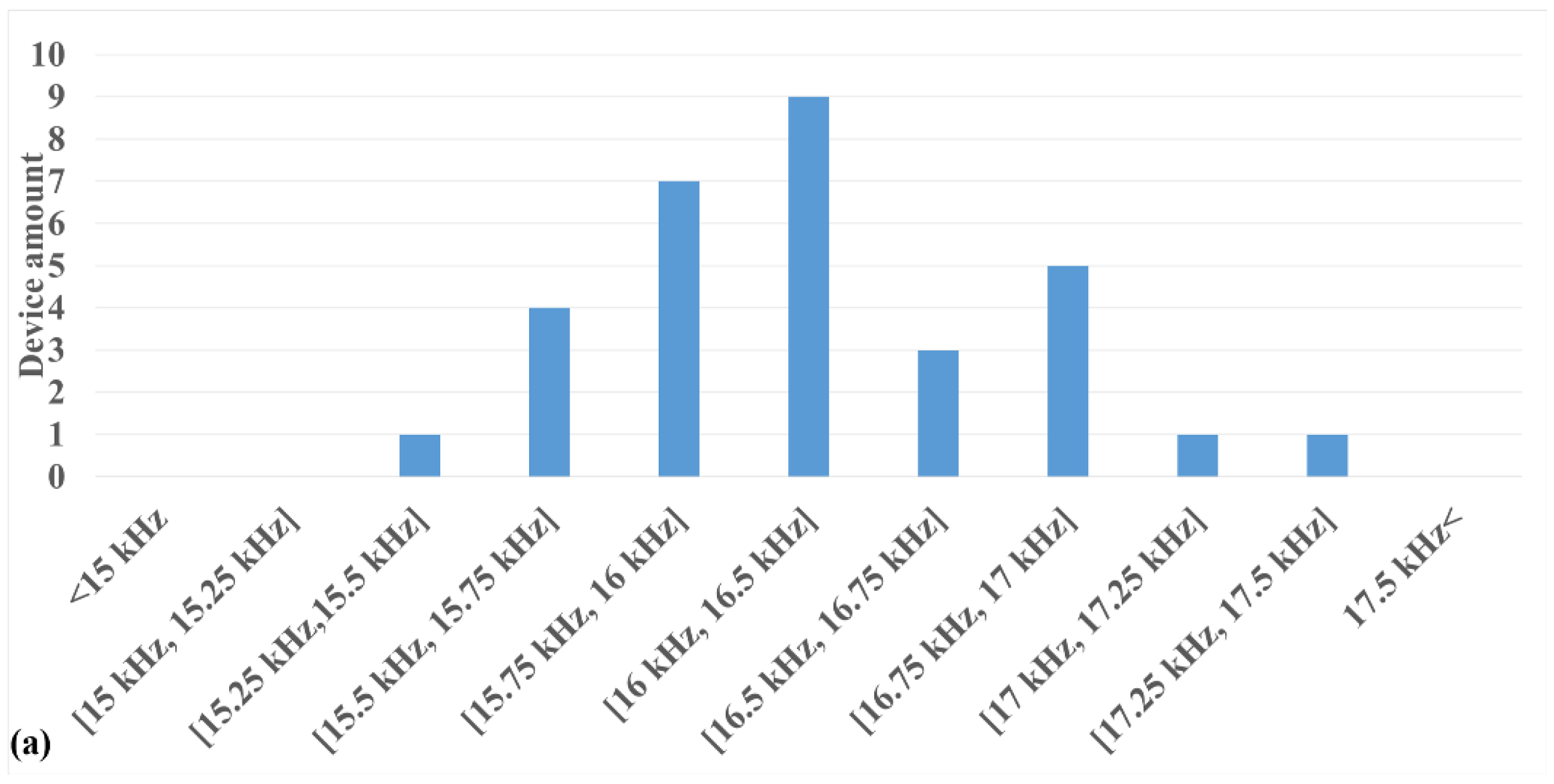

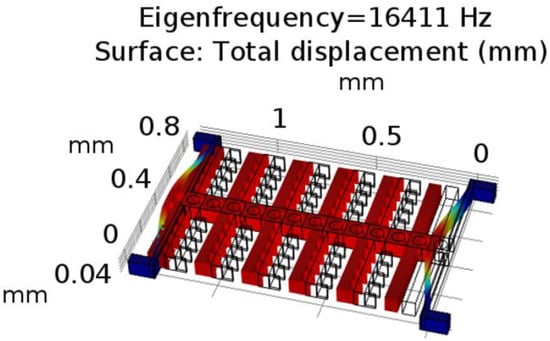

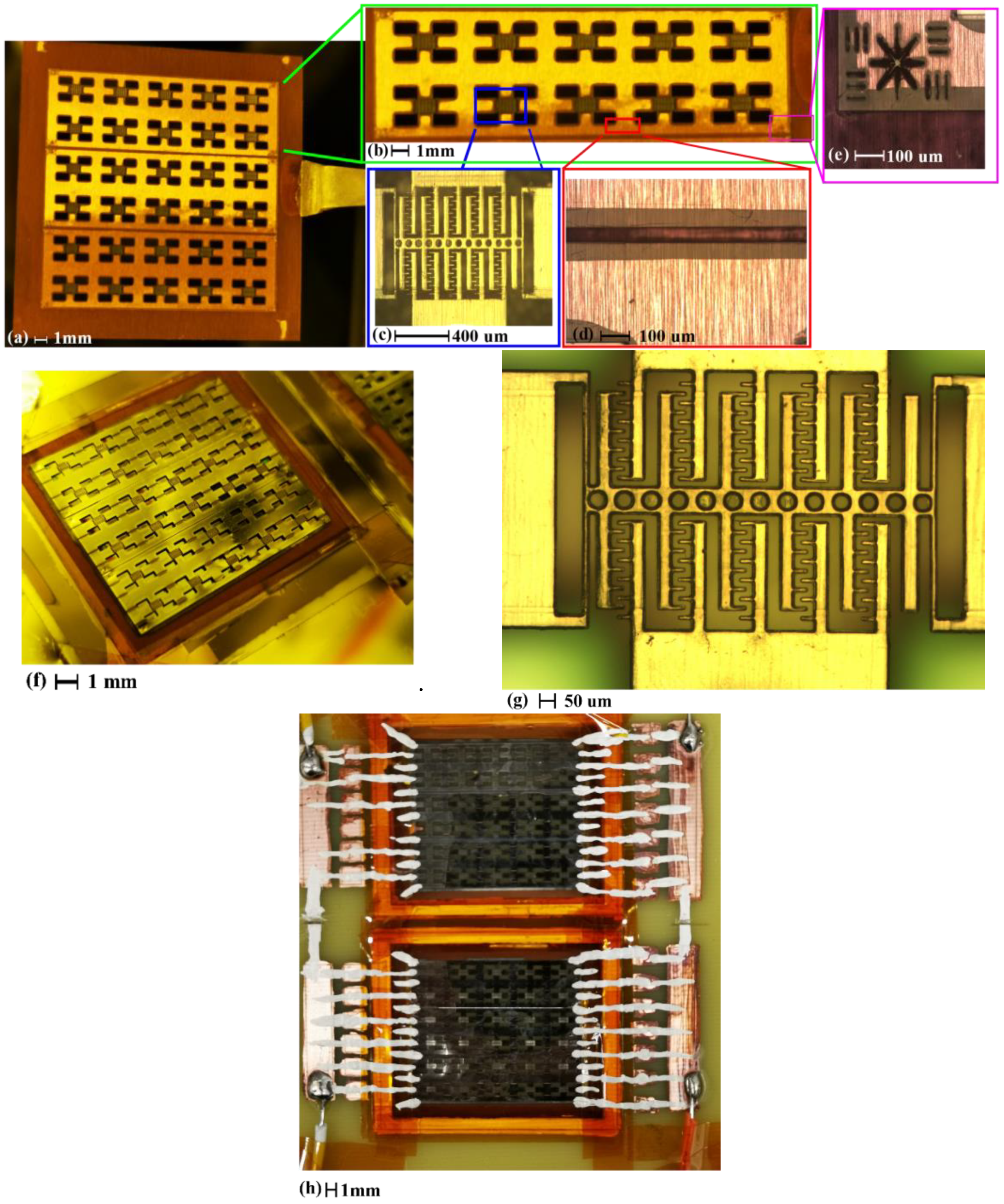

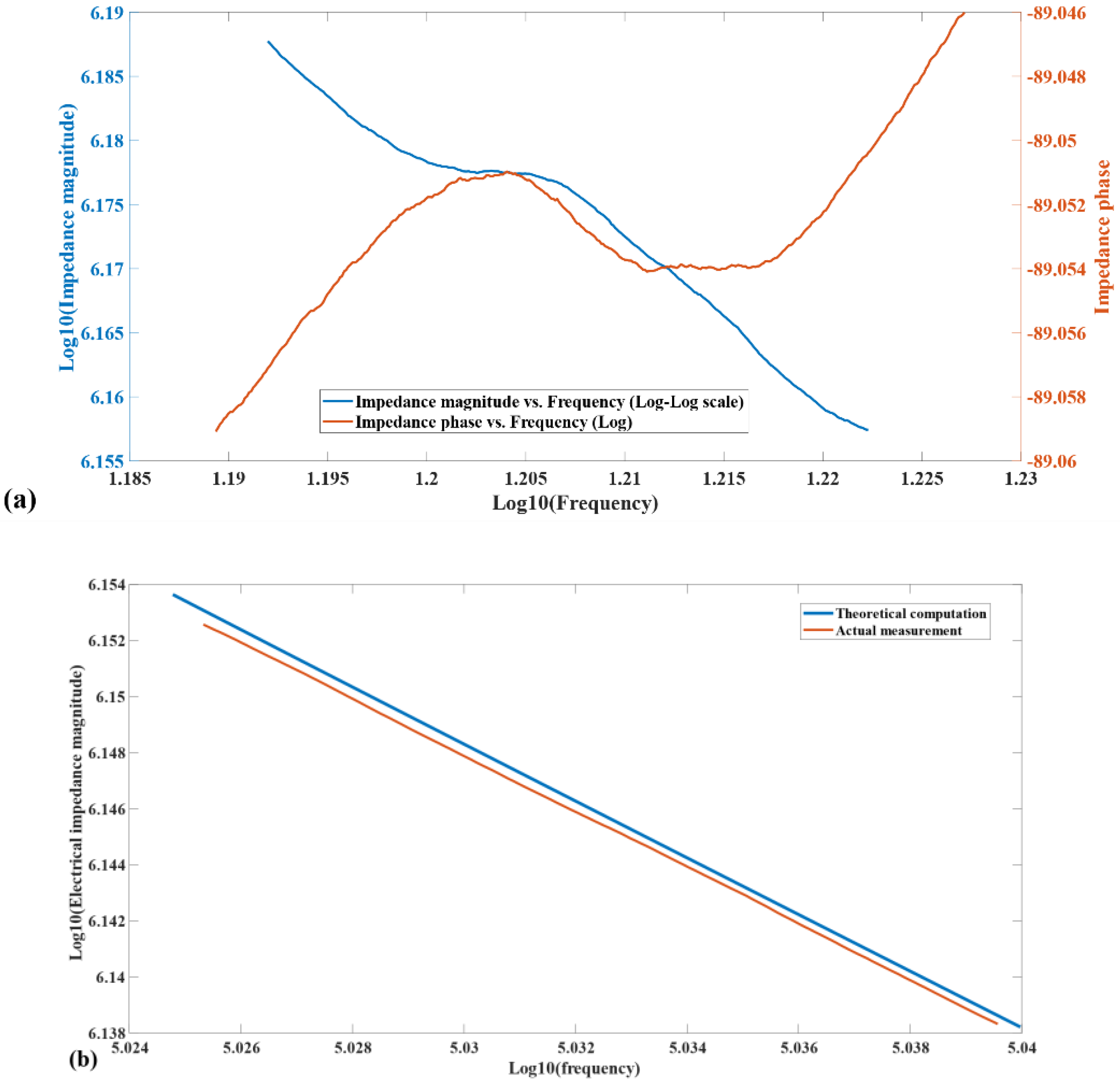

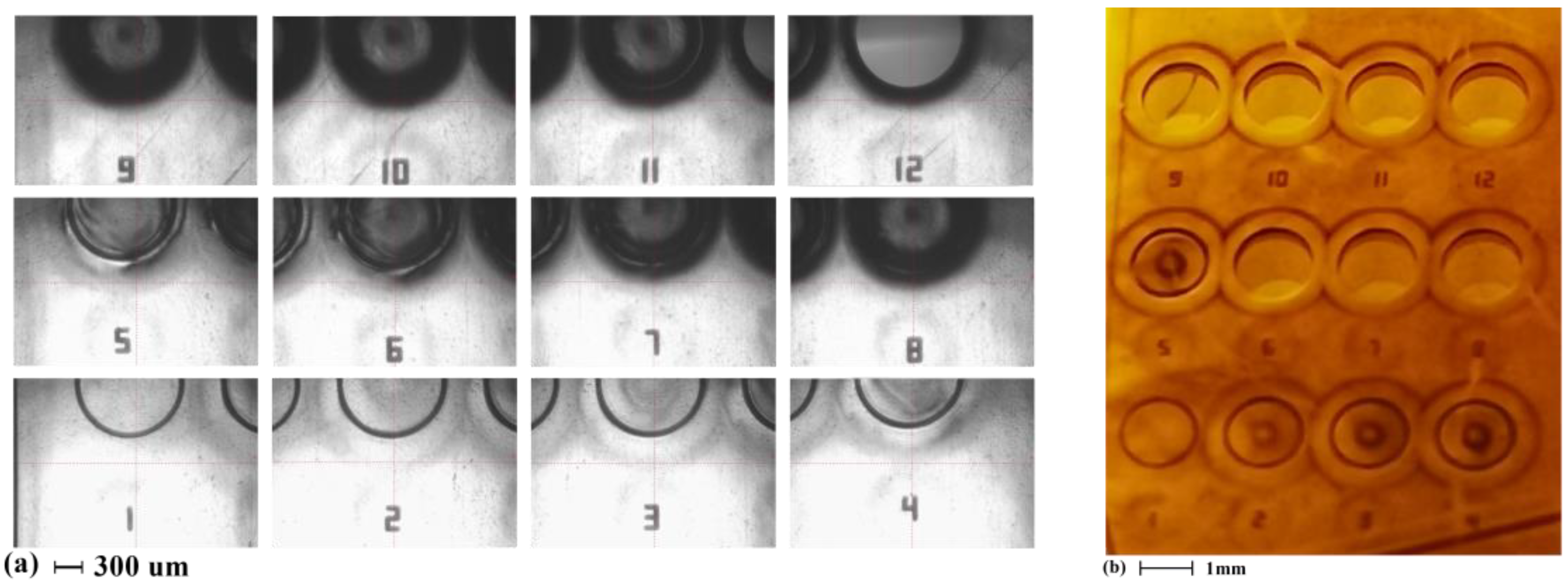

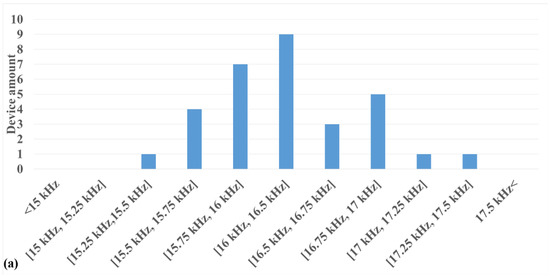

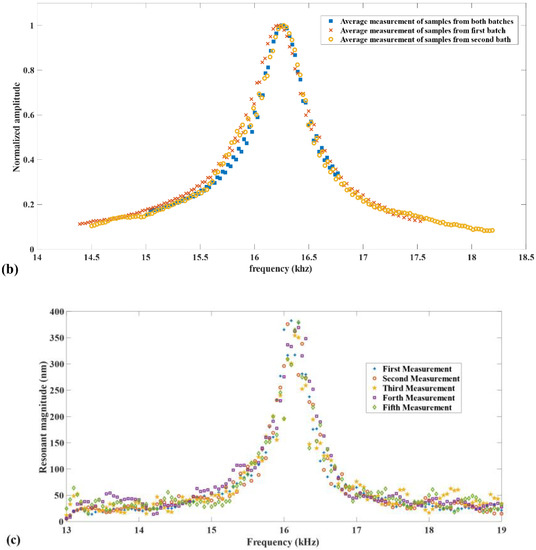

In this paper, a simple fabrication process for SU-8 in-plane micro electro-mechanical systems (MEMS) structures, called “border-bulk micromachining”, is introduced. It aims to enhance the potential of SU-8 MEMS structures for applications such as low-cost/disposable microsystems and wearable MEMS. The fabrication process is robust and uses only four processing steps to fabricate SU-8 in-plane MEMS structures, simplifying the fabrication flow in comparison with other reported attempts. The whole fabrication process has been implemented on copper-polyimide composites. A new processing method enables the direct, laser-based micromachining of polyimide in a practical way, bringing in extra processing safety and simplicity. After forming the polymeric in-plane MEMS structures through SU-8 lithography, a copper wet etching masked by the SU-8 structure layers is carried out. After the wet etching, fabricated in-plane MEMS structures are suspended within an open window on the substrate, similar to the final status of in-plane MEMS devices made from industrial silicon micromachining methods (such as SOIMUMPS). The last step of the fabrication flow is a magnetron sputtering of aluminum. The border-bulk micromachining process has been experimentally evaluated through the fabrication and the characterization of simple in-plane electrically actuated MEMS test structures. The characterization results of these simple test structures have verified the following process qualities: controllability, reproducibility, predictability and general robustness. View Full-Text
Keywords: polymeric MEMS; SU-8 micromachining; polymer substrate; maskless lithography; laser micromachining polymeric MEMS; SU-8 micromachining; polymer substrate; maskless lithography; laser micromachining
