Pointing Verification Method for Spaceborne Lidars

Deutsches Zentrum für Luft- und Raumfahrt, Institut für Physik der Atmosphäre, Oberpfaffenhofen, Münchener Str. 20, 82234 Wessling, Germany
Author to whom correspondence should be addressed.
Academic Editors: Alexander A. Kokhanovsky and Prasad S. Thenkabail
Received: 24 November 2016 / Revised: 5 January 2017 / Accepted: 8 January 2017 / Published: 10 January 2017
Full-Text   |   PDF [5293 KB, uploaded 10 January 2017]   |


High precision acquisition of atmospheric parameters from the air or space by means of lidar requires accurate knowledge of laser pointing. Discrepancies between the assumed and actual pointing can introduce large errors due to the Doppler effect or a wrongly assumed air pressure at ground level. In this paper, a method for precisely quantifying these discrepancies for airborne and spaceborne lidar systems is presented. The method is based on the comparison of ground elevations derived from the lidar ranging data with high-resolution topography data obtained from a digital elevation model and allows for the derivation of the lateral and longitudinal deviation of the laser beam propagation direction. The applicability of the technique is demonstrated by using experimental data from an airborne lidar system, confirming that geo-referencing of the lidar ground spot trace with an uncertainty of less than 10 m with respect to the used digital elevation model (DEM) can be obtained. View Full-Text
Keywords: lidar; lidar pointing; DIAL; IPDA-lidar lidar; lidar pointing; DIAL; IPDA-lidar

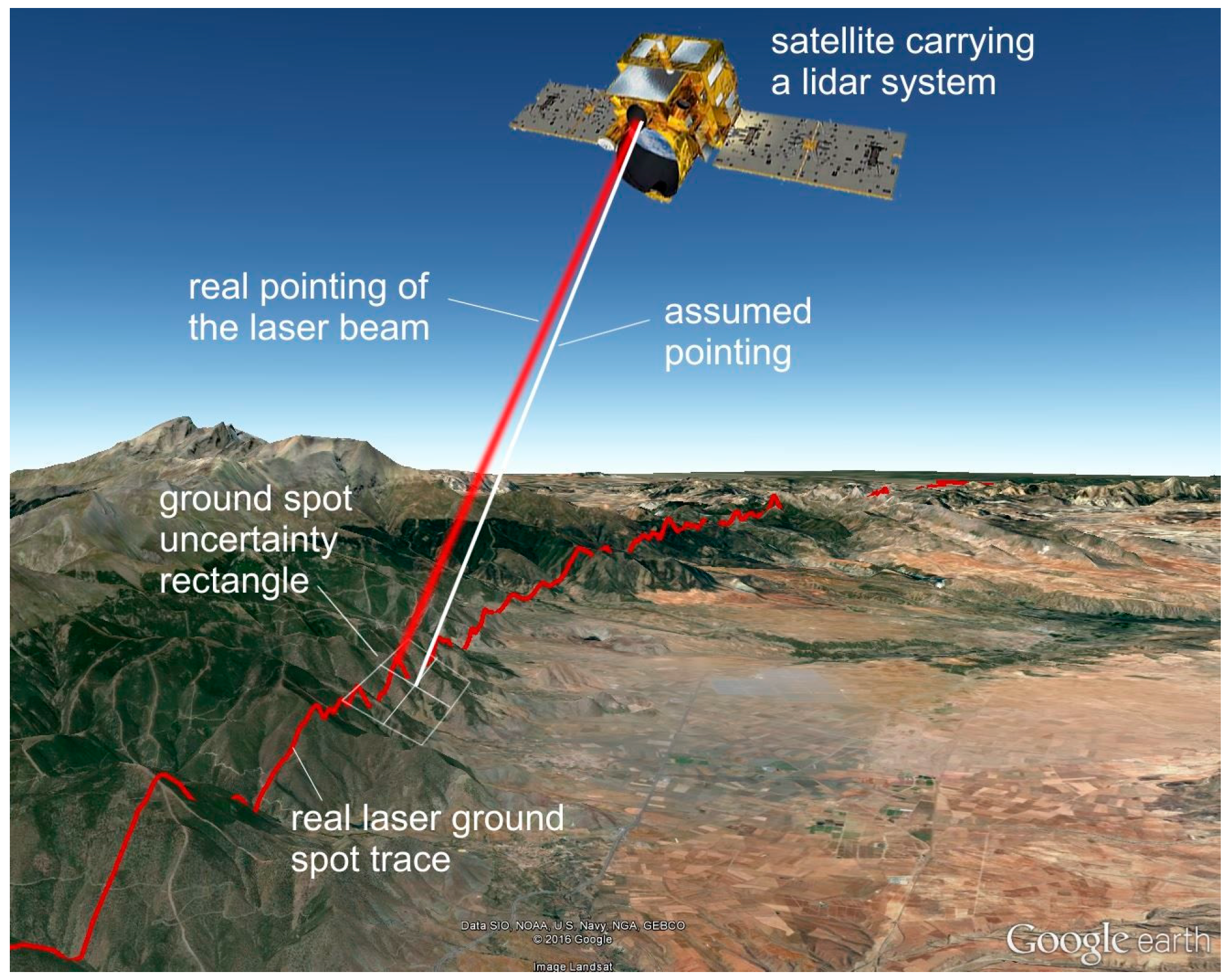

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
