# On-Orbit Relative Radiometric Calibration of the Bayer Pattern Push-Broom Sensor for Zhuhai-1 Video Satellites

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. OVS Satellites Overview

^{2}of data can be captured in each strip image. Contrary to the conventional linear push-broom mode, the Bayer pattern push-broom mode uses the Bayer pattern detector group, which utilizes two rows of imaging detectors as the smallest imaging unit. This achieves the same multi-level TDI function as the linear array push-broom satellite by increasing or decreasing the number of Bayer pattern rows. Figure 4 shows a comparison of a conventional linear array push-broom and a Bayer pattern push-broom. The imaging data in the push-broom direction is the imaging data collected by a single detector in a single band, while the Bayer pattern push-broom obtains data from multiple bands.

#### 1.2. Relative Radiometric Calibration

## 2. Methods

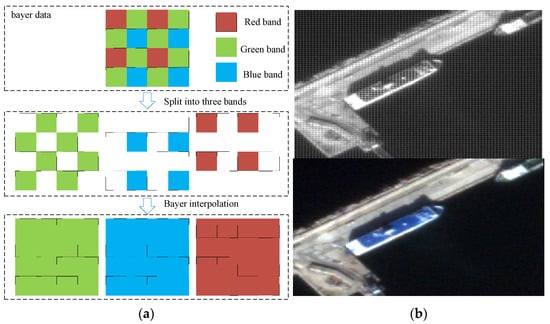

#### 2.1. Bayer Pattern Conversion

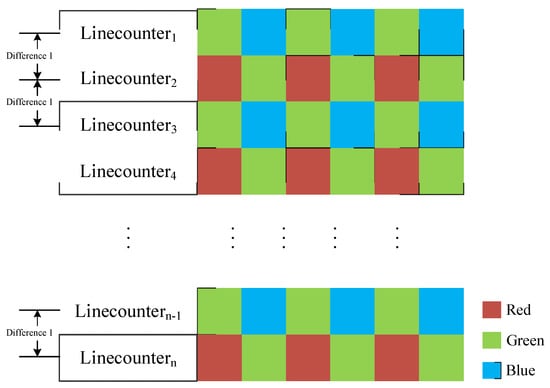

#### 2.2. Bayer Pattern Position Determination

- 1.
- Calculate the linecounter value $LineCounte{r}_{i}$ of the ith row of Bayer pattern data.
- 2.
- Determine the first position of a complete Bayer pattern. If $LineCounte{r}_{i}$ is odd, the following equation holds:$$\left(\left(LineCounte{r}_{i}+1\right)\%2\right)=0,$$
- 3.
- Determine whether the ith row Bayer pattern data is continuous with the adjacent imaging data and Bayer pattern according to the following rules:$$\left|LineCounte{r}_{i}-LineCounte{r}_{i+1}\right|=1.$$$$\left|LineCounte{r}_{i-1}-LineCounte{r}_{i}\right|=1.$$If the ith iteration meets the above formula, the ith row is the starting row of the complete Bayer pattern data. Otherwise, the ith data will be discarded and the calculation $i=i+1$ must be performed before returning to step (1).
- 4.
- Repeat steps 1–3 to determine the locations of all complete Bayer pattern data.

#### 2.3. Relative Calibration Parameter Solving

- 5.
- Calculate the DN number of the imaging data acquired by the ith detector, as in the following equations:$$PixelNum{s}_{i}\left(k\right)=PixelNum{s}_{i}\left(k\right)+1,$$$$TotalPixelNum{s}_{i}=TotalPixelNum{s}_{i}+1,$$
- 6.
- Establish the cumulative probability distribution function, ${P}_{i}\left(k\right)$, of each sensor detector according to Equation (7).
- 7.
- $${P}_{i}\left(k\right)={\displaystyle \sum}_{j=0}^{k}\frac{PixelNum{s}_{i}\left(k\right)}{TotalPixelNum{s}_{i}}.$$
- 8.
- Set the cumulative probability distribution function of the imaging gray data of all the sensor detectors as the reference cumulative probability distribution function for each band, ${P}_{G}\left(k\right)$,${P}_{B}\left(k\right)$, and ${P}_{R}\left(k\right)$:$${P}_{G}\left(k\right)={\displaystyle \sum}_{k=0}^{{2}^{n}-1}{\displaystyle \sum}_{j}^{{N}_{total}}\frac{PixelNum{s}_{j}\left(k\right)}{TotalPixelNum{s}_{j}},\phantom{\rule{0ex}{0ex}}\left(j=1,4,5,8,9,12,13\dots \right),$$$${P}_{B}\left(k\right)={\displaystyle \sum}_{k=0}^{{2}^{n}-1}{\displaystyle \sum}_{j}^{{N}_{total}}\frac{PixelNum{s}_{j}\left(k\right)}{TotalPixelNum{s}_{j}},\phantom{\rule{0ex}{0ex}}\left(j=2,6,10,14\dots \right),$$$${P}_{R}\left(k\right)={\displaystyle \sum}_{k=0}^{{2}^{n}-1}{\displaystyle \sum}_{j}^{{N}_{total}}\frac{PixelNum{s}_{j}\left(k\right)}{TotalPixelNum{s}_{j}},\phantom{\rule{0ex}{0ex}}\left(j=3,7,11,15\dots \right),$$
- 9.
- Obtain the imaging response model of each sensor detector by mapping the cumulative probability distribution function of each sensor detector to the reference cumulative probability distribution function based on Equations (11) and (12):$${P}_{R}\left(k-x\right)\le {P}_{i}\left(k\right)\le {P}_{R}\left(k+y\right),\text{}\mathrm{and}$$$$k=\{\begin{array}{c}k-x,\left|{P}_{R}\left(k-x\right)-{P}_{i}\left(k\right)\right|-\left|{P}_{i}\left(k\right)-{P}_{R}\left(k+y\right)\right|\le 0\\ k+y,\left|{P}_{R}\left(k-x\right)-{P}_{i}\left(k\right)\right|-\left|{P}_{i}\left(k\right)-{P}_{R}\left(k+y\right)\right|0\end{array},$$

#### 2.4. Quality Assessment

## 3. Results

#### 3.1. Calibration Results

#### 3.2. Visual Assessments

#### 3.3. Accuracy Assessments

## 4. Discussion

## 5. Conclusions

- (1)
- reconstructing the order of each detector of the Bayer pattern sensor and converting it into a virtual linear array sensor to separate the RGB three-band components from the Bayer pattern; and
- (2)
- designing a positioning method linked by “linecounters” to detect the specific position of each detector of each Bayer pattern.

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Li, L.; Jiang, L.; Zhang, J.; Wang, S.; Chen, F. A complete YOLO-based ship detection method for thermal infrared remote sensing images under complex backgrounds. Remote Sens.
**2022**, 14, 1534. [Google Scholar] [CrossRef] - Teillet, P.M. Image correction for radiometric effects in remote sensing. Int. J. Remote Sens.
**1986**, 7, 1637–1651. [Google Scholar] [CrossRef] - Moghimi, A.; Celik, T.; Mohammadzadeh, A. Tensor-based keypoint detection and switching regression model for relative radiometric normalization of bitemporal multispectral images. Int. J. Remote Sens.
**2022**, 43, 3927–3956. [Google Scholar] [CrossRef] - Blanchet, G.; Lebegue, L.; Fourest, S.; Latry, C.; Porez-Nadal, F.; Lacherade, S.; Thiebaut, C. Pleiades-HR innovative techniques for radiometric image quality commissioning. In Proceedings of the ISPRS—International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences, Melbourne, Australia, 25 August–1 September 2012; Volume XXXIX-B1; pp. 513–518. [Google Scholar]
- Pesta, F.; Bhatta, S.; Helder, D.; Mishra, N. Radiometric non-uniformity characterization and correction of Landsat 8 OLI using earth imagery-based techniques. Remote Sens.
**2014**, 7, 430–446. [Google Scholar] [CrossRef] [Green Version] - Kabir, S.; Leigh, L.; Helder, D. Vicarious methodologies to assess and improve the quality of the optical remote sensing images: A critical review. Remote Sens.
**2020**, 12, 4029. [Google Scholar] [CrossRef] - Murthy, K.; Shearn, M.; Smiley, B.D.; Chau, A.H.; Levine, J.; Robinson, M.D. SkySat-1: Very high-resolution imagery from a small satellite. In Proceedings of the Sensors, Systems, and Next-Generation Satellites XVIII, Amsterdam, The Netherlands, 22–25 September 2014; Volume 9241, pp. 92411E-1–92411E-12. [Google Scholar]
- Zhang, G.; Li, L.; Jiang, Y.; Shen, X.; Li, D. On-orbit relative radiometric calibration of the night-time sensor of the LuoJia1-01 satellite. Sensors
**2018**, 18, 4225. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zhang, G.; Li, L.T.; Jiang, Y.H.; Shi, X.T. On-orbit relative radiometric calibration of optical video satellites without uniform calibration sites. Int. J. Remote Sens.
**2019**, 40, 5454–5474. [Google Scholar] [CrossRef] - Pascal, V.; Lebegue, L.; Meygret, A.; Laubies, M.; Hourcastagnou, J.; Hillairet, E. SPOT5 first in-flight radiometric image quality results. In Proceedings of the Sensors, Systems, and Next-Generation Satellites VI, Crete, Greece, 23–27 September 2002; Volume 4881, pp. 200–211. [Google Scholar]
- Pagnutti, M.; Ryan, R.E.; Kelly, M.; Holekamp, K.; Zanoni, V.; Thome, K.; Schiller, S. Radiometric characterization of IKONOS multispectral imagery. Remote Sens. Environ.
**2003**, 88, 53–68. [Google Scholar] [CrossRef] [Green Version] - Anderson, C.; Helder, D.L.; Jeno, D. Statistical relative gain calculation for Landsat 8. In Proceedings of the Conference on Earth Observing Systems XXII, San Diego, CA, USA, August 10 June 2017. [Google Scholar]
- WEGENER, M. Destriping multiple sensor imagery by improved histogram matching. Int. J. Remote Sens.
**1990**, 11, 859–879. [Google Scholar] [CrossRef] - Henderson, B.G.; Krauseb, K.S. Relative radiometric correction of QuickBird imagery using the side-slither technique on orbit. In Proceedings of the Earth Observing Systems IX, Denver, CO, USA, 4–6 August 2004; SPIE: Paris, France; Volume 5542, pp. 426–436. [Google Scholar] [CrossRef]
- Gerace, A.; Schott, J.; Gartley, M.; Montanaro, M. An analysis of the side slither on-orbit calibration technique using the DIRSIG model. Remote Sens.
**2014**, 6, 10523–10545. [Google Scholar] [CrossRef] [Green Version] - Begeman, C.; Helder, D.; Leigh, L.; Pinkert, C. Relative radiometric correction of pushbroom satellites using the yaw maneuver. Remote Sens.
**2022**, 14, 2820. [Google Scholar] [CrossRef] - Zhang, G.; Li, L. A study on relative radiometric calibration without calibration field for YG-25. Acta Geod. Cartogr. Sin.
**2017**, 46, 1009–1016. [Google Scholar] - Li, L.; Zhang, G.; Jiang, Y.; Shen, X. An Improved On-Orbit Relative Radiometric Calibration Method for Agile High-Resolution Optical Remote-Sensing Satellites with Sensor Geometric Distortion. IEEE Trans. Geosci. Remote Sens.
**2022**, 60, 1–15. [Google Scholar] [CrossRef] - Angal, A.; Helder, D. Advanced Land Imager Relative Gain characterization and Correction. In Proceedings of the Pecora 16—Global Priorities in Land Remote Sensing 2005, Sioux Falls, SD, USA, 23–27 October 2005. [Google Scholar]
- Chung, K.H.; Chan, Y.H. An edge-directed demosaicing algorithm based on integrated gradient. In Proceedings of the 2010 IEEE International Conference on Multimedia and Expo, Singapore, 19–23 July 2010; pp. 388–393. [Google Scholar]
- Pekkucuksen, I.; Altunbasak, Y. Multiscale gradients-based color filter array interpolation. IEEE Trans. Image Process.
**2013**, 22, 157–165. [Google Scholar] [CrossRef] [PubMed] - Shrestha, A.K.; Helder, D. Relative gain characterization and correction for pushbroom sensors based on lifetime image statistics. In Proceedings of the Civil Commercial Imagery Evaluation Workshop 2010, Fairfax, VA, USA, 16–18 March 2010. [Google Scholar]

**Figure 1.**CMOS arrangement of the focal plane of the OVS satellite (

**a**), “GBRG” Bayer pattern (

**b**), and “GRBG” Bayer pattern (

**c**).

**Figure 4.**Schematic of multi-level TDI in (

**a**) a linear array push-broom sensor and (

**b**) a Bayer pattern push-broom sensor.

**Figure 5.**Uniform ocean zone images captured from an OVS Bayer sensor: (

**a**) raw Bayer data, (

**b**) color reconstructed image without relative radiometric calibration, and (

**c**) color reconstructed image after relative radiometric calibration.

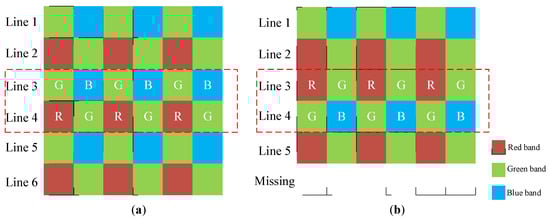

**Figure 7.**Schematic of Bayer pattern changes caused by a row data loss (

**a**) from a GBRG Bayer pattern to (

**b**) a RGGB Bayer pattern in lines 3–4.

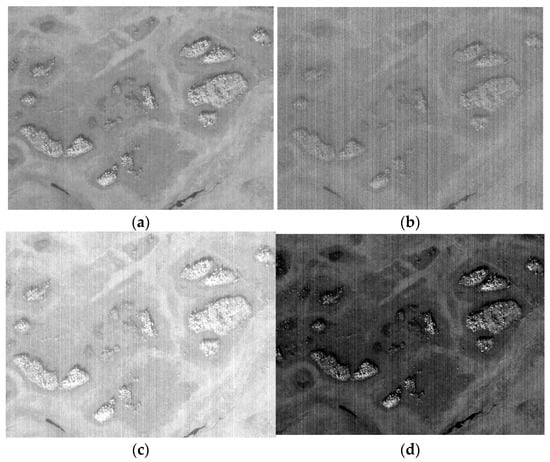

**Figure 10.**Bayer pattern data (

**a**); conversion to push-broom data, including the red band data (

**b**); green band data (

**c**); and blue band data (

**d**).

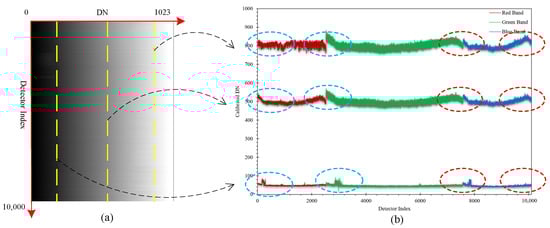

**Figure 11.**Relative radiometric calibration parameters of OVS mapping between the raw digital numbers (DNs) and the calibrated DNs (

**a**), and radiometric response curves of various detectors under low, medium, and high DNs (

**b**).

**Figure 12.**The relative corrected reconstructed Bayer data, including red band data (

**a**), green band data (

**b**), and blue band data (

**c**).

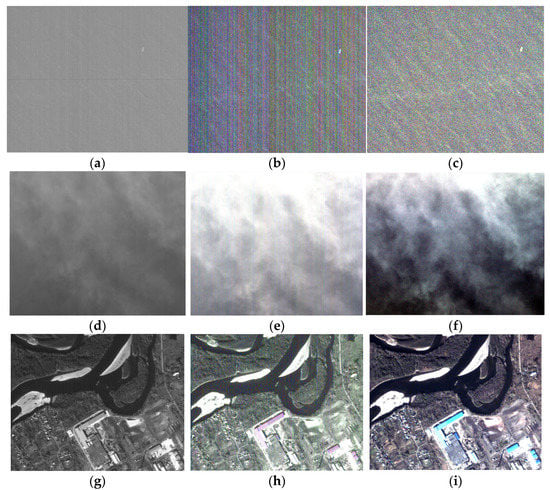

**Figure 13.**Relative corrected images for various feature types of ocean (

**a**–

**c**), clouds (

**d**–

**f**), and urban areas (

**g**–

**i**): raw Bayer pattern images (

**a**,

**d**,

**g**); uncalibrated Bayer interpolation images (

**b**,

**e**,

**h**); and calibrated Bayer interpolation images (

**c**,

**f**,

**i**).

**Figure 14.**Comparison of a specific Bayer image enlarged four times: (

**a**) raw Bayer data, (

**b**) uncalibrated Bayer interpolation data, and (

**c**) calibrated Bayer interpolation data.

**Figure 15.**Distribution of column means of level zero image (

**a**) and RGB band streaking metrics (

**b**–

**d**) before and after relative correction.

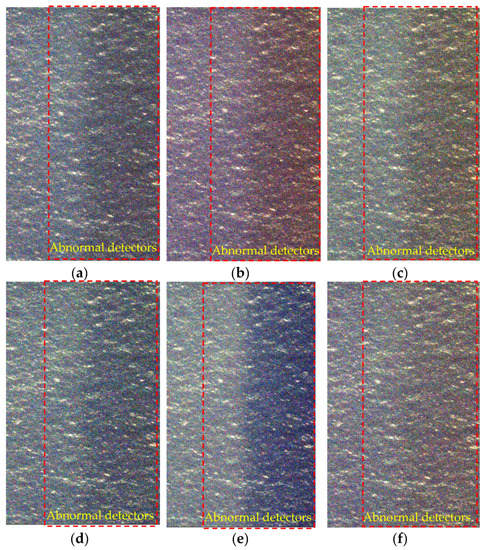

**Figure 17.**Anomalous changes in the radiometric response of CMOS edge detectors of the OVS at specific times during calibration of the 2019 data: (

**a**) 26 October; (

**b**) 28 October; (

**c**) 29 October; (

**d**) 30 October; (

**e**) 1 November; and (

**f**) 2 November.

Parameter | Value |
---|---|

Ground swath | 22.5 km @ 500 km |

Imaging mode | Staring video mode: frame rate: 10–25 fps Push-broom mode |

Resolution | 0.9 m |

Quantization bits | Video mode: 8 bits Push-broom mode: 10 bits |

Color | Bayer pattern |

Modulation Transfer Function | ≥0.12 @ Nyquist frequency |

Signal To Noise Ratio | ≥35 dB (Sun elevation angle ≥ 50°) |

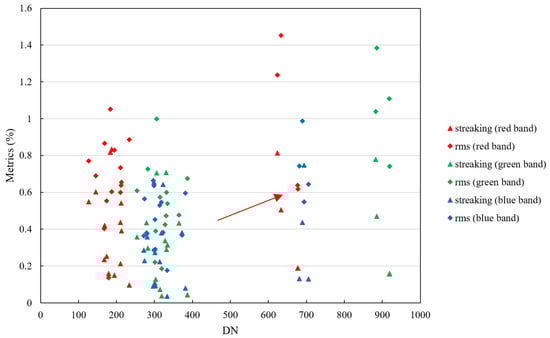

CMOS | Zone | Band | Average DNs | Streaking Metrics (%) | RMS (%) |
---|---|---|---|---|---|

1 | 1 | R | 174.464505 | 0.252942 | 0.553052 |

G | 303.027251 | 0.128574 | 0.389035 | ||

B | 299.120944 | 0.101004 | 0.286782 | ||

2 | R | 145.834542 | 0.602074 | 0.689595 | |

G | 278.809108 | 0.434780 | 0.380873 | ||

B | 280.663032 | 0.358834 | 0.377148 | ||

3 | R | 187.183937 | 0.834730 | 0.602284 | |

G | 330.415927 | 0.708178 | 0.472996 | ||

B | 322.815496 | 0.643862 | 0.382063 | ||

4 | R | 633.844315 | 0.505590 | 1.452498 | |

G | 885.569805 | 0.469941 | 1.384834 | ||

B | 689.440504 | 0.438069 | 0.987072 | ||

2 | 1 | R | 213.339061 | 0.391711 | 0.654857 |

G | 331.792004 | 0.289577 | 0.598556 | ||

B | 313.929878 | 0.224774 | 0.529018 | ||

2 | R | 183.932816 | 0.818849 | 1.050736 | |

G | 306.118564 | 0.706289 | 0.998101 | ||

B | 298.570655 | 0.656120 | 0.635410 | ||

3 | R | 210.372869 | 0.212614 | 0.598503 | |

G | 334.387692 | 0.315220 | 0.538775 | ||

B | 318.118987 | 0.379993 | 0.545816 | ||

4 | R | 677.060288 | 0.188683 | 0.637184 | |

G | 918.258576 | 0.158117 | 1.107705 | ||

B | 706.071616 | 0.130670 | 0.643381 | ||

3 | 1 | R | 167.416066 | 0.234464 | 0.402989 |

G | 301.497830 | 0.108619 | 0.220347 | ||

B | 301.903464 | 0.093085 | 0.289550 | ||

2 | R | 126.881600 | 0.549097 | 0.769455 | |

G | 254.414065 | 0.357859 | 0.607761 | ||

B | 272.225351 | 0.286836 | 0.363299 | ||

3 | R | 623.796314 | 0.814639 | 1.237399 | |

G | 882.974602 | 0.780348 | 1.039002 | ||

B | 694.270148 | 0.748270 | 0.548426 | ||

4 | 1 | R | 210.705489 | 0.437302 | 0.733809 |

G | 327.850046 | 0.337556 | 0.424513 | ||

B | 301.488013 | 0.273422 | 0.451469 | ||

2 | R | 169.106208 | 0.420492 | 0.866250 | |

G | 282.933319 | 0.297154 | 0.726361 | ||

B | 273.462593 | 0.230403 | 0.564223 | ||

3 | R | 194.781064 | 0.151181 | 0.828773 | |

G | 314.900084 | 0.073915 | 0.573989 | ||

B | 296.537163 | 0.091034 | 0.663551 | ||

4 | R | 678.343272 | 0.188817 | 0.616931 | |

G | 919.031208 | 0.159909 | 0.740941 | ||

B | 681.249269 | 0.131942 | 0.742365 | ||

5 | 1 | R | 234.104145 | 0.098038 | 0.885455 |

G | 386.938663 | 0.043580 | 0.674836 | ||

B | 381.137859 | 0.080850 | 0.595346 | ||

2 | R | 179.405221 | 0.160321 | 0.135142 | |

G | 319.111673 | 0.037737 | 0.185095 | ||

B | 333.812995 | 0.036985 | 0.176527 | ||

3 | R | 212.526180 | 0.542912 | 0.638558 | |

G | 364.433856 | 0.434148 | 0.476657 | ||

B | 372.303330 | 0.381670 | 0.367203 |
