# Measuring the Directional Ocean Spectrum from Simulated Bistatic HF Radar Data

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Bistatic Radar Cross Section of the Ocean Surface

- The Fourier coefficients are normally distributed about zero; hence$$\begin{array}{c}\hfill \langle P(m,n,l)\rangle =0.\end{array}$$
- As the surface is real, $f(x,y,t)$ is equal to ${f}^{*}(x,y,t)$, which is true when$$\begin{array}{c}\hfill P(-m,-n,-l)={P}^{*}(m,n,l).\end{array}$$
- From Thomas [28],$$\begin{array}{c}\hfill \langle {P}_{1}{P}_{2}{P}_{3}\rangle =0\end{array}$$$$\langle {P}_{1}{P}_{2}{P}_{3}{P}_{4}\rangle =\langle {P}_{1}{P}_{2}\rangle \langle {P}_{3}{P}_{4}\rangle +\langle {P}_{1}{P}_{3}\rangle \langle {P}_{2}{P}_{4}\rangle +\langle {P}_{1}{P}_{4}\rangle \langle {P}_{2}{P}_{3}\rangle .$$
- The surface roughness spectrum $S(p,q,wl)$, found by utilising the Wiener–Khinchin theorem, is related to the surface height Fourier coefficients by$$\langle P(m,n,l)P(q,r,s)\rangle =\left\{\begin{array}{cc}{\displaystyle \frac{{(2\pi )}^{3}S(p,q,wl)}{{L}^{2}T}}\hfill & \mathrm{if}\text{}q,r,s=-m,-n,-l\hfill \\ 0\hfill & \mathrm{if}\text{}\mathrm{else},\hfill \end{array}\right.$$

#### 2.1.1. First Order

#### 2.1.2. Second Order

#### 2.1.3. Monostatic Conditions

#### 2.2. Numerical Solution

#### 2.2.1. First Order

#### 2.2.2. Second Order

- When $m{m}^{\prime}=1$ and ${\theta}_{1}=-{\phi}_{bi}$, the solution of $f(y)$ is$$\begin{array}{c}\hfill {y}_{0}^{*}={\displaystyle \frac{{\omega}^{2}-g{k}_{B}}{2m\sqrt{g}\omega}}.\end{array}$$
- When $m{m}^{\prime}=-1$ and ${\theta}_{1}=\pi -{\phi}_{bi}$, the solution is$$\begin{array}{c}\hfill {y}_{0}^{*}={\displaystyle \frac{m\omega +\sqrt{2g{k}_{B}-{\omega}^{2}}}{2\sqrt{g}}}.\end{array}$$

#### 2.2.3. Electromagnetic Singularities

#### 2.2.4. Currents

## 3. Inversion of $\mathbf{\sigma}(\mathbf{\omega})$ to Measure the Directional Wave Spectrum

#### The Seaview Inversion Method

## 4. Results

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Crombie, D.D. Doppler spectrum of sea echo at 13.56 Mc./s. Nature
**1955**, 175, 681–682. [Google Scholar] [CrossRef] - Wyatt, L.R. Wave and Tidal Power measurement using HF radar. In Proceedings of the Oceans 2007-Europe, Aberdeen, UK, 18–21 June 2007; pp. 1–5. [Google Scholar]
- Paduan, J.D.; Washburn, L. High-frequency radar observations of ocean surface currents. Annu. Rev. Mar. Sci.
**2013**, 5, 115–136. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Wyatt, L.R.; Ledgard, L.; Anderson, C. Maximum-likelihood estimation of the directional distribution of 0.53-Hz ocean waves. J. Atmos. Ocean. Technol.
**1997**, 14, 591–603. [Google Scholar] [CrossRef] - Wyatt, L.R. Limits to the inversion of HF radar backscatter for ocean wave measurement. J. Atmos. Ocean. Technol.
**2000**, 17, 1651–1666. [Google Scholar] [CrossRef] - Lipa, B.J. Derivation of directional ocean-wave spectra by integral inversion of second-order radar echoes. Radio Sci.
**1977**, 12, 425–434. [Google Scholar] [CrossRef] - Lipa, B.J. Inversion of second-order radar echoes from the sea. J. Geophys. Res. Ocean.
**1978**, 83, 959–962. [Google Scholar] [CrossRef] - Howell, R.; Walsh, J. Measurement of ocean wave spectra using narrow-beam HE radar. IEEE J. Ocean. Eng.
**1993**, 18, 296–305. [Google Scholar] [CrossRef] - Hisaki, Y. Nonlinear inversion of the integral equation to estimate ocean wave spectra from HF radar. Radio Sci.
**1996**, 31, 25–39. [Google Scholar] [CrossRef] - Wyatt, L.R. A relaxation method for integral inversion applied to HF radar measurement of the ocean wave directional spectrum. Int. J. Remote Sens.
**1990**, 11, 1481–1494. [Google Scholar] [CrossRef] - Green, J.J.; Wyatt, L.R. Row-action inversion of the Barrick–Weber equations. J. Atmos. Ocean. Technol.
**2006**, 23, 501–510. [Google Scholar] [CrossRef] - Barrick, D.E. First-order theory and analysis of MF/HF/VHF scatter from the sea. IEEE Trans. Antennas Propag.
**1972**, 20, 2–10. [Google Scholar] [CrossRef] [Green Version] - Barrick, D.E. Remote Sensing of Sea State by Radar. In Remote Sensing of the Troposphere; Derr, V.E., Ed.; GPO: Washington, DC, USA, 1972; Chapter 12. [Google Scholar]
- Rice, S.O. Reflection of electromagnetic waves from slightly rough surfaces. Commun. Pure Appl. Math.
**1951**, 4, 351–378. [Google Scholar] [CrossRef] - Lipa, B.J.; Barrick, D.E. Extraction of sea state from HF radar sea echo: Mathematical theory and modeling. Radio Sci.
**1986**, 21, 81–100. [Google Scholar] [CrossRef] - Holden, G.J.; Wyatt, L.R. Extraction of sea state in shallow water using HF radar. In IEE Proceedings F (Radar and Signal Processing); IET: London, UK, 1992; Volume 139, pp. 175–181. [Google Scholar]
- Whelan, C.; Hubbard, M. Benefits of multi-static on HF Radar networks. In Proceedings of the OCEANS’15 MTS/IEEE Washington, Washington, DC, USA, 19–22 October 2015; pp. 1–5. [Google Scholar]
- Zhang, J.; Gill, E.W. Extraction of ocean wave spectra from simulated noisy bistatic high-frequency radar data. IEEE J. Ocean. Eng.
**2006**, 31, 779–796. [Google Scholar] [CrossRef] - Silva, M.T. A Nonlinear Approach to Ocean Wave Spectrum Extraction From Bistatic HF-Radar Data. Master’s Thesis, Faculty of Engineering and Applied Science, Memorial University of Newfoundland, St. John’s, NL, Canada, 2017. [Google Scholar]
- Anderson, S. Directional wave spectrum measurement with multistatic HF surface wave radar. In Proceedings of the IEEE 2000 International Geoscience and Remote Sensing Symposium, Honolulu, HI, USA, 24–28 July 2000; Volume 7, pp. 2946–2948. [Google Scholar]
- Johnstone, D.L. Second-Order Electromagnetic and Hydrodynamic Effects in High-Frequency Radio-Wave Scattering from the Sea; Technical Report, DTIC Document; Stanford University: Stanford, CA, USA, 1975. [Google Scholar]
- Gill, E.; Walsh, J. High-frequency bistatic cross sections of the ocean surface. Radio Sci.
**2001**, 36, 1459–1475. [Google Scholar] [CrossRef] - Chen, Z.; Li, J.; Zhao, C.; Ding, F.; Chen, X. The Scattering Coefficient for Shore-to-Air Bistatic High Frequency (HF) Radar Configurations as Applied to Ocean Observations. Remote Sens.
**2019**, 11, 2978. [Google Scholar] [CrossRef] [Green Version] - Hisaki, Y.; Tokuda, M. VHF and HF sea echo Doppler spectrum for a finite illuminated area. Radio Sci.
**2001**, 36, 425–440. [Google Scholar] - Hardman, R.L. Remote Sensing of Ocean Winds and Waves With Bistatic HF Radar. Ph.D. Thesis, School of Mathematics and Statistics, University of Sheffield, Sheffield, UK, 2019. [Google Scholar]
- Stratton, J.A. Electromagnetic Theory; John Wiley Sons: Hoboken, NJ, USA, 2007. [Google Scholar]
- Barrick, D.E.; Lipa, B.J. The second-order shallow-water hydrodynamic coupling coefficient in interpretation of HF radar sea echo. IEEE J. Ocean. Eng.
**1986**, 11, 310–315. [Google Scholar] [CrossRef] - Thomas, J.B. An Introduction to Statistical Communication Theory; Wiley: Hoboken, NJ, USA, 1969. [Google Scholar]
- Barrick, D.E. Theory of HF and VHF propagation across the rough sea, 1, The effective surface impedance for a slightly rough highly conducting medium at grazing incidence. Radio Sci.
**1971**, 6, 517–526. [Google Scholar] [CrossRef] - Hashimoto, N.; Tokuda, M. A Bayesian approach for estimating directional spectra with HF radar. Coast. Eng. J.
**1999**, 41, 137–149. [Google Scholar] [CrossRef] - Pierson, W.J.; Moskowitz, L. A proposed spectral form for fully developed wind seas based on the similarity theory of SA Kitaigorodskii. J. Geophys. Res.
**1964**, 69, 5181–5190. [Google Scholar] [CrossRef] - Wyatt, L.R. An evaluation of wave parameters measured using a single HF radar system. Can. J. Remote Sens.
**2002**, 28, 205–218. [Google Scholar] [CrossRef] - Donelan, M.A.; Hamilton, J.; Hui, W. Directional spectra of wind-generated ocean waves. Phil. Trans. R. Soc. Lond. A
**1985**, 315, 509–562. [Google Scholar] [CrossRef] - Wyatt, L.R.; Green, J.J.; Middleditch, A. HF radar data quality requirements for wave measurement. Coast. Eng.
**2011**, 58, 327–336. [Google Scholar] [CrossRef] - Lopez, G.; Conley, D.C. Comparison of HF Radar Fields of Directional Wave Spectra against in Situ Measurements at Multiple Locations. J. Mar. Sci. Eng.
**2019**, 7, 217. [Google Scholar] [CrossRef] [Green Version] - Lopez, G.; Conley, D.C.; Greaves, D. Calibration, validation and analysis of an empirical algorithm for the retrieval of wave spectru from HF radar sea echo. J. Atmos. Ocean. Technol.
**2016**, 33, 245–261. [Google Scholar] [CrossRef] - Hardman, R.; Wyatt, L. Inversion of HF radar Doppler spectrum using a neural network. J. Mar. Sci. Eng.
**2019**, 7, 255. [Google Scholar] [CrossRef] [Green Version] - Wyatt, L.R.; Holden, G.J. Limits in direction and frequency resolution for HF radar ocean wave directional spectra measurement. Glob. Atmos. Ocean. Syst.
**1994**, 2, 265–290. [Google Scholar] - Wyatt, L.R. Measuring the ocean wave directional spectrum ‘First Five’ with HF radar. Ocean. Dyn.
**2019**, 69, 123–144. [Google Scholar] [CrossRef] [Green Version]

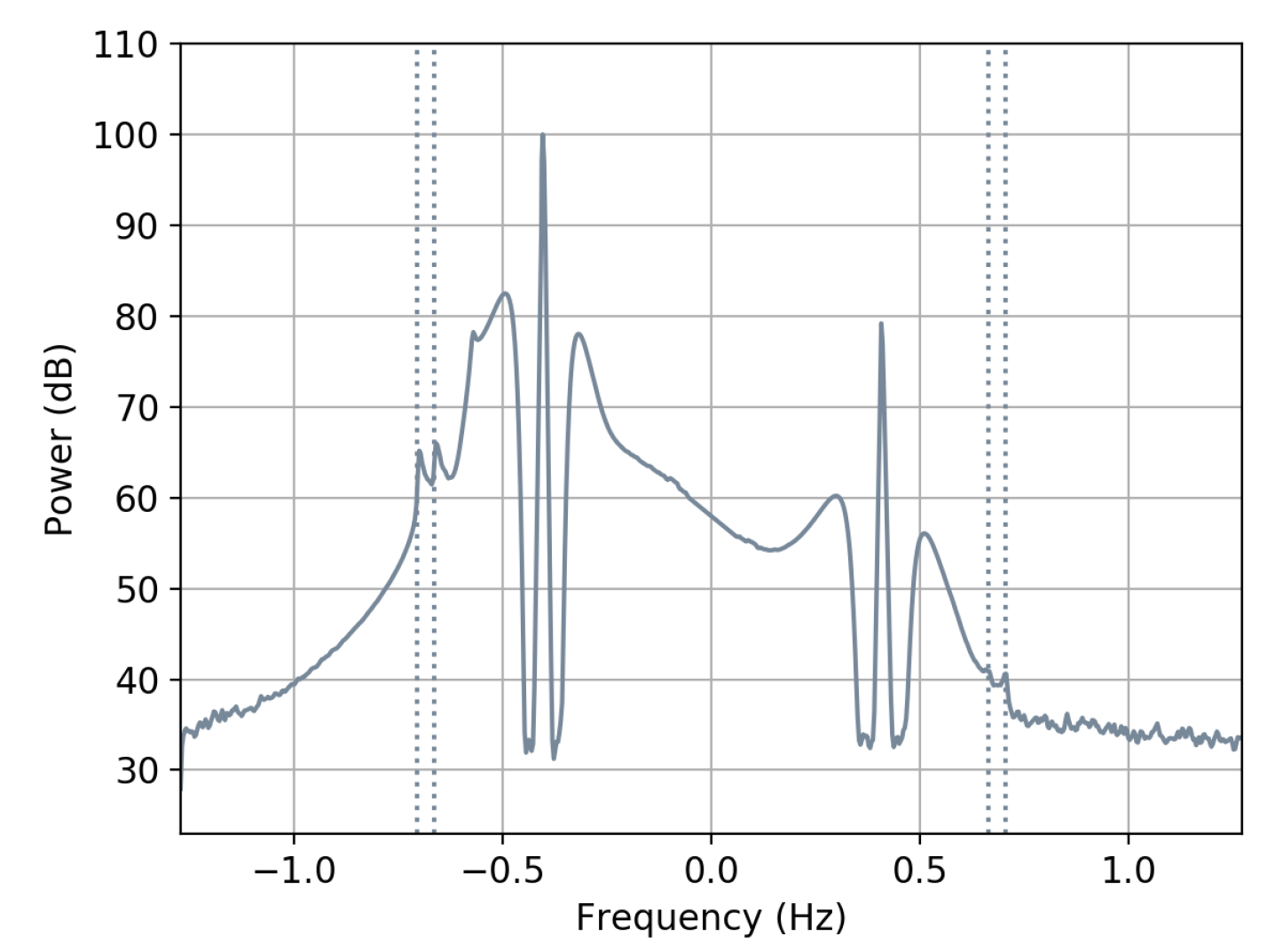

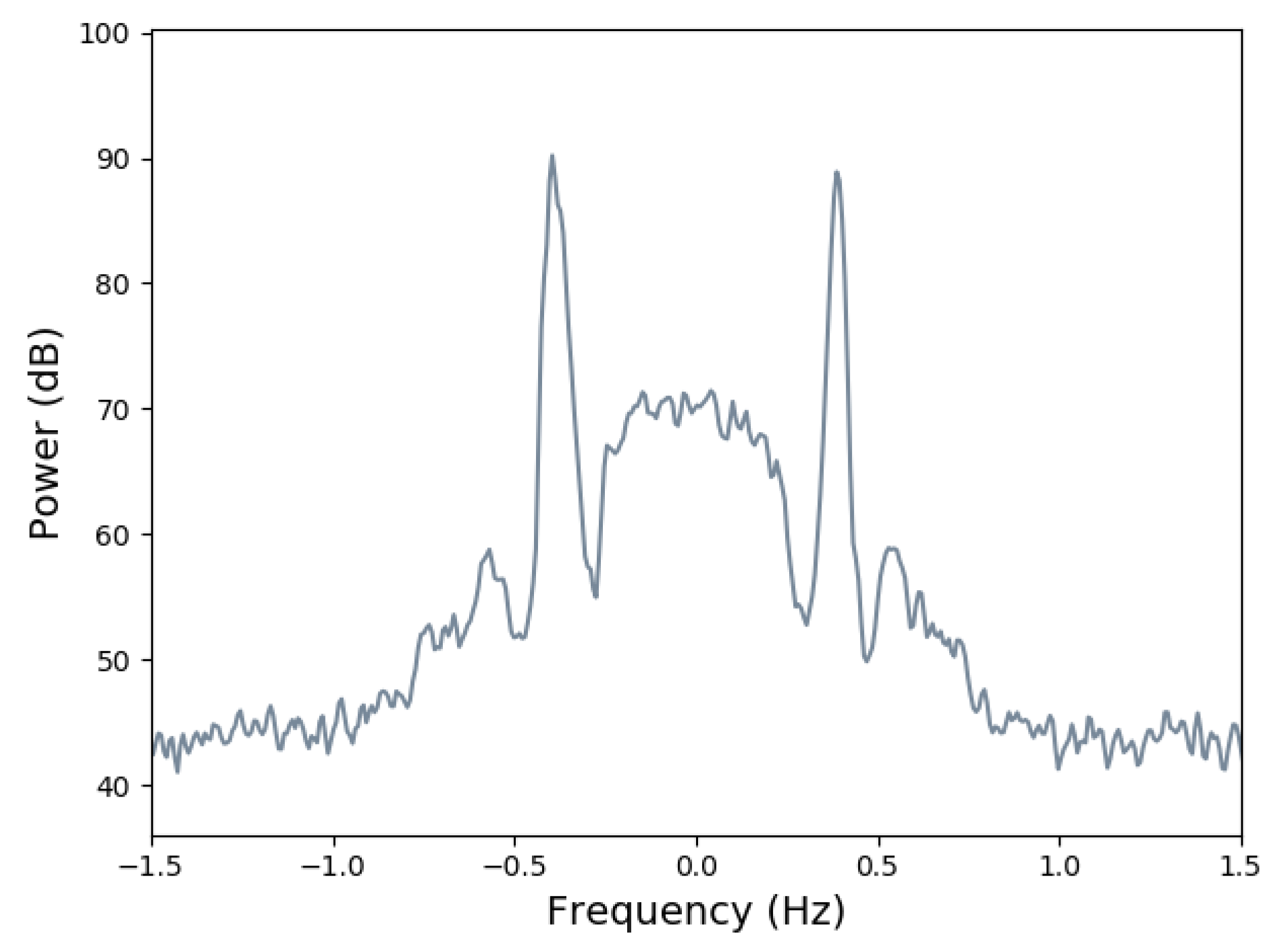

**Figure 1.**Example of a radar Doppler spectrum measured by a bistatic HF radar on the south coast of France on 09/07/2014 00:01. Radar data provided by Celine Quentin, University of Toulon.

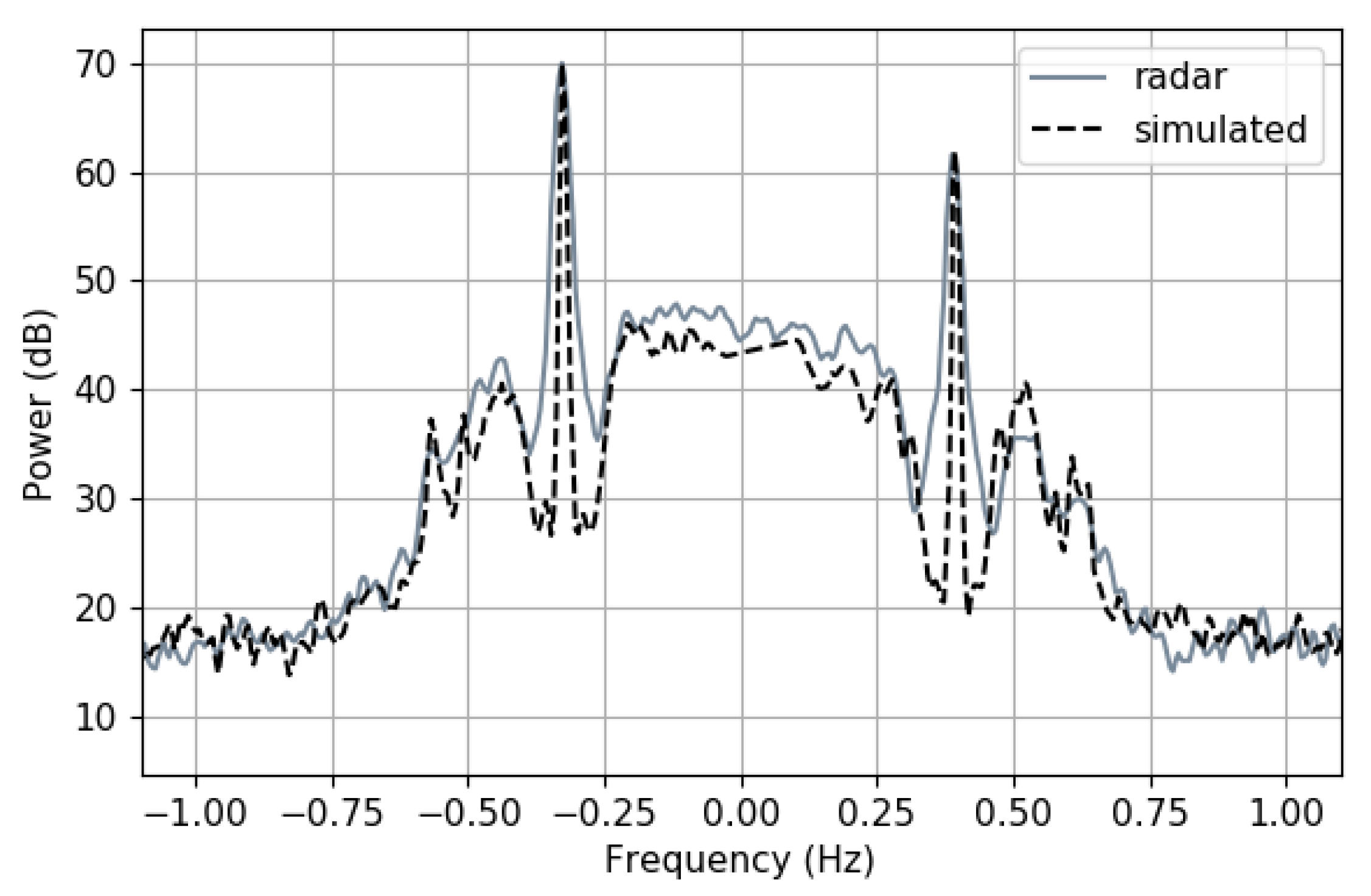

**Figure 2.**Comparison of measured and simulated monostatic Doppler spectra. The simulated Doppler spectrum has been generated using wave buoy data, measured at the same time and place as the radar Doppler spectrum. Radar and buoy data provided by Daniel Conley, Univeresity of Plymouth.

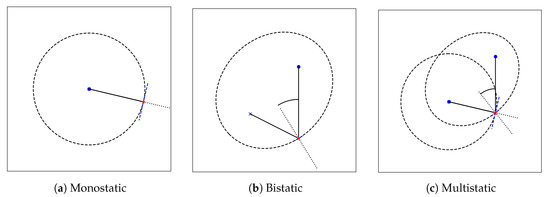

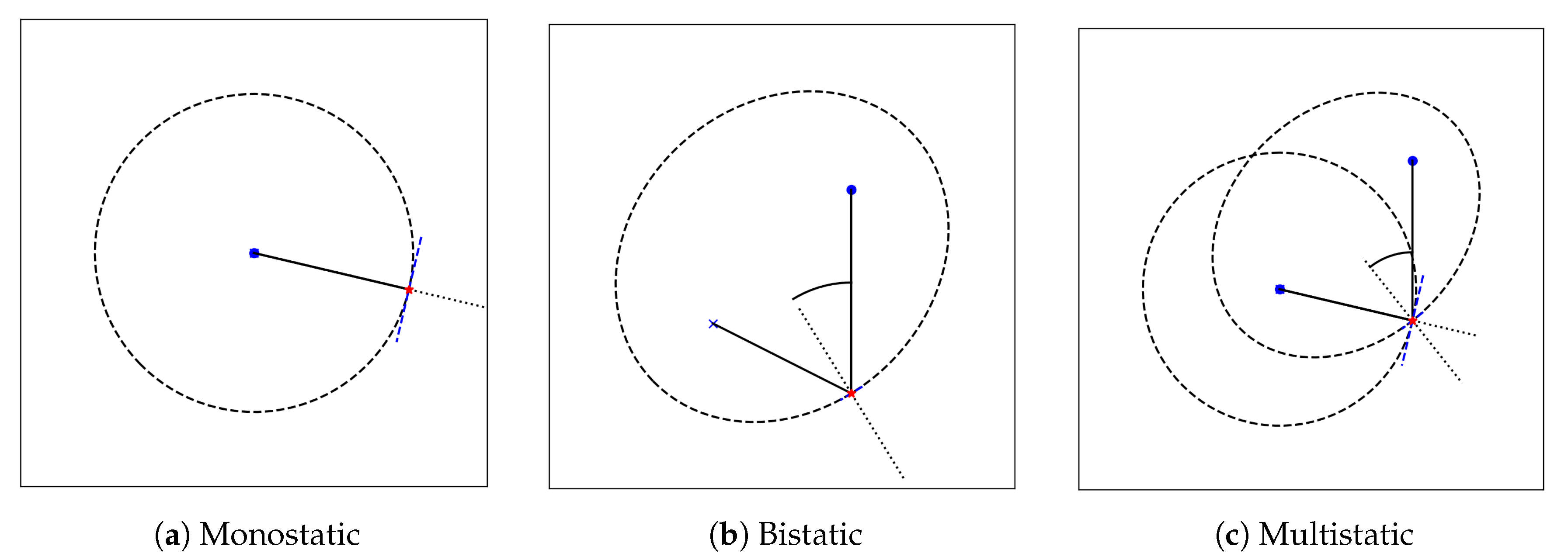

**Figure 3.**Comparison of (

**a**) monostatic (receiver and transmitter colocated), (

**b**) bistatic (receiver and transmitter separated) and (

**c**) multistatic (

**b**with extra receiver) radar geometries. In each case, the transmitter is shown by the blue cross and the receiver is shown by the blue circle (in the monostatic case, is also at the same location as the transmitter). An example scatter point is shown by the red star and the path the signal takes is shown by the solid black line. The line of constant range for each particular range is shown by the dashed black line and the angle marker shown represents the bistatic angle.

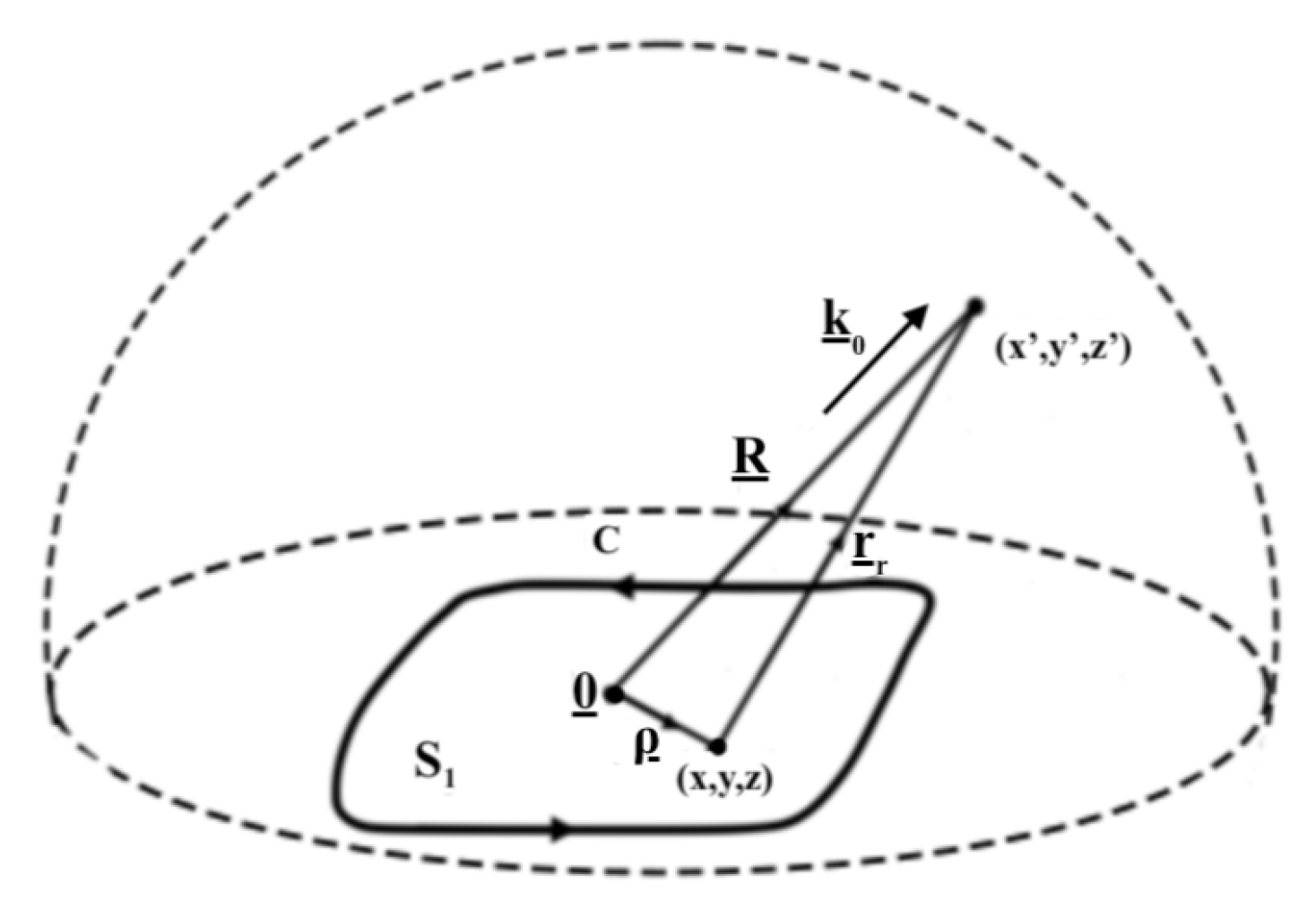

**Figure 4.**The finite scattering surface, ${S}_{1}$, with boundary C, as part of a hemispherical surface. The vector $\mathbf{\rho}$ denotes the position $(x,y,z)$ on ${S}_{1}$; the vector ${\overrightarrow{r}}_{r}$ is the vector from $(x,y,z)$ to some distant point $({x}^{\prime},{y}^{\prime},{z}^{\prime})$ where the scattered electric field is desired. The vector $\overrightarrow{{k}_{0}}$ is the radar wavevector in the direction of the scattered radio wave, $\overrightarrow{R}$.

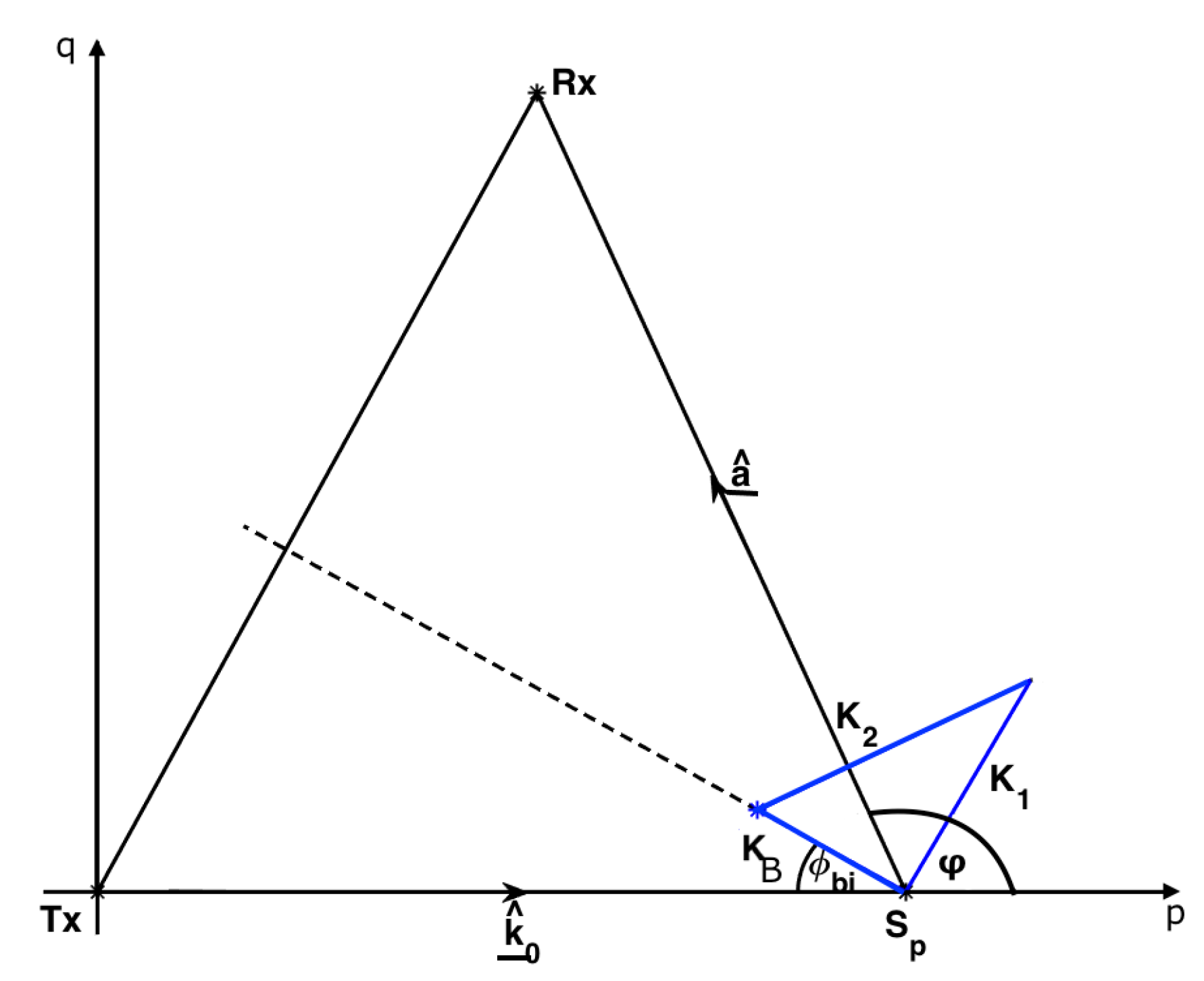

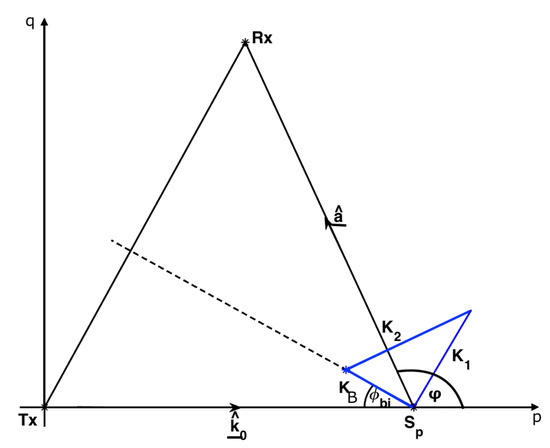

**Figure 5.**Scattering geometry for a bistatic radar where ${T}_{x}$, ${S}_{p}$ and ${R}_{x}$ denote the transmitter, scatter patch and receiver respectively, ${\phi}_{bi}$ is the bistatic angle, $\overrightarrow{{k}_{0}}$ is the radar wavevector and, p and q are spatial wavenumbers, with p in the direction of the emitted radio wave.

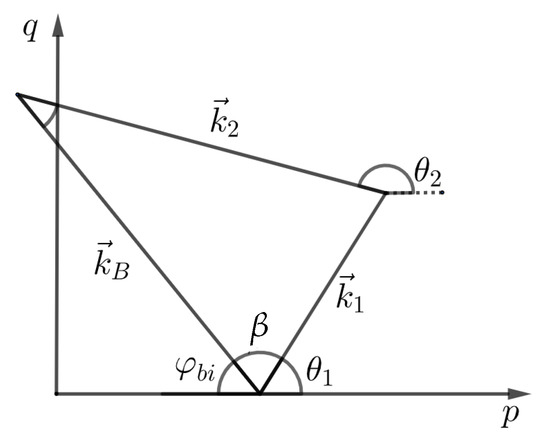

**Figure 6.**Geometry of the second order scattering wave vectors, $\overrightarrow{{k}_{1}}$ and $\overrightarrow{{k}_{2}}$, at angles ${\theta}_{1}$ and ${\theta}_{2}$, respectively.

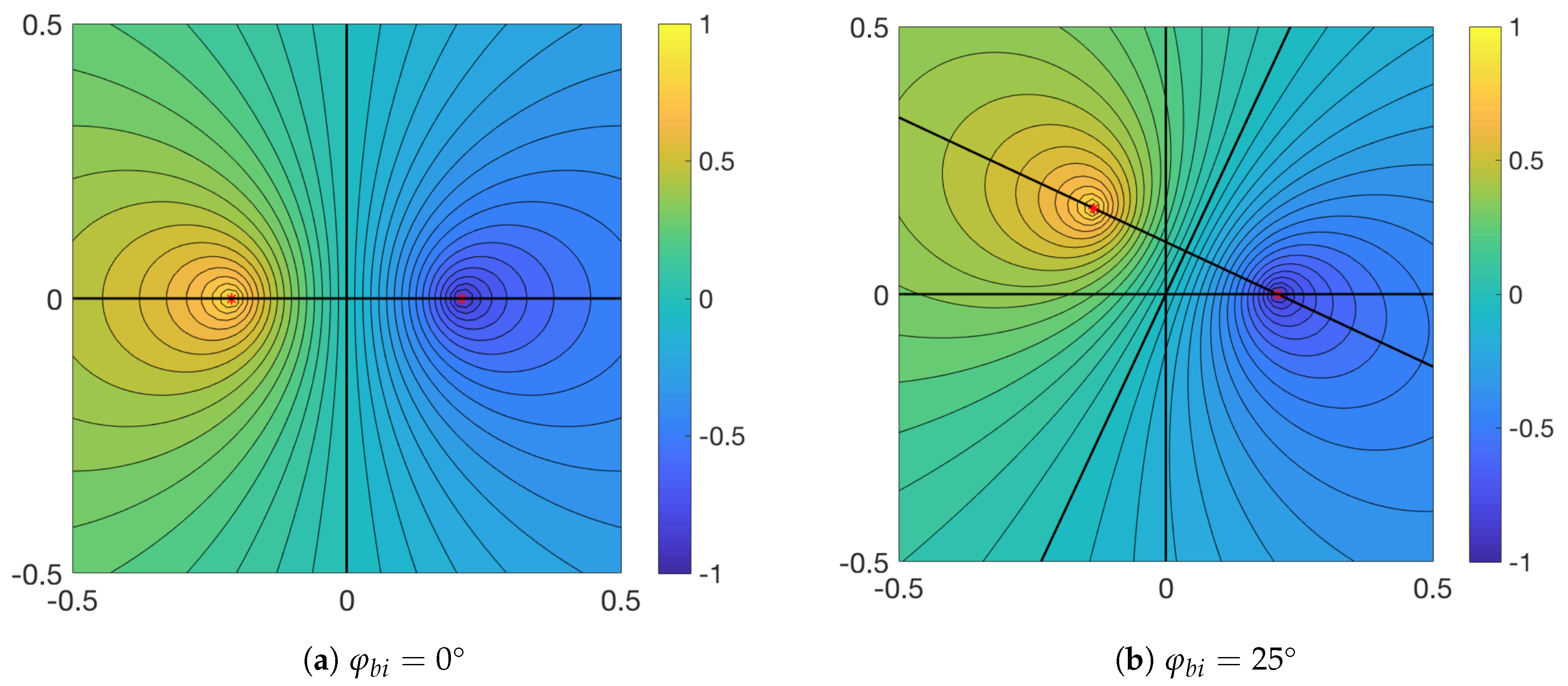

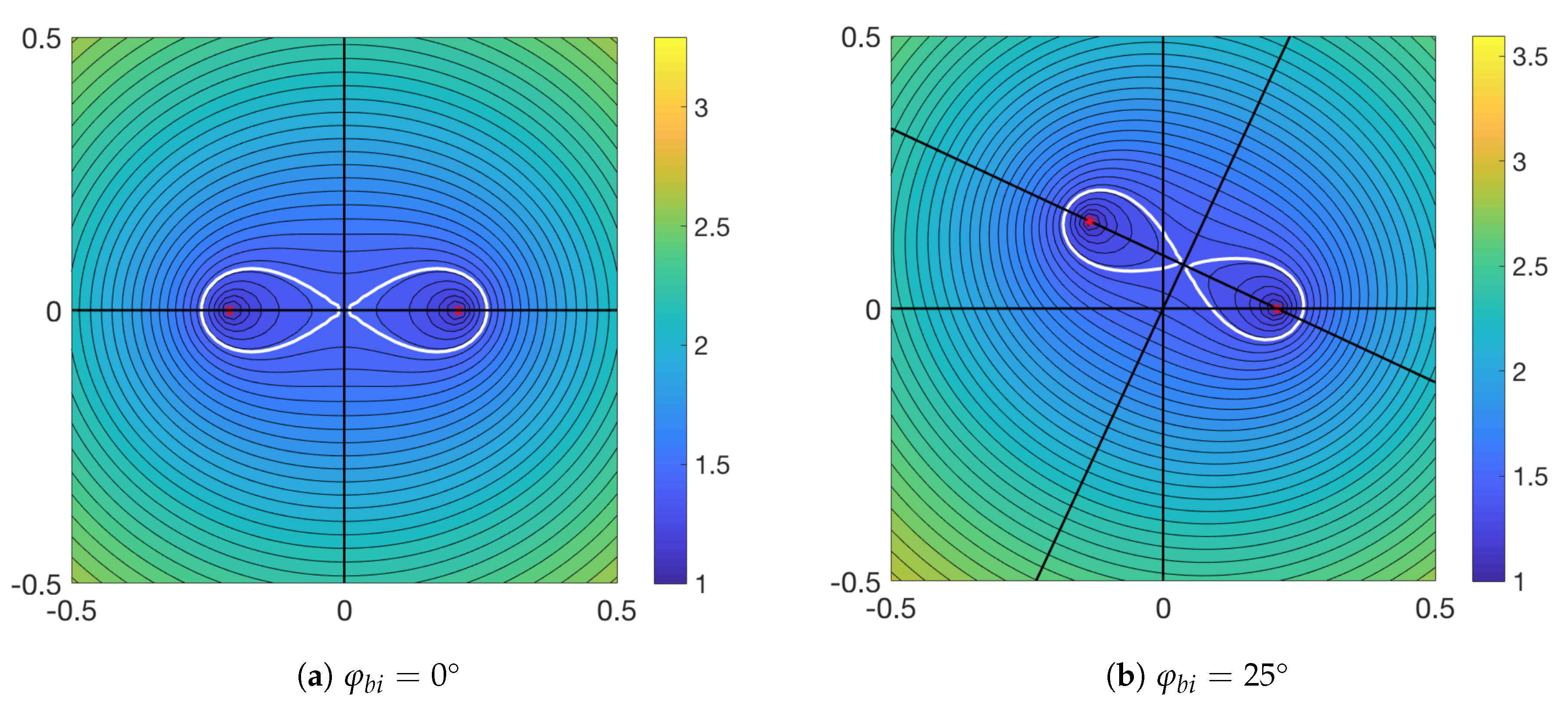

**Figure 7.**The frequency contours of Equation (36) for two values of ${\phi}_{bi}$, (

**a**) monostatic ${\phi}_{bi}=0$ and (

**b**) bistatic angle ${\phi}_{bi}=25\xb0$ when $m={m}^{\prime}=1$. The normalised frequency, $\eta =\omega /{\omega}_{B}$, is shown by the colour, in the p, q plane.

**Figure 8.**The frequency contours of Equation (36) shown for $m\ne {m}^{\prime}$ (where $m=1$) with two different values for ${\phi}_{bi}$: (

**a**) monostatic ${\phi}_{bi}=0$ and (

**b**) bistatic angle ${\phi}_{bi}=25\xb0$. The colour shows the value of the normalised frequency, $\eta =\omega /{\omega}_{B}$, in the p, q plane.

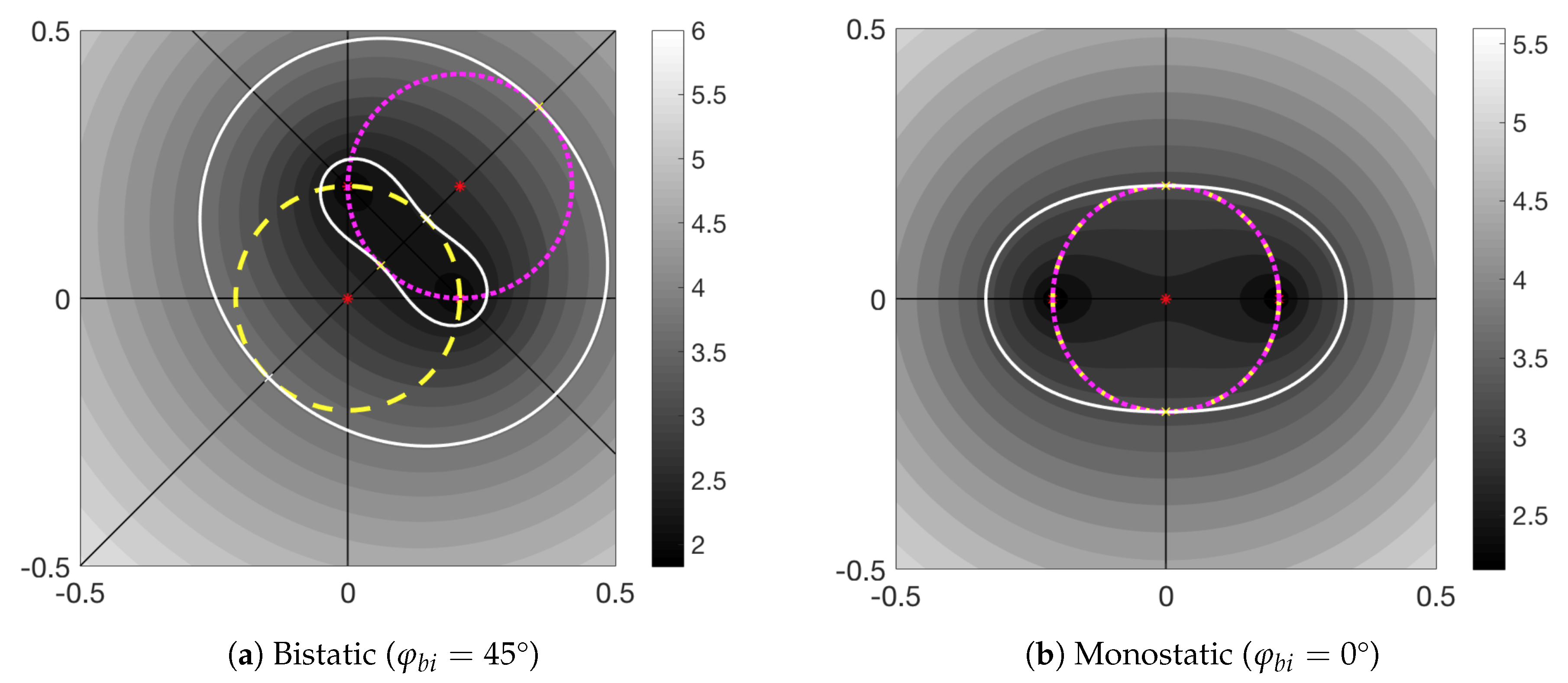

**Figure 9.**Contours in the p, q plane defined by Equation (36) when $m={m}^{\prime}=1$. (

**a**) Bistatic case with bistatic angle ${\phi}_{bi}=45\xb0$, (

**b**) monostatic case. The electromagnetic singularities are shown for both monostatic and bistatic radars. The yellow dashed circle shows the singularities defined by Equation (50) and the magenta dotted circle shows those defined by Equation (51). In the monostatic case, Equations (50) and (51) are equal and hence both circles are in the same location. The white contours highlight the frequencies tangential to the circles.

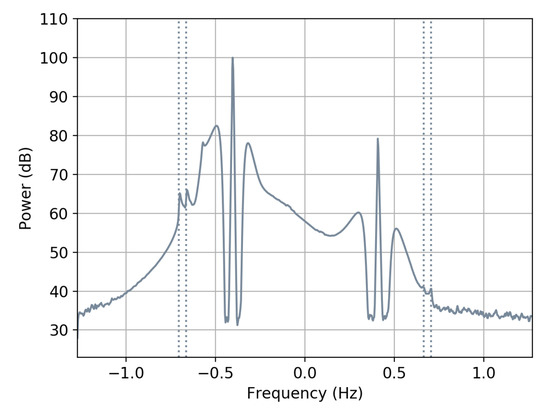

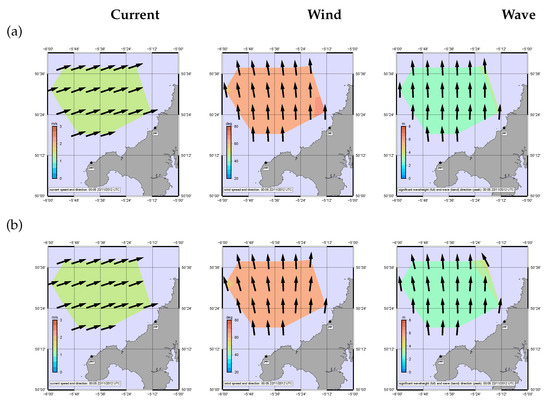

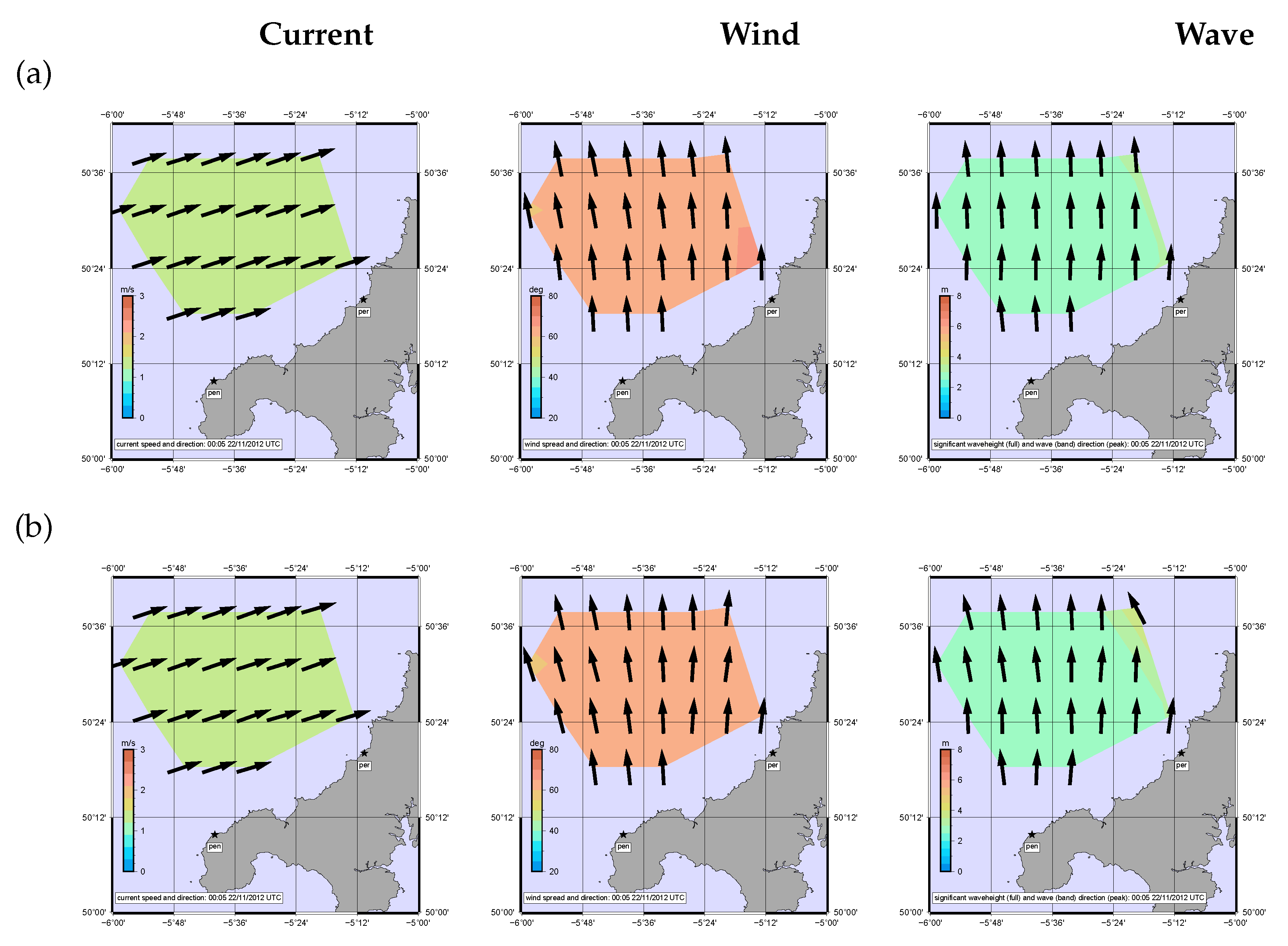

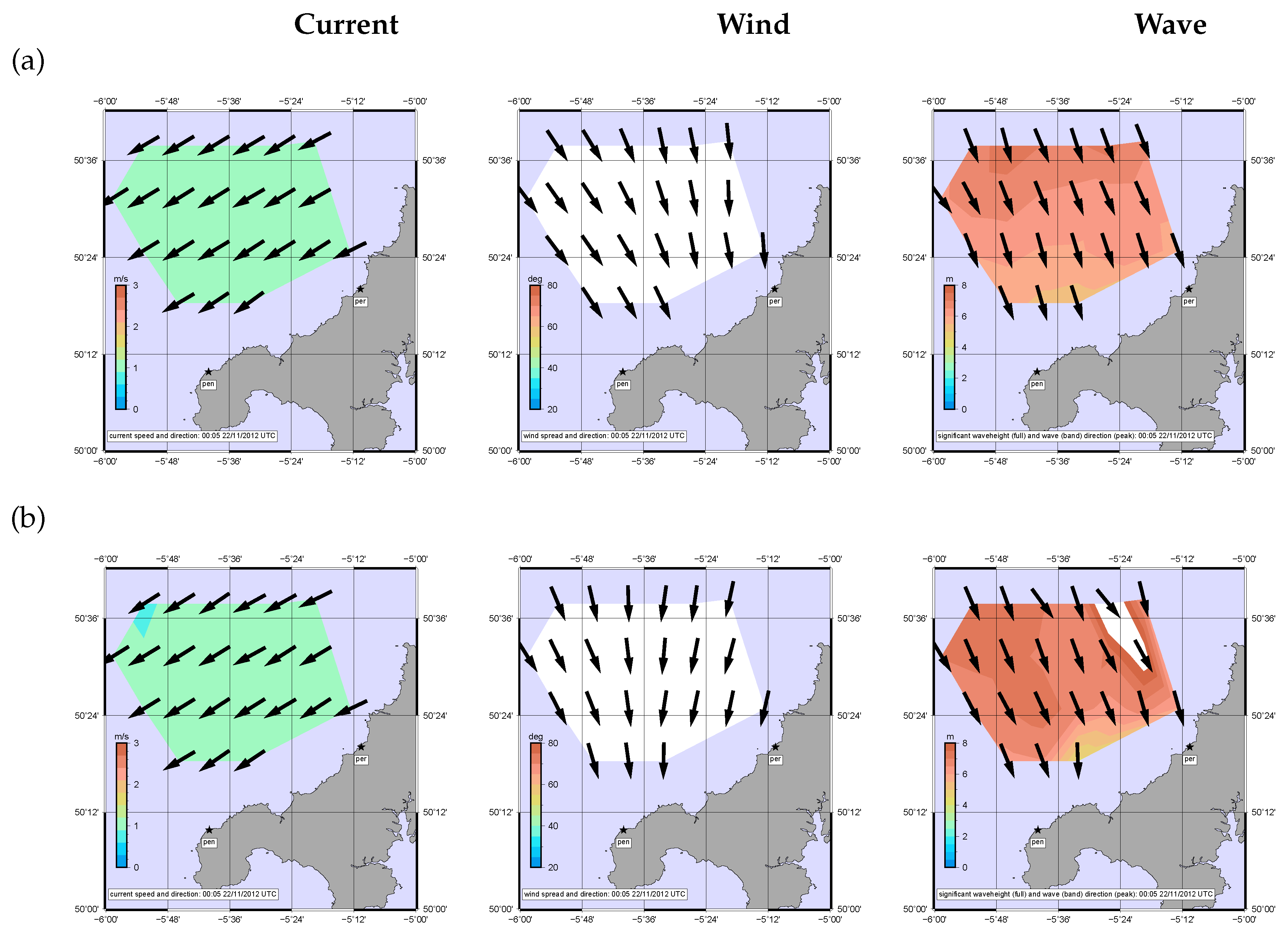

**Figure 11.**Inverted data for case 1. (

**a**) monostatic (

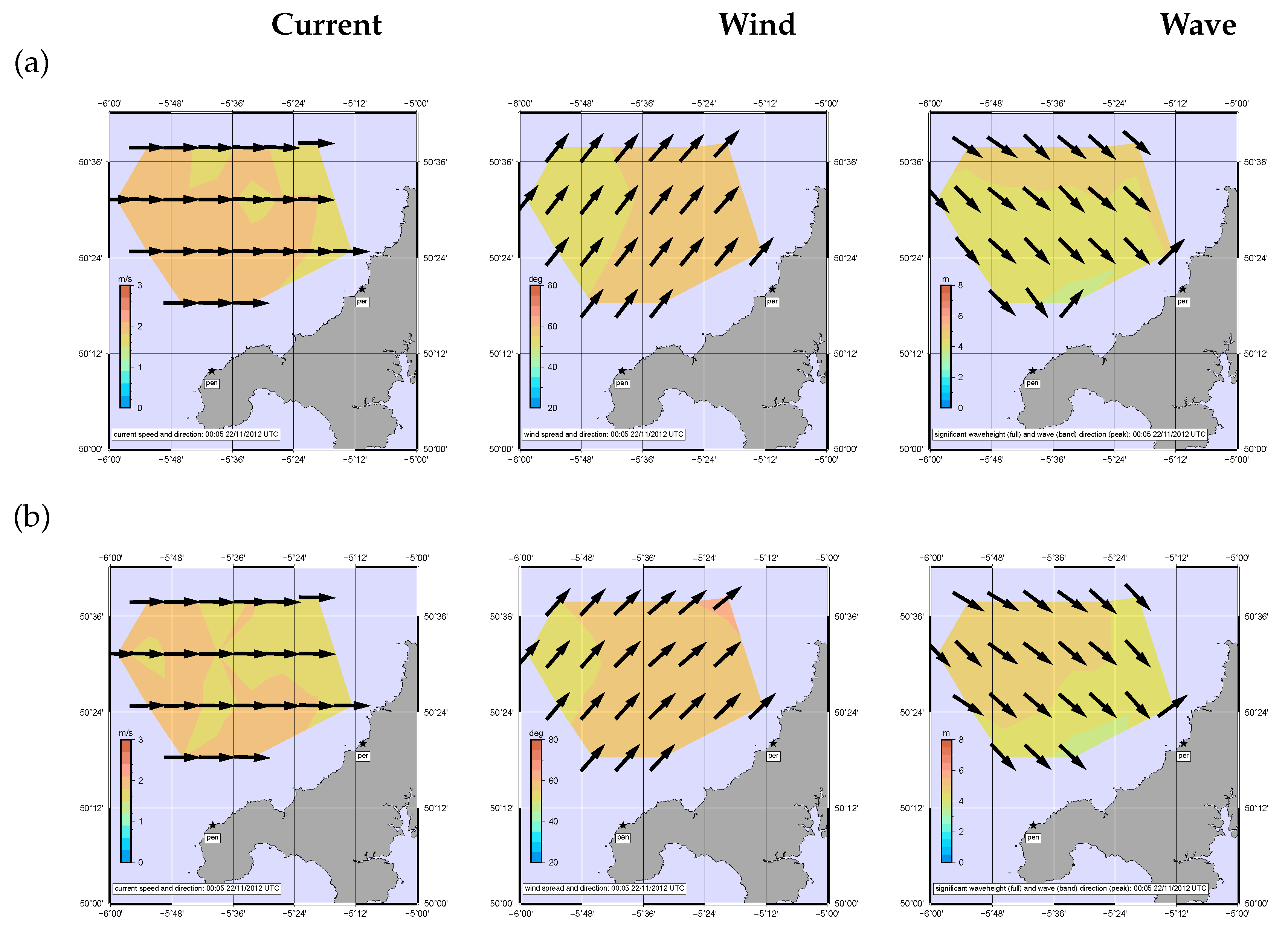

**b**) 1 bistatic. Current speed and direction on left, shortwave directional spreading and wind direction, centre, significant waveheight and peak direction, right.

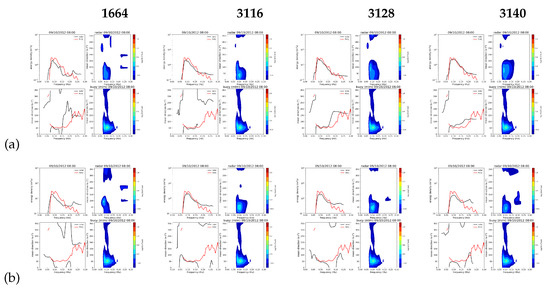

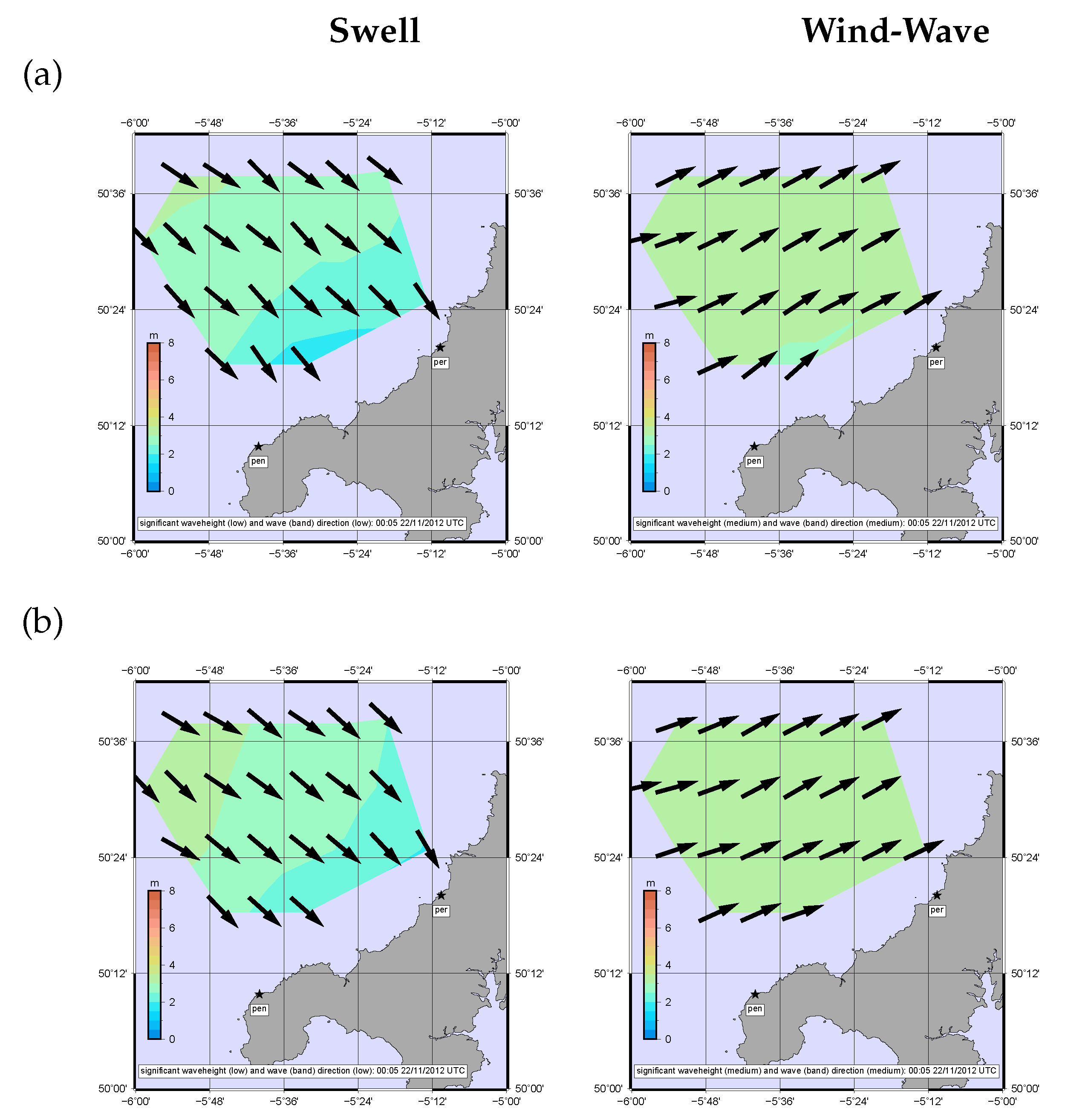

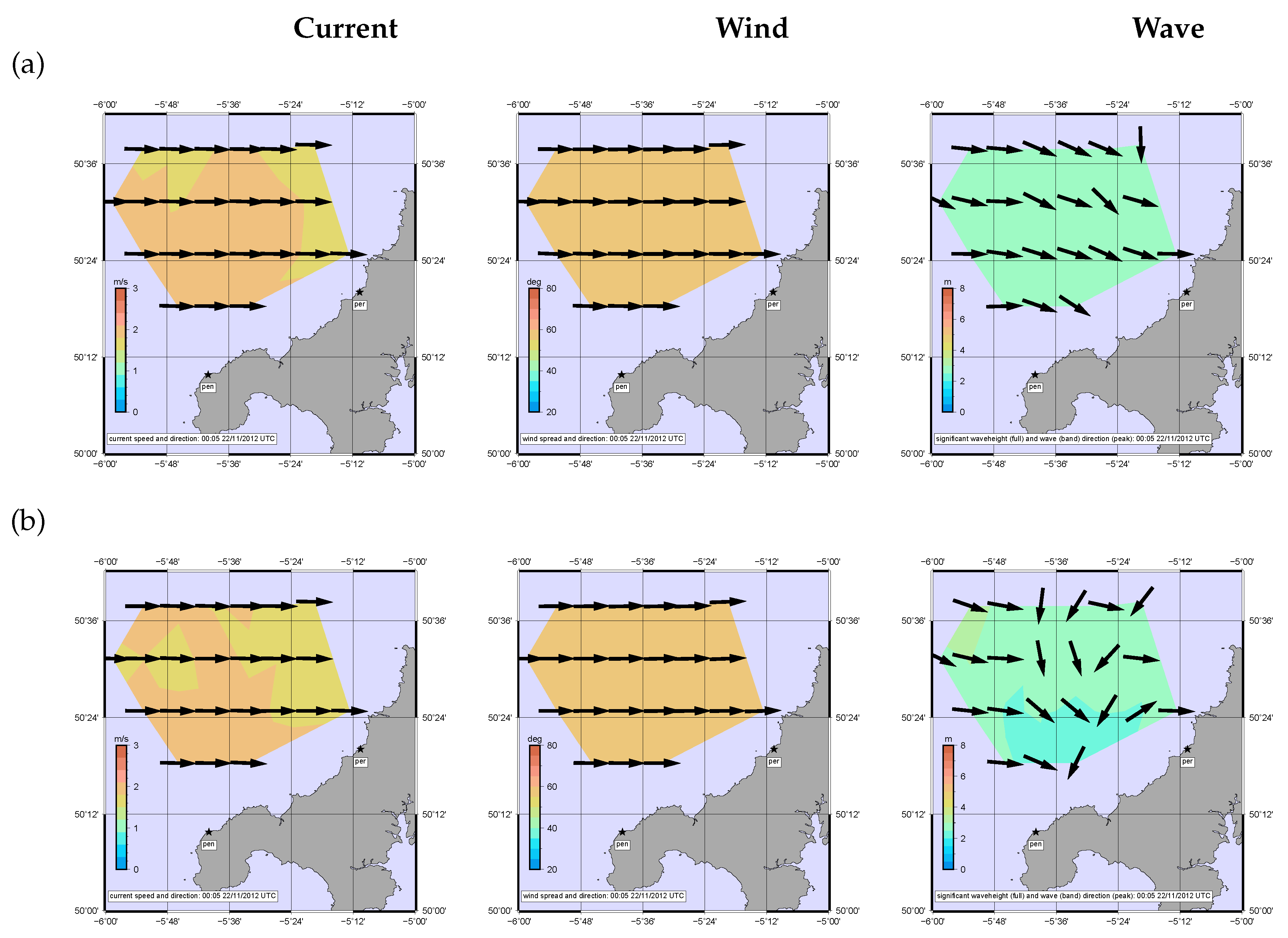

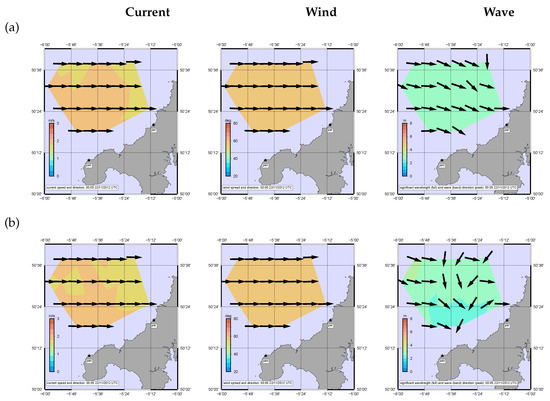

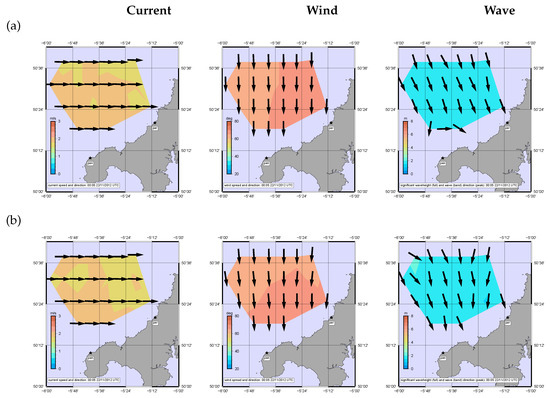

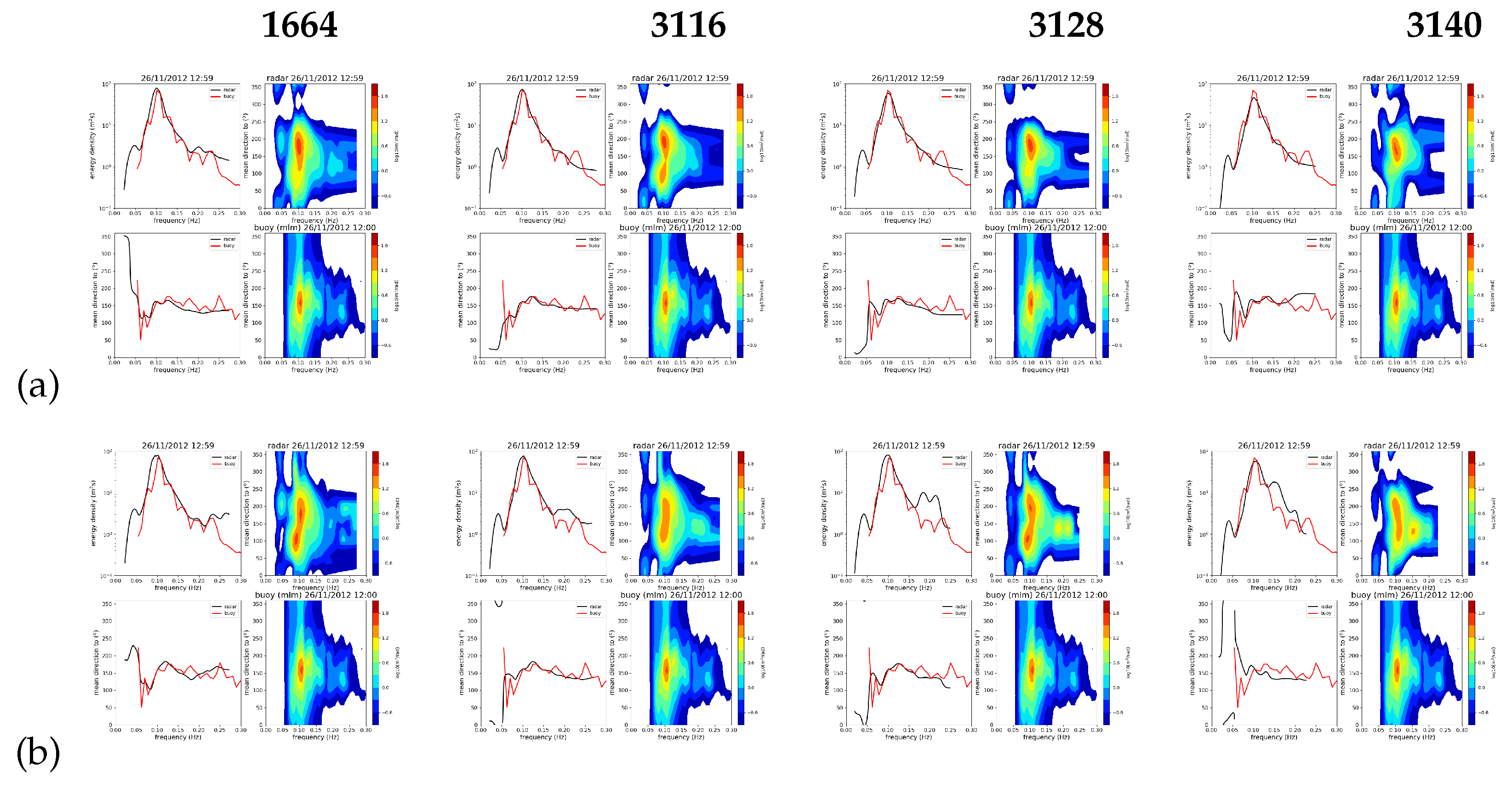

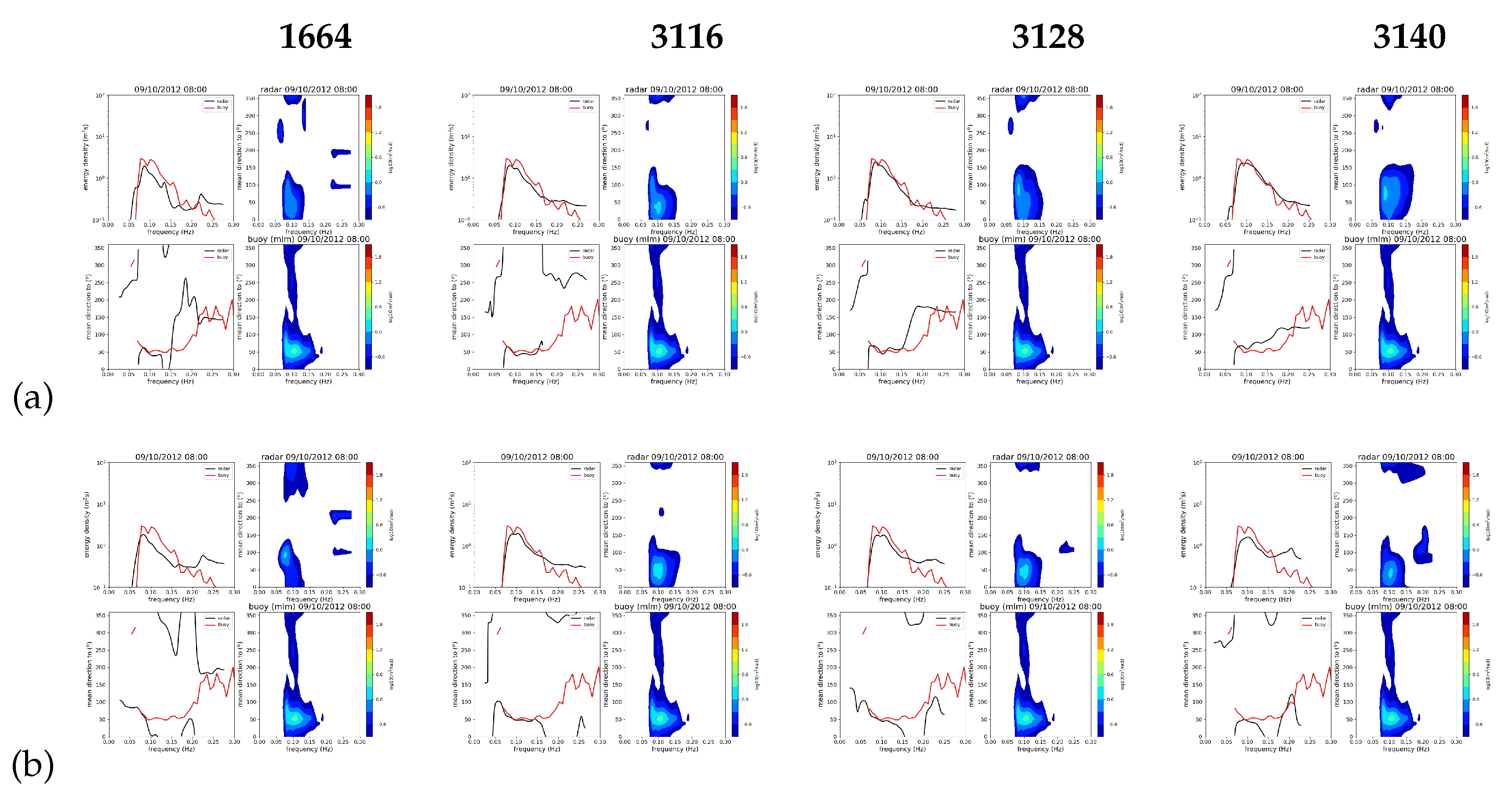

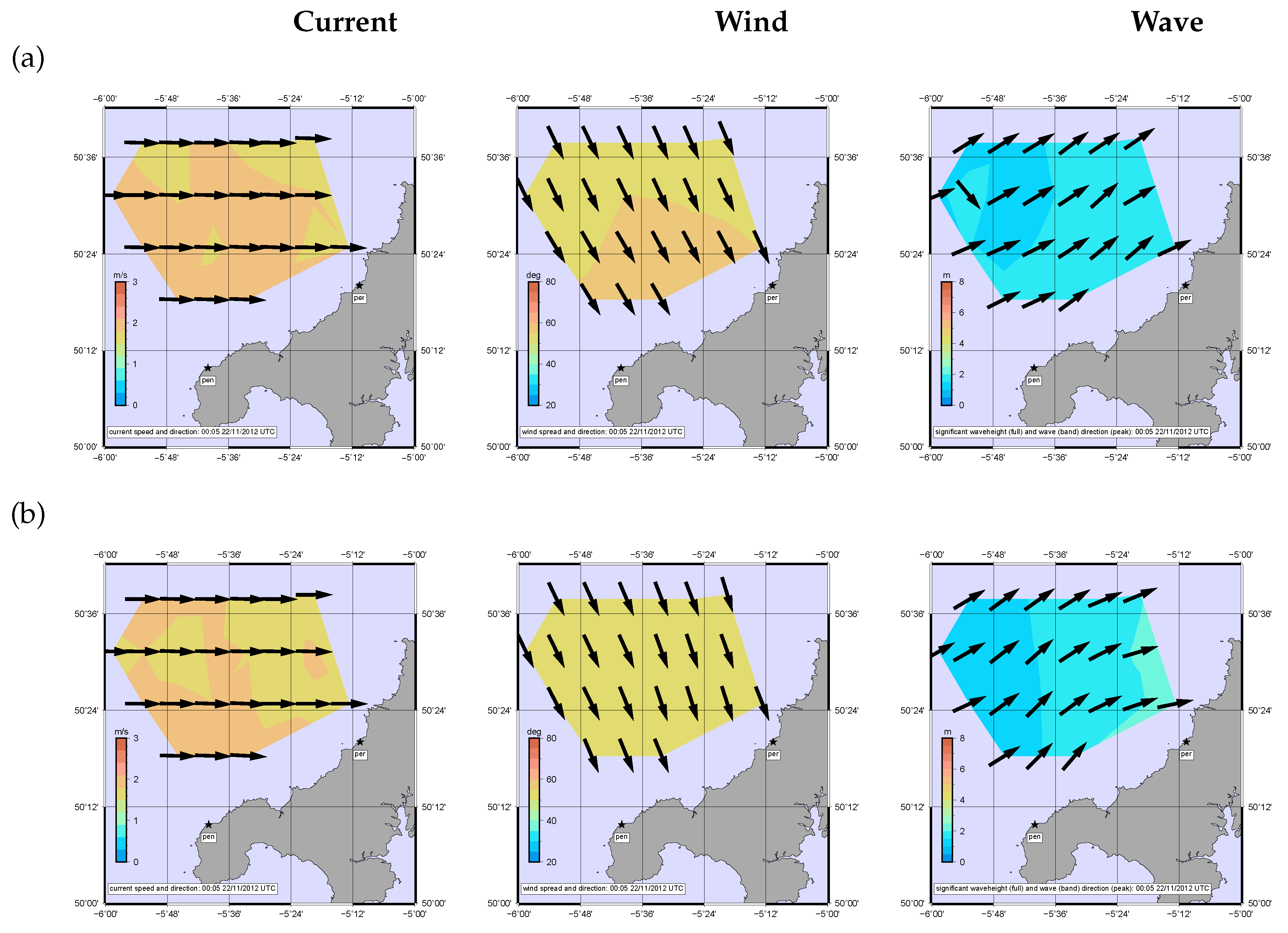

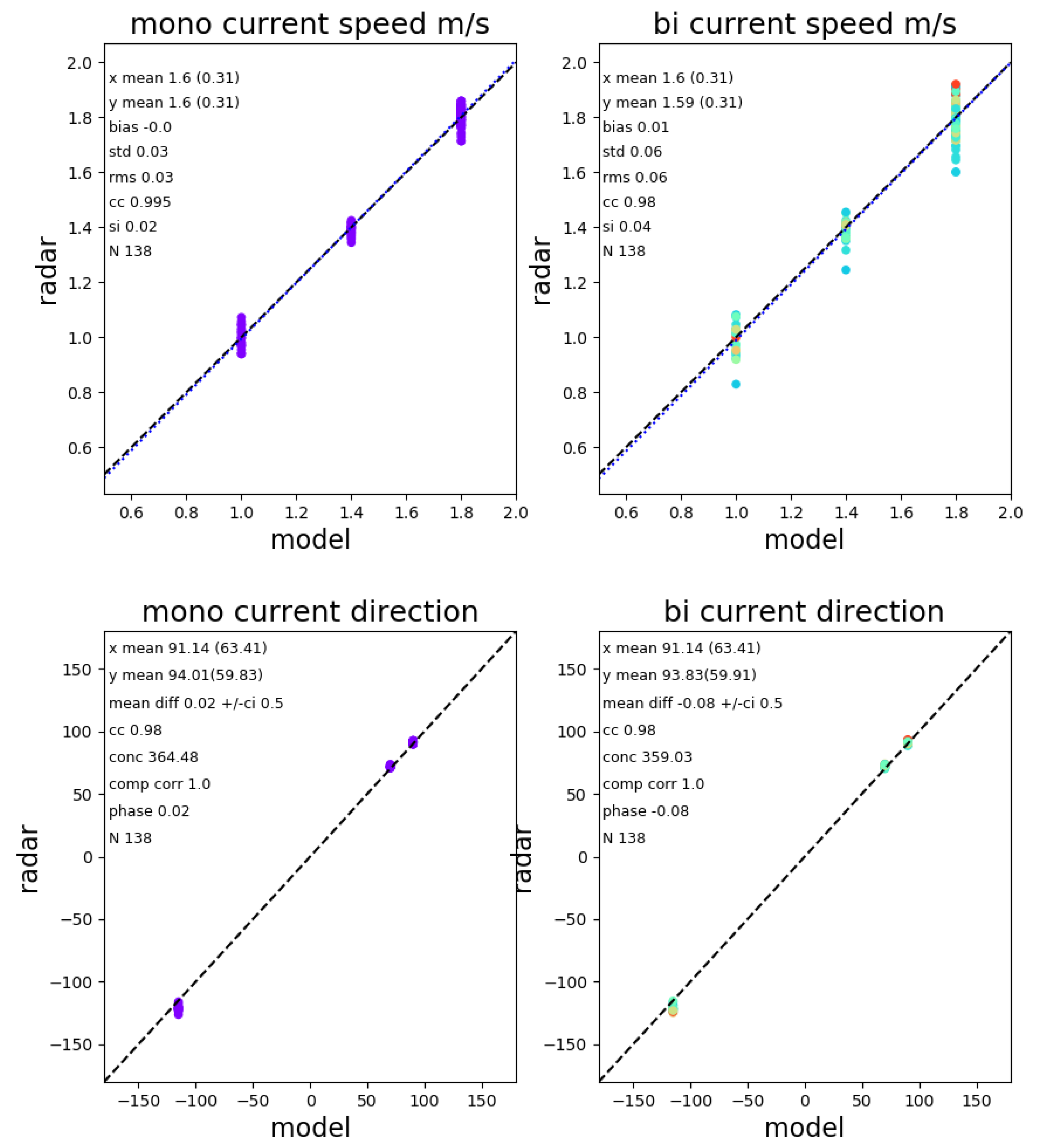

**Figure 22.**Scatter plots and statistics of the current measurements. These are colour-coded with the bistatic angle.

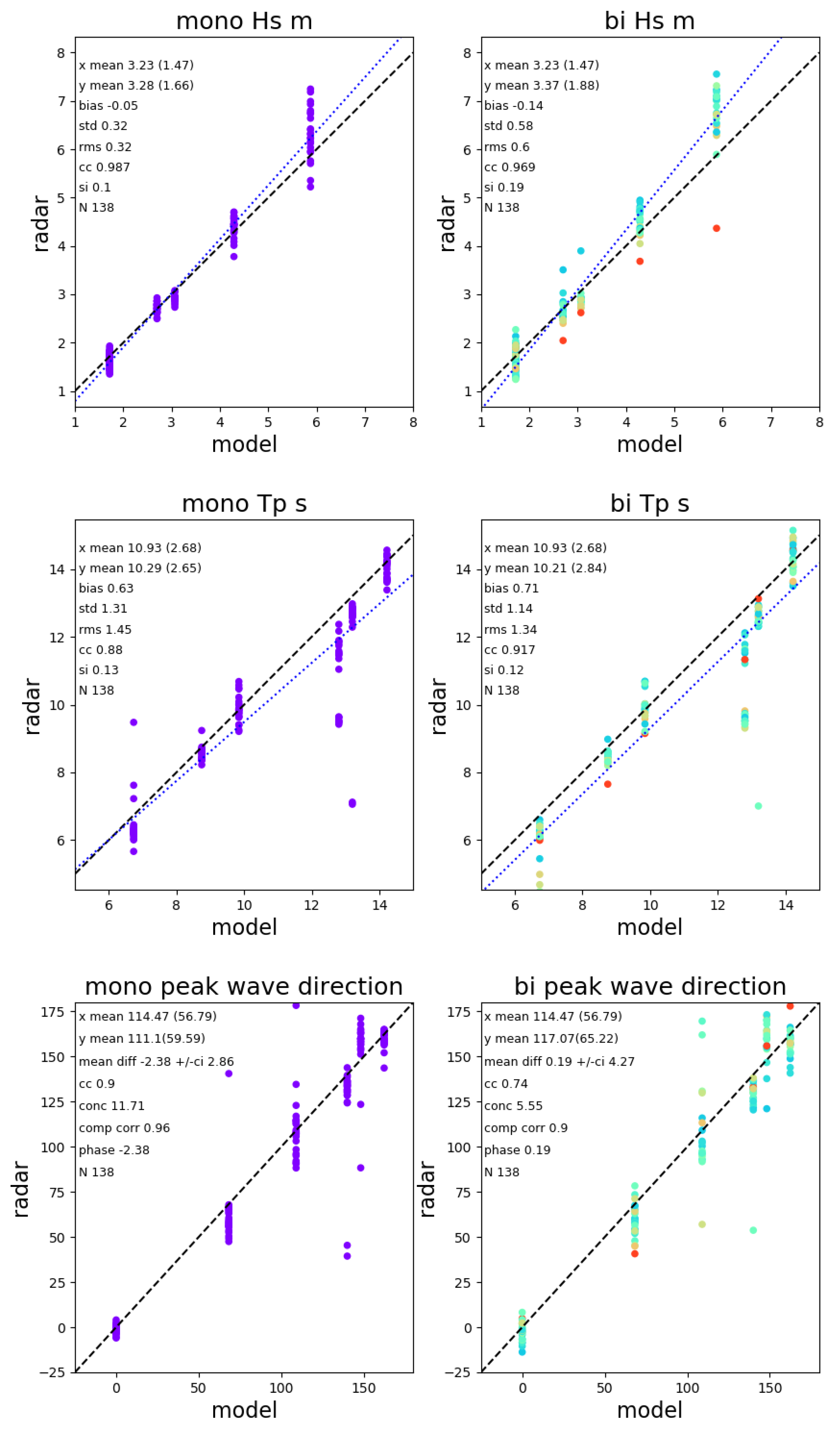

**Figure 23.**Scatter plots and statistics of the wave parameter measurements, colour-coded with the bistatic angle.

**Table 1.**Wave, wind and current parameters used for the Doppler spectra simulations. The buoy data are not separated into wind–waves and swell but their peak period and direction are included in the swell columns.

Case | Type | Wind–Wave Hs m | ${\mathit{\theta}}_{\mathit{w}}$ | Spread | Wind Speed m/s | Current Speed m/s | ${\mathit{\theta}}_{\mathit{c}}$ | Swell Hs m | ${\mathit{\theta}}_{\mathit{s}}$ | Tp s | Spread |
---|---|---|---|---|---|---|---|---|---|---|---|

1 | Model | 3.07 | 0.0 | 3.0 | 12.0 | 1.4 | 70.0 | ||||

2 | Model | 3.07 | 30.0 | 2.0 | 12.0 | 1.8 | 90.0 | 3.0 | 140.0 | 13.2 | 10.0 |

3 | Buoy | 1.72 | 1.8 | 90.0 | 68.24 | 12.8 | |||||

4 | Buoy | 1.72 | 1.8 | 90.0 | 148.16 | 6.74 | |||||

5 | Buoy | 2.70 | 1.8 | 90.0 | 109.01 | 14.22 | |||||

6 | Buoy | 5.87 | 1.0 | 245.0 | 162.36 | 9.85 |

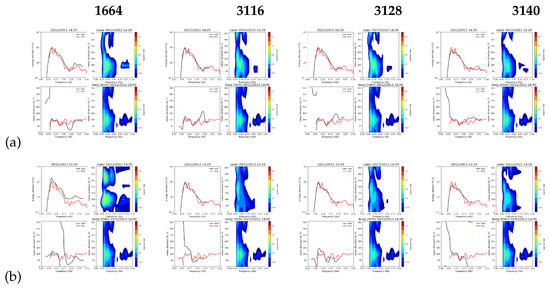

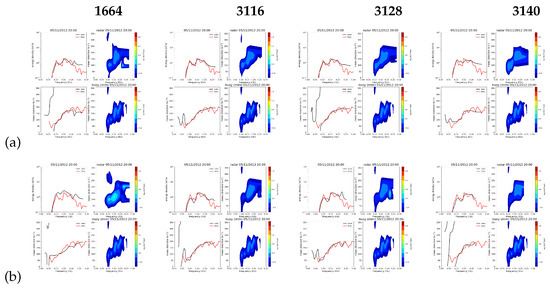

Cell Number | Configuration | Bistatic Angle | Angle between Braggs |
---|---|---|---|

1664 | monostatic | 0 | 40.6 |

1 mono, 1 bistatic | 20.4 | 20.3 | |

3116 | monostatic | 0 | 60.0 |

1 mono, 1 bistatic | 30.1 | 29.9 | |

3128 | monostatic | 0 | 77.8 |

1 mono, 1 bistatic | 39.1 | 38.8 | |

3140 | monostatic | 0 | 99.6 |

1 mono, 1 bistatic | 50.1 | 49.5 |
