Beyond Amplitudes: Multi-Trace Coherence Analysis for Ground-Penetrating Radar Data Imaging

by Immo Trinks 1,2,* and Alois Hinterleitner 1,3
1
Ludwig Boltzmann Institute for Archaeological Prospection and Virtual Archaeology, Hohe Warte 38, 1190 Vienna, Austria
2
Institute for Prehistory and Historical Archaeology, University of Vienna, Franz-Klein-Gasse 1, 1190 Vienna, Austria
3
Central Institute for Meteorology and Geodynamics, Hohe Warte 38, 1190 Vienna, Austria
*
Author to whom correspondence should be addressed.
Remote Sens. 2020, 12(10), 1583; https://doi.org/10.3390/rs12101583
Received: 29 April 2020 / Revised: 12 May 2020 / Accepted: 14 May 2020 / Published: 16 May 2020
(This article belongs to the Special Issue Advanced Techniques for Ground Penetrating Radar Imaging)
Under suitable conditions, ground-penetrating radar (GPR) measurements harbour great potential for the non-invasive mapping and three-dimensional investigation of buried archaeological remains. Current GPR data visualisations almost exclusively focus on the imaging of GPR reflection amplitudes. Ideally, the resulting amplitude maps show subsurface structures of archaeological interest in plan view. However, there exist situations in which, despite the presence of buried archaeological remains, hardly any corresponding anomalies can be observed in the GPR time- or depth-slice amplitude images. Following the promising examples set by seismic attribute analysis in the field of exploration seismology, it should be possible to exploit other attributes than merely amplitude values for the enhanced imaging of subsurface structures expressed in GPR data. Coherence is the seismic attribute that is a measure for the discontinuity between adjacent traces in post-stack seismic data volumes. Seismic coherence analysis is directly transferable to common high-resolution 3D GPR data sets. We demonstrate, how under the right circumstances, trace discontinuity analysis can substantially enhance the imaging of structural information contained in GPR data. In certain cases, considerably improved data visualisations are achievable, facilitating subsequent data interpretation. We present GPR trace coherence imaging examples taken from extensive, high-resolution archaeological prospection GPR data sets. View Full-Text
Keywords: GPR; coherence; semblance; attribute analysis; imaging; GPR trace; high-resolution data; large-scale survey; archaeological prospection GPR; coherence; semblance; attribute analysis; imaging; GPR trace; high-resolution data; large-scale survey; archaeological prospection
Show Figures

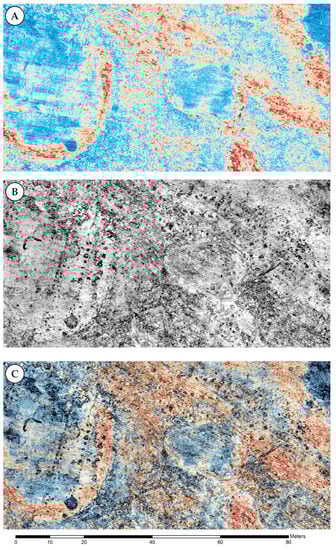

Graphical abstract
