Article

Downscaling GRACE TWSA Data into High-Resolution Groundwater Level Anomaly Using Machine Learning-Based Models in a Glacial Aquifer System

1
Department of Geography, Geology, and the Environment, Illinois State University, Normal, IL 61790, USA
2
Department of Geology, University of Georgia, Athens, GA 30602, USA
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(7), 824; https://doi.org/10.3390/rs11070824
Received: 4 February 2019 / Revised: 22 March 2019 / Accepted: 2 April 2019 / Published: 5 April 2019
(This article belongs to the Special Issue Remote Sensing by Satellite Gravimetry)

Abstract

:
With continued threat from climate change and human impacts, high-resolution and continuous hydrologic data accessibility has a paramount importance for predicting trends and availability of water resources. This study presents a novel machine learning (ML)-based downscaling algorithm that produces a high spatial resolution groundwater level anomaly (GWLA) from the Gravity Recovery and Climate Experiment (GRACE) data by utilizing the relationship between Terrestrial Water Storage Anomaly (TWSA) from GRACE and other land surface and hydro-climatic variables (e.g., vegetation coverage, land surface temperature, precipitation, streamflow, and in-situ groundwater level data). The predicted downscaled GWLA data were tested using monthly in-situ groundwater level observations. Of the 32 groundwater monitoring wells available in the study site, 21 wells were used to develop the ML-based downscaling model, while the remaining 11 wells were used to assess the performance of the ML-based downscaling model. The test results showed that the model satisfactorily reproduces the spatial and temporal variation of the GWLA in the area, with acceptable correlation coefficient and Nash-Sutcliffe Efficiency values of ~0.76 and ~0.45, respectively. GRACE TWSA was the most influential predictor variable in the models, followed by stream discharge and soil moisture storage. Though model limitations and uncertainty could exist due to high spatial heterogeneity of the geologic materials and omission of human impact (e.g., abstraction), the significance of the result is undeniable, particularly in areas where in-situ well measurements are sparse.

Graphical Abstract

1. Introduction

With continued threat from climate change and human impacts, high-resolution and continuous hydrologic data availability is crucial for predicting trends and water resource availability. Given an increase in global population and water demand, measuring water storage and trends is valuable for water resources management, hazard analysis and mitigation, and food security [1,2,3,4]. These issues are exacerbated by the lack of hydrologic data, which leads to increased uncertainty in estimated water resource variables (e.g., river discharge, groundwater recharge) and hampers accurate predictions of water storage and trends [5,6,7]. Unfortunately, global in-situ data availability is poor due to malfunctioning of existing gauges, economic constraints, and the lack of data sharing among nations [8,9,10,11]. Conversely, the capability and demand of satellite applications in hydrology and water resources has grown in the past decades. Particularly, the availability of Terrestrial Water Storage Anomaly (TWSA) data from the Gravity Recovery and Climate Experiment (GRACE) satellite since 2002 is revolutionizing the way we measure Earth’s water storage variations.
GRACE has twin satellites that measure gravity. Through a series of processing steps, the gravity anomaly measured by GRACE satellite is converted into monthly TWSA, with a spatial resolution of several hundred kilometers. GRACE has provided unprecedented opportunities for the science community despite the limitations inhibited by its coarse spatial scale (e.g., 200,000 km2). It has been used to understand regional and global trends in water storage changes [12,13,14,15], assess hydrologic extremes [16,17,18], and investigate water deficit, drought management [19,20,21], and surface reservoirs and lakes [22]. Combined with other satellite data (e.g., water level from satellite altimetry, vegetation from Moderate Resolution Imaging Spectroradiometer (MODIS)), GRACE has been used to understand the water dynamics of several river basins [23,24].
Given the spatial resolution challenges of GRACE, researchers have attempted to downscale the data to local or sub-regional scales using techniques such as data assimilation [25] and empirical methods [26,27,28]. Sun [26] used GRACE and Artificial Neural Networks (ANN) to predict monthly and seasonal water level changes for wells located in the US. This approach can be used to predict temporal changes in groundwater; however, it has limited skill in predicting groundwater change in space. Seyoum and Milewski [27] developed a robust approach using an ANN model that downscales TWSA from the GRACE scale (~200,000 km2) to a watershed scale (watershed areas range between 5000 and 20,000 km2) in the Northern High Plains Aquifer. They predicted spatial TWSA from GRACE and other hydro-climate variables (e.g., land surface temperature, precipitation, soil moisture, etc.); however, extracting high-resolution groundwater storage information requires further disaggregation of the downscaled product. As a result, the uncertainty of the derivate product (e.g., groundwater storage anomaly) is amplified. In addition, the ability of the ANN downscaling model to capture the spatial variability within the watershed is limited. In both the Seyoum and Milewski [27] and Miro and Famiglietti [28] methods, because the models are empirical, replicating the results to other regions may be limited. Unlike physical models, the models in both the above approaches lack capturing information about the spatial variation of groundwater, which results in lower prediction values of water storage anomaly.
The objective of this study was to test the efficacy of downscaling groundwater level anomaly from GRACE TWSA anomaly and hydro-climate and land surface variables in a glacial system, in order to further improve the approach by Seyoum and Milewski [27], as well as to minimize existing limitations of downscaling methods (e.g., method replicability). This work presents a novel downscaling approach by using multiple variables and a two-stage Machine Learning (ML) method. A two-stage Boosted Regression Tree (BRT) Machine Learning (ML) method was used to develop the downscaling model. BRT is less sensitive to large magnitude differences between input variables, is flexible in working with datasets with missing data (e.g., GRACE), and is suitable for developing multi-stage models and ensembles to create one representative model.
In order to incorporate seasonal variability in both the training and testing sets, the entire dataset, which ranges from 2002 to 2016, was split into two subsets: Training (ranges from 2002 to 2014) and testing (ranges from 2015 to 2016) subsets. This represents an improvement to the previous ANN approach by [27], where the data for training and testing were randomly selected from the entire dataset. Lastly, variable importance and comparison analysis were conducted to understand groundwater variation in the glacial system. Furthermore, a spatial randomization of the GRACE pixels was tested to check the effect of GRACE grid size on the overall accuracy. The results will improve the use of coarse resolution GRACE data in small-scale studies (e.g., groundwater trend analysis in localized aquifer systems) and facilitate integration of GRACE data into local water resources management applications. This is especially important in data-scarce regions where in-situ monitoring of the groundwater system is problematic [11]. Further, promising results have been reported involving assessment of groundwater resources and depletion using global scale hydrologic models and data assimilation [29] such as using the PCR–GLOBWB model [30] and the WaterGAP model [31], and regional scale groundwater models using MODFLOW [32] in data-scarce regions. Integration of the proposed study in such large-scale models, for example, to improve model performances is vital. In addition, it can be used to improve model performances in data assimilation techniques. GRACE TWSA have proven to be good supplements and calibration data for the models but their use has been restricted due to coarse spatial resolution [33].

2. Methods and Data

This study presents a machine learning approach to map high-resolution groundwater level anomaly (GWLA) from GRACE TWSA and other land surface and hydro-climate data (e.g., vegetation coverage, land surface temperature, precipitation, streamflow). A two-stage ML model: (1) Individual ML models for each groundwater level measurement station and (2) an ensemble model, which combines multiple ML models representing each well, was designed to predict high-resolution GWLA at a finer resolution than GRACE’s current resolution. Various publicly available satellite and model-based datasets were used to set up the downscaling model and were tested in time (2002–2016) and space (at 11 different locations) using in-situ groundwater level measurement data, which were excluded from model training. Predictor variables importance, interactions, and the influence of predictor variables on the predictand were analyzed in this study. In addition, GRACE TWSA averaged over the entire study area, TWSA from each 1°×1° grid, and TWSA average over a 3°×3° moving window were used and spatial randomization of the grids were implemented to test the effect of scale of GRACE data.
Previous research has demonstrated that storage in the vadose zone contributes to the total GRACE signal in some areas [34]; however, due to the poor hydraulic characteristics of the glacial till, we assumed that the TWSA signal from GRACE is primarily dominated by groundwater. Therefore, the GRACE TWSA was directly mapped to groundwater storage anomaly. This minimizes further disaggregation of GRACE TWSA and reduces accumulation of errors associated with processing during the disaggregation of GRACE signal. Further, the downscaling approach was developed only considering the glacial aquifer system found covering the bedrocks in the study area, thus excluding the bedrock aquifers. This is because the bedrock aquifers are deep confined aquifer systems in most parts of the study area with little or no modern recharge, specifically in the central and southern parts [35]. Therefore, the deep bedrock aquifers have less influence on the total water storage change from GRACE compared to the surficial glacial sediments.

2.1. Study Area

The study area is located in the state of Illinois, a part of the Midwestern U.S., and covers an area of ~150,000 km2 (Figure 1). The surficial geology is mostly comprised of glacial drift sediments, while the land use is primarily rainfed agricultural row crop, corn, and soybeans. The major soil type in Illinois has a silty loam texture with a porosity of around 50%. Topographically, Illinois is characterized by mainly flat land with alternating ridges and plains (end moraines and till plains) in some areas that formed as a result of the retreating Wisconsin Episode glaciers [36]. A continental climate with cold winters and warm summers characterizes the region. The long-term average annual precipitation of Illinois is ~960 mm, whereas the long-term mean, minimum, and maximum annual temperature of Illinois are 11 °C, 5 °C, and 17 °C, respectively [37].

2.2. Data Source and Processing

Ten predictor variables (e.g., TWSA, precipitation, vegetation cover, etc.) and one predictand variable (well-based groundwater level anomaly) were used to train and test the multi-stage ML models. The variables, data sources, and processing steps are summarized in Figure 2, with details provided in the subsections below. All the data sources, with variable spatial and temporal resolutions were converted into uniform temporal (monthly) and spatial (0.25° × 0.25°) resolutions. Following the uniform resolution process, a distance weighted average scheme, based on the location of the groundwater level measurement stations, was implemented to extract timeseries input data from gridded raster datasets (Figure 3). If a given groundwater level measurement station was within the threshold distance of 0.1° from the grid cell node (Figure 3a), the value of that grid cell node was used as input data in to the model. However, if a groundwater measurement station was located outside of the threshold distance from the grid cell node, a distance weighted average scheme was used to get the average of the nearest four grid cell nodes surrounding the station (Figure 3b).

2.2.1. Terrestrial Water Storage Anomaly (TWSA)

The GRACE mission, launched in 2002, is designed to track changes in the Earth’s gravity field using two identical satellites separated 220 km from each other at a 500 km orbital altitude [38,39]. GRACE detects change in gravity anomaly by using the high precision aboard instrument with the K-band ranging system capable of measuring the disturbance in orbital distances due to gravity variations (or mass changes) with an accuracy of 1 micron [39]. After atmospheric and oceanic effects are accounted for, the remaining signal at a monthly timescale on land is mostly related to variations of terrestrial water storage [40]. An ensemble mean of the latest release version (RL-05 gridded; 1° × 1°) level-3 GRACE product from three processing centers: The Center for Space Research at the University of Texas, Austin (CSR), the Jet Propulsion Laboratory (JPL), and the GeoforschungsZentrum Potsdam (GFZ) were used to ensure the highest level of accuracy [27,40]. To restore the signal attenuated during filtering and truncation of GRACE TWSA observations during processing [40], the GRACE TWSA was multiplied by the scaling factor supplied with the GRACE data. The study time span is restricted by GRACE data availability that ranges from April 2004 to July 2016. GRACE land data are available at http://grace.jpl.nasa.gov, supported by the NASA MEaSUREs Program [40,41].

2.2.2. Precipitation (P)

Precipitation data used in the model were obtained from the Tropical Rainfall Measurement Mission (TRMM) satellite. The TRMM Multisatellite Precipitation Analysis (TMPA) 3B43 product that provides monthly global (between 50 °N to 50 °S) precipitation intensity at 0.25° × 0.25° (~27.8 km) spatial resolution [42] was used in the study. The TRMM 3B43 product is available on the web from NASA Giovanni (Geospatial Interactive Online Visualization and Analysis Infrastructure) service (URL: https://giovanni.gsfc.nasa.gov/giovanni/; access date: 26 September 2017).

2.2.3. Stream Flow (Q)

Stream flow data used in the model was collected from the U.S. Geological Survey (USGS) streamflow database, the National Water Information System (NWIS) [43]. The USGS dataRetrieval R package was used for retrieving daily stream flow data from the study area [44,45]. The daily flow rate (cms) for each station was converted into monthly discharges per unit area, with simplified units in mm per month, by considering the contributing drainage area of each gaging station. Further, this calculated point discharge per unit area data was linearly interpolated and resampled to obtain gridded raster discharge data at the appropriate scale. Location of gages used to get stream flow data is shown in Figure 1.

2.2.4. Vegetation Coverage (VEC)

As vegetation plays a role in the terrestrial water storage, the Moderate Resolution Imaging Spectroradiometer (MODIS) satellite MOD13A3 (MODIS/Terra Vegetation Indices Monthly L3 Global 1 km SIN Grid V006) product that provides a monthly normalized vegetation index (NDVI) at a 1 km spatial resolution was used in the study [46]. Four scenes (h10v04, h10v05, h11v04, and h11v05) of the MOD13A3 product covered the study area and were downloaded from the NASA Earth Data Search website (URL: https://search.earthdata.nasa.gov/; access date: 28 August 2017). The mosaicked NDVI images were converted into percent vegetation coverage [ % ] using a threshold greenness index value of 0.7 [27], percent greenness (NDVI ≥ 0.7) was calculated for each grid cell size of 0.25° × 0.25°.

2.2.5. Land Surface Temperature (LST)

Similarly, the MODIS MOD11C3 (MODIS/Terra Land Surface Temperature and Emissivity Monthly L3 Global 0.05Deg CMG) product was used to obtain monthly land surface temperatures. It has a 5.6 km spatial resolution (0.05°) [47]. The earlier product versions (V4 and V41) of this data were used over the latest version (V5), because the algorithm used in V5 shows underestimation of LST under heavy aerosol condition [48,49]. Night and day LST layers of each monthly MOD11C3 were averaged into a single image to represent the mean temperature of a month. The MOD11C3 product is available on the NASA Earth Data Search website (URL: https://search.earthdata.nasa.gov/; access date: 31 August 2017).

2.2.6. Snow Water Equivalent (SWE), Soil Moisture (SM), and Plant Canopy Water (CW)

Data for Snow Water Equivalent, Soil Moisture, and Plant Canopy Water were obtained from the Noah land surface model (LSM) based on the North American Land Data Assimilation System (NLDAS) [50]. The NLDAS-2 monthly climatology Noah model provides information at a monthly time scale with a spatial resolution of 0.125° × 0.125° for the conterminous US. The products were downloaded from the NASA Giovanni (Geospatial Interactive Online Visualization and Analysis Infrastructure) service (URL: https://giovanni.gsfc.nasa.gov/giovanni/; access date: 6 October 2017).

2.2.7. Drift Thickness (H) and Aquifer Characteristics (K)

Since aquifer heterogeneity is significant in the glacial deposit, integrating subsurface information about the aquifer material in the ML model is crucial. Gridded hydrogeologic properties for the glaciated United States were developed by Bayless, et al. [51] from water-well drillers’ records. From this product, hydrogeologic information, such as hydraulic conductivity and thickness of the glacial deposits, was extracted and used in the model. The data can be obtained from the USGS’s Science Base website, https://www.sciencebase.gov/catalog/item/58756c7ee4b0a829a3276352; access date: 8 August 2017). A sample gridded map showing all the input variables used in the methodology is shown in Figure 4.

2.2.8. Groundwater Level Data (GWL)

In-situ groundwater level data were used as a target variable (predictand) in the ML model. Continuous groundwater level measurements are available from 32 stations in the study area, and were collected from the Illinois State Water Survey [52]. Daily data were averaged into monthly groundwater level data. Furthermore, to mimic GRACE’s long-term anomaly data, the Groundwater Level Anomaly (GWLA) was calculated by subtracting the long-term average (according to GRACE’s long-term mean, 2004–2009) from individual GWL observations. The Shallow Groundwater Wells Network data is available on the Illinois State Water Survey website (URL: https://www.isws.illinois.edu/warm/groundwater/: access date: 21 June 2017).

2.3. Modeling Algorithms

Downscaling GRACE to predict a high-resolution groundwater level anomaly and determination of variable importance was accomplished using a Boosted Regression Tree (BRT) also known as a gradient boosting technique. BRT, which is a combination of statistical and machine learning techniques, aims to improve the performance and prediction accuracy of a single tree-based model produced by fitting and combining a large number of tree-based models [53,54]. First, a sequence of several simple trees (weak models) is fitted to the data, and an ensemble (boosting) technique is applied to produce a robust model from several models [53]. A tree-based method is conceptually simple yet powerful [55] and has advantages over other predictive learning techniques in that the tree-based method is easy to interpret, handles missing values, is not affected by outliers and/or does not need prior data transformation, and it has the ability to deal with irrelevant inputs. For further details, refer to Friedman, Hastie and Tibshirani [55] and Elith, Leathwick and Hastie [53]. In addition, BRT works best with continuous and categorical data. The simplified theory of boosted regression method is briefly explained below.
Figure 5 shows how a tree-based regression divides a covariant space by partitioning the predictor variables [56] and creates a simple tree-based model. A dataset space indicates a relationship between predictors (X1 and X2) and predictand (Y) so that the predictand value can be approximated by many rectangular subspaces (Figure 5a) according to values of X1 and X2 and the splitting that forms the tree (Figure 5b). The method builds binary trees that partition the data into two samples at each split node. The variable for splitting and its split value are selected based on the conditions that best fit the data. In the example in Figure 5b, at first, the covariant space can be divided at X1 = 8. This is based on the splitting (X1 ≤ 8 and X1 > 8) that can represent the covariant space most effectively in terms of residual error. Consequently, the second split points will be selected in both the X1 ≤ 8 and X1 > 8 regions. The number of split nodes determines the tree size; the increase in tree size is controlled either by a predetermined tree size or by residual error.
During boosting, a series of several simple trees is built based on the results of the prediction residuals of the preceding tree. Figure 6 shows a schematic of successive regression trees based on residuals. As shown in Figure 6, Decision Tree (2) is built based on a tree (partition) fitted to the residuals from Decision Tree (1), while Decision Tree (3) is a tree (partition) fitted to the residuals from Decision Tree (2). This helps to find a partition (Decision Tree (M)) that will further reduce the residual (error) variance for the data (as shown in the bottom graph of Figure 6). As a result, boosting decision trees improves their accuracy, often dramatically [55]. In boosting, decision trees are fitted iteratively to the training data and the algorithms vary in how they quantify lack of fit and select settings for the next iteration [53]. In this study, LS Boost (least-squares regression) algorithm was used for BRT modeling (see Friedman [57]). Optimization of hyperparameters (e.g., number of learners, maximum number of splits, and learning rate) (see Elith, Leathwick and Hastie [53] for details) and overall model design and simulation was conducted using MATLAB® 2017b. The model was constructed and tested using 10-fold cross-validation to determine the optimal hyperparameters, number of learners, maximum number of splits, and learning rate.

2.4. Downscaling Model Design

A two-stage ML approach was used in this study to generate a downscaled GWLA grid from GRACE TWSA. The first stage involved building multiple temporal GWLA prediction ML models (M1, M2, ..., M21) for individual groundwater wells in the study area (top left section of Figure 7). The second stage comprised of integrating these multiple models (from the previous stage), along with additional spatial information about the glacial deposit (e.g., hydraulic conductivity), into a single spatial downscaling model. In the second stage, a single spatial GWLA prediction model (M′) was produced for the entire study area (bottom left of Figure 7) and used to generate a downscaled GWLA at 0.25° x 0.25° resolution (the right section of Figure 7). As shown in the figure, the GWLA at a given month can be predicted (1) using GWLA predicted based on individual temporal models of training wells and water-budget variables (X) and (2) using two dimensional GWLA pattern generation based on intermediate variables (Y’) from the first models and spatial characteristics (Z) for each grid cell.
The GWLA prediction models in the first stage, in addition to GRACE TWSA, use terrestrial water cycle variables (e.g., vegetation coverage, LST, P, Q, SWE, plant canopy water, and soil moisture) (the specific variables used in each stage are shown in Figure 2) as predictors, and in-situ-based GWLA as a predictand. While in the second stage, predictor variables are restricted to GRACE TWSA and aquifer characteristics (e.g., glacial thickness, hydraulic conductivity). Consequently, the spatial pattern of GWLA can be explained by glacial deposit characteristics in the second stage model.
The model was tested using data independent of training (calibration). Eleven groundwater well stations, excluded from the training sets, were used to test the performance of the spatial downscaling model (M′). The strength of the relationship between individual predictor variables and predictand was analyzed using variable importance (VI). The measure of variable importance is based on how many times the variable is selected for splitting and how much the model is improved as a result of the splitting (see Friedman and Meulman [58] for details). Relative VI is calculated for each input variable and converted to a 0 to 100 scale. In addition, the sensitivity of each predictor variable was assessed using partial dependence plots that show the dependence between the predictand and a given predictor variable, while averaging the influence of all other predictors [58].
During training and testing error metrics such as Mean (residual) Error (ME), Mean Absolute Error (MAE), Root-Mean-Square Error (RMSE), correlation coefficient (R), and Nash-Sutcliffe Efficiency (NSE) were used to evaluate the performance of the models by comparing model-simulated results with the observed GWLA.

3. Results

The results are presented according to the approaches applied in the downscaling procedure (2.4). Various GRACE grid sizes and spatial randomization of the GRACE grids were tested to standardize input from GRACE data and to test its effect on model accuracy. The results showed there is no clear improvement in the downscaling model. This could be due to the data where adjacent GRACE time series grids are highly correlated. As a result, the grid size and location have no impact in the model accuracy of the downscaling model. Lastly, the limitations of the method were discussed with respect to the actual condition in the study area; implications for future studies are also suggested.

3.1. Model Simulation Results

From the total of 32 groundwater level measurement stations in the study area, individual ML models were constructed for 21 of them, which were selected based on their spatial distribution. As the sample size, which is limited by GRACE sample size, was small to train the models, a ten-fold cross validation method was used. This method divided the entire data into ten subsets. Each subset was used nine times as a training set and one time as a test set. A model was fitted to the training set and evaluated based on the test set. As a result, the error estimation for model training was provided averaged over all trials to get the total effectiveness of the model. Table 1 shows the overall statistics for model training of individual models (in the first stage ML models) and the ensemble downscaling model in the second stage. Generally, the results showed that the models exhibited excellent performances. The average ME, RMSE, R, and NSE values are 4.5 mm, 306 mm, 0.91, and 0.82, respectively. Similarly, the ensemble downscaling model shows an excellent performance with ME, RMSE, R, and NSE values of 0.0 mm, 192.0 mm, 0.98, and 0.96, respectively. Wells with good performance metrics (e.g., M7 and M10) imply the predictor variables explained well the observed GWLAs. On the other hand, wells with low performance metrics (e.g., M6, M12, M15, and M19) indicate that the predictor variables were short of fully explaining the observed GWLA. Note that the units are in mm for GWLA.
Figure 8 shows selected time series model-simulated GWLA vs in-situ-based GWLA. The models predicted the variation in GWLA very well for most of the groundwater measurement locations in the study area (e.g., Figure 8a). However, a few wells showed a slight underprediction (or overprediction) of the GWLA; specifically, underprediction in the picks of positive anomalies and overprediction in the picks of negative anomalies (Figure 8b). Other exceptions include GWLA models for Galena (Figure 8c) and Kilbourne (Figure 8d) groundwater wells. Where the model for Galena station overpredicted the peak GWLA, whereas the model for Kilbourne station fairly captured the long-term GWLA variability; however, the model produced time-varying seasonal signal compared to the observed GWLA data. This is attributed to the fact that the Kilbourne well is located in an irrigated agricultural region of Illinois. Due to the lack of data, human impacts (e.g., pumping) were not considered as an input in this study. As shown in the figure, the hydrograph from the in-situ groundwater level data exhibited typical characteristics of pumping water level where little or no seasonal fluctuations were observed.

3.2. Variable Contributions and Sensitivity

Several studies indicated the GRACE signal is dominated by sub-surface storage (e.g., groundwater storage) [59,60]. The variable importance corroborated that TWSA from GRACE is an influential predictor variable of the predicted GWLA. Discharge is the second most important predictor variable. All the models (in both the first and second stages) indicated TWSA as a primary predictor variable (Figure 9a,b) for the downscaled GWLA. Figure 9a shows the percentage contribution of each predictor variable across all models in the first stage where individual models have been built for each groundwater level measurement station. Figure 9b shows the percentage contribution of predictors in the second stage of the downscaling approach. In the first stage, stream discharge and soil moisture storage are the second and third most influential predictor variables, respectively. This can be explained by the glacial aquifer system in Illinois, which is mainly characterized by a shallow groundwater level, which influences baseflow contributions to the streams. The remaining predictor variables (e.g., precipitation (P), land surface temperature (LST), snow water equivalent (SWE)) are less and equally influential predictor variables. The relationship of these variables, though they directly or indirectly affect the amount of recharge to the groundwater, may not be simple and direct. In the second stage (downscaling model), the GRACE TWSA is relatively the most influential predictor variable, followed by a few predicted GWLA from the models in the first stage (Figure 9b).
Figure 10 displays the Partial Dependence (PD) plots for selected models, which show the effect of a given variable on the response (predictand) after accounting for the average effect of all other predictor variables. Generally, there is a non-linear relationship between the predictor variables and the predictand (GWLA). The partial responses show a direct relationship between GWLA and GRACE TWSA, stream discharge, precipitation, and soil moisture. However, the magnitude effect of these predictor variables on the GWLA is different (see the y-axis of the graphs in Figure 10). The GRACE TWSA and soil moisture control a wider range of the GWLA. The GWLA has an inverse relationship with land surface temperature and plant canopy water, as these predictor variables increase as the GWLA decreases. LST and CW favors evapotranspiration while reducing recharge. No clear relationship exists with vegetation coverage (greenness index) or snow water equivalent. The relationship between vegetation coverage and GWLA is not direct (Figure 10f), where GWLA responds to little to no vegetation and high plant periods.

3.3. Testing and Spatial Accuracy

This study presents a novel approach that allows simulating higher resolution GWLA at different times and locations in space. The method was verified by comparing groundwater level data that was independent of model construction. Figure 11 displays the distribution of test wells (red stars) and their statistical values (labeled next to the stations, the circles are also drawn to scale). Generally, the testing results showed that the statistical values are within the acceptable ranges. Half of the test wells have NSE values from 0.5 to 0.6, the remaining have values between 0.23 and 0.48. One well, Big Bend station, has shown a very low NSE value of −1.37; however, it has a high correlation coefficient value of 0.75. This well is located within the floodplain of the Rock River where the groundwater interacts with the river via baseflow. The direction of seasonal fluctuation (indicated by high correlation coefficient) can be simulated well by the downscaling model mainly influenced by stream discharge. However, the model falls short of predicting the magnitude of the GWLA compared to the observed GWLA data, which is different from the magnitude of discharge. Generally, the correlation coefficients for testing are within the range of 0.66 to 0.82. The test results show that the downscaling approach presented here satisfactorily simulates the GWLA data at 0.25° × 0.25° spatial and monthly temporal scale from GRACE. The output scale is defined based on the scale of input data. TRMM has the lowest resolution of the input data at 0.25° × 0.25°. Though not tested in this study, it is possible to downscale further to a higher resolution using high-resolution input data.
The background image in Figure 10 shows a sample-predicted GWLA (for the month of December 2007) for the study site at 0.25° × 0.25° resolution. We can see that there is significant GWLA spatial variation during that month. A negative groundwater level anomaly of more than 500 mm (areas in yellow and red) was observed in the southern and northwestern parts of the study site, whereas the north and northeastern parts gained a positive groundwater level anomaly up to 500 mm (areas in blue). Overall, the similar degree of heterogeneity in groundwater behavior is observed in other months from model output compared to that of GRACE data.
Figure 12 shows the timeseries model-predicted versus in-situ-derived GWLA for each test well in the study area. Differences in model performances are observed between different test wells; good predictive performances are observed in, e.g., test wells at Fairfield and Freeport stations (Figure 12c,d) and poor performance in the test well at Big Bend station (Figure 12b). As seen in Figure 12, Big Bend station data availability is low, resulting in poor NSE and R values for this station due to sample size. In some of the test wells, the model underestimates the GWLA (e.g., Figure 12a,d,e). The reverse, an overestimate of the GWLA, is observed in the St. Peter test well data (Figure 12g). Generally, the model predicted the timing and seasonal variability (direction) of the GWLA. However, in some instances (as described above), the model less accurately predicted the magnitude of the high and low groundwater anomalies. This is due to the skill of the models mainly controlled by input data, specifically, data for the predictor variables. The authors believe the variances in the predictor variables may not be capable of fully explaining the magnitudes of variability in the predictand variable (GWLA). Despite some limitations, as indicated by the statistical measures above (Figure 11), the model predicts the monthly variations in the groundwater level moderately well and better predicts the long-term (seasonal to interannual) variability in the groundwater level. For example, in stations such as Barry, Big Bend, Freeport, Good Hope, and SWS (Figure 12a,b,d,e,i), the model predicted the dry anomalies (e.g., periods from 40 to 60 and 120 to 140) and wet anomalies (e.g., periods from 80 to 120).

4. Discussion

Overall, the approach developed in this study demonstrates the integration of satellite- and model-based hydrological variables along with GRACE data to predict high-resolution groundwater level variation in a glacial aquifer system. The results clearly demonstrate that downscaled GWLA could be predicted at a resolution of 0.25° × 0.25° in new periods and/or space in the study area, a limiting factor in previous studies. Additional tests have been conducted to increase replicability of this study, such as testing the spatial scale of input variables (e.g., GRACE grid). Using the methodology developed in this study (a generic code is available from the authors upon request), end-users can implement it elsewhere to predict GWLA, given all the assumptions are valid. The two main assumptions are (1) GRACE TWSA is mainly controlled by the groundwater storage variation in the shallow aquifer system and (2) human influence (e.g., groundwater abstraction for irrigation from the aquifer) is not considered as an input variable in the models.
The purpose of using publicly available data (e.g., satellite data) is to establish the applicability of this study in data-scarce regions where hydrologic variables are limited, such as lack of groundwater recharge rate and poorly distributed well data in space and time. However, significant uncertainty is expected from these data sources. For example, GRACE data has its own uncertainty that arises from GRACE processing. Other input data, some model-based and satellite-based, have their own contribution to the total input data uncertainty and potential error propagation. These errors are mitigated by using ML methods, as they do a good job of handling errors associated with input data.
Only the shallow groundwater system of the glacial sediment was considered in this study by assuming the GRACE signal is strongly related to shallow systems. As a result, shallow bedrock aquifers overlain by no or thin layers of glacial sediment, specifically in the northern part of the study area, were not included. The authors believe that the poor performance of the ML model in this part of the study region (e.g., at Crystal Lake and Fermi stations (see Table 1 and Figure 1)) could be due to exclusion of the shallow bedrock. Further, exclusion of human impact as a predictor variable has also affected the performance of wells located in the irrigated regions of Illinois (e.g., Kilbourne and Sincarte wells) where the main source of irrigation water is groundwater. As it has been seen in the hydrograph of Kilbourne stations (Figure 8d), the in-situ groundwater data shows more of a flat declining or rising groundwater level anomaly; however, the model that simulated the natural seasonal fluctuations was probably influenced by seasonal variability of precipitation and other predictor variables. Further, the spatial pattern of groundwater level anomalies may not be fully captured due to heterogeneity of the glacial system. The predictor variables used in this study may not be used to sufficiently describe this heterogeneity in order to predict the GWLA accurately in these instances. Adding more variables (e.g., storage characteristics of the aquifer, including the bedrock), as well as improved resolution of the input variables, potentially minimizes the bias and improves the prediction capacity of the ML model.
The methodology developed in this study can be directly applied in shallow sedimentary aquifer systems with similar settings where (1) GWLA response to climate variables is relatively quick and (2) anthropogenic influences (e.g., groundwater abstraction) are not extensive. For example, the downscaling model can be applied in the Chad Basin, the Congo Basin, and the Rift Valley Basin in Africa. The central part of the Chad Basin has a Quaternary unconfined sediment aquifer system made up of fluvio-lacustrine deposits and Aeolian sands and covers an area of 500,000 km2 [32]. This basin is one of the most poorly gauged basin in the world but provides fresh water resources for the people of several nations in the region. Similarly, it can also applied in the fluvio-lactustrine sediment aquifers covering the Rift Valley in East Africa and the Cenozoic sediment aquifers in the Congo Basin, among others.
To apply the methodology in a different setting, it is possible to omit or include predictor variables. For example, snow water equivalent and vegetation coverage are insignificant in arid regions. As a result, researchers can omit these predictor variables from the downscaling model. Likewise, if additional variables are necessary to explain the predictand variable, they can be easily included as predictor variables. For example, if the geological setting is a fractured (Karstic) bedrock aquifer system, it is possible to include additional predictor variables, such as fracture density and fracture spacing, to explain the predictand variable, the GWLA. In addition, as BRT works well with both categorical and numerical variables, it is possible to include categorical data (e.g., yes or no type data or qualitative data) by assigning numeric values such as 0 (no) and 1 (yes).

5. Conclusions

With continued threat from climate change and human impacts, high-resolution and continuous hydrologic data availability is crucial for predicting trends and water resource availability. GRACE has provided unprecedented opportunities to assess regional and global water resources, despite the limitations due to its coarse spatial scale. This study presented a two-stage machine learning approach to map high-resolution groundwater level anomaly (GWLA) from GRACE TWSA and other publicly available land surface and hydro-climate data (e.g., vegetation coverage, land surface temperature, precipitation, streamflow, etc.) in a glacial aquifer system in Illinois. In both stages, the models were validated and tested. The study finds GRACE to be the most influential predictor variable in the ML-based models, and the scale of GRACE or spatial location of GRACE grids have little to no impact on the performance of the ML-based downscaling model. This is due to the characteristics of GRACE grids, where they have a coarse resolution and where adjacent GRACE grids are spatially highly correlated. Stream flow and soil moisture storage are the second and third most influential predictor variables in the model.
Generally, the model training and testing results, in the first stage, showed excellent performances. The average ME, RMSE, R, and NSE values are ~4.5 mm, 306 mm, 0.91, and 0.82, respectively. Similarly, the ensemble downscaling model (in the second stage) shows an excellent performance with ME, RMSE, R, and NSE values of 0.0 mm, 192.0 mm, 0.98, and 0.96, respectively. Further, the downscaling model was tested satisfactorily using the monthly in-situ-based GWLA data excluded during model construction. A few test wells exhibit relatively poor statistical performances, which is attributed to the lack of anthropogenic influences (e.g., pumping) in groundwater-irrigated regions and insufficient representation of aquifer heterogeneity in the predictor variables. Various sources of uncertainties in the model and downscaled product are expected, such as uncertainty from the input satellite and model-based data and uncertainty from the model assumption (e.g., exclusion of the shallow bedrock aquifer system located in the northern part of the study area). However, noises due to input data were often reduced (or minimized) during the machine learning process.

Author Contributions

W.M.S. was responsible for conceptualization and design, overseeing the project, analysis and interpretation of the results, and manuscript preparation. D.K. involved in data processing, analysis, and interpretation of the result, and manuscript preparation. A.M.M. aided conceptualization of the project, interpretation of the results, and reviewing the manuscript.

Funding

This research was funded by the College of Arts and Sciences, Illinois State University. The APC was funded by the Powell fund, Department of Geography, Geology, and the Environment and the Office of Research and Graduate Studies, Illinois State University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bouman, B.A.M.; Tuong, T.P. Field water management to save water and increase its productivity in irrigated lowland rice. Agric. Water Manag. 2001, 49, 11–30. [Google Scholar]
  2. Barua, S.; Muttil, N.; Ng, A.W.M.; Perera, B.J.C. Rainfall trend and its implications for water resource management within the yarra river catchment, australia. Hydrol. Process. 2012, 27, 1727–1738. [Google Scholar] [CrossRef]
  3. Chen, J.L.; Wilson, C.R.; Tapley, B.D. The 2009 exceptional amazon flood and interannual terrestrial water storage change observed by grace. Water Resour. Res. 2010, 46. [Google Scholar] [CrossRef]
  4. Brutsaert, W. Long-term groundwater storage trends estimated from streamflow records: Climatic perspective. Water Resour. Res. 2008, 44. [Google Scholar] [CrossRef][Green Version]
  5. Bjerklie, D.M.; Lawrence Dingman, S.; Vorosmarty, C.J.; Bolster, C.H.; Congalton, R.G. Evaluating the potential for measuring river discharge from space. J. Hydrol. 2003, 278, 17–38. [Google Scholar]
  6. Milewski, A.; Sultan, M.; Jayaprakash, S.M.; Balekai, R.; Becker, R. Resdem, a tool for integrating temporal remote sensing data for use in hydrogeologic investigations. Comput. Geosci. 2009, 35, 2001–2010. [Google Scholar] [CrossRef]
  7. Seyoum, W.M.; Milewski, A.M.; Durham, M.C. Understanding the relative impacts of natural processes and human activities on the hydrology of the central rift valley lakes, east africa. Hydrol. Process. 2015, 29, 4312–4324. [Google Scholar] [CrossRef]
  8. Nijssen, B.; O’Donnell, G.M.; Lettenmaier, D.P.; Lohmann, D.; Wood, E.F. Predicting the discharge of global rivers. J. Clim. 2001, 14, 3307–3323. [Google Scholar] [CrossRef]
  9. Wells, B.; Toniolo, H. Hydrologic modeling of three sub-basins in the Kenai river watershed, Alaska, USA. Water 2018, 10, 691. [Google Scholar]
  10. Her, Y.; Jeong, J. SWAT+ versus SWAT2012: Comparison of sub-daily urban runoff simulations. Am. Soc. Agric. Biol. Eng. 2018, 61, 1287–1295. [Google Scholar] [CrossRef]
  11. MacDonald, A.M.; Bonsor, H.C.; Dochartaigh, B.É.Ó.; Taylor, R.G. Quantitative maps of groundwater resources in Africa. Environ. Res. Lett. 2012, 7, 024009. [Google Scholar] [CrossRef][Green Version]
  12. Shamsudduha, M.; Taylor, R.G.; Jones, D.; Longuevergne, L.; Owor, M.; Tindimugaya, C. Recent changes in terrestrial water storage in the upper nile basin: An evaluation of commonly used gridded GRACE products. Hydrol. Earth Syst. Sci. 2017, 21, 4533–4549. [Google Scholar] [CrossRef]
  13. Voss, K.A.; Famiglietti, J.S.; Lo, M.; Linage, C.; Rodell, M.; Swenson, S.C. Groundwater depletion in the middle east from GRACE with implications for transboundary water management in the Tigris-Euphrates-Western Iran region. Water Resour. Res. 2013, 49, 904–914. [Google Scholar] [CrossRef] [PubMed]
  14. Seyoum, W.M.; Milewski, A.M. Monitoring and comparison of terrestrial water storage changes in the northern high plains using grace and in-situ based integrated hydrologic model estimates. Adv. Water Resour. 2016, 94, 31–44. [Google Scholar] [CrossRef]
  15. Lezzaik, K.; Milewski, A. A quantitative assessment of groundwater resources in the middle east and north Africa region. Hydrogeol. J. 2018, 26, 251–266. [Google Scholar] [CrossRef]
  16. Sun, Z.; Zhu, X.; Pan, Y.; Zhang, J. Assessing terrestrial water storage and flood potential using GRACE data in the Yangtze river basin, China. Remote Sens. 2017, 9, 1011. [Google Scholar] [CrossRef]
  17. Sun, Y.A.; Scanlon, R.B.; AghaKouchak, A.; Zhang, Z. Using GRACE satellite gravimetry for assessing large-scale hydrologic extremes. Remote Sens. 2017, 9, 1287. [Google Scholar] [CrossRef]
  18. Seyoum, W.M. Characterizing water storage trends and regional climate influence using grace observation and satellite altimetry data in the Upper Blue Nile River Basin. J. Hydrol. 2018, 566, 274–284. [Google Scholar] [CrossRef]
  19. Ma, S.; Wu, Q.; Wang, J.; Zhang, S. Temporal evolution of regional drought detected from GRACE TWSA and CCI SM in Yunnan Province, China. Remote Sens. 2017, 9, 1124. [Google Scholar] [CrossRef]
  20. Thomas, A.C.; Reager, J.T.; Famiglietti, J.S.; Rodell, M. A GRACE-based water storage deficit approach for hydrological drought characterization. Geophys. Res. Lett. 2014, 41, 1537–1545. [Google Scholar] [CrossRef][Green Version]
  21. Lezzaik, K.; Milewski, A.; Mullen, J. The groundwater risk index: Development and application in the middle east and north Africa region. Sci. Total Environ. 2018, 628–629, 1149–1164. [Google Scholar] [CrossRef]
  22. Hassan, A.A.; Jin, S. Lake level change and total water discharge in East Africa rift valley from satellite-based observations. Glob. Planet. Chang. 2014, 117, 79–90. [Google Scholar] [CrossRef]
  23. Lee, H.; Beighley, R.E.; Alsdorf, D.; Jung, H.C.; Shum, C.K.; Duan, J.; Guo, J.; Yamazaki, D.; Andreadis, K. Characterization of terrestrial water dynamics in the Congo basin using GRACE and satellite radar altimetry. Remote Sens. Environ. 2011, 115, 3530–3538. [Google Scholar] [CrossRef]
  24. Papa, F.; Frappart, F.; Güntner, A.; Prigent, C.; Aires, F.; Getirana, A.C.V.; Maurer, R. Surface freshwater storage and variability in the Amazon basin from multi-satellite observations, 1993–2007. J. Geophys. Res. Atmos. 2013, 118, 11951–11965. [Google Scholar] [CrossRef]
  25. Zaitchik, B.F.; Rodell, M.; Reichle, R.H. Assimilation of GRACE terrestrial water storage data into a land surface model: Results for the Mississippi River Basin. J. Hydrometeorol. 2008, 9, 535–548. [Google Scholar] [CrossRef]
  26. Sun, A.Y. Predicting groundwater level changes using GRACE data. Water Resour. Res. 2013, 49, 5900–5912. [Google Scholar] [CrossRef][Green Version]
  27. Seyoum, W.M.; Milewski, A.M. Improved methods for estimating local terrestrial water dynamics from grace in the northern high plains. Adv. Water Resour. 2017, 110, 279–290. [Google Scholar]
  28. Miro, E.M.; Famiglietti, S.J. Downscaling GRACE remote sensing datasets to high-resolution groundwater storage change maps of California’s Central Valley. Remote Sens. 2018, 10, 143. [Google Scholar] [CrossRef]
  29. Eicker, A.; Schumacher, M.; Kusche, J.; Döll, P.; Schmied, H. Calibration/data assimilation approach for integrating GRACE data into the watergap global hydrology model (WGHM) using an ensemble Kalman filter: First results. Surv. Geophys. 2014, 35, 1285–1309. [Google Scholar] [CrossRef]
  30. Wada, Y.; van Beek, L.P.H.; van Kempen, C.M.; Reckman, J.W.T.M.; Vasak, S.; Bierkens, M.F.P. Global depletion of groundwater resources. Geophys. Res. Lett. 2010, 37. [Google Scholar] [CrossRef][Green Version]
  31. Döll, P.; Müller Schmied, H.; Schuh, C.; Portmann, F.T.; Eicker, A. Global-scale assessment of groundwater depletion and related groundwater abstractions: Combining hydrological modeling with information from well observations and GRACE satellites. Water Resour. Res. 2014, 50, 5698–5720. [Google Scholar] [CrossRef][Green Version]
  32. Leblanc, M.; Favreau, G.; Tweed, S.; Leduc, C.; Razack, M.; Mofor, L. Remote sensing for groundwater modelling in large semiarid areas: Lake Chad Basin, Africa. Hydrogeol. J. 2006, 15, 97–100. [Google Scholar] [CrossRef][Green Version]
  33. Lo, M.-H.; Famiglietti, J.S.; Yeh, P.J.F.; Syed, T.H. Improving parameter estimation and water table depth simulation in a land surface model using GRACE water storage and estimated base flow data. Water Resour. Res. 2010, 46, W05517. [Google Scholar] [CrossRef]
  34. Brookfield, A.E.; Hill, M.C.; Rodell, M.; Loomis, B.D.; Stotler, R.L.; Porter, M.E.; Bohling, G.C. In Situ and grace-based groundwater observations: Similarities, discrepancies, and evaluation in the High Plains Aquifer in Kansas. Water Resour. Res. 2018, 54, 8034–8044. [Google Scholar]
  35. Panno, S.V.; Askari, Z.; Kelly, W.R.; Parris, T.M.; Hackley, K.C. Recharge and groundwater flow within an Intracratonic basin, Midwestern United States. Ground Water 2018, 56, 32–45. [Google Scholar] [CrossRef]
  36. Piskin, K.; Bergstorm, R.E. Glacial Drift in Illinois: Thickness and Character; Illinois State Geological Survey, Circular 490: Urbana, IL, USA, 1975; p. 37. [Google Scholar]
  37. NOAA. National Centers for Environmental Information, Climate at A Glance: Statewide Time Series, Published April 2018. Available online: http://www.Ncdc.Noaa.Gov/cag/ (accessed on 10 May 2018).
  38. Tapley, B.D.; Bettadpur, S.; Watkins, M.; Reigber, C. The gravity recovery and climate experiment: Mission overview and early results. Geophys. Res. Lett. 2004, 31. [Google Scholar] [CrossRef][Green Version]
  39. Steitz, D.; O’Donnell, F.; Buis, A.; Chandler, L.; Baguio, M.; Weber, V. Grace Launch; Press Kit; 2002. Available online: https://www.jpl.nasa.gov/news/press_kits/gracelaunch.pdf (accessed on 30 May 2018).
  40. Landerer, F.W.; Swenson, S.C. Accuracy of scaled GRACE terrestrial water storage estimates. Water Resour. Res. 2012, 48, W04531. [Google Scholar]
  41. Swenson, S.; Wahr, J. Post-processing removal of correlated errors in GRACE data. Geophys. Res. Lett. 2006, 33. [Google Scholar] [CrossRef][Green Version]
  42. Huffman, G.J.; Bolvin, D.T.; Nelkin, E.J.; Wolff, D.B.; Adler, R.F.; Gu, G.; Hong, Y.; Bowman, K.P.; Stocker, E.F. The TRMM multisatellite precipitation analysis (TMPA): Quasi-global, multiyear, combined-sensor precipitation estimates at fine scales. J. Hydrometeorol. 2007, 8, 38–55. [Google Scholar] [CrossRef]
  43. Hirsch, R.M.; Fisher, G.T. Past, present, and future of water data delivery from the US Geological Survey. J. Contemp. Water Res. Educ. 2014, 153, 4–15. [Google Scholar] [CrossRef]
  44. Ryberg, K.R.; Vecchia, A.V. Waterdata—An R Package for Retrieval, Analysis, and Anomaly Calculation of Daily Hydrologic Time Series Data; Version 1.0; US Geological Survey: Reston, VA, USA, 2012; pp. 1258–2331.
  45. Hirsch, R.M.; De Cicco, L.A. User Guide to Exploration and Graphics for River Trends (Egret) and Dataretrieval: R Packages for Hydrologic Data; US Geological Survey: Reston, VA, USA, 2015; pp. 2328–7055.
  46. Didan, K. MOD13A3: MODIS/Terra vegetation indices monthly l3 Global 1 km SIN grid V006. NASA EOSDIS Land Processes DAAC. 2015. Available online: http://doi.org/10.5067/MODIS/MOD13A3.006 (accessed on 28 August 2017).
  47. Wan, Z.; Hook, S.; Hulley, G. MOD11C3 MODIS/Terra Land Surface Temperature/Emissivity Monthly L3 Global 0.05 Deg CMG V006. 2015. Available online: http://doi.org/10.5067/MODIS/MYD11C3.006 (accessed on 31 August 2017).
  48. Hulley, G.C.; Hook, S.J. Intercomparison of versions 4, 4.1 and 5 of the MODIS land surface temperature and emissivity products and validation with laboratory measurements of sand samples from the Namib desert, Namibia. Remote Sens. Environ. 2009, 113, 1313–1318. [Google Scholar] [CrossRef]
  49. Wan, Z. New refinements and validation of the MODIS land-surface temperature/emissivity products. Remote Sens. Environ. 2008, 112, 59–74. [Google Scholar]
  50. Rui, H.; Mocko, D. Readme Document for North America Land Data Assimilation System Phase 2 (NLDAS-2) Products; The National Aeronautics and Space Administration: Greenbelt, MD, USA, 2013.
  51. Bayless, E.R.; Arihood, L.D.; Reeves, H.W.; Sperl, B.J.S.; Qi, S.L.; Stipe, V.E.; Bunch, A.R. Maps and Grids of Hydrogeologic Information Created from Standardized Water-Well Drillers’ Records of the Glaciated United States; U.S. Geological Survey Scientific Investigations Report 2015-5105; US Geological Survey: Reston, VA, USA, 2017; p. 34.
  52. Water and Atmospheric Resources Monitoring Program. Shallow Groundwater Network; Illinois State Water Survey: Champaign, IL, USA, 2015. [Google Scholar]
  53. Elith, J.; Leathwick, J.R.; Hastie, T. A working guide to boosted regression trees. J. Anim. Ecol. 2008, 77, 802–813. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Schapire, R.E. The boosting approach to machine learning: An overview. In Nonlinear Estimation and Classification; Springer: New York, NY, USA, 2003; pp. 149–171. [Google Scholar]
  55. Friedman, J.; Hastie, T.; Tibshirani, R. The Elements of Statistical Learning; Springer Series in Statistics New York; Springer: New York, NY, USA, 2001; Volume 1. [Google Scholar]
  56. Breiman, L.; Friedman, J.; Olshen, R.; Stone, C.J. Classification and Regression Trees; Taylor & Francis: Boca Raton, Fl, USA, 1984. [Google Scholar]
  57. Friedman, J.H. Greedy function approximation: A gradient boosting machine. Ann. Stat. 2001, 29, 1189–1232. [Google Scholar] [CrossRef]
  58. Friedman, J.H.; Meulman, J.J. Multiple additive regression trees with application in epidemiology. Stat. Med. 2003, 22, 1365–1381. [Google Scholar] [CrossRef] [PubMed]
  59. Rodell, M.; Chen, J.; Kato, H.; Famiglietti, J.S.; Nigro, J.; Wilson, C.R. Estimating groundwater storage changes in the Mississippi River Basin (USA) using GRACE. Hydrogeol. J. 2006, 15, 159–166. [Google Scholar] [CrossRef]
  60. Rodell, M.; Famiglietti, J.S. The potential for stellite-based monitoring of groundwater storage changes using GRACE: The High Plains Aquifer, Central US. J. Hydrol. 2002, 263, 245–256. [Google Scholar] [CrossRef]

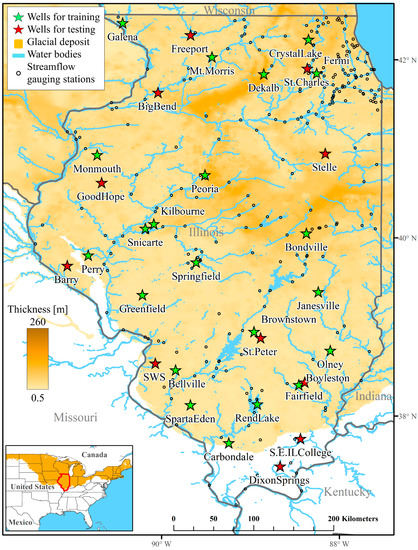

Figure 1. Location map of the study area and location of stream gauging stations and shallow groundwater wells (green: training wells, and red: testing wells) used in the study.
Figure 1. Location map of the study area and location of stream gauging stations and shallow groundwater wells (green: training wells, and red: testing wells) used in the study.
Remotesensing 11 00824 g001

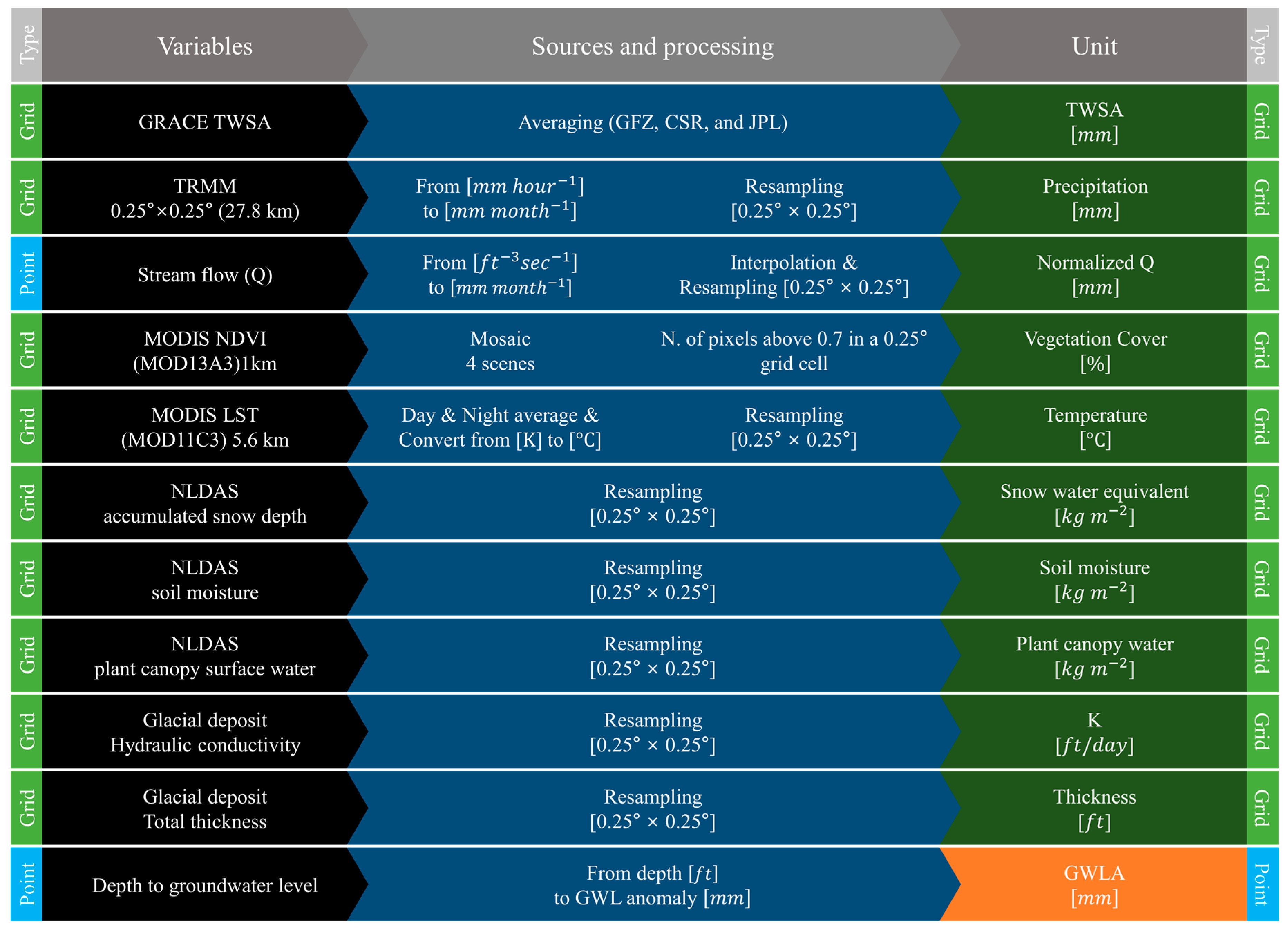

Figure 2. Summary of variables, data type and sources, and processing applied on the dataset used in the first and second stages of the downscaling model.
Figure 2. Summary of variables, data type and sources, and processing applied on the dataset used in the first and second stages of the downscaling model.
Remotesensing 11 00824 g002

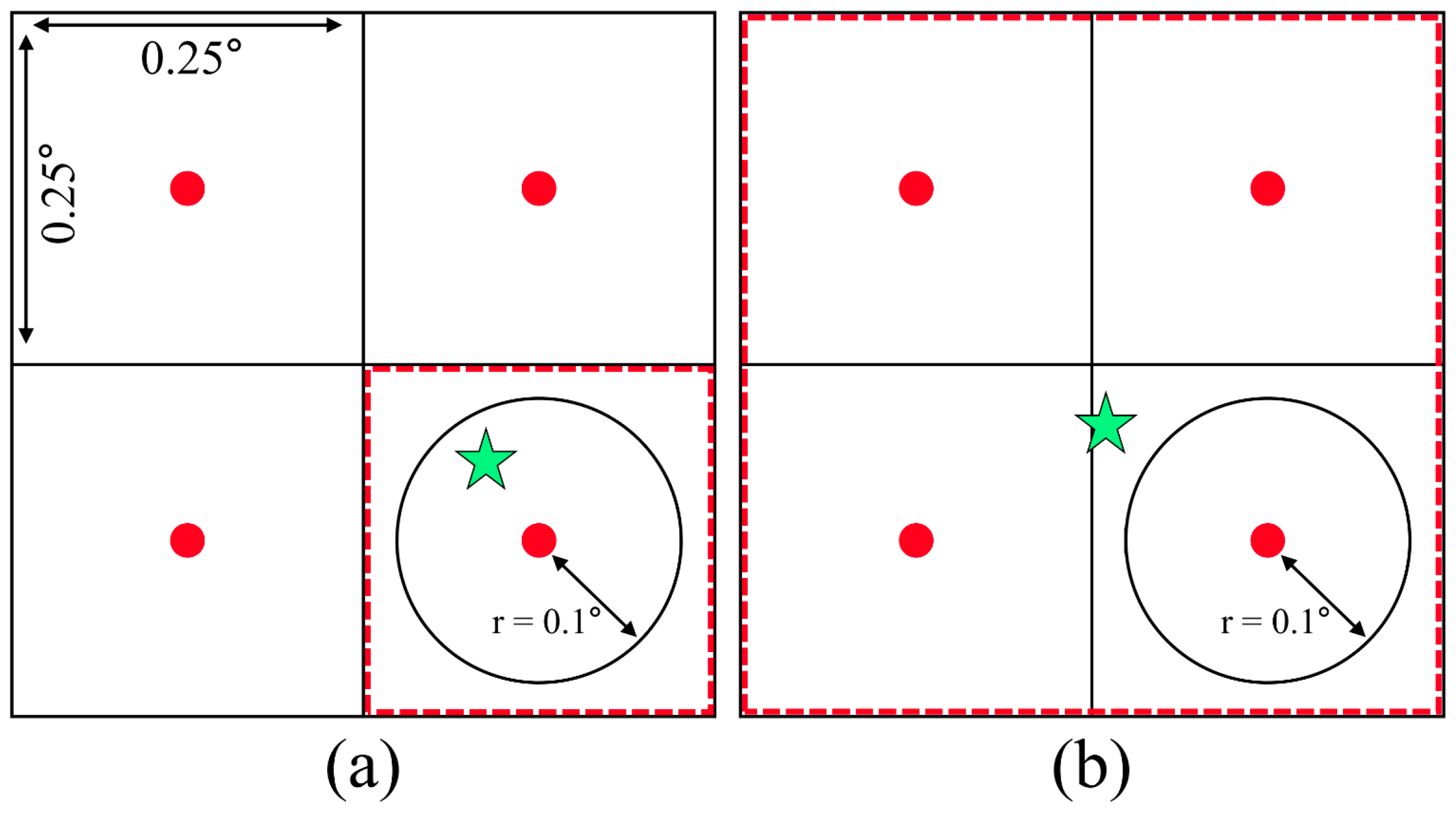

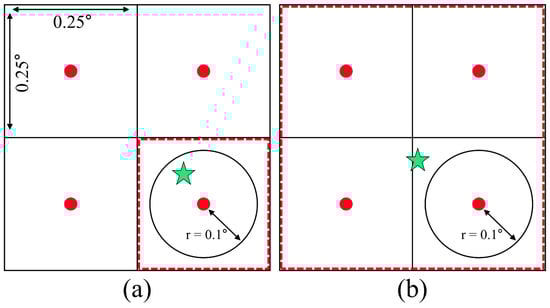

Figure 3. Distance-weighted average scheme showing how input data were extracted from grid cell nodes (symbol: red dot) based on the location of groundwater measurement station (symbol: green star) and a distance threshold value of 0.1° (a) when a groundwater measurement station is within the threshold distance from grid cell node and (b) a groundwater measurement station is located outside of the threshold distance from the grid cell node.
Figure 3. Distance-weighted average scheme showing how input data were extracted from grid cell nodes (symbol: red dot) based on the location of groundwater measurement station (symbol: green star) and a distance threshold value of 0.1° (a) when a groundwater measurement station is within the threshold distance from grid cell node and (b) a groundwater measurement station is located outside of the threshold distance from the grid cell node.
Remotesensing 11 00824 g003

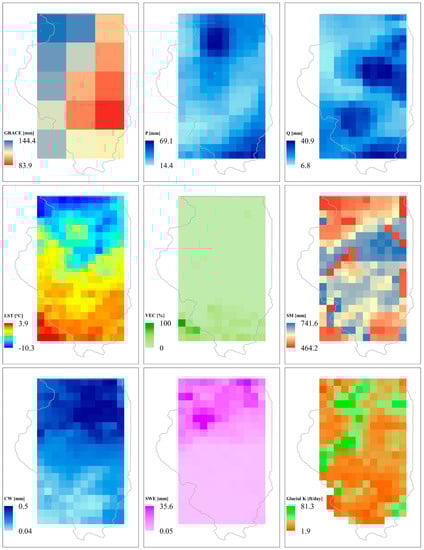

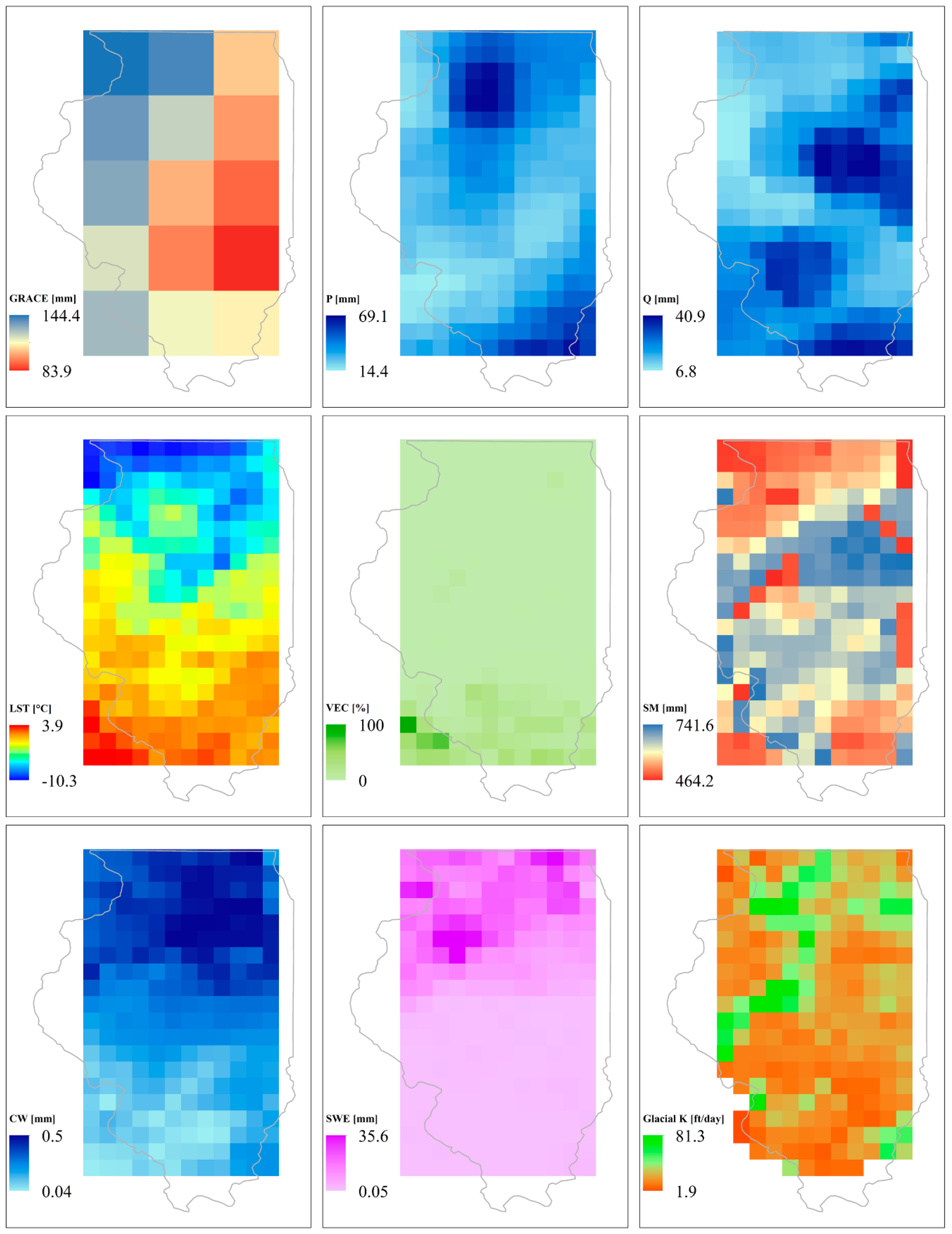

Figure 4. Maps showing sample input variables used in the methodology for the month of January 2016. All the data are resampled to 0.25° × 0.25° grid resolution, except Gravity Recovery and Climate Experiment (GRACE) and Terrestrial Water Storage Anomaly (TWSA) data, which are a 1° × 1° grid.
Figure 4. Maps showing sample input variables used in the methodology for the month of January 2016. All the data are resampled to 0.25° × 0.25° grid resolution, except Gravity Recovery and Climate Experiment (GRACE) and Terrestrial Water Storage Anomaly (TWSA) data, which are a 1° × 1° grid.
Remotesensing 11 00824 g004

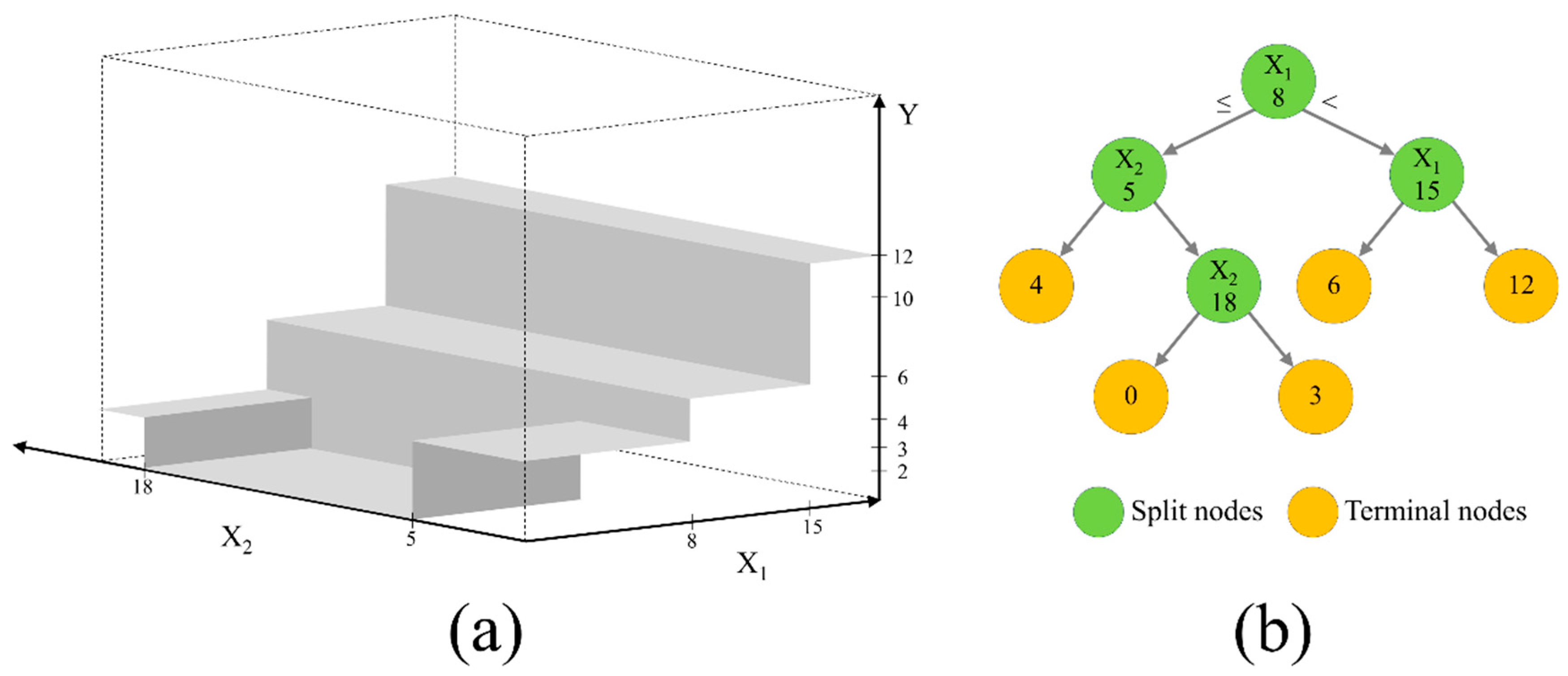

Figure 5. A tree-based regression showing (a) a rectangular covariant space created based on predictors X1 and X2 and the predictand (target) Y variable, and (b) split nodes of the decision tree partitioned based on predictor variables and residual error.
Figure 5. A tree-based regression showing (a) a rectangular covariant space created based on predictors X1 and X2 and the predictand (target) Y variable, and (b) split nodes of the decision tree partitioned based on predictor variables and residual error.
Remotesensing 11 00824 g005

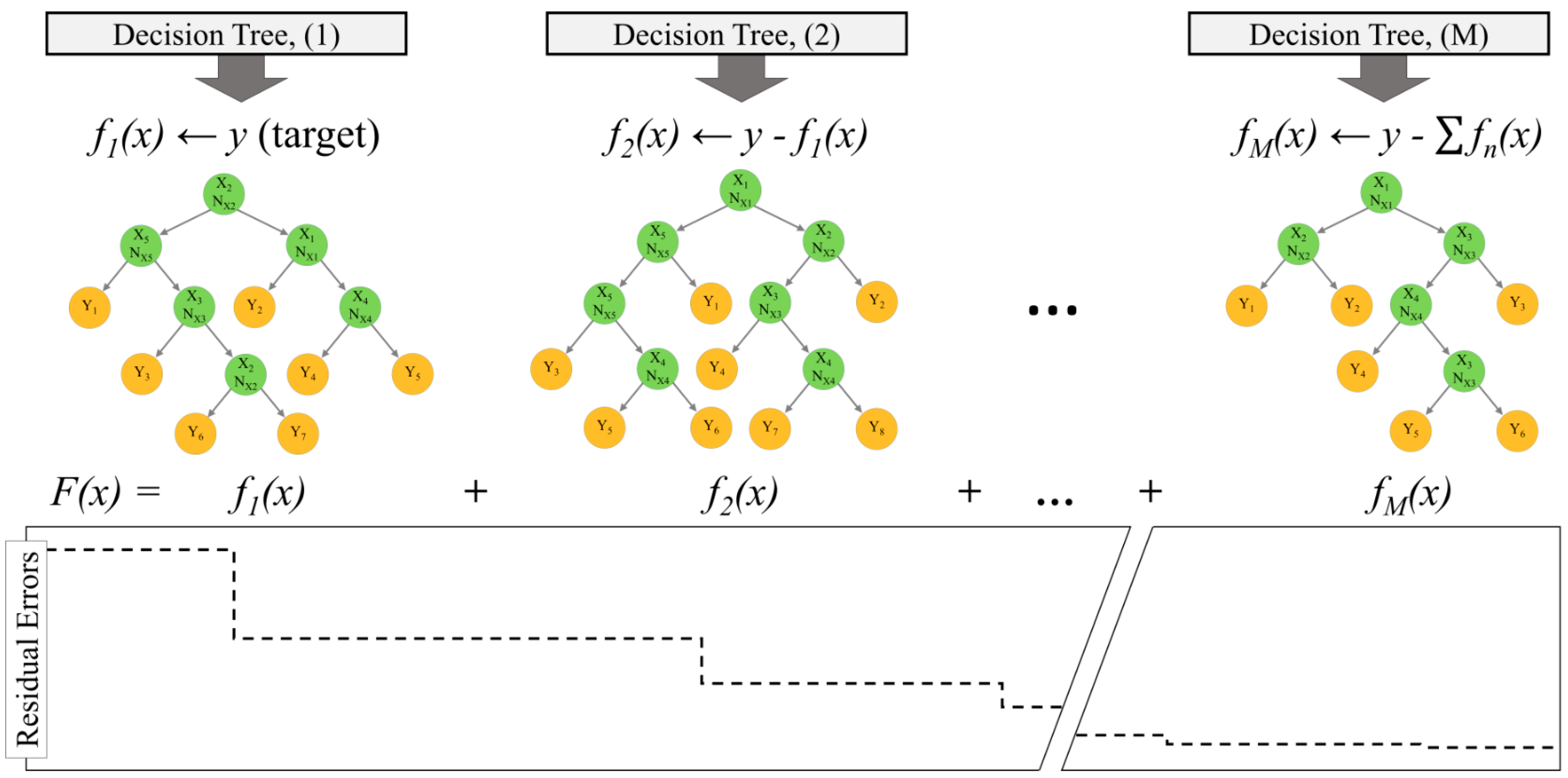

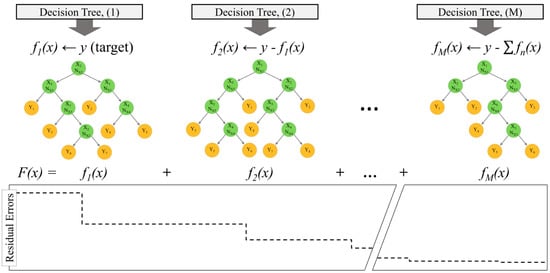

Figure 6. A schematic diagram showing the boosting processes in the Boosted Regression Tree (BRT) method.
Figure 6. A schematic diagram showing the boosting processes in the Boosted Regression Tree (BRT) method.
Remotesensing 11 00824 g006

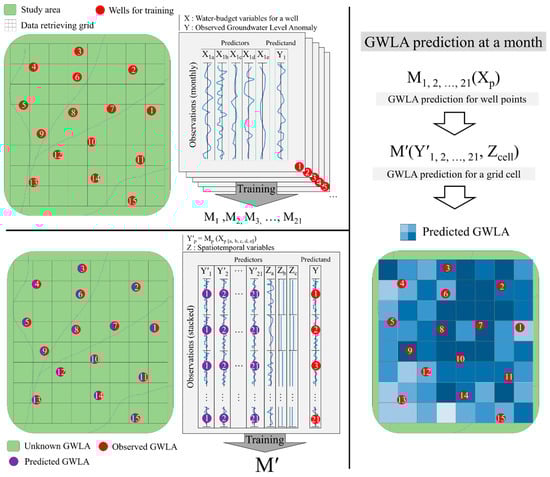

Figure 7. The conceptual design of the downscaling model. The process begins at the top left side of the figure (represents models in the first stage), followed by the bottom left (the spatial downscaling ensemble model in the second stage), and the right side explains how the prediction of the downscaled and gridded GWLA product is produced.
Figure 7. The conceptual design of the downscaling model. The process begins at the top left side of the figure (represents models in the first stage), followed by the bottom left (the spatial downscaling ensemble model in the second stage), and the right side explains how the prediction of the downscaled and gridded GWLA product is produced.
Remotesensing 11 00824 g007

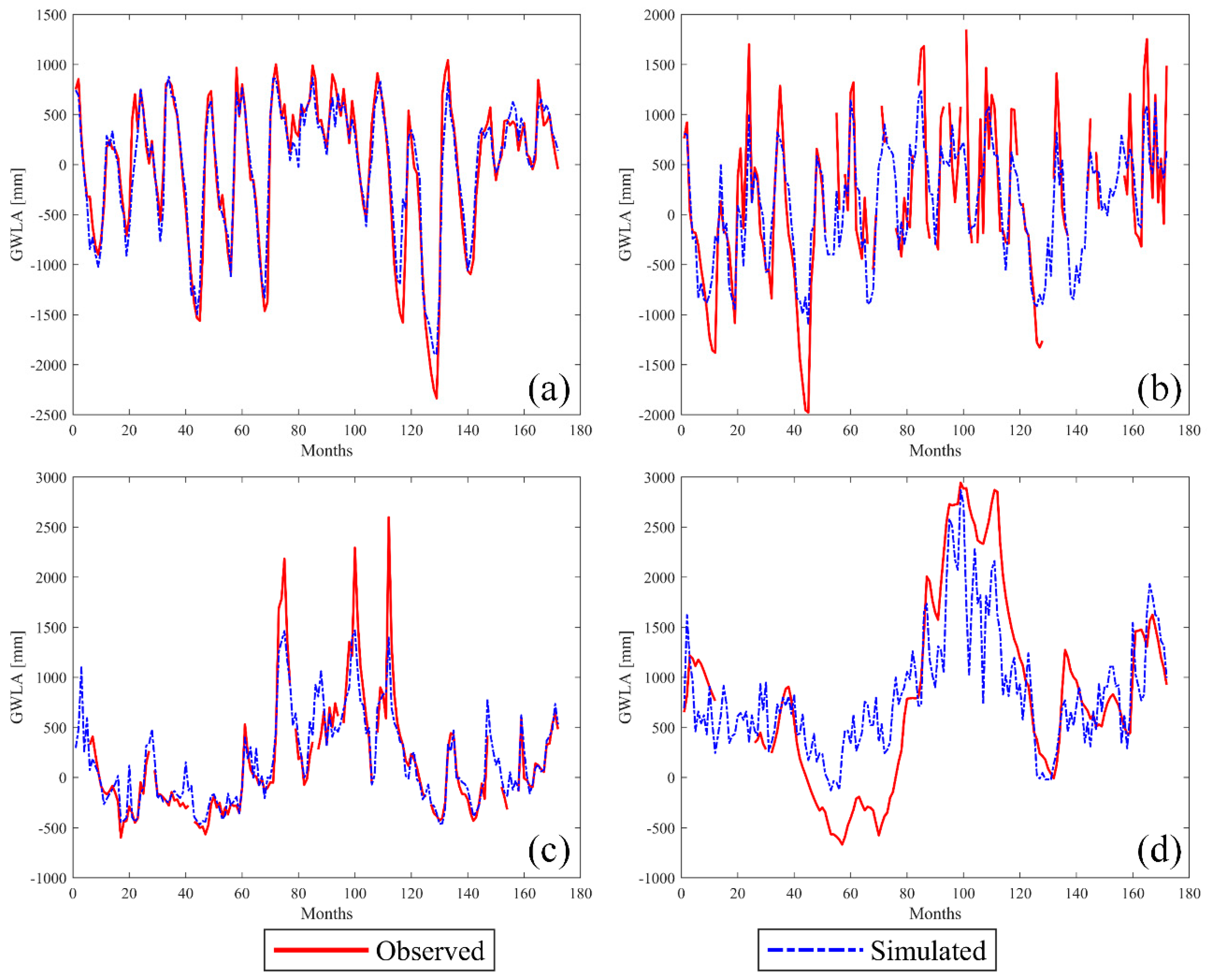

Figure 8. Time series graphs showing model-simulated and in-situ-derived GWLA for selected groundwater measurements stations: (a) Bondville, (b) Fermi, (c) Galena, and (d) Kilbourne. The blue line shows model-simulated while red is observed GWLA.
Figure 8. Time series graphs showing model-simulated and in-situ-derived GWLA for selected groundwater measurements stations: (a) Bondville, (b) Fermi, (c) Galena, and (d) Kilbourne. The blue line shows model-simulated while red is observed GWLA.
Remotesensing 11 00824 g008

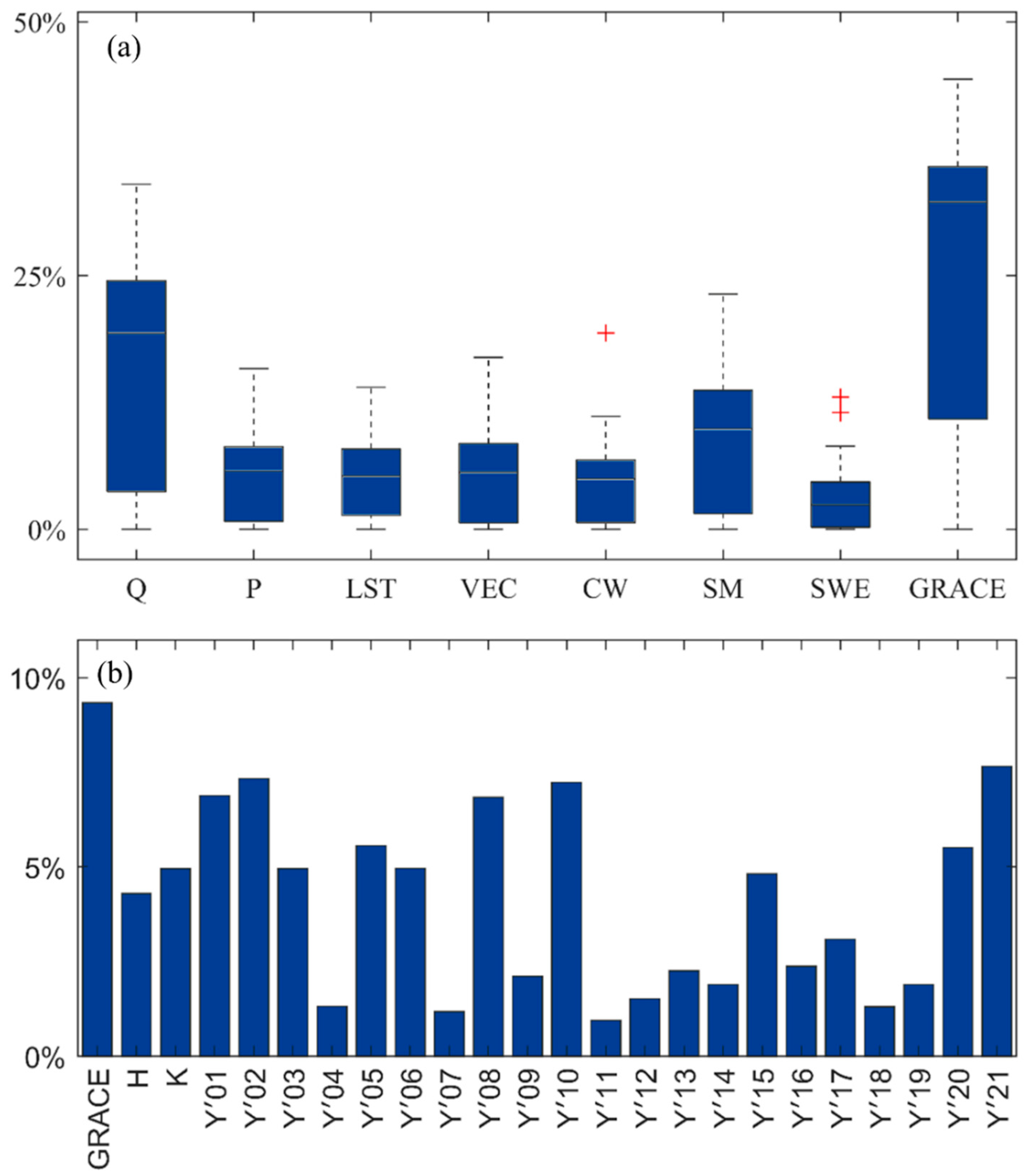

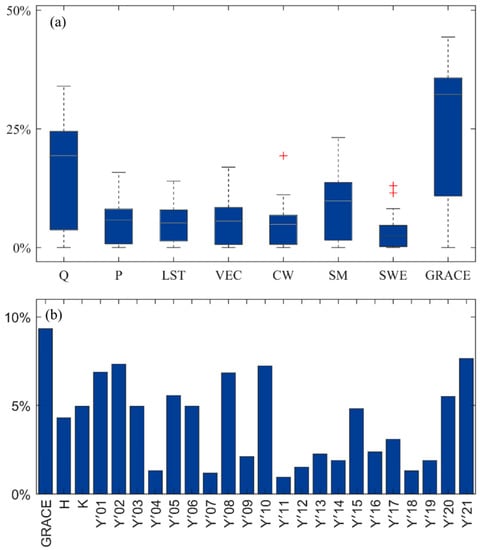

Figure 9. Percentage contribution of each predictor variable. (a) Boxplots for each predictor across all the models in the first stage and (b) bars for each predictor in the second stage, downscaling model.
Figure 9. Percentage contribution of each predictor variable. (a) Boxplots for each predictor across all the models in the first stage and (b) bars for each predictor in the second stage, downscaling model.
Remotesensing 11 00824 g009

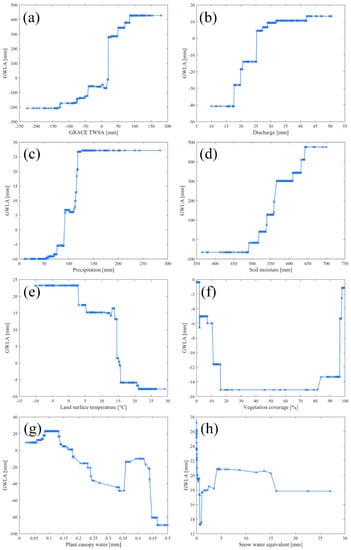

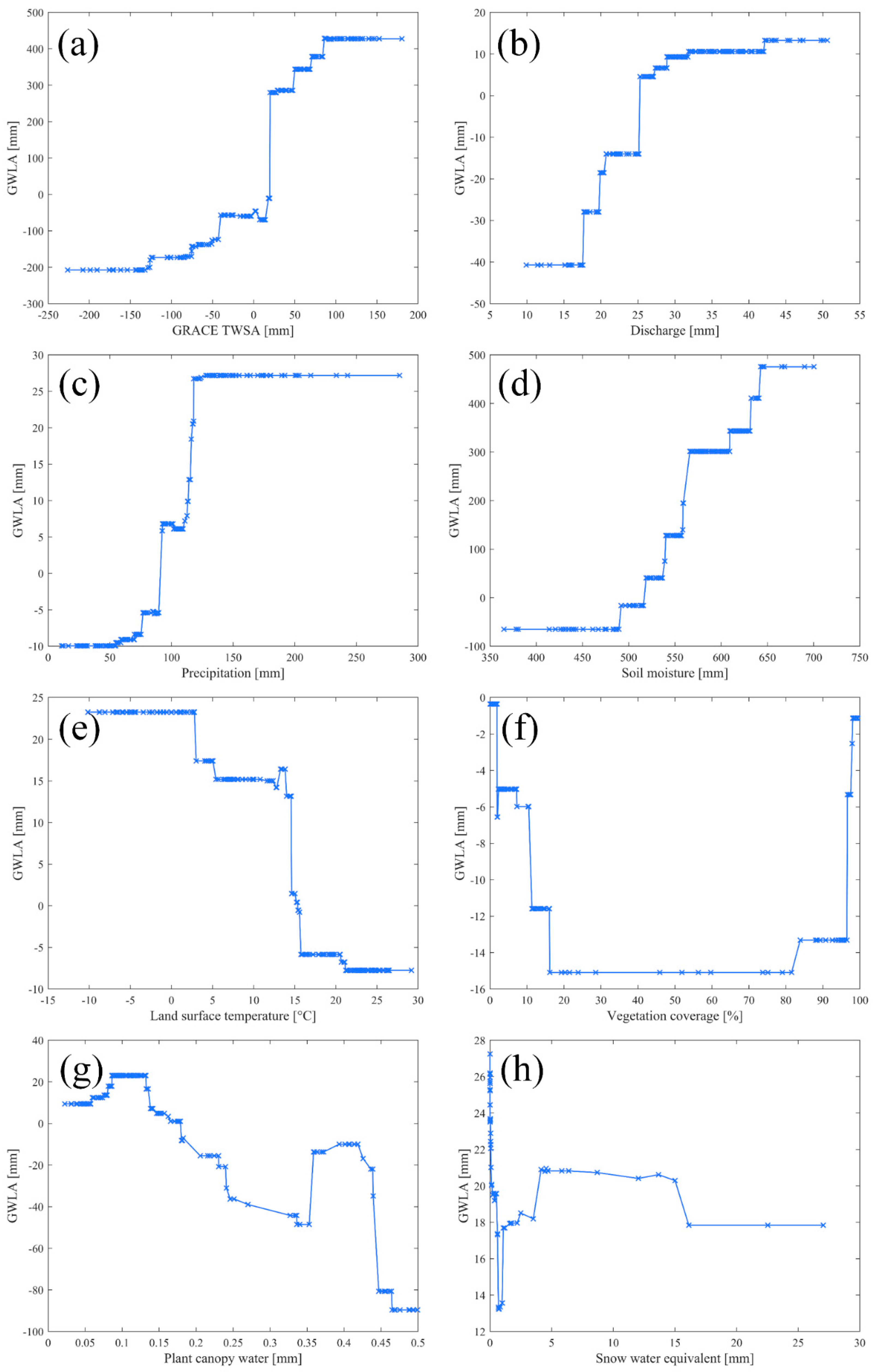

Figure 10. Partial dependence plots for predictor variables in selected GWLA prediction models (ah). The cross marks indicate distribution of the data points.
Figure 10. Partial dependence plots for predictor variables in selected GWLA prediction models (ah). The cross marks indicate distribution of the data points.
Remotesensing 11 00824 g010

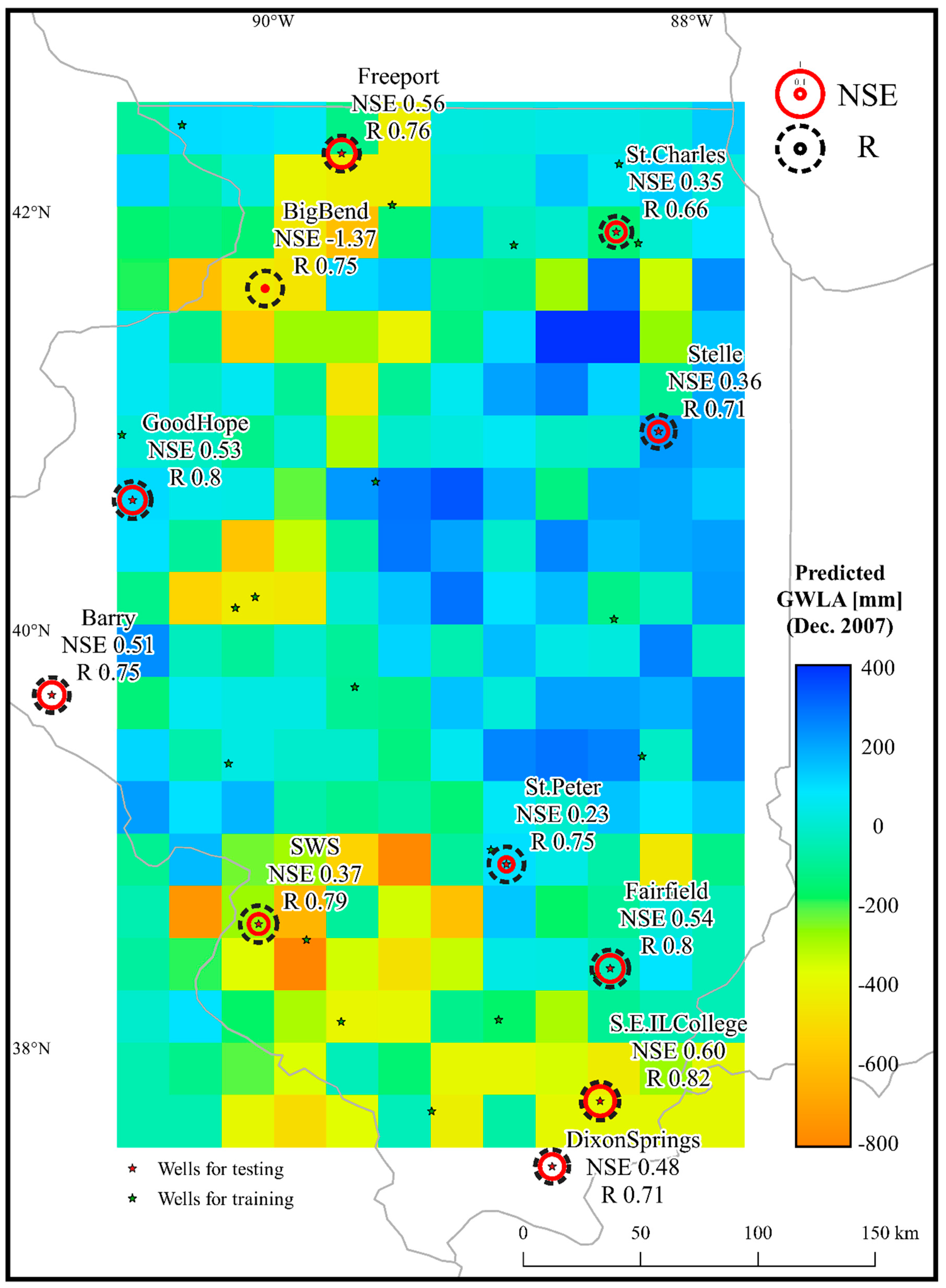

Figure 11. Map showing predicted GWLA at 0.25° × 0.25° scale, overlain circles (drawn to scale) with performance metrics (NSE: Nash-Sutcliffe Efficiency and R: Correlation coefficients) are the locations of in-situ groundwater level measurement stations. Performance metrics indicate the comparison between model-predicted and in-situ GWLA.
Figure 11. Map showing predicted GWLA at 0.25° × 0.25° scale, overlain circles (drawn to scale) with performance metrics (NSE: Nash-Sutcliffe Efficiency and R: Correlation coefficients) are the locations of in-situ groundwater level measurement stations. Performance metrics indicate the comparison between model-predicted and in-situ GWLA.
Remotesensing 11 00824 g011

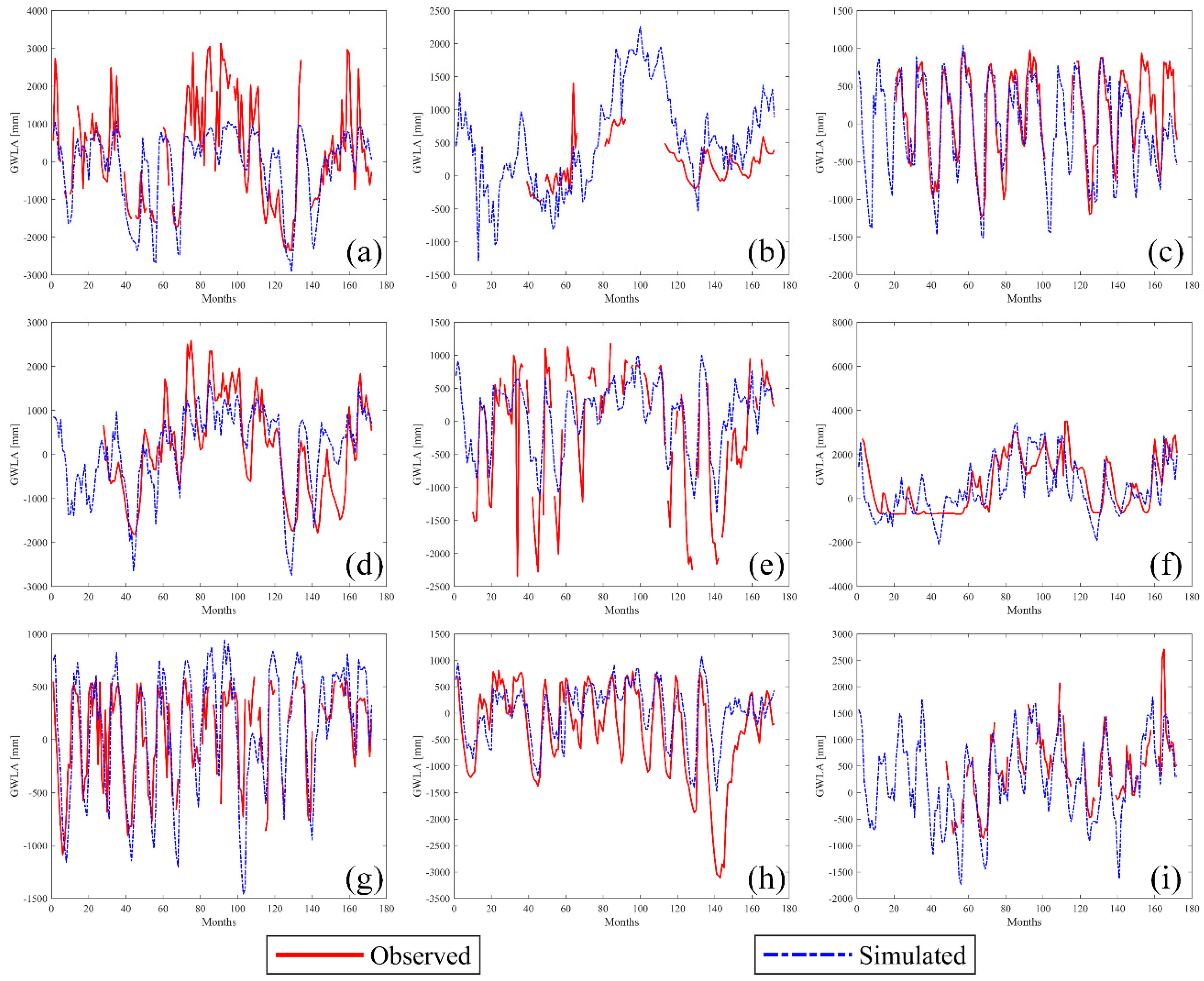

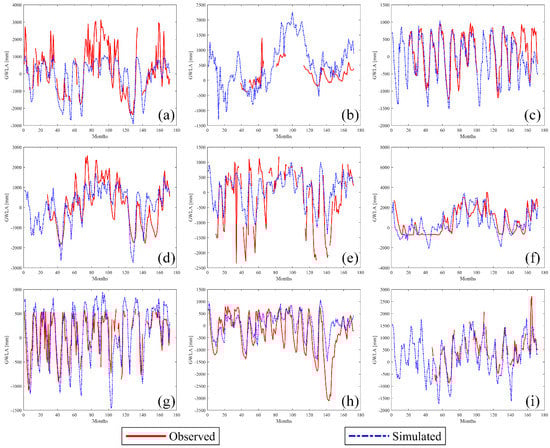

Figure 12. Monthly timeseries model-predicted (blue line) vs. in-situ-derived GWLA (red) for test wells in the study area: (a) Barry, (b) Big Bend, (c) Fairfield, (d) Freeport, (e) Good Hope, (f) St. Charles (g) St. Peter, (h) Stelle, and (i) SWS stations.
Figure 12. Monthly timeseries model-predicted (blue line) vs. in-situ-derived GWLA (red) for test wells in the study area: (a) Barry, (b) Big Bend, (c) Fairfield, (d) Freeport, (e) Good Hope, (f) St. Charles (g) St. Peter, (h) Stelle, and (i) SWS stations.
Remotesensing 11 00824 g012
Table 1. The overall statistics showing model performance by comparing model-predicted GWLA with the in-situ-derived GWLA data (data ranges from 2002 to 2016) for the training (calibration), M1-M21 include models in the first stage, and M’ is the ensemble downscaling model.
Table 1. The overall statistics showing model performance by comparing model-predicted GWLA with the in-situ-derived GWLA data (data ranges from 2002 to 2016) for the training (calibration), M1-M21 include models in the first stage, and M’ is the ensemble downscaling model.
ModelsStations NameME (mm)MAE (mm)RMSE (mm)RNSE
M1Bellville0.27317.71450.120.880.76
M2Bondville−0.20146.29216.700.960.91
M3Boyleston−0.21279.70405.130.810.64
M4Brownstown13.39131.48163.730.980.92
M5Carbondale0.00209.15303.280.950.90
M6CrystalLake0.00206.99322.470.740.54
M7Dekalb0.000.742.781.001.00
M8Fermi0.22277.96420.640.850.71
M9Galena2.13115.41212.850.930.86
M10Greenfield0.000.391.071.001.00
M11Janesville0.0196.84150.910.910.82
M12Kilbourne0.00410.54557.370.830.65
M13Monmouth0.00118.51149.770.980.96
M14Mt.Morris19.31671.85975.440.870.72
M15Olney20.11274.65553.390.750.54
M16Peoria0.051.693.201.001.00
M17Perry0.16130.43161.141.000.99
M18RendLake9.15125.30204.900.940.86
M19Snicarte0.18241.00346.570.830.66
M20SpartaEden35.18194.03295.290.950.85
M21Springfield−0.24368.14643.000.850.71
M′Downscaling0.00104.52192.060.980.96
Average for individual models 4.52201.06305.990.910.82

Share and Cite

MDPI and ACS Style

Seyoum, W.M.; Kwon, D.; Milewski, A.M. Downscaling GRACE TWSA Data into High-Resolution Groundwater Level Anomaly Using Machine Learning-Based Models in a Glacial Aquifer System. Remote Sens. 2019, 11, 824. https://doi.org/10.3390/rs11070824

AMA Style

Seyoum WM, Kwon D, Milewski AM. Downscaling GRACE TWSA Data into High-Resolution Groundwater Level Anomaly Using Machine Learning-Based Models in a Glacial Aquifer System. Remote Sensing. 2019; 11(7):824. https://doi.org/10.3390/rs11070824

Chicago/Turabian Style

Seyoum, Wondwosen M., Dongjae Kwon, and Adam M. Milewski. 2019. "Downscaling GRACE TWSA Data into High-Resolution Groundwater Level Anomaly Using Machine Learning-Based Models in a Glacial Aquifer System" Remote Sensing 11, no. 7: 824. https://doi.org/10.3390/rs11070824

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
