Higher-Order Conditional Random Fields-Based 3D Semantic Labeling of Airborne Laser-Scanning Point Clouds

1
College of Civil Engineering, Nanjing Forestry University, Nanjing 210037, China
2
College of Information Science and Engineering, Northeastern University, Shenyang 110819, China
3
Department of Geomatics Engineering, University of Calgary, Calgary, AB T2N 1N4, Canada
4
College of Forestry, Nanjing Forestry University, Nanjing 210037, China
5
School of Computer and Information Engineering, Chuzhou University, Chuzhou 239000, China
6
College of Information Science and Technology, Nanjing Forestry University, Nanjing 210037, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(10), 1248; https://doi.org/10.3390/rs11101248
Received: 8 April 2019 / Revised: 20 May 2019 / Accepted: 21 May 2019 / Published: 27 May 2019
This paper presents a novel framework to achieve 3D semantic labeling of objects (e.g., trees, buildings, and vehicles) from airborne laser-scanning point clouds. To this end, we propose a framework which consists of hierarchical clustering and higher-order conditional random fields (CRF) labeling. In the hierarchical clustering, the raw point clouds are over-segmented into a set of fine-grained clusters by integrating the point density clustering and the classic K-means clustering algorithm, followed by the proposed probability density clustering algorithm. Through this process, we not only obtain a more uniform size and more homogeneous clusters with semantic consistency, but the topological relationships of the cluster’s neighborhood are implicitly maintained by turning the problem of topology maintenance into a clustering problem based on the proposed probability density clustering algorithm. Subsequently, the fine-grained clusters and their topological context are fed into the CRF labeling step, from which the fine-grained cluster’s semantic labels are learned and determined by solving a multi-label energy minimization formulation, which simultaneously considers the unary, pairwise, and higher-order potentials. Our experiments of classifying urban and residential scenes demonstrate that the proposed approach reaches 88.5% and 86.1% of “m F 1 ” estimated by averaging all classes of the F 1 -scores. We prove that the proposed method outperforms five other state-of-the-art methods. In addition, we demonstrate the effectiveness of the proposed energy terms by using an “ablation study” strategy. View Full-Text
Keywords: airborne laser-scanning; segmentation; cluster classification; neighborhood topology; higher-order potential; CRF optimization airborne laser-scanning; segmentation; cluster classification; neighborhood topology; higher-order potential; CRF optimization
Show Figures

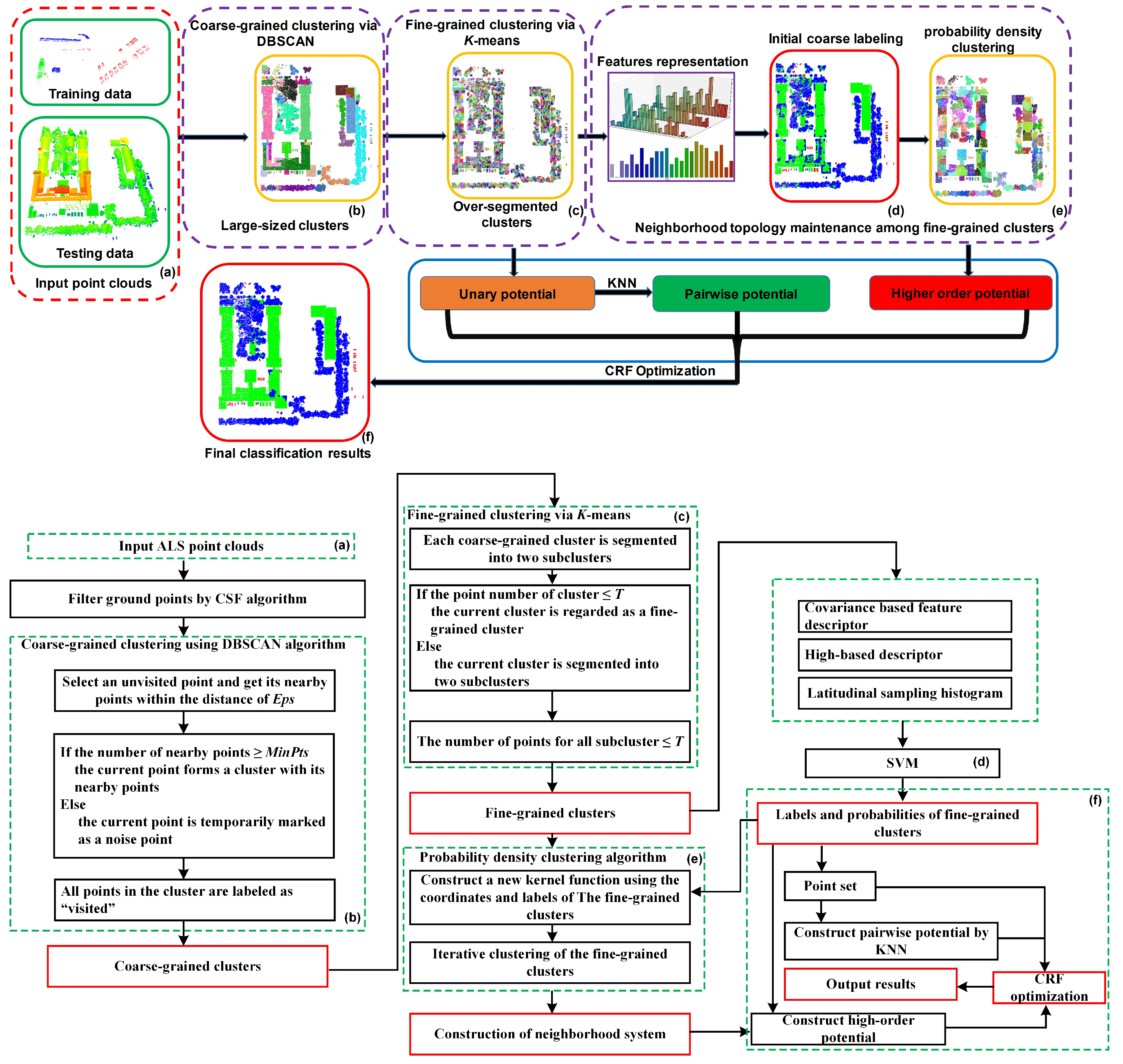

Figure 1

MDPI and ACS Style

Li, Y.; Chen, D.; Du, X.; Xia, S.; Wang, Y.; Xu, S.; Yang, Q. Higher-Order Conditional Random Fields-Based 3D Semantic Labeling of Airborne Laser-Scanning Point Clouds. Remote Sens. 2019, 11, 1248.
