Open AccessLetter
Remote Sens. 2018, 10(12), 2063; https://doi.org/10.3390/rs10122063

Model-Based Optimization of Spectral Sampling for the Retrieval of Crop Variables with the PROSAIL Model

1
Department of Geography, Ludwig-Maximilians-Universität München, Luisenstraße 37, D-80333 Munich, Germany
2
Institute of Surveying, Remote Sensing & Land Information (IVFL), University of Natural Resources and Life Sciences, Vienna (BOKU), Peter Jordan Str. 82, 1190 Vienna, Austria
*
Author to whom correspondence should be addressed.
Received: 19 September 2018 / Revised: 13 December 2018 / Accepted: 17 December 2018 / Published: 19 December 2018
(This article belongs to the Special Issue Applications of Spectroscopy in Agriculture and Vegetation Research)
Full-Text   |   PDF [1417 KB, uploaded 20 December 2018]   |

Abstract

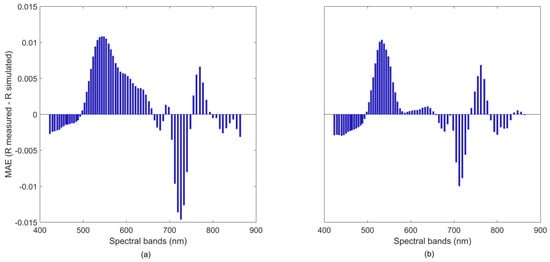

Satellite hyperspectral Earth observation missions have strong potential to support sustainable agriculture by providing accurate spatial and temporal information of important vegetation biophysical and biochemical variables. To meet this goal, possible error sources in the modelling approaches should be minimized. Thus, first of all, the capability of a model to reproduce the measured spectral signals has to be tested before applying any retrieval algorithm. For an exemplary demonstration, the coupled PROSPECT-D and SAIL radiative transfer models (PROSAIL) were employed to emulate the setup of future hyperspectral sensors in the visible and near-infrared (VNIR) spectral regions with a 6.5 nm spectral sampling distance. Model uncertainties were determined to subsequently exclude those wavelengths with the highest mean absolute error (MAE) between model simulation and spectral measurement. The largest mismatch could be found in the green visible and red edge regions, which can be explained by complex interactions of several biochemical and structural variables in these spectral domains. For leaf area index (LAI, m2·m−2) retrieval, results indicated only a small improvement when using optimized spectral samplings. However, a significant increase in accuracy for leaf chlorophyll content (LCC, µg·cm−2) estimations could be obtained, with the relative root mean square error (RMSE) decreasing from 26% (full VNIR range) to 15% (optimized VNIR) for maize and from 77% to 29% for soybean, respectively. We therefore recommend applying a specific model-error threshold (MAE of ~0.01) to stabilize the retrieval of crop biochemical variables. View Full-Text
Keywords: PROSAIL; LAI; leaf chlorophyll content; radiative transfer model; imaging spectroscopy; hyperspectral missions; feature selection; optimized spectral sampling PROSAIL; LAI; leaf chlorophyll content; radiative transfer model; imaging spectroscopy; hyperspectral missions; feature selection; optimized spectral sampling
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Berger, K.; Atzberger, C.; Danner, M.; Wocher, M.; Mauser, W.; Hank, T. Model-Based Optimization of Spectral Sampling for the Retrieval of Crop Variables with the PROSAIL Model. Remote Sens. 2018, 10, 2063.
